MODEL M5800SB-AP-60
5.8 GHz Digital Spread Spectrum Wireless Internet Access Point
Installation and Operating Instructions
SUNSTREAM WIRELESS, A DIVISION OF TRANGO SYSTEMS, INC.
COPYRIGHT 2001
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
1
1•Setup transceiver per instructions herein before installing outdoors.
2•Mount the articulated mounting arm to an earth grounded mast approximately 2.5 inches
in diameter. The pole must be securely mounted so that it does not move.
3• Install transceiver articulated mounting arm.
WARNINGWARNING
USE EXTREME CARE WHEN INSTALLING ANTENNAS NEAR POWER LINES.
4• Construct or puchase a shielded twisted pair (STP) cat 5 straight through 8 conductor
Ethernet cable terminated with shielded RJ45 connectors long enough to go along the pole
or wall to the building entry point. Use conduit and a drip loop as appropriate per National
Electrical Code.
6• Connect the cable to the unit and tighten the flange around the cable or conduit.
7• Install the junction box indoors near the entry point into the building. Plug the Ethernet
cable going to the transceiver into the ODU port (above the power input). Plug the wall
mount 20 V adapter or 24 Volt power source into the wall and then into the power input.
Verify that both LEDs come on solid after approximately 30 seconds.
8• Align the antenna for the coverage pattern desired. The elevation beamwidth is 10
degrees and the azimuth beamwidth is 60 degrees.
9• Tighten all nuts and bolts down after the alignment is completed.
10• To help protect against potential lightning damage, use an ethernet lightning surge
arrestor in line with the STP cable at the entry point to the building.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
2
Thank you for choosing Sunstream Wireless to fulfill your wireless internet access needs.
Unpack your system carefully. If any items are missing, notify your sales representative. If an
item appears to be damaged from shipment, replace it in its packing material and notify the
shipper. The subscriber kit contains the following items packaged in three boxes:
- 1 transceiver unit
- 2 mounting brackets
- 4 nuts for mounting brackets
- 1 Junction box (optional)
- 1 power adapter (optional)
- 1 warranty card
Service:
If the unit ever needs repair service, contact your service provider or Sunstream Wireless
distributor as appropriate for return authorization and shipping instructions.
FCC Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed
and used in accordance with these instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to correct the interference by one of more of the following measures:
1) Reorient the antenna;
2) Increase the separation between the affected equipment and the unit;
3) Connect the affected equipment to an outlet on a different circuit from that
which the receiver is connected to;
4) Consult the dealer and/or experienced radio/TV technician for help.
FCC ID: NCYM5800SBAP60
CANADA: Pending
IMPORTANT NOTE:
Intentional or unintentional changes or modifications not expressly
approved by the party responsible for compliance must not be made.
Any such modifications could void the user’s authority to operate the
equipment and will void the manufacturer’s warranty.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
3
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the
following antenna installation and device operating configurations must
be satisfied – The unit must be fixed-mounted on outdoor permanent
structures with a separation distance of at least 2 meters from all persons
and must not be co-located or operating in conjuction with any other
antenna or transmitter.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
4
System Description:
The M5800SB-AP-60 is a broadband wireless internet access system designed for
sending and receiving Ethernet based data traffic where conventional wiring is
impractical or when higher connection speeds are required. The system utilizes robust
spread spectrum technology to reduce susceptibility to interference. The typical access
point installation consists of one or more M5800SB-AP-60 transceiver mounted outdoors
and a junction box mounted indoors. The junction box provides power to the transceiver
by injecting the power onto the unused pairs of the Ethernet cable. The transceiver
antenna is aligned towards the service area. The coverage area will depend on the unit
mounting height and downtilt, but in general it is a 10 degree (el) by 60 degree(az)
projection perpendicular from the unit radome onto the service area.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
5

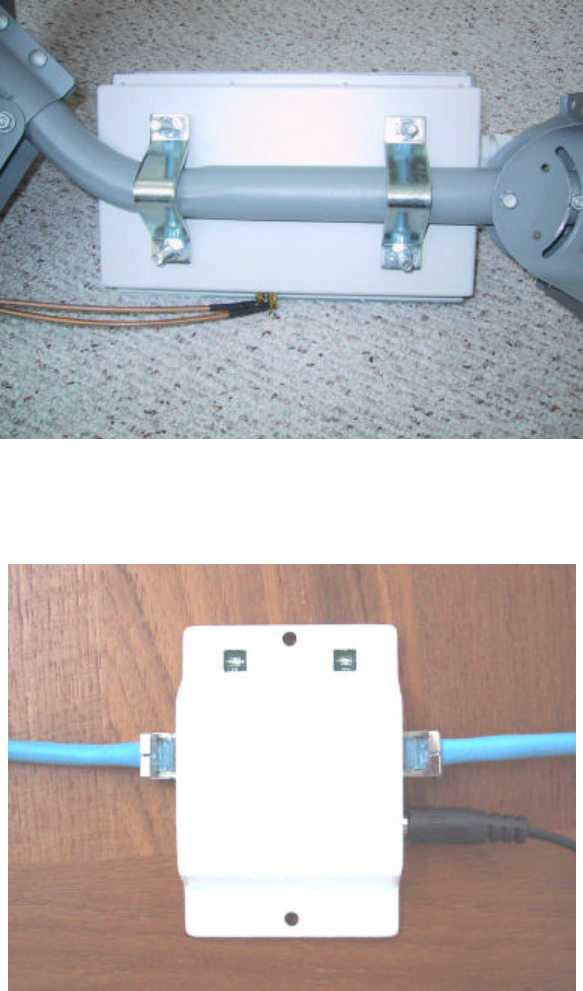

• FIGURE 1 •
Figure 1 shows installation of the transceiver on the pole.
• FIGURE 2 •
Figure 1 shows installation of the junction box and power adapter.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
6
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
7
Installation:
Typically the service provider will program the transceiver and professionally install the
entire system. If you are installing the system yourself, below you will find a step by step
guide.
TRANSCEIVER SETUP PRIOR TO INSTALLATION
Before installing the hardware you must set up the transceiver to allow communication
with the the subscriber database.
1) Obtain the M5800S-AP Series Wizard program, .cfg file diskette, and Setup cable
(CBLDAT-1) from your service provider.
2) Load the wizard program onto a PC or Laptop
3) Connect the junction box ODU port to the transceiver with a short section of 8
conductor UTP cat 5 network cable.
4) Connect the CBLDAT-1 to the PC or laptop serial port.
5) Use a Philips head screwdriver to remove the access door temporarily. Inside is an
RJ11 jack
6) Connect the phone connector end into the RJ11 jack.
7) Plug the power adapter into the junction box and then into a 120 VAC wall outlet.
8) Wait 30 seconds for the unit to power up. The LEDs on the junction box should both
be glowing solid.
9) Click on the wizard program icon.
10) Click on the “Serial Port” button, choose the appropriate COM port, and enter the
password (obtained from your service provider). If none was provided, the default is
“sunstream”.
11) Click the “Connect” button.
12) The screen should change to a display with the notation “PG-SYSINFO” at bottom
right.
13) Click the “Load Configuration” button.
14) A dialog box pops up prompting for the .cfg file. Locate the default.cfg file on the
diskette provided or download it from the web. Highlight it and click “open”
15) The program should return to the PG-SYSINFO page and show the new values just
loaded from the .cfg file.
16) Click “Reboot Unit” and wait 1 minute.
17) Click “Quit”
18) The unit is now ready for service and may be powered down . All settings loaded
will be retained in the non-volatile memory.
HARDWARE INSTALLATION
Mount the transceiver units above human and mechanical traffic, aiming it in the general
direction of the service area. In general, the higher above the ground the antenna is, the
better. A 10 foot 2 3/8” diameter steel mast on top of a building is typical. Make sure
that the mast is well grounded to earth ground with an 8 AWG or larger wire. For best
performance, the antenna must be 15 to 20 feet above all obstacles in the line of sight to
the any one subscriber unit.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
8
1) Keep the transmission path as open as possible. Objects such as walls and metallic
objects near the transmission path reflect signals and may reduce the transmission
distance.
2) Mount the transceiver on the mounting pole as shown in Figure 1.
3) Connect the STP run no longer than 300 feet (when using a 24 Volt supply), 150 feet
if using the standard 20 V supply– Use straight through 8 conductor cat 5 cable, making
sure that the RJ45 terminations are shielded.
4) Use standard outdoor to indoor drip loop and grounding per National Electrical Code
and electrical conduit if appropriate.
5) Connect the Junction Box to an interior wall near the entry point of the cable.
6) Plug the STP cable into the ODU port of the Junction Box.
7) Plug the wall mount power adapter into the Junction box.
8) Plug the wall mount adapter into the wall outlet.
9) The LEDs on the Junction box should both be on, indicating that the power is coming
into the junction box properly and that the outdoor transceiver is powered up properly.
Check the wiring if this is not the case.
CONNECTION VERIFICATION
After the alignment is completed, an Ethernet cable can be connected to the “NET” port
of the Junction Box and then to a switched hub or PC network card. A crossover cable
will be required if connecting to a PC NIC.
M5800SB-AP-60 Inputs and Outputs
1. POWER INPUT
Accepts a 10.5-24 Vdc power source such as the standard 20 Vdc adapter (supplied
with Sunstream part number ODU-PKIT-1).
2. ETHERNET DATA INTERFACE
Use a shielded cat 5 cable to connect the junction box to the transceiver unit. It is ok
to us UTP for the indoor connection to the switch or PC.
4. LED INDICATORS
These LEDs indicate when a data packet is transmitted(red) or received (green). The
yellow LED indicates the strength of the signal received from the base station.
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
9
CAUTION CAUTION
WHEN THE UNIT IS IN OPERATION AVOID STANDING DIRECTLY IN
FRONT OF THE ANTENNA. STRONG RF FIELDS ARE PRESENT WHEN
THE TRANSMITTER IS ON.
M5800SB-AP-60 Specifications
Receiver Section
Radio Section
LO Frequencies:
Default channel plan- Channel 1: 5.256 GHz
Channel 2: 5.276 GHz
Channel 3: 5.396 GHz
Channel 4: 5.316 GHz
Channel 5: 5.336 GHz
Channel 6: 5.356 GHz
Channels 7-32: not programmed
Cascade Noise Figure: < 6 dB
Sensitivity for 1E10-6 BER: - 80 dBm max 1000 byte packets
Adj. Channel Rejection: > 20 dB
Image Rejection: > 60 dB
Frequency Plan: Single conversion, IF at 480 MHz
LO stability: .000435 % PLL Stabilized (4.35 ppm) over temp
Input compression point: > -10 dBm
Data Output Section
Buffer size: 128K Bytes
Data Rate (User): 9.5 MBPS Maximum sustained throughput
Format: 10/100 BaseT IEEE 802.3 Ethernet compliant
Mechanical and Environmental
General
Material: Powdercoated aluminum base with polycarbonate radome
Size: 12.5”x5”x8” including mounting studs
Weight: 4 lb
Mounting: Grey steel pole/wall mount
Connectors/Indicators
RF Output: MCX for integral dual pol antenna
SMA per Part 15C, 15.203.
FCC Compliance: The transmitter shall comply with the following:
FCC Part 15.405, 15.407
Copyright © 1999 Sunstream Wireless, LLC All rights reserved.
10
FCC Part 15.207(a)
Serial Interface: RJ11 connector
LAN Interface Shielded RJ45 connector
Power: Carried on 4 unused pins of Ethernet cable
Environmental
Operating Temp: -40 to 60 deg C
Storage: -40 to 85 deg C
Humidity: 100 % When sealed properly
NEMA Rating: NEMA 4X
Shock: Sustain 3 axis drop from 5 feet
STANDARD EXTERNAL POWER SUPPLY
20 Volt DC Power adapter and J-Box supplied in ODU-PKIT-1 accessory package.
Type: Linear wallmount transformer
Input: 120 VAC
Output: 20 VDC +/- 1 V
Max current: 1200 mA
STANDARD ANTENNA
Type: Sectoral Patch Antenna
Polarization: Vertical, Horizontal electrically selectable
Frequency: 5.7 to 5.9 GHz
Gain: +18 dBiL
Az Beamwidth: >60 degrees
El Beamwidth: >8 degrees
Cross Pol: >15 dB
Front/Back Ratio:>30 DB as mounted in M5800SB-AP-60
VSWR: < 2.0:1 over Bandwidth
