MODEL M5800SB-SU-EXT

5.8 GHz Digital Spread Spectrum Wireless Internet Subscriber Unit

Installation and Operating Instructions

SUNSTREAM WIRELESS, A DIVISION OF TRANGO SYSTEMS, INC.

1•Setup transceiver per instructions herein before installing outdoors.

2•Mount the dish antenna to a wall or earth grounded mast 1.5 to 2.5 inches in diameter.

3• Install transceiver to dish antenna mounting arm. The pole must be securely mounted so

that it does not move, and may be from 1.5” to 3” in diameter.

WARNINGWARNING

USE EXTREME CARE WHEN INSTALLING ANTENNAS NEAR POWER LINES.

4• Slide heatshrink over antenna cables. Tighten right angle connectors to transceiver and

straight connectors to antenna feed element. Use a 5/16 inch open ended wrench to tighten

the connectors until snug. Do not overtighten. Heat the heatshrink until it contracts around

the connector junction.

5• Construct or puchase a shielded twisted pair (STP) cat 5 straight through 8 conductor

Ethernet cable terminated with shielded RJ45 connectors long enough to go along the pole

or wall to the building entry point. Use conduit and a drip loop as appropriate per National

Electrical Code.

6• Connect the cable to the unit and tighten the flange around the cable or conduit.

7• Install the junction box indoors near the entry point into the building. Plug the Ethernet

cable going to the transceiver into the ODU port (above the power input). Plug the wall

mount 20 V adapter into the wall and then into the power input. Verify that both LEDs

come on solid after approximately 30 seconds.

8• Align the antenna by moving it left to right, then up and down. Theblink rate of the

yellow LED viewable through the Access Door will increase and ultimately go solid if the

signal is strong enough. If the LED is not glowing no signal is being received from the Access

Point. Verify that the Green LED blinks occasionally to indicate packets being received from

the Access Point.

9• Tighten all nuts and bolts down after the alignment is completed.

10• To help protect against potential lightning damage, use an ethernet lightning surge

arrestor in line with the STP cable at the entry point to the building.

CAUTIONCAUTION

DO NOT APPLY POWER TO THE TRANSMITTER UNLESS THE ANTENNA IS

CONNECTED. PERMANENT DAMAGE MAY RESULT.

Thank you for choosing Sunstream Wireless to fulfill your wireless internet access needs.

Unpack your system carefully. If any items are missing, notify your sales representative. If an

item appears to be damaged from shipment, replace it in its packing material and notify the

shipper. The subscriber kit contains the following items packaged in three boxes:

- 1 transceiver unit

- 2 mounting brackets

- 4 nuts for mounting brackets

- 1 Junction box

- 1 power adapter

- 1 Dish antenna (24 inch width)

- 2 coaxial cables

- 1 dish antenna feed element

- 1 warranty card

Service:

If the unit ever needs repair service, contact your service provider or Sunstream Wireless

distributor as appropriate for return authorization and shipping instructions.

FCC Information:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy, and if not installed

and used in accordance with these instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to correct the interference by one of more of the following measures:

1) Reorient the antenna;

2) Increase the separation between the affected equipment and the unit;

3) Connect the affected equipment to an outlet on a different circuit from that

which the receiver is connected to;

4) Consult the dealer and/or experienced radio/TV technician for help.

FCC ID: NCYM5800SBSUEXT

CANADA: Pending

IMPORTANT NOTE:

Intentional or unintentional changes or modifications not expressly

approved by the party responsible for compliance must not be made.

Any such modifications could void the user’s authority to operate the

equipment and will void the manufacturer’s warranty.

IMPORTANT NOTE:

To comply with FCC RF exposure compliance requirements, the

following antenna installation and device operating configurations must

be satisfied – The antenna for this unit must be fixed-mounted on outdoor

permanent structures with a separation distance of at least 2 meters from

all persons and must not be co-located or operating in conjuction with

any other antenna or transmitter.

System Description:

The M5800SB-SU-EXT is a broadband wireless internet access system designed for

sending and receiving Ethernet based data traffic where conventional wiring is

impractical or when higher connection speeds are required. The system utilizes robust

spread spectrum technology to reduce susceptibility to interference. The typical

subscriber installation consists of an M5800SB-SU-EXT transceiver mounted outdoors

with a dish antenna and a junction box mounted indoors. The junction box provides

power to the transceiver by injecting the power onto the unused pairs of the Ethernet

cable. The transceiver antenna is aligned towards a base station that has a high speed

connection to the internet.

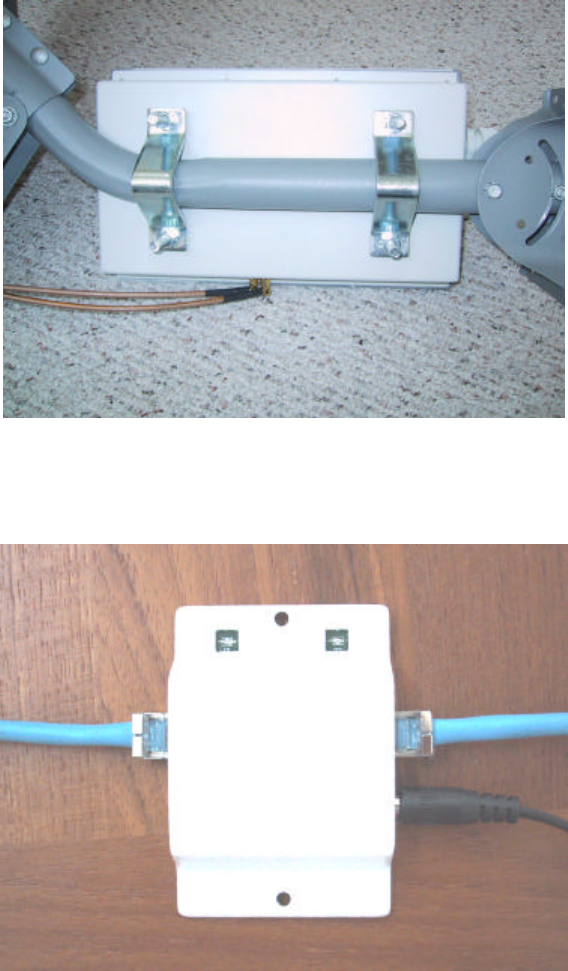

• FIGURE 1 •

Figure 1 shows installation of the dish and transceiver.

• FIGURE 2 •

Figure 1 shows installation of the junction box and power adapter.

Installation:

Typically the service provider will program the transceiver and professionally install the

entire system. If you are installing the system yourself, below you will find a step by step

guide.

TRANSCEIVER SETUP PRIOR TO INSTALLATION

Before installing the hardware you must set up the transceiver to allow communication

with the base station. Your service provider should provide a .cfg file to you that contains

all the required information.

1) Obtain the M5800S-SU Series Wizard program, .cfg file diskette, and Setup cable

(CBLDAT-1) from your service provider.

2) Load the wizard program onto a PC or Laptop

3) Connect the junction box ODU port to the transceiver with a short section of 8

conductor UTP cat 5 network cable.

4) Connect the CBLDAT-1 to the PC or laptop serial port.

5) Use a Philips head screwdriver to remove the access door temporarily. Inside is an

RJ11 jack

6) Connect the phone connector end into the RJ11 jack.

7) Plug the power adapter into the junction box and then into a 120 VAC wall outlet.

8) Wait 30 seconds for the unit to power up. The LEDs on the junction box should both

be glowing solid.

9) Click on the wizard program icon.

10) Click on the “Serial Port” button, choose the appropriate COM port, and enter the

password (obtained from your service provider). If none was provided, the default is

“sunstream”.

11) Click the “Connect” button.

12) The screen should change to a display with the notation “PG-SYSINFO” at bottom

right.

13) Click the “Load Configuration” button.

14) A dialog box pops up prompting for the .cfg file. Locate this file on the diskette

provided by the service provider. Highlight it and click “open”

15) The program should return to the PG-SYSINFO page and show the new values just

loaded from the .cfg file.

16) Click “Reboot Unit” and wait 1 minute.

17) Click “Quit”

18) The unit is now ready for service and may be powered down . All settings loaded

will be retained in the non-volatile memory.

HARDWARE INSTALLATION

Mount the transceiver antennas above human and mechanical traffic, aiming it in the

general direction of the base station. In general, the higher above the ground the antenna

is, the better. A 10 foot 2 3/8” diameter steel mast on top of a building is typical. Make

sure that the mast is well grounded to earth ground with an 8 AWG or larger wire. For

best performance, the antenna must be 15 to 20 feet above all obstacles in the line of sight

to the base station. Mount the feed to the end of the antenna.

1) Keep the transmission path as open as possible. Objects such as walls and metallic

objects near the transmission path reflect signals and may reduce the transmission

distance.

2) Do not add additional lengths of cable to connect the to the antenna as significant

losses in signal and reduced transmission range will occur.

3) Mount the transceiver on the dish mounting pole as shown in Figure 1.

4) Connect the antenna cables, paying attention to the polarization shown on the feed.

IMPORTANT NOTE: The transmitter uses a non-standard jack to connect to

the transmitter antenna. Any modification to this jack may void the user’s

authority to operate the equipment and will void the manufacturer’s warranty.

5) Connect the STP run no longer than 150 feet – Use straight through 8 conductor cat 5

cable, making sure that the RJ45 terminations are shielded.

6) Use standard outdoor to indoor drip loop and grounding per National Electrical Code

and electrical conduit if appropriate.

7) Connect the Junction Box to an interior wall near the entry point of the cable.

8) Plug the STP cable into the ODU port of the Junction Box.

9) Plug the wall mount power adapter into the Junction box.

10) Plug the wall mount adapter into the wall outlet.

11) The LEDs on the Junction box should both be on, indicating that the power is coming

into the junction box properly and that the outdoor transceiver is powered up properly.

Check the wiring if this is not the case.

ANTENNA ALIGNMENT

Once the power to the transceiver is verified, align the antenna by aiming it towards the

base station until the yellow LED blinks as fast as possible or turns completely solid. This

indicates a very strong signal from the base station. If the Yellow LED is lit up at all, the

signal is not being received or the antenna is aimed far away from the base station. The

beamwidth of the antenna is about 7 degrees, so small movements of the antenna can

create large changes in signal strength.

CONNECTION VERIFICATION

After the alignment is completed, an Ethernet cable can be connected to the “NET” port

of the Junction Box and then to a switched hub or PC network card. A crossover cable

will be required if connecting to a PC NIC.

CAUTION CAUTION DO NOT APPLY POWER TO THE TRANSCEIVER WITHOUT

THE ANTENNA SECURELY ATTACHED.

M5800SB-SU-EXT Inputs and Outputs

1. POWER INPUT

Accepts a 10.5-24 Vdc power source such as the standard 20 Vdc adapter (supplied

with Sunstream part number ODU-PKIT-1).

2. ETHERNET DATA INTERFACE

Use a shielded cat 5 cable to connect the junction box to the transceiver unit. It is ok

to us UTP for the indoor connection to the switch or PC.

4. LED INDICATORS

These LEDs indicate when a data packet is transmitted(red) or received (green). The

yellow LED indicates the strength of the signal received from the base station.

CAUTION CAUTION

WHEN THE UNIT IS IN OPERATION AVOID STANDING DIRECTLY IN

FRONT OF THE ANTENNA. STRONG RF FIELDS ARE PRESENT WHEN

THE TRANSMITTER IS ON.

M5800SB-SU-EXT Specifications

Transmitter Section

Radio Section:

Frequencies:

Storable Channels: 32 memory locations

Channel spacing: 5.736 to 5.836 GHz in 2 MHz increments

Default channel plan- Channel 1: 5.736 GHz

Channel 2: 5.756 GHz

Channel 3: 5.776 GHz

Channel 4: 5.796 GHz

Channel 5: 5.816 GHz

Channel 6: 5.836 GHz

RF Output Power: Max: +18 dBm +/- 1 dB

Min: -8 dBm +/- 1 dB

EIRP: +45 dBm (4 Watts) with 27 dBi dish (standard) antenna

Freq. Stability: .000435 % PLL Stabilized (4.35 ppm) over temp range

Freq. Plan: Single upconversion, 480 MHz IF

Modulated Bandwidth: 22 MHz (null to null, 20 dB)

2nd Harmonic atten: Per CFR47 part 15.247 (–58 dBc min)

LO Supression: Per CFR47 part 15.247 ( -70 dBc min)

Symbol Rate: 1.375 MSPS

Error Correction: None

Modulation: 1 MBPS DBPSK for header, 11 MBPS CCK spread spectrum

for payload

Data Input Section

Buffer size: 128K Bytes

Data Rate (User): Up to 9.5 MBPS Sustained throughput

Format: 10/100 BaseT IEEE 802.3 Ethernet compliant

Ethernet packet size: Up to 1760 byte long packets

Power

Input Voltage: Input voltage range at unit is 10.5 VDC to 24 VDC max

Power is supplied on Ethernet cable using junction box

provided with up to 150 foot STP cable.

Current Cons.: 740 mA in transmit mode at max power using 20 V standard

adapter (14.8W)

580 mA in receive mode using 20 V standard adapter (11.6 W)

Receiver Section

Radio Section

LO Frequencies:

Default channel plan- Channel 1: 5.256 GHz

Channel 2: 5.276 GHz

Channel 3: 5.396 GHz

Channel 4: 5.316 GHz

Channel 5: 5.336 GHz

Channel 6: 5.356 GHz

Channels 7-32: not programmed

Cascade Noise Figure: < 6 dB

Sensitivity for 1E10-6 BER: - 80 dBm max 1000 byte packets

Adj. Channel Rejection: > 20 dB

Image Rejection: > 60 dB

Frequency Plan: Single conversion, IF at 480 MHz

LO stability: .00025% PLL stabilized (+/-2.5ppm) over

temperature range

Input compression point: > -10 dBm

Data Output Section

Buffer size: 128K Bytes

Data Rate (User): 9.5 MBPS Maximum sustained throughput

Format: 10/100 BaseT IEEE 802.3 Ethernet compliant

Supported Protocols: TCP/IP, Telnet, TFTP, UDP

Mechanical and Environmental

General

Material: Powdercoated Aluminum base with polycarbonate radome

Size: 12.5”x5”x8” including mounting studs

Weight: 4 lb

Mounting: Grey steel pole mount provided

Connectors/Indicators

RF Output: Direct connect to antenna per Part 15C, 15.203.

FCC Compliance: The transceiver shall comply with the following:

FCC Part 15.247

FCC Part 15.207(a)

Serial Interface: RJ11 connector

LAN Interface Shielded RJ45 connector

Power: Carried on 4 unused pins of Ethernet cable

Environmental

Operating Temp: -40 to 60 deg C

Storage: -40 to 85 deg C

Humidity: 100 % When sealed properly

NEMA Rating: NEMA 4X

Shock: Sustain 3 axis drop from 5 feet

STANDARD EXTERNAL POWER SUPPLY

24 Volt DC Power adapter and J-Box supplied in ODU-PKIT-1 accessory package.

Type: Linear wallmount transformer

Input: 120 VAC

Output: 20 VDC +/- 1 V

Max current: 1200 mA

STANDARD ANTENNA

The unit is designed to operate with the AD5800-27-D dual linear polarized dish antenna.

See the product specification for more information.

Trango Systems M5800SBSUEXT Spread spectrum transmitter User Manual Manual M5800SB SU EXT

Trango Systems Inc Spread spectrum transmitter Manual M5800SB SU EXT

manual

Navigation menu

Namespaces

Views

Navigation
