User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
1
Access5830™
Wireless Broadband System
PROFESSIONAL INSTALLATION GUIDE
FOR
M5830S-SU-EXT
[draft]
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
2
1. Overview
This manual covers basic configuration and installation of the Access5830 Subscriber Unit M5830S-SU-EXT. Since
this device requires manual power limit settings (for 5.25-5.35 GHz U-NII band operation only), it is classified by the
FCC as a professional install device. To be in compliance with FCC requirements, the radio must be installed with one
of several approved antennas listed in this document.
The M5830S-SU-EXT subscriber unit (SU) works in conjunction with the M5830S-AP-60 access point. Please see the
Access5830 User Manual for general information on overall system implementation, configuration, and management of
the access point. The Access5830 Users Manual also covers many important aspects of subscriber unit configuration and
management which is applicable to the M5830S-SU-EXT.
For brevity, the M5830S-SU will be referred to as the SU-EXT in this text.
2. FCC Information
This device complies with Part 15 of FCC Rules and Regulations. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in
accordance with these instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in any particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
correct the interference by one of more of the following measures:
1) Reorient the antenna;
2) Increase the separation between the affected equipment and the unit;
3) Connect the affected equipment to a power outlet on a different circuit from that which the receiver is connected to;
4) Consult the dealer and/or experienced radio/TV technician for help.
FCC ID: NCYM5830SSU
Canada: XXXXXXXXXX
IMPORTANT NOTE:
Intentional or unintentional changes or modifications must not be made unless under the express consent of the party
responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will
void the manufacturer’s warranty. To comply with FCC RF exposure requirements, the following antenna installation
and device operating configurations must be satisfied. The antenna for this unit must be fixed and mounted on outdoor
permanent structures with a separation distance of at least two meters from all persons. Furthermore, it must not be co-
located or operating in conjunction with any other antenna or transmitter.
3. Warranty Information
Radios from Trango Broadband Wireless are warranted from one year from date of purchase. Please see
www.trangobroadband.com for complete description of warranty coverage and limitations
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
3
4. General Information
4.1 Contents
Each M5830S-SU-EXT radio comes equipped with the radio itself, a power-over-Ethernet (POE) J-Box, an AC adapter,
and mounting hardware for both pole and wall installation. The radio has two reverse-polarity SMA connectors on the
side for attachment to an external antenna. The MAC ID and Serial # are printed on a label on the back of the radio.
4.2 Connections
See Access5830 User Manual for detailed diagram for connecting radio to network or PC utilizing the power over
Ethernet (PoE) J-Box can cat-5 cables.
NOTE: DO NOT APPLY DC POWER TO THE M5830S-SU-EXT UNTIL THE ANTENNA IS ATTACHED
OTHERWISE DAMAGE TO THE RADIO MAY OCCUR.
5. Setting the Maximum RF Power
When installing M5830S-SU-EXT there are several FCC certified antennas options available. Due to FCC restrictions
the professional installer must manually set the maximum power for the 5.25 to 5.35 GHz U-NII band based upon which
antenna is being used. The table below shows the maximum power the radio must have to achieve an EIRP of 1 watt
(FCC limit). Only the antennas listed below are allowed to be used with the M5830S-SU-EXT.
Antenna Model Antenna Gain (incl/cable loss) Radio Max power setting
AD5830-23-D +24 dBi +6 dBm
AD5830-24-D +24 dBi +6 dBm
AD5830-27-D +27 dBi +3 dBm
SPD2-5.2 +27 dBi +3 dBm
SPD3-5.2 +30 dBi 0 dBm
SPD4-5.2 +33 dBi -3 dBm
Note that in all cases, Antenna Gain + Radio Max Power Setting = 30 dBm. Once set, the power leveling feature will
still operate normally, but the maximum EIRP will never exceed 1 watt (30 dBm).
NOTE: IT IS THE RESPONSIBILITY OF THE INSTALLER TO ENSURE THAT THE FCC
REQUIREMENTS DESCRIBED ABOVE ARE MET.
The telnet or serial port command to change the maximum power is:
uniimaxpower <max power in dBm>
The flash memory must be updated after running the command.
The command must be run on the M5830S-SU-EXT (via telnet or serial port session) prior to installing the antenna and
while the Opmode is OFF.
Example: To set the max power setting for the AD5830-23-D:
#> Uniimaxpower 6
#> Updateflash systemsetting
Note: The maximum RF power may be left at +22 dBm for the 5.725 to 5.85 GHz ISM band regardless of which antenna
is used. No manual setting is required.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
4
6.0 INSTALLATION INSTRUCTIONS
The M5830S-SU-EXT radio unit may be installed on a pole or a flat surface per the drawing below:
TO ANTENNA TO ANTENNA
BOLTS FOR MOUNTING TO WALL
NOT SUPPLIED
BRACKETS (SUPPLIED)
POLE MOUNTING WALL MOUNTING
Please see the Access 5830 User Manual for instruction on grounding and weatherproofing the installation. In addition
to the guidelines listed in the Access5830 User Manual, installers must cover cable-SMA connectors with heat shrink
tubing to provide weatherproofing of the RF cable connectors.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
5
6.1 AD5830-23-D PANEL ANTENNA
To install the AD5830-23-D Panel antenna please see the drawing below
HEATSHRINK HERE AFTER
TIGHTENING CONNECTOR
4X 1) HAND TIGHTEN ALL THREAD INTO ENCLOSURE
2) TORQUE KEP NUTS (8-12 IN-LBS)
3) ATTACH TO POLE WITH "V" BRACKET
4) ATTACH KEP NUTS TO "V" BRACKET AND TORQUE
HARDWARE TO ATTACH BRACKET
TO WALL NOT SUPPLIED
4X ATTACH WALL BRACKET WITH
5/16-18 X .500 HEX HEAD
AND LOCK WASHERS
HEAT SHRINK HERE AFTER
TIGHTENING CONNECTOR
POLE MOUNTING WALL MOUNTING
27° 11°
61°
25°
POLE MOUNT("V") BRACKET
WALL MOUNT BRACKET
2X CA-9023
A-9014

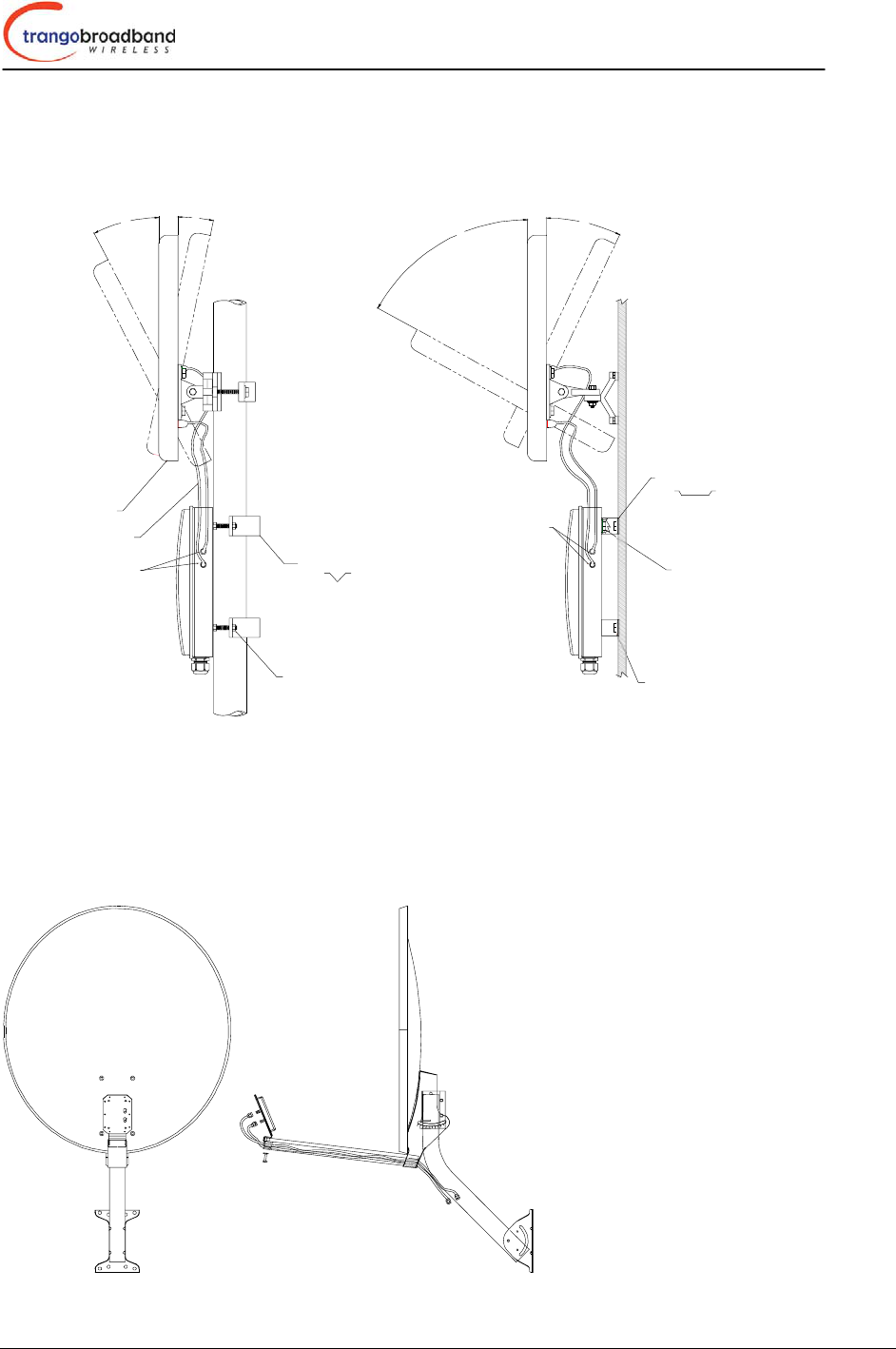

6.2 AD5830-24-D and AD5830-27-D DSS STYLE ANTENNAS
To install the AD5830-24-D or AD5830-27-D DSS Style Dish antennas, please follow the instructions below. These
antennas are for low rise building installation only. Do not install in an area where high (>70 mph) winds are expected.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
6
6.3 RADIOWAVES SPD5.2-X PRIME FOCUS DISH ANTENNAS
To install the SPD2-5.2, SPD3-5.2, or SPD4-5.2 Prime Focus Dish antennas, please follow the instructions supplied with
the antenna.
The Cable Kit CBLCOAX-7 (ordered separately) must be used with these antennas so that the Antenna may be mated to
the SMA Reverse Polarity connector on the Radio. The kit contains two Cable adapters and heat shrink tubing.
These antennas are designed for superior performance in tower installations that may be subject to high winds.
Radomes are available for installations in areas that receive heavy snowfall.
7. SU Antenna Alignment
To align the SU antenna for optimal performance, follow the procedure below.
Once the SU is installed and aimed in the general direction of the AP, it is time to perform an RSSI test to determine the
signal strength from the AP, and to precisely align the SU antenna for maximum signal strength.
SU Antenna Alignment Procedure
1. Ensure AP is in opmode AP
2. Telnet into the SU (while in opmode “OFF”) or access the radio via hyperterminal/serial port.
3. Type command RSSI <channel> <polarization> - Example RSSI 3 V (chan. 3, vertical polarization)
4. Telnet session screen will begin a continuous readout of the received signal strength.
5. As you view the RSSI reading, move the antenna in the horizontal and vertical planes until the maximum RSSI
reading is achieved. For short links you can expect an RSSI of –60 dBm or better. For longer links and RSSI
of –75 dBm is acceptable. Any RSSI of less than –80 dBm may be too weak for the radios to reliably associate
and pass data.
6. If it is not possible to receive an adequate RSSI reading, it may be necessary to reorient the AP (up/down,
left/right), to increase the output power of the AP, or to move the SU to a location with better line-of-sight
conditions to the AP.
Once you are satisfied with the RSSI reading, tighten down the antenna in the optimum position. To stop the RSSI
continuous readout, hit SPACE, then ENTER.
Note: The amber light on the bottom of the SU will also indicate RSSI according to the following parameters:
RSSI< -80dBm not lit
RSSI > -80dBm blinking.
RSSI ≥ -65dBm solid. (blink rate increases with signal strength.)
This concludes the installation process.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
7
8.0 Specifications
8.1 TRANSMITTER SECTION
Radio Section
Frequencies:
Storable Channels: 30 memory locations
Channel spacing: Low Band: 5.260 to 5.340 GHz in 1 MHz increments
High Band: 5.736 to 5.836 GHz in 1 MHz increments
Default Channels- Channel 1: 5.736 GHz
Channel 2: 5.756 GHz
Channel 3: 5.776 GHz
Channel 4: 5.796 GHz
Channel 5: 5.816 GHz
Channel 6: 5.836 GHz
Channel 7: 5.260 GHz
Channel 8: 5.280 GHz
Channel 9: 5.300 GHz
Channel 10: 5.320 GHz
Channel 11: 5.340 GHz
Channels 12-30: Unprogrammed
RF Conducted Power: SU: Low Band: Max: +13 dBm +/- 2 dB
Min: -8 dBm +/- 2 dB
SU-EXT: Low Band: Max: +6 dBm +/- 2 dB
Min: -8 dBm +/- 2 dB
All models High Band: Max: +22 dBm +/- 2 dB
Min: -8 dBm +/- 2 dB
EIRP Max: +40 dBm High band with internal 18 dBi patch antenna (-SU)
+45 dBm High band with 24 dBi DSS dish or Patch (-SU-EXT)
+48 dBm High band with 27 dBi DSS dish (-SU-EXT)
+49 dBm High band w/28 dBi dish (-SU-EXT with SPD2-5.2)
+52 dBm High band w/31 dBi dish (-SU-EXT with SPD3-5.2)
+55 dBm High band w/34 dBi dish (-SU-EXT with SPD4-5.2)
+30 dBm Low band Maximum with all antenna configurations
(professional install required)
Freq. Stability: .00025 % PLL Stabilized (2.5 ppm) over temp
Freq. Plan: Single upconversion, 480 MHz IF
Modulated BW: 22 MHz (null to null, 20 dB)
2nd Harmonic atten: Per CFR47 part 15.205
LO Supression: Per CFR47 part 15.205
Symbol Rate: 1.375 MSPS
Error Correction: None
Modulation: 1 MBPS DBPSK for header, 11 MBPS CCK spread spectrum for
payload
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
8
Data Input Section
Data Rate (User): Up to 10 MBPS Sustained throughput
Format: 10/100 BaseT IEEE 802.3 Ethernet compliant
Ethernet packet: Up to 1600 byte long packets
Power
Input Voltage: Input voltage range at unit is 10.5 VDC to 24 VDC max
Power is supplied on Ethernet cable using junction box provided
with up to 330 foot 24 AWG STP cable.
Current Cons.: 575 mA in transmit mode at max power using 20 V standard adapter
(11.5W)
500 mA in receive mode using 20 V standard adapter (10 W)
8.2 RECEIVER SECTION
Radio Section
Frequencies:
Storable Channels: 30 memory locations
Channel spacing: Low Band: 5.260 to 5.340 GHz in 1 MHz increments
High Band: 5.736 to 5.836 GHz in 1 MHz increments
Default Channels- Channel 1: 5.736 GHz
Channel 2: 5.756 GHz
Channel 3: 5.776 GHz
Channel 4: 5.796 GHz
Channel 5: 5.816 GHz
Channel 6: 5.836 GHz
Channel 7: 5.260 GHz
Channel 8: 5.280 GHz
Channel 9: 5.300 GHz
Channel 10: 5.320 GHz
Channel 11: 5.340 GHz
Channels 12-30: Unprogrammed
Cascade Noise Figure: < 6 dB
Sensitivity: - 83 dBm typical-1600 byte packet
(1E10-6 BER) - 87 dBm typical-64 byte packet
Adj. Channel Rejection: > +20 dB for 10 % PER
Image Rejection: > +60 dB for 10% PER
Frequency Plan: Single conversion, IF at 480 MHz
LO stability: .00025% PLL stabilized (+/-2.5ppm) over temperature range
Input compression point: > -15 dBm P1dB
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
9
Data Output Section
Data Rate (User): 10 MBPS Maximum sustained throughput
Format: 10/100 BaseT IEEE 802.3 Ethernet compliant
Ethernet Protocols: TCP/IP, Telnet, TFTP, UDP, HTTP
8.3 MECHANICAL AND ENVIRONMENTAL
General
Material: Powdercoated Aluminum base with polycarbonate radome
Size: 12.5”x5”x8” including mounting studs
Weight: 4 lb
Mounting: Custom mounting bracket with azimuth-elevation adjustment.
Connectors/Indicators
RF Output: -SU: Integral internal patch antenna per Part 15C, 15.203.
-SU-EXT: Reverse Polarity SMA per Part 15C, 15.203
FCC Compliance:
The transceiver shall comply with the following regulations:
FCC 15.247 Spread Spectrum transmitter - 5.725 to 5.85 GHz – EIRP = unlimited
FCC 15.407(2) U-NII Band 2 transmitter - 5.25 to 5.35 GHz – EIRP = 30 dBm max
Subpart B
Class B Digital device verification
Subpart C
FCC 15.203 Antenna connection requirement – non-standard connection
FCC 15.209 Unwanted emissions below 1GHz -
FCC 15.207(a) AC conducted emissions 450Khz to 30 MHz
FCC 15.205 Restricted bands of operation (LO and harmonics) - 54 dBuV @3 meters
Serial Interface: Shielded RJ11 connector
LAN Interface: Shielded RJ45 connector
Power: Carried on 4 unused pins of Ethernet cable
Environmental
Operating Temp: -40 to 60 deg C
Storage: -40 to 85 deg C
Humidity: 100 % When sealed properly
NEMA Rating: NEMA 4
Shock: Sustain 3 axis drop from 5 feet
8.4 STANDARD EXTERNAL POWER SUPPLY
20 Volt DC Power adapter and J-Box supplied with product.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
10
Type: Linear wall mount transformer
Input: 120 VAC
Output: 20 VDC +/- 1 V
Max current: 1200 mA
8.5 STANDARD ANTENNA FOR M5830S-SU-EXT (model AD5830-24-D)
The unit is designed to operate with the Trango Boadband model AD5830-24-D dual linear polarized
dish antenna.
Type: 18” DSS Style Dish Antenna
Polarization: Vertical, Horizontal electrically selectable
Frequency: 5.7 to 5.9 GHz
Gain: +24 dBi
Az Beamwidth: 9°
El Beamwidth: 9°
Cross Pol: > 15dB
Front/Back Ratio: > 30dB
VSWR: 2:1
Wind Loading: 80 mph operational
8.6 Optional DSS dish antenna for SU-EXT
The unit is designed to operate with the Trango Boadband model AD5830-27-D dual linear polarized
dish antenna.
Type: 24” DSS Style Dish Antenna
Polarization: Vertical, Horizontal electrically selectable
Frequency: 5.7 to 5.9 GHz
Gain: +27 dBi
Az Beamwidth: 7°
El Beamwidth: 7°
Cross Pol: > 15dB
Front/Back Ratio: > 30dB
VSWR: 2:1
Wind Loading: 70 mph operational
8.7 Optional Panel Antenna for SU-EXT
The unit is designed to operate with the Trango Boadband model AD5830-23-D flat panel patch
supplied with 2 x 24” long cables and mount.
Frequency range: 5250-5850 MHz
Gain: 23 dBi +/- 1 dB
Front/Back Ratio >35 dB
E-Plane Beamwidth: > 9 degrees typical
H-Plane Beamwidth: > 9 degrees typical
Polarization: Vertical and Horizontal
Port/Port Isolation: 40 dB typ
Cross Pol Rejection: 25 dB typ
VSWR: <1.7:1
Package: Alumininum backplate with plastic radome.
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit
11
Dimensions: 14.6”x 14.6”x 1.58” (371mm x 371mm x 40mm)
Weight: 5.5 lbs (2.5 kg)
Connector: SMA female connectors (2)
Cable: 24” SMA-M to SMA-RP double braided RGS142 cable
Mounting Provisions: Mounting kit supplied for up to 3”diam pole or flat surface
Azimuth/El Adjust: +/-30 degrees
Sealing: Water tight to 1 meter IEC 529/IP67
Temp Range: -40 deg F to +160 deg F (-40 deg C to +60 deg C)
Wind speed oper: 100 mph (160 km/hr)
Wind speed survival : 140 mph (220 km/hr)
8.8 Optional 2’, 3’, and 4’ DIAM PRIME FOCUS DISH ANTENNAS FOR SU-EXT
Radiowaves Models:
SPD2-5.2 Diameter: 2 feet
Gain: 28.1
Beamwidth: 6.2 degrees
Xpol Rej: 28 dB
F/B Ratio: 36 dB
VSWR: 1.5:1
SPD3-5.2 Diameter: 3 feet
Gain: 31.1
Beamwidth: 4.2 degrees
Xpol Rej: 30 dB
F/B Ratio: 38 dB
VSWR: 1.5:1
SPD4-5.2 Diameter: 4 feet
Gain: 34.4
Beamwidth: 3.1 degrees
Xpol Rej: 30 dB
F/B Ratio: 42 dB
VSWR: 1.5:1
Note:24 inch cable will reduce net gain by approximately 1.5 dB.
See Radiowaves, Inc. for additional specifications.
