Trans Electric BTR1020 Bluetooth Audio Adapter User Manual BTR 1020manual
Trans Electric Co., Ltd. Bluetooth Audio Adapter BTR 1020manual
Manual
1
BTR-1020
Bluetooth music receiver
With SBC supported
Feature
◎
SBC codec support
◎
A2DP Bluetooth profile supported
◎
33 feet (10M) effective range
◎
Audio RL audio output
◎
8 devices ID storable
◎
Micro USB Port for powering

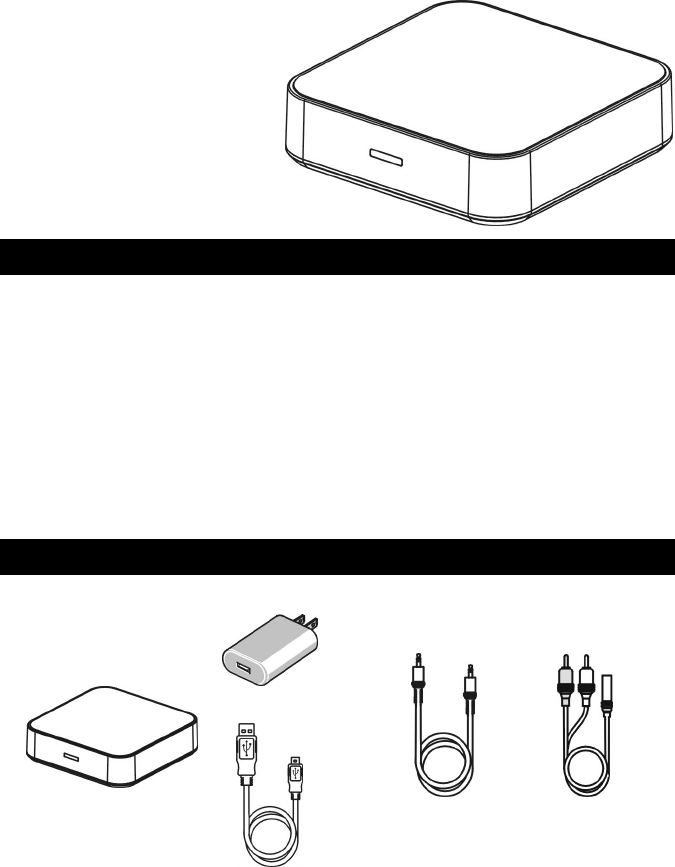

What’s in the box
Main Unit
USB Cable
3.5mm male→
male Audio cable
3.5mm female→
audio RL cable
AC/DC Adaptor
（option）
2

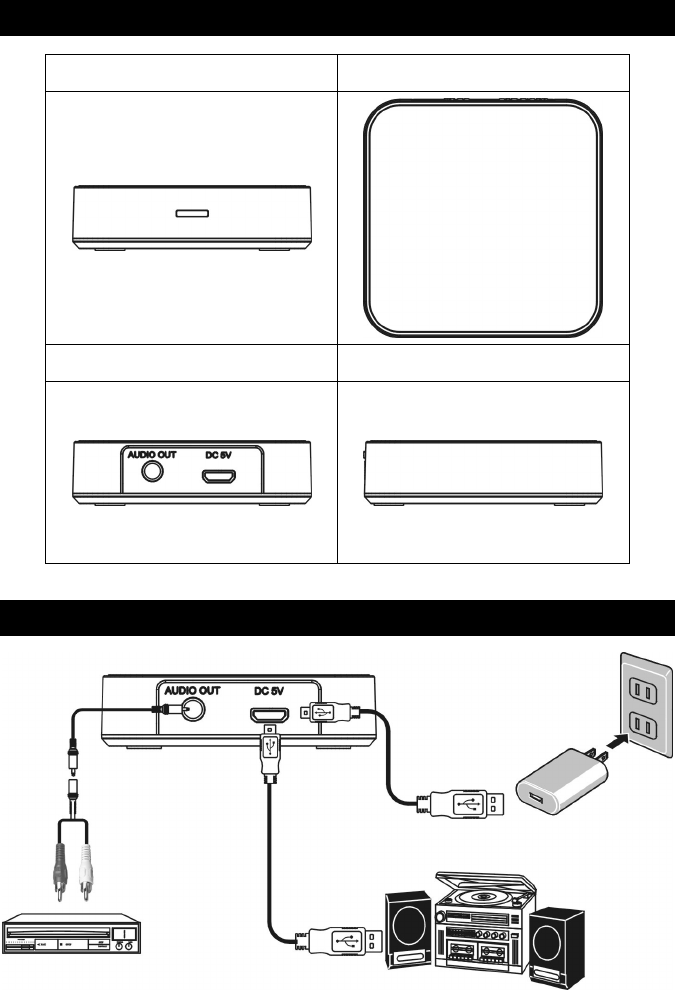

Outlook and connectors
Setup your BTR-1020
Front Top View
Back Side View
Audio Amplifier
Audio RL
3.5mm male to male
OR
3
Analogue connection
1. Connect one 3.5mm end of the include audio to headphone jacket on the BTR-1020.
2. Connect the other end to an audio input on your home stereo system (3.5mm or 3.5mm +
3.5mmm2 RCA). Consult your stereo user’s manual for more information on how to
accomplish this.
3. Consult your stereo user’s manual for more information on how to accomplish this.
4. Connect USB A to micro USB adaptor cable, the micro USB end to the micro USB jacket
of BTR-1020, USB Type A connector to the USB port of your Audio Video Device or you
can connect to an AC Adaptor with USB port(option) , the AC end to any AC outlet..
5. The LED light will flash once to show the unit is powered and ready for being paired for
your devices.
Pairing your BTR-1020
iPad/iPhone/iPod touch

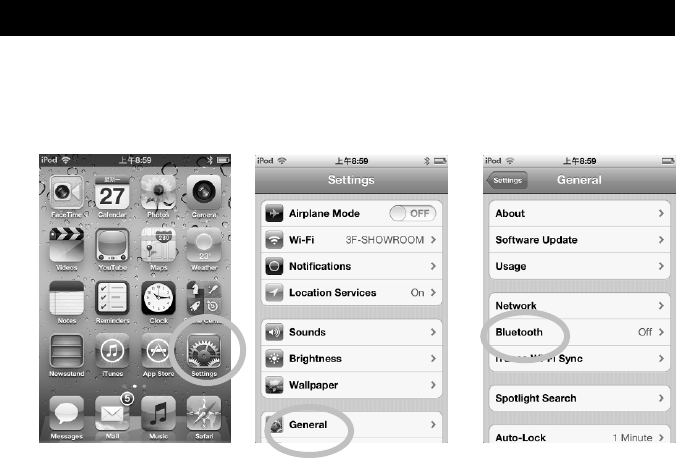

1. Go to Bluetooth manager of your iPad/iPhone/iPod touch by the following steps
a .From your iPad/iPhone/iPod
touch home page, tap
“setting”
b. Inside Settings tap on
“General”
c. Inside General tap on
“Bluetooth”
4

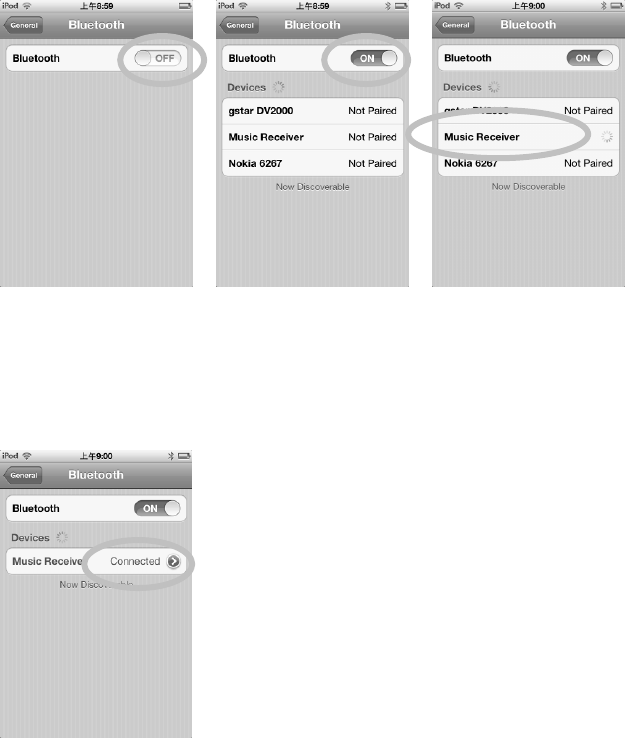

2.Turn On the Bluetooth
function
4. Enter “0000” when the
player asks for PIN code
(some devices have no need
to input PIN). This will allow
the iPad/iPhone/iPod touch
to pair with “Music Receiver”
3.Your iPod/iPhone/iPad will
auto searching available
device. You will see
“Music Receiver” then
Tap on it.
5. Your iPod/iPhone/iPad connected to
BTR-1020 Now. And You can play
music from your iPod/iPhone/iPad.
5
Android Phone/Tablet（
（（
（ver 4.0 as Example）
））
）
1. Go to Bluetooth manager of your smart phone by the following step
Note:
Some devices, such as iPhone, will connect immediately after pairing so the LED will ON.
Other devices, such as notebook, may ask you if you wish to connect and LED will go
off after pairing until a connection is established.
a. From your smart phone
home page, tap on
“setting”
b. Inside the setting, turn on
The Bluetooth
c. Bluetooth is turned on
2. Searched Bluetooth
Devices will show up,
please tap on “Music
Receiver”
3. Enter “0000” when
the player asks for
PIN code（some
devices have no
need to input PIN）.
4. Once paired, the blue LED
light on the BTR-1020 will
flash once. The Blue LED will
keep lighted when a
connection is established
And In your Smartphone there
is showed “connected to
media audio”
6
Although the BTR-1020 can only play music from one device at a time, it is capable of being
paired to up to 8 devices. It means that you have to enter the PIN code once for each device.
You can play the music now. Just play music on your device as you normally would and the
sound will come out from your stereo system.
Note: the effective range of BTR-1020 is 33 feet (10M). (light of sight). If you hold and
wear the Smartphone or tablet and cover the Bluetooth antenna, the distance will be
shorter.
Reconnecting your device
If you move out of range or turn off the Bluetooth feature on you iPad/iPhone/iPod touch or
Smartphone,BTR-1020 will disconnected from your device. To reconnect, simply open the
Bluetooth manager and tap on the “Music Receiver”, then you do not need to input PIN again,
the connection will be done automatically.
Adding a new phone or tablet：
：：
：
If you want to switch from one device to another, please follow these steps
1. End the existing Bluetooth connection with connected device.
2. The BTR-1020 can now be connected with another device such as iPad/iPod/iPhone or
Smartphone or tablet.
3. Follow the section “Pairing the BTR-1020” to connect a new device.
Out of range or lost signal:
When the paired phone or device away from receiver (33 feet) or there is something
blocking the Bluetooth signal. The LED light will go off, it means the connection between device
and BTR-1020 is lost. To avoid a lost connection:
1. Move the music device back into range ( within 33 feet), and make sure there’s a clear line
of sight and there are no obstructions between BTR-1020 and device.
2. Within 15 seconds, the connection will automatically be reestablished and LED will turn on
3. If the connection is lost for more than 15 seconds, you need to reconnect the device and
BTR-1020 again. Please follow the “Reconnect Your Device” section.
7
Indication of LED
Troubleshooting
You can solve your problems from this section
No music out from my stereo speaker
◎
Make sure the BTR-1020 is powered.
◎
Make sure an audio cable or an Optical cable is correctly and firmly connected to
BTR-1020
◎
Make sure the volume of the stereo is set to a comfortable listening level
◎
Make sure you are within range.
◎
Make sure the Bluetooth function is opened on your device.
◎
Make sure you are playing the music from your device.
SAFETY WARNINGS
◎
BTR-1020 requires full connection and both hands to install.
◎
Do not use BTR-1020 near water(for example, a bath tub, wash bowl, kitchen sink, laundry
tub, wet basement, swimming pool, or other areas located near water).
◎
Clean with dry cloth.
◎
Unplug the BTR-1020 before cleaning.
◎
Install BTR-1020 far away from heat sources.
◎
Use only the attached accessories.
◎
Unplug the BTR-1020 when unused for long time.
Indication meaning Description
Flash once 1 sec per
5 secs
Power on
/Pairing
Waiting for connection
Permanent Lighted connected Device and main unit are connected
8
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation
Pa
PaPa
Part 15B compliance statement:
rt 15B compliance statement:rt 15B compliance statement:
rt 15B compliance statement:
—
—
—
—
