User Manual
Body Fat Analyzer GBF-1319-B
version:1.0
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Thank you very much for selecting the Transtek Body Fat Analyzer
GBF-1319-B.
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, 5/F., Investment Building, No. 12, Huizhan East Rd., Torch Development
District, Zhongshan, Guangdong, 528437, China
TEL:86-760-88282982 www.transtek.cn
Contains FCC ID:OU9AW2540-LS
![](/img.php?id=2278444&img=bg2.png)
1
Table of Contents
Safety Information
Safety and Usage Information
Your Scale and Its Environment
Efficient Use of Your Scale
Overview
Device Components
LCD Display
Initial Start-Up
General Instructions
Insert the Batteries
Select Measurement Unit
Pair-up
Set Up Your Profile
Initialising Your Scale
Weight Only Operation
Start Measuring
First Measurement
Daily Measurement
Data Transmission
Data Transmission
Troubleshooting
Error Prompt
When Measuring ...
When Data Transmitting
Specifications
Maintenance
Warranty
FCC Regulations
Appendix
Table of Body Fat Level
Table of Body Water Level
Muscle Mass Percentage
Bone Mass percentage
Health Tips – About Body Fat
EMC Guidance
2
3
4
5
6
7
7
8
9
10-12
13
13
14
15-16
17
18
19-20
21
22
23
23
24
25
25
26
26
26
27-30
...............................................................................................
......................................................................................................
.................................................................................................................
.................................................................................................................
..........................................................................................................
........................................................................................................
...................................................................................................................
............................................................................................................................
.............................................................................................................................
............................................................................................................
..................................................................................................................
....................................................................................................................
............................................................................................................................
...............................................................................................................................
......................................................................................................................................
......................................................................................................
.................................................................................................
.........................................................................................................................
..........................................................................................................
Table of Contents
..............................................................................................................................
...................................................................................................................
...................................................................................................
..........................................................................................................
..........................................................................................................
..........................................................................................................
.................................................................................................................
..............................................................................................................................
.........................................................................................................................
![](/img.php?id=2278444&img=bg3.png)
2 3
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
To ensure your safety as well as the service life of your scale, please avoid using
the scale under the following circumstances:
Concurrent use of this device and implantable medical electronic instruments, e.g.
Cardiac Pacemaker
Concurrent use of this device and wearable medical electronic instruments, e.g.
electrocardiograph
Concurrent use of this device and other medical electronic instruments for life support,
e.g. mechanical heart
Slippery floor such as tile floor
Jumping onto the platform immediately after bath or with wet hands
Near a cell phone or microwave oven
Avoid storage in the following locations:
Where there is water
Where the device may be exposed to extreme temperatures, humidity, moisture, direct
sunlight, dust, or salt air
Where there is risk of shock or drop
Where you store chemicals or full of corrosive gases
Where in reach of the infants or children
Safety and Usage Information
Your Scale and Its Environment
Safety InformationSafety Information
INDICATIONS FOR USE
The Transtek Body Fat Analyzer measures weight and uses bio-electrical impedance analysis
(BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle
mass in generally healthy adults 18 years of age or older.
It is intended for use in the home / domestic setting only.
CONTRAINDICATIONS
1. This device is contraindicated for any female subject who may be suspected of, or is pregnant.
Besides provided inaccurate readings, the affects of this device on the fetus are unknown.
2. This device is contraindicated for any person who is connected to a wearable or implantable
electronic device or instrument such as a pacemaker or defibrillator.
CAUTION
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
Symbol for “TYPE BF APPLIED
PARTS”
The Bluetooth Combination Mark
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
Symbol for “INDOOR USE ONLY”
Symbol for “COMPLIES WITH FCC
RULES”
Transtek’s Body Fat Analyzer GBF-1319-B offers you a seamless way to manage your health.
Please be aware that this device is designed for adults’ self-measuring and self-monitoring body
fat level. Any information provided by this device is in no way meant to treat, cure or prevent any
disease or illness from happening. This device should not be used by anyone who is acutely or
chronically ill, suffering from a disease or taking medications that affect your water levels. The
accuracy of readings for these patients has not been verified. Specific medical advice should be
obtained from a physician.
GBF-1319-B is equipped with data transmission function. It may emit electromagnetic energy
so as to perform its intended function. Nearby portable and mobile RF communications
equipment can affect the performance of GBF-1319-B.
Portable and mobile RF communications equipment can affect the measuring accuracy of
GBF-1319-B.
Kindly note that the use of accessories, transducers or cables other than those specified, with
the exception of transducers and cables sold by the manufacturer as replacement parts for
internal components, may result in increased EMISSIONS or decreased IMMUNITY of
GBF-1319-B.
Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other
hazards.
Warning that the GBF-1319-B should not be used adjacent to or stacked with other equipment.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modifications of this equipment is allowed.
During using the Analyzer, the patient will contact with the surface and the electrode of the
Analyzer.
The device doesn’t need to be calibrated in two years lifetime.
![](/img.php?id=2278444&img=bg4.png)
4 5
Efficient Use of Your Scale
List
1. Body Fat Analyzer GBF-1319-B
2. 3xAAA Batteries (1.5V each)
3. User Manual
Up Button
Set Button
Down Button
LCD Display
Electrode
Battery Compartment
UNIT Button
Electrode
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Step onto the platform with bare feet. Stand still and keep full contact with the electrodes
until the measurement is complete.
Start measurement at least two hours after Getting up or Dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dinning.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.
Overview
Device Components
Safety Information
![](/img.php?id=2278444&img=bg5.png)
7
6
Transtek Body Fat Analyzer GBF-1319-B applies BIA (Bio-impedance Analysis)
technology. A small amount of weak current flows through the human body so as to detect
the bio-impedance and estimate body fat, body water, muscle mass and CAL-MAX. The
electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also
possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 1mA. However, please be aware that anyone
with an wearable or implantable medical electronic instrument, such as a pacemaker, must
avoid using this device.
The intended use of this device is for adult’s indoor use only.
Body Fat Analysis Result
Total Body Water Analysis Result
Muscle Mass Analysis Result
Calorie Analysis Result
Stone
Pound
Kilogram
Percentage
Foot
Centimeter Age
Male
Male Athlete
Female
Female Athlete
User ID (Range from P1 to P8)
LCD Display General Instructions
Initial Start-Up
Insert the Batteries
Open the battery door in the back of the scale.
Insert the batteries (3 x AAA) into the battery
compartment according to the polarity indications
marked inside the compartment.
* The digits “8888” will be shown on the LCD.
Close the battery door and wait until the digits “0.0”
are shown on the LCD.
CAUTION
When the symbol “Lo ” appears, the device will power off in four seconds. Then you shall replace with a
new set of batteries. Please replace all three batteries at the same time. Do NOT mix the old batteries
with the new one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries.
Less than target weight
More than target weight
Bluetooth icon
Data hasn’t been sent out
Target Weight
Difference compare with target weight
Overview
![](/img.php?id=2278444&img=bg6.png)
9
8
With batteries correctly installed, press “UNIT” button in the back of the scale to select
measurement unit. The default measurement unit is “pound”. You may press “UNIT”
button to choose among pound, kilogram, stone.
Initial Start-Up
Select Measurement Unit
Initial Start-Up
Note: If there is no operation in the weighing mode, the scale will turn off after a few
seconds.
If SUCCEED, symbol will be shown on the LCD.
If FAIL, symbol “E1” will be shown on the LCD.
Pair-Up
With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments,
which are equipped with Bluetooth function in line with BLE Technical Specifications
established by global organization Bluetooth SIG, are capable to receive your personal
health data.
Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding.
Press and hold “UNIT” button in the back of the scale to start pair-up.
Symbol and symbol will be shown on the
LCD alternatively, indicating pair-up is proceeding.
Bluetooth Module No. :AW2540MV1
Frequency Range
Output Power Range
Supply Voltage
2402MHz - 2480MHz
-1 dBm
2-3.6 V
Transmitting Distance 10 meters
![](/img.php?id=2278444&img=bg7.png)
11
10
The body fat analyzer GBF-1319-B supports multiple users (Up to Eight). You may
follow below instructions to assign User ID and set up your own profile, including Gender,
Goal Weight, , Stature, Age and Athletic Level.
With batteries correctly installed, press “SET” button to enter
setting when the scale is off.
The system will request User ID selection first. As pictured below,
“P1” blinks. The operator may press the function key or to
select User ID among P1 to P8.
Press “SET” button to confirm User ID.
1.Assigning User ID
2.Setting Gender
Set Up Your Profile
After confirming User ID, the system will divert to Gender setting.
As pictured below, the portrait blinks. The operator may press
the function key or to select Gender( Male/Female/Male
Athlete/ Female Athlete).
Press “SET” button to confirm Gender.
Athlete Mode:
An athlete is defined as an adult who is involved in intense physial
activity of approximate 12 hours per week and who has a resting
heart rate of approximately 60 beats per minute or less.
4.Setting Stature
3.Setting Goal Weight
After confirming Gender, the system will divert to Goal Weight
setting automatically.
As pictured below, the digits blinks. The operator may press the
function key or to increase or decrease the numeral. (Range:
20 kg to 180 kg /44.0 lb to 396.8lb)
You may press and hold the function key or for fast changing
the numeral.
Press “SET” button to confirm.
After confirming Goal Weight, the system will divert to Stature
setting automatically.
As pictured below, the digits blinks. The operator may press the
function key or to increase or decrease the numeral. (Range:
100 cm to 220 cm / 3’3.5”~7’2.5” ft)
You may press and hold the function key or for fast changing
the numeral.
Press “SET” button to confirm.
Initial Start-UpInitial Start-Up
![](/img.php?id=2278444&img=bg8.png)
13
12

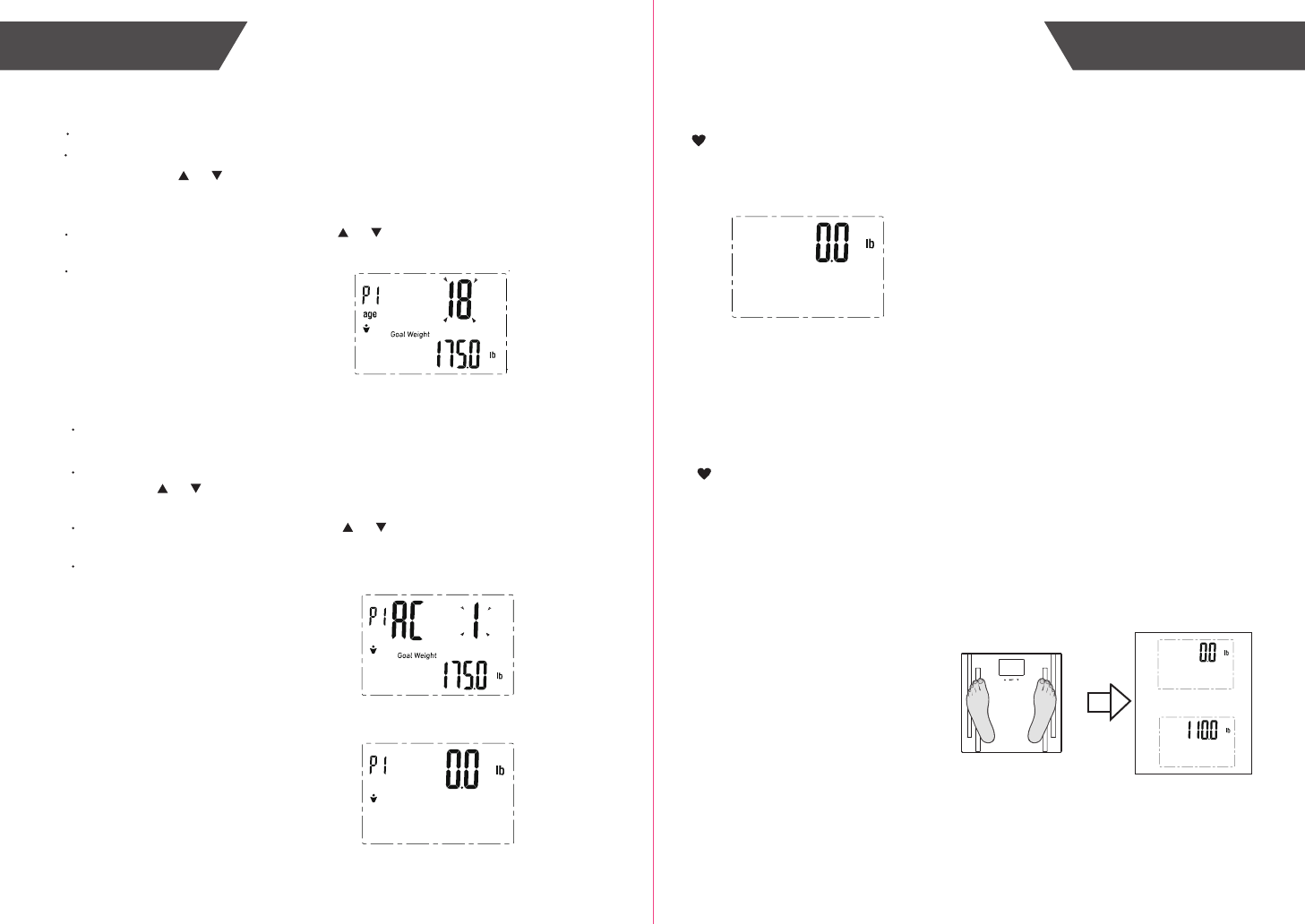

6.Setting Athletic Level
After confirming Age, the system will divert to Athletic Level
setting.
As pictured below, the digit “1” blinks. The operator may press the
function key or to increase or decrease the numeral. (Range:
AC 1 to AC 5 )
You may press and hold the function key or for fast changing
the numeral.
Press “SET” button to confirm Athletic Level.
Weight Only Operation
Your TRANSTEK Body Fat Analyzer will operate as a conventional
weight - reading scale. No special programming steps are required.
Once the scale is initialized, as previously described, you may simply step on
the scale to measure your current weight. For only weight reading.
1. Position the scale on a flat, hard
surface. Carpeted or uneven
floors may affect accuracy.
2. Step onto the scale platform
and remain still while the
scale computes your weight.
3. The scale will display your
weight value.
4. The scale will automatically
turn off after a few seconds.
Note: The weight value won’t be saved in the scale, and won’t be transmitted to the APP.
1. Press the platform centre and remove your foot.
2. “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
This initialisation process must be repeated if the scale is moved.
At all other times step straight on the scale.
Initialising Your Scale
5.Setting Age
After confirming Stature, the system will divert to Age setting.
As pictured below, the digits “30” blinks. The operator may press
the function key or to increase or decrease the numeral.
(Age Setting Range for Normal Mode: 10 to 85 years old, Age
Setting Range for Athlete Mode: 15-85years old)
You may press and hold the function key or for fast changing
the numeral.
Press “SET” button to confirm Age.
7. The display will show your settings once, then display “0.0”, you
can start measuring.
8. Repeat procedure for a second user, or to change user details.
Note: To update or overwrite the memorised data, follow the same
procedure, making changes as required.
Initial Start-Up
Initial Start-Up
![](/img.php?id=2278444&img=bg9.png)
With original SENSE ON patent technology, GBF-1319-B
will automatically switch on as you step on the platform
barefooted.
Stand still and keep full contact with the electrodes until
the LCD stops displaying moving “o”.
According to the analysis results, the system will
automatically identify the possible User ID with most
similar history records. Then the measuring results will
be displayed sequentially three times .
STEP 2: Stand still and keep full contact with the
electrodes until the LCD stops displaying
moving “o”.
STEP 3: Your weight will be displayed followed by Body Fat, Total Body Water,
Muscle Mass , CAL-MAX and the weight difference value. The data will be
displayed three times.
* If it fails to complete the analysis, the LCD will only display
the weight data.
(To find out the solutions, please refer to Troubleshooting for
more details.)
STEP 1: Step on the platform barefooted
when the LCD displays “0.0”.
15
14
First Measurement
Daily Measurement
Start Measuring
When your scale is successfully paired with your iPhone and the Bluetooth is ON,
GBF-1319-B will process data transmission automatically.
(Please refer to Data Transmission for more details.)
• Position scale on a firm flat surface.
• Press SET button.
• While the user number of the latest measurement is flashing, select your user number by
pressing or button. After 3s, the selected number is locked, the user’s personal data
will be shown once, and then the scale shows zero reading.
(Note: When the user number is flashing, if you press SET button again, it will enter the
setting mode, after all the settings are finished, the settings will be shown once, and then
display zero reading. )
Start Measuring
![](/img.php?id=2278444&img=bga.png)
When the system finds out two or more users with
similar history records, it will notify you to choose
between, for example, P1 and P2. You may press
key for P1 and or key for P2. The measuring
results will then be sorted into the User ID you
selected and displayed sequentially three times.
17
16
Start Measuring Data Transmission
If it fails to identify the possible User ID, the LCD will only display the weight data.
(To find out the solutions, please refer to Troubleshooting for more details.)
When your scale is successfully paired with your iPhone and the Bluetooth is ON,
GBF-1319-B will process data transmission instead.
(Please refer to Data Transmission for more details.)
With GBF-1319-B successfully pair-up with your
iPhone, the measurement data will be transmitted to
your mobile via Bluetooth.
ONLY when the measuring results are attached to a
specific User ID will it be transmitted to your mobile
after measurement.
The symbol will disappear after successful data
transmission, and you may check your personal
health data stored in your iPhone.
If the data transmission fails, the symbol will
remain. The pending measurement data will be
temporarily kept in the scale and transmitted to your
iPhone when next measurement is complete.
Successful Bluetooth
Connection
Data transmitting to
wireless wellness system:
-If SUCCEED, the symbol
disappears;
-If FAIL, the symbol
remains.
Data Transmission
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol . And
the Analyzer may interfere vicinity electrical equipment.
To enable the data transmission function, this product should be paired to a Bluetooth end at
2.4 GHz.
How to mitigate possible interference?
1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1
meter to 10 meters. Please ensure no obstacles between the Analyzer and the Bluetooth end
so as to obtain quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission
/ Transmitter) should be kept at least 1 meter away from the Analyzer.
![](/img.php?id=2278444&img=bgb.png)
Error Prompt
Error Description Solution
Overload. The device will
power off in four seconds.
Stop using this scale for
measurement.
Low Battery. The device
will power off in four
seconds.
Replace all three batteries at
the same time. Please purchase
the authorized batteries for
replacement.
19
18
Measuring error. Stand still, and measure again.
Failure of pairing up your
scale with your
smartphone.
Please check below items:
-Bluetooth is ON.
-App Collector is ON.
-Both devices are within the
transmission distance of Bluetooth.
Problem Root Cause Solution
Incorrect posture
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Please step on the platform
barefooted and stand still.
The device is located on
the soft ground such as a
carpet OR on a rugged
surface.
Please place the device on a
flat, hard surface.
When Measuring ...
Either your hands or your
feet are too dry.
No display on
LCD when the
device powers on.
Wipe your feet with a damp
cloth, keeping them slightly damp
when starting measurement.
Batteries not yet installed.
Worn batteries.
Install the batteries.
(Please refer to Insert the
Batteries)
Replace all three batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Troubleshooting Troubleshooting
![](/img.php?id=2278444&img=bgc.png)
21
20
Problem Root Cause Solution
CANNOT proceed
to analyze body fat,
total body water,
muscle mass and
CAL-MAX.
The device
powers off. Low battery.
Step onto the platform
wearing socks or shoes.
Please keep barefooted during
the measurement, and keep full
contact with the electrodes as
well.
Replace all three batteries at the
same time. Please purchase the
authorized batteries for
replacement.
The system cannot
identify the possible User ID
with most similar data.
Please assign a User ID
following the instruction in Set Up
Your Profile.
The user fails to select
the User ID from what the
system found.
Please assign a User ID
following the instruction in Set Up
Your Profile.
Problem Root Cause Solution
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth via
“Setting >> General >> Bluetooth”.
The App is OFF. Press the icon to turn ON your
app.
Place your iPhone closer to the
scale.
Please assign a User ID following
the instruction in Set Up Your
Profile.
Out of range of Bluetooth
transmission.
None of the user ID is
assigned.
When Data Transmitting ...
Troubleshooting Troubleshooting
![](/img.php?id=2278444&img=bgd.png)
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Transtek warrants its products free of defects in materials and workmanship in normal
use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG TRANSTEK MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail
purchase date) and a note with reasons to return on it as well.
Specifications
Maintenance
Warranty
Product Name
Dimension
Body Fat Analyzer (GBF-1319-B)
Scale: 300x300x23mm
Panel: 300x300x6mm
Net Weight Approximately 1.85 kg
Display
Digital LCD
V.A.: 76x51mm
Measurement Unit Kilogram / Stone/ Pound
Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division 0.1kg / 0.2lb
Accuracy 5-50kg: ±0.3kg;
100-150kg: ±0.5kg;
Working Environment Temperature: 10℃ to 40℃
Humidity: ≤90% RHStorage Environment Temperature: -20℃ to 55℃
Power Source 4.5V (3xAAA Batteries)
Turn on Method SENSE ON technology
Auto-OFF The scale will turn off after about 10s if there is no operation.
Accessories 1. 3xAAA batteries
2. User Manual
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by
anyone during the process of transaction for verification of goods’ weight.
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District,
Zhongshan, 528437, Guangdong, China
Tel: 86-760-88282982
Website: http://www.transtek.cn
22
50-100kg: ±0.4kg;
150-180kg: ±0.7kg
Humidity: 15%RH to 90% RH
Mode of Operation Continuous Operation
Protection Against
Ingress of Water IPX0
Software Version 1.0
Specifications
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Transtek.
(Please refer to Warranty for contact information)
Maintenance
23
![](/img.php?id=2278444&img=bge.png)
Table of Body Fat Level (Unit: %)
Table of Body Water Level (Unit: %)
FCC Regulations Appendix
24
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected;
Consult the dealer or an experienced radio / TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possiblity of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation.
FCC Regulations
Standard for Men
Rating
low
Normal
Moderately High
High
Age
20-29
<13 <14 <16 <17 <18
14-20 15-21 17-23 18-24 19-25
21-23 22-24 24-26 25-27 26-28
>23 >24 >26 >27 >28
30-39 40-49 50-59 60+
Standard for Women
Rating
low
Normal
Moderately High
High
Age
20-29
<19 <20 <21 <22 <23
20-28 21-29 22-30 23-31 24-32
29-31 30-32 31-33 32-33 33-35
>31 >32 >33 >34 >35
30-39 40-49 50-59 60+
a) The body fat percentage (%): 5%-60%/0.1%
Source: University of Illinois Department of Food Science and Human Nutrition.
Body Fat Percentage Calculator.
www.ag.uiuc.edu/~food-lab/ai/bfc.html
b) The body water percentage (%): 43%-73%/0.1%
Men
Women
BF % RANGE
4 to 14%
15 to 21%
22 to 24%
25 and over
4 to 20%
21 to 29%
30 to 32%
33 and over
70 to 63%
63 to 57%
57 to 55%
55 to 37%
70 to 58%
58 to 52%
52 to 49%
49 to 37%
OPTIMAL TBW % RANGE
Source: Derived from Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal
Clin Nutr 1999,69833-841.
25
![](/img.php?id=2278444&img=bgf.png)
Fat is essential for human body. It can not only store energy and protect viscera, but also
regulate body temperature and maintain normal physiological function of human body.
However, too much body fat is harmful to human body. It is always accompanied by Fatty
Liver, diabetes, coronary heart disease, etc.
Therefore self-measuring and self-monitoring body fat level are beneficial to your health.
Since we can’t judge body fat level simply by our weight, this body fat analyzer
GBF-1319-B, with BIA (Bio-impedance Analysis) technology applied, is an accurate device
that offers a quick and comfortable way to obtain your body fat level.
Health Tips - About Body Fat
Muscle Mass Percentage
(Source: International Commission on Radiological Protection,1975)
Men
Women
Approximately 40% of total body weight
Approximately 30% of total body weight
Bone Mass Percentage
(Source: Rico et al.1993)
The average bone mass percentage for both men and women is between 4 to 5%.
EMC Guidance
Table 1 – Guidance and
MANUF ACTURER
’
S
declaration –
ELECTROMAGNETIC EMISSIONS
for all
ME EQUIPMENT
and
ME SYSTEMS
Guidance and manufacturer’s declaration
– electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an
environment.
Emissions test Compliance Electromagnetic environment-guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
Group 2
Class B
Not applicable
Not applicable
The device must emit electromagnetic
energy in order to perform its intended
function. Nearby electronic equipment may be
affected.
Appendix Appendix
26 27
![](/img.php?id=2278444&img=bg10.png)
Not applicable
Not applicable
Not applicable
Table 2 – Guidance and
MANUFACTURER
’
S
declaration – electromagnetic
IMMUNITY
–
for all
ME EQUIPMENT
and
ME SYSTEMS
Compliance levelElectromagnetic environment
–
guidance
± 6 kV contact
± 8 kV air
ro etercnoc ,doow eb dluohs sroolF
ceramic tile. If floors are covered with
synthetic material, the relative humidity
should be at least 30 %.
a fo taht eb dluohs ytilauq rewop sniaM
typical commercial or hospital
environment.
± 1 kV line(s) to
line(s)
± 2 kV line(s) to earth
a fo taht eb dluohs ytilauq rewop sniaM
typical commercial or hospital
environment.
<5 % U
T
(>95 % dip in U
T
)
for 0,5 cycle
40 % U
T
(60 % dip in U
T
)
for 5 cycles
70 % U
T
(30 % dip in U
T
)
for 25 cycles
<5 % U
T
(>95 % dip in U
T
)
for 5 s
sdleif citengam ycneuqerf rewoP
m/A 3 m/A 3 should be at levels characteristic of a
typical location in a typical commercial
or hospital environment.
NOTE U
T
is the a.c. mains voltage prior to application of the test level.
Mains power quality should be that
of a typical commercial or hospital
environment. If the user of the
device requires continued operation
during power mains interruptions, it
is recommended that the device be
powered from an uninterruptible
power supply or a battery.
Guidance and manufacturer’s declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The
customer or the user of the device should assure that it is used in such an environment.
IMMUNITY test
Electrostatic
discharge (ESD)
IEC 61000-4-2
Electrical fast
transient/burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
IEC 60601
test level
± 6 kV contact
± 8 kV air
± 2 kV for power
supply lines
± 1 kV for input/output
lines
Not applicable
Table 4 – Guidance and
MANUFACTURER
’
S
declaration – electromagnetic
IMMUNITY
–
for
ME EQUIPMENT
and
ME SYSTEMS
that are not
LIFE
-
SUPPORTING
Guidance and manufacturer’s declaration – electromagnetic immunity
I
MMUN ITY
test IEC 60601
TEST
LEVE L
Compliance
level
Electromagnetic environment
–
guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3 V/m
Recommended separation distance
P
V
=d ]
5,3
[
1
P=d 2.333
800 MHz to 2,5 GHz
where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m ).
Field strengths from fixed RF transmitters, as deter-
mined by an electromagnetic site survey,
a
should be
less than the compliance level in each frequency
range.
b
Interference m ay occur in the vicinity of equipment
marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land
mobile radios, amateur radio, AM and FM radio broadcast and TV broadc ast cannot be predicted theoretically
with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field strength in the location in which the device is used exceeds
the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [V1] V/m.
The device is intended for use in the electromagnetic environment specified below. The
customer or the user of the device should assure that it is used in such an environment.
Portable and mobile RF
communications equipment should
be used no closer to any part of the
device, including cables, than the
recommended separation distance
calculated from the equation
applicable to the frequency of the
transmitter.
P=d
80 MHz to 800 MHz
1.167
Appendix Appendix
28 29
![](/img.php?id=2278444&img=bg11.png)
Table 6 – Recommended separation distances between portable and mobile
RF communications equipment and the ME EQUIPMENT or ME SYSTEM –
forME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Recommended separation distances between
portable and mobile RF communications equipment and the device
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment (transmitters) and the device as recommended
below, according to the maximum output power of the communications equipment.
Separation distance according to frequency of transmitter
m
Rated maximum output power
of transmitter
W
150 kHz to 80 MHz
P
V
=d ]
5,3
[
1
80 MHz to 800 MHz 800 MHz to 2,5 GHz
10,0
1,0
1
01
001
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in
metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic prop agation is affected by absorption and
reflection from structures, objects and people.
0.2330.117
0.7380.369
2.3331.167
7.3783.690
23.3311.67
Not applicable
Not applicable
Not applicable
Not applicable
Not applicable
P=d 2.333
P=d 1.167
Appendix
30
