Transtek Medical Electronics LS206-E01 BODY FAT ANALYZER User Manual LS206 E
Guangdong Transtek Medical Electronics Co.,Ltd BODY FAT ANALYZER LS206 E
User Manual
User Manual

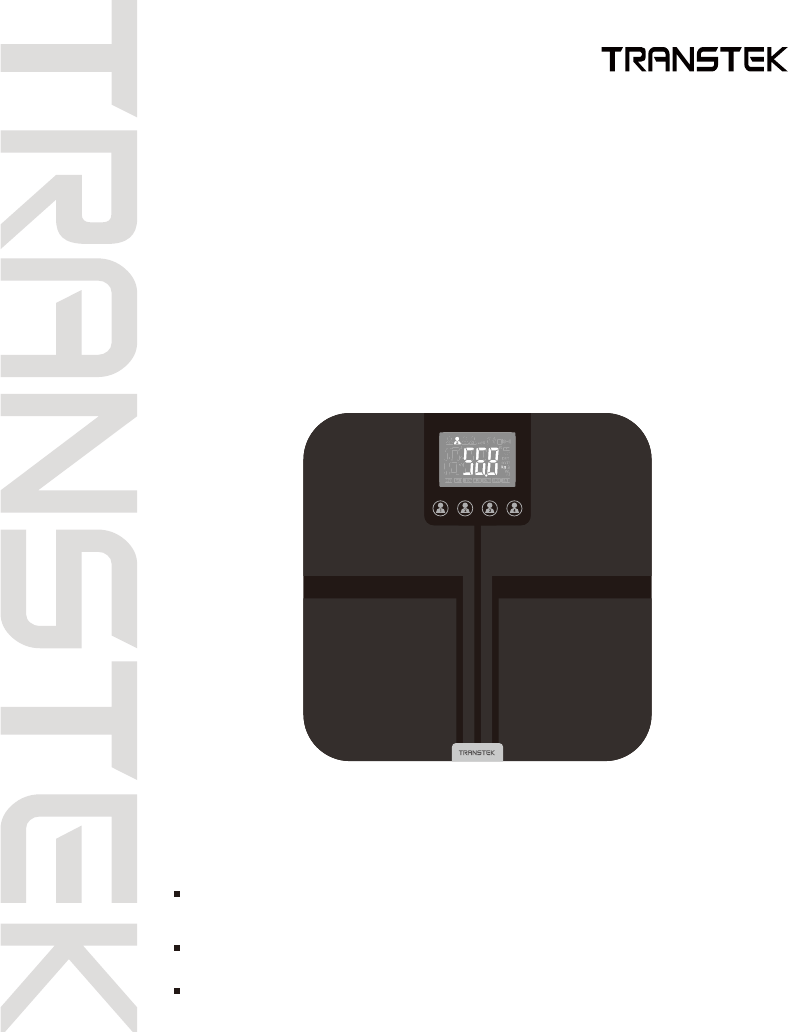

Glass Body Fat Analyzer LS206-E
version:1.0
To assure the correct use of the monitor, please read this manual
carefully and thoroughly.
Thank you very much for purchasing TRANSTEK Glass Body Fat
Analyzer LS206-E
Please well keep this manualfor future reference.
ZHONGSHAN TRANSTEK ELECTRONICS CO.,LTD
Jin'an Road, Minzhong, Zhongshan, 528441, Guangdong, China
TEL:86-760-88282982 www.transtek.cn
1
Any information provided by this device is in no way meant to treat, cure or prevent any
disease or illness from happening. This device should not be used by anyone who is
acutely or chronically ill, suffering from a disease or taking medications that affect your
water levels. The accuracy of readings for these patients has not been verified. Specific
medical advice should be obtained from a physician.
Portable and mobile RF communications equipment can affect LS206-E.
Warning that the use of accessories, transducers and cables other than those specified
with the exception of transducers and cables sold by the manufacturer of the LS206-E as
replacement parts for internal components, may result in increased EMISSIONS or
decreased IMMUNITY of the LS206-E.
Warning that the LS206-E should not be used adjacent to or stacked with other
equipment.
HOW DOES TRANSTEK'S BODY FAT ANALYZER
WORK?
This Glass body fat analyzer uses BIA (Bio Impedance Analysis) technology which passes
an electrical current through the body to estimate body fat mass, lean mass, total body
water and bone mass. The electrical current is small and may not be felt. Contact with the
body is made via stainless steel pads on the platform of the scale.
NOTE: This device is a personal monitor and should be used in a consistent
manner for the most accurate reading. While readings of this analyzer might be different
with that of others (hydro-densitometry or hand held calipers), your changes in body fat
percentage shown by this device will be reflected accurately.
While this analyzer will work accurately as a scale for anyone and give accurate body fat
readings for a majority of people, it is not intended for being used by pregnant women or
children under the age of 18.
BODY FAT-WHAT DOES IT MEAN?
Human body is made up of, amongst other things, a percentage of fat. Body fat is vital
for a healthy, functioning body, protects vital organs, helps regulate body temperature,
stores vitamins and helps the body sustain itself when food is scarce. However, too much
body fat or indeed too little body fat will damage to your health. It is difficult to gauge how
much body fat we have in our bodies simply by looking at ourselves in the mirror.
This is why it is important to measure and monitor your body fat percentage. Body fat
percentage gives you a better measure of fitness than weight alone–the composition of
your weight loss could mean you are losing muscle mass rather than fat-you could still
have a high percentage of fat even when a scale indicates‘normal weight’.
Caution:Consult accompanying
documents
CE Mark: conforms to
essential requirements of the
Medical Device Directive
93/42/EEC.
Manufacturer
Specifies
serial number
Type B
applied part
DISPOSAL: Do not dispose this product
as unsorted municipal waste. Use
separate collection faculties. Contact
you local government for information
regarding the collection systems
available. If electrical appliances are
disposed of in landfills or dumps,
hazardous substances can leak into the
groundwater and get into the food chain,
damaging your health and well-being.
The below signs might be in the user manual, labeling or other component.
they are the requirement of standard and using.
Safety information
Manufacturer will make available on request circuit
2 3
BATTERY INFORMATION AND GENERAL
SET-UP PROCEDURE
BASAL METABOLISM- WHY SHOULD I KNOW IT?
Basal metabolism refers to the life activities do not exercise at a quiet state of the body
maintains its own life activities required energy consumption.We recommend that the
general energy consumption by basal metabolism + diet process + the required energy of
growth or development children or pregnant women+ physical activity. Among them, the
basal metabolism accounts for a large part (about 60% -75%).Excessive intake of
energy,excess energy will be converted to fat accumulation in the body.Therefore measure
your basal metabolism, you can estimate your daily energy consumption is about how
much. The normal daily intake of energy, at least not lower than the basal metabolic
energy, otherwise there will be life-threatening.
Tap to initialize
This scale operates on 4*AAA batteries (installed).
Please remove any plastic strips from the battery compartment before
continuing with these instructions.
Some models have a static cling label on the lens to prevent scratching.
Please remove it before use.
When the LCD displays “ ”, replace the batteries with the “+” signs up.
Replace both worn batteries at the same time; do not combine old and new
batteries.
The scale needs to be initialized before first use or after battery
replacement. Press firmly on the scale platform. The display will show a running
zeros pattern and automatically turn off. Your scale is now ready for use.
Remove batteries if the device is not likely to be used for some time.
The old battery is harmful to the environment, so please disposal with
other daily trash.
Remove the old battery from the device and follow your local
recycling guidelines.
4 5
USING YOUR ANALYZER SCALE
You m u st h av e feet bared t o u se t h e an al y zer fu n ct i on .
In order to measure body fat, you must first enter your height, age, gender and
activity level selection. The analyzer uses these parameter to calculate your
measurement results.
Remove your shoes and socks before beginning measurement. In order to get
the most accurate and consistent reading, wipe your feet with a damp cloth,
leaving them slightly damp before stepping on to the scale.
REMINDER: The scale needs to be initialized after battery installation. The
scale may also need to be initialized if it is moved or bumped. At all other
times, you may directly proceed with the following instructions for
programming your personal data into the scale.
To initialize the scale, simply press firmly on the scale platform. The display
will show “ ” and automatically turn off. Your scale is now ready for use.
NOTE: Please use the illustrations as guidelines only. Due to continuous
product improvements, the illustrations shown in this manual may differ
slightly from the actual display.
QUESTIONS AND ANSWERS
How exactly is my body fat being measured?
The TRANSTEK Glass Body Fat Analyzer uses a measurement method known as Bioelectri-
cal Impedance Analysis (BIA).A minute current is sent through your body, via your feet and
legs. This current flows easily through the lean muscular tissue, which has a high fluid
content, but not easily through fat.Therefore, by measuring your body’s
impedance (i.e. its resistance to the current), the quantity of muscle can be determined, from
which, the quantity of fat can then be estimated.
What is the value of the current passing through me when the measurement
is taken? Is it safe?
The current is less than 1mA. You may not be able to feel it. Please note however,
that this device should not be used by anyone with an internal electronic medical
device, such as a pacemaker, as a precaution against disruption to that device.
TROUBLESHOOTING
1. You must have feet bared to take this measurement. In order to get the most accurate
and consistent reading, wipe your feet with a damp cloth, leaving them slightly damp
before stepping on the scale. Repeat measurement again, maintaining maximum contact
between your feet and the metal sensors.
2. The condition of the skin on the bottom of your feet can affect the reading. The natural
effects of aging or activity can make this skin hard. Take the reading with clean, slightly
damp feet for best accuracy.
If you are having a problem operating this Analyzer please contact us.
7
6
Specifications
Weight range and weight display resolution：5-180kg/0.1kg
Weight unit: kg / lb
Function key:
Display: Blue LCD with white backlight
Battery: 4*AAA batteries
Device classsification: Battery powered mode: Internally Powered ME Equipment
User No.: 4
User identification: Identify user automatically according to the last measuring weight
Auto on and Auto off function
LCD display
CAUTION
BIA (Bioelectrical Impedance Analysis)method determines your body fat percentage by
sending a harmless signal through the body.
This device should not be used by anyone with an internal electronic medical device, such
as a pacemaker, as a precaution against disruption to that device.
If in doubt, contact your physician.
This analyzer will give accurate body fat readings for a majority of people, but is not
intended for use by the following groups:
Children: Anyone under the age of 18 years
Pregnant Women
I. Activate product
1. The scale should be close to the
data bridge within 2m.
3. The activation is successful after you see the symbol
2. Press and hold the button on the back
of the scale to start the activation.
Successful activation
WARNING: No modification of this equipment is allowed.
Storage & transportation condition: Temperature:-20℃~60℃
Relative humidity:10%~90%RH
Symbol Description
Wireless transmit
Internet disconnection
Height
User touch key
Activate
waistline
User
Low battery indication
Data ready for sending
9
8

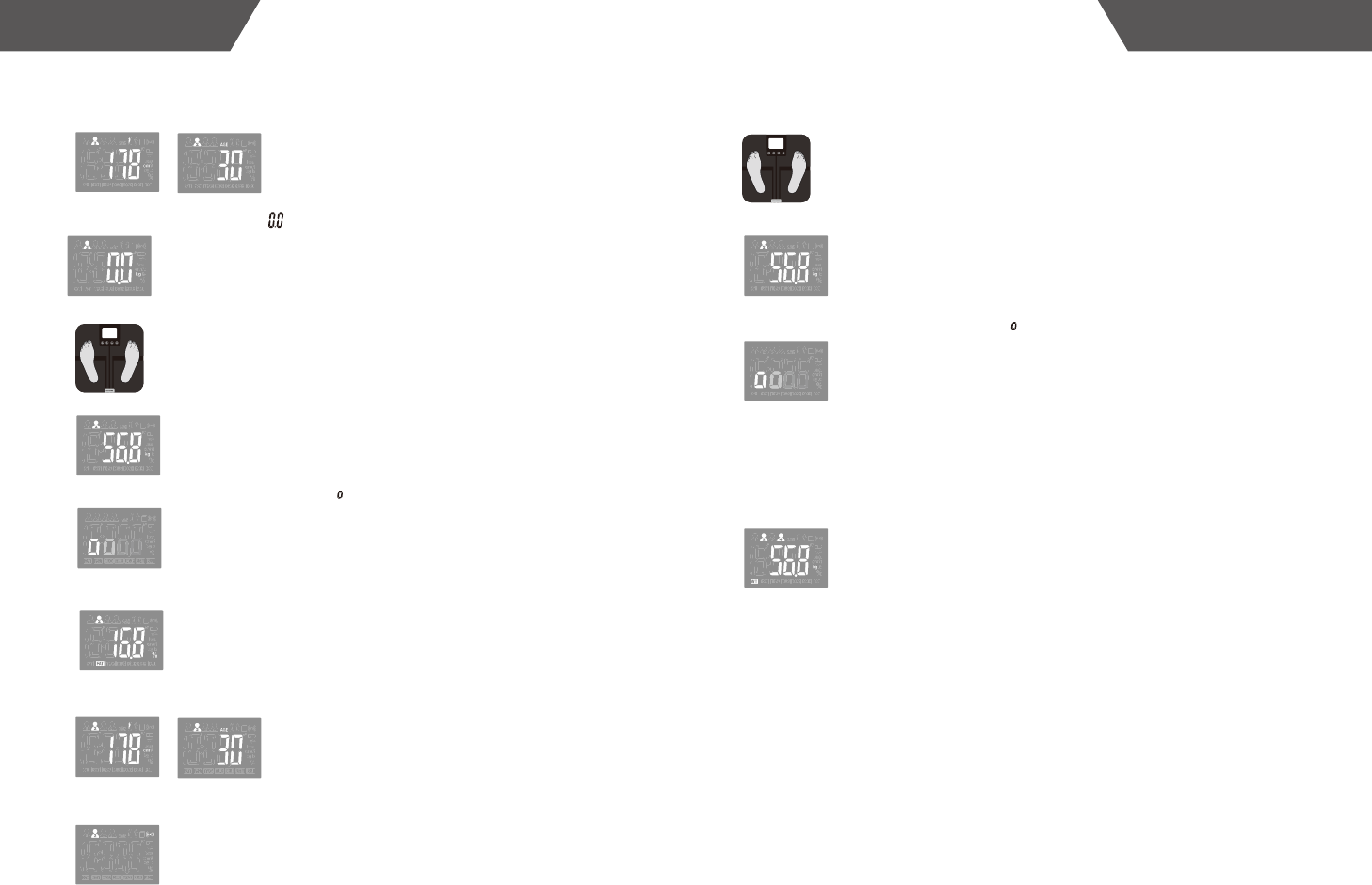

III. Measuring(select user manually)
a) Press user symbol on the platform to select user.
b) Please wait until the LCD displays “ ”.
c) Step onto the platform with bare feet.
d) Stand still and the weight data will be locked automatically.
e) The measuring will start automatically with the “ ” signal moving from left to right.
f) When the measurement is completed, the results appears repeatedly twice.
g) When the measurement is completed, the results appears repeatedly twice.
g) When the measurement is completed, the results appears repeatedly twice.
IV. Measuring(user identification automatically)
a) Please step onto the platform direct ly with bare feet to turn on.
b) Stand still and the weight data will be locked automatically
c) The measuring will start automatically with the “ ” signal moving from left to right.
d) If there is only one user whose last weight data is close to the current one, it will be
selected automatically. The results will be shown repeatedly twice and transmitted.
e) If there are more than one user whose last weight data are close to the current one,
they would be shown on the LCD.
f) Please press the user symbol on the platform to select the user to continue.
g) Note: If there is no operation, the scale will display the weight only then turn off.
h) When the measurement is completed, the results appears repeatedly twice and then the
results will be transmitted.
11
10
Professional medical guidance should always be sought before embarking on diet
and exercise programmes.
PREGNANT WOMEN SHOULD CONSULT THE DOCTOR BEFORE USE.
WARNING INDICATORS
= Low battery warning. Replace the
batteries. Always replace all the worn batteries
at the same time; do not combine old and new
batteries.
= Overload Warning. The maximum
weighing capacity of the scale has been
exceeded. Remove the weight immediately;
otherwise, permanent damage to the scale
will occur.
FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CARE AND MAINTERANCE
Clean exposed parts with a soft, slightly damp cloth. To remove stains, use a mild soap.
Never use detergents, excess water, treated cloths, harsh cleaning agents, or sprays.
Do not immerse the scale in water.
Treat your scale with care. It contains sensitive electronic parts. Avoid rough treatment.
Do not jump on, drop or kick the scale. Treat it with care to ensure the best performance.
Do not store the scale where you store cleaning chemicals. The vapors from some
household preducts may affect the electronic components of your scale.
Do not attempt to lubricate, disassemble, or open the scale casing as this will void your
warranty.
Always weigh yourself on the same scale placed on the same floor surface.
Do not compare weight readings from one scale to another as some differences will
exist due to manufacturing tolerances.
Placing your scale on a hard, even floor will ensure the greatest accuracy and
consistency.
It is recommended that you measure at the same time of the day, preferably early
evening before a meal for the most consistent results.
Your scale rounds up or down to the nearest increment.
If you weigh yourself twice and get two different readings, your weight lies between the
two.
Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if
the scale will not be used for a long period.
13
12
FIVE YEAR WARRANTY
ZHONGSHAN TRANSTEK ELECTRONICS CO., LTD
Jin'an Road, Minzhong, Zhongshan, 528441,Guangdong, China
TEL:86-760-88282982 www.transtek.cn
This scale is warranted against defects in materials of workmanship for five years for the
original purchaser from date of retail purchase. It does not cover damages or wear
resulting from accident, misuse, abuse, commercial use, or unauthorized adjustment
and/or repair.
Do not return to retailer. Should this scale require service (or replacement at our option)
while under warranty, please pack the item in the original packaging and return it prepaid,
along with store receipt showing date of purchase and a note explaining reason for return
to:
There are no express warranties except as listed above. This warranty gives you specific
legal rights, and you may have other rights which vary from state to state.
If service is required, do not return to retailer. For service contact us.
Classfication
EQUITMENT and its APPLIED PARTS shall be classified by marking and /or identifica-
tion as deseribed in Clause 6. This includes:
5.1 According to the type of protection against electric shock:
a) EQUIPMENT energized from an external electrical power source:
— CLASS I EQUIPMENT;
— CLASS II EQUIPMENT.
b) INTERNALLY POWERED EQUIPMENT.
5.2 According to the degree of protection against electric shock:
— TYPE B APPLIED PART;
— TYPE BF APPLIED PART;
— TYPE CF APPLIED PART.
5.3 According to the degree of protection against ingress of water as detailed in the current
edition of IEC 529[see 6.1 1)].
5.4 According to the method(s) of sterilization or disinfection recommended by the
manufacturer.
5.5 According to the degree of safety of application in the presence of a FLAMMABLE
ANAESTHETIC MIXTURE WITH AIR or WITH OXYGEN OR NITROUS OXIDE:
— EQUIPMENT not suitable for use in the presence of a FLAMMABLE ANAESTHETIC
MIXTURE WITH AIR or WITH OXYGEN OR NITROUS OXIDE;
— CATEGORY AP EQUIPMENT;
— CATEGORY APG EQUIPMENT.
5.5 According to the mode of operation:
— CONTINUOUS OPERATION;
— SHORT-TIME OPERATION;
— INTERMITTENT OPERATION;
— CONTINUOUS OPERATION WITH SHORT-TIME LOADING;
— CONTINUOUS OPERATION WITH INTERMITTENT LOADING.
6.8 ACCOMPANYING DOCUMENTS
6.8.1 *General
EQUIPMENT shall be accompanied by documents containing at least instructions for
use, a technical description and an address to which the USER can refer. The ACCOMPA-
NYING DOCUMENTS shall be regarded as a component part of EQUIPMENT.
All applicable classifications specified in Clause 5 shall be included in both the instruc-
tions for use and the technical description, if separable.
All markings specified in Sub-clause 6.1 shall be included in full in the ACCOMPANYING
DOCUMENTS if they have not been permanently affixed to EQUIPMENT by the manufac-
turer. See also Sub-clause 6.1 d).
Warning statements and the explanation of warning symbols (marked on the EQUIP-
MENT) shall be provided in the ACCOMPANYING DOCUMENTS.
6.8.2 Instructions for use
15
14
a) *General information
— Instructions for use shall state the function and intended application of the
EQUIPMENT.
— Instructions for use shall contain all information necessary to operate the
EQUIPMENT in accordance with its specification. This shall include explanation of the
function of controls, displays and signals, the sequence of operation, connection and
disconnection of detachable parts and ACCESSORIES, replacement of material which is
consumed during operation.
— Instructions for use shall provide the USER or OPERATOR with information
regarding potential electromagnetic or other interference between the EQUIPMENT and
other devices together with advice regarding avoidance of such interference.
— Instructions for use shall include indications on recognized ACCESSORIES,
detachable parts and materials, if the use of other parts or materials can degrade minimum
safety.
— Instructions for use shall instruct the USER or OPERATOR in sufficient detail
concerning cleaning, preventive inspection and maintenance to be performed by him,
including the frequency of such maintenance.
Such instructions shall provide information for the safe performance of routine mainte-
nance. Additionally, instructions for use shall identify the parts on which preventive
inspection and maintenance shall be performed by other persons, including the periods to
be applied, but not necessarily including details about the actual performance of such
maintenance.
— the meaning of figures, symbols, warning statements and abbreviations on
EQUIPMENT shall be explained in the instructions for use.
b) *Responsibility of the manufacturer
Not used (see Appendix A).
c) SIGNAL OUTPUT and SIGNAL INPUT PARTS
If a SIGNAL OUTPUT or SIGNAL INPUT PART is intended only for connection to
specified EQUIPMENT complying with the requirements of this Standard, this shall be
stated in the instructions for use
d) Cleaning, disinfection and sterilization of parts in contact with the PATIENT
For EQUIPMENT parts which come into contact with the PATIENT during NORMAL
USE, instructions for use shall contain details about cleaning or disinfection or sterilization
methods that may be used (see also Sub-clause 44.7) or, where necessary, identify
suitable sterilization agents, and list the temperature, pressure, humidity and time limits
which such EQUIPMENT parts can tolerate.
e) Mains operated EQUIPMENT with additional power source
Instructions for use of mains operated EQUIPMENT containing an additional power
source not automatically maintained in a fully usable condition shall contain a warning
statement referring to the necessity for periodical checking or replacement of such an
additional power source. If CLASS I EQUIPMENT is specified for operation connected to a
SUPPLY MAINS and alternatively using an INTERNAL ELECTRICAL POWER SOURCE,
instructions for use shall contain a statement saying that where the integrity of the
external protective conductor in the installation or its arrangement is in doubt, EQUIP-
MENT shall be operated from its INTERNAL ELECTRICAL POWER SOURCE.
f ) Removal of primary batteries
Instructions for use of EQUIPMENT containing primary batteries shall contain a
warning to remove these batteries if EQUIPMENT is not likely to be used for some time,
unless there is no risk of a SAFETY HAZARD arising.
g) Rechargeable batteries
Instructions for use of EQUIPMENT containing rechargeable batteries shall contain
instructions to ensure safe use and adequate maintenance.
h) EQUIPMENT with a specified power supply or battery charger
Instructions for use shall identify power supplies or battery chargers necessary to
ensure compliance with the requirements of this Standard.
j ) Environmental protection
Instructions for use shall:
— identify any risks associated with the disposal of waste products, residues, etc.
and of the EQUIPMENT and ACCESSORIES at the end of their useful lives;
— provide advice on minimizing these risks.
6.8.3 Technical description
a) *General
The technical description shall provide all data, which is essential for safe operation.
This shall include:
— data mentioned in subclause 6.1;
— all characteristics of the EQUIPMENT, including range(s), accuracy, and
precision of the displayed values or an indication where they can be found.
In addition to details required to be included in instructions for use, the technical descrip-
tion shall state whether particular measures or particular conditions are to be observed for
installing EQUIPMENT and bringing EQUIPMENT into use.
b) Replacement of fuses and other parts
— If the type and rating of fuses utilized in the mains supply circuit external to
PERMANENTLY INSTALLED EQUIPMENT is not apparent from the information concern-
ing RATED current and mode of operation of EQUIPMENT, the required type and rating of
fuses shall be indicated in at least thetechnical description.
— The technical description shall contain instructions for replacement of
interchangeable and/or detachable parts which are subject to deterioration during
NORMAL USE.
c) Circuit diagrams, component part lists, etc.
The technical description shall contain a statement that the supplier will make
available on request circuit diagrams, component part lists, descriptions, calibration
instructions, or other information which will assist the USER’s appropriately qualified
technical personnel to repair those parts of EQUIPMENT which are designated by the
manufacturer as repairable.
The LS206-E is intended for use in the electromagnetic environment specified below. The
customer or the user of the LS206-E should assure that it is used in such an environment
The LS206-E are suitable for use
in all establishments other than domestic and those
directly connected to the public low-voltage power
supply network that supplies buildings used for
domestic purposes.
The LS206-E are not suitable for interconnection with
other equipment.
17
Guidance and manufacturer’s declaration – electromagnetic emissions
Emissions Compliance Electromagnetic environment-- guidance
Harmonic
emissions
IEC 61000-3-2
Not applicable
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
RF emissions
CISPR 11
Complies
16
d) Environmental conditions for transport and storage
The technical description shall contain a specification of the permissible environ-
mental conditions for transport and storage which shall be repeated on the outside of the
packaging of the EQUIPMENT
[see Sub-clause 6.1 v)]
6.8.4 Not used.
6.8.5 Not used.
Compliance with the requirements of Sub-clause 6.8 is checked by inspection of the
ACCOMPANYING DOCUMENTS.
The LS206-E are intended for use in the electromagnetic environment specified below. The customer
or the user of the LS206-E should assure that it is used in such an environment.
Guidance and manufacturer’s declaration – electromagnetic immunity
Immunity test
EN 60601
test level
Compliance level
Electromagnetic environment
--guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30 %.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines
Not applicable Not applicable
Surge
IEC 61000-4-5
±1 kV line(s)
and neutral
Not applicable
Not applicable
Voltage dips,
short
interruptions and
voltage variations
on power supply
input lines
IEC 61000-4-11
<5 % UT
(>95 % dip in UT)
for 0,5 cycle
40 % UT
(60 % dip in UT)
for 5 cycles
70 % UT
(30 % dip in UT)
for 25 cycles
<5 % UT
(>95 % dip in UT)
for 5s
Not applicable Not applicable
Power frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
Not applicable Not applicable
NOTE UT is the a.c. mains voltage prior to application of the test level
1918
The LS206-E is intended for use in the electromagnetic environment specified below. The
customer or the user of the LS206-E should assure that it is used in such an environment.
Guidance and manufacturer’s declaration – electromagnetic immunity
Immunity test
IEC 60601
test level
Compliance
level
Electromagnetic environment – guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz to
80 MHz
3 V/m
80 MHz to
2.5 GHz
Not
applicable
3 V/m
where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
Distance in metres (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey,a
should be less than the compliance level in each
frequency range.b
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
Portable and mobile RF communications
equipment should be used no closer to any part
of the LS206-E, including cables, than the
recommended separation distance calculated
from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the LS206-E is used
exceeds the applicable RF compliance level above, the LS206-E should be observed to verify
normal operation. If abnormal performance is observed, additional measures may be
necessary, such as re-orienting or relocating the LS206-E.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
1920
The LS206-E is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the LS206-E can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the LS206-E as recommended below,
according to the maximum output power of the communications equipment.
Separation distance according to frequency of transmitter
m
Rated maximum
output power
of transmitter
W
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 2.5 GHz
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
Recommended separation distances between
portable and mobile RF communications equipment and the LS206-E
Caution: The user is cautioned that changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
