Transtek Medical Electronics LS208-B08 Body Fat Analyzer User Manual GBF 1257 B 20130102
Guangdong Transtek Medical Electronics Co.,Ltd Body Fat Analyzer GBF 1257 B 20130102
User Manual
version:1.0
User Manual
Body Fat Analyzer LS208-B8
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Thank you very much for selecting the Transtek Body Fat Analyzer
LS208-B8.
TEL:86-760-88282982 www.transtek.cn
ZHONGSHAN LIFESENSE ELECTRONICS CO., LTD
23,Jin'an Road, Minzhong, Zhongshan, 528441, Guangdong, China
FCC ID:OU9LS208-B8
1
Table of Contents
Table of Contents
Safety Information
Safety and Usage Information
Your Scale and Its Environment
Efficient Use of Your Scale
Overview
Device Components
List
LED Display
Initial Start-Up
General Instructions
Insert the Batteries
Pair-up
Set Up Your Profile
Select Measurement Unit
Initialising Your Scale
Weight Only Operation
Start Measuring
First Measurement
Daily Measurement
Manage Your Health
Data Transmission
Troubleshooting
Error Prompt
When Measuring ...
When Data Transmitting...
Specifications
Maintenance
Warranty
FCC Regulations
Appendix
Health Tips – About Body Fat
Health Tips – About Body Water
Health Tips – About Muscle Mass
Health Tips – About Bone Mass
Health Tips – About BMI
Health Tips - About Calorie
EMC Guidance
2
3
3
4
4
5
6
6
7
8
9
10
10
11
12
13
14
14
16
17
18
18
19
20
21
22
22
23
24
24
...............................................................................................
..................................................................................................
.................................................................................................................
..........................................................................................................................................
.................................................................................................................
.................................................................................................................
........................................................................................................
...................................................................................................................
.............................................................................................................................
....................................................................................................................
..................................................................................................................
..................................................................................................................
........................................................................................................
............................................................................................................................
...............................................................................................................................
......................................................................................................................................
.....................................................................................................................................
............................................................................................
.........................................................................................................
.......................................................................................................
..................................................................................................
..............................................................................................................................
...................................................................................................................
...............................................................................................
.............................................................................................
...............................................................................................................
..............................................................................................................
.........................................................................................................................
........................................................................................................
.........................................................................................................................
2 3
Safety InformationSafety Information
The Transtek Body Fat Analyzer measures weight and estimate BMI and calories, and uses
bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water
percentage, bone mass, and muscle mass in generally healthy children 10-17 years old and
healthy adults.
It is intended for use in the domestic setting only.
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
Safety and Usage Information
CAUTION
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
Symbol for “TYPE BF APPLIED
PARTS”
The Bluetooth Combination Mark
Symbol for “SERIAL NUMBER”
Symbol for “DIRECT CURRENT”
The Body Fat Analyzer LS208-B8 offers you a seamless way to manage your health. Please
be aware that this device is designed for adults’ self-measuring and self-monitoring body fat
level. Any information provided by this device is in no way meant to treat, cure or prevent any
disease or illness from happening. This device should not be used by anyone who is acutely or
chronically ill, suffering from a disease or taking medications that affect your water levels. The
accuracy of readings for these patients has not been verified. Specific medical advice should be
obtained from a physician.
Before diet and exercise, you must first find a professional medical guide.
The body fat analyzer is equipped with data transmission function. It may emit electromagnetic
energy so as to perform its intended function. Nearby portable and mobile RF communications
equipment can affect the performance of the device .
Portable and mobile RF communications equipment can affect the measuring accuracy of the
body fat analyzer.
Kindly note that the use of accessories, transducers or cables other than those specified, with
the exception of transducers and cables sold by the manufacturer as replacement parts for
internal components, may result in increased EMISSIONS or decreased IMMUNITY of the
device.
Be aware that misuse of electrical equipments can cause electric shock, burns, fire and other
hazards.
Warning that the body fat analyzer should not be used adjacent to or stacked with other
equipment.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modifications of this equipment is allowed.
During using the analyzer, the patient will contact with the surface and the electrode of the
Analyzer. The surface and the electrode of the analyzer is type BF Applied part.
The device doesn’t need to be calibrated in five years lifetime.
Do not touch the output of batteries when using the analyzer.
The patient is an intended operator. The patient can perform all the operations in the manual,
such as measurement, data transmitting, changing batteries.
Please do not use the device in flammable gas environment.
Symbol for “MANUFACTURE
DATE”
INDICATIONS FOR USE
CONTRAINDICATIONS
1. This device is contraindicated for any female subject who may be suspected of, or is pregnant.
Besides provided inaccurate readings, the affects of this device on the fetus are unknown.
2. This device is contraindicated for any person who is connected to a wearable or implantable
electronic device or instrument such as a pacemaker or defibrillator.
To ensure your safety as well as the service life of your scale, please avoid using
the scale under the following circumstances:
Slippery floor such as tile floor
Jumping onto the platform immediately after bath or with wet feet
Near a cell phone or microwave oven
Avoid storage in the following locations:
Where there is water
Where the device may be exposed to extreme temperatures, humidity, moisture, direct
sunlight, dust, or salt air
Where there is risk of shock or drop
Where you store chemicals or full of corrosive gases
Where in reach of the infants or children
Your Scale and Its Environment
Efficient Use of Your Scale
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Step onto the platform with bare feet. Stand still and keep full contact with the scale until
the measurement is complete.
Start measurement at least two hours after Getting up or Dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dinning.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.
4 5
LED Display
List
1. Body Fat Analyzer LS208-B8
2. Four AAA-size Batteries (1.5V per each)
3. User Manual
OverviewOverview

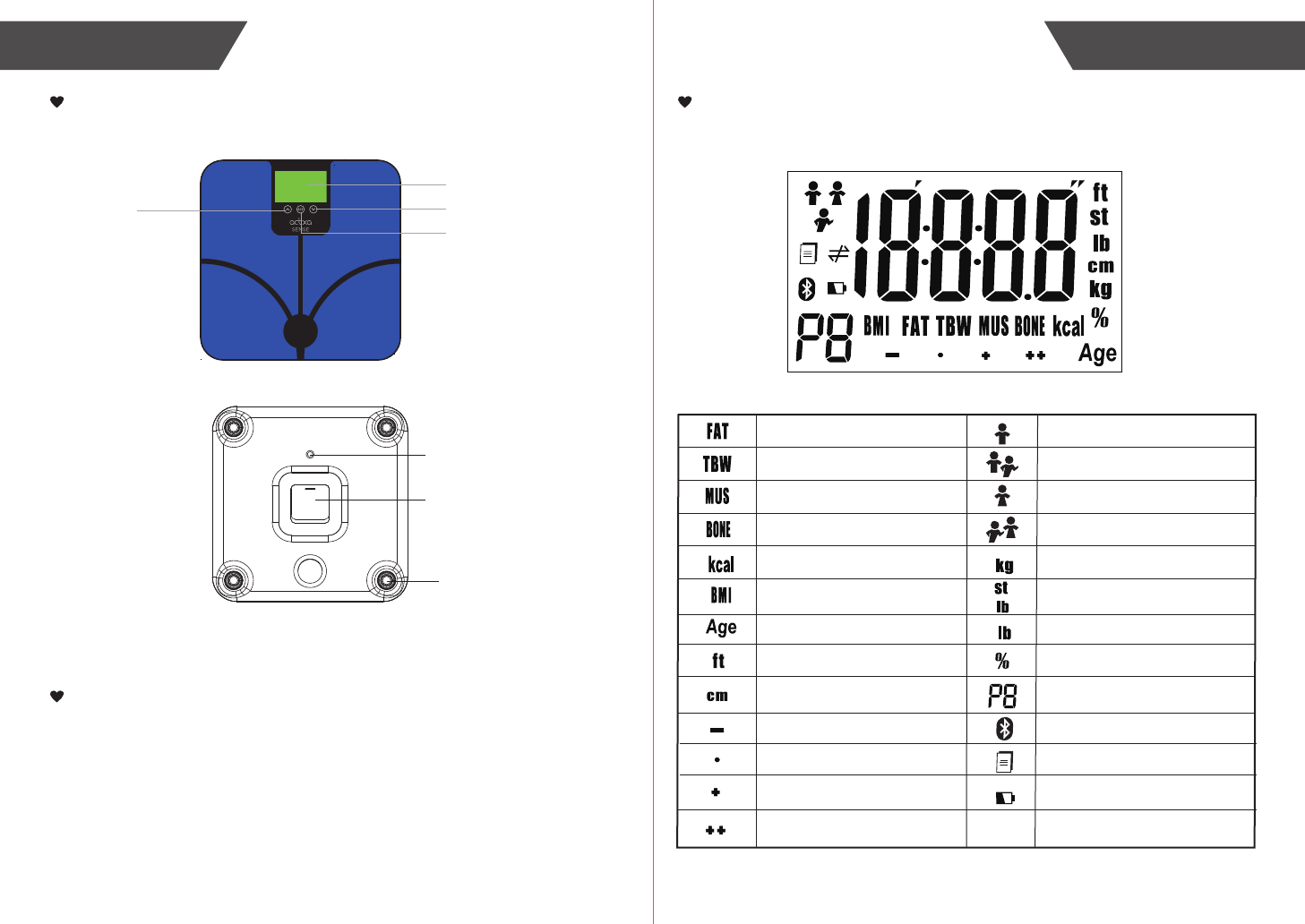

Device Components
Body Fat Analysis Result
Total Body Water Analysis Result
Muscle Mass Analysis Result
Bone Mass Analysis Result
Stone
Pound
Kilogram
Percentage
Foot
Centimeter
Age
User ID (Rangr form P1 to P8)
Successful Bluetooth Connection
Data transmitting / pending to
transmit to wireless wellness system
Low Battery
Calorie Analysis Result
Body Mass Index
LED Display
Up Key
Set Key
Down Key
Male
Female
Male Athlete
Female Athlete
UNIT and activation Button
Battery Compartment
Sensor
Body Fat Level: Underfat
Body Fat Level: Healthy
Body Fat Level: Overfat
Body Fat Level: Obese
7
6
General Instructions
If SUCCEED, symbol “PASS” will be shown on the LED.
If FAIL, symbol “FAIL” will be shown on the LED.
Initial Start-UpInitial Start-Up
Install APP and Pair-Up
Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding.
Press and hold “UNIT” button in the back of the scale to start pair-up.
Symbol and symbol will be shown on the LED alternatively, indicating pair-up
is proceeding.

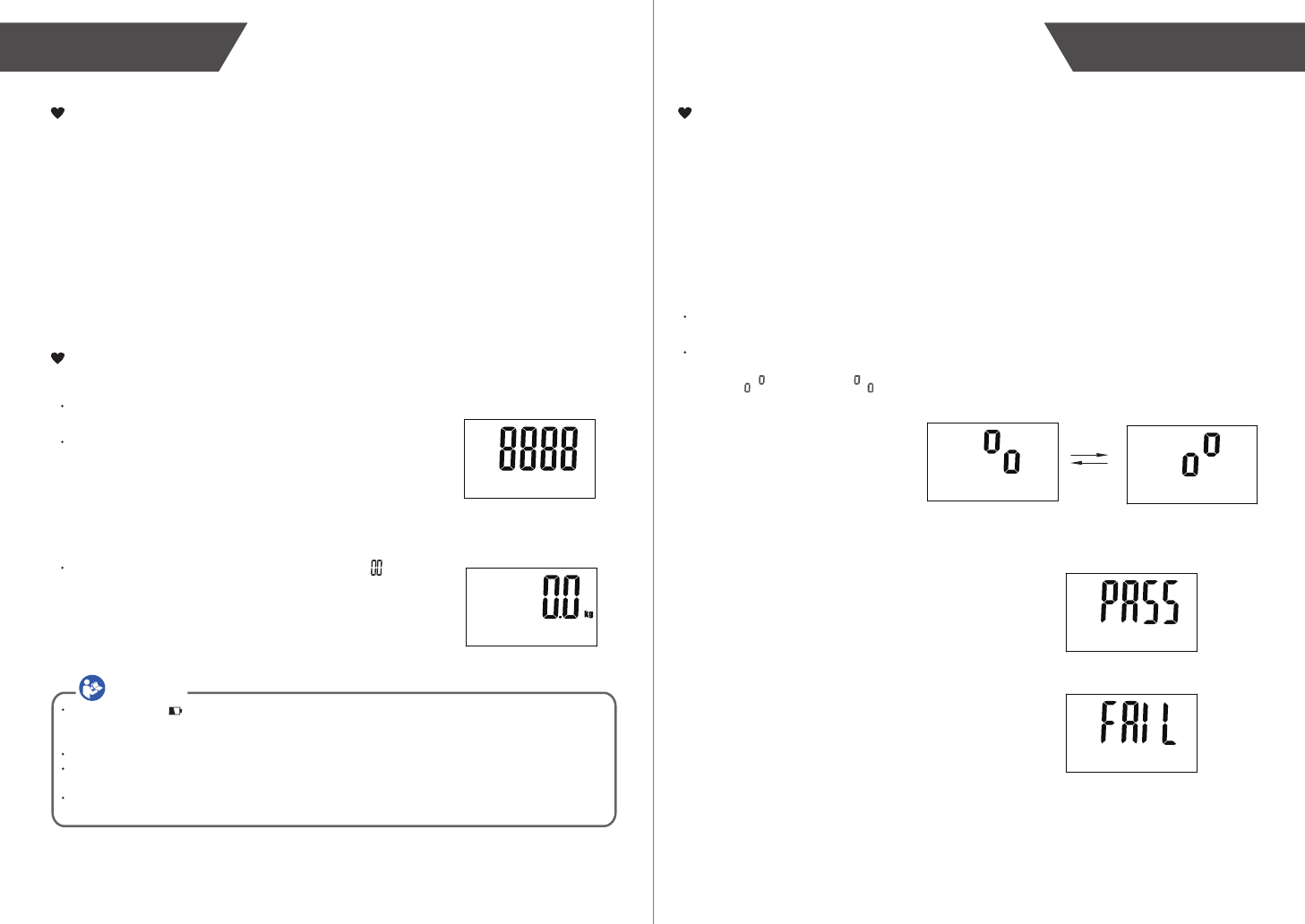

Insert the Batteries
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AAA) into the battery
compartment according to the polarity indications
marked inside the compartment.
* The digits “ 8888 ” will be shown on the LED.
Close the battery door and wait until the digits “ ”
are shown on the LED.
Transtek Body Fat Analyzer LS208-B8 applies BIA (Bio-impedance Analysis) technology.
A small amount of weak current flows through the human body so as to detect the
bio-impedance and estimate calorie, BMI, body fat, body water, muscle mass and bone
mass. The electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also
possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone
with an wearable or implantable medical electronic instrument, such as a pacemaker, must
avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults.
CAUTION
When the symbol and “ Lo” appear, the device will power off. Then you shall replace with a new set
of batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new
one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries
and scrapped device.
If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries
before storing.
With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments,
which are equipped with Bluetooth function in line with BLE Technical Specifications as
well as BLP Protocol established by global organization Bluetooth SIG, are capable to
receive your personal health data.
Just simply install the specially-designed app and pair up your scale with your mobile or
portable equipments. Then you may enjoy the comprehensive health solution provided by
Transtek.
Note: It is only available for the device which supports Bluetooth 4.0 technology.
After confirming Stature, the system will divert to Age setting.
As pictured below, the digits “30” blinks. The operator may press the function key or
to increase or decrease the numeral.
You may press and hold the function key or for fast changing the numeral.
Press “SET” key to confirm Age.
9
8
The body fat analyzer LS208-B8 supports multiple users (Up to 8). You may follow
below instructions to assign User ID and set up your own profile, including Gender,
Stature, and Age.
Initial Start-Up
Initial Start-Up
Set Up Your Profile 4.Setting Age
Select Measurement Unit
After confirming Gender, the system will divert to Stature setting automatically.
As pictured below, the digits “ 165 ” blinks. The operator may press the function key
or to increase or decrease the numeral.
You may press and hold the function key or for fast changing the numeral.
Press “SET” key to confirm Stature.
After confirming User ID, the system will divert to Gender setting automatically.
As pictured below, the portrait blinks. The operator may press the function key
or to select Gender.( Male/Female/Male Athlete/ Female Athlete).
Press “SET” key to confirm Gender.
With batteries correctly installed, press “SET” key to enter setting mode when the
scale is off. Or when the LED displays 0.0, press and hold “SET” keyto enter setting
mode.
The system will request User ID selection first. As pictured below, “P1” blinks. The
operator may press the function key or to select User ID among P1 to P8.
Press “SET” key to confirm User ID.
1.Assigning User ID
2.Setting Gender
3.Setting Stature
With batteries correctly installed, press “UNIT” button in the back of the scale to select
measurement unit. The default measurement unit is “kg”. You may press “UNIT” button to
choose among kilogram, stone and pound.
Note: You may also set up your profile in the APP, when your smartphone is successfully
paired with your scale, the personal profile will be transmitted to your scale via
Bluetooth.
Athlete Mode:
An athlete is considered as a person who does 10 hours or more per week of aerobic
activity and has a resting heart rate of 60 beats per minute.These individuals should
select Athlete Mode for the most accurate measurement results.The body fat analyzer
are not calibrated for professional athletes or body builders.
5. After confirming the Age, the LED will display “0.0”, then you can start
measuring.
6. Repeat procedure for a second user, or to change user details.
Note: To update or overwrite the memorised data, follow the same procedure, making
changes as required.
11
10
Please process the user setting before your first measurement.
(Refer to Set Up Your Profile for more details)
Start Measuring
First Measurement
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
LS208-B8 will process data transmission instead.
(Please refer to Data Transmission for more details.)
STEP 3: The measurement results will be displayed followed by Weight, Body Fat,
Total Body Water, Muscle Mass, Bone Mass, Kcal and BMI. The data will be
displayed three times and then turn off.
* If it fails to complete the analysis, the LED will only display the weight data.
(To find out the solutions, please refer to Troubleshooting for more details.)

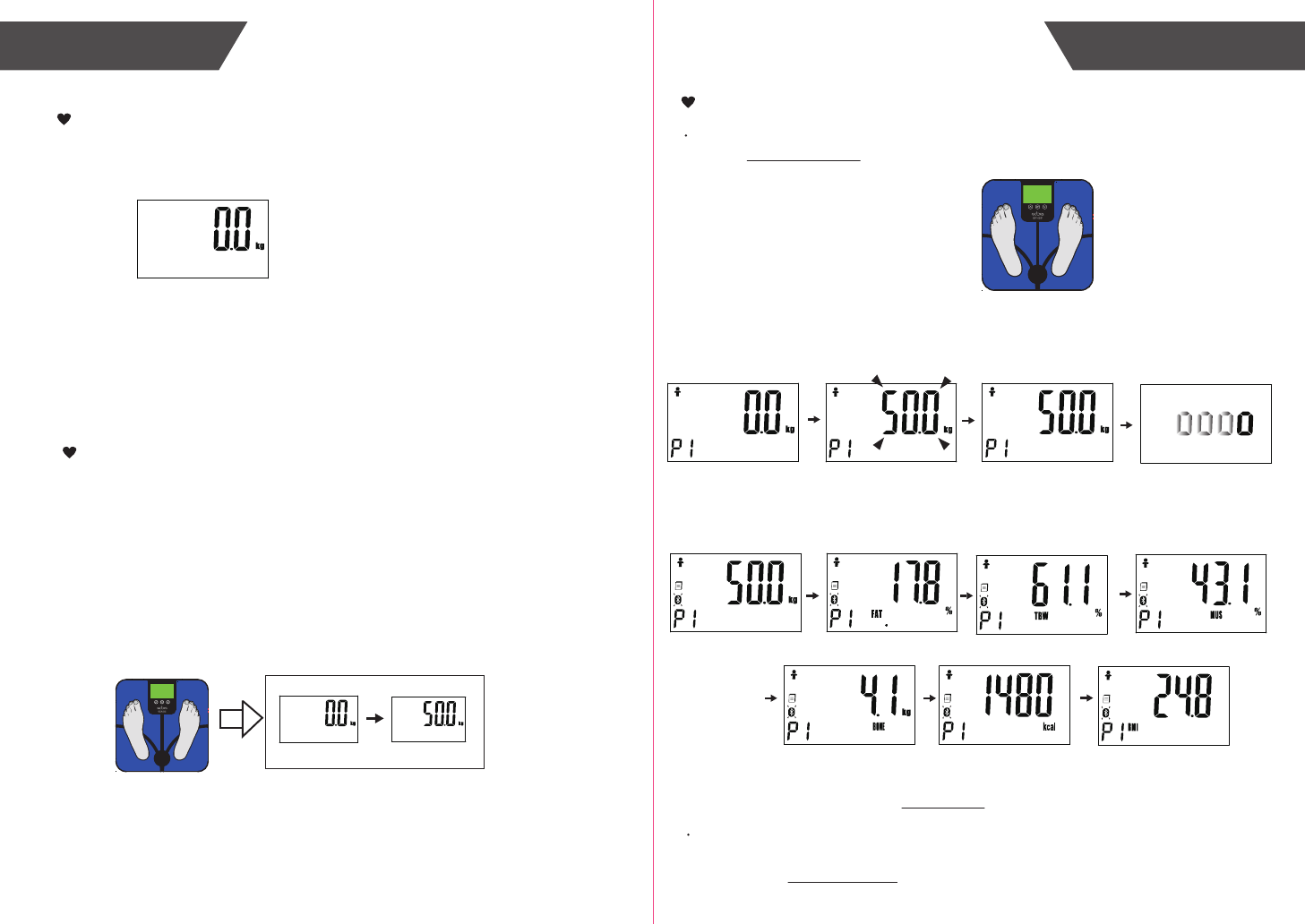

STEP 1: Step on the platform barefooted
when the LED display “0.0”.
Weight Only Operation
Your TRANSTEK Body Fat Analyzer will operate as a conventional
weight - reading scale. No special programming steps are required.
Once the scale is initialized, as previously described, you may simply step on
the scale to measure your current weight. For only weight reading.
1. Position the scale on a flat, hard surface. Carpeted or uneven floors may
affect accuracy.
2. Step onto the scale platform and remain still while the scale computes your weight.
3. The scale will display your weight value.
4. The scale will automatically turn off after a few seconds.
1. Press the platform centre and remove your foot.
2. “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
This initialisation process must be repeated if the scale is moved.
At all other times step straight on the scale.
Initialising Your Scale
Initial Start-Up
STEP 2: Stand still and the weight data will be locked with blinking twice when the
weight is stable. Keep full contact with the scale until the LED stops
displaying moving “o”.
Note: The weight value won’t be saved in the scale, and won’t be transmitted to the APP.
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol . And
the Analyzer may interfere vicinity electrical equipment.
To enable the data transmission function, this product should be paired to a Bluetooth 4.0 end.
How to mitigate possible interference?
1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1
meter to 10 meters. Please ensure no obstacles between the Analyzer and the Bluetooth end
so as to obtain quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission
/ Transmitter) should be kept at least 1 meter away from the Analyzer.
1312
With original SENSE ON patent technology, LS208-B8 will switch on as you step on
the platform barefooted.
If it fails to identify the possible User ID, the LED will only display the weight data then
shutdown.
(To find out the solutions, please refer to Troubleshooting for more details.)
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
LS208-B8 will process data transmission instead.
(Please refer to Data Transmission for more details.)
With LS208-B8 successfully pair-up with your
smartphone, the measurement data will be
transmitted to your mobile via Bluetooth.
ONLY when the measuring results are attached to a
specific User ID will it be transmitted to your mobile
after measurement.
The symbol will disappear after successful data
transmission, and you may check your personal
health data stored in your smartphone.
If the data transmission fails, the symbol will
remain. The pending measurement data will be
temporarily kept in the scale and transmitted to your
smartphone when next measurement is complete.
Successful Bluetooth
Connection
Data transmitting to
wireless wellness system:
-If SUCCEED, the symbol
disappears;
-If FAIL, the symbol
remains.
Start Measuring
Daily Measurement
Manage Your Health
Data Transmission
Stand still and keep full contact with the scale until the LED stops displaying
moving “o”.
After the weight is locked, if identify the stored weight is during this weight within+/-3 kg,
it will identify the specific user ID.
If it identifies one user, it will skip the step about user selection, then display the Weight,
Body Fat, Total Body Water, Muscle Mass, Bone Mass, Kcal and BMI data sequentially
three times and turn off.
If it identifies two or more users,for example,P1,P2 and P3, the LED will display these
users altermately two times, you may press the function key or to choose the
User ID. The measuring results will then be sorted into the User ID you selected and
displayed sequentially three times. If you don’t choose the user, it will display the weight
again and turn off.
15
14
Troubleshooting Troubleshooting
Error Prompt
Error Description Solution
Overload. The device will
power off.
Stop using this scale for
measurement.
Low Battery. The device
will power off.
Replace all four batteries in the
same time. Please purchase the
authorized batteries for
replacement.
Please check below items:
-Bluetooth is ON.
-App Collector is ON.
-Both devices are within the
transmission distance of Bluetooth.
Failure of pairing up your
scale with your
smartphone.
When Measuring ...
Problem Root Cause Solution
Incorrect posture.
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Please step on the platform
barefooted and stand still.
The device is located on
the soft ground such as a
carpet OR on a rugged
surface.
Please place the device on a
flat, hard surface.
Problem Root Cause Solution
Your feet are too dry.
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
No display on
LED when the
device powers on.
CANNOT proceed
to analyze calorie,
BMI, body fat, total
body water, muscle
mass and bone
mass.
The device
powers off.
Wipe your feet with a damp
cloth, keeping them slightly damp
when starting measurement.
Batteries not yet installed.
Worn batteries.
Low battery.
Install the batteries.
(Please refer to Insert the
Batteries)
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Step onto the platform
wearing socks or shoes.
Please keep barefooted during
the measurement, and keep full
contact with the scale as well.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
The system cannot
identify the possible User ID
with most similar data.
Please assign a User ID
following the instruction in Set Up
Your Profile.
The user fails to select
the User ID from what the
system found.
Please assign a User ID
following the instruction in Set Up
Your Profile.
There has data doesn’t
upload. (The notebook
icon will be displayed.)
Upload the data.
17
16
Problem Root Cause Solution
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth via
Setting.
The App is OFF. Press the icon to turn ON your
app.
Place your smartphone closer to
the scale.
Please assign a User ID following
the instruction in Set Up Your
Profile.
Out of range of Bluetooth
transmission.
None of the user ID is
assigned.
Troubleshooting
When Data Transmitting ...
Specifications
Specifications
Product Name
Dimension
Body Fat Analyzer (LS208-B8)
Scale: 320x320x26mm (Approximately)
Net Weight Approximately1.98kg
Display Digital LED
Measurement Unit Kilogram / Stone/ Pound
Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division 0.1kg / 0.2lb/1lb (≥20st)
Accuracy 50kg: ±0.3kg;
150kg: ±0.5kg;
Working Environment
Storage Environment
Power Source 6V (Four AAA-size Batteries)
Turn on Method SENSE ON technology
Auto-OFF
Accessories 1. Four AAA-size batteries
2. User Manual
100kg: ±0.4kg;
180kg: ±0.7kg
Mode of Operation Continuous Operation
The scale will turn off after about 15 seconds if there is
no operation
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by
anyone during the process of transaction for verification of goods’ weight.
Temperature: 5℃ to 40℃
Temperature: -20℃ to 60℃Relative Humidity: ≤90% RH
Atmospheric pressure: 86kPa to 106kPa
Atmospheric pressure: 50kPa to 106kPa
Relative Humidity: ≤90% RH
Protection Against
Ingress of Water IP21
Software Version A0
Degree of protection Type BF applied part
19
18
Maintenance Appendix
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Maintenance
Warranty
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Transtek.
(Please refer to Warranty for contact information)
ZHONGSHAN LIFESENSE ELECTRONICS CO., LTD
Tel: 86-760-88282982
Website: http://www.transtek.cn
23,Jin'an Road, Minzhong, Zhongshan, 528441, Guangdong, China
Transtek warrants its products free of defects in materials and workmanship in normal
use for a period of FIVE years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to ZHONGSHAN LIFESENSE ELECTRONICS CO.,
LTD prepaid. Please return the store receipt (with the retail purchase date) and a note
with reasons to return on it as well.
FCC User Guide Information
Radio Frequency Interface Requirements - FCC
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected;
Consult the dealer or an experienced radio / TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
FCC Regulations
21
20
Appendix Appendix
Table of Body Fat Level (Unit: %)
a) The body fat percentage (%): 5%-60%/0.1%
Health Tips - About Body Fat
Human body is made up of, amongst other things, a percentage of fat. Body fat is vital
for a healthy, functioning body, protects vital organs, helps regulate body temperature,
stores vitamins and helps the body sustain itself when food is scarce. However, too much
body fat or indeed too little body fat will damage to your health. It is difficult to gauge how
much body fat we have in our bodies simply by looking at ourselves in the mirror.
This is why it is important to measure and monitor your body fat percentage. Body fat
percentage gives you a better measure of fitness than weight alone–the composition of
your weight loss could mean you are losing muscle mass rather than fat-you could still
have a high percentage of fat even when a scale indicates‘normal weight’.
The table as follows may be used as a guide: Table of Body Water Level (Unit: %)
Health Tips - About Body Water
Body water is the single most important component of body weight. It represents over
half of your total weight and almost two thirds of your lean body mass (predominantly
muscle). Water performs a number of important roles in the body:
All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else,
can only function properly if they have enough water. Water also plays a vital part in
regulating the body’s temperature balance, particularly through perspiration.
The combination of your weight and fat measurement could appear to be ‘normal’ but
your body hydration level could be insufficient for healthy living.
The table as follows may be used as a guide:
Standard for Men
Rating
low
Normal
Moderately High
High
Age
20-29
<13 <14 <16 <17 <18
13-20 14-21 16-23 17-24 18-25
20.1-23 21.1-24 23.1-26 24.1-27 25.1-28
>23 >24 >26 >27 >28
30-39 40-49 50-59 60+
Standard for Women
Rating
low
Normal
Moderately High
High
Age
20-29
<19 <20 <21 <22 <23
19-28 20-29 21-30 22-31 23-32
28.1-31 29.1-32 30.1-33 31.1-34 32.1-35
>31 >32 >33 >34 >35
30-39 40-49 50-59 60+
Source: University of Illinois Department of Food Science and Human Nutrition.
Body Fat Percentage Calculator.
www.ag.uiuc.edu/~food-lab/ai/bfc.html
b) The body water percentage (%): 43%-73%/0.1%
Men
Women
BF % RANGE
4 to 14%
15 to 21%
22 to 24%
25 and over
4 to 20%
21 to 29%
30 to 32%
33 and over
70 to 63%
63 to 57%
57 to 55%
55 to 37%
70 to 58%
58 to 52%
52 to 49%
49 to 37%
OPTIMAL TBW % RANGE
Source: Derived from Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal
Clin Nutr 1999,69833-841.
23
22
Appendix Appendix
Muscle Mass Percentage
Bone Mass Percentage
Health Tips - About Muscle Mass
According to the American College of Sports Medicine (ACSM), lean muscle mass may
decrease by nearly 50 percent between the age of 20 and 90. If you do nothing with it
you’re losing muscle and increasing fat. It is also important to know your muscle mass %
during weight reduction. At rest, the body burns approximately 110 additional calories for
each kilo of muscle gained. Benifits of gaining muscle mass include:
• Reversing the decline in strength, bone density and muscle mass with aging
• Maintenance of flexible joints
• Guide weight reduction when combined with a healthy diet.
Health Tips - About Bone Mass
Regular exercise and a balanced diet can help maintain healthy bones. Like muscle,
bone is a living tissue that can respond to exercise by becoming stronger. For most
people, bone mass peaks in their thirties. Then people begin to lose bone. Regular
exercise can help prevent that loss.
Calcium and vitamin D, good sources of which are dairy products, green leafy
vegetables and fish, contribute to healthy bones.
The bone mass readings given by this product are anestimation of the amount of bone in
your body. Those with osteoporosis or low bone densities may not get accurate
estimations. If you have any concern regarding your bones please consult your doctor
timely.
The table as follows may be used as a guide:
The table as follows may be used as a guide:

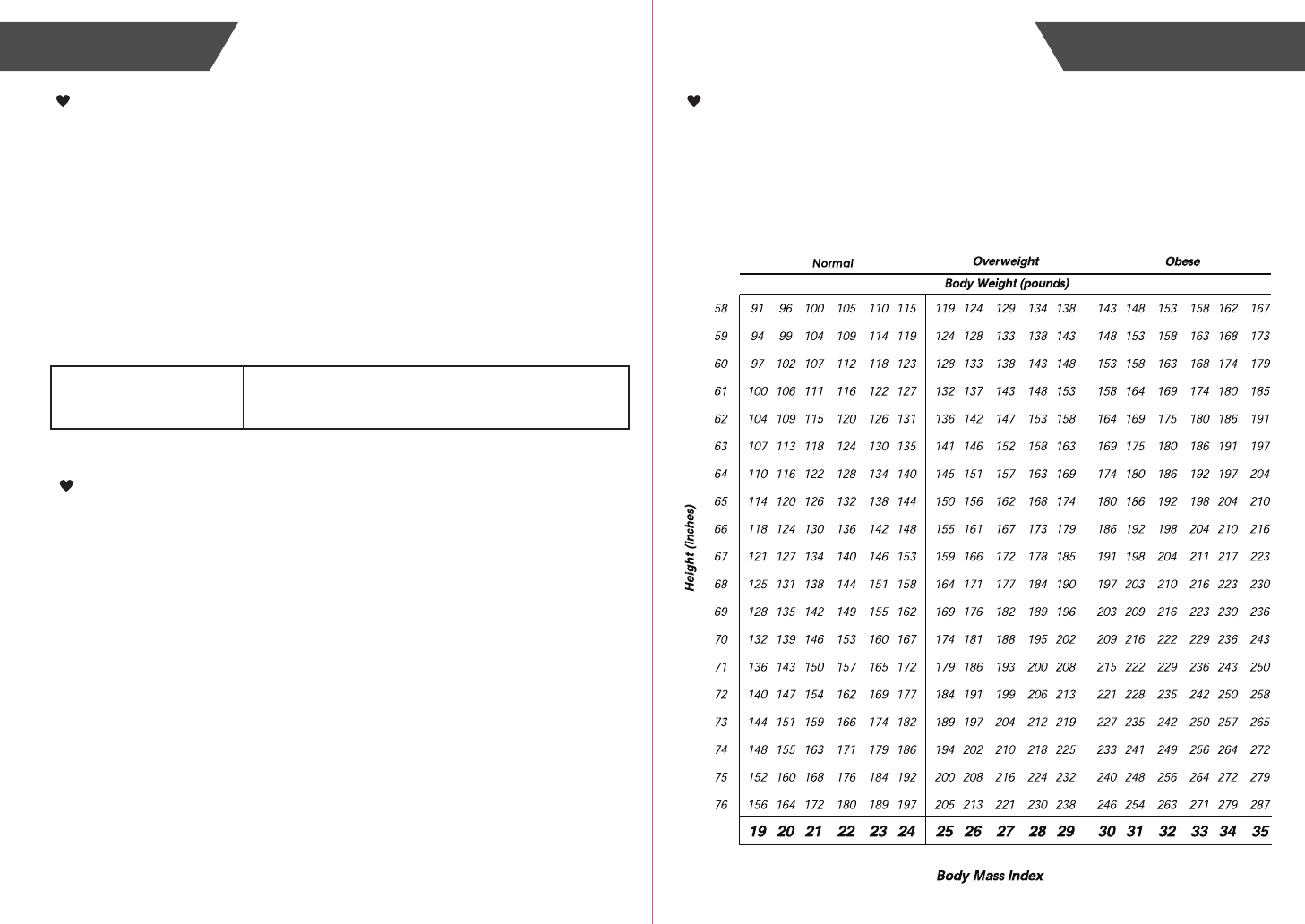

Health Tips - About BMI
Maintaining proper weight is essential to healthy living. Obesity has been linked to a
higher risk of heart disease, diabetes and some forms of cancer. The Body Mass Index
(BMI) is the most widely accepted measurement of weight according to health
professionals. The Analyzer will calculate your BMI on your height and weight.
The table as follows may be used as a guide:
(Source: International Commission on Radiological Protection,1975)
Men
Women
Approximately 40% of total body weight
Approximately 30% of total body weight
(Source: Rico et al.1993)
The average bone mass percentage for both men and women is between 4 to 5%.
EMC Guidance
Health Tips - About Calorie
The device uses your age, height, gender and an activity level setting to calculate
the estimated number of calories you can consume a day to maintain your present weight.
This estimation may gradually help you with a weight loss, gain or maintenance plan.
Table 1 Guidance and MANUFACTURER’s declaration – ELECTROMAGNETIC
EMISSIONS- for all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacturer’s declaration – electromagnetic emissions
RF emissions
CISPR 11 Group 2
Class B
Not applicable
Not applicable
Compliance
The device is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in
such an environment.
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/
flicker emissions IEC
61000-3-3
RF emissions
CISPR 11
Emissions test Electromagnetic environment - guidance
The device must emit electromagnetic
energy in order to perform its intended
function. Nearby electronic equipment may be
affected.
Guidance and manufacturer’s declaration – electromagnetic immunity
IMMUNITY test
±6 kV contact
±8 kV air ±6 kV contact
±8 kV air
±2 kV for
power supply lines Not applicable
±1 kV line(s)
to line(s)
±2 kV line(s)
to earth
<5% U
T
(>95% dip in U
T
)
for 0.5 cycle
40% U
T
(60% dip in U
T
)
for 5 cycles
70% U
T
(30% dip in U
T
)
for 25 cycles
<5% U
T
(>95% dip in U
T
)
for 5 s
3A/m
NOTE U
T
is the a.c. mains voltage prior to application of the test level.
Table 2 Guidance and MANUFACTURER’s declaration – electromagnetic
IMMUNITY – for all ME EQUIPMENT and ME SYSTEMS
IEC 60601 test level Compliance level
Electrostatic
discharge (ESD)
IEC 61000-4-2
Electromagnetic
environment - guidance
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the
relative humidity should be
at least 30%.
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
3A/m
Power frequency
(50/60Hz)
magnetic field
IEC 61000-4-8
Voltage dips,
short interruptions
and voltage
variations on
power supply
input lines
IEC 61000-4-11
Electrical fast
transient/burst
IEC 61000-4-4
Surge IEC
61000-4-5
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an
environment
±1 kV for
input/output lines
Not applicable
Not applicable
Mains power quality should
be that of a typical
commercial or hospital
environment.
Mains power quality should
be that of a typical
commercial or hospital
environment.
Mains power quality should
be that of a typical
commercial or hospital
environment. If the user of
the device requires
continued operation during
power mains interruptions,
it is recommended that the
device be powered from an
uninterruptible power supply
or a battery.
25
24
Appendix Appendix
Table 4 Guidance and MANUFACTURER’s declaration – electromagnetic IMMUNITY –
for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Guidance and manufacturer’s declaration – electromagnetic immunity
IMMUNITY test
Not applicable
3 V/m
Compliance
level
IEC 60601
TEST LEVEL
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 V/m
80 MHz to
2.5 GHz
3 Vrms
150 kHz to
80 MHz
Electromagnetic environment -
guidance
Portable and mobile RF communications
equipment should be used no closer to
any part of the device, including
cables, than the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter.
Recommended separation distance
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an environment.
where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter manufacturer
and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey, should be
less than the compliance level in each
frequency range.
a
b
Interference may occur in the vicinity of
equipment marked with the following
symbol:
P
V
=d ]
5,3
[
1
P=d
80 MHz to 800 MHz
P=d 2.333
800 MHz to 2,5 GHz
1.167
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects
and people.
aField strengths from fixed transmitters, such as base stations for radio (cellular /
cordless) telephones and land mobile radios, amateur radio, AM and FM radio broad-
cast and TV broadcast cannot be predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field strength in the location in which
the device is used exceeds the applicable RF compliance level above, the device
should be observed to verify normal operation. If abnormal performance is observed,
additional measures may be necessary, such as re-orienting or relocating the device.
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than
[ ]V/m.
b
V1
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz
Table 6 Recommended separation distances between portable and mobile
RF communications equipment and the ME EQUIPMENT or ME SYSTEM –
for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
Recommended separation distances
between portable and mobile RF communications equipment and the device.
The device is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the device
can help prevent electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment (transmittters) and the
device as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum output
power of transmitter
(W)
Separation distance according to frequency of transmitter (m)
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to
the frequency of the transmitter, where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reflection from structures, objects and people.
0.01
0.1
1
10
100
Not applicable 0.117
0.369
1.167
3.690
11.67
0.233
0.738
2.333
7.378
23.33
P
V
=d ]
5,3
[
1P=d 1.167 2.333 P=d
Not applicable
Not applicable
Not applicable
Not applicable
26
Appendix
27
Appendix
