User Manual
Activity Tracker LS407-B
FCC ID: OU9LS407-B01
Thank you very much for selecting the Transtek Activity Tracker LS407-B.
Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, 5/F., Investment Building, 12 Huizhan East Road, Torch Development,
Zhongshan, 528437 Guangdong, China
TEL:86-760-88282982 www.transtek.cn
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Table of Contents
Table of Contents
Symbol Meaning
Symbol Meaning
................................................................................................................. 2
Overview
General Instructions ............................................................................................................................... 3
Device Components ............................................................................................................................... 3
Initial Start-Up
Installing and Replacing the Battery ..........................................................................................
Install the APP ...........................................................................................................................
How to Wear the Activity Tracker
..............................................................................................
4-5
6
7
Start Measuring
How to Light it up
How to Use
View the Data
................................................................................................................... 8
................................................................................................................... 9
Recall the Data on the APP ................................................................................................................... 10
Recall the Data on Activity Tracker....................................................................................................... 10
Specifications ........................................................................................................................................... 11
Maintenance .............................................................................................................................................. 12
Warranty ..................................................................................................................................................... 12
Warning ...................................................................................................................................................... 13
Activity Tracker Care ............................................................................................................................... 13
Health Disclaimer ..................................................................................................................................... 13
Other Notes ............................................................................................................................................... 13
FCC Statement ......................................................................................................................... 14
1
Overview
Symbol Meaning
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
General Instructions
Transtek Activity Tracker LS407-B is used for measuring the walked steps,
walked distance and the burned calories.
This device has Bluetooth 4.0 technology, the user can set the personal
information,such as height, weight, etc,through the bluetooth device.
And then download the information to Activity Tracker. The data in the Activity
Tracker also can be uploaded to the device which supports the Bluetooth 4.0
technology. So the user can check it at anytime.
Main Features:
a.
support the Bluetooth 4.0 technology
b.
12 pcs yellow LED display the time and completed amount of the goal,
1 pcs red LED indicate low battery
c.
keep a record of the measuring data during 7 days
d.
can connect with the app, set the daily goal steps, and keep a record
of steps, walked distance and burned calories through the APP.
Device Components

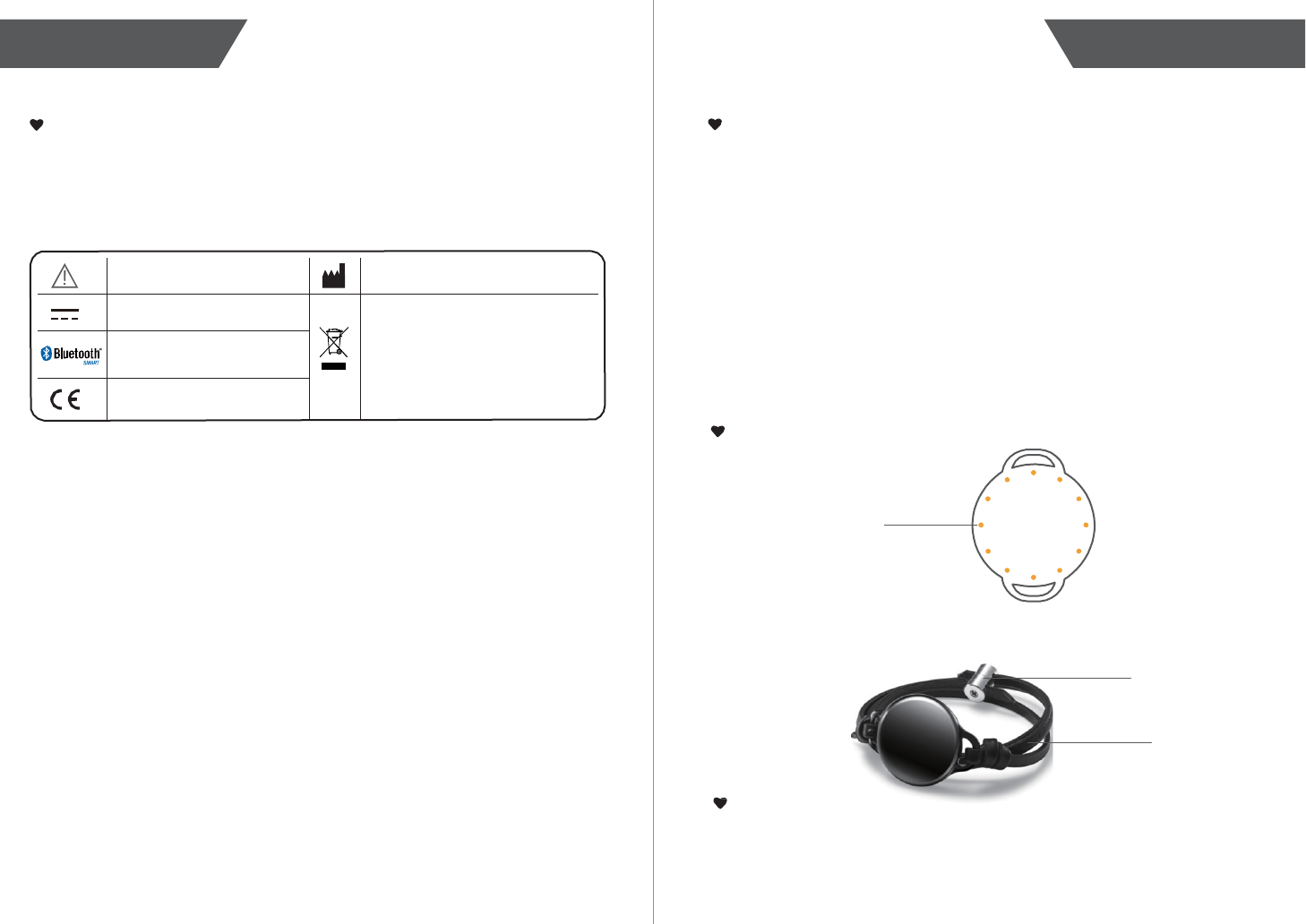

12 LED lights
(Indicate the time or the
completed amount of the goal)
Aluminium Buckle
(embedded magnet)
Wrist Band
List
1.
Activity Tracker LS407-B
2.
One CR2032 battery
3.
One Screwdriver
2
4. User Manual
3
Symbol Meaning
Symbol for “THE OPERATION
GUIDE MUST BE READ”
Symbol for “MANUFACTURER”
Symbol for “DIRECT CURRENT”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
The Bluetooth Combination Mark
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Initial Start-Up
Installing and Replacing the Battery
When you use the Activity Tracker for the first time, please
install the battery (1×CR2032) first.

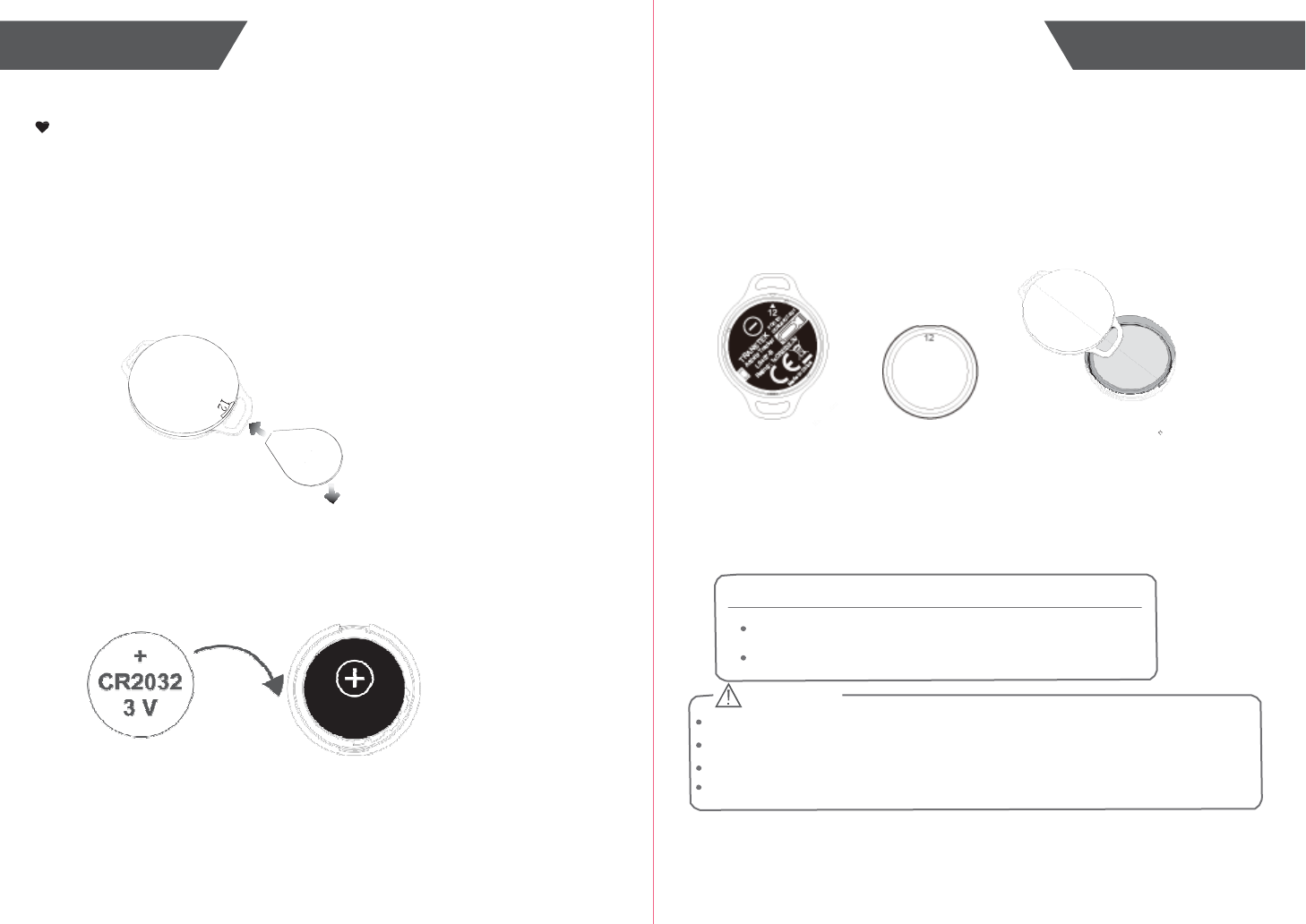

• Close the bottom case. Buckle the place which the bottom case marking “12”
and the place which the top case marking “12”.
• Use the matched screwdriver to open the bottom of the Activity
Tracker.
“12” marked in the label
of the top case
“12” marked in the
bottom case
Buckle the top case
and the bottom case
• Install the battery by matching the correct polarity, as shown.
(Always select the authorized / specified battery : One CR2032 Lithium Battery)
4 5
Initial Start-Up
CAUTION
Remove the battery if the device is not likely to be used for some time.
The old battery is harmful to the environment, so please disposal with other daily trash.
Remove the old battery from the device and follow your local recycling guidelines.
Do not dispose of battery in fire. Battery may explode or leak.
Replace the batteries whenever the below happen
The red LED light blinks
The LED display does not light up
Initial Start-Up
Install the APP How to Wear the Activity Tracker
Before you use the smartphone which supports Bluetooth 4.0
technology, please turn on the Bluetooth.

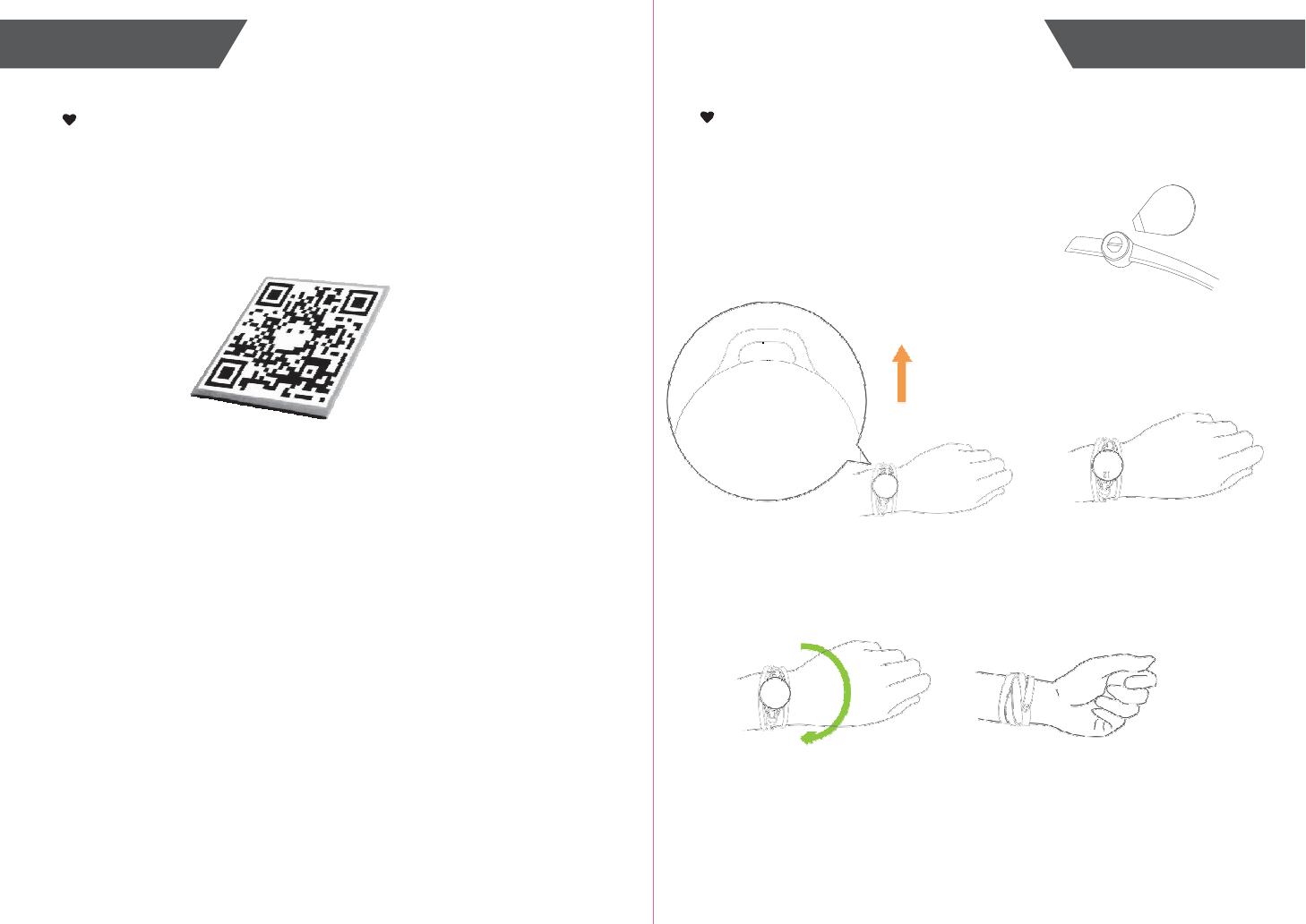

Use the smartphone to scan the QR code which is located on
the kraft paper, download the APP.
Install the APP, and register an account. Then scan the special
QR code for the activity tracker to bind the device. Then set your
personal information (Name, Gender, Height, weight and
waistline).
Wear it on the wrist.
Use the screwdriver to uncrew the screw in the
anti-clockwise. Adjust the length of the wristband
according to your wrist size. Cut off the needless
wristband. Cover the Activity Tracker on the wrist.
Please see the “12” at the back of Activity
Tracker, use the erected “12” as the correct
wearing direction.
Correct Wrong
The time on Activity Tracker will synchronize with the time on
your smartphone. The measuring data will be transmitted to your
device which supports Bluetooth 4.0 technology through the
Bluetooth. Open the home page of the APP to check the steps you
have walked, the walked distance, burned calorie,and healthy
diagram.
Wind the wristband on the wrist, and tighten it naturally, then
buckle the magnet.
Wind the wrist Buckle the magnet.
You also can wear it on the neck as a necklace, on the waist as
the waistband, on the hair as the hair accessory, on the shoe as
6
the decoration,and so on.
7
Initial Start-Up
12
The
back
Start Measuring
How to Light it up How to Use
If the Activity Tracker detect the action of watching, the LED will
light up automatically, indicating the Activity Tracker is on. There
are two ways to light it up.

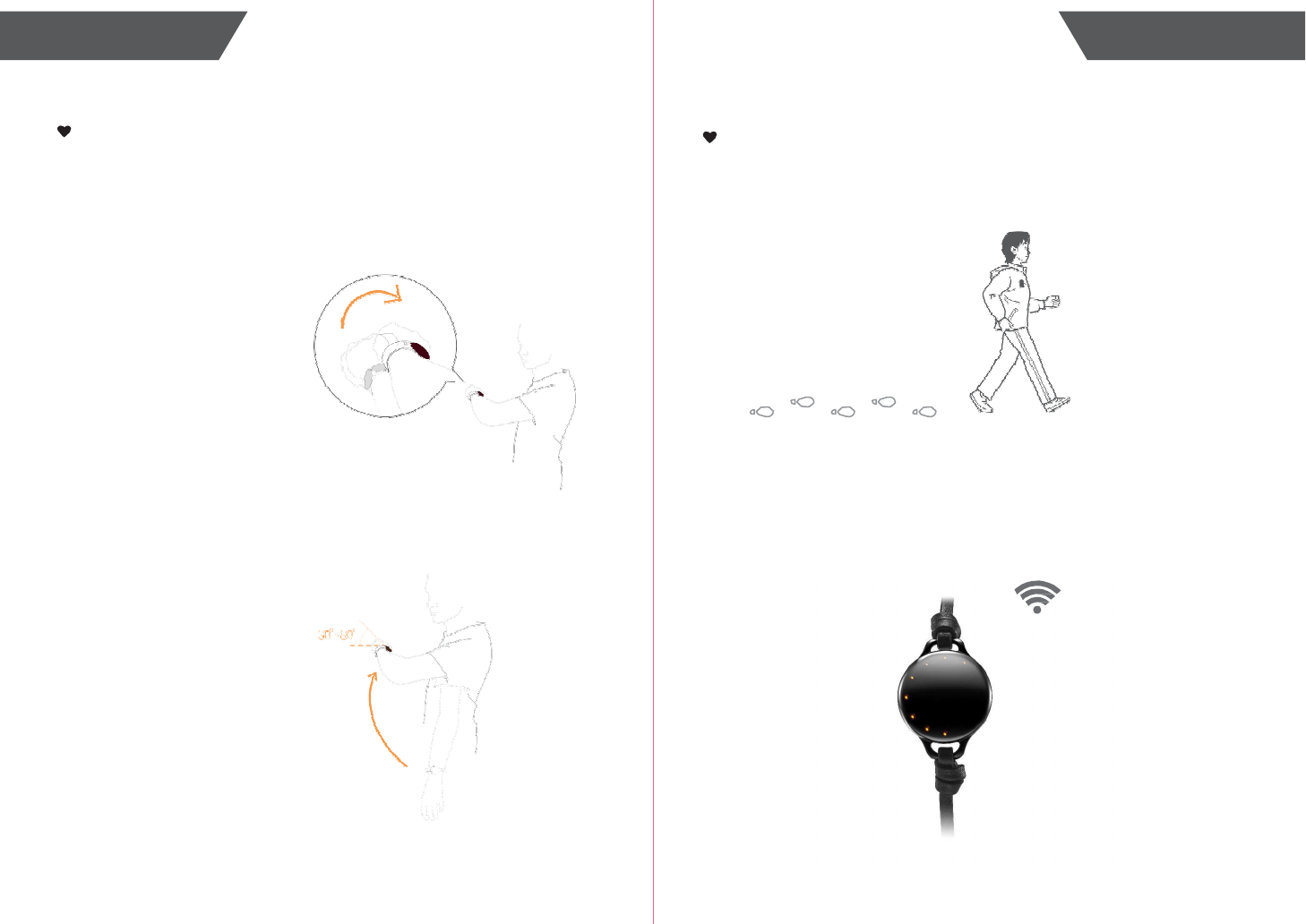

The first way:
The top case is towards
outside, rotate your hand
towards inside between 30°
and 80° to watch normally, the
Activity Tracker will light up.
The second way:
Swing the hand from the
vertical posture to the position of
watching the watch normally,the
surface angle is between 30°
and 80°, the Activity Tracker
will light up.
Wear the Activity Tracker and start walking.
Turn on the home page of the APP, the data will be transmitted
through Bluetooth automatically in the range of 2 meters.
8 9
Start Measuring
Specifications
Recall the Data on the APP
Specifications
Recall the data on the home page of the APP. You can check
the steps and distance you have walked, calories burned,and the
healthy diagram.
Recall the Data on Activity Tracker
Check the time on Activity Tracker. When the Activity Tracker
detect the action of watching, it will turn on and display the current
time and completion of walking steps.

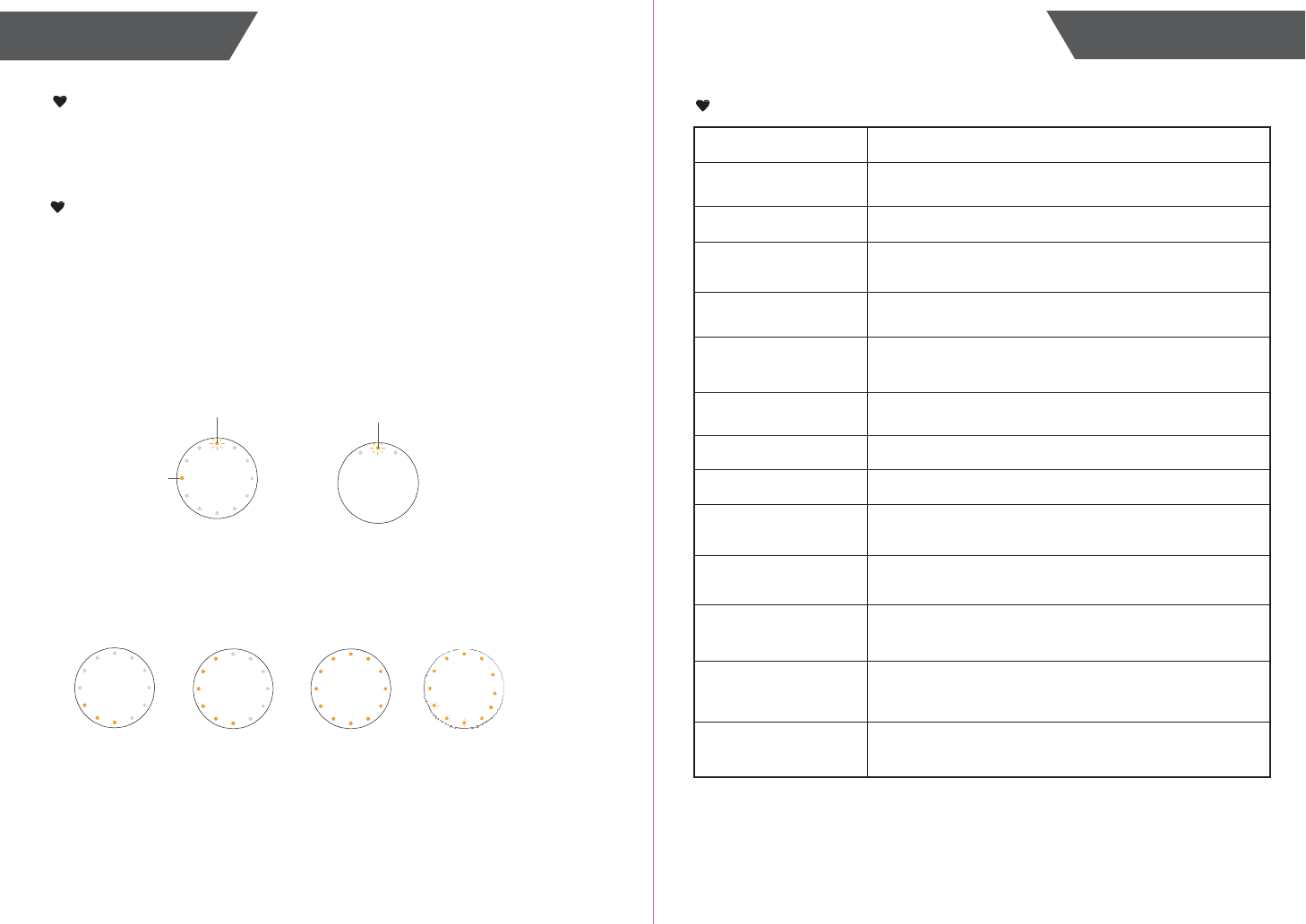

Display the current time. The light which keeps lighting indicates
the hour hand. The blinking light indicates the minute hand. Only
one light lights and blinks means the hour hand overlaps the
minute hand. Such as 12:00, 1:05, 2:10,and so on.
The minute hand
indicates “12” blinks
Only one light
lights and blinks
The hour hand
indicates “9”
keeps lighting
09:00 12:00
Check the steps on Activity Tracker. The lighting lights indicate
the completion of walking steps.
25% 50% 100% 125%
Three lights light,
indicate you have
finished 25% of
the goal steps.
Six lights light,
indicate you have
finished 50% of
the goal steps.
All the lights light,
indicate you have
reached the goal
steps.
When it’s over the
goal steps (100%),
the lights of excess
part will blink.
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
10 11
View the Data
Product Name Activity Tracker (LS407-B)
Dimension Whole size:36.2x27x8 mm (Approximately)
Net Weight Approximately 17 g ( including the wristband)
Display
12 LED lights display
Steps
0-120000 steps, division 1 step
Calories
0-12000.0 kcal, division 0.1 kcal
Distance
60.0km
Exercise Time 0-23 hours and 59 minutes, division 1 minute
Step Accuary 500±15 steps
Power Source
3V,CR2032 Lithium Battery
Working Environment
Temperature: 0℃ to 40℃ Relative Humidity: ≤90% RH
Atmospheric Pressure: 80 kPa ~ 106 kPa
Storage Environment Temperature: -20℃ to 60℃ Relative Humidity: ≤90% RH
Atmospheric Pressure: 50 kPa ~ 106 kPa
Accessories
1.
One CR2032 Battery
2.
One Screwdriver
3.
User Manual
Protection against
ingress of water
IP65
Maintenance Warning
Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Transtek.
(Please refer to Warranty for contact information)
Warranty
Transtek warrants its products free of defects in materials and workmanship in normal
use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG TRANSTEK MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail
purchase date) and a note with reasons to return on it as well.
Warning
While your activity tracker is designed to be worn 24/7, its components are electronic
and susceptible to damage if used improperly. Please read the safety guidelines on
the following pages to ensure proper use and care.
Activity Tracker Care
• Do not tamper with or abuse the activity tracker. For example, without limitation, do not drop,
disassemble, open, crush, excessively bend, deform, puncture, shred, microwave, incinerate,
paint, or insert foreign objects into the activity tracker.
• Do not use abrasive cleaners to clean your activity tracker.
• Do not expose your activity tracker to extremely high or low temperatures.
• Do not leave your activity tracker near open flames such as cooking burners, candles,
or fireplaces.
• Do not bring your activity tracker into contact with any sharp objects. This could cause
scratches and damage.
• Do not insert anything into your activity tracker unless otherwise specified in the user
instructions. This may damage the internal components.
• Do not attempt to repair, modify, or disassemble your activity tracker; it does not contain any
user-serviceable components.
Health Disclaimer
WARNING: THIS ACTIVITY TRACKER IS NOT A MEDICAL DEVICE. The activity tracker
and its associated applications should not be used to diagnose, treat, or prevent any disease
or medical condition. Always seek the advice of a qualified medical professional before
making any changes to your exercise, sleep or nutrition, as doing so may cause severe
harm or death.
Other Notes
• Dispose of the activity tracker, the activity tracker’s battery in accordance with local
regulations. Do not dispose of the battery with regular household waste.
• Recycle your package in accordance with local regulations.
12 13
Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, 5/F., Investment Building, 12 Huizhan East Road, Torch Development,
Zhongshan, 528437 Guangdong, China
Tel: 86-760-88282982
Website: http://www.transtek.cn
FCC Statement
FCC Statement
FCC ID: OU9LS407-B01
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
• Caution: The user is cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
• If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
• This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
14
