User Manual part 2
![](/img.php?id=3373513&img=bg1.png)
version:1.0
TEL:86-760-88282982 www.transtek.cn

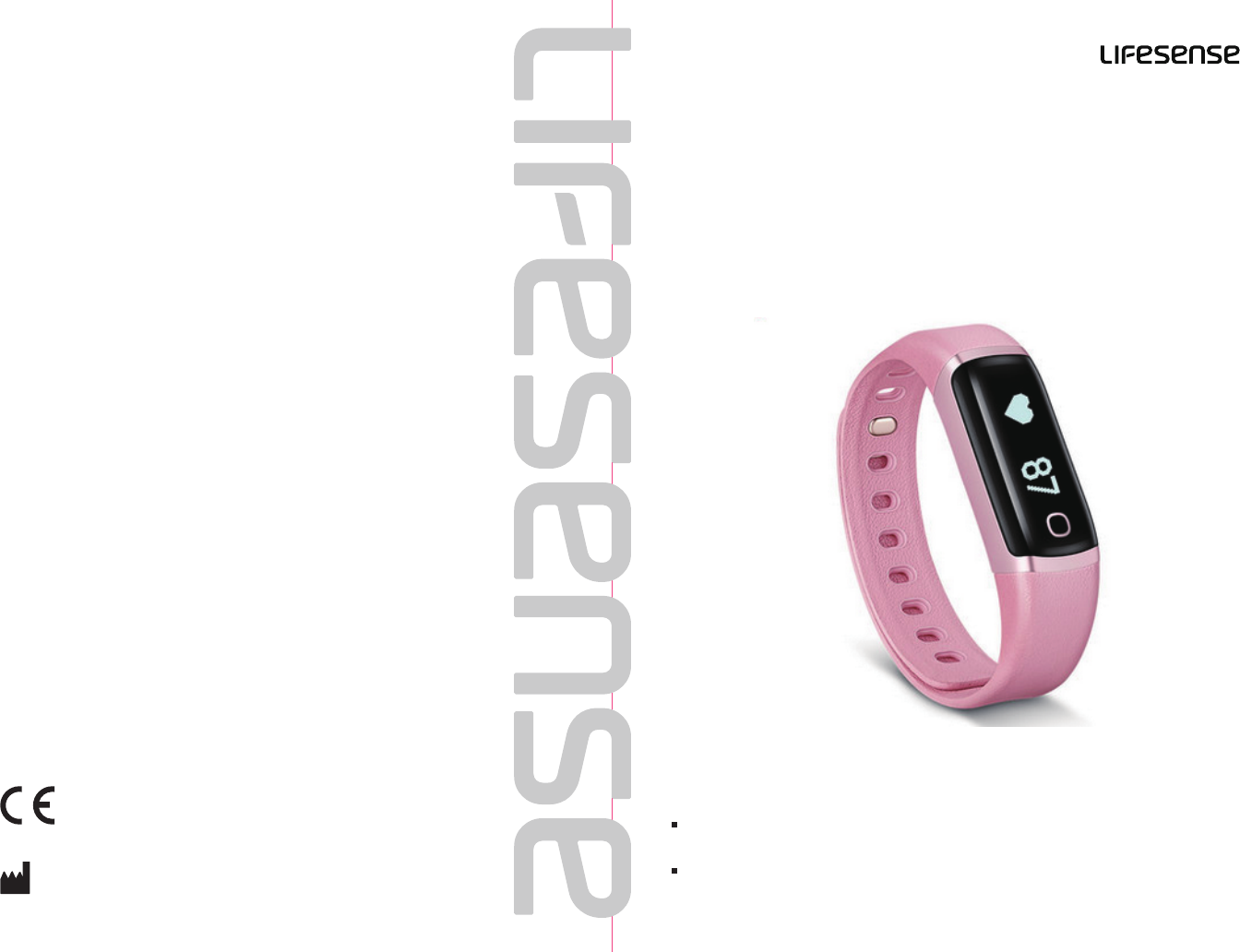

User Manual
Lifesense Band 2S LS418-F
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Thank you very much for selecting Lifesense Band 2S LS418-F.
Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, No.105 ,Dongli Road, Torch Development District,
Zhongshan,528437,Guangdong,China
![](/img.php?id=3373513&img=bg2.png)
1
Table of Contents
Table of Contents
Overview
Device Components
Initial Start-Up
General Instructions
Install the App and Pair-up
Start Measuring
Light It up
Troubleshooting
Specifications
Maintenance
Warranty
3
3
6
8
14
15
16
16
.................................................................................................................
.................................................................................................................
..................................................................................................................................
...........................................................................................................................
............................................................................................................................
..............................................................................................................................
......................................................................................................................................
.....................................................................................................................Tie the wristband
5
.......................................................................................................
Change the wristband 6
..............................................................................................................
Check the Data
Symbol Meaning
Symbol Meaning
2
.................................................................................................................
Activate the Lifesense Band 2S 4
...............................................................................................
Warning 16
......................................................................................................................................
Lifesense Band 2S Care 17
............................................................................................................
Built-in Battery Care 17
...................................................................................................................
Health Disclaimer 17
........................................................................................................................
Other Notes 17
.................................................................................................................................
View the Data
.............................................................................................................. 9
List 3
.............................................................................................................................................
Special Function
Alarms
Call Notification
Text Notification
Move Reminder
Night Mode
Wrist Selection
..................................................................................................................
..........................................................................................................................
.......................................................................................................................
................................................................................................................
...............................................................................................................................
.........................................................................................................................
10
10
10
11
11
11
OLED Display
2
.................................................................................................................
Battery Charging ...................................................................................................................... 7
How to Use 8
...............................................................................................................................
Heart Rate Detection ................................................................................................................ 12
Display Mode ............................................................................................................................ 12
Display Settings ..................................................................................................................... 12
Goal Achievement Reminding .................................................................................................... 13
Sleeping Condition Monitor ......................................................................................................... 13
Running Mode............................................................................................................................ 13
FCC Statement 18...........................................................................................................................
![](/img.php?id=3373513&img=bg3.png)
2 3
List
1. Lifesense Band 2S LS418-F (Built-in Polymer Lithium Battery)
2. User Manual
OverviewSymbol Meaning
General Instructions
Device Components
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of
the warning signs and symbols, which you may encounter in the label and user manual,
as follows:
Symbol Meaning
OLED Display
Brand new Lifesense Band 2S LS418-F can track your activity in anytime.
It is designed to measure the walking steps, distance,consumed calories and
dynamic heart rate.
This device has Bluetooth 4.0 technology, the user can set personal information
such as height, weight, goal step and so on through the Bluetooth devices, and then
the information can be downloaded to the Lifesense Band 2S. The data in the Lifesense
Band 2S also can be uploaded to the device which supports the Bluetooth 4.0 technology.
So the user can check it in anytime.
Main Features:
a. support the Bluetooth 4.0 technology
b. Single point of touch function and OLED display
c. keep a record of the measuring data during 7 days
d. display walking steps, walking distance, the consumed calories,
dynamic heart rate, and time
e. 24 hours heart rate monitoring
f. Swimming water proofing
g. Sleeping monitoring
h. Accurate step-counting
i. Call notification
j. Text Notification
k. Automatic identify running function
Steps and goal completion progress
Walking Distance
The Consumed Calorie (kcal)
Time ( Time format :24 hours)
USB Interface
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of
with household waste. Please
recycle where facilities exist. Check
with your local authority or retailer
for recycling advice”
Symbol for “DIRECT CURRENT”
Symbol for “MANUFACTURE
DATE”
Symbol for “Including RF
transmitter”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Heart rate
Heart rate sensor
Wristband button
95
OLED Display
Wristband
Touch Key
1.97
9:25 THU
18
36.6
2023
95
![](/img.php?id=3373513&img=bg4.png)
5
4
Install the App and Pair-Up
Initial Start-Up
Activate the Lifesense Band 2S
For the initial use, tap the touch key to light up the Lifesense
Band 2S. “Open App to Connect” appears on the screen for 10
seconds and then turns off. Please activate it by connecting it
with the app during 30 minutes, otherwise, it will return to
shipping mode automatically and only support touch light up
function, displaying “Open App to Connect”.
CAUTION
Notes:
(1) When the shipping mode is removed, the Lifesense Band 2S
will display the initial time: 0:00.
(2) After connecting with the mobile device, the Lifesense Band
2S will download the time from the mobile device, and it will
display the current time.
Initial Start-Up
Open App to Connect
CAUTION
Download the Lifesense app from APP Store or Google Play.
Install the APP, and register an account. Then set your personal
information (Gender, Birthday, Height, Weight, Name and so on).
Enter the “Me” interface to add the device. Click “Add New
Device” to add it . Then use the mobile device to scan the special
QR code which is located on the kraft paper for the Lifesense
Band 2S to bind the device, after the pairing is completed, click
“OK” on the APP to confirm, it will synchronize with your mobile
device.
Before you use the mobile device which supports Bluetooth 4.0
technology, please turn on the Bluetooth.
The time on Lifesense Band 2S will synchronize with the one on
your mobile device. The measuring data will be transmitted to your
device which supports Bluetooth 4.0 technology through the
Bluetooth.
The device can’t connect with the app or upload the data if the
following situations appear:
1. The Bluetooth is off, or unconnected with the Internet.
2. Over the specified transmitting distance. The Bluetooth
transmitting distance of Lifesense Band 2S is ≤8 meters in the
situation of no obstacle.
3. The special QR code is not correct.
4. The smartphone isn’t in the list of compatible devices.
List of compatible devices:
For iOS devices:
The operating system must be iOS 8 or more, such as iPhone
4S, iPhone 5/5C/5S, iPhone 6/6 Plus and so on.
For Android devices:
The operating system must be 4.3 or more.
![](/img.php?id=3373513&img=bg5.png)
7
6
Initial Start-UpInitial Start-Up
When the OLED displays the following symbol, it reminds you
the battery is used up, you need to charge the power at once.
When the device is charging the power, the OLED will display as
the following picture. The power symbol blinks.
The OLED displays as the following picture, it means the
charging is complete.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
The charging input voltage is 5V.
Pull out the wristband, then insert the device’s charging port into
the computer’s or charger’s USB port to finish the charging.
When the OLED displays the following symbol, it reminds you
the battery is low, you need to charge the power.
≥2cm
Close to the skin
95
Must make the touch key towards to the inner side of body. The
heart rate sensor must be close to the skin. The distance between
wristband and wrist should be 2 cm or more.
Tie the wristband
Change the wristband
Press here
Press the identifed part of the wristbands to take them out as
below.
Battery Charging
9:25 THU
9:25 THU
CAUTION
The Mini USB port is only used for charging the power, but can
not be used for transmitting the data to the computer.
![](/img.php?id=3373513&img=bg6.png)
Start Measuring
89
View the Data
Light It up
The measuring data will be transmitted to your device which supports
Bluetooth 4.0 technology if you have paired up with it.
How to Use
Follow the hints in the manual to wear the Lifesense Band 2S. Then
it can start the measurement.
Check the Data
Start Walking
(within 10 steps)
10 Steps More than 10 steps
(the digit increases)
Following the steps of LIGHT IT UP to read the data you want.
CAUTION
Notes: The data of the day will be cleared to zero automatically
when the time is 0:00. The data cannot be cleared to zero
manually.
The device only stores the latest 7 day’s heart rate data, the data
will be deleted if it’s over 7 days.
Light up the Lifesense Band 2S as the below steps:
Tap the touch key Rotating your wrist
11
Tap the touch key at any time to light up the Lifesense Band 2S,
it will display the time first. Tap the touch key each time, it will
display the data according to the following order: time, steps and
goal completion, heart rate, distance and calorie alternately. If
there is no operation, it will turn off in 5 seconds.
9:25 THU
18
OR
CalorieDistance
1.97
9:25 THU
18
Time Heart rate
36.6
Steps
2023 95
010
95
![](/img.php?id=3373513&img=bg7.png)
10 11
Special Function
Text Notification
Call Notification
Move Reminder
Alarms
Wrist Selection
You can select wear the Lifesense Band 2S on left wrist or right wrist. The
default wrist is the left one.
When it displays vertically, the display direction of left wrist and the right wrist is
the same.
When it displays horizontally, the display direction of left wrist and right wrist is
different, 180° oppositely, as below:
Please set the Silent Alarms on the app. When the setting time is coming, it will
display the alarm clock icon and vibrate continuously.
Tap the touch key to stop the alarm clock, or the alarm clock will stop vibrating
until it’s over the duration of the setting time.
You can set the alarm clock to vibrate 5 seconds,15 seconds, 30 seconds, or 60
seconds on the app.
When you focus on your work too long, it can give you a notice to relax. But you
must set the move reminder on through the app. Set the reminder interval,
reminder frequency, starting and ending time.
When the setting time is coming, it will vibrate twice and display the sedentary
icon about 5s, then turn off and log out. You also can tap the touch button to log
out.
Keep the Lifesense Band 2S connecting with the mobile device. Set the Call
Notification on the app. When the phone call is coming, it will display the phone
icon and the name about 10s, vibrate 1s then stop 1s. It will vibrate 4 times and
then turn off in 10s.
When the phone is coming, tap the touch key to hang up.
You can set the Text Notification on the app. Keep the Lifesense Band 2S
connecting with the mobile device. When a message is coming, the Lifesense
Band 2S will vibrate, display the message icon and contents.
The Lifesense Band 2S only supports displaying the messages from the
smartphone with iOS system or Android system.
The Lifesense Band 2S only displays the message icon and contents once, and
it cannot be thumbed through .
Special Function
Smartphone
Messages from
CAUTION
14:20
9:25 THU
18
Left wrist
9:25 THU
18
Right wrist
David 13285436972 Incoming Call
Name Phone number Unidentified
David New Message 9 New Messages 99+ New Messages
Name 1 new message (1-99) new message More than 99
new messages
The device can’t give you a Text Notification if the following situations
appear:
1. The Bluetooth is off, or unconnected with the Internet.
2. Never set the Text Notification on.
3. Never set notice permission on the smartphone.
4. The screen of the smartphone is unlocked.
5. There are many messages in the smartphone, it won’t give you a notice
unless you clear them.
![](/img.php?id=3373513&img=bg8.png)
12 13
Running Mode
The Lifesense Band 2S can identify whether the user is running or
not automatically.
In the mode of heart rate detection, the Lifesense Band 2S can
identify the user is running and turn on the heart rate detection. It will
save a piece of heart rate and calorie data every minute. If the mode
of heart rate detection is off, it only can identify the user is running,
but won’t start heart rate detection. It will only keep a piece of calorie
data per 1 minute.
You can check running data, including running time, calorie,
average heart rate, the maximum step frequency, average
frequency, total steps, heart rate curve and calorie curve on the app.
Note: If there is no heart rate data, the app won’t display heart rate
curve.
Goal Achievement Reminding
Sleeping Condition Monitor
Night Mode
Heart Rate Detection
Display Mode
Display Settings
The default state of night mode is OFF. You can set it on or off, and the
starting and ending time on the app. In night mode, you could not light up the
Lifesense Band 2S by rotating your wrist, but you could by touching the key on
the screen.
You can select horizontal or vertical display on the app. The default display is
horizontal.
Text notification and call notification only support horizontal display.
Activate startup screen, battery charging, and update screen only support vertical
display. Other pages can support both horizontal and vertical display.
The default mode of heart rate detection is ON. If you set it off, it will stop heart
rate measurement. If you set it on, the indicator with green light will be on for
continuous heart rate detection.
You can decide which screen you want to display on the Lifesense Band 2S
through the app. The default pages (time, steps, calorie, distance, heart rate) are
on. You can select the order of displaying pages, and must keep at least one
page on.
You can set the goal achievement reminding on the app. There is a goal
celebration to encourage you to reach your goal. When you reach the setting
goal, it will vibrate twice, and display the encouragement icon about 3s and then
display goal steps about 2s. Then it will turn off and log out the reminding mode.
The default goal step is 6000 steps. You can set it through the app.
You can wear the Lifesense Band 2S to sleep, it will monitor your sleeping
condition. The sleeping data will upload to the app, you can check your sleeping
condition on the app.
Special Function Special Function
Heart Rate Detection is OFF. Can’t detect heart rate. Detect heart rate.
95
OFF - -
![](/img.php?id=3373513&img=bg9.png)
15
14
Troubleshooting
Solution
Problem Root Cause
Abnormal
measuring results:
Huge difference
between two recent
measurement.
No display on
OLED when the
device powers on.
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth.
The App is OFF. Press the icon to turn ON
your app.
Place your device which
supports the Bluetooth 4.0
technology close to the
Lifesense Band 2S.
Out of range of Bluetooth
transmission.
Less than 10 steps
Walk in a normal way.
The power is not enough. Charge power in time.
Specifications
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the
manufacturer. Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
Product Name
Dimension
Lifesense Band 2S
Whole size: Approx. 250mm x 17 mm x 10.8 mm
(including the wristband)
Weight Approx. 22 g (including the wristband)
Display White OLED
V.A.:22.8mm x 6.8mm
Steps 0-120000 steps, division 1 step
Calories
Battery Grade
Working Environment Temperature: 0°C to 40°C Relative Humidity: ≤90% RH
Storage Environment Temperature: -20°C to 60°C
Power Source 3.8V / 75mAh polymer lithium battery
Running hour
Exercise Time 0-23 hours and 59 minutes, division 1 minute
Accessories 1. One Wrist Band
2. User Manual
1-7 grade, division 1 grade
0-12000.0 kcal, division 0.1 kcal
Relative Humidity: ≤90% RH
Atmospheric Pressure: 80 kPa ~ 106 kPa
Distance 60.00 km
Heart rate Range: 30 beat/min~200 beat/min,division 1 beat /min
Protection against
ingress of water IP67
Troubleshooting Specifications
Use the correct portable
fashion, avoid that the
Lifesense Band 2S has
irregular shaking.
Continue to walk more than
10 steps.
Incorrect portable fashion
make the device has irregular
shaking.
Slide or wearing the slippers
to walk.
When the battery is fully charged, it can be used about 5
days (heart rate function is open), or about 1 month
( heart rate function is closed).
![](/img.php?id=3373513&img=bga.png)
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Transtek warrants its products free of defects in materials and workmanship in normal
use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG TRANSTEK MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail
purchase date) and a note with reasons to return on it as well.
Maintenance
Warranty
Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, No.105 ,Dongli Road, Torch Development District,
Zhongshan,528437,Guangdong,China
Tel: 86-760-88282982
Website: http://www.transtek.cn
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Transtek.
(Please refer to Warranty for contact information)
Charge the power once for every 3 months, or at least once for half a year, if the device
is not likely to be used for a long time.
Warning
Lifesense Band 2S Care
Built-in Battery Care
17
16
Maintenance Warning
While your Lifesense Band 2S is designed to be worn 24/7, its components are electronic
and susceptible to damage if used improperly. Please read the safety guidelines on
the following pages to ensure proper use and care.
• Do not expose your Lifesense Band 2S to liquid, moisture, humidity, or rain while
charging. Exposure of the Lifesense Band 2S to moisture while charging could result in
electric shock.
• Do not tamper with or abuse the Lifesense Band 2S. For example, without limitation,
do not drop,disassemble, open, crush, excessively bend, deform, puncture, shred,
microwave, incinerate, paint, or insert foreign objects into the Lifesense Band 2S.
• Do not use abrasive cleaners to clean your Lifesense Band 2S.
• Do not expose your Lifesense Band 2S to extremely high or low temperatures.
• Do not leave your Lifesense Band 2S near open flames such as cooking burners,
candles, or fireplaces.
• Do not bring your Lifesense Band 2S into contact with any sharp objects. This could
cause scratches and damage.
• Do not insert anything into your Lifesense Band 2S unless otherwise specified in the
user instructions. This may damage the internal components.
• Do not attempt to repair, modify, or disassemble your Lifesense Band 2S; it does not
contain any user-serviceable components.
• Do not attempt to replace your Lifesense Band 2S’s battery. It is built-in and not
changeable.
• Only charge the battery in accordance with the user instructions supplied with the
Lifesense Band 2S.
• Avoid charging your Lifesense Band 2S in extremely high or low temperatures.
• Do not wear your Lifesense Band 2S while you are charging it.
• Do not attempt to disassemble the Lifesense Band 2S or force open the built-in battery.
• Do not clean the Lifesense Band 2S when it is being charged. Always unplug the
charger first before cleaning the Lifesense Band 2S.
• Do not dispose of your Lifesense Band 2S in a fire. The battery could explode causing
injury or death.
Health Disclaimer
WARNING: THIS LIFESENSE BAND 2S IS NOT A MEDICAL DEVICE. The Lifesense
Band 2S and its associated applications should not be used to diagnose, treat, or
prevent any disease or medical condition. Always seek the advice of a qualified
medical professional before making any changes to your exercise, sleep or nutrition,
as doing so may cause severe harm or death.
• Dispose of the Lifesense Band 2S, the Lifesense Band 2S’s battery in accordance with
local regulations. Do not dispose of the battery with regular household waste.
• Recycle your package in accordance with local regulations.
Other Notes
![](/img.php?id=3373513&img=bgb.png)
18 19
FCC STATEMENT
FCC Statement
FCC ID: OU9LS417-F01
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that
my cause undesired operation.
MODIFICATION: Any changes or modifications not expressly approved by the
grantee of this device could void the user’s authority to operate the device.
