Tranwo Technology 6212 WiFi module User Manual

Tranwo Technology Corp WiFi module Users Manual

Users Manual

6212A
W
iFi
module
1
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
A. Features
802.11b/g/n single-band radio.
Simultaneous WLAN receive with single antenna
WLAN host interface options:
SDIO v2.0 — up to 50 MHz clock rate
UART (up to 4 Mbps)
FM multiple audio routing options: I2S, PCM, eSCO, A2DP
IEEE Co-existence technologies are integrated die solution
ECI — enhanced coexistence support, around WLAN receives
B. Applications
Digital Baby Monitor
Wireless Video Door phone
Security Camera
6212A
W
iFi
module
2
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
E: Specification
Parameter Min.
T
yp. Max. Unit
Electrical Section
Supply Volta
g
e 33.33.6 V
Supply cur
r
ent in TX mode
BD mA
Supply cur
r
ent in RX mode
BD mA
Crystal 26M Hz
RF Section
Modulation Mode FSK/GFSK
Operatin
g
Frequency(Note1) 2400 ~ 2483.5 MHz
Data Rate 4M bps
Transmitter Section
Transmission Power +17 dBm
Power control range 0~19 dB
Receiver Section
Sensitivity -85 -88 dBm
Operation
Operating Temperature -20 ~ +70 ℃
Storage Temperature -40 ~ +85 ℃
Antenna information
Antenna type FPCB Antenna
Antenna Gain 2.5dBi
Connector type I-PEX
Note: 1. 2.4GHz ISM Band
6212A
W
iFi
module
3
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
F: Pin Assignment
NO Name Type Description
1 GND － Ground connections
2 WL_BT_ANT I/O RF I/O port
3 GND － Ground connections
4 FM_RX I FM radio RF input antenna port
5 NC － Floating (Don’t connected to ground)
6 BT_WAKE I HOST wake-up Bluetooth device
7 BT_HOST_WAKE O Bluetooth device to wake-up HOST
8
CLK_REQ
O
T
he CLK_REQ polarity is active-hi
g
h. Add an external
100KR
pull down resistor to ensure the signal is deasserted
when the
BCM43438 powers up or resets when VDDIO is
p
resent.
9 VBAT P Main power voltage source input
10 XTAL_IN I Crystal input
11 XTAL_OUT O Crystal output
12 WL_REG_ON I Internal regulators power enable/disable
13 WL_HOST_WAKE O WLAN to wake-up HOST
14 SDIO_DATA_2 I/O SDIO data line 2
15 SDIO_DATA_3 I/O SDIO data line 3
16 SDIO_DATA_CMD I/O SDIO command line
17 SDIO_DATA_CLK I/O SDIO clock line
18 SDIO_DATA_0 I/O SDIO data line 0
19 SDIO_DATA_1 I/O SDIO data line 1
20 GND － Ground connections
21 VIN_LDO_OUT P Internal Buck voltage generation pin
22 VDDIO P I/O Voltage supply input
23 VIN_LDO P Internal Buck voltage generation pin
24 LPO I External Low Power Clock input (32.768KHz)
25 PCM_OUT O PCM Data output
26 PCM_CLK I/O PCM clock
27 PCM_IN I PCM data input
28 PCM_SYNC I/O PCM sync signal
29 NC － Floating (Don’t connected to ground)
6212A
W
iFi
module
Preliminarydatasubjectstochangewithoutnotice 4
Date: 2017/9/15
30 NC － Floating (Don’t connected to ground)
31 GND － Ground connections
32 NC － Floating (Don’t connected to ground)
33 GND － Ground connections
34 BT_RST_N I Low asserting reset for Bluetooth core
35 NC － Floating (Don’t connected to ground)
36 GND － Ground connections
37 GPIO4 I/O WiFi Co-existence pin with LTE
38 GPIO3 I/O WiFi Co-existence pin with LTE
39 GPIO2 I/O WiFi Co-existence pin with LTE
40 GPIO1 I/O WiFi Co-existence pin with LTE
41 UART_RTS_N O Bluetooth/FM UART interface
42 UART_TXD O Bluetooth/FM UART interface
43 UART_RXD I Bluetooth/FM UART interface
44 UART_CTS_N I Bluetooth/FM UART interface
45 TP1 O FM Analog AUDIO left output
46 TP2 O FM Analog AUDIO left output
47 TP3 (NC) Floating (Don’t connected to ground)

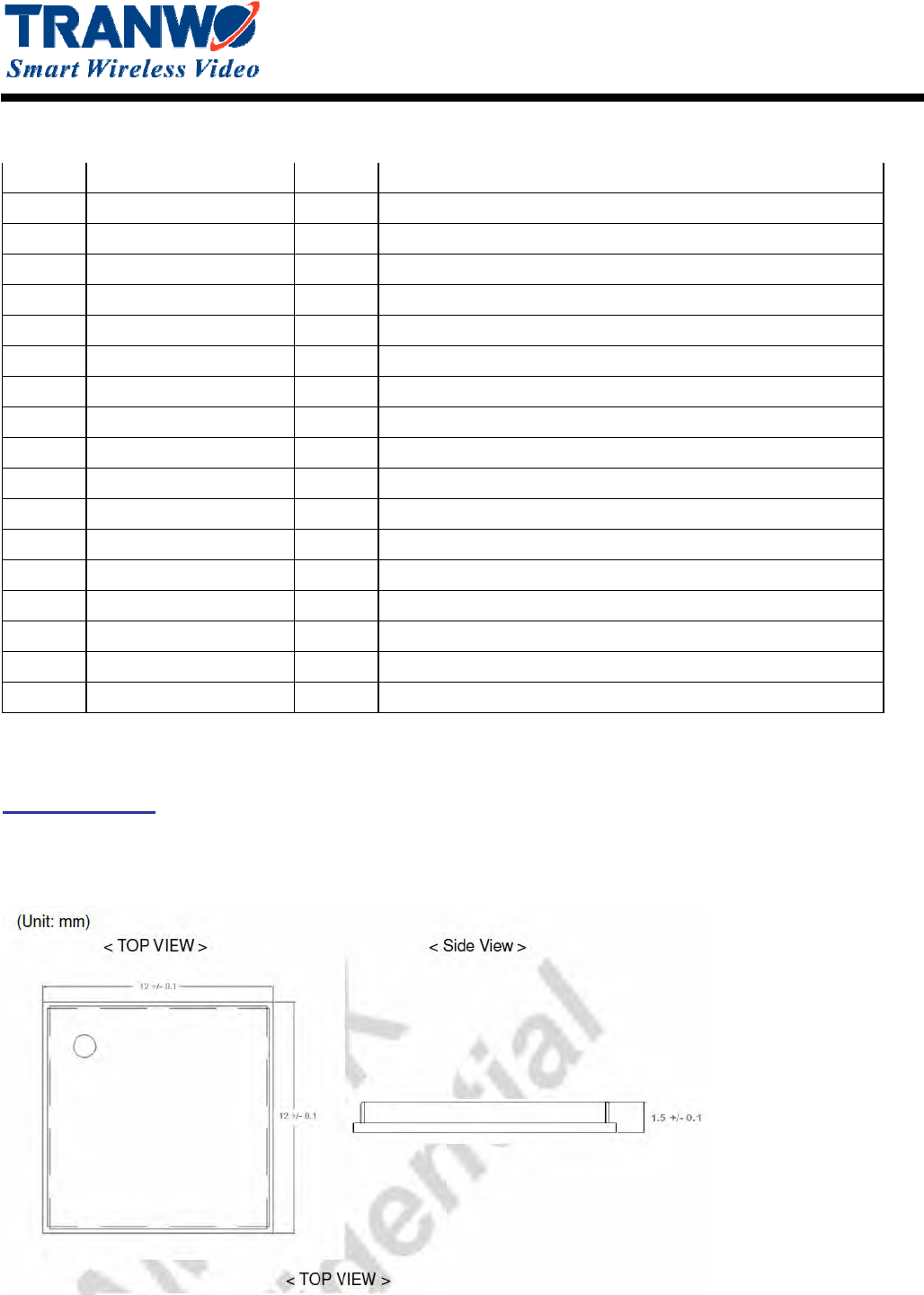

G:Dimensions:
6212A
W
iFi
module
5
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
6212A
W
iFi
module
6
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
6212A
W
iFi
module
7
Preliminarydatasubjectstochangewithoutnotice
Date: 2017/9/15
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
3) Module approval valid only when the module is installed in the tested host or compatible
series of host
As long as 3 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product
must be labeled in a visible area with the following: “Contains FCC ID: O6L6212”. The grantee's
FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
