Tranwo Technology TTD-VMI120 Smart iCAM User Manual 408 000724 00 0924 85X120
Tranwo Technology Corp Smart iCAM 408 000724 00 0924 85X120
User Manual
![](/img.php?id=2099822&img=bg1.png)
User's Manual
Manuel de l'utilisateur
Manual del Usuario
Bedienungsanleitung
Manuale d'uso
User's Manual
Smart iCAM
Remote HD Wi-Fi Camera
Please read carefully before using this equipment.
![](/img.php?id=2099822&img=bg2.png)

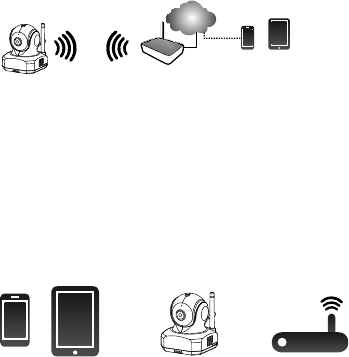

Before you start you need:
iPhone, iPad,
Android smartphone
or Android tablet
Wi-Fi router
1
Smart iCAM
Smart iCam
Watch
anytime and anywhere
the things that matter to you
Smart iCAM is a wireless network camera. It can connect with your
smartphone or tablet wireless technology, and monitor everything
on your smartphone or tablet anywhere and anytime.
via
that matters to you
Smartphone,Tablet
Wi-Fi Router
Internet
![](/img.php?id=2099822&img=bg3.png)
2

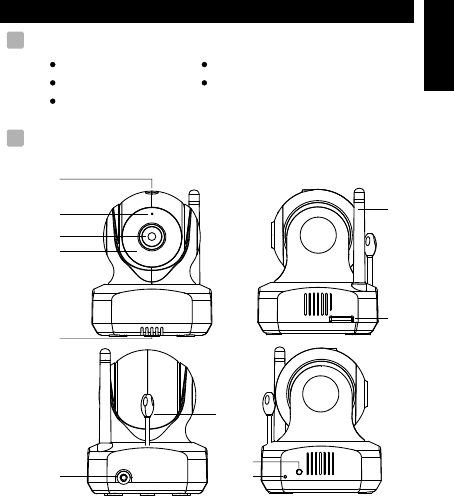

Product Layout
1.Light sensor
2.Microphone
3.Camera lens
4.Infrared LEDs
5.Speaker
6.Antenna
Camera
7.Micro SD Card slot
8.Power adapter socket
9.Temperature sensor
10.Reset button
11.Power/Status LED
Package Contents
One Camera
One Adapter
One Screw and One Wall Anchor
EN
ENGLISH
1
2
This User's Manual
Two Cable Clips
6
7
8
9
1
2
3
4
5
10
11
![](/img.php?id=2099822&img=bg4.png)
3
Getting Started

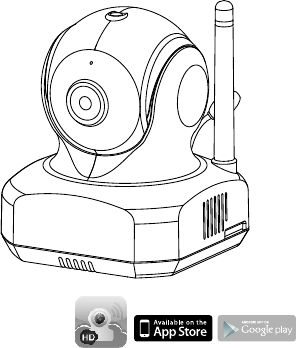

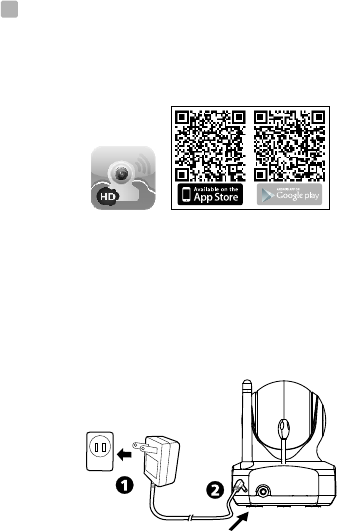

Download Smart iCAM app
3.1
Key in the keyword “Smart iCAM” or scan QR code and
download the app from Apple App Store (iPhone/iPad) or
Google Play Store (Android).
3
First-time Setup
3.3
Plug one end of the provided power adapter into a wall outlet and
the other end into the back of the camera to turn on the camera.
The LED on the camera will light up in light orange. It takes
around 30 to 60 seconds for initial setup and the LED will turn
to blink in dark orange.
3.
2
Power on the camera
![](/img.php?id=2099822&img=bg5.png)
4
3.3.1

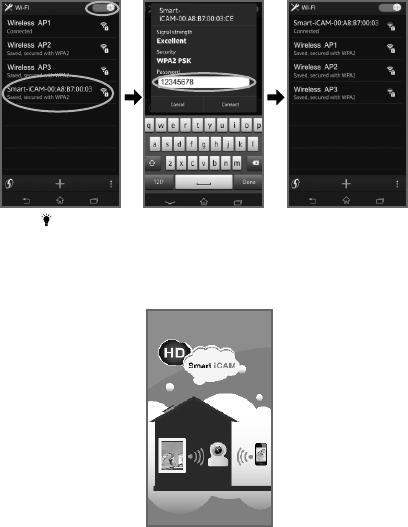

Connect your smartphone or tablet to the camera
1. Turn on the Wi-Fi of your smartphone or tablet.
2. Select “Smart-iCAM _XX : XX : XX…” under Wi-Fi Networks.
Enter the password for “Smart-iCAM_XXXXXX”. The default
password is “12345678”.
3. Launch the Smart iCAM app on your smartphone or tablet.
The welcome screen will be displayed.
Note : If you cannot find “Smart-iCAM_XXXXXX” under Wi-Fi
Networks, please follow step 3.6 of this user manual to reset
the camera.
![](/img.php?id=2099822&img=bg6.png)
5

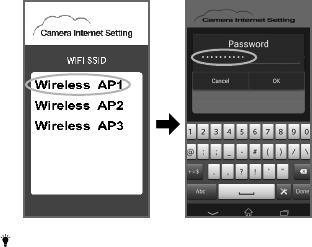

4. Set up an Internet connection
The camera will scan for available Wi-Fi networks (SSID). Tap the
name of the Wi-Fi network (SSID) that you wish to connect with
the camera, and enter the password of your Wi-Fi router if necessary.
First-time setup is now complete.
Note 1: Once you complete Internet setup, the LED on the camera
will glow green after 1 to 2 minutes.
2: Wi-Fi SSID is the wireless network name.
3: If the camera cannot find the Wi-Fi network you wish to
connect to, please make sure the camera and the Wi-Fi
router are within range of each other.
4: If you type in the wrong SSID password the camera will
beep three times and then reset to factory default
automatically. Please close the App and follow step 3.3 of
this user manual to set up the camera again.
5: If you have completed Internet setting but the Power/Status
LED glows orange, please check Wi-Fi router is ok in
internet connection and make sure the camera and the
Wi-Fi router are within range of each other.
6: Make sure your mobile is connected to the Wi-Fi AP/Router
after setting up.
![](/img.php?id=2099822&img=bg7.png)
6
3.3.2

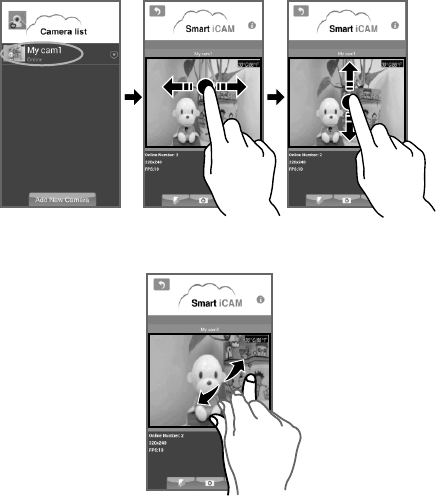

Viewing live video
1. Tap the camera icon in Camera List to view the video of the camera.
2. Touch the image display area of the screen and slide on the
screen for pan-tilt function.
(For pan & tilt model only)
3. Touch the image display area of the screen and move fingers
apart for digital zoom function.
![](/img.php?id=2099822&img=bg8.png)
7
Add camera to other smartphones or tablets
3.4
3.4.1
7. Tap the camera icon in Camera List to view the video of
the camera.
Note : If you enter the wrong password of the camera, please
tap the camera icon and then retype the correct
password.

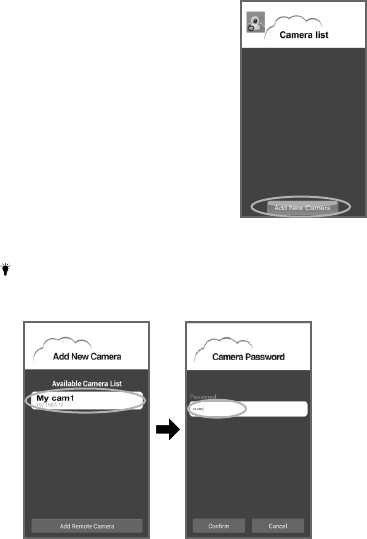

Add camera in LAN (Your mobile and camera are
in the same network, SSID.)
1. Download the Smart iCAM app.
2.
3. Launch the Smart iCAM app on your
smartphone or tablet.
4. Tap the “Add New Camera” icon to add
a camera.
5. Tap the screen to select which camera
you wish to add under
“Available Camera List”.
6. Enter password for the camera.
The default password is “admin”.
Turn on the Wi-Fi of your smartphone or
tablet, and then tap the screen to select
which Wi-Fi router your camera has been
connected to.
![](/img.php?id=2099822&img=bg9.png)
8
3.4.2

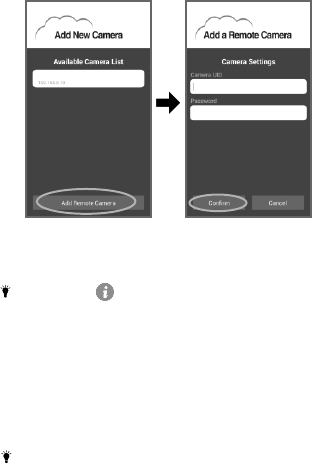

Add camera through remote setup (Your mobile and
camera are NOT in the same network, SSID.)
1. Download the Smart iCAM app.
2. Please make sure your smartphone or tablet can link to the
Internet via a Wi-Fi router or 3G/4G mobile network.
3. Launch the Smart iCAM app.
4. Tap the “Add New Camera” icon.
5. Tap the “Add Remote Camera” icon to enter “Add a Remote
Camera” screen.
6. Tap in the UID and password of the camera you want to add.
Note 1: Tap the i (information) icon in live video screen to
get UID information.
2: If you enter the wrong password, please tap the camera
icon and then retype the password.
7. Tap the camera icon in Camera List to view video of the
camera.
Add more cameras (Multi-camera)
3.5Follow step 3.3 of this user manual to complete first-time setup for
each other.
Note : Up to 10 cameras can be added.
![](/img.php?id=2099822&img=bga.png)
9
Note 1: If you do not hear a beeping sound, please re-press the
reset button.
2: If you want to change the connection between the camera
and Wi-Fi router or if you forget the camera password, you
need to reset the camera to factory default. Please refer to
3.3 - First time setup of this user manual to set up the
camera again.

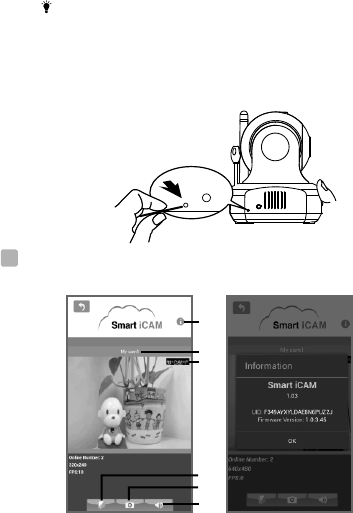

While the camera is powered on for at least 1 minute, press the reset
button (using a small object or a pin) for at least 5 to 10 seconds.
The camera will beep 3 times and will take around 1 minute to reset
the camera. Reset to factory default is useful if you replace a new
Wi-Fi router or forget the camera password.
3.6
Reset the camera to factory default
Operation Mode
Viewing Live Video
4.1
4
1
2
4
6
5
3
![](/img.php?id=2099822&img=bgb.png)
10
1. Information
Tap the icon to get information about the camera.
2. Camera name
3. Temperature display
4. Photo folder
Tap the icon to see all of the photos you have taken.
5. Snapshot
Tap the icon to save a snapshot of the camera on your
smartphone or tablet.
6. Audio ON/OFF
Tapping the icon can turn on/off sound.
When the audio icon is off , you can speak through the
camera unit from your smartphone or tablet.

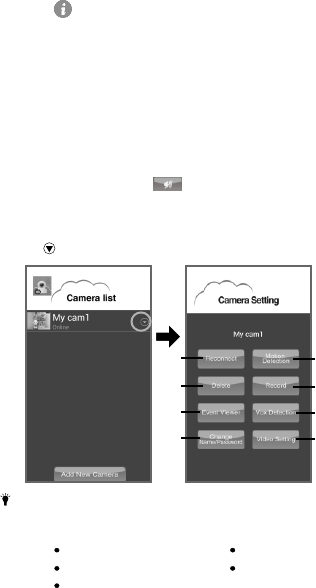

Tap the icon to enter camera setting screen.
4.2
Camera Setting
5
1
2
3
4
6
7
8
Note : For security and management consideration, the following
functions cannot be set when your mobile and camera are
not in the same network (SSID).
Change Name/Password Voice Detection
Motion Detection Video Setting
Record
![](/img.php?id=2099822&img=bgc.png)
11

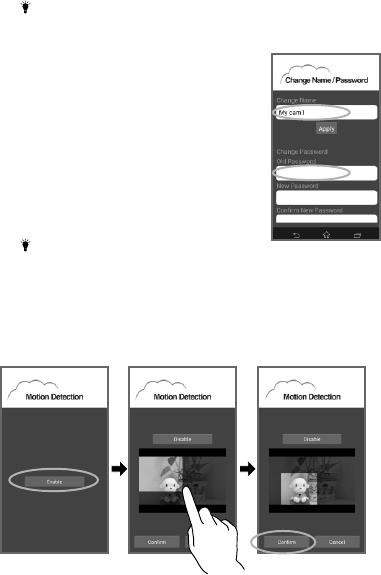

5. Motion Detection
a. Enable/Disable motion detection.
b. A motion detection event can trigger the
push message alert function and motion
recording function.
Note :
c. Touch the image display area of the screen and then slide on
the screen to outline the motion detection area.
d. The interval between checks is 1 minute.
Motion recording is only possible
when a micro SD card is inserted into the camera. To remove
memory card, please disable motion detection first. Do not
remove the memory card while recording is still in progress.
1. Reconnect
If the camera status shows “offline”, you need to tap “Reconnect”
to re-confirm the Internet connection.
Note : When you complete the camera setting, please tap the “Reconnect”
icon to make sure Internet connection is successful.
2. Delete
Delete camera from Camera List.
3. Event Viewer
View event logs.
4. Change Name/Password
Change the camera name or password.
The default camera password is “admin”.
![](/img.php?id=2099822&img=bgd.png)
12
6. Record
Tap the icon to enable HD 720p recording, tap it again to
disable recording.
Note 1: Recording is only possible when a micro SD card is
inserted into camera.
2: The system supports SD cards with a maximum
capacity of 32GB.
3: 1GB memory card is able to record around 1 hour of
video. New images will overwrite old images when the
card is full.
4: If motion detection is not activated, the camera will
record continuously.
5: To playback recording file
Place the micro SD card into a SD card adapter.
Connect the card adapter to computer.
Use a media player such as VLC to playback the
recording file.

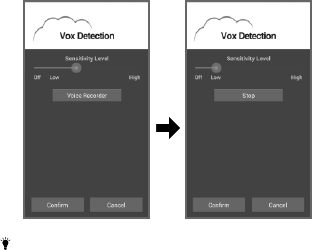

7. Voice Detection (VOX)
a. Smart iCAM supports voice detection and alert function.
When the sound from the camera reaches the setting level,
the camera will send a alert message to your smartphone or
tablet, and the camera also can play a pre-recorded voice or
melody automatically.
b. Tapping the sensitivity level bar can adjust the sensitivity level or
disable the VOX function. With the level set to high, the camera
microphone will detect sounds that are lower in volume.
c. Tap the Voice Recorder icon to start recording a voice or melody
that can be played by the camera when VOX is triggered. Tap the
Stop icon to stop recording. Maximum recording time is 10
seconds. The Voice Recorder will only be effective when a micro
SD card is inserted into the camera.
d. The interval between VOX checks is 1 minute.
Do not remove the memory card while recording is still in
progress. Otherwise, the recording will be damaged.
![](/img.php?id=2099822&img=bge.png)
13
Note 1: When using an iPhone or iPad: If you turn on the VOX
function and press the home button on your iPhone
or iPad to exit the App, the VOX function can still work
and remind you of audio events from the camera. If you
want to exit the App completely, please double-click the
home button on your iPhone/iPad when it is in home
screen status. When you exit the App completely,
the VOX function can’t work.
2: When using an Android mobile: If you turn on the VOX
function and select Background when you tap return or
back arrow key on your smartphone, the VOX function
can still work and remind you of audio events from the
camera. If you want to exit the App completely, please
select Exit. When you exit the App completely, the VOX
function can’t work.
8. Video Setting
a. Flip: Tap the Flip icon to flip the video when mounting the
camera on the ceiling.
b. Mirror: Mirror or invert the image.
![](/img.php?id=2099822&img=bgf.png)
14
c. Video Resolution: the number of distinct pixels in each
dimension that can be displayed, i.e.
HD (1280X720) /VGA(640X480) /QVGA(360X240).
d. Bit rate: the number of bits that are conveyed per second in
telecommunications. The higher the rate, the greater the
bandwidth consumption.
e. Frame Rate: The frequency at which camera produces unique
consecutive images called frames. The higher the frame rate,
the smoother the video will appear but more processing
power and system bandwidth is required. Frame rate varies
according to the network condition, mobile performance,
image resolution and object situation.
b
a
c
d
e
![](/img.php?id=2099822&img=bg10.png)
Keep all parts out of the reach of children.
Fingerprints or dirt on the lens surface can adversely affect camera performance.
Avoid touching the lens surface with your fingers.
Should the lens become dirty, use a blower to blow off dirt and dust, or a soft,
dry cloth to wipe off the lens.
Keep the camera dry. Precipitation, humidity, and other liquids containing minerals
will corrode electronic circuits.
Do not use or store in dusty or dirty areas.
Do not store in hot areas. High temperatures can shorten the life of electronic devices
and warp or melt certain plastics.
Do not store in very cold areas. When the system warms up (to its normal
temperature), moisture can form inside the case, which may damage electronic
circuit boards.
Do not attempt to open the case. Non-expert handling of the device may damage
the system.
Avoid dropping or strong shocks.
Operate this product using only the power supply included or provided as an accessory.
Do not overload electrical outlets or extension cords as this can result in fire or
electric shocks.
Troubleshooting
If there is a microwave oven in use near the camera or Wi-Fi router,
remove the microwave oven or turn it off.
Make sure the camera and the Wi-Fi router are within range of each other.
The speed of video feed from the camera depends highly on
the speed of the connection you are using.
The Internet speed either from your Wi-Fi network or 3G/4G mobile network
has a high impact on the performance of the product. The faster and more
stable the connection speed, the faster you can see the video from the camera.
Lower the video resolution and frame rate.
Video streaming is slow or lags
Make sure the power plug is pushed all the way in.
Make sure the camera is turned on and power/status LED glows green.
Make sure the camera and the Wi-Fi router are within range of each other.
Make sure your smartphone/tablet is connected to the Internet through
Wi-Fi or 3G/4G mobile network.
Cannot connect the camera to your smartphone/tablet through
Wi-Fi router or 3G/4G mobile network
Care and Maintenance
15
![](/img.php?id=2099822&img=bg11.png)
16
Caution
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons.
This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user authority to operate
the equipment.
![](/img.php?id=2099822&img=bg12.png)
This item is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
* iPhone, iPad are tradema rks of Apple Inc., registered in the U.S. and other countries.
* Goo gle Play is a tradema rk of Goo gle Inc.

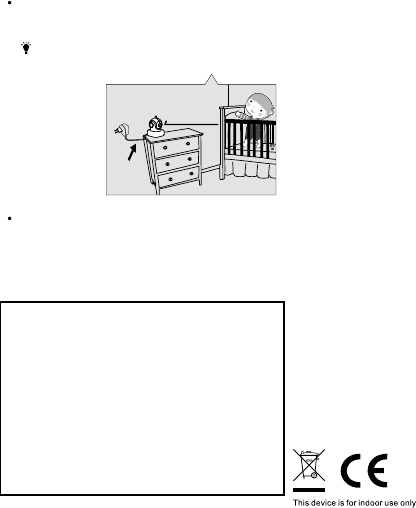

Following the safety tips
To prevent deaths and injuries associated with camera cords,
make sure the camera and AC adapter cords are always out of
reach of the baby by least 3 feet (1 meter).
Note : This is important even if your baby is not yet standing
or mobile.
Never use extension cords with AC adapters. Only use the
AC adapters provided.
3 feet
(1 metre)
adapter
cable
Camera
Frequency
Antenna
Modulation
Image Sensor
Lens
IR LED
Video compression
Audio
SD Card Recording
Pan and Tilt
Dimensions
Weight
Power
Operating temperature
GHz ISM band
Dipole antenna
DBPSK, DQPSK, CCK and OFDM
1/6"Color CMOS
f 3.0mm, F 2.4
8 pcs
H.264
Two-way audio talk
Support Micro SDHC Card,
class 6 or above, up to 32GB
H: 270 deg, V:120 deg
8.5(W) x 10.6(H) x 8.5(D) cm
227g
DC 5.9V, 2A
0℃ ~ 40℃ (32℉ ~ 104℉)
2.4
Specifications
Specifications are subject to change without prior notice.
17
