Preface
This guide provides all the information you need to configure the Tranzeo Pico Base
Station (pBS) and TR-WMX WiMAX Subscriber Unit to enable end-to-end WiMAX
connectivity using AirSync. If you prefer detailed instructions, please refer to the
Proximetry AirSync Practical User’s Guide.

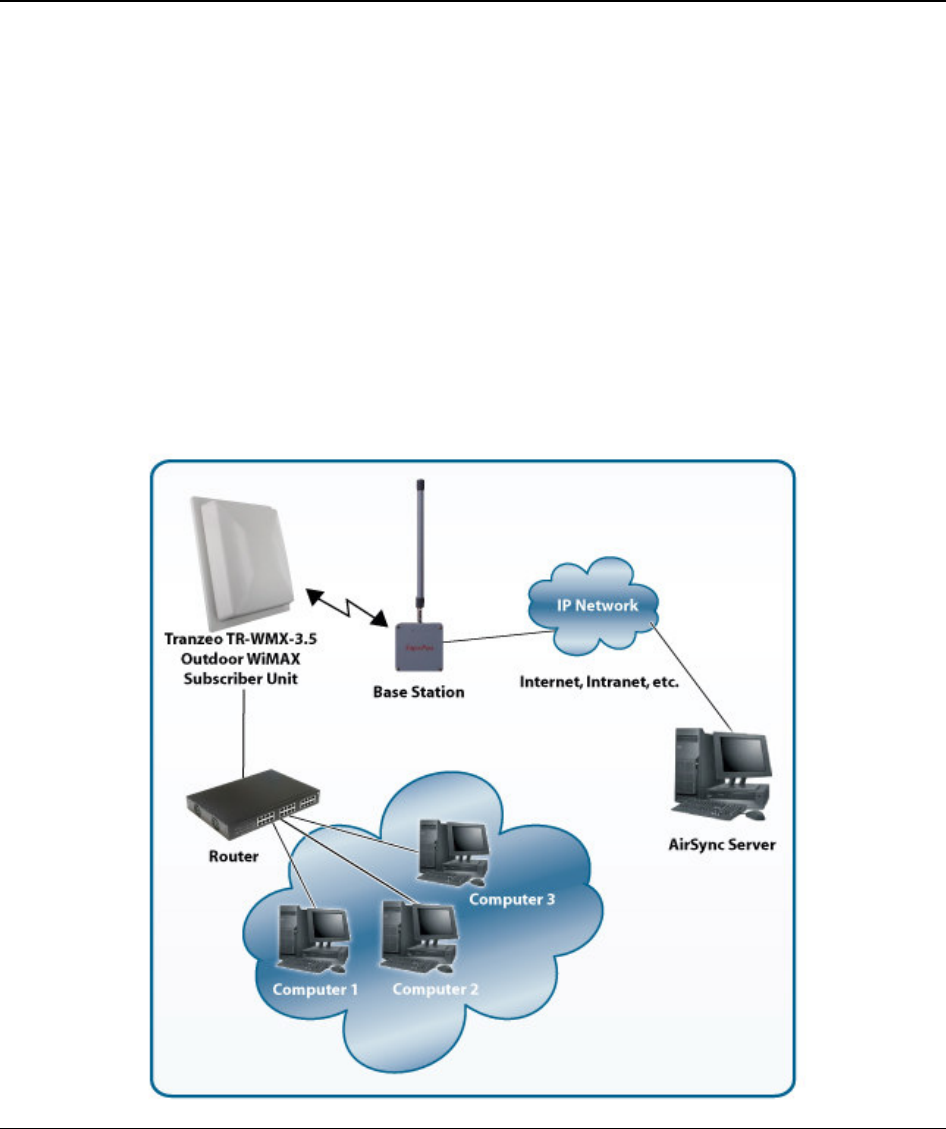

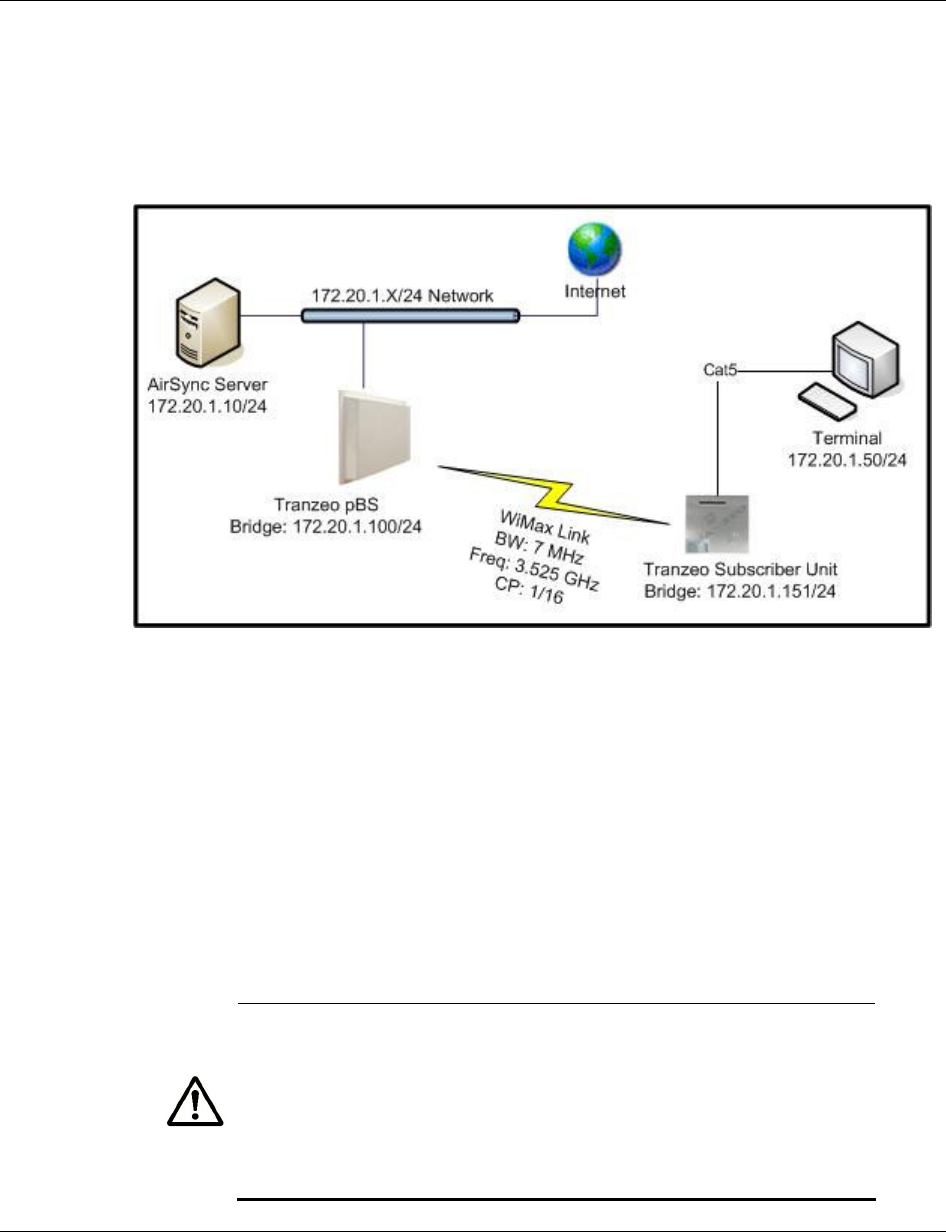

The following figure shows an example of a configuration where the Subscriber Unit is
connected to the uplink (WAN) interface on an Ethernet router, hub, or switch. In this
configuration, the Subscriber Unit communicates wirelessly with a Base Station using
its WiMAX interface, while communicating at 10/100 Mbps with the attached Ethernet
device. The Subscriber Unit also receives its power from the Ethernet connection,
eliminating the need to run a power cable to the Subscriber Unit. In this way, the
Ethernet device serves as the bridge between the attached computers and the
Subscriber Unit.
This device has been designed to operate with the antennas listed below, and having a
maximum gain of 32 dBi. Antennas not included in this list or having a gain greater than 32 dBi
are strictly prohibited
for use with this device.
The required
antenna impedance
is 50 ohms.
WiMAX Quick Configuration Guide 4
This device has been designed to operate with the antennas listed below, and having a maximum gain of
32 dBi. Antennas not included in this list or having a gain greater than 32 dBi are strictly prohibited for
use with this device. The required antenna impedance is 50 ohms.
Model Number Included Antennas
TR-HTQ-5.8-12 Vertical Omni, 5.8 Ghz, 12 dBi
TR-58V-60-17 Vertical Sector, 5.8 Ghz, 60 degree, 17 dBi
TDJ-5800SPL9 Grid Antenna, 30 dBi
TR-5X-Ant-24 Panel, 5.8 Ghz, 24 dBi
Table 2 Supported Accessory antennas
Document Revision Level
Revision Date Description
Version 1.0.0 October 2008 Preliminary Release
Version 1.0.5 Dec. 2008 Updated, added compliance, 3.65GHz, & max RSSI
Document Conventions
This guide uses the following typographic conventions:
Convention Description
Bold Text on a window, other than the window title, including menus,
menu options, buttons, and labels.
Italic Variable.
screen/code Text displayed or entered on screen or at the command prompt.
boldface screen font Information you must enter is in boldface screen font.
< italic screen > Variables appear in italic screen font between angle brackets.
[ ] Default responses to system prompts are in square brackets.
WiMAX Quick Configuration Guide 5
This guide uses icons to draw your attention to certain information. Warnings are the
most critical.
Icon Meaning Description
Note Notes call attention to important and/or additional
information.
Tip Tips provide helpful information, guidelines, or suggestions
for performing tasks more effectively.
Caution Cautions notify the user of adverse conditions and/or
consequences (e.g., disruptive operations).
WARNING Warnings notify the user of severe conditions and/or
consequences (e.g., destructive operations).
WiMAX Quick Configuration Guide 6
Quick Configuration
1.1 Configuration Checklist
The following checklist identifies the steps for configuring your WiMAX network.
Please check each step as you complete it.
Step 1: Configure the Pico Base Station.
Step 2: Configure the Subscriber Unit.
Step 3: Configure the Subscriber Unit in AirConsole.
Step 4: Test the Subscriber Unit Connectivity.
Step 5: Monitor the Network.
1.2 Step 1: Configure the Pico Base Station
Before installing the Pico Base Station, use the following procedure to configure it.
To configure the Pico Base Station, your PC’s IP address must be on the same
subnet (192.168.0.xxx, where xxx is a number from 1 to 253) as the Pico Base
Station, and the PC’s netmask must be set to 255.255.255.0.
The Pico Base Station is configured with a default 192.168.0.254 IP address
common to all Pico Base Stations. Therefore, do not simultaneously connect
multiple un-configured Pico Base Stations to a common Local Area Network (LAN)
and try to access them using the 192.168.0.254 IP address. Prior to installing
AirSync the “Bridge IP Address” of the Pico Base Station must be changed from
192.168.0.254 to an alternate value that matches the IP schema of your network
if multiple Pico Base Stations will be managed by a single AirSync installation.
1. Use an Ethernet cable to connect the Ethernet port labeled PC on the PoE
adapter to a network-interface card (NIC) in a PC or network hub. Then
connect the other Ethernet port on the PoE adapter to the Pico Base Station.
WiMAX Quick Configuration Guide 7
2. Launch a Web browser on a computer that is on the same subnet
(192.168.0.nnn) as the Pico Base Station.
3. In the address bar, type http://192.168.0.254 and click the Go button in
your browser. The default username is admin and the default password is
default. After you login, the Base Station Information Page appears.

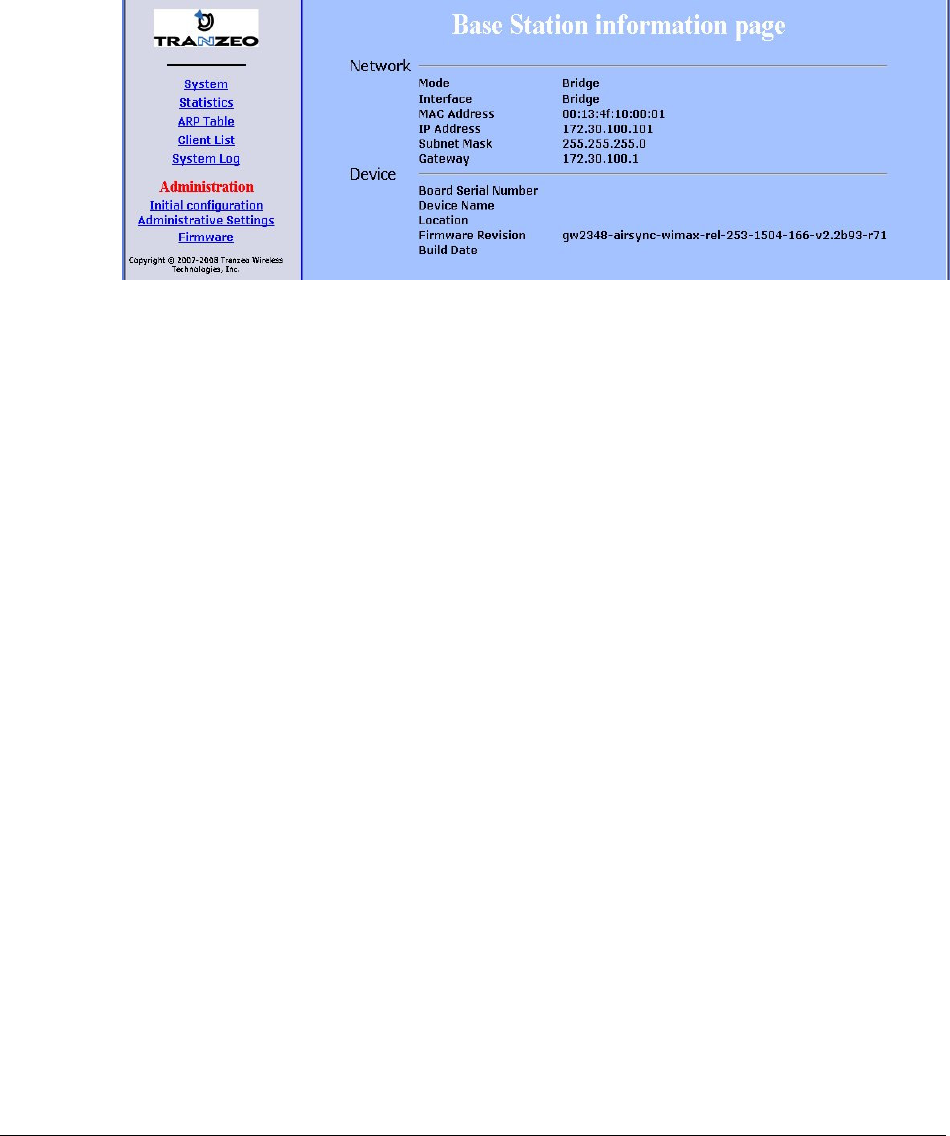

Figure 1. Base Station information page.
4. In the left pane, under Administration, click Initial configuration. The
Initial Base Station Configuration page appears.
WiMAX Quick Configuration Guide 8

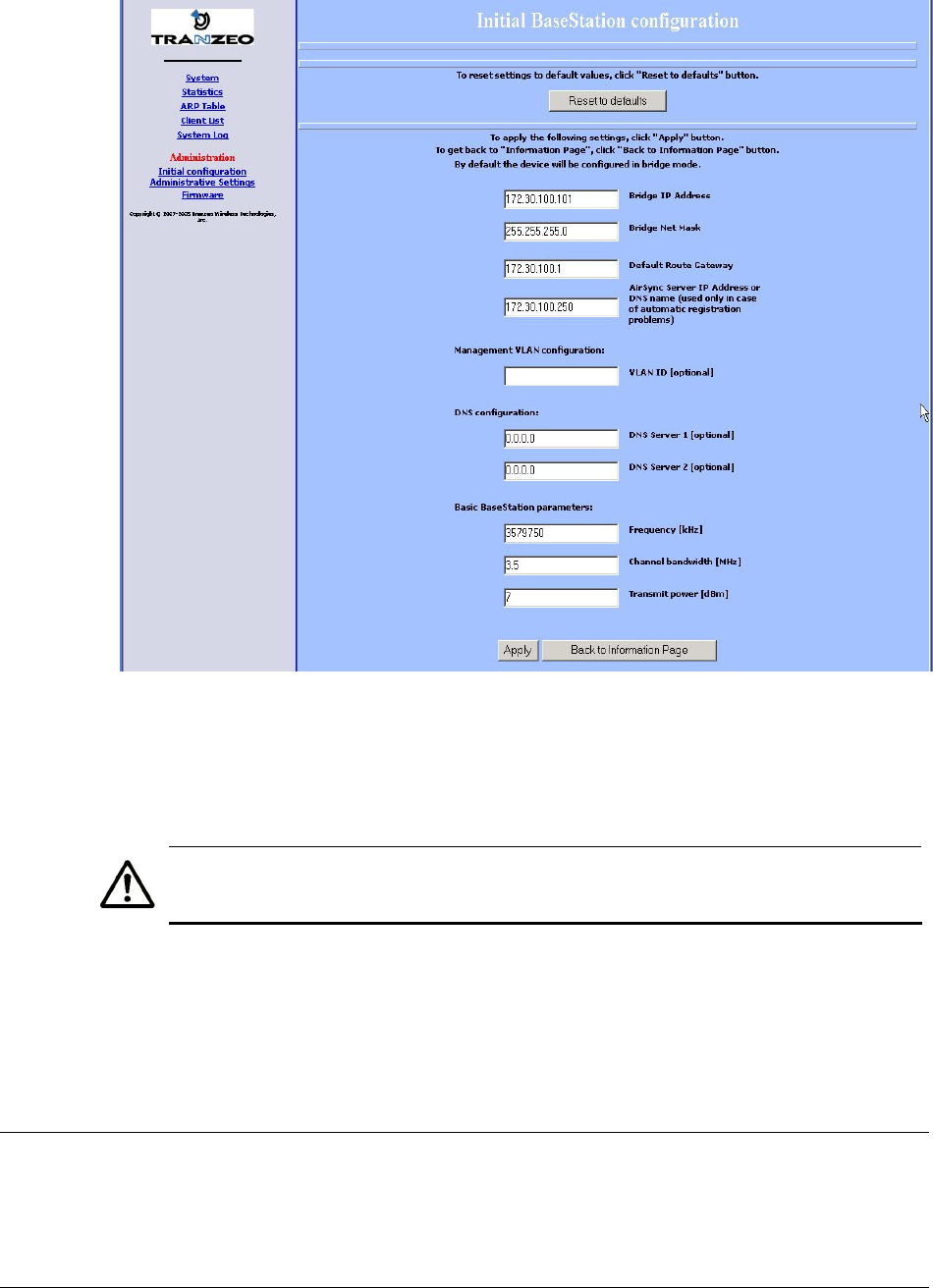

Figure 2. Initial Base Station configuration page.
5. Change the Bridge IP Address to match the IP address schema of your
network. The IP address must be on the same subnet as the AirSync server.
6. Complete the remaining fields on the screen.
The Frequency [khz] and Channel bandwidth [MHz] settings must match the
settings that you will configure later for the Subscriber Unit.
7. When finished, click Apply to save your settings. The Saving Settings screen
appears, with a Reboot button for rebooting the Pico Base Station. You must
reboot to apply your settings.
1.3 Step 2: Configure the Subscriber Unit
After configuring the Pico Base Station, use the procedures in the following sections
to configure the Subscriber Unit.
WiMAX Quick Configuration Guide 9
1.3.1 Log in to the Configurator
Your Subscriber Unit provides a Web-based Configurator for performing advanced
configuration activities. After you install your Subscriber Unit, use the following
procedure to launch the Configurator.
1. Use an Ethernet cable to connect the Ethernet port labeled PC on the PoE
adapter to a network-interface card (NIC) in a PC or network hub. Then
connect the other Ethernet port on the PoE adapter to the Subscriber Unit.
The Subscriber Unit’s Ethernet port is equipped with an auto-sensing Ethernet
port that allows both regular and cross-over cables to be used.
2. Start your Web browser and point it to one of the following default IP
addresses: http://192.168.101.151 or http://192.168.0.1. The Login
page in Figure 3 appears, with your cursor in the User name field.
The default IP address is the same for all TR-WMX subscriber units. Therefore, do
not simultaneously connect multiple unconfigured TR-WMX subscriber units to a
common Local Area Network (LAN) and try to access them using the default IP
address.
To connect to the Configurator, your PC’s IP address must be on the same subnet
(192.168.101.xxx, where xxx is a number from 1 to 253) as the Subscriber Unit,
and the PC’s netmask must be set to 255.255.255.0.

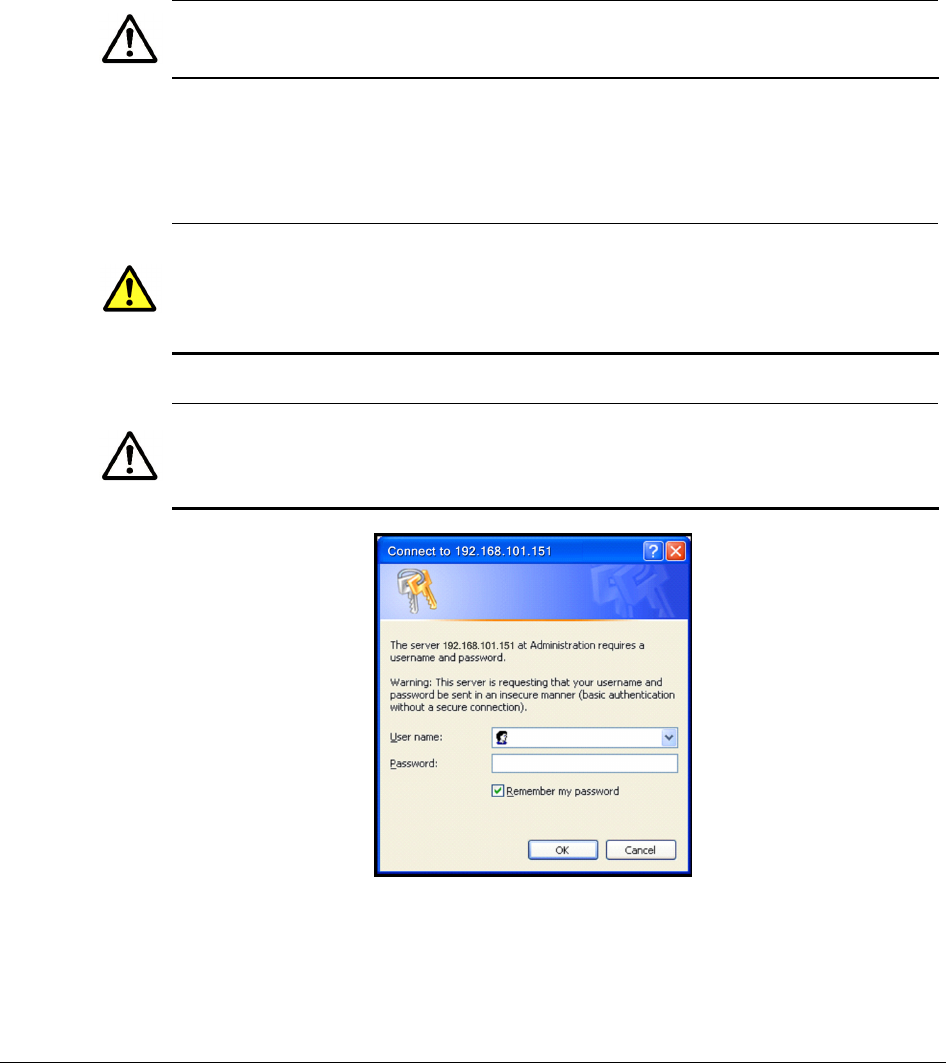

Figure 3. Login page.
3. Enter the default username admin and default case-sensitive password
default in the appropriate fields.
WiMAX Quick Configuration Guide 10
For security, every typed password character appears as a bullet (•). For
additional security, we recommend you change the default password in the
Administrative Settings screen.
4. Click the OK button to log in. The Information Page appears (see Figure 4).
This read-only page displays network, wireless and device information about
your installation.

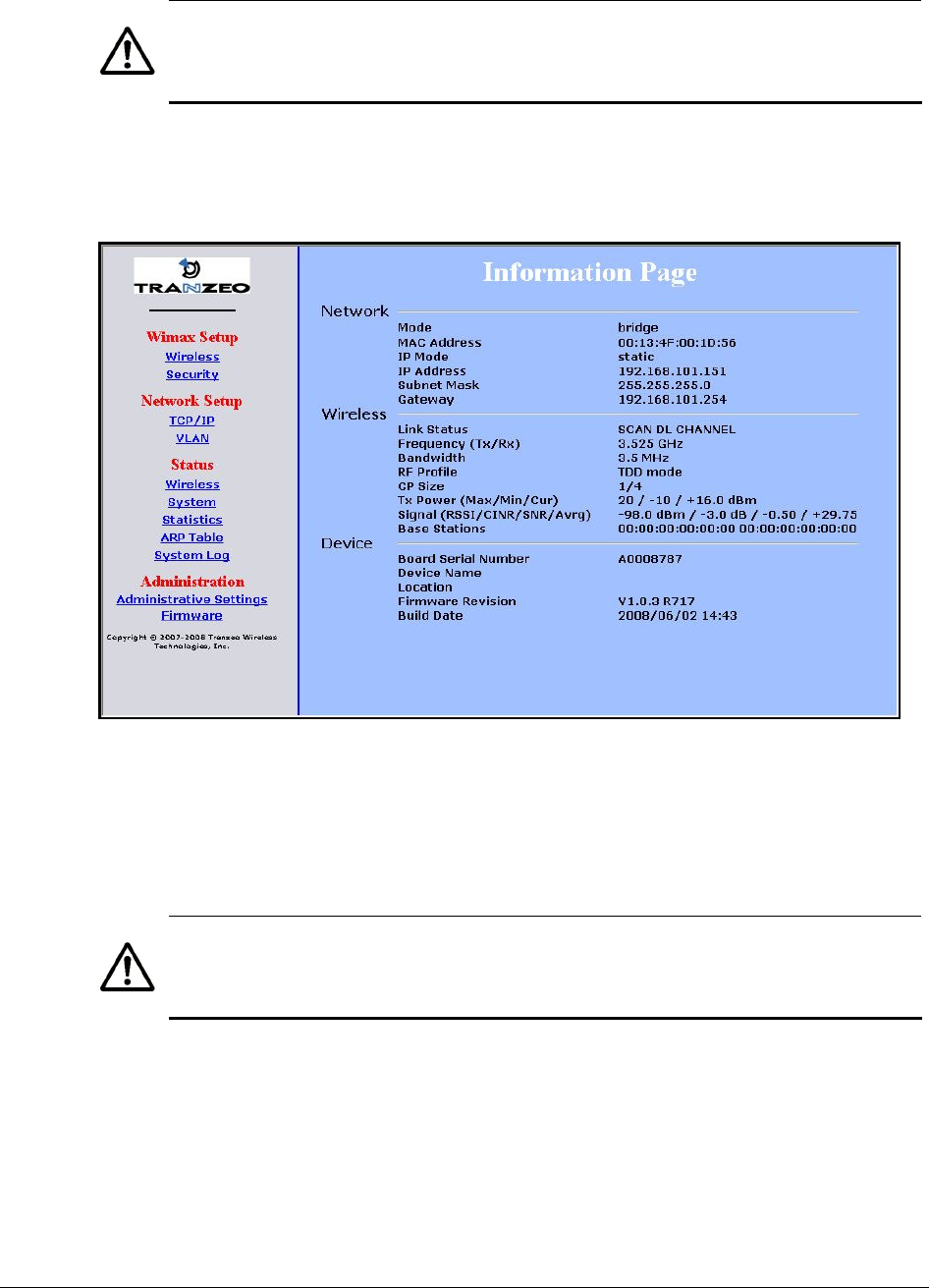

Figure 4. Information page.
1.3.2 Specify Wireless Settings
After logging in to the Configurator, use the following procedure to set the Subscriber
Unit’s wireless settings.
The default configuration settings for most parameters should work well for the
majority of installations. Only those settings that should be confirmed or adjusted
as part of the quick-configuration instructions are described in this section.
1. In the left pane, under WiMAX Setup, click Wireless. The Wireless Settings
page appears (see Figure 5).
2. Set the three groups of parameters as indicated in Figure 5.
3.
4. Table 1 and Figure 5. These values must match the ones you entered for the
Pico Base Station.
WiMAX Quick Configuration Guide 11
5. Click the Apply button. A page tells you that your configuration changes
have been saved, but will not be applied until you reboot the Subscriber Unit.
6. Do not reboot the Subscriber Unit at this time. Instead, proceed to “Specify
Network Setup Settings” on page 14.

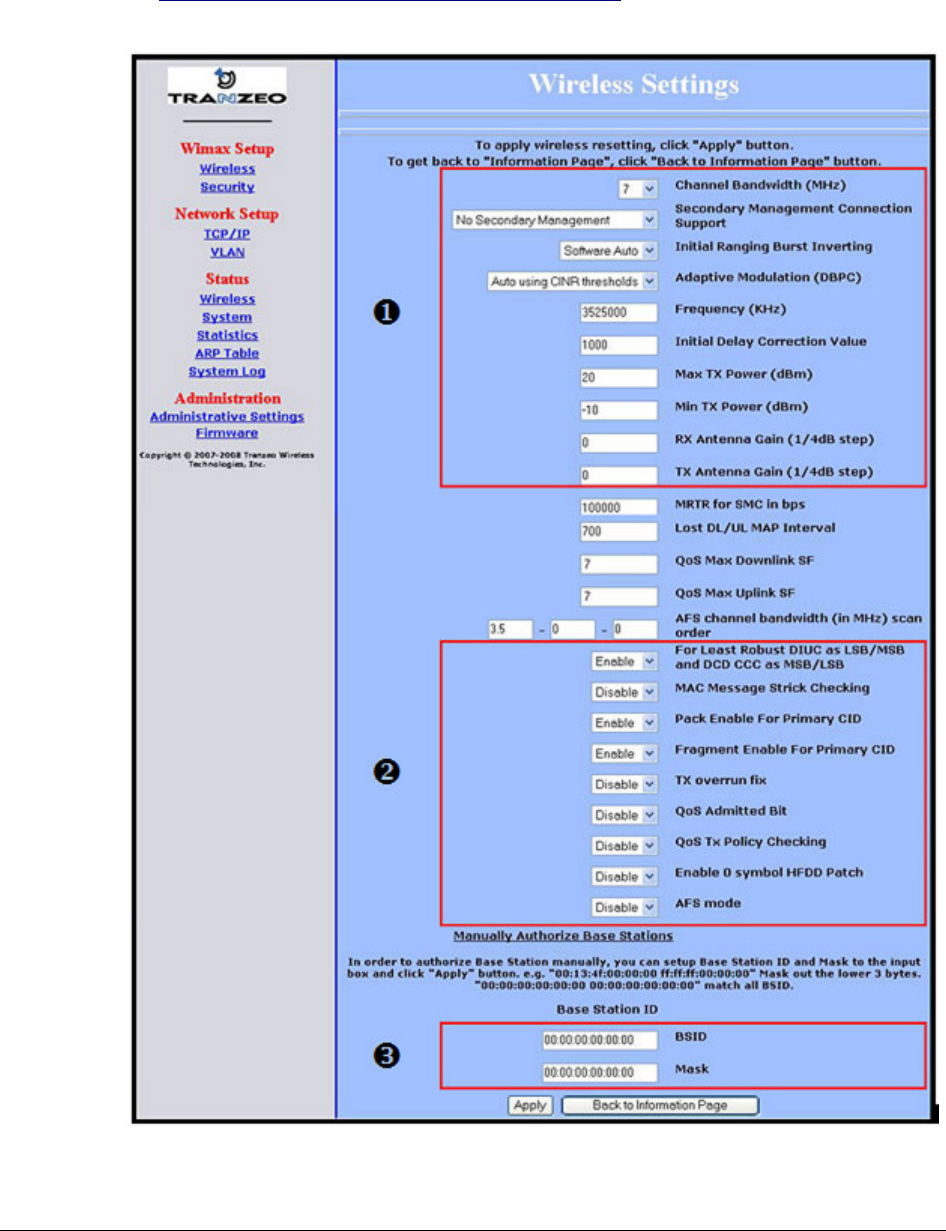

Figure 5. Wireless Settings page.
WiMAX Quick Configuration Guide 12
Table 1. Wireless Settings
Parameter Choose This Setting
Group Parameters in Figure 5
Channel Bandwidth (MHz) For the 3.5GHz pBS operation select 3.5MHz or 7MHz
(default), whichever best suits your application’s
bandwidth needs and is allowed by your license. The
Pico Base Station must be set to the same bandwidth.
For the 3.65GHz pBS operation select 3.5MHz or 7MHz
(default).
For the 5.8GHz pBS operation the default channel
bandwidth is 10MHz.
Secondary Management
Connection Support
Confirm that the default setting (Secondary
Management) is disabled. If not, select No Secondary
Management.
Initial Ranging Burst Inverting Confirm that the default setting (Software Auto) is
selected. If not, select it.
Adaptive Modulation (DBPC) Confirm that the default setting (Auto using CINR
thresholds) is selected. If not, select it.
Frequency (KHz) Sets the frequency, in kHz. For 3.5GHz operation the
SU range is 3300000 – 3600000 in increments of
250kHz. Default is 3525000 (3.525 GHz). Since the
pBS supports frequencies from 3400000-3600000, only
use frequencies in that range.
For 3.65GHz operation the range is 3650000 –
3675000 in increments of 250kHz, only use
frequencies in that range.
For 5.8GHz operation the range is 5725000 – 5850000
in increments of 500KHz. Since the pBS supports
frequencies from 5740000-5830000, only use
frequencies in that range.
Initial Delay Correction Value Confirm that a default setting of 0 is selected. If not,
select it. This parameter may be adjusted over a range
of 0 to 1000, and in conducted tests may need to be
set to 1000 to support 7MHz channels.
Max TX Power (dBm) The Max Tx Power value cannot exceed 20dBm.
Default setting is 20.
When setting the Max Tx Power value, do not exceed
the max EIRP allowed by your license. When adding
the values for Tx Antenna Gain and Max Tx Power, the
sum of these values must equal or be less than the
max EIRP that your license allows.
Min Tx Power (dBm) Confirm that the default setting (-10) is selected. If
not, select it.
WiMAX Quick Configuration Guide 13
Parameter Choose This Setting
Rx Antenna Gain (1/4dB step) Confirm that the default setting (0) is selected. If not,
select it. This can be adjusted to match the gain of the
antenna used, however the default setting of 0 will
enable connectivity in all cases.
Tx Antenna Gain (1/4dB step) Confirm that the default setting (0) is selected. If not,
select it. This can be adjusted to match the gain of the
antenna used, however the default setting of 0 will
enable connectivity in all cases. The SS uses the same
antenna for Tx and Rx.
Group Parameters in Figure 5
For Least Robust DIUC as
LSB/MSB and DCD CCC as
MSB/LSB
Confirm that the default setting (Enable) is selected. If
not, select it.
MAC Message Strict Checking Confirm that the default setting (Disable) is selected. If
not, select it.
Pack Enable for Primary CID Confirm that the default setting (Enable) is selected. If
not, select it.
Fragment Enable for Primary CID Confirm that the default setting (Enable) is selected. If
not, select it.
Tx Overrun Fix Confirm that the default setting (Disable) is selected. If
not, select it.
QoS Admitted Bit Confirm that the default setting (Disable) is selected. If
not, select it.
QoS Tx Policy Checking Confirm that the default setting (Disable) is selected. If
not, select it.
Enable 0 Symbol HDD Patch Confirm that the default setting (Disable) is selected. If
not, select it.
AFS mode Confirm that the default setting (Disable) is selected. If
not, select it.
Group Parameters in Figure 5
BSID and Mask Use the standard format for MAC addresses (six 2-digit
hexadecimal numbers separated by colons) to enter
the Pico Base Station ID. Example:
“12:34:56:78:9a:bc”. You can enter up to 8 Pico Base
Station addresses, separating each by pressing the
Enter key. To match a range of BSIDs, in the mask
field use 0 to allow any or f in the digit corresponding
to the BSID value to match. To match any BSID, utilize
a setting of all zeros for both the BSID and Mask:
"00:00:00:00:00:00 00:00:00:00:00:00".
WiMAX Quick Configuration Guide 14
1.3.3 Specify Network Setup Settings
After specifying wireless settings, use the following procedure to specify the network
setup settings.
1. In the left pane, under Network Setup, click TCP/IP. The TCP/IP Settings
page appears (see Figure 6).
2. When the Subscriber Unit is set to unmanaged mode (No Secondary
Management set on the Wireless page) the IP Mode will be displayed as
static on the TCP/IP page. Confirm IP mode is static and set the parameters
in Table 2 (these parameters are highlighted in orange in Figure 6).
Otherwise, skip to step 3 on the next page.

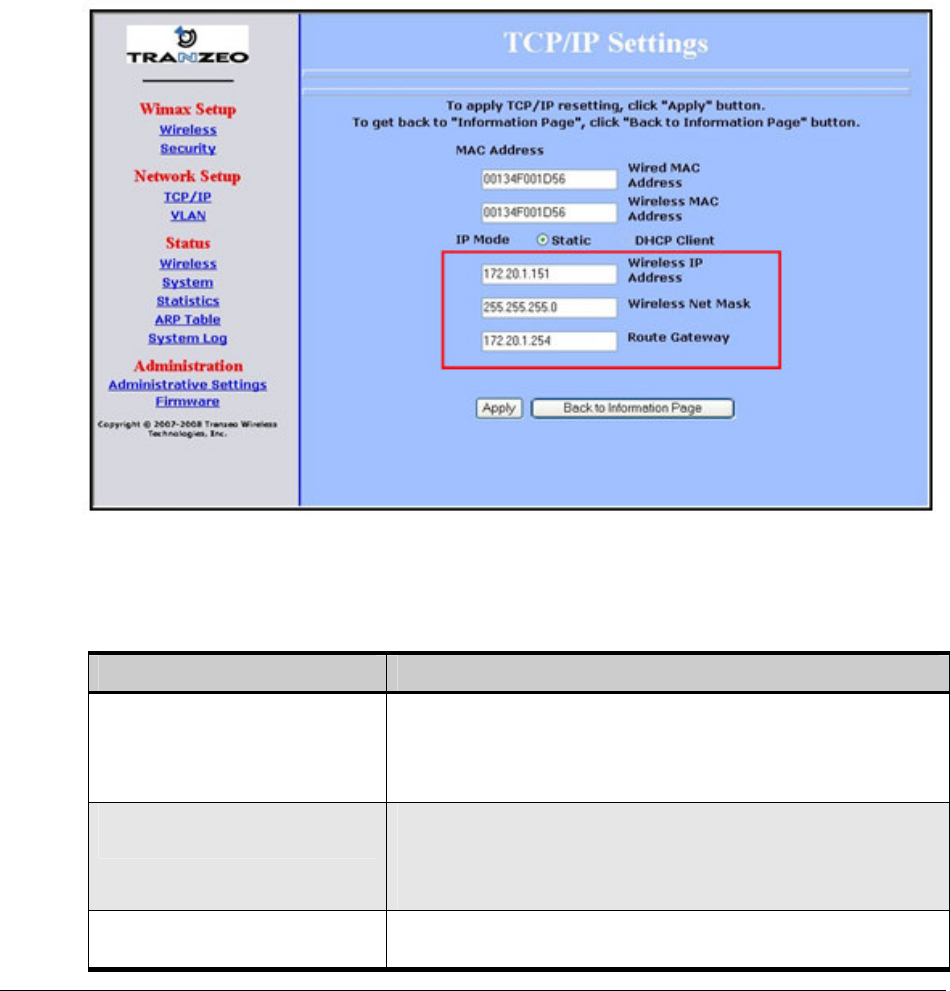

Figure 6. TCP IP Settings page.
Table 2. TCP/IP Settings
Parameter Choose This Setting
Wireless Management IP
Address
Secondary management mode: This value is set
automatically and the field is unavailable.
Unmanaged mode: Set this parameter to an unused value
in the subnet to which the Pico Base Station is connected.
Wireless Management Net
Mask
Secondary management mode: This value is set
automatically and the field is unavailable.
Unmanaged mode: Set this value to match that of the
subnet to which the Pico Base Station is connected.
Management Route Gateway Secondary managed mode: This value is set automatically
and the field is unavailable.
WiMAX Quick Configuration Guide 15
Parameter Choose This Setting
Unmanaged mode: Set this value to be the router on the
subnet to which the Pico Base Station is connected.
3. Click the Apply button. When the next page appears, click the Reboot
button to reboot the Subscriber Unit and put your saved settings into effect.
Rebooting disconnects the Subscriber Unit and any connections currently running.
It may take 60 seconds before the Subscriber Unit is running and accessible again.
The Status LED flashes while the unit reboots and goes ON when the unit
completes the reboot process.
1.4 Step 3: Configure the Subscriber Unit in AirConsole
To configure the Subscriber Unit in AirConsole:
1. Using the server where AirSync and AirConsole have been installed, click the
Windows Start button, point to All Programs, point to AirSync, point to
AirConsole, and click AirConsole.
2. Once the AirSync Management Console window appears, go to Manage
menu and then click Devices. On the Devices tab, click Details, this will
show the details pane on the right side of the Pico Base Station. After a few
minutes, the Pico Base Station should register with AirSync automatically.
3. In the right pane, click the Connections tab. Connection information for the
selected Pico Base Station appears. Question marks mean the detected
Subscriber Unit has not been added to the AirSync server; if this happens, do
not worry, as you will add the device later in this procedure.
If the Subscriber Unit does not appear in the connections tab under the Base
Station after a few minutes, the link timing may require adjustment. The default
settings described above enable connectivity for wireless links. However, for
conducted testing two parameters may need to be adjusted. First adjust the
“Magic wavesat synchronization parameter” available through Interfaces tab in
AirConsole for the Base Station’s bs_ofdm0 interface using the RNG_GRP sub-tab.
Use values ranging from 236-690, then click Send to adjust these on the Base
Station. Values of 236, 536, and 583 for this parameter are appropriate for
conducted tests with respective channel bandwidths of 3.5MHz, 7MHz, and
10MHz. Keep in mind adjusting this parameter will cause the Base Station to
reboot. Second, adjust the “Initial Delay Correction Value” through the Subscriber
Unit Wireless Settings web page, and reboot the CPE to apply this change. Use
values ranging from 0-1000, with a value of 120 for this parameter appropriate for
conducted testing.
If all Subscriber Units do not appear in the connections tab under the Base Station
after a few minutes, or if they are passing data with low throughput the link
margin the pBS expects may need adjustment. The pBS default settings enable
connectivity for many wireless links. However, for low margin links or to support
WiMAX Quick Configuration Guide 16

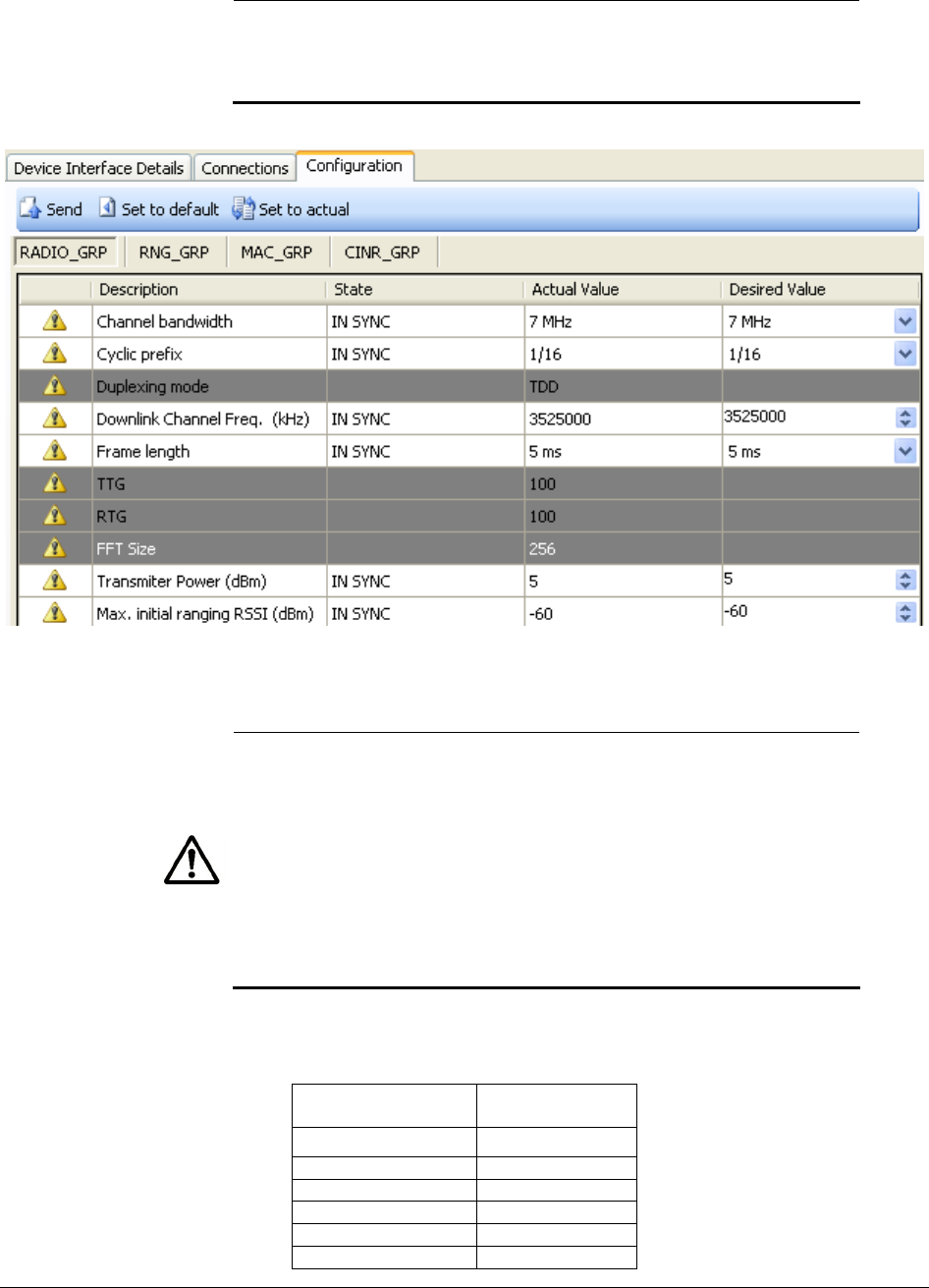

multiple CPEs the “Max. initial ranging RSSI (dBm)” setting may need to be
reduced. This setting is available in the interfaces tab in AirConsole for the Base
Station’s bs_ofdm0 interface using the RNG_GRP sub-tab. Using your link budget,
calculate a reasonable maximum (about 5dB above your best link) and enter this
value in dBm. For example for short links anticipated at the highest throughput a
value of -65dBm (the default of -60dBm) may be appropriate. The Max. initial
ranging RSSI (dBm)” is used by the pBS to dynamically adjust each CPE transmit
power to balance the received energy in the pBS for each frame.

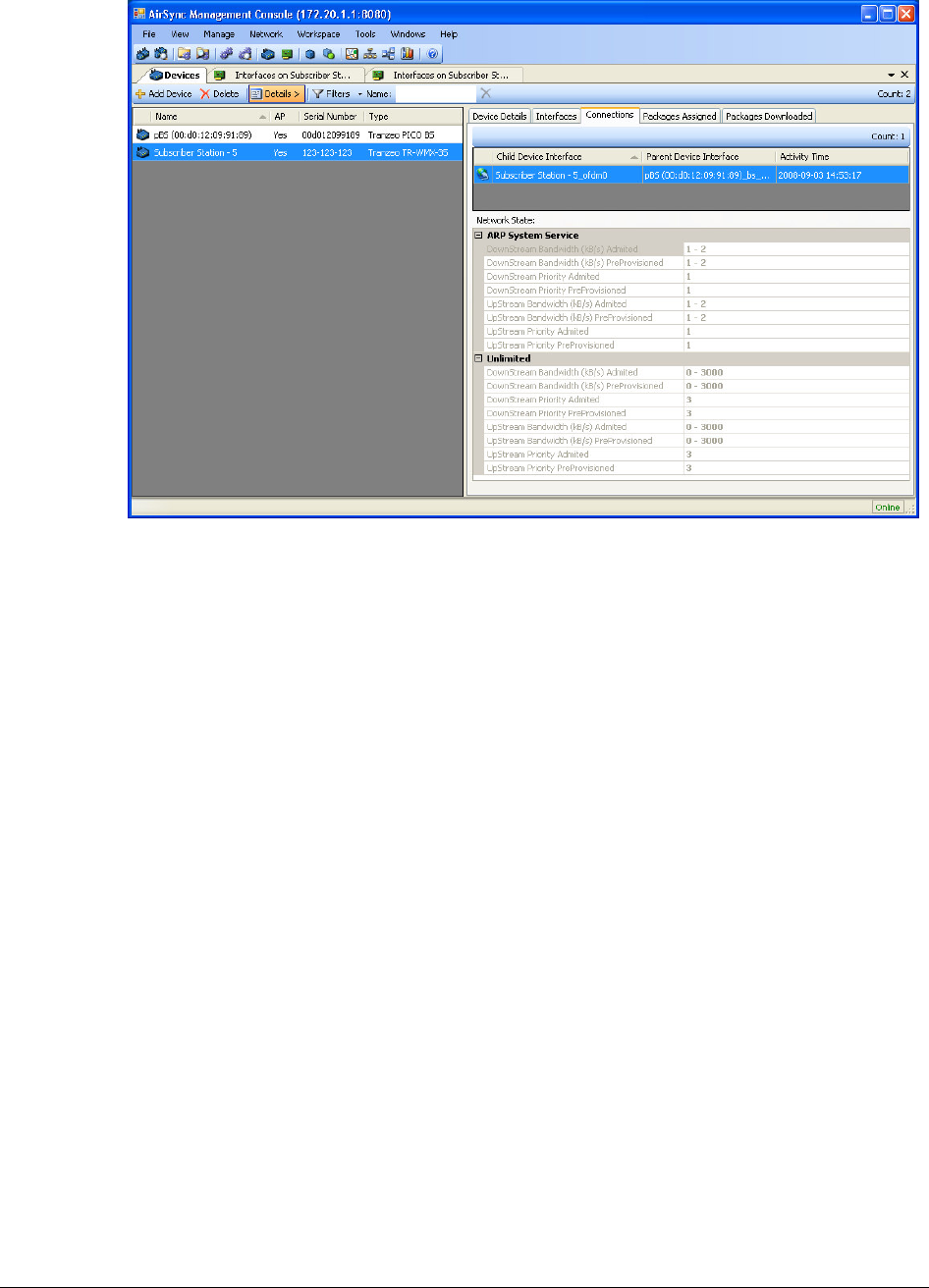

Figure 7. AirSync Management Console Window.
4. Record the Subscriber Unit’s MAC address shown and the serial number
included with the Subscriber Unit. You will need them later when you
configure the Subscriber Unit.
MAC Address (shown in screen above): ____________________
Serial Number (included in the Subscriber Unit box): __________
5. At the AirSync Management Console, click Add Device. The Device Details
tab appears on the right.
WiMAX Quick Configuration Guide 17

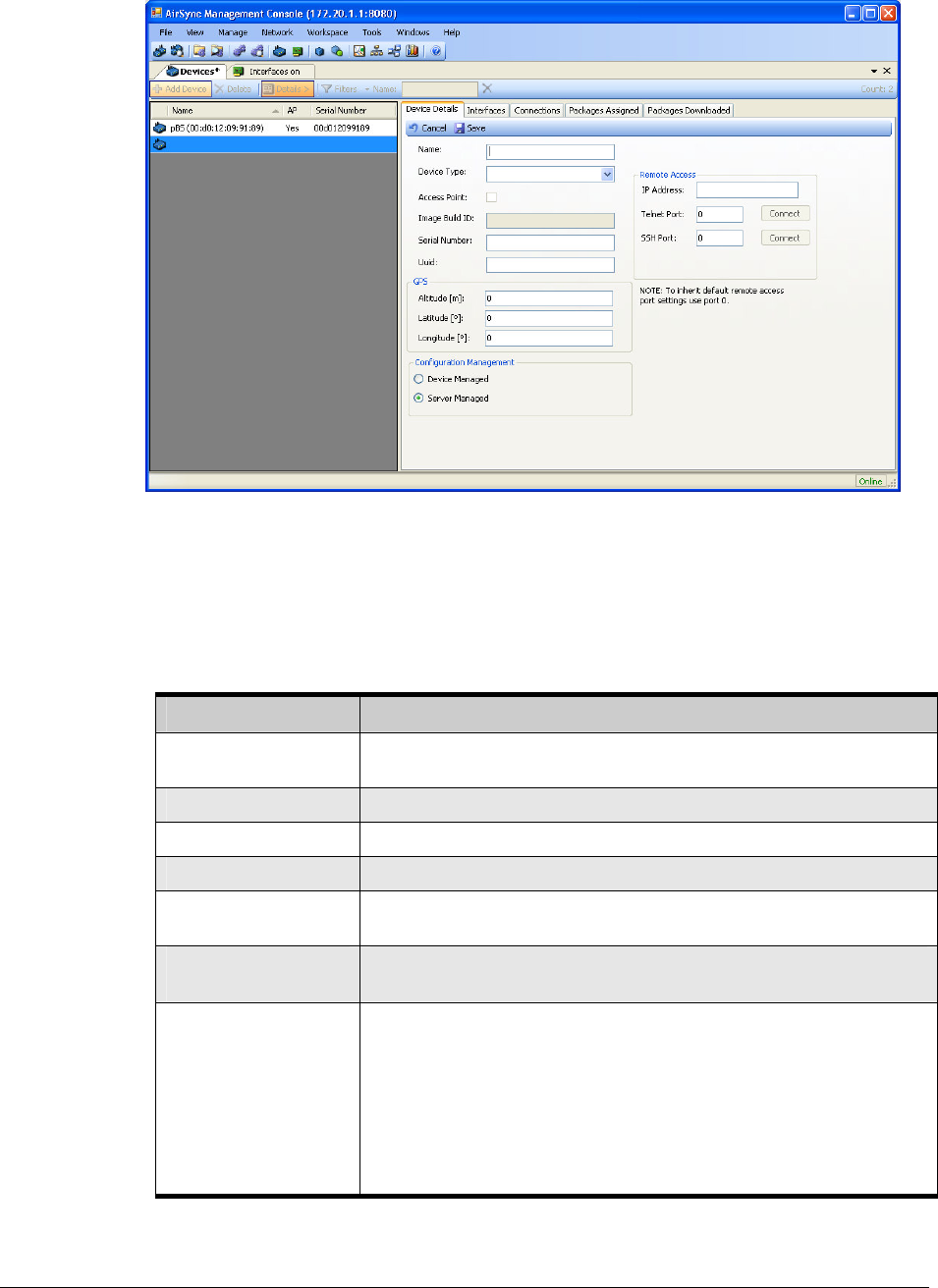

Figure 8. Device Details tab.
6. Complete the fields in the Device Details tab and click Save.
Table 3. Fields in the Device Details Tab
Parameter Description
Name Enter a meaningful name for the Subscriber Unit (e.g., the
location where the Subscriber Unit will be installed).
Device Type Select Tranzeo TR-WMX or appropriate device.
Serial Number Enter the Subscriber Unit serial number recorded on Step 3.
Uuid Enter a unique UUID number.
GPS Optional: Enter the altitude, latitude, and longitude where the
Subscriber Unit will be installed.
Configuration
Management
Accept the default setting.
Remote Access IP Address = enter the Subscriber Unit’s IP address.
A configuration graphical user interface (GUI) is available at
the IP address using the default username admin and default
password default. The Subscriber Unit must be set to the
proper frequency and channel bandwidth to connect to the
Pico Base Station using the subscriber station’s Web-based
GUI. The frequency and the channel bandwidth must match
the values entered before for the Pico Base Station.
WiMAX Quick Configuration Guide 18
7. When a message prompts you to add a primary interface for this Subscriber
Unit, click OK. The Device Interface Details tab appears.

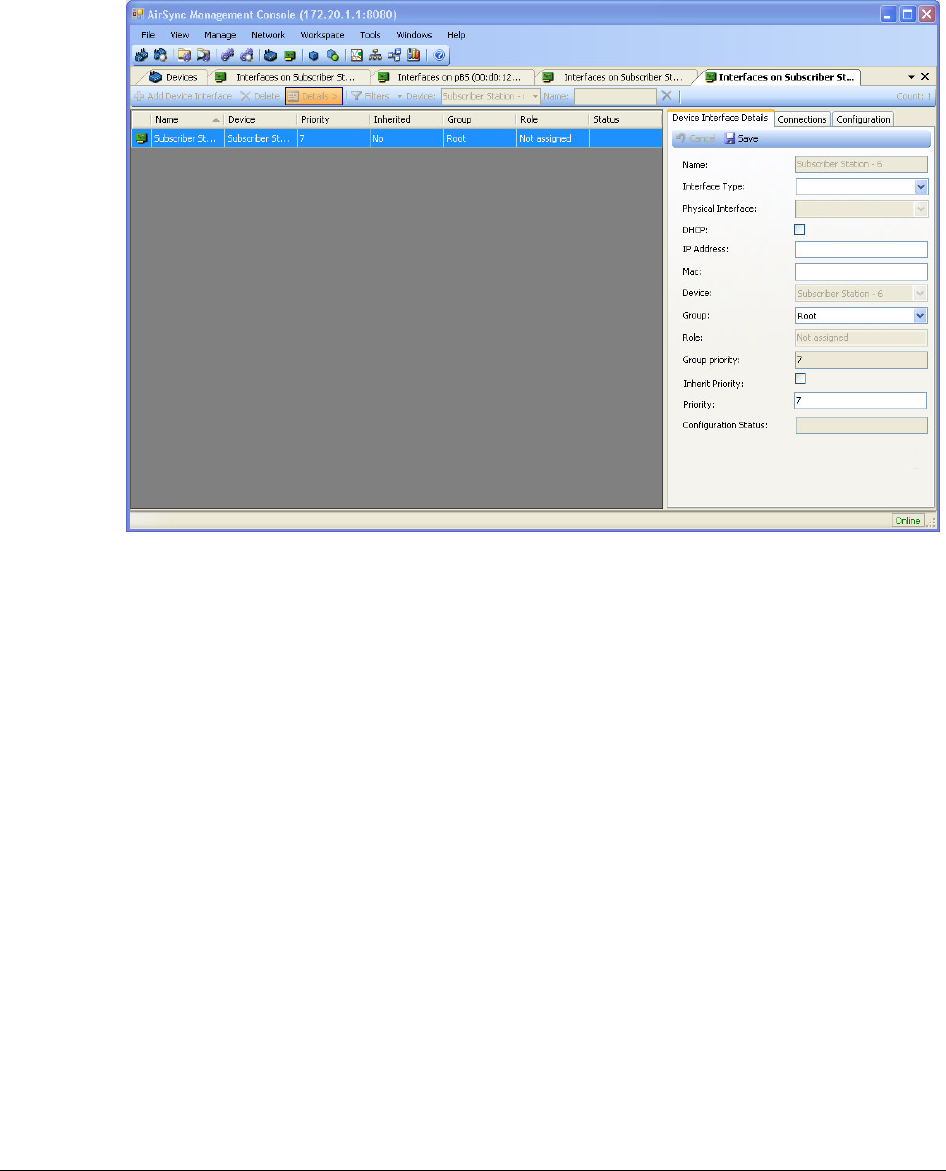

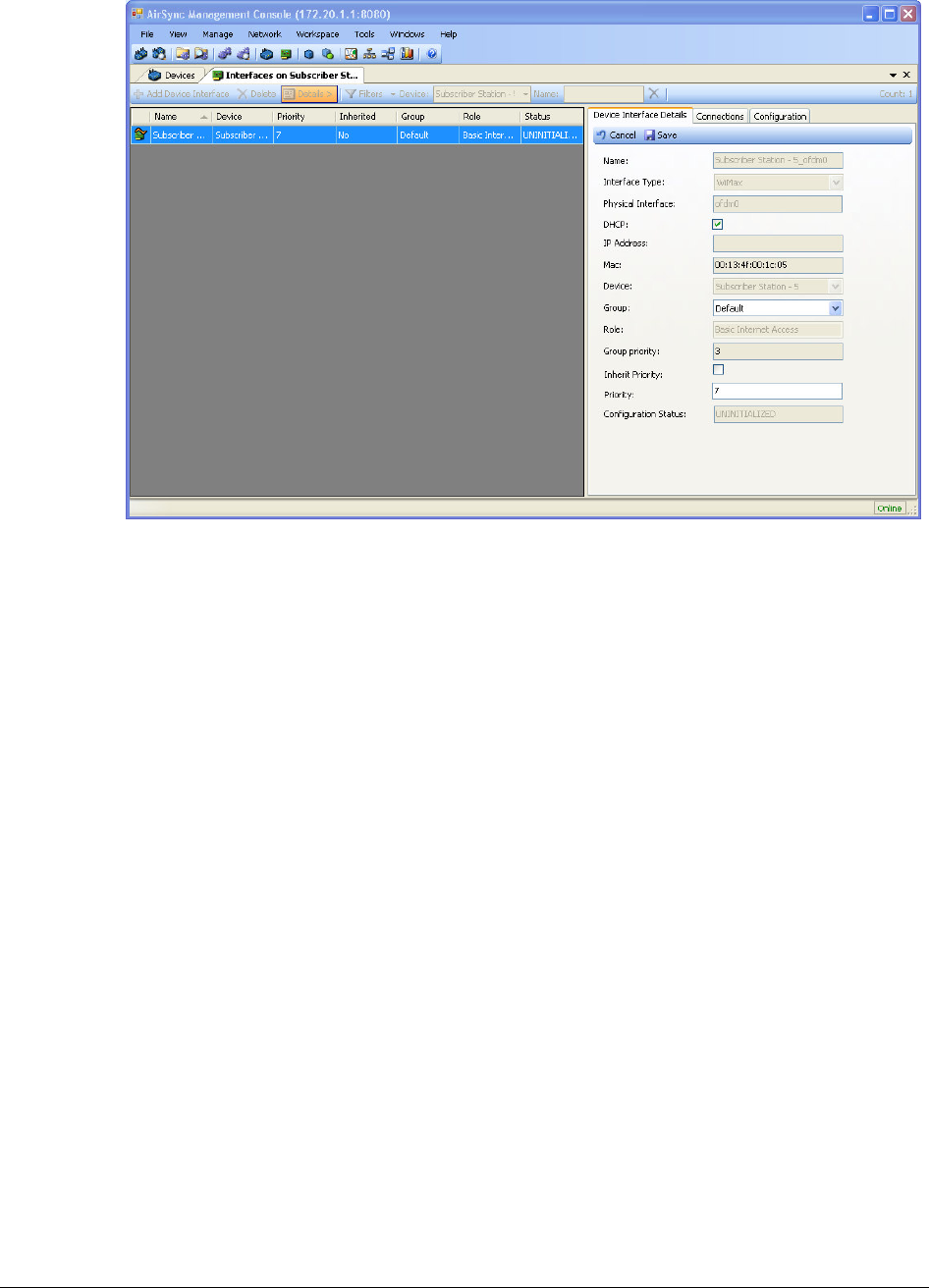

Figure 9. Device Interface Details tab.
8. Complete the fields in the Device Interface Details tab and click Save.
WiMAX Quick Configuration Guide 19
Table 4. Fields in the Device Interface Details Tab
Remember that Tranzeo Subscriber Units are not managed by AirSync. Therefore,
manually assigned IP Addresses must be entered in the IP Address field.
Parameter Description
Interface Type Select WiMax. Once you select and Interface type the
physical interface will be active. The default ofdm0 is fine.
DHCP Check to have AirSync fill up this information automatically.
This option only works if AirSync manages the device. Since
the Subscriber Unit device is not managed by AirSync please
do not check this box. Instead manually enter the static IP
address to be used in the IP Address field.
IP Address Enter a static IP address for the Subscriber Unit. Only
available when DHCP is not checked.
Mac Enter the Subscriber Unit MAC address using a : separated
format (Aa:Bb:Cc:Dd:Ee:Ff:00).
Group Add the Subscriber Unit to the group Default. The
Subscriber Unit will inherits permissions from the group if
the Inherit Priority checkbox is selected.
WiMAX Quick Configuration Guide 20
1.5 Step 4: Test the Subscriber Unit Connectivity
To test the Subscriber Unit connectivity, perform the following procedure.
1. Using the computer connected to the Subscriber Unit, confirm that the
subscriber’s computer can access the LAN resource and any desired
destination (e.g., the Internet). The subscriber’s computer must be
configured with the same subnet as the Subscriber Unit and a default
gateway that matches the Subscriber Unit IP address.
Figure 10. An example of a typical network configuration.
2. If the LAN resources cannot be accessed, click the Devices tab, select the
Pico Base Station device, and verify that the device has no warning triangle
and that all the rows appear in white in the Interfaces tab in the right pane.
If the Subscriber Unit appears in red, the link between the Pico Base Station
and Subscriber Unit is down. If this is the case then check the
Configuration tab under Manage, Device Interfaces and select the
bs_ofdm0 device interface to confirm that the frequency and bandwidth are
set up properly in the Pico Base Station (RADIO_GRP sub-tab). Also confirm
that the frequency and bandwidth are set up properly in the Subscriber Unit
using the Subscriber Unit’s Web-based GUI.
The Tranzeo pBS and SS each include a variety of configuration
options that may be adjusted to enable wirless links to close.
Specifically, the first parameter to check are verifying the link
margin is sufficient for each SS and pBS link and adjust the “Max.
initial ranging RSSI (dBm)” and the “Transmit Power (dBm)” on the
pBS if needed. Second, if confident of a sufficient link margin,
different channel bandwidth selections may require adjusting the
WiMAX Quick Configuration Guide 21
Magic Wavesat Synch parameter on the pBS and the Initial Delay
Correction Value on the SS.
Figure 11. Configuration subtab on Device Interfaces Details tab.
The figure above shows the default values to configure the Pico
Base Station to be connected to a single Subscriber Unit. If you wish
to connect more than one Subscriber Unit please modify the Frame
Length to 10 or 20 ms. 10ms is the recommended value. Although
the latency will increase compared to 5ms frames, the supported
throughput will increase. In addition, change the Minimum Size of
First Burst value under the MAC_GRP tab. The recommended burst
size values are shown below in Table 5: Minimum Size of First Burst
for multiple Subscriber Units.
Table 5: Minimum Size of First Burst for multiple Subscriber Units.
Number of
Subscriber Units
Minimum Size
of First Burst
1 25
2 27
3 28
4 30
5 31
6 33
WiMAX Quick Configuration Guide 22
7 34
8 36
9 37
10 39
11 40
12 42
13 43
14 45
15 46
16 48
17 49
18 51
19 52
20 54
21 55
22 57
23 58
24 60
25 61
26 63
27 64
28 66
29 67
30 69
31 70
3. From the Devices tab, click the Pico Base Station row in the left pane on
which the device name appears. Then, in the right pane, click the
Connections tab.
4. In the Connections tab, click the Subscriber Unit. If the row appears in
white, as in the following example, you will see the services flow assigned to
the Subscriber Unit.
WiMAX Quick Configuration Guide 23

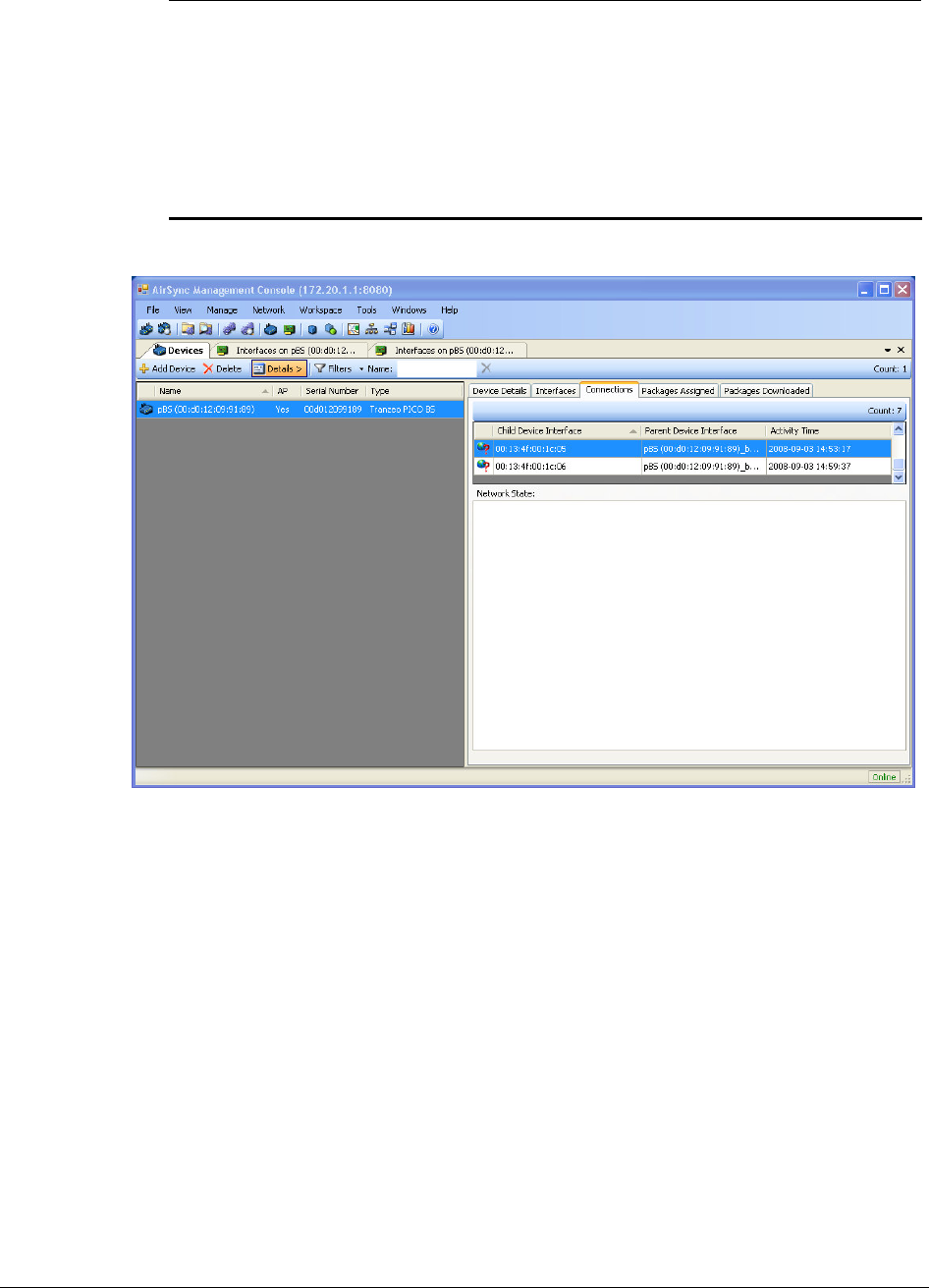

Figure 12. Connections subtab on Devices tab.
If there are no services flows, check that the Subscriber Unit is assigned
properly to the group called Default. To do so, click the Devices tab in the
left pane; then, in the Devices tab on the left, right-click the subscriber
station whose group you want to confirm and select Show Interfaces from
the shortcut menu. In the right pane, click Edit and use the Group drop-
down list to select the appropriate group.
WiMAX Quick Configuration Guide 24
Figure 13. Device Interfaces details tab.
WiMAX Quick Configuration Guide 25
1.6 Step 5: Monitor the Network
After confirming that the subscriber’s computer can access the LAN resources, use
the following procedure to monitor the network.
1. In the Devices tab, right-click the Subscriber Unit and choose Show
Statistics from the shortcut menu. A box appears with statistics for
monitoring the network.

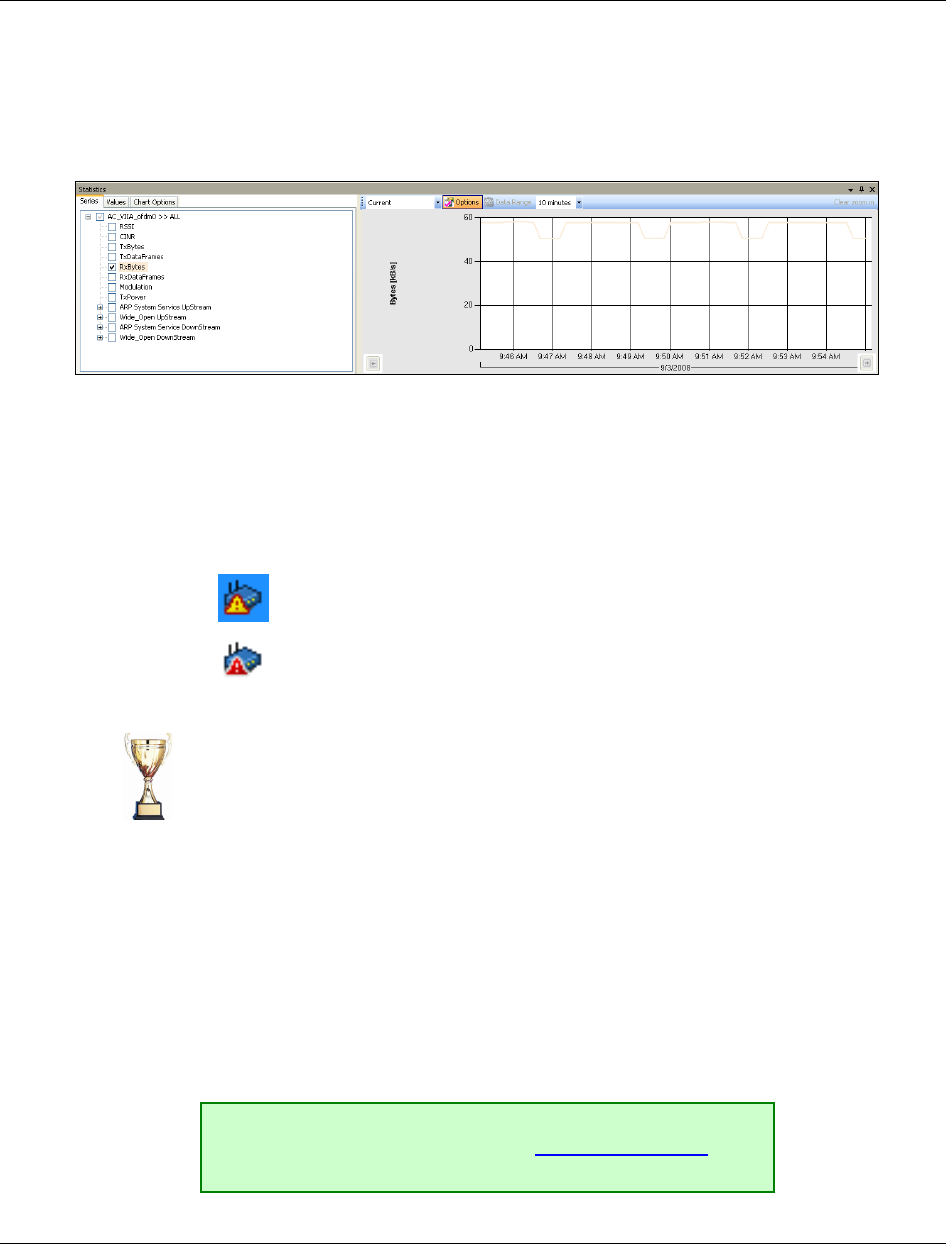

Figure 14. Statistics tab.
2. Using the statistics box, edit the parameters and see the real-time
performance results of the Subscriber Unit.
The AirSync Server icons indicate the status of each device. For example:
= the device does not have a working agent.
= the device is down and the AirSync Server cannot ping it.
Congratulations! You have now completed the configuration for the
Tranzeo TR-WMX WiMAX Subscriber Unit and attaching it to the Pico
Base Station.
For more information, please visit www.tranzeo.com.
WiMAX Quick Configuration Guide 26
Compliance Information
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures.
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (EIRP) is not
more than that required for successful communication.
Any changes or modification to said product not expressly
approved by Tranzeo Wireless Technologies Inc. could void the
user's authority to operate this device.
WiMAX Quick Configuration Guide 27
Industry Canada Information
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
For safety reasons, people should not work in a situation where RF exposure limits
could be exceeded. To prevent this situation, the users should consider the following
rules:
Install the antenna so that there is a minimum of 123.6 cm (48.7 in) of distance
between the antenna and people.
Do not turn on power to the device while installing the antenna.
Do not connect the antenna while the device is in operation.
Do not co-locate or operate the antenna used with the device in conjunction with
any other antenna or transmitter.
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that permitted for successful communication.
The product requires professional installation. Professional installers must ensure that
the equipment is installed following local regulations and safety codes.

Navigation menu
