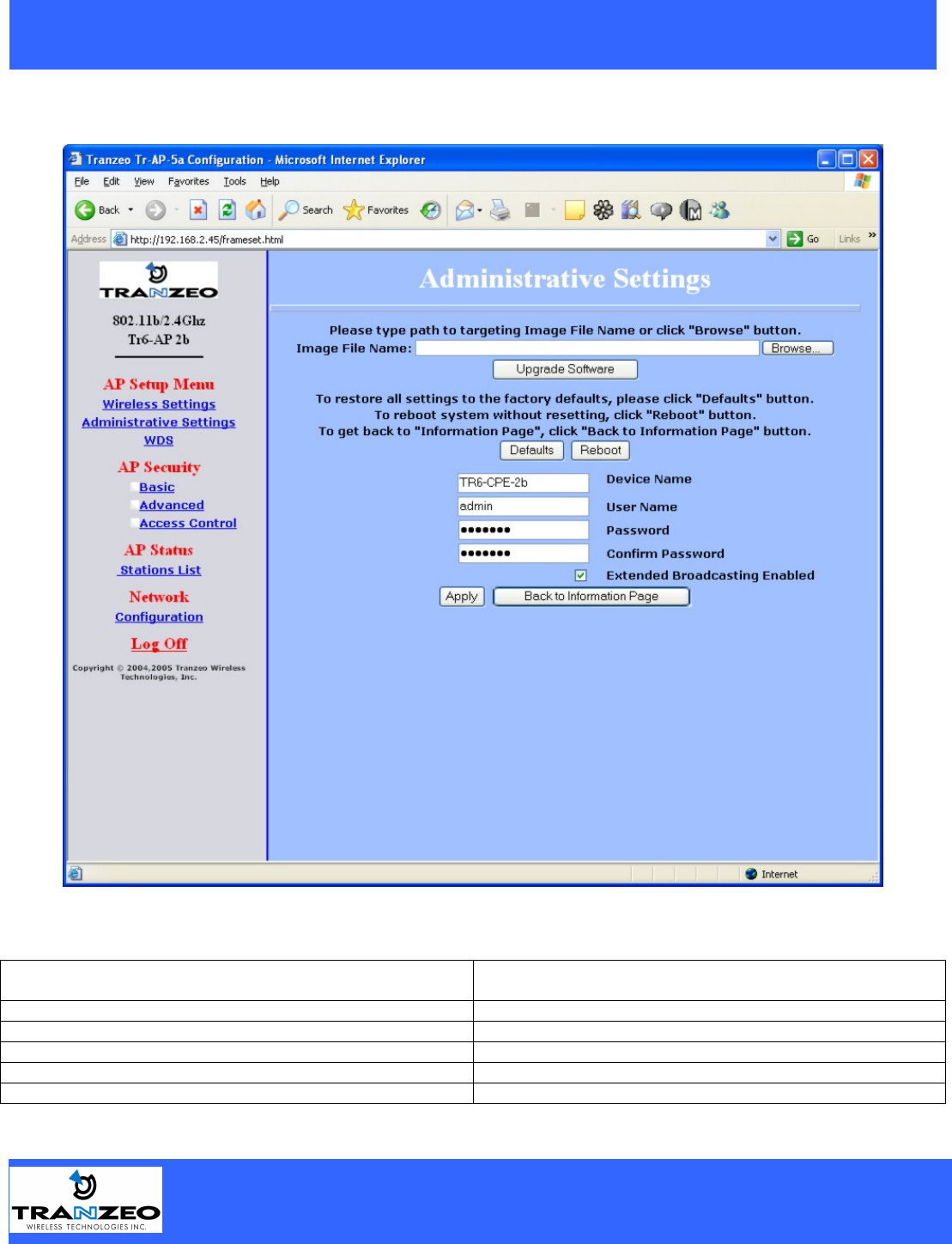

Administrative Settings
Image File Name Enter the location of the Bios update file then press ‘Upgrade
Software”
Factory Defaults Restore Returns all settings to factory defaults.
Device Name The network name of the device.
User Name The access user name.
Password/Confirm Password Enter the password for accessing the device
Ext. Info Enabled Enable extended information.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 14 of 24 3/10/2005

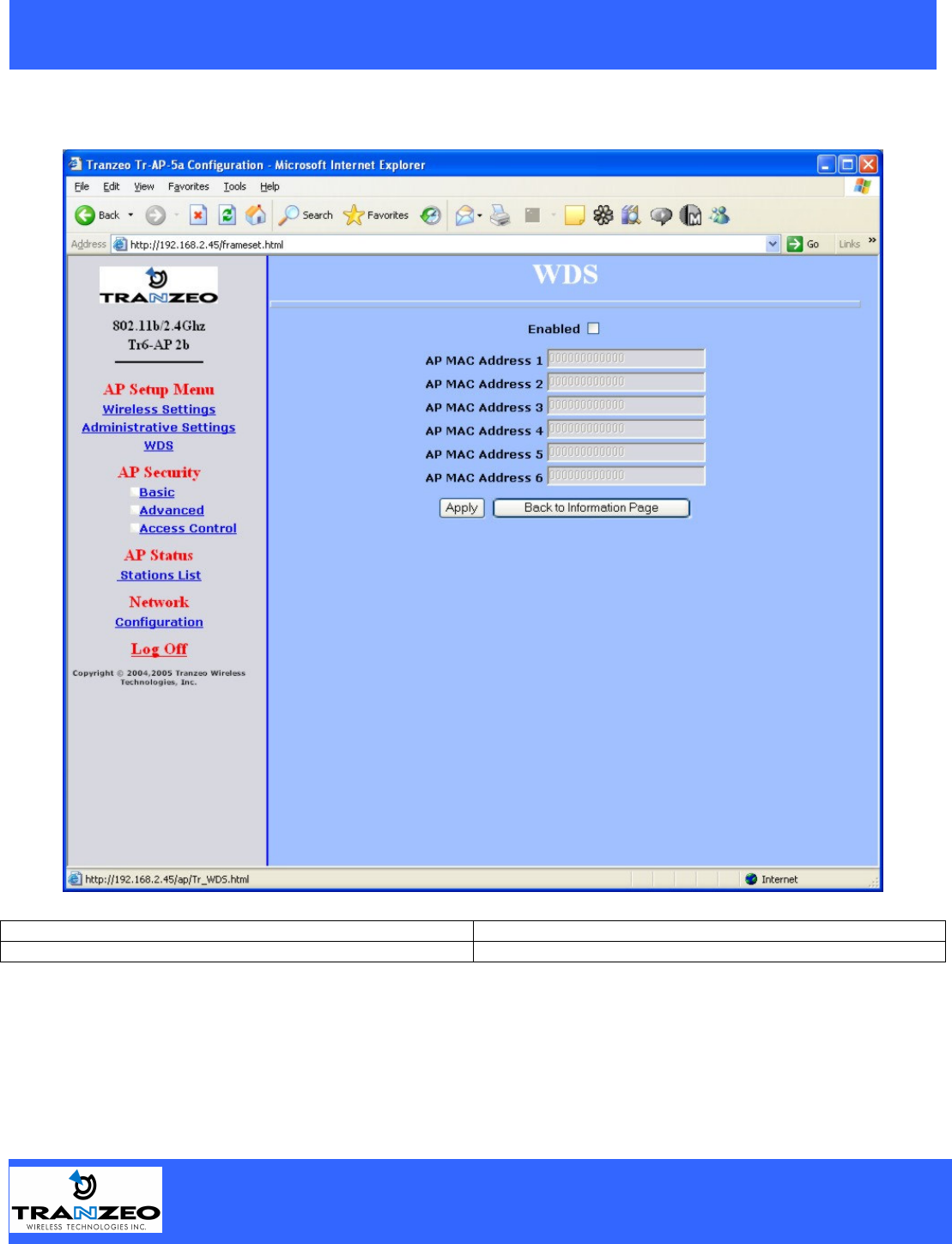

WDS
Enabled Select this box to enable WDS
AP MAC Address 1-6 Enter the MAC addresses of the other APs
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 15 of 24 3/10/2005

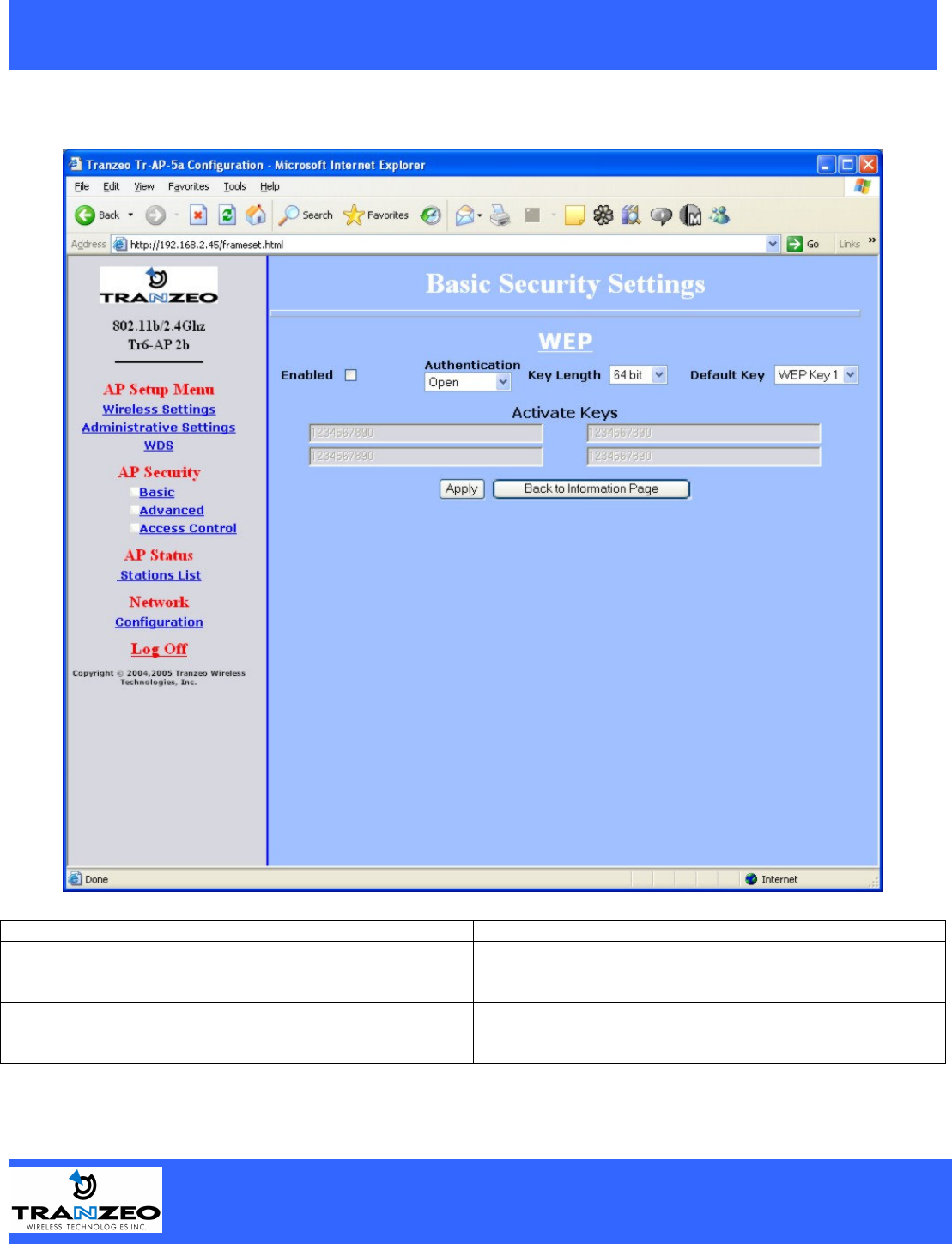

Security Basic
Enabled Turn On WEP
Authentication Turn on Shared Key Authentication
Key Length Level of Encryption.
NOTE: 64 bit is called 40 bit on some systems
Default Key Choose the default WEP key
Activate Keys Enter your WEP keys. NOTE: Keys must be entered in
HEX only.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 16 of 24 3/10/2005

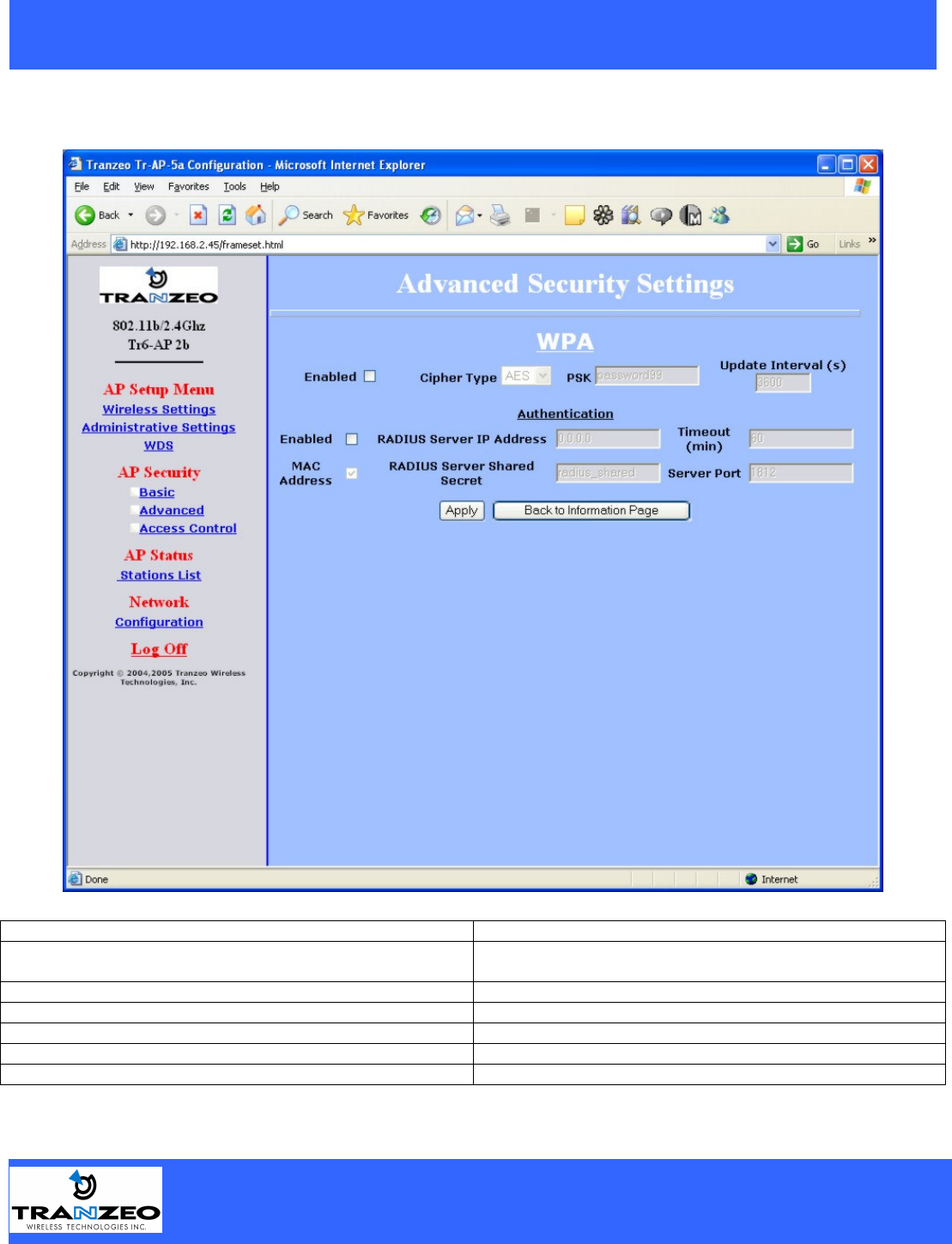

Security Advanced
Enabled Turn On WPA
Cipher Type Level of Encryption.
TKIP or AES
PSK Enter your password
Update Interval Enter the update interval
Enabled Turn on 802.1x RADIUS Server Authentication
RADIUS Server IP Address Enter the server IP
Timeout (min) Enter the timeout period
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 17 of 24 3/10/2005
RADIUS Server Shared Secret Enter the name of the server
Server Port Enter the port of the server
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 18 of 24 3/10/2005

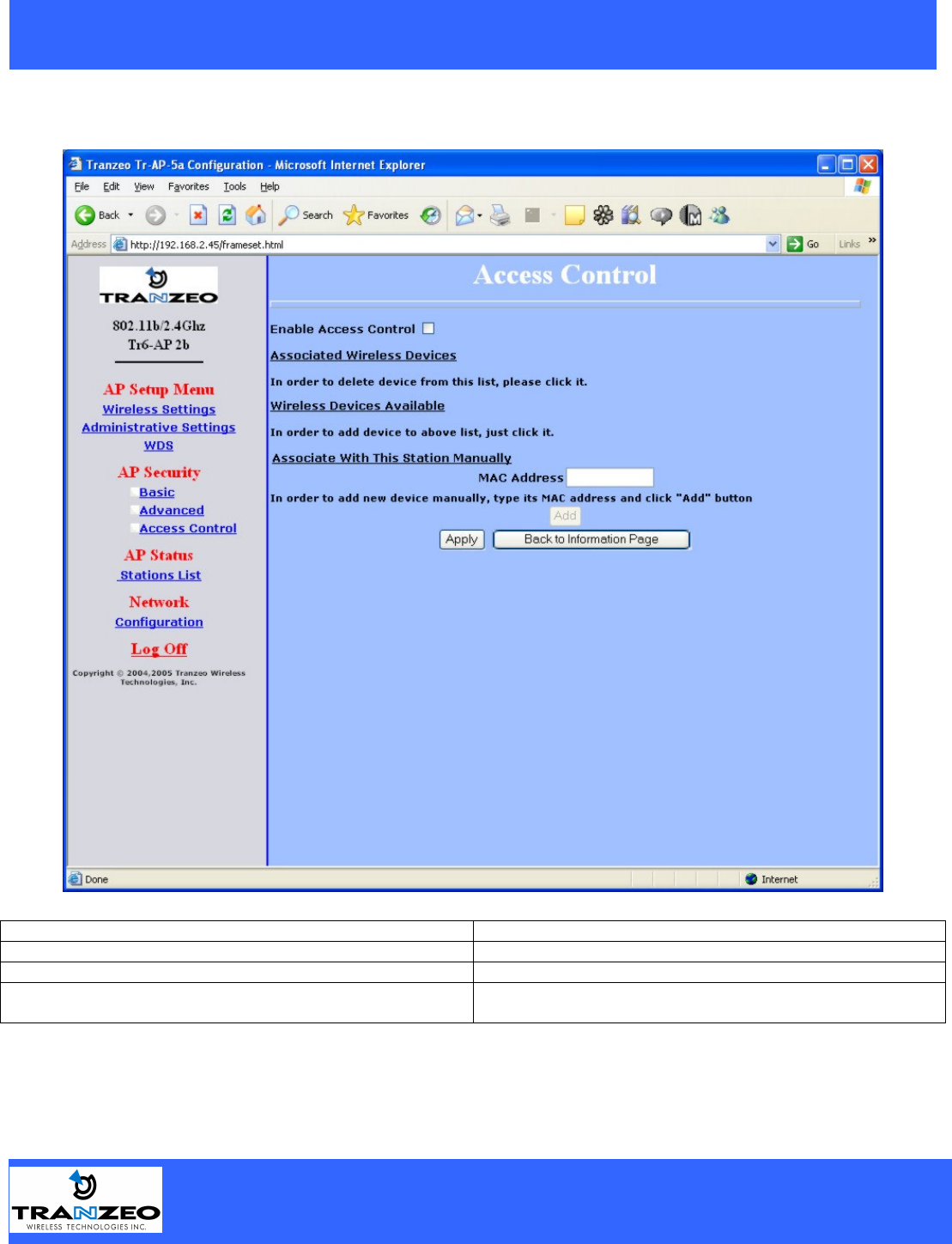

Access Control
Enable Access Control Select this box to enable access control.
Associated Wireless Devices Click any devices to disassociate them
Wireless Devices Available Click any wireless device that should be associated with the AP
Associate With This Station Manualy Enter the MAC address of a client and then click “add” to
associate with it.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 19 of 24 3/10/2005

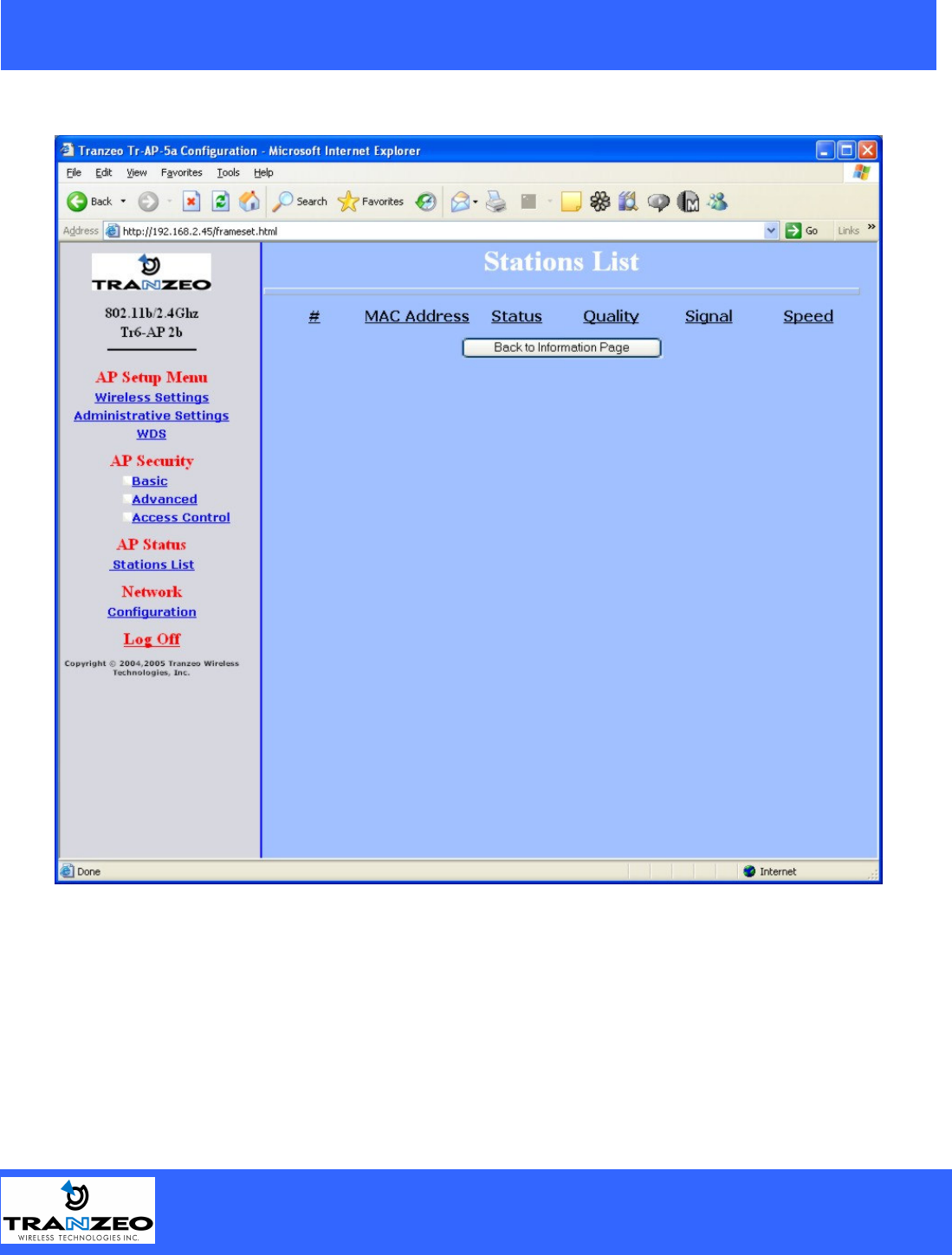

Stations List
This page displays a list of the stations associated with the AP and their connection statistics.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 20 of 24 3/10/2005
Network Configuration
This page allows you to control the network configuration of the device. Enable the Router option to change
the IP configuration for the LAN. You can also choose Static or DHCP IP configuration for both the device and
any associated IP clients.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 21 of 24 3/10/2005
""2$()'3 '
What is a proper Ground?
This antenna must be grounded to a proper Earth Ground.
According to the The National Electrical Code Sections 810-15s and 810-21, the grounding
conductor shall be connected to the NEAREST accessible locations of the following:
a) The building / structure grounding electrode
b) The grounded interior metal water piping system
c) the power service accessible means external to enclosure
d) the metallic power service raceway
e) the service equipment enclosure
f) The grounding electrode conductor
The important thing is to connect to ground at the nearest point.
Why is coiling the LMR or CAT5 bad?
The myth is that lighting follows the path of least resistance. It actually follows the path of least impedance.
Coiling cables creates an air-wound transformer, which lowers the impedance. This means you are in fact
making your radios a more appealing target for surges.
What standard does Tranzeo Wireless equipment meet?
This radio exceeds International Standard IEC 61000-4-5 when properly grounded. For a copy of the full
testing report, see Report Number TRL090904 - Tranzeo Surge Protection board located on the Tranzeo
website.
Is lightning damaged covered by the Warranty?
No. Lightning is not covered by the warranty. If you follow the instructions, you chances of lightning damage
are greatly reduced, but nothing can protect a radio from a direct lightning strike.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 22 of 24 3/10/2005
Where to Ground the device
This radio must be grounded at the Pole AND at the POE. This is because the radio is between the Exterior
Antenna and the POE ground. See the examples below
Ungrounded Radio
`
Grounded Radio
Antenna
POE
Rad
io
Ground
An ungrounded radio causes the surge to pass
through the radio. In this case the radio most
likely will be damaged.
POE Antenna Radio
Ground
An grounded radio causes the surge to pass
directly to ground, bypassing the radio.
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 23 of 24 3/10/2005

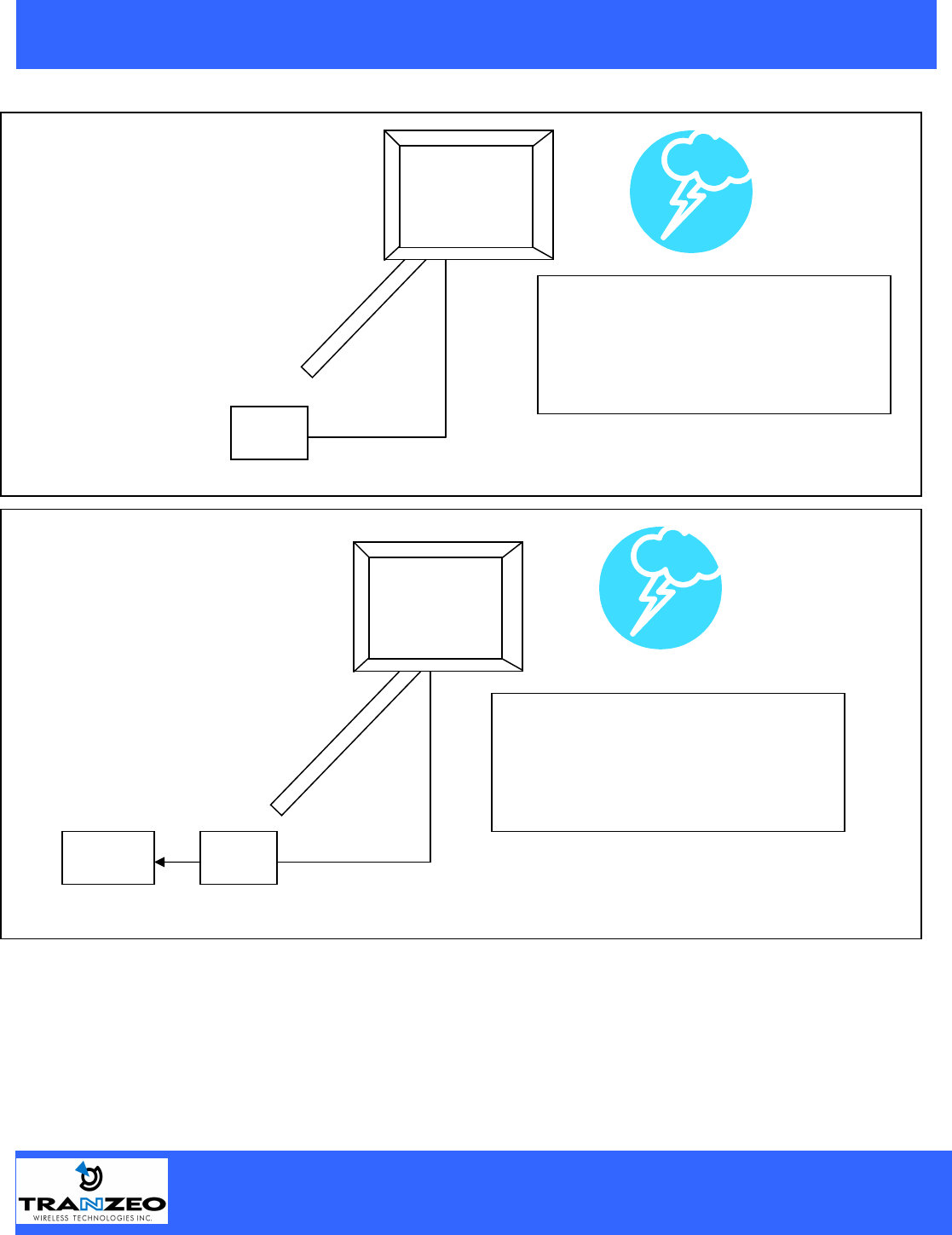

Ungrounded POE
Grounded POE
Cat 5 Cable
Mounting Pole
Mounting Pole
POE
In this case, the surge will be picked up
by the Cat 5 cable, and since the POE
is not grounded, the route for the surge
is through the radio to the antenna, and
out through the building.
POE
In this case, the surge will be picked up
by the Cat 5 cable, and since the POE
is grounded, the route for the surge is
through the POE to ground.
Ground
Cat 5 Cable
20155 Stewart Crescent,
Maple Ridge, B.C. Canada V2X 0T6
Phone (604) 460-6002 Fax (604) 460-6005
www.tranzeo.com
Page 24 of 24 3/10/2005

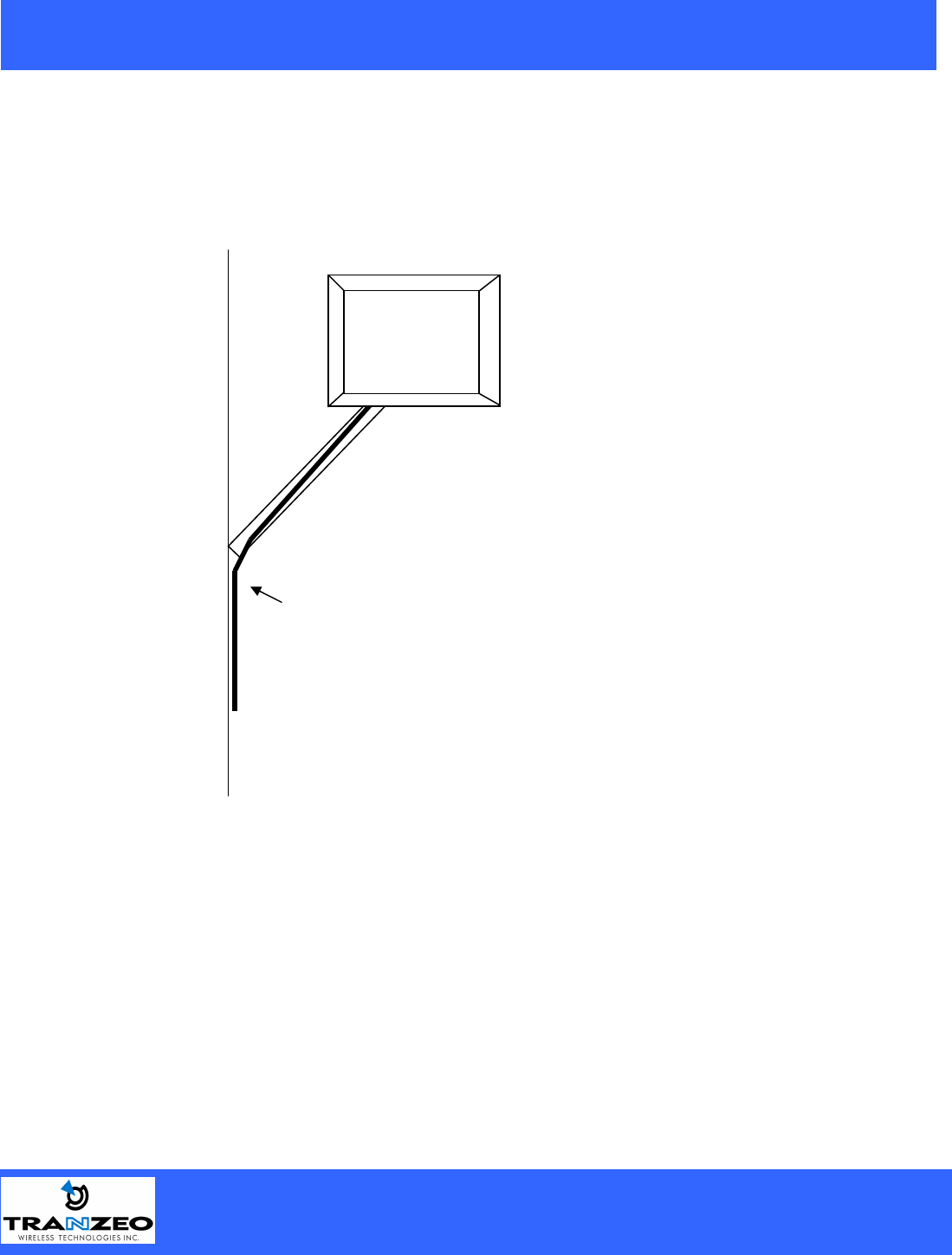

Best Practices
1) Always try to run the Cat5 and LMR inside of the mounting pole wherever possible. This helps to
insulate the cable from any air surges.
2) Keep all runs as straight as possible. Never put a loop into the cables.
3) Test all grounds to ensure that you are using a proper Ground. If using a electrical socket for Ground,
use a socket tester, such as Radio Shack 22-141
4) Buy a copy of the National Electrical Code Guide and follow it.
5) If you are in doubt about the grounding at the location, drive your own rod and bond it to the house
ground. At least you will know that one Rod is correct in the system.
Cat 5 Cable
Building
