1 Overview
This document is to provide the specifications and recommendations for the interconnection of
the EzeFare Validator.
2 References
[1] SAE J1708 Serial Data Communication Between Microcomputer Systems in Heavy-Duty
Vehicle Applications Aug 2004
[2] SAE 1939-11 Physical Layer, 250K bits/s, Twisted Shielded Pair Oct 1999
[3] Telit Jupiter JF2 Datasheet
[4] IEEE 802.3
3 Acronyms
Acronym
Meaning
DC
Direct Current
EMI
Electromagnetic Interference
FCC
Federal Communications Commission
GPS
Global Positioning System
IEEE
Institute of Electrical and Electronic Engineers, Inc.
LAN
Local Area Network
MTBF
Mean Time Before Failure
RMS
Root mean square
USB
Universal Serial Bus
Wi-Fi
Wireless network based on IEEE 802.11
EP308 SpecificationsManual
06E00079-001A
5
EP308 SpecificationsManual | Trapeze July 22, 20144
4 Electromagnetic Specifications
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an output on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
EP308 SpecificationsManual
06E00079-001A
6
EP308 SpecificationsManual | Trapeze July 22, 20144
5 Environmental
The EzeFare Validator is designed to meet the following specifications but is not tested to meet
SAE J1455.
5.1 Temperature
Operating: -20°C - + 60°C
Storage: -30°C - +70°C
5.2 Shock and Vibration
Swept Sinusoidal: 10 – 2000 Hz @ 2 g
Survive and impact velocity of 1.75 m/s on all edges and corners
5.3 Electrostatic Discharge
Packaging and Handling: Tested to +/- 4kV direct contact discharge.
In-Vehicle Operation: Tested to +/- 8kV direct contact discharge.
5.4 MTBF
50K hours MTBF minimum
5.5 Power Input
Operating voltage range: 8 – 36V DC
Current: Nominal value TBD A @ 12V, TBD A @ 24V
Peak value 2 A @ 12V, 1A @ 24V
Overvoltage (>36V) and reverse voltage protected.
5.6 Mechanical
Depth: 81 mm (3.19”)
Width: 134 mm (5.28”)
Length: 213 mm (8.39”)
EP308 SpecificationsManual
06E00079-001A
7
EP308 SpecificationsManual | Trapeze July 22, 20144
6 Connectors
6.1 RS232
6.1.1 Connector
Connector: IP67 D-SUB 9 Male
Mating Connector: IP67 D-SUB9 Female, or equivalent
6.1.2 Pinout
Pin
Number
Signal
Signal Type
2
RXD
RS232 Receive Data
3
TXD
RS232 Transmit Data
5
GND
RS232 GND
7
RTS
RS232 Request to Send
8
CTS
RS232 Clear to Send
6.2 Power
6.2.1 Connector
Connector: Molex 0306-2044
Mating Connector: Molex 0306-1043 or equivalent
6.2.2 Pinout
Pin
Number
Signal
Signal Type
1
VIN
Vehicle Battery +
2
GND
Chassis Ground
3
IGN_SENSE
Vehicle Ignition Sense
4
RFU
Reserved For Future Use
6.3 Digital Input
6.3.1 Connector
Connector: Unterminated
6.3.2 Pinout
Pin
Number
Signal
Signal Type
1
INPUT1
Discrete Input
2
INPUT2
Discrete Input
EP308 SpecificationsManual
06E00079-001A
8
EP308 SpecificationsManual | Trapeze July 22, 20144
Pin
Number
Signal
Signal Type
3
INPUT3
Discrete Input
4
INPUT4
Discrete Input
5
INPUT5
Discrete Input
6.4 J1708
6.4.1 Connector
Connector: Molex 0306-2032
Mating Connector: Molex 0306-1038 or equivalent
6.4.2 Pinout
Pin
Number
Signal
Signal Type
1
J1708A
J1708A(-)
2
N/C
N/A
3
J1708B
J1708B(+)
EP308 SpecificationsManual
06E00079-001A
9
EP308 SpecificationsManual | Trapeze July 22, 20144
6.5 Ethernet
6.5.1 Connector
Connector: D-SUB 50 Male
Mating Connector: D-SUB 50 Female, AMP 1658641-3 or equivalent
6.5.1 Pinout
Pin
Number
Signal
Signal Type
1
TPI+
Data In+
2
TPI-
Data In-
3
TPO-
Data Out-
4
TPO+
Data Out+
5
SHIELD
Ground
7 Card Interfaces
7.1 Micro-SD Card Slot
One MicroSD card slot for removable memory storage.
7.2 SIM Card Slot
One Mini-SIM (2FF) card slot.
7.3 SAM Card Slots
Two Secure Access Module card (2FF) slots.
8 Interface Specifications/Recommendations
8.1 J1708
J1708 is a modified version of RS-485. J1708 specifies 18 gauge wire with 1 twist per inch with
a total network length of 131 feet (40m) maximum. The minimum/maximum voltages on the bus
are specified to be -7V – +12V. The data rate is 9600 baud. The standard node in the J1708
standard is shown in Figure 8-1.
Vdiff is defined as A – B. If A – B ≥ 200 mV then the data bit is a 1, -200 mv ≤ A – B ≤ 200 mV
is undefined, A – B ≤ -200mV the data bit is a 0.
EP308 SpecificationsManual
06E00079-001A
10
EP308 SpecificationsManual | Trapeze July 22, 20144

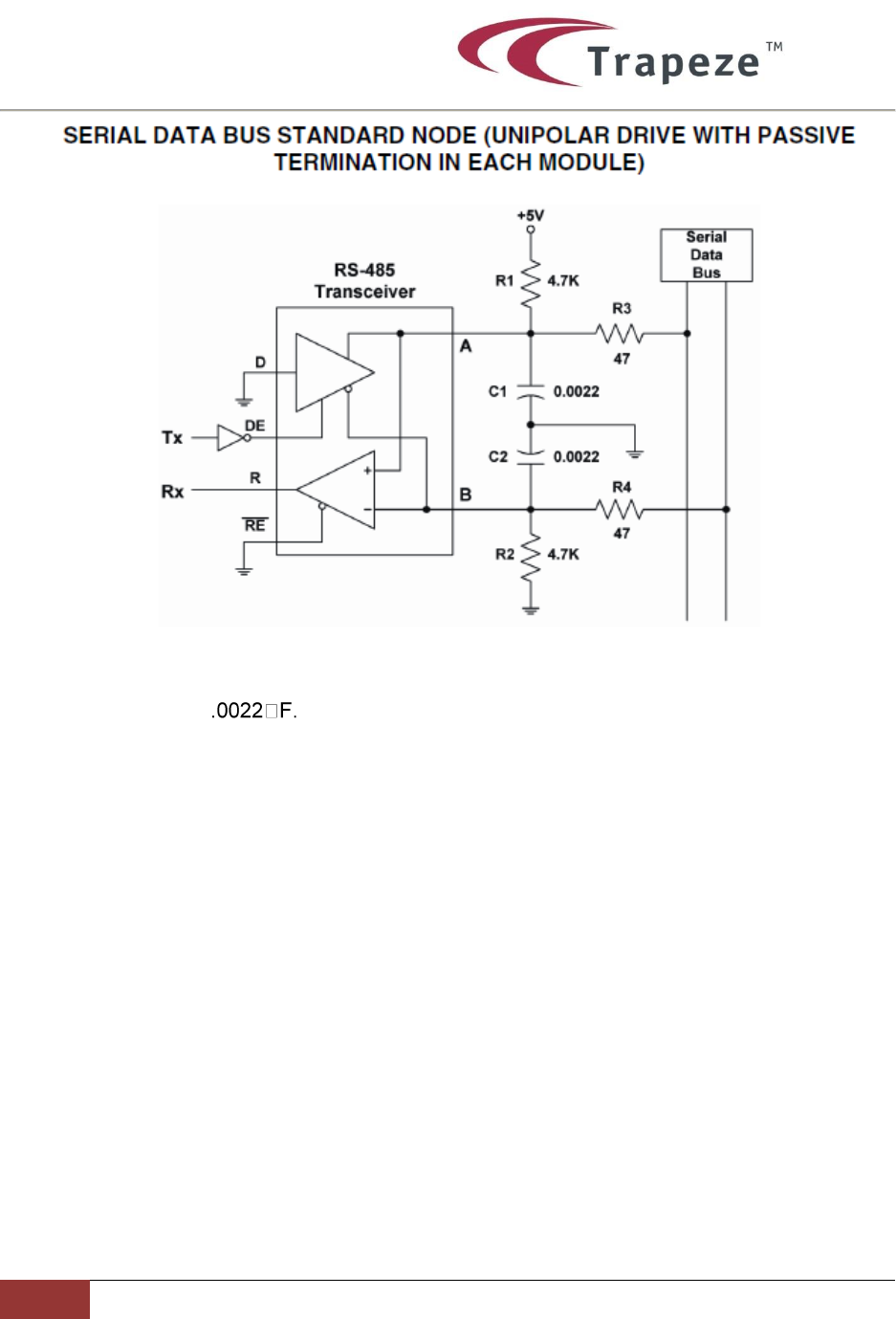

Figure 8-1
Note: C1 and C2 are 0
Caution: An RS-485 specified termination uses a 100 ohm resistors external to each node at
each end of the bus which if installed in a J1708 system can cause the network to fail.
8.2 RS232
The minimum/maximum voltages on the bus are specified to be +/-15V. A ‘0’ is +5 to +15V and
a ‘1’ is -5 to -15V. Voltages between -3V and +3V are undefined by the standard. The limiting
factor for line length is the maximum allowable capacitance of 2500 pF. This limits the wire
length to 15m (50ft).
8.2.1 12V Systems
Maximum voltages: -3 to +16V with the bus idle
8.2.2 24V Systems
Maximum voltages: -3 to +32V with the bus idle
EP308 SpecificationsManual
06E00079-001A
11
EP308 SpecificationsManual | Trapeze July 22, 20144
8.3 Digital Inputs
VIL < 0.5V and VIH 1.2V.
These inputs are protected with 47K of series resistance. Transients to 60V can be tolerated
with circuit damage becoming more likely above 60V.
8.4 Audio
The speaker is rated to 3W, 200 – 20,000 Hz.
8.5 GPS
The EzeFare Validator uses an internal GPS antenna. Specifications taken from Telit Jupiter
JF2 DatasheetError! Reference source not found..
Channels
48
Sensitivity
To -163 dBm
Heading
0.01 deg
Velocity
0.01 m/s
Accuracy
2.5 m
Acquisition Rate
Cold start: 35s, average
Hot start: 1s, average
Protocol
NMEA and OSP
8.6 Wi-Fi
The EzeFare Validator uses an internal Wi-Fi module and antenna. This supports 802.11 b/g/n
and WPA2 encryption.
8.7 Ethernet
There is one 10/100 BASET port. Full details of the physical layer are found at [4].
