TRANSMITR
Quick Start Manual
This manual gives basic instructions on
the installation and use of the Bontrager
TransmitR lighting system, which is
ANT+ compatible. For the complete
manual, check our web site
trekbikes.com
The full manual includes this
additional information:
• Pairing
• Manual operation
• Listing of all modes, run times
• Troubleshooting
• Battery types (and installation
in Remote)
• Turn signal and high beam headlight
function
• Recycling and disposal
• Compliance info
• Warranty
IMPORTANT: Check your local lighting
laws. Flashing lights and full brightness
may not be allowed in all locations. Ion
800 RT and Flare RT do not conform to
the German road traffic regulation StVZO.
“To See” light
The Ion 800 RT is a “To See” light, a
headlight for primary vision when riding in
low light. It can also function as a “To Be
Seen” light when in flash mode, although
the amber side lenses do not direct a
substantial amount of light. Note that for
best results, a rider should employ BOTH
a To See light and a To Be Seen light.
SETUP

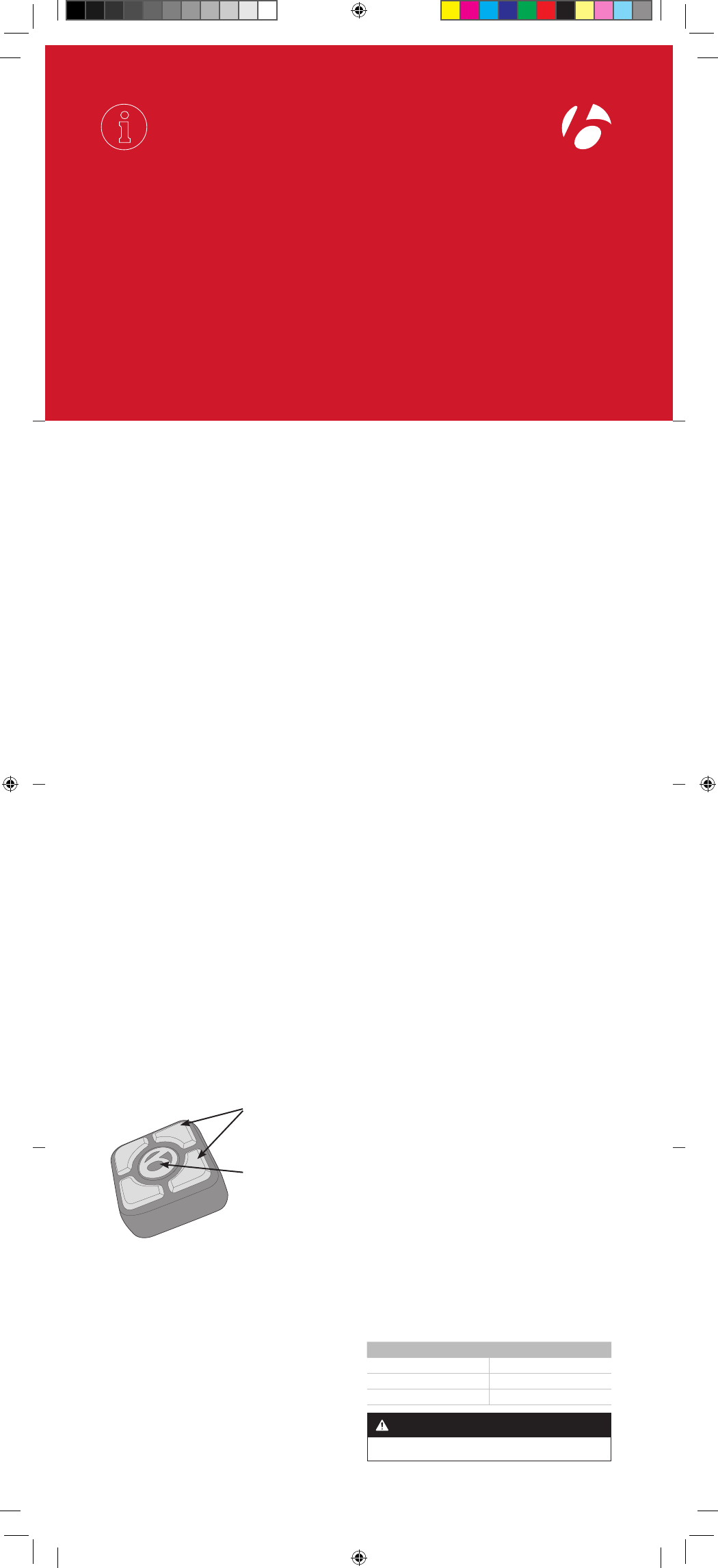

Pairing the TransmitR Remote to
TransmitR Lights
Corner Buttons
-Control individual lights
-Shows light mode when
pressed
Center Button
-System On/Off (all lights)
-Shows battery status of
light when paired button
is pressed
High beam (headlights
only)
1. For each light to be paired, quick-
press the power button on the light,
then press and hold the power button
to turn off.
NOTE: If you purchased the TransmitR
Wireless Light Set, [Part Number
503063] with the Ion 800RT, Flare RT
and TransmitR Remote in one package,
skip ahead to section ‘Using the
TransmitR Remote’
2. Place all TransmitR lights to be paired
within 15cm/6 inches of the remote.
3. Press and hold the center button on
the remote for 8 seconds until the corner
buttons begin flashing.
The remote will find a TransmitR light and
the light will begin flashing. At the same
time, the center button on the remote
will turn from red to green, signifying a
connection.
4. Press the corner button on the remote
that you would like to have paired to the
light. The light will stop flashing when
it has been paired to the remote. The
center button will change back to red
and search for additional lights to pair.
5. If the remote locates another light,
repeat step 4.
6. When all TransmitR lights (up to seven)
have been paired, press the center
button of the remote to exit pairing. It will
turn from red to OFF.
Your TransmitR system is now paired and
ready for use.
USING THE
TRANSMITR REMOTE
Controlling Lights with the
TransmitR Remote
To turn on all lights
ON: Quick-press the center button.
OFF: Press and hold the center button.
To turn on an individual light
ON: Quick-press the corner button that
controls the light.
OFF: Press and hold the same button.
To change modes of an
individual light
Each quick-press of a button that
controls a light will cycle through
the modes.
Trail Configuration enables the Ion
800 RT to toggle between 800 and 450
lumen steady modes. To enable and
disable press and hold the power button
for 8 seconds with the light off. The
main LED will ash once indicating trail
configuration has been enabled/disabled.
Seeing Battery Power Status of the
light on the Remote
When a corner button is pressed, the
center button will show the battery status
of the light
The light may be hot to touch.
CAUTION
Button light color Power remaining
Green More than 25%
Red Between 5% and 25%
Blinking red Less than 5%
Welcome.
About this Manual
This is the quick start manual for your
TransmitR lighting system. Check for
updates at bontrager.com.
BT16_ION800RT_FLARERT_QSG_V1
BT16_MANUAL_TransmitR_QuickStartv8.indd 1 6/13/16 1:14 PM
CHARGING THE LIGHT
Locate and open the USB cover and
insert the Micro USB charging cable.
The light can charge from a wall USB or
laptop USB source.
ion800
Flare RT Ion 800 RT
IMPORTANT: Ensure USB cover is
latched before riding in the rain or in wet
conditions. If USB cover is not closed,
damage to the light may occur.

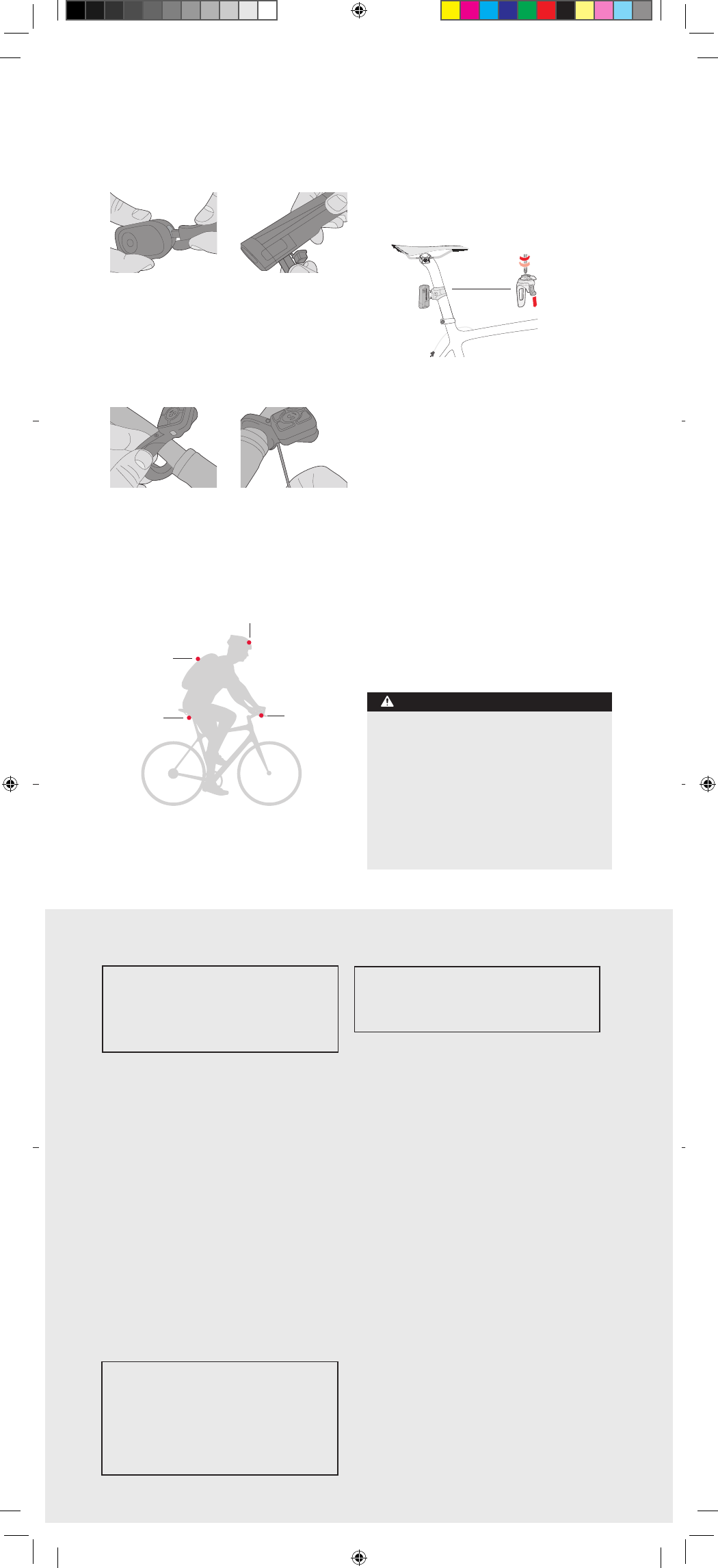

Installing the remote on the bike
Put the remote
bracket over
the bar
Use a 2.5mm hex
wrench to tighten
Note: Use the adapter ring if installing
on a bar with a 22.2mm diameter
LIGHT MOUNTING OPTIONS
INSTALLING THE ION 800 RT
The Ion 800 RT can be mounted on a
handlebar as well as on select Bontrager
helmets with Blendr integrated light
mount (or for other helmets, using the
Bontrager Universal Helmet Bracket.)
INSTALLING THE FLARE RT
The Sync Bracket should be installed
with the hook on the non-drive side of
the bike. The mount should be rotated
so that the light is perpendicular to the
ground plane as shown. The Flare RT
can also be mounted on a seat pack or
backpack using the included clip.
IMPORTANT: Ensure the light’s lens is
oriented perpendicular to the ground to
optimize visibility.
If you have questions
If after reading this manual you have
additional questions, contact your dealer
or the technical support team:
Bontrager Attn: Customer Service
801 W. Madison Street
Waterloo, Wisconsin 53594
920.478.4678 www.bontrager.com
Seat
post/pack
Back pack
Helmet
Handlebar
A bicycle without correct lights and
reflectors might be difficult for other
people to see, and you might not be
able to see. If you can not see, or
other people can not see you, you
could have an accident. Make sure
your lights operate correctly and that
batteries are charged.
WARNING
FCC Compliance
TransmitR Remote - FCC ID: 04GTKRMTE
Ion 800 RT Head Light - FCC ID: 2AHXDC97371576
Flare RT Tail Light - FCC ID: 2ADH7Q97371576
This device complies with part 15 of the FCC Rules. Operation is
subject to the following conditions:
(1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or experienced radio / TV technician for help.
NOTES:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. ANY CHANGES OR
MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER OF THIS DEVICE COULD VOID THE USER’S
AUTHORITY TO OPERATE THE DEVICE.
Industry Canada Compliance
Bontrager TransmitR Remote - (P/N 502865),
CAN ICES-3(B)/NMB-3(B) IC: 7666A-REMOTE
Bontrager Ion 800 RT Head Light - (P/N 538885),
CAN ICES-3(B)/NMB-3(B) IC: 21334-C97371576
Bontrager Flare RT Tail Light - (P/N 438818),
CAN ICES-3(B)/NMB-3(B) IC: 12468A-Q97371576
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Leprésent appareil est conforme aux CNR d’Industrie Canada
applicable aux appareils radio. Exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes: (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilsateur de l’appareil doit
accepter tout brouillage radioélectrque subi, meme si le brouillage
est susceptible d’en compromettre le fonctionnement.
This Bontrager TransmitR equipment complies with FCC and IC
radiation exposure limits set forth for an uncontrolled
environment. The radiated output power of the TransmitR
Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. This equipment is in direct contact
with the body of the user under normal operating conditions.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Status of the listing in the Industry Canada’s REL (Radio
Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be
found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Cet appareil est conforme aux limites d’exposition à la
fréquence radio (FR) d’IC et de FCC. La puissance de sortie
émise par l’appareil de sans l TransmitR est inférieure à
la limite d’exposition aux fréquences radio d’Industry
Canada (IC). Cet appareil est en contact direct avec l’utilisateur
dans des conditions normales d’utilisation. L’émetteur ne doit
pas être co-implémenté ou utilisé conjointement avec une
autre antenne ou un autre émetteur.
Ce périphérique est homologué pour l’utilisation au Canada.
Pour consulter l’entrée correspondant à l’appareil dans la
liste d’équipement radio (REL - Radio Equipment List)d’Industry
Canada rendez-vous sur:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=fra
Pour des informations supplémentaires concernant l’exposition
aux RF au Canada rendezvous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Statements of Regulatory Compliance
