Revised user manual with FCC and MPE statements
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
1
User Guide
Gateway (GW1000)
Seed/CPE (SD1000)
Version 1.0
February 8, 2004
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
FCC REGULATORY INFORMATION
Digital Device Section of Product
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Information to user.
The user of this product is cautioned that changes or modifications not expressly
approved by SkyPilot Inc. could void the user's authority to operate the equipment.
under FCC Rules.
FCC Radiation Hazard Warning
To comply with FCC RF exposure requirements in section 1.1307, a minimum separation
distance of 40 cm (16 inches) is required between the antenna and all persons:
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
2
User Guide .......................................................................................................................... 1
1 Introduction................................................................................................................. 3
1.1 Gateway (GW1000) ............................................................................................ 4
1.2 Seed/CPE (SD1000)............................................................................................ 4
2 Network Architecture.................................................................................................. 5
2.1 Link Establishment ............................................................................................. 5
2.2 Routing................................................................................................................ 5
2.3 Bandwidth Allocation ......................................................................................... 6
2.4 Networking ......................................................................................................... 6
3 Installation................................................................................................................... 7
3.1 Unit Mounting..................................................................................................... 7
3.2 Cabling................................................................................................................ 8
4 Configuration ............................................................................................................ 10
4.1 GW1000 Configuration .................................................................................... 10
4.1.1 Frequency.................................................................................................. 10
4.1.2 IP Address Management........................................................................... 10
4.2 SD1000 Configuration...................................................................................... 12
4.2.1 IP Address Management........................................................................... 12
4.2.2 Ethernet Port Control ................................................................................ 12
5 CLI ............................................................................................................................ 13
6 SNMP........................................................................................................................ 14
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
3
1 Introduction
The SkyPilot Gateway (GW1000) and Seed/CPE (SD1000) provide a complete, high-
performance wireless system operating in the unlicensed 5.8GHz UNII band. The flexible
and highly scaleable SkyPilot system is ideally suited to a wide range of applications.
The system offers:
• High Capacity and Long Range
OFDM technology, a large link budget and modulation rates of 6-54Mbps, provide
reliable Non-LOS operation and market leading capacity.
• Meshing
The system offers the flexibility of customer connection directly to a SkyPilot
Gateway (GW1000) or via an intermediary Seed (SD1000), resulting in vastly
increased coverage when compared to typical point-to-multipoint systems.
• Standards Based
The SkyPilot system is based very closely on the 802.11 standard and utilizes
commercial chipsets. SkyPilot has implemented significant enhancements that
provide range and performance advantages.
• Easy Installation
The compact, environmentally hardened, fully integrated Gateway and Seed/CPE
require minimal configuration and can easily be installed on a multitude of locations.
• Networking
The SkyPilot system implements an intelligent, Ethernet switching network, with a
10/100bT bridge interface provided by the Gateway and Seed/CPE. Subscriber rate
control and traffic prioritization QoS mechanisms are supported, along with optional
VLANs. In addition, there is support for configurable protocol filtering and Access
Control Lists (ACL).
• Security
AES link encryption and complete node authentication with optional support for full
MD5 certificates.
• Network Management
Both node types are fully manageable via SNMPv2c and a Command Line Interface
(CLI). Static or DHCP IP address allocation is supported.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
4
1.1 Gateway (GW1000)
The Gateway (GW1000) is a fully integrated, environmentally hardened device providing
the interface between a wireless SkyPilot network and the Internet/Wide Area Network
(WAN). The connection to the Internet is via a single 10/100bT Ethernet port. The
connection to the SkyPilot Seed/CPE (SD1000) units is via multiple, individually
optimized wireless links.
The SkyPilot Gateway houses eight individual antenna elements providing a total of 360
degree horizontal coverage and a 12 degree vertical angle. These antennas, along with all
RF and digital circuitry, are integrated in a compact, light-weight, environmentally
hardened housing. Note that only one antenna is selected at any one moment in time.
1.2 Seed/CPE (SD1000)
The Seed/CPE (SD1000) provides for both the extension of a wireless network and the
local connection for a subscriber. It may be deployed in any of the following modes:
• Seed Only
An SD1000 can be deployed solely for the purpose of expanding the wireless
network. In this mode, a subscriber interface shall not be provided.
• CPE Only
An SD1000 can be deployed solely for the purpose of providing a subscriber interface
to the wireless network. The unit is installed on (or close to) a subscriber’s home or
business and the 10/100bT Ethernet interface provides a high-speed network
interface.
• Combined Mode
An SD1000 can provide a subscriber interface while also expanding the wireless
network. A unit installed on a subscribers premise also provides for the expansion of
the network with (typically) multiple wireless links to other units.
The SD1000 is mechanically and electrically identical to the GW1000, containing the
same antenna array. A single 10/100bT Ethernet port provides a subscriber interface.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
5
2 Network Architecture
The GW1000 and SD1000 combine to create a robust, high capacity wireless network.
All links within the network are established and optimized automatically. A highly
efficient routing algorithm selects the best path for user traffic and heals around any
network failures.
2.1 Link Establishment
A Gateway is installed and configured for a given channel within the UNII band - see
Section 4.1.1 for details of frequency selection and configuration. This Gateway will
signal it’s presence through the use of a periodic beacon message transmitted on the
configured frequency utilizing a single antenna. When a Seed/CPE is installed it listens
for this network beacon message. When a beacon is received, the Seed/CPE shall respond
and attempt to establishment a link.
Once a link is successfully created, the two units will automatically complete link
optimization. This ensures the selection of optimal antenna, power setting and
modulation rate. The SkyPilot units support modulation rates of 6-54Mbps and the
highest, reliable rate shall be selected through the exchange of test packets. Note that
established links are continually monitored and periodically optimized.
2.2 Routing
Once a Seed/CPE has connected to the network it shall select a route to the Gateway. The
automatic route selection considers the number and modulation rate(s) of the constituent
links. Once a route is selected, all user traffic shall be forwarded via this path.
Rerouting shall occur rapidly in the face of a link loss. Rerouting will also occur if a
lower cost route is consistently available.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
6
2.3 Bandwidth Allocation
The SkyPilot system implements a synchronization of the 802.11 protocol. This
synchronization allows for the establishment of individual links between nodes utilizing a
unique timing and antenna combination. In addition, highly accurate traffic rate and jitter
control is enabled.
The initial release of the SkyPilot system provides rate control for subscriber traffic both
in the downstream (Gateway to CPE) and in the upstream (CPE to Gateway) direction.
The maximum rate downstream and upstream rate can be specified for each subscriber. In
conditions of over-subscription when the overall bandwidth demand is higher than the
system capacity, the individual subscriber data rates will be reduced proportionately. i.e.
a configured 2Mbps is reduced to 1.5Mbps while a configured 1Mbps rate is reduced to
750kbps.
See Section 4.2.4 for details of the subscriber rate configuration.
2.4 Networking
The SkyPilot system operates as a Layer 2 network. The GW1000 and SD1000 have an
Ethernet bridge. All upstream subscriber traffic is direct out the GW1000 Ethernet port
and to external switch or router.
The GW1000 and SD1000 implement a SNMPv2c agent. In addition, there is also a CLI
that may be access locally via a serial port or remotely via Telnet. In order to support
these interfaces, an IP address must be allocated. This allocation can be done dynamically
via DHCP or may be statically configured. See Section 4 for details.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
7
3 Installation
In a typical wide-area wireless network utilizing SkyPilot units, the Gateway is installed
on the roof of a tall building or tower. The direct coverage area of the Gateway is
generally proportionate to the height of the installation.
A Gateway may also be used in smaller scale networks. Examples include high-capacity
business or academic campus interconnection, or a localized access network. In this case,
the Gateway could be installed on a local, medium height building or utility pole.
As previously mentioned, the SD1000 maybe deployed as a CPE, in which case it is
installed on a customer location, or as a Seed device. As a Seed device it may be installed
on medium height buildings, or utility poles.
3.1 Unit Mounting
A mounting bracket is provided with the GW1000 and SD1000 units. This bracket
fastens to a standard 1.25inch diameter pole. Any mounting system that meets local
wind-loading regulations and provides a 1.25inch diameter by 5inch long connecting

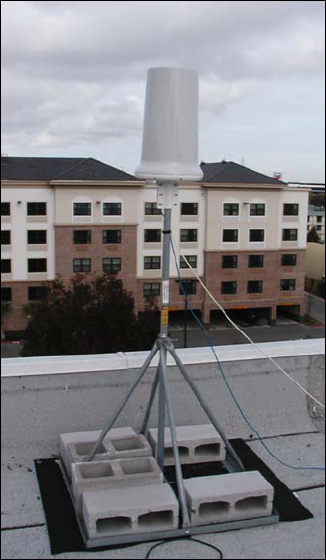

surface will be satisfactory. The photograph below shows a typical rooftop unit
installation.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
8
3.2 Cabling
GW1000 and SD1000 both support Power over Ethernet (PoE) utilizing the Power
Injector provided. Note that the GW1000 and SD1000 units should be installed with the
SkyPilot provided Power Injector only. The use of other PoE Power Injectors could
result in damage to the unit.

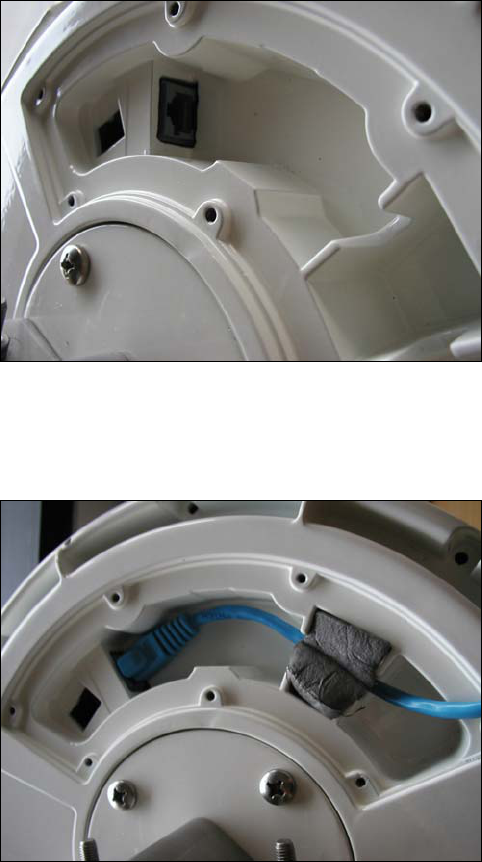

Both units provide a 10/100bT connector and an RJ45 serial interface. The 10/100bT
Ethernet port provides interconnectivity for user and network traffic, while the serial port
is used for local access to the CLI. The photograph below shows the Ethernet port on the
right and the serial port to the left.
In order to ensure full weatherproofing, the grommet provided must be installed. The
Ethernet cable should first be connected and then pushed into the slit in the gasket and
then the gasket is pushed into the opening in the base. See the photograph below.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
9
Finally the cover is installed using the provided screws. The Ethernet cable is position to
pass through the insert in the cover. It is highly recommended that the cover and gasket
be fitted in a Seed Only application (i.e. no subscriber or WAN interface).
Once the node is installed, it is recommended that the Ethernet cable be secured to
prevent strain (particularly installations exposed to high wind conditions). The
photograph below shows an example were the cable is secured to the mounting pole.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
10
4 Configuration
The SkyPilot system requires minimal configuration before service can be offered. There
is the option to utilize the SkyPilot Provisioning Server or to manual configure. The
Provisioning Server, with its interface to an SQL database facilities the configuration of
large scale networks. The Provisioning Server is the topic of a separate document. This
document shall focus on the manual configuration of GW1000 and SD1000 units.
4.1 GW1000 Configuration
The Gateway must be configured for the following:
1. Frequency
2. IP Address Mode – DHCP or Manual
3. Management IP Address and Mask (if manually configure)
4. Ethernet Port Control
4.1.1 Frequency
The Gateway supports all standard 802.11a UNII channels (5745, 5765, 5785,
5805MHz). In an environment free from significant interference in the UNII band four
GW1000 can be utilized at a single location, each configured to use a differing channel.
With its directional antenna and large link budget, the SkyPilot system is very effective in
avoiding interference. However, there are situations where significant interference is
present within the UNII band. SkyPilot recommends that an operator utilize a spectrum
analyzer to scan the UNII spectrum prior to installing one or more GW1000. If a high
level of interference is observed, then a subset of the four channel(s) should be selected.
4.1.2 IP Address Management
The Gateway management interface (SNMP, Telnet) requires the allocation of an IP
address. A Gateway can be configured to use either DHCP for dynamic IP address
allocation or can be statically configured via the CLI.
DHCP is the default. For static allocation the IP Address, Netmask and IP Default
Gateway must be input via the CLI. See Section 5 for details.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
11
4.1.3 Ethernet Port Control
The GW1000 allows for the disabling (and enabling) of the 10/100bT Ethernet port.
Default is enabled. It is anticipated that the disabling of the Ethernet port may be used for
troubleshooting purposes.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
12
4.2 SD1000 Configuration
A SD1000 must be configured for the following:
1. IP Address Mode – DHCP or Manual
2. Management IP Address and Mask (if manually configure)
3. Ethernet Port Control
4. QoS Data Rates
4.2.1 IP Address Management
The SD1000 management interface (SNMP, Telnet) requires the allocation of an IP
address. It can be configured to use either DHCP for dynamic IP address allocation or can
be statically configured via the CLI.
DHCP is the default. For static allocation the IP Address, Netmask and IP Default
Gateway must be input via the CLI. See Section 5 for details.
4.2.2 Ethernet Port Control
The SD1000 allows for the disabling (and enabling) of the 10/100bT Ethernet port.
Default is disabled. The disabling of the Ethernet port is recommended in the case of
Seed Only application (i.e. when there is no subscriber interface). The enable/disable
Ethernet port facility can also be used to control subscriber access in the case of a CPE
Only or Combined application.
4.2.3 Subscriber Data Rates
The SD1000 allows for configuration of maximum downstream and upstream data rates.
These values are selected from a list of defined options. The values relate to traffic sent
and received over the Ethernet port and are not applicable in the case of a Seed Only
application.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
13
5 CLI
The GW1000 and SD1000 both provide a complete CLI interface. This interface may be
used to configure and monitor the unit. A full definition of the CLI is available – email
support@skypilot.com to request a copy.

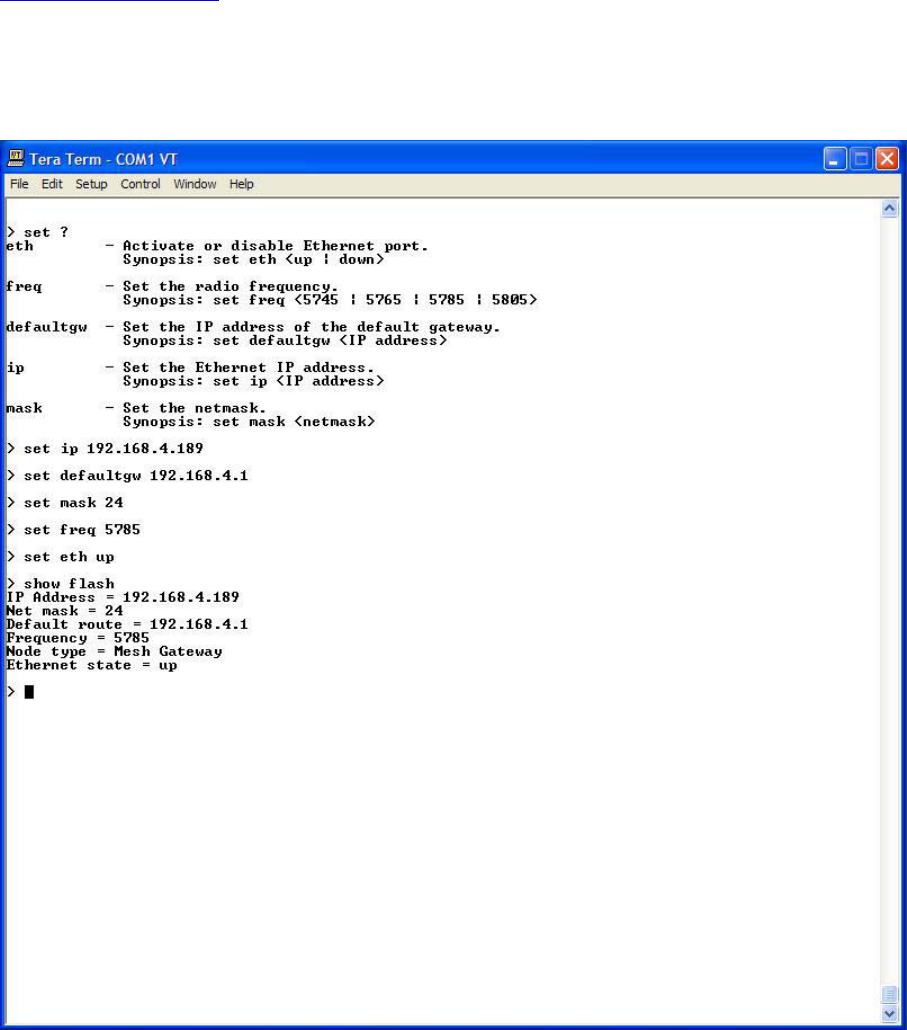

As an example, the GW1000 configuration screen is shown below. All other GW1000
parameters are read-only.
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
Page
SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY
14
6 SNMP
Both GW1000 and SD1000 have a SNMPv2c agent. The following MIBs are supported:
1. MIB-II (RFC 1213)
2. EtherLike (RFC 2665)
3. Bridge (RFC 1493)
4. SkyPilot Private MIB
Email support@skypilot.com to request a copy of the SkyPilot MIB.
