System Architecture and Protocol Guide – 9-05 1 © 2005 SkyPilot Networks, Inc.
Technical Overview
System Architecture
and Protocol Guide
System Architecture and Protocol Guide – 9-05 2 © 2005 SkyPilot Networks, Inc.
Table of Contents
Introduction ....................................................................................................................................3
System Components ................................................................................................................. 3
Network Topologies.......................................................................................................................4
Point-to-Point/Multipoint ............................................................................................................ 4
Mesh .......................................................................................................................................... 4
RF Management .............................................................................................................................7
Eight-way Antenna Array........................................................................................................... 7
Spectral Management ............................................................................................................... 8
Link Management ...................................................................................................................... 9
Per-link Data Rates for Different Modulation Types.................................................................. 9
SkyPilot Synchronous Mesh Protocol...................................................................................... 10
Quality of Service.........................................................................................................................12
Security Provisions......................................................................................................................14
Traffic Filtering......................................................................................................................... 14
VLANs...................................................................................................................................... 15
Encryption and Authentication................................................................................................. 15
Network Management..................................................................................................................16
System Architecture and Protocol Guide – 9-05 3 © 2005 SkyPilot Networks, Inc.
Introduction
The SkyPilot Carrier-Class Broadband Wireless System supports an innovative architecture offering point-to-point, point-to-
multipoint and mesh topologies. Automatic network discovery and connectivity allows an operator to quickly build a network
offering high levels of coverage and redundancy.
The system implements a sophisticated and flexible Layer 2 network. Rate control and packet prioritization enables multiple service
offerings, including high-quality voice over IP (VoIP) support. Packet filtering combined with wireless link encryption provides very
high levels of security.
Full authentication and management of subscriber nodes is supported, with each network element providing an SNMP Agent and a
Command Line Interface (CLI). Software images are upgraded over the air.
This document provides a description of the SkyPilot system architecture and protocols. The hardware components are described
along with details of network topologies and routing, spectral and link management, network-wide synchronization, quality of
service, security provisions, and network management.
System Components
The SkyPilot Carrier-Class Broadband Wireless System has four hardware components that together support a highly flexible
wireless network architecture:
• SkyGateway
The SkyGateway provides an interface between the wireless network and the Internet or other Local/Wide Area Network
(LAN/WAN). The SkyGateway links directly to SkyExtenders and/or SkyConnectors as customer premises equipment (CPE) in
point-to-point/multipoint configurations, or indirectly via multiple SkyExtender hops in a full mesh network topology. The
SkyGateway has a compact, lightweight, fully integrated mechanical design with a 10/100Base-T interface and an integral
GPS receiver to provide a highly accurate system timing source.
• SkyExtender
The SkyExtender enables a network operator to expand coverage and increase system capacity. The SkyExtender can link
directly to a SkyGateway and/or one or more SkyExtenders and/or SkyConnectors. The SkyExtender hardware is identical to
that of the SkyGateway, with the software image differentiating functionality. The 10/100Base-T Ethernet interface may be
used to provide a subscriber interface, allowing the SkyExtender to perform double-duty as CPE that extends the network’s
reach from the SkyGateway(s).
• SkyExtender DualBand
The SkyExtender DualBand has the same backhaul features as a SkyExtender, and adds an integral Wi-Fi access point to
afford service providers with greater flexibility when deploying wireless access solutions in HotZones or HotRegions. As the
name implies, the SkyExtender DualBand has separate radios for backhaul (at 5 GHz) and access (industry-standard IEEE
802.11b/g at 2.4 GHz). The separation of access from backhaul enables the use of multiple non-overlapping channels when
deploying a “honeycomb” of Wi-Fi cells, thus enhancing throughput, subscriber density, network capacity and scalability.
• SkyConnector
The SkyConnector comes in both outdoor and indoor variants, and provides an interface between a subscriber and the
wireless SkyPilot network. The link may be indirect via a SkyExtender or direct to a SkyGateway. The subscriber interface is
standard 10/100Base-T Ethernet. The SkyConnector is fully integrated and houses a single antenna with a 28° horizontal
coverage.
Please refer to the individual SkyPilot equipment datasheets for a comprehensive description of the features and functionality of
each unit.
System Architecture and Protocol Guide – 9-05 4 © 2005 SkyPilot Networks, Inc.
Network Topologies
The SkyPilot Carrier-Class Broadband Wireless System supports point-to-point, point-to-multipoint and mesh topologies. An
operator has the flexibility to start with a simple point-to-point/multipoint configuration and add SkyExtenders as subscriber demand
requires to create a more robust mesh topology over time.
Point-to-Point/Multipoint
In a typical point-to-multipoint configuration, a SkyGateway is installed on a cell-tower, tall building or other height-advantaged
location. All SkyConnectors deployed within range then communicate with the SkyGateway’s centralized location. Note that the
compact nature of the SkyGateway means that smaller networks can easily be supported; simply install the SkyGateway at any
appropriate location where wired or wireless backhaul can be provided.
This simple, omnidirectional configuration can be extended outward in any direction using SkyExtenders. The links or “hops” from
the central SkyGateway to the SkyExtenders can be point-to-point or point-to-multipoint. At some point (no pun intended), the
network topology becomes a mesh with the potential for multiple, redundant links among SkyExtenders and one or more
SkyGateways.
Mesh
A SkyPilot mesh network utilizing SkyExtenders offers a number of significant advantages over point-to-point and point-to-
multipoint topologies:
• Coverage
In a point-to-multipoint wireless network, each subscriber must link to a single, central base station location. In most
deployment scenarios, large buildings, hills and other line-of-sight obstructions result in a lack of service availability to a large
percentage of prospective subscribers. The SkyPilot mesh topology offers service to any subscriber within range of the
SkyGateway(s) or any SkyExtenders. This topology enables subscribers to “connect around” obstructions that would defeat a
point-to-multipoint system, and serves to extend the overall range or reach of the network.
• Capacity
The SkyPilot system supports variable modulation rates, with a continuous link optimization process that selects the highest
data rate possible for a given link. As SkyExtenders are added to the network and the mesh grows, the number of possible
links increases and the average distance between them can decrease, which together result in increased modulation rates and
greater overall network capacity.
• Redundancy
The SkyExtenders automatically establish multiple links with other SkyExtenders and/or SkyGateways. Though only a single
link per node is used for routing traffic at any moment in time, the remaining links are retained and available for immediate use
in the event of a primary link failure or degradation. This level of redundancy extends throughout the mesh where multiple
SkyGateways can be deployed in a load-balancing arrangement with automatic failover.
• Spectral Efficiency
All communications throughout a SkyPilot mesh are directed and coordinated (see sections on RF Management and the
SkyPilot Synchronous Protocol), allowing for greater spectral re-use to achieve better performance and enhanced
scalability.
Mesh Routing
All subscriber traffic is routed between a SkyGateway and the subscriber’s node (a SkyConnector, SkyExtender DualBand, or
SkyExtender providing subscriber connectivity). While traffic can be exchanged among nodes within the mesh, it must ultimately be
forwarded by a router or switch to an external network, which also adds an additional level of security. The SkyPilot system
software allows for the optional switching of subscriber traffic by a SkyGateway.
The SkyPilot mesh routing protocol, which is independent of the networking interfaces at both the SkyGateway and the
SkyExtender/SkyConnector nodes, utilizes a cost-based algorithm that factors link capacity (modulation levels) and hop count.
Each SkyGateway periodically generates a routing cost message. Every directly-linked SkyExtender and SkyConnector receiving
System Architecture and Protocol Guide – 9-05 5 © 2005 SkyPilot Networks, Inc.
this message records the link on which the message was received, the SkyGateway identifier and the associated cost. These
SkyExtender and SkyConnector nodes utilize this cost data to select the optimal, lowest cost link on which to forward data.
Every SkyExtender forwards a message specifying its lowest cost path to a given SkyGateway. In the case of a network with
multiple SkyGateways, each SkyExtender forwards a cost message for each SkyGateway. The SkyExtenders forward the cost
message(s) to any and all neighboring nodes.
Routing Cost
The routing cost is calculated as follows:
1) A SkyGateway generates a routing cost message based on the cost table shown below. The values in this table represent a
weighted inverse relationship to modulation level with double the weight given to downstream capacity. This weighting towards
higher modulation has the effect of focusing system traffic on the SkyGateway links with the greatest capacity, thus
maximizing the overall capacity of the entire SkyPilot network.
SkyGateway Link Cost Table
Raw Mod Rate 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 54Mbps
Downstream 85 56 41 27 20 13 9 8
Upstream 43 28 21 14 10 7 5 4
For example, consider the cost calculated for a single SkyGateway link with the same overall aggregate capacity. The total cost of
a link with 36 Mbps downstream modulation (cost of 13) and 18 Mbps upstream modulation (cost of 14) link is 27; the total cost of a
link with 24 Mbps downstream modulation (cost of 20) and 24 Mbps upstream modulation (cost of 10) is 30; and the total cost of a
link with 12 Mbps downstream modulation (cost of 41) and 36 Mbps upstream modulation (cost of 7) is 48. In this example, the first
link with a cost of 27 will be selected first.
2) A SkyExtender selects the lowest cost to a given SkyGateway. For each SkyExtender link, the cost is calculated using a
formula and values from the table below. The total cost of the link is the sum of the lowest incoming link cost increased by 10%
plus the outgoing link cost determined by its downstream and upstream rates. The algorithm is as follows:
Total_link_cost = (lowest_incoming_cost * 1.1) + outgoing_link_cost (from the table below)
SkyExtender Link Cost Equation and Table
Raw Mod Rate 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 54Mbps
Downstream 72 48 36 24 18 12 9 8
Upstream 36 24 18 12 9 6 5 4
The figure below illustrates an example of routing costs in a relatively small network with seven SkyExtenders and a single
SkyGateway. As each SkyExtender is added to the network, it determines its route selection based on either the direct link cost
(first table) or the cost calculation above.
System Architecture and Protocol Guide – 9-05 6 © 2005 SkyPilot Networks, Inc.
Routing Example

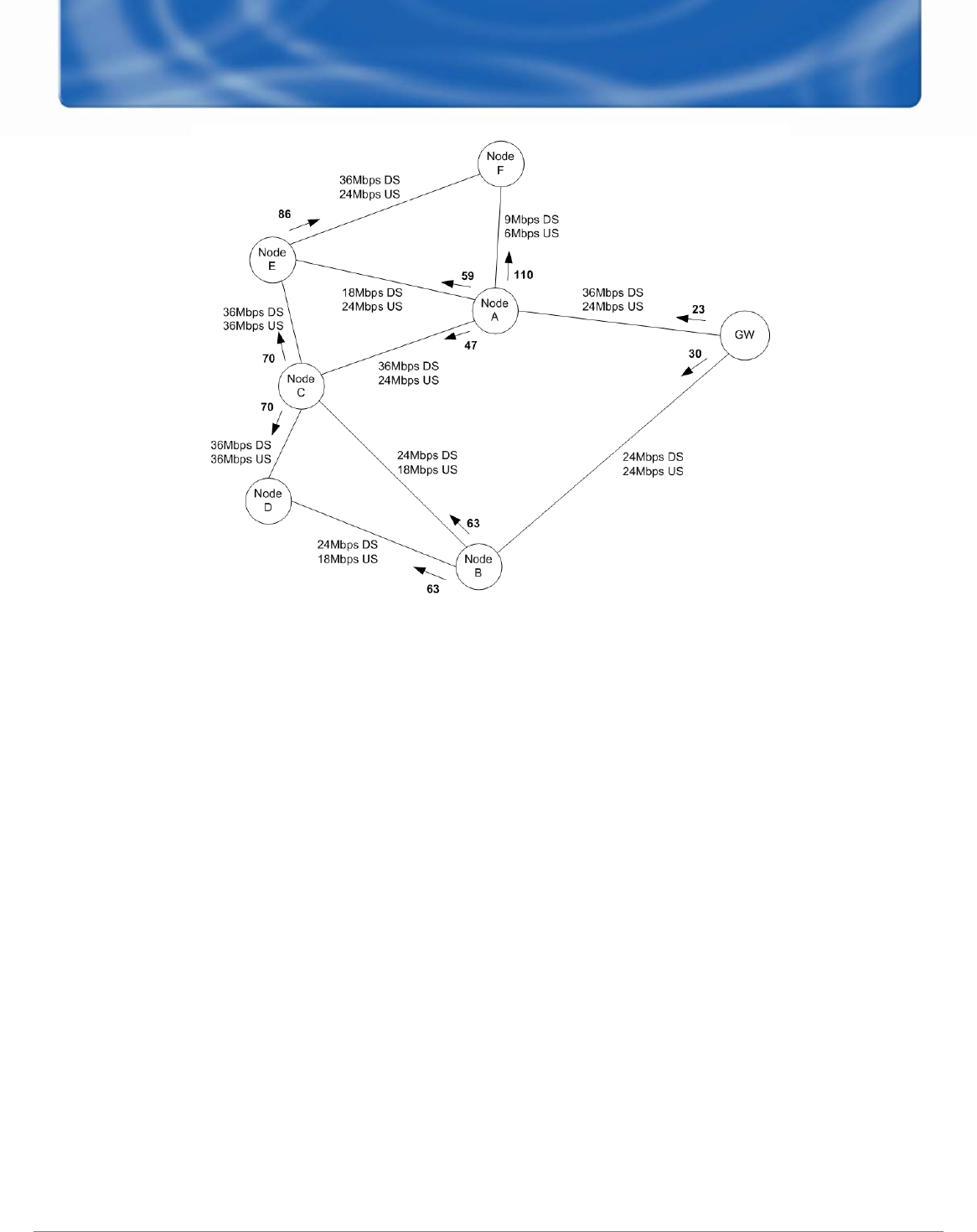

Example of mesh routing based on lowest link cost.
• SkyExtender A – This node, the first one deployed, receives a cost of 23 directly from the SkyGateway. The node selects to
route over this 36/24 Mbps link.
• SkyExtender B – This node receives a cost of 30 directly from the SkyGateway, and it selects to route over this 24/24Mbps
link.
• SkyExtender C – This node receives two cost messages, one from SkyExtender A advertising a cost of (23*1.1) + 21 = 47 and
one from SkyExtender B advertising a cost of (30*1.1) +30 = 63. This node selects to route via SkyExtender A and stores the
route via SkyExtender B as a backup route. Note that when SkyExtender C is added to the network, it forwards a cost related
to the SkyGateway/SkyExtender B route to SkyExtender A, as well as a cost related to the SkyGateway/SkyExtender A route
to SkyExtender B, thereby providing an alternate route to these nodes.
• SkyExtender D – This node receives a cost of 63 from SkyExtender B and a cost of 70 from SkyExtender C. Therefore, it
selects to route using two hops via SkyExtender B.
• SkyExtender E – This node receives a cost of 59 first from SkyExtender A then a cost of 70 from SkyExtender C. Therefore, it
selects to route using two hops via SkyExtender A.
• SkyExtender F – This node receives a cost of 110 from SkyExtender A and a cost of 86 from SkyExtender E. In this case,
SkyExtender F selects to route using a three-hop route via SkyExtender E and SkyExtender A.
System Architecture and Protocol Guide – 9-05 7 © 2005 SkyPilot Networks, Inc.
Rerouting
A rerouting decision is made either due to an active route failure or because a significantly lower cost route is consistently
available. There are four scenarios that cause a reroute operation:
1. A failure in the link or a SkyGateway/SkyExtender system along the selected route.
2. A failure in the link or a SkyGateway/SkyExtender further along the route to the SkyGateway.
3. One or more links along the route degrade in performance, resulting in reduced capacity and, therefore, an increased cost.
4. A lower cost route becomes available. Typically this is through improved link quality or the addition of SkyExtender(s) and/or
SkyGateway(s) to the network.
A link (or node) failure is detected by three consecutive failures to receive a “keep-alive” message. These link keep-alive messages
are transmitted every 1.5 seconds. Therefore, a link is designated as having failed after a maximum of 4.5 seconds. If desired, the
system can be configured to further reduce the maximum time it takes to detect a failure.
A SkyExtender that detects a link failure attempts switching to the next lowest cost route available and activate the associated link.
This activation includes the exchange of scheduling information and takes approximately 1 second. Once that activation is
successfully completed, the SkyExtender then transmits the cost associated with this new route.
If the SkyExtender detecting a link failure has no alternate routes or the activation of the associated link(s) fails, then it transmits an
“infinite” cost message and starts a frequency hunt for another route. Upon receiving an infinite cost message related to an active
route, a SkyExtender will immediately attempt to reroute.
A SkyExtender will change to a lower cost route only when the cost is at least 15 units lower than the current active route.
RF Management
The SkyPilot Carrier-Class Broadband Wireless System affords an unprecedented level of control over radio frequency (RF)
utilization. At the foundation of these capabilities is an innovative 8-way antenna array that supports point-to-point, point-to-
multipoint and omnidirectional communications. The array enables more effective utilization of available spectrum on a network-
wide basis, and even permits granular management of individual links among all nodes.
Eight-way Antenna Array
The SkyGateway, SkyExtender and SkyExtender DualBand systems all have an integral 8-way antenna array providing a full 360°
of coverage in 45° segments. This design enables a granular control over transmission direction, power levels and more, which
together allow the network topology to be optimized for maximum performance with minimal interference.
Within this array, each of the eight antennas provides a focused 45° horizontal beam; all eight antennas together provide
omnidirectional 360° coverage wherever desirable. Internal to each system is a high-speed switching fabric that alternates among
the antennas to provide focused, directional transmissions. When utilized individually, a single antenna establishes a point-to-point
link that can transmit at higher power levels than permitted for point-to-multipoint or omnidirectional communications. This allows
the system to deliver as much as 44.5 dBm / 28.2 W EIRP, resulting in much longer range (up to 10 miles or 16 kilometers
between nodes) and/or greater penetration through obstacles that attenuate the signal.
The directional capabilities of the antenna array also permit more effective utilization of available spectrum by allowing a single
node to communicate at different frequencies with different neighboring nodes. With point-to-multipoint and omnidirectional
systems, by contrast, all nodes must utilize a common frequency. By extension, a mesh network utilizing omnidirectional antennas
must employ the same frequency end-to-end. The SkyPilot directional design overcomes this limitation, which can severely cripple
the performance and scalability of first-generation mesh solutions.
By directing its RF energy in an optimal fashion, the SkyPilot design greatly reduces susceptibility to both internal and external
interference. Mitigating self-interference allows for spectral re-use within the network, which increases aggregate capacity and
permits densities not possible with other wireless broadband solutions. In addition, the system schedules transmissions only on
active sectors (see section on SkyPilot Synchronous Protocol), thereby further enhancing performance and quality of service.
System Architecture and Protocol Guide – 9-05 8 © 2005 SkyPilot Networks, Inc.
Spectral Management
SkyExtenders and SkyConnectors require no pre-configuration and automatically search or “hunt” among all supported frequencies
and, in the case of the SkyExtender, all antennas. When a SkyExtender or SkyConnector is powered up, it checks non-volatile
memory for a Preferred Frequency. This is the frequency that should be favored in any search, and is set after a successful
connection to the network or by operator configuration. In addition to the Preferred Frequency, there is also a Frequency Hunt List.
This list, defined by the operator, specifies the frequencies that should be searched if the Preferred Frequency is unavailable. The
Frequency Hunt List is not stored in non-volatile memory and, therefore, is not preserved through a power reset.
If there is a Preferred Frequency defined, the SkyExtender or SkyConnector will first attempt to listen for Hello messages on that
frequency. A Hello message is transmitted on each of the eight antenna approximately once per second. These messages provide
system timing information, as well as timing for the associated Hello Response message. A SkyConnector will listen for 2 seconds
on its single antenna. A SkyExtender will listen for 2 seconds on each of its eight antennas for a total of 16 seconds at that
frequency. If no Hello messages are heard, the node will then check the Frequency Hunt List. If a list is defined, it will start at the
lowest frequency in that list, testing each in turn while alternating with the Preferred Frequency. For instance, if an operator defines
a Preferred Frequency of 5765 MHz and a Frequency Hunt List of 5775, 5800 and 5825 MHz, then the sequence becomes 5765,
5775, 5765, 5800, 5765, 5825 MHz. This search of the Frequency Hunt List is attempted a total of two times. The SkyConnector
listens for 2 seconds at each frequency, while the SkyExtender listens for 16 seconds.
After checking the Preferred Frequency and any frequencies defined in the Frequency Hunt List, the node searches the complete
frequency band indicated by the product model number. In the US, this is the UNII band frequencies of 5745-5835 MHz. The
search starts with the non-overlapping channels (5745, 5765, 5785, 5805, 5825 MHz). If there is a defined Preferred Frequency,
the node continues to alternate between listening on each of these channels and that stored frequency. This search of the non-
overlapping channels is attempted a total of two times.
If the non-overlapping channel frequency hunt fails, then the node will scan all frequencies with an increment of 5 MHz. In the US
this means 5745, 5750, 5755, etc. up to 5835 MHz. During this search the node continues to alternate with the Preferred
Frequency. If, after two attempts this hunt also fails, then the Preferred Frequency is deleted and the node will continue hunt the
full frequency range with a 5 MHz increment.
If a node hears a Hello message at any frequency, the search will be stopped for a time equal to four complete listening periods.
This translates into 64 seconds for SkyExtenders and 8 seconds for SkyConnectors. This allows the node time to gather enough
Hello messages to start the link optimization process. If a connection is made (see Link Management), this unit will change to the
discovery phase and its frequency hunt will be halted.
The discovery phase lasts 45 seconds and allows a node time to complete link establishment, authorization and configuration, and
possibly to receive Hello messages from other nodes (that may offer lower cost routes). The following may also occur during the
discovery phase:
• If, at the completion of the discovery phase timer no link has been establish and no link establishment is in progress, then the
node will resume frequency hunting.
• If, at the completion of the discovery phase timer a link establishment is in progress, then the node will restart the discovery
timer with a 90 second duration.
• If, at the completion of the discovery phase timer a link has been successfully established and the node authenticated, then a
final 45 second discovery timer is started and the node is marked as being connection-ready.
• If, at the completion of the discovery phase timer a node is marked as being connection-ready, then the best route is selected
(see Mesh Routing) and the node is placed online.
System Architecture and Protocol Guide – 9-05 9 © 2005 SkyPilot Networks, Inc.
Link Management
The SkyPilot system supports variable modulation types and encoding rates. Differing rates can be utilized for each individual link
within the network, including each of the multiple individual links possible for any given node. The various modulation types and
rates are shown in the table below. Note that the payload traffic capacity will be less than the stated data rates due to packet
header and protocol overhead.
Per-link Data Rates for Different Modulation Types
Raw Data
Rate
(Mbps)
Modulation
Type Coding Rate Coded bits
per Subcarrier Coded bits
per OFDM
Symbol
Data bits per OFDM Symbol
6 BPSK ½ 1 48 24
9 BPSK ¾ 1 48 36
12 QPSK ½ 2 96 48
18 QPSK ¾ 2 96 72
24 16QAM ½ 4 192 96
36 16QAM ¾ 4 192 144
48 64QAM ½ 6 288 192
54 64QAM ¾ 6 288 216
Each link within a SkyPilot network is optimized for maximum performance. This optimization occurs both at the point of link
creation and as an ongoing process in the case of active links utilized for subscriber traffic.
RSSI vs. Modulation Level
The modulation level of a link will generally relate directly to the Received Signal Strength Indicator (RSSI). RSSI values are
available via the SkyPilot MIB or CLI. Interference within a channel can cause a reduced modulation level.
The chart below shows test data mapping packet throughput against the Receive Signal Strength Indicator (RSSI). 10,000 packets
were transmitted for each combination of modulation and RSSI level. Note that this test was performed in the lab, free from
interference and multipath reflections, for both SkyGateway/SkyExtender and SkyExtender/SkyExtender links. The thick horizontal
line indicates a 90% packet success rate. The current link optimization algorithm requires a 95% packet success rate in order to
select the modulation level.
Based on these test results, the table below can be used to map RSSI to modulation levels:
RSSI Modulation Level (Mbps)
7 6
8 9
9-11 12
12-13 18
14-18 24
19-30 36
31+ 48
System Architecture and Protocol Guide – 9-05 10 © 2005 SkyPilot Networks, Inc.
Initial Link Optimization
The SkyPilot Synchronous Mesh Protocol (see separate section) implements an Automatic Repeat reQuest (ARQ) mechanism that
allows for the rapid retransmission of errored packets. This feature operates transparently to the all protocols (such as TCP/IP)
transmitted over a SkyPilot system. When a link is first established, typically when a new SkyExtender or SkyConnector is added to
a network or after a network reset, a series of test packets are exchanged in order to select the optimal modulation type and rate.
The ARQ protocol is disabled and the two nodes constituting the link transmit 90 packets at each of the modulation levels in turn.
The number of packets received at each modulation rate is then returned to the transmitting node. Using these results, the nodes
select the highest modulation and coding level that supports a > 95% successful reception rate.
Continuous Link Maintenance
Every active link used to transfer subscriber traffic (see the Mesh Routing section for details about link selection) is monitored for
basic connectivity and to ensure the optimal modulation levels.
The general link connectivity is continuously tested through the use of “keep-alive” messages. These messages are exchanged
every 1.5 seconds. This message transfer tests not only the RF connectivity, but also management control level connectivity. After
three consecutive message failures, the link is considered to be down, and a reroute or Frequency Hunt is initiated (see the
Spectral Management section for details).
The modulation level of each link is continuously optimized. This is achieved by monitoring the packet retransmission rates over
the link. A sliding window of 576 packet transactions is monitored. This means that at any moment in time the previous 576 packet
transmissions/receptions are analyzed. The following actions are taken based on the failure rate experienced:
• If the failure rate exceeds 50 packets (8.68%), then the modulation is reduced by one level. Note that a packet failure is
defined as a single packet not being received successfully.
• If the packet failure rate is less than 10 (1.74%) then the modulation is increased one level.
SkyPilot Synchronous Mesh Protocol
The SkyPilot Carrier-Class Broadband Wireless System implements a synchronized variant of the asynchronous IEEE 802.11
protocol. This SkyPilot protocol enhancement utilizes the baseband capabilities of 802.11, including all modulation levels and
OFDM. In addition, the SkyPilot protocol utilizes the 802.11 frame format.
The SkyPilot enhanced synchronous protocol, called Time Division Duplex (TTD), provides the following advantages when
compared to the asynchronous 802.11 protocol:
• Predictable, low latency
• Scalability
• Accurate, granular QoS control
• Spectral efficiency
IEEE 802.11
The 802.11 standard was created to provide a low cost, easily implemented Wireless Local Area Network (WLAN). The standard
defines a Carrier Sense Multiple Access (CSMA) protocol that is used to control access to the channel. The CSMA mechanism
requires that all (or at least the vast majority of) nodes within the network are able to hear the transmission of all other nodes.
When standard 802.11 devices are unable to hear their peers, as is very often the case in large-scale outdoor deployments,
multiple nodes attempt to transmit at the same time, causing unwanted collisions and a loss of capacity. Testing has shown that
such a network, with as little as four active 802.11 nodes, can experience heavy degradation of system throughput. This issue is
often referred to as the “hidden node problem.”
To address the “hidden node problem,” a small number of vendors have implemented polling schemes based on the standard
802.11 Request to Send/Clear to Send (RTS/CTS) mechanisms to allow a central base station to control CPE traffic. This method
successfully avoids the high level of data traffic collisions, but provides only a crude level of bandwidth and latency control. SkyPilot
has developed this approach further, providing a fully scheduled MAC layer protocol with a very fine granularity of bandwidth
control.
System Architecture and Protocol Guide – 9-05 11 © 2005 SkyPilot Networks, Inc.
SkyPilot Mini-Slots
All SkyPilot nodes are synchronized to the same 1 second timing frame. The SkyGateway and SkyExtender nodes house a GPS
receiver that provides a standard, highly accurate 1 Pulse Per Second (PPS) clock. SkyConnectors derive the 1 second frame from
timing messages exchanged with the connected SkyGateway or SkyExtender.
In order to allow for the most efficient utilization of the wireless channel capacity, the timing of the upstream transmission is
adjusted such that packets are received at the SkyGateway or SkyExtender regardless of the distance from the transmitting node.
Each 1 second frame is divided into 10 mini-slots, each with a 100 µs in duration. These smaller time increments allow bandwidth
to be allocated for low latency and low jitter at a very granular level.
Bandwidth Allocation
Bandwidth management within a mesh network presents a particular challenge owing to the high number of interconnections. The
SkyPilot system implements a very efficient distributed dynamic bandwidth allocation scheme, with each SkyGateway or
SkyExtender responsible for scheduling bandwidth for all nodes linked directly. These distributed schedules are coordinated
through the enforcement of a parent/child relationship. For each node, the node one hop closer to the SkyGateway is considered a
scheduling parent. This parent and child relationship is repeated in a hierarchical fashion, with the SkyGateway as the final
bandwidth-scheduling parent in the hierarchy.
Each parent distributes a bandwidth schedule to its child nodes. This schedule details the mini-slots in which communication from
the parent to the child node may occur. A child node must always listen on the appropriate antenna at these scheduled times for
transmission from a parent node.
Contention Slots
In addition to the downstream transmission slots, the bandwidth schedule also details contention slot opportunities. These
contention slots are used by the child node to indicate upstream bandwidth needs.
In order to obtain upstream bandwidth, a child node transmits a Bandwidth Request message in the scheduled contention slot. This
Bandwidth Request message details the amount of upstream data in each upstream queue.
Multiple child nodes can transmit in the same contention slot, resulting in a collision. To address this issue, each child node
implements a randomized backoff. After each Bandwidth Request transmission, a child node randomizes the number of contention
slots opportunities before attempting to issue the next Bandwidth Request. Note that a child node will not transmit a Bandwidth
Request message if it has recently communicated with its parent.
Traffic Control with TDD
A parent node controls the transfer of traffic to and from its child nodes. A parent node makes the following real-time scheduling
decisions:
Transmitting Data to Child
Ethernet packets are retrieved from the output queues for transmission to child nodes. Various QoS mechanisms (see Quality of
Service) dictate the ordering of packet transmissions to the various child nodes. Typically, the system transmits an Ethernet packet
in its entirety; however, if the parent must interrupt the transmission due to traffic shaping mechanisms or to listen to its own parent
node, it has the ability to fragment the packet.
Having made the decision to transmit to a given child node, a parent starts the transmission at the next scheduled mini-slot with
that child. The transmission continues until complete. While this transmission is in progress, the parent node does not
communicate in mini-slots scheduled with other child nodes. Transmitting a large Ethernet frame spans many mini-slots.
System Architecture and Protocol Guide – 9-05 12 © 2005 SkyPilot Networks, Inc.
Receiving Data from a Child
If a child node has data queued for transmission upstream and is not in active communication with its parent, it will signal the need
by transmitting a Bandwidth Request message in the next contention slot. The details of the Bandwidth Request, including the
priority of the data queued, is stored by the parent node and accessed by the scheduler.
In the current SkyPilot system, child status is polled by the parent. Having made the decision to poll status from a given child node,
a parent transmits a Poll Request message in the next scheduled mini-slot with that child. Upon being polled, a child node
immediately transmits a packet up to the maximum size specified in the Poll Request message.
The polling of a child continues as long as upstream bandwidth is queued plus an additional integration period of 0.5 seconds after
the queue is emptied. This continued periodic polling allows an active node to make a low-latency upstream transfer by avoiding
the need for the child node to contend. The parent also utilizes any unused bandwidth to poll recently active nodes beyond the 0.5
second integration period.
In addition to the dedicated Poll Request message, a parent node can also include a Poll Request with a data frame transmitted to
a child. A future revision of the SkyPilot protocol may replace the Poll Request messages with upstream bandwidth grants that
directly allocate one or more transmit opportunities to a child node. Both of these mechanisms increase bandwidth efficiency by
removing the Poll Request message overhead and propagation delay.
Quality of Service
The SkyPilot Carrier-Class Broadband Wireless System supports the following Quality of Service (QoS) features:
• Subscriber Rate Control
An operator can define maximum upstream and downstream data rates for a subscriber. This rate control is implemented at
the ingress points; i.e. at the SkyGateway in the downstream direction, and at the SkyConnector/SkyExtender in the upstream
direction.
• Packet Prioritization
An operator may prioritize individual subscriber packets based on a range of parameters. This classification is completed at
the ingress points and the packets marked as having a high or low priority. This prioritization is then maintained by any
intermediary SkyExtenders.
Downstream QoS
The downstream QoS functionality is implemented by the SkyGateway and any intermediary SkyExtenders. The SkyGateway limits
and shapes the user data received over the local 10/100Base-T Ethernet interface using a token bucket-based algorithm. The
SkyGateway maintains a token bucket for every SkyConnector, every SkyExtender DualBand, and every SkyExtender providing
subscriber termination). The depth of each token bucket is defined by the maximum allowable burst size, and is filled with tokens at
a constant rate derived from the configured maximum data rate.
The SkyGateway classifies all Ethernet packets received on the 10/100Base-T Ethernet interface in accordance with the
configuration specified by the operator. For each individual subscriber (SkyConnector or SkyExtender) the operator may designate
packets as having a high priority using one or more of the following means:
• Source/Destination IP Address
A single IP address, a number of IP addresses, an IP address range or a number of IP address ranges. This classifier can be
used to prioritize packets exchanged between a subscriber and a voice gateway.
• IP Type of Service (ToS)
An IP header field that is used by certain protocols/equipment to indicate packet priority and type.
• IP Protocol Type
An IP header field used to indicate the packet protocol type.
• IEEE 802. 1p
A Layer 2 protocol that is used to mark the priority of individual Ethernet packets.
System Architecture and Protocol Guide – 9-05 13 © 2005 SkyPilot Networks, Inc.
The operator can use a range of classifiers to control prioritize packets. For instance, an operator may assign a high priority to
packets matching a range of IP addresses and having a defined ToS field setting. Any packets not matching this classification will
be assigned a low priority. The resulting classification is tagged (in the SkyPilot protocol header) so that any intermediary
SkyExtenders can maintain the prioritization.
Upon receiving an Ethernet packet, the SkyGateway first performs the traffic classification. Having designated a packet as having a
high or low priority, the subscriber’s token bucket is checked to see if it has enough tokens for packet transmission. If there are no
tokens in the bucket, tokens may be borrowed. For low priority packets, tokens can be borrowed up to double the configured
downstream rate. For high priority packets, tokens can be borrowed up to three times the configured downstream rate. If a token is
available, the packet is queued to the downstream link—high priority packets to the high priority queue and low priority packets for
the low priority queue. If there are no tokens available, then the packet will be dropped.

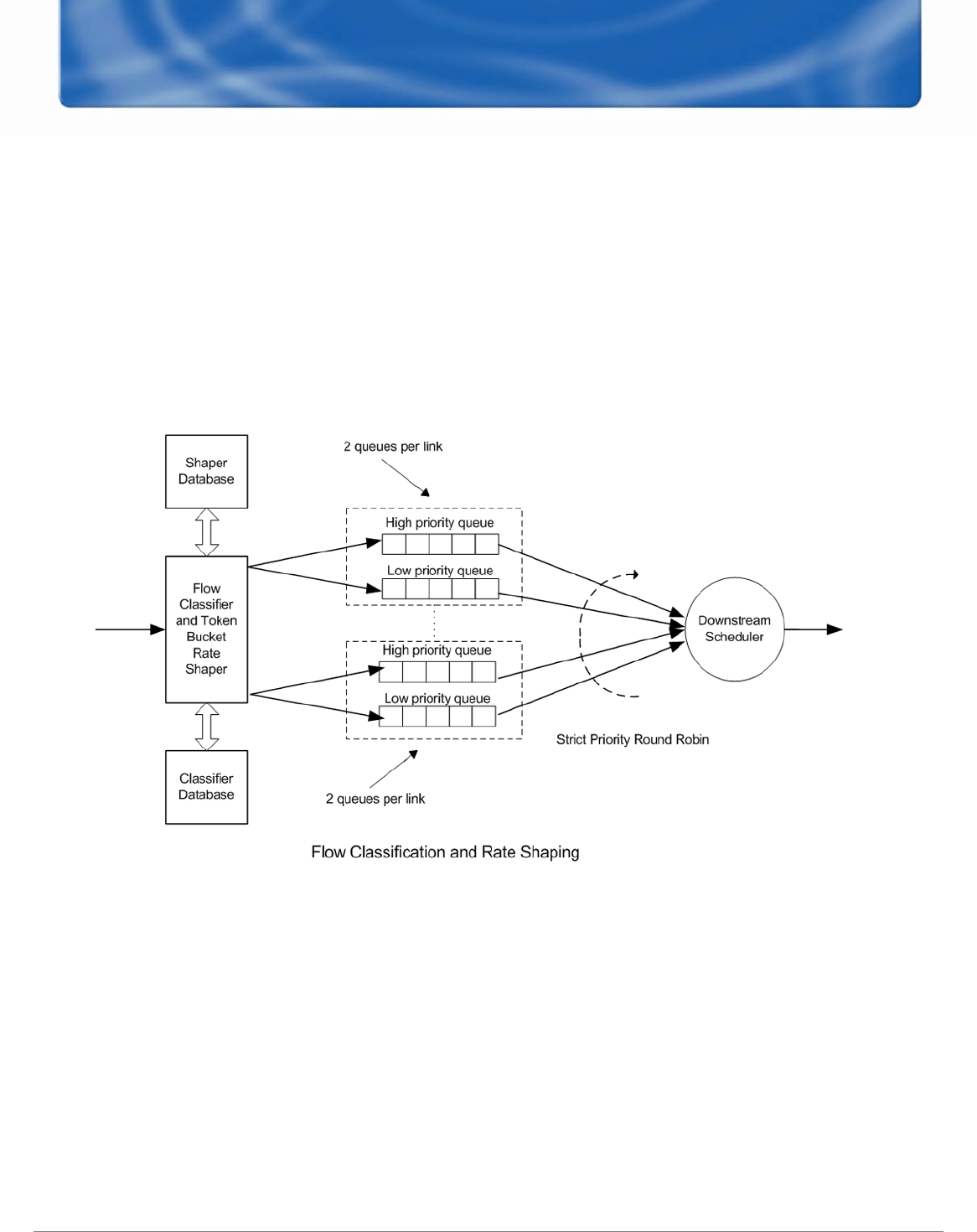

The figure below illustrates the SkyGateway QoS mechanisms:
Note that broadcast and multicast packets are also rate-controlled. The default configured downstream rate is 128 kbps.
Upstream QoS
In the upstream direction, the SkyConnector or SkyExtender limits and shapes the user data received over the local 10/100Base-T
Ethernet interfaces. The SkyConnector and SkyExtenders perform the same packet classification and token bucket shaping as the
SkyGateway.
System Architecture and Protocol Guide – 9-05 14 © 2005 SkyPilot Networks, Inc.
Security Provisions
A SkyPilot Carrier-Class Broadband Wireless System operates as an intelligent, virtual Ethernet switch, with a full learning bridge
implemented at both the subscriber interface (SkyConnector or SkyExtender) and the networking interface on the SkyGateway.
This Layer 2 network architecture allows subscribers to have full mobility between SkyGateways without the need to update IP
addresses. The architecture also allows for enforcement of same security provisions that are possible with a physical Ethernet

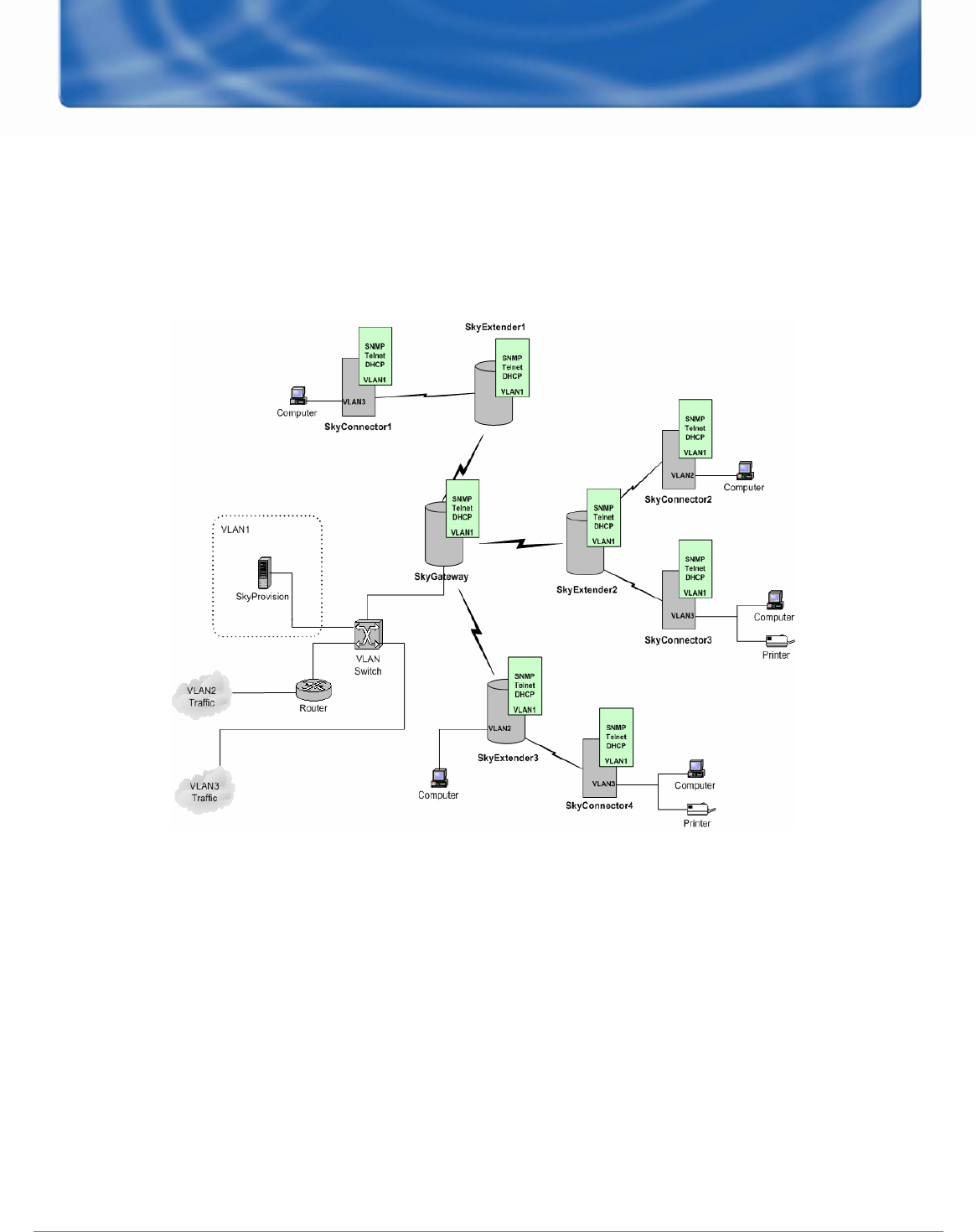

switch. The diagram below shows how Virtual LANs might be supported on a SkyPilot network.
Here is an example of a SkyPilot network supporting standard VLANs as a virtual Ethernet switch.
Packet-level traffic filtering allows an operator to control the subscriber access, improve system security and manage IP address
allocation. VLANs provide additional network security and the means to partition traffic for differing subscriber groups. The peer-to-
peer switching control provides additional security and interconnectivity options. Finally, encryption and authentication provide
confidentiality and integrity for all user traffic. Each of these provisions is explained below.
Traffic Filtering
Each packet received on the SkyConnector or SkyExtender subscriber interface is examined, and any configured filters are
applied. Multiple filters can be applied simultaneously with flexible logic. Packets can be discarded only if all filters are true, or
packets can be filtered if any of the filters is true. The following filter types are supported:
• EtherType
• Source/Destination IP Address Range
• IP Protocol Type
• IP Port ID
Typical uses of the filtering capability include protocol access restrictions, for instance filtering all non-IP protocols and source IP
address ranges. The latter filter allows an operator to control the IP addresses utilized by a given customer.
System Architecture and Protocol Guide – 9-05 15 © 2005 SkyPilot Networks, Inc.
VLANs
The SkyPilot system allows an operator to partition subscriber traffic through the use of Virtual LANs. VLANs limit the scope of
broadcast and multicast traffic, and facilitate the segmentation of traffic in the backbone network.
An individual subscriber can be configured to a single VLAN. In this mode all Ethernet packets received on the subscriber interface
of the SkyConnector or SkyExtender are tagged with the configured VLAN ID. These packets are then forwarded to the
SkyGateway, which transparently switches the frames without modifying the VLAN tag. In this mode, the SkyConnector or
SkyExtender will strip the VLAN tag (i.e. convert to standard Ethernet format) before transmitting the packet on the subscriber
interface.
In VLAN mode, any 802.1q format packets received by the SkyConnector or SkyExtender on the subscriber interface will be
checked for a VLAN ID. If the ID matches the configured VLAN ID, then the packets will be forwarded to the SkyGateway. If the ID
does not match, the packet will be discarded. If the VLAN mode is not configured, then a SkyConnector or SkyExtender will
transparently switch 802.1q VLAN tagged Ethernet frames.
Peer to Peer Switching
The SkyPilot system permits control over Layer 2 switching by the SkyGateway. An operator can enable or disable the Layer 2
switching between SkyConnectors and SkyExtenders on a per VLAN basis. With switching enabled, an operator can offer low
latency Layer 2 VLAN connectivity. With switching disabled, an operator can utilize an external switch or router for high levels of
network security and flexibility.
Encryption and Authentication
The SkyPilot network provides for subscriber confidentiality, message integrity, and endpoint and network authentication.
Confidentiality prevents unwanted listeners of network traffic. Message integrity ensures that network traffic has been delivered
unaltered to the intended recipient. Endpoint authentication provides trust between two nodes on a network. Without this endpoint
authentication, confidentiality and message integrity are difficult to achieve. Endpoint authentication also ensures that only
authorized nodes join the network. Network authentication ensures that nodes join only trusted networks.
Network Key
The SkyPilot system provides support for a shared network key. This static key is installed (via the CLI) by a network operator prior
to deployment. Only nodes that share the network key are authorized to join the network. Note that, due to security concerns, the
system key cannot be changed remotely.
Identification Certificate
All SkyPilot nodes have a unique identification certificate installed during manufacture. These are part of a certificate chain that is
signed all the way to the SkyPilot root certificate authority, and uniquely identify each SkyPilot node.
Authentication
When a SkyPilot node connects to the network via a SkyExtender or directly via a SkyGateway, the following peer-to-peer
authentication protocol is completed:
1. The authentication negotiation is initiated by the node with the numerically smaller MAC address (Node A). This node sends
an SP_AUTH_HELLO message that contains its Identification Certificate to the node with the numerically larger MAC
address (Node B).
2. Upon receiving the SP_AUTH_HELLO message, Node B verifies that the ID certificate in the message has been signed
by the correct certificate authority (CA) using its root public key. This step provides assurance to Node B that Node A
possesses a valid certificate. If Node B successfully verifies the Identification Certificate, it will compute a random number.
This random number is one of the ingredients used in generating the secret session key.
3. Node B will encrypt the random number it generated with the shared network key. It will then encrypt the ciphertext with Node
A’s public key. The purpose of this dual encryption is to verify that Node A has the same shared static key as Node B, and to
ensure that only Node A can decrypt the message. The final ciphertext is combined with Node B’s Identification Certificate and
placed in an SP_AUTH_CHALLENGE message. This message is sent to Node A.
System Architecture and Protocol Guide – 9-05 16 © 2005 SkyPilot Networks, Inc.
4. When Node A receives the SP_AUTH_CHALLENGE message, it verifies Node B’s Identification Certificate using its root
public key. Node A decrypts Node B’s random number using its private key and shared static key. Node A then computes its
own random number. Using the two random numbers it computes the secret session key.
5. Node A encrypts its random number using the shared static key. It then encrypts this ciphertext along with Node B’s decrypted
random number using Node B’s public key. The resulting ciphertext is placed in an
SP_AUTH_RESPONSECHALLENGE message and sent to Node B.
6. When Node B receives the SP_AUTH_RESPONSECHALLENGE message, it decrypts the random numbers. Node B
verifies that this decrypted random number matches the one it generated in Step 2. If the random numbers match, then Node
B will generate the secret session key using the two random numbers. Node B will encrypt Node A’s decrypted random
number using Node A’s public key. Node B will send Node A an SP_AUTH_RESPONSE message containing the
ciphertext.
7. Upon receiving the SP_AUTH_RESPONSE message Node A decrypts the random number using its private key. It
compares the decrypted random number with the one it generated in Step 4.
If at any step this authentication protocol fails, the link will be placed in the authorization failed state and no user data will be
exchanged.
Encryption
Having successfully completed the authentication protocol, the nodes load the session keys into hardware. All packets passed
between these two nodes are then encrypted utilizing these 128-bit Advanced Encryption Standard (AES) session keys.
Network Management
The management of all nodes in a SkyPilot Carrier-Class Broadband Wireless System can be handled through either the local
Command Line Interface (CLI) and/or through the SkyProvision element management system (EMS). Note that the SkyProvision
EMS supports all configuration parameters, while the CLI supports a subset. Use of the SkyProvision EMS is recommended,
therefore, to utilize the full potential of the SkyPilot system.
All SkyPilot nodes have an SNMP Agent that can be used to monitor link status and traffic statistics, and to query the configuration.
The SNMP protocol, along with Telnet used for remote CLI access, run on top of an IP stack. Therefore each SkyPilot node
requires the allocation of an IP address. This address can be configured manually via the CLI, or more typically, allocated via
DHCP.
A DHCP server is bundled with the SkyProvision EMS application. It is recommended that this server be used for the configuration
of the SkyPilot management IP addresses. This DHCP server may also optionally be used for subscriber IP address allocation.
When using the SkyProvision EMS, the following configuration sequence occurs once a node has successfully completed its link
layer authentication (see Encryption and Authentication):
1. The node issues a DHCP_REQUEST message to obtain a management IP address.
2. The
DHCP_RESPONSE contains both the allocated IP address and the IP address of the SkyProvision server
application.
3. The node utilizes HTTP to retrieve an XML format configuration file from the server.
4. The XML file is parsed and all configuration parameters applied. The parameters include Ethernet filters, QoS settings,
Ethernet port state (which is used to control the subscriber’s provisioned state) and any VLAN settings.
5. The XML configuration file also defines the primary and back-up software versions. If the versions specified do not match
those in memory, then the node initiates an FTP Get to retrieve the new software image.
CLI
The Command Line Interface (CLI) gives an operator the ability to manage and monitor a SkyPilot node locally or remotely. The
CLI supports a subset of the management parameters available through the configuration file. This subset is defined in the
document titled “Managing Your SkyPilot Network”.
The CLI may be used to configure a small network during testing or early deployment, and must be used to configure any
SkyGateway Management VLAN ID. If the SkyProvision EMS is utilized, any configuration completed via the CLI must also be
made in the SkyProvision database, otherwise the intended configuration will be lost on the next reboot of the node.
System Architecture and Protocol Guide – 9-05 17 © 2005 SkyPilot Networks, Inc.
SNMP
Each SkyPilot node has an SNMP Agent. This agent allows an operator to query system configuration, and to monitor status and
statistics. SNMP provides a predominately read-only interface with only the reload and reboot write attributes. Reload causes the
configuration file to be downloaded and any changes in provisioning parameters to be completed. Reboot will cause the node to be
reset and reconnect with the network.
The SkyPilot nodes support standard MIB-II, EtherLike and Bridge MIBs, along with a proprietary SkyPilot MIB. To obtain a copy of
the SkyPilot MIB please contact SkyPilot Customer Support.
Software Download
The SkyPilot nodes store two software images in non-volatile flash memory. One of the images is designed as active; the other as
standby. The node always runs the active image. A software download is invoked by changing the revision of the standby image.
Once that image is successfully downloaded it can be activated by switching the active and standby revions.
© 2005 SkyPilot Networks, Inc. All rights reserved. SkyConnector, SkyControl, SkyExtender, SkyGateway,
SkyPilot, SkyPilot Networks, SkyProvision, the SkyPilot logo, and other designated trademarks, trade names,
logos, and brands are the property of SkyPilot Networks, Inc. or their respective owners. Product specifications are
subject to change without notice. This material is provided for informational purposes only; SkyPilot assumes no
liability related to its use and expressly disclaims any implied warranties of merchantability or fitness for any
particular purpose.
2055 Laurelwood Road
Santa Clara, CA 95054-2747
408.764.8000
US Toll Free 866 SKYPILOT
sales@skypilot.com
9/05
