JUNO T41/5

User Manual

JUNO T41/5

User Manual

Welcome

Thank you for purchasing this JUNO T41/5! This manual will help you set

up your device so you can begin using it.

Important information for using the guide

This guide has been prepared to guide you through the operation of your

device from first set-up through to continuous use, which includes:

• Setting up the device

• Operating basics

• Navigating

• Securing your device

Please read this guide carefully before using your device for the first time.

Formatting

It is important to understand the terms and typographical conventions

used in this guide. The following kinds of formatting in the text identify

special information:

• CAPITAL — indicates the hardware items on the device. Example:

press the POWER button.

• Bold — indicates the items displayed on the screen, including buttons,

headings, field names and options. Example: tap the E-mail button.

• Italics — indicates the name of a screen/window. Example: the

Bluetooth screen.

JUNO T41/5

User Manual

Terms

The following terms are used throughout this guide to describe user

actions.

• Press — press and then release a hardware button quickly.

• Tap — touch and then release an item displayed on the screen quickly.

• Select — tap an item in a list or tap a command from a menu.

• Drag — tap and hold on the item and then move it to the target position

without releasing your fingertip.

• Slide — drag to the left/right/top/down to switch to the next item on the

list.

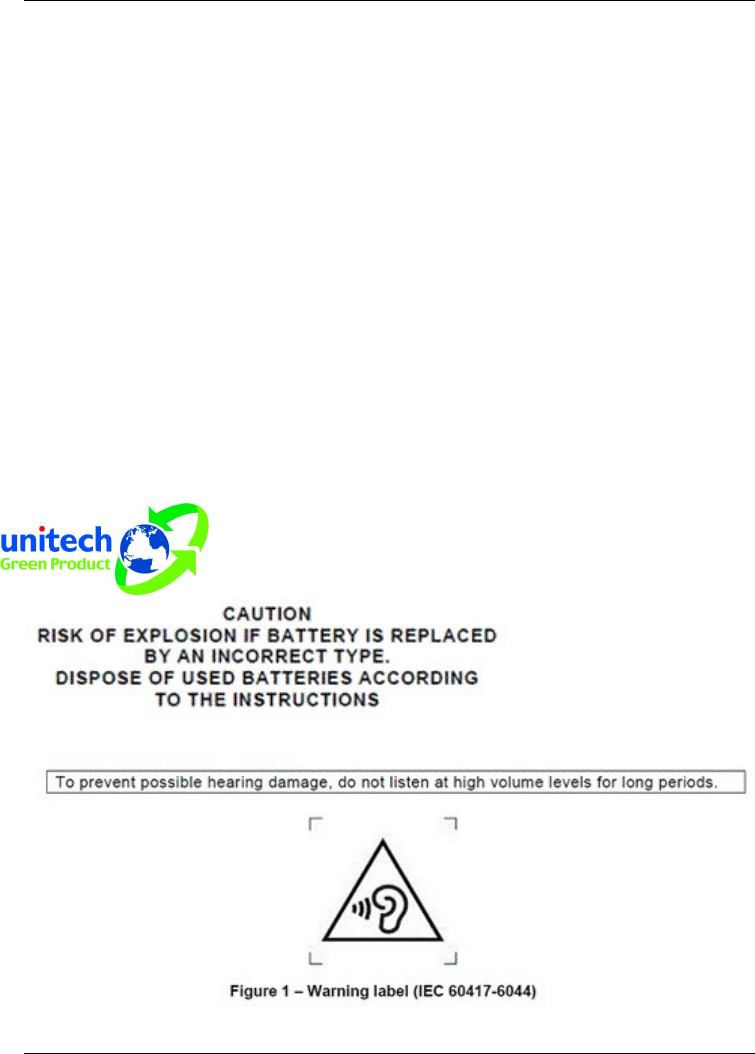

Important safety information

• THE DEVICE IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE

BOX.

• DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS

CHARGING.

• WHEN INSERTING YOUR SIM CARD, MAKE SURE THE DEVICE IS

POWERED-OFF BEFORE YOU REMOVE THE BATTERY PACK.

• IN MANY COUNTRIES YOU ARE REQUIRED BY LAW TO TURN

OFF YOUR PHONE WHEN YOU FLY. TURNING OFF YOUR

POCKET PC DOESN’T TURN OFF YOUR PHONE; YOU MUST TURN

OFF YOUR WIRELESS CONNECTION TO YOUR OPERATOR’S

NETWORK.

• YOUR WARRANTY IS INVALIATED IF YOU OPEN OR TAMPER

WITH THE DEVICE’S OUTER CASING.

JUNO T41/5

User Manual

Disclaimer

The manufacturer operates a policy of ongoing development. The

manufacturer reserves the right to make changes and improvements to

any of the products described in this document without prior notice. The

manufacturer does not warrant that this document is error-free.

Not all models are available in all regions. Depending on the specific

model purchased, the color and look of your device and accessories may

not exactly match the graphics shown in this document.

The screenshots and other presentations shown in this guide may differ

from the actual screens and presentations generated by the actual

product.

All such differences are minor and the actual product will deliver the

described functionality as presented in this User Manual in all material

respects.

All brand and product names are trademarks or registered trademarks of

their respective companies.

Revision: 1.0

(06/2012)

JUNO T41/5

User Manual

Regulatory Compliance Statements

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a

Class B dig-ital device, pursuant to part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for

help.

1. This Transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set

forth for an uncontrolled environment. To maintain compliance with

FCC RF exposure compliance requirements, avoid direct contact to

the transmitting antenna during transmitting.

3. Any changes or modifications (including the antennas) made to this

device that are not expressly approved by the manufacturer may void

the user’s authority to operate the equipment.

FCC Label Statement

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

JUNO T41/5

User Manual

Canada, Industrie Canada (IC)

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numérique de classe B est conforme à la norme NMB-003.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject

to the following two conditions: (1) this device may not cause interference, and (2)

this device

must accept any interference, including interference that may cause undesired

operation of the

device.

Cet appareil est conforme avec Industrie Canada RSS standard exempts de

licence (s). Son fonctionnement est soumis aux deux conditions suivantes:

(1) cet appareil ne peut pas provoquer d'interférences et

(2) cet appareil doit accepter toute interférence, y compris les interférences

pouvant entraîner un mauvais fonctionnement de la appareil.

RF Radiation Exposure Statement:

For body worn operation, this phone has been tested and meets RF exposure

guidelines when used with an accessory that contains no metal and that positions

the handset a minimum of 1.5 cm from the body.

Use of other accessories may not ensure compliance with RF exposure

guidelines.

Déclaration de l'exposition aux radiations RF:

Pour le fonctionnement du corps, ce téléphone a été testé et répond aux

directives d'exposition RF lorsqu'il est utilisé avec un accessoire

qui ne contient pas de métal et qui place le combiné d'un minimum de 1.5 cm du

corps.

Utilisation d'autres accessoires peut ne pas assurer le respect des directives

d'exposition RF

JUNO T41/5

User Manual

RF Radiation Exposure Statement

For body worn operation, this phone has been tested and meets FCC RF

exposure guidelines when used with an accessory that contains no metal

and that positions the handset a minimum of 1.5 cm from the body. Use of

other accessories may not ensure compliance with FCC RF exposure

guidelines.

Canadian Compliance Statement

This Class B Digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du

Reglement sur le material broilleur du Canada.

European Conformity Statement

Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC

89/336/ EEC directives.

RoHS Statement

This device conforms to RoHS (Reduction Of Hazardous

Sub-stances) European Union regulations that set

maximum con-centration limits on hazardous materials

used in electrical and electronic equipment.

JUNO T41/5

User Manual

Contents

Welcome ...........................................................................................2

Important information for using the guide ....................................2

Formatting...................................................................................2

Terms..........................................................................................3

Important safety information........................................................3

Disclaimer ...................................................................................4

Contents ...........................................................................................8

Setting up the device .......................................................................9

Step1. Insert the SIM card...........................................................9

Step2. Insert the memory card ..................................................10

Step3. Charge the battery .........................................................11

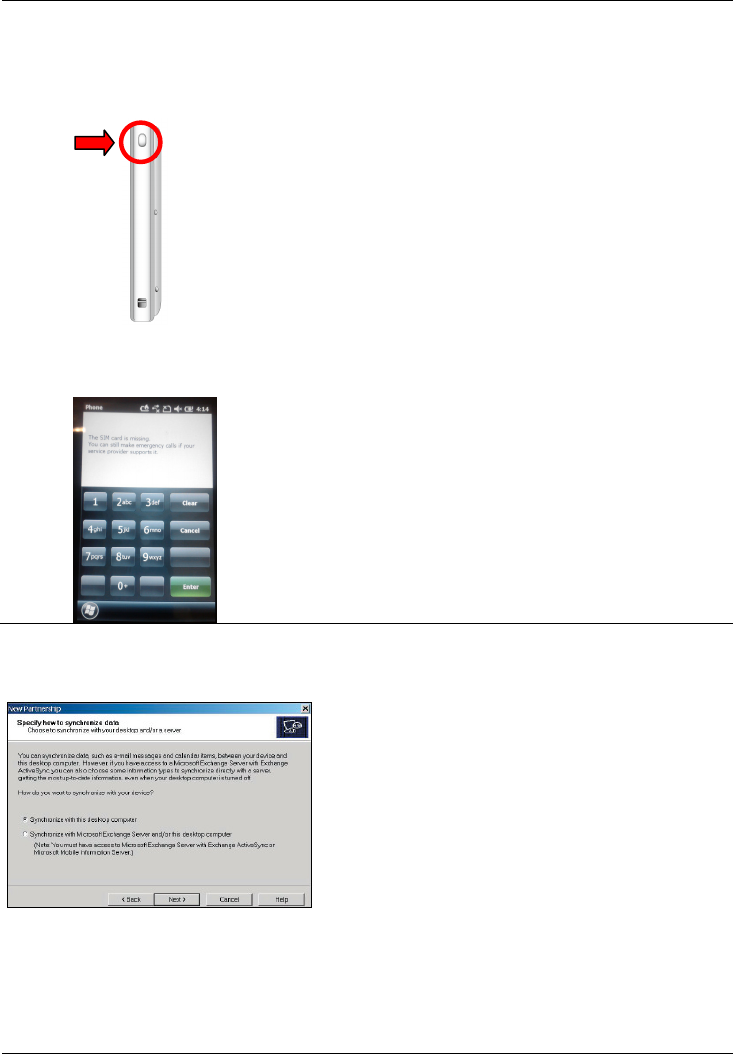

Step4. Switch on and enter your PIN.........................................12

Step5. Install ActiveSync...........................................................12

Operating basics............................................................................13

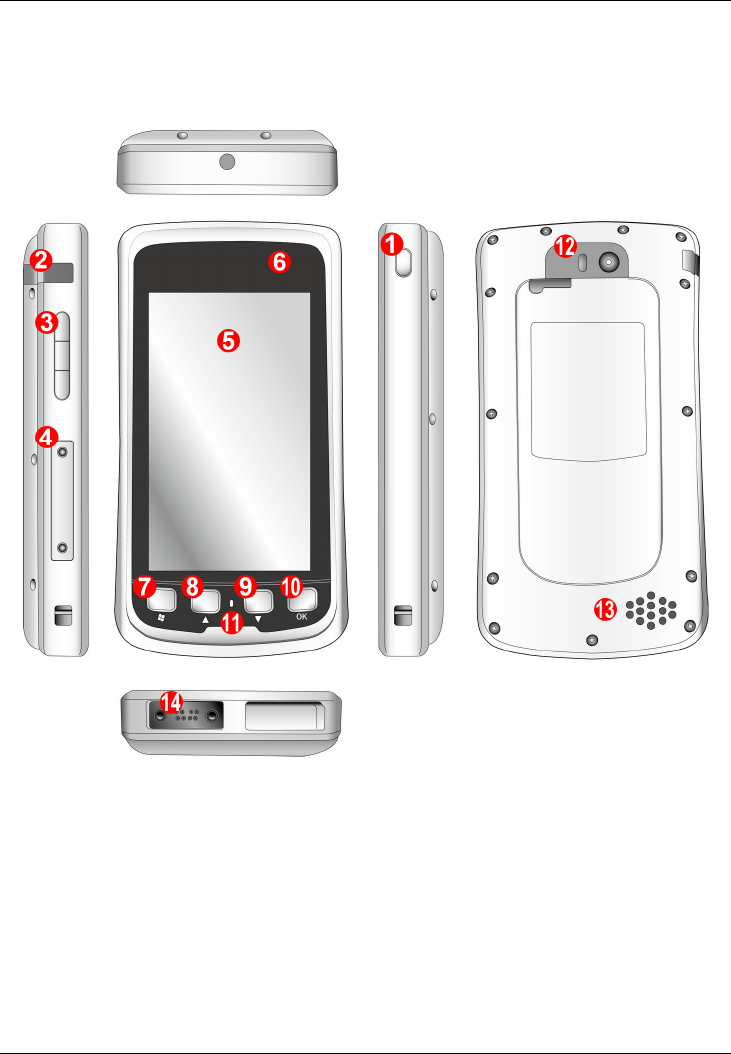

Device components...................................................................13

Navigating ......................................................................................14

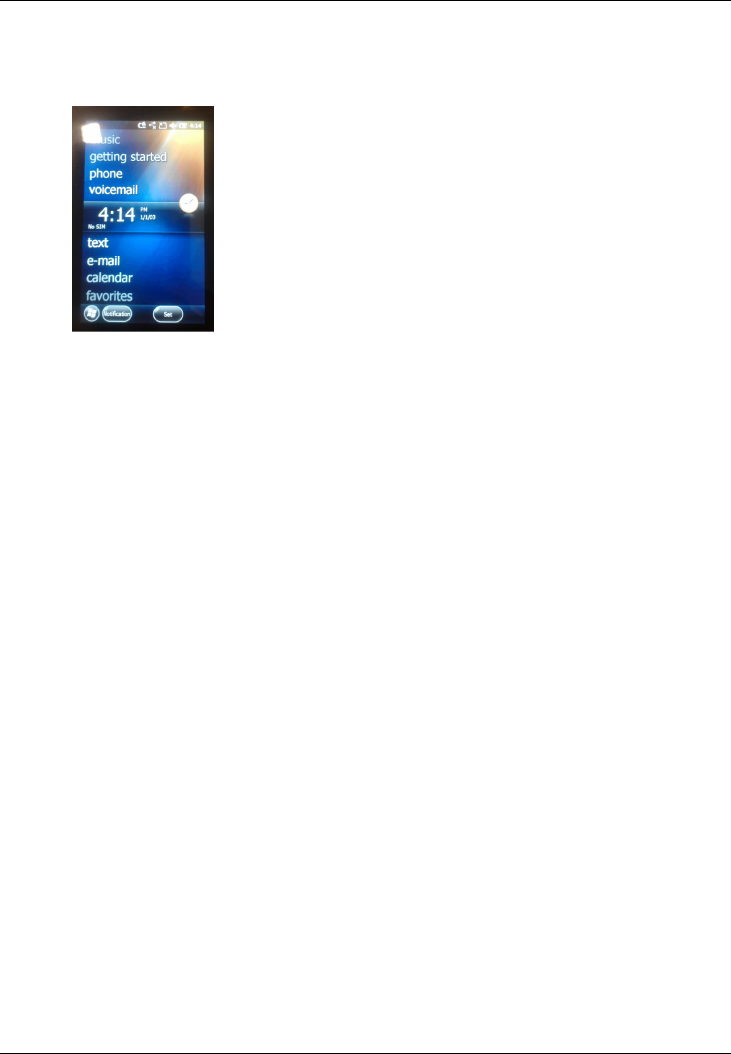

Home screen.............................................................................14

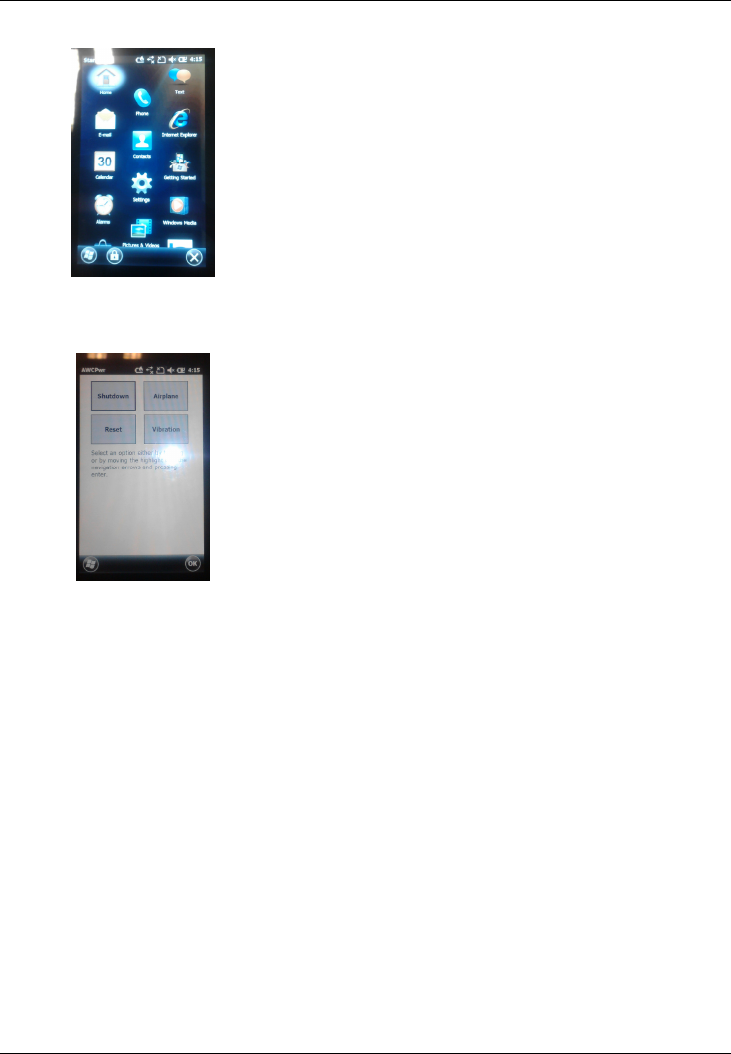

Programs screen.......................................................................15

Power menu..............................................................................15

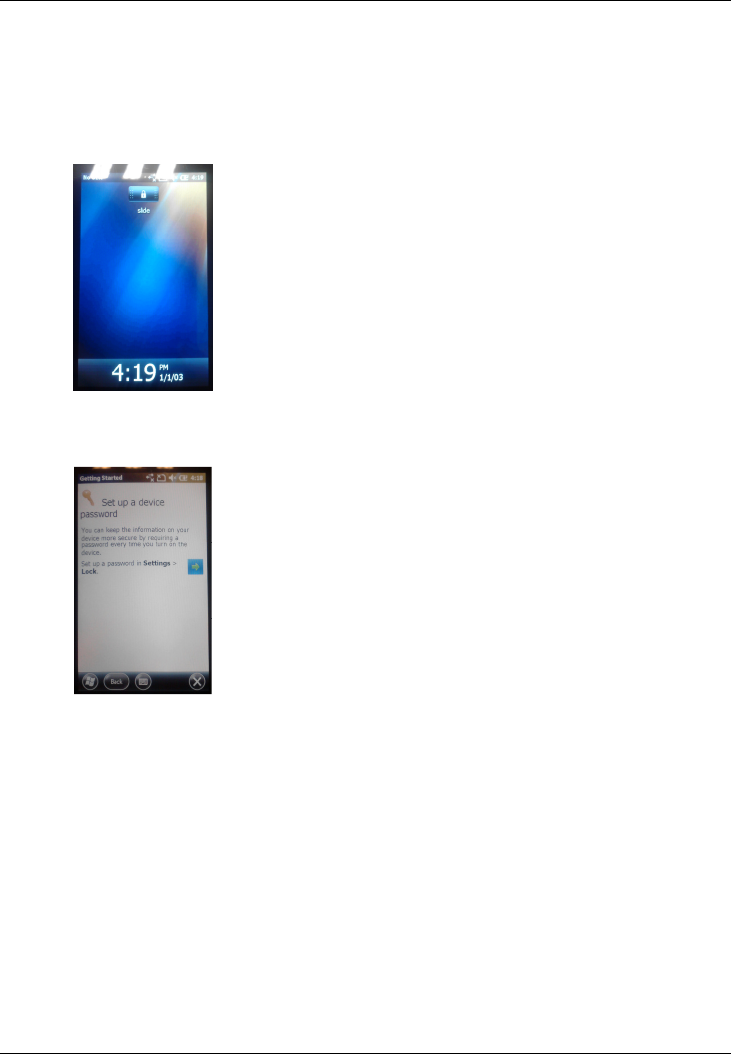

Securing your device.....................................................................16

Lock the keypad........................................................................16

Lock your phone........................................................................16

Lock the SIM card .....................................................................16

Specification ..................................................................................17

Regulatory Information..................................................................19

Exposure to Radio Frequency (RF) Signals ..............................20

Declaration of Conformity..........................................................21

Safe Use of your Unit ................................................................23

JUNO T41/5

User Manual

Setting up the device

Follow the sections below to set up your device and get it ready to

synchronize with your computer.

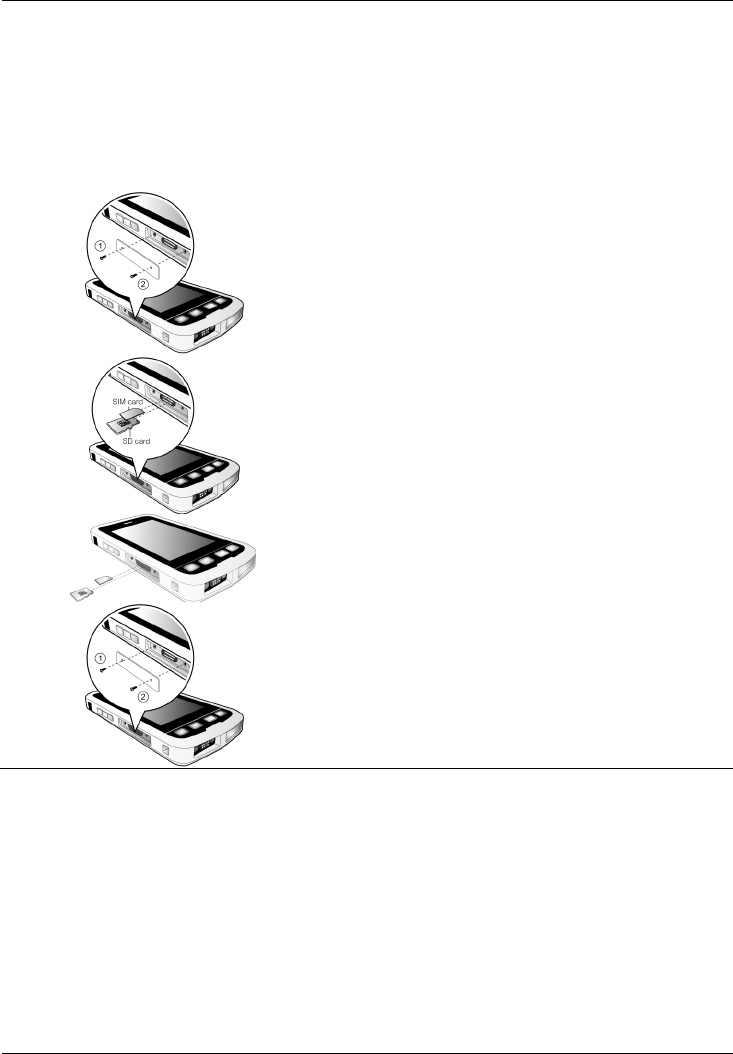

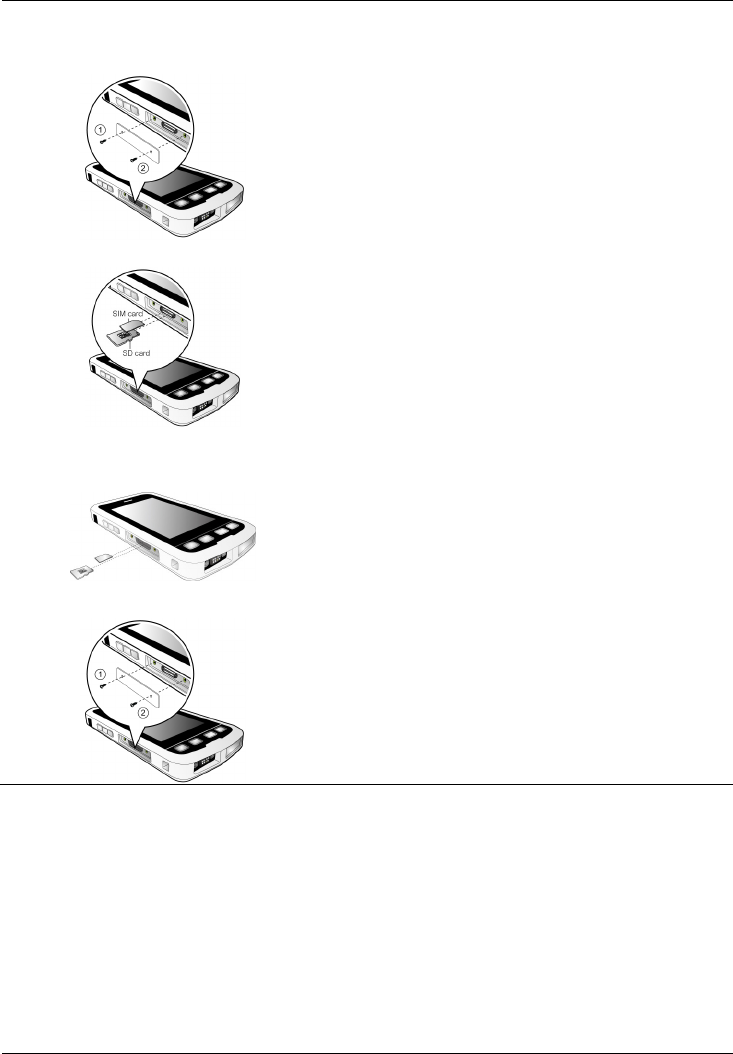

Step1. Insert the SIM card

1. Remove the cover on the left panel of

the device by unscrewing the screws.

2. Insert the SIM card into the slot with

its golden contacts facing the front of

your device.

3. To remove a card, gently push the top

edge of the card inwards to release it,

and pull it out of the slot.

4. Replace the cover and then secure it

with the screws.

JUNO T41/5

User Manual

Step2. Insert the memory card

1. Remove the cover on the left panel of

the device by unscrewing the screws.

2. Hold the microSD card by the edges

and gently insert it into the slot with

the label facing the front of your

device. Do not apply pressure to the

centre of the memory card while

inserting the card.

TIP: The device supports up to 32GB

microSD memory cards.

3. To remove a card, gently push the top

edge of the card inwards to release it,

and pull it out of the slot.

NOTE: Make sure you have saved

any data in open programs before

removing the memory card.

4. Replace the cover and then secure it

with the screws.

JUNO T41/5

User Manual

Step3. Charge the battery

IMPORTANT: Fully charge the battery at least 4 hours after installing in

the unit. The battery LED will turn green when fully charged.

1. Plug the converter to the AC charger.

TIP: The converter plug varies with the

region of your purchase.

2. Locate the power connector on the

bottom of the device. Connect the DC

end of the AC charger to the connector

on your device.

3. Plug the other end of the AC charger

into a wall outlet.

CAUTION: Extreme Heat

• Extreme heat: The battery is designed to stop operating at or above

the extreme heat of +149°F (+65°C). If this icon appears, the battery

has overheated to +140°F (+60°C).

• If the battery temperature exceeds 158 °F (70°C) it will be disabled

and will need to be replaced.

JUNO T41/5

User Manual

Step4. Switch on and enter your PIN

Once you have started to charge your device, you can switch it on.

1. Press the POWER button on the right

panel of the device for about 5

seconds. The device is turned on.

2. The Welcome Wizard will lead you

through the setup process.

3. Enter your PIN on the keypad screen.

When done, tap Enter.

Step5. Install ActiveSync

Using Microsoft

ActiveSync

you can

synchronize information on your computer

and/or a Microsoft

Exchange Server with

the information on your device.

ActiveSync compares the information on

your device with the information on your

computer and/or the server and updates

all locations, keeping you up-to-date with

the most recent information.

Before you can begin synchronization with your computer, you must install

ActiveSync on your computer. After the installation is completed, you can

connect your device to the computer for synchronization.

JUNO T41/5

User Manual

Operating basics

Device components

POWER button 8 UP button

Headphone connector 9 DOWN button

VOLUME control buttons 10 OK button

Memory card and SIM card

slots

11 Microphone

Touch screen 12 Camera and Flash

Notification LED 13 Speaker

START button 14 Power connector

JUNO T41/5

User Manual

Navigating

Home screen

The Home Screen is an easy way to

launch your favorite programs. You can

view high-level information at a glance,

with notifications for Live services, e-mail

and SMS/MMS.

To navigate the Home screen, slide your

fingertip up/down on the screen; or simply

drag the highlighted bar to the desired

item on the screen. The programs

provided on the Home screen include:

• pictures: You can select your photos from this menu.

• music: You can select your music from this menu.

• getting started: You can set up your device using the wizard.

• phone: You can use the device’s phone function by selecting this item.

• voicemail: You can use the device’s voicemail function by selecting

this item.

• time: You can select your time zone, set the time and date to the

correct values and set alarms.

• Text: If you have the phone feature set up on your unit, you can send

and receive text messages from this menu.

• e-mail: Email can be set up and launched here.

• calendar: Appointments can be managed from here.

• favorites: Internet Explorer can be launched from here.

JUNO T41/5

User Manual

Programs screen

Press START button to access the

Programs screen. The main features of

the Programs screen listed below. Slide

your fingertip up/down on the Programs

screen to browse more items and then

access an item by tapping on the item.

Power menu

Press and hold the POWER button for

about 3 seconds to display a countdown.

Continuing to press the POWER button

will cause a reset when the countdown

reaches zero. If you release the POWER

button

while the countdown is proceeding,

you access the following menu. Tap an

option or OK to exit.

• Shutdown: Turn off the device.

• Airplane: Enable the Airplane mode for the device.

• Reset: Restart the device.

• Vibration: Enable the Vibration mode for the device.

NOTE: If the countdown or the Power menu does not appear when the

power button is held down, continue to hold down the power button for at

least 8 seconds to start the reset. It may take up to 10 seconds for the unit

to start after the power button has been released.

JUNO T41/5

User Manual

Securing your device

You can customize the level of security you want to have on your Pocket

PC phone by locking the keypad, the entire device, or the SIM card.

Lock the keypad

The keypad lock turns off the keypad

functionality. This is a helpful feature if, for

example, your device is turned off and in

your pocket, and you want to prevent

accidental keypresses from pressing a

button.

Lock your phone

Locking your device prevents access to

personal data. When you enable this

feature, your device

will automatically lock

after a specified time of inactivity. A

screen will be displayed requiring your

device lock password before access is

granted.

Lock the SIM card

You can protect your device from unauthorized use by assigning a type of

password called a PIN (Personal Identification Number). Your first PIN will

be given to you by your mobile phone service provider.

JUNO T41/5

User Manual

Specification

CPU 800-MHz Cortex A8 ARM processor for the low end

1-GHz Cortex A8 ARM processor for the high-end

RAM 256MB for the low end

512MB for the high end

Storage 8GB for the low end

16GB for the high end

OS WM6.5 Std/Pro or Android 2.x (Stable higher version

acceptable)

Display 4.3" WVGA with Multi-touch Capacitive touch screen

Keypad

& Buttons Limited Keypad, Function Keys only

Barcode

Scanner

Barcode Scanning Thru. Camera Imaging Software, only

for the high end

1D/2D Barcode Imager/Scanner, only for the high-end 02

RFID Reader

RFID Reader provided for the high-end 01 only

Camera Color, 8 megapixel for the low-end 01, the high-

end 01, the

high-end 02, and the high-end 03

Autofocus

& Flash

Designed for the low-end 01, the high-end 01, the

high-end 02, and the high-end 03

LED Indicator

Single tri-color LED (Red/ Amber/Green)

Audio Port Microphone, Speaker, Receiver, and 3.5mm Audio Jack

GPS

2~4M, Trimble provided for the low-end, the high-end 1

and 2

1M enhanced Trimble with AGPS for the high-end 3

Expansion

Slot Micro SD

SIM Card Slot

Designed for the high end only

JUNO T41/5

User Manual

Power Source

Input voltage range of 90VAC to 240VAC at 50-60Hz

Non-removable battery, of which the life in each user case:

Low User Case: 12 hours

Normal Use Case: 9 hours

High Use Case: 5 hours

Cold Weather: 3 hours @ Freezing

Charging temperature

0°C - 40°C

Environmental

Storage temperature -40 - +70C

Models

Basic prosumer: No WWAN, no RFID, no 1D/2D barcode

imager/scanner

Military unit: No radio's or camera, 2-4M GPS

WWAN, faster CPU, 2-4M GPS, no RFID or 1D/2D

barcode imager/scanner

WWAN, 2-4M GPS and RFID

WWAN, 2-4M GPS and 1D/2D barcode imager/scanner

WWAN, 1M GPS

Bluetooth Bluetooth V2.1 or better for Low-End 01, High-End 01,

High-End 02, and High-End 03

Wi-Fi 802.11 b/g/n for Low-End 01, High-End 01, High-End 02,

and High-End 03

3G Radio Data & Voice only for High-End 01, High-End 02, and

High-End 03

Standard

Software

Office companion (WM only for Low-

End; WM / Android for

High-End)

OS and Utilities

Camera Software for Low-End 01, High-End 01, High-End

02, and High-End 03

GPS control Software

Mobile Mapping/Navigation only for High-End 01,

High-End 02, and High-End 03

JUNO T41/5

User Manual

Regulatory Information

U.S.A.

This device complies with Part 15 of the FCC Rules. It is tested to comply

with FCC standards for home or office use. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
