The NEW Specialized Solutions Series
- 4100DBDL pg.4-5
- 3
275VRP-LC pg. 6
- 3250SOM-LC “Strike-O-Matic™” pg.7
Axion Premium Electric Strikes
- 4100 Series pg. 9-12 -
4200 Series pg. 13-17
- 4800 Series pg. 18-24 -
EN Series pg. 24-31
- 3000 Series pg. 32-43
Where it all
began.
Light Commercial Electric Strikes
- 00 Series pg. 44-46 -
01 Series pg. 47
- 2000 Series pg. 48-49 -
1000 Series pg. 49
Accessories
-
4850ITL / ANSI ITL pg. 51
- Latchbolt Monitoring pg. 52
- Wireless Chimes pg. 53 -
017TDC-4/018-4 Series pg. 54
- Door Alarms/Switches pg. 55 -
Chimes/Bells/Buzzers pg. 56
- Low V. Transformers pg. 57 -
Pushbuttons pg. 58
Other
- Glossary pg. 59 - Strike Selector pg. 60-61
- Conditions of Sale pg. 62 -
Cross Reference pg. 63
Discontinued
-
4800F-10B, 4801-10B, & 4850-10B (BHMA 613 nishes) - replaced by 4800F-DKBZ,
4801-DKBZ, & 4850-DKBZ (BHMA 613e - Dark bronze powder coat)
-
2002WR Electric Strike
-
340 Door Switch
4www.trineonline.com
Specialized
THE DEADBOLT
SPLIT LATCH SOLUTION

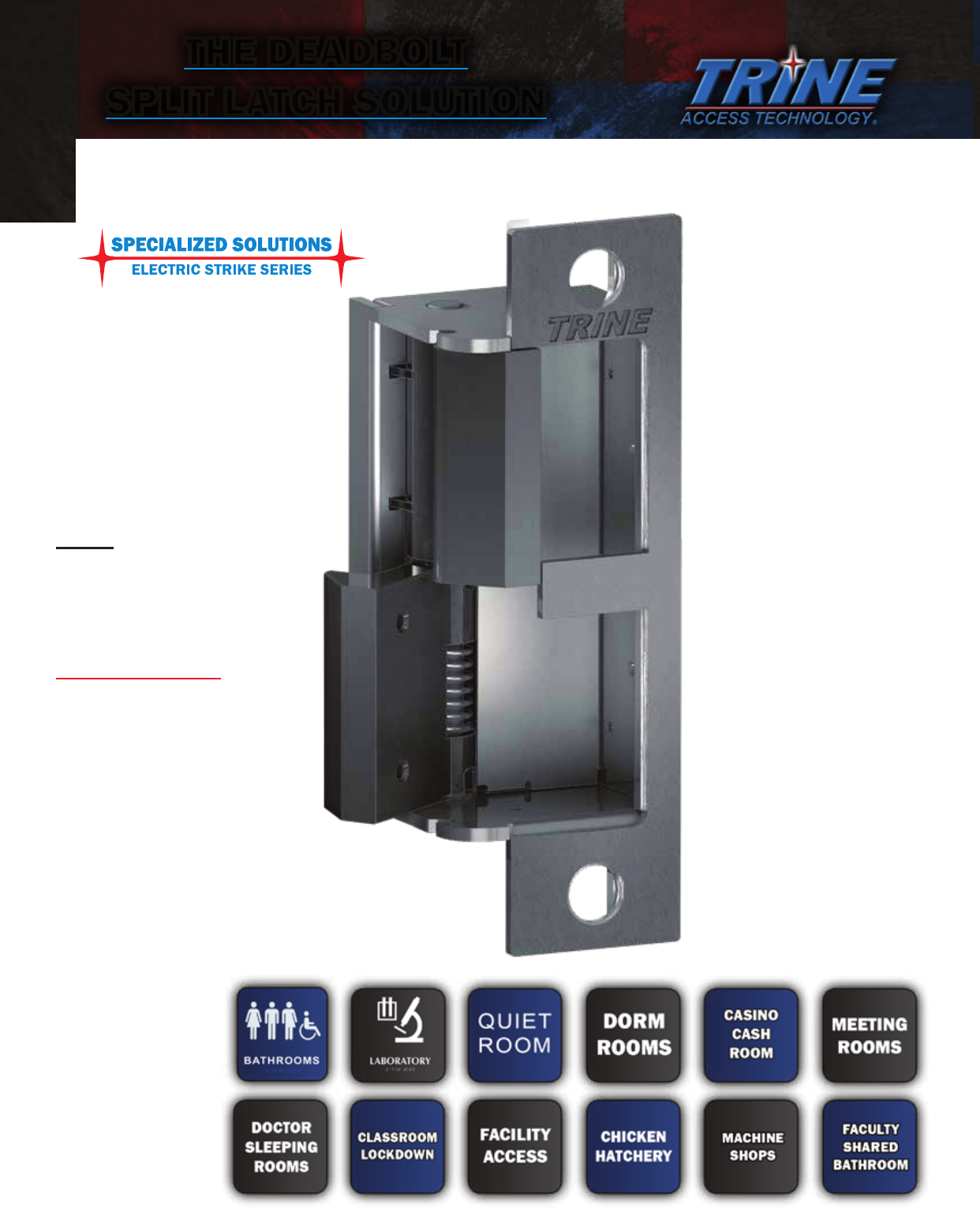

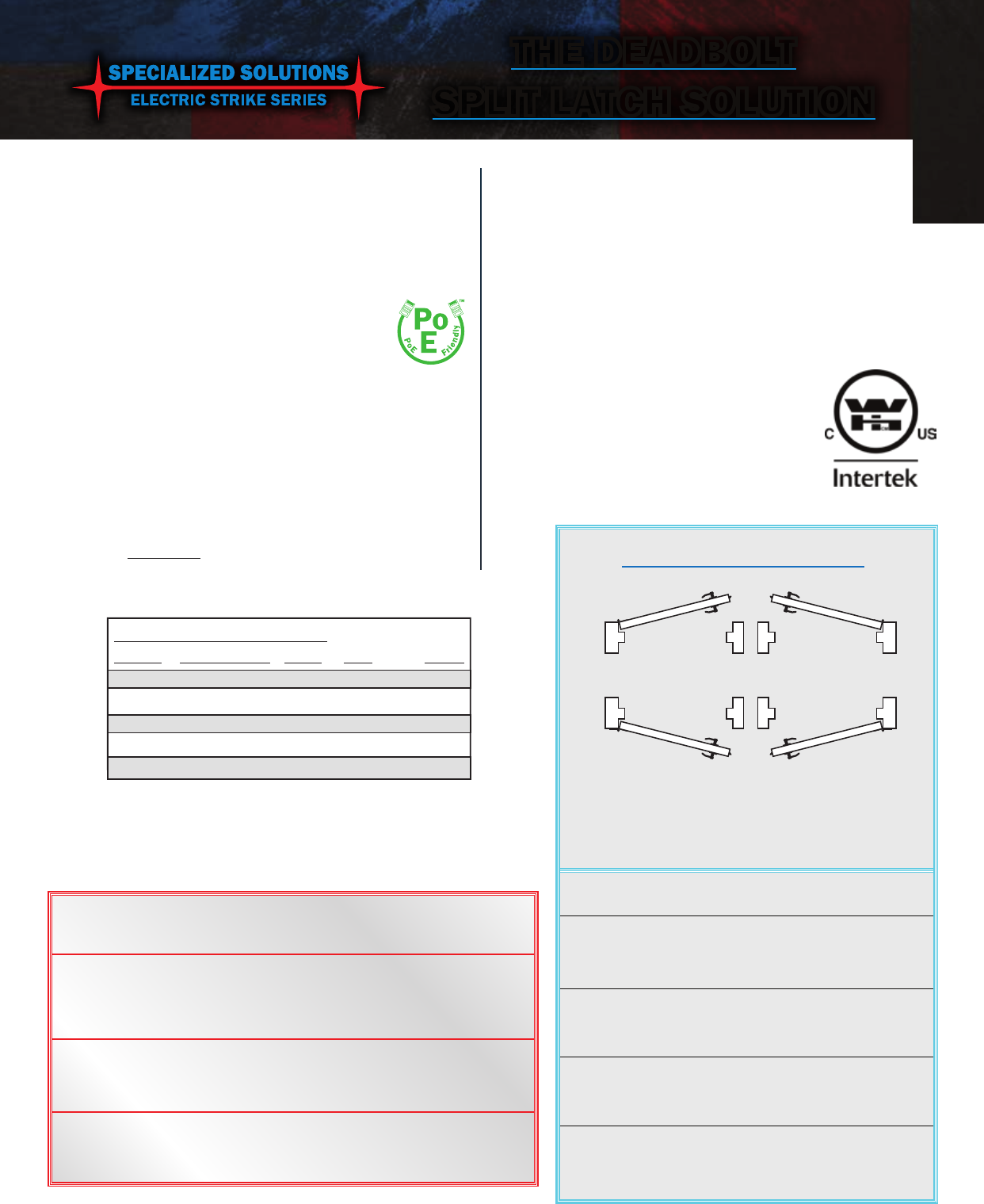

4100DBDL
The only
electric
strike with
two locking
mechanisms
that function
separately.
4 Faceplates
included
→
→
PATENTED
Designed
for deadbolt
privacy,
allowing for
an emergency
override.
Can be used for
a night-latch
function as
well (Leave the
deadbolt latch
un-powered).
Best
installation
opportunities
5
www.trineonline.com
Specialized
HOW TO ORDER
Unit is Handed
THE DEADBOLT
SPLIT LATCH SOLUTION
4100DBDL Handing and Failsafe Chart
Both latches Fail Secure (unlocks with power):
4100DBDL-LH-(nish)
4100DBDL-RH-(nish)
Both latches Fail Safe (locks with power):
4100DBDL-RS-LH-(nish)
4100DBDL-RS-RH-(nish)
Top latch (only) is Fail Safe (locks with power):
4100DBDL-RST-LH-(nish)
4100DBDL-RST-RH-(nish)
Bottom latch (only) is Fail Safe (locks with power):
4100DBDL-RSB-LH-(nish)
4100DBDL-RSB-RH-(nish)
Latchbolt monitoring - see pg 12
LB monitoring is ONLY available on 1 latch for the
4100DBDL - please specify when ordering.
LEFT HAND
(LH)
LEFT HAND
REVERSE BEVEL
(LRB)
RIGHT HAND
(RH)
RIGHT HAND
REVERSE BEVEL
(RRB)
OUTSIDE
OUTSIDE
HANDING OF DOOR IS ALWAYS DETERMINED
FROM THE OUTSIDE.
Key Features:
• Two independently operated latch systems.
• Use with mortise locks with dead bolts up to
1” projection.
• Flexible: Always be prepared!
° 4 faceplates included
°
12 & 24DC, 12-24 AC, Low Current Draw
° 1 Trim Skirt (matching nish)
• Strong: 2,000 lbs. holding force on each latch
• Durable: Exceeds 1,000,000 Life Cycles
• Works with the Schlage® L Series & Yale® 8700
Series without relocating mounting tabs.
• 1 - 11/16” backset.
4100DBDL-32D (Satin Stainless Steel -- BHMA630)
The following nishes are:
• 4100DBDL-US4 (Satin Brass -- BHMA606)
• 4100DBDL-US10 (Satin Bronze -- BHMA612)
• 4100DBDL-US10B (Dark Bronze -- BHMA613)
The following nishes are:
•
4100DBDL-32 (Polished Stainless Steel -- BHMA629)
• 4100DBDL-US3 (Bright Brass -- BHMA605)
To order Fail-safe see table to the right →
Electric Characteristics
Voltage Current/Amps Ohms Duty Sound
12DC 0.240 50 Intm./Cont. Silent
24DC 0.114 210 Intm./Cont. Silent
12AC @ 60hz 0.210 50 Intm. Buzz
16AC @ 60hz 0.280 50 Intm. Buzz
24AC @ 60hz 0.420 50 Intm. Buzz
Standards:
• 3-hour re rated --
UL10C
,
Fire Tests of Door Assemblies.
• BHMA Grade 1: ANSI/BHMA A156.5
• UBC 7-2
, Uniform Building Code.
• CAN4 S104
, Standard Method for Fire Tests
of Door Assemblies.
• NFPA 252
- Issue: 1999/01/01
Standard Methods of Fire Tests of
Door Assemblies.
• ANSI/BHMA A156.31-2007
• Patent Pending
*Per latch*
Price:
$574
$659
$699
RS price
same
as
above.
6www.trineonline.com
Specialized
3275VRP-LC
Finishes:
3275VRP-LC-ALUM
(Aluminum Powder Coat)
3275VRP-LC-DKBZ
(Dark Bronze Powder Coat)
The 3275VRP is the smallest electric strike solution
for vertical rod latches.
Utilizes the reliable 3000 series mechanism.
For Use with:
Sargent 97/68
• Arrow 3700/S1150/600
• Cal-Royal 9860V/F9860V
• Townsteel ED1200F
• Von Duprin 33/35
• Von Duprin 98/99 (Without the Deadlocking option)
Features:
• All stainless steel construction
• BHMA Grade 1
• LC100 included - 12 & 24 AC/DC
• 1,500 lbs holding force
• 500,000+ life cycles
• Horizontal adjustment
• Metal installation template included
• 1/16” spacer plate provided
• Included Trines patented 4-pin
anchoring system for stability.
LC100 included
Available NOW!
THE VERTICAL ROD
SOLUTION
VOLTAGE
PULL IN/HOLD AMPS
OHMS
12VDC .743/.298 13
12VAC .715/.277 13
24VDC .397/.170 13
24VAC .378/.173 13
DUTY:
Intermittent/Continuous
C
L
C
L
4"
2 4"
1
2 3"
4
1
1 1
8"
C
L
C
L
"
1 "
11
3
4
3
8
16
"
5
8"
1
1 32 "5
32 "
(actual size)
Price:
$379
7
www.trineonline.com
Specialized

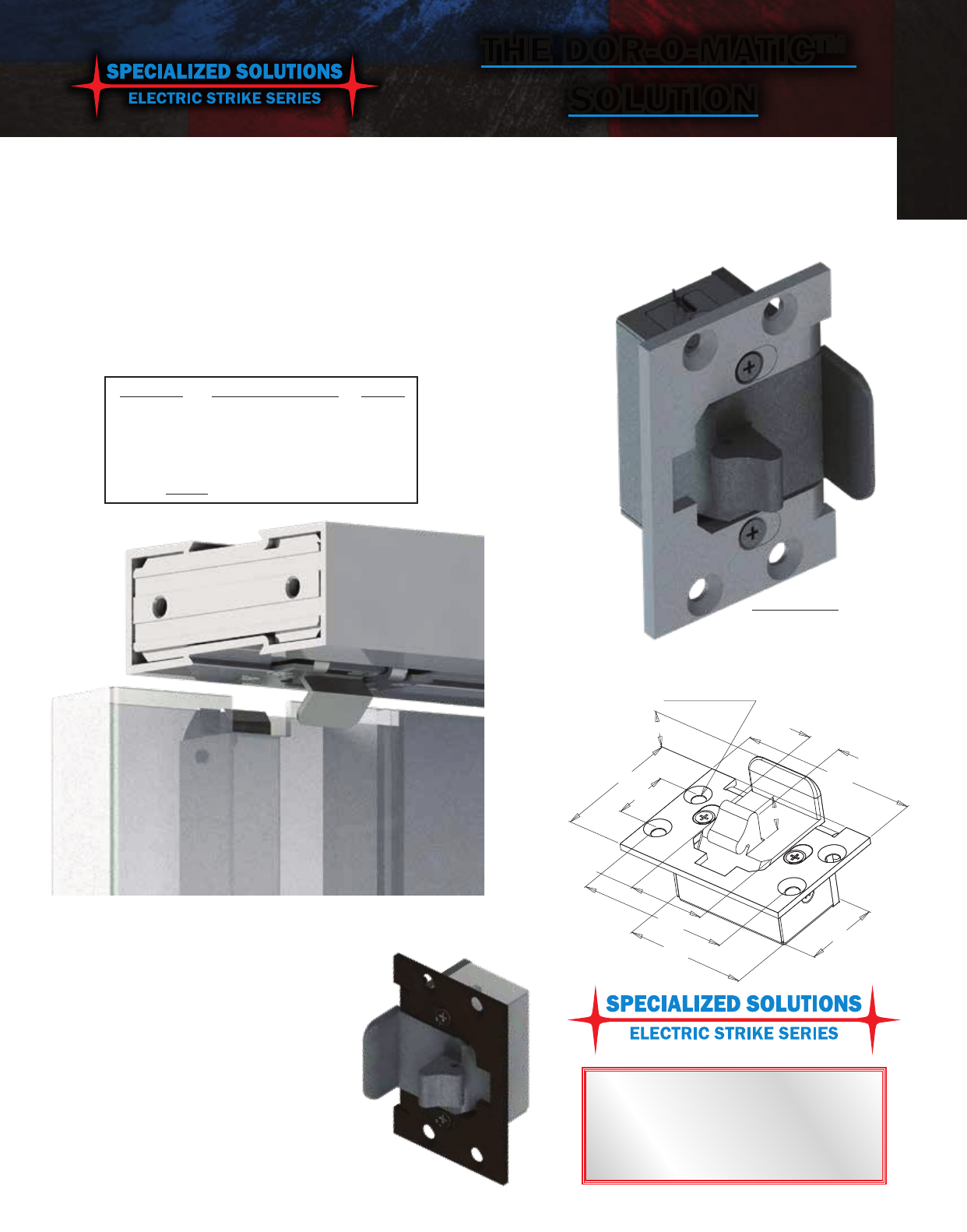

THE DOR-O-MATIC™
SOLUTION
3250SOM-LC
(STRIKE-O-MATIC™)
Finishes:
3250SOM-LC-ALDB
(Aluminum & Dark Bronze Powder
Coated Faceplates)
• Utilizes the reliable 3000 series mechanism.
• 1/8” Horizontal adjustment included.
• LC100 included for surge and kickback protection
The only electric strike for use with Dor-O-Matic®
Features:
• Two faceplates provided in
aluminum & dark bronze nish
• All stainless steel mechanism
• BHMA Grade 1
• 1,500 lbs holding force
• 500,000+ life cycles
• Horizontal adjustment
• Patented
LC100 included
VOLTAGE
PULL IN/HOLD AMPS
OHMS
12VDC .743/.298 13
12VAC .715/.277 13
24VDC .397/.170 13
24VAC .378/.173 13
DUTY:
Intermittent/Continuous
2 1/2"
1/2"
9/16"
7/16"
1 11/16"
3/4"
1 11/16"
1 1/32"
2 1/8"
1 3/32"
#10-32 MOUNTING
SCREW (4)
Available NOW!
(actual size)
Price:
$399
10 www.trineonline.com
4100 Series
Key Features:
Use with cylindrical locksets, mortise locks without
dead bolts and mortise exit devices.
• 1 - 3/8” shallow backset allows the 4100 to be used in 2” re
rated frames with 1/2” sheetrock ingress.
• Flexible:
Always be prepared!
° 4 faceplates included
° 12 & 24DC, 12-24 AC, Low Current Draw
° 1 Trim Skirt (matching nish) which covers
competitor cutouts
• Strong: 3,000 lbs. of Holding Force (factory tested)
• Durable: Exceeds 1,000,000 Life Cycles
• Works with the Schlage® L Series & Yale® 8700 Series without
relocating mounting tabs.
Standards:
• 3-hour re rated --
UL10C
, Fire Tests of Door Assemblies.
• Listed for UL1034 Burglary Resistant Electric Locking Mechanism, Grade 1
• 294 (6th Edition) Listed
• BHMA Grade 1: ANSI/BHMA A156.5
• UBC 7-2
, Uniform Building Code.
• CAN4 S104
, Standard Method for Fire Tests of Door Assemblies.
• NFPA 252
- Issue: 1999/01/01 Standard Methods of Fire Tests of Door
Assemblies.
• USPT Patented #US20110241361
• ANSI/BHMA A156.31-2007
NOTE: WH re listing is void when using fail safe action.
Everything
included.

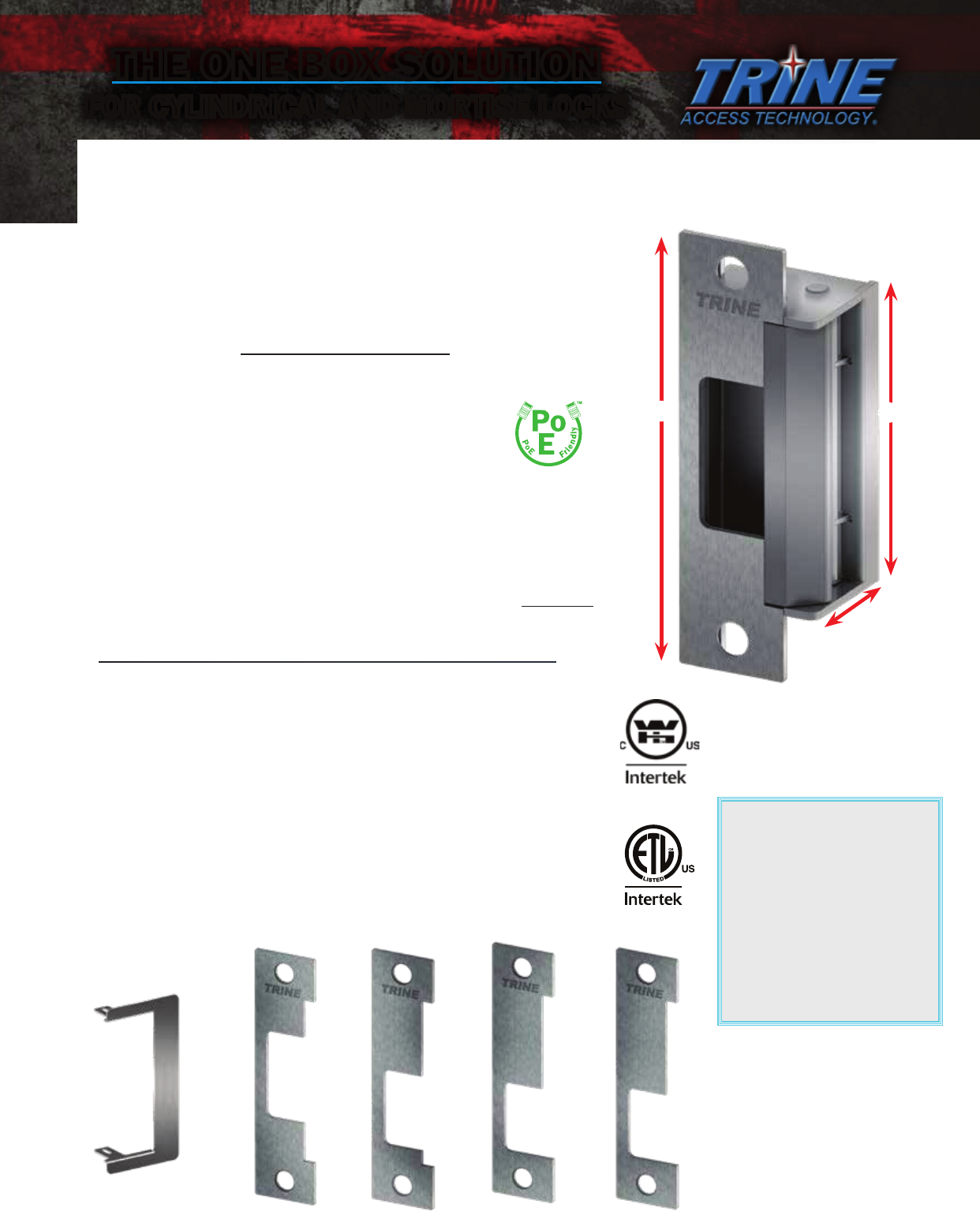

The 4100
3 -3/8”
4 -7/8”
1 -3/8”
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND MORTISE LOCKS

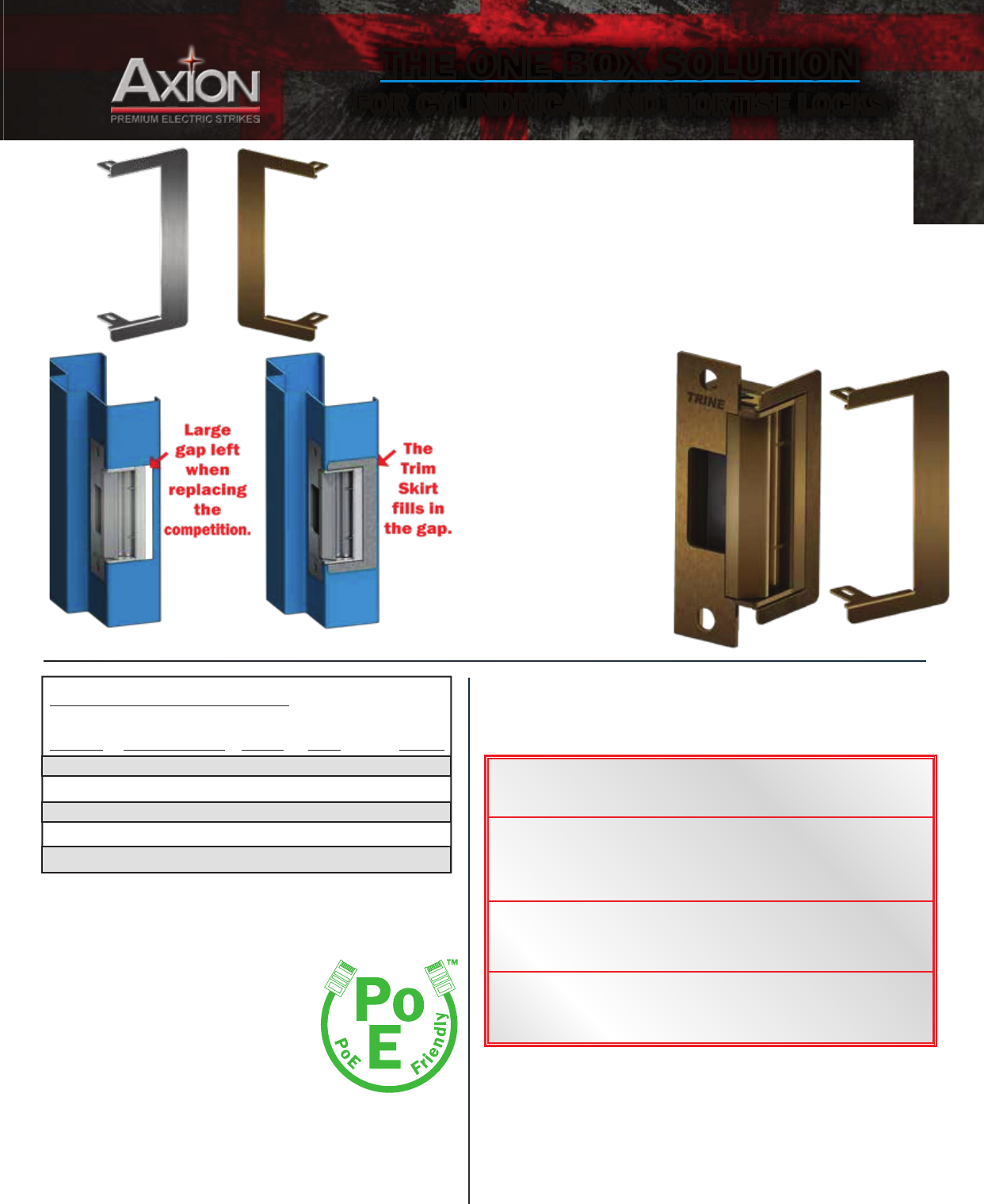

Premium trimskirt
Need an

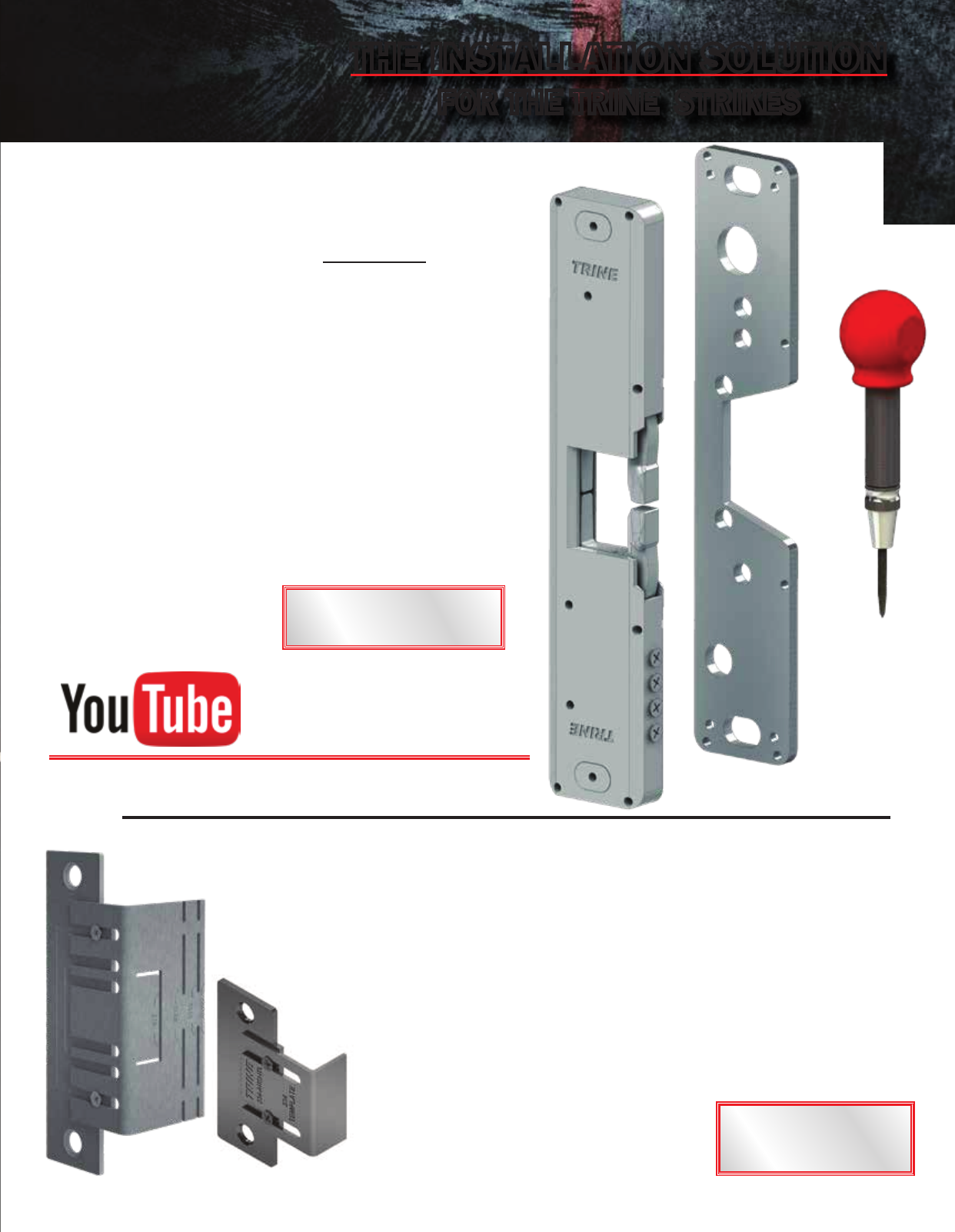

Installation Tool
See page 51
The best way to
mark and cut for the
4100...
use the ANSI-ITL.
11
www.trineonline.com
4100 Series
Power Matters
Low Current Draw
.240 Amp at 12DC makes it
very PoE Friendly
12 & 24DC :: 12 through 24AC
All the low voltage exibility
you need.
Cutting Matters
1 - 3/8” Low prole
backset provides ease
of installation. Why
cut for a deadbolt
100% of the time
when they are only
used 5% of the time.
Aesthetics Matter
The Premium stainless steel trim skirt cleans up the cut line.
Not worrying about a perfect cut on the face saves time and looks
great. Since aesthetics matter, the premium trim skirt ALWAYS
matches the nish on the faceplates and electric strike body.
Faceplates, strike body, mounting screws,
latch, and trim skirt all match the nish.
Low current draw, under 300 mA for 12DC,
solves a number of installation and network
load issues.
No additional “pacs” required.
4100-32D (Satin Stainless Steel -- BHMA630)
The following nishes are:
• 4100-US4 (Satin Brass -- BHMA606)
• 4100-US10 (Satin Bronze -- BHMA612)
• 4100-US10B (Dark Bronze -- BHMA613)
The following nishes are:
• 4100-32 (Polished Stainless Steel -- BHMA629)
• 4100-US3 (Bright Brass -- BHMA605)
For Fail-safe action (locks with power) add
“RS” to the item number. EX: 4100RS-32D
Electric Characteristics
Voltage Current/Amps Ohms Duty Sound
12DC 0.240 50 Intm./Cont. Silent
24DC 0.114 210 Intm./Cont. Silent
12AC @ 60hz 0.210 50 Intm. Buzz
16AC @ 60hz 0.280 50 Intm. Buzz
24AC @ 60hz 0.420 50 Intm. Buzz
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND MORTISE LOCKS
Price:
$499
$589
$648
RS price
same
as
above
.
12 www.trineonline.com
4100 Series
4100RX-250
• 1/4” stainless steel ramp
extensions.
• Perfect for Raco
®
frames or similar.
• Extension acts like a trim skirt to
hide the cut line pocket.
Patented
DC VOLTAGE
ONLY
Finish:
32D (Satin Stainless
- BHMA630
)
The following nishes are:
32 (Polished Stainless
- BHMA629
)
US3 (Bright Brass
- BHMA605)
The following nishes are:
US4 (Satin Brass
- BHMA606
)
US10 (Satin Bronze
- BHMA612
)
US10B (Dark Bronze
- BHMA613
)
CC9:
9” x 1 - 1/4”
Prices for faceplates only
CRD8:
7 - 15/16” x
1 - 7/16”
With radius corners.
CRD7:
6 - 7/8” x
1 - 1/4”
CCRD:
4 - 7/8” x
1 - 1/4”

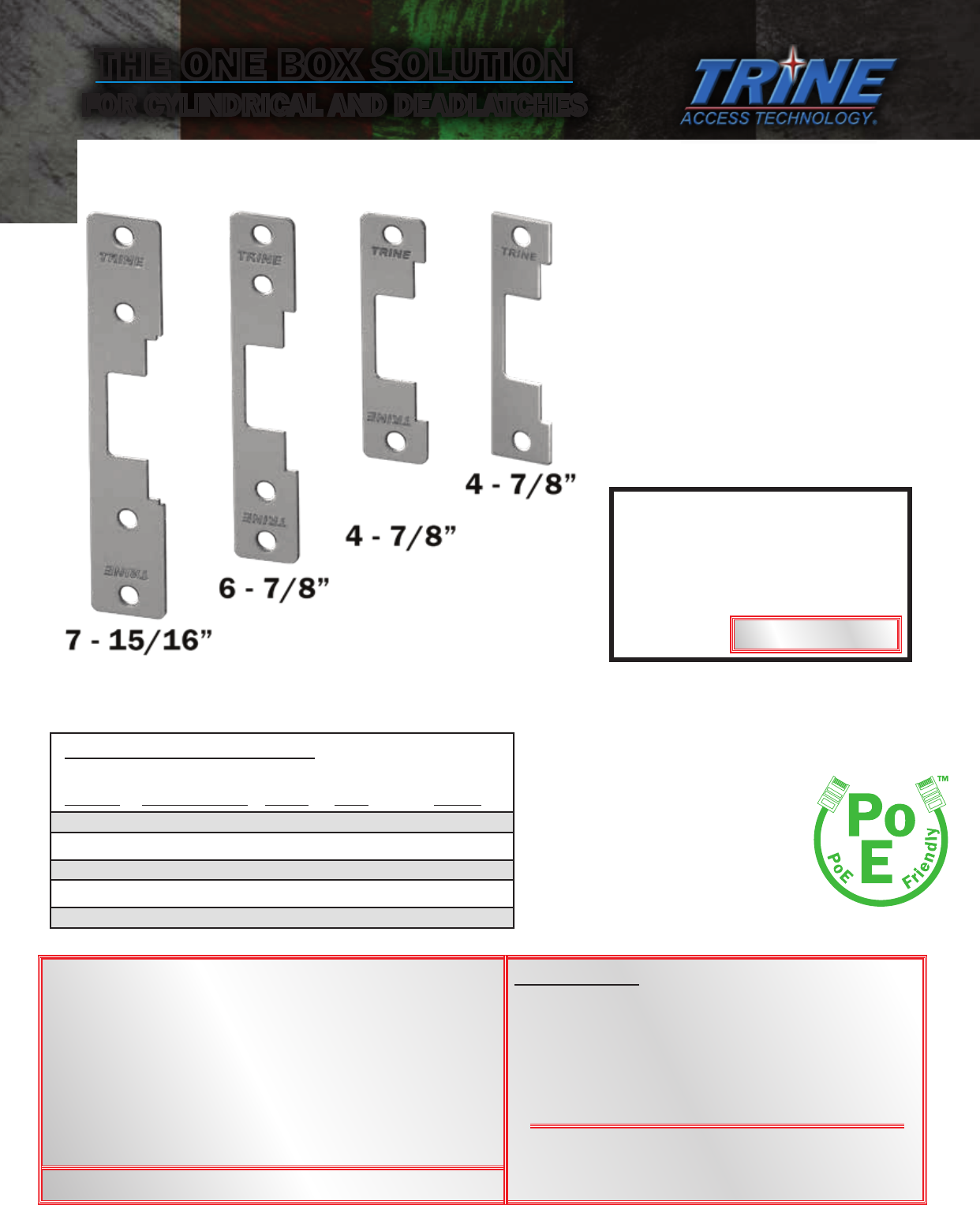

4100 Accessories
Additional Faceplates:
Piezo Buzzers:
• BZ-12: Audible buzzer for
12DC power
- - or - -
• BZ-24: Audible buzzer for
24DC power
41-4200-AK: Accessories Kit
• Standard and Torx® screws
• 4100 & 4200 Latch shims
• Plug-in style wire connectors
• Sealed crimp connectors
Aluminum Solution
We offer 3 faceplate sizes
to meet the demands of
aluminum installations.
All faceplates can be used
with the 4200.
Finishes:
4100RX-250-32D
(Satin
Stainless Steel -- BHMA630)
US32
(Polished Stainless -- BHMA629)
US10B
(Dark Bronze -- BHMA613)

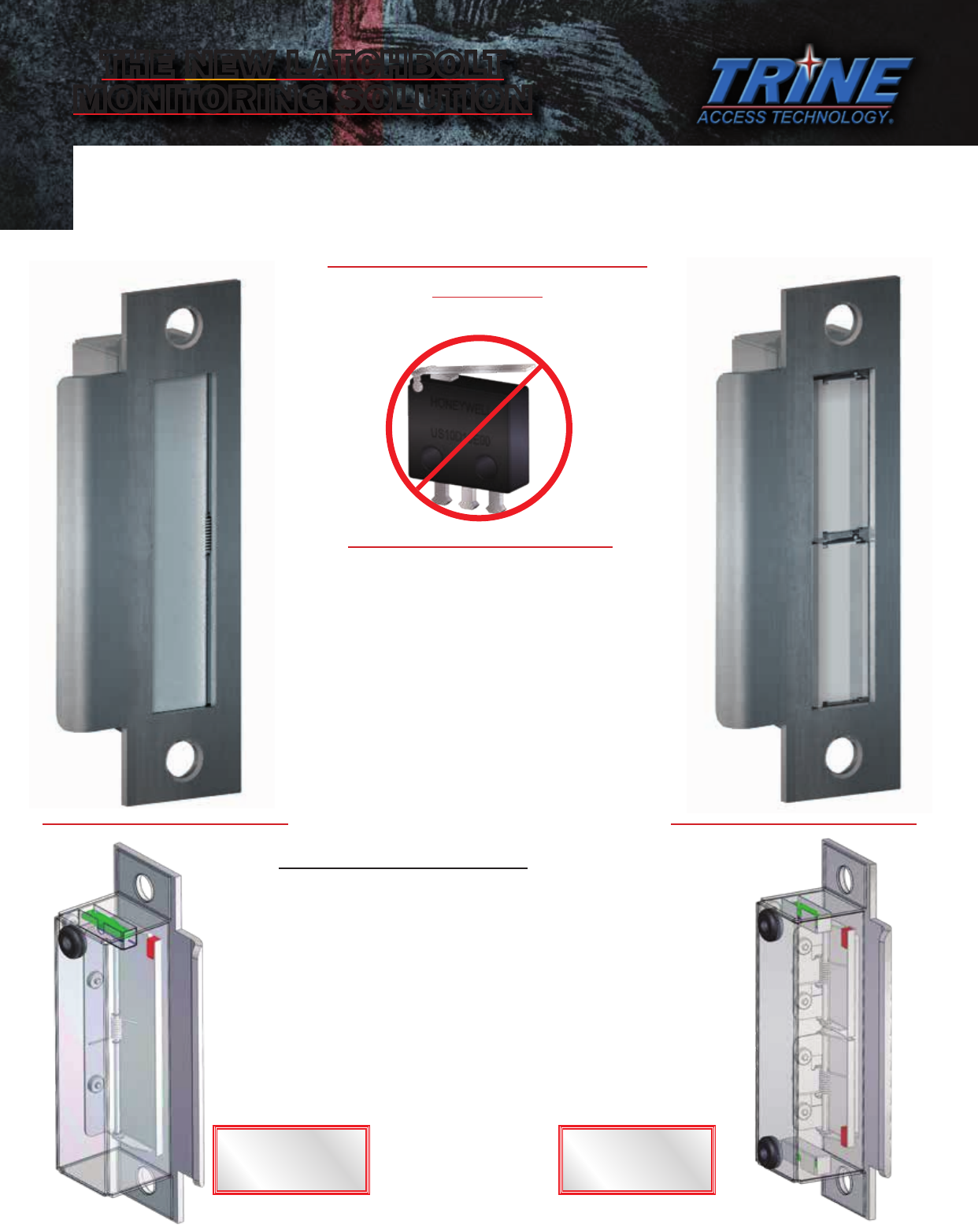

4100LB & 4100DBDL-LB & NOW WITH STRIKE MONITORING (SM)
The microswitches you’ve used for 30 years are a thing of the past.
They are affected by moisture and fail sooner than you expect.
The Trine LB AND LBSM make use of a sealed magnetic reed
switch that is moisture and environmentally resistant with a
life cycle count in excess of 2 million cycles.
Stop replacing strikes due to low cost
microswitches and start using a real Latchbolt
Monitoring Solution.
4100LB/LBSM
CHARACTERISTICS: @@
CONTACT FORM: C
CONTACT RATING: 10W
SWITCHING VOLTAGE: 30V
MAX AC/DC
SWITCHING CURRENT: 0.5 A
CONTACT RESISTANCE
STATIC: 150 MILLIOHM
BREAKDOWN VOLTAGE: 200 VDC
OPERATING TEMP: -40° - 130° C
RATE: 2,000,000+
CYCLES
4100LBSM
Latchbolt & Strike
Monitoring
4100DBDL-LB
**LB monitoring on one latch only**
see page 4-5 for more info
$40
$70
$60
$30
$60
$50
$30
$60
$50
$25
$55
$45
Price: $30 Price: $18
add $99
to the list
price.
Price:
Price:
$49
$75
$75
14 www.trineonline.com

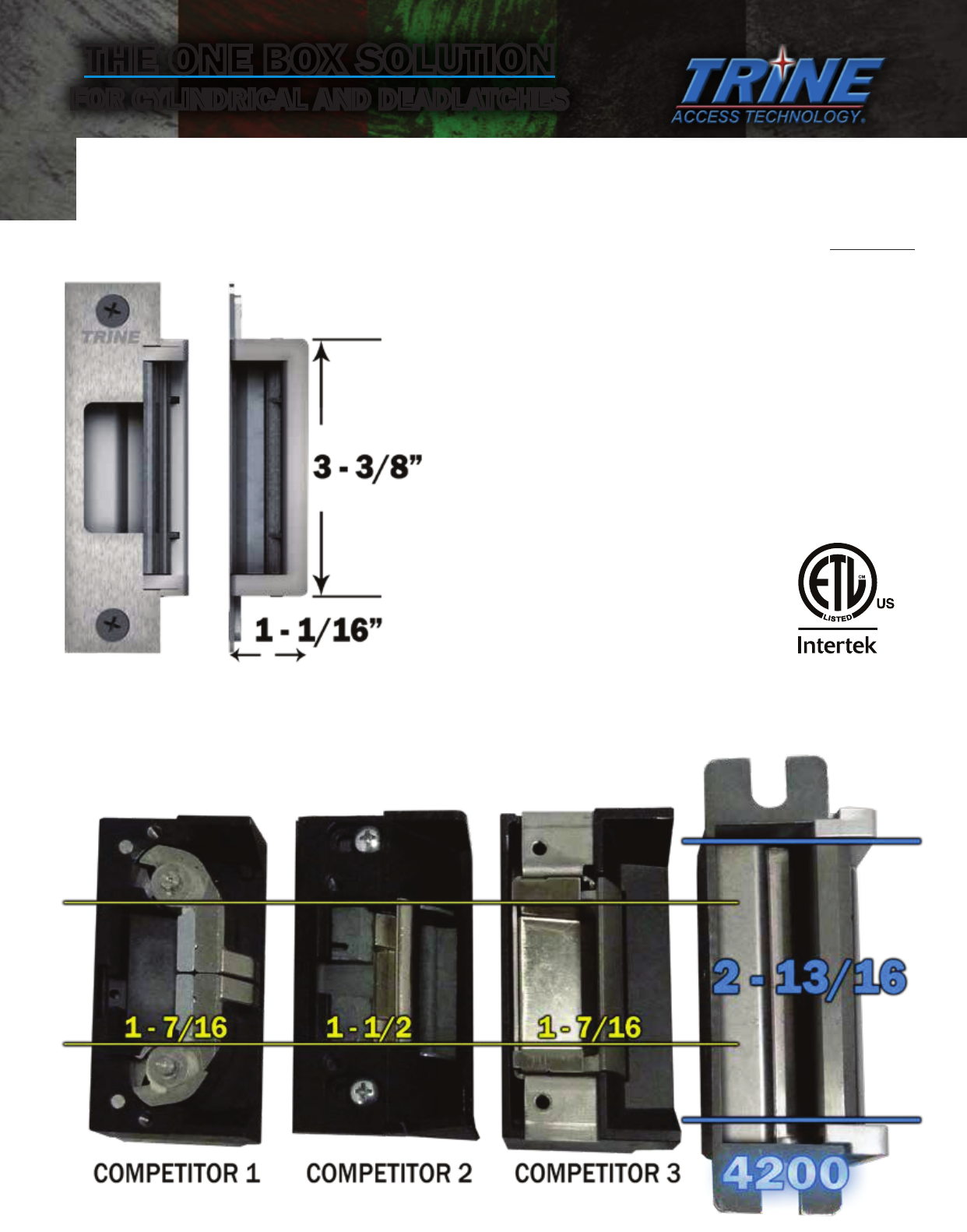

4200 Series
FLEXIBLE CAVITY
THE FLEXIBLE STRIKE
The 4200
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND DEADLATCHES
Key Features:
• Use with cylindrical locksets & dead latches in aluminum,
metal, and wood frames. The 4200 solves problems
auxiliary latch “pins” found on Adams Rite® locks.
• Tall Cavity solves door sag problems. Tallest latch in
its class.
• 1 - 1/16” shallow backset solves frame depth problems.
• 4 faceplates included
• 12 & 24DC, 12-24 AC
• Trim Skirt Included - color matched trimskirts SOLVE bad cuts.
• Removeable Fascia: Change colors in the eld to
match your frame.
Standards:
• ANSI/BHMA Grade 1 - A156.31-2007
• ETL Listed for UL1034 Burglary
Resistant Electric Locking Mechanism
• ETL Listed for UL294 (6th edition)
15
www.trineonline.com
4200 Series
FLEXIBLE FINISH
Henry Ford once said,
“you can have any color you want,
so long as it’s black.
And our competition agrees

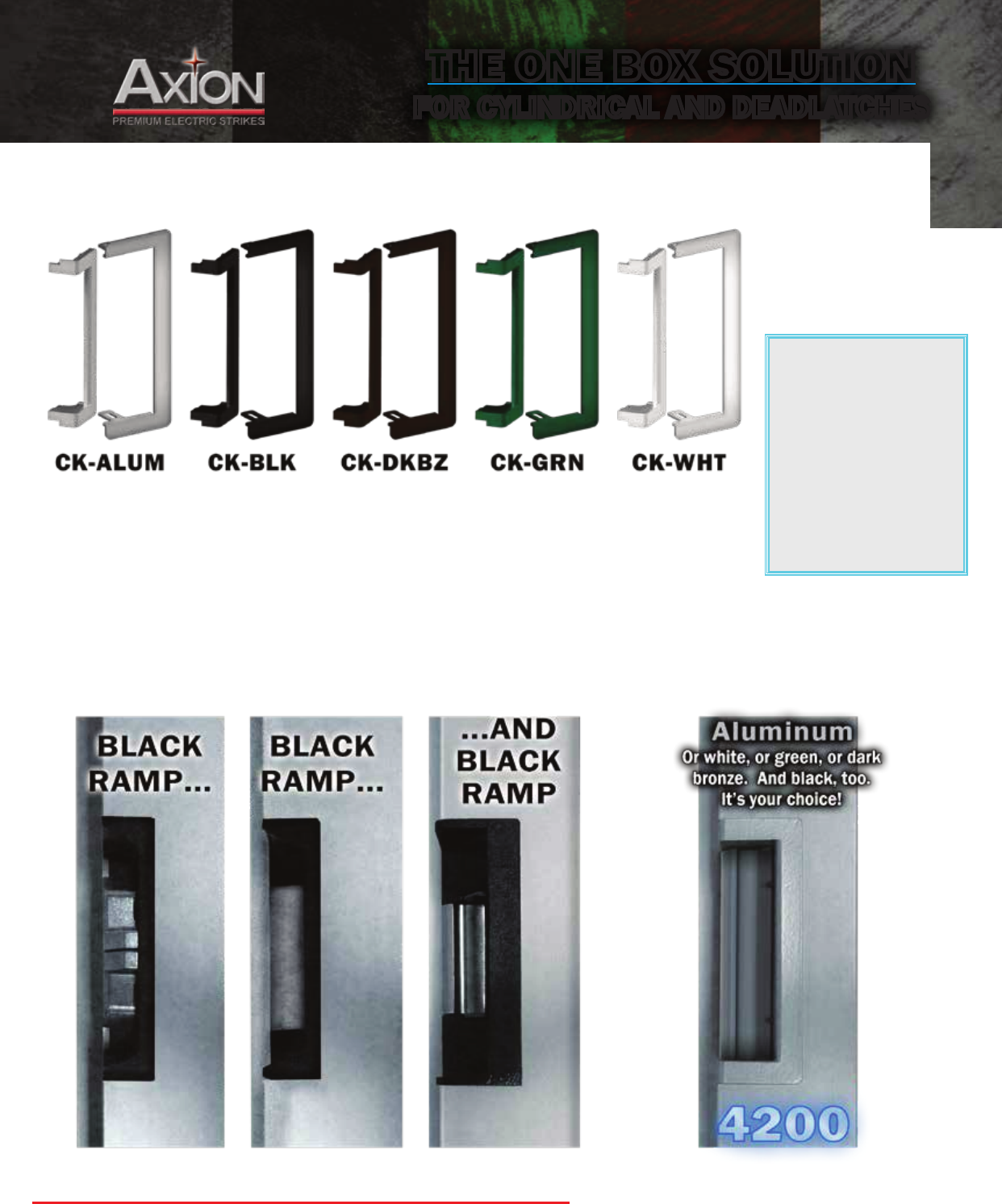

CHANGE THE FINISH IN THE FIELD WITH OUR CK SYSTEM
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND DEADLATCHES
Need an
Installation Tool
See page 51
The best way to
mark and cut for
the 4200...
use the ANSI-ITL.
16 www.trineonline.com
4200 Series
FLEXIBLE POWER
FLEXIBLE FACEPLATES
4 FACEPLATES
INCLUDED
6 FINISHES AVAILABLE
THE BEST SOLUTION
FOR ALUMINUM
FRAMES
4200-32D:
4200-ALUM:
4200-BLK:
4200-DKBZ:
4200-GRN:
4200-WHT:
CK-ALUM:
CK-BLK:
CK-DKBZ:
CK-GRN:
CK-WHT:
CK System
CK-PK:
Add “RS” for Fail-safe model (ex: 4200RS-32D)
Stainless Steel Faceplates with Black
Fascia -- Use with the CK System ->
Aluminum Faceplates & Fascia
Black Faceplates & Fascia
Dark Bronze Faceplates & Fascia
Green Faceplates & Fascia
White Faceplates & Fascia
Aluminum Fascia/Trimskirt
Black Fascia/Trimskirt
Dark Bronze Fascia/Trimskirt
Green Fascia/Trimskirt
White Fascia/Trimskirt
This pack includes 4 Fascia &
Trimskirt nish (except black)
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND DEADLATCHES
Power Matters
Low Current Draw
.240 Amp at 12DC makes it
very PoE Friendly
12 & 24DC :: 12 through 24AC
All the low voltage exibility
you need.
Electric Characteristics
Voltage Current/Amps Ohms Duty Sound
12DC 0.240 50 Intm./Cont. Silent
24DC 0.114 210 Intm./Cont. Silent
12AC @ 60hz 0.210 50 Intm. Buzz
16AC @ 60hz 0.280 50 Intm. Buzz
24AC @ 60hz 0.420 50 Intm. Buzz
41-4200-AK: Accessories Kit
• Standard and Torx® screws
• 4100 & 4200 Latch shims
• Plug-in style wire connectors
• Sealed crimp connectors
Price: $199
Price:
$80
Price:
$25
Price: $30
17
www.trineonline.com

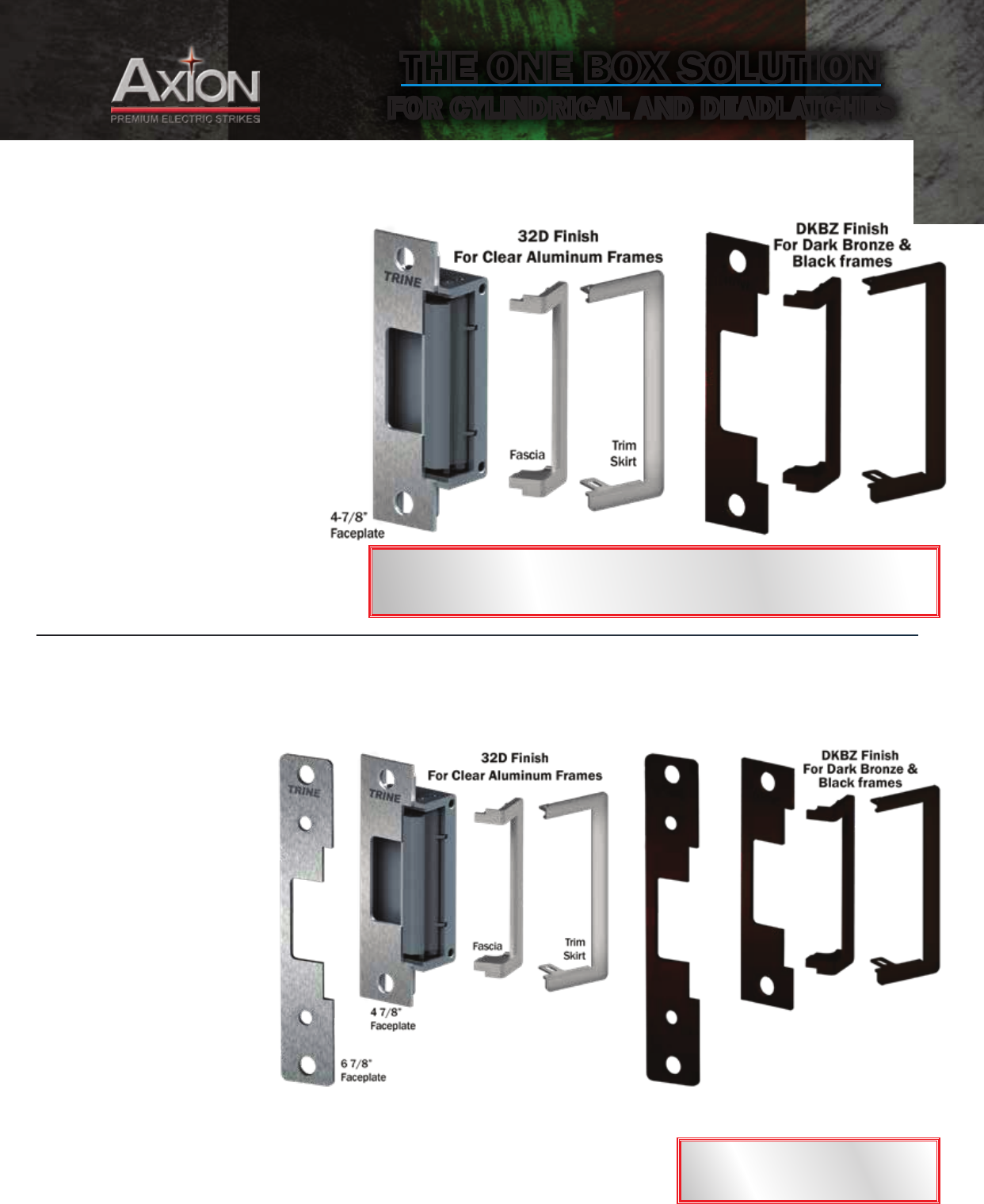

4200 Series
THE ONE BOX SOLUTION
FOR CYLINDRICAL AND DEADLATCHES

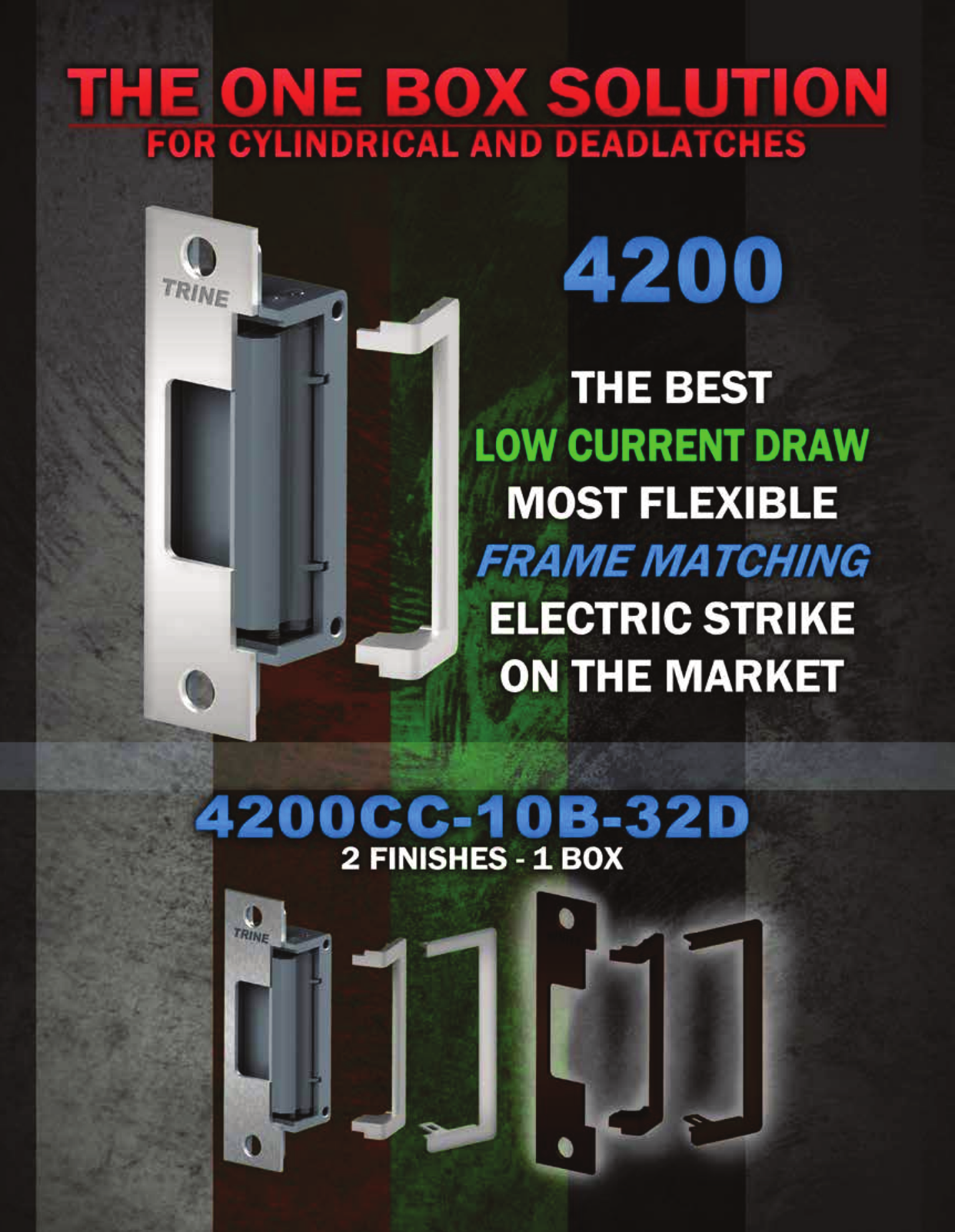

The 4200CC-10B-32D
The 4200CC7-10B-32D
ALL ITEMS SHOWN
ARE INCLUDED
ALL ITEMS SHOWN ARE
INCLUDED
4200CC-10B-32D
(squared corners)
4200CCRD-10B-32D
(rounded corners)
Key Features:
• The two most
common faceplate
sizes for aluminum
frames plus two
nish options all in
one box.
• 6-7/8" faceplate
included for changing
out an Adams Rite™
1850 S swingbolt
• Solves door sag
problems. Tallest
latch in its class.
Key Features:
• Two nish options in one
box means you're ready for
most frames.
• Tall Cavity solves door sag
problems. Tallest latch in its
class.
Price: $179
Price: $199
19
www.trineonline.com

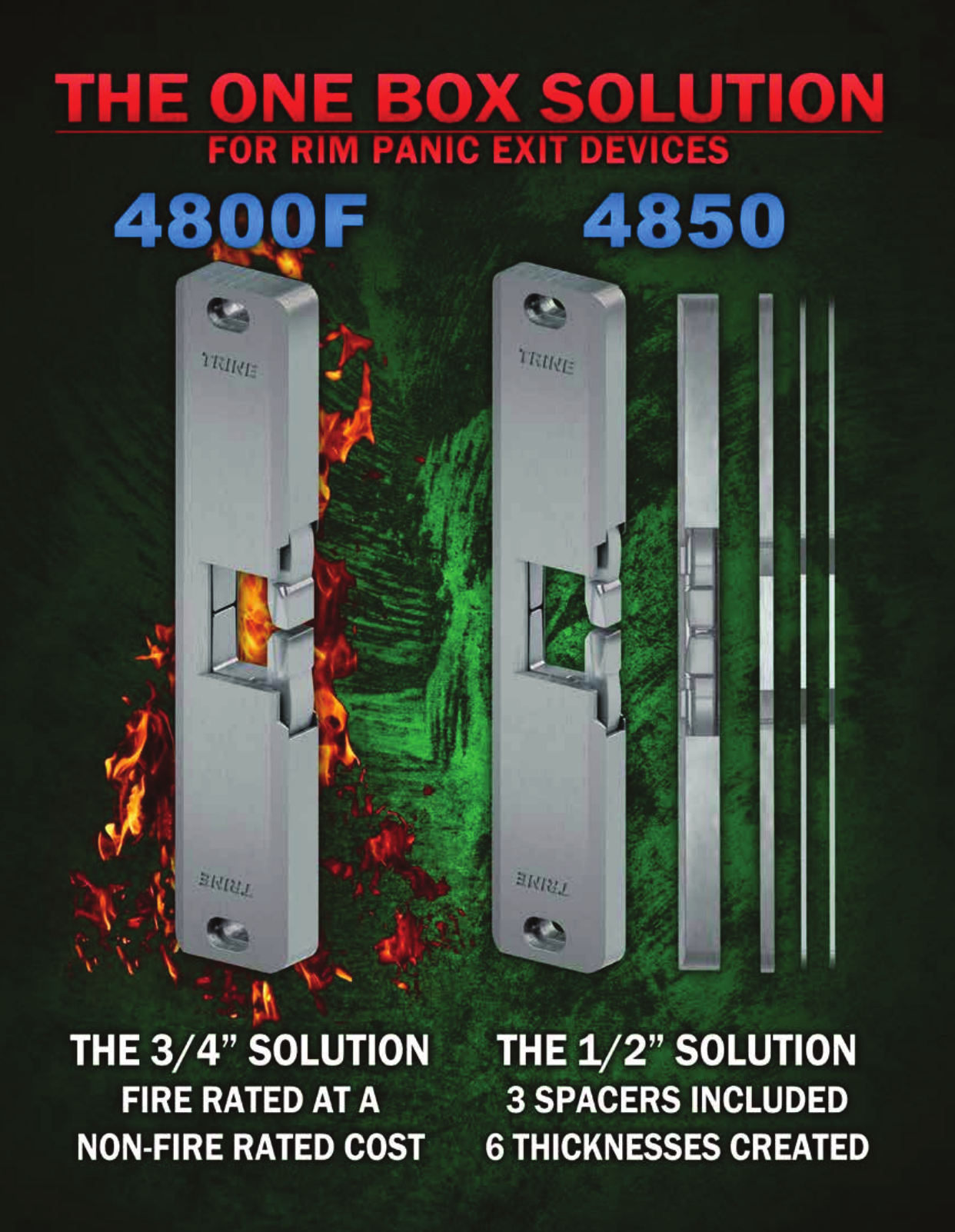

4800 Series
• For use with surface mounted rim exit devices with up to 1” throw. For use in new
or replacement installations in wood or metal door frames and tight installs.
• Comes with Trine’s Patented 4-Pin Anchoring System for strength and
stability. (See page 23 for details)
• Cavity is completely open -- which means the 4800 allows for an incremental
depth up to a 1” throw -- Competitor back plates do not allow for this versatility.
• Built-in electronics automatically allow 11 through 28 AC and DC Voltage
input -- with surge and kickback protection.
• Contains a one piece locking mechanism with one solenoid.
Less parts mean less problems.
• Fail-safe/Fail-secure eld selectable. WH re listing is void when using fail safe action.
3/4”
Two (2) 1/16”
Spacer
included
Electronics allow for PLUG and PLAY capability

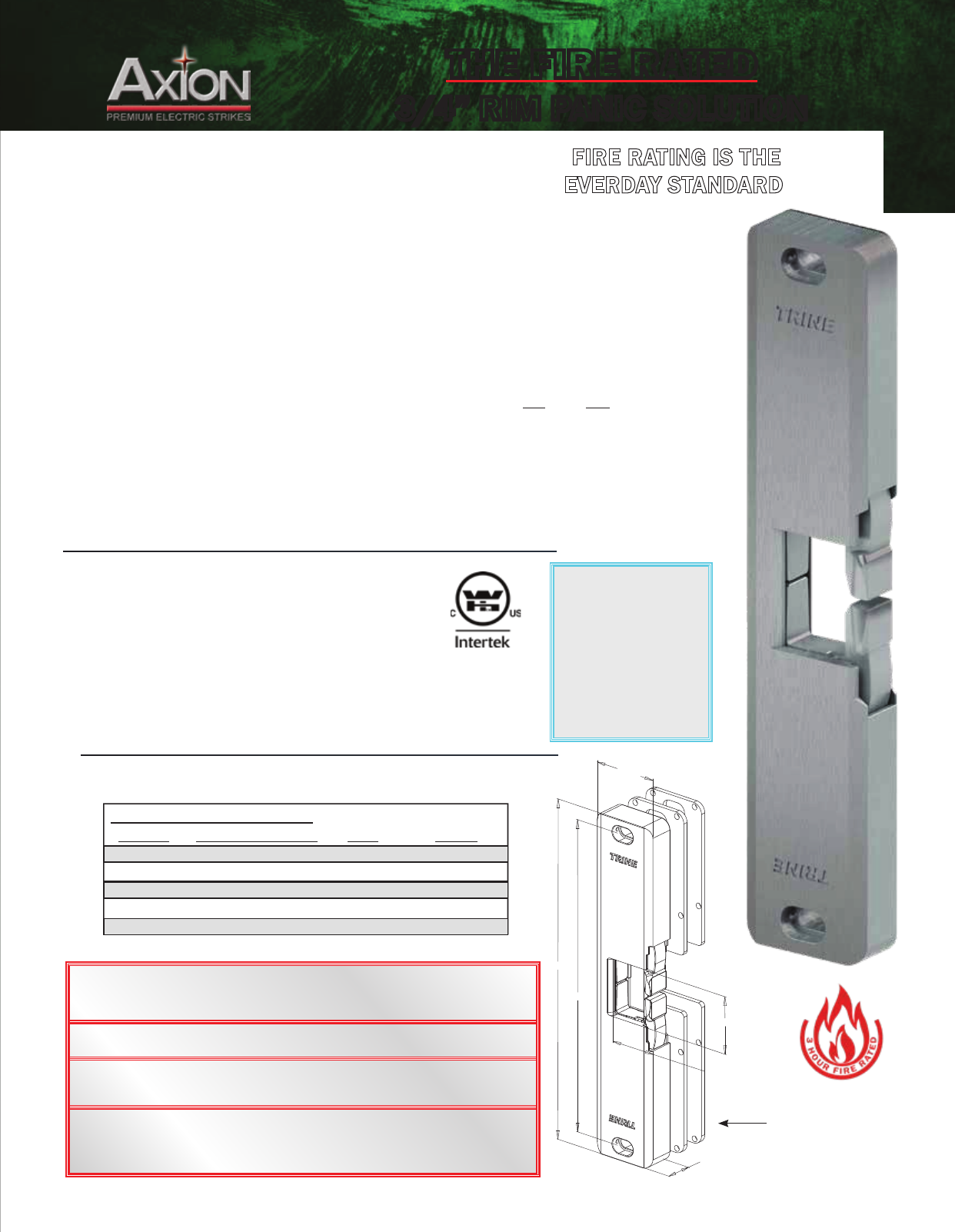

THE FIRE RATED
3/4” RIM PANIC SOLUTION
The 4800F
Electric Characteristics
Voltage Pull In/Hold Amps Duty Sound
12DC 0.566/0.217 Intm./Cont. Silent
24DC 0.253/0.099 Intm./Cont. Silent
12AC 0.509/0.181 Intm./Cont. Silent
16AC 0.405/0.149 Intm./Cont. Silent
24AC 0.215/0.087 Intm./Cont. Silent
See Page 23 for options.
4800F-32D (Satin Stainless Steel -- BHMA630)
4800F-DKBZ
(Dark Bronze Powder Coated -- BHMA613E)
4800F-US4 (Satin Brass -- BHMA606)
4800F-US10 (Satin Bronze -- BHMA612)
4800F-32 (Polished Stainless Steel -- BHMA629)
4800F-US3 (Bright Brass -- BHMA605)
FIRE RATING IS THE
EVERDAY STANDARD
Standards:
Class A, 3 Hour Single door / frame conguration
- UL10C, Fire Tests of Door Assemblies
- UBC 7-2, Uniform Building Code
- CAN4 S104, Standard Method for Fire Tests of Door Assemblies
NFPA 252
Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
-
BHMA Grade 1 Electric Strike
Need an
Installation Tool
See page 51
The best way to
mark and drill for
the 4800F is the
4850-ITL.
3/4"
1 1/2"
1 3/4"
9"
8 1/4"
1 1/8"
Price:
$499
$525
$575
$595
20 www.trineonline.com
4800 Series
3 Spacers included,
6 Thicknesses created,
1 Box solution provided.
• For use with surface mounted rim exit devices
with up to a 1” throw.
• Cavity is completely open -- which means the
4850 allows for an incremental depth up to a 1”
throw -
Competitor back plates do not allow for this
versatility.
• Built-in electronics automatically allow 11 through 28
DC voltage input -- with surge and kickback protection
• Comes with Trine’s Patented 6-Pin Anchoring System
for strength and stability. (See page 23 for details)
• Contains a one piece locking mechanism with one
solenoid -- less parts mean less problems.
• Fail-safe/Fail-secure eld selectable.
• BHMA Grade 1 Electric Strike
See Page 23 for options.
4850-32D (Satin Stainless Steel -- BHMA630)
4850
-DKBZ
(Dark Bronze Powder Coated -- BHMA613E)
4850-US4 (Satin Brass -- BHMA606)
4850-US10 (Satin Bronze -- BHMA612)
4850-32 (Polished Stainless Steel -- BHMA629)
4850-US3 (Bright Brass -- BHMA605)
THE ONE BOX SOLUTION
FOR RIM PANIC EXIT DEVICES
1/2” 1/4” 1/16”
Electric Characteristics
Pull In/Holding
Voltage Current/Amps Duty Sound
12DC 0.500/0.178 Intm./Cont. Silent
16DC 0.385/0.131 Intm./Cont. Silent
24DC 0.255/0.084 Intm./Cont. Silent
The 4850
Need an Installation Tool
See page 51
The best way to mark and drill for the
4850 is the 4850-ITL.
Price:
$499
$530
$580
$595
21
www.trineonline.com
4800 Series
1/16"
1/4"
9"
1 3/4"
1/2"
1/16"

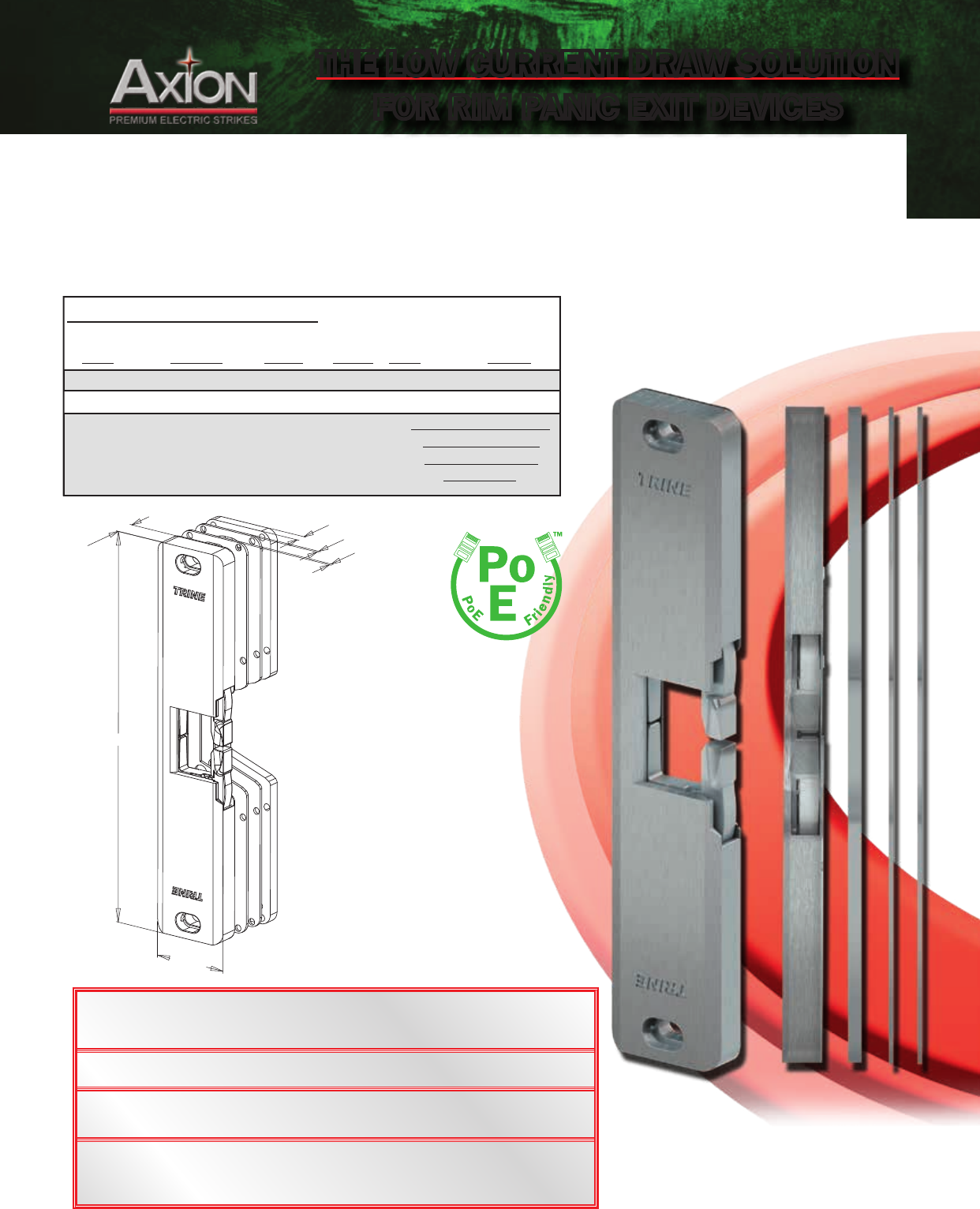

THE LOW CURRENT DRAW SOLUTION
FOR RIM PANIC EXIT DEVICES
The 4850PoE & LCD
NOW WITH TWO
1/16” SPACERS
Low Current Draw means smaller or no additional power
supply is required for most installations.
4850 Series
Dimensions
Electric Characteristics
Item Voltage Amps Watts Duty Sound
4850PoE 12DC 0.260 3.12 Intm./Cont. Silent
4850LCD 24DC 0.135 3.24 Intm./Cont. Silent
Other surface mounted
strikes start at:
12DC 0.450 5.40
24DC 0.250 6.00
Don’t Forget Amperage
Drop! Compensate
with a Low Current
Draw Strike.
See Page 18 for options.
4850PoE-32D (Satin Stainless Steel -- BHMA630)
4850PoE
-DKBZ
(Dark Bronze Powder Coated -- BHMA613E)
4850
PoE
-US4 (Satin Brass -- BHMA606)
4850
PoE
-US10 (Satin Bronze -- BHMA612)
4850
PoE
-32 (Polished Stainless Steel -- BHMA629)
4850
PoE
-US3 (Bright Brass -- BHMA605)
Price:
1/2”
***Replace “PoE” with the
letters “LCD” when ordering
the 24DC model***
1/2” 1/4” 1/16”
See Page 23 for options.
$499
$530
$580
$595
22 www.trineonline.com
4800 Series
Add “LB” to any 4800 series
electric strike
Example:
• 4800
FLB
-32D
• 4850
LB
-10B
• 4801
LB
-32

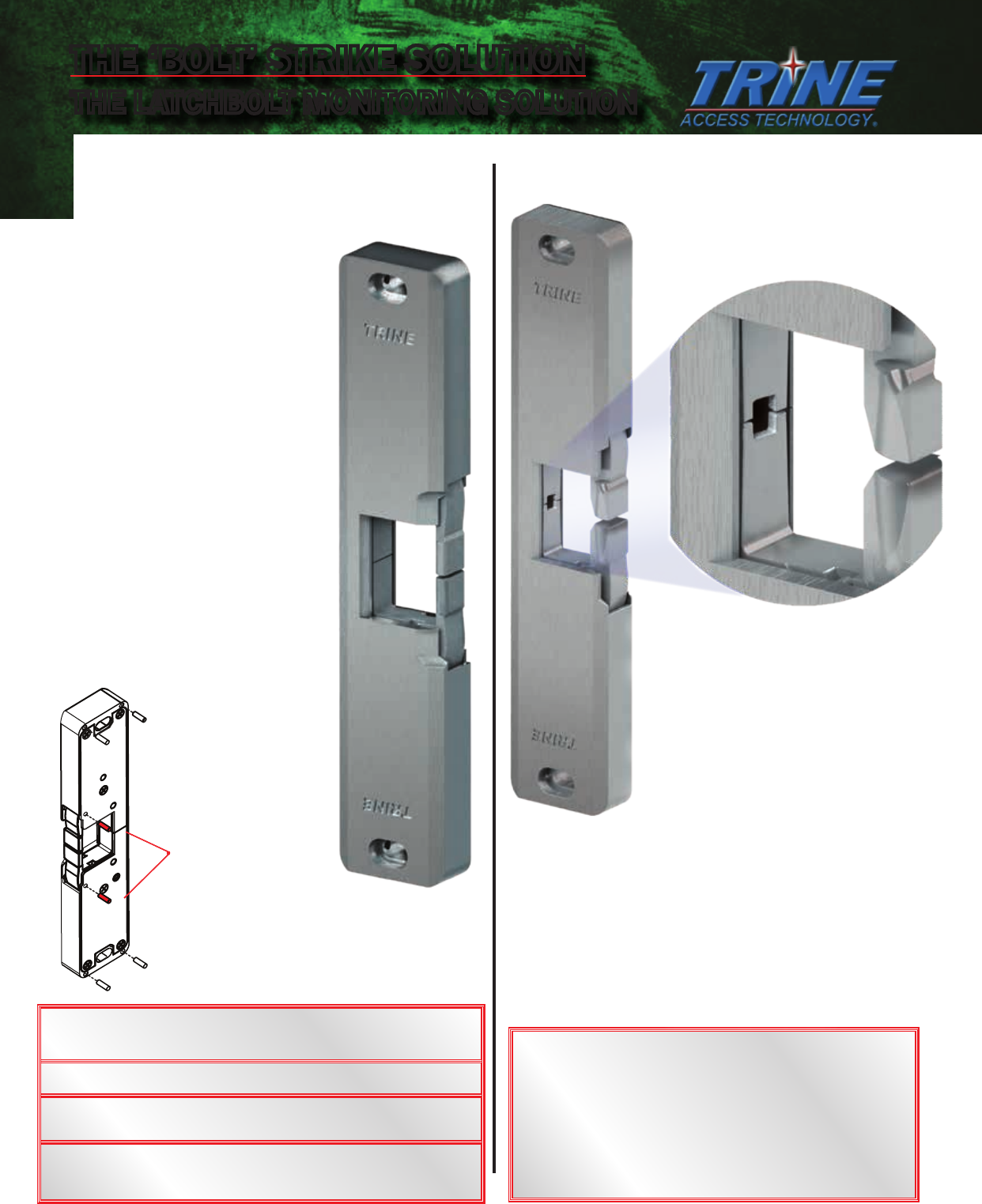

4801 - “Bolt” Strike Latchbolt Monitoring
(LB Option)
• For use with the Yale
Squarebolt® or Corbin
Russwin Securebolt™
in new or replacement
installations with wood or
metal door frames.
• Use with surface mounted
rim device with up to 1”
throw.
• Cavity Opening -
Height: 1 17/32”
Width: 1 5/32”
• 6-Pin Anchor system
provided to handle the
toughest installations.
• Electronics and BHMA
rating same as the 4800F
- see page 19.
*Must Install
2 middle
pins on the
4801/4801LB
• IR optical sensor
• Single pole, double throw, form
“C” Relay, rated at 1-amp at 12-
24 AC-DC
• N/O and N/C relay contacts
• Module power source
• 12-24 DC
• Current consumption is:
12v: standby 12.7ma
activate 22.8ma
24v: standby 19.4ma
activate 34.4ma
• All other features are the same
as the base model.
THE ‘BOLT’ STRIKE SOLUTION
THE LATCHBOLT MONITORING SOLUTION
4801-32D (Satin Stainless Steel -- BHMA630)
4801-DKBZ
(Dark Bronze Powder Coated -- BHMA613E)
4801-US4 (Satin Brass -- BHMA606)
4801-US10 (Satin Bronze -- BHMA612)
4801-32 (Polished Stainless Steel -- BHMA629)
4801-US3 (Bright Brass -- BHMA605)
add
$99.00
to the price of
the base unit.
Price:
Price:
$530
$535
$599
$610
23
www.trineonline.com

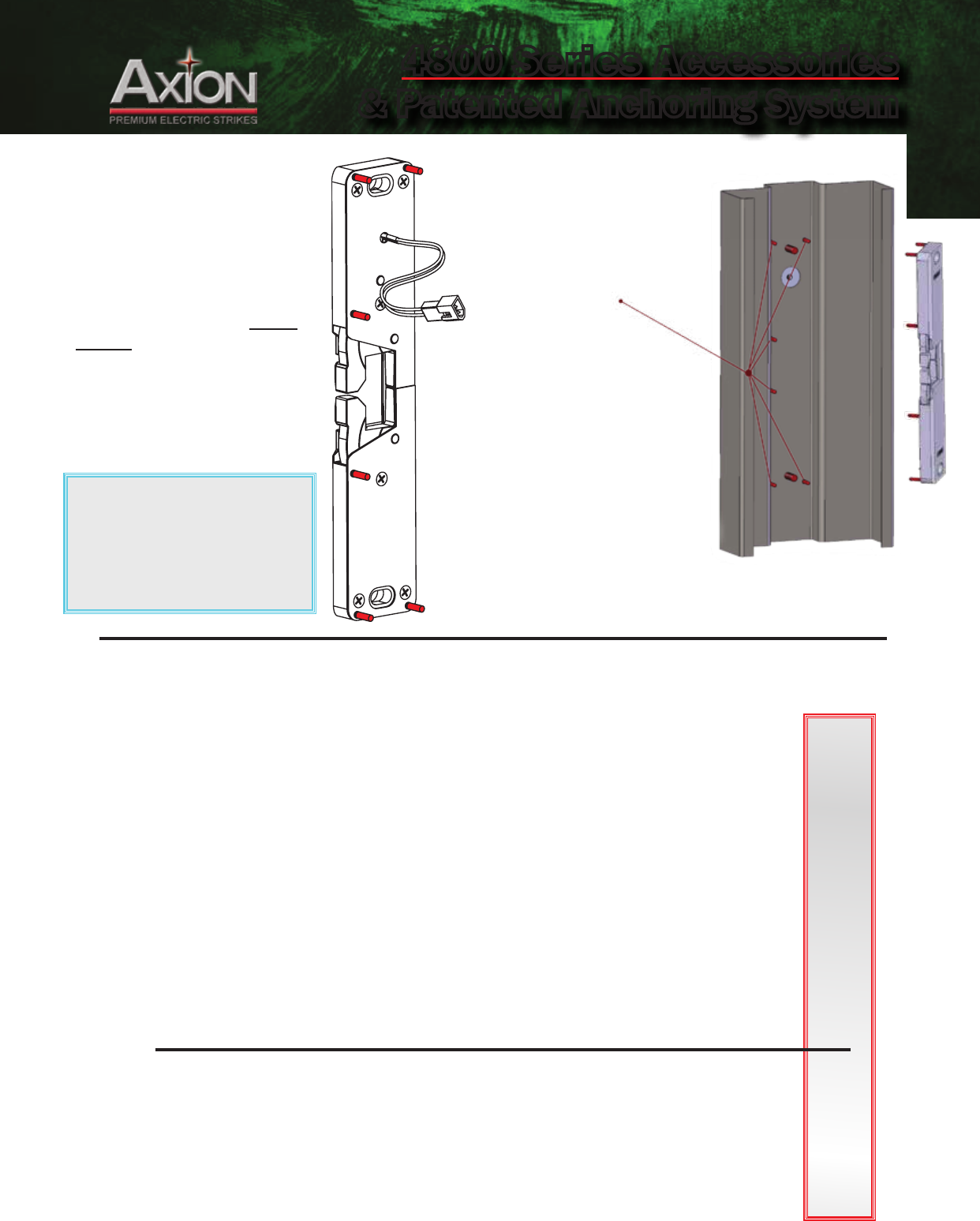

4800 Series
4800 Series Accessories
& Patented Anchoring System
PATENTED
ANCHORING SYSTEM
4800 Series Accessories
THE CONFIGURATION IS YOUR CHOICE
• Included in every 4800
series strike.
• Prevents strike from shifting
on the frame for the most
secure installation.
• Two center pins suggested
for installs in high trafc
locations.
• The Anchor System
provides up to six
additional points of
contact for the toughest
installations.
• The 4850 can have
a total 8 points of
connection between
the frame and strike for
maximum strength.
• Anchoring pins are
.128” diameter. A #30 drill
bit is recommended.
MWH-5
REMOVABLE MULLION WIRE HARNESS FOR 4800 SERIES ELECTRIC STRIKES
4850-AK: ACCESSORIES KIT
4800-AK: ACCESSORIES KIT
4800-SS: TWO 1/16” SPACER PLATES IN 32D
4850-SS: 1/4” SPACER PLATE IN 32D
Contains:
• (1) 5’ Wire for mullion with male/female connectors. • (4) Wire caps
• (1) Male connector & (1) Female connector. • (1) Wire tie
• (1) Mullion cap, & (1) Wire adhesive.
Contains:
• (1) Fail safe plunger with spring & (1) Fail safe cam.
• (6) Anchoring pins. • (1) Wire connector • (2) Wire caps
• (2) 1/4-20 x 1” UH Cap socket mounting screws
Contains:
• (1) Fail safe plunger with spring
• (4) Anchoring pins. • (1) Wire connector • (2) Wire caps
• (2) 1/4-20 x 1” UH Cap socket mounting screws
Fits all 4800 Series Electric Strikes
Fits all 4800 Series Electric Strikes
4800-SS-DKBZ: TWO 1/16” SPACER IN DARK BRONZE 613E
4850-SS-DKBZ: 1/4” SPACER IN DARK BRONZE 613E
Need an Installation Tool
See page 51
The best way to mark and
drill for the 4800 series is
the 4850-ITL.
Price:
$35
$29
$29
$25
$34
$40
$49
25
www.trineonline.com
EN Series

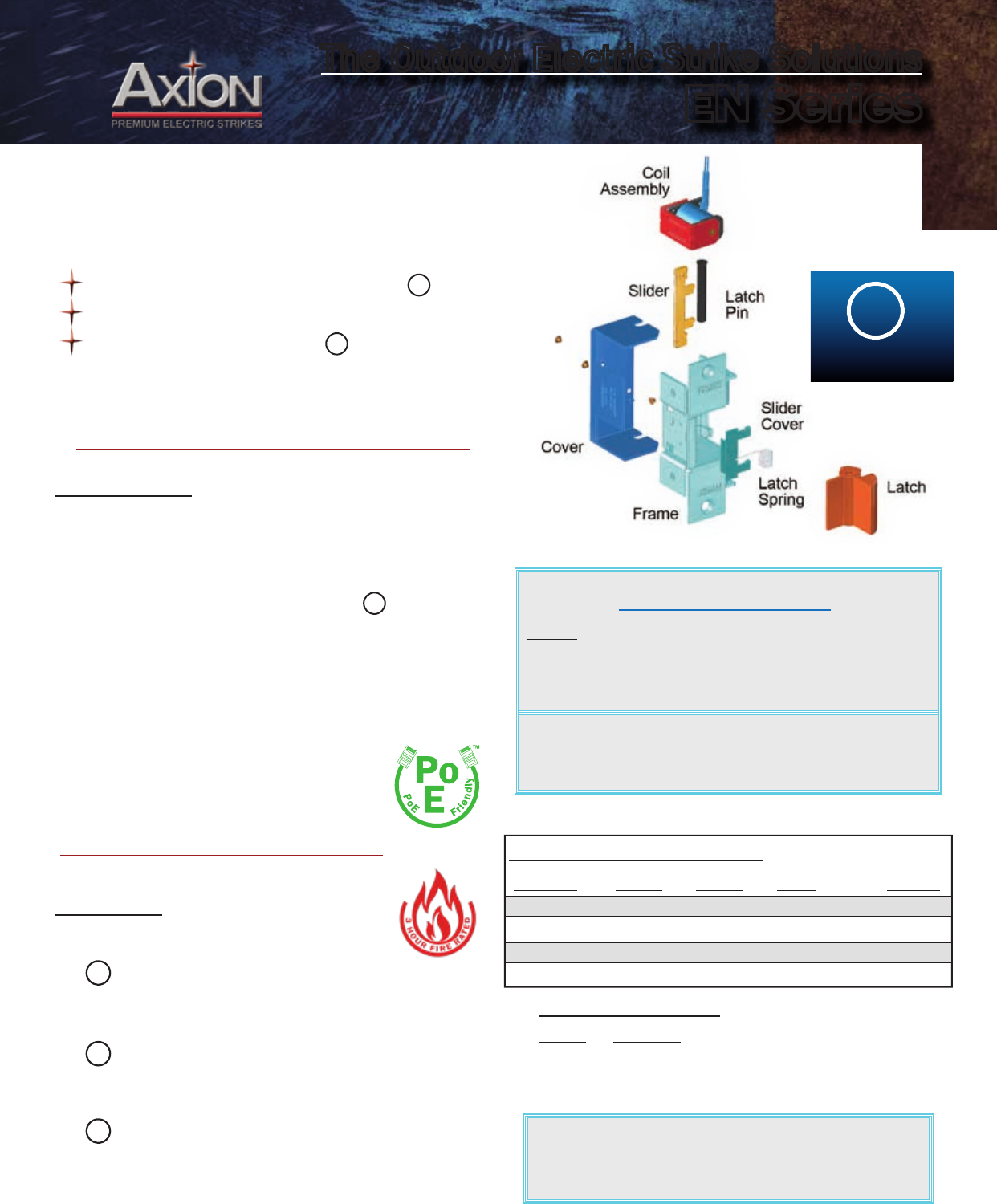

Key Features
• Continuous Duty runs very cool (DC only)
• Durability of 1,000,000+ life cycles
• A holding force of 2,000+ lbs -- Tested!
• Fail-secure/Fail-safe is eld reversible on
DC units (except on 430 & 435 models)*
• Left and Right handing is eld reversible
(except the offset 430 & 435 models)*
• Low Current Draw (DC Models*)
Voltage & Amp draw is the
same across all EN Models
• Contains ONLY 8 total parts.
•
Only 1 moving part in the locking mechanism.
• All stainless steel construction.
Superior Strength - 2,000+ lbs - tested.
Superior Life - 1,000,000+ cycles.
Superior Application - Outdoor
rating allows the strike to be used
where the competition can not.
UL
®
UL
®
UL
®
Standards
• Listed 10C - Fire-rated
- Class A, 3-hour, single swing door
(except on 400RP, 800 & 850 models)
• UL 1034 burglary-resistant
listed and suitable for outdoor use
• UL 294 (6th Edition) listed
• BHMA 156.31 2001, Grade 1
• NYC MEA 79-01-E
UL
®
UL
®
UL
®
Wire Lead Color Codes
Voltage Wire Colors
12AC - Blue & Orange/White || 24AC - Blue & Black/White
12DC - 2 - Orange/White || 24DC - 2 - Black/White
Electric Characteristics
Voltage Amps Ohms Duty Sound
12AC 0.70 4.5 Intm. Buzz
24AC 0.37 18.0 Intm. Buzz
12DC 0.28 43.0 Intm./Cont. Silent
24DC 0.15 164.0 Intm./Cont. Silent
UL
C US
LISTED
®
UL
C US
LISTED
®
The Outdoor Electric Strike Solutions
EN Series
Need an Installation Tool
See page 51
. The best way to mark and
cut for the EN400 is the ANSI-ITL.

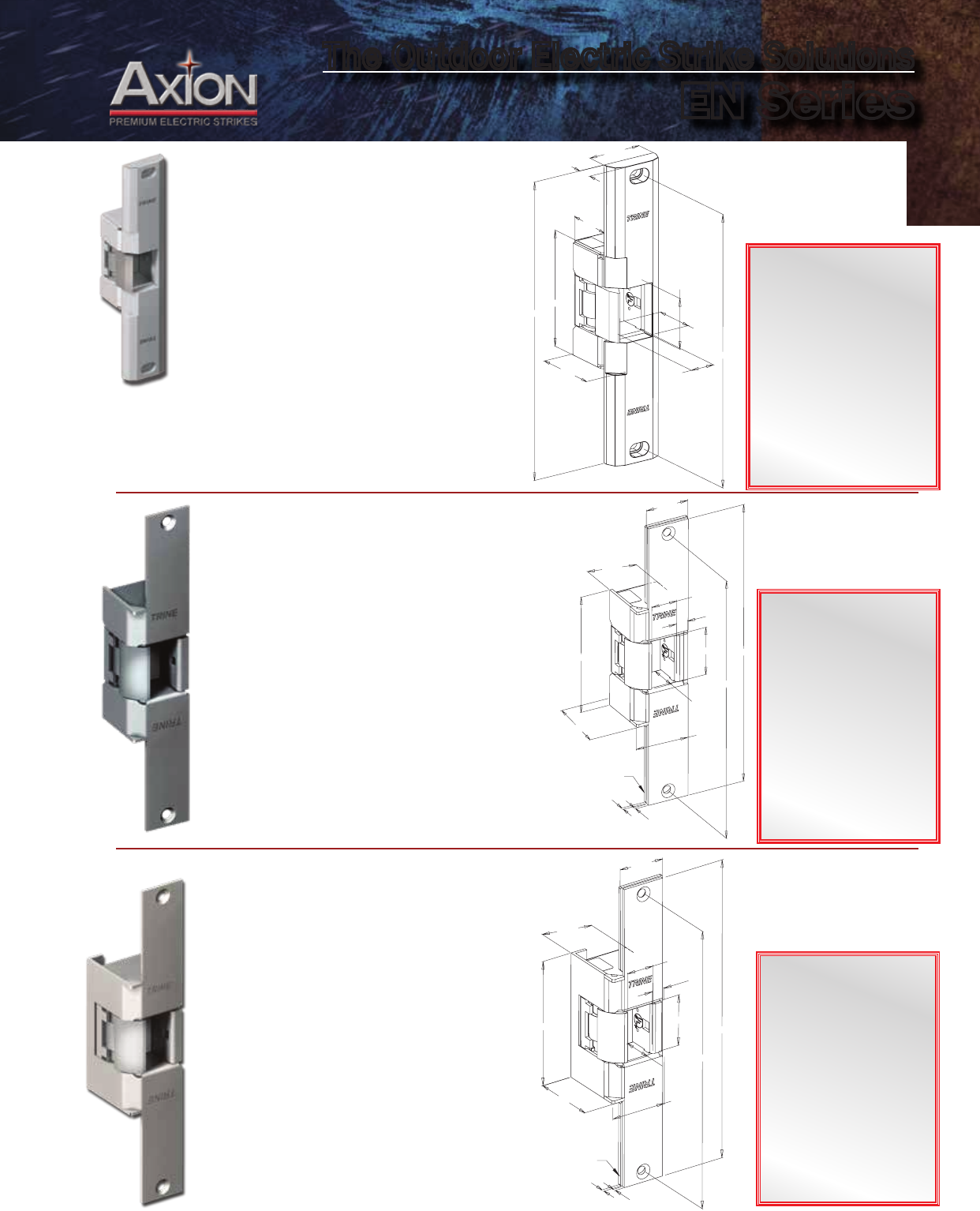

HOW TO ORDER
Please provide the following information to ensure
you receive the CORRECT electric strike.
Model # -- Voltage -- Finish -- Handing
example: 400 12DC 32D RH
*Fail Safe Request: Please add “RS” to item#
example: 400RS-12DC-32D-RH
Add $15 to list price of base model.
26 www.trineonline.com
EN Series
The Flexible 400CMRP Includes:
• A completed strike in the box (see bottom of
page for details).
• An additional strike latch to handle mortise,
cylindrical, and rim panic strikes.
• The EN400-Gatebox - Mount the strike
anywhere.
• The EN-24DC-CA - change voltage in the field.
• Fail safe/Fail secure field reversible.
• Always Low Current Draw
Aluminum
gatebox
available (see pg 31)
EN400-Gatebox
Install the EN400CMRP
anywhere on the frame or post.
Steel gatebox
is unnished.
THE ONE BOX SOLUTION
THE ONLY ELECTRIC STRIKE SOLUTION
ON THE MARKET THAT CAN HANDLE
CYLINDRICAL, MORTISE,
DEADLATCHES, AND RIM PANICS
400CMRP-32D
(Satin Stainless Steel -- BHMA630)
- unit comes as a 400-12DC-32D-RH; RP (rim panic) latch and
24DC coil are in the box.
400RPCM-32D
(Satin Stainless Steel -- BHMA630)
- unit comes as a 400RP-24DC-32D-RH; CM (cylindrical/mortise)
latch and 12DC coil are in the box.

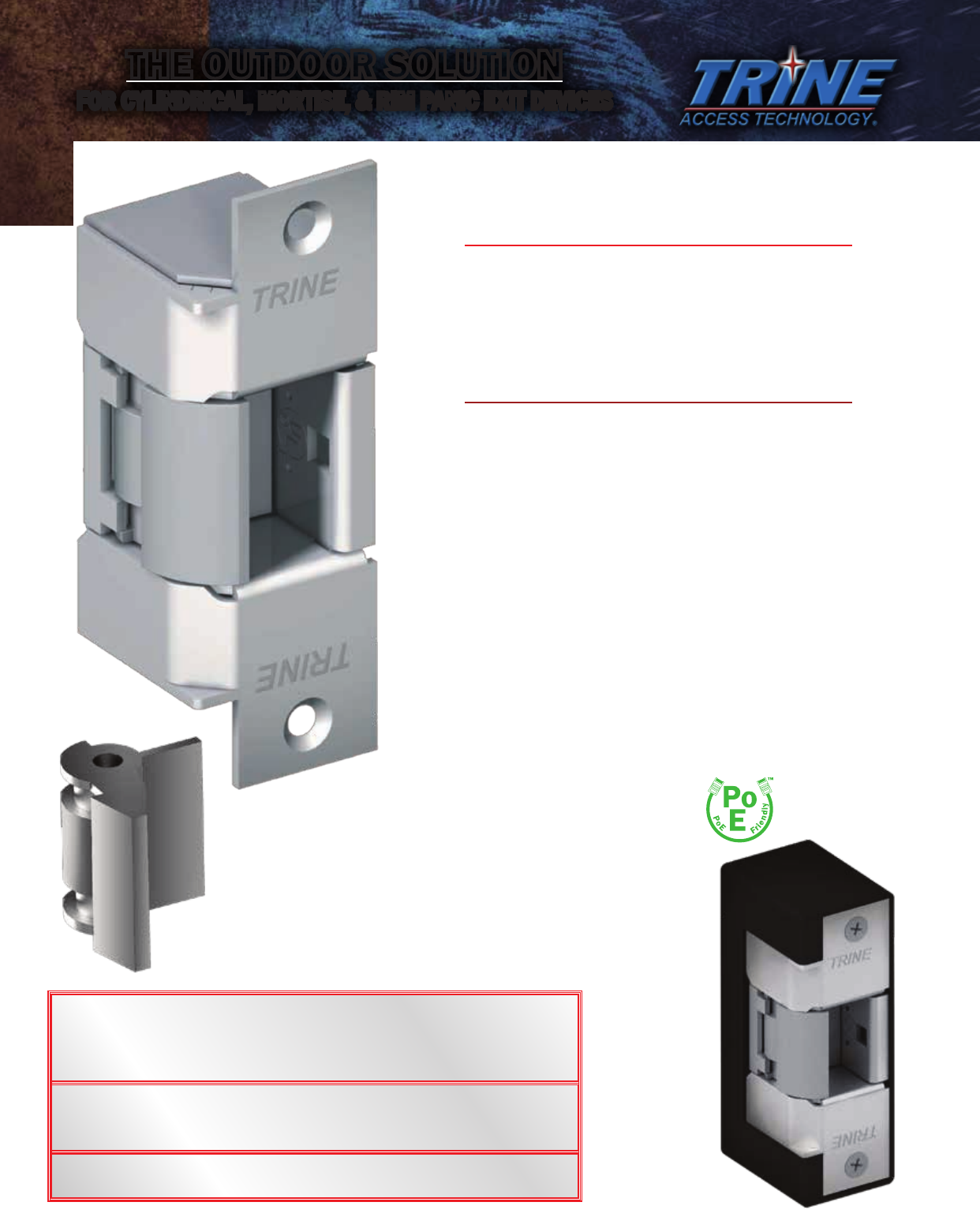

THE OUTDOOR SOLUTION
FOR CYLINDRICAL, MORTISE, & RIM PANIC EXIT DEVICES
EN400CMRP
RP Latch
Kits cannot be ordered with with latchbolt (LB) monitoring.
Please order from page 27 with a gatebox to match.
Price:
$535
$535
27
www.trineonline.com
EN Series

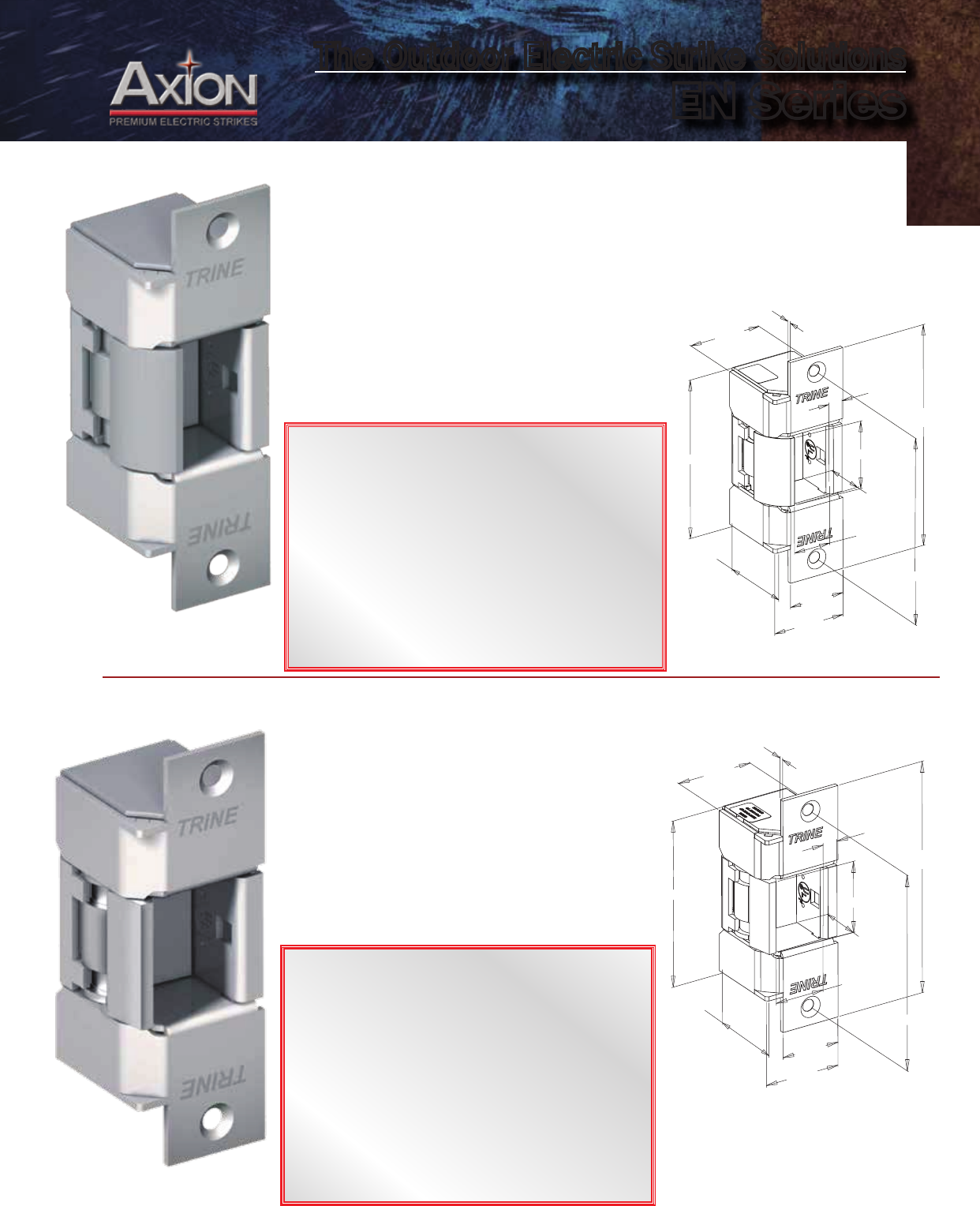

EN400
400-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
• 400-US3
(Bright Brass -- BHMA605)
• 400-US4
(Satin Brass -- BHMA606)
• 400-US10
(Satin Bronze -- BHMA612)
• 400-US10B
(Dark Bronze -- BHMA613)
• 400-32
(Polished Stainless -- BHMA629)
Refer to pg 25 for “How to Order”
EN400RP
400RP-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
• 400RP-US3
(Bright Brass -- BHMA605)
• 400RP-US4
(Satin Brass -- BHMA606)
• 400RP-US10
(Satin Bronze -- BHMA612)
• 400RP-US10B
(Dark Bronze -- BHMA613)
• 400RP-32
(Polished Stainless -- BHMA629)

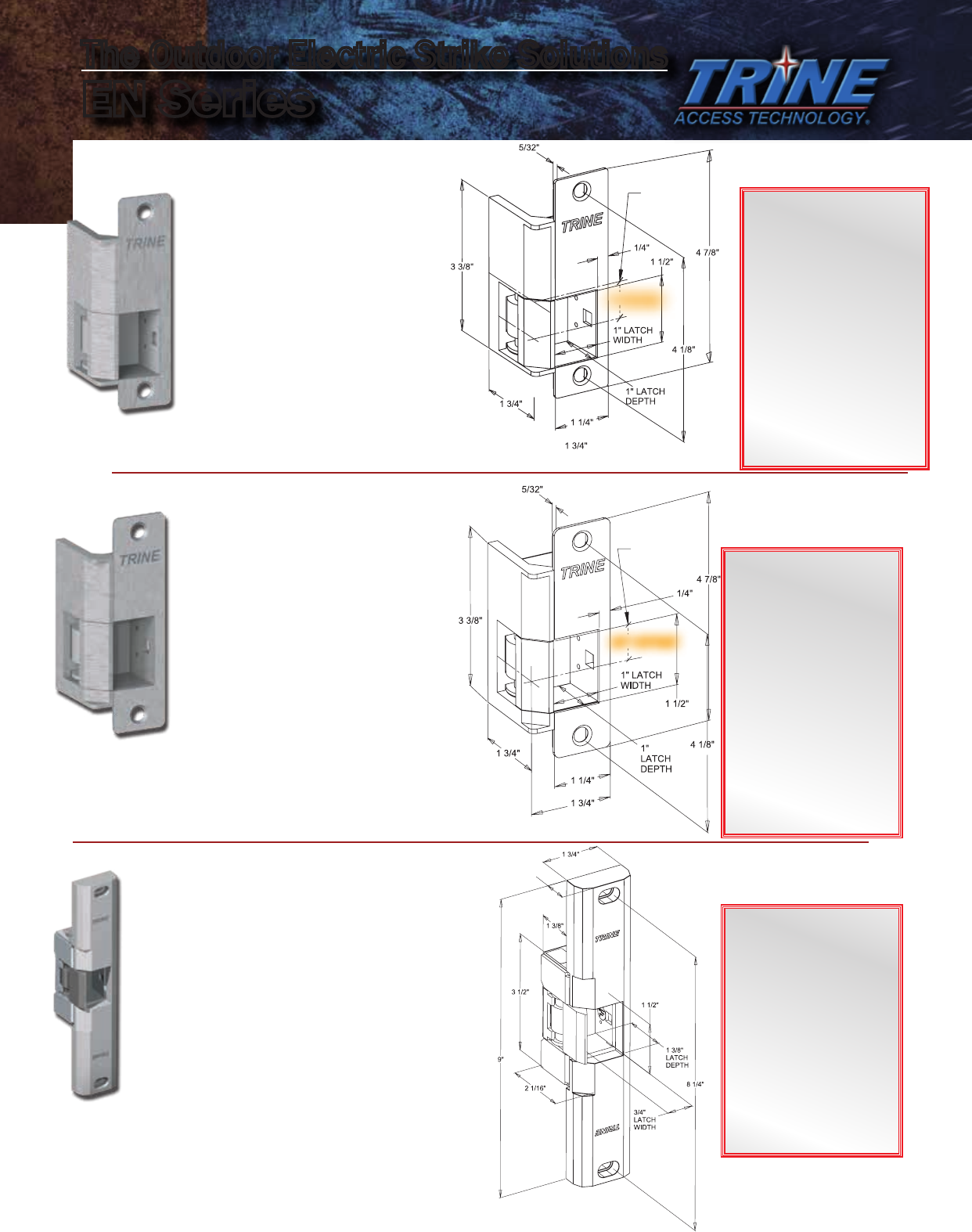

EN400
Electric Strike
Dimension
1 5/8"
3 1/2"
1 11/16"
3/32"
4 7/8"
4 1/8"
5/16"
1 1/2"
7/8" LATCH
DEPTH
1 1/4"
1 5/8"
Cavity
Centerline
7/8" LATCH
WIDTH
• Use with cylindrical and mortise Locks.
• Perfect for exterior doors and gates.
• Latch Shim Kit provided for horizontal cavity adjustment.
• Field reversible handing --
remember to pick a specific hand
when ordering to save time.
EN400RP
Electric Strike
Dimension
For use with Rim Panic Devices.
WIDTH
3 1/2"
DEPTH
1 1/2"
7/8" LATCH
1 1/16" LATCH
1 11/16"
1 5/8"
3/32"
4 7/8"
4 1/8"
5/16"
1 1/4"
1 5/8"
EN400-Gatebox
(Steel Gatebox, unnished)
EN400-Gatebox
(Steel Gatebox, unnished)
EN400-Gatebox-AL
(Aluminum Gatebox)
EN400-Gatebox-AL
(Aluminum Gatebox)
The Outdoor Electric Strike Solutions
EN Series
Refer to pg 25 for “How to Order”
(Not UL 10C listed)
• Use with rim panic devices
• Perfect for exterior doors and
gates.
• Field reversible handing --
remember to pick a specific hand
when ordering to save time.
• The Outdoor Rim Panic Solution
4-7/8"
4-7/8"
1-1/4"
1-1/4"
Price:
$430
$485
Price:
$430
$485
$78
$78
$48
$48
28 www.trineonline.com
EN Series
The Outdoor Electric Strike Solutions
EN Series
CENTERLINE
OFFSET OF
LATCH CAVITY
1" OFFSET
EN430 - CAVITY CENTERLINE
OFFSET 1”
For new or replacement
installations in metal jambs. Use
with mortise lock latchbolts with
up to 7/8” throw without relocating
centerline. Based on 1/8” door
gap.
Latch Shim Kit provided for horizontal cavity
adjustment.
Designed to work with Schlage L Series, Sargent 7700, 8100, & Yale 8700
EN435 - CAVITY
CENTERLINE OFFSET 3/4”
For new or replacement
installations in metal jambs.
Use with mortise lock latchbolts
with up to 7/8” throw without
relocating centerline. Based on
1/8” door gap
.
Latch Shim Kit provided for horizontal
cavity adjustment.
Designed to work with Arrow, Falcon, Sargent 7800, 8200, 9200,
Yale 8800
Factory tested by Best® to work with the 45H Series.
EN800 -- GREAT FOR
OUTDOOR GATES
For new or replacement installations
in wood or metal single door jambs.
Use with surface mounted rim exit
devices with up to 1” throw. 3/4”
thick face plate.
(Not UL 10C Listed)
Works with Rim Panic Exit Devices
430-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
430
-US3
(Bright Brass -- BHMA605)
•
430
-US4
(Satin Brass -- BHMA606)
•
430
-US10
(Satin Bronze -- BHMA612)
•
430
-US10B
(Dark Bronze -- BHMA640)
•
430
-32
(Polished Stainless -- BHMA629)
The EN430 is handed,
please specify LH or RH
435-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
435
-US3
(Bright Brass -- BHMA605)
•
435
-US4
(Satin Brass -- BHMA606)
•
435
-US10
(Satin Bronze -- BHMA612)
•
435
-US10B
(Dark Bronze -- BHMA613)
•
435
-32
(Polished Stainless -- BHMA629)
The EN435 is handed,
please specify LH or RH
800-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
800
-US3
(Bright Brass -- BHMA605)
•
800
-US4
(Satin Brass -- BHMA606)
•
800
-US10
(Satin Bronze -- BHMA612)
•
800
-US10B
(Dark Bronze -- BHMA613)
•
800
-32
(Polished Stainless -- BHMA629)
CENTERLINE
OFFSET OF
LATCH CAVITY
3/4" OFFSET
3/4”
Refer to pg 25 for
“How to Order”
Refer to pg 25 for
“How to Order”
Refer to pg 25 for
“How to Order”
LH shown
LH shown
$450
$500
$450
$500
$480
$525
Price:
Price:
Price:
29
www.trineonline.com
EN Series
EN850 -- GREAT FOR
OUTDOOR GATES
For new or replacement installations in
wood or metal single door jambs. Use
with surface mounted rim exit devices
with up to 1” throw. 1/2” thick face
plate.
(Not UL 10C Listed)
Works with Rim Panic Exit Devices.
850-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
850
-US3
(Bright Brass -- BHMA605)
•
850
-US4
(Satin Brass -- BHMA606)
•
850
-US10
(Satin Bronze -- BHMA612)
•
850
-US10B
(Dark Bronze -- BHMA613)
•
850
-32
(Polished Stainless -- BHMA629)
950-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
950
-US3
(Bright Brass -- BHMA605)
•
950
-US4
(Satin Brass -- BHMA606)
•
950
-US10
(Satin Bronze -- BHMA612)
•
950
-US10B
(Dark Bronze -- BHMA613)
•
950
-32
(Polished Stainless -- BHMA629)
9"
8 1/4"
1 3/4"
1 5/8"
LATCH
WIDTH
3/4"
1 1/2"
LATCH
DEPTH
1 3/8"
3 1/2"
2 1/16"
1/2”
9"
LATCH
DEPTH
7/8"
3 3/4"
1 1/2"
8 3/8"
LATCH
WIDTH
3/4"
1 5/8"
3/32"
3/32"
1 11/16"
3/8"
1 11/16"
1 3/8"
STIFFENER
PLATE
9"
8 3/8"
1 1/2"
LATCH
WIDTH
3/4"
3/8"
1 11/16"
3 3/4"
1 5/8"
LATCH
DEPTH
7/8"
3/32"
3/32"
2"
STIFFENER
PLATE
1 3/8"
EN950 -- FITS FOLGER ADAM®
310-2 CUTOUT
For new or replacement installations in
metal or wood jambs. Use with mortise
exit devices, mortise locks without
dead bolts and cylindrical locksets with
up to 7/8” throw. Based on 1/8” door
gap.
Latch Shim Kit provided for horizontal cavity
adjustment.
EN960
-- FITS FOLGER ADAM
®
310-2 3/4” CUTOUT
For new or replacement installations
in metal or wood jambs. Use with
mortise exit devices, mortise locks
without dead bolts and cylindrical
locksets with up to 7/8” throw.
Based on 1/8” door gap.
Latch Shim Kit provided for horizontal cavity
adjustment.
960-32D
(Satin Stainless Steel -- BHMA630)
The following nishes are:
•
960
-US3
(Bright Brass -- BHMA605)
•
960
-US4
(Satin Brass -- BHMA606)
•
960
-US10
(Satin Bronze -- BHMA612)
•
960
-US10B
(Dark Bronze -- BHMA613)
•
960
-32
(Polished Stainless -- BHMA629)
The Outdoor Electric Strike Solutions
EN Series
Refer to pg 25 for
“How to Order”
Refer to pg 25 for
“How to Order”
Refer to pg 25 for
“How to Order”
$495
$555
$490
$550
$540
$590
Price:
Price:
Price:
30 www.trineonline.com
EN Series

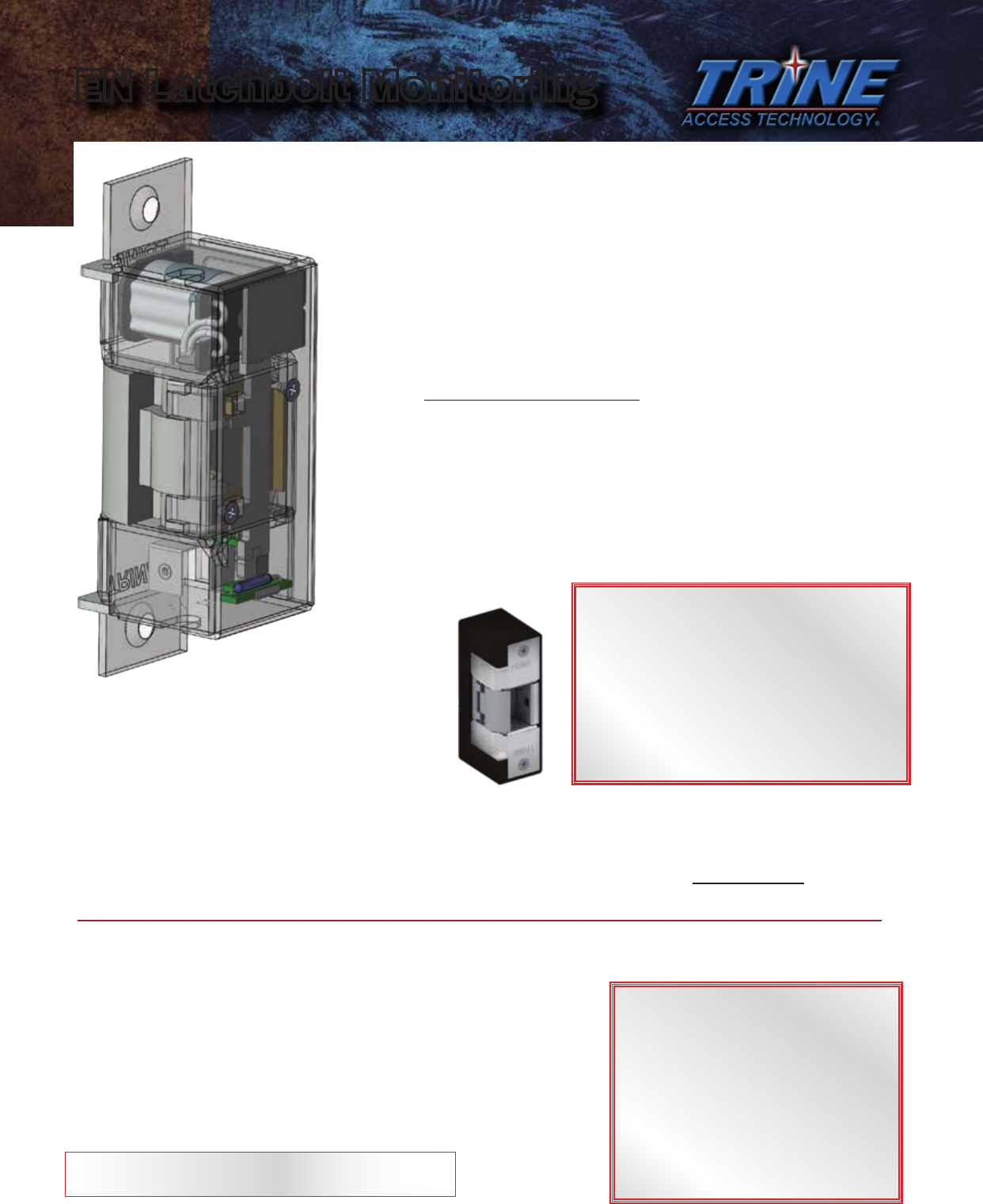

EN Latchbolt Monitoring
EN-LB -- LATCHBOLT MONITORING
• Remote central station notication
• Local alarm monitoring relay
•
Triggering video surveillance/recording systems
• Active relay for trap door systems
IR optical sensor -- Adjustable sensitivity with simple screw adjustment -- Single pole,
double throw, Form “C” relay, rated at 1-amp at 12-24 AC/DC -- N/O and N/C relay
contacts -- Module power source rating of 12-24VDC
Current consumption is:
0.034 amps at 12VDC & 0.045 amps at 24VDC
USE WITH A
GATEBOX FOR
ADDED FLEXIBILITY
The NEW LBSM for the 400, 950, 960
• Latchbolt monitoring utilizes a sealed magnetic reed
switch and monitors if the lockset latch is engaged
with the strike.
• Strike mechanism monitoring detects whether the
strike is in the locked or unlocked position
Add “LB” to a 430 or 435
electric strike
Examples:
• 430
LB
-12DC-32D
Add “LBSM” to model 400, 950, or 960
Example: 400
LBSM
-12DC-32D
*Cannot add to 400CMRP/RPCM kits*
FOR 430 & 435 ONLY
TOUGH-AS-NAILS-GO-ANYWHERE-EN-SERIES
has found a latchbolt monitor that can follow it
outdoors
and into the elements.
Patent Pending
LBM CHARACTERISTICS: @@
CONTACT FORM: C
CONTACT RATING: 10W
SWITCHING VOLTAGE: 30V MAX AC/DC
SWITCHING CURRENT: 0.5 A
CONTACT RESISTANCE
STATIC: 150 MILLIOHM
BREAKDOWN VOLTAGE: 200 VDC
OPERATING TEMP: -40° - 130° C
RATE: 2,000,000+ CYCLES
Price:
Price:
add
$95
to the price of the base unit.
add $99
to the price of the base unit.
31
www.trineonline.com
EN Series
EN Series Accessories
DESCRIPTION
External unit that operates on 11 through 29 AC/DC input and
provides inductive kickback and surge protection.
When used with the
EN Series, 12DC must be selected and the LC100 must be located within
10’ of the electric strike.
Coil Assembly (Orange/White Wire Leads)
Coil Assembly (Black/White Wire Leads)
Coil Assembly (Blue/Orange & White Wire Leads)
Coil Assembly (Blue/Black & White Wire Leads)
(1) Fail Safe Slider for 430/435 Units
(2) Tamper-Resistant Torx
®
#12-24 Screws
Trim Skirt (Not for use with 950 & 960)
EN Latch Shim Kit for horizontal cavity adjustment.
EN Service Kit:
• (1) Latch spring
• (2) PFH 12-24x1” mounting screws & (2) PFH 6-32 x 1/8” cover
screws
• (2) Wire nut caps & (1) assembly pin and instruction sheet
Buzzer for 12 DC operation
Buzzer for 24 DC operation

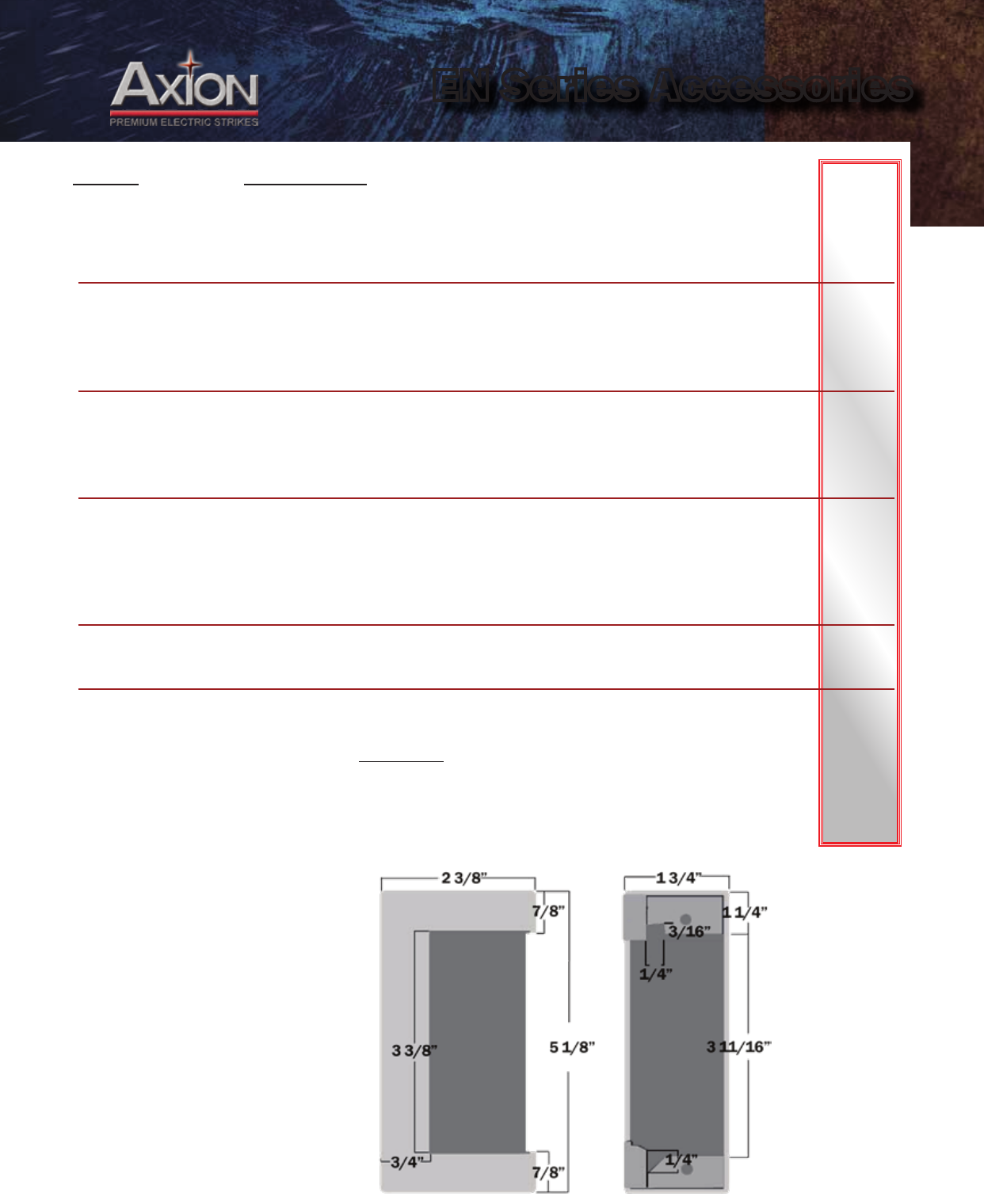

The weldable gate box solution for use with the EN400 & EN400RP
Outdoor rated electric strikes.
(Steel gatebox is Not Finished).
The aluminum gate box solutution for use with the
EN400 & 400RP.
MODEL
LC-100
EN-CA-12DC
EN-CA-24DC
EN-CA-12AC
EN-CA-24AC
EN-SLR-RS
TRS
EN-TS
EN-LSK
ESK-1
BZ-12
BZ-24
EN400-Gatebox
EN400-Gatebox-AL
EN400-Gatebox &
EN400-Gatebox-AL
Dimensions
Price:
$55
$45
$45
$45
$45
$30
$8
$25
$15
$15
$18
$18
$48
$78
33
www.trineonline.com
3000 Series
LC100
An external line conditioner regulating input voltages, 11-29
AC/DC, and conditions the output for the activation period.
Reduces holding voltage for continuous operation and reduced
heat. Provides current/voltage surge & kickback protection.
Options
Piezo Buzzer for “Standard Models”
• BZ-12: Audible buzzer for 12DC power
• BZ-24: Audible buzzer for 24DC power
Piezo Buzzer for “LC Models”
• BZ-6: Audible buzzer for 6DC power
3000-AK: Accessories Kit for the 3000 series:
Includes:
(2) 1/8” strike shims. (2) 1/16” faceplate shims
(2) 1/8” Horizontal adjustment tabs. (2) Long
faceplate screws. (2) Short faceplate screws.
MODEL VOLTAGE
CURRENT/AMPS
OHMS DUTY SOUND
WIRE COLOR
3012
12VDC .480 25 Intermittent Silent Blue
3024
24VDC .240 100 Intermittent Silent White
MODEL VOLTAGE
PULL IN/HOLD AMPS
OHMS DUTY SOUND
WIRE COLOR
12VDC .743/.298 13
Intermittent/Continuous
Silent Red
12VAC .715/.277 13
Intermittent/Continuous
Silent Red
24VDC .397/.170 13
Intermittent/Continuous
Silent Red
24VAC .378/.173 13
Intermittent/Continuous
Silent Red
1 13/16”
15/16”
Only 1” Total Backset

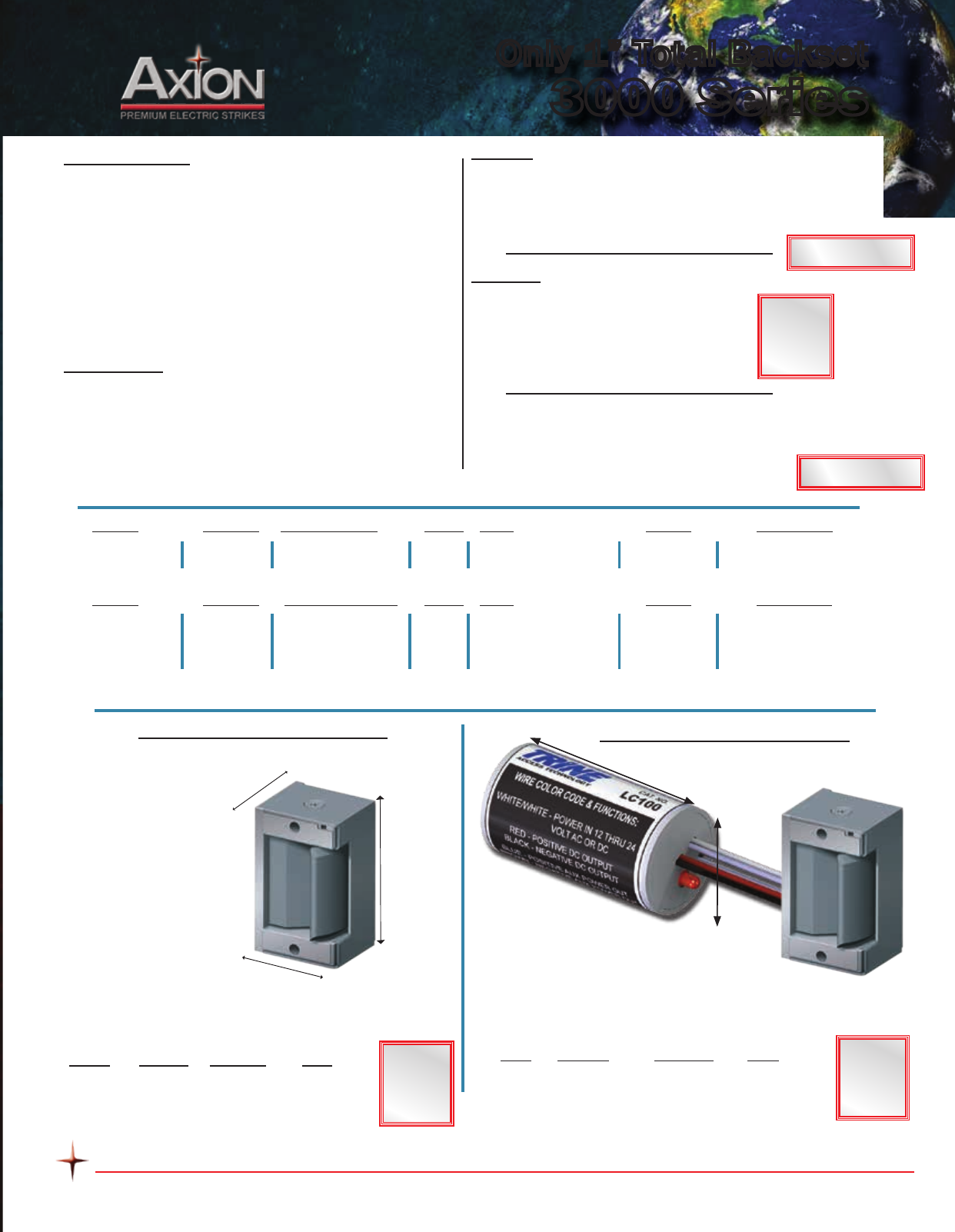

3000 Series
Key Features @@
• GRADE 1 @@@
• Accepts up to 5/8” latch throw
• 500,000 + life cycles
• 1,500 + lbs. holding force
(1,200 lbs. for 334, 3234W)
• Dynamic Force 70 ft/lb.
• Fail-secure - standard action
(unlocks with power)
• Fail-safe Option - “RS” (locks with power)
@@
Standards @@@@
• BHMA - A156.31
• BHMA Grade 1 - All models (except 334)
• BHMA Grade 2 - 334
Note: 3000 series not recommended for use on uncovered
exterior doors.
3012 & 3024 Mechanism 30LC & 30RS Mechanism
Model Voltage Function Duty
3012
12DC Fail Secure Intermittent
3024
24DC Fail Secure Intermittent
Item Voltage Function Duty
30LC
11-29AC/DC Fail Secure Continuous
30RS
11-29AC/DC Fail Safe Continuous
1 1/32”
7/8”
1 11/16”
Designed so a 1”
drill bit can be used
to hide unit in wood.
Now pick a Faceplate - starting on page 36
The LC100 can be used on the 30LC & 30RS ONLY and-
placed up to 15’ feet away!
Included spacers
increase cavity
depth up to 1/8”
Actual Size >
Actual
Size >
30LC/
30RS
** LC Must be within 15’ from the mechanism **
** Must use LC100. LC Must be installed within 15’ from the mechanism **
** LC Must be within 15’ from the mechanism **
Price: $55
Price: $25
Price:
$18
Price:
$149
$149
Price:
$185
$185
34 www.trineonline.com

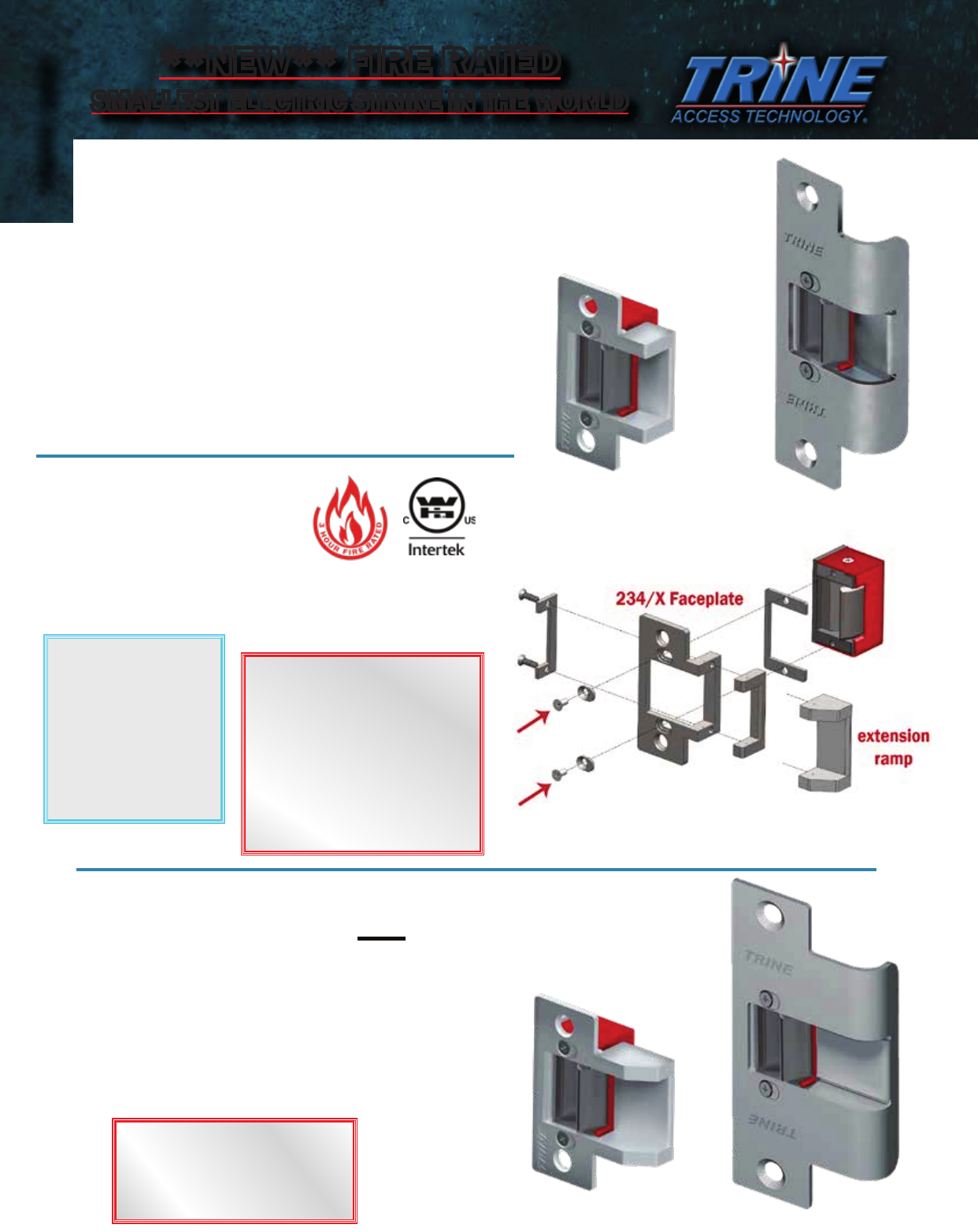

3000 Series

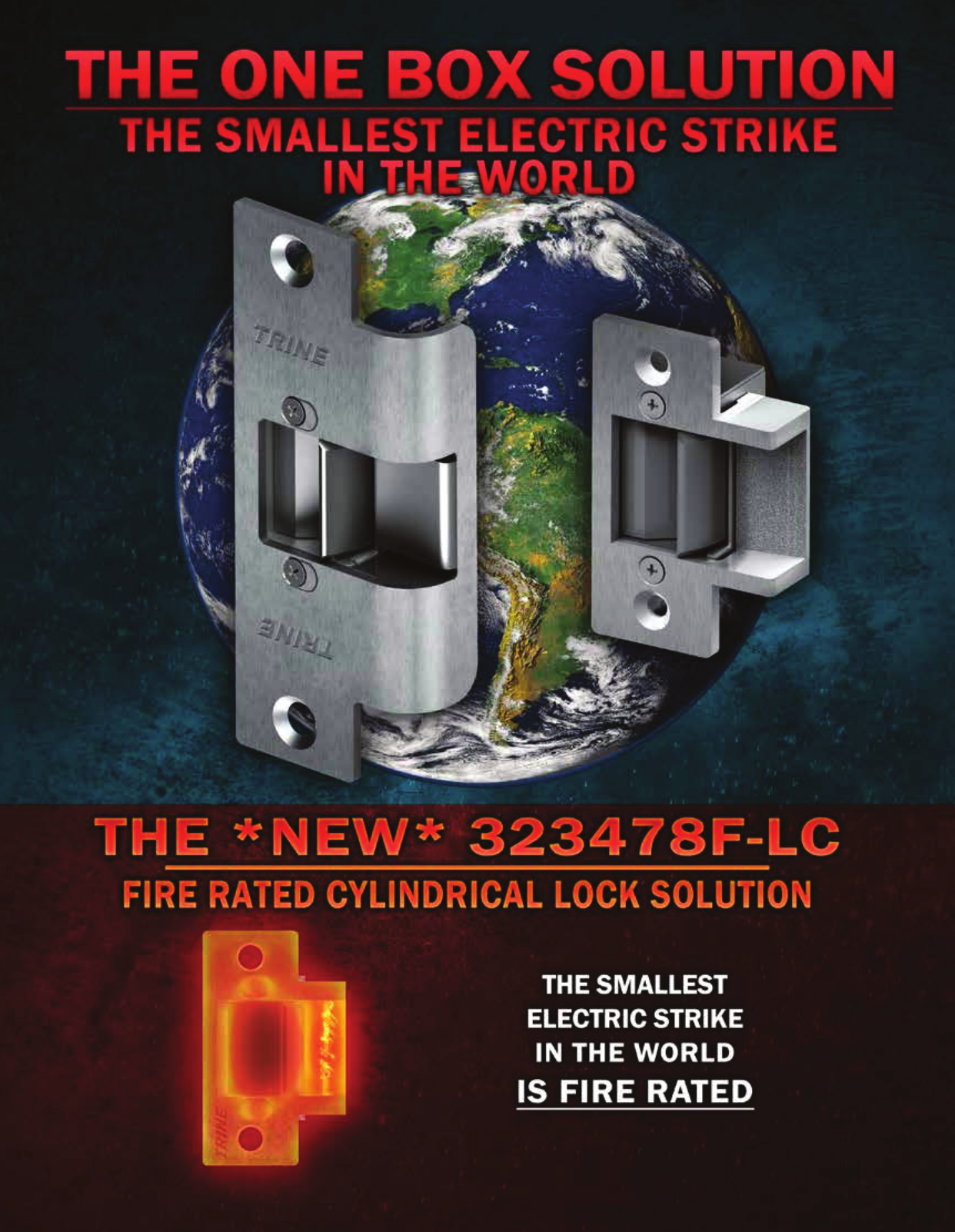

323478F-LC
323478FX-LC
**NEW** FIRE RATED
SMALLEST ELECTRIC STRIKE IN THE WORLD
• 1” Total Backset
• 1/8” Horizontal Adjustment
• All stainless steel construction
• 12-24 AC & DC - surge & kickback
protection
• Includes LC100 & Trim skirt (CCFP)
Refer to pg 33 for electrical
characteristics.
Refer to pg 33 for electrical
characteristics.
see pg 37
for details
• As above.
• Contains the 478X-375 Faceplate for
Timely®/Redi®/Raco Frames (instead of
the 478 Faceplate.)
FORGING
NEW SOLUTIONS
WITH ELECTRIC STRIKES
The most exible system with depth,
ramp, and horizontal adjustments.
→ *NEW* 1/8" HORIZONTAL
ADJUSTMENT ADDED TO
234/X FACEPLATE
323478F-LC-32D
(Satin Stainless Steel -- BHMA630)
323478F-RS-32D
(Satin Stainless Steel -- BHMA630)
323478F-LC-DKBZ
(Dark Bronze Powder Coat)
323478F-RS-DKBZ
(Dark Bronze Powder Coat)
323478FX-LC-32D
(Satin Stainless Steel -- BHMA630)
323478FX-LC-DKBZ
(Dark Bronze Powder Coat)
Need an
Installation Tool
See page 51
The best way to
mark and cut the
323478F-LC use the
ANSI-ITL
Standards:
• 3-hour re rated --
UL10C
, Fire
Tests of Door Assemblies.
• ANSI/BHMA A156.31-2007
NOTE: WH re listing is void when using fail
safe action.
$399
$399
$419
$419
$419
$439
Price:
Price:
35
www.trineonline.com
3000 Series

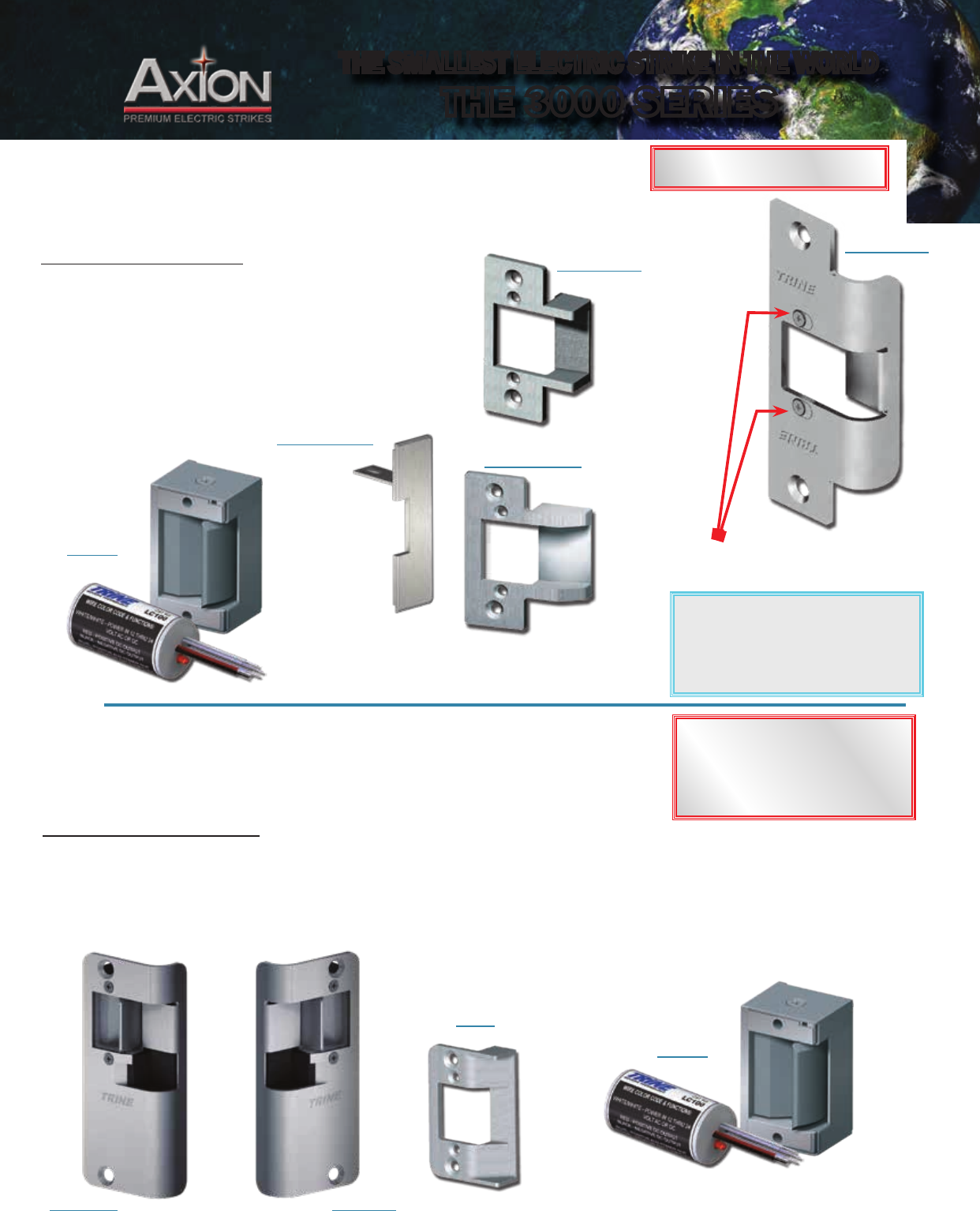

323478LC Includes: @@
• (1) 234-26D -- 2 3/4” Faceplate
• (1) 234X-375-26D -- 2 3/4” Faceplate with
extended ramp
• (1) 478-32D -- 4 7/8” Faceplate
• (1) 478-CCFP - Compeitor Cutout Filler Plate
• (1) 30LC - 11-29 AC & DC Mechanism
FOR CYLINDRICAL LOCKS
FOR DEADLATCHES AND ALUMINUM FRAMES
3258458LC Includes: @@
• (1) 258 -- 2 3/4” Faceplate
• (1) 458LH -- 4 5/8” Left Handed Faceplate
• (1) 458RH -- 4 5/8” Right Handed Faceplate
• (1) 30LC - 11-29 AC & DC Mechanism
Patented
horizontal adjustment feature
-- guaranteed not to move!
For the
smallest
electric
strike
cutout!
Covers the
cutout left by
competitor
strikes.
See pg 36 for
more details
Designed for Timely
®
/Redi
®
Frames. Great for Wood!
See page 40 for cut out details.
30LC
30LC
478-CCFP
234-26D
258
234X-26D
478-32D
458RH 458LH
3258458LC KIT
323478LC KIT
Finishes:
3258458LC-ALUM
(Aluminum Powder Coat)
3258458LC-DKBZ
(Dark Bronze Powder Coat)
80% LESS FRAME CUTTING.
Smallest aluminum solution available - Great for
glass store fronts
Fills frame preparation for many Adams Rite®
Locks without relocating tabs.
THE SMALLEST ELECTRIC STRIKE IN THE WORLD
THE 3000 SERIES
Need an Installation Tool
See page 51 The best
way to mark and cut in the
323478-LC is the ANSI-ITL.
Price: $239
Price:
$269
36 www.trineonline.com

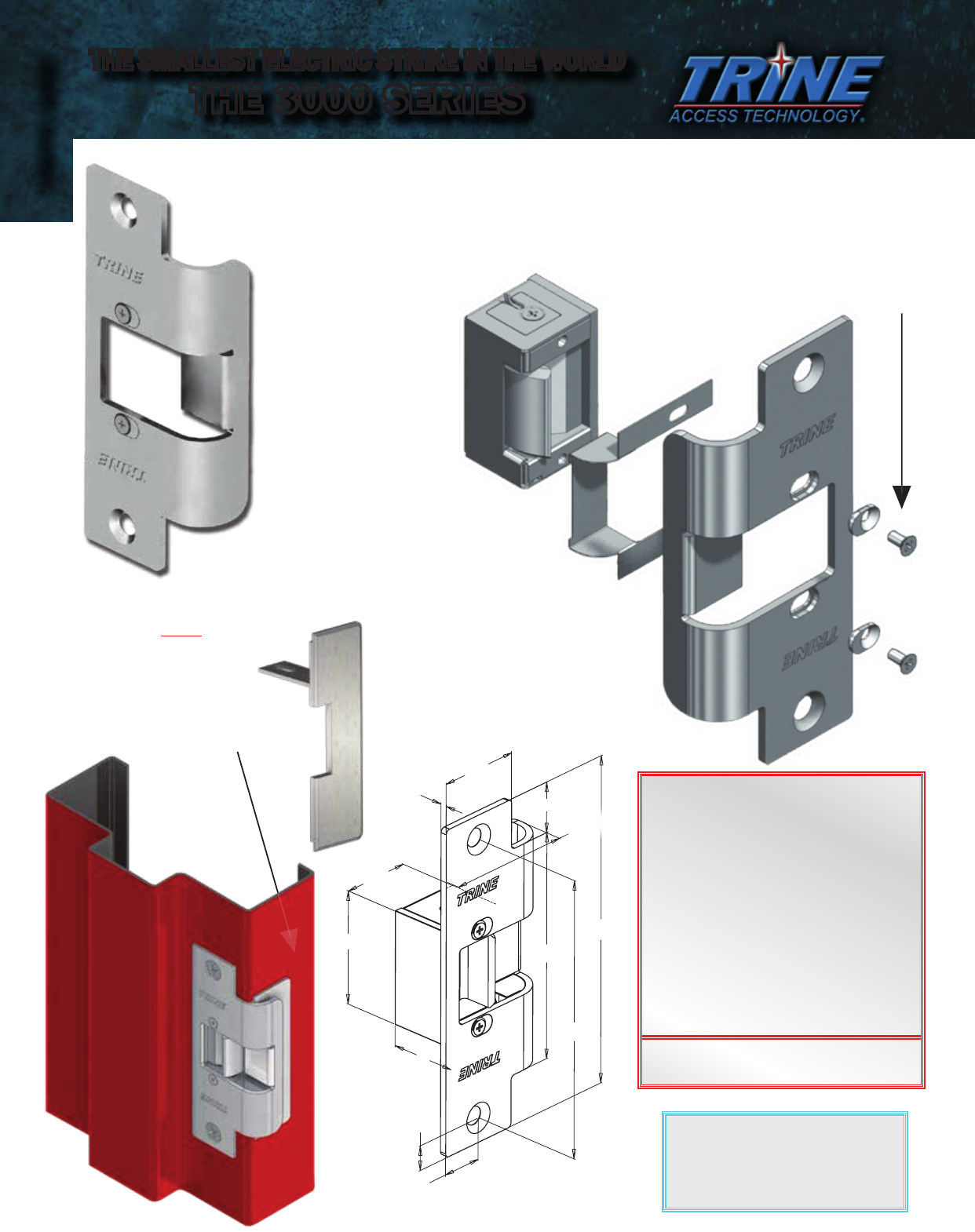

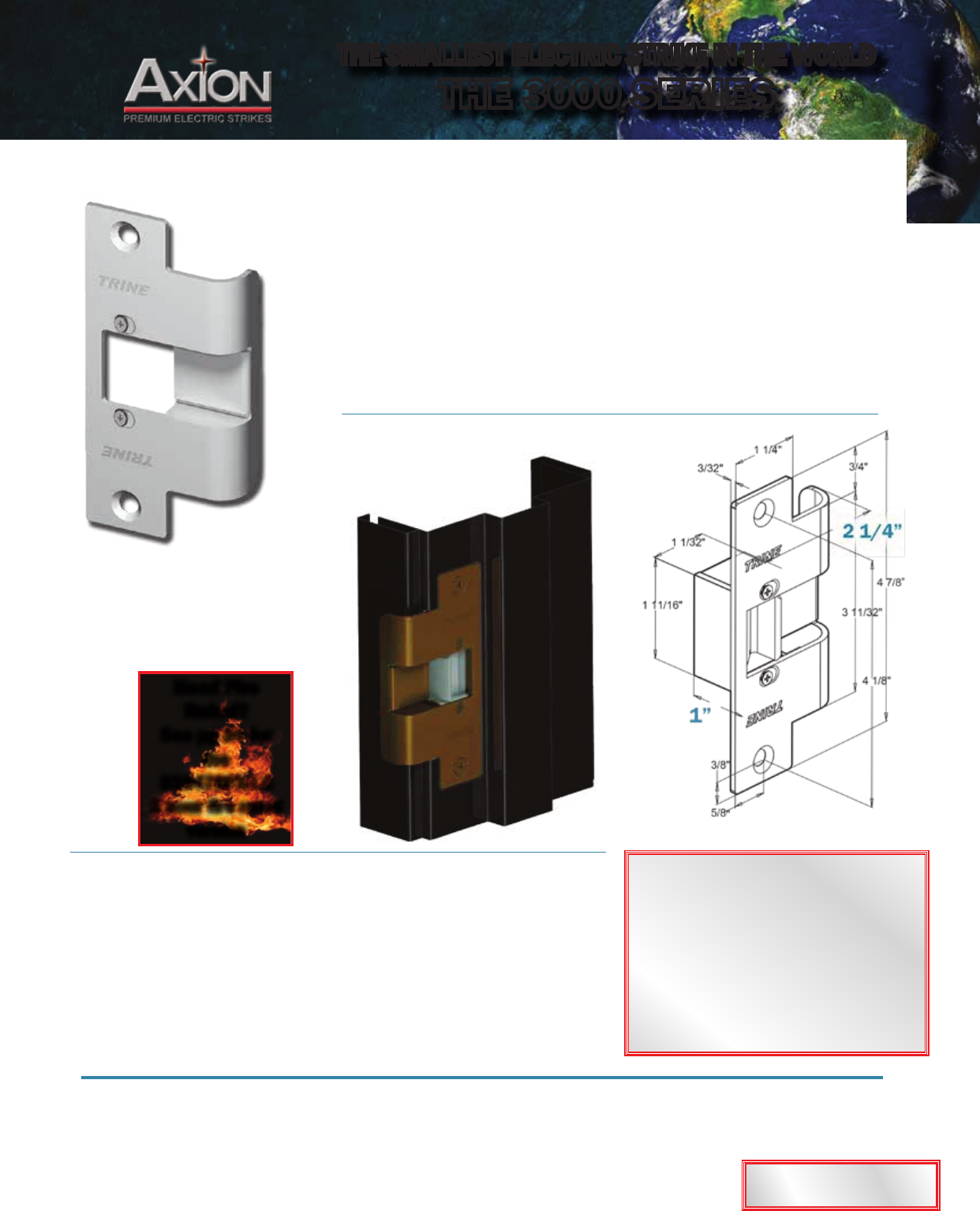

3000 Series
THE SMALLEST ELECTRIC STRIKE IN THE WORLD
THE 3000 SERIES
478-32D
(Satin Stainless Steel -- BHMA630)
478-32
(Polished Stainless Steel -- BHMA629)
478
-US10B
(
Dark Bronze Powder Coat
)
478
-US3
(Bright Brass -- BHMA605)
478
-US4
(Satin Brass -- BHMA606)
RD
(Radiused Corners)
478RO and 478LO (drop plates) are
same cost as above.
4 7/8"
4 1/8"
3/4"
3 11/32"
1 1/4"
3/32"
1 1/32"
1 11/16"
5/8"
3/8"
1 7/8”
1”
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
478-CCFP
INCLUDED WITH THE 478
FACEPLATE!
Competitor Cutout
Filler Plate
Stainless plate designed to ll in the
hole left by competitor models.
60% LESS CUTTING of
Frame Face for ANSI
4 7/8” pre-prep frames.
No ugly black ramp!
478

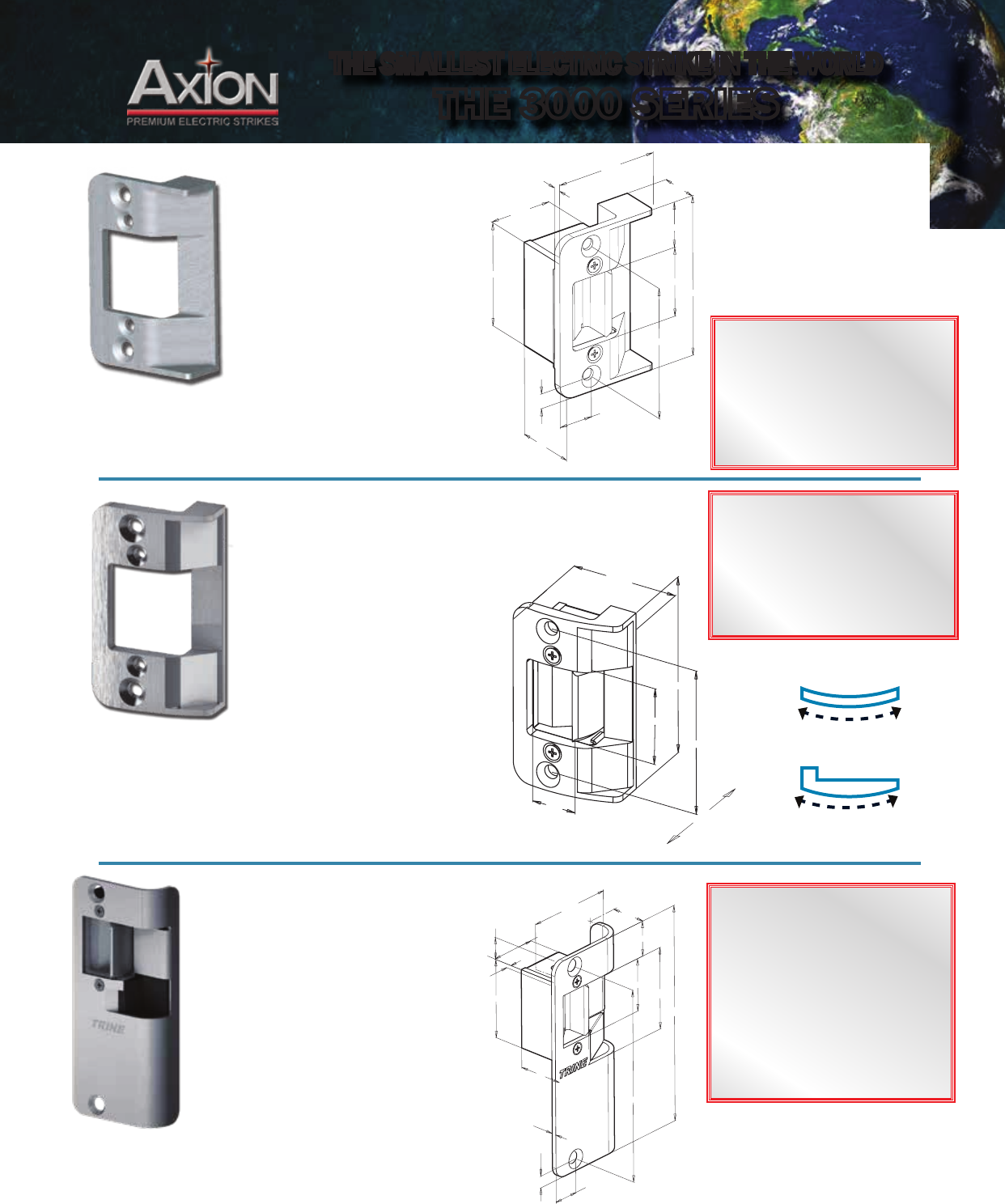

Adjustable 4-7/8" ANSI standard faceplate
For new or replacement
installation in
wood, metal or
aluminum frames.
Use with cylindrical
locksets having
up to 5/8” throw,
based on 1/8”
door gap.
*1/8” horizontal adjustment
guaranteed to never move.
Need an Installation Tool
See page 51 The best
way to mark and cut in the
323478-LC is the ANSI-ITL.
Price:
$35
$59
$51
$66
$54
add $5
37
www.trineonline.com
3000 Series
Same dimensions as 478 - except 3/16” cavity offset.
GOODBYE UNATTRACTIVE BLACK RAMPS!
• Extended ramp (.375”) accommodates snap-on additional
frame face of Timely® & Redi® Frames.
• Eliminates traditional 4 7/8” ANSI strike cutting and black
ramp extensions.
• 1/8" Horizontal Adjustments help prevent door pre-load.
Frame features an extended ramp to accommodate additional
face of Timely®/Redi® /Raco® frames. Use with cylindrical
locksets and deadlatches having up to 5/8” throw, based on
1/8” door gap.
Provides a finished look for wood frames with trim.
478X-375
Adjustable Extended Lip Faceplate
478X-375-32D
(Satin Stainless Steel -- BHMA630)
478X-375-US10B
(
Dark Bronze Powder Coat
)
478X-375-US3
(Bright Brass -- BHMA605)
RD (Radiused Corners)
See page 36, the 478,
for pricing and nish.
Ramp Extends
.375”
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
Made for
Timely® /Redi® / Raco®
Frames

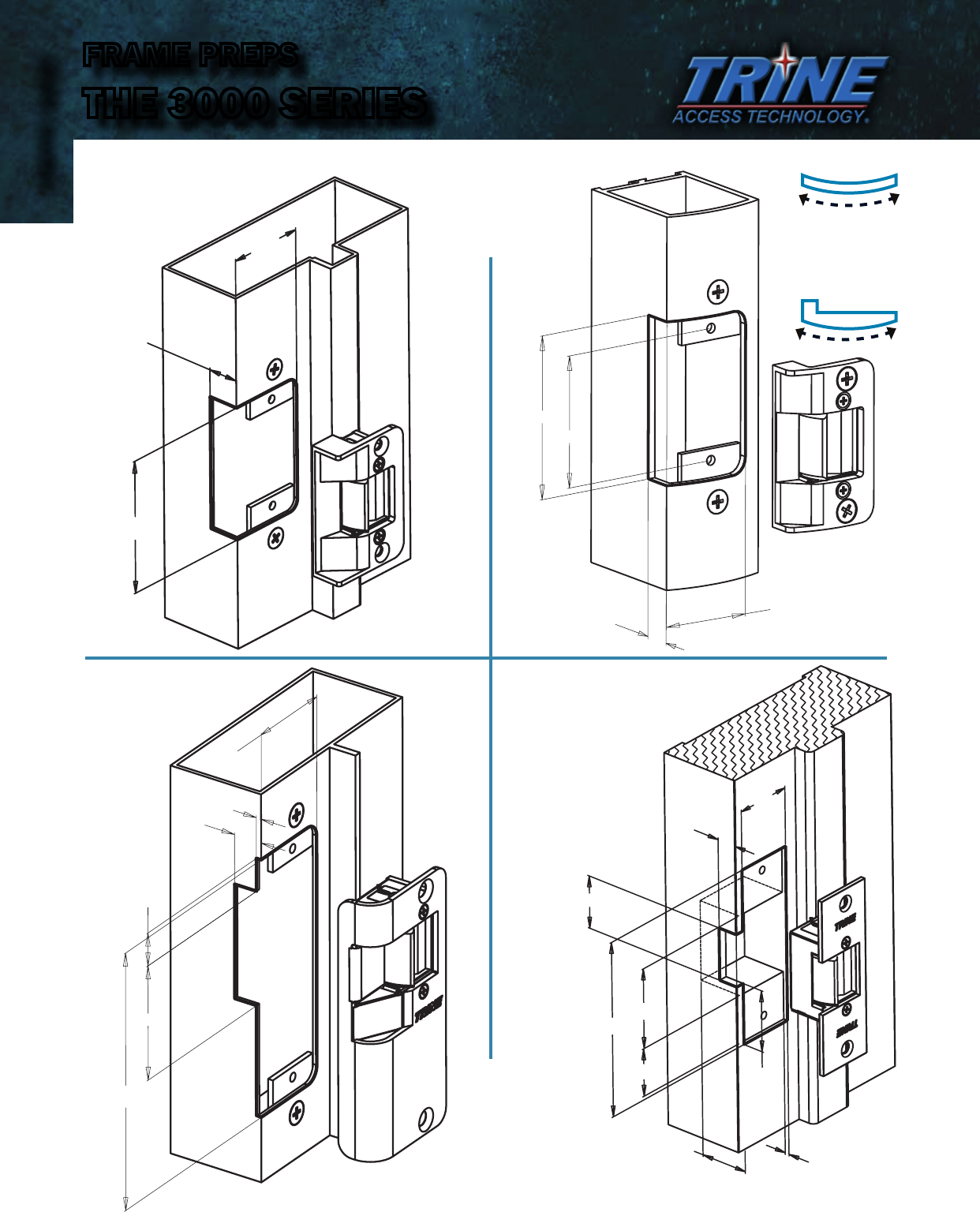

See page 43 for wood and metal frame preps.
THE SMALLEST ELECTRIC STRIKE IN THE WORLD
THE 3000 SERIES
478LO / 478RO Faceplate
60% LESS FRAME CUTTING of Frame Face for ANSI 4 7/8” pre-prep
frames. The strike opening on this face plate is offset by 3/16” from
the center to accommodate door sag for the 478 (just change faceplates,
and use the same mechanism)
Accommodates for door sag.
Need Fire
Rated?
See pg 34 for
the
323478FX-LC
3 hour re rated
version
add $5
Price:
$50
$66
$73
38 www.trineonline.com

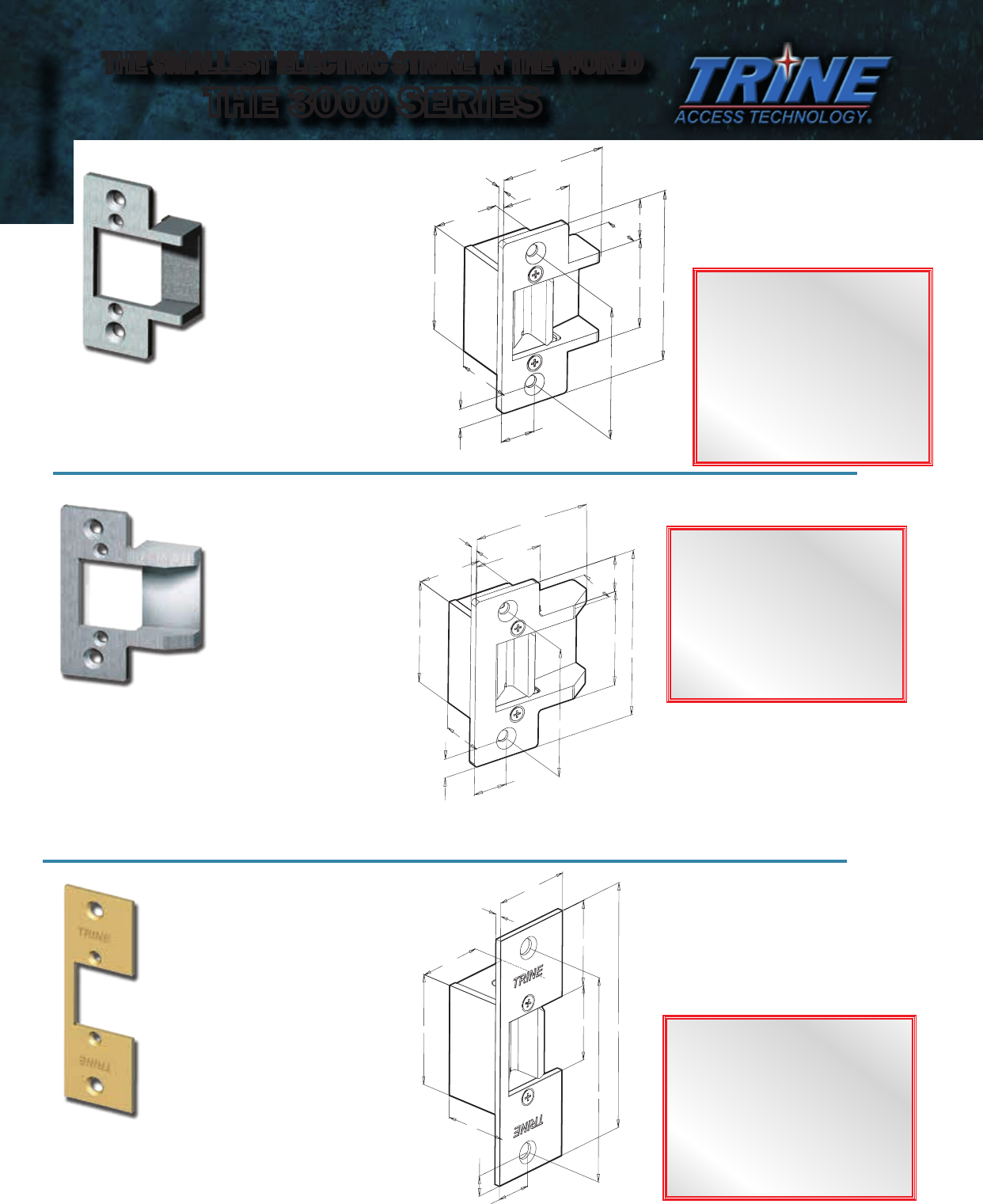

3000 Series
THE SMALLEST ELECTRIC STRIKE IN THE WORLD
THE 3000 SERIES
234 Faceplate -
Smallest Electric
Strike in the World
For new or
replacement
installations in metal
frames. Use with
cylindrical locksets having
up to 5/8” throw, based on
1/8” door gap.
234X-375
Extended Faceplate
Standard ANSI
prep features an
extended ramp
to accommodate
additional face of
Timely
®
/Redi
®
frames. Ramp is extended 3/8”. For
new or replacement installations. Use
with cylindrical locksets having up to
5/8” throw, based on 1/8” door gap.
334 Faceplate
For new or replacement
installations in wood
frames. Use with
cylindrical locksets with
up to 5/8” throw, based
on 1/8” door gap.
1 1/32"
1 11/16"
1 1/8"
5/8"
1 7/16"
5/8"
2 1/8"
1 11/16"
2 3/4"
1/8"
9/16"
5/16"
1”
234-26D
(Satin Chrome -- BHMA651)
234
-US10B
(Dark Bronze Powder Coat)
234
-US3
(Bright Brass -- BHMA605)
234
-US4
(Satin Brass -- BHMA606)
334-26D
(Satin Chrome -- BHMA651)
334
-US3
(Bright Brass -- BHMA605)
334
-US4
(Satin Brass -- BHMA606)
234X-375-26D
(Satin Chrome -- BHMA651)
234X-375
-US10B
(Dark Bronze Powder Coat)
234X-375
-US3
(Bright Brass -- BHMA605)
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
1/8"
1 1/8"
2 5/32"
1 1/32"
1 11/16"
9/16"
2 3/4"
1 9/16"
5/8"
2 1/8"
9/16"
5/16"
1”
Great for wood
frames!
Made for Timely®/Redi® Frames
3 3/4"
1 11/16"
1 1/32"
1 1/4"
3 1/8"
1 1/8"
1 5/16"
9/16"
3/32"
5/16"
1”
Price:
Price:
Price:
$25
$28
$37
$27
$30
$34
$29
$30
$33
$40
39
www.trineonline.com
3000 Series
258-26D
(Satin Chrome -- BHMA651)
258
-US10B
(Dark Bronze Powder Coat)
458-ALUM
(Aluminum Powder Coat)
458
-DKBZ
(Dark Bronze Powder Coat)
258RD-26D
(Satin Chrome -- BHMA651)
258RD
-US10B
(Dark Bronze Powder Coat)
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
Match with any 3000 Mechanism:
3012, 3024, 30LC, 30RS
458 Faceplate
80% LESS FRAME CUTTING.
Fills the frame preparation
of Adams Rite® MS Locks
without relocating tabs for 6
7/8” electric strikes. For new
or replacement installations
in aluminum frames.
Replaces Adams Rite®
4730/4501 strike plate with
slight frame modication.
258 Faceplate
80% less frame cutting
when compared to typical
4 7/8” electric strike
installations.
For new or replacement
installations in aluminum
frames. Use with 4510,
4710 & 4750 Adams Rite® dead
latches. Replaces 4502 strike plate with
slight modication.
258RD Radius Faceplate
80% less door cutting
when compared to
typical 4 7/8” electric
strike installations.
For new or replacement
installations in aluminum
doors. Use with 4510,
4710 & 4750 Adams
Rite® dead latches.
Replaces 4502 & 4900
strike plate with slight
modication.
1 11/16"
1/8"
2 5/8"
2 1/8"
5/8"
1 11/16"
1 1/32"
1/4"
9/16"
1 1/8"
3/4"
1”
5/8"
2 1/8"
2 5/8"
1 3/32"
1 9/16"
1”
4 5/8"
1 1/8"
4 1/8"
1 3/4"
3/4"
9/16"
3/32"
1/4"
1 11/16"
1 1/32"
15/32"
7/64"
1 15/16"
3/4"
1”
Radius of faceplate matches
the radius surface of the door.
Note: Faceplates are now
powder coated.
**Must Specify Handing**
RH or LH
RH-Right
Handed Strike
Shown
THE SMALLEST ELECTRIC STRIKE IN THE WORLD
THE 3000 SERIES
Price:
Price:
Price:
$30
$33
$56
$56
$30
$33
40 www.trineonline.com

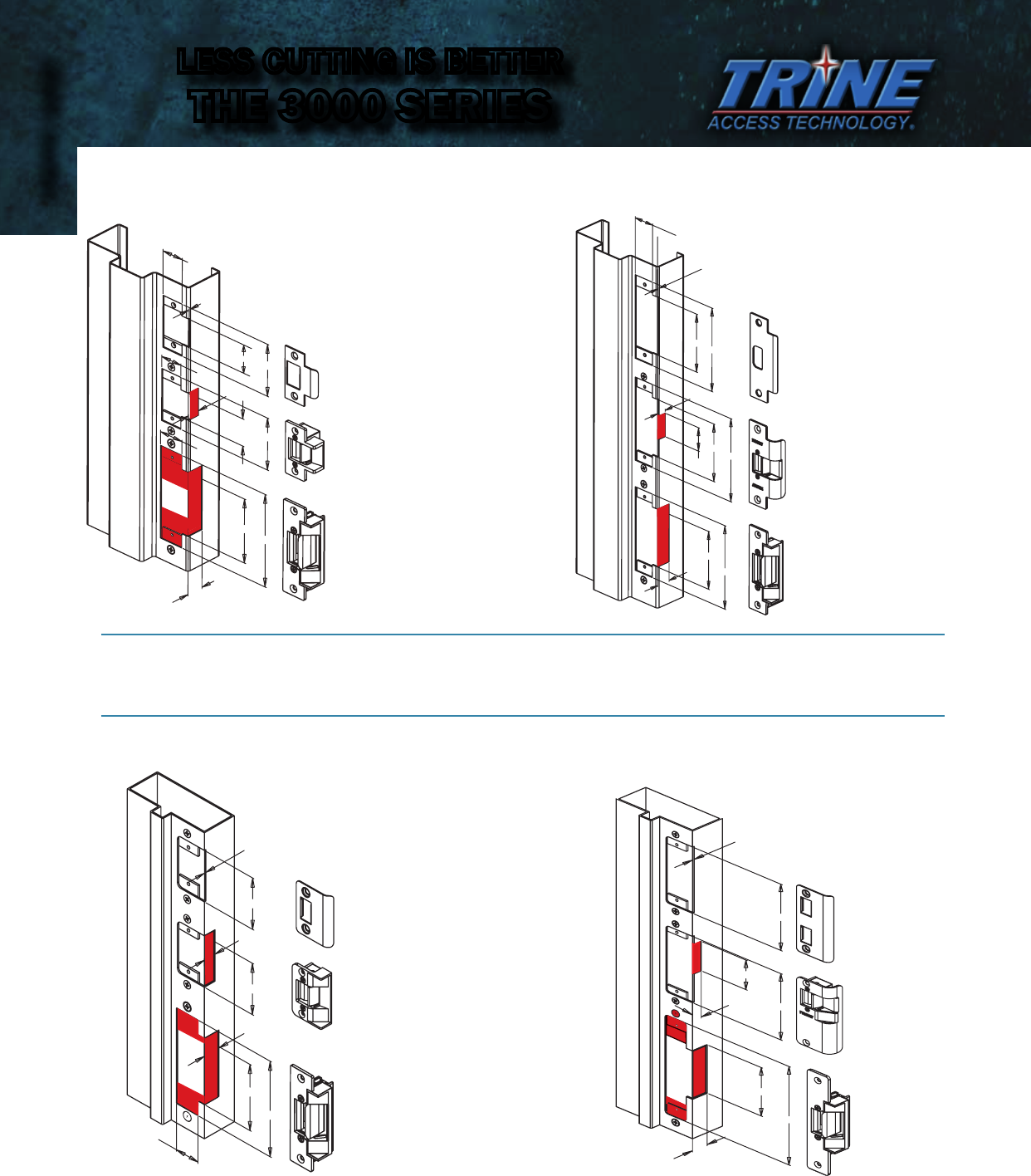

3000 Series
7/8"
3 3/8"
6 7/8"
1/2" 4 5/8"
2 1/16"
4 5/8"
3/32"
ANSI FACEPLATE SOLUTIONS
ALUMINUM FACEPLATE SOLUTIONS
RED ON DIAGRAMS = AMOUNT OF CUTTING
3000 SERIES STRIKES REDUCE AMOUNT OF LABOR, TIME, AND
MATERIAL LOST ON DOOR FRAME
Note: 3000 series strikes not recommended for use on uncovered exterior doors.
2 3/4"
1 1/2"
3/32"
1 1/8"
1 1/8"
2 3/4"
1 1/2"
5/8"
4 7/8"
3 3/8
"
1 1/4"
7/8"
2 3/4”
Strike Plate
234 Faceplate
Typical 4 7/8”
Electric Strike
4 7/8”
Strike Plate
478
Faceplate
No need to remove
Dust Box.
Typical 4 7/8”
Electric Strike
Must remove
Dust Box.
4 7/8"
3 3/8"
1/8"
1 1/4"
4 7/8"
3 3/8"
9/16"
1 3/8"
3 3/8"
4 7/8"
7/8"
3/32"
2 5/8"
5/8"
2 5/8
"
7/8"
3 3/8
"
4 7/8"
1 1/4"
4 5/8”
Strike Plate
458 Faceplate
Can use existing tab
holes.
Typical 6 7/8”
Electric Strike
New tabs are
required.
2 5/8”
Strike Plate
258 Faceplate
Can use existing tab
holes.
Typical 4 7/8”
Electric Strike
New tabs are
required.
234
258
478
458
RIGHT HANDED
LESS CUTTING IS BETTER
THE 3000 SERIES
41
www.trineonline.com
3000 Series
234X-375 & 323478FX-LC
TIMELY
®
/REDI
®
/RACO
®
FRAMES
NOTE: USE 2 INCH LONG (OR LONGER) WOOD SCREWS FOR MOUNTING.
2 3/4"
1 7/16"
5/8"
1 1/8"
1 11/16"
1 1/2"
5/8"
17/32"
2 3/4"
2 1/8"
5/8"
3/32"
1 1/8"
1 1/16"
90
3
1 19/32"
2 3/4"
5/8"
1 3/4"
1 7/32"
2 3/4"
1 9/32"
1 1/16"
1 3/4"
1 1/8"
2 1/8"
5/8"
3/32"
1 1/8"
1 19/32"
234
WOOD
FRAME
NOTE: USE 2 INCH LONG (OR LONGER) WOOD SCREWS FOR MOUNTING.
234X-375
WOOD
FRAME
FRAME PREPS
THE 3000 SERIES
234 & 323478F-LC
HOLLOW METAL
FRAME
42 www.trineonline.com
3000 Series
2 5/8"
1 9/16"
5/8"
3/32"
1 1/4"
1 11/16"
1 1/8"
7/16"
1 1/64"
1 1/16"
1 5/16"
3 3/4"
5/8"
4 5/8"
2 1/16"
1/2"
1 9/16"
3/32"
258 ALUMINUM FRAME 258RD ALUMINUM
DOORS
Radius of
faceplate matches
the radius surface
of the door.
458
ALUMINUM
FRAME
334
WOOD
FRAME
LEFT HAND SHOWN
2 5/8"
2 1/8"
15/32"
1 7/16"
NOTE: USE 2 INCH LONG (OR LONGER) WOOD SCREWS
FOR MOUNTING.
FRAME PREPS
THE 3000 SERIES
43
www.trineonline.com

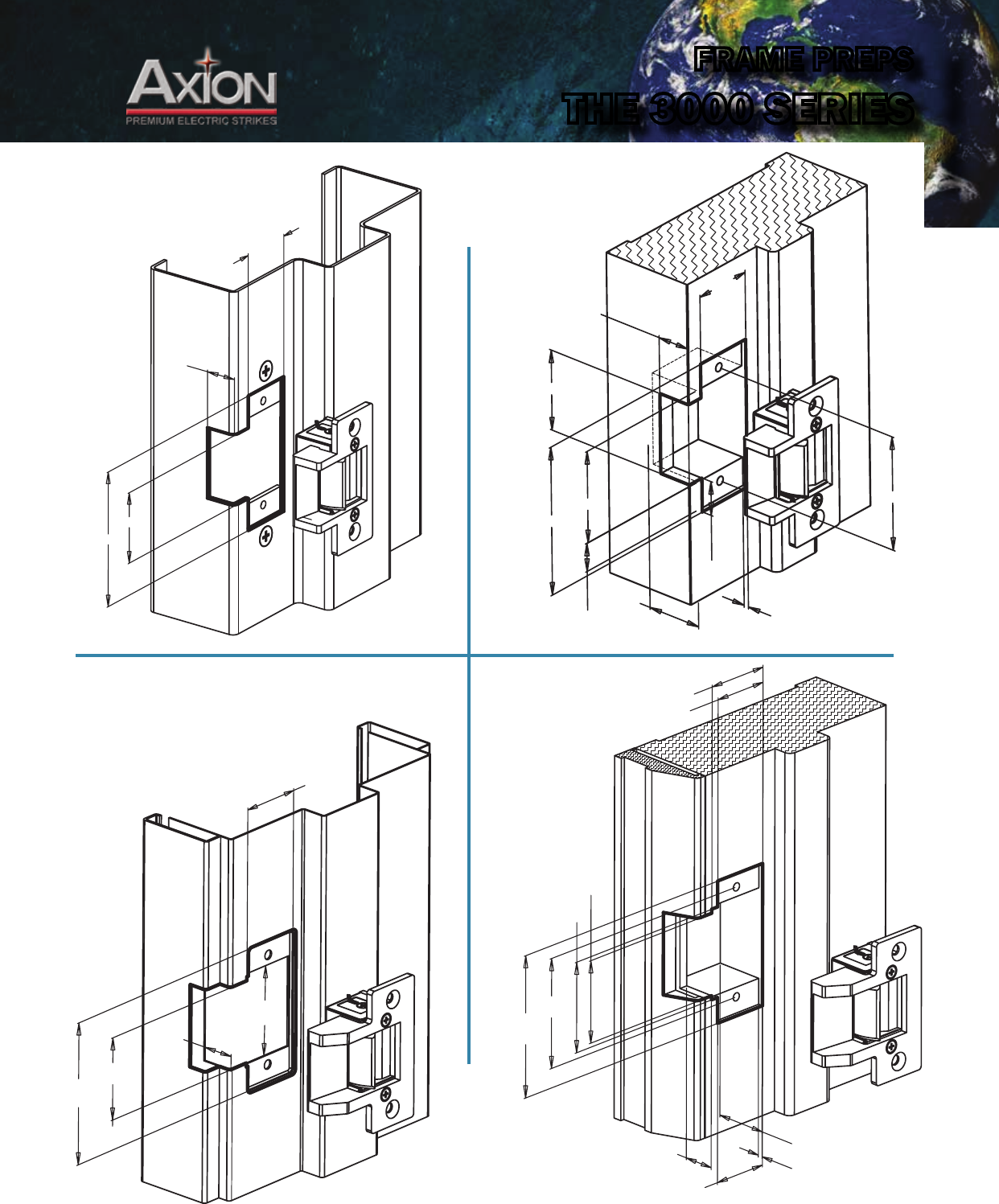

3000 Series

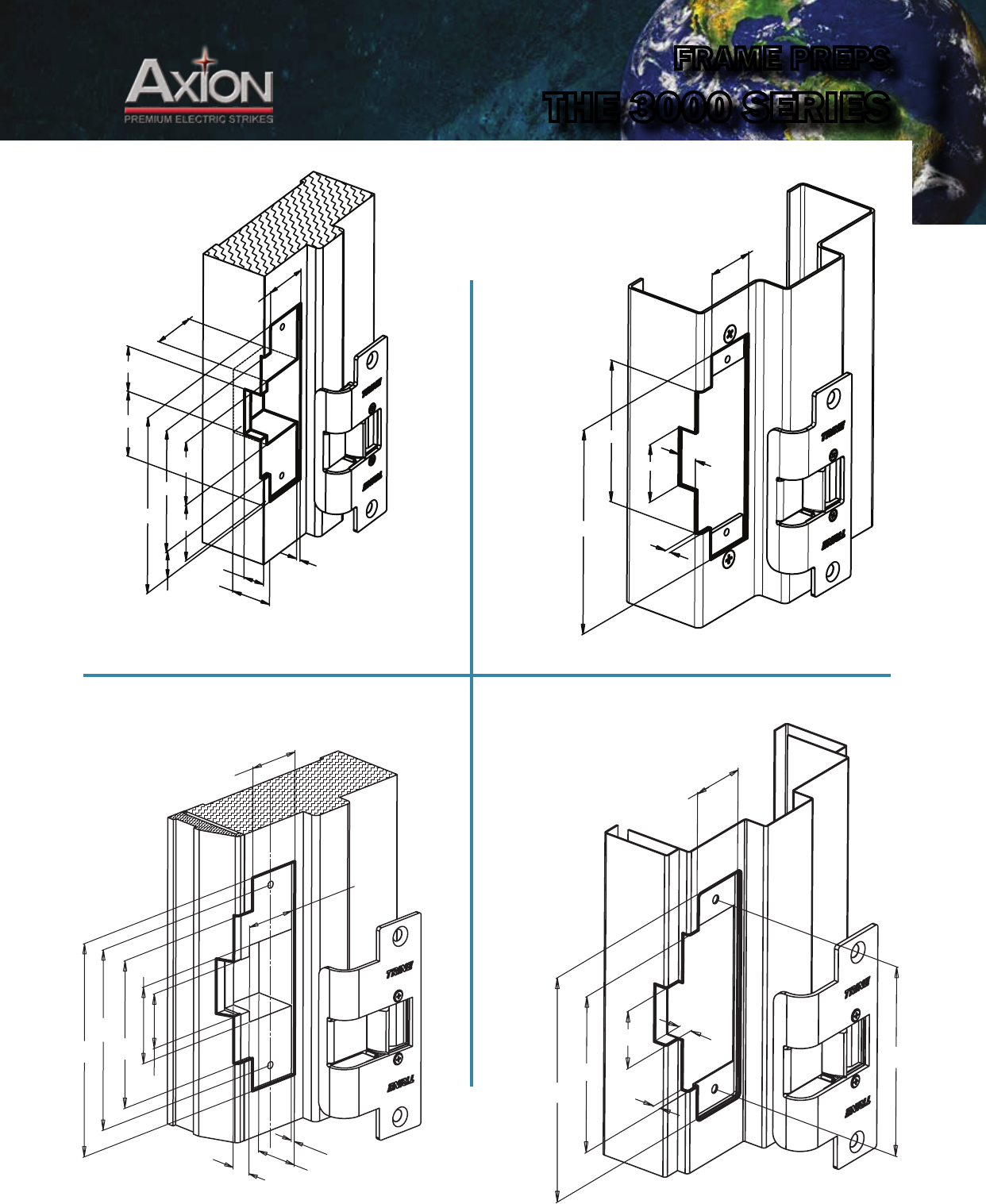

FRAME PREPS
THE 3000 SERIES
1 1/4"
4 7/8"
1 3/8"
1/8"
3 3/8"
7/16"
478 & 323478F-LC
HOLLOW METAL FRAME
4 7/8"
4 1/8"
3 3/8"
1 1/4"
1 3/4"
1 1/16"
15/32" 3/32"
1 1/4"
1 1/4"
1 1/4"
4 7/8"
3/32"
1 1/16"
1 9/16"
1 1/4"
9/16"
1 3/4"
1 13/16"
1 1/4"
3 3/8"
3/4"
5/32"
1 1/4"
4 7/8"
1 1/4" 9/32"
3 3/8"
4 1/8"
478
WOOD
FRAME
478X-375
WOOD
FRAME
478X-375 & 323478FX-LC
TIMELY
®
/REDI
®
/RACO
®
FRAMES
NO UGLY
BLACK
RAMPS!
BEST LOOKING WOOD
INSTALLATION
NOTE: USE 2 INCH LONG (OR LONGER) WOOD SCREWS FOR MOUNTING.
NOTE: USE 2 INCH LONG (OR LONGER) WOOD SCREWS
FOR MOUNTING.
Light Commercial
Electric Strikes
The original
Trine line
45
www.trineonline.com

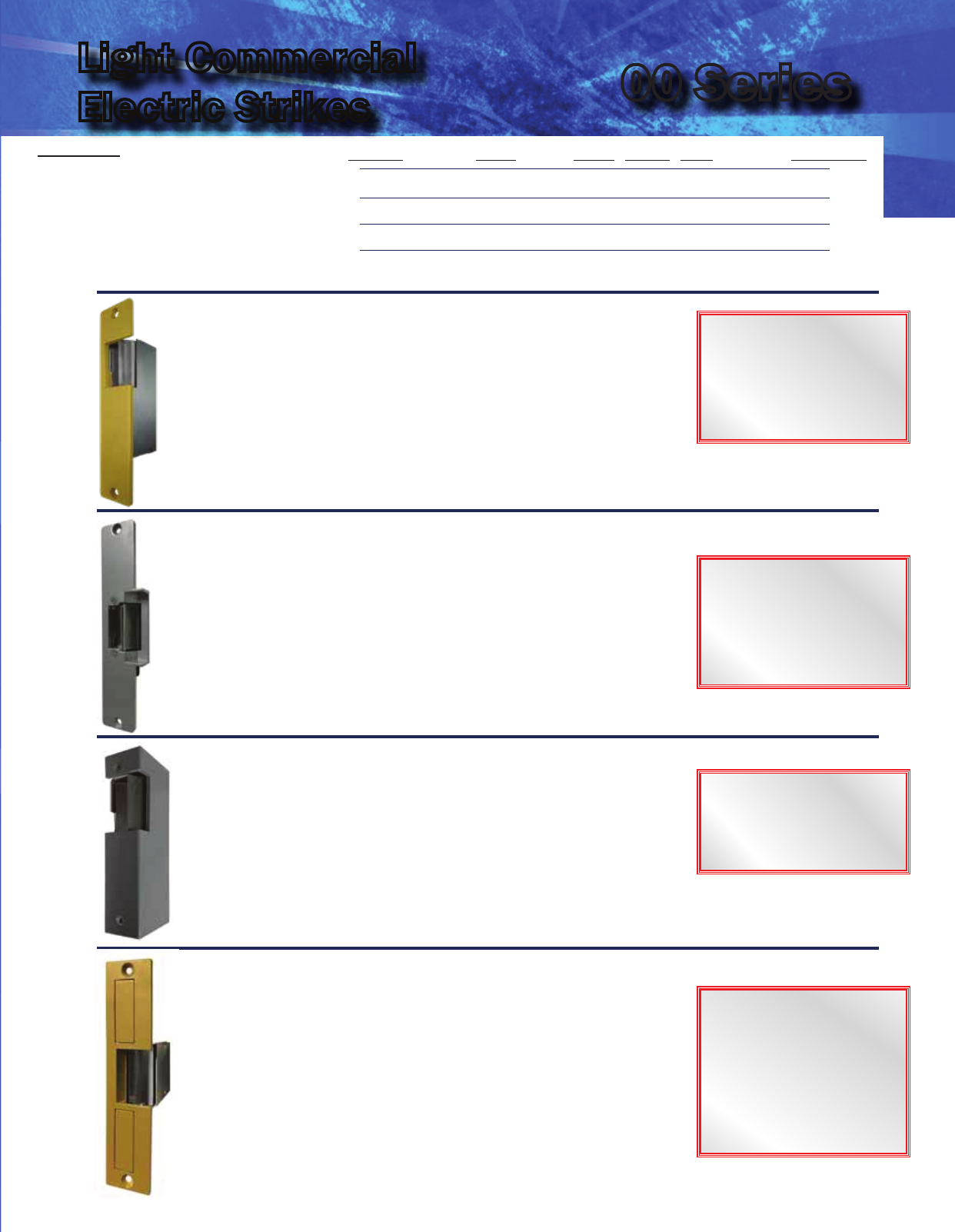

Light
Commercial Strikes
Light Commercial
Electric Strikes
FEATURES
• Durability - 500,000 Life Cycles
• Holding Force - 1000 lbs
• Only 1 Moving Part Locking Mechanism
• Non-Handed Operation
• Heavy Duty Latch Spring
• Fail Secure-Standard Action (Unlocks with Power)
001
For use in new or replacement installations in wood and metal
jambs. For use with locksets having up to 5/8” throw, based on
1/8” door gap.
Face Plate 5-7/8” x 1-1/4” -- Mortise Backset 1-9/16” -- Cavity Depth
1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
002
For use in new or replacement installations in wood and metal
jambs. Auxiliary lever ramps for use with locksets which contain
dead locking levers. Use with locksets having up to 5/8” throw,
based on 1/8” door gap.
Face Plate 7-15/16” x 1-7/16” -- Auxiliary Ramp 2-7/8” -- Mortise
Backset 1-9/16” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity
Height 1-1/2”
003
For surface mount installations on wood or metal jambs for in
swinging applications with surface mount. Use with locksets and
night latches having up to 5/8” throw, based on 1/8”door gap. When
mounted on a pair of doors, strike is mounted to the inactive leaf.
Surface Mount -- Case 4-11/16” x 1-1/4” -- Cavity Depth 1/2” -- Cavity
Width 9/16” -- Cavity Height 1-1/2”
004
For new or replacement installations in wood jambs. Use with
locksets with individual dead bolts. Dead bolts cannot be released
electrically. Use with locksets having up to 5/8” throw, based on
1/8” door gap.
Face Plate 6-1/4” x 1-3/8” -- Dead bolt Knockouts Top & Bottom
1-11/16” x 9/16” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” --
Cavity Width 9/16” -- Cavity Height 1-1/2”
Voltage Amps Ohms Sound Duty Wire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Buzz Intermittent Black
12VDC 0.40 30.0 Silent Continuous Red/White
24VAC 1.40 4.7 Buzz Intermittent Red
24VDC 0.19 125.0 Silent Continuous Black/White
001
(Brass Powder Coated)
001C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- For DC Models only.
004
(Brass Powder Coated)
004C
(Satin Chrome -- BHMA651)
004DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
002
(Aluminum Powder Coated)
002DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
003
(Grey Moulded Cover)
RS
(Fail Safe)
- For DC Models only.
00 Series
add
$20
add
$20
add
$20
add
$20
Price:
Price:
Price:
Price:
$52
$59
$97
$103
$103
$84
$89
$94
46 www.trineonline.com

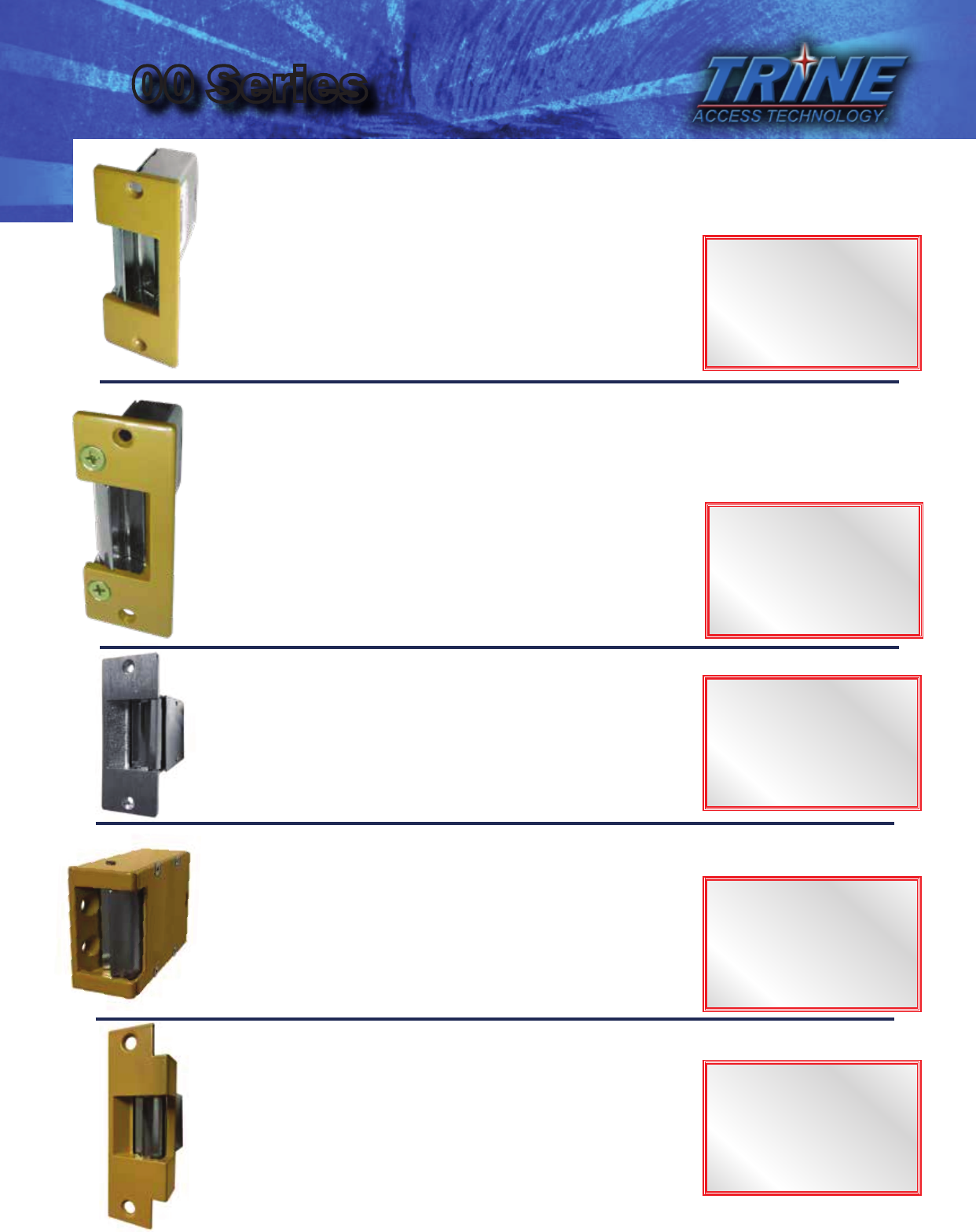

Light
Commercial Strikes
005
(Brass Powder Coated)
005C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- For DC Models only.
007
(Brass Powder Coated)
007C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- For DC Models only.
HD005
(Brass Powder Coated)
HD005C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- For DC Models only.
S005
(Brass Powder Coated)
S005C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- For DC Models only.
006
(Brass Powder Coated)
RS
(Fail Safe)
- For DC Models only.
005
For use in replacement installations in wood jambs and iron
gates. Use with bored cylindrical locksets having up to 5/8”
throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity
Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
S005
For use in replacement installations in wood jambs and iron
gates. Use with bored cylindrical locksets having up to 3/4”
throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-7/8” -- Cavity Depth
5/8” -- Cavity Width 23/32” -- Cavity Height 1-1/2”
006
For surface mount installations on metal or wood jambs, for in
swinging applications. Use with locksets or night latches having
up to 5/8” throw, based on 1/8” door gap. When mounted on a
pair or doors, strike is mounted to the inactive leaf.
Case 2-1/8” x 1-3/16” -- Surface Mounted -- Die Cast Housing --
Cavity Depth 1/2” -- Cavity Width 1/2” -- Cavity Height 1-3/8”
007
For use in new or replacement installations in wood jambs. Use
with locksets having up to 3/4” throw, based on 1/8” door gap.
Face Plate 4-7/8” x 1-1/4” -- Mortise Backset 2-7/8” -- Cavity Depth
5/8” -- Cavity Width 3/4” -- Cavity Height 1-1/2
HD005
Screwed-on Faceplate and reinforced Latch Pin provide additional
strength for HEAVY DUTY installations.
For use in replacement installations in wood jambs and iron
gates. Use with bored cylindrical locksets having up to 5/8” throw,
based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth
1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
00 Series
add
$20
add
$20
add
$20
add
$20
add
$20
Price:
Price:
Price:
Price:
Price:
$64
$70
$100
$105
$85
$90
$75
$83
$105
47
www.trineonline.com

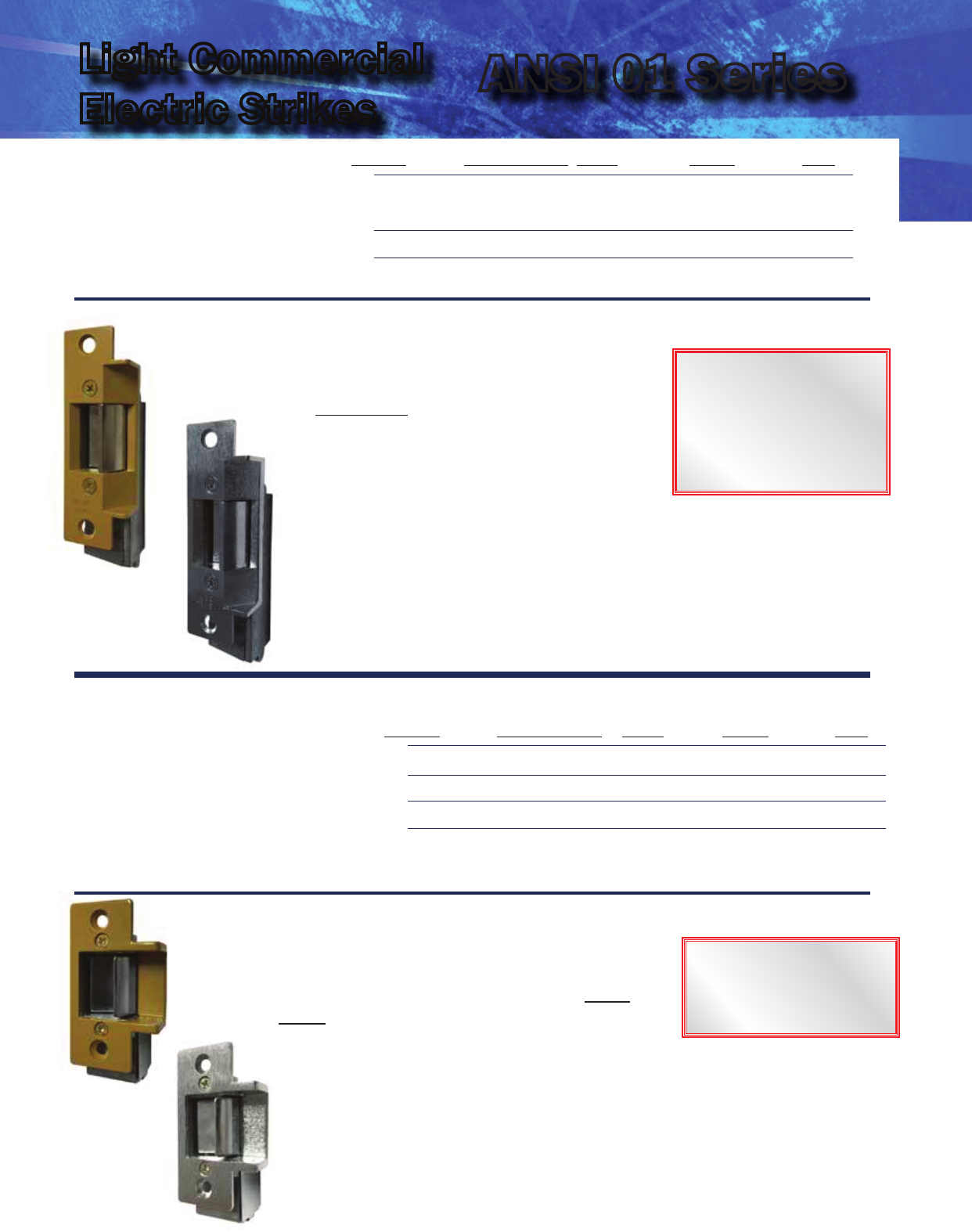

Light
Commercial Strikes
Light Commercial
Electric Strikes
ANSI 01 Series
FEATURES
• Miniature Design
• Die Cast Case
• Solid Cast Latch - Chrome Plated
• Non-Handed
• Heavy Duty Latch Spring
FEATURES
• Durability - 300,000 Life Cycles
• Holding Force - 1200 lbs
• Solid Brass Locking System
• Cast Steel Latch
• Heavy Duty Latch Spring
Voltage Current/Amps Ohms Sound Duty
10-16VAC 0.60 - 0.90 10.0 Buzz Intermittent
12VDC 0.50 10.0 Silent Continuous
24VAC 0.42 47.0 Buzz Intermittent
24VDC 0.20 119.0 Silent Continuous
Voltage Current/Amps Ohms Sound Duty
10-16VAC 0.82 - 1.44 6.8 Buzz Intermittent
12VDC 0.184 65.0 Silent Continuous
24VAC 0.895 14.0 Buzz Intermittent
24VDC 0.100 240.0 Silent Continuous
012
For new or replacement installations in
metal jambs. Use with locksets having up
to 5/8” throw, based on 1/8” door gap.
• Face Plate 4-7/8” x 1-1/4”
• Mortise Backset 1-5/8”
• Cavity Depth 9/16”
• Cavity Width 9/16”
• Cavity Height 1-1/2”
014
For new or replacement installations in metal
jambs. Use with locksets having up to 5/8”
throw, based on 1/8” door gap.
• Face Plate 2-3/4” x 1-1/8”
• Mortise Backset 1-1/4”
• Cavity Depth 1/2”
• Cavity Width 5/8”
• Cavity Height 1-1/8”
012
(Brass Powder Coated)
012C
(Satin Chrome -- BHMA651)
RS
(Fail Safe)
- 24DC Model only.
014
(Brass Powder Coated)
014C
(Satin Chrome -- BHMA651)
add
$30
Price:
Price:
$125
$129
$99
$105
48 www.trineonline.com

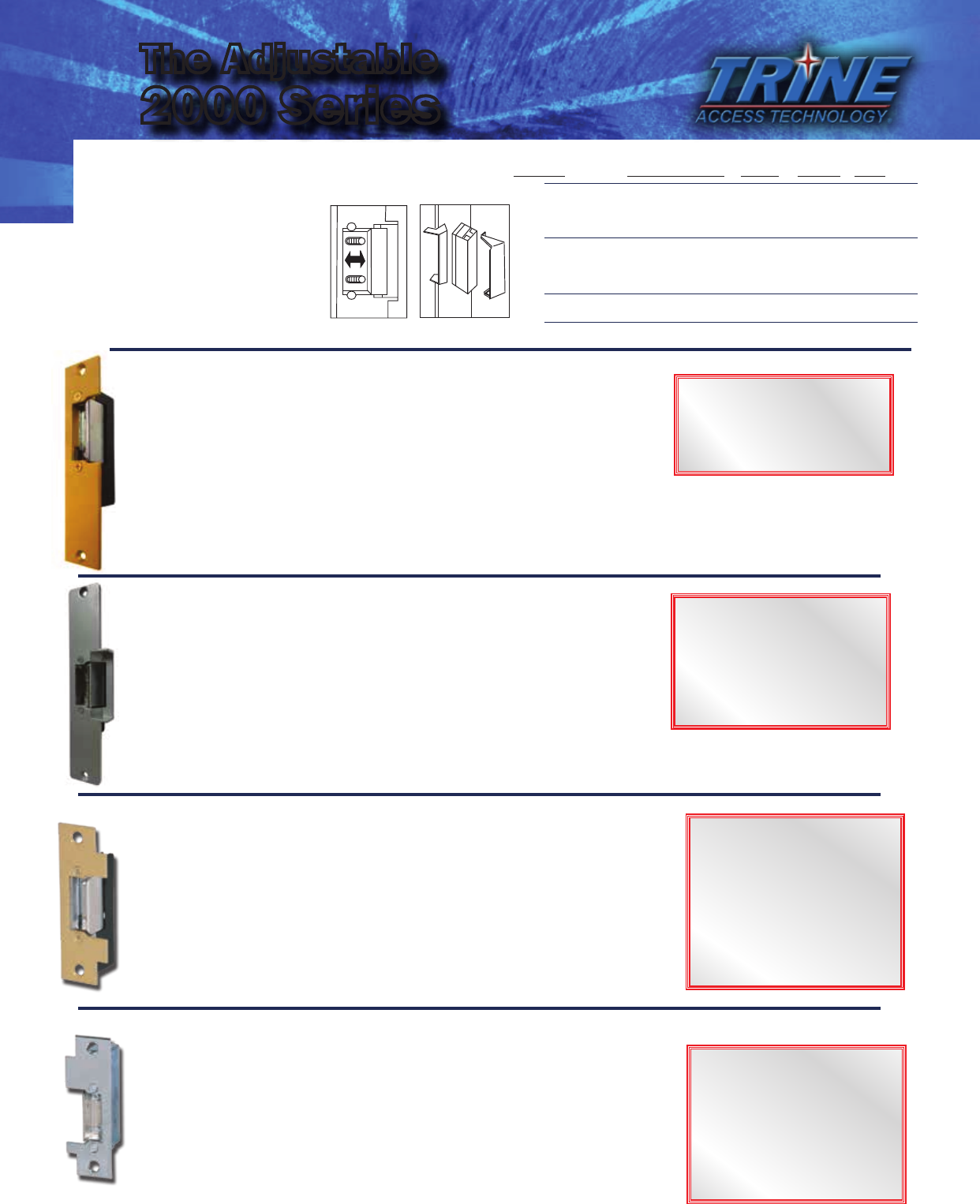

Light
Commercial Strikes
Voltage Current/Amps Ohms Sound Duty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Intermittent
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Intermittent
12VDC 0.200 60.0 Silent Continuous
24VDC 0.12 120.0 Silent Continuous
FEATURES
• Allows adjustment for wider latch bolts
& poorly aligned doors & locksets
• 1/8” Horizontal Latch Adjustment
• Releases Under Slight Door Preload
• Life Cycles - 500,000
• Holding Force - 900 lbs
• Solid Cast Latch - Chrome Plated
• Non-Handed Operation
2001
For use in new or replacement wood or metal jamb installations
with locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 5-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise
Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity
Height 1-11/16”
NOT AVAILABLE IN FAIL-SAFE FUNCTION. SEE 001 ON PAGE 45
2002
For use in new or replacement, aluminum or hollow, metal jamb
installations. Auxiliary lever ramps for use with locksets containing
dead-locking levers. Use with latch bolts having up to 5/8” throw,
based on 1/8” door gap.
Face Plate 7-15/16” x 1-7/16 -- Auxiliary Ramp Height 2-7/8” --
Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” --
Cavity Height 1-11/16”
2007
For use in new or replacement installations in metal jambs. Fits a
standard 4-7/8” ANSI prep with little jamb modication. Use with
locksets having up to 5/8” throw, based on 1/8” door gap.
Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise
Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity
Height 1-11/16””
+
+
2001
(Brass Powder Coated)
2001C
(Satin Chrome -- BHMA651)
2007
(Brass Powder Coated)
2007C
(Satin Chrome -- BHMA651)
2007DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
2002
(Aluminum Powder Coated)
2002DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
The Adjustable
2000 Series
2009
For use in new or replacement installations in metal jambs. Centerline
of the latch is 3/8” below ANSI centerline for offset applications. Fits
a standard 4-7/8” ANSI prep with little jamb modication. Use with
locksets having up to 5/8” throw, based on 1/8” door gap.
Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset
1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”
2009
(Brass Powder Coated)
2009C
(Satin Chrome -- BHMA651)
2009DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
add
$20
add
$20
Price:
Price:
Price:
$94
$100
$115
$120
$120
$109
$113
add
$20
Price:
$122
$127
$127
49
www.trineonline.com

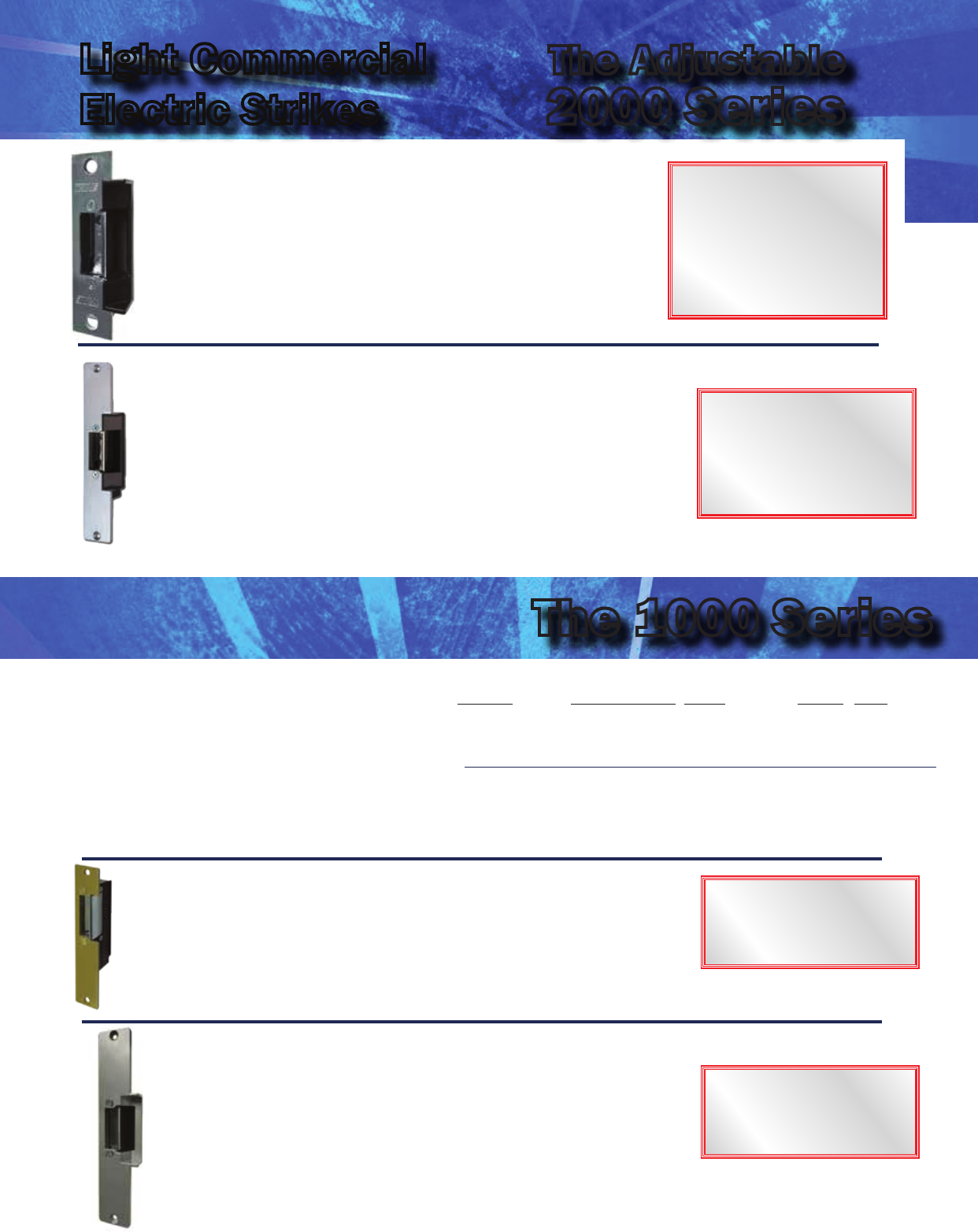

Light
Commercial Strikes
Light Commercial
Electric Strikes
The Adjustable
2000 Series
FEATURES
• Releases Under Slight Door Preload
• Taller latch cavity for easier door alignment.
• Life Cycles - 500,000
• Holding Force - 1000 lbs
• Non-Handed Operation
2012
For use in new or replacement,, aluminum or hollow, metal jamb
installations with locksets having up to 5/8” throw, based on 1/8”
door gap.
Steel Face Plate 4-7/8” x 1-1/4” -- Auxiliary Ramp 3-3/8” -- Mortise
Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity
Height 1-11/16
1001-2
For use in new or replacement installations in wood and metal jambs. For
use with locksets having up to 5/8” throw, based on 1/8” door gap.
Steel Face Plate 5-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset
1-1/2” -- Cavity Depth 9/16” -- Cavity Width 9/16” -- Cavity Height 1-11/16”
1002-2
For use in new or replacement installations in wood and metal jambs. Auxiliary
lever ramps for use with locksets which contain dead locking levers. For use
with locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 7-15/16” x 1-7/16” -- Auxiliary Ramp 2-7/8” Height -- Mortise Backset
1-1/2” -- Cavity Depth 9/16” -- Cavity Width 9/16” -- Cavity Height 1-11/16”
2678
For use in new or replacement aluminum, or hollow, metal jamb
installations. Auxiliary lever ramps for use with locksets containing
dead-locking levers. Useful when converting an MS Lock to a dead latch.
Up to 5/8” throw, based on 1/8” door gap.
Face Plate 6-7/8” x 1-1/4” -- Auxiliary Ramp 3-3/8” -- Mortise Backset
1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”
Voltage Current/Amps Ohms Sound Duty
6-14VAC 0.495 - 1.09 8.5 Buzz Intermittent
6-14VDC 0.650 - 1.24 8.5 Silent Intermittent
16-24VAC 0.270 - 0.48 50.0 Buzz Intermittent
16-24VDC 0.380 - 0.61 50.0 Silent Intermittent
2012
(Brass Powder Coated)
2012C
(Satin Chrome -- BHMA651)
2012DB
(
Dark Bronze Powder Coated
)
RS
(Fail Safe)
- For DC Models only.
1001-2
(Brass Powder Coated)
1001-2C
(Satin Chrome -- BHMA651)
2678
(Satin Aluminum - BHMA 628)
2678-US10B
(Satin Bronze -- BHMA639)
RS
(Fail Safe)
- For DC Models only.
The 1000 Series
1002-2
(Aluminum Powder Coated)
1002-2DB
(
Dark Bronze Powder Coated
)
add
$20
add
$20
Price:
Price:
Price:
Price:
$126
$129
$129
$74
$80
$96
$101
$119
$125
50 www.trineonline.com
Accessories
51
www.trineonline.com
Accessories
Search “4850ITL” on Youtube
To really see the
POWER of the 4850-ITL
watch our video...
THE INSTALLATION SOLUTION
FOR THE TRINE STRIKES
4850-ITL
ANSI-ITL
Custom
Center
Punch
• 4850-ITL installation tool has magnets installed
which allows it to attach to steel frames, so you can:
○ Adjust and center the strike before ever
drilling a hole eliminating any mistakes.
○
Increase your installation speed on every job.
• 1/4” Spacer included, so the tool becomes 3/4”
thick, and is also magnetized. (screws on side anchor
the spacer to the tool)
• Included custom center punch makes precise marks
on the frame for drilling. Marks all anchor pin holes,
mounting screws, power, and optional LB sensor.
• Patented
• The ANSI-ITL installation tool was designed to allow you to
easily install these popular strikes:
○ 234 ○ 234X-375 ○ 4100
○ 4100DBDL ○
4200
○ 478
○ 478X-375 ○ EN400
• Screw directly into the pre-existing tabs and mark.
• Carbide tip scribe included
• Adjustability allows for use with
Timely®/Redi®/Raco® style frames.
“Feel” the door work with the strike
on the frame... then drill.
A comprehensive installation tool for our Premium 2-3/4” and
4-7/8” ANSI electric strikes
Price:
ANSI-ITL
Price:
4850-ITL
$65
$399
52 www.trineonline.com
Accessories
THE NEW LATCHBOLT
MONITORING SOLUTION
LBM CHARACTERISTICS: @@
CONTACT FORM: C
CONTACT RATING: 10W
SWITCHING VOLTAGE: 30V MAX AC/DC
SWITCHING CURRENT: 0.5 A
CONTACT RESISTANCE
STATIC: 150 MILLIOHM
BREAKDOWN VOLTAGE: 200 VDC
OPERATING TEMP: -40° - 130° C
RATE: 2,000,000+ CYCLES
The microswitch used for over
30 years...
Strike Plate is not provided! Strike Plate is not provided!
Strike Plate is not provided!Strike Plate is not provided!
Note: LBM-1 and LBM-2 are
not electric strikes and do not
release a latch.
Patent Pending
IS A THING OF THE PAST.
LBM-1
SINGLE SWITCH FOR
CYLINDRICAL LOCKS
LBM-2
DOUBLE SWITCH FOR
MORTISE LOCKS
The life cycle of the old microswitches is far less
than the strikes they were connected to. Trine’s
magnetic reed switch has a life cycle in excess
of 2 million cycles.
Part of this durability lies in the moisture and
weather resistant nature of the reed switch. The
LBM-1 & 2 can work in environments where the
old microswitches never could.
Price:
LBM-2 $155
Price:
LBM-1 $118
53
www.trineonline.com
Accessories
Accessories

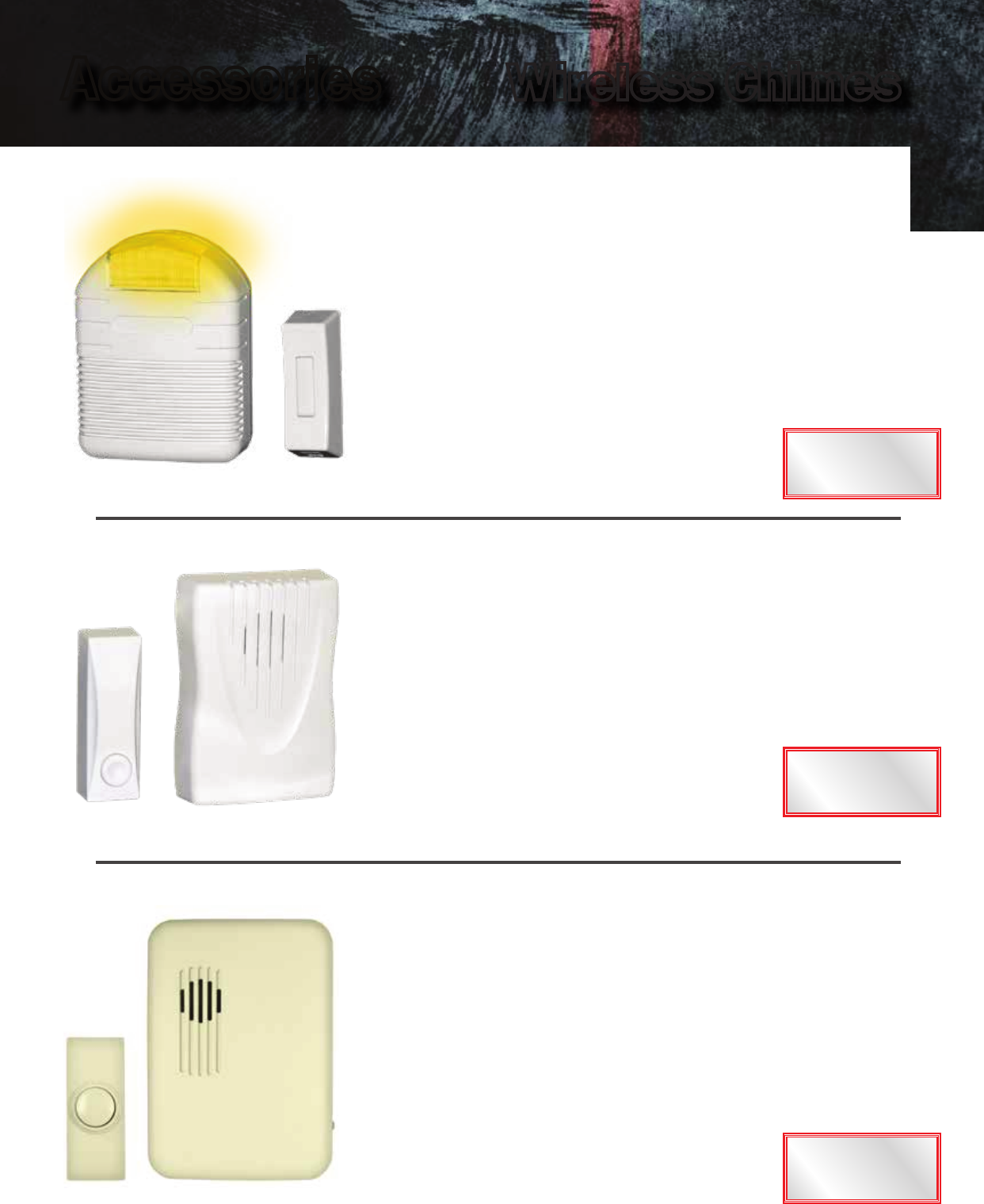

Wireless Chimes
234WB -- STROBE CHIME “See” Your Door Ring!!
• Sound and Sight - 8 note Westminster or 2-note sound with ashing
parallel light
• Simply plug-in - as many as desired wherever desired
• Volume control- adjust to desired intensity
• Up to 100 ft. operating range
• 128 selectable channels. Setting the same code on multiple devices will
allow them to chime at the same time (if within range). Setting different
codes will allow multiple chimes in proximity to work without interference.
• 80db at 3 feet at max setting
• 6 Foot-Candles strobe output
• FCC-IC approved, UL, CSA recognized
232 -- BATTERY OPERATED
• Field selectable 2 note or 1 note
• Requires 3 “C”batteries (not included)
• Up to 100ft operating range
• 64 selectable security codes. Setting the same code on multiple
devices will allow them to chime at the same time (if within range).
Setting different codes will allow multiple chimes in proximity to
work without interference
• A-23 battery included
• FCC-IC approved
233 -- PLUG IN
• Field selectable 8 note or 2 note
• Plugs into 120VAC outlet
• 128 selectable security codes. Setting the same code on
multiple devices will allow them to chime at the same time (if
within range). Setting different codes will allow multiple chimes
in proximity to work without interference
• Up to 100 ft. operating range
• A-23 battery included
• UL recognized, FCC-IC approved
Price:
232 $33
Price:
233 $41
Price:
234WB $89
54 www.trineonline.com
Accessories

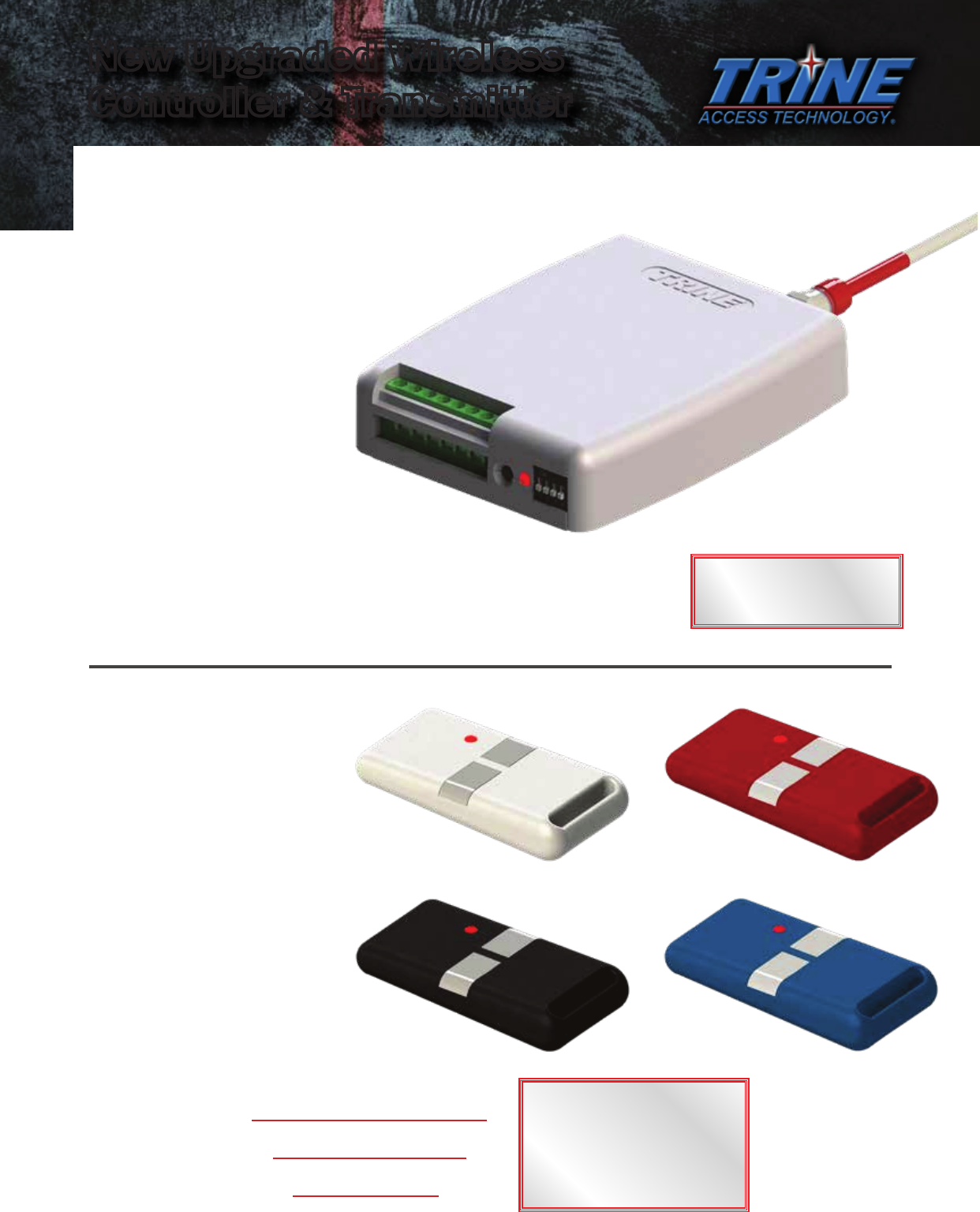

New Upgraded Wireless
Controller & Transmitter
018-4 -- WIRELESS
TRANSMITTER
TWO BUTTON TRANSMITTER
• Four color options
• 8 transmitters per
receiver
.
• LED indicates operation
• Rolling Code technology
provides self learning and
4+ billion codes.
• A-23 Battery Included
• FCC-IC approved
018-4-WHT 018-4-RED
018-4-BLK 018-4-BLU
017TDC-4 -- WIRELESS CONTROLLER
NOW UTILIZING ROLLING CODE
• 500’ Range
• 2 Channel receiver and transmitter
• Independently programmable A & B channel.
• 4, 8, 16 second delay or alternate
action trigger
• Dry contact relay rated up
to 30V @ 5 amps
• Single push button
program erase
(for security)
• Screw terminal connections
• Up to 8 transmitters per one
receiver.
• FCC-IC approved.
•
Not backwards compatible with any previous
017TDC/018 models.
PLEASE SPECIFY
COLOR WHEN
ORDERING
Price:
018-4-BLK
018-4-BLU
018-4-RED
018-4-WHT
$35
Price:
017TDC-4 $85
55
www.trineonline.com
Accessories
Accessories

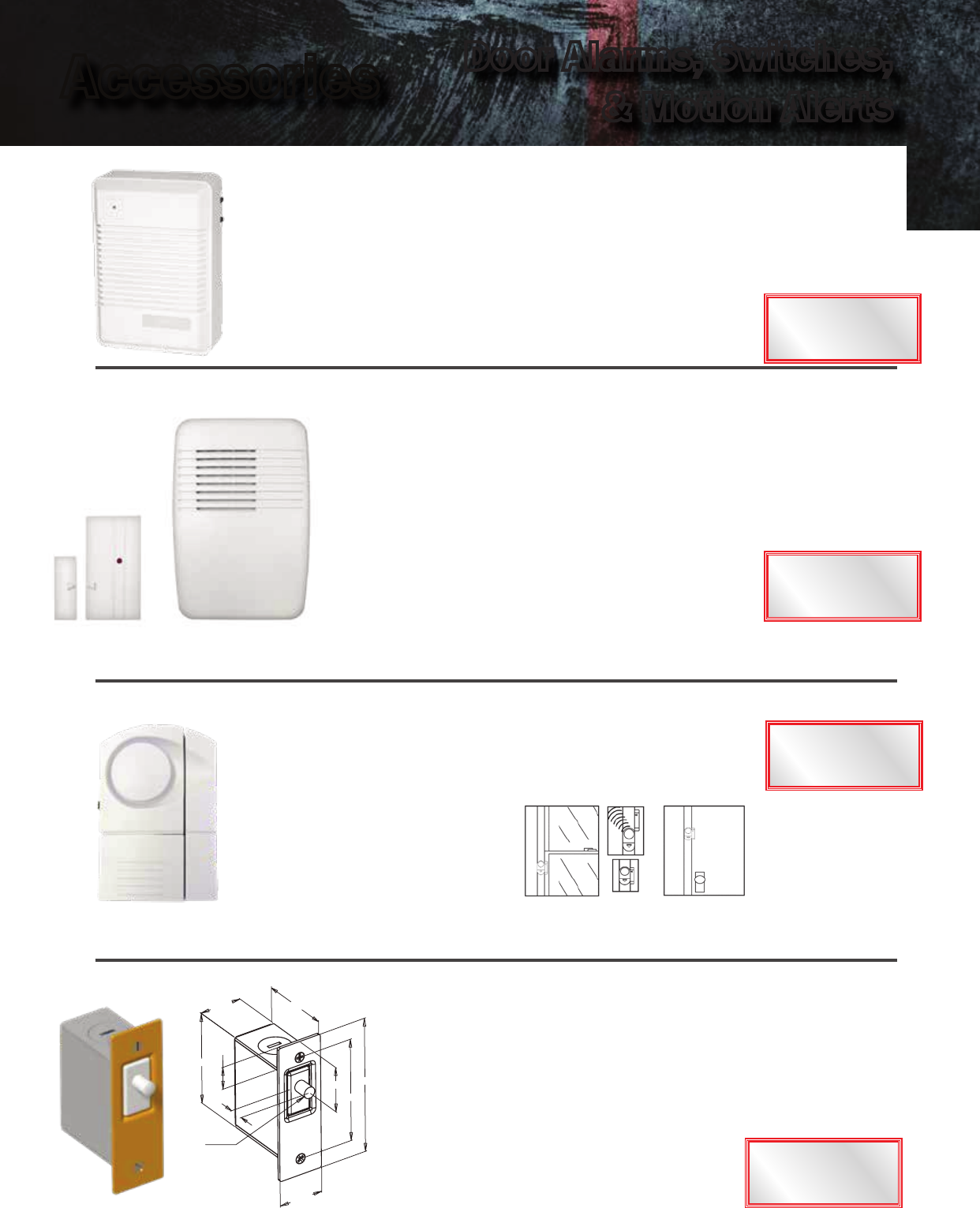

Door Alarms, Switches,
& Motion Alerts
206-2 -- MOTION ALERT ANNUNCIATOR
• Moving objects are detected by changes in reected light
• Battery operated with 2 “C” cells (not included)
• 3 selectable tones, 8 note melody, 2 note repeated, 2 note alternating tone
• Off, high &low volume control switch 77db (low) and 84db (high) @ 3 ft
• Durable white moulded plastic case 3-1/6” x 4-3/8” x 2-3/8”
215 -- WINDOW/DOOR ENTRY/EXIT SIGNAL KIT
• N/O magnetic contact switch activates alarm
• User can set for Chime or 105db alarm sound
• On/Off switch
• No wiring
• (3) L1154 batteries (included)
• Contacts provided with
mounting tape
206-3 -- WIRELESS ENTRY/EXIT SIGNAL KIT
• 1 note, 2 note or 8 note melody chime, eld selectable
• Wireless battery-operated door contact switch A-23 battery (included)
• Up to 100ft range -- 128 selectable codes. Setting the same code on
multiple devices will allow them to chime at the same
time (if within range). Setting different codes will allow
multiple chimes in proximity to work without interference
• Receiver plugs into 120 VAC outlet
• Adjustable volume control, 74db (low) 82db (high) @ 3ft
• UL recognized, FCC-IC approved
342 -- ELECTRIC DOOR SWITCH (NARROW STYLE)
• Face plate brass nish 3-7/8“H x 1-1/4”W
• Box 2-5/8”H x 1-3/16”W x 2-1/8”D
• Switch Rating: 120VAC, 10 Amps 250VAC, 5 Amps
• Field selectable N/C or N/O
• Stamped steel case -- UL, CSA listed switch & wire leads
• Faceplate Powder Coated Brass
• 4 - knockouts 7/8”
3 7/8"
1 5/16"
3"
1 3/16" 2 1/16"
5/32" R
2 5/8"
7/16"
1 1/4"
5/8"
Price:
206-2 $28
Price:
206-3 $57
Price:
342 $21
Price:
215 $12
56 www.trineonline.com
Accessories

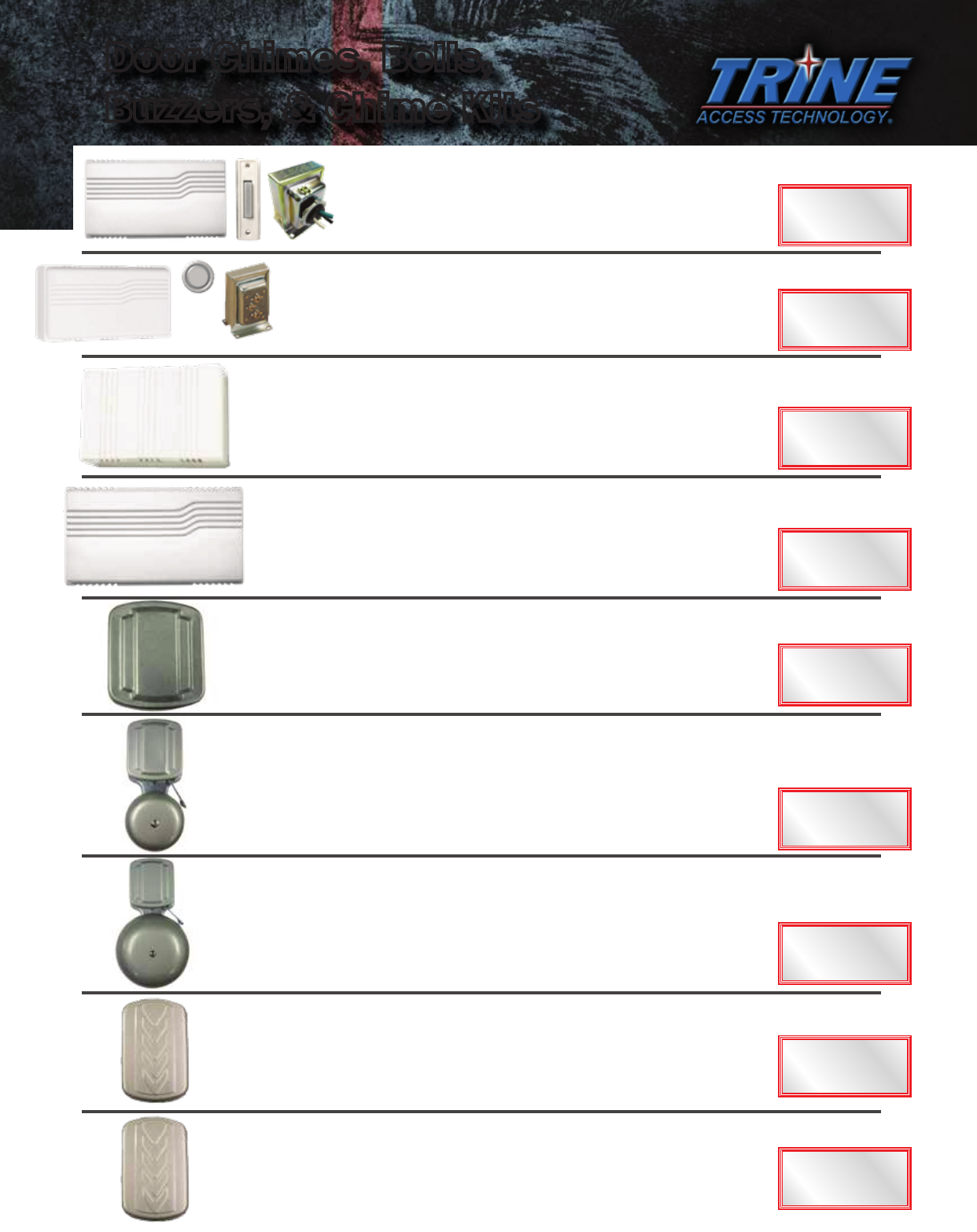

Door Chimes, Bells,
Buzzers, & Chime Kits
201 -- CHIME KIT
• (1) White chime base, (2) Unlighted 66W white push
buttons, and (1) 16VAC-10VA Hard wire transformer
• Mounting hardware included, excluding wire
• Offers 2 note front door/1 note rear door ability
203 -- CHIME KIT
• (1) White chime base, (1) Lighted 45LG push button, and
(1) 16VAC-10VA Hard wire transformer
• Mounting hardware included, excluding wire
• Offers 2 note front door/1 note rear door ability
240 -- CHIME
• Chime base with solid white cover
• Offers 2 note front door/ 1 note rear door ability
• Operating voltage 12-16VAC --
Mounting base hardware provided
• 80 db sound at 3 feet --
Outer dimension 7-1/4” x 4-3/4” x 1-7/8”
296 -- CHIME
• Chime base with solid white cover
• Offers 2 note front door/1 note rear door ability
• Operating voltage 12-16VAC --
Mounting base hardware included
• 75db sound at 3 feet -- Outer dimension 1-1/8” x 4” x 2”
270 -- BUZZER
• Enclosed buzzer -- 92db sound at 3 feet
• Operating range 3-6VDC, 8-16 VAC, 1 Amp draw
• Aluminum powder coat nish
• Includes mounting hardware
272 -- BELL
• 100 db sound at 3 feet -- 2-1/2” open bell
• Operating range 3-6VDC, 8-16 VAC, 1 Amp draw
• Aluminum powder coat nish
• Includes mounting hardware
274 -- BELL
• 100 db sound at 3 feet -- 4” open bell
• Operating range 3-6VDC, 8-16 VAC, 1 Amp draw
• Aluminum powder coat nish
• Includes mounting hardware
275 -- ENCLOSED BELL
• 88 db at 3 feet
• Operating range: 3-8VDC, 1.4 Amp draw
• 6-8VAC, 0.7 Amp draw
• Grey nish -- Includes mounting hardware
276 -- ENCLOSED BELL & BUZZER
• 88 db at 3 feet
• Operating range: 3-8VDC, 1.4 Amp draw
• 6-8VAC, 0.7 Amp draw
• Grey nish -- Includes mounting hardware
Price:
270 $16
Price:
296 $20
Price:
272 $18
Price:
274 $20
Price:
275 $22
Price:
276 $26
Price:
240 $30
Price:
203 $29
Price:
201 $29
57
www.trineonline.com
Accessories
Accessories

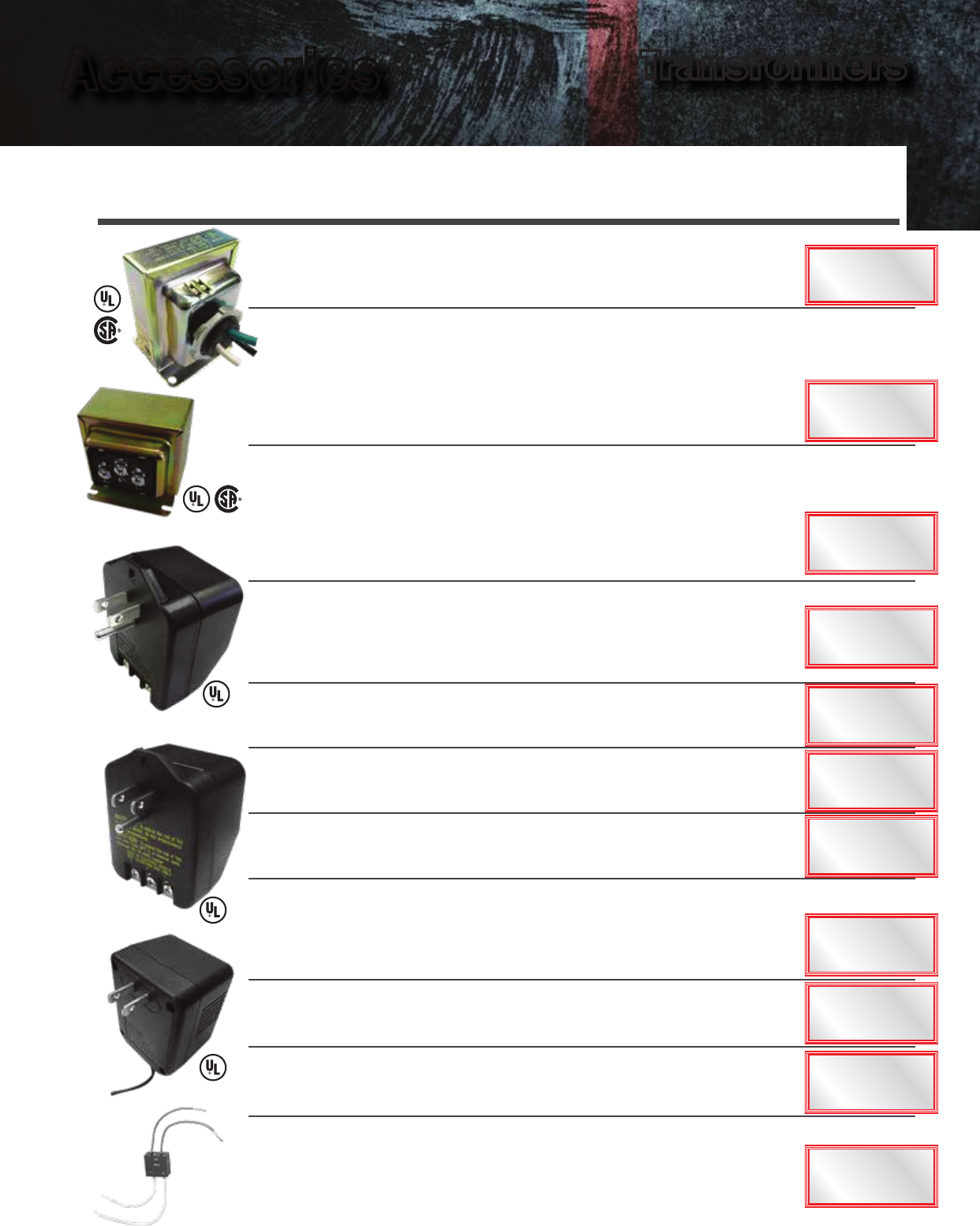

Transformers
525 -- (2) -- CLAMP ON TYPE/TRI VOLT (AC)
• Equipped with convenient screw-bracket mounting clamp for standard 1/2”
knockouts
• 120 volt primary AC •
2-1/4”D x 2-3/16”H x 2-5/16”W 13oz
• Electric Characteristics: 8VAC -- 10VA -- 1.25 AMPS
16VAC -- 10VA -- 0.62 AMPS
24VAC -- 20VA -- 0.83 AMPS
599 -- (2) -- CLAMP ON TYPE (AC)
• Equipped with convenient screw-bracket mounting clamp for standard 1/2”
knockouts
• 120 volt primary AC •
2-15/16”D x 2-3/16”H x 2-11/32”W 1lb 6oz
• Electric Characteristics: 24VAC -- 40VA -- 1.65 AMPS
5201 -- (3) -- PLUG IN TYPE (AC)
• 120 volt primary AC • 2”D x 3”H x 2-1/2”W 7oz
• Electric Characteristics: 24VAC -- 20VA -- 0.834 AMPS
5203 -- (3) -- PLUG IN TYPE (AC)
• 120 volt primary AC • 2”D x 3”H x 2-1/2”W 7oz
• Electric Characteristics: 16VAC -- 20VA -- 1.250 AMPS
5204 -- (3) -- PLUG IN TYPE (AC)
• 120 volt primary AC • 2”D x 3”H x 2-1/2”W 7oz
• Electric Characteristics: 12VAC -- 20VA -- 1.667 AMPS
598 -- (2) -- CLAMP ON TYPE/TRI VOLT (AC)
• Equipped with convenient screw-bracket mounting clamp for standard 1/2”
knockouts
• 120 volt primary AC •
2-15/16”D x 2-7/32”H x 2-11/32”W 1lb 6oz
• Electric Characteristics: 8VAC -- 20VA -- 2.50 AMPS
16VAC -- 30VA -- 1.88 AMPS
24VAC -- 30VA -- 1.25 AMPS
5205 -- (4) -- PLUG IN TYPE/TRI VOLT (AC)
• 120 volt primary AC • 2”D x 3”H x 2-1/2”W 7oz
• Electric Characteristics: 8VAC -- 10VA -- 1.25 AMPS
16VAC -- 10VA -- 0.62 AMPS
24VAC -- 20VA -- 0.83 AMPS
5208 -- (5) -- PLUG IN TYPE (DC)
• 120 volt primary AC, Corded output lead • 2”D x 3-1/4”H x 2-3/8”W 1lb 2oz
• Electric Characteristics: 12VDC -- 12VA -- 1.00 AMPS
5209 -- (5) -- PLUG IN TYPE (DC)
• 120 volt primary AC, Corded output lead • 2”D x 3-1/4”H x 2-3/8”W 1lb 2oz
• Electric Characteristics: 24VDC -- 12VA -- 0.50 AMPS
SR1 -- (6) -- SILICON RECTIFIER (SR-1)
Not Recommended for 4850
• For converting AC voltage to DC voltage •
For AC power supplies up to 27 volt AC 1 amp.
• Note: DC strikes do not buzz, click only • Size 1” x 1/2” x 1”
• Electric Characteristics: 12-27VAC -- 1.00 AMPS
522 -- (1) -- LOCKNUT TYPE (AC)
• For standard 1/2” knockouts • 120 volt primary AC
• 2-5/32”D x 2-1/2”H x 2”W 8oz
• Electric Characteristics: 16VAC -- 10VA -- 0.625 AMPS
For electric strikes, bells, buzzers, chimes, and other low voltage devices. A complete line of U.L. Listed step down
transformers. Easy to install, low voltage, 120AC primary for residential, commercial and industrial uses. Transformers
will safely take themselves off line when they overheat. Transformers can be either base mounted or attached to
standard knockouts on boxes or cabinets (except plug-in types.) All primary leads are pre-stripped for quick connection.
(1)
(2)
(5)
(6)
(4)
(3)
Price:
599 $30
Price:
598 $29
Price:
525 $26
Price:
5201 $26
Price:
5203 $26
Price:
5204 $26
Price:
5209 $33
Price:
5208 $33
Price:
5205 $31
Price:
SR1 $26
Price:
522 $18
58 www.trineonline.com
Accessories

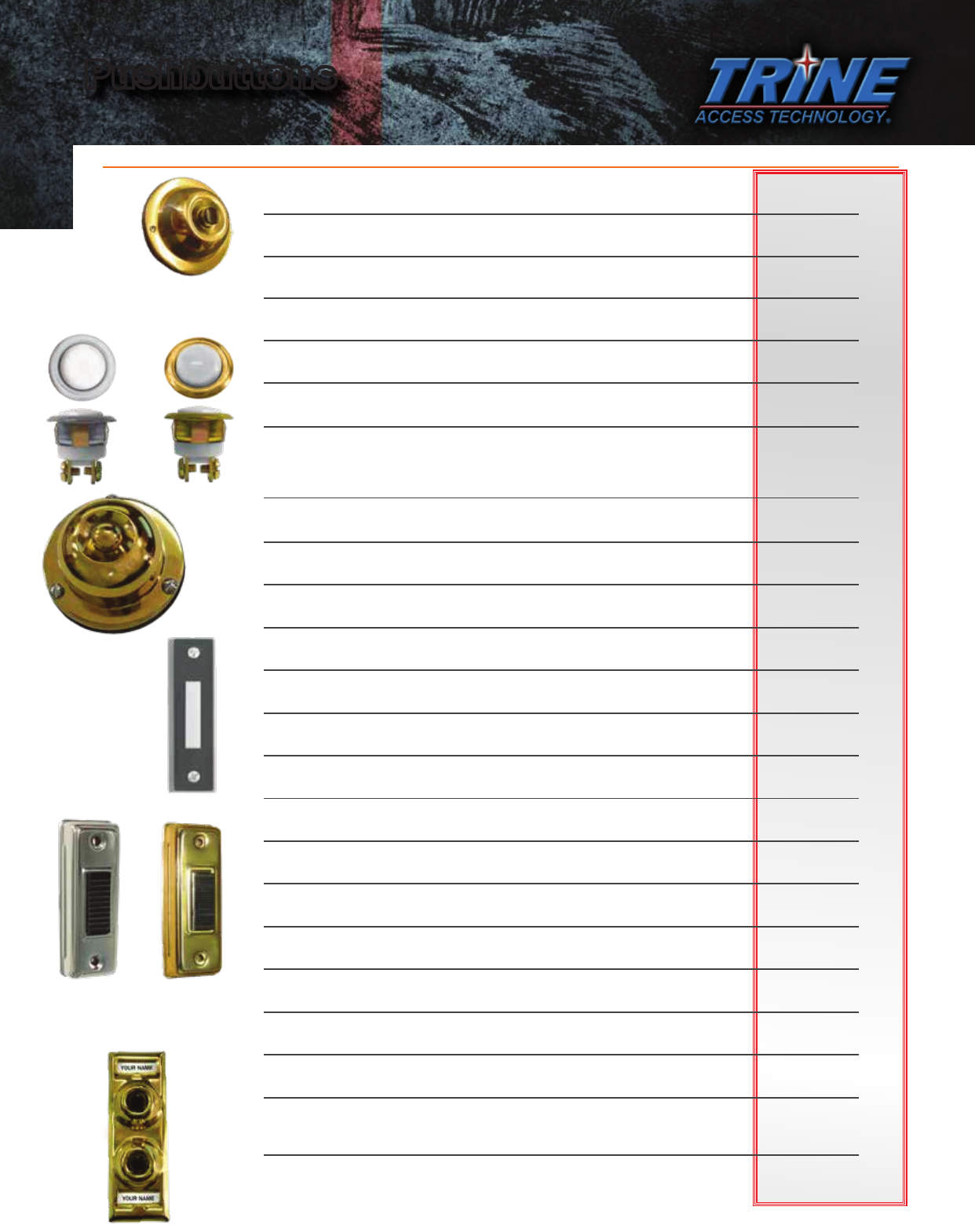

JRP -- Polished Solid Brass w/ black center
1-3/4” Body Diameter -- for use up to 30 volts AC or DC
SRP -- Polished Solid Brass w/ black center
2-1/4” Body Diameter -- for use up to 30 volts AC or DC
45A -- Silver Rim with Pearl Center
5/8” Body Diameter -- for use up to 30 volts AC or DC
45G -- Gold Rim with Pearl Center
5/8” Body Diameter -- for use up to 30 volts AC or DC
45LA -- Silver Rim with Lighted Pearl Center
5/8” Body Diameter -- for use up to 16 volts AC or DC
45LG -- Gold Rim with Lighted Pearl Center
5/8” Body Diameter -- for use up to 16 volts AC or DC
66B -- Black with White Bar Molded Plastic
2-3/4”L X 3/4”W X 5/8”H -- for use up to 30 volts AC or DC
66C -- Silver w/ White Bar Molded Plastic
2-3/4”L X 3/4W” X 5/8”H -- for use up to 30volts AC or DC
66G -- Gold w/ White Bar Plated Molded Plastic
2-3/4”L X 3/4”W X 5/8”H -- for use up to 30 volts AC or DC
66W -- White with White Bar Molded Plastic
2-3/4”L X 3/4W” X 5/8”H -- for use up to 30 volts AC or DC
66LB -- Lighted Black w/ White Bar Molded Plastic
2-3/4”L X 3/”4W X 5/8”H -- for use up to 16 volts AC or DC
66LC -- Lighted Silver w/ White Bar Plated Molded Plastic
2-3/4”L X 3/4W” X 5/8”H -- for use up to 16 volts AC or DC
66LG -- Lighted Gold w/ White Bar Plated Molded Plastic
2-3/4”L X 3/4”W X 5/8”H -- for use up to 16 volts AC or DC
66LW -- Lighted White w/ White Bar Molded Plastic
2-3/4”L X 3/4”W X 5/8”H -- for use up to 16 volts AC or DC
71A -- Anodized Aluminum Housing w/ Black Bar
2-3/4”L X 1”W X 3/4”H -- for use up to 30 volts AC or DC
71DB -- Dark Bronze Powder Coated Housing w/ Black Bar
2-3/4”L X 1”W X 3/4”H -- for use up to 30 volts AC or DC
71G -- Anodized Brass Aluminum Housing w/ Black Bar
2-3/4”L X 1”W X 3/4”H -- for use up to 30 volts AC or DC
71LA -- Lighted Anodized Aluminum Housing w/ White Bar
2-3/4”L X 1”W X 3/4”H -- for use up to 16 volts AC or DC
71LDB -- Dark Bronze Powder Coated Housing w/ White Bar
2-3/4”L X 1”W X 3/4”H -- for use up to 16 volts AC or DC
71LG -- Lighted Anodized Brass Aluminum Housing
w/ White Bar 2-3/4”L X 1”W X 3/4”H -- for use up to 16 volts AC or DC
91P -- Multi-Family, Polished Solid Brass Housing
4-3/4”L X 5/8”W X 3/4”H -- for use up to 30 volts AC or DC
*Must be ordered in 5 pack quantity
94P -- 3-Button Multi-Family, Polished Solid Brass
Housing 7”L X 5/8”W X 3/4”H -- for use up to 30 volts AC or DC
*Must be ordered in 5 pack quantity
Pushbuttons
JRP,
SRP
45A,
45LA
66
Series
66B Shown
71 Series
71A & 71G Shown
91P
45G,
45LG
*PUSH BUTTONS MUST BE PURCHASED IN PACKS OF 10 UNLESS NOTED*
65P
Price:
71LDB $10
.50
65P
- Weatherproof Polished Solid Brass
2-1/2” Body Diameter *Sold in single packs*
for use up to 30 volts AC or DC
Price:
JRP $8
.50
Price:
SRP $9
.00
Price:
45A $6
.00
Price:
45LA $8
.00
Price:
66LB $9
.00
Price:
66LC $9
.00
Price:
66LG $9
.00
Price:
71LG $10
.50
Price:
71LA $10
.50
Price:
66LW $9
.00
Price:
71A $9
.50
Price:
71DB $9
.50
Price:
91P $19
.00
Price:
94P $21
.00
Price:
71G $9
.50
Price:
45LG $8
.00
Price:
65P $57
.00
Price:
45G $6
.00
Price:
66B $6
.00
Price:
66C $6
.00
Price:
66G $6
.00
Price:
66W $6
.00
59
www.trineonline.com
Accessories

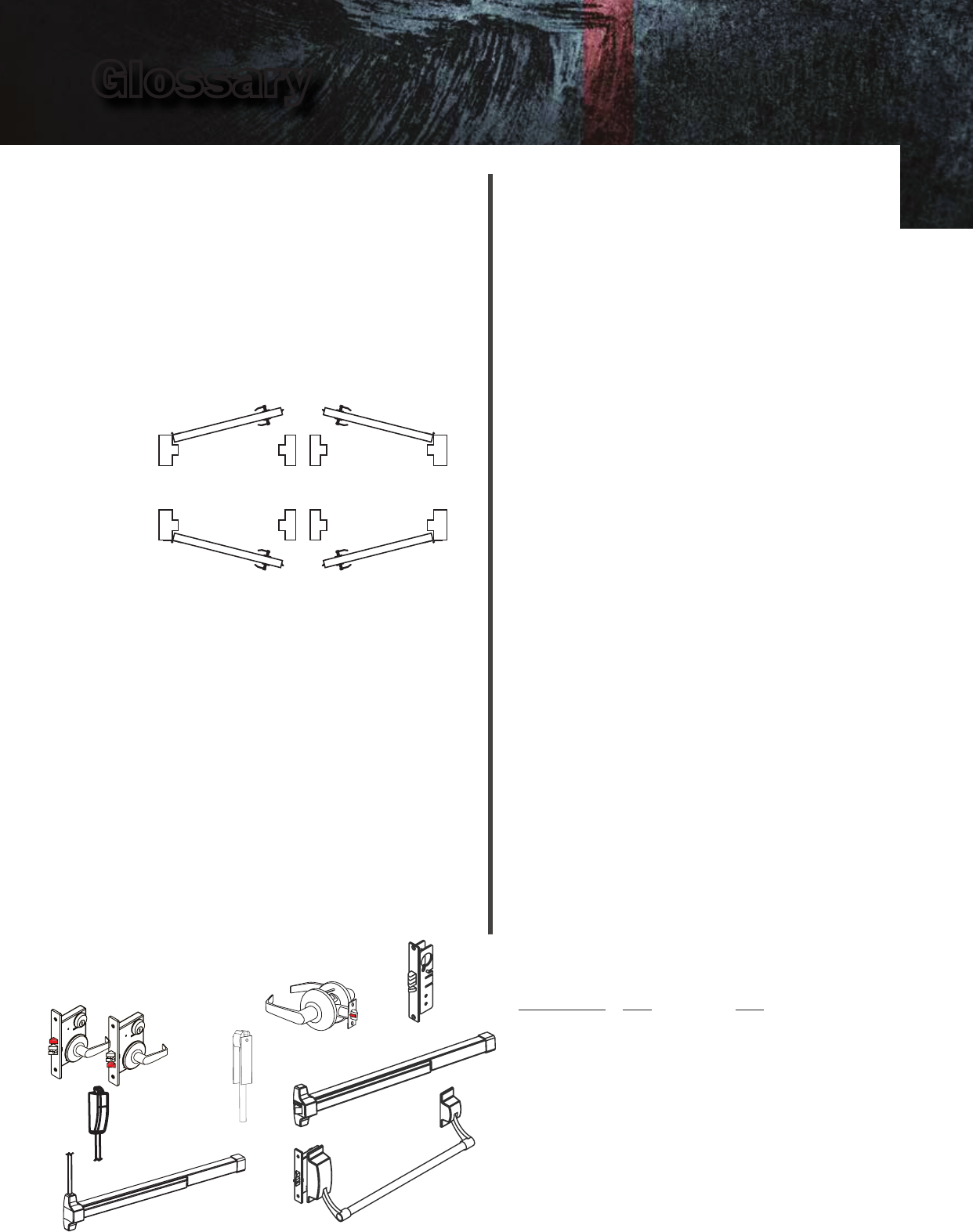

ALTERNATING CURRENT (AC)
An electric current that reverses direction in a circuit at
regular intervals.
CONTINUOUS DUTY
A device that is designed to operate continuously
without rest.
CURRENT
Measured ow of electrons through an electrical
conductor. Normally measured in amperes.
DIRECT CURRENT
An electric current owing in one direction.
DOOR HANDING
FAIL SAFE
A device that is normally open and locks when power is
applied to the unit. Example: During a loss of power the
device remains open. Often listed as “RS”
FAIL SECURE
A device that is normally closed or locked until power
is applied. Example: During a loss of power the device
remains locked.
FUSE
A device that is placed in the path of energy that will
break the circuit if the current becomes too great. This
is accomplished by having a strip or metal that will melt
when the current exceeds the required amount.
INTERMITTENT DUTY
A device that is designed to operate for a short period
of time; generally less that 45 seconds.
LOCKSET TYPES
Glossary
NORMALLY OPEN
The contacts of a switch or relay are normally open
or not connected. When activated the contacts close
or become connected. EXAMPLE: A switch is not
depressed and the circuit is not complete.
NORMALLY CLOSED
The contacts of a switch or relay are normally closed or
connected. When activated the contacts open or become
disconnected. EXAMPLE: A switch is not depressed and
the circuit is complete.
OHMS
The measure of resistance of an electrical device to resist
the ow of energy.
RECTIFIER
A device that is commonly used to convert AC to DC.
Commonly used to silence the audible sound that an
electrical strike can make while energized on AC current.
RELAY
An electro-magnetic device activated by a variation in
conditions in one electric circuit and controlling a
larger current or actuating other devices in the
same or another electric circuit.
STANDARD VOLTAGE
Electric door strike supplied with magnetic coils:
4-6VDC/8-16VAC. Electric door strikes supplied with a
solenoid coil: 6-10VDC, 10-16VAC: other voltages
available.
TRANSFORMER
A device consisting essentially of two or more coils of
insulated wire that transfers alternating current by electro-
magnetic induction from one winding to another at the
same frequency, but usually with changed voltage &
current.
VOLT
A unit of electric potential equal to the difference
of electric potential between two points that have a
resistance of one ohm and through which a current of one
amperes is owing.
VOLTAGE DROP?
We recommend the following wire sizes:
Wire Length 12V 24V
Up to 50 ft. 18 AWG 20 AWG
51-150 ft. 16 AWG 18 AWG
151-300 ft. 14 AWG 16 AWG
301-600 ft. 12 AWG 14 AWG
WATT
The power developed in a circuit by a current of
one ampere owing through a potential difference
of one volt.
LEFT HAND
(LH)
LEFT HAND
REVERSE BEVEL
(LRB)
RIGHT HAND
(RH)
RIGHT HAND
REVERSE BEVEL
(RRB)
OUTSIDE
OUTSIDE
HANDING OF DOOR IS ALWAYS DETERMINED
FROM THE OUTSIDE.
Mortise Exit
Device
Rim Panic
Exit Device
Vertical rod
latch
Cylindrical Lock
Dead
Latch
Mortise Lock
Dor-0-Matic
60 www.trineonline.com

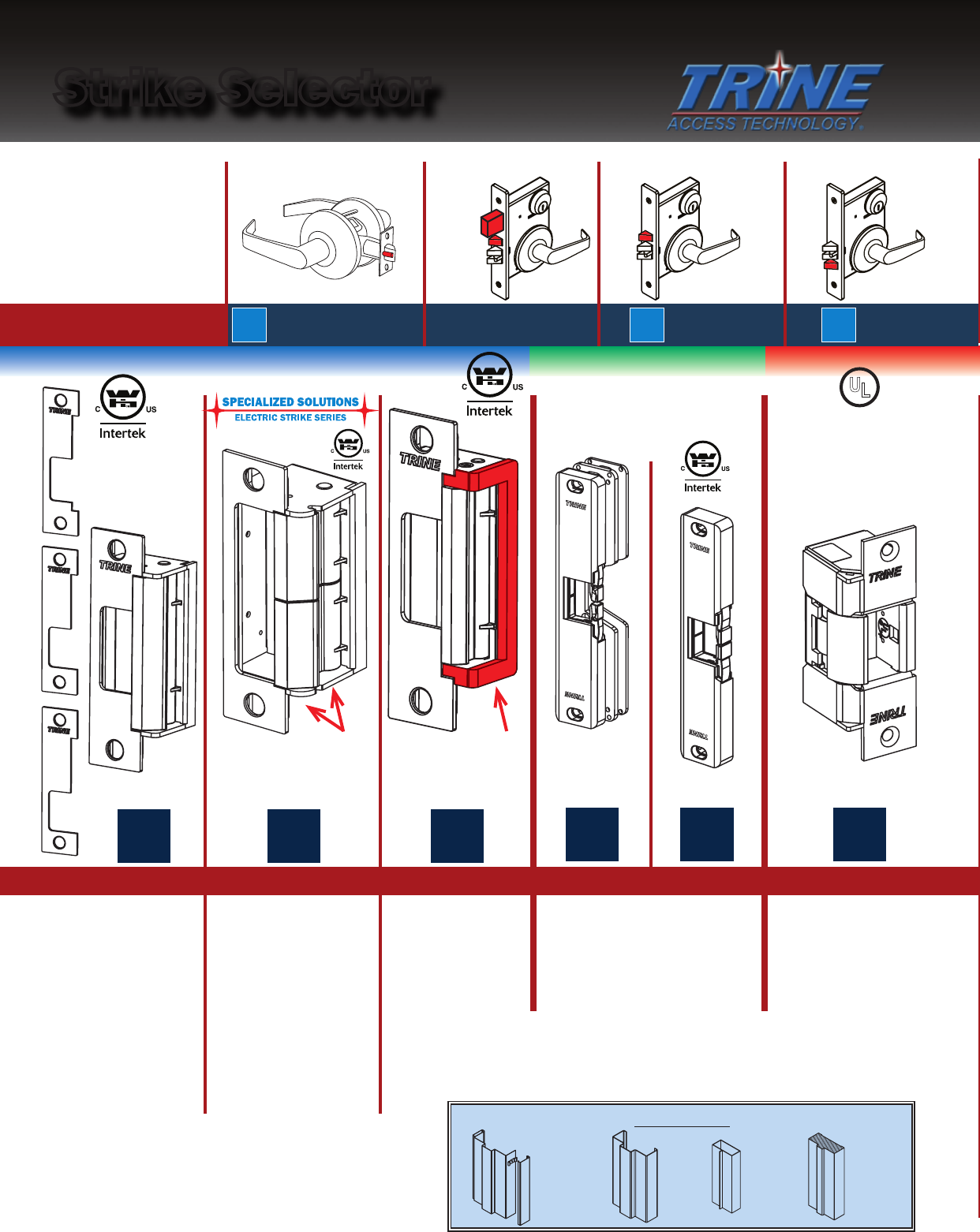

F
What lockset
do you have?
Surface Mount
Strikes
3 Hour Fire,
1034, &
294 rated 3 Hour Fire, 1034,
& 294 rated
294 &
Burg
Rated
Fire Rated
4100DBDL4100 4200
4850,
4850PoE,
4850LCD
4800F
Your choice of
electric strikes are:
Cylindrical Lock
Use the 4100RX
for Raco®
frames (covers
the extra 1/4”
gap in the frame)
F*
for use on offset
mortise locks in
outdoor situations
see 430/435 on pg
28
ONLY strike
with Fascia
Color Options
-- Match the
Fascia to your
frame!
Best strike
for allowing
deadbolt privacy
with an override.
• Aluminum
• Hollow Metal
• Wood
• Aluminum
• Hollow Metal
• Wood
• Aluminum
• Hollow Metal
• Wood
• Hollow Metal
• Wood
Great for Gates
• Aluminum
• Wood
Mortise LockMortise with a
deadbolt
Mortise Lock
C F I J K L
M N O F*BC*
Compatible Door Frames
A A A
CA B D
Strike Selector
E
Removeable Fascia
to match the frame.
Independently
operated latches
Wood
Aluminum
Formed Sheet
Metal
Hollow
Metal
Frame
Use 2” long
mounting
screws.
Frame Images
**EXAMPLE:
PRE-FINISHED
FRAMES LIKE
TIMELY
®
, REDI
®
,
RACO
®
, FRAME-
WORKS TYPE-II
®
WITH SNAP-ON
TRIMS.
400CMRP
THE OUTDOOR SOLU-
TION FOR ELECTRIC
STRIKES
UL
®
www.trineonline.com 61
• Aluminum
• Hollow
Metal
• Wood
• Aluminum
• Hollow
Metal
• Wood
• Hollow
Metal
• Wood
• Hollow
Metal
• Wood
• Alu-
minum
• Formed
Sheet
Metal
• Wood
• Aluminum
• Formed Sheet
Metal
• Wood
• Alu-
minum
• Alu-
minum
• Formed
Sheet
Metal
• Wood

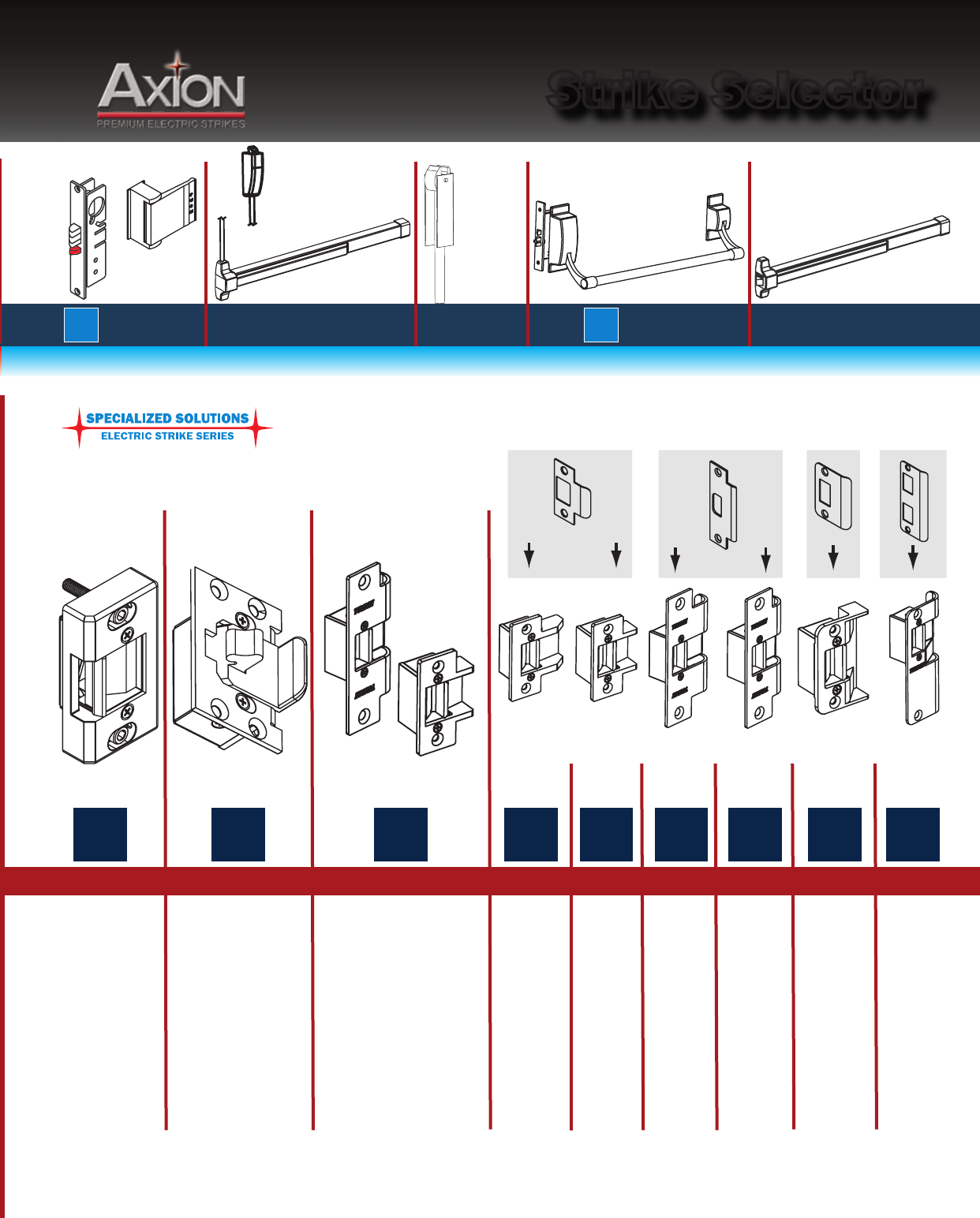

G
Dead Latch
C N O
A
^
A
Smallest Electric Strike in the World
478X
-375
234X
-375
275VRP-LC 250SOM-LC
323478F-LC
323478FX-LC 234 478 458
258,
258RD
Compatible Strike Plates
not recommended
for use on uncovered
exterior doors.
Mortise Exit
Device
Vertical rod
latch
Rim Panic
Exit Device
F*H
Compatible Door Frames
D E F
G H I J K L M N O
Strike Selector
2-3/4” WIDE
PLATE. FITS IN
TIGHT SPOTS IN
THE HEADER
The Dor-
O-Matic™
Solution!!!
THE SMALLEST
ELECTRIC STRIKE
IN THE WORLD IS
NOW FIRE RATED
THE VERTICAL
ROD LATCH
SOLUTION
Dor-o-
matic™
CONDITIONS OF SALE
Distributors and Other Commercial Customers
Note: The following Conditions of Sale are subject to change: All Sales Transactions are subject to the latest published Conditions of Sale of the Trine Access Technology Corporation and to any Special Conditions of
Sale which may be contained in applicable Trine quotations and acknowledgements. Modied product warranties are provided to consumers.
1. ACCEPTANCE, GOVERNING PROVISIONS AND CANCELLATIONS. No order for Trine Access Technology or services shall be binding upon Trine until accepted by a writing of an authorized ofcial of Trine or by
shipment or other performance of such order. Any such order shall be subject to these Conditions of Sale, and acceptance shall be expressly conditioned on assent to such Conditions, which assent shall be deemed
given unless purchaser shall expressly notify Trine to the contrary prior to the earlier of any shipment or other performance of an order by Trine or within ve (5) days after purchaser’s receipt of any acknowledgement
or conrmation of such order. Trine expressly reserves the right to reject and withdraw acceptance of any order.
No order accepted by Trine may be altered or modied by purchaser unless agreed to in a writing signed by an authorized ofcial of Trine; and no such order may be cancelled or terminated except upon payment of Trine’s loss,
damage and expense arising from such cancellation or termination. These Conditions of Sale may not be supplemented or modied by course of dealing, course of performance or any oral communication between the parties.
No modied or other conditions will be recognized by Trine unless specically agreed to in writing and failure of Trine to object to provisions contained in any purchase order or other communication from a purchaser (including,
without limitation, penalty clauses of any kind) shall not be construed as a waiver of these Conditions nor an acceptance of any such provisions.
Unless otherwise agreed in writing by a duly authorized representative of Trine, products sold hereunder are not intended for use or in connection with a nuclear facility or activity. If so used, Trine disclaims all liability for any
nuclear damage, injury or contamination, and purchaser shall indemnify Trine against any such liability, whether as a result of breach of contract, warranty, tort (including negligence) or otherwise. Any contract for sale and these
Conditions shall be governed by and construed according to the laws of the State of Connecticut. Any dispute arising out of or relating to these Conditions of Sale or any matter relating hereto shall be brought in the federal or
state courts sitting in or for the Bethel, Connecticut, and the parties waive any objection they may have to the jurisdiction or subject matter of these courts.
2. QUOTATIONS AND PRICES. Written quotations are conditioned upon acceptance by purchaser within thirty (30) days from the date issued and shall be considered as offers by Trine to sell during such thirty (30) day period on
these Conditions of Sale unless sooner terminated by notice. Other Trine publications are maintained as sources of general information and are not quotations or offers to sell.
All clerical errors are subject to correction.
MINIMUM ORDER: $100.00 Net. DROP SHIP FEE: Trine reserves the right to charge a xed fee of $10.00 for shipping to an address other than customers.
All prices are subject to change without notice. In the event of a net price change, the price of equipment on order but unshipped will be adjusted to the price in effect at the time of shipment. Downward adjustment of prices
shall apply only to unshipped portions of outstanding orders.
3. PAYMENT TERMS. Unless otherwise agreed by Trine, terms of payment for Trine products to purchasers of satisfactory credit are either (1) a 1% cash discount for all invoices paid in full if the payment is received by Trine within
10 days after the date of Trine’s invoice or (2) full payment to be received by Trine within 30 days after the date of Trine’s invoice. Applicable terms of payment are stated in quotations or on the discount sheet for the product
involved. Cash discount will apply only to the net amount of the invoice after transportation charges and taxes. A late charge of 1% per month or the maximum amount permitted by law will be applied to all past due amounts.
Trine reserves the right at any time to demand full or partial payment before proceeding with a contract of sale if, in its judgment, the nancial condition of purchaser shall not justify the terms of payment specied. If delivery
is delayed or deferred by purchaser beyond the scheduled ate, payment shall be due in full when Trine is prepared to ship and the products may be stored at the risk and expense of purchaser. If purchaser defaults when any
payment is due, then the whole contract price shall become due and payable upon demand, or Trine, at its option, without prejudice to other lawful remedies, may defer delivery or cancel the contract for sale.
4. TAXES AND OTHER CHARGES. Any manufacturer’s tax, retailer’s occupation tax, use tax, sales tax, excise tax (except the Federal excise tax on vehicles), duty, custom, inspection or testing fee, or other tax, fee or charge of
any nature whatsoever, imposed by any governmental authority, on or measured by any transaction between Trine and purchaser, shall be paid by purchaser in addition to the prices quoted or invoiced. In the event Trine shall
be required to pay any such tax, fee or charges, purchaser shall reimburse Trine therefore; or, in lieu of such payment, purchaser shall provide Trine at the time the order is submitted with an exemption certicate or
other document acceptable to the authority imposing the same. Purchase orders must state the existence and amount of any such tax, fee or charge which it shall be Trine’s responsibility to collect from purchaser
and pay.
5. DELIVERY. Delivery of products to a carrier at any Trine facility or other shipping point shall constitute delivery to purchaser; and, regardless of freight payment, title and all risk of loss or damage in transit shall
pass to purchaser at that time. Trine cannot be held responsible for breakage after having received “in good order” receipts from the transportation company. All claims for loss and damage must be made by
purchaser to the carrier. Claims for shortages or other errors must be made in writing to Trine within 15 days after receipt of shipment, and failure to give such notice shall constitute unqualied acceptance and a
waiver of such claims by purchaser. Unless otherwise agreed by Trine in quotations, discount schedules, catalogs or other Trine publications, all expenses of freight FOB Trine’s place of shipment shall be borne by
purchaser. No allowance will be made in lieu of transportation if purchaser accepts shipment at factory, warehouse, freight station, or otherwise supplies its own transportation. Method and route of shipment will
be at the discretion of Trine unless purchaser shall specify otherwise, and any additional expense of the method or route of shipment specied by purchaser shall be borne by purchaser. Trine reserves the right to
make delivery in installments, unless otherwise expressly stipulated in the contract for sale; and all such installments when separately invoiced shall be paid for when due per invoice, without regard to subsequent
deliveries. Delay in delivery of any installment shall not relieve purchaser of its obligations to accept remaining deliveries.
6. SUBSTITUTES. Trine may furnish suitable substitutes for materials unobtainable because of priorities or regulations established by governmental authority or non-availability of materials from suppliers, and
assumes no liability for deviation from published dimensions and descriptive information not essential to proper performance of the products.
7. WARRANTIES TO DISTRIBUTORS AND OTHER COMMERCIAL CUSTOMERS. Trine warrants products manufactured by it to be free from defects in materials and workmanship for a period of one (1) year from date of shipment
by Trine, except for all Axion (R) labeled products which are covered for two (2) years from date of shipment by Trine. If within such period any such products shall be proved to Trine’s satisfaction to be so defective, such products
shall be repaired or replaced at Trine’s option. This warranty shall not apply (a) to products not manufactured by Trine, (b) to products which shall have been repaired or altered by other than Trine so as, in its judgment, to affect
the same adversely, or (c) to equipment which shall have been subjected to negligence, accident or damage by circumstances beyond Trine’s control, or to improper operation, maintenance or storage, or to other than normal
use or service. With respect to products not manufactured by Trine, the warranty obligations of Trine shall in all respect conform and be limited to the warranty actually extended to Trine by its supplier. The foregoing warranties
do not cover reimbursement for transportation, removal, installation, or other expenses which may be incurred in connection with repair or replacement. Except as may be expressly provided in an authorized writing by Trine,
Trine shall not be subject to any other obligations or liabilities whatsoever with respect to products manufactured by Trine or services rendered by Trine.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION TITLE, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
8. LIMITATION OF LIABILITY. Anything to the contrary herein contained notwithstanding, TRINE ACCESS TECHNOLOGY, ITS CONTRACTORS AND SUPPLIERS OF ANY TIER SHALL NOT BE LIABLE IN CONTRACT, IN TORT
(INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR OTHERWISE FOR ANY SPECIAL, INDIRECT, INCIDENTAL CONSEQUENTIAL, PUNITIVE, OR EXEMPLARY DAMAGES WHATSOEVER. The remedies of the purchaser set forth herein
are exclusive where so stated and the total cumulative liability of Trine, its contractors and suppliers of any tier, with respect to this contract or anything done in connection therewith, such as the use of any product covered by
or furnished under the contract, whether in contract, in tort (including negligence or strict liability) or otherwise, shall not exceed the price of the product or part on which such liability is based. Further, any claim purchaser may
have with reference to Trine products or services sold or provided hereunder shall be deemed waived by purchaser unless asserted against Trine in writing within 90 days from the date the purchaser discovered, or should have
discovered, the basis for the claim.
9. RETURN OF EQUIPMENT. No products may be returned without rst obtaining Trine’s written permission and a returned goods authorization number. Trine shall issue a credit to purchaser for returned goods, subject to the
terms of this paragraph, and purchaser will not be entitled to any other form of reimbursement for returns. Products accepted for credit, not involving a Trine error,
shall be subjected to a minimum service
charge of $25.00, or a charge of 20% of invoice
, whichever is greater, plus all transportation charges incurred by Trine. THE MINIMUM RESTOCKING CHARGE IS $25.00. Returned products must be securely
packed to reach Trine without damage, any cost incurred by Trine to put the products in rst class condition will be charged to purchaser.
10. PATENTS. As to products sold to purchaser by Trine, Trine shall defend any suit or proceeding brought against purchaser so far as based on a claim that said products constitute an infringement of any patent of the United
States, if notied promptly in writing and given authority, information and assistance at Trine’s expense for the defense of the same. In the event of a nal award of costs and damages, Trine shall pay such award. In the event the
use of said products by purchaser is enjoined in such a suit, Trine shall, at its own expense, either (a) procure for purchaser the right to continue using said products, (b) modify said equipment to render them non-infringing, (c)
replace said products with non-infringing products, or (d) refund the purchase price (less depreciation) and the transportation and installation costs of said products. Trine will not be responsible for any compromise or settlement
made without its written consent. The foregoing states the entire liability of Trine for patent infringement, and in no event shall Trine be liable if the infringement charge is based on the use of Trine products for a purpose
other than that for which sold by Trine, any alteration to the Trine products or the use of the Trine products with any other product or service not manufactured by Trine. As to any products furnished by Trine to purchaser
and manufactured in accordance with designs provided by purchaser, purchaser shall defend, indemnify and hold harmless Trine against any award made against Trine for patent, trademark, or copyright infringement.
11. PATTERNS AND TOOLS. Notice will be given if special patterns or tools are required to complete any order. Charges for such patterns or tools do not convey title thereto or the right to remove them from Trine’s
plant. If patterns or tools are not used for a period of two years, Trine shall have the right to scrap them without notice.
12. FORCE MAJEURE. Trine shall not be liable in damages or otherwise for delays in shipment or default in delivery for any reason of force majeure or for any cause beyond Trine’s reasonable control including, but
not limited to (a) an act of nature; (b) government action, war, riots, civil commotion, embargoes or martial laws, (c) Trine’s inability to obtain necessary materials from its usual sources of supply, (d) shortage of labor,
raw material, production or transportation facilities or other delays in transit, (e) other contingencies of manufacture or shipment. In the event of any delay in Trine’s performance due in whole or in part to any cause
beyond Trine’s reasonable control, Trine shall have such additional time for performance as may be reasonably necessary under the circumstances. Acceptance by purchaser of any goods shall constitute a waiver by
purchaser of any claim for damages on account of any delay in delivery of such goods.
63
www.trineonline.com
Folger Adam
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
310-4
310-4
310-2
310-2W
310-2 3/4
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
TRINE
4200
4100
4100DBDL
4850
4800F
4801
EN400
EN800**
EN850**
EN950
EN950W
EN960
323478LC
323478F-LC
234 ∂
258‡ ∂
458Ω ∂
478‡ ∂
3250SOM-LC
3275VRP-LC
H.E.S.
5000
4500
1006 Φ
1006CDB ≠
9400
∆
, 9600
9500, 9600
9700
1006J/7501
7000-783S**
7000-789S**
7505
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
5000/5200+501
- - - -
- - - -
Von Duprin
5100
6400 Φ
6211/6211WF
Φ
6400 ≠
- - - -
6300
- - - -
6211/6211WF
6112
- - - -
6215/6226
- - - -
6214/6224
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
RCI
6 Series
- - - -
2164 Φ
F2 Series ≠
0563
0162F
- - - -
2114/F4114*
0161
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
L6514+
- - - -
- - - -
Adams Rite
7400
- - - -
7200 Φ
- - - -
- - - -
- - - -
- - - -
7200
74R1
74R2
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
- - - -
7400+
- - - -
- - - -
71004200 4 Series
≠ DBDL for night latch function only. Competition does not have independent latches to allow for levels of override.
+ Strike has 1 1/16” backset vs. 1” backset for 3000 Series.
Ω Requires 80% less cutting of frame. Fills the frame preparation of the Adams Rite MS Locks without the need To relocate tabs for 6 5/8” or 6 7/8” electric strikes.
‡ Requires 60% less frame face cutting other than models listed.
∆ 9400 backplate means it can only handle up to a 1/2” throw -- The 4850 can take up to a 1” throw.
* UL 90 Minute Fire Rated
** All Stainless Steel construction, not re rated.
Φ Not a shallow (1 3/8”) backset -- cannot be used in 2” re rated frames with 1/2” sheetrock ingress
∂ Number is for the Faceplate -- use with a 3012, 3024, 30LC, or 30RS Mechanism, see pg 29 for more details.
NOTE: There may be variations in physical size or electrical characteristics between manufacturers. Information in the above chart based on
manufacturers’ catalogs and reference should be made to manufacturer’s catalog for complete detail comparisons.
712/712-75/732
732-75/642CYL
712/712-75/732
732-75/642CYL
Φ
Cross Reference Chart
for Premium Electric Strikes
