User Instructions
![](/img.php?id=235334&img=bg1.png)
INSTALL THE BATTERIES
Your GMRS522-2 radio uses the included NiMH
battery pack or 3 AA alkaline batteries.If alkaline
batteries are used, we recommend using high quality
alkaline batteries.
To install the NiMH battery pack:
1) Make sure your radio is OFF.
2) Remove the battery compartment door
by pressing the tab at the bottom of the
compartment door allowing the door to
be removed.
3) Place the NiMH battery pack in the compartment,
paying close attention to the alignment key. If the
NiMH battery pack is installed incorrectly, the unit
will not operate and the compartment door will
not close properly.
4) Replace the battery compartment door.
5) The battery pack must be charged before using
for the first time.Place the GMRS522-2 radio into
This unit has a battery level meter on the display to
indicate the status of the batteries.When the
batteries in the unit are low, the battery meter icon
will flash and the unit will emit a low battery
tone.Replace the alkaline batteries immediately or
if you are using the NiMH battery pack, you must
recharge the batteries in order to continue using
the radio.
Warning! To avoid the risk of personal injury or
property damage from fire or electrical shock, only
use the Uniden accessories specifically designated
for this product.
Congratulations on your purchase of the Uniden
GMRS522-2 (General Mobile Radio Service) radio.
This product is a lightweight, palm-sized radio.Use it
at sporting events to stay in contact with family and
friends, hiking, skiing, outdoors, or in a neighborhood
watch for vital communication.This compact, state-
of-the-art device is equipped with many features.
OPTIONAL ACCESSORIES
Your package contains the 2 GMRS522-2 radios,
2 NiMH battery packs, a dual charge cradle, an
AC/DC adapter, this reference guide, and a product
registration card.You may operate each unit using
3 AA alkaline batteries or the included rechargeable
NiMH battery pack.The following replacement
accessories may be purchased from your
participating Uniden dealer or call 1-800-554-3988
or visit us on the web at www.uniden.com.
Use only Uniden accessories.
•Recharge Cradle with AC Adapter - #RC5248
•Extra Battery - #BP524
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the buttons
or keys are pressed.To turn this sound OFF, press
select/lock while turning on the radio.Repeat this
step to turn the sound ON.
Navigating through the Menu
To access the advanced features of the
GMRS522-2, your radio has a Menu function.
1) To enter the Menu, press the select key.
2) Additional presses of the select/lock key will
advance you through the menu until exiting to
"normal" operating mode.
3) Other methods of exiting the menu function are:
a. Press and hold the select/lock key again.
b. Press PTT. (Push To Talk)
c. Wait 10 seconds until the unit automatically
returns to "normal" mode.
THANK YOU
FOR PURCHASING A UNIDEN PRODUCT
BATTERY LEVEL AND
LOW BATTERY ALERT
Talking on Your Radio
To talk to others using the radio:
1) Press and hold the PTT button and speak in
a clear, normal voice about 2-3 inches
away from the microphone.While you are
transmitting, the TTXXicon will appear on the
display.To avoid cutting off the first part of
your transmission, pause slightly after
pressing the PTT button before you start
talking.
*Range may vary depending on environmental and/or topographical conditions.
• 22 Channels
• 38 CTCSS Codes
• Extended Long Range*
• 5 Selectable Call Tone Alerts
• Backlit LCD Display
• Battery Recharge Circuit
• NiMH Battery Pack and
Drop-in Charger
• Battery Level Meter
• Channel Scan
• Keypad Lock
GMRS522-2
Turning the Radio On and Adjusting the Volume
1) Rotate the on/off/volume control counter
clockwise to turn the unit ON and increase
the speaker volume.
2) Rotate the on/off/volume control clockwise
to decrease the speaker volume and turn
the unit OFF.
USING THE RADIO
In order to get the most out of your new radio, read
this reference guide completely before attempting to
operate the unit.
Choosing a CTCSS Code
Each of the GMRS channels 1-22 may have any
one of the codes 0-38 selected.Code "0" indicates
no CTCSS code selected and your radio can
receive a signal regardless of the code settings of
the transmitting radio.
1) Enter the Menu.The CTCSS code on the LCD
display will flash.
2) Press the ▲or ▼key to increase or decrease
the code number displayed.
3) Exit the Menu to return to "normal" mode.
Choosing a Channel
Your radio has 22 channels and 38 CTCSS codes
you can use to talk to others.In order to speak to
someone, each of you must be set to the same
channel and CTCSS code.
To choose a channel:
With the radio in normal operating mode press the
▲or ▼key to increase or decrease the channel
number displayed.
Transmitting a Call Alert Tone
Your GMRS522-2 radio is equipped with 5
selectable call tones that will be transmitted
when the call key is pressed.
To select a call tone:
1) Enter the Menu.Advance through the
Menu until the CCAALLLLicon is shown on
the display.The current call tone number
(11-55) will be indicated.
2) Press the ▲or ▼key to increase or
decrease the number to the desired call
tone.Each tone will be heard through
the speaker.
3) Exit the Menu.
To transmit the selected call alert tone,
press the call key.The selected tone will
automatically be transmitted for a fixed
length of time.

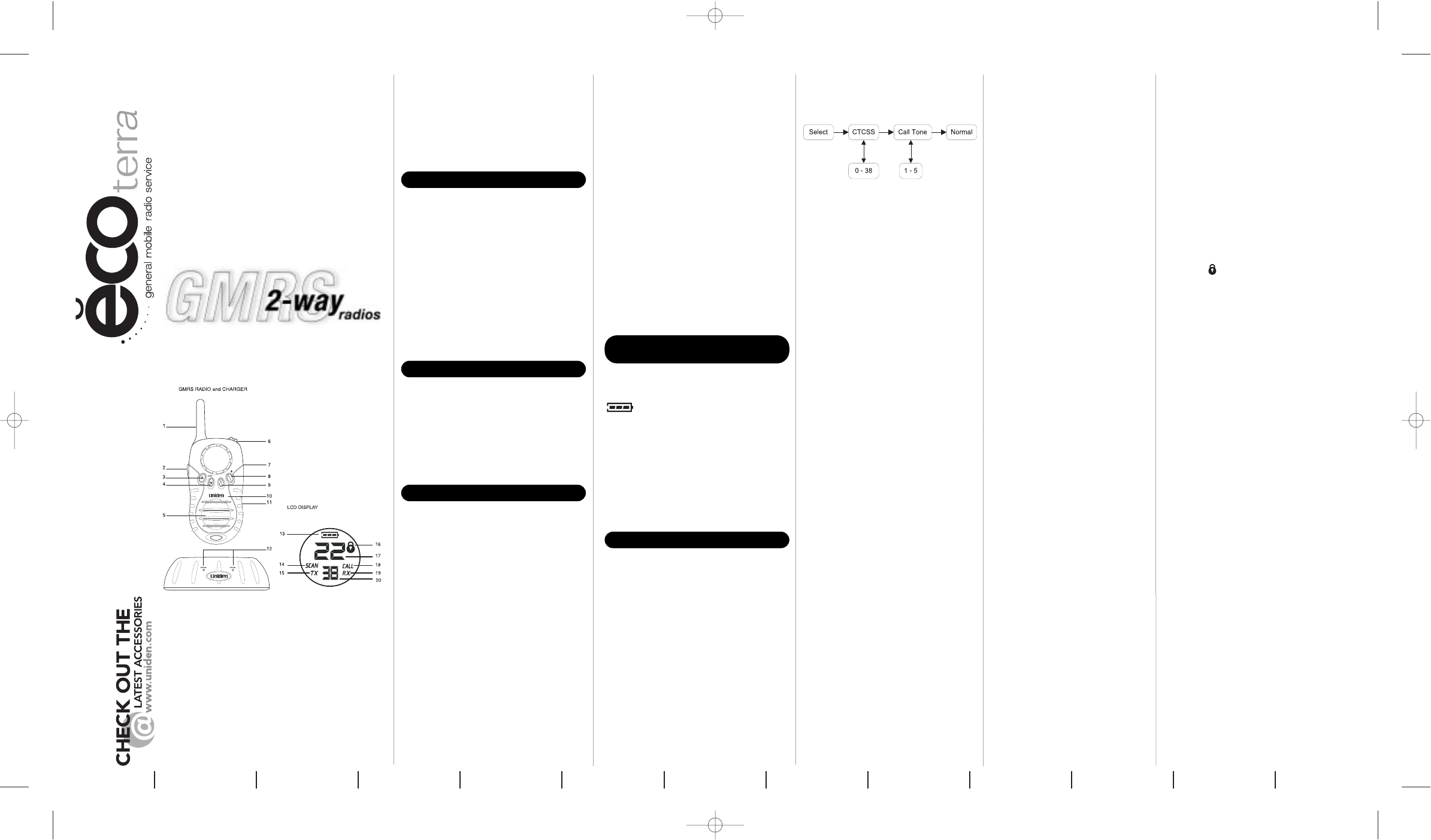

1 Antenna 13 Battery Level Meter
2 PTT Button 14 Scan Indicator
3 Up/Scan Key 15 Transmit Indicator
4 Down/Scan Key 16 Lock Indicator
5 Speaker 17 Channel Indicator
6 On/Off/Volume Control 18 Call Alert
7 Beltclip 19 Receive Indicator
8 Select/Lock Key 20 CTCSS Code
9 Call Key
10 Microphone
11 Battery Cover
12 Charging LED’s
FCC GMRS LICENSE
The GMRS522-2 radio operates on the General
Mobile Radio Service (GMRS) frequencies which
require a Federal Communication Commission
license to operate. For licensing information and
application forms,visit the FCC online at:
www.fcc.gov/wtb/uls or call the FCC hotline at
1-800-418-3676. If you have any questions
you can contact the FCC direct at 1-888-225-5322.
Auto Squelch Feature
The GMRS522-2 radio is equipped with an
automatic squelch system which shuts off
weak transmissions and unwanted noise due
to terrain conditions or if you have reached
your range limit.
Automatic Power Save Feature
Your GMRS522-2 radio has a unique circuit designed
to dramatically extend the life of the batteries.If there
is no transmission within 5 seconds, your radio
switches to the Power Save mode.The radio is still
able to receive transmissions in this mode.
LCD Backlight
The LCD backlight will automatically turn on when
any key is pressed.The LCD display will illuminate
for 5 seconds before turning off.
2) When you are finished speaking, release
the PTT button.You can now receive
incoming calls.While receiving, the
RRXXicon will appear on the display.
the charging cradle allowing 12-14 hours
charging time to fully charge the battery pack.
NOTE: Always make sure your battery pack is fully
discharged before recharging to prolong the life of
the battery pack.
To install the 3 AA alkaline batteries:
1) Make sure your radio is OFF.
2) Remove the battery compartment door by
pressing the tab at the bottom of the
compartment door allowing the door to
be removed.
3) Install 3 AA alkaline batteries (not included) into
the battery compartment.Be certain to follow the
+ and - symbols in the compartment.Installing
the batteries incorrectly will prevent the unit from
operating.
4) Replace the battery compartment door.
Channel Scan Feature
Your GMRS522-2 radio has a channel Scan
feature that allows you to easily Scan all 22
channels.When an active channel is detected,
the unit will pause on that channel until the
channel is clear.Then after a 4 second delay,
the unit will continue scanning.Pressing PTT
while the Scan is paused on a channel will
allow you to transmit on that channel.
To turn ON channel scanning:
Press and hold either the ▲or ▼key until
the SSCCAANNicon is displayed.The channel
number on the display will rapidly cycle
through the channels.
To turn OFF channel scanning:
Press and release either the ▲or ▼key.
Keypad Lock
To Lock the keypad, press and hold the select/lock
key until the icon is displayed.To remove the
keypad Lock, press and hold the select/lock key
until the Lock icon disappears.
GMRS522-2_OM.qxd 01/15/2002 5:33 PM Page 1
![](/img.php?id=235334&img=bg2.png)
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
Important: Changes or modifications to this unit not expressly approved by Uniden could void your authority to operate this unit.Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to
alter or adjust the settings inside the radio to exceed those limitations. Any adjustments to your radio must be made by qualified technicians.
Portable Radio Operation and SAR Exposure:When transmitting with a portable radio, hold the radio in a vertical position with the microphone at least 2 inches away from the mouth. Keep the antenna at least 4 centimeter
(about 2 inches) from your head or body when transmitting.If you wear a portable radio on your body, ensure that the antenna is at least half inch from the body when transmitting.
To be safe and sure:
• Never open your radio’s case.
• Never change or replace anything in your radio except the batteries.
Your radio might cause TV or radio interference even when it is operating properly.To determine whether your radio is causing the interference, turn it off.If the interference goes away, your radio is causing it.Try to eliminate the
interference by moving your radio away from the receiver.If you cannot eliminate the interference, the FCC requires that you stop using the radio.
Audio Accessories: Do not operate the radio with audio accessories at high volume levels.Hearing experts advise against continuous high volume operation.If you experience a ringing in your ears, reduce the volume level or
discontinue use.Always make sure the radio is turned off before plugging audio accessories into the accessory jack.
Hazardous Environments: Do not operate the radio in hazardous environments.Explosion or fire may result.Do not operate the radio near unshielded electrical blasting caps. Under certain conditions, radios can interfere with
blasting operations and may cause an explosion.Turn your radio OFF to prevent accidental transmission when in a blasting area or in areas posted:“Turn off two-way radio.” Construction crews often use remote control RF
devices to set off explosives.
Care and Safety: To clean the radio, use a soft cloth dampened with water.Do not use cleaners or solvents because they can harm the body of the unit and leak inside, causing permanent damage.Use a dry, lint-free cloth to
clean the battery contacts. Do not submerge the unit in water.If the unit gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a soft cloth to minimize potential water damage.Leave the
battery compartment cover off overnight to ensure complete drying.Do not use the radio until the unit is completely dry.
ONE YEAR LIMITED WARRANTY
Important: Evidence of original purchase is required for warranty service.
WARRANTOR:UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY:Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set
out below.
WARRANTY DURATION:This warranty to the original user shall terminate and be of no further effect 12 months after the date of original retail sale.The warranty is invalid if the Product is:
(A) damaged or not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) improperly installed,
(D) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of
any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the owner’s manual for this product.
STATEMENT OF REMEDY:In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit
and return it to you without charge for parts, service, or any other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the performance of this warranty.
Warrantor, at its option, may replace the unit with a new or refurbished unit.THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT
AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT
OVERPAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.Some states do not allow this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may
not apply to you.
LEGAL REMEDIES:This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.This warranty is void outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner’s manual you are certain that the Product is defective, pack the Product carefully
(preferably in its original packaging).The Product should include all parts and accessories originally packaged with the Product.Include evidence of original purchase and a note describing the defect that
has caused you to return it.The Product should be shipped freight prepaid, by traceable means, to warrantor:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd., Fort Worth, TX 76155
(800) 297-1023, 8 a.m.to 5 p.m.Central, Monday through Friday
www.uniden.com
Covered under one or more of the following U.S. patents:
4,684,870 4,734,049 4,963,844 5,203,015 5,214,789 5,491,745
5,497,508 5,517,677 5,526,528 5,557,606 5,574,994 5,610,946
5,613,201 5,625,870 5,627,876 5,628,059 5,634,196 5,634,205
5,678,176 5,697,096 5,717,312 5,722,070 5,787,345 5,901,341
6,021,326 6,084,861 6,163,691 6,195,415
SPECIFICATIONS
Channels 15 GMRS / 7 FRS
CTCSS Codes 38 Sub-Audible Tones
Operating Frequency UHF 462.5625- 467.7125 MHz
Power Source 3 AA Alkaline Batteries or
NiMH Battery Pack
Output Power 500mW Conducted
Battery Life 33 Hours - Alkaline Batteries
(5/5/90 duty cycle)
25 Hours - NiMH Battery Pack
Frequency Chart
Ch. Freq. Ch. Freq.
1 462.5625 12 467.6625
2 462.5875 13 467.6875
3 462.6125 14 467.7125
4 462.6375 15 462.5500
5 462.6625 16 462.5750
6 462.6875 17 462.6000
7 462.7125 18 462.6250
8 467.5625 19 462.6500
9 467.5875 20 462.6750
10 467.6125 21 462.7000
11 467.6375 22 462.7250
CTCSS Chart (Hz)
Code Freq. Code Freq.
0 Disabled 20 131.8
1 67.0 21 136.5
2 71.9 22 141.3
3 74.4 23 146.2
4 77.0 24 151.4
5 79.7 25 156.7
6 82.5 26 162.2
7 85.4 27 167.9
8 88.5 28 173.8
9 91.5 29 179.9
10 94.8 30 186.2
11 97.4 31 192.8
12 100.0 32 203.5
13 103.5 33 210.7
14 107.2 34 218.1
15 110.9 35 225.7
16 114.8 36 233.6
17 118.8 37 241.8
18 123.0 38 250.3
19 127.30
© 2002 Uniden America Corporation
All rights reserved • Printed in China
UTZZ-522
GMRS522-2_OM.qxd 01/15/2002 5:33 PM Page 2
