Operator's Manual

Yard Vacuum

Chipper/Shredder/

Vacuum/Hose

Model Number

24B-060F766

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

TROY-BILT LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO. 769-00835A

(5/04)

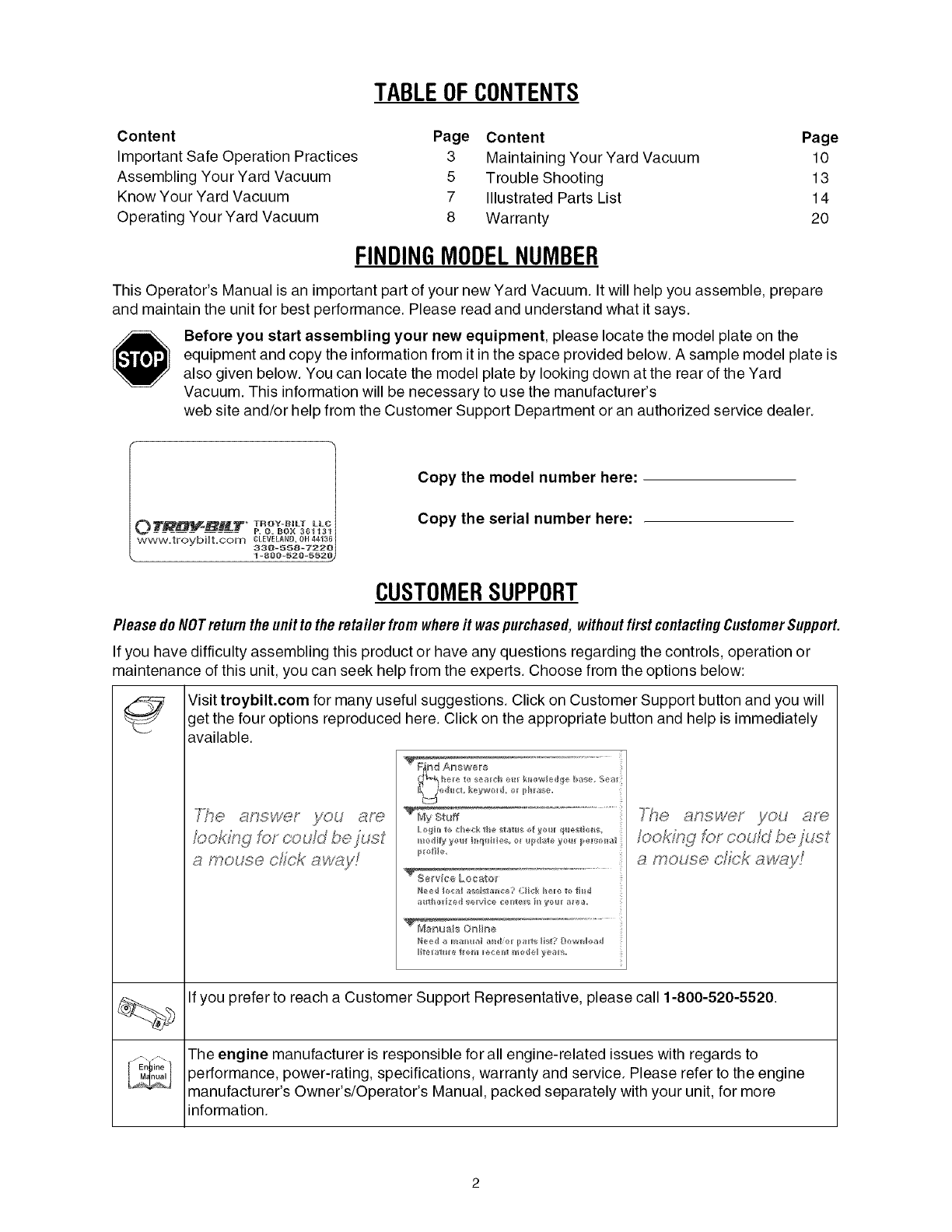

TABLEOFCONTENTS

Content

Important Safe Operation Practices

Assembling Your Yard Vacuum

Know Your Yard Vacuum

Operating Your Yard Vacuum

Page Content Page

3 Maintaining Your Yard Vacuum 10

5 Trouble Shooting 13

7 Illustrated Parts List 14

8 Warranty 20

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new Yard Vacuum. It will help you assemble, prepare

and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. A sample model plate is

also given below. You can locate the model plate by looking down at the rear of the Yard

Vacuum. This information will be necessary to use the manufacturer's

web site and/or help from the Customer Support Department or an authorized service dealer.

' TROY-BtLT LL_

OTRD=_t__#LT p.o.Box36_131

V_#_#.troybHt.co_ CLEVELAHB, OH 44436

330-558-7220

1-800-520-5520

Copy the model number here:

Copy the serial number here:

CUSTOMERSUPPORT

Please doNOTreturn the unitto the retailer from where it waspurchased,without first contactingCustomerSupport.

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

Visit troybilt.com for many useful suggestions. Click on Customer Support button and you will

get the four options reproduced here. Click on the appropriate button and help is immediately

available.

The answet _ you are

_mouse dick _way!

_i_e Locator

Neel g_a_ _s_sig_a_gce Cl_¢_/e_e _? _h4

The answe; you are

/ooking fro cou/d be just

a mouse dick aw_y!

If you prefer to reach a Customer Support Representative, please call 1-800-520-5520.

The engine manufacturer is responsible for all engine-related issues with regards to

3erformance, power-rating, specifications, warranty and service. Please refer to the engine

manufacturer's Owner's/Operator's Manual, packed separately with your unit, for more

information.

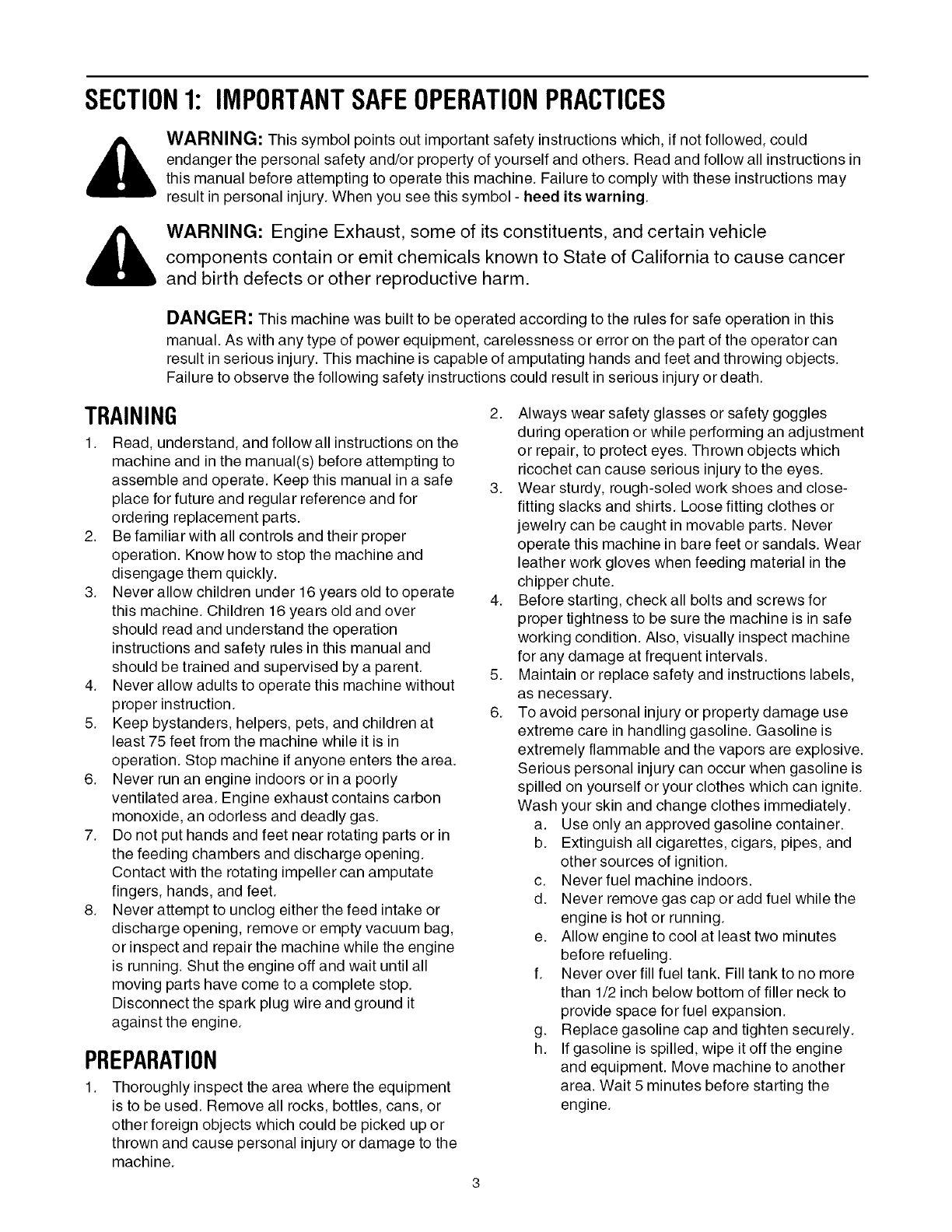

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all instructions in

this manual before attempting to operate this machine. Failure to comply with these instructions may

result in personal injury. When you see this symbol - heed its warning.

_ WARNING: Engine Exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to State of California to cause cancer

and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

TRAINING

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference and for

ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 16 years old to operate

this machine. Children 16 years old and over

should read and understand the operation

instructions and safety rules in this manual and

should be trained and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. Keep bystanders, helpers, pets, and children at

least 75 feet from the machine while it is in

operation. Stop machine if anyone enters the area.

6. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

7. Do not put hands and feet near rotating parts or in

the feeding chambers and discharge opening.

Contact with the rotating impeller can amputate

fingers, hands, and feet.

8. Never attempt to unclog either the feed intake or

discharge opening, remove or empty vacuum bag,

or inspect and repair the machine while the engine

is running. Shut the engine off and wait until all

moving parts have come to a complete stop.

Disconnect the spark plug wire and ground it

against the engine.

PREPARATION

1. Thoroughly inspect the area where the equipment

is to be used. Remove all rocks, bottles, cans, or

other foreign objects which could be picked up or

thrown and cause personal injury or damage to the

machine.

Always wear safety glasses or safety goggles

during operation or while performing an adjustment

or repair, to protect eyes. Thrown objects which

ricochet can cause serious injury to the eyes.

Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Loose fitting clothes or

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals. Wear

leather work gloves when feeding material in the

chipper chute.

Before starting, check all bolts and screws for

proper tightness to be sure the machine is in safe

working condition. Also, visually inspect machine

for any damage at frequent intervals.

Maintain or replace safety and instructions labels,

as necessary.

To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injury can occur when gasoline is

spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Extinguish all cigarettes, cigars, pipes, and

other sources of ignition.

c. Never fuel machine indoors.

d. Never remove gas cap or add fuel while the

engine is hot or running.

e. Allow engine to cool at least two minutes

before refueling.

f. Never over fill fuel tank. Fill tank to no more

than 1/2 inch below bottom of filler neck to

provide space for fuel expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it off the engine

and equipment. Move machine to another

area. Wait 5 minutes before starting the

engine.

i. Neverstorethemachineorfuelcontainer

insidewherethereisanopenflame,spark,

orpilotlight(e.g.furnace,waterheater,

spaceheater,clothesdryer,etc.)

j. Toreduceafirehazard,keepmachinefree

ofgrass,leaves,orotherdebrisbuild-up.

Cleanupoilorfuelspillageandremoveany

fuelsoakeddebris.

k. Allowmachinetocoolatleast5minutes

beforestoring.

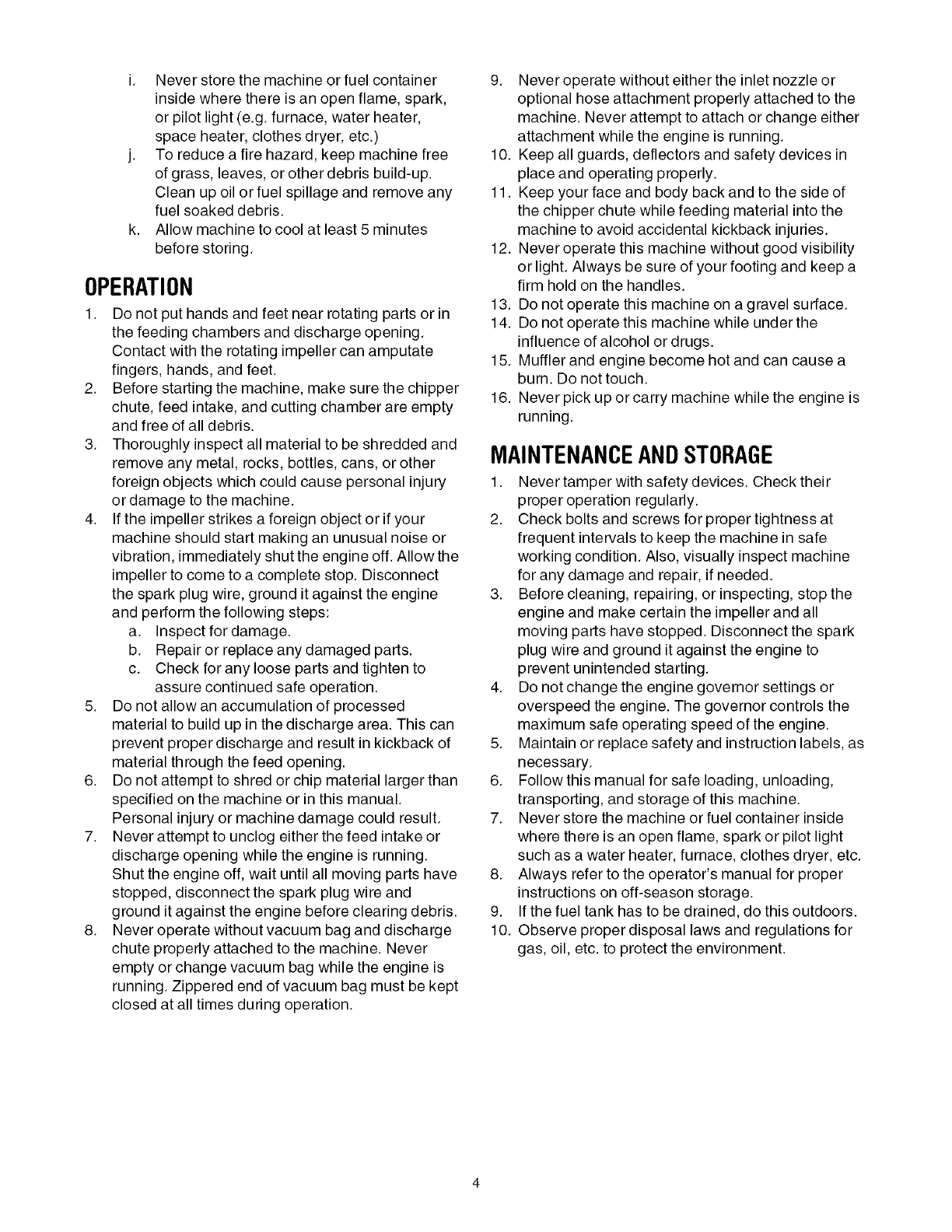

OPERATION

1. Do not put hands and feet near rotating parts or in

the feeding chambers and discharge opening.

Contact with the rotating impeller can amputate

fingers, hands, and feet.

2. Before starting the machine, make sure the chipper

chute, feed intake, and cutting chamber are empty

and free of all debris.

3. Thoroughly inspect all material to be shredded and

remove any metal, rocks, bottles, cans, or other

foreign objects which could cause personal injury

or damage to the machine.

4. If the impeller strikes a foreign object or if your

machine should start making an unusual noise or

vibration, immediately shut the engine off. Allow the

impeller to come to a complete stop. Disconnect

the spark plug wire, ground it against the engine

and perform the following steps:

a. Inspect fordamage.

b. Repair or replace any damaged parts.

c. Check for any loose parts and tighten to

assure continued safe operation.

5. Do not allow an accumulation of processed

material to build up in the discharge area. This can

prevent proper discharge and result in kickback of

material through the feed opening.

6. Do not attempt to shred or chip material larger than

specified on the machine or in this manual.

Personal injury or machine damage could result.

7. Never attempt to unclog either the feed intake or

discharge opening while the engine is running.

Shut the engine off, wait until all moving parts have

stopped, disconnect the spark plug wire and

ground it against the engine before clearing debris.

8. Never operate without vacuum bag and discharge

chute properly attached to the machine. Never

empty or change vacuum bag while the engine is

running. Zippered end of vacuum bag must be kept

closed at all times during operation.

9. Never operate without either the inlet nozzle or

optional hose attachment properly attached to the

machine. Never attempt to attach or change either

attachment while the engine is running.

10. Keep all guards, deflectors and safety devices in

place and operating properly.

11. Keep your face and body back and to the side of

the chipper chute while feeding material into the

machine to avoid accidental kickback injuries.

12. Never operate this machine without good visibility

or light. Always be sure of your footing and keep a

firm hold on the handles.

13. Do not operate this machine on a gravel surface.

14. Do not operate this machine while under the

influence of alcohol or drugs.

15. Muffler and engine become hot and can cause a

burn. Do not touch.

16. Never pick up or carry machine while the engine is

running.

MAINTENANCEANDSTORAGE

1. Never tamper with safety devices. Check their

proper operation regularly.

2. Check bolts and screws for proper tightness at

frequent intervals to keep the machine in safe

working condition. Also, visually inspect machine

for any damage and repair, if needed.

3. Before cleaning, repairing, or inspecting, stop the

engine and make certain the impeller and all

moving parts have stopped. Disconnect the spark

plug wire and ground it against the engine to

prevent unintended starting.

4. Do not change the engine governor settings or

overspeed the engine. The governor controls the

maximum safe operating speed of the engine.

5. Maintain or replace safety and instruction labels, as

necessary.

6. Follow this manual for safe loading, unloading,

transporting, and storage of this machine.

7. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

such as a water heater, furnace, clothes dryer, etc.

8. Always refer to the operator's manual for proper

instructions on off-season storage.

9. If the fuel tank has to be drained, do this outdoors.

10. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

_k ARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who read,

understand and follow the warnings and instructions in this manual and on the machine.

NOTE: Not all safety labels may apply to your Yard Vacuum.

....G

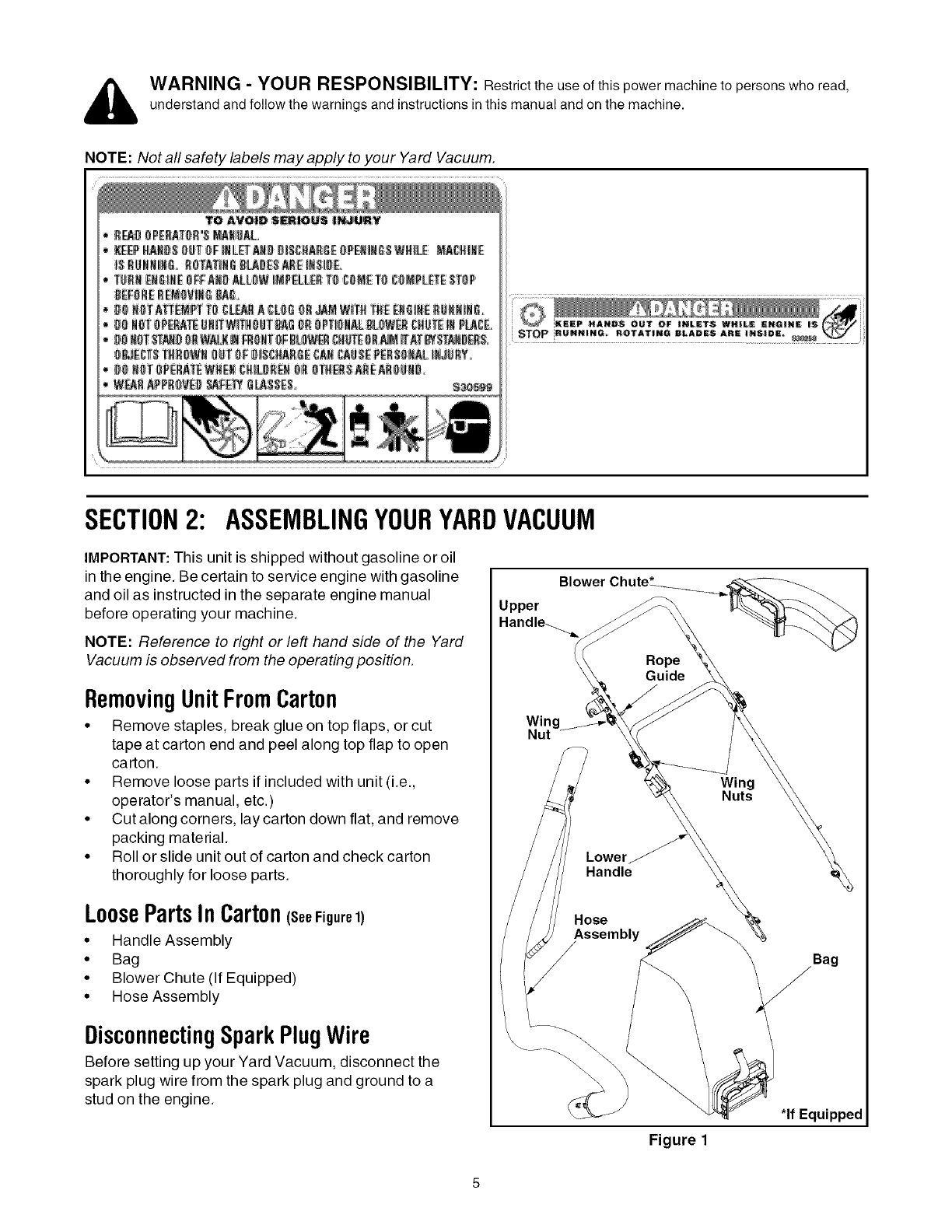

SECTION2: ASSEMBLINGYOURYARDVACUUM

IMPORTANT: This unit is shipped without gasoline or oil

in the engine. Be certain to service engine with gasoline

and oil as instructed in the separate engine manual

before operating your machine.

NOTE: Reference to right or left hand side of the Yard

Vacuum is observed from the operating position.

RemovingUnit FromCarton

• Remove staples, break glue on top flaps, or cut

tape at carton end and peel along top flap to open

carton.

• Remove loose parts if included with unit (i.e.,

operator's manual, etc.)

• Cut along corners, lay carton down flat, and remove

packing material.

• Roll or slide unit out of carton and check carton

thoroughly for loose parts.

LoosePartsIn Carton(s,,Figure1)

• Handle Assembly

• Bag

• Blower Chute (If Equipped)

• Hose Assembly

DisconnectingSpark PlugWire

Before setting up your Yard Vacuum, disconnect the

spark plug wire from the spark plug and ground to a

stud on the engine.

Upper

Wing

Nut

\\\

Blower

Rope

Guide

Wing

Nuts

Lower//

Handle

Bag

\*If Equipped

Figure 1

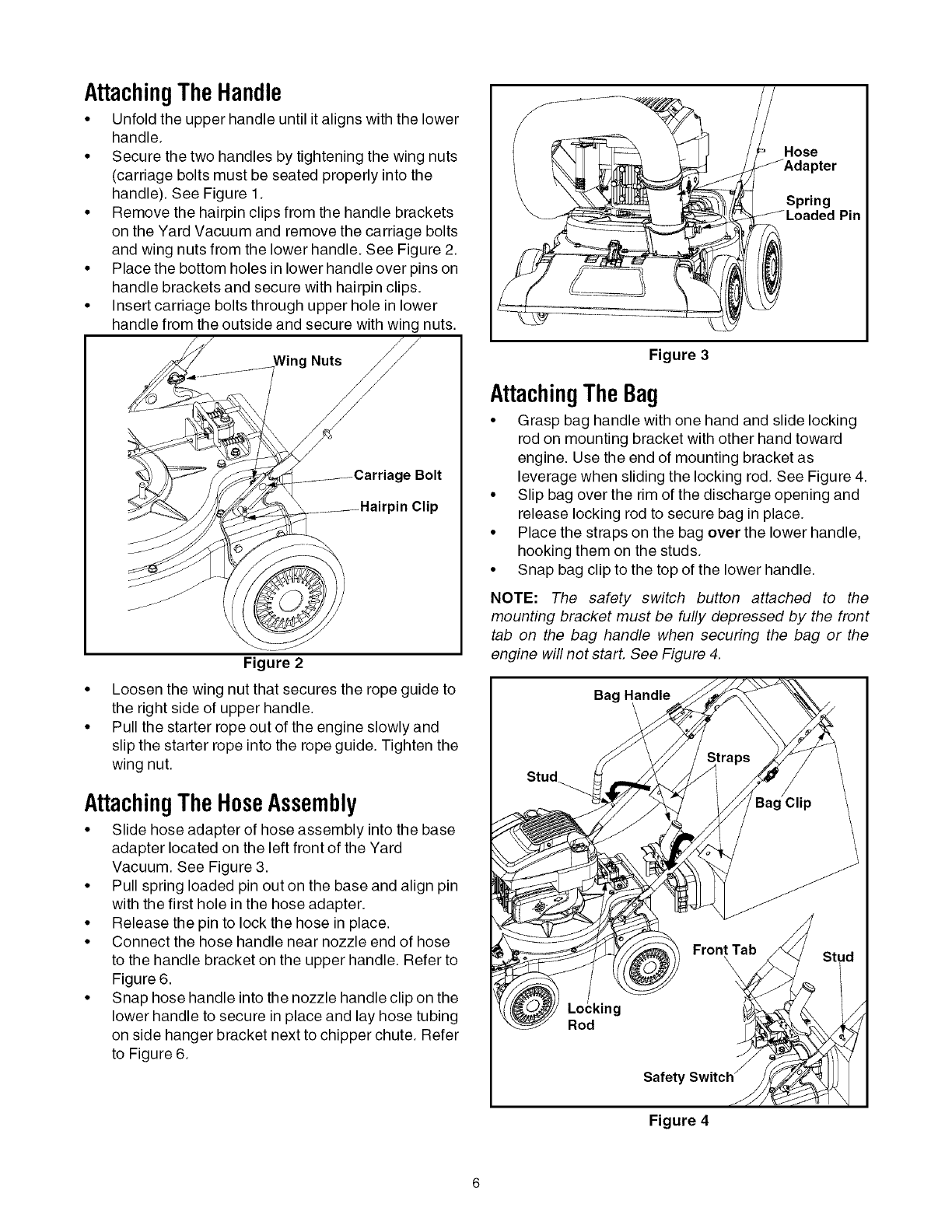

AttachingTheHandle

• Unfold the upper handle until it aligns with the lower

handle.

• Secure the two handles by tightening the wing nuts

(carriage bolts must be seated properly into the

handle). See Figure 1.

• Remove the hairpin clips from the handle brackets

on the Yard Vacuum and remove the carriage bolts

and wing nuts from the lower handle. See Figure 2.

• Place the bottom holes in lower handle over pins on

handle brackets and secure with hairpin clips.

• Insert carriage bolts through upper hole in lower

handle from the outside and secure with wing nuts.

Wing Nuts

ge Bolt

pin Clip

Figure 2

Loosen the wing nut that secures the rope guide to

the right side of upper handle.

Pull the starter rope out of the engine slowly and

slip the starter rope into the rope guide. Tighten the

wing nut.

AttachingTheHoseAssembly

• Slide hose adapter of hose assembly into the base

adapter located on the left front of the Yard

Vacuum. See Figure 3.

• Pull spring loaded pin out on the base and align pin

with the first hole in the hose adapter.

• Release the pin to lock the hose in place.

• Connect the hose handle near nozzle end of hose

to the handle bracket on the upper handle. Refer to

Figure 6.

• Snap hose handle into the nozzle handle clip on the

lower handle to secure in place and lay hose tubing

on side hanger bracket next to chipper chute. Refer

to Figure 6.

Hose

Spring Pin

Figure 3

AttachingTheBag

• Grasp bag handle with one hand and slide locking

rod on mounting bracket with other hand toward

engine. Use the end of mounting bracket as

leverage when sliding the locking rod. See Figure 4.

• Slip bag over the rim of the discharge opening and

release locking rod to secure bag in place.

• Place the straps on the bag over the lower handle,

hooking them on the studs.

• Snap bag clip to the top of the lower handle.

NOTE: The safety switch button attached to the

mounting bracket must be fully depressed by the front

tab on the bag handle when securing the bag or the

engine will not start. See Figure 4.

Bag Handle

Safety

Figure 4

AttachingTheBlowerChute(ifEquipped)

NOTE: The blower chute is an optional feature on some

model yard vacuums. It is NOT standard equipmenL If

your unit is not equipped with a blower chute, contact

Customer Support as instructed on page 2 for

information regarding price and availability.

• Grasp blower chute with one hand and slide locking

rod on mounting bracket with other hand toward

engine. Use end of mounting bracket as leverage

when sliding the locking rod. See Figure 5.

• Slip blower chute over rim of the discharge opening

and release locking rod to secure chute in place.

Make sure the safety switch button is fully

depressed by the front tab on the blower chute.

• Raise the nozzle height to the highest setting when

using the blower chute. Refer to nozzle height

adjustment in the OPERATION section.

Rod

Figure 5

Blower

JChute

Front

Tab Locking

iRod

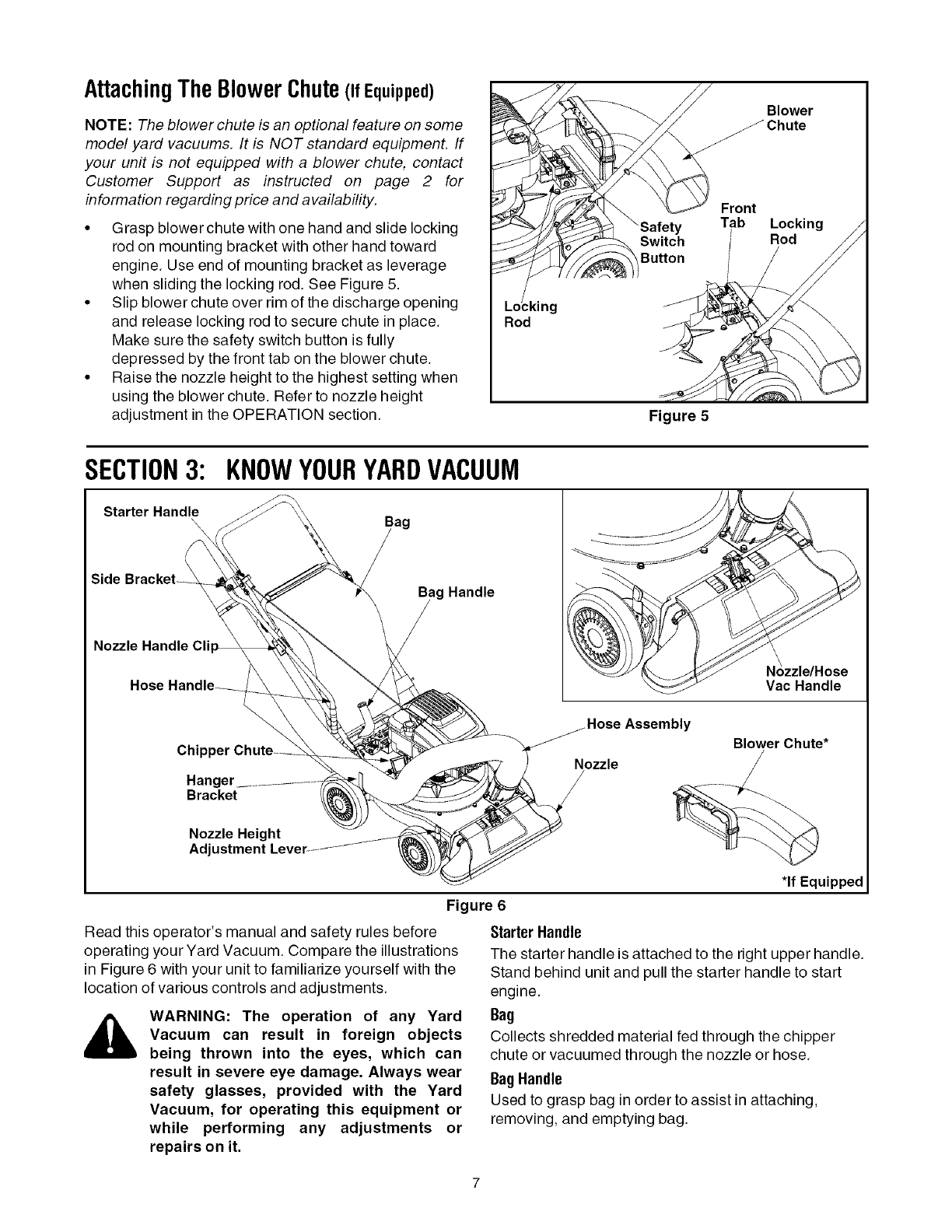

SECTION3:

Starter Handle

Nozzle Handle Cli

KNOWYOURYARDVACUUM

Bag

Bag Handle

Hose

Chipper

Hanger

Bracket

Hose Assembly

Nozzle

Vac Handle

Blower Chute*

Nozzle Height

Adjustment

*If Equipped

Figure 6

Read this operator's manual and safety rules before

operating your Yard Vacuum. Compare the illustrations

in Figure 6 with your unit to familiarize yourself with the

location of various controls and adjustments.

,_ WARNING: The operation of any Yard

Vacuum can result in foreign objects

being thrown into the eyes, which can

result in severe eye damage. Always wear

safety glasses, provided with the Yard

Vacuum, for operating this equipment or

while performing any adjustments or

repairs on it.

Starter Handle

The starter handle is attached to the right upper handle.

Stand behind unit and pull the starter handle to start

engine.

Bag

Collects shredded material fed through the chipper

chute or vacuumed through the nozzle or hose.

Bag Handle

Used to grasp bag in order to assist in attaching,

removing, and emptying bag.

ChipperChute

Allowtwigsandsmallbranchesupto11/2"in diameter

to be fed into the impeller for chipping.

BlowerChute(If Equipped)

When attached to unit the blower chute is used to blow

or scatter yard waste such as leaves, pine needles, or

small twigs across yard.

Nozzle HeightAdjustmentLever

Used to adjust the nozzle ground clearance ranging

approximately 5/8" to 4 1/8".

Nozzle

Yard waste such as leaves or pine needles can be

vacuumed up through the nozzle for shredding.

HoseAssembly

Used as an alternative to the nozzle to vacuum yard

waste such as leaves or pine needles in hard to reach

places.

HoseHandle

Used to guide hose assembly when vacuuming.

N0zzle/H0se Vac Handle

The nozzle/hose vac handle is located on top of the

nozzle and it is used to regulate the vacuum between

the nozzle and the hose assembly.

Throttle Control Lever (Not Shown)

The throttle control lever is located on the engine. It

controls the engine's speed and stops the engine. See

separate engine manual packed with unit for details.

Engine Controls

See the separate engine manual for the location and

function of the controls on the engine.

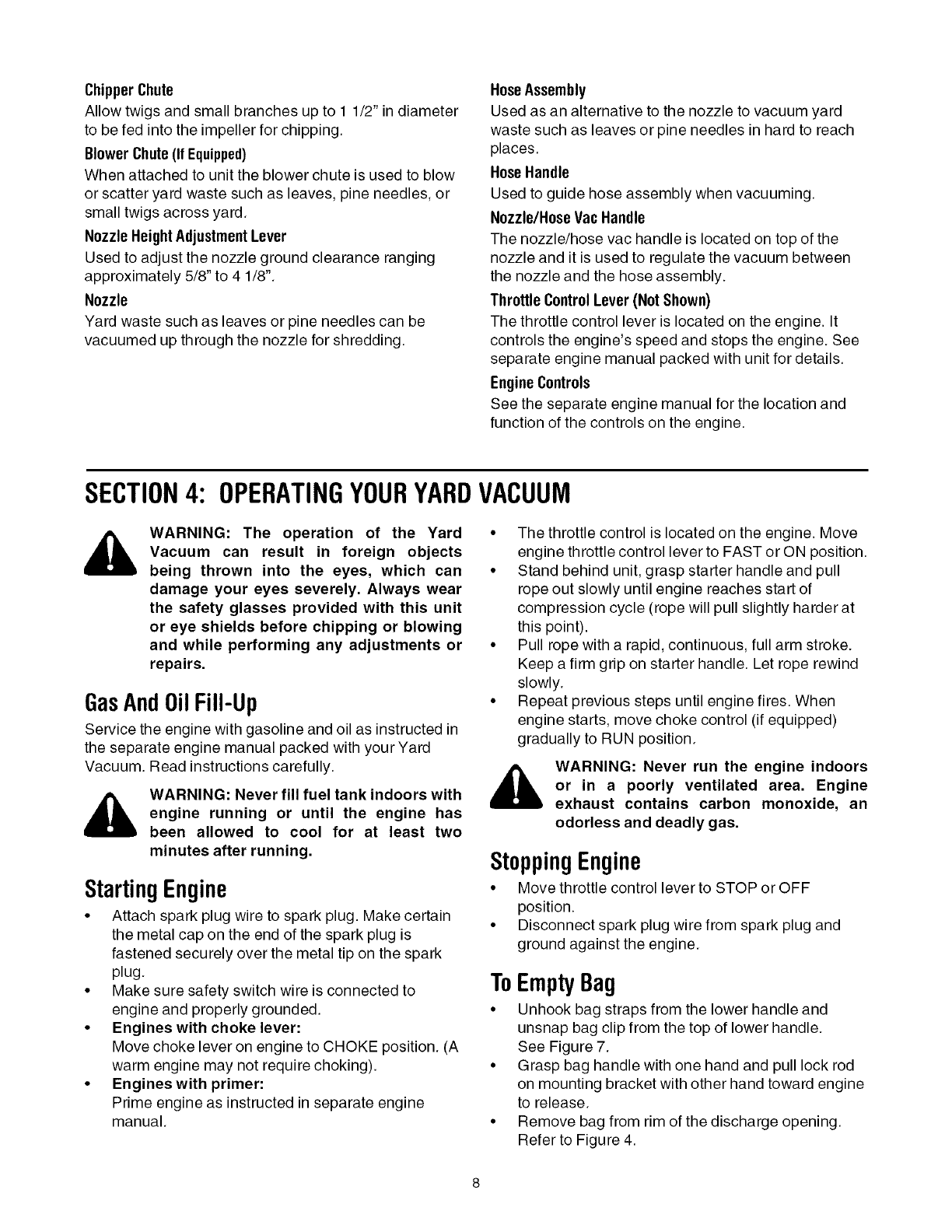

SECTION4: OPERATINGYOURYARDVACUUM

WARNING: The operation of the Yard

Vacuum can result in foreign objects

being thrown into the eyes, which can

damage your eyes severely. Always wear

the safety glasses provided with this unit

or eye shields before chipping or blowing

and while performing any adjustments or

repairs.

GasAndOilFill-Up

Service the engine with gasoline and oil as instructed in

the separate engine manual packed with your Yard

Vacuum. Read instructions carefully.

,_ WARNING: Never fill fuel tank indoors with

engine running or until the engine has

been allowed to cool for at least two

minutes after running.

Starting Engine

• Attach spark plug wire to spark plug. Make certain

the metal cap on the end of the spark plug is

fastened securely over the metal tip on the spark

plug.

• Make sure safety switch wire is connected to

engine and properly grounded.

• Engines with choke lever:

Move choke lever on engine to CHOKE position. (A

warm engine may not require choking).

• Engines with primer:

Prime engine as instructed in separate engine

manual.

• The throttle control is located on the engine. Move

engine throttle control lever to FAST or ON position.

• Stand behind unit, grasp starter handle and pull

rope out slowly until engine reaches start of

compression cycle (rope will pull slightly harder at

this point).

• Pull rope with a rapid, continuous, full arm stroke.

Keep a firm grip on starter handle. Let rope rewind

slowly.

• Repeat previous steps until engine fires. When

engine starts, move choke control (if equipped)

gradually to RUN position.

WARNING: Never run the engine indoors

or in a poorly ventilated area. Engine

exhaust contains carbon monoxide, an

odorless and deadly gas.

StoppingEngine

• Move throttle control lever to STOP or OFF

position.

• Disconnect spark plug wire from spark plug and

ground against the engine.

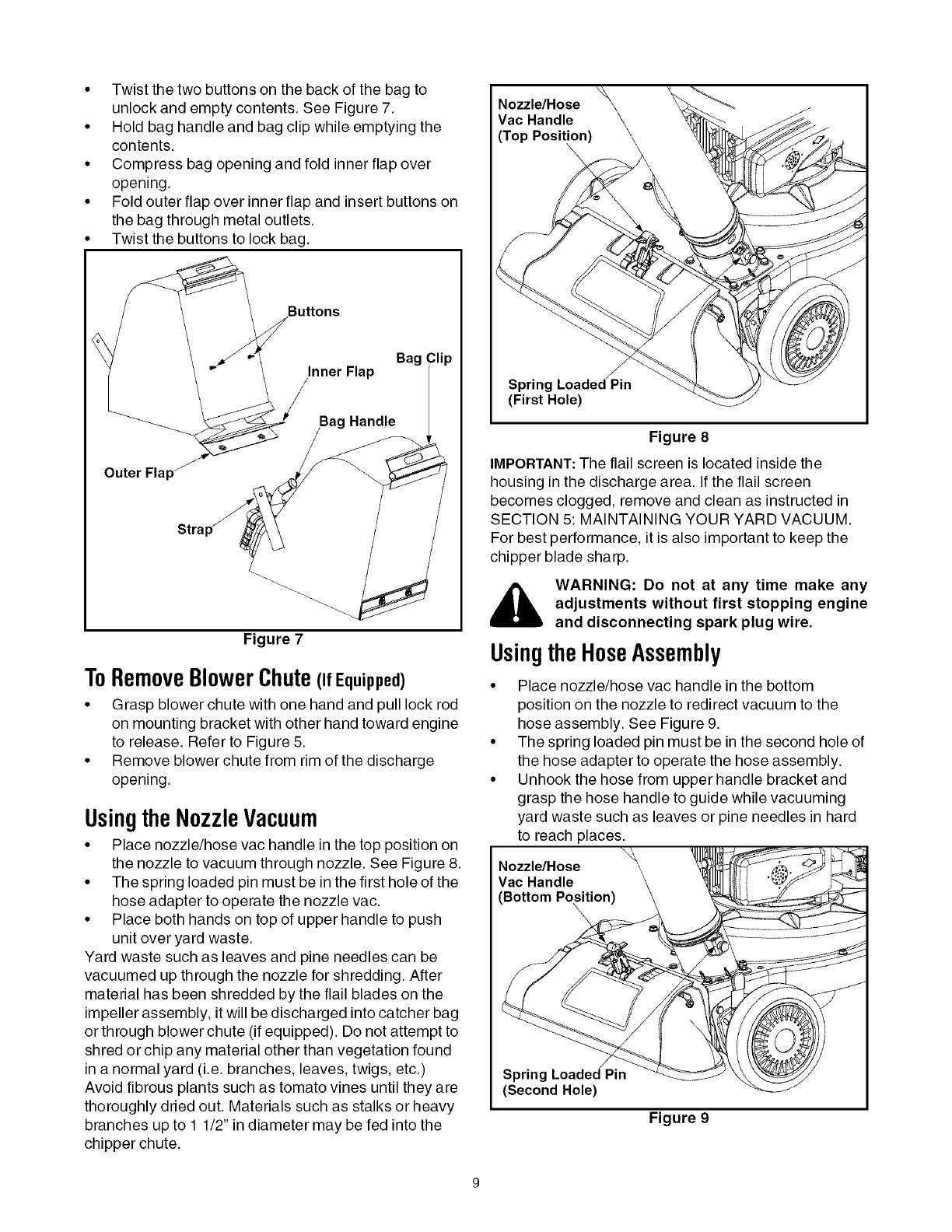

ToEmptyBag

• Unhook bag straps from the lower handle and

unsnap bag clip from the top of lower handle.

See Figure 7.

• Grasp bag handle with one hand and pull lock rod

on mounting bracket with other hand toward engine

to release.

• Remove bag from rim of the discharge opening.

Refer to Figure 4.

• Twistthetwobuttonsonthebackofthebagto

unlockandemptycontents.SeeFigure7.

• Holdbaghandleandbagclipwhileemptyingthe

contents.

• Compressbagopeningandfoldinnerflapover

opening.

• Foldouterflapoverinnerflapandinsertbuttonson

thebagthroughmetaloutlets.

Twistthebuttonstolockbag.

Bu_ons

Bag

Inner Flap

Bag Handle

Outer Flap

Stra

Figure 7

ToRemoveBlowerChute(ifEquipped)

• Grasp blower chute with one hand and pull lock rod

on mounting bracket with other hand toward engine

to release. Refer to Figure 5.

• Remove blower chute from rim of the discharge

opening.

UsingtheNozzleVacuum

• Place nozzle/hose vac handle in the top position on

the nozzle to vacuum through nozzle. See Figure 8.

• The spring loaded pin must be in the first hole of the

hose adapter to operate the nozzle vac.

• Place both hands on top of upper handle to push

unit over yard waste.

Yard waste such as leaves and pine needles can be

vacuumed up through the nozzle for shredding. After

material has been shredded by the flail blades on the

impeller assembly, it will be discharged into catcher bag

or through blower chute (if equipped). Do not attempt to

shred or chip any material other than vegetation found

in a normal yard (i.e. branches, leaves, twigs, etc.)

Avoid fibrous plants such as tomato vines until they are

thoroughly dried out. Materials such as stalks or heavy

branches up to 1 1/2" in diameter may be fed into the

chipper chute.

Nozzle/Hose

Vac Handle

(Top Posit!on) \

Spring Loaded Pin

(First Hole)

Figure 8

IMPORTANT:The flail screen is located inside the

housing in the discharge area. If the flail screen

becomes clogged, remove and clean as instructed in

SECTION 5: MAINTAINING YOUR YARD VACUUM.

For best performance, it is also important to keep the

chipper blade sharp.

,_ WARNING: Do not at any time make any

adjustments without first stopping engine

and disconnecting spark plug wire.

Usingthe Hose Assembly

• Place nozzle/hose vac handle in the bottom

position on the nozzle to redirect vacuum to the

hose assembly. See Figure 9.

• The spring loaded pin must be in the second hole of

the hose adapter to operate the hose assembly.

• Unhook the hose from upper handle bracket and

grasp the hose handle to guide while vacuuming

yard waste such as leaves or pine needles in hard

to reach places.

Nozzle/Hose

Vac Handle

(Bottom Position)

Spring

(Second Hole)

Figure 9

NozzleHeightAdjustment

The nozzle can be adjusted to any six positions,

ranging from 5/8" to 4 1/8" ground clearance. The

nozzle height has to be adjusted according to the

conditions. Move the height adjustment levers forward

or backward to adjust the nozzle upwards or

downwards, Make sure both levers are in the same

position. See Figure 10,

NOTE: In general, raise the nozzle height to vacuum a

thick layer of leaves or to operate with the blower chute

(if equipped) and lower the nozzle height for smoother

surfaces.

Nozzle

Figure 10

Nozzle Height

Adjustment

Lever

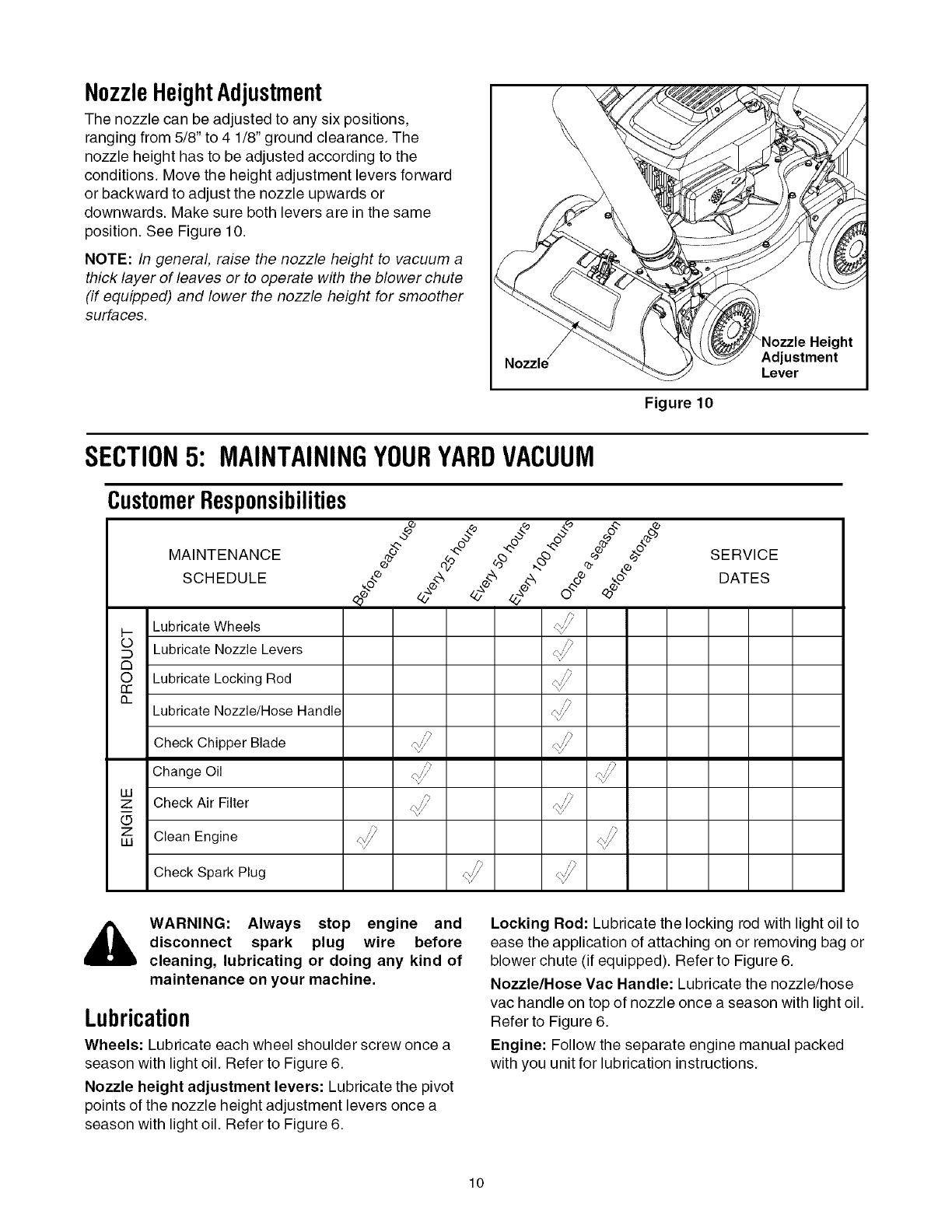

SECTION5: MAINTAININGYOURYARDVACUUM

CustomerResponsibilities

S/SE V,OE

SCHEDULE _o',e _ ._ _ _eoe ,,.30 DATES

t- Lubricate Wheels

O Lubricate Nozzle Levers

O Lubricate Locking Rod

O._ Lubricate Nozzle/Hose Handle

Check Chipper Blade ,%£

Change Oil

__ Check Air Filter </_

mz Clean Engine

Check Spark Plug

,_ WARNING: Always stop engine and

disconnect spark plug wire before

cleaning, lubricating or doing any kind of

maintenance on your machine.

Lubrication

Wheels: Lubricate each wheel shoulder screw once a

season with light oil. Refer to Figure 6.

Nozzle height adjustment levers: Lubricate the pivot

points of the nozzle height adjustment levers once a

season with light oil. Refer to Figure 6.

Locking Rod: Lubricate the locking rod with light oil to

ease the application of attaching on or removing bag or

blower chute (if equipped). Refer to Figure 6.

Nozzle/Hose Vac Handle: Lubricate the nozzle/hose

vac handle on top of nozzle once a season with light oil.

Refer to Figure 6.

Engine: Follow the separate engine manual packed

with you unit for lubrication instructions.

Maintenance

Engine

Refer to the separate engine manual for all engine

maintenance instructions.

•Check engine oil level before each use as

instructed in the separate engine manual packed

with your unit. Read and follow instructions

carefully.

• Clean air cleaner every 25 hours under normal

conditions or once a season. Clean every few hours

under extremely dusty conditions. To service the air

cleaner, refer to the separate engine manual

packed with your unit.

• The spark plug should be cleaned and the gap

reset once a season. Check engine manual for

correct plug type and gap specifications.

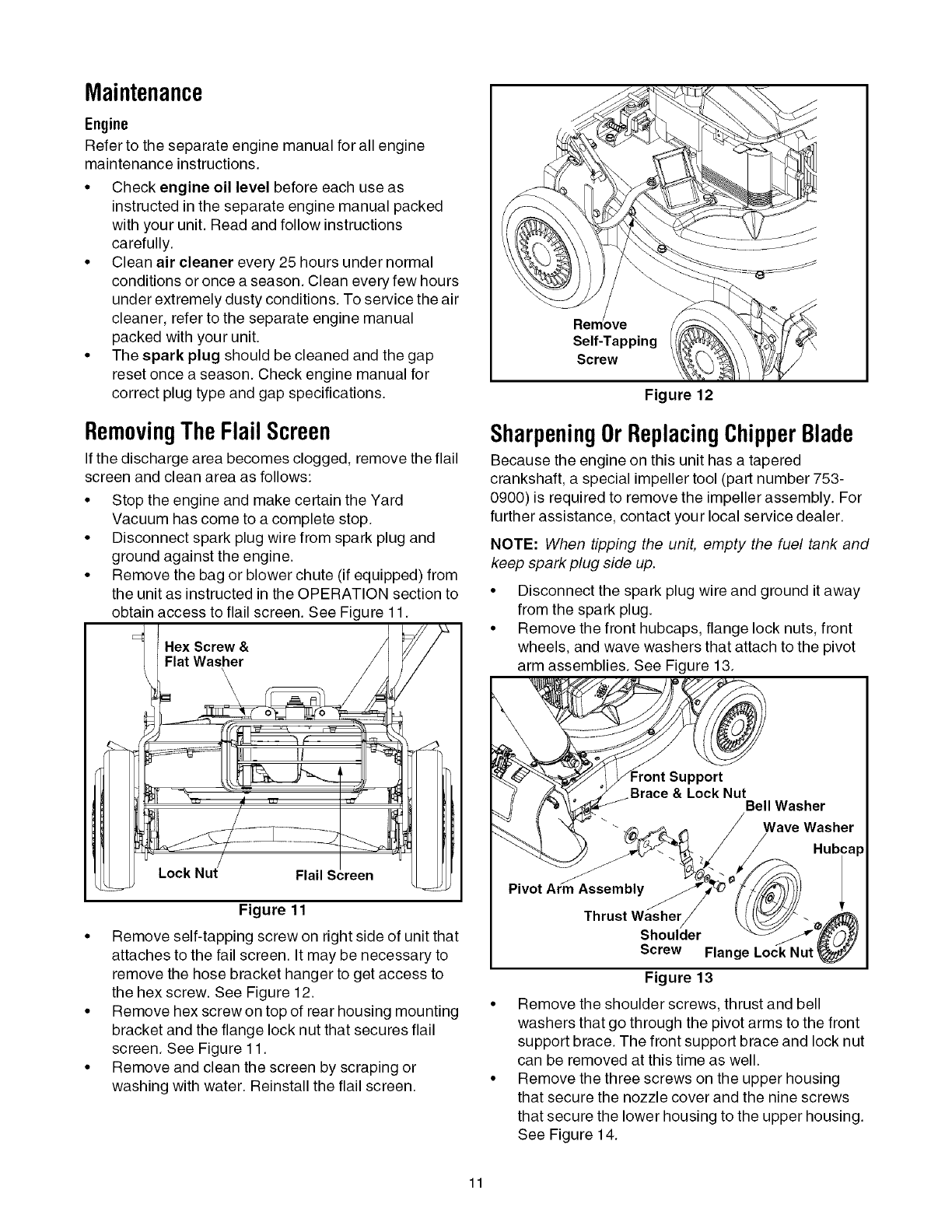

RemovingTheFlailScreen

Ifthe discharge area becomes clogged, remove the flail

screen and clean area as follows:

• Stop the engine and make certain the Yard

Vacuum has come to a complete stop.

• Disconnect spark plug wire from spark plug and

ground against the engine.

• Remove the bag or blower chute (if equipped) from

the unit as instructed in the OPERATION section to

obtain access to flail screen. See Figure 11.

HeX Screw &

Lock Nut Flail Screen

Figure 11

• Remove self-tapping screw on right side of unit that

attaches to the fail screen. It may be necessary to

remove the hose bracket hanger to get access to

the hex screw. See Figure 12.

• Remove hex screw on top of rear housing mounting

bracket and the flange lock nut that secures flail

screen. See Figure 11.

• Remove and clean the screen by scraping or

washing with water. Reinstall the flail screen.

Remove

Self-Tapping

Screw

Figure 12

SharpeningOrReplacingChipperBlade

Because the engine on this unit has a tapered

crankshaft, a special impeller tool (part number 753-

0900) is required to remove the impeller assembly. For

further assistance, contact your local service dealer.

NOTE: When tipping the unit, empty the fuel tank and

keep spark plug side up.

• Disconnect the spark plug wire and ground it away

from the spark plug.

• Remove the front hubcaps, flange lock nuts, front

wheels, and wave washers that attach to the pivot

arm assemblies. See Figure 13.

ipport

Brace & Lock Nut Bell Washer

Wave Washer

Hubcap

Pivot Ar_mAssembly

Thrust Washer

Shoulder

Screw Flange Lock Nut

Figure 13

Remove the shoulder screws, thrust and bell

washers that go through the pivot arms to the front

support brace. The front support brace and lock nut

can be removed at this time as well.

Remove the three screws on the upper housing

that secure the nozzle cover and the nine screws

that secure the lower housing to the upper housing.

See Figure 14.

Housing

Screws_

Nozz

Screws

Lower Housing

Screws

Figure 14

Remove flange lock nut that secures flail screen to

the lower housing. The flail screen does not have to

be removed. Refer to Figure 11.

Remove the hex bolt, lock washer, and flat washer

that secure the impeller assembly to the crankshaft.

See Figure 15.

Upper

Impeller

JAssembly

Hex Bolt

"Lock Washer

Flat Washer

_Flail

Blade

BOTTOM VIEW

Figure 15

• Apply lubricant to the threads of impeller removal

tool and then thread the tool into the crankshaft.

Stop when the impeller assembly can move on the

crankshaft.

• Remove the impeller assembly from the crankshaft.

Unthread the impeller removal tool from the

impeller assembly.

• Remove the blade using a 3/16" allen wrench on

the outside of the blade and 1/2" wrench on the

impeller assembly.

• Replace or sharpen chipper blade.

• When sharpening blade, protect hands by using

gloves and follow the original angle of grind.

• Reassemble by performing the previous steps in

reverse order.

• Tighten blade screws to 210-250 in-lbs.

Tighten impeller bolt to 375-425 in-lbs.

NOTE: Make certain chipper blade is reassembled with

the sharp edge facing upward. See Figure 16.

__ Chipper

Flail _ _ Blade

.... _y Impeller

_/ _ Assembly

Figure 16

StoringYourYardVacuum

• Clean the equipment thoroughly.

• Wipe equipment with a oiled rag to prevent rust.

• Refer to engine manual for correct engine storage

instructions.

• Store unit in a clean, dry area. Do not store next to

corrosive materials such as fertilizer.

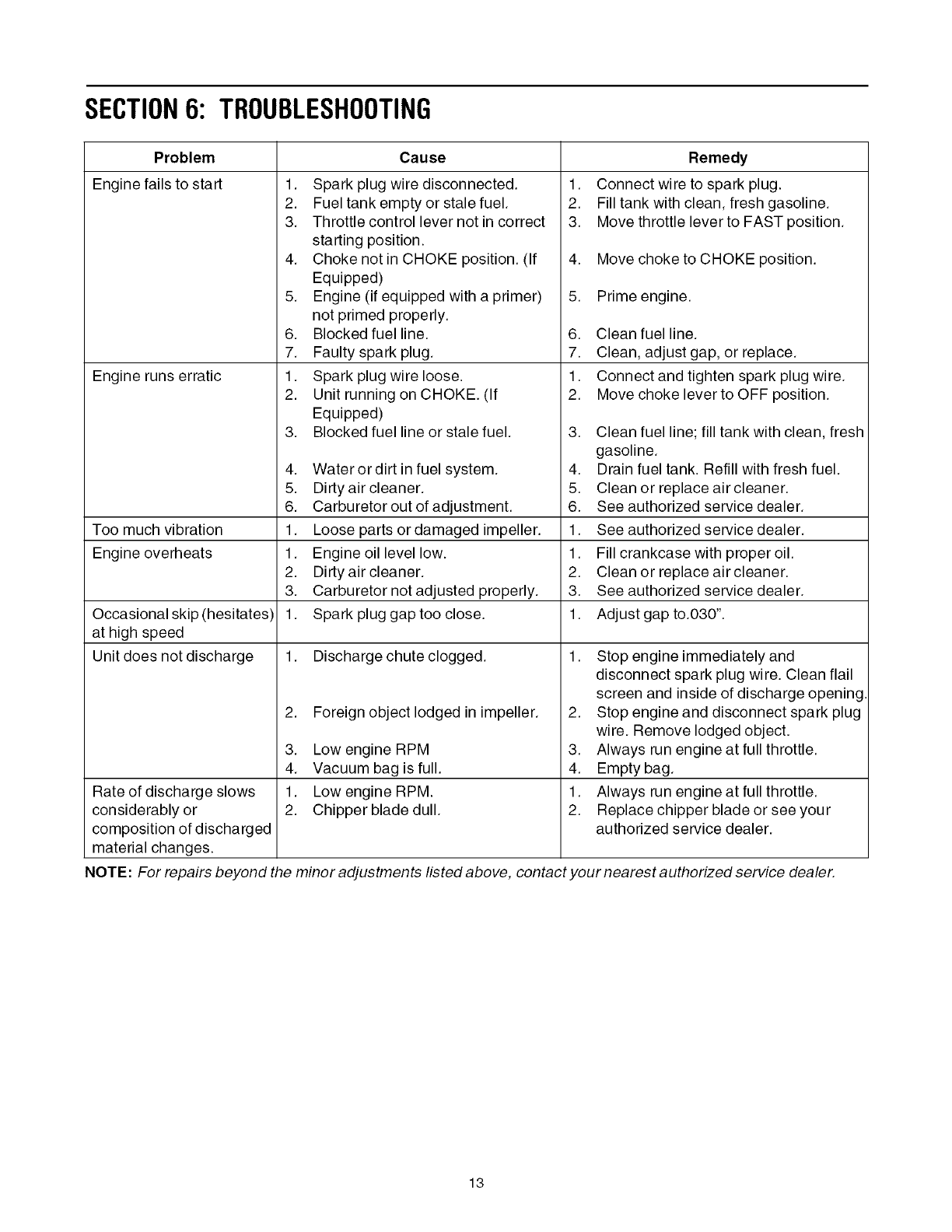

SECTION6: TROUBLESHOOTING

Problem Cause

Engine fails to start

Engine runs erratic

1. Spark plug wire disconnected.

2. Fuel tank empty or stale fuel.

3. Throttle control lever not in correct

starting position.

4. Choke not in CHOKE position. (If

Equipped)

5. Engine (if equipped with a primer)

not primed properly.

6. Blocked fuel line.

7. Faulty spark plug.

1. Spark plug wire loose.

2. Unit running on CHOKE. (If

Equipped)

3. Blocked fuel line or stale fuel.

Remedy

1. Connect wire to spark plug.

2. Fill tank with clean, fresh gasoline.

3. Move throttle lever to FAST position.

4. Move choke to CHOKE position.

Water or dirt in fuel system.

Dirty air cleaner.

Carburetor out of adjustment.

Loose parts or damaged impeller.

Engine oil level low.

Dirty air cleaner.

Carburetor not adjusted properly.

Spark plug gap too close.

5. Prime engine.

6. Clean fuel line.

7. Clean, adjust gap, or replace.

1. Connect and tighten spark plug wire.

2. Move choke lever to OFF position.

Too much vibration

Engine overheats

Occasional skip (hesitates)

at high speed

Unit does not discharge 1. Discharge chute clogged. 1.

2. Foreign object lodged in impeller.

3. Low engine RPM

4. Vacuum bag is full.

1. Low engine RPM.

2. Chipper blade dull.

Rate of discharge slows

considerably or

composition of discharged

material changes.

Clean fuel line; fill tank with clean, fresh

gasoline.

Drain fuel tank. Refill with fresh fuel.

Clean or replace air cleaner.

See authorized service dealer.

Fill crankcase with proper oil.

Clean or replace air cleaner.

See authorized service dealer.

Adjust gap to.030".

Stop engine immediately and

disconnect spark plug wire. Clean flail

screen and inside of discharge opening

2. Stop engine and disconnect spark plug

wire. Remove lodged object.

3. Always run engine at full throttle.

4. Empty bag.

1. Always run engine at full throttle.

2. Replace chipper blade or see your

authorized service dealer.

NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer.

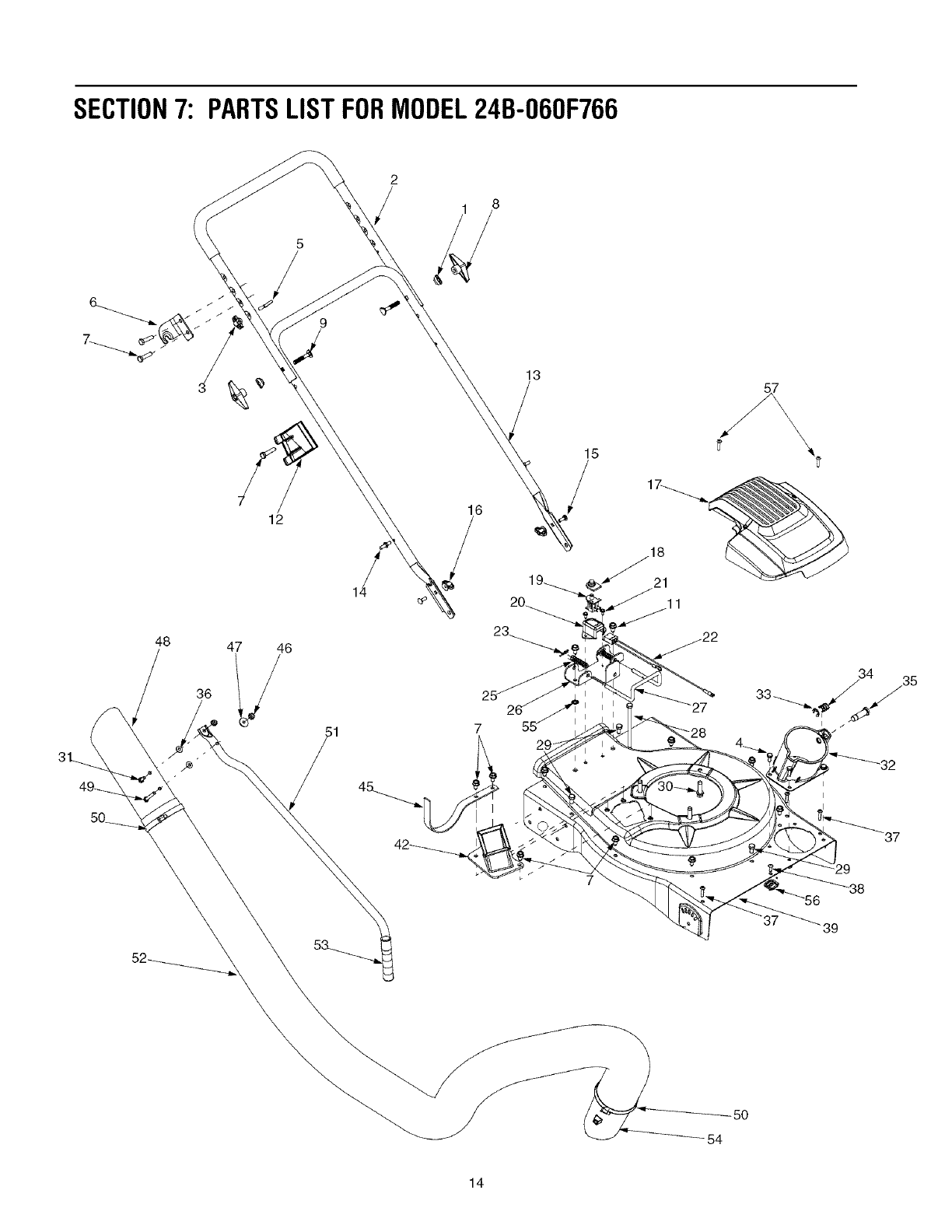

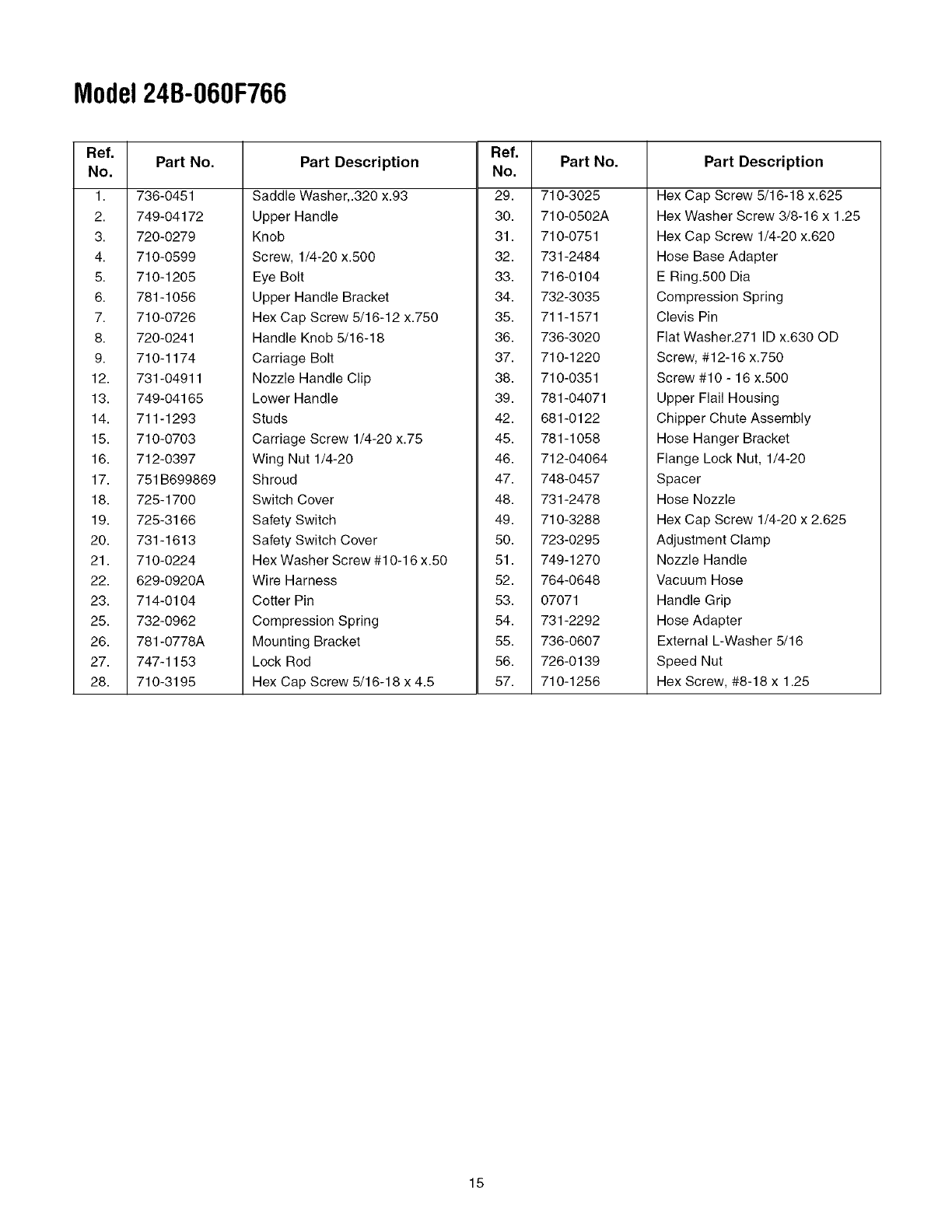

SECTION7: PARTSLISTFORMODEL24B-O60F766

48 47 46

36 /_ 27

-5O

Model24B-O60F766

Ref.

No.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

25.

26.

27.

28.

Part No.

736-0451

749-04172

720-0279

710-0599

710-1205

781-1056

710-0726

720-0241

710-1174

731-04911

749-04165

711-1293

710-0703

712-0397

751B699869

725-1700

725-3166

731-1613

710-0224

629-0920A

714-0104

732-0962

781-0778A

747-1153

710-3195

Part Description

Saddle Washer,.320 x.93

Upper Handle

Knob

Screw, 1/4-20 x.500

Eye Bolt

Upper Handle Bracket

Hex Cap Screw 5/16-12 x.750

Handle Knob 5/16-18

Carriage Bolt

Nozzle Handle Clip

Lower Handle

Studs

Carriage Screw 1/4-20 x.75

Wing Nut 1/4-20

Shroud

Switch Cover

Safety Switch

Safety Switch Cover

Hex Washer Screw #10-16 x.50

Wire Harness

Cotter Pin

Compression Spring

Mounting Bracket

Lock Rod

Hex Cap Screw 5/16-18 x 4.5

Ref. Part No.

No.

29. 710-3025

30. 710-0502A

31. 710-0751

32. 731-2484

33. 716-0104

34. 732-3035

35. 711-1571

36. 736-3020

37. 710-1220

38. 710-0351

39. 781-04071

42. 681-0122

45. 781-1058

46. 712-04064

47. 748-0457

48. 731-2478

49. 710-3288

50. 723-0295

51. 749-1270

52. 764-0648

53. 07071

54. 731-2292

55. 736-0607

56. 726-0139

57. 710-1256

Part Description

Hex Cap Screw 5/16-18 x.625

Hex Washer Screw 3/8-16 x 1.25

Hex Cap Screw 1/4-20 x.620

Hose Base Adapter

E Ring.500 Dia

Compression Spring

Clevis Pin

Flat Washer.271 ID x.630 OD

Screw, #12-16 x.750

Screw #10 - 16 x.500

Upper Flail Housing

Chipper Chute Assembly

Hose Hanger Bracket

Flange Lock Nut, 1/4-20

Spacer

Hose Nozzle

Hex Cap Screw 1/4-20 x 2.625

Adjustment Clamp

Nozzle Handle

Vacuum Hose

Handle Grip

Hose Adapter

External L-Washer 5/16

Speed Nut

Hex Screw, #8-18 x 1.25

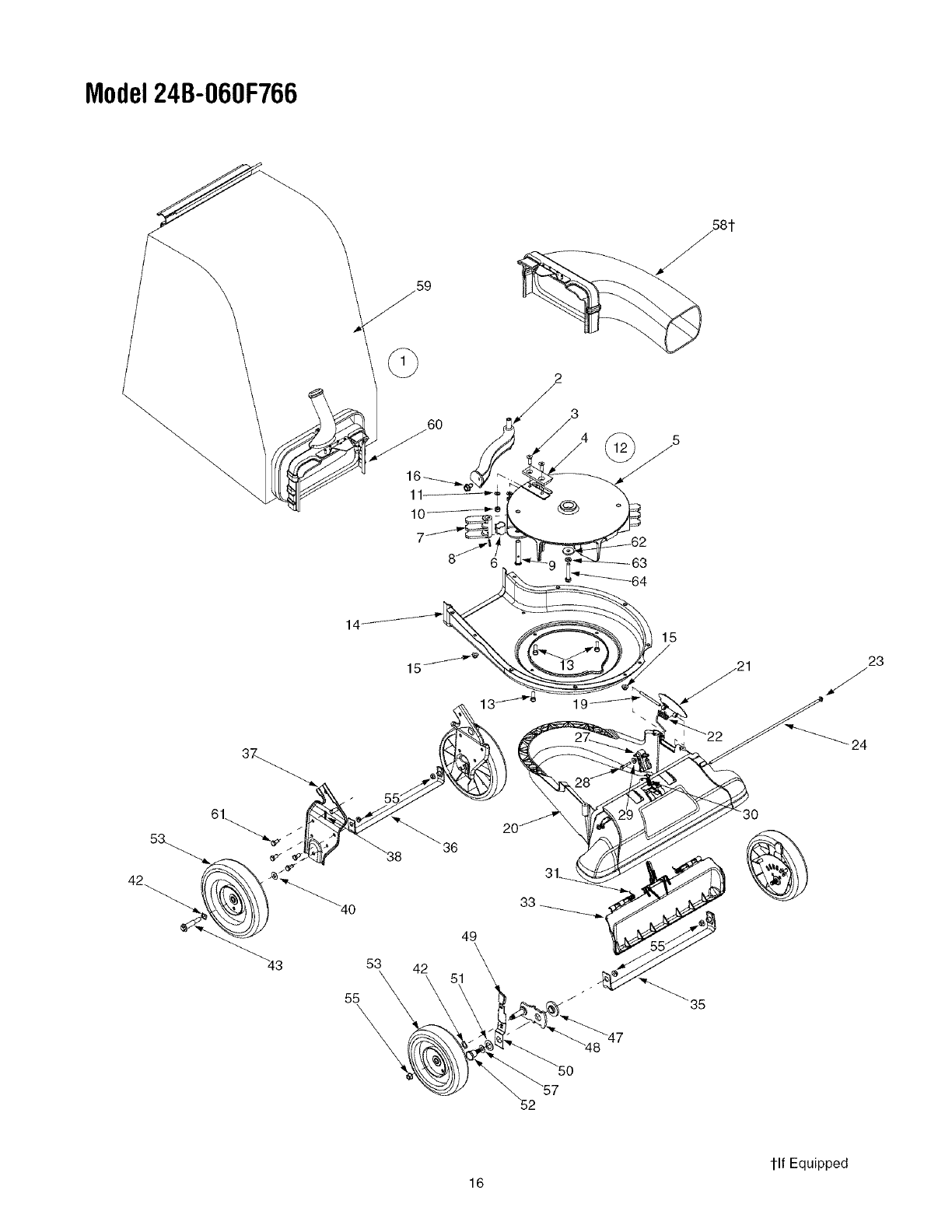

Model24B-O60F766

42 51

19 L\

tlf Equipped

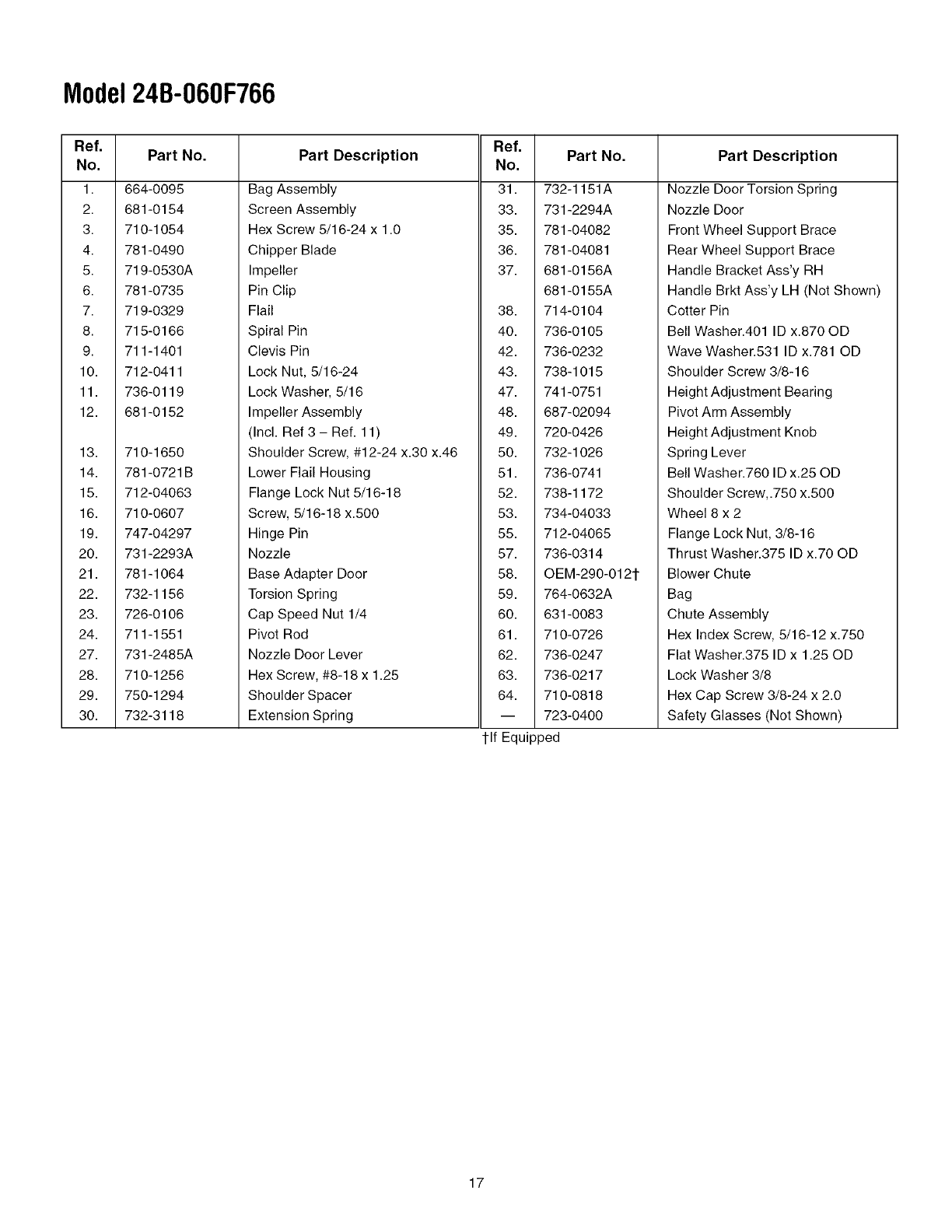

Model24B-O60F766

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

19.

20.

21.

22.

23.

24.

27.

28.

29.

30.

Part No.

664-0095

681-0154

710-1054

781-0490

719-0530A

781-0735

719-0329

715-0166

711-1401

712-0411

736-0119

681-0152

710-1650

781-0721B

712-04063

710-0607

747-04297

731-2293A

781-1064

732-1156

726-0106

711-1551

731-2485A

710-1256

750-1294

732-3118

Part Description

Bag Assembly

Screen Assembly

Hex Screw 5/16-24 x 1.0

Chipper Blade

Impeller

Pin Clip

Flail

Spiral Pin

Clevis Pin

Lock Nut, 5/16-24

Lock Washer, 5/16

Impeller Assembly

(Incl. Ref3-Ref. 11)

Shoulder Screw, #12-24 x.30 x.46

Lower Flail Housing

Flange Lock Nut 5/16-18

Screw, 5/16-18 x.500

Hinge Pin

Nozzle

Base Adapter Door

Torsion Spring

Cap Speed Nut 1/4

Pivot Rod

Nozzle Door Lever

Hex Screw, #8-18 x 1.25

Shoulder Spacer

Extension Spring

Ref. Part No.

No.

31. 732-1151A

33. 731-2294A

35. 781-04082

36. 781-04081

37. 681-0156A

681-0155A

38. 714-0104

40. 736-0105

42. 736-0232

43. 738-1015

47. 741-0751

48. 687-02094

49. 720-0426

50. 732-1026

51. 736-0741

52. 738-1172

53. 734-04033

55. 712-04065

57. 736-0314

58. OEM-290-0121"

59. 764-0632A

60. 631-0083

61. 710-0726

62. 736-0247

63. 736-0217

64. 710-0818

-- 723-0400

tlf Equipped

Part Description

Nozzle Door Torsion Spring

Nozzle Door

Front Wheel Support Brace

Rear Wheel Support Brace

Handle Bracket Ass'y RH

Handle Brkt Ass'y LH (Not Shown)

Cotter Pin

Bell Washer.401 ID x.870 OD

Wave Washer.531 ID x.781 OD

Shoulder Screw 3/8-16

Height Adjustment Bearing

Pivot Arm Assembly

Height Adjustment Knob

Spring Lever

Bell Washer.760 ID x.25 OD

Shoulder Screw,.750 x.500

Wheel 8 x 2

Flange Lock Nut, 3/8-16

Thrust Washer.375 ID x.70 OD

Blower Chute

Bag

Chute Assembly

Hex Index Screw, 5/16-12 x.750

Fiat Washer.375 ID x 1.25 OD

Lock Washer 3/8

Hex Cap Screw 3/8-24 x 2.0

Safety Glasses (Not Shown)

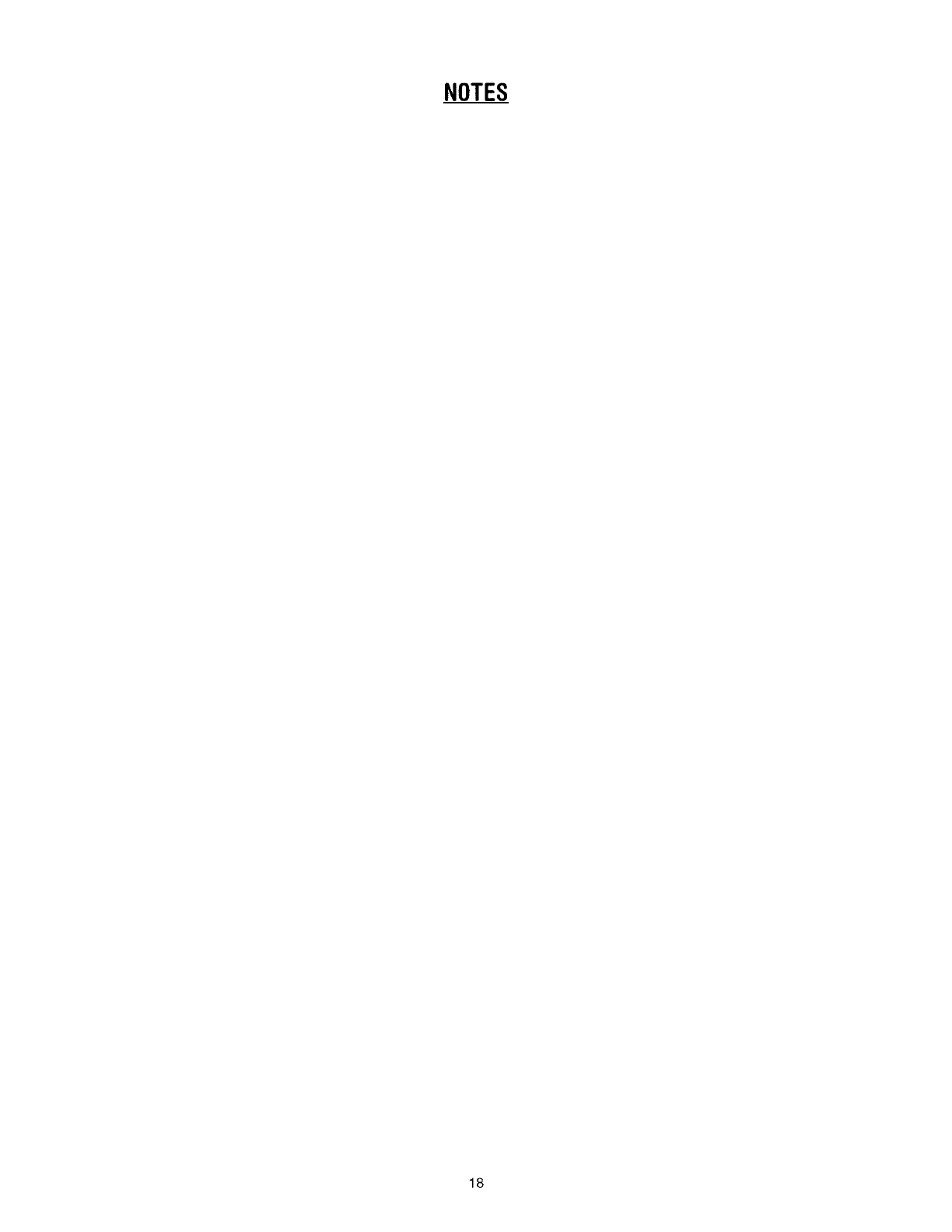

NOTES

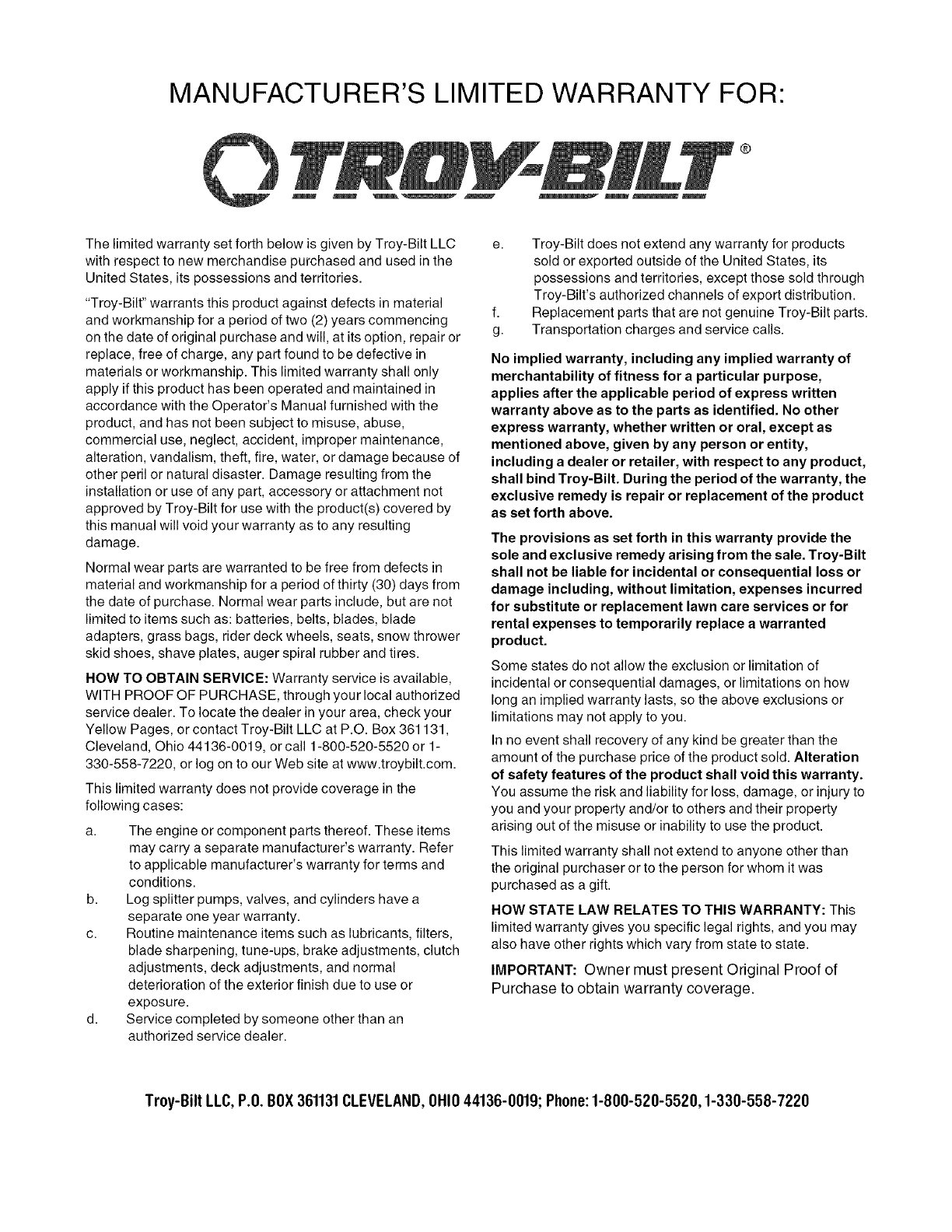

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by Troy-Bilt LLC

with respect to new merchandise purchased and used in the

United States, its possessions and territories.

"Troy-Bilt" warrants this product against defects in material

and workmanship for a period of two (2) years commencing

on the date of original purchase and will, at its option, repair or

replace, free of charge, any part found to be defective in

materials or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the

product, and has not been subject to misuse, abuse,

commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of

other peril or natural disaster. Damage resulting from the

installation or use of any part, accessory or attachment not

approved by Troy-Bilt for use with the product(s) covered by

this manual will void your warranty as to any resulting

damage.

Normal wear parts are warranted to be free from defects in

material and workmanship for a period of thirty (30) days from

the date of purchase. Normal wear parts include, but are not

limited to items such as: batteries, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow thrower

skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-520-5520 or 1-

330-558-7220, or log on to our Web site at www.troybilt.com.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

may carry a separate manufacturer's warranty. Refer

to applicable manufacturer's warranty for terms and

conditions.

b. Log splitter pumps, valves, and cylinders have a

separate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposure.

d. Service completed by someone other than an

authorized service dealer.

e. Troy-Bilt does not extend any warranty for products

sold or exported outside of the United States, its

possessions and territories, except those sold through

Troy-Bilt's authorized channels of export distribution.

f. Replacement parts that are not genuine Troy-Bilt parts.

g. Transportation charges and service calls.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind Troy-Bilt. During the period of the warranty, the

exclusive remedy is repair or replacement of the product

as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. Troy-Bilt

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred

for substitute or replacement lawn care services or for

rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for loss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than

the original purchaser or to the person for whom it was

purchased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT: Owner must present Original Proof of

Purchase to obtain warranty coverage.

Troy-Bilt LLC, P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-800-520-5520,1-330-558-7220

Troybilt 24B 060F766 User Manual CHIPPER/SHREDDER/VACUUM/HOSE Manuals And Guides L0503319

TROYBILT Chipper Shredder/Vacuum, Gas Manual L0503319 TROYBILT Chipper Shredder/Vacuum, Gas Owner's Manual, TROYBILT Chipper Shredder/Vacuum, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
