truefitness.com / 800.426.6570 / 1.636.272.7100
CS800 Elliptical
Owner’s Manual
truefitness.com / 800.426.6570 / 1.636.272.7100 2
Frank Trulaske, founder and CEO of TRUE®, has had the same simple philosophy of
delivering superior products, service and support for over 29 years. Today, TRUE is the
global leader in premium cardio equipment for the commercial and residential markets.
Our goal is to be the leader in technology, innovation, performance, safety and style. TRUE
has received many awards for its commercial and retail product over the years and remains
the benchmark for the industry. Fitness facilities and consumers invest in TRUE products
for their durable commercial platforms used in all its cardio products, commercial, light
commercial and residential alike.
The proud manufacturing traditions of quality and the culture of innovation at TRUE has
given rise to a full line of truly extraordinary treadmills, indoor cycles and elliptical cross-
trainers. As a result, people all over the world are beneting from the TRUE experience.
Innovation across the full product line has made TRUE successful and is a trademark of
the TRUE heritage. TRUE’s patented Heart Rate Control® technology is just one of the
remarkable ways we deliver simple and superior performance every user can enjoy, and most
importantly, use to achieve personal health and tness goals.
TRUE strives to perfect biomechanically correct and orthopedically comfortable, functional
products. Whether it be the mesh seat in the recumbent bike, the Soft Step® in the elliptical
cross-trainers or the Soft System® in our treadmills, we deliver the best.
At the heart of our success is the relentless and systematic life testing of both our products
and their components. We have dedicated employees who understand our philosophy is to
deliver the best products in the world.
Our goal is not to sell the most cardio products in the world, but to deliver the world’s best
premium equipment for our customers’ health and tness solutions.
To own a TRUE machine is to be part of an exclusive tness community that delivers results
– your results.
Thank you for becoming a part of the TRUE experience.
truefitness.com / 800.426.6570 / 1.636.272.7100
Table of contents
3
Chapter 1: Safety Instructions............................................4
Chapter 2: Elliptical Overview............................................8
Chapter 3: Display Console.................................................9
A. 15” Touchscreen
B. 2 Window LCD
Chapter 4: Programming & Operation............................15
A. 15” Touchscreen
B. 2 Window LCD
Chapter 5: Care & Maintenance.........................................19
Chapter 6: Troubleshooting................................................21
Chapter 7: Additional Information...................................23
IMPORTANT:
Product specications, features & software are subject to change without notice.
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 1: Safety Instructions
4
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 5
Chapter 1: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: Health related injuries may result from incorrect or excessive use of exercise equipment.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an
exercise program, particularly if the user has a family history of high blood pressure or heart disease, is
over the age of 45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year.
TRUE also recommends consulting a tness professional on the correct use of this product. If at any time
while exercising the user experiences faintness, dizziness, pain or shortness of breath, he or she must stop
immediately.
This equipment CS800 elliptical is intended for commercial use.
WARNING: READ ALL INSTRUCTIONS BEFORE USING THE ELLIPTICAL.
WARNING: Do not move the elliptical by lifting the console. Do not use the console as a handlebar during a
workout.
WARNING: To reduce the risk of electrical shock, always unplug this TRUE product before cleaning or
attempting any maintenance activity.
DANGER: To reduce the risk of electric shock, always unplug the elliptical before cleaning.
WARNING: To reduce the risk of burns, re and electric shock or injury to persons, follow these
instructions:
This equipment should never be left unattended when plugged in.
To avoid injury stand on the side rails before starting the elliptical.
• Do not exceed maximum user weight as outlined in the product specication section of this manual.
Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes.
Make sure no stones are embedded in the soles. Do not use this product in bare feet. Keep all loose
clothing, shoelaces and towels away from moving parts.
• Do not operate the elliptical while being covered with a blanket, plastic, or anything that insulates or stops
airow.
• Close supervision is necessary if the elliptical is used by children, used near children. Also applies to
disabled persons.
truefitness.com / 800.426.6570 / 1.636.272.7100 6
Chapter 1: Safety Instructions
• Use this elliptical only for its intended use as described in this manual.
• Do not use attachments not recommended by the manufacturer.
• Never operate this elliptical if it has a damaged power cord or plug, if it is not working properly, if it
has been damaged or dropped, or if it has been submerged in water. In these cases, a qualied service
technician should examine this elliptical.
• Do not use the power cord as a handle for transporting.
• Do not run the power cord along the side or under the elliptical.
• Keep the power cord away from heated surfaces.
• Position this product so the power cord plug is accessible to the user.
• Never operate the equipment with the air vents blocked. Keep air vents free from clogs.
• Never drop or insert any object into any opening.
• Do not reach into or underneath the unit, or tip it on its side during operation.
• Use the side handrails whenever additional stability is required. In case of emergency, such as tripping,
the side handrails should be grabbed and the user should place his/her feet on the side platforms. The
front handlebars should be used to grasp the heart rate sensors or to rest the hand on while operating the
activity zone keys, but not for stability, emergency, or continuous use.
• Use indoors only.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
To disconnect power cord, rst turn power switch to the o position, then remove plug from outlet.
• Allow only trained personnel to service this equipment.
• Never operate a TRUE product if it has a damaged power cord or electrical plug, of if it has been dropped,
damaged, or even partially immersed in water. Contact TRUE Customer Service.
• Never use near water or while wet. Using this elliptical around a pool, hot tub or sauna will void the
warranty.
• Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they
truefitness.com / 800.426.6570 / 1.636.272.7100 7
Chapter 1: Safety Instructions
are out of reach of the elliptical while it is in motion.
• Allow only one person at a time on the elliptical while it’s operating.
• Ensure that the back of the elliptical is placed at least 39” away from a wall or other obstructions.
• Ensure that the sides of the elliptical are placed at least 20” away from a wall or other obstructions.
• Never place liquids of any type directly on the unit except in the accessory tray or bottle holders.
Containers with lids are recommended.
• Do not allow animals on or near the elliptical while it’s operating.
• Consult your physician before beginning any exercise program.
• Do not use if you have a cold or fever.
GROUNDING INSTRUCTIONS
WARNING: To reduce the risk of burns, re, electric shock or injury, it is imperative to connect each
product to a properly grounded electrical outlet. A risk of electrical shock may result from improper
connection of the equipments grounding conductor. Check with a qualied electrician if you are unsure
about proper grounding techniques. Do not modify the plug provided with this product. If it will not t an
electrical outlet, have a proper outlet installed by a qualied electrician. Your TRUE Fitness product must
be properly grounded to reduce risk of shock if the elliptical malfunctions. Your elliptical is equipped with
an electrical cord, which includes an equipment grounding conductor and a grounding plug. The plug must
be inserted into an outlet that has been properly installed and grounded in accordance with all local codes
and ordinances. A temporary adapter cannot be used to connect this plug to a two-pole receptacle in North
America. If a properly grounded NEMA 5-15 Receptacle outlet is not available, a qualied electrician must
install one.
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 2: Elliptical Overview
8
Chapter 1: Basic Safety
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information

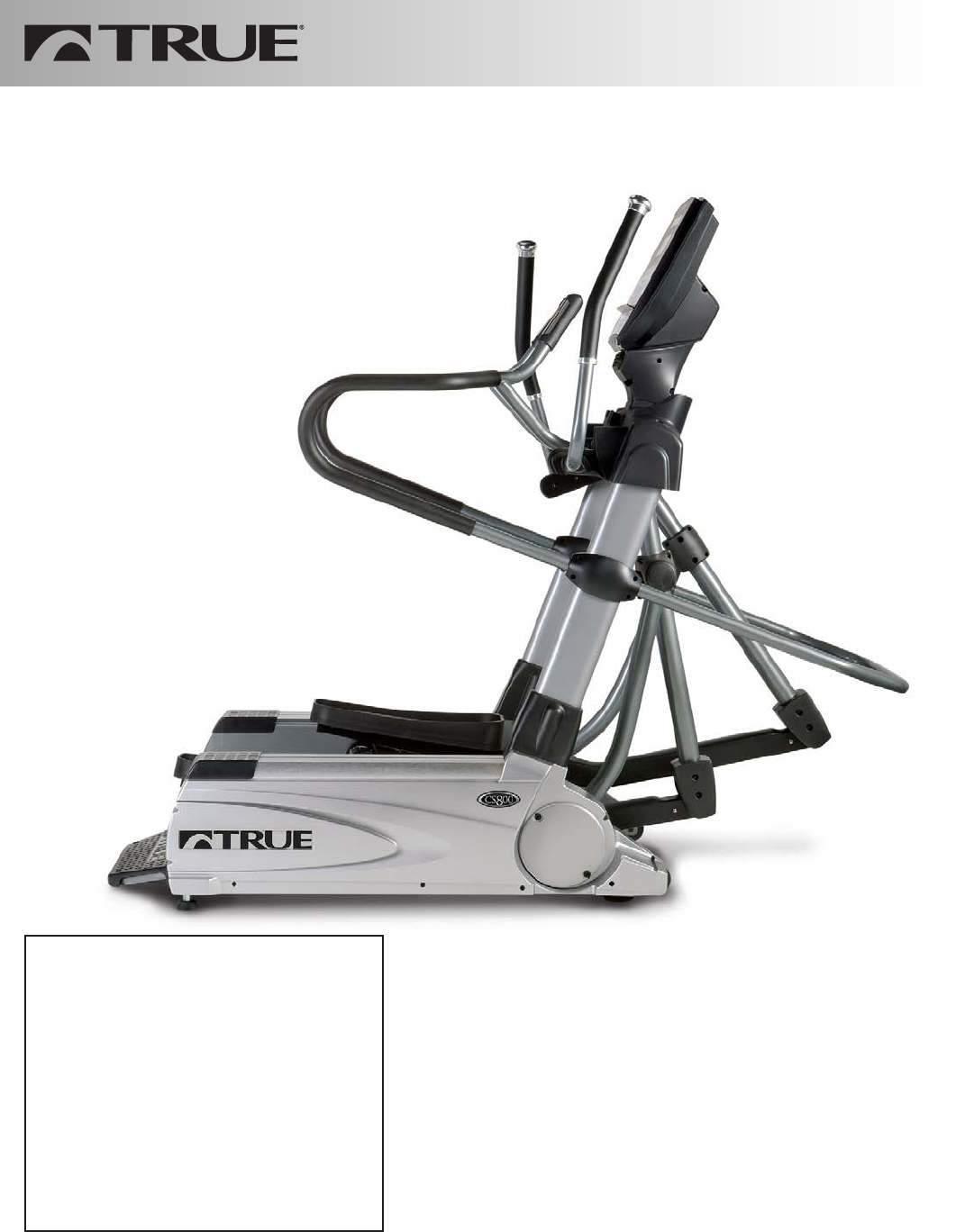

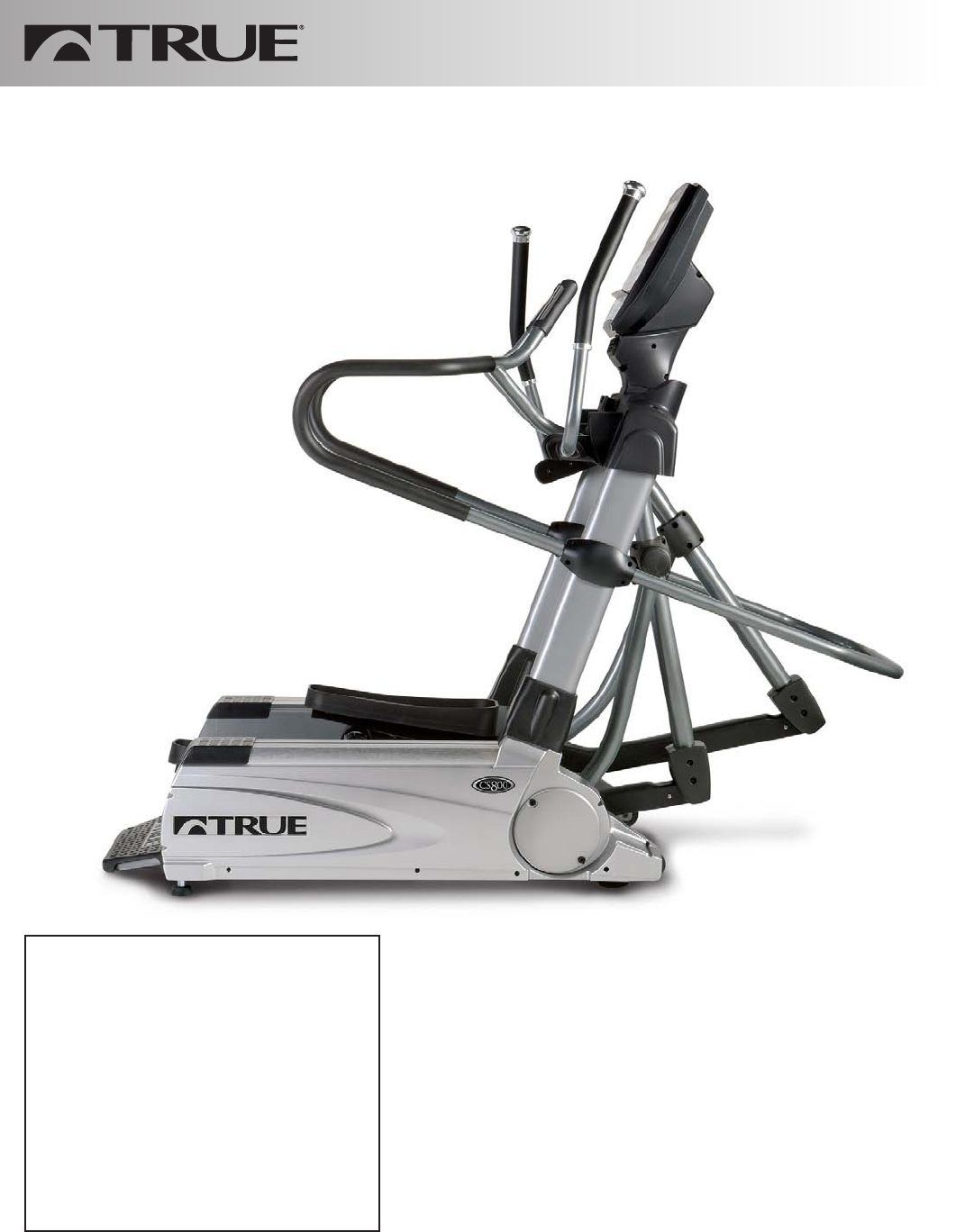

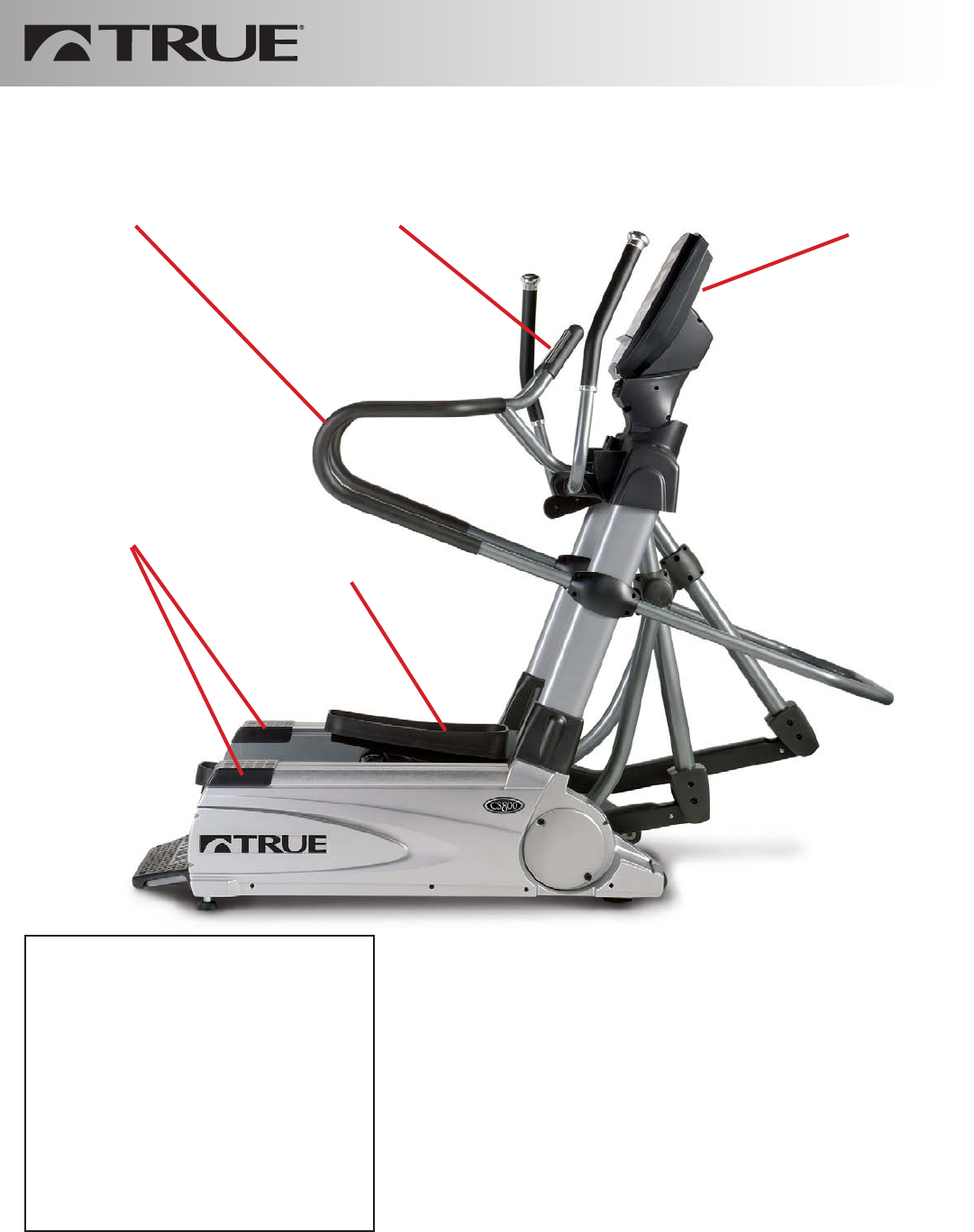

Console
Contact Heart Rate
Pads
Hand Rails
Footpad
Side Rails
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 3: Display Console
9
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 10
Chapter 3: Display Console

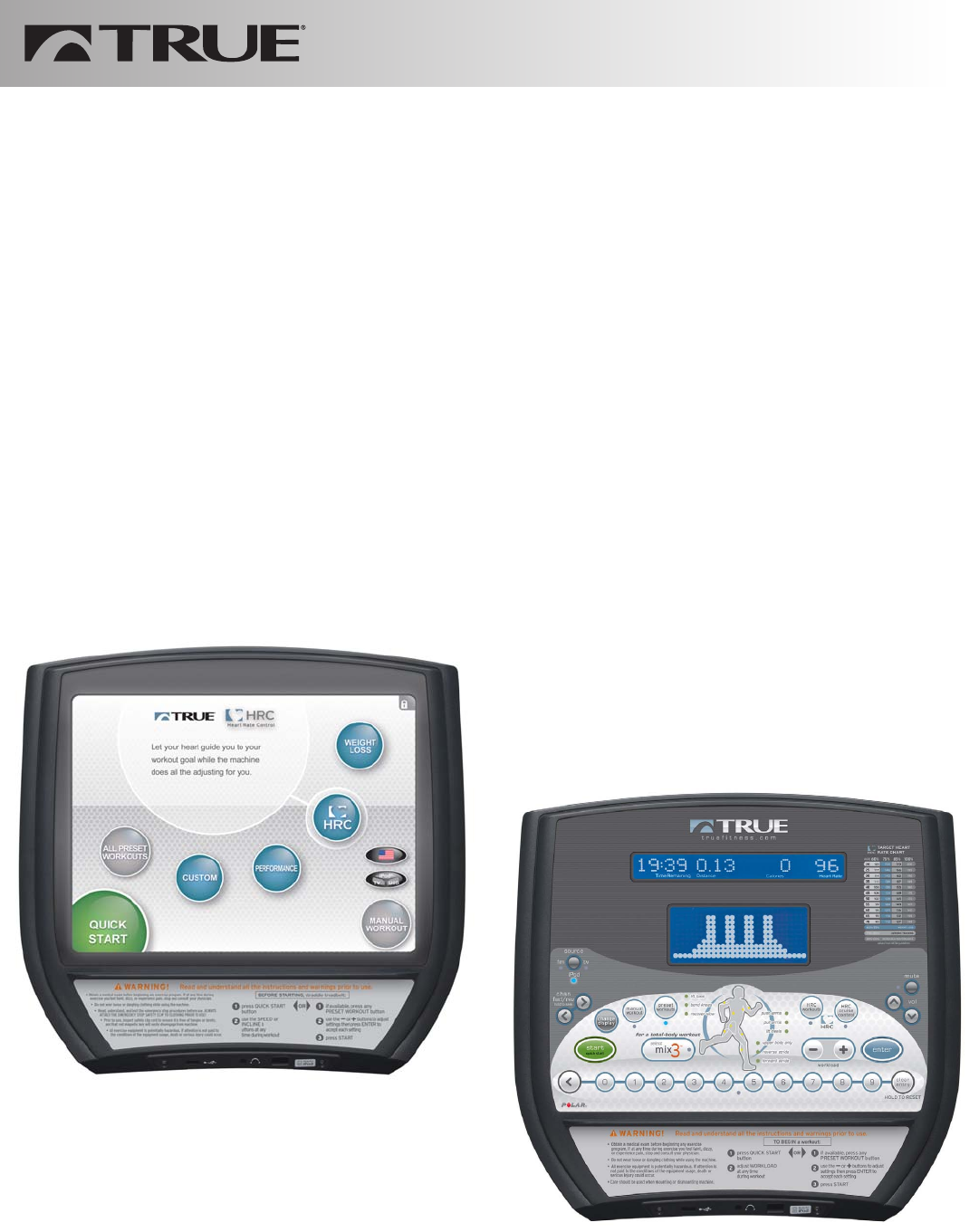

Display Console Options
This TRUE Fitness commercial elliptical has several console options. Depending on the console that came
with this elliptical, the workouts, programming and operation of the treadmill may differ. The console options
available on this machine are:
Integrated 15” LCD with Touch Screen technology that has a built-in TV, integrated iPod® connectivity with music
and video featuring onscreen navigation, Scenic Landscape Perspectives, USB connectivity, NTSC/ATSC/OAM
digital tuner or PAL/SECAM tuner
2 Window LCD with optional integrated wireless entertainment control, integrated iPod® connector
Please refer to the information in this manual for basic operation information. For more detailed information
please visit www.truefitness.com/.
15” LCD with Touchscreen
2 Window LCD
truefitness.com / 800.426.6570 / 1.636.272.7100 11
Chapter 3: Display Console
Safety, warning and
Quick Start information
USB jack
Headphone jack
Integrated iPod®
connectivity

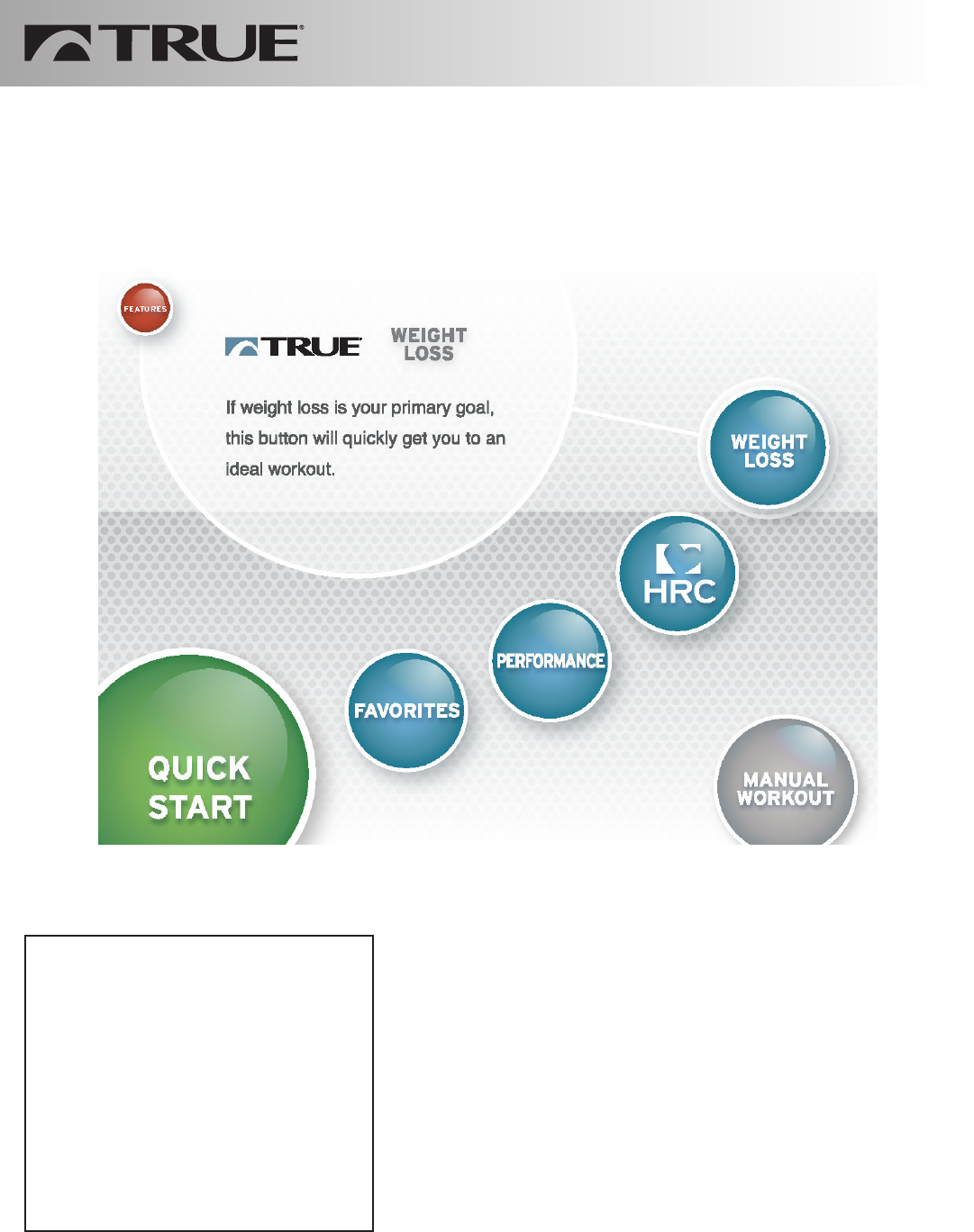

15” LCD with Touchscreen
Touch to see a list of available
pre-set and custom workouts
Touch the HRC Button to
choose a heart rate control
program
If weight loss is the
primary goal, touch to
choose a weight loss
program
Language Options
Touch Quick Start
to begin a manual
workout
Touch to begin
the TRUE mix 3 to
work your entire
body
truefitness.com / 800.426.6570 / 1.636.272.7100 12
Chapter 3: Display Console

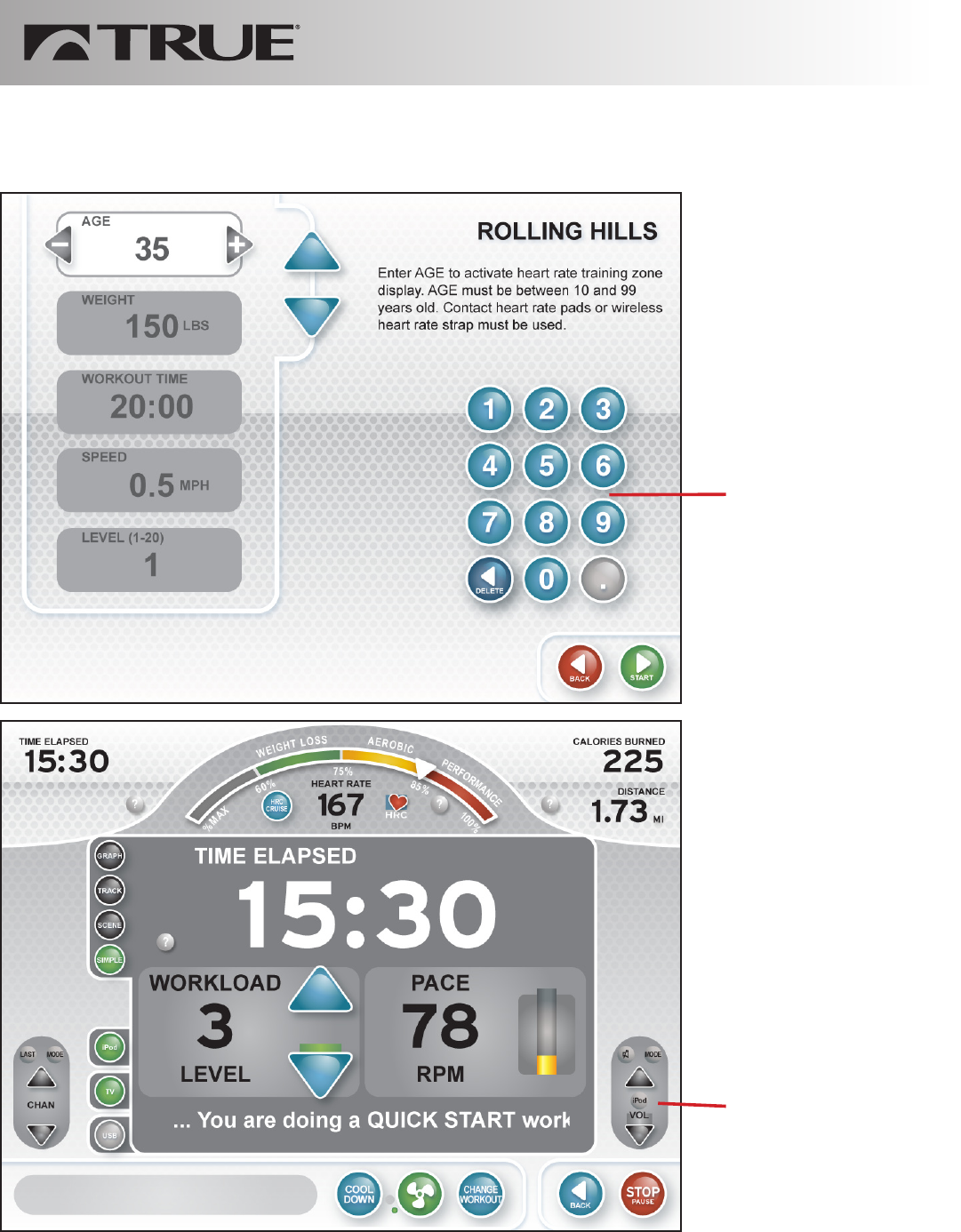

15” touchscreen Sample Screens - data displays
Data entry
After selecting a program
the data entry screen will
guide a user to enter
workout parameters.
data display
This is one example of a
data display. Applicable
data related to the current
workout will be displayed
on this display. There are
several options for data
display available.
Use keypad to enter
personal data such as age
and weight
Media
Volume
Control
Buttons
truefitness.com / 800.426.6570 / 1.636.272.7100 13
Chapter 3: Display Console

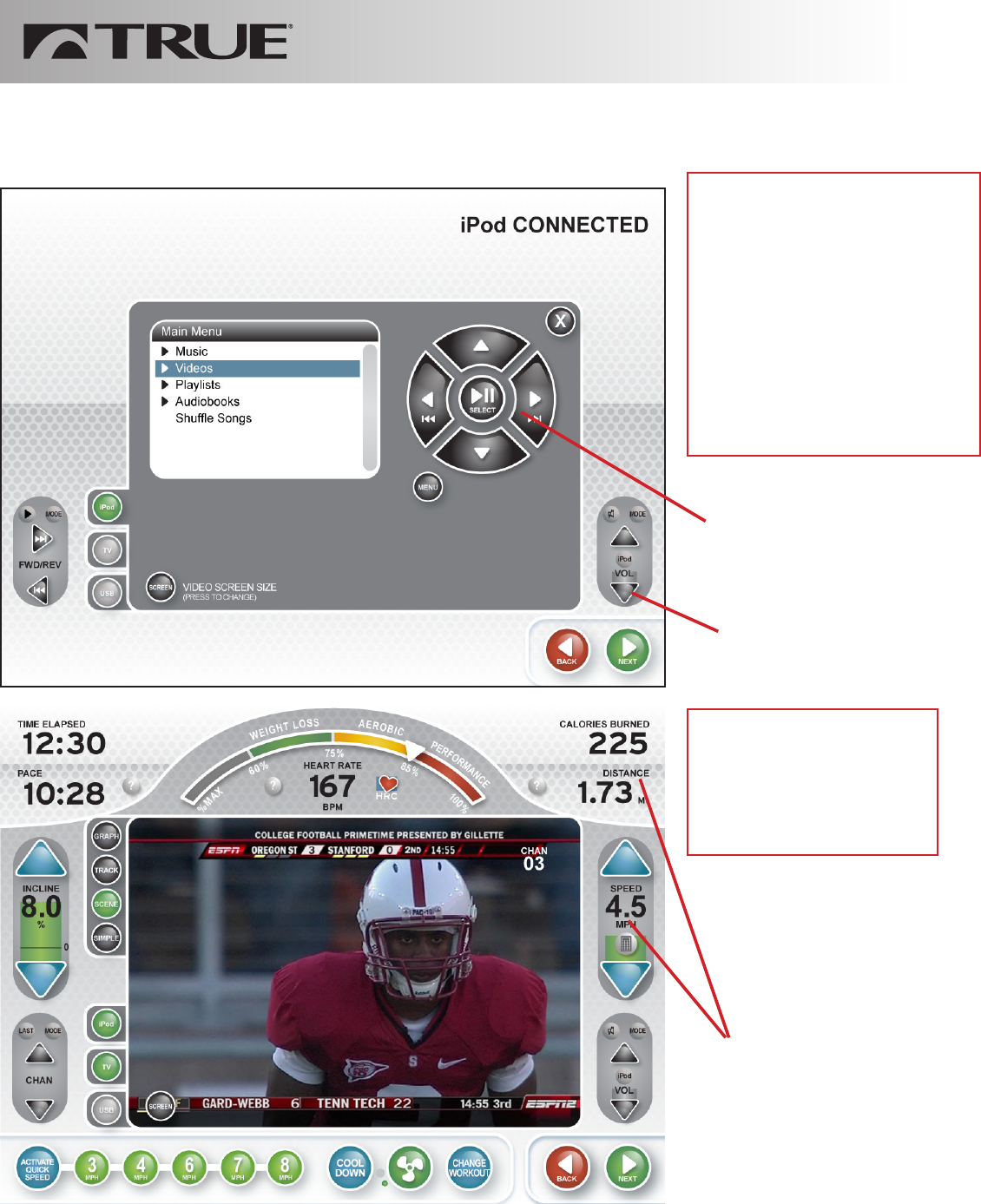

15” touchscreen Sample Screen - media displays
Media display
This is one example of a
media display, specifically
the iPod® interface. There
are additional media display
screens for video and other
media.
control your
iPod®
from the
touchscreen
volume controls
This is one example of
the television interface
display.
Control and monitor your
workout while viewing
the television
truefitness.com / 800.426.6570 / 1.636.272.7100 14
Chapter 3: Display Console

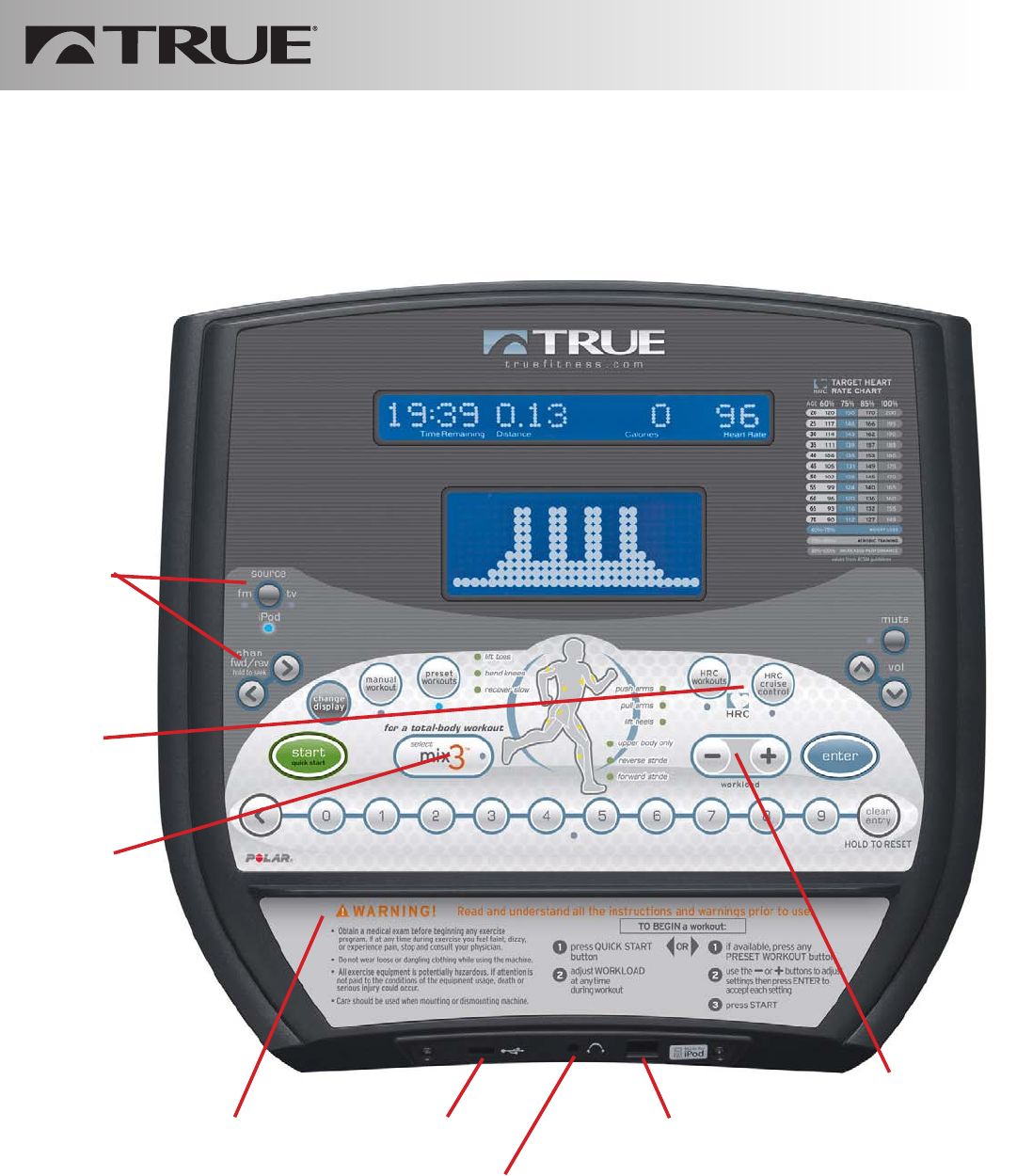

2 Window LCD
Safety, warning and
Quick Start information
USB jack
Headphone jack
Integrated iPod®
connectivity
Media Controls
HRC Workouts
TRUE’s mix 3 total
body workout
Adjust Workload
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 4: Programming &
Operation
15
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 16
Chapter 4: Programming &
Operation
Programming & Operation: 15” Touchscreen:
Here is a list of programming options available on your CS800 elliptical with a 15” Touchscreen console. Programming
and operation may dier depending on the type of console. For more information on programming and operation
please visit www.truetness.com.
Quick Start: Begin a manual workout by pressing START. (A manual workout is a workout where all
aspects of the workout - workout time, distance, workload and level -are decided by the user.)
Weight Loss:
Calorie Goal: This workout allows you to choose the number of calories you wish to burn within
a specied workout time.
Rolling Hills:
A series of gradual increasing and decreasing WORKLOAD changes that simulate
rolling hills.
Pace Intervals: Pace is displayed using the PACE SETTER and is displayed in all PACE related
WORKOUTS. Pace intervals are divided in suggested work and suggested rest segments.
HRC Weight Loss: Based on age, this is a heart rate controlled workout at 65% of maximum
heart rate.
mix3:
mix3: is a cross-training workout that gives you the most exercise for your training time, both
lower-body and upper-body. The program takes you through a sequence of exercises that
is slightly dierent each time. The duration of each exercise varies between 30, 40, 50, or 60
seconds.
HRC:
Target HRC: The elliptical takes control of WORKLOAD to maintain the users target Heart Rate.
HRC Weight Loss: Based on age, this is a heart rate controlled workout at 65% of maximum
heart rate.
Aerobic HRC: Based on age, this is a heart rate controlled workout at 80% of your maximum
heart rate.
Distance HRC: 4 xed distance HR workouts that put the elliptical in control of the users
workload. The elliptical takes control of workload to maintain the users target Heart Rate.
Interval HRC: User determines WORK heart rate and the elliptical reduces REST portion of each
interval to 65% of WORKLOAD.
truefitness.com / 800.426.6570 / 1.636.272.7100 17
Chapter 4: Programming &
Operation
Performance:
Cardio Challenge: WORKLOAD and suggested PACE increase to a set maximum at the mid-
point of the workout, then decrease to the nish.
Pace Workouts: Pace is displayed using the PACE SETTER and is displayed in all PACE related
WORKOUTS. Pace intervals are divided in suggested work and suggested rest segments.
Hill Workouts: Hill workouts are divided in work and rest segments. The set LEVEL or
WORKLOAD is what determines work and rest.
Distance Workouts: Pre determined distance workout. This workout will only run the selected
workout distance of 5K, 10K, 2mi or 4mi
Additional Pre-Set Workouts:
One Big Hill: WORKLOAD increases to a maximum at the mid-point of the workout, then
decreases to the nish.
Fitness Tests:
Fitness Test: A tness test used to estimate your VO2 max. This is a 12 min test with four
3-min stages that increase resistance on stages 2, 3 and 4. Stage 1 is used only as a warm up.
truefitness.com / 800.426.6570 / 1.636.272.7100 18
Chapter 4: Programming &
Operation
Programming & Operation
2 Window LCD:
Here is a list of programming options available on your CS800 elliptical with a 2 Window LCD.
Programming and operation may dier depending on the type of console. For more information on
programming and operation please visit www.truetness.com.
mix3:
mix3:
is a cross-training workout that gives you the most exercise for your training time, both
lower-body and upper-body. The program takes you through a sequence of exercises that
is slightly dierent each time. The duration of each exercise varies between 30, 40, 50, or 60
seconds.
Preset Workouts:
Rolling Hills: a series of gently changing workloads
One Big Hill: with the workload gradually increasing to a maximum at the halfway point, then
decreasing gradually to the end.
Easy Intervals: with a moderate change between work and rest intervals.
Sport Intervals: with a large change between work and rest intervals.
Calorie Goal: This workout allows you to burn your choice of calories in a workout of your
selected duration. The program gures out the correct workout intensity to burn the right
number of calories.
HRC Workouts:
HRC Workouts: This workout allows you to burn your choice of calories in a workout of your
selected duration. The program gures out the correct workout intensity to burn the right
number of calories.
HRC Cruise Control: While in any program, set your current heart rate as your target by pressing
a single key.
Manual Workout: This is a workout where all aspects of the workout (workout time, distance,
workload and level) are decided by the user.
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 5: Care & Maintenance
19
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 20
Chapter 5: Care & Maintenance
Care & Maintenance
It is important to perform the minor maintenance tasks described in this section. Failure to maintain the
elliptical as described here could void the TRUE Fitness Warranty. To reduce the risk of electrical shock,
always unplug the unit from its power source before cleaning or performing any maintenance tasks.
Inspection:
Inspect the elliptical daily. Look and listen for loose fasteners, unusual noises, worn or frayed power cords,
and any other indications that the equipment may be in need of service. If you notice any of these, obtain
service.
IMPORTANT: If you determine that the elliptical needs service, make sure that the elliptical cannot be used
inadvertently. Turn the unit O, and then unplug the power cord from its power source. Make sure other
users know that the elliptical needs service.
Cleaning the Equipment:
TRUE recommends the elliptical be cleaned before and after each workout. Use mild soap and water to
dampen a soft cloth and wipe all exposed surfaces. This helps remove any dust or dirt.
Clean the display console regularly with mild soap and water or a mild household cleaner. DO NOT use
paper towels, ammonia or acid based cleaners. *
CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may
void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the elliptical. Allow the
elliptical to dry completely before using. Frequently vacuum the oor underneath the unit to prevent the
accumulation of dust and dirt, which can aect the smooth operation of the unit.
*When cleaning the exterior of the unit, a non-abrasive cleaner and soft cotton cloth are strongly
recommended. At no time should cleaner be applied directly to any part of the equipment; use non-
abrasive cleaner of soft cloth and then wipe the unit.
Storing the Chest Strap:
Store the chest strap in a place where it remains free of dust and dirt such as, in a closet or drawer. Be sure
to protect the chest strap from extremes in temperature. Do not store it in a place that may be exposed to
temperatures below 32° F (0° C). To clean the chest strap, use a sponge or soft cloth dampened in mild soap
and water. Dry the surface thoroughly with a clean towel.
Long Term Storage:
When the elliptical is not in use for any length of time, turn it o. Make sure that the power cord is
unplugged from the power source and is positioned so that it will not become damaged or interfere with
people or other equipment.
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 6: Troubleshooting
21
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 22
Chapter 6: Troubleshooting
Basic Elliptical Troubleshooting Guide
The following are common questions that are asked. For all other inquiries we would ask that you call your
local dealer/service provider in your area for support.
Q. What does it mean when my panel displays no lights?
A. Check the following:
Verify you are receiving power to your outlet buy using an alternative device.
• It could mean that your unit is not plugged in.
You will need to check the toggle switch on the front base of the unit to make sure it is in the ON position.
You can check to see if your circuit breaker switch on your unit has been tripped. If so, you can reset it
and the lights should reappear on your display. If it will not reset, you will need to call your local dealer or
service provider to set up a service call.
Q. The upper display shows an error code or has odd characters.
A. If your display has any error messages on it TRUE Fitness recommends that you contact your local
dealer or service provider to arrange a service call. The error codes are there for your protection and we do
not recommend that you continue using the unit without consulting a professional.
Q. Is there any maintenance that I need to do to my elliptical?
A. TRUE Fitness encourages our customers to set themselves up with a preventative maintenance contract.
These can be provided through your dealer or local service provider.
Q. How do I arrange for a service or preventative maintenance appointment?
A. TRUE Fitness recommends that you gather the serial number, model number, and a brief description
of the reason for the request before contacting anyone. Once that information has been gathered you may
contact your selling dealer or local service company to set an appointment. (If you are not familiar with who
is in your area, you may visit our website at www.truetness.com and use our dealer locator to obtain the
contact information for the closest dealer in your area.)
If you would like you may also contact TRUE Fitness customer support team by calling 800.883.8783 or
e-mailing us at info@truetness.com Monday – Friday during normal business hours with any further
questions or comments.
truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 7: Additional Information
23
Chapter 1: Safety Instructions
Chapter 2: Elliptical Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information

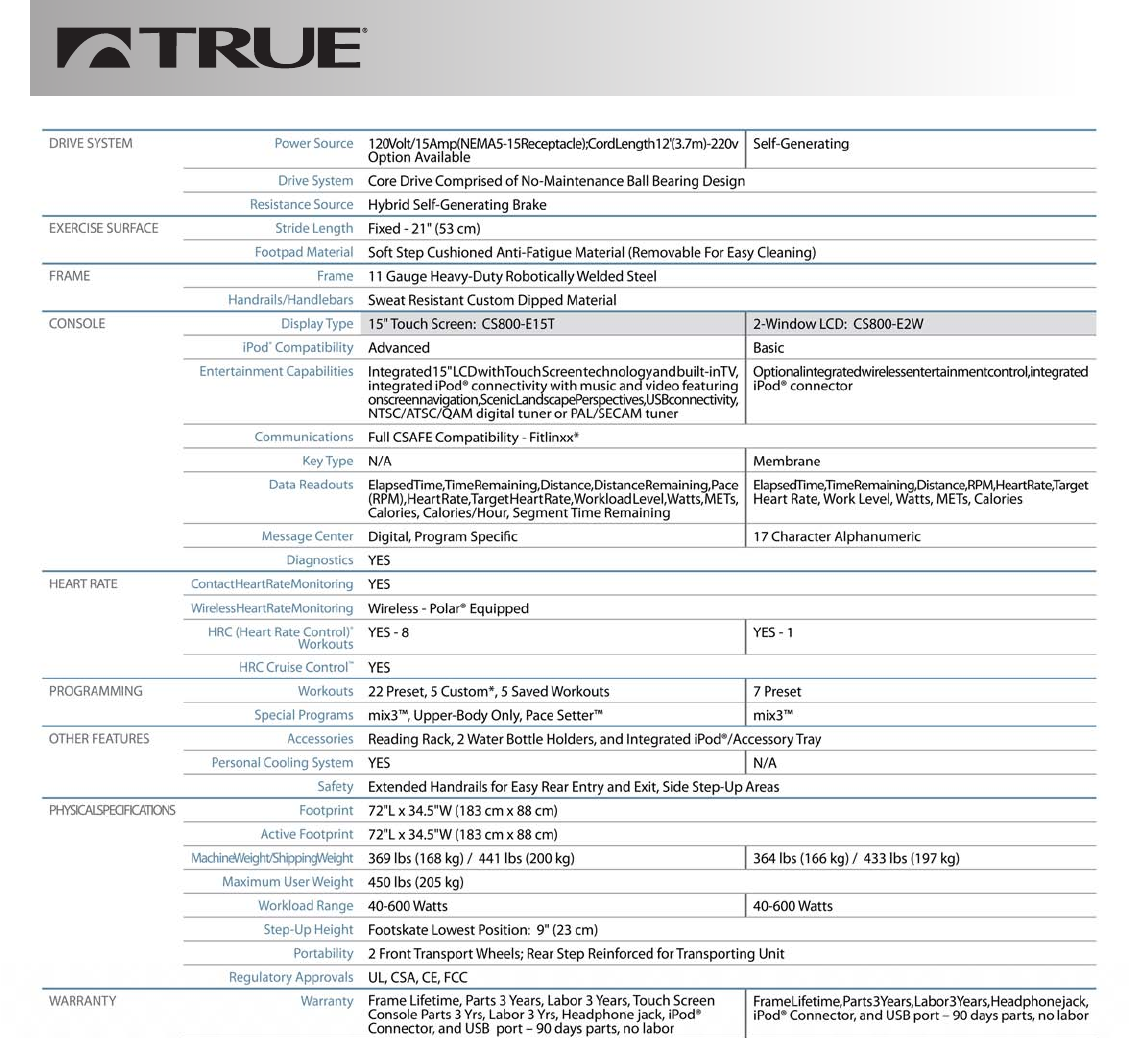

truefitness.com / 800.426.6570 / 1.636.272.7100 24

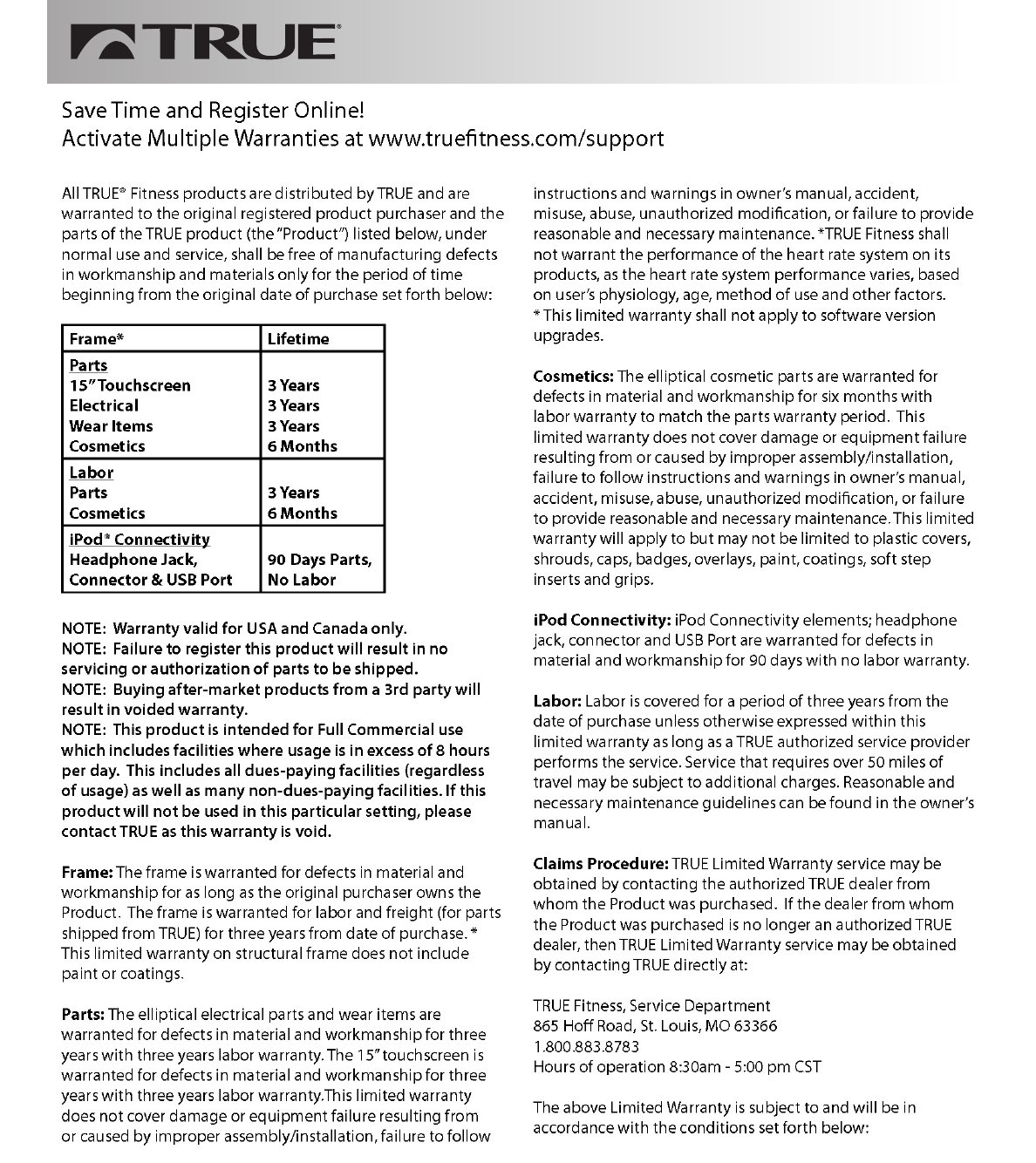

Chapter 7: Additional Information

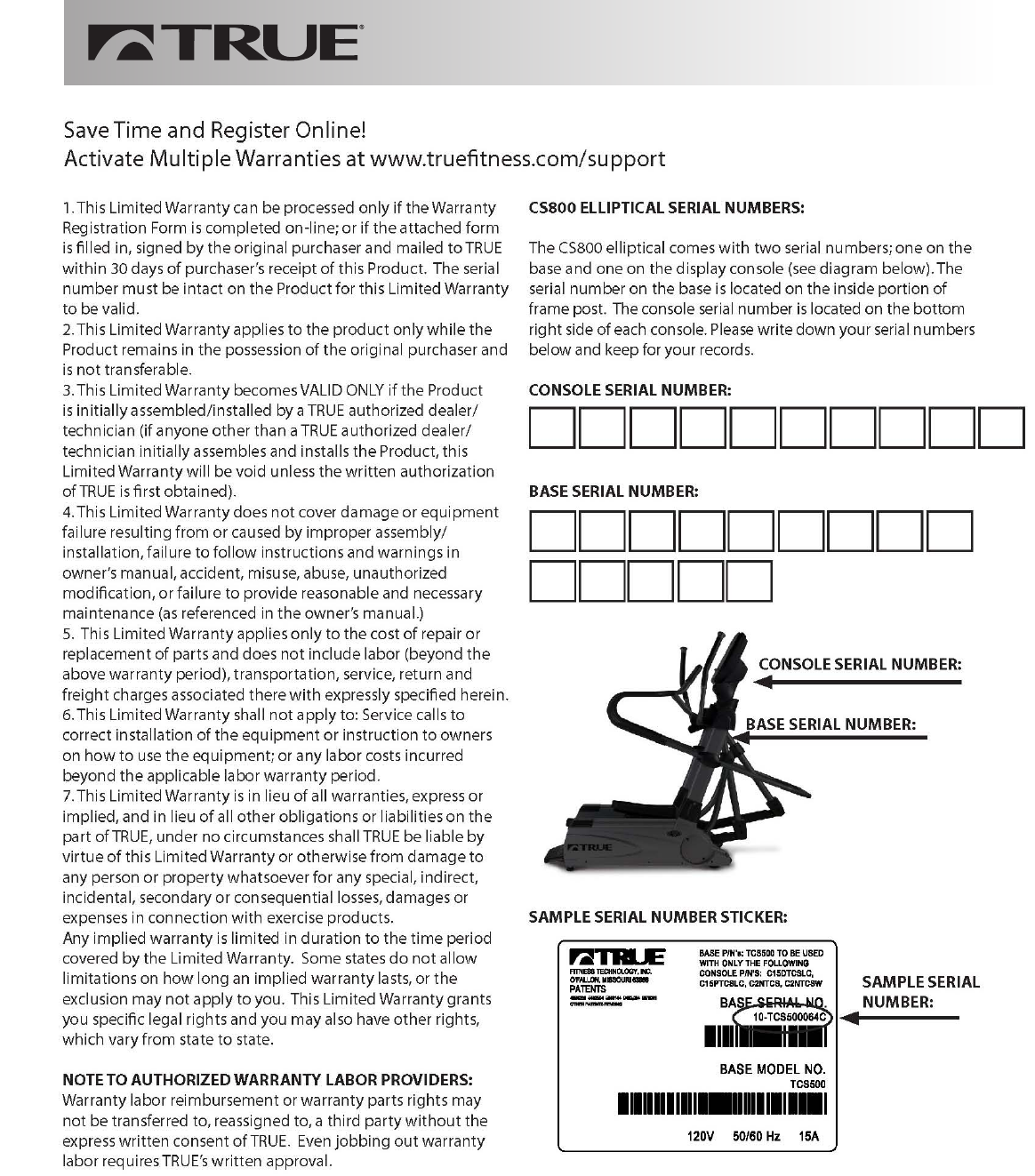

truefitness.com / 800.426.6570 / 1.636.272.7100 25
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 26
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 27
Chapter 7: Additional Information
truefitness.com / 800.426.6570 / 1.636.272.7100 28
Chapter 7: Additional Information
What Is TRUE World?
TRUE World is the way in which we hope to further engage our TRUE community. Whether you are a TRUE
dealer, an owner of a piece of TRUE cardio equipment, or simply a tness enthusiast, we hope you become
part of TRUE World.
With the new Universal Console on TRUE cardio equipment, TRUE World is a place where YOU select the
machine with the display YOU choose, tailoring each machine to t your needs and budget. The new console
choices range from classic to trendsetting.
Only in the TRUE WORLD can you nd this new console design that not only provides a sleek, cohesive look,
but also provides versatile display options for EVERY piece of equipment.
But that’s just the beginning. Share what your TRUE World is online with us -- through our website www.
truetness.com/world or through our social media sites on Facebook and Twitter.
TRUE World is a community of users. Through that community of users we hope to continue the tradition
of excellence that is TRUE. TRUE World is a place where tradition meets technology; where 29 years of
continuous innovation and improvement produces ONE THING - the world’s nest cardio equipment. Only
TRUE users know - these rugged yet elegant machines are simply the smoothest, quietest, and most durable
on the market.
TRUE WORLD is helping us prepare our premier cardio machines to meet the future.
This truly is just the beginning...
www.facebook.com/TRUE-tness www.twitter.com/truetnesstech
truefitness.com / 800.426.6570 / 1.636.272.7100 29
Chapter 7: Additional Information
CONTACT INFORMATION
TRUE FITNESS SERVICE DEPARTMENT
865 HOFF ROAD
ST. LOUIS, MO 63366
1.800.883.8783
HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST
TRUE FITNESS HOME OFFICE
865 HOFF ROAD
ST. LOUIS, MO 63366
1.800.426.6570
1.636.272.7100

Navigation menu
