Turning Technologies
RCRF-03 ResponseCard RF LCD and RRRF-04
USB HID RF Receiver
User’s Manual
RCRF-03 & RRRF-04 User’s Manual Ver. Preliminary
Overview:
The RCRF-03 Keypad is designed to be used with the RRRF-04
Receiver connected to a PC. The keypad transmits key presses via
radio frequency to the RF receiver for accumulation by the PC.
The keypad consists of 12 data keys (0-9, Channel, ?), a single
status LED, and a small LCD.

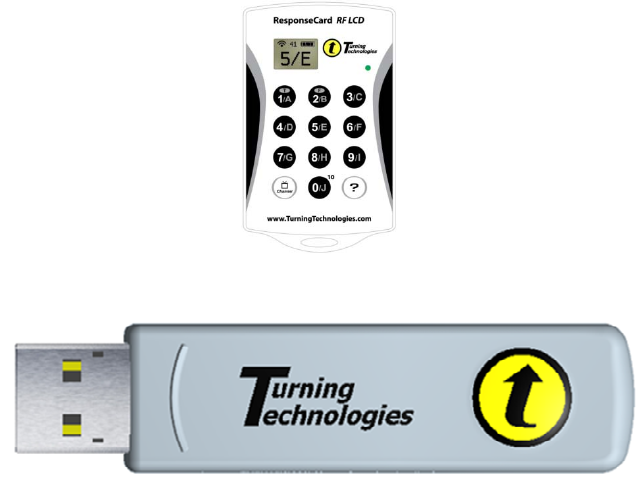

ResponseCard RF LCD (RCRF-03)
The ResponseCard RF LCD keypad is handheld designed to send
responses over RF to a receiver.
In Idle state, the LED and LCD are OFF. The keypad returns to
idle state after completion of a key press.
Standard Operation Mode:
Initially the status LED and LCD are OFF.
Pressing a single key will cause the key to be transmitted to the
receiver. After pressing a key the status LED and LCD will
display the status as follows:
Quick Yellow Blink then OFF/LCD with Circle with Slash-
Receiver is not accepting data at this time
Blinking Yellow - key is being transmitted (up to 8 seconds)
Solid Green/LCD with Response pressed - key transmit
successful - ready for input
Solid Red/LCD with Ch and Slash- key transmit failed – ready
for input
Blinking Green/LCD with Response pressed - Receiver
indicated correct answer
Blinking Red - Receiver indicated incorrect answer
Blinking Green and Blinking Red will only occur if the Receiver is
configured to indicate a correct or incorrect answer (CORRECT
POLLING mode).
Set RF Channel
Press Channel Button
Set RF Channel mode is indicated by the status LED flashing a
RED then GREEN pattern. Set RF Channel mode exits
automatically after three valid keys are pressed, if no valid key is
pressed for 8 seconds, or at any time an invalid key is pressed.
Valid keys are ‘0’ through ‘9’. Valid RF Channels are ‘01’
through ‘82’.
While in Set RF Channel mode pressing a valid key will cause the
status LED to briefly flash YELLOW. When Set RF Channel
Mode exits, the status LED indicates the result as follows:
Solid Green - Set RF Channel successful
Solid Red - Set RF Channel failed

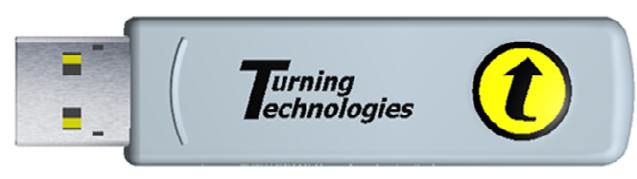

HID RF Receiver (RRRF-04)
The RRRF-04 needs to be plugged into a USB port on a computer
to ensure proper operation. Once the RRRF-04 is plugged in and
recognized by the operating system, the appropriate software from
Turning Technologies must be launched to enable the polling
solution.
REGULATORY INFORMATION
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Canada Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This digital apparatus should not be connected to a PC with a USB
cable exceeding 3 meters in length.
