Twin Star TS-0843 SOUND SYSTEM User Manual

Twin-Star International Inc. SOUND SYSTEM

User Manual

MP#VR
1
www.tsicustomerservice.com
TS-0843U-0200 REV.0

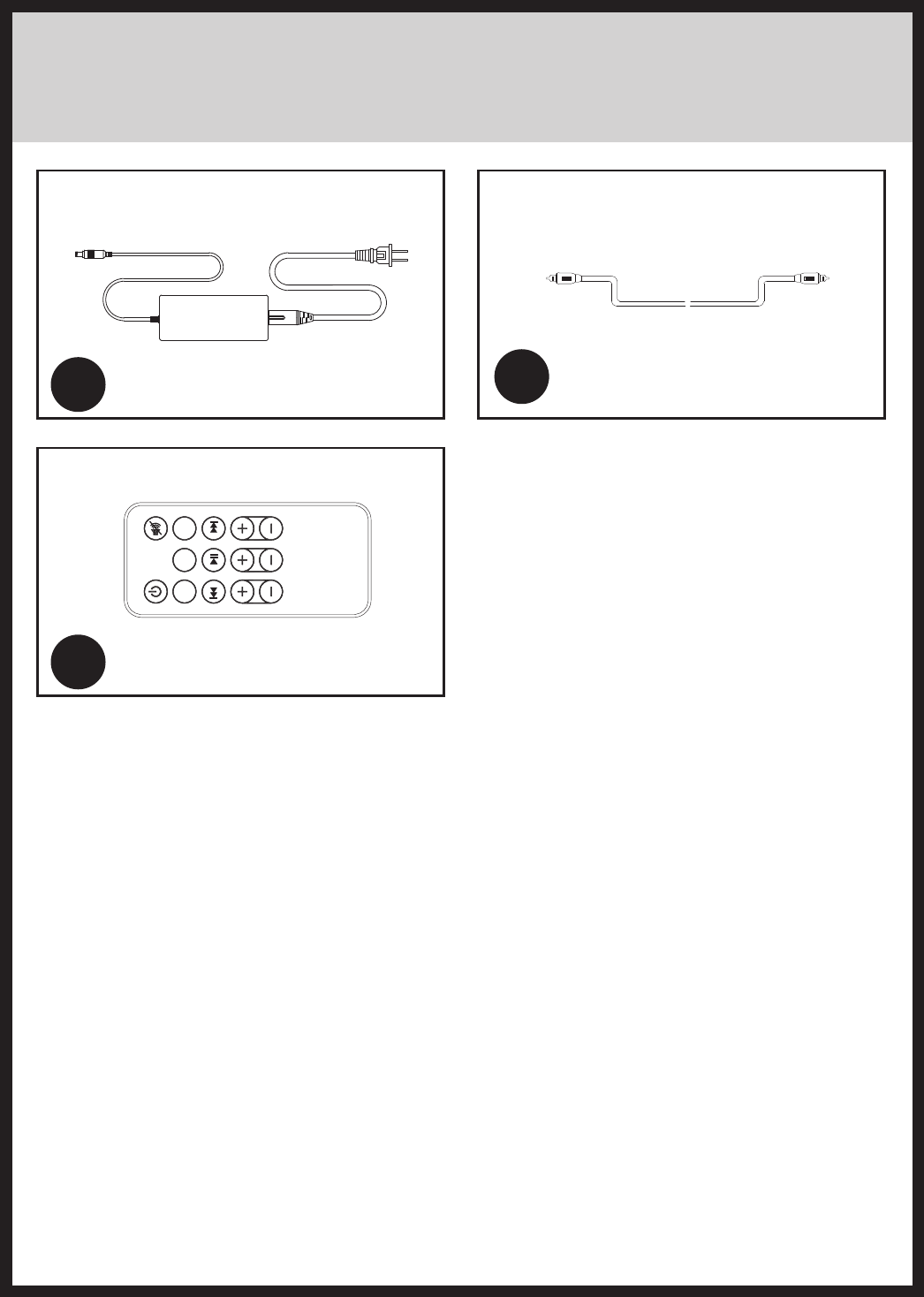

HARDWARE LIST
KK
MM Y15-1213-RC
EX Y16-OP-4920
Model: TS-0843-0200/0261/0287/0303
Ref: Transformer
Date: 26, Apr, 2016
Y16-PC-0843
LINE IN OPTICAL
TREBLE BASS VOLUME
BLUE
MP#VR
2
www.tsicustomerservice.com
TS-0843U-0200 REV.0
Y16-SG-08430200
LINE IN OPTICAL
TREBLE BASS VOLUME
BLUE
O
Q
Y16-SBR-0843 Y16-SBL-0843
M
P
Y16-CP-0843

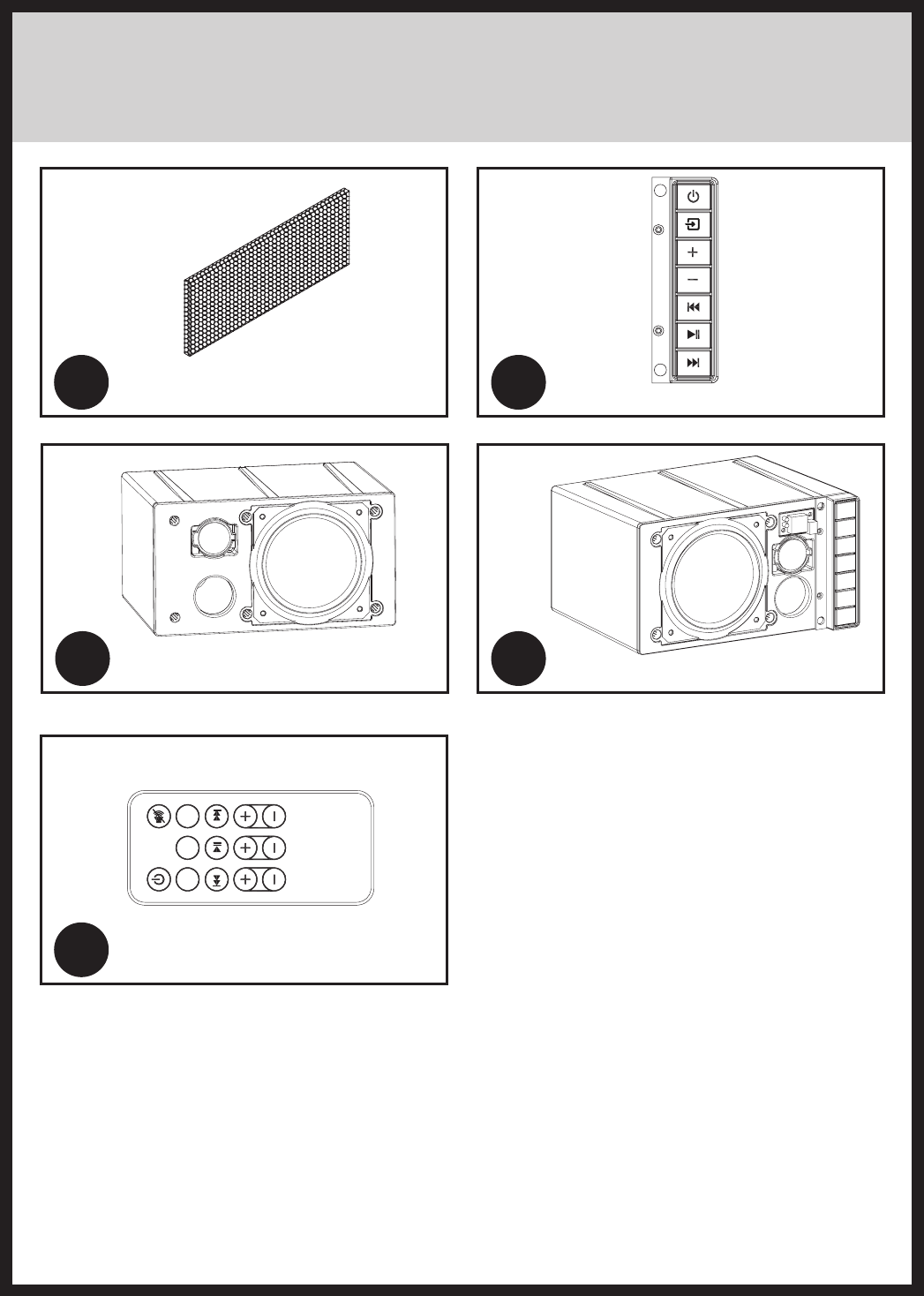

REPLACEMENT PARTS TS-0843U-0200
PIECES DE REMPLACEMENT TS-0843U-0200
PARTES DE REPUESTO TS-0843U-0200
TS-0843U-0200
TS-0843-0261/0287/0303
丝印：877C
Date:26.April,2016
RY15-1213-RC
LINE IN OPTICAL
TREBLE BASS VOLUME
BLUE
MP#VR
3
www.tsicustomerservice.com
TS-0843U-0200 REV.0
PRODUCT SPECIFICATIONS
WIRING
Adapter Input AC100-240V, 50/60Hz
Adapter Output DC15V 2.5A
Power Consumption 30 Watts
Standby Power Consumption < 1 W
Peak Music Power Output 150 W
Sound System: TS-0843U-0200
J

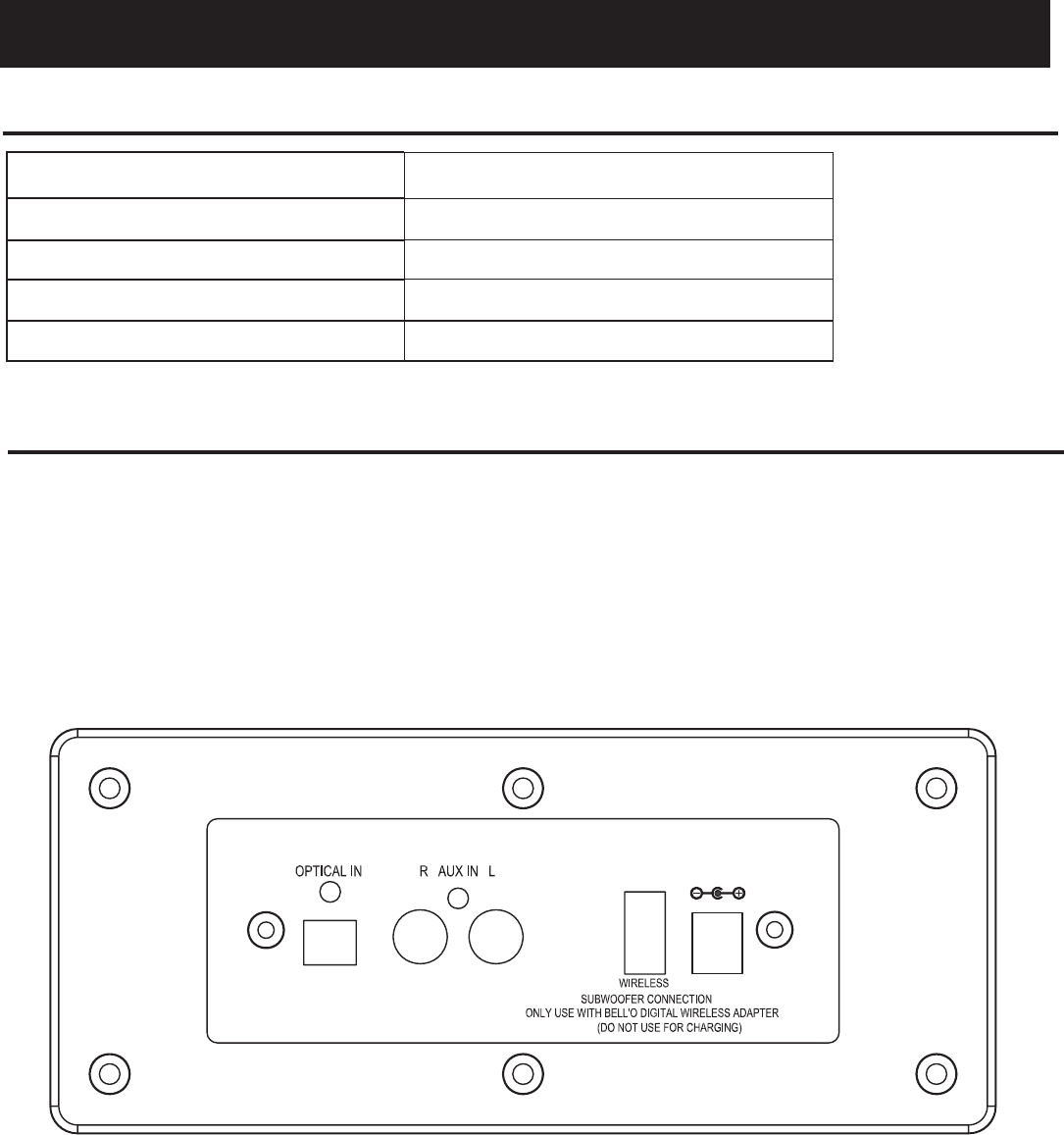

Fig.1 Back Panel
1. OPTICAL IN - Input the console using Optical cable
2. AUX IN R/L - Input the console using RCA cable (not included)
3. DC IN - Connect the power supply
4. BELLO DIGITAL WIRELESS SUBWOOFER CONNECTION (USB) POINT:
Wireless power and support transmit bass from optional Bello Digital wireless USB dongle to Bello
digital Wireless RF Subwoofer.
TS-0843U-0200
丝印：877C
底色：BLACK
Date:26.April,2016
+ 磨砂面
DC 15V IN
MP#VR
4
www.tsicustomerservice.com
TS-0843U-0200 REV.0
LINE IN OPTICAL
TREBLE BASS VOLUME
BLUE

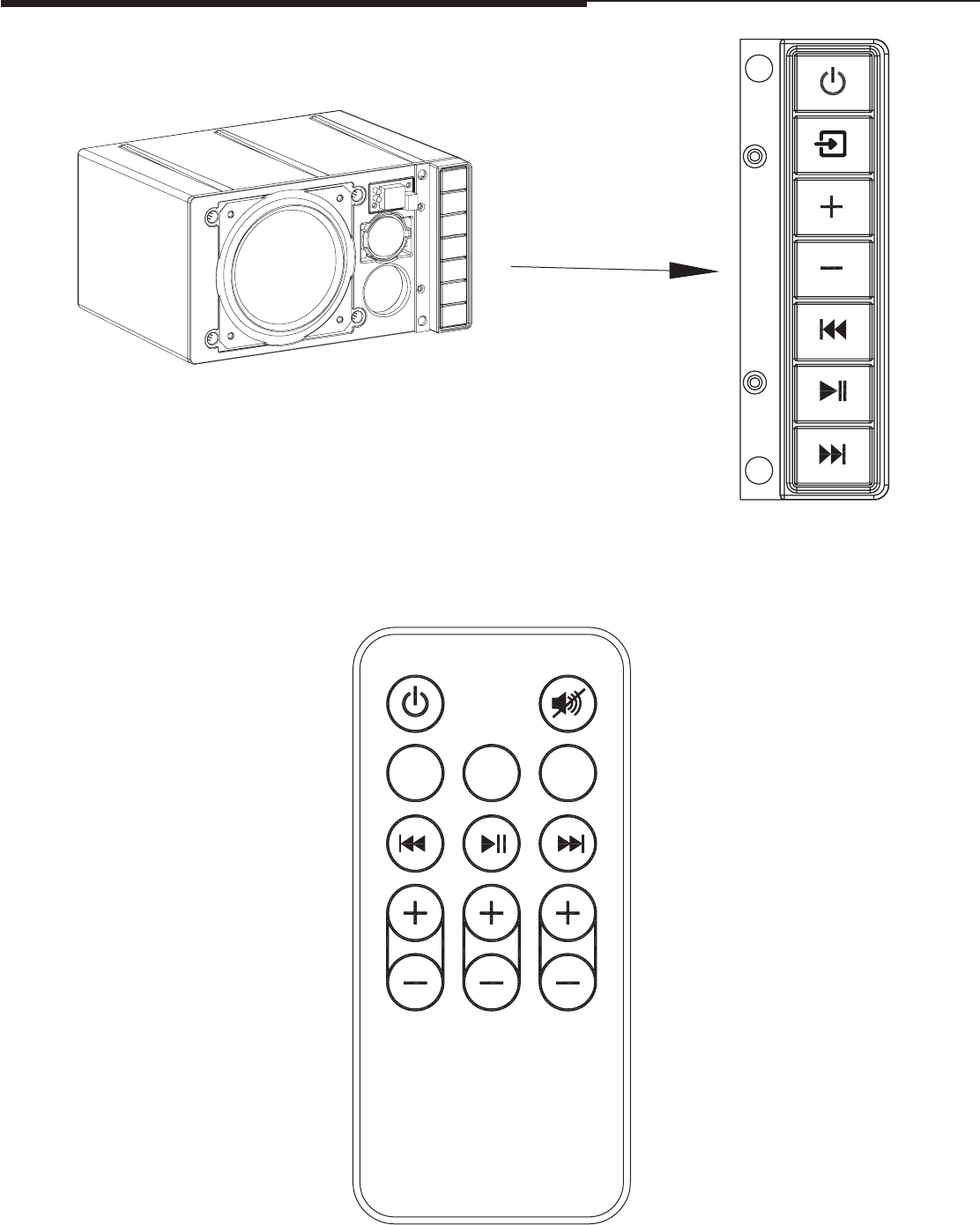

e speaker can be operated by either the remote control or the control panel.
Control Panel
OPERATION INSTRUCTIONS
TS-0843U-0200
TS-0843-0261/0287/0303
丝印：877C
Date:26.April,2016
MP#VR
5
www.tsicustomerservice.com
TS-0843U-0200 REV.0

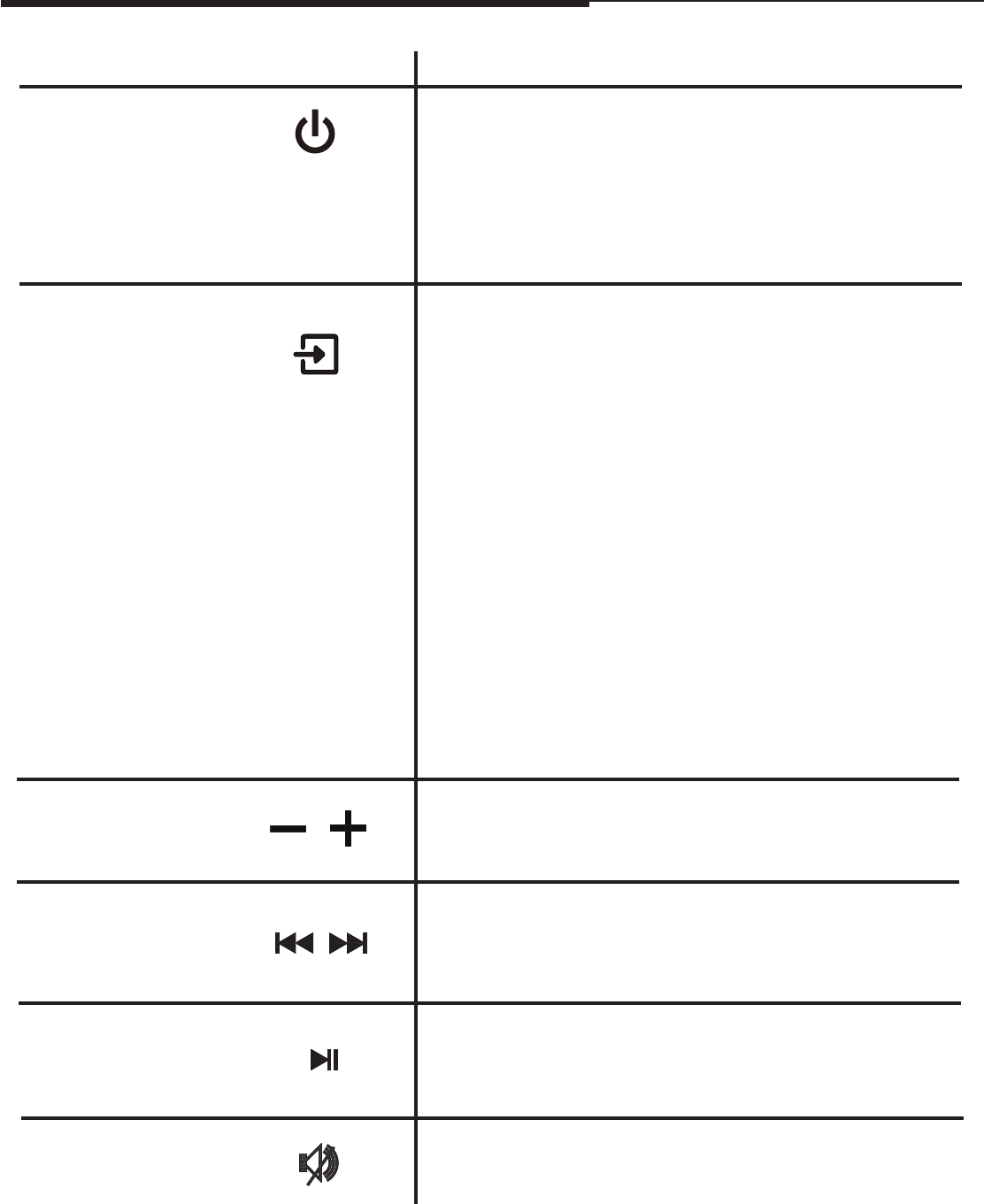

OPERATION INSTRUCTIONS
FUNCTION
POWER e POWER button supplies power to all the functions of
the unit.
Pressing and holding this button for 3 seconds on Bluetooth
mode will make Bluetooth pairing.
ICON DESCRIPTION
SOURCE To scroll through the dierent input options:
BT - Bluetooth
Search for other smartphones and devices. e blue ashing
light indicates the unit is searching for devices with a WPAN
(Bluetooth) function activated. Selecting TS-0843 from your
device will link it to the console and allow to stream sound
from up to 10 meters away. e light will stay continuously
lit once a connection has been made to the device.
OP - Optical Input
Steam sound from your television or other device connected
to the console at the back panel by Optical cable.
AU - AUX Input
Steam sound from your television or other device connected
to the console at the back panel by RCA cables.
Adjust the volume if Speaker is ON
ADJUSTMENT
MUTE Press MUTE button on the remote to mute and un-mute the
volume.
PREV/NEXT In Bluetooth mode, press PREV/NEXT buttons to change
previous or next songs.
PLAY/PAUSE In Bluetooth mode, press PLAY/PAUSE button to play or pause
the selected track.
MP#VR
6
www.tsicustomerservice.com
TS-0843U-0200 REV.0
OPERATION INSTRUCTIONS
FUNCTION ICON DESCRIPTION
BLUE Press BLUE button on the remote to switch to Bluetooth input.
LINE IN Press LINE IN button on the remote to switch to Aux In input.
OPTICAL Press OPTICAL button on the remote to switch to Optical
input.
TREBLE Press TREBLE button on remote to adjust the TREBLE up
or down.
BASS Press BASS button on remote to adjust the BASS up or down.
VOLUME Press VOLUME button on remote to adjust the volume.
MP#VR
7
www.tsicustomerservice.com
TS-0843U-0200 REV.0
OPERATION INSTRUCTIONS
Learning Function
The learning function allows your Sound System to be controlled by your TV remote control (Note:
Remote must send infrared signals). Any unused button on your TV remote control can be used to
control the Sound System. For example, when you connect your TV to the Sound System using the
RCA Stereo cables or Digital Fiber Optic Cable the TV volume and mute will no longer be controlled
by the remote that came with it. Some TV remotes also come with extra buttons. These buttons can
also be used for any of the learning options below.
Some of the programmable functions need to be selected from the remote contol as noted below.
Note: It is able to learn most IR protocols, not all remote can be programmed.
To start the learning function:
• At power on mode, press 5 seconds to learn mode. SEL starts ashing.
• Select the function to learn on the control panel or remote.
o The function (below) will ash. Point your TV remote at the ashing LED on the sound
System and hold down the button you want it learn from.
o When learning is complete the function goes solid for 3 seconds (stops ashing) and
simultaneously beeps 2 times. SEL will now start ashing.
o You can now select the next function to learn or end the process by pressing the
for 5 seconds.
V
V-
SI
ON
SO
AU
OP
BL
BA
FO
PL
T
T-
B
B-
Volume up [control panel or remote control]
Volume down [control panel or remote control]
Mute [remote control]
Power [control panel or remote control]
Source [control panel]
Aux [remote control]
Optical [remote control]
Bluetooth [remote control]
Track Back [control panel or remote control]
Track Forward [control panel or remote control]
Play [control panel or remote control]
Treble up [remote control]
Treble down [remote control]
Bass up [remote control]
Bass down [remote control]
MP#VR
8
www.tsicustomerservice.com
TS-0843U-0200 REV.0
TROUBLESHOOTING
PROBLEM SOLUTION
1. Sound is distorted. 1a. Decrease the volume.
1b. If the iPhone/iPod original sound source is of poor quality,
distortion and noise are easily noticed with high-power speakers.
Try a different audio source such as a music CD.
1c. If you are using an external sound source like older generation
of iPod, try reducing the output volume on the device itself.
1d.Try changing the bass and treble settings using the remote control.
2. Unit gets warm after extended
play at high volume.
2a. Turn the unit off for a period of time or lower the volume.
CARE AND MAINTENANCE
Warning:
1. If the supply cord is damaged it must be replaced by the manufacturer, it’s service agent or
similarly qualied persons in order to avoid a hazard.
2. Only a qualied service person should repair this product.
3. Do not use outdoors.
4. Do not insert or allow foreign objects to enter the system as this may cause an electric shock, re, or
damage to the appliance.
5. Use this appliance only as described in the manual. Any other use not recommended by the
manufacturer may cause re, electric shock or injury to persons.
MP#VR
9
www.tsicustomerservice.com
TS-0843U-0200 REV.0
When the remote control stops operating or its range seems reduced, it is time to replace the battery with a
new one.
1. The battery compartment is located on the back end of the remote.
2. Press and slide the battery door open and remove the old battery.
3. Insert 1pc CR2025 battery, checking that the + and - sides of the battery match inside the battery compartment.
4. Replace the battery compartment door.
CAUTION:
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of time.
• Remove used batteries promptly.
Note: Caution do not ingest batteries. If batteries are swallowed immediately call poison control.
Replacing the Remote Control Battery
Disposal of Used Batteries
Battery may contain hazardous substances which could be endangering to enviroment and human
health.
This symbol marked on the battery and/or packaging indicates that used battery shall not be
treated as municipal waste. Instead it shall be left at the appropriate collection point for recycling.
By ensuring the used batteries are disposed of correctly, you will help preventing potential negative
consequences for the environment and human health. The recycling of materials will help to
converse natural resources.
For more information about collection and recycling of used batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased this point.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates,uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception. Interference can be determined by turning the equipment off
and on. The user is encouraged to try to correct the interference by trying one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause
Changes or modifications not approved by the party responsible for compliance could void
user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
undesired operation.
MP#VR
10
www.tsicustomerservice.com
TS-0843U-0200 REV.0
The manufacturer warrants that your new SOUND SYSTEM is free from manufacturing and
material defects for a period of one year from date of purchase, subject to the following
conditions and limitations.
1. Install and operate this SOUND SYSTEM in accordance with the installation
and operating instructions furnished with the product at all times. Any unauthorized repair,
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that
the purchase was made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in
material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to
this warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not be
covered by this warranty, or shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect
or consequential loss or damage arising out of the use, or inability to use the product,
except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its
components and accessories, or any obligations/liabilities on the part of the
manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its
behalf, any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories
used in conjunction with the installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state.
This warranty is void if:
a. The SOUND SYSTEM is subjected to prolonged periods of dampness or
condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
1-YEAR LIMITED WARRANTY
