Twin Star TS-2611 SOUND SYSTEM User Manual
Twin-Star International Inc. SOUND SYSTEM
User Manual
MP#XYY
2
www.tsicustomerservice.com26MMS9856REV.1
Y16-SG-26110631
LINE IN OPTICAL
TREBLE BASS VOLUME
BLUE
REPLACEMENT PARTS TS-2611-0631
PIECES DE REMPLACEMENT TS-2611-0631
PARTES DE REPUESTO TS-2611-0631
O
Y16-SB-2611
Y15-PC-1206
KP
W V
Y14-CP-4013
EX Y16-OP-4920
MP#XYY
3
www.tsicustomerservice.com26MMS9856REV.1
PRODUCT SPECIFICATIONS
WIRING
Adapter Input AC100-240V, 50/60Hz
Adapter Output DC15V 2.0A
Power Consumption 30 Watts
Standby Power Consumption < 1 W
Peak Music Power Output 150 W
OPTICAL IN R AUX IN L DC 15V IN
Ipod Dock: TS-ID01
J

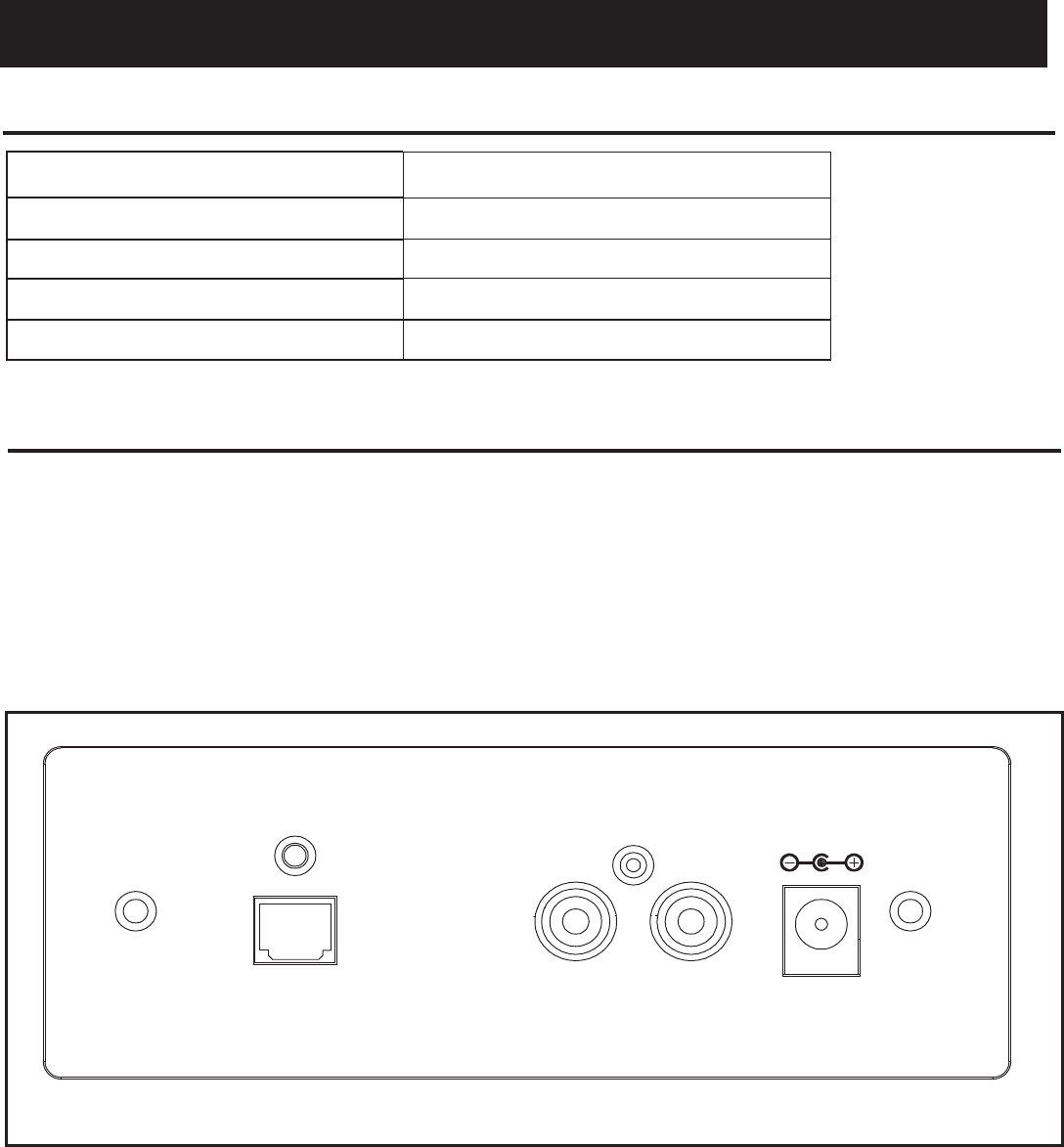

Fig.1 Back Panel
Sound System: TS-2611-0631
1. AUDIO INPUT R/L - RCA (not included) plug AUX IN for connecting to an audio source
2. DC IN - Connect the power supply
3. OPTICAL INPUT - Input the console using Optical cable
MP#XYY
4
www.tsicustomerservice.com26MMS9856REV.1
POWER
The POWER button supplies power to all of the functions of the sound system. The POWER button will
put the sound system in a standby mode.
CLOCK
Manual Time Set:
Hold "clock" for 3 seconds until the hour digits ashes.
Press the "+ / -" buttons to set the hour.
Press "clock" again. The minute digits will ash.
Press the "+ / -" buttons to set the minutes.
Press "clock" to conrm.
INPUT SETTING

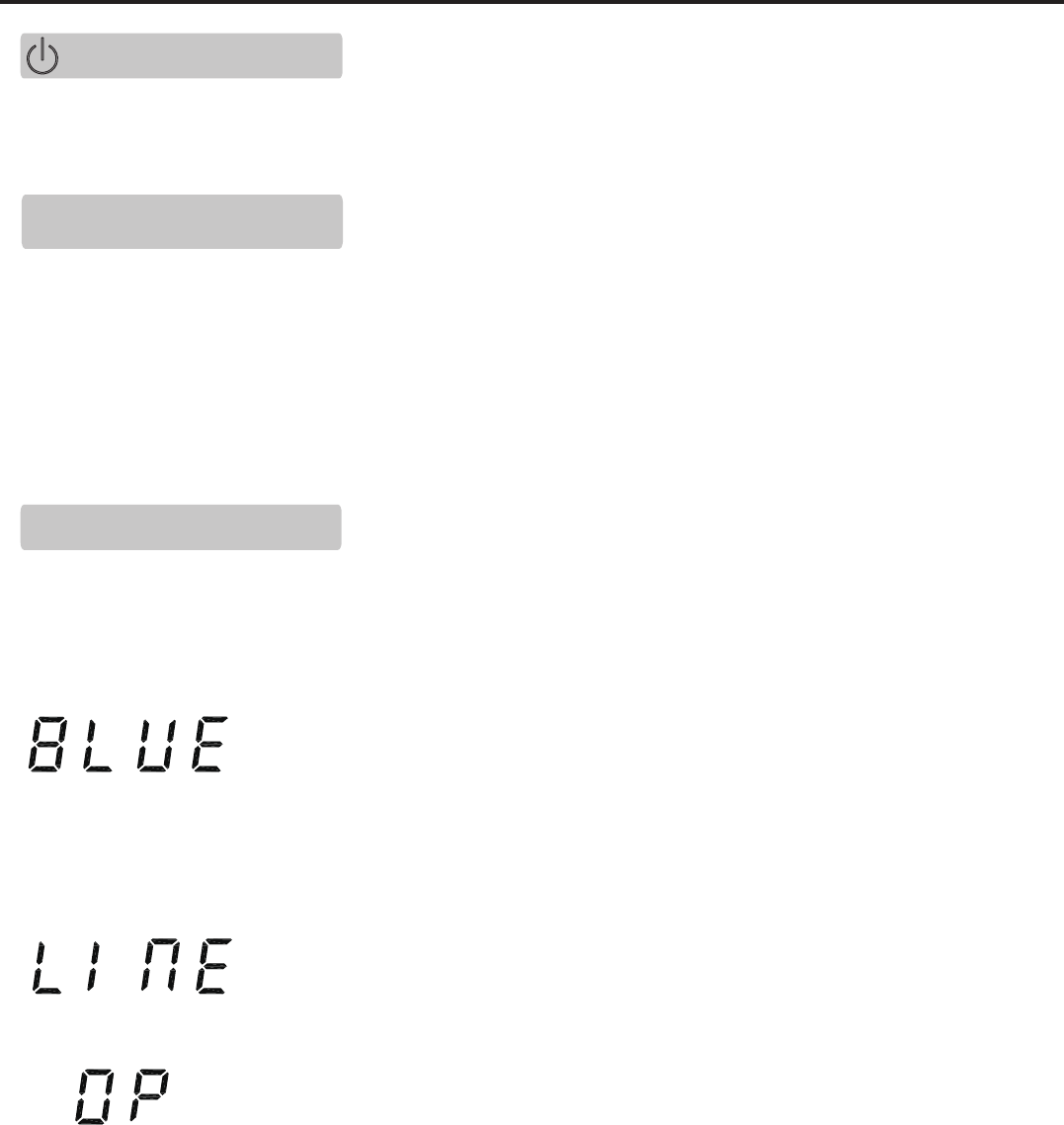

Press the "POWER" button to scroll through the different input options:
OPERATION
Will search for other smartphones and devices. The blue ashing light
indicates the unit is searching for devices with a WPAN (Bluetooth) function
activated. Selecting TS-1206 from your device will link it to the console
and allow to stream sound from up to 10 meters away. The light will stay
continuously lit once a connection has been made to the device.
Bluetooth will search and connect with latest successful paired devices
automatically.
Will stream sound from your television or other device connected to the console
by RCA cables.
Will stream sound from your television or other device connected to the console
by Optical Cable.
MP#XYY
5
www.tsicustomerservice.com26MMS9856REV.1
Learning Function
The learning function allows your Sound System to be controlled by your TV remote control (Note:
Remote must send infrared signals). Any unused button on your TV remote control can be used to
control the Sound System. For example, when you connect your TV to the Sound System using the
RCA Stereo cables or Digital Fiber Optic Cable the TV volume and mute will no longer be controlled
by the remote that came with it. Some TV remotes also come with extra buttons. These buttons can
also be used for any of the learning options below.
Some of the programmable functions need to be selected from the remote contol as noted below.
Note: It is able to learn most IR protocols, not all remote can be programmed.
To start the learning function:
• At power on mode, press CLOCK 5 seconds to learn mode. SEL starts ashing.
• Select the function to learn on the control panel or remote.
o The function (below) will ash. Point your TV remote at the ashing LED on the sound
System and hold down the button you want it learn from.
o When learning is complete the function goes solid for 3 seconds (stops ashing) and
simultaneously beeps 2 times. SEL will now start ashing.
o You can now select the next function to learn or end the process by pressing the CLOCK
for 5 seconds.
VOL
VOL-
-O-
ON
LnLn
OPtI
BLUE
BAC
FOr
PLA
trE
trE-
BAS
BAS-
CLOC
Manual Time Set:
Hold "clock" for 3 seconds until the hour digits ashes.
Press the "+ / -" buttons to set the hour.
Press "clock" again. The minute digits will ash.
Press the "+ / -" buttons to set the minutes.
Press "clock" to conrm.
OPERATION
Volume up [control panel or remote control]
Volume down [control panel or remote control]
Mute [remote control]
Power [control panel or remote control]
Line In [remote control]
Optical [remote control]
Bluetooth [remote control]
Track Back [control panel or remote control]
Track Forward [control panel or remote control]
Play [control panel or remote control]
Treble up [remote control]
Treble down [remote control]
Bass up [remote control]
Bass dwon [remote control]
Clock [control panel or remote control]
MP#XYY
6
www.tsicustomerservice.com26MMS9856REV.1
CONTROLS
LINE IN OPTICAL
CLOCK
TREBLE BASS VOLUME
BLUE

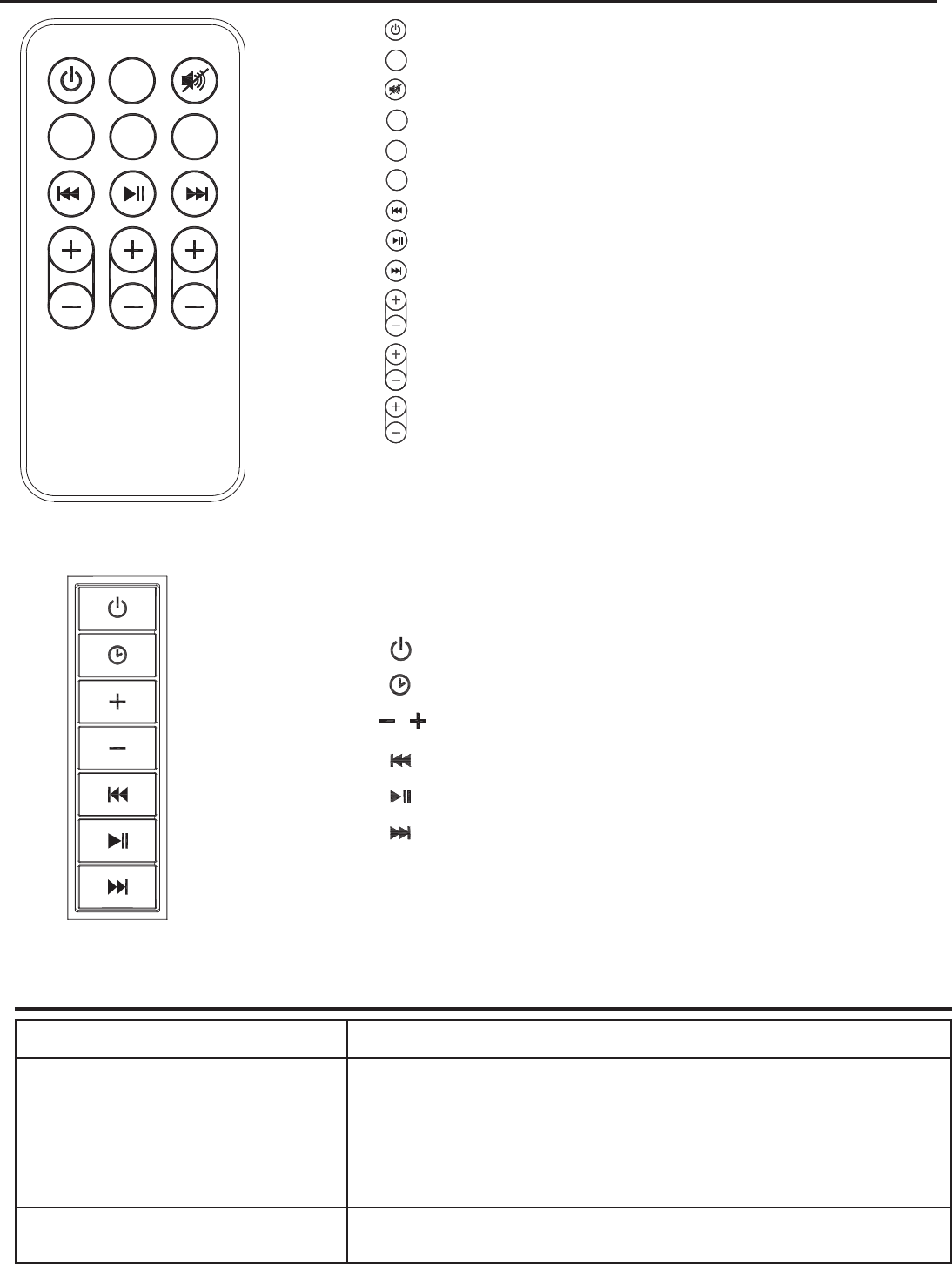

Fig.2 Remote Control
Fig.3 Control Panel
- Power / Standby
- Display time
- Mute
- Bluetooth
- Line in
- Optical in
- Back (Previous)
- Play/Pause
- Forward (Next)
- Adjust Treble
- Adjust Bass
- Adjust Volume
- Main Power / Scroll through source input options
- Display / Set Time
- Adjust Volume
- Back(Previous)
- Play/Pause
- Forward(Next)
BLUE
LINE IN
OPTICAL
CLOCK
TREBLE
BASS
VOLUME
TROUBLESHOOTING
PROBLEM SOLUTION
1. Sound is distorted. 1a. Decrease the volume.
1b. If the iPhone/iPod original sound source is of poor quality,
distortion and noise are easily noticed with high-power speakers.
Try a different audio source such as a music CD.
1c. If you are using an external sound source like older generation
of iPod, try reducing the output volume on the device itself.
1d.Try changing the bass and treble settings using the remote control.
2. Unit gets warm after extended
play at high volume.
2a. Turn the unit off for a period of time or lower the volume.
MP#XYY
7
www.tsicustomerservice.com26MMS9856REV.1
When the remote control stops operating or its range seems reduced, it is time to replace the battery with a new
one.
1. The battery compartment is located on the back end of the remote.
2. Press and slide the battery door open and remove the old battery.
3. Insert 1pc CR2025 battery, checking that the + and - sides of the battery match inside the
battery compartment.
4. Replace the battery compartment door.
CAUTION:
• Always purchase the correct size and grade of battery most suitable for the intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment which is not to be used for an extended period of time.
• Remove used batteries promptly.
Note: Caution do not ingest batteries. If batteries are swallowed immediately call poison control.
Replacing the Remote Control Battery
Disposal of Used Batteries
Battery may contain hazardous substances which could be endangering to enviroment and human
health.
This symbol marked on the battery and/or packaging indicates that used battery shall not be
treated as municipal waste. Instead it shall be left at the appropriate collection point for recycling.
By ensuring the used batteries are disposed of correctly, you will help preventing potential negative
consequences for the environment and human health. The recycling of materials will help to
converse natural resources.
For more information about collection and recycling of used batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased this point.
CARE AND MAINTENANCE
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates,uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception. Interference can be determined by turning the equipment off
and on. The user is encouraged to try to correct the interference by trying one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifcations not approved by the party responsible for compliance could void
user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Warning:
1. If the supply cord is damaged it must be replaced by the manufacturer, it’s service agent or
similarly qualied persons in order to avoid a hazard.
2. Only a qualied service person should repair this product.
3. Do not use outdoors.
4. Do not insert or allow foreign objects to enter the system as this may cause an electric shock, re, or
damage to the appliance.
5. Use this appliance only as described in the manual. Any other use not recommended by the
manufacturer may cause re, electric shock or injury to persons.
MP#XYY
8
www.tsicustomerservice.com26MMS9856REV.1
The manufacturer warrants that your new Media Console with Sound Bar is free from manufacturing and
material defects for a period of one year from date of purchase, subject to the following
conditions and limitations.
1. Install and operate this Media Console with Sound Bar in accordance with the installation
and operating instructions furnished with the product at all times. Any unauthorized repair,
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that
the purchase was made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in
material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to
this warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not be
covered by this warranty, or shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect
or consequential loss or damage arising out of the use, or inability to use the product,
except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its
components and accessories, or any obligations/liabilities on the part of the
manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its
behalf, any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories
used in conjunction with the installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state.
This warranty is void if:
a. The Media Console with Sound Bar is subjected to prolonged periods of dampness or
condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
1-YEAR LIMITED WARRANTY
