TwinMOS Technologies BTTA01 Bluetooth 2.1ch Audio System for iPod User Manual BooM2
TwinMOS Technologies Inc. Bluetooth 2.1ch Audio System for iPod BooM2
Users Manual
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
TwinMOS Technologies Inc.
BooM2
Bluetooth 2.1ch Audio System for iPod®
User’s Manual
Table of Contents
1. Getting Started 1
2. Device Elements 2
3. System Installation 4
4. Pairing and linking Bluetooth 5
5. System Specification 6
1 Getting started
• Package includes
1. BooM System x 1
2. BooM Box x 1
3. IR Remote Control x 1
4. Bluetooth Audio Transmitter x 1
5. AC Adapter 100V ~ 240V, 50~60Hz x 1
6. 3.5 mm audio extension cable x 1
7. RCA video extension cable x 1
8. AC Adapter 100V ~ 240V, 50~60Hz x 1
9. Power cable x 1
10. Europe plug adapter x 1
11. User’s Manual x 1
12. Warranty Card x 1
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
1
2 Device Elements

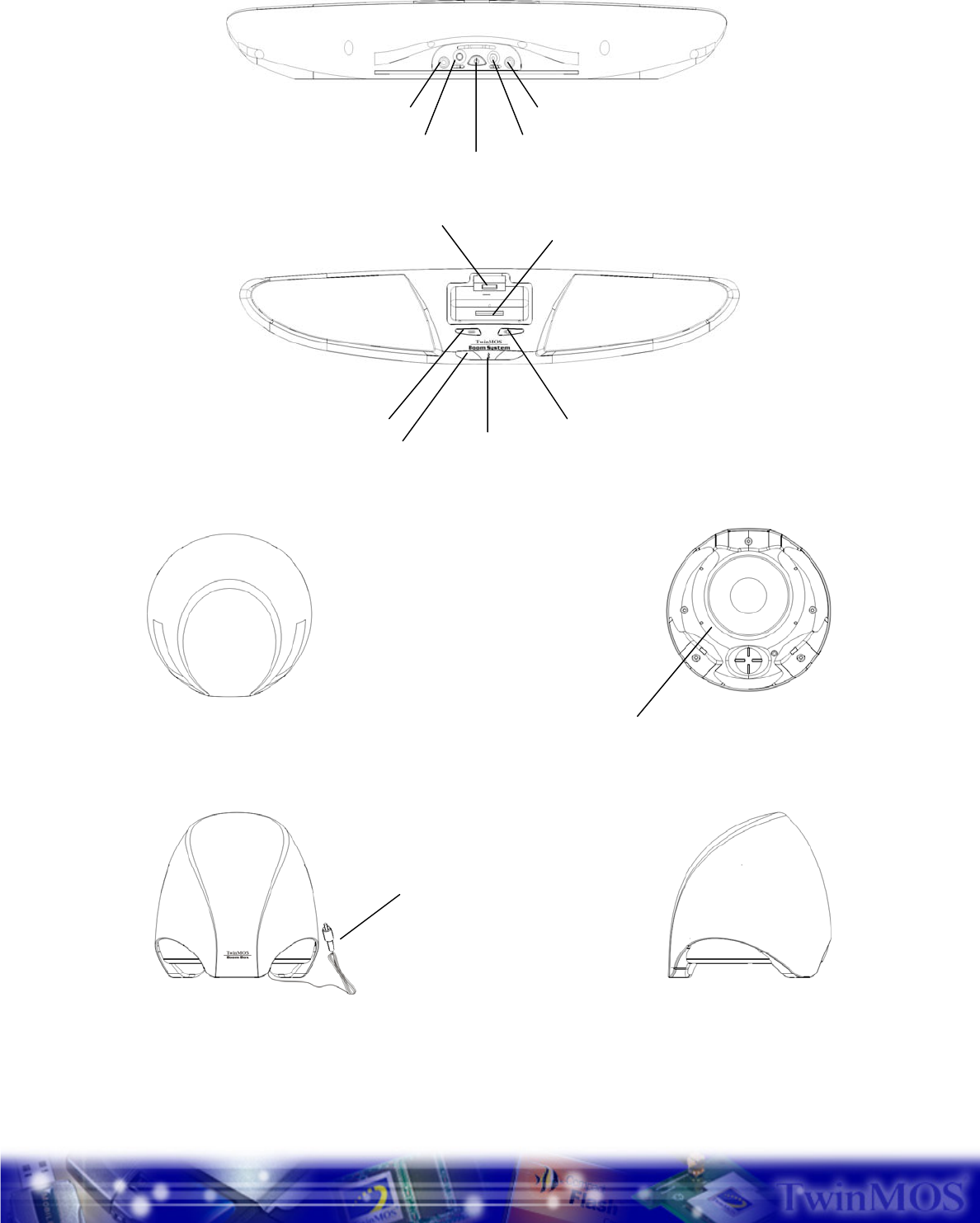

2.1 BooM System (BTTA01)
2.2 BooM Box (IPTA02)
Top view
Front view Side view
Speaker
RCA cable
Bluetooth button
Volume up Volume down
iPod® socket
Shuffle socket
Video out
Power jack (DC 12V)
BooM Box
Line-in jack
Power button
BT LED
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
2

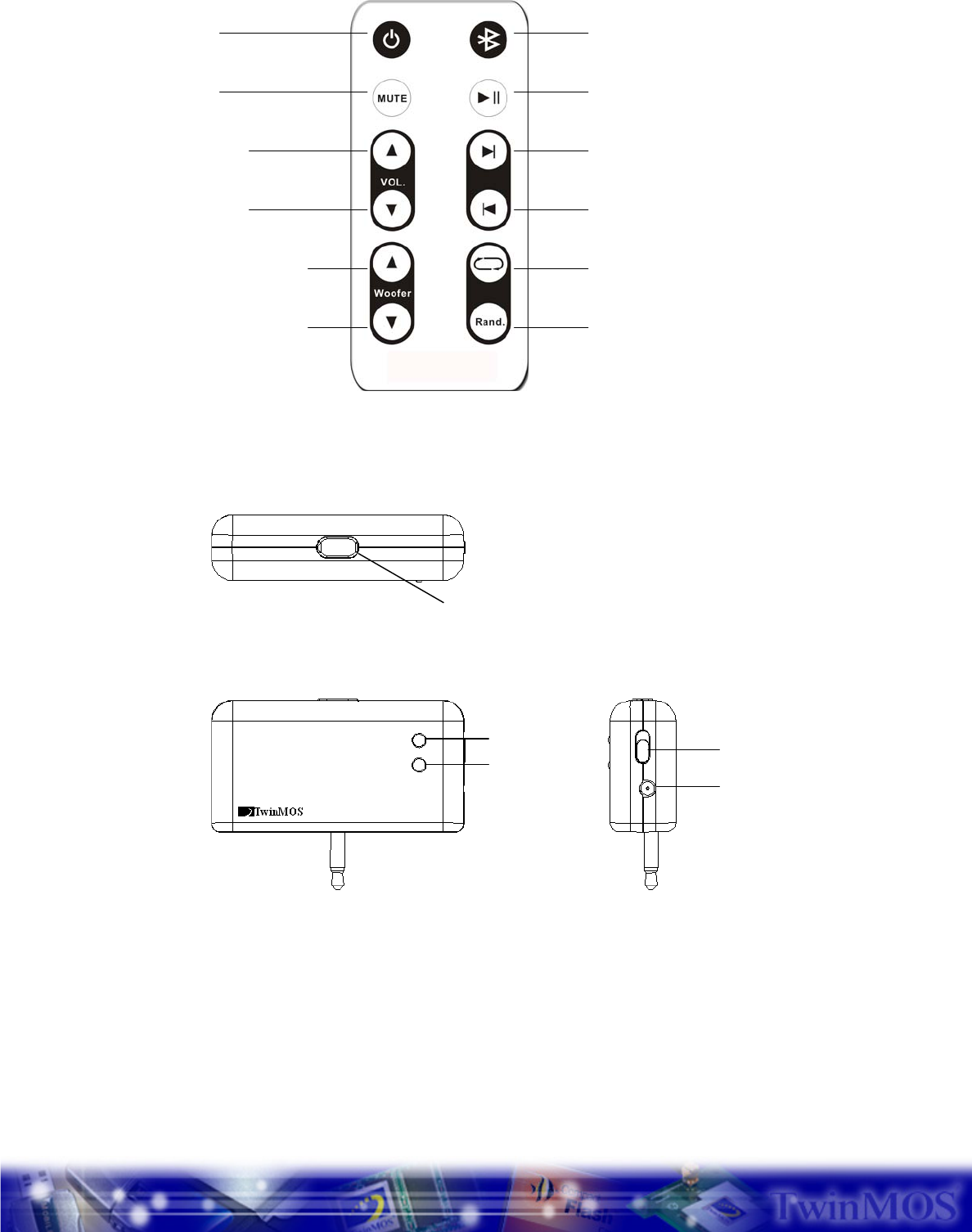

2.3 Remote Control
2.4 Bluetooth Audio Transmitter (BTT001)
Play /Pause
Next Track
Backward
Repeat
Random
On/Off
Mute
VOL UP
VOL Down
Woofer VOL UP
Woofer VOL Down
Bluetooth
Top view
Front view Side view
Pairing button
LED1(blue)
LED2(orange)
& LED3(green)
Power on/off switch
Battery charging
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
3

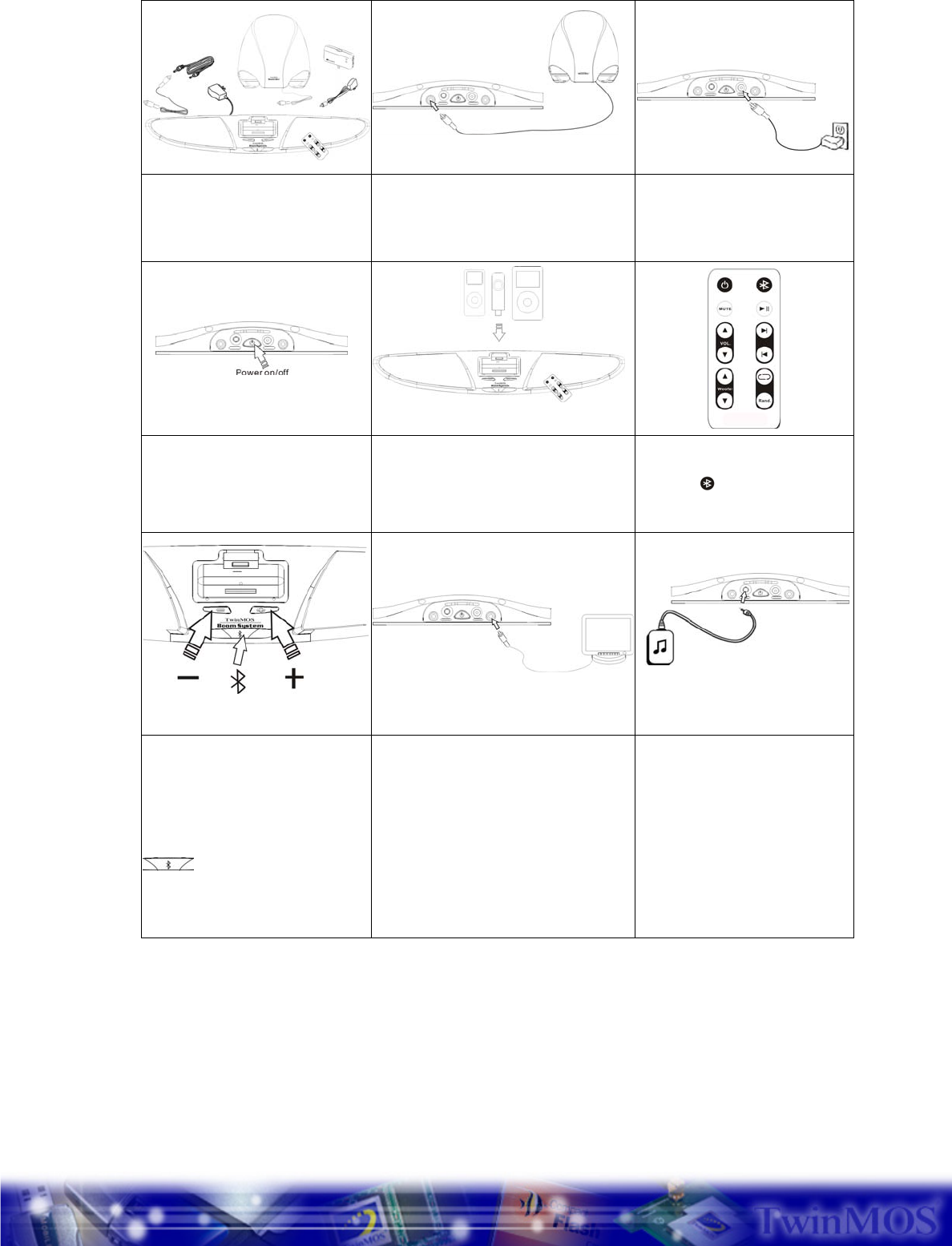

3 System Installation
Unpack the BooM2 system and check if
the package contains all the devices
and accessories.
Plug the RCA cable of BooM Box into the
“BooM Box” jack on the back of BooM
System. (White RCA plug to white RCA jack.)
Connect the power adaptor to the
“Power jack” of BooM System
Push the power button to turn on BooM
System.
Insert your iPod®s into the corresponding
socket. Do not plug iPod® Shuffle and other
iPod® devices at the same time.
Use IR remote control to operate
iPod® and BooM System*. Press
Bluetooth ( ) button is to activate
the Bluetooth function in BooM
System.
Touch the buttons ”+” (Volume up)
or ”-“ (Volume down) to adjust volume.
Push both buttons at the same time to
mute the BooM System. Press
button is to activate the
Bluetooth function of BooM System.
Connect the video cable (yellow RCA cable)
to a TV Video-in to view photo or video on
TV.(for iPod® Photo and Video series only,
can’t apply to iPod® Naro.)
You can also connect a MP3 player to
the BooM System Via a audio
extension cable. Be aware that
other music player may perform
unstable audio power output to this
speaker system. Please use only
ordinary mp3 players.
Notice:
If a 3.5mm audio cable is plugged, the iPod® interface will be disabled and no sound is output to
BooM.
Remote control features apply to most models of iPod® except Shuffle.
Hitting by abnormal electric shock from external power source, the sound of BooM will be
diminished or mute. Please restart the BooM System upon such situation.
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
4
4 Pairing and Linking Bluetooth
4.1 Setup Bluetooth link between transmitter and BooM2
4.1.1 Power on BTT001 and activate BTTA01 Bluetooth function via
remote control or press button on BooM System.
4.1.2 The LED1 of transmitter and BT LED of BooM System will blink
at low frequency. (1 Hz.)
4.1.3 For the 1st time usage, keep pressing the pairing button of
BTT001 and wait the LED1 of BTT001 to blink at medium
frequency.(2 Hz.) Both devices enter the pairing state and will
start to setup link automatically.
4.1.4 After the link is established, the LED1 of BTT001 and BT LED of
BooM2 start to blink at full speed. (4Hz.)
4.1.5 Plug BTT001 into the earphone jack of a MP3 player and enjoy
the music from the BTTA01.
Notice :
Bluetooth pairing is required only for the first time operation of both devices. After successful
pairing, both devices will recognize and link each other automatically next time.
4.2 Setup Bluetooth link between BooM2 and A2DP-enabled
Computers (PC, Notebook, PDA, or Mobile phone)
4.2.1 Activate the Bluetooth application program/function of your
computers.
4.2.2 Search for BT device “TwinMOS Speaker”.
4.2.3 Click link icon of the Bluetooth application program to pair the
BTTA01.(BooM2 System)
4.2.4 If pairing code is required, please enter “0000”.
4.2.5 The link will be set and the LED1 of BTTA01 will start to blink at
full speed.(4Hz.)
4.2.6 Go to the device manager of the OS and redirect the speaker
device to the Bluetooth speaker device. (For different Bluetooth
application program, the device name will be different.)
4.2.7 Now, the sound of computer is aired to BooM System via
Bluetooth connection.
Notice:
Regarding the operation of the Bluetooth application program in your computer, please
consult your computer manual.
Your computer, notebook, PDA and Mobile Phone must be Bluetooth 1.2 compliant and
A2DP-enabled (Advanced Audio Distribution Profile) to transfer stereo audio stream to BooM
System.
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
5
5 Specifications

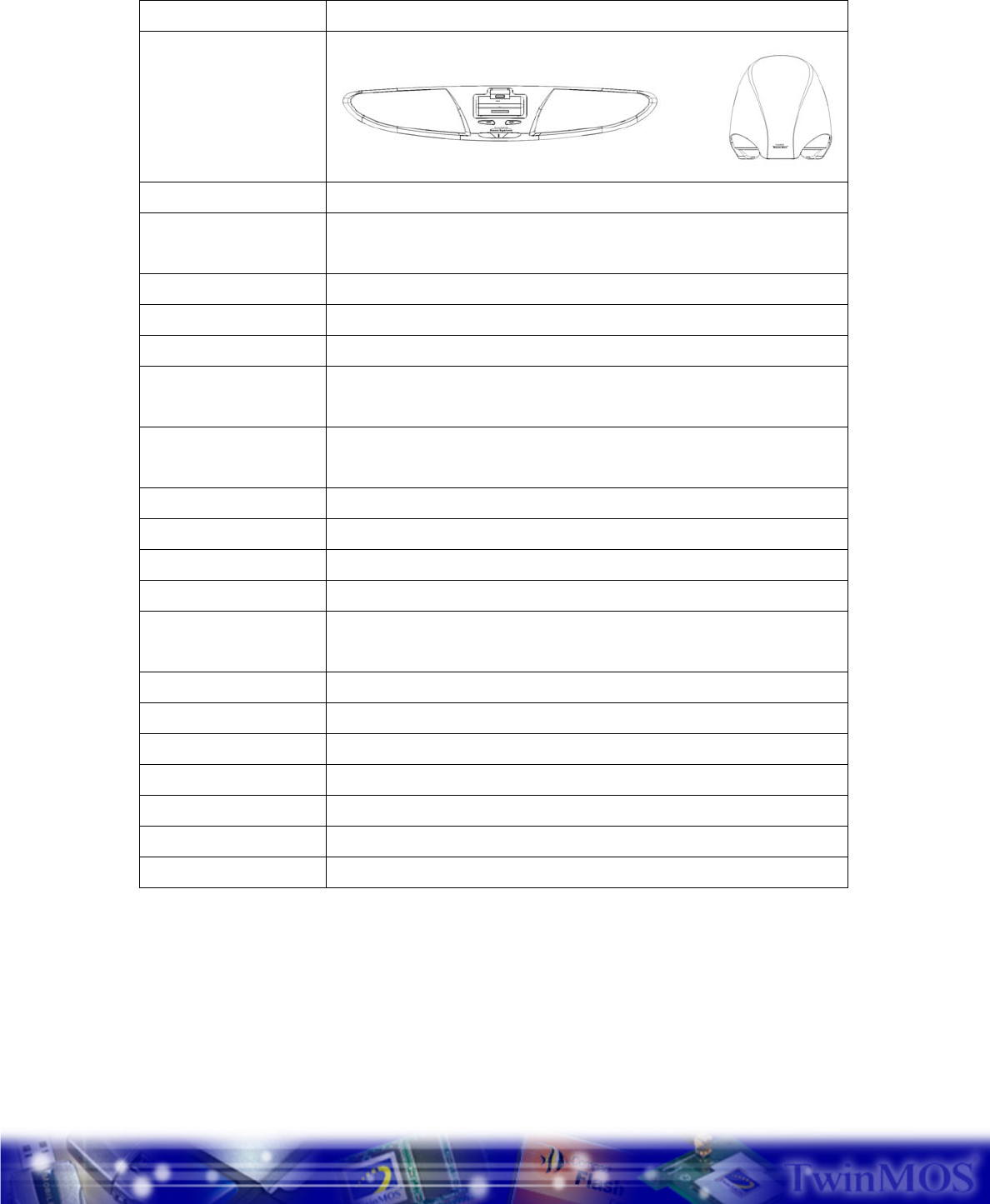

5.1 BTTA01+IPTA02, BooM2 BT 2.1ch Audio System
Configuration BTTA01(BooM System)+IPTA01(BooM Box)
Model
Voltage input 100V~240V,0.8A,50~60Hz
Speaker output
BooM System – 8 watts per Channel
BooM Box – 25 watts
Frequency Response 50Hz – 20KHz @ -3dB
THD% 0.1%
Signal to Noise Ratio >80dB
Size
BooM System – 402 x80 x 57 mm
BooM Box – 229 mm(diameter),232mm(high)
Weight
BooM System – 650g
BooM Box – 2kg
Docking iPod®G3/G4/G5,iPod®mini//nano/ *shuffle
Bluetooth Receiver Build-in
RF BT V1.2, Class II, 2.4GHz
Max. RF distance 50 feet/15 meter (open space)
Bluetooth Profile A2DP (Advanced Audio Distribution Profile)
Codec method: Sub Band Codec(SBC)
Antenna type PIFA
Security Pairing, Encryption, and Authentication
RF Power RF output power 0 ~ 2 dBm
Frequency band 2402 – 2480 MHz
Modulation FHSS(Frequency-Hopping Spread Spectrum)
Data rate 1 Mbps
Sensitivity < 10-3BER@-80dBm
* Remote control features apply to most models of iPod® except Shuffle.
All specification and information are subject to change without further notice.
iPod® is a trademark of Apple Computer, Inc.
VER 1.0 Page
6
5.2 BTT001, Bluetooth Audio Transmitter
BTT001
General Factors
RF BT V1.2 Class II, 2.4GHz
Max. RF Distance 15 Meters in open space
BT Profile A2DP (Advanced Audio Distribution Profile)
Data Rate 1 Mbps
Battery 1. Rechargeable Li+ Polymer Battery
2. Battery Life : 3 hours
Audio Interface Std. 3.5mm analog Line-In for L/R Stereo
User Interface
LED1(Blue)
Indicator for Power On, BT Pairing & Linking
Power on→ Blinking at 1 Hz
Pairing → Blinking at 2 Hz
Linking → Blinking at 4 Hz
LED2(Orange) Shinning for low Battery
LED3(Green) Indicator for Battery Charging :
On → Charging is progressing.
Off → Battery is full.
Pairing Button Keep pressing to link with new BT device.
Power On Switch Switch to turn on device.
Battery Charging Jack 3.0mm in diameter
