TwinMOS Booming
802.11b
Wireless Router
User’s Manual
TwinMOS®
Wireless Router
TwinMOS Page 1
Contents
PACKAGE CONTENTS……........................................................2
INTRODUCTION..........................................................................3
DESCRIPTION OF HARDWARE..........................................................4
BASIC INSTALLATION PROCEDURE……….…………………………..……..6
CONNECTING THE AP ROUTER………..............................................…..9
WEB MANAGEMENT SETTINGS.....................................................…..13
TROUBLESHOOTING....................................................…..27
GLOSSARY…................................................................................................…..29
TECHNICAL SPECIFICATIONS.......................................…..33
FCC CAUTION ................…………………………………………………..........…..34
Wireless Router
TwinMOS Page 2
PACKAGE CONTENTS
Unpack your Booming AP Router kit and verify that all items are present.
Booming Wireless Router
Users Manual (on CD)
Power Adapter (7.5V/1.1A)
Antenna
If any of the items described appear to be damaged or missing, please contact your reseller.
Wireless Router
TwinMOS Page 3
INTRODUCTION
Thank you for purchasing the Wireless Router. The Wireless Router is an ideal broadband sharing
solution for SOHO and home networks, featuring a wireless LAN function that reduces the
necessity of connecting stations via a wired LAN.
The Wireless Router manages all IP address assignments by DHCP, relieving users of the necessity
of manually configuring clients for inter-client communication and access to the Internet. A built-in
firewall provides extra security from malicious attack.
The intuitive Web browser interface enables users to configure all aspects of the router, including
making LAN, WAN, and WLAN settings, making access restrictions, setting administrative and
user passwords.
This Booming Wireless Router supports following features
Compatible with IEEE 802.11b Direct Sequence high data rate specifications.
Supports high-speed wireless connections up to 11 Mbps
Easy setup through a Web browser on any operating system that supports TCP/IP.
10 Mbps WAN port connection to xDSL/Cable modem.
Four 10/100 Mbps Ethernet switch ports.
DHCP for dynamic IP configuration, and DNS for domain name mapping.
64/128-bit Wired Equivalent Privacy (WEP) data encryption.
Web-based firmware upgrade
Wireless Router
TwinMOS Page 4
Description of Hardware
Front Panel
The front panel provides LED’s for device status. Refer to the following table for the meaning of each
feature.
LED State Color Meaning
On Green The device is receiving power.
Power Off The device is not receiving power.
WLAN Link On Green Indicates that the device is connected to WLAN.
On Red Indicates WLAN status.
WLAN Tx/Rx Blinking Red Indicates WLAN traffic.
10/100 On Red Indicates link speed(10/100 Mbps)
On Green Link is established.
On Flashing Green Packet transmit or receive activity.
Act
Off No link activity.
Wireless Router
TwinMOS Page 5

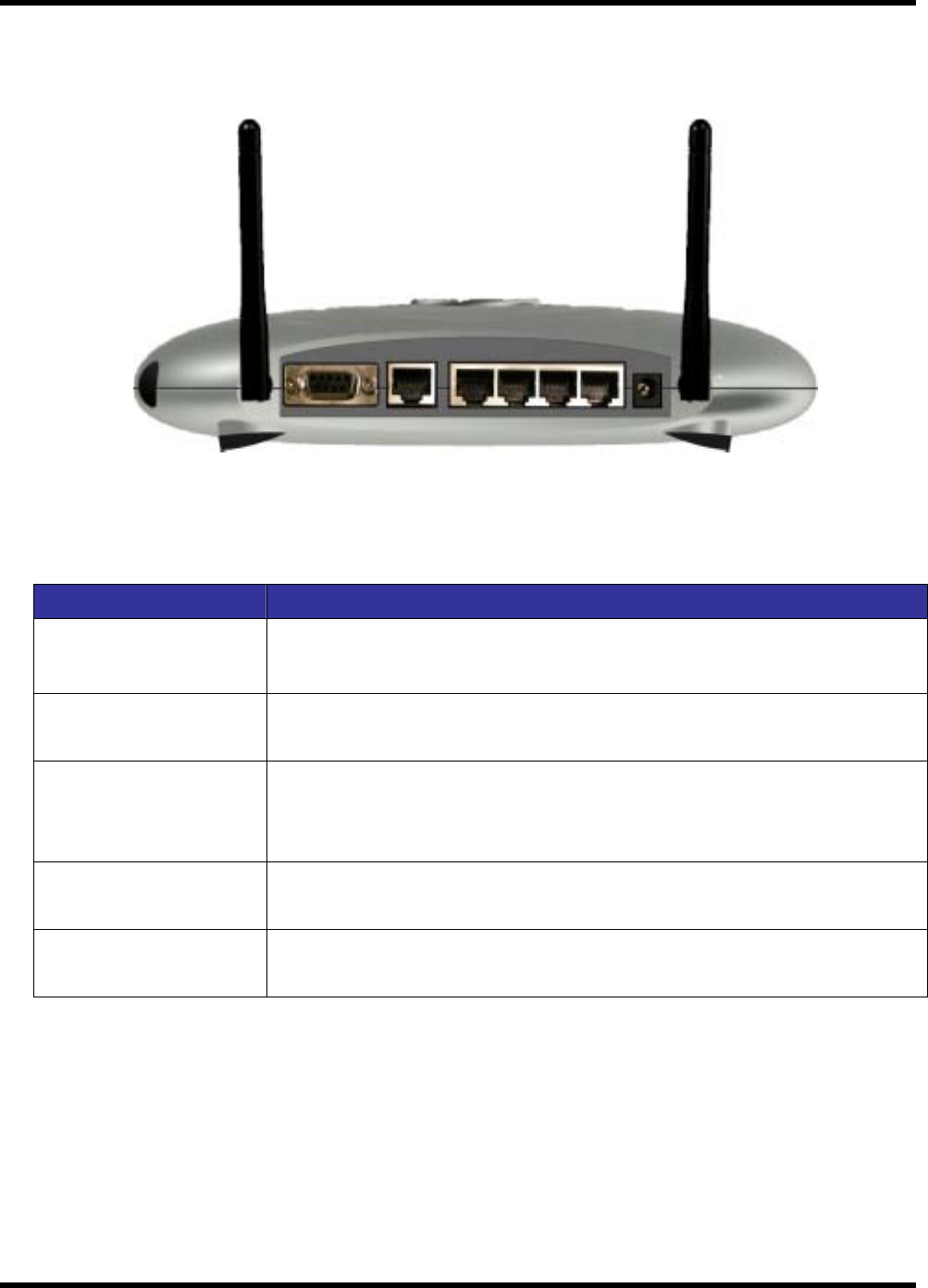

Rear Panel
Item Description
LAN ports The four RJ-45 Ethernet ports allow you to con-nect client PCs or LAN
hubs to the Wireless Router.
WAN port WAN port (RJ-45). Connect your Cable modem, xDSL modem, or an
Ethernet router to this port.
Power port Connect the included power adapter to this inlet.
Warning: The included power adapter is DC 7.5V/1.1A. Using the
wrong type of power adapter may cause damage.
Antenna Two antennas provide wireless LAN functionality and ensure optimal
signal strength.
Reset button(Side) Use this button to reset the power and restore the default factory
settings by pressing this button for five seconds.
Wireless Router
TwinMOS Page 6
Basic Installation Procedure

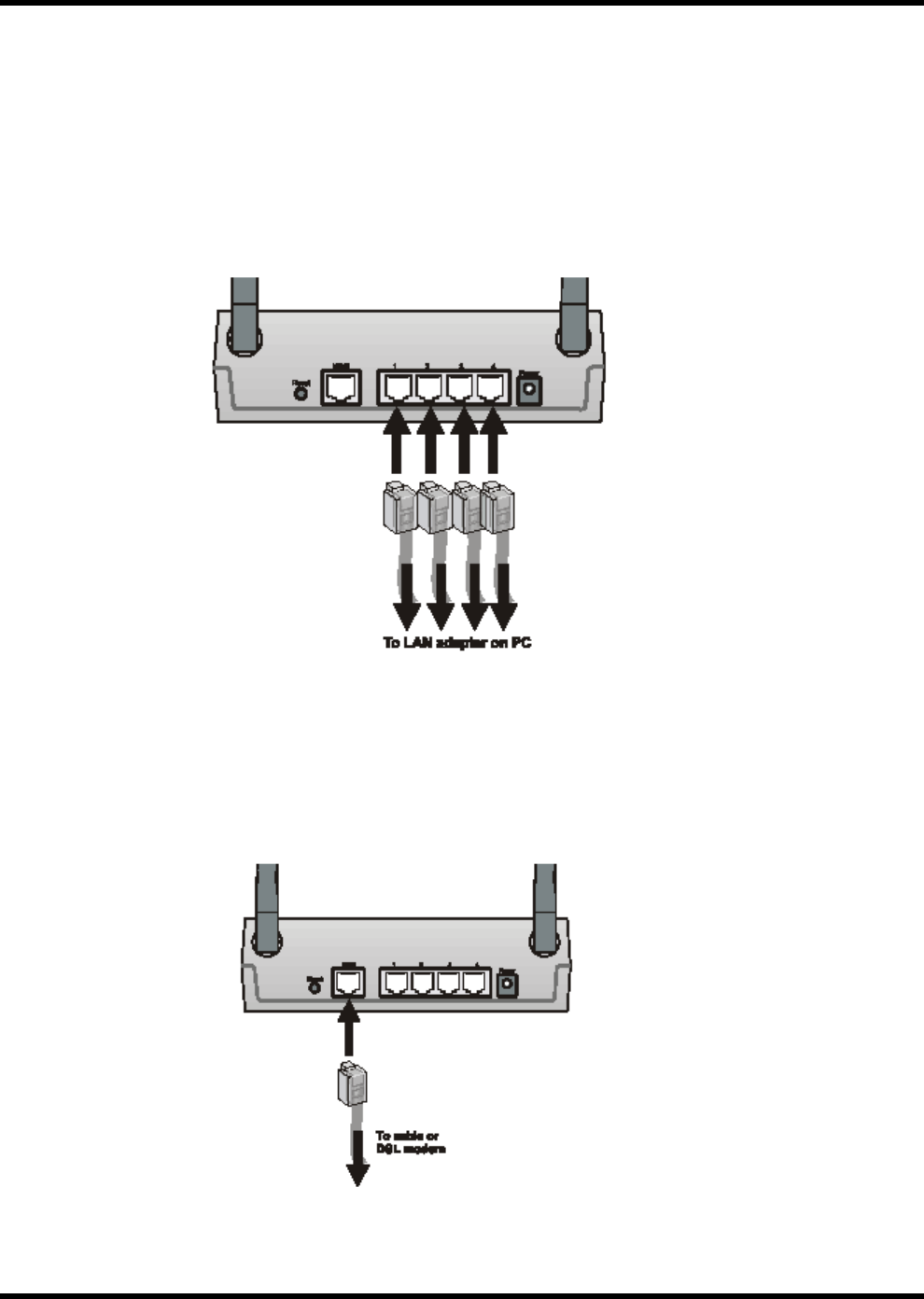

Connecting the Router to the LAN
You can connect the WLAN 11b Router to your PC, a hub, or a switch. Run the Ethernet cable from one
of the LAN ports on the rear of the WLAN 11b Router to your computer’s network adapter or to another
network device. You can also connect the WLAN 11b Router to your PC or to a client adapter via radio
signals. Position one antenna on the back of the WLAN 11b Router into the desired positions.
Connecting the Router to the WAN
Prepare an Ethernet cable for connecting the WLAN 11b Router to a Cable/xDSL modem or Ethernet
router.
Wireless Router
TwinMOS Page 7
Internal
xDSL/Cable modem
Power On
Connect the power adapter to the WLAN 11b Router.

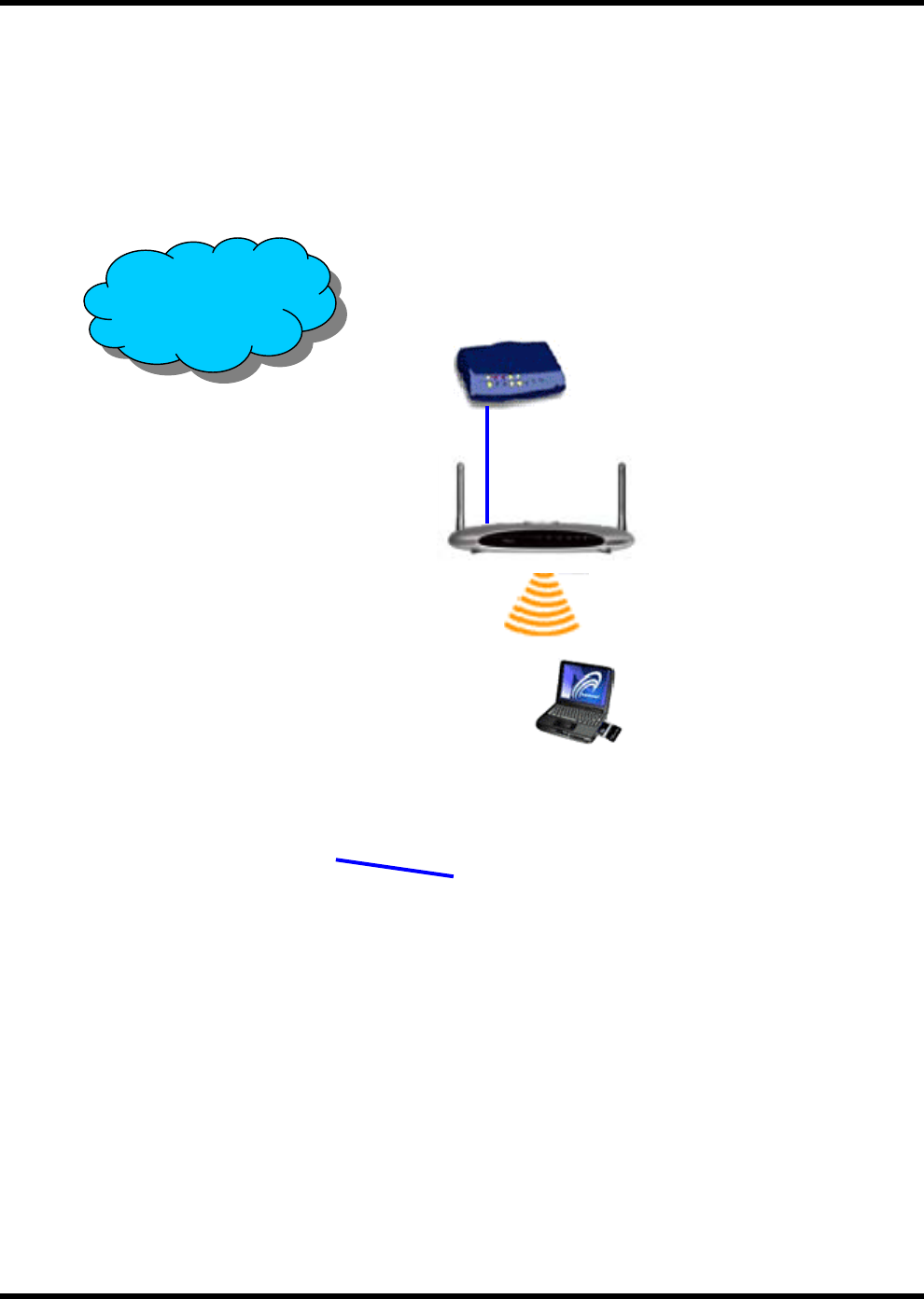

SOHO/Home Networking
WAN
Wireless Router
TwinMOS Page 8
Wireless

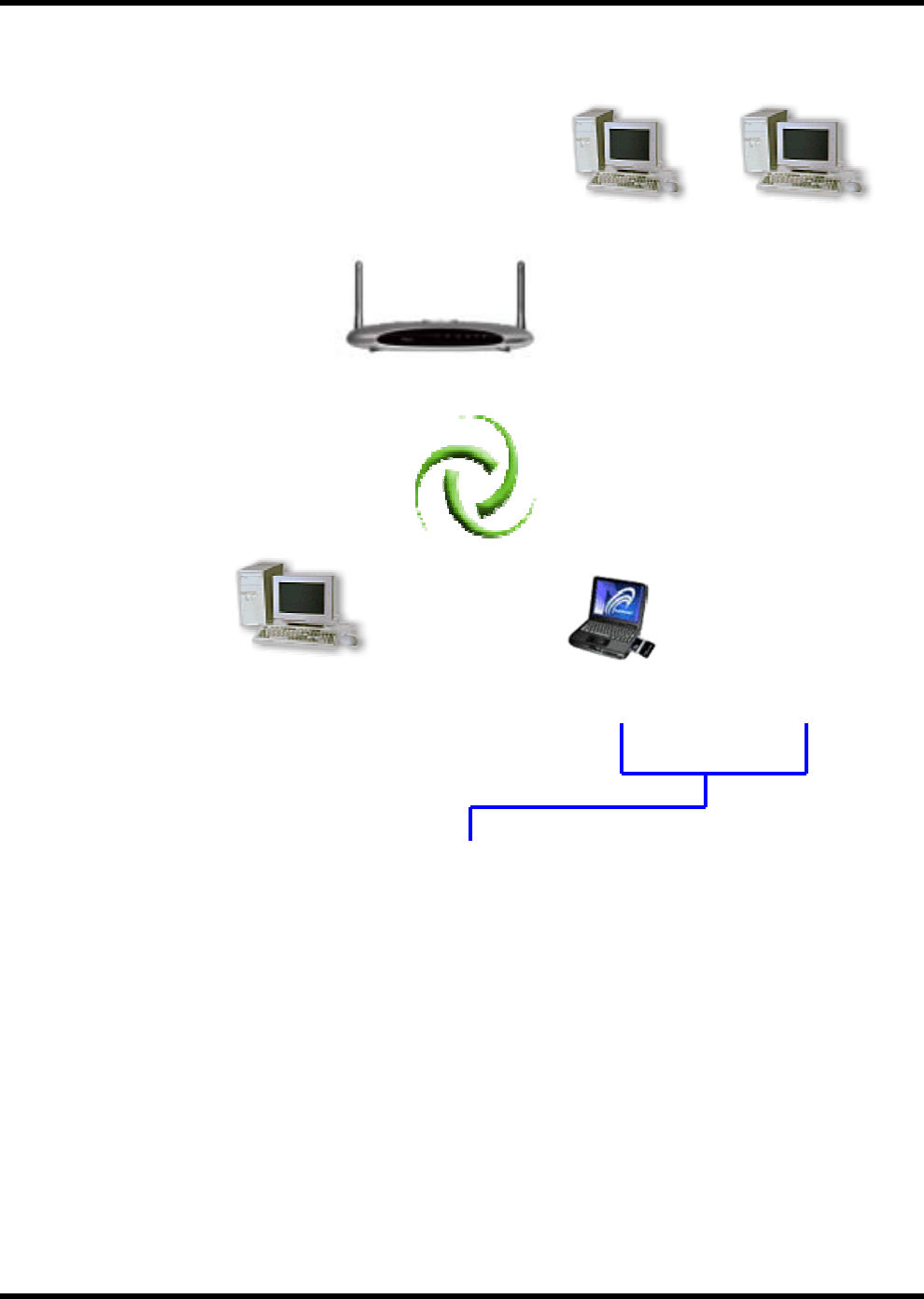

Office Networking
LAN
Wireless Router
TwinMOS Page 9
CONNECTING THE AP ROUTER
Follow the procedure below to connect the AP Router.
LAN connecting
Plug a Ethernet cable into a free LAN port at the rear of the router. Plug the other end of the
cable into the RJ-45 port on your computer.
Turn on power supply for AP Router.
Setting TCP/IP to work with the AP Router.
Windows XP

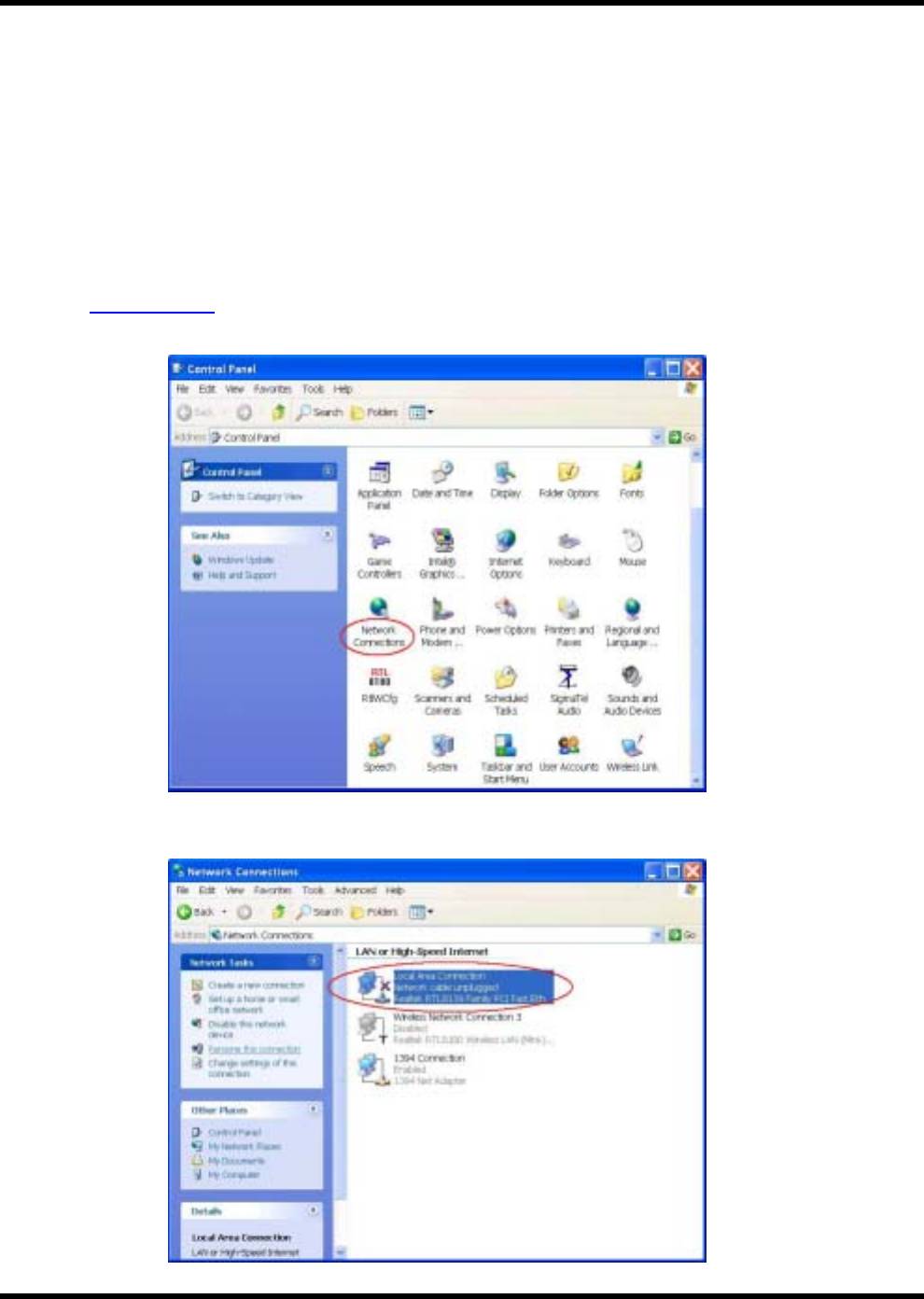

1. Click Start, Settings, then click Control Panel. The Control Panel opens:
2.
Right-click the Network icon and select Open to open the Network Connections dialog:
Wireless Router
TwinMOS Page 10

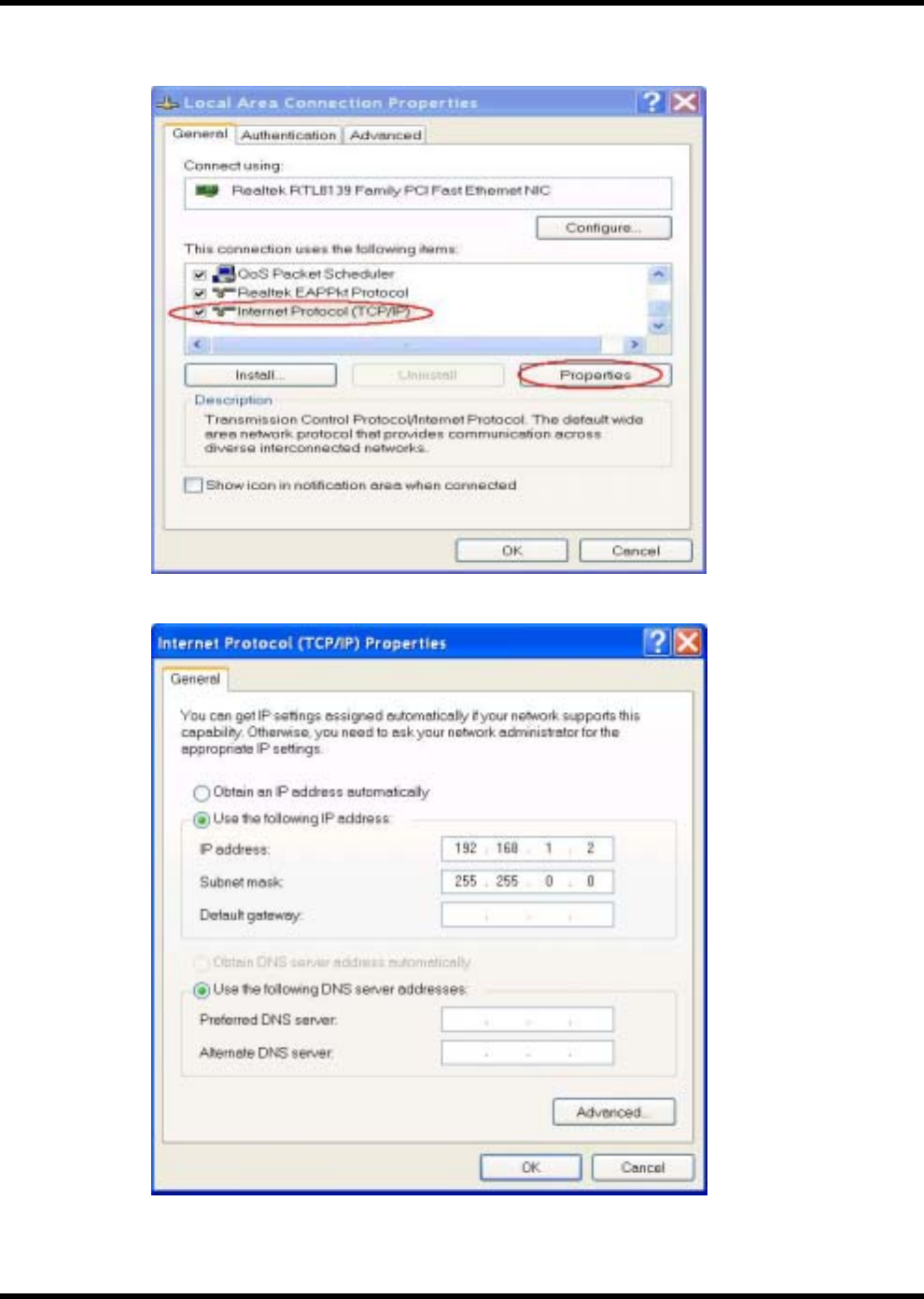

3.Right- click the appropriate LAN connection and click Properties to open the properties dialog for the
connection:
4. Check the box next to Internet Protocol (TCP/IP) and click Properties:
Wireless Router
TwinMOS Page 11
5.Assign a IP address, follow these steps:
a. In the TCP/IP Properties dialog box, click the radio button next to Use the following IP
address:
b. Enter an IP address in the IP field. In the example shown, IP addresses is 192.168.1.X(Where
X means 2-253)
c. Type a Subnet Mask value is 255.255.0.0.
d. Type the router’s IP address in the “Default gateway” field.
e. Check the radio button next to “Use the following DNS server addresses” and type the ISP
do-main name server IP address.
f. Click OK. You are returned to the Network configuration dialog box.
6. Click OK to apply the settings and exit the Network configuration dialog box.
Open your Web browser and type the router IP address in the address bar. The Router
default IP address is 192.168.1.254.
Wireless Router
TwinMOS Page 12
Wireless connecting
Turn on power supply for AP Router.
Insert 802.11b wireless LAN card to your PC.
Setup your wireless utility. The SSID is “RTL8181-AP”,WEP off, Infrastructure mode.
Setting TCP/IP to work with the AP Router.
Open your Web browser and type the router IP address in the address bar. The Router default
IP address is 192.168.1.254.
Wireless Router
TwinMOS Page 13
WEB MANAGEMENT SETTINGS
Before using the Web browser interface, be sure you have set up your computer’s network
configuration. Refer to page 7.

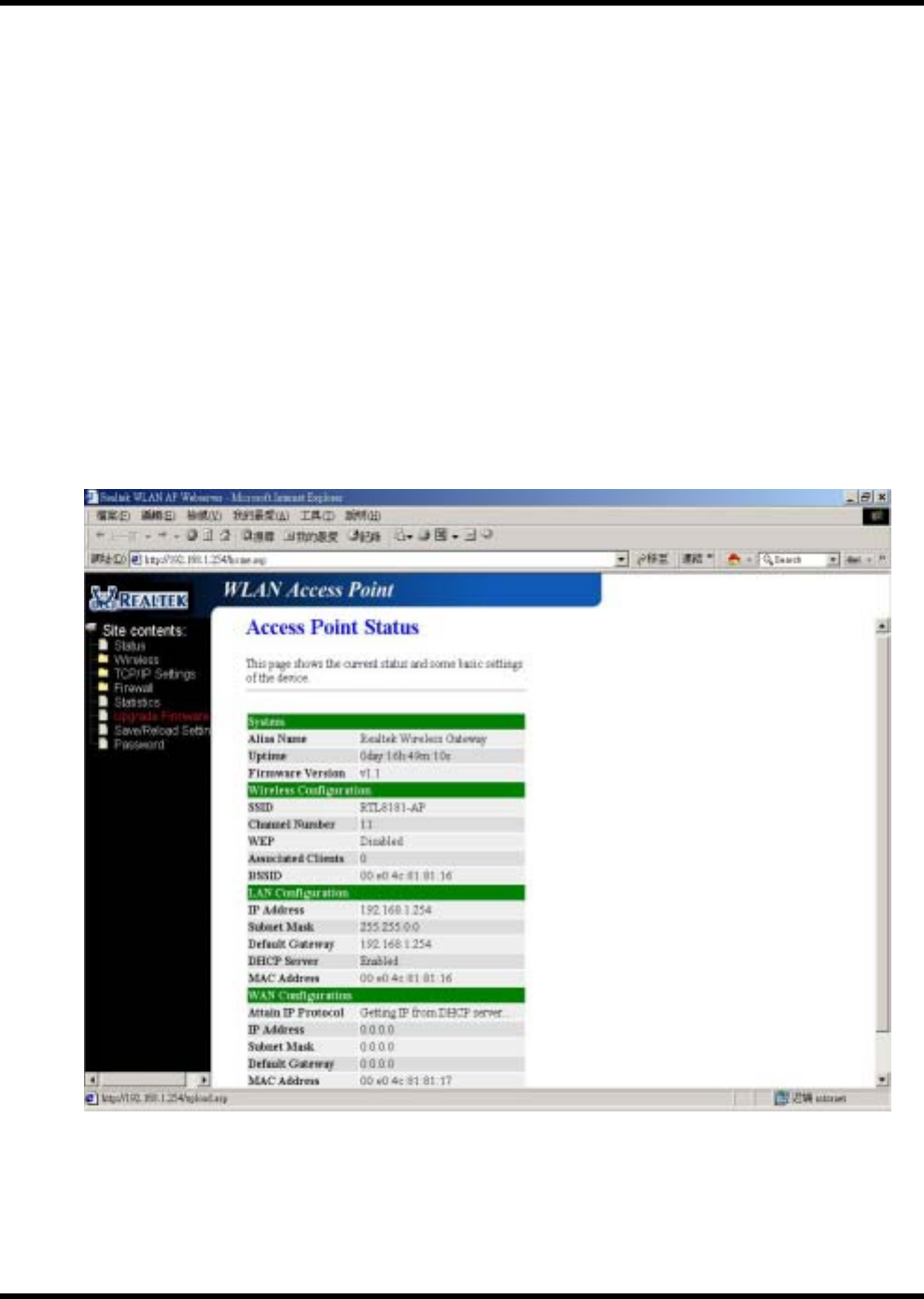

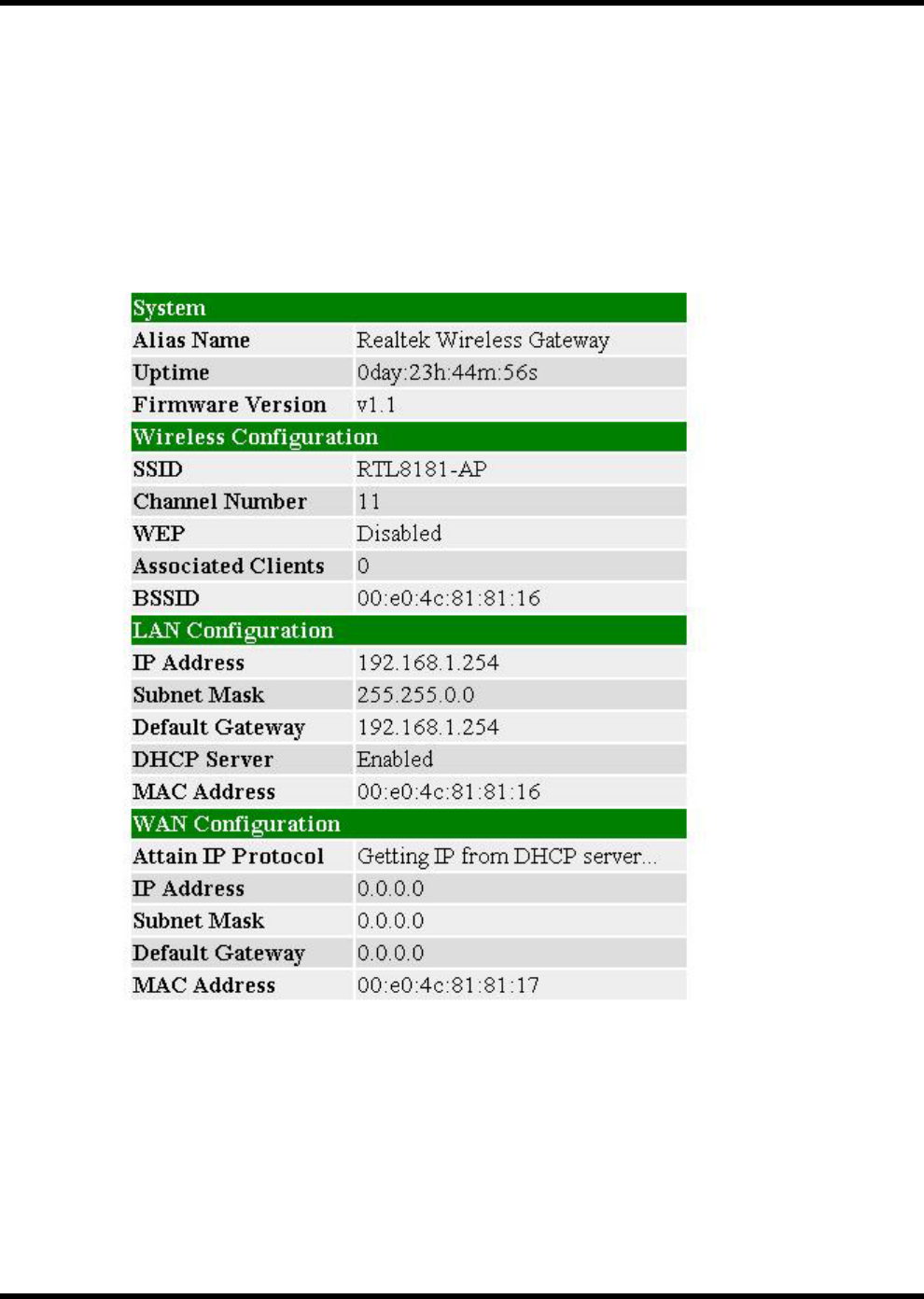

Access Point Status Page
This page shows the current status and some basic settings of the device.
Wireless Router
TwinMOS Page 14

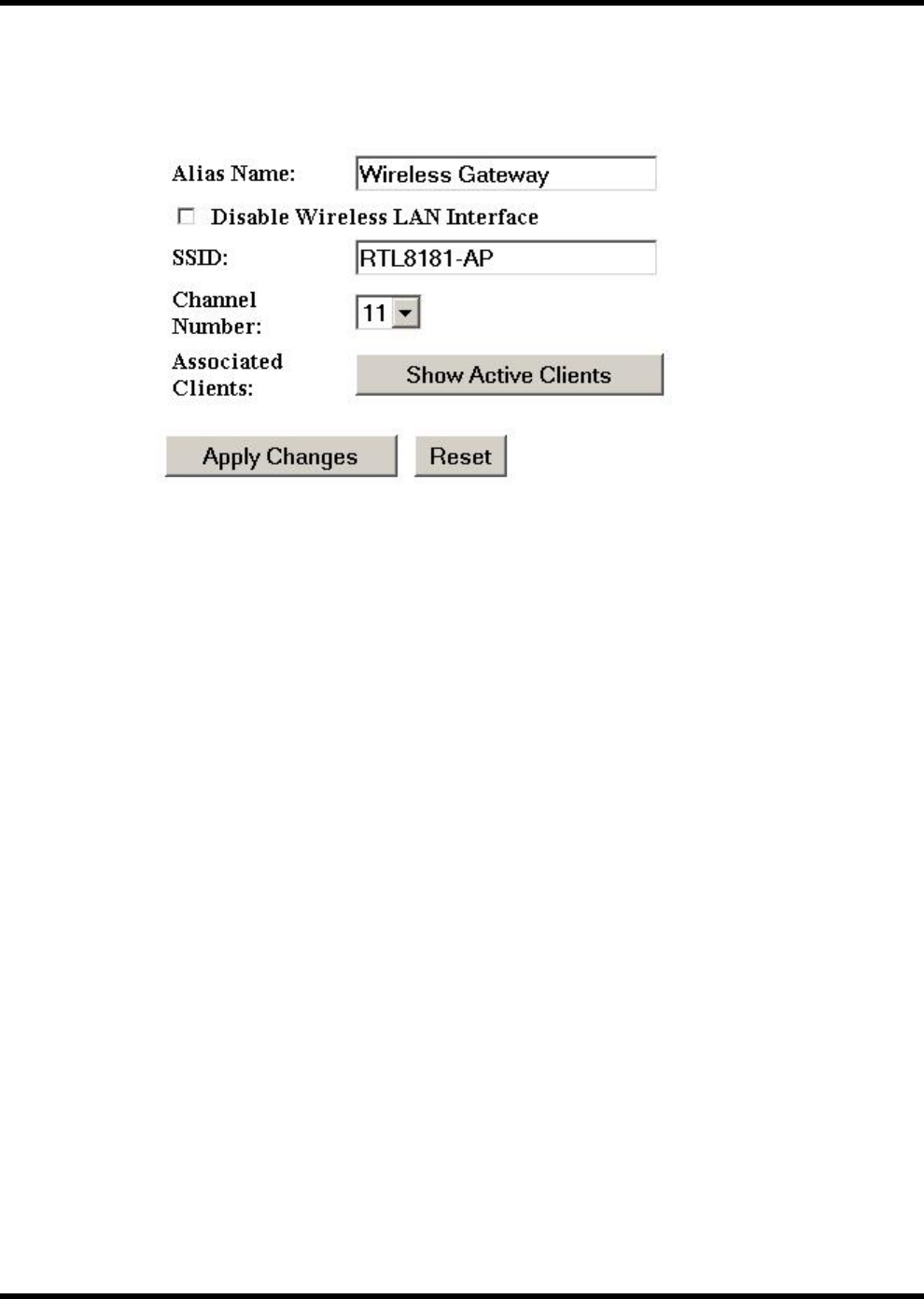

Wireless--Basic Settings Page
This page is used to configure the parameters for wireless LAN clients which may connect to your
Access Point. Here you may change wireless encryption settings as well as wireless network parameters.
Disable Wireless LAN Interface
When the setting is checked, the RF signal of the device will be disabled.
SSID
The name of the wireless network. This name cannot be longer than 32 characters. The default value is
“RTL8181-AP.
Channel Number
A transmission channel for wireless communications. The channel of any wireless device must match
the channel selected here in order for the wireless device to access the LAN and WAN via the router.
Associated Clients
Click “Show Active Clients” button to launch the Active Wireless Client Table. This table shows the
MAC address, transmission, receipt packet counters and encrypted status for each associated wireless
client.
Apply Changes
Click “Apply” button to save and implement the new settings.
Reset
Click “Reset” button to reload default settings.
Wireless Router
TwinMOS Page 15

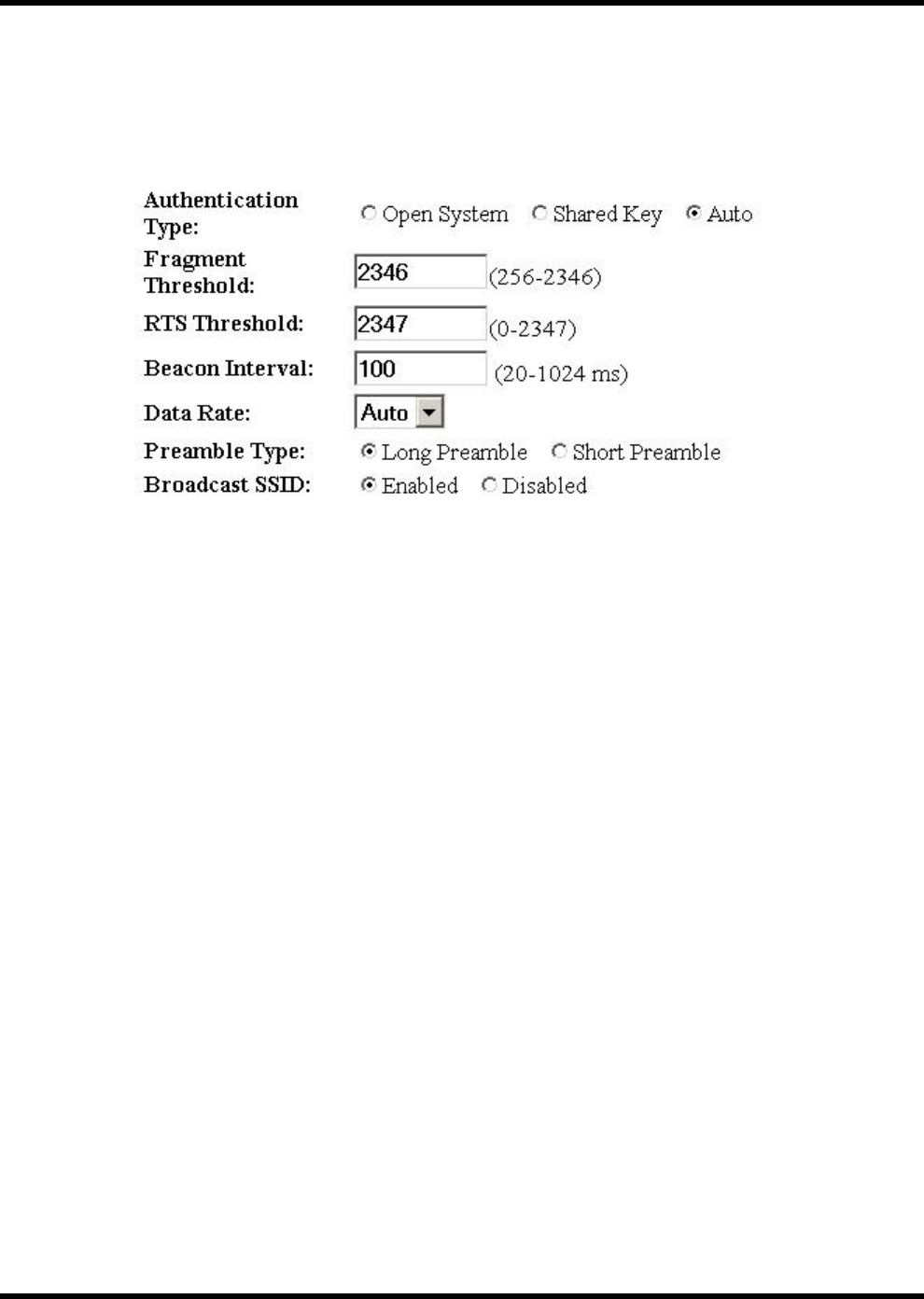

Wireless—Advanced Settings Page
These settings are only for more technically advanced users who have a sufficient knowledge about
wireless LAN. These settings should not be changed unless you know what effect the changes will have
on your Access Point.
Authentication Type
This setting has to be consistent with the wireless devices which the adapter intends to connect.
Open System – No authentication is needed among the wireless devices.
Shared Key – Only wirelss devices using a shared key (WEP Key) are allowed to connecting each
other. Setup the same key as the wireless devices which the adapter intends to connect.
Auto – Auto switch the authentication algorithm depending on the wireless devices which the adapter
is connecting to.
Fragment Threshold
The value defines the maximum size of packets, any packet size larger than the value will be fragmented.
If you have decreased this value and experience high packet error rates, you can increase it again, but it
will likely decrease overall network performance. Select a setting within a range of 256 to 2346 bytes.
Minor change is recommended.
RTS Threshold
Minimum packet size required for an RTS (Request To Send). For packets smaller than this threshold,
an RTS is not sent and the packet is transmitted directly to the WLAN. Select a setting within a range of
0 to 2347 bytes. Minor change is recommended
Beacon Interval
This value specifies the duration between beacon packets (milliseconds). The beacon packets include the
Router’s information and are broadcasted to the WLAN network periodly.
Wireless Router
TwinMOS Page 16
Data Rate
Auto - When it is enabled, the device will choose the most suitable transmission rate automatically.
Preamble Type
Select either a short preamble or long preamble. Select a short preamble for WLANs with high network
traffic; select a long preamble when the network traffic is low.
Broadcast SSID
Enables and disables a Service Set Identifier broadcast. When enabled, the SSID of the router is sent to
wireless enabled devices on the LAN. Set the router's SSID in the Basic screen.

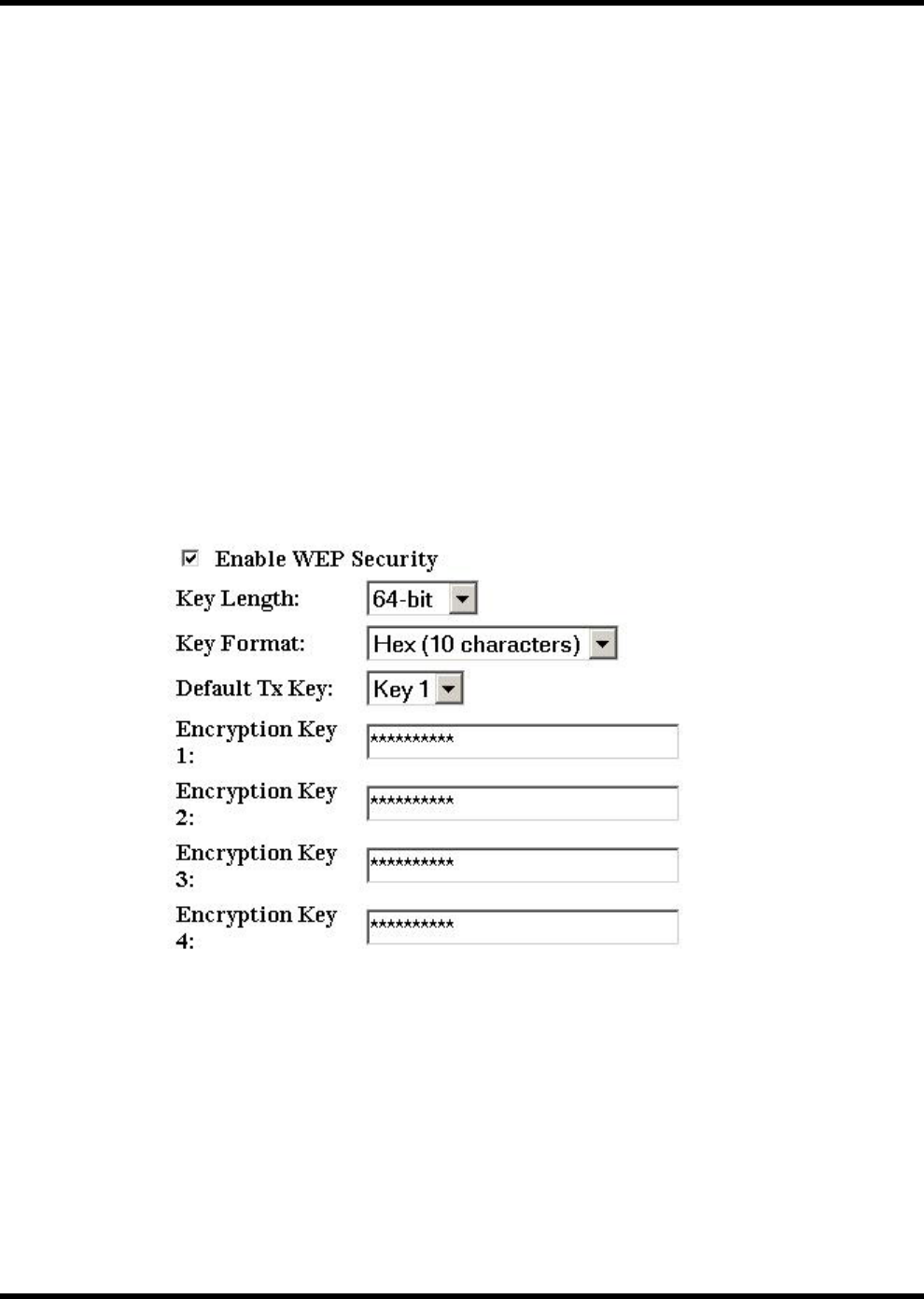

Wireless—Security Page
This page allows you setup the WEP security. Turn on WEP by using Encryption Keys could prevent
any unauthorized access to your wireless network.
Key Length
You may select the 64-bit or 128-bit to encrypt transmitted data. Larger key length will provide higher
level of security, but the throughput will be lower.
Default Tx Key
Select one of the keys (1~4) as the encryption key.
Encryption Key1~Key4
The keys are used to encrypt data transmitted in the wireless network. Fill the text box by following the
rules below.
Wireless Router
TwinMOS Page 17
64-bit – Input 10 digit Hex values (in the “A-F”, “a-f” and “0-9”range) as the encryption keys. For
example: “0123456aef“.
128-bit – Input 26 digit Hex values (in the “A-F”, “a-f” and “0-9” range) as the encryption keys. For
example:“01234567890123456789abcdef“.

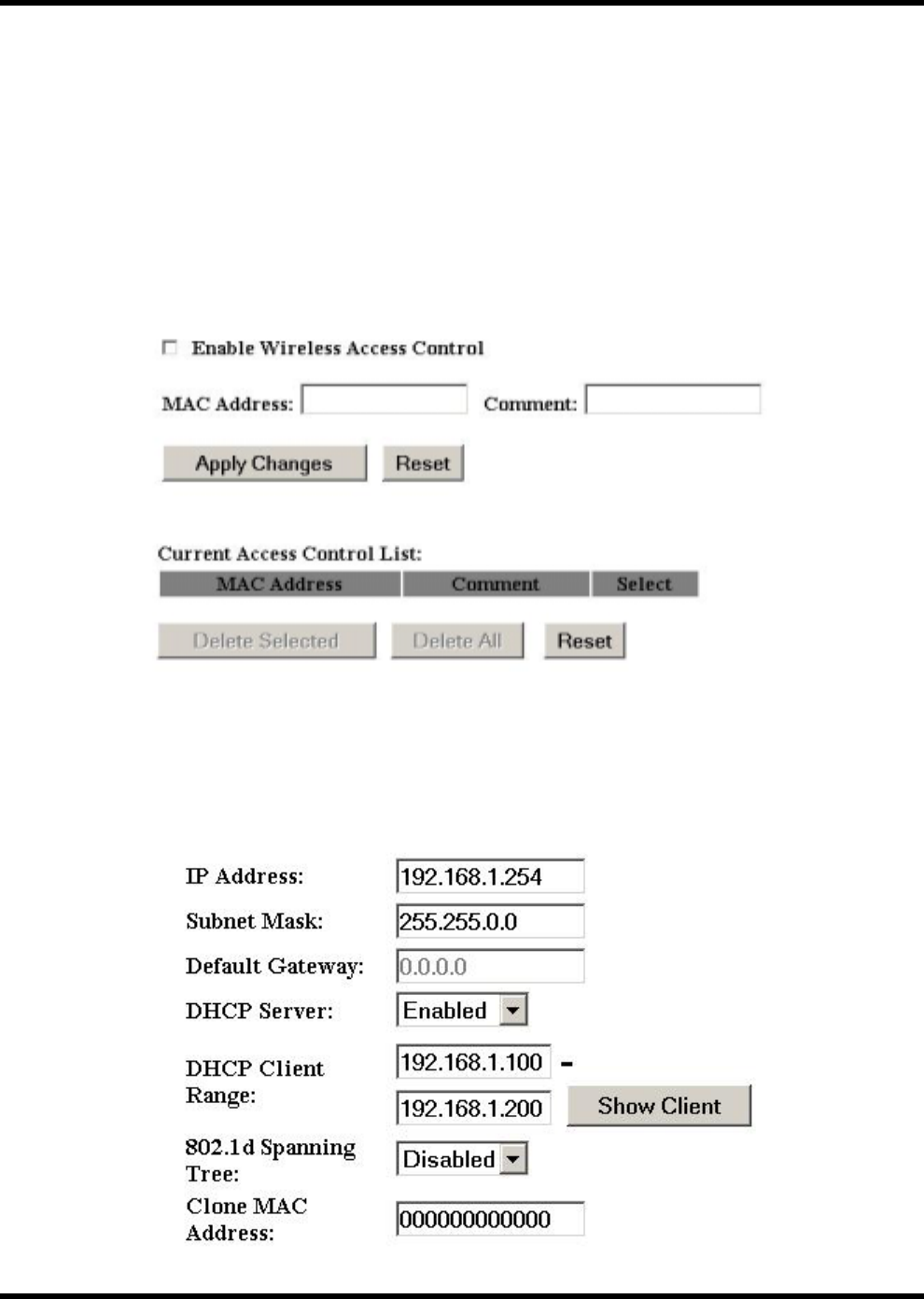

Wireless—Access Control Page
If you enable wireless access control, only those clients whose wireless MAC addresses are in the access
control list will be able to connect to your Access Point. When this option is enabled, no wireless clients
will be able to connect if the list contains no entries
TCP/IP Settings—LAN Interface Page
This page is used to configure the parameters for local area network which connects to the LAN port of
your Access Point. Here you may change the setting for IP address, subnet mask, DHCP, etc..
Wireless Router
TwinMOS Page 18
IP Address
This is the IP address of the router. The default IP address is 192.168.1.254.
Subnet Mask
Type the subnet mask for the router in the text box. The default subnet mask is 255.255.0.0
Default Gateway
Allows administrator to use the Default Gateway address, assign a specific Gateway address, or block
clients from Gateway notification.
DHCP Server
Enables the DHCP server to allow the router to automatically assign IP addresses to devices connecting
to the LAN. DHCP is enabled by default. All DHCP client computers are listed in the table at the bottom
of the screen, providing the host name, IP address, and MAC address of the client.
DHCP Client Range
Sets the beginning address and range of addresses to be assigned by the Router’s DHCP server function.
Select up to 253 consecutive addresses (nodes).The IPs to be excluded from the range specification
should be entered in the specified field.
Wireless Router
TwinMOS Page 19

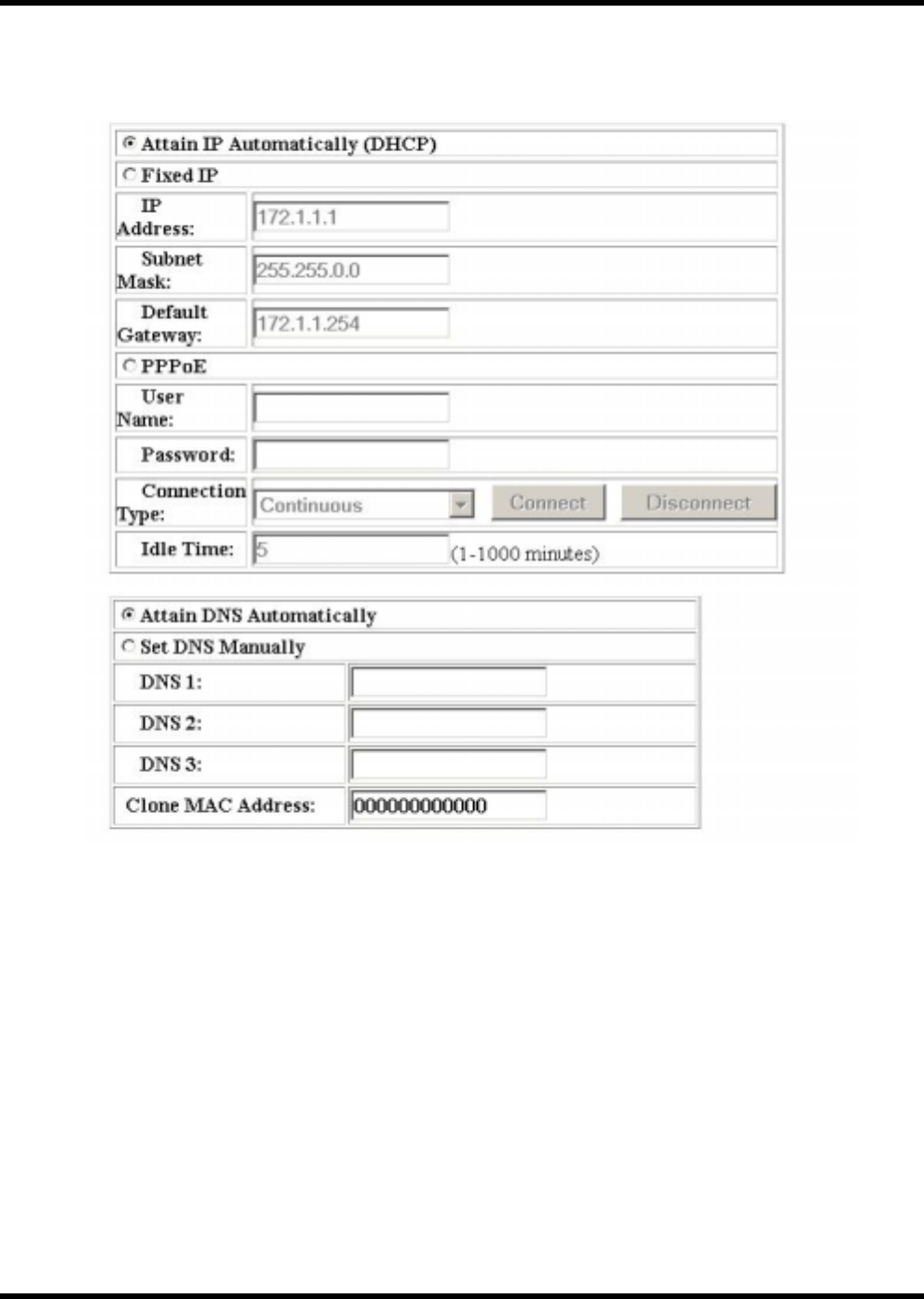

TCP/IP Settings—WAN Interface Page
This page is used to configure the parameters for Internet network which connects to the WAN port of
your Access Point. Here you may change the setting for IP address, PPPoE, DNS, etc..
When using DHCP Fixed IP, enter the following information in the fields (some information is provided
by your ISP):
IP Address
Select whether you want to specify an IP address manually, or want DHCP to obtain an IP address
automatically. When Specify IP is selected, type the IP address, subnet mask, and default gateway in the
text boxes. Your ISP will provide you with this information.
When using PPPoE, enter the following information in the fields (some information is provided by your
ISP)
User Name
Type your PPPoE user name.
Wireless Router
TwinMOS Page 20
Password
Type your PPPoE password.
Connection Type
Continuous – Connects immeditely after setting and never disconnects.
Connect on Demand - Reconnects when the Disconnect time elapses.
Manual - Disables Automatic Connection. Connects to Internet using the “Connect” button on the
settings page.
Idle Time Out
Specify the time that will elapse before the router times out of a connection.
Set DNS Manual
Type up to three DNS numbers in the text boxes. Your ISP will provide you with this information.

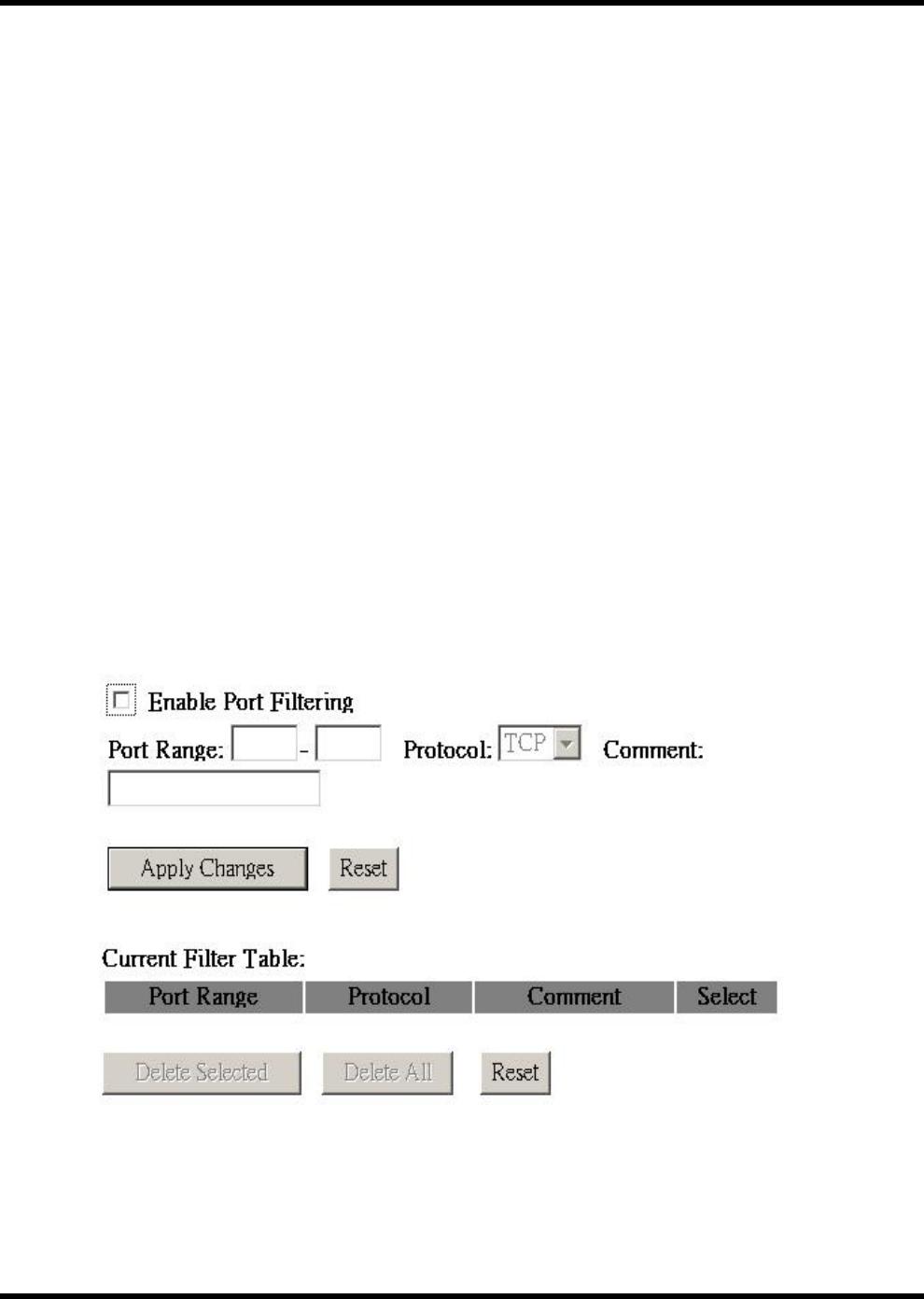

Firewall—Port Filtering Page
Entries in this table are used to restrict certain types of data packets from your local network to Internet
through the Gateway. Use of such filters can be helpful in securing or restricting your local network.
Wireless Router
TwinMOS Page 21

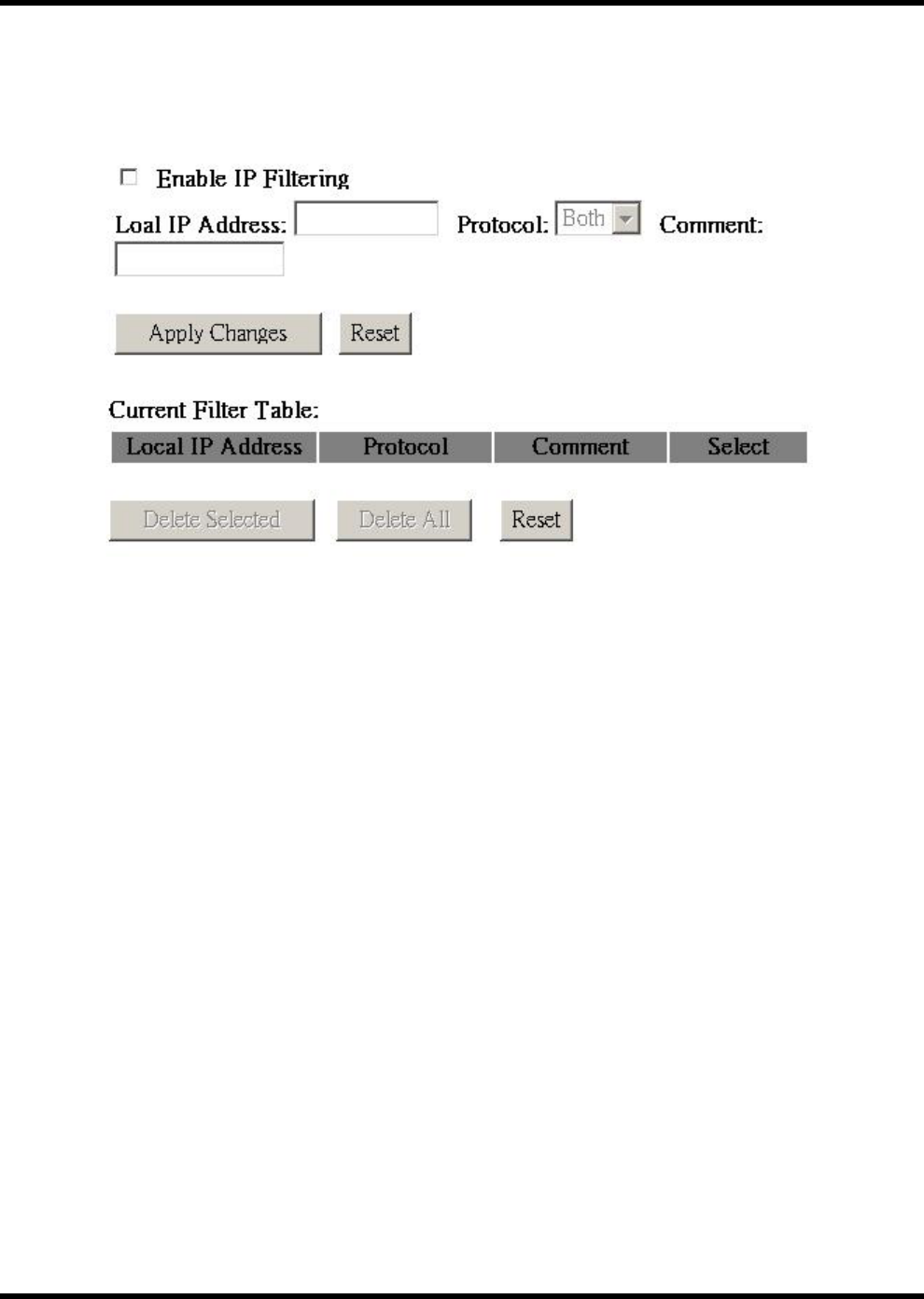

Firewall—IP Filtering Page
Entries in this table are used to restrict certain types of data packets from your local network to Internet
through the Gateway. Use of such filters can be helpful in securing or restricting your local network.
Enable IP Filtering
Click to enable or disable the IP address filter.
Wireless Router
TwinMOS Page 22

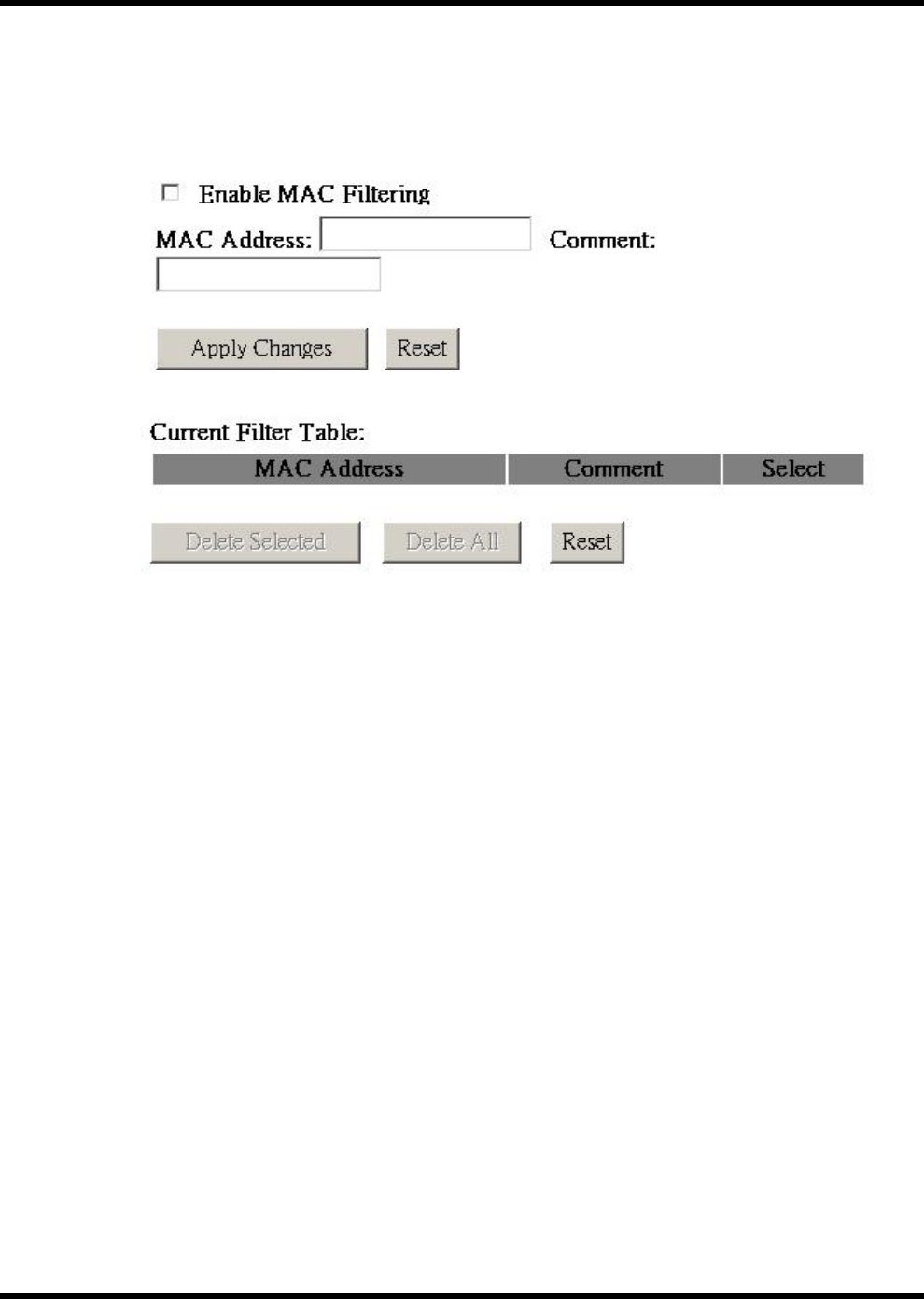

Firewall—MAC Filtering Page
Entries in this table are used to restrict certain types of data packets from your local network to Internet
through the Gateway. Use of such filters can be helpful in securing or restricting your local network.
MAC Address
Type the MAC address of the user's network interface.
Wireless Router
TwinMOS Page 23

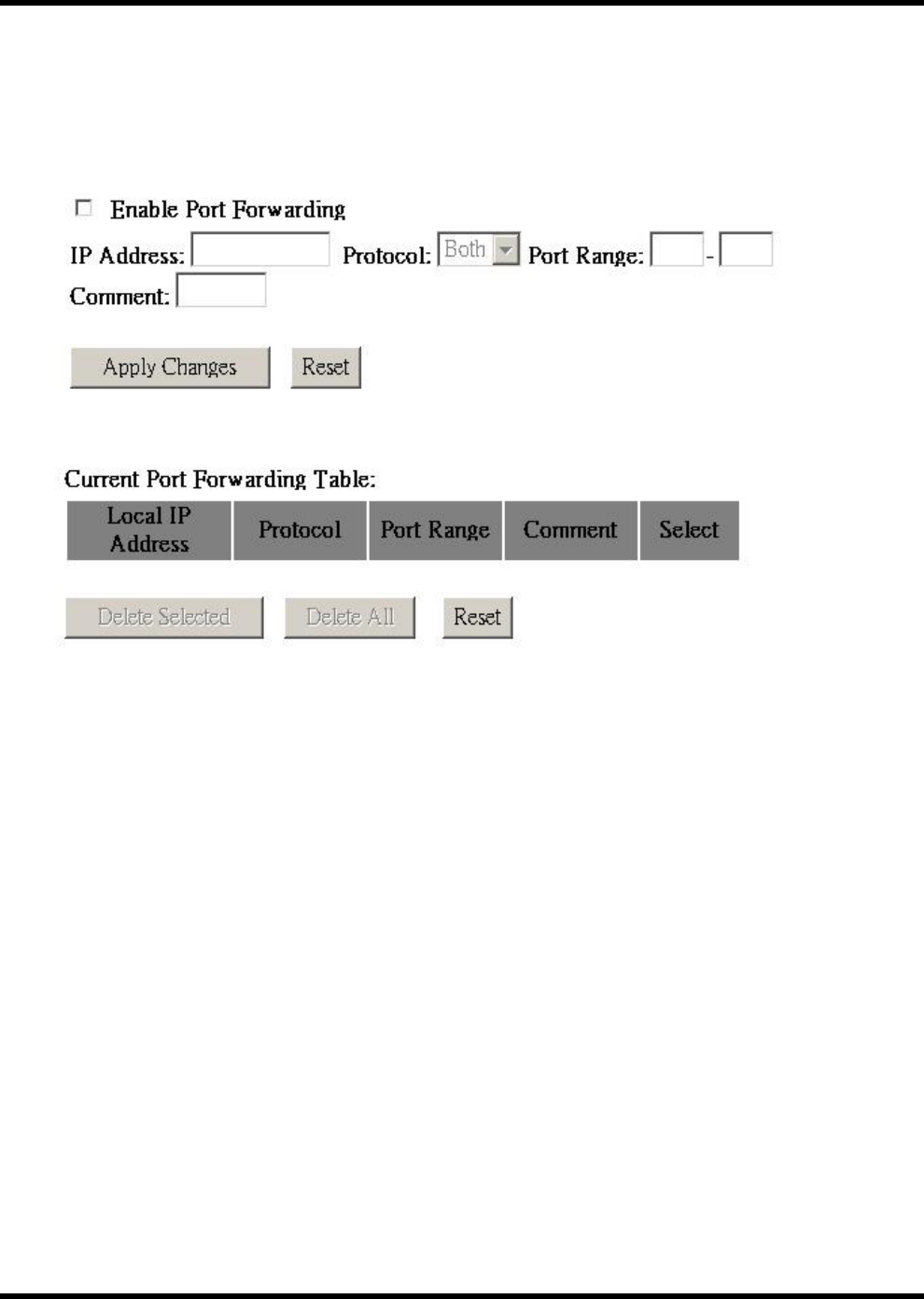

Firewall—Port Forwarding Page
Entries in this table allow you to automatically redirect common network services to a specific machine
behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a
web server or mail server on the private local network behind your Gateway's NAT firewall.
Wireless Router
TwinMOS Page 24

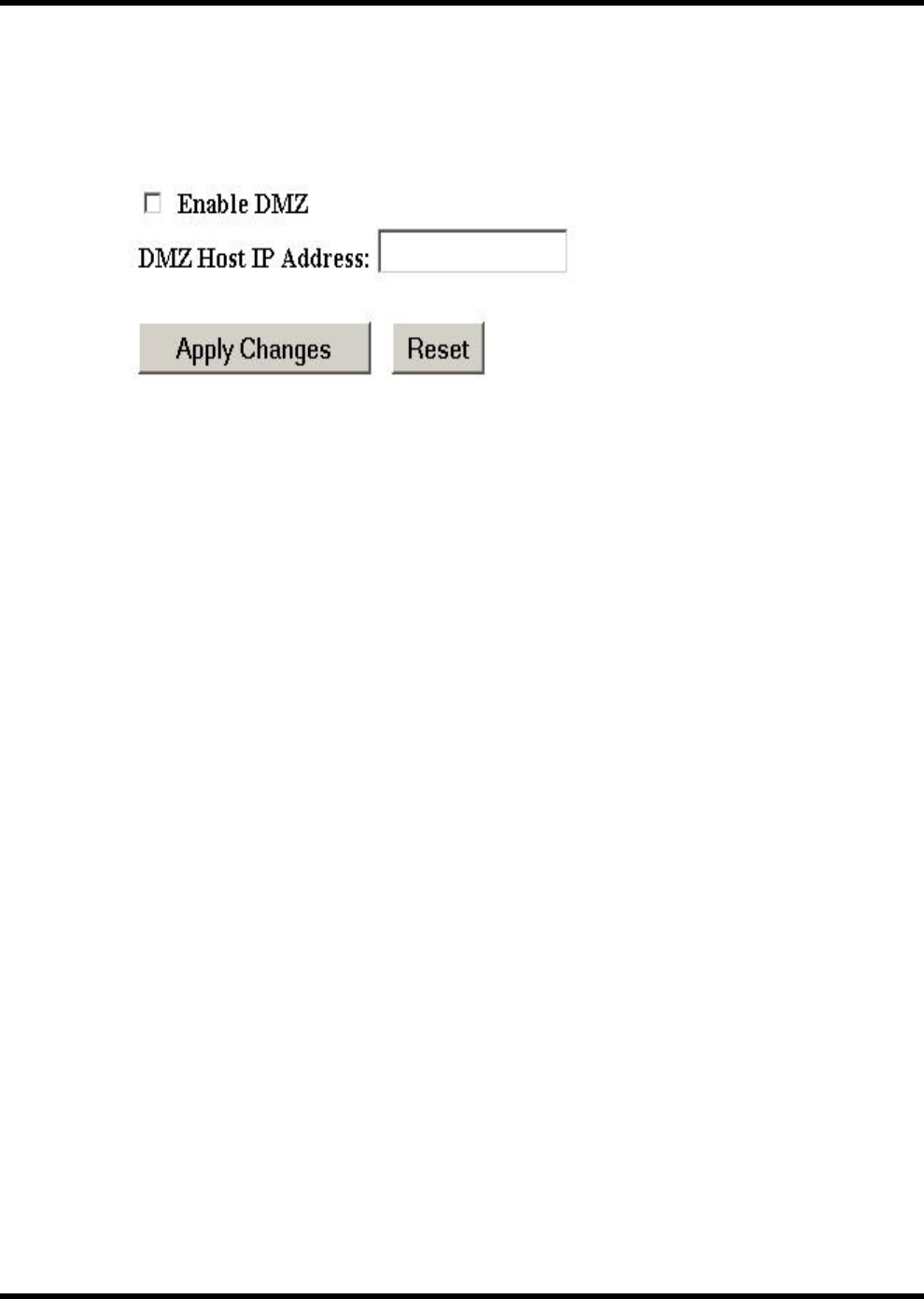

Firewall—DMZ Page
A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its
local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as
Web (HTTP ) servers, FTP servers, SMTP (e-mail) servers and DNS servers.
DMZ Host IP Address
Type a host IP address for the DMZ. The computer with this IP address acts as a DMZ host with
unlimited Internet access.
Wireless Router
TwinMOS Page 25

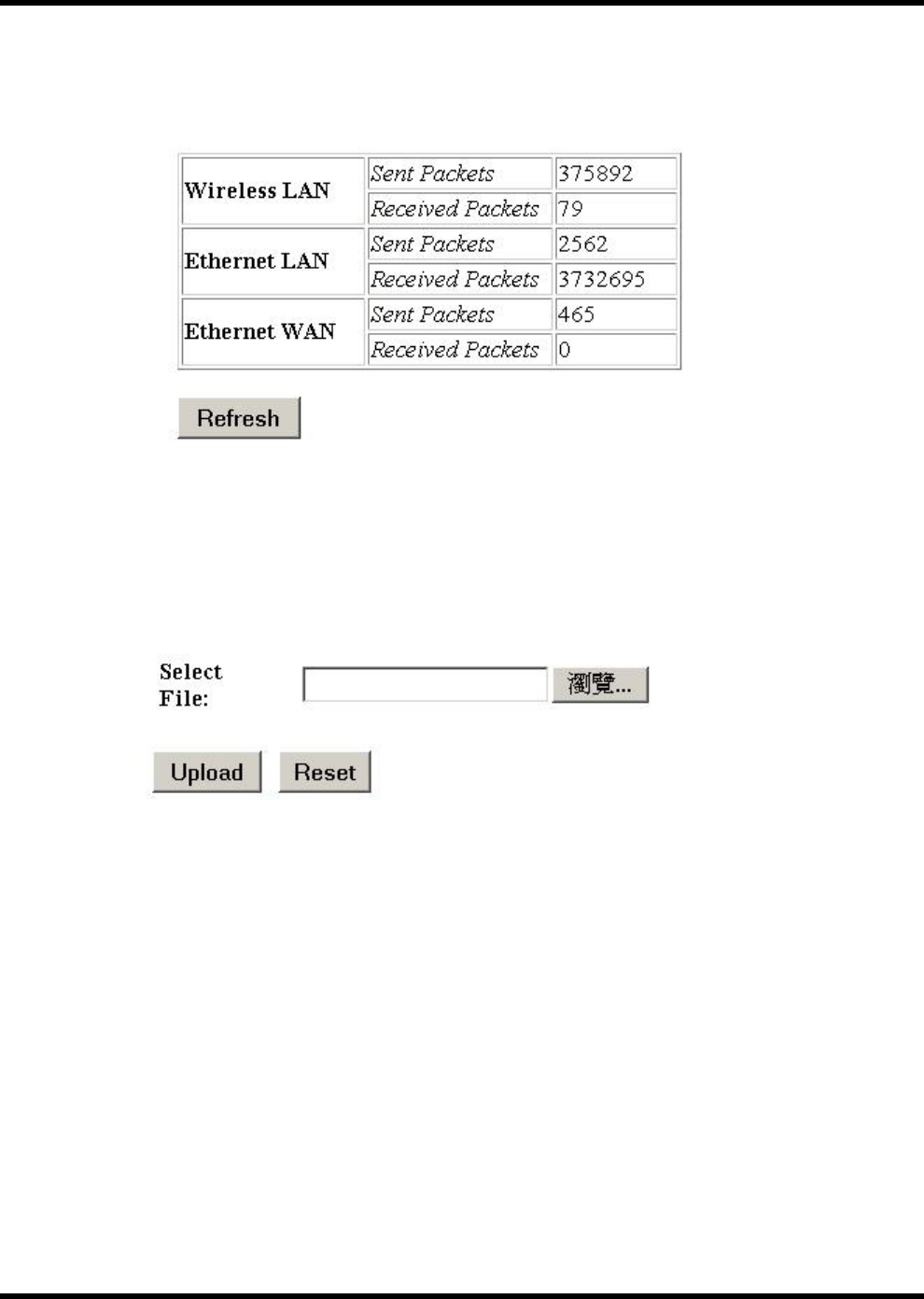

Statistics Page
This page shows the packet counters for transmission and reception regarding to wireless and Ethernet
networks.
Upgrade Firmware Page
This page allows you upgrade the Access Point firmware to new version. Please note, do not power off
the device during the upload because it may crash the system.
Follow these instructions:
1. Download the latest firmware from the manufacturer's Web site, and save it to your disk.
2. Click Browse and go to the location of the downloaded firmware file.
3. Select the file and click Upload to update the firmware to the latest release.
Wireless Router
TwinMOS Page 26

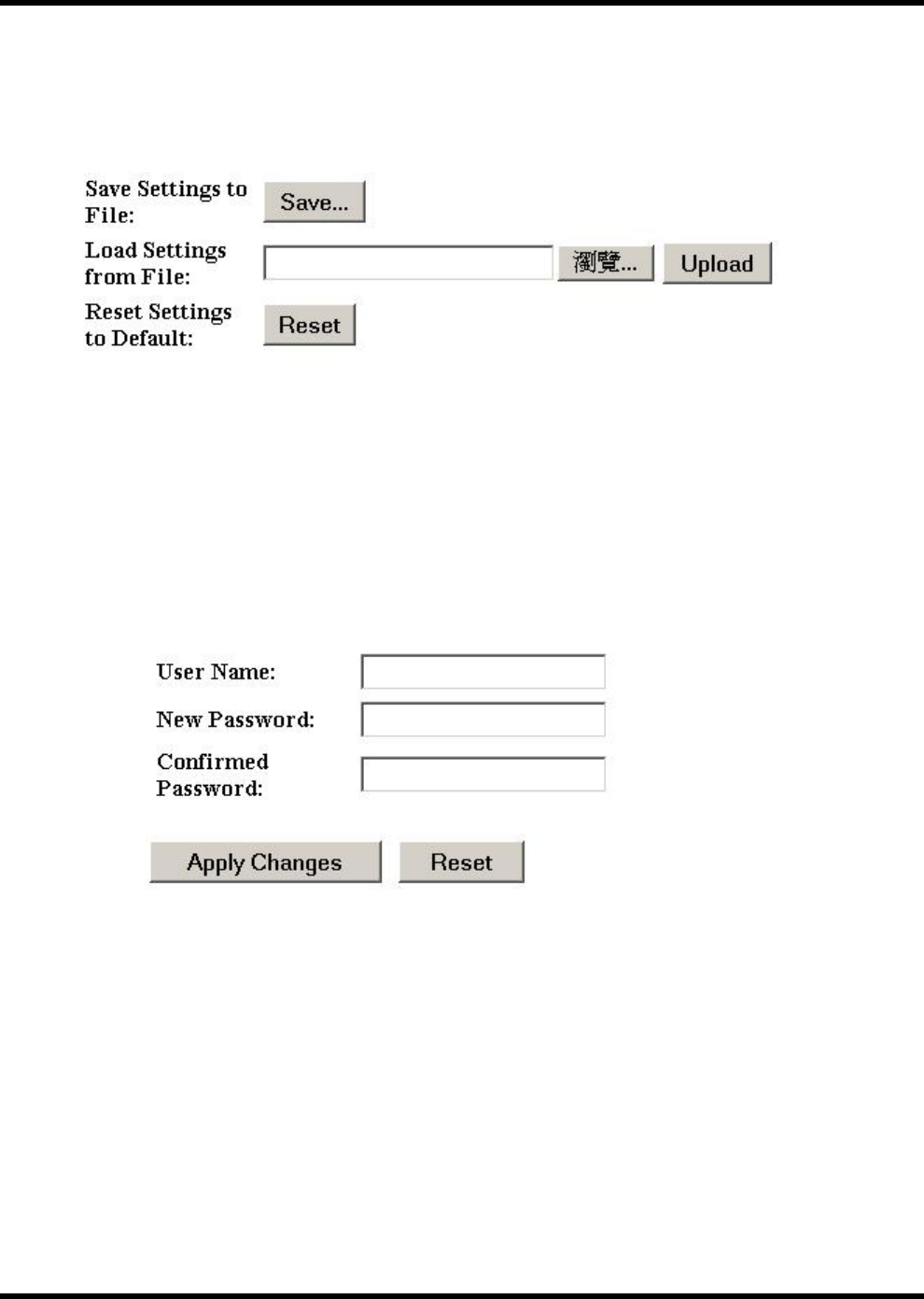

Save/Reload Setting Page
This page allows you save current settings to a file or reload the settings from the file which was saved
previously. Besides, you could reset the current configuration to factory default.
Password Page
This page is used to set the account to access the web server of Access Point. Empty user name and
password will disable the protection.
User name –Type your name to the text
New Password - Type new password.
Confirmed Password - Reenter the new password for confirmation.
Wireless Router
TwinMOS Page 27
TROUBLESHOOTING
Symptom : Power LED off
Resolution:
Connect the power adapter to your AP Router and plug it into the power outlet.
Note: Only use the power adapter provided with your AP Router. Using any other adapter may
damage your AP Router.
Symptom : Can not setting AP through web browser
Resolution:
The Ethernet cable(RJ45) must plug to LAN port of AP Router.
Check that the IP address in the URL field is correct.
Check your host PC IP address. If the IP address of AP Router is 192.168.1.254 then your IP of host
PC must set 192.168.1.1~253.
Symptom : Forgot IP address
Resolution:
If you forgot the IP address of AP Router you can press reset button to restore the default factory settings
by pressing this button for five seconds. The default IP is 192.168.1.254.
Symptom : Can not setting AP Router from a wireless card
Resolution:
Make sure that the Mode, SSID, Channel and encryption settings are set the same on each wireless
adapter.
Make sure that your computer is within range and free from any strong electrical devices that may
cause interference.
Check your IP Address to make sure that it is compatible with the Wireless Router.
Symptom : Can not connect to ISP
Resolution:
Make sure that your DSL or Cable modem is running correctly and connected to the WAN port of the
Broadband Router.
Make sure that the right connection type is used in the web configuration.
Make sure that the username and password used in the connection type is correct.
Some ISP's do not care if you share your broadband connection among multiple users.
Other ISP's will explicitly restrict this type of activity in your service contract. It is important that you
Wireless Router
TwinMOS Page 28
verify that you are in accordance with your service agreement before sharing Internet access.
Wireless Router
TwinMOS Page 29
Glossary
10BaseT or 100BaseTx: 802.3 based Ethernet network that uses UTP (Unshielded twisted pair) cable
and a star topology. 10 is 10 Mbps and 100 is 100 Mbps.
802.1x: The standard for wireless LAN authentication used between an AP and a client. 802.1x with
EAP will initiate key handling.
Ad-Hoc Network: The wireless network based on a peer-to-peer communications session. Also referred
to as AdHoc.
Access Point : Access points are way stations in a wireless LAN that are connected to an Ethernet hub
or server. Users can roam within the range of access points and their wireless device connections are
passed from one access point to the next.
Authentication: Authentication refers to the verification of a transmitted message's integrity.
DMZ: DMZ (DeMilitarized Zone) is a part of an network that is located between a secure LAN and an
insecure WAN. DMZs provide a way for some clients to have unrestricted access to the Internet.
DHCP: DHCP (Dynamic Host Configuration Protocol) software automatically assigns IP addresses to
client stations logging onto a TCP/IP network, which eliminates the need to manu-ally assign permanent
IP addresses.
DSSS (Direct Sequence Spread Spectrum): Method of spreading a wireless signal into wide frequency
bandwidth.
DTE (Data Terminal Equipment): Device that controls data flowing to and from a computer.
Dynamic IP Address: An IP address that is automatically assigned to a client station in a TCP/IP
network, typically by a DHCP server.
DNS (Domain Name System): System used to map readable machine names into IP addresses
DTIM:DTIM (Delivery Traffic Indication Message) provides client stations with information on the
next opportunity to monitor for broadcast or multicast messages.
Filter: Filters are schemes which only allow specified data to be transmitted. For example, the router
can filter specific IP addresses so that users cannot connect to those addresses.
Firewall: Firewalls are methods used to keep networks secure from malicious intruders and
unauthorized access. Firewalls use filters to prevent unwanted packets from being transmitted. Firewalls
are typically used to provide secure access to the Internet while keeping an organization’s public Web
Wireless Router
TwinMOS Page 30
server separate from the internal LAN.
Firmware: Programming inserted into programmable read-only memory, thus becoming a permanent
part of a computing device.
Fragmentation: Refers to the breaking up of data packets during transmis-sion.
Gateway: Gateways are computers that convert protocols enabling different networks, applications, and
operating systems to exchange information.
Half-duplex: To transmit on the same channel in both directions, one direction at a time.
Host Name: The name given to a computer or client station that acts as a source for information on the
network.
ISP: An ISP is an organization providing Internet access service via modems, ISDN (Integrated Services
Digital Network), and private lines.
LAN(Local Area Network): A group of computers and peripheral devices connected to share
resources.
MAC(Medium Access Control) Address: A unique number that distinguishes network cards.
MTU: MTU (Maximum Transmission/Transfer Unit) is the largest packet size that can be sent over a
network. Messages lar-ger than the MTU are divided into smaller packets.
NAT: NAT (Network Address Translation - also known as IP mas-querading) enables an organization
to present itself to the Internet with one address. NAT converts the address of each LAN node into one
IP address for the Internet (and vice versa). NAT also provides a certain amount of security by acting as
a firewall by keeping individual IP addresses hidden from the WAN.
PPPoE: PPPoE (Point-to-Point Protocol Over Ethernet) is used for running PPP protocol (normally
used for dial-up Internet connections) over an Ethernet.
PoE (Power over Ethernet): A mechanism to send DC power to a device using a CAT5 Ethernet cable.
Preamble: Preamble refers to the length of a CRC (Cyclic Redundancy Check) block that monitors
communications between roam-ing wireless enabled devices and access points.
Wireless Router
TwinMOS Page 31
Protocol: A standard way of exchanging information between computers.
RADIUS (Remote Authentication Dial In User Service): A server that issues authentication key to
clients.
RAM (Random Access Memory): Non-permanent memory.
RIP: RIP (Routing Information Protocol) is a routing protocol that is integrated in the TCP/IP protocol.
RIP finds a route that is based on the smallest number of hops between the source of a packet and its
destination.
Router: Device that can connect individual LANs and remote sites to a server.
Roaming: The ability to use a wireless device while moving from one access point to another without
losing the connection.
RTS: RTS (Request To Send) is a signal sent from the transmitting station to the receiving station
requesting permission to trans-mit data.
Server: Servers are typically powerful and fast machines that store programs and data. The programs
and data are shared by client machines (workstations) on the network.
SMTP: SMTP (Simple Mail Transfer Protocol) is the standard Inter-net e-mail protocol. SMTP is a
TCP/IP protocol defining message format and includes a message transfer agent that stores and forwards
mail.
SNMP: SNMP (Simple Network Management Protocol) is a widely used network monitoring and
control protocol. SNMP hard-ware or software components transmit network device activity data to the
workstation used to oversee the network.
Static IP Address: A permanent IP address is assigned to a node in a TCP/IP network. Also known as
global IP.
STP (Shielded Twisted Pair): Twisted Pair cable wrapped in a metal sheath to provide extra protection
from external interfering signals.
Subnet Mask: Subnet Masks (SUBNETwork masks) are used by IP proto-col to direct messages into a
specified network segment (i.e., subnet). A subnet mask is stored in the client machine, server or router
and is compared with an incoming IP ad-dress to determine whether to accept or reject the packet.
SSID: SSID (Service Set Identifier) is a security measure used in WLANs. The SSID is a unique
identifier attached to packets sent over WLANs. This identifier emulates a password when a wireless
device attempts communication on the WLAN. Because an SSID distinguishes WLANS from each other,
access points and wireless devices trying to connect to a WLAN must use the same SSID.
TCP/IP: TCP/IP (Transmission Control Protocol/Internet Protocol) is the main Internet communications
protocol. The TCP part ensures that data is completely sent and received at the other end. Another part
of the TCP/IP protocol set is UDP, which is used to send data when accuracy and guaranteed packet
delivery are not as important (for example, in real-time video and audio transmission).
Wireless Router
TwinMOS Page 32
TFTP (Trivial File Transfer Protocol): Simple form of FTP (File Transfer Protocol), which Uses UDP
(User Datagram Protocol), rather than TCP/IP for data transport and provides no security features.
TKIP (Temporal Key Integrity Protocol): An encryption method replacing WEP.TKIP uses random
IV and frequent key exchanges.
UDP (User Datagram Protocol): A communication method (protocol) that offers a limited amount of
service when messages are exchanged between computers in a network. UDP is used as an alternative
to TCP/IP.
Uplink: Link to the next level up in a communication hierarchy.
UTP (Unshielded Twisted Pair) cable: Two or more unshielded wires twisted together to form a cable.
Virtual Servers: Virtual servers are client servers (such as Web servers) that share resources with other
virtual servers (i.e., it is not a dedicated server).
WEP (Wired Equivalent Privacy): An encryption method based on 64 or 128bit algorithm.
Web Browser: A software program that allows viewing of web pages.
WAN: WAN (Wide Area Network) is a communications network that covers a wide geographic area
such as a country (con-trasted with a LAN, which covers a small area such as a company building).
WLAN: WLANs (Wireless LANs) are local area networks that use wireless communications for
transmitting data. Transmis-sions are usually in the 2.4 GHz band. WLAN devices do not need to be
lined up for communications like infrared devices. WLAN devices use access points which are
con-nected to the wired LAN and provide connectivity to the LAN. The radio frequency of WLAN
devices is strong enough to be transmitted through non-metal walls and ob-jects, and can cover an area
up to a thousand feet. Laptops and notebooks use wireless LAN PCMCIA cards while PCs use plug-in
cards to access the WLAN.
VPN (Virtual Private Network): A security method to connect remote LAN users to a corporate LAN
system.
Wireless Router
TwinMOS Page 33
TECHNICAL SPECIFICATIONS
Networking Characteristics
Compatibility
IEEE 802.11 Standard for WLAN (DSSS)
IEEE 802.3 10Base-T Ethernet
Internal Wi-Fi certified by TwinMOS
Ports RJ-45, 10Base-T Ethernet Port
WAN X-II 10/100
Operating Modes
Access Point
Wireless Bridge
Point to Point
Point to Multipoint
Client AP
Network Protocol TCP/IP, IPX/SPX, NetBEUI, ARP,SNMP
DHCP,NDIS3,NDIS4
RF Characteristics
Power Input DC 7.5 – 12V, 1A
Use External Power Supply
Frequency Range 2.400-2.4835 GHz, Direct Sequence Spread Spectrum (DSSS)
Operating Channels
1-11 United States (FCC)
1-11 Canada (DOC)
1-14 Japan (MKK)
1-13 Europe (Except Spain and France) (ETSI)
Modulation Technique
11 Mbps: CCK
5.5 Mbps: CCK
2 Mbps: DQPSK
1 Mbps: DBPSK
Spreading 11-chip Barker Sequence
Transmit Power 15 dBm @ Nominal Temp Range
Receive Sensitivity Nominal Temp Range11 Mbps 10-5 BER @ -83 dBm, minimum
Security 64/128-bit WEP Encryption
Antenna Two Antenna with Diversity and AGC
At least 2 dBi Gain
Operating Range Open Space100 ~ 300m; Indoor: 30m ~ 100m
The transmission speed varies in the surrounding environment.
EMC Certification FCC Class B part 15B, 15C; R&TTE
Wireless Router
TwinMOS Page 34
FCC CAUTION
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation

Navigation menu
