TwinMOS Technologies WBDRP1 Cardbus Wireless LAN Card User Manual
TwinMOS Technologies Inc. Cardbus Wireless LAN Card
User Manual
TwinMOS OCTOPUS Card Bus
802.11b Card Bus
Wireless LAN Adapter
User’s Manual
TwinMOS®
Octopus CardBus
TwinMOS Page 1
Contents
PACKAGE CONTENTS……........................................................2
INTRODUCTION..........................................................................3
WIRELESS NETWORK OVERVIEW............................................4
OCTOPUS CARD BUS WIRELESS NETWORK SCENARIOS………..6
INSTALLATION FOR WINDOWS.............................................…..9
CONFIGURATION UTILITY....................................................…..17
TROUBLESHOOTING....................................................…..24
TECHNICAL SPECIFICATIONS.......................................…..25

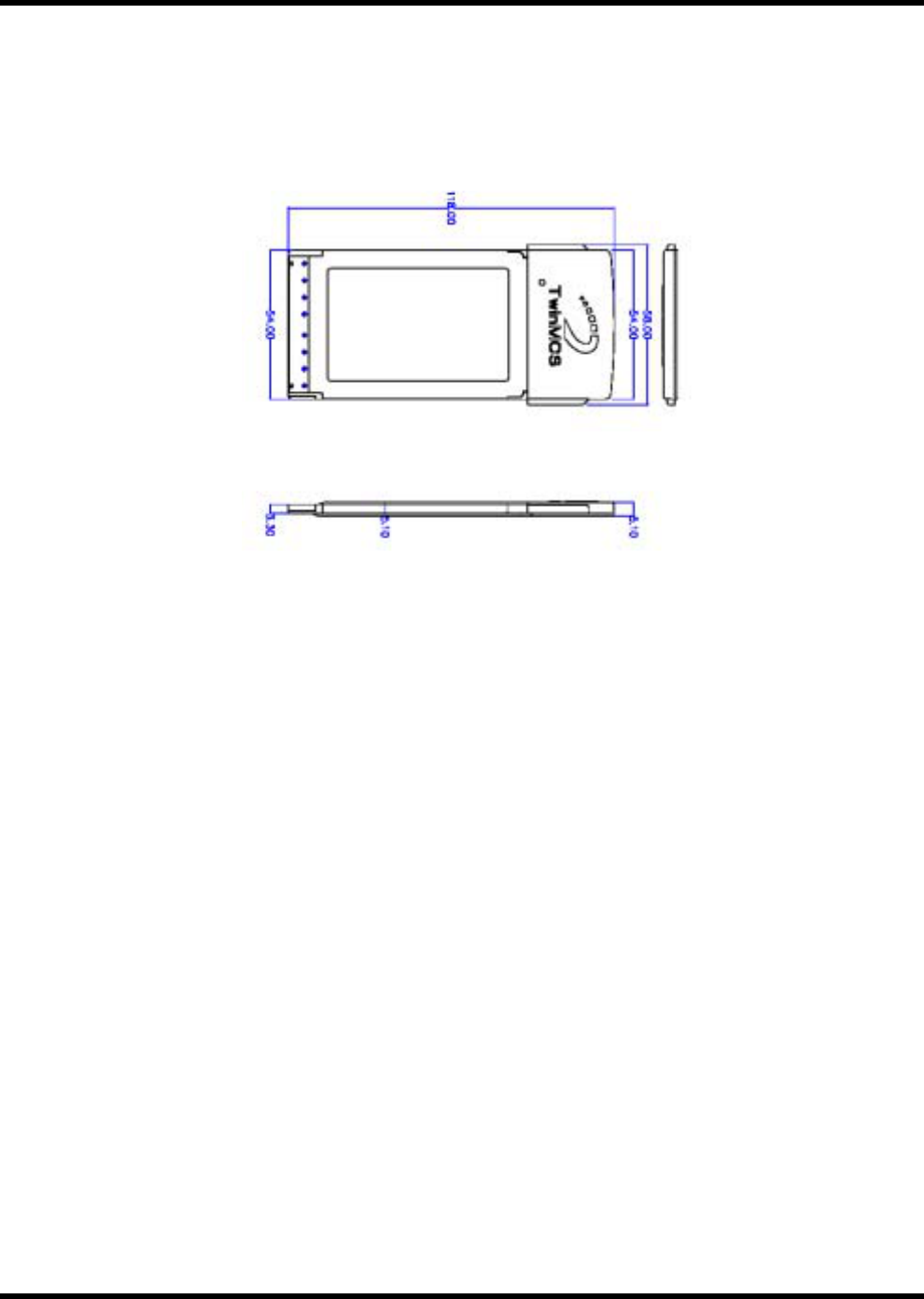

PHYSICAL
SIZE ..............…………………………………………………..........…..26
FCC CAUTION ................…………………………………………………..........…..27
Octopus CardBus
TwinMOS Page 2
PACKAGE CONTENTS
Unpack your Octopus Card Bus kit and verify that all items are present.

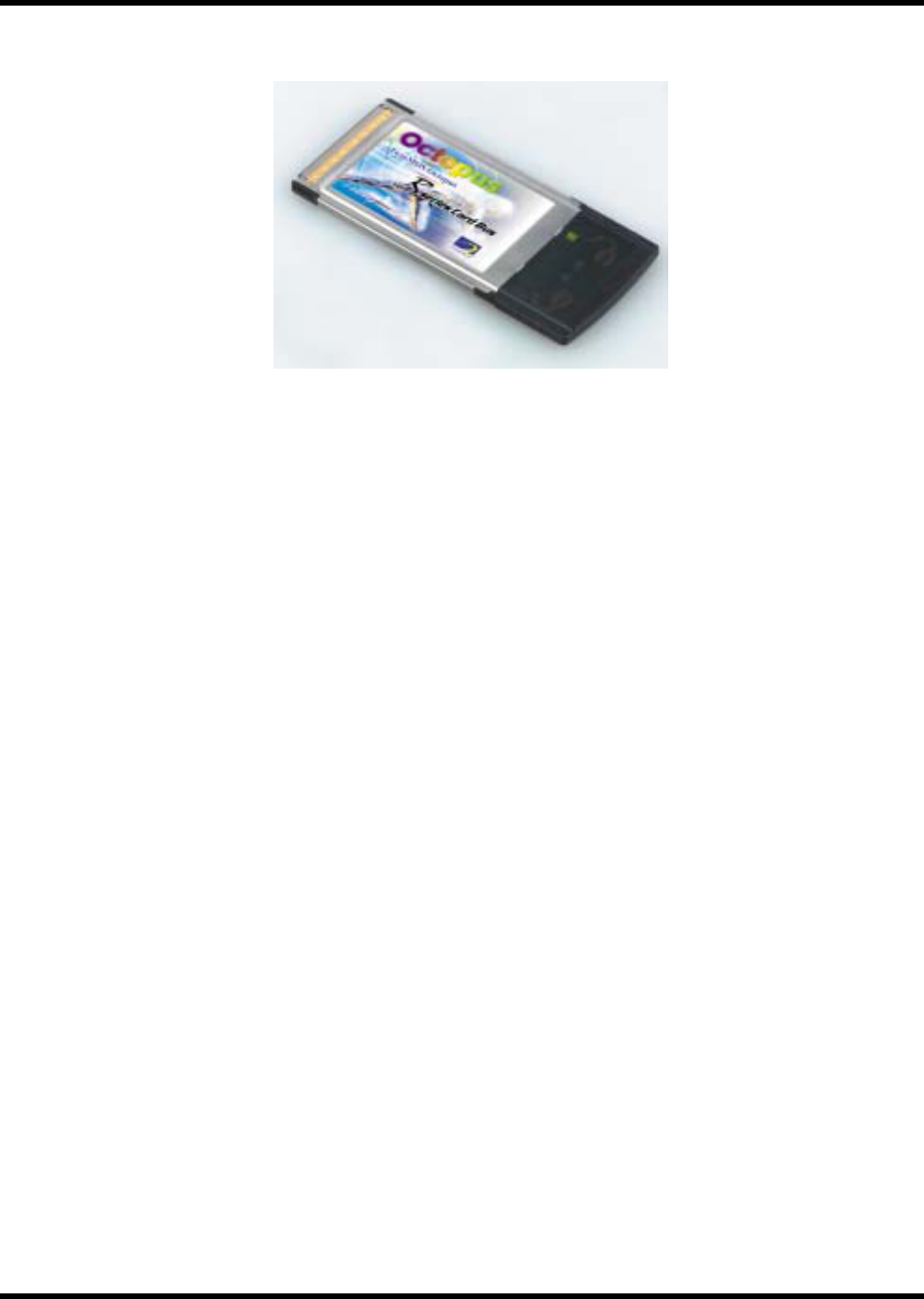

z Octopus Card Bus Wireless LAN Adapter
z User’s Manual (on CD)
z Driver (on CD)
If any of the items described appear to be damaged or missing, please contact your reseller.
Octopus CardBus
TwinMOS Page 3
INTRODUCTION
The Octopus Card Bus adapter is a wireless network client that complies with the IEEE 802.11b
standard on wireless LANs. The IEEE 802.11b standards compliance means this adapter gives you the
flexibility to connect it to any 802.11b network. The IEEE 802.11b Ethernet standard allows you to
connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless
adapters, the configuration of your working environment, or the capabilities or limitations of your
computer systems.
This Octopus Card Bus Adapter supports following WLAN features：
z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5 and 11 Mbps.
z Center frequency channel selection (2.4 GHz)
z Roaming over multiple channels.
z Supports 32-bit Card Bus interface
z Supports power save mode
z Support TKIP and AES advanced WLAN security
z 128-bit Wired Equivalent Privacy (WEP) data encryption.
z Plug and Play installation
This Octopus Card Bus comes with software drivers for the most popular Microsoft Windows operating
systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows
ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick
introduction to wireless technology and its application as it relates to networking. Take a moment to read
through this manual and familiarize you with wireless technology. You should also give yourself some
time to become familiar with your new wireless network.
Octopus CardBus
TwinMOS Page 4
WIRELESS NETWORK OVERVIEW
A wireless local area network (LAN) is a flexible data communications system implemented as an
extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless
LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless
LANs combine data connectivity with user mobility.
A local area network that transmit and receive over the air typically in an unlicensed frequency such as
the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like
IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a
radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other
nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular
phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self
contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.).
Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired
networks：
Mobility - WLAN provide LAN users to access data in any location within the operating range of the
WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker
efficiency.
Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can
eliminate the need to pull cable through walls and ceilings.
Installation Flexibility - Wireless technology allows the network to go where wire cannot go.
Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can
be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be
significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent
moves and changes.
Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of
specific applications and installations. Configurations are easily changed and range from peer-to-peer
networks suitable for a small number of users to full infrastructure networks of thousands of users that
enable roaming over a broad area.
Installation Considerations
Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, Octopus
Card Bus lets you access your network from virtually anywhere you want. Keep in mind, however, that
the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may
limit range. Typical ranges vary depending on the types of materials and background RF noise in your
Octopus CardBus
TwinMOS Page 5
home or business. The key to maximizing range is to follow these basic principles:
Octopus CardBus
TwinMOS Page 6
Keep the number of walls and ceilings between the access point and your receiving device to a minimum
- Each wall or ceiling can reduce your TwinMOS Octopus Wireless product’s range from 3-90 feet (1-30
meters.) For some businesses or for a large residential home deployment, it may be more beneficial to
have more than one access point with overlapping coverage.
1. Be aware of the direct line between Access Points, Residential Gateways, and Computers - A wall
that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle it looks over 42 feet (14 meters) thick! Try to make sure that the Access Points
and Adapters are positioned so that the signal will travel straight through a wall or ceiling for better
reception.
2. Building Materials make a difference - A solid metal door or aluminum studs may have a negative
effect on range. Try to position Access Points, Residential Gateways, and Computers so that the
signal passes through drywall or open doorways and not other materials.
3. Make sure that the antenna is positioned for best reception by using the software signal strength
tools included with your product.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices that generate RF
noise, like microwaves, monitors, electric motors, etc.
For the average residence, range should not be a problem. If you experience low or no signal strength in
areas of your home that you wish to access, consider positioning the Access Point in a location directly
between the Residential Gateways and/or Computers that will be connected. Additional Access Points
can be connected to provide better coverage in rooms where the signal does not appear as strong as
desired.
Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the
need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through
simplified configuration, enable movable LANs.
Octopus CardBus
TwinMOS Page 7
Octopus Card Bus WIRELESS NETWORK SCENARIOS
The Octopus Card Bus enables you to:
z Connect your computer to a Ad-Hoc workgroup of wireless computing devices (see Figure 1-1 on
page 7).
z Connect your computer to a Small Office/Home Office (SOHO) network that includes a Residential
Gateway (RG) access point (see Figure 1-2 on page 8).
z Connect your computer to a Local Area Network (LAN) Infrastructure that includes Access Points, or
other IEEE 802.11 compliant LAN systems (see Figure 1-3 and Figure 1-4).
z Expand the capabilities of your Access Points, to support wireless devices that have been equipped
with Octopus Card Bus.
Ad-Hoc Workgroup
The Ad-Hoc workgroup configuration enables you to quickly set up a small wireless workgroup, where
the workgroup participants can exchange files using features like “Files and Printer Sharing” as
supported by Microsoft Networking.

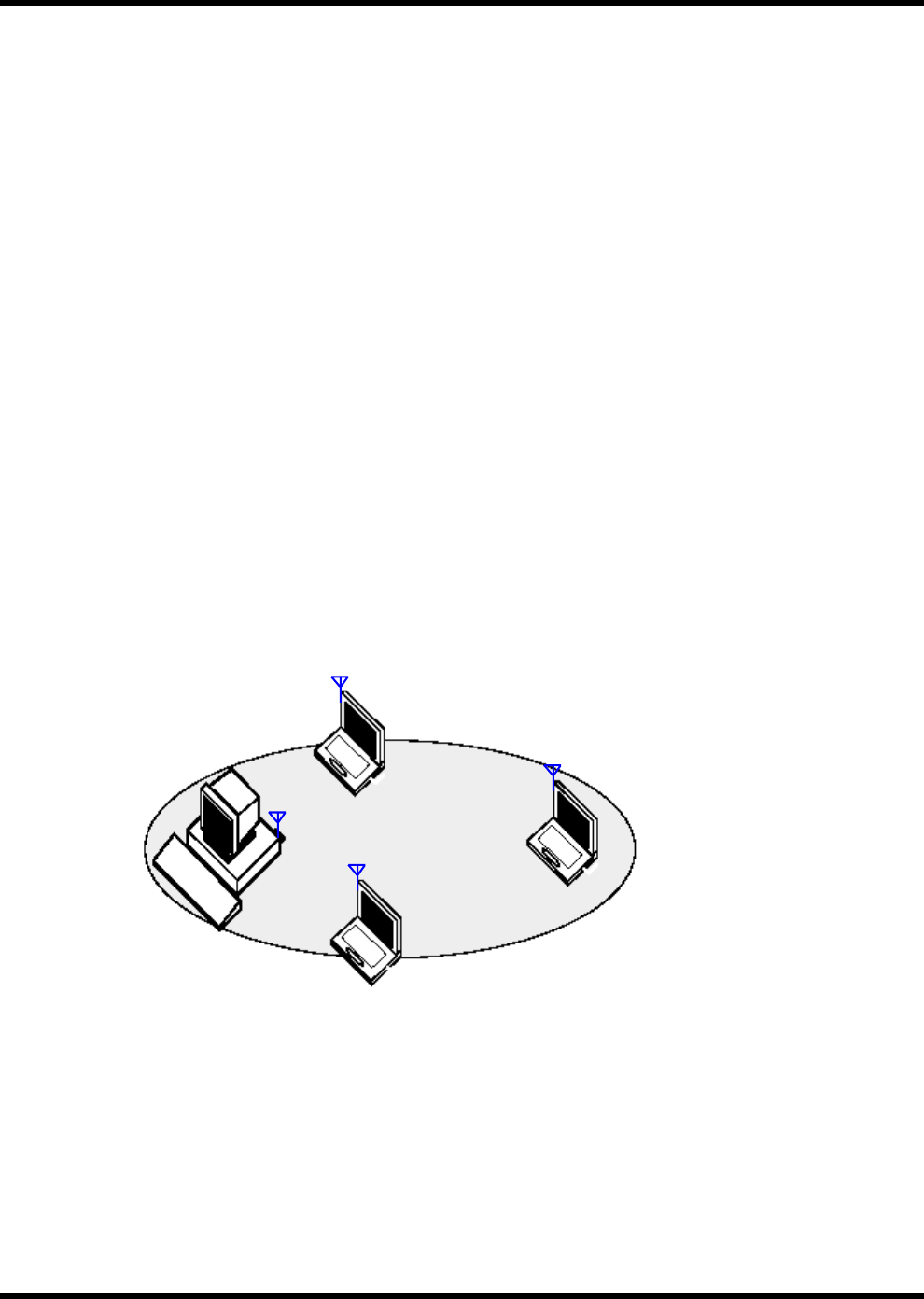

Figure 1-1 Ad-Hoc Wireless Workgroup
You can use this option to setup a temporary or ad-hoc network in environments where no access points
are available (for example in Small Office/Home Office (SOHO) environments). As long as the stations
Octopus CardBus
TwinMOS Page 8
are within range of one another, this is the easiest and least expensive way to set up a wireless network.
Octopus CardBus
TwinMOS Page 9
Home Networking
With the TwinMOS Octopus Card Bus, wireless access to the Internet or other computers is at your
fingertips. All you need to do is connect the wireless computers to an external cable, an xDSL or a ISDN
modem and you are ready to：
z Share files and printers, and
z Access the Internet
Figure 1-2 Connect to a Residential Gateway (RG)
Enterprise Networking
With the 11 Mbps Wireless LAN access point you can connect to a corporate Local Area Network (LAN)
infrastructure to have wireless access to all network facilities. LAN Infrastructures may either be:
z Stand-alone wireless LANs (Figure 1-3).
z Wireless network infrastructures connected to an existing Ethernet network (Figure 1-4).
xDSL
Octopus CardBus
TwinMOS Page 10

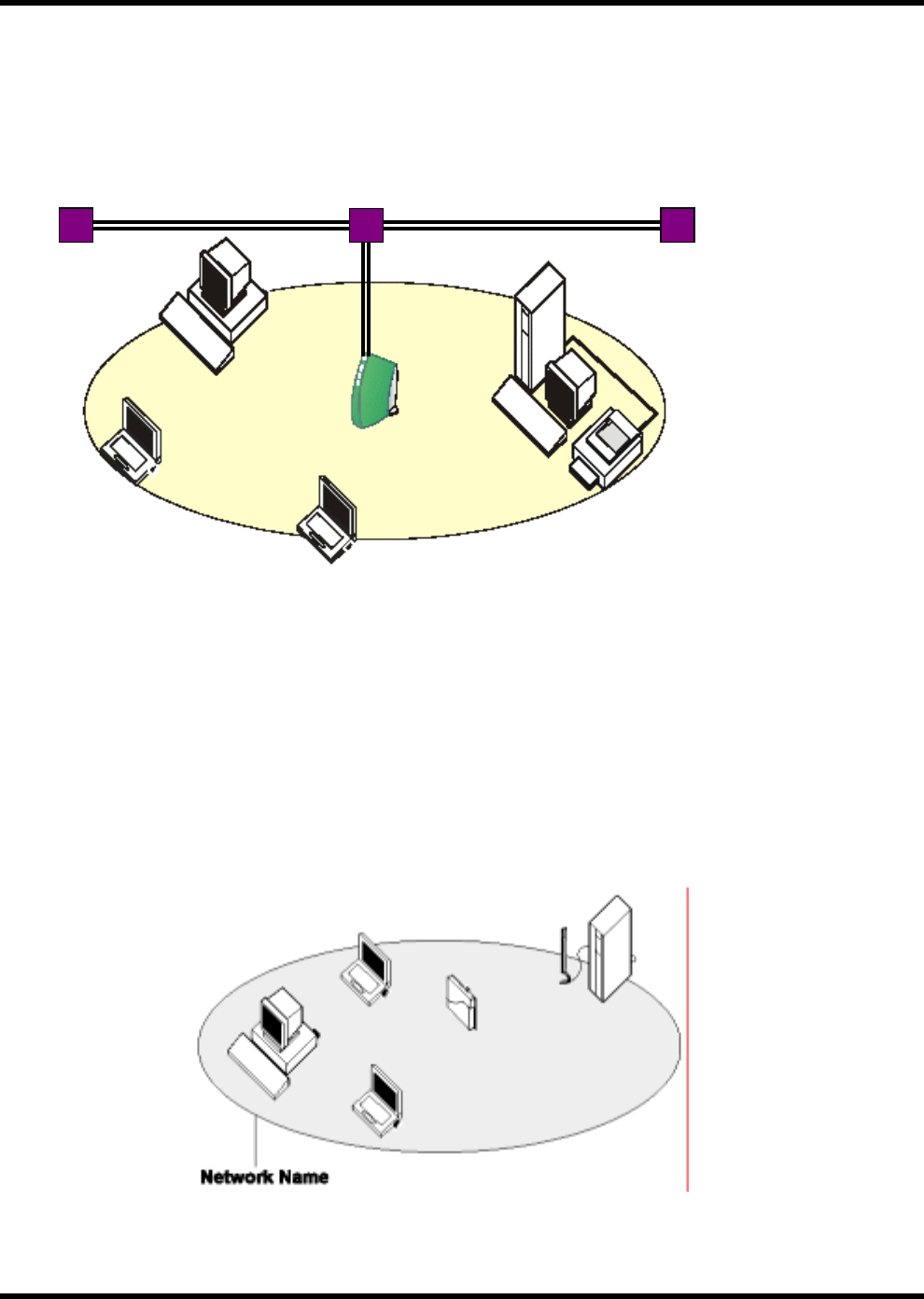

Figure 1-3 Stand Alone Wireless LAN

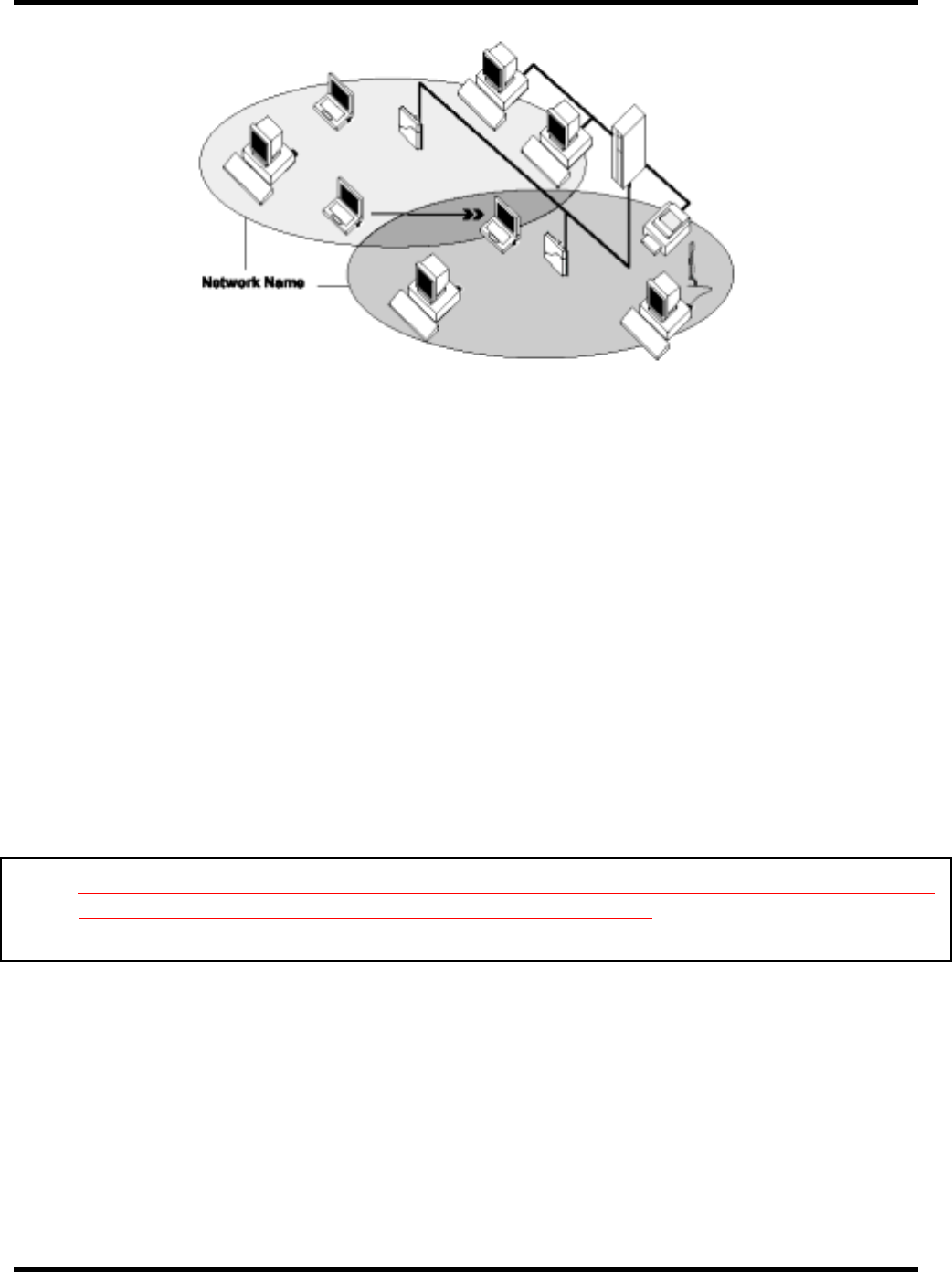

Figure 1-4 LAN Infrastructure
It’s Easy
The Octopus Card Bus functions like any standard wired Ethernet card, but Octopus Card Bus does not
need any wires!
Where an Ethernet card requires a cable connection to a hub and/or patch panel, the cable physically ties
you down to the location of the wired connection.
Octopus Card Bus allows you to connect your computer to a Local Area Network (LAN) system from
anywhere within the wireless coverage area. Expanding or re-designing your network is easy: Add or
relocate access point, power-up your (new) wireless computers, and you’re done!
Unlike Ethernet, TwinMOS Octopus Card Bus will enable you to roam throughout the network while
remaining connected to the LAN.
Note
：
The Octopus Card Bus wireless adapter is a radio product. Refer to the flyer ”Information to the
User” for regulatory information that may apply in your country.
Octopus CardBus
TwinMOS Page 11
INSTALLATION FOR WINDOWS
The following section will assist you to install Octopus Card Bus WLAN adapter successfully. You will
install driver firstly and then plug in the Octopus Card Bus WLAN adapter, and finally set the network
properties to accommodate resource sharing and select the type of wireless network that you want to
install.
In order to establish your wireless network connection, make sure some steps below will be performed.
■ Install the Access Point (AP) at first if you use Access Point network mode.
■ Install the driver using the Installation CD.
■ Plug in the Octopus Card Bus wireless LAN adapter.
■ Install the network protocol(s) required to communicate on your network. Most likely you will
need the TCP/IP protocol.
The Octopus Wireless LAN Configuration Utility is installed simultaneously with the driver by
executing the Setup.exe file. Note also that some versions of Microsoft Windows operating systems
require administrator to install software. If this is the case for your operating system, be sure that you
have such privileges before executing the Setup.exe file. To upgrade an existing driver, it is not
necessary to remove your Octopus driver from your computer. Simply run the Setup.exe file to replace
the existing driver with the latest version. After the new driver is installed, maybe you must restart the
operating system (depend on the Windows’ OS).
Please follow the following steps one by one in order to install the Octopus Card Bus adapter
successfully.
Octopus CardBus
TwinMOS Page 12
For Windows 98SE/ME2000
Before you proceed with the installation, please notice following descriptions.
Note1: The following installation was operated under Windows 2000. (Procedures will be the same
for Windows 98SE/Me.)
Note2: If you have installed the Wireless PC Card driver & utility before, please uninstall the old
version first.
z Install the Driver
1. Insert the adapter into the Card Bus port of your computer, the system will automatically find the
device and search for its driver.
2. Please select the “Win2000” folder (select the folder based on your computer’s OS system) and the
system will complete the driver installation automatically.
z Install the Utility

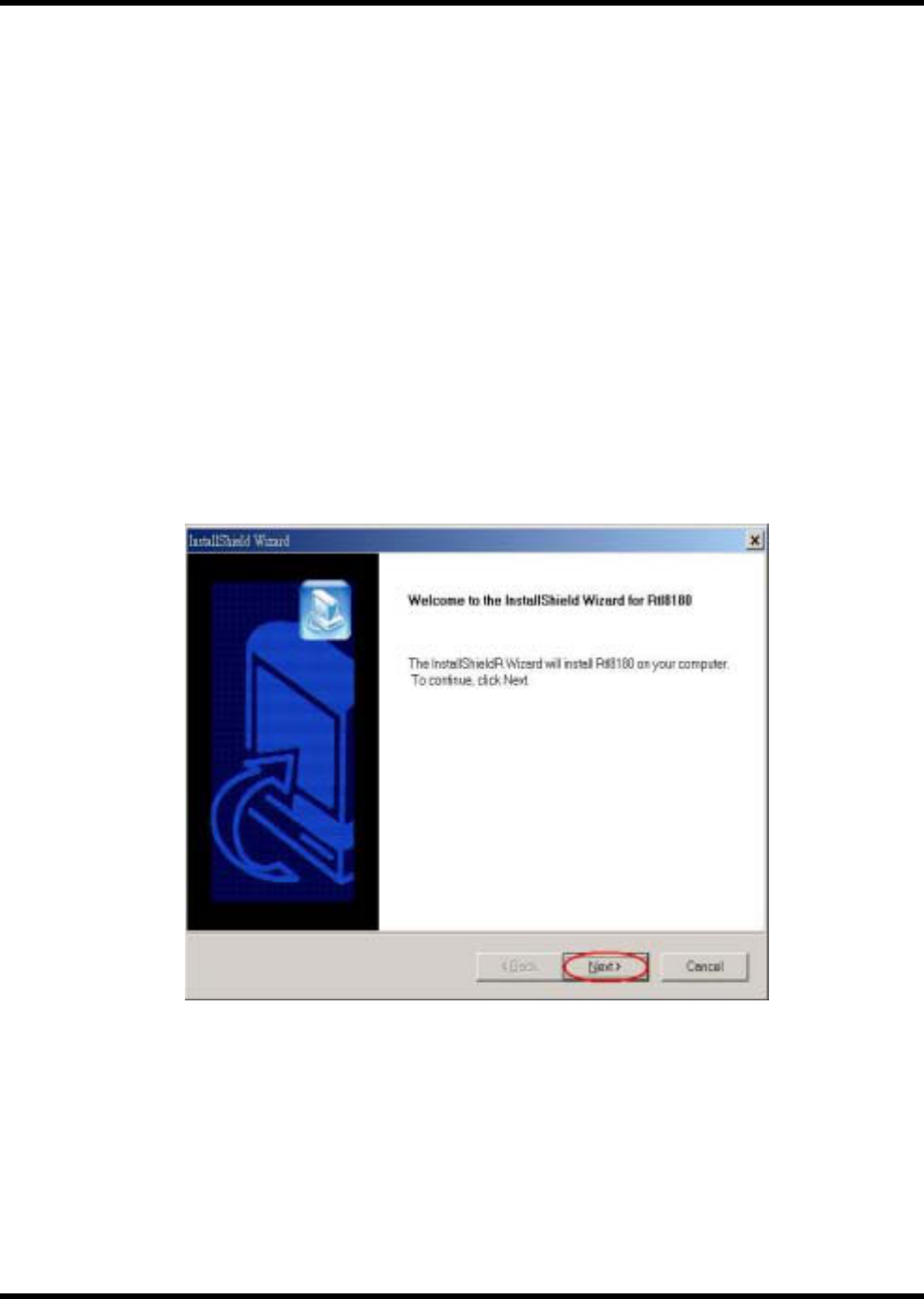

1. Insert the CD into the CD-ROM device and execute the "Setup.exe" program. The InstallShield
Wizard box will appear, click "Next" to continue.
Octopus CardBus
TwinMOS Page 13

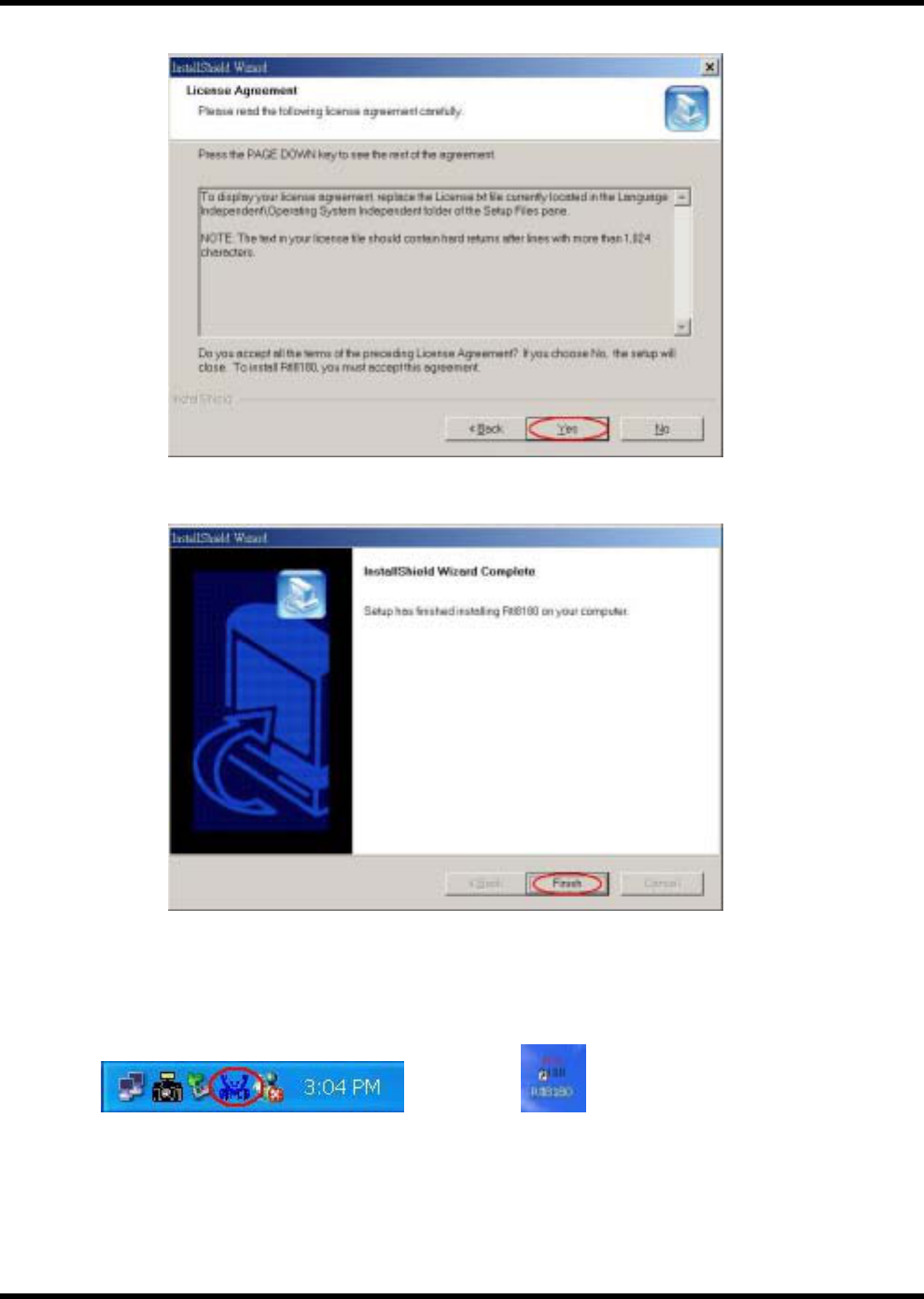

2. Accept the license agreement
3. Click "Finish" to complete the installation.

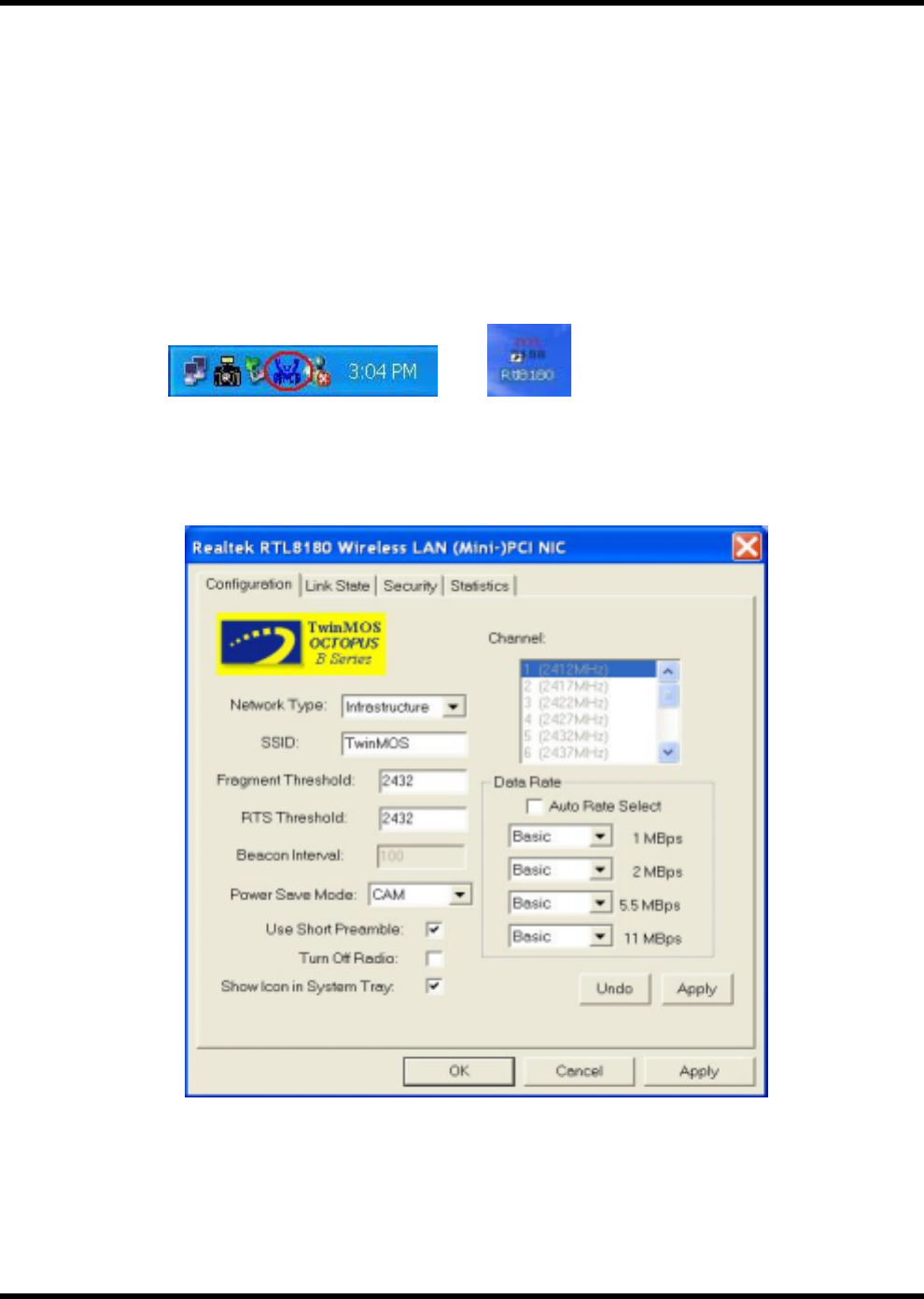

4. When you complete the Utility installation, a shortcut named “Rtl8180“ will appear in the computer’s
desktop and a new icon will be displayed in the taskbar at the bottom of the screen.
Octopus CardBus
TwinMOS Page 14
For Windows XP

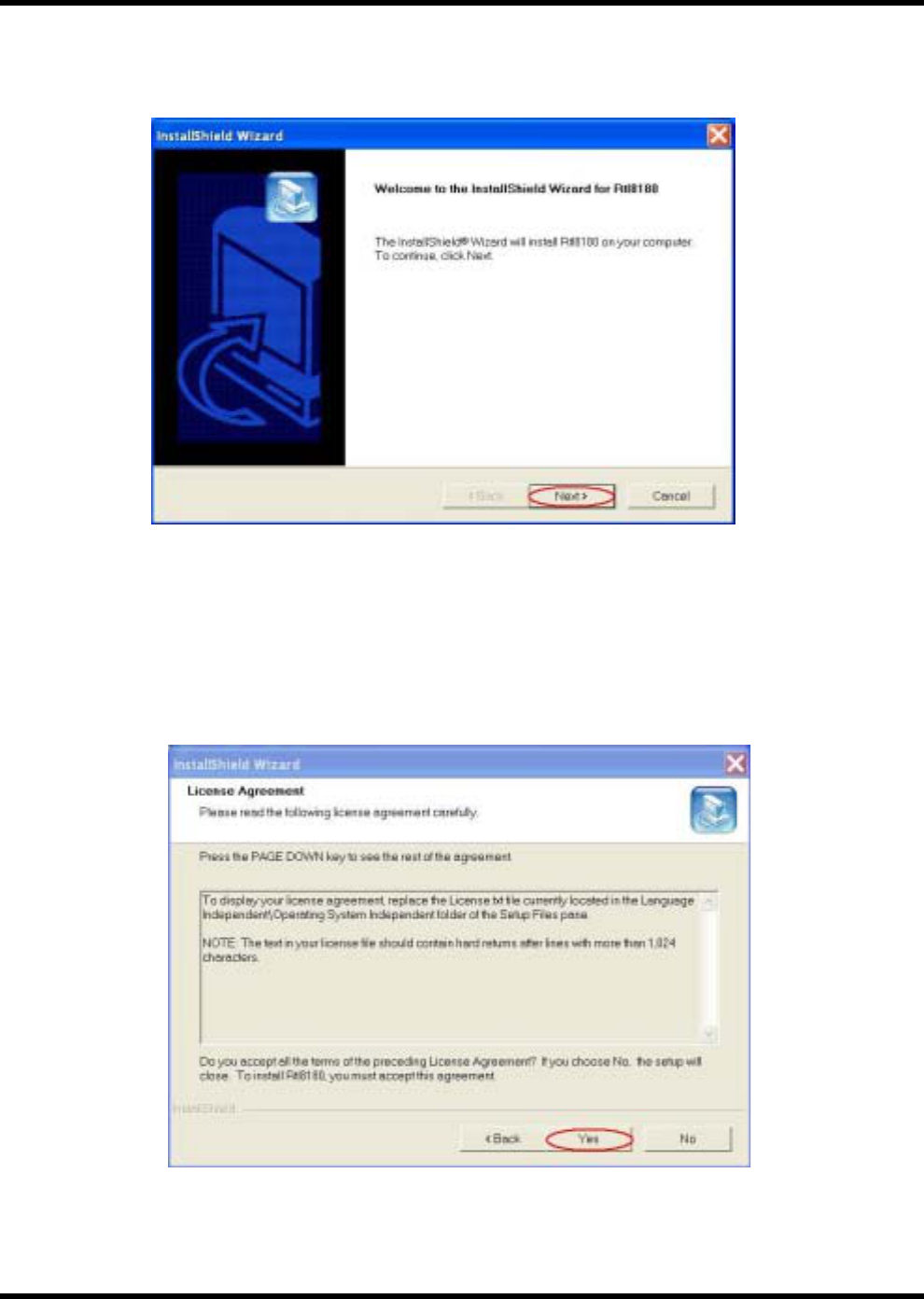

1. Insert the CD into the CD-ROM device and execute the "Setup.exe" program. The InstallShield
Wizard box will appear, click "Next" to continue.
2. Accept the license agreement.
Octopus CardBus
TwinMOS Page 15

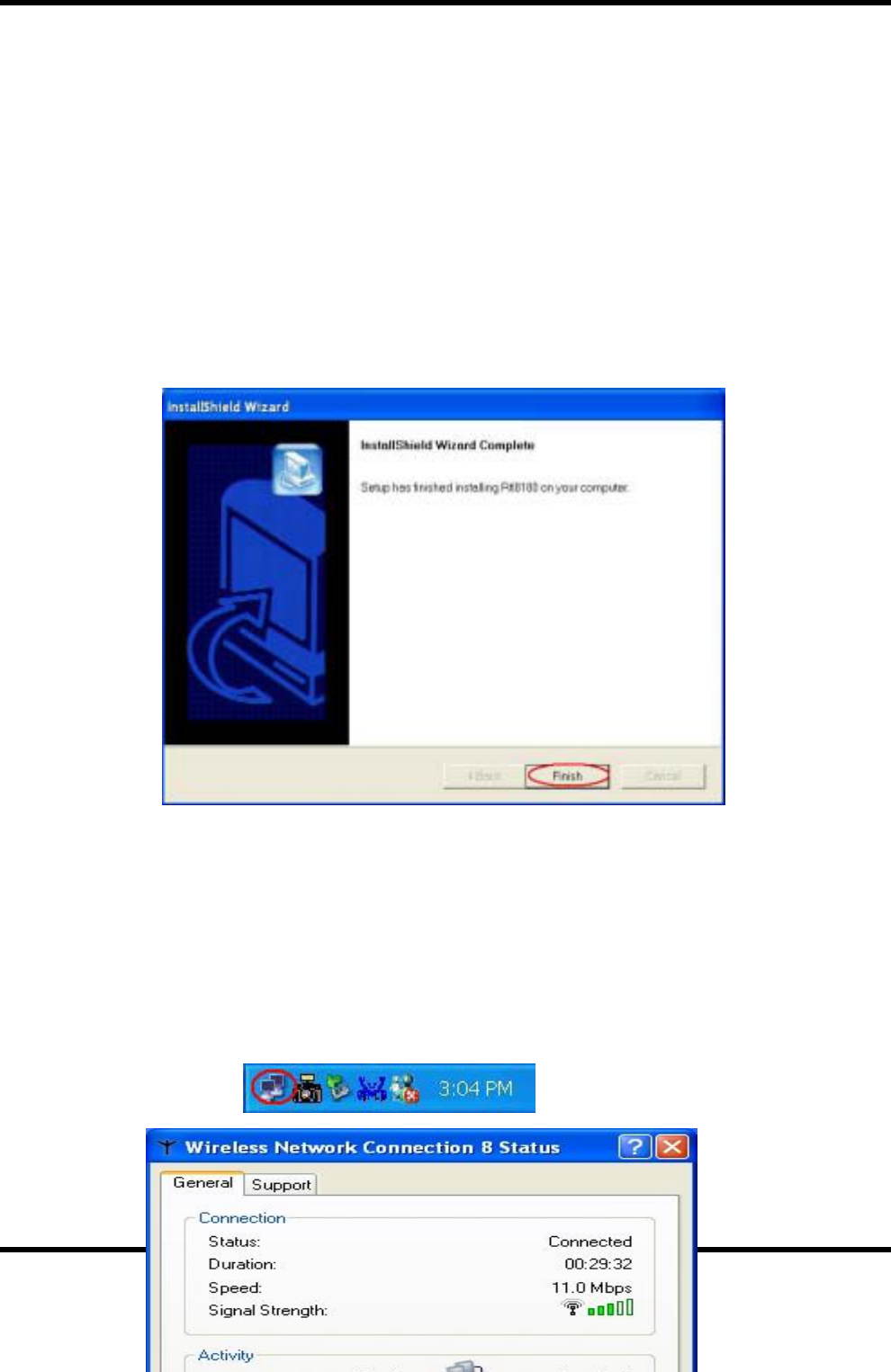

3. Click "Finish" to complete the installation.
4. When you complete the Utility installation, a shortcut named “Rtl8180“ will appear in the
computer’s desktop and a new icon will be displayed in the taskbar at the bottom of the screen.

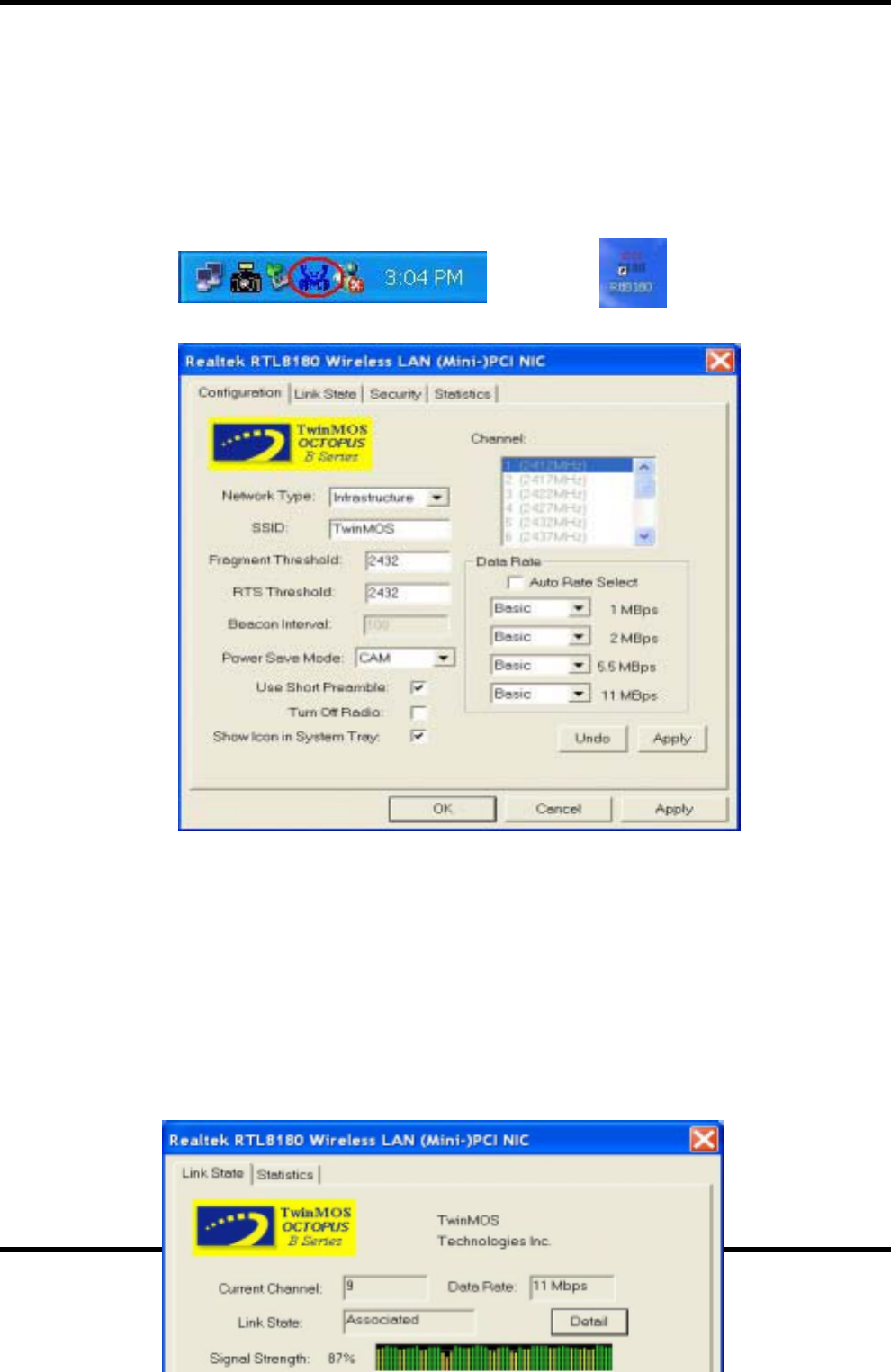

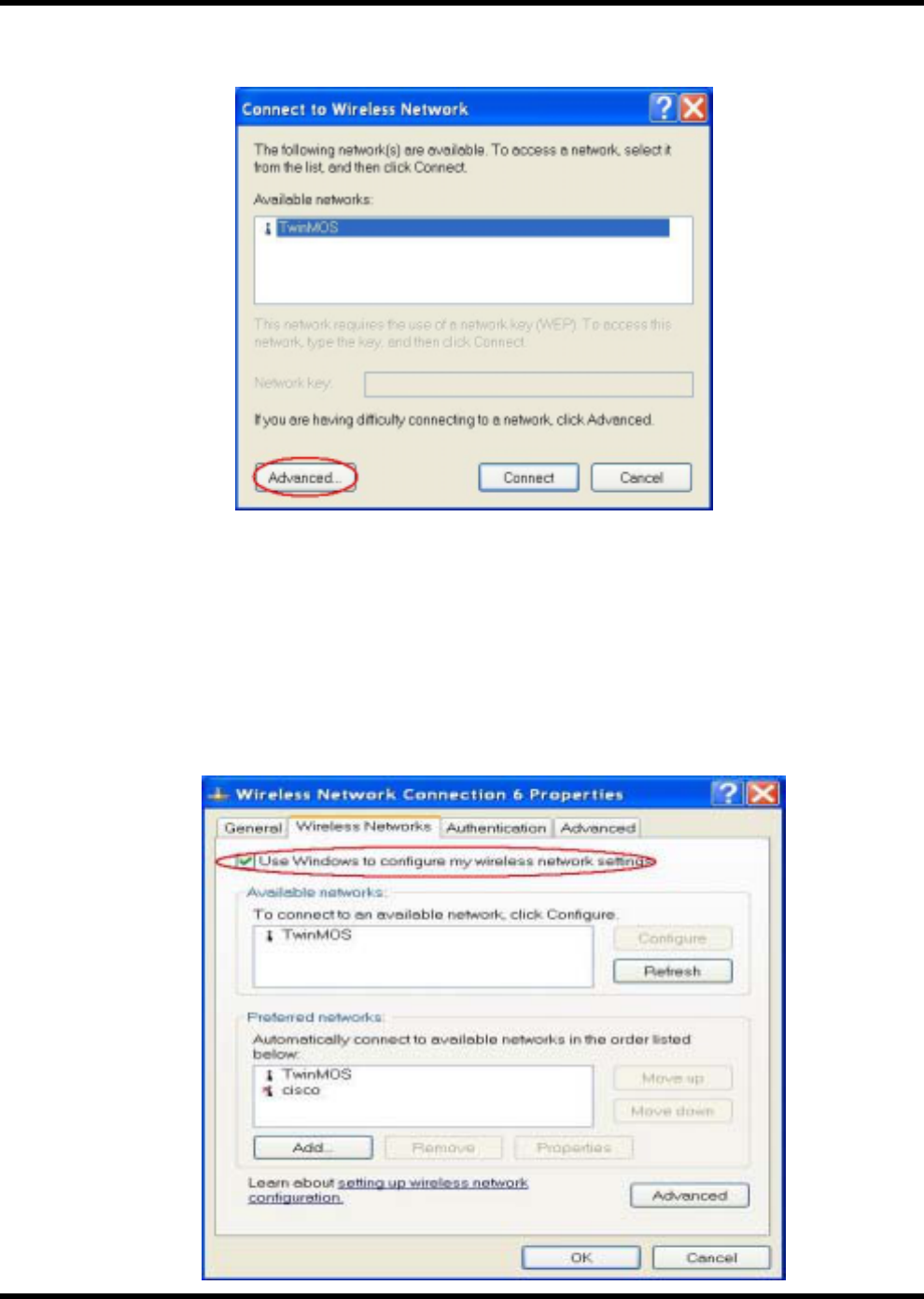

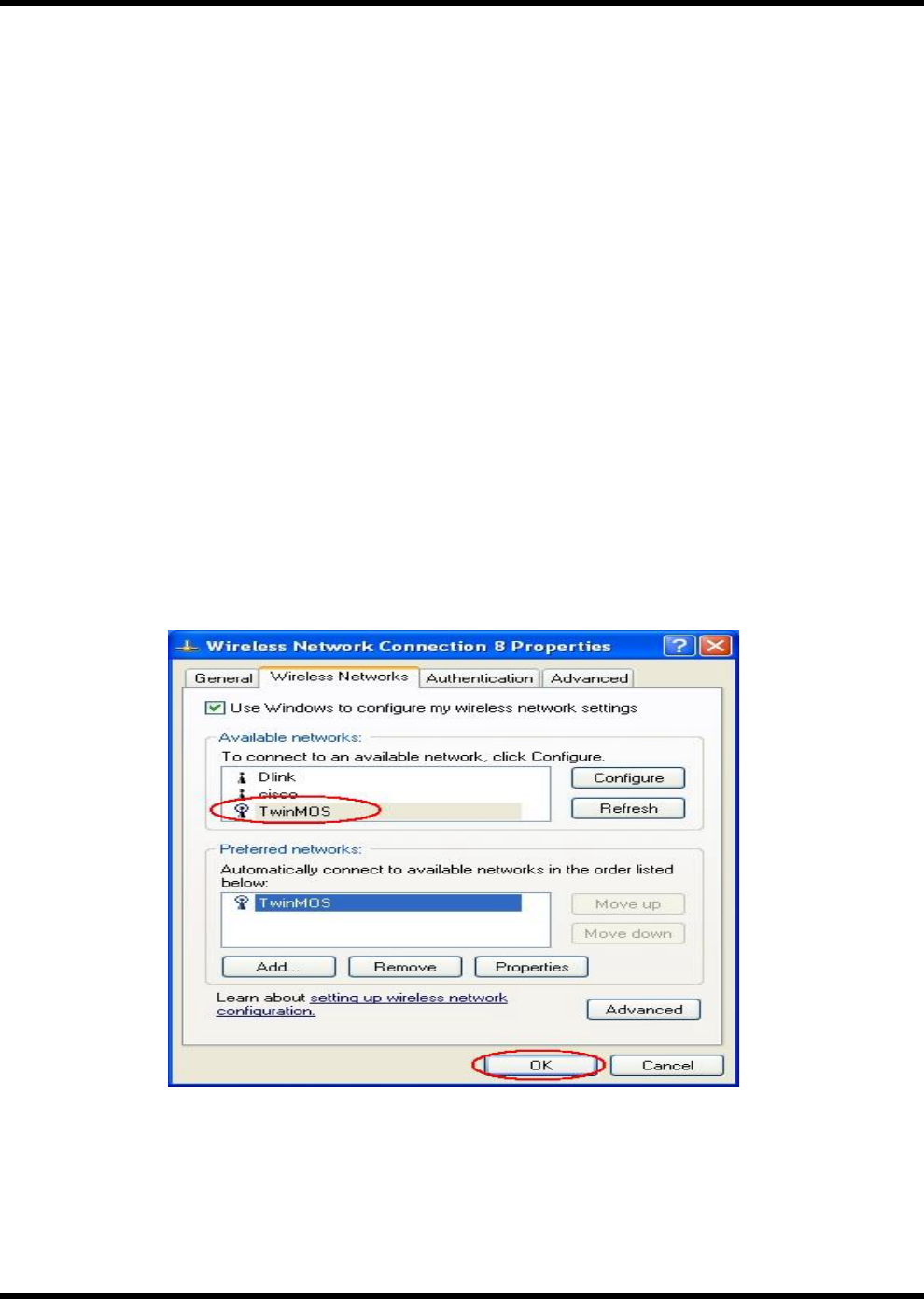

Using the Windows XP’s Utility
To connect to your wireless network, please do the following:
◎Double-lick the icon marked in red in the taskbar and you may start using the Windows XP’s wireless
utility
Octopus CardBus
TwinMOS Page 16
◎ The “Connect to Wireless Network” window will contain a list of all the available Wireless
Networks. Select the proper network for your needs. In this example, “TwinMOS” network was
selected as shown.
Octopus CardBus
TwinMOS Page 17
Using the Utility of Octopus Card Bus adapter
◎ Get into Windows XP’s Utility, click “Advanced“ button.
◎In “Wireless Network Connection Properties“ screen, uncheck the setting “Use Windows to configure
my wireless network settings“. Note that if you want to change back to the Windows XP built-in utility,
check the item again.
Octopus CardBus
TwinMOS Page 18
◎Double click the shortcut or click the icon and start using the WLAN Card Bus Adapter.
Note: If you don’t disable the XP’s Utility, you can still see the link status and statistics during
communication process from the adapter’s utility.
Octopus CardBus
TwinMOS Page 19
Octopus CardBus
TwinMOS Page 20
CONFIGURATION UTILITY
TwinMOS Octopus Card Bus uses the Configuration Utility as the management software. The utility
provides the user an easy interface to change any settings related to the wireless adapter. When the
computer is started, the Configuration Utility starts automatically and the system tray icon is loaded in
the toolbar (see illustration below.) Clicking on the utility icon will start the Configuration Utility.
Double-click on the icon shown above. The screen below will be displayed.
Octopus CardBus
TwinMOS Page 21

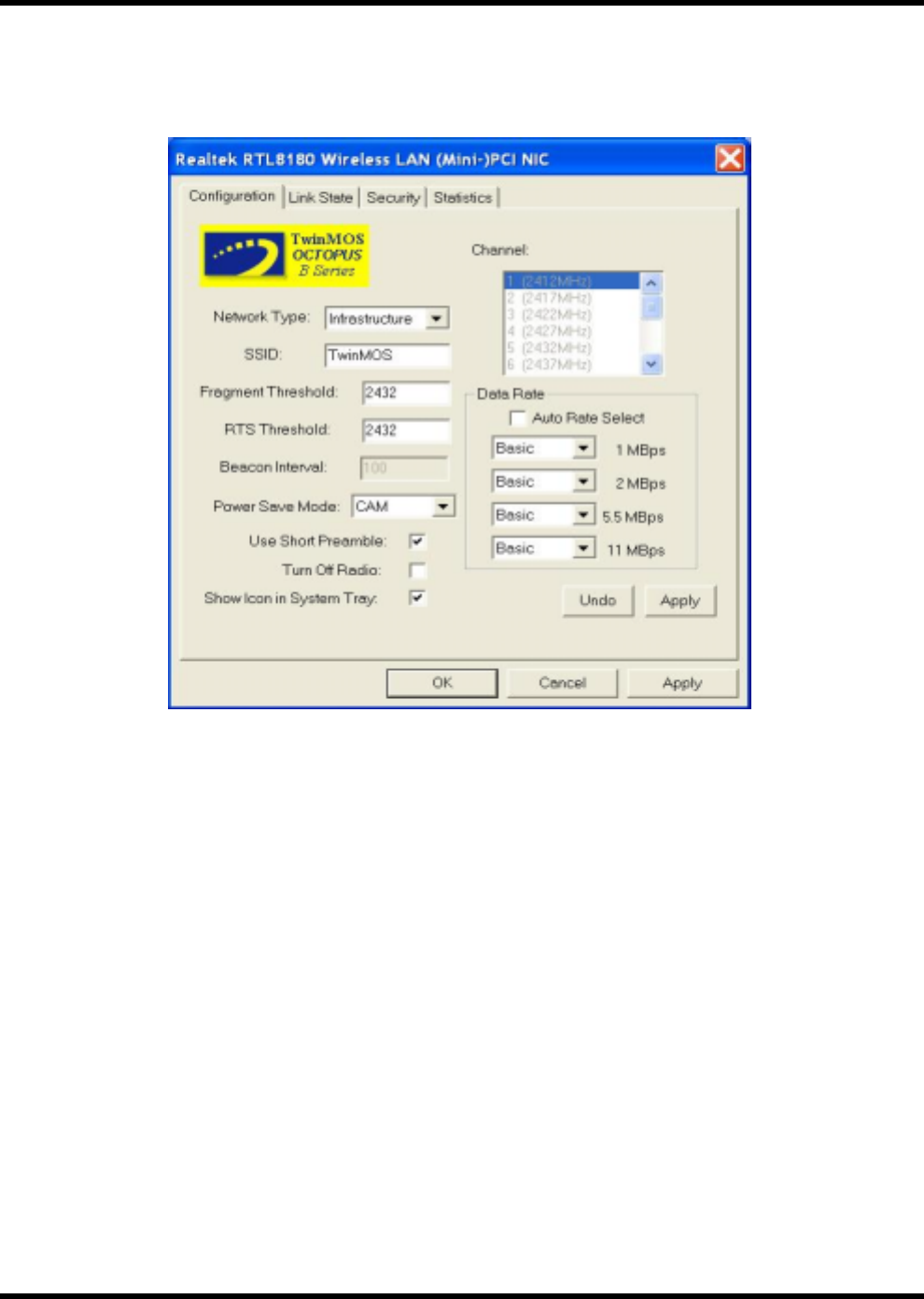

Configuration Tab
Select the Configuration Tab to access the Configuration menu, as shown below. You can make
changes to any of the fields shown below, without the need to restart your computer.
Network Type
The Octopus Card Bus WLAN adapter can operate in one of two modes, which are specified in the
Mode field of the Configuration menu. Clicking the down arrow at the right of the Mode field displays
the available modes.
z Ad-Hoc - This is the 802.11b Ad-Hoc mode of operation. In “Ad-Hoc” mode, only one wireless
“ cell ” is supported for each different NETWORK NAME. All communication is done from
client to client without the use of an Access Point. “Peer-to-Peer” networking uses the same
NETWORK NAME for the wireless adapters in establishing the network connection. When “Ad-
Hoc ” mode is selected, the utility will provide a selection for setting the channel.
z Infrastructure - This mode of operation requires the presence of an 802.11b Infrastructure. All
communication is done through the Infrastructure, which relays packets to other wireless clients
as well as to nodes on a wired Ethernet network.
SSID
The name of the wireless network. This name cannot be longer than 32 characters. The default value is
“any”, which will automatically scan and connect the best performance Access point nearby.You may
Octopus CardBus
TwinMOS Page 22
specify a SSID for the adapter and then only the device with the same SSID can interconnect to the
adapter.
Fragement Threshold
The value defines the maximum size of packets, any packet size larger than the value will be fragmented.
If you have decreased this value and experience high packet error rates, you can increase it again, but it
will likely decrease overall network performance. Select a setting within a range of 256 to 2432 bytes.
Minor change is recommended.
RTS Threshold
Minimum packet size required for an RTS (Request To Send). For packets smaller than this threshold,
an RTS is not sent and the packet is transmitted directly to the WLAN. Select a setting within a range of
0 to 2432 bytes. Minor change is recommended
Beacon Interval
This value specifies the duration between beacon packets (milliseconds). The beacon packets include the
adapter’s information and are broadcasted to the WLAN network periodly. The beacon period is fixed in
100ms.
Power Save
z CAM(Continuous Access Mode) – Adapter will always set in active mode.
z Max – Enable the adapter in the power saving mode when it is idle.
z Fast – Enable the adapter in the power saving mode when it is idle, but some compoents of
the adapter is still alive. In this mode, the power consumption is larger than “Max“ mode.
Turn Off Radio
When the setting is checked, the wireless connection of the adapter will be disabled.
Use Short Preamble
The preamble defines the length of the CRC block for communication between the Access Point and the
adapter. High network traffic areas should use the shorter preamble type.
Show Icon in System Tray
Enable or disable the icon shown in the taskbar.
Channel
When communicating in Ad-Hoc mode, you must specify a channel on which communications will take
place. This field is grayed in infrastructure mode because the Access Point automatically selects the
channel.
Data Rate
Auto Rate Select- When it is enabled, the device will choose the most suitable transmission rate
automatically.
Octopus CardBus
TwinMOS Page 23
1, 2, 5.5 ,11 MBps
Not Used- Prohibits the device from operating at the specified data rate.
Used – Allows the device operating at the specified data rate
Basic – Restrict the device to operate at least at the specified data rate. At least one kind of data rate has
to be set “Basic“.
Apply
Click “Apply” button to save and implement the new settings.
Cancel
Click “Cancel” button to cancel the modification of the settings.

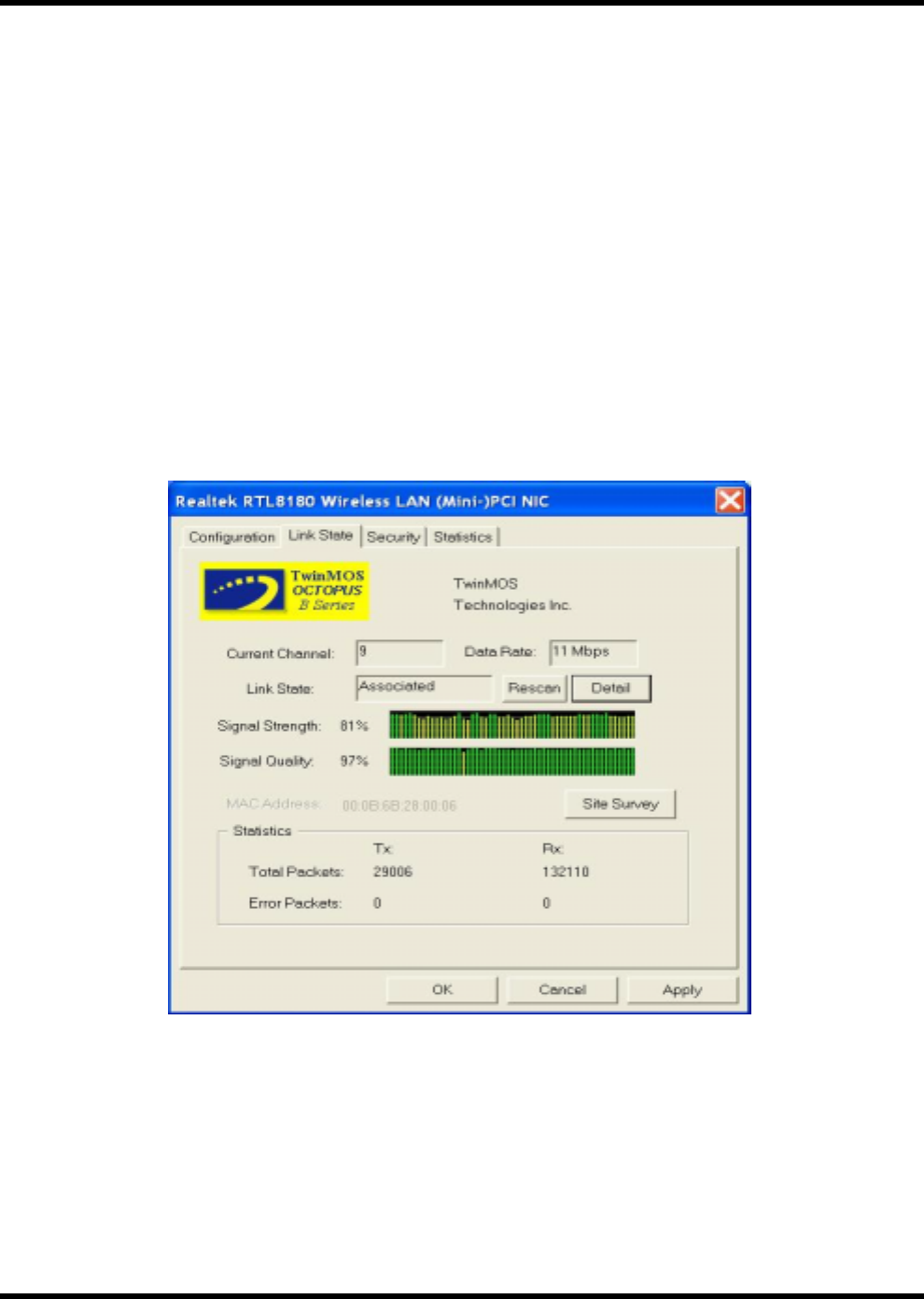

Link State Tab
The Link State Tab displays the current state of your wireless adapter.
Octopus CardBus
TwinMOS Page 24
Current Channel
Shows the channel on which the connection is made. In infrastructure mode, this number changes as the
radio scans the available channels.
Link State
Shows the status of the connection.
Checking Status – Represents the adapter is checking the status of the wireless device.
Not Associated – Represents the connection is interrupted. You may press “Rescan“ button to
reconnect the wireless device.
Associated – Represents the adapter is successfully linking to the wireless device.
Data Rate
Shows the highest transmit rate of the current association.
Rescan button
Click this button to scan the Access Point or Adapter which the adapter connected before or intends to
connect.
Detail
A screen will appear when you press the button. In this screen, you may see all the parameters of the
adapter and also the link status.
Signal Quality
This bar indicates the quality of the link. The higher the percentage, the better the quality.
Signal Strength
This bar shows the signal strength level. The higher percentage shown in the bar, the more radio signal
been received by the adapter. This indicator helps to find the proper position of the wireless device for
quality network operation.
MAC Address
Shows the MAC Address of the adapter.
Statistics
Shows the total amounts of data packets that have been successfully/unsuccessfully transmitted or
received by the adapter.

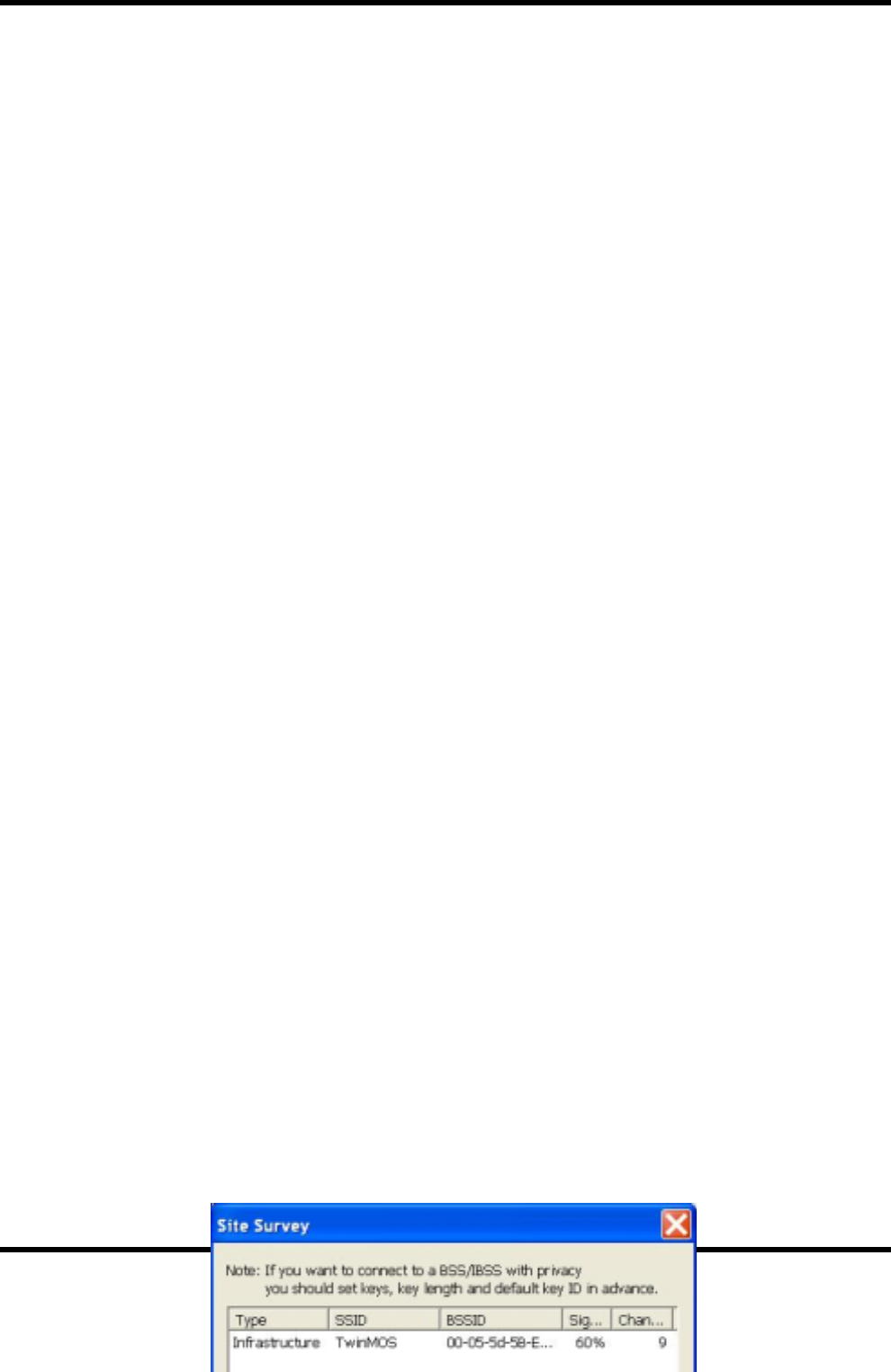

Site Survey button
This screen shows all Access Points or Adapters nearby when operating in Ad-Hoc mode. Click
“Refresh” button to collect the SSID and Channel information of all the wireless devices nearby. If you
want to connect to any device on the list, double-click the item on the list, and the adapter will
automatically connect to the selected device.
Octopus CardBus
TwinMOS Page 25

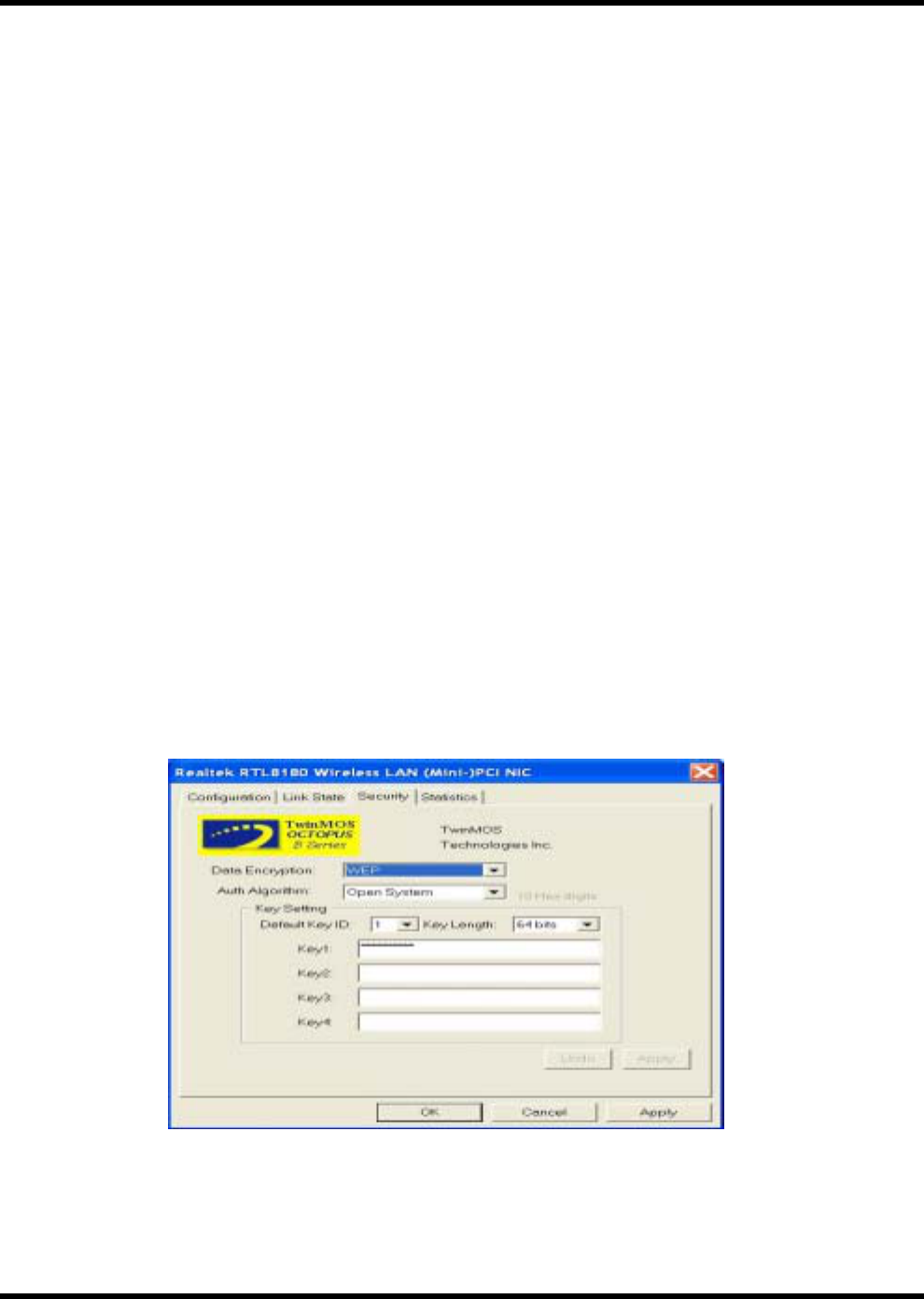

Security Tab
“Security” tab allows you to enhance the security of a network. Every station in a secured network
should enable the Encryption function and the values of the Network Key should be the same.
WEP is an authentication algorithm, which protects authorized Wireless LAN users against
eavesdropping. WEP has been found that it has some security problems. TKIP is a temporary quick-fix
method defined in IEEE 802.11i standard to quickly overcome the inherent weaknesses in WEP security.
AES has been developed to ensure the highest degree of security and authenticity for digital information
and it is the most advanced solution defined by IEEE 802.11i for the security in the wireless network.
Octopus CardBus
TwinMOS Page 26
Data Encryption
No Encryption – Disable the WEP Data Encryption.
WEP – Enable the WEP Data Encryption. When the item is selected, you have to continue setting the
WEP Key Length and the encryption keys.
Realtek TKIP – Enable the TKIP Data Encryption. When the item is selected, you have to continue
setting the TKIP Key Length and the encryption keys.
Realtek AES – Enable the AES Data Encryption. When the item is selected, you have to continue
setting the AES Key Length and the encryption keys.
Auth Algorithm
This setting has to be consistent with the wireless devices which the adapter intends to connect.
Open System – No authentication is needed among the wireless devices.
Shared Key – Only wirelss devices using a shared key (WEP Key, TKIP Key or AES Key identified)
are allowed to connecting each other. Setup the same key as the wireless devices which the adapter
intends to connect.
Auto Switch – Auto switch the authentication algorithm depending on the wireless devices which the
adapter is connecting to.
Default Key ID
Select one of the keys (1~4) as the encryption key.
Key Length
You may select the 64-bit or 128-bit to encrypt transmitted data.Larger key length will provide higher
level of security, but the throughput will be lower.
Key1~Key4
The keys are used to encrypt data transmitted in the wireless network. Fill the text box by following the
rules below.
64-bit – Input 10 digit Hex values (in the “A-F”, “a-f” and “0-9”range) as the encryption keys. For
example: “0123456aef“.
128-bit – Input 26 digit Hex values (in the “A-F”, “a-f” and “0-9” range) as the encryption keys. For
example:“01234567890123456789abcdef“.

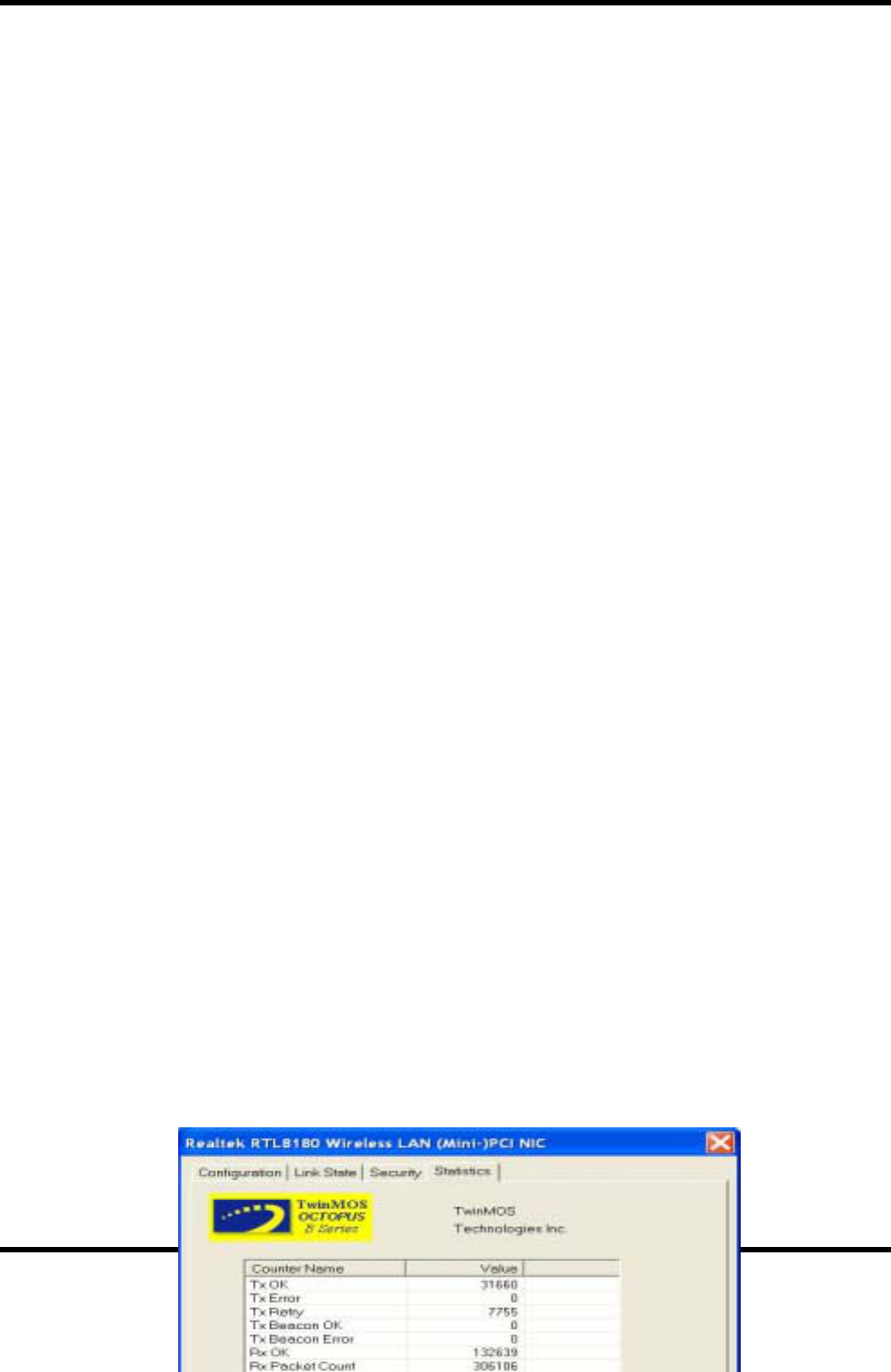

Statistics Tab
In the “Statistics”, you can get the real time information about the packet transmission and receiving
status.
Octopus CardBus
TwinMOS Page 27
Octopus CardBus
TwinMOS Page 28
TROUBLESHOOTING
If you encounter some problems while installing the Octopus Card Bus WLAN adapter or you want to
confirm whether your adapter is installed properly or not, we have listed the procedure for checking the
various components after you have installed the adapter. In first part of Troubleshooting, we have
suggested the users to check the various properties of the card to check the proper installation. In second
section, we have listed the various problems that you may encounter during the installation and have
also listed the possible solution. Check the first part to guess the probable reason of unsuccessful
installation.
Please check the followings if you encounter some problem while installing the Octopus Card Bus or
yours Octopus Card Bus are non-functional.
In Windows 2000:
To check that the Octopus Card Bus is installed properly, please do the following:
1. Check the Windows 2000 Diagnostics. See if there is any conflict in the Resource allocation or the
I/O Address, IRQ allocations. If you find that the IRQ or I/O Addresses are already assigned to some
other devices, you must change that value.
2. Go to the Control Panel. Double click on the Network Adapter, you will see Octopus Card Bus
Wireless Adapter. Double clicking on that will show you the status of the Octopus Card Bus
network adapter. If there are no error signs, the adapter has been installed properly.
In Windows XP:
To check that the Octopus Card Bus is installed properly, please do the following:
1. Go to START>CONTROL PANEL. Double-click on Network Connections. Right-click on LAN.
Click Properties.
2. The Octopus Card Bus network adapter will appear, indicating proper installation.
Octopus CardBus
TwinMOS Page 29
TECHNICAL SPECIFICATIONS
Physical Specification
Dimensions 53.6 x 118.0 x 4.56 mm (w x h x t)
Weight 36 g
Host Interface Card Bus
Temperature & Humidity
Operation 0℃ to 55℃ maximum humidity 95%
Transit -20℃ to 75℃ humidity 15% to 95%
Storage -20℃ to 75℃ humidity 10% to 95%
Power Characteristics
Operating Voltage 3.3V ±5%
Current Consum
p
tion Nominal 240mA , Max. 300mA
Networking Characteristics
Compatibility z IEEE 802.11 Standard for WLAN
(
DSSS
)
z Internal Wi-Fi certified by TwinMOS
Host OS Windows 98/98SE/ME/2000/XP
Media Access Protocol CSMA/CA with ACK
Network Protocol TCP/IP, IPX, NetBEUI
RF Characteristics
Frequency Range 2.400-2.4835 GHz, Direct Sequence Spread Spectrum (DSSS)
Operating Channels
z 1-11 United States (FCC)
z 1-11 Canada (DOC)
z 1-14 Japan (MKK)
z 1-13 Europe (Except Spain and France) (ETSI)
Modulation Techni
q
ue
z 11 Mbps: CCK
z 5.5 Mbps: CCK
z 2 Mbps: DQPSK
z 1 Mbps: DBPSK
Spreading 11-chip Barker Sequence
Transmit Power 14 dBm @ Nominal Temp Range
Receive Sensitivity Nominal Tem
p
Ran
g
e：11 Mb
p
s 10-5 BER
@
-84 dBm, minimum
Security
z 64/128-bit WEP Encryption
z 64/128-bit TKIP Data Encryption
z 64/128-bit AES Data Encryption
Antenna Build-in inside host
Operating Range Open Space：100 ~ 300m; Indoor: 30m ~ 100m
The transmission speed varies in the surrounding environment.
EMC Certification FCC Class B part 15B, 15C; R&TTE
Octopus CardBus
TwinMOS Page 30
PHYSICAL SIZE
Unit : mm
Octopus CardBus
TwinMOS Page 31
FCC CAUTION
1. The device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment
3. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
