TwinMOS PCI (B-110)
802.11b PCI
Wireless LAN Card
User’s Manual
TwinMOS®
TwinMOS Laputa PCI
TwinMOS Page 1
Contents
PACKAGE CONTENTS……........................................................1
INTRODUCTION..........................................................................2
WIRELESS NETWORK OVERVIEW............................................3
LAPUTA PCI WIRELESS NETWORK SCENARIOS………..6
INSTALLATION FOR WINDOWS.............................................…..9
CONFIGURATION UTILITY....................................................…..19
TROUBLESHOOTING....................................................…..25
TECHNICAL SPECIFICATIONS.......................................…..26
TwinMOS Laputa PCI
TwinMOS Page 2
PACKAGE CONTENTS
Unpack your Laputa PCI kit and verify that all items are present.

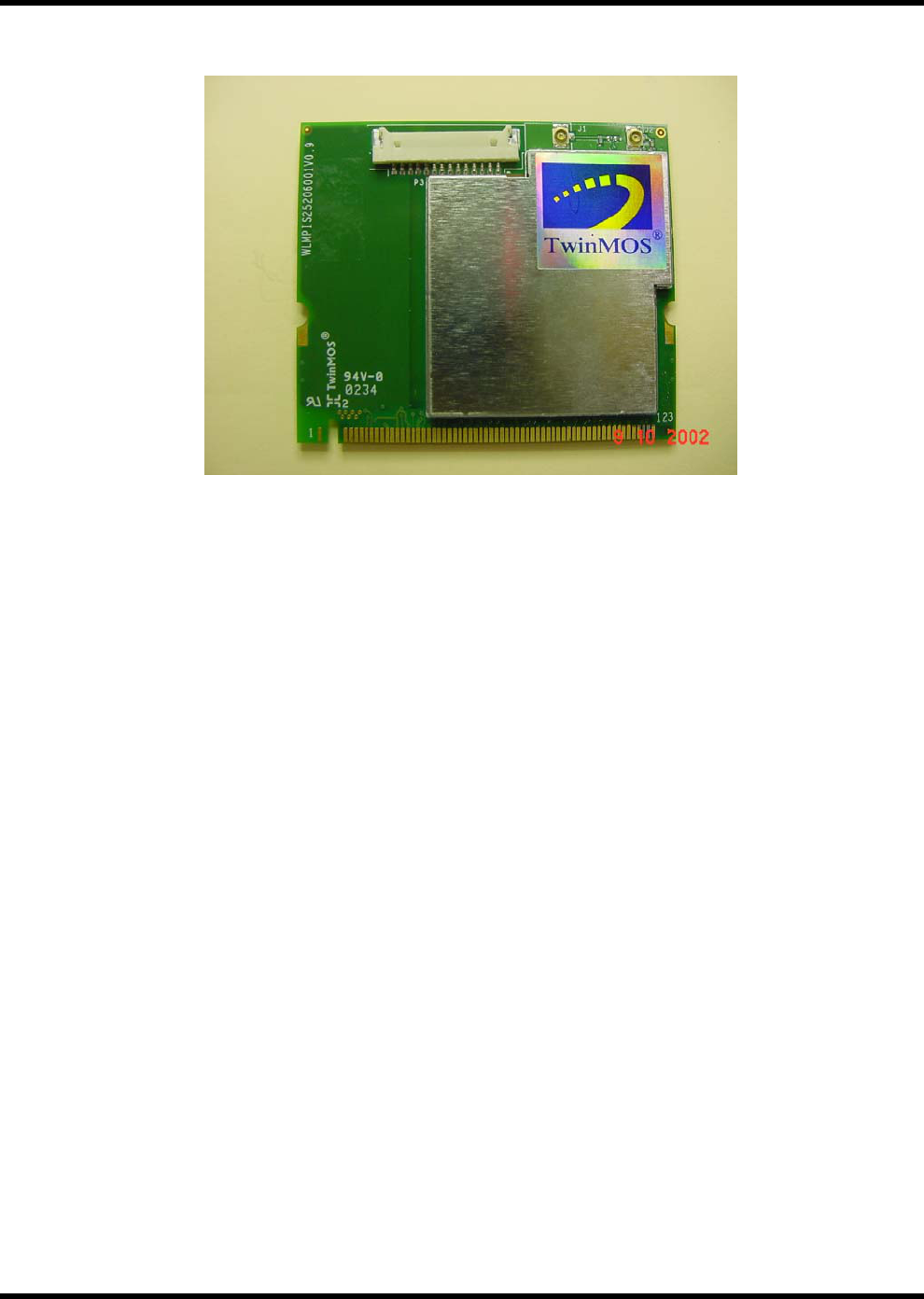

Laputa PCI Wireless LAN Adapter
Coaxial Cable of Antenna (Option)
External Antenna (Option)
User’s Manual (on CD)
Driver (on CD)
If any of the items described appear to be damaged or missing, please contact your reseller.
TwinMOS Laputa PCI
TwinMOS Page 3
INTRODUCTION
The Laputa PCI adapter is a wireless network client that complies with the IEEE 802.11b standard on
wireless LANs. The IEEE 802.11b standards compliance means this adapter gives you the flexibility to
connect it to any 802.11b network. The IEEE802.11b Ethernet standard allows you to connect computers
and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the
configuration of your working environment, or the capabilities or limitations of your computer systems.
This Laputa PCI Adapter is：
Wi-Fi certified by the WECA. This means that your Laputa PCI adapter is compatible with other
supplier’s IEEE 802.11b compliant WLAN products.
Fully compatible with any other WLAN system base on Direct Sequence Spread Spectrum
(DSSS) radio technology.
Compatible with the PCI revision 1.0 specification (Oct. 25, 1999)
This Laputa PCI Adapter supports following WLAN features：
Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5 and 11 Mbps.
Center frequency channel selection (2.4 GHz)
Roaming over multiple channels.
Power Management.
128-bit Wired Equivalent Privacy (WEP) data encryption.
This Laputa PCI comes with software drivers for the most popular Microsoft Windows operating
systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows
ME, or Windows 98 in either Peer-to-Peer mode or Infrastructure mode. This manual provides a quick
introduction to wireless technology and its application as it relates to networking. Take a moment to read
through this manual and familiarize you with wireless technology. You should also give yourself some
time to become familiar with your new wireless network.
TwinMOS Laputa PCI
TwinMOS Page 4
WIRELESS NETWORK OVERVIEW
A wireless local area network (LAN) is a flexible data communications system implemented as an
extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless
LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless
LANs combine data connectivity with user mobility.
A local area network that transmit and receive over the air typically in an unlicensed frequency such as
the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like
IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a
radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other
nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular
phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self
contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.).
Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired
networks：
Mobility - WLAN provide LAN users to access data in any location within the operating range of the
WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker
efficiency.
Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can
eliminate the need to pull cable through walls and ceilings.
Installation Flexibility - Wireless technology allows the network to go where wire cannot go.
Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can
be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be
significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent
moves and changes.
Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of
specific applications and installations. Configurations are easily changed and range from peer-to-peer
networks suitable for a small number of users to full infrastructure networks of thousands of users that
enable roaming over a broad area.
Installation Considerations
Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, Laputa
PCI lets you access your network from virtually anywhere you want. Keep in mind, however, that the
number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may
limit range. Typical ranges vary depending on the types of materials and background RF noise in your
home or business. The key to maximizing range is to follow these basic principles:
TwinMOS Laputa PCI
TwinMOS Page 5
Keep the number of walls and ceilings between the access point and your receiving device to a minimum
- Each wall or ceiling can reduce your TwinMOS Laputa Wireless product’s range from 3-90 feet (1-30
meters.) For some businesses or for a large residential home deployment, it may be more beneficial to
have more than one access point with overlapping coverage.
1. Be aware of the direct line between Access Points, Residential Gateways, and Computers - A wall
that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At
a 2-degree angle it looks over 42 feet (14 meters) thick! Try to make sure that the Access Points and
Adapters are positioned so that the signal will travel straight through a wall or ceiling for better
reception.
2. Building Materials make a difference - A solid metal door or aluminum studs may have a negative
effect on range. Try to position Access Points, Residential Gateways, and Computers so that the
signal passes through drywall or open doorways and not other materials.
3. Make sure that the antenna is positioned for best reception by using the software signal strength
tools included with your product.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices that generate RF
noise, like microwaves, monitors, electric motors, etc.
For the average residence, range should not be a problem. If you experience low or no signal strength in
areas of your home that you wish to access, consider positioning the Access Point in a location directly
between the Residential Gateways and/or Computers that will be connected. Additional Access Points
can be connected to provide better coverage in rooms where the signal does not appear as strong as
desired.
Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the
need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through
simplified configuration, enable movable LANs.
TwinMOS Laputa PCI
TwinMOS Page 6
Laputa PCI WIRELESS NETWORK SCENARIOS
The Laputa PCI enables you to:
Connect your computer to a Peer-to-Peer workgroup of wireless computing devices (see Figure 1-1 on
page 7).
Connect your computer to a Small Office/Home Office (SOHO) network that includes a Residential
Gateway (RG) access point (see Figure 1-2 on page 8).
Connect your computer to a Local Area Network (LAN) Infrastructure that includes Access Points, or
other IEEE 802.11 compliant LAN systems (see Figure 1-3 and Figure 1-4).
Expand the capabilities of your Access Points, to support wireless devices that have been equipped
with Laputa PCI.
Peer-to-Peer Workgroup
The Peer-to-Peer workgroup configuration enables you to quickly set up a small wireless workgroup,
where the workgroup participants can exchange files using features like “Files and Printer Sharing” as
supported by Microsoft Networking.

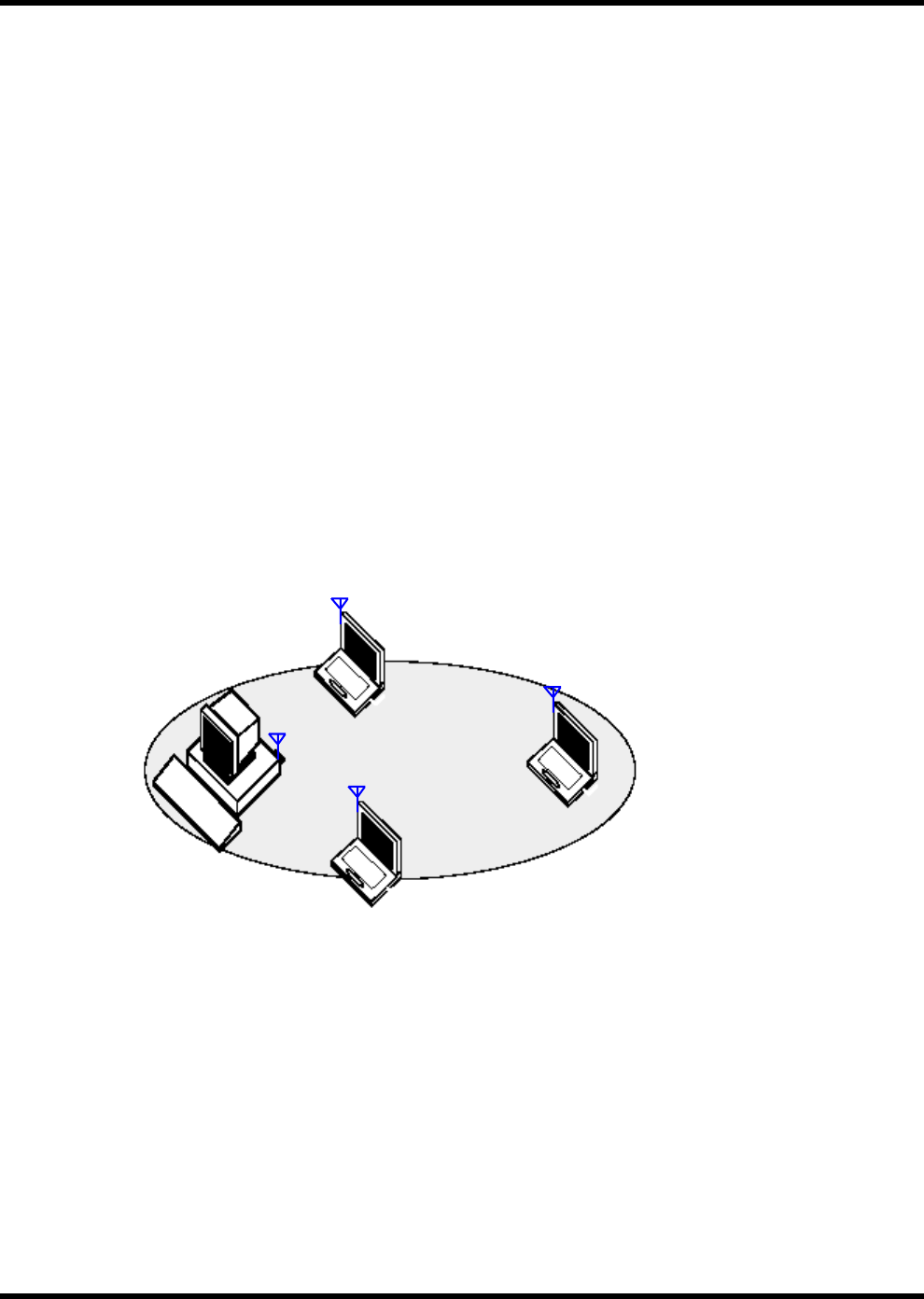

Figure 1-1 Peer-to-Peer Wireless Workgroup
You can use this option to setup a temporary or ad-hoc network in environments where no access points
are available (for example in Small Office/Home Office (SOHO) environments). As long as the stations
are within range of one another, this is the easiest and least expensive way to set up a wireless network.
TwinMOS Laputa PCI
TwinMOS Page 7
Home Networking
With the TwinMOS Laputa PCI, wireless access to the Internet or other computers is at your fingertips.
All you need to do is connect the wireless computers to an external cable, an xDSL or a ISDN modem
and you are ready to：
Share files and printers, and
Access the Internet
Figure 1-2 Connect to a Residential Gateway (RG)
Enterprise Networking
With the 11 Mbps Wireless LAN access point you can connect to a corporate Local Area Network (LAN)
infrastructure to have wireless access to all network facilities. LAN Infrastructures may either be:
Stand-alone wireless LANs (Figure 1-3).
Wireless network infrastructures connected to an existing Ethernet network (Figure 1-4).

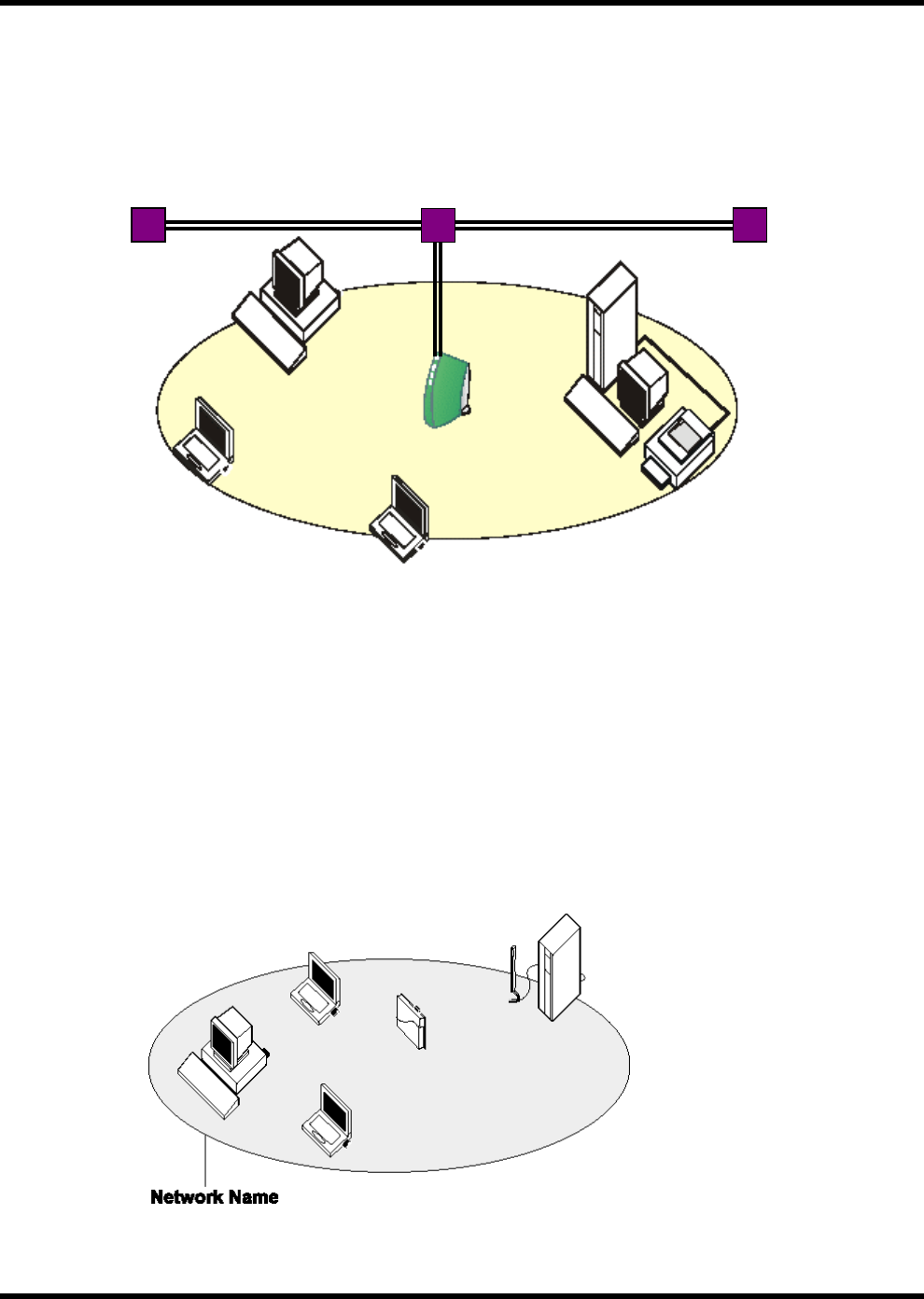

Figure 1-3 Stand Alone Wireless LAN
xDSL
TwinMOS Laputa PCI
TwinMOS Page 8

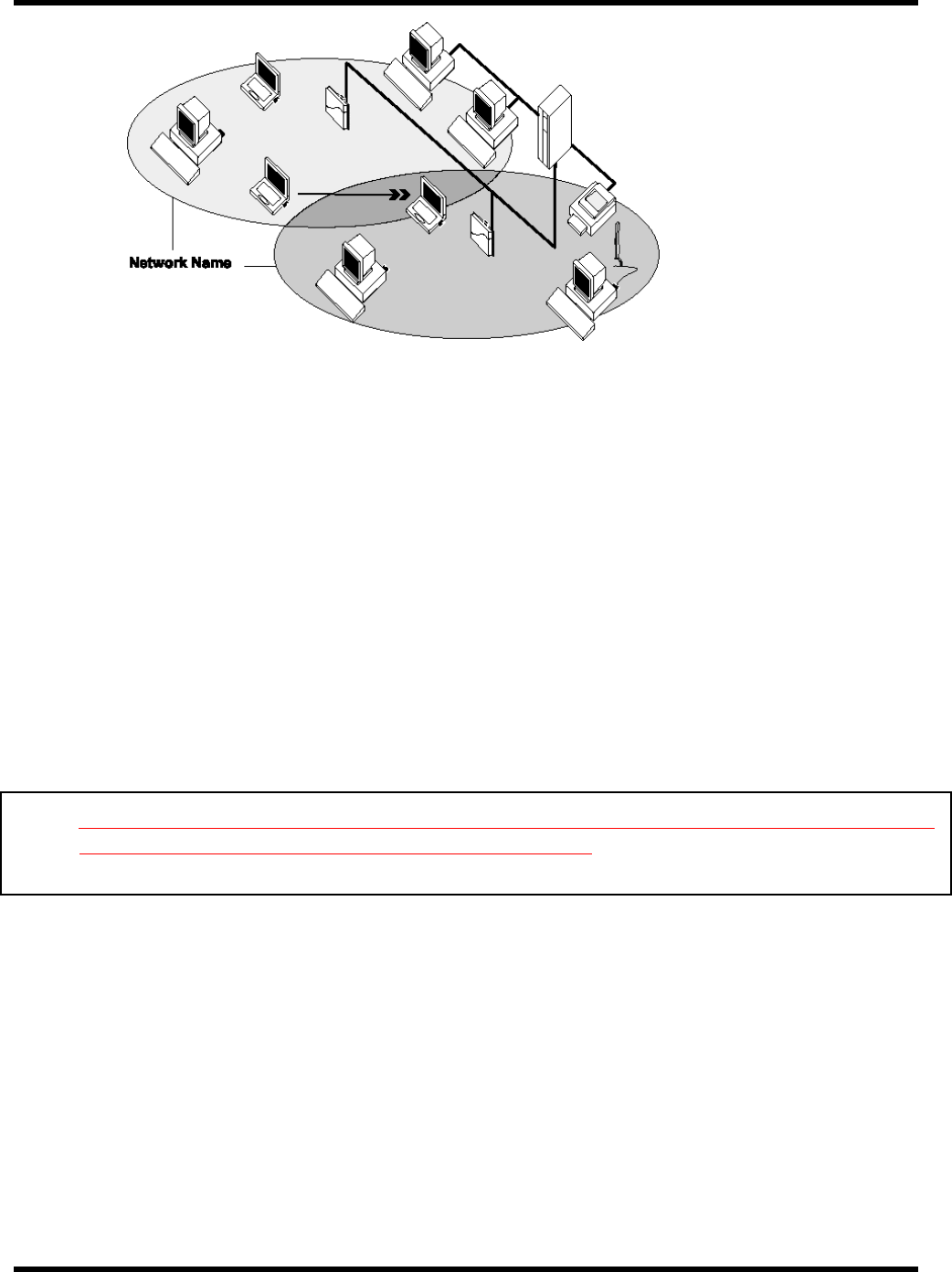

Figure 1-4 LAN Infrastructure
It’s Easy
The Laputa PCI functions like any standard wired Ethernet card, but Laputa PCI does not need any
wires!
Where an Ethernet card requires a cable connection to a hub and/or patch panel, the cable physically ties
you down to the location of the wired connection.
Laputa PCI allows you to connect your computer to a Local Area Network (LAN) system from
anywhere within the wireless coverage area. Expanding or re-designing your network is easy: Add or
relocate access point, power-up your (new) wireless computers, and you’re done!
Unlike Ethernet, TwinMOS Laputa PCI will enable you to roam throughout the network while
remaining connected to the LAN.
Note
：
The Laputa PCI wireless adapter is a radio product. Refer to the flyer ”Information to the User”
for regulatory information that may apply in your country.
TwinMOS Laputa PCI
TwinMOS Page 9
INSTALLATION FOR WINDOWS
The following section will assist you to install Laputa PCI WLAN adapter successfully. You will install
driver firstly and then plug in the Laputa PCI WLAN adapter, and finally set the network properties to
accommodate resource sharing and select the type of wireless network that you want to install.
In order to establish your wireless network connection, make sure some steps below will be performed.
■ Install the Access Point (AP) at first if you use Infrastructure network mode.
■ Install the driver using the Installation CD.
■ Plug in the Laputa PCI wireless LAN adapter.
■ Install the network protocol(s) required to communicate on your network. Most likely you will
need the TCP/IP protocol.
The PRISM WLAN Configuration Utility is installed simultaneously with the driver by executing the
PRISM_ForWindows(2-0-9).exe file. Note also that some versions of Microsoft Windows operating
systems require administrator to install software. If this is the case for your operating system, be sure
that you have such privileges before executing the PRISM_ForWindows(2-0-9).exe file. To upgrade an
existing driver, it is not necessary to remove your PRISM driver from your computer. Simply run the
PRISM_ForWindows(2-0-9).exe file to replace the existing driver with the latest version. After the new
driver is installed, maybe you must restart the operating system (depend on the Windows’ OS).
Please follow the following steps one by one in order to install the Laputa PCI adapter successfully.
TwinMOS Laputa PCI
TwinMOS Page 10
For Windows XP
Insert the given Installation CD in the CD-ROM.
1. Select CD-ROM drives to locate driver files.

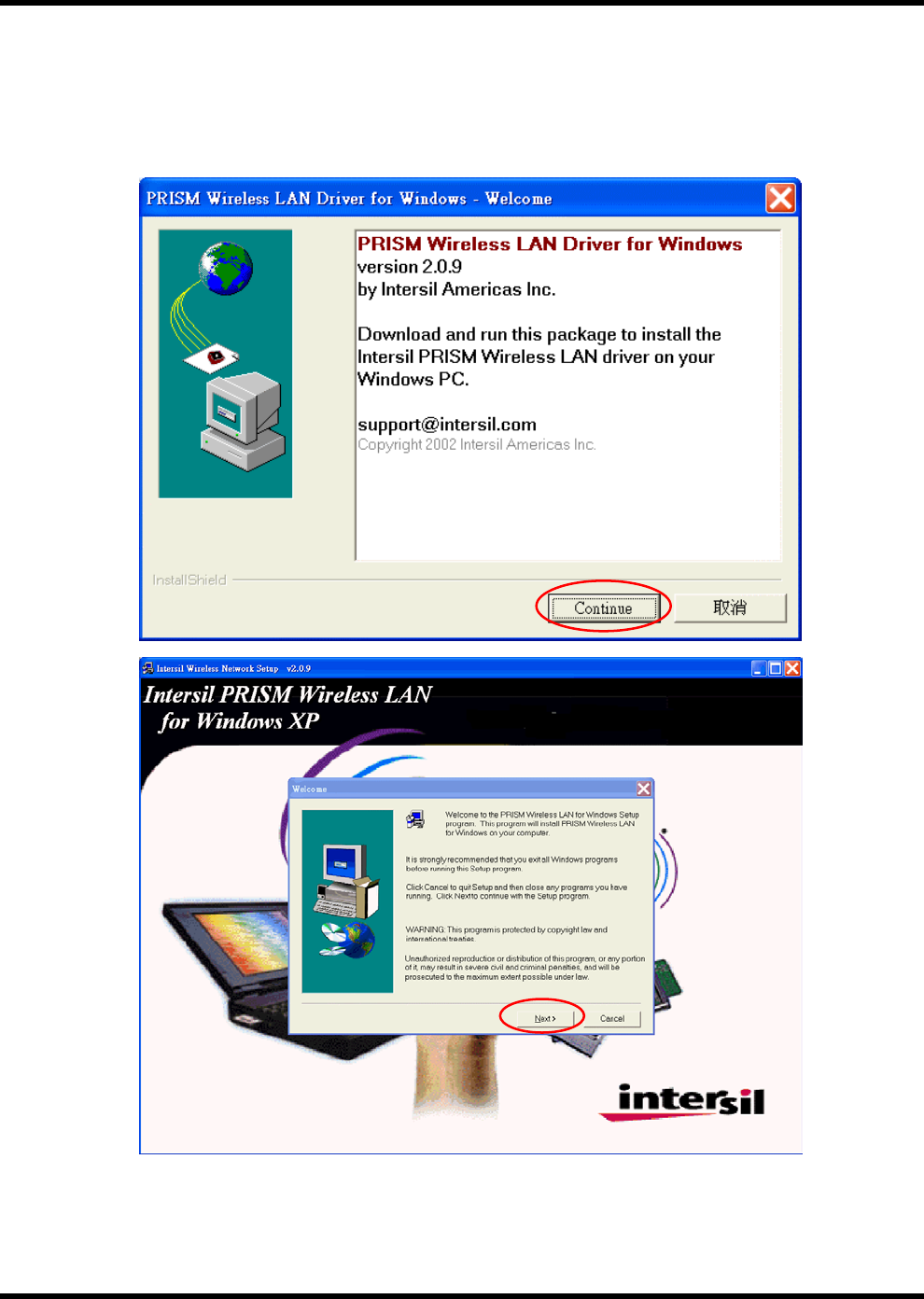

2. Run the program〝PRISM_ForWindows(2-0-9).exe〞file to set up configuration utility and driver.
Follow the instruction and click Continue then Next.
TwinMOS Laputa PCI
TwinMOS Page 11

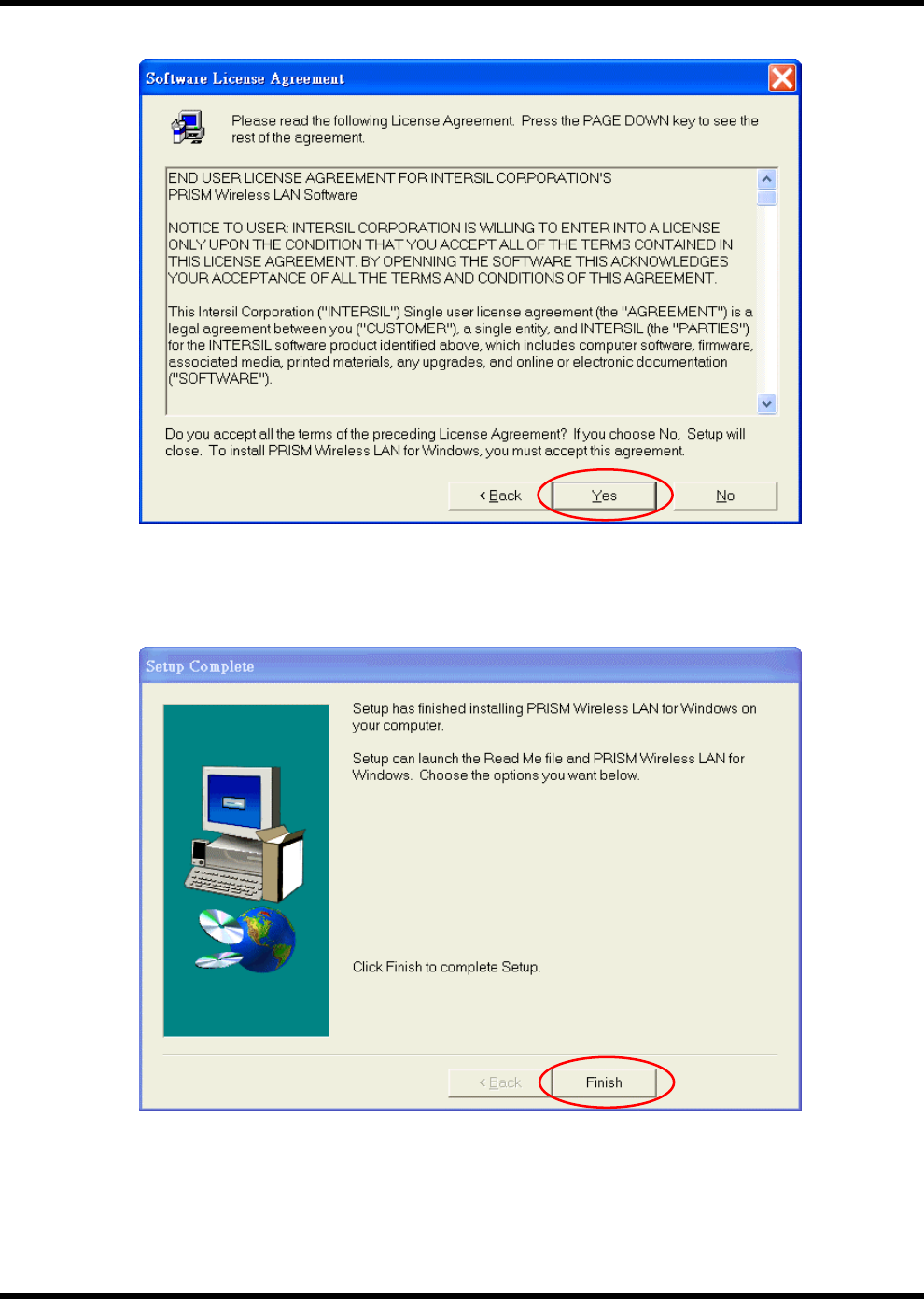

3. Accept the license agreement.
4. Takes a few seconds for copying the utility files and driver to your computer.
5. Finished.
TwinMOS Laputa PCI
TwinMOS Page 12
6. Connecting to the wireless network
To connect to your wireless network, please do the following:

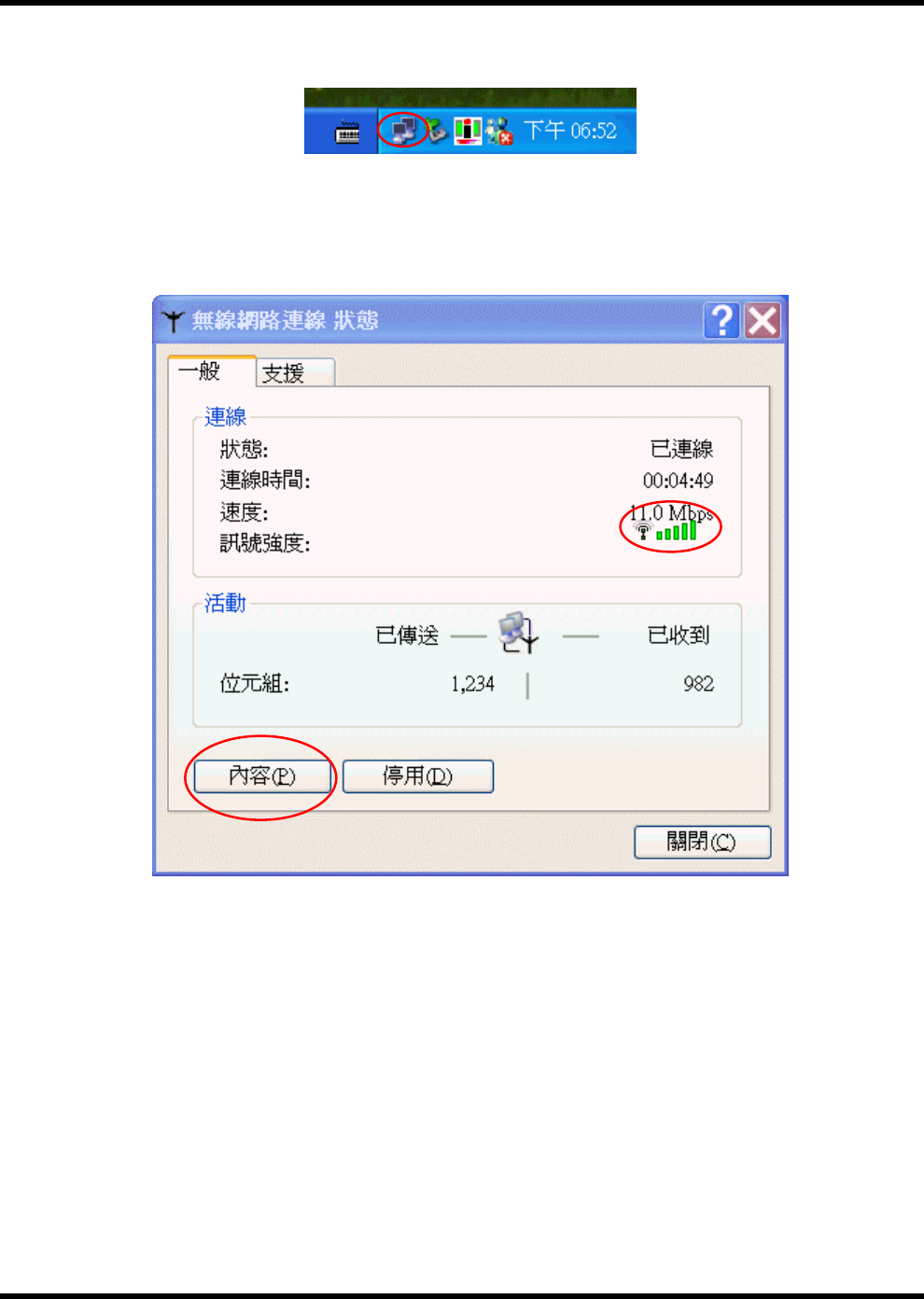

◎Double-click on the icon in the task bar. The window on the next page will appear showing
the current status of your connected network.

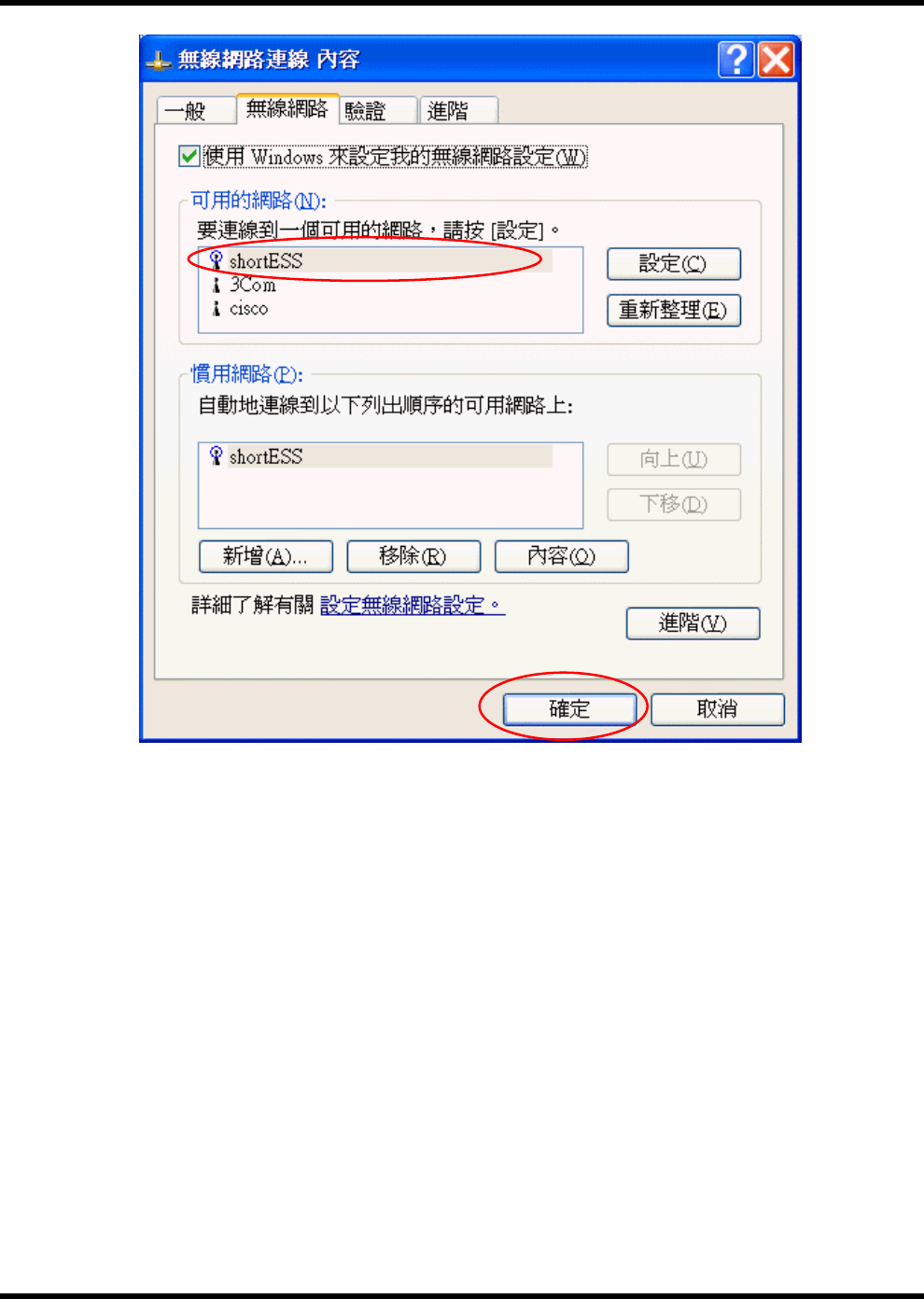

◎The “Connect to Wireless Network” window will contain a list of all the available Wireless
Networks. Select the proper network for your needs. In this example, “shortESS” network
was selected as shown.
TwinMOS Laputa PCI
TwinMOS Page 13
TwinMOS Laputa PCI
TwinMOS Page 14
For Windows 2000
Insert the given Installation CD in the CD-ROM.
1. Select CD-ROM drives to locate driver files.

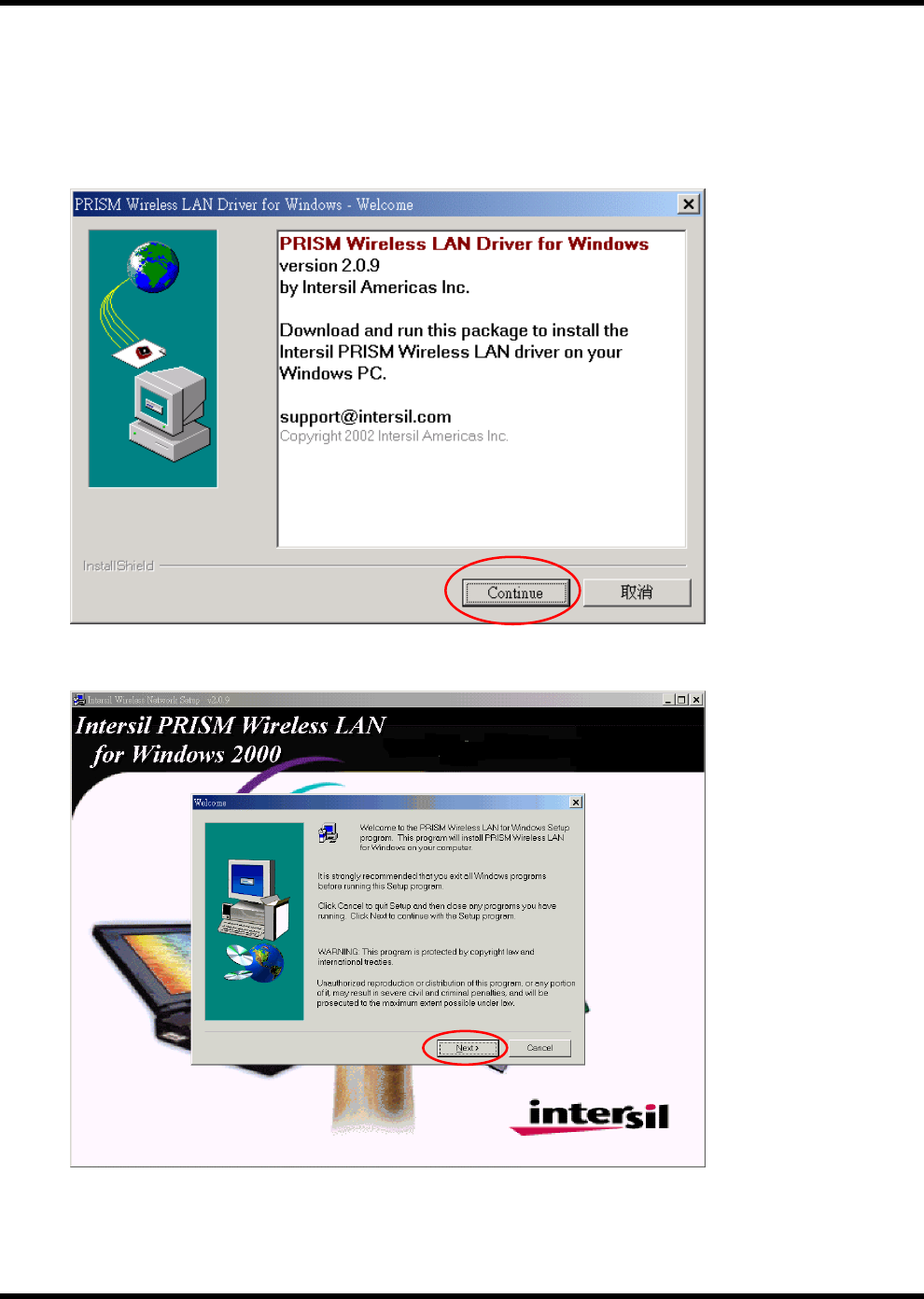

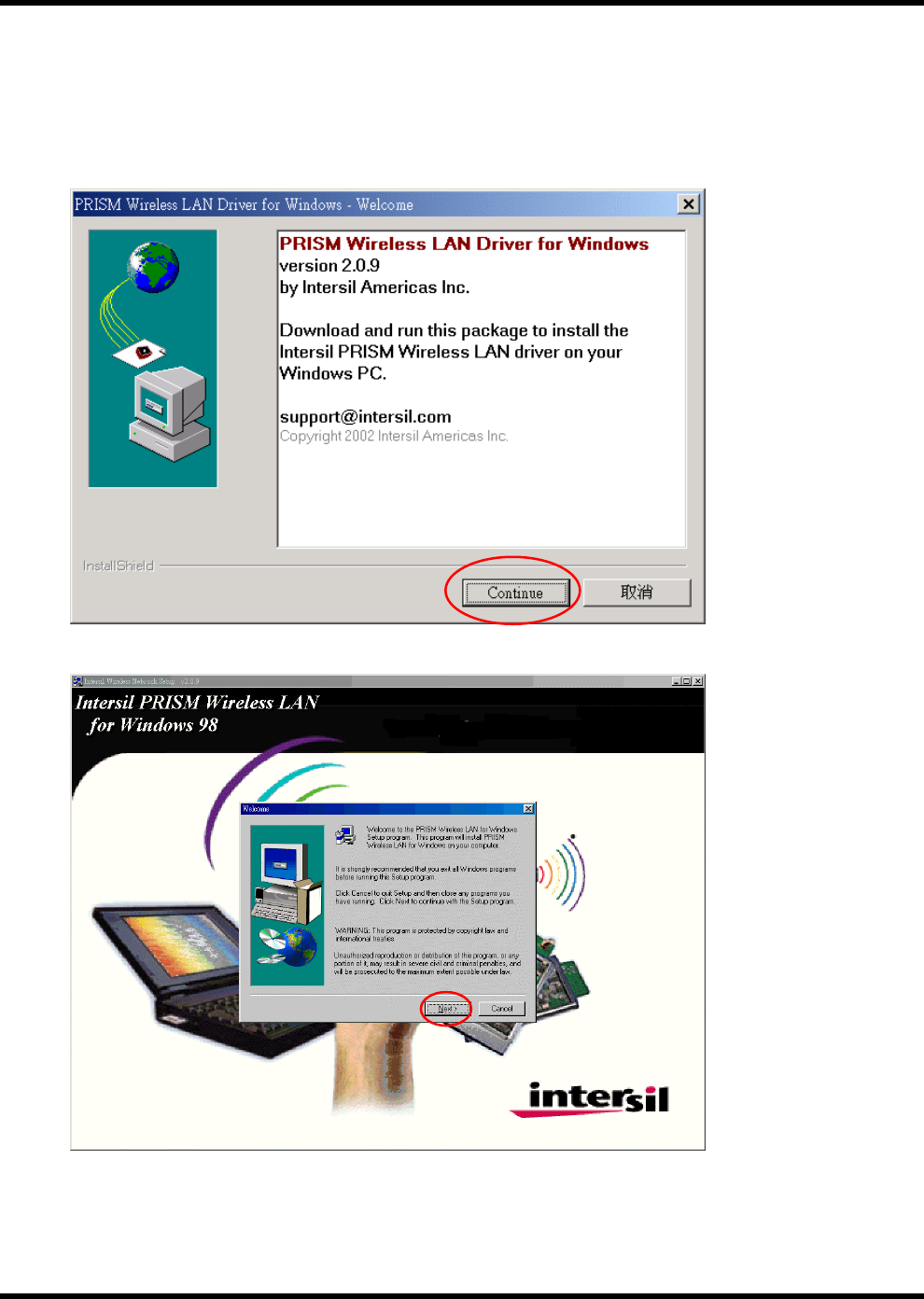

2. Run the program〝PRISM_ForWindows(2-0-9).exe〞file to set up configuration utility and driver.
Follow the instruction and click Continue then Next.
TwinMOS Laputa PCI
TwinMOS Page 15

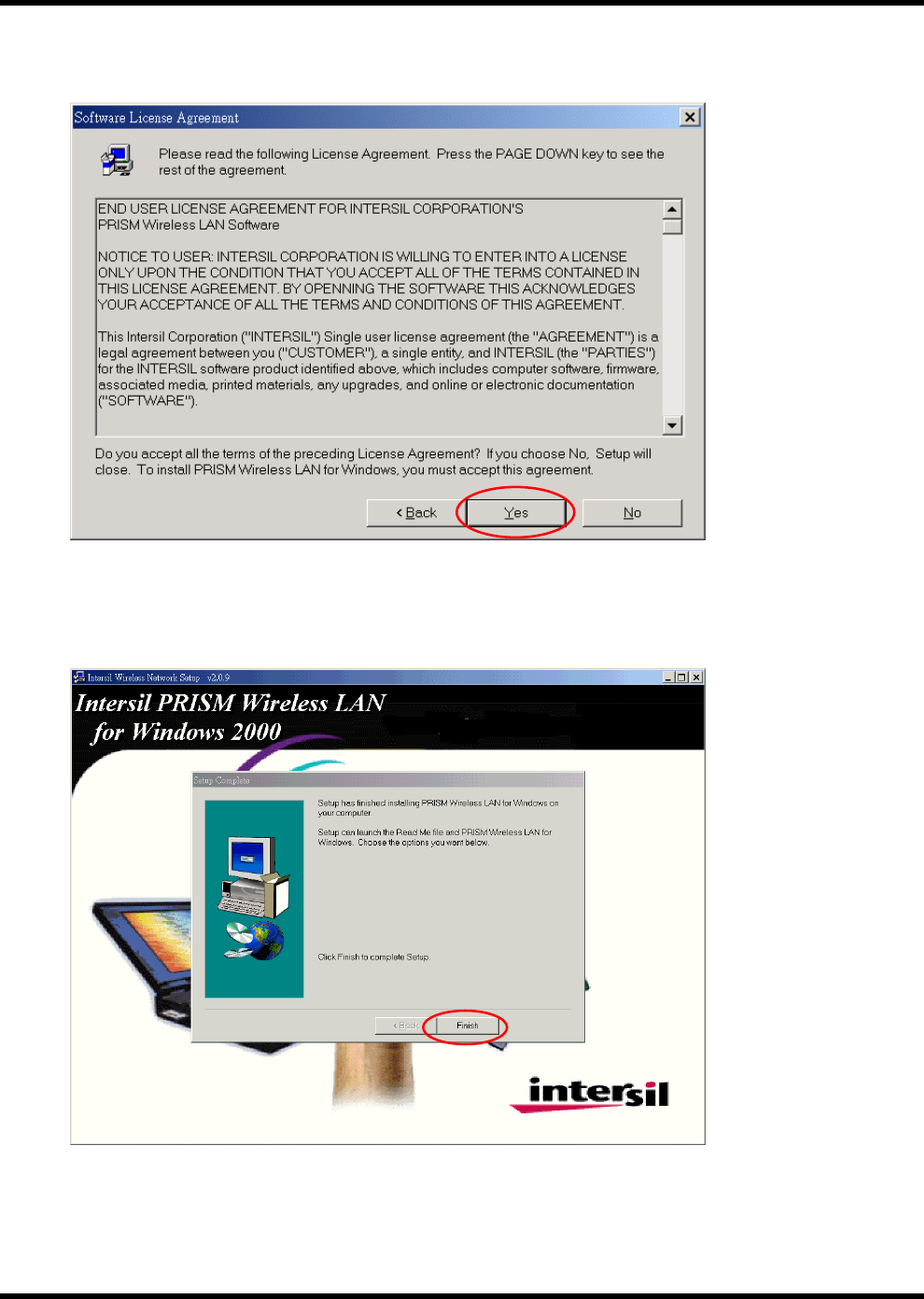

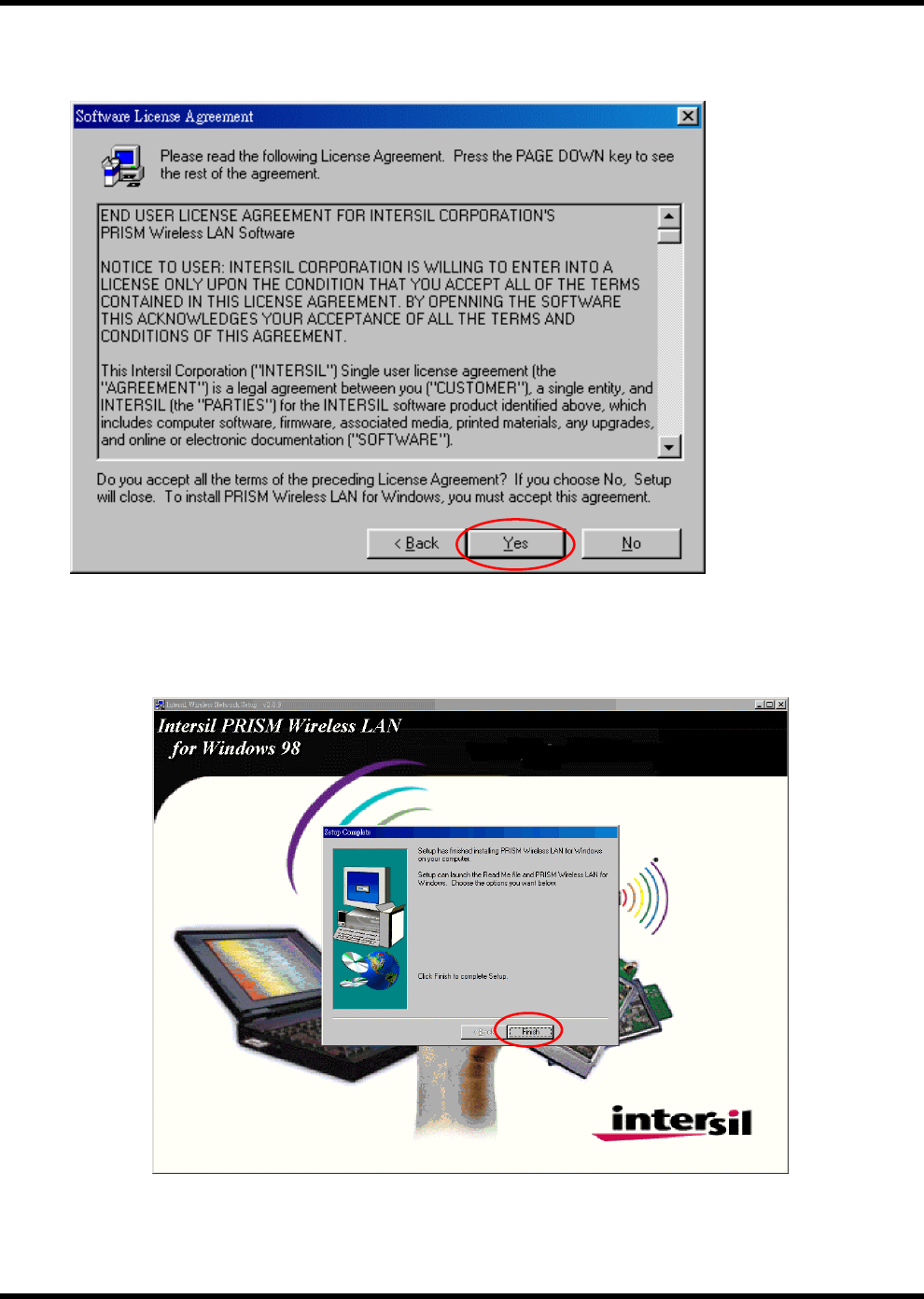

3. Accept the license agreement.
4. Takes a few seconds for copying the utility files and driver to your computer.
5. Finished.
TwinMOS Laputa PCI
TwinMOS Page 16

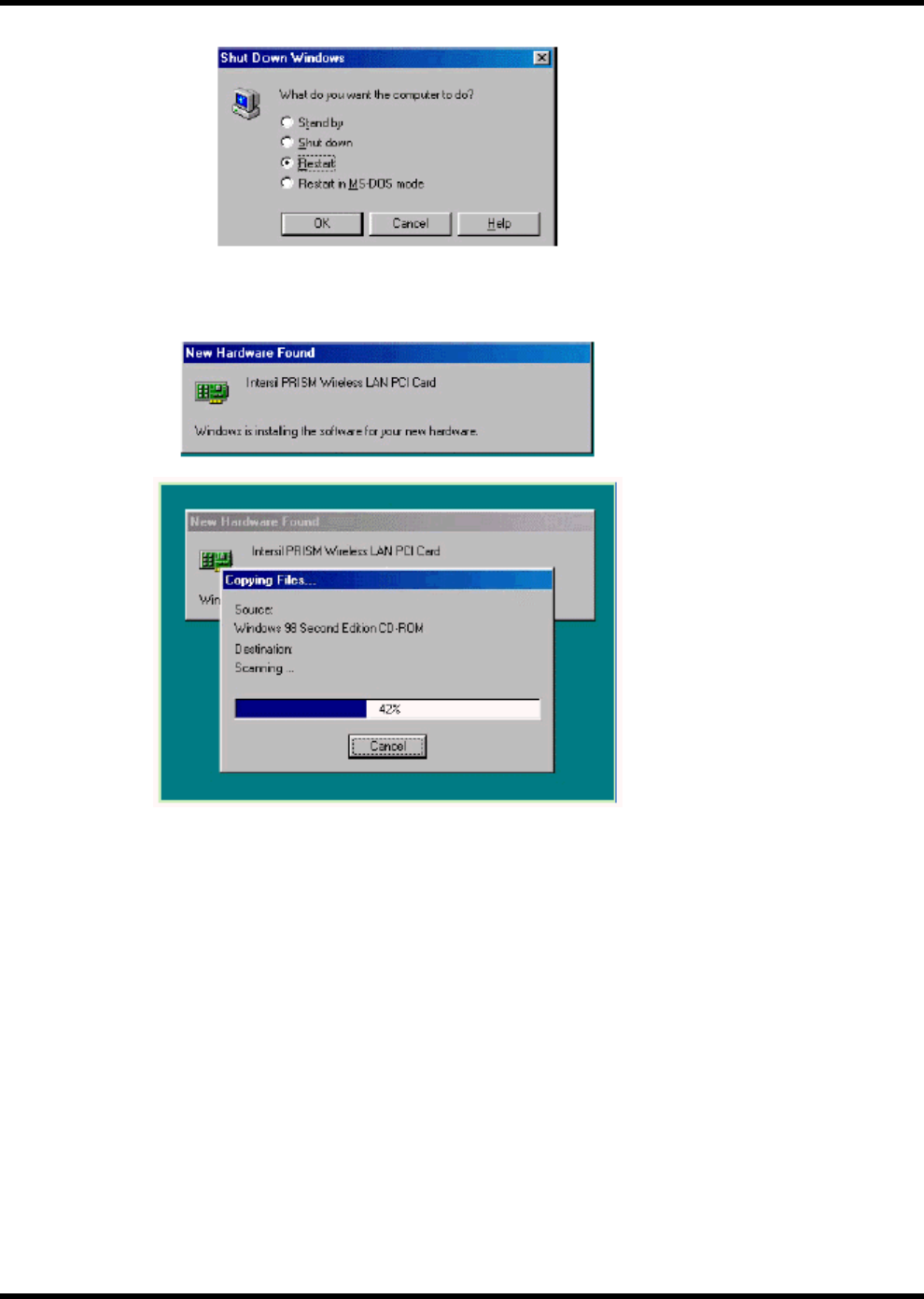

For Windows 98/98SE/ME
Insert the given Installation CD in the CD-ROM.
1. Select CD-ROM drives to locate driver files.
2. Run the program〝PRISM_ForWindows(2-0-9).exe〞file to set up configuration utility and driver.
Follow the instruction and click Continue then Next.
TwinMOS Laputa PCI
TwinMOS Page 17
3. Accept the license agreement.
4. Takes a few seconds for copying the utility files and driver to your computer.
5. Finished.
TwinMOS Laputa PCI
TwinMOS Page 18
6. Restart the computer.
7. Plug in the PCI card into the computer, the system will detect new hardware and auto install the
driver.
8. Once installation is complete, the utility will be pops up.
TwinMOS Laputa PCI
TwinMOS Page 19
TwinMOS Laputa PCI
TwinMOS Page 20
CONFIGURATION UTILITY
TwinMOS Laputa PCI uses the Configuration Utility as the management software. The utility
provides the user an easy interface to change any settings related to the wireless adapter. When the
computer is started, the Configuration Utility starts automatically and the system tray icon is loaded in
the toolbar (see illustration below.) Clicking on the utility icon will start the Configuration Utility.
If the icon is in red, it means that the Laputa PCI wireless adapter configuration is invalid or incomplete.
A “red” icon may indicate that the adapter is set to an incorrect channel or the communication mode is
set incorrectly. Verify the settings for the Laputa PCI and make sure that the computer is within wireless
range.

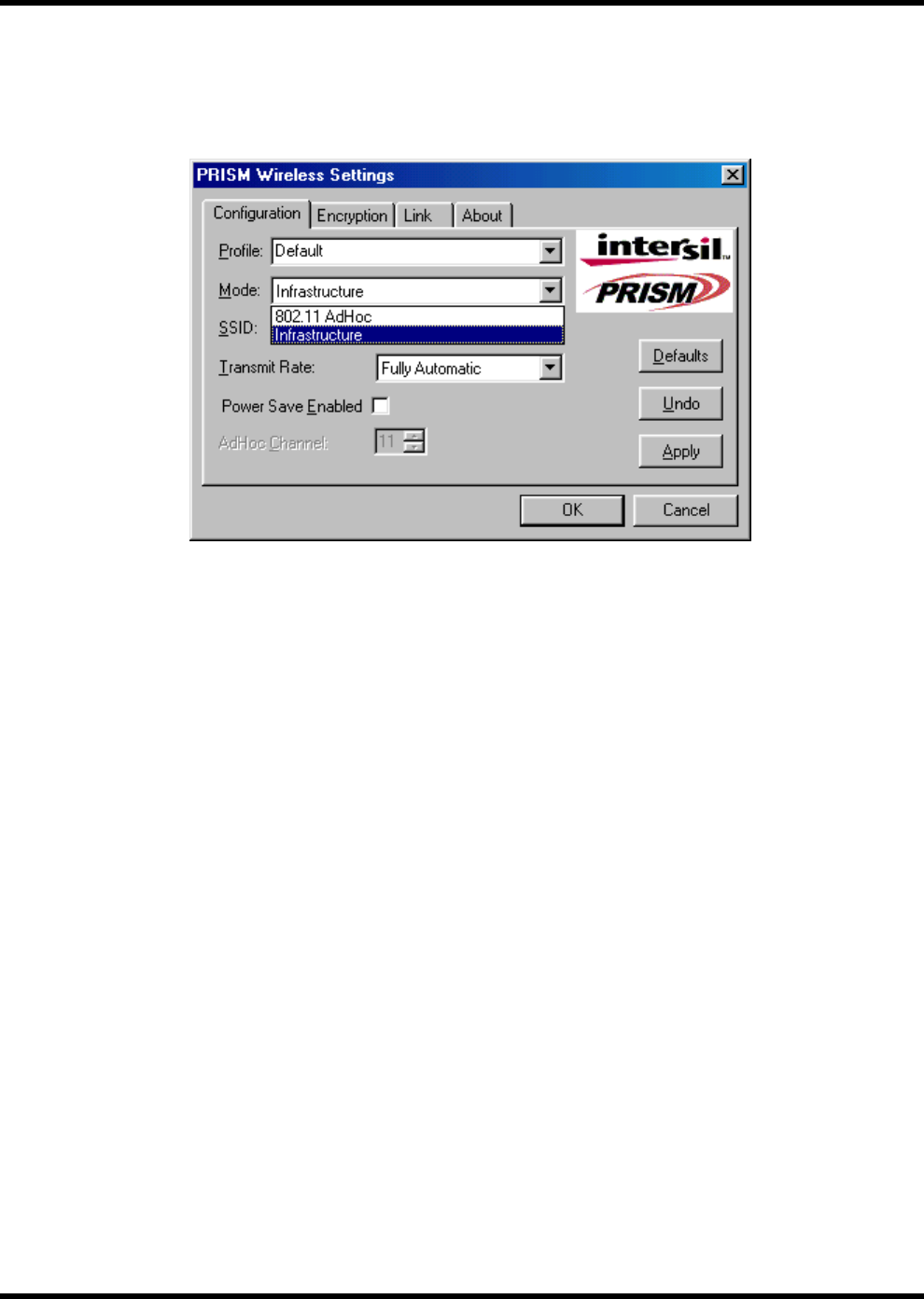

Double-click on the icon shown above. The screen below will be displayed.
TwinMOS Laputa PCI
TwinMOS Page 21

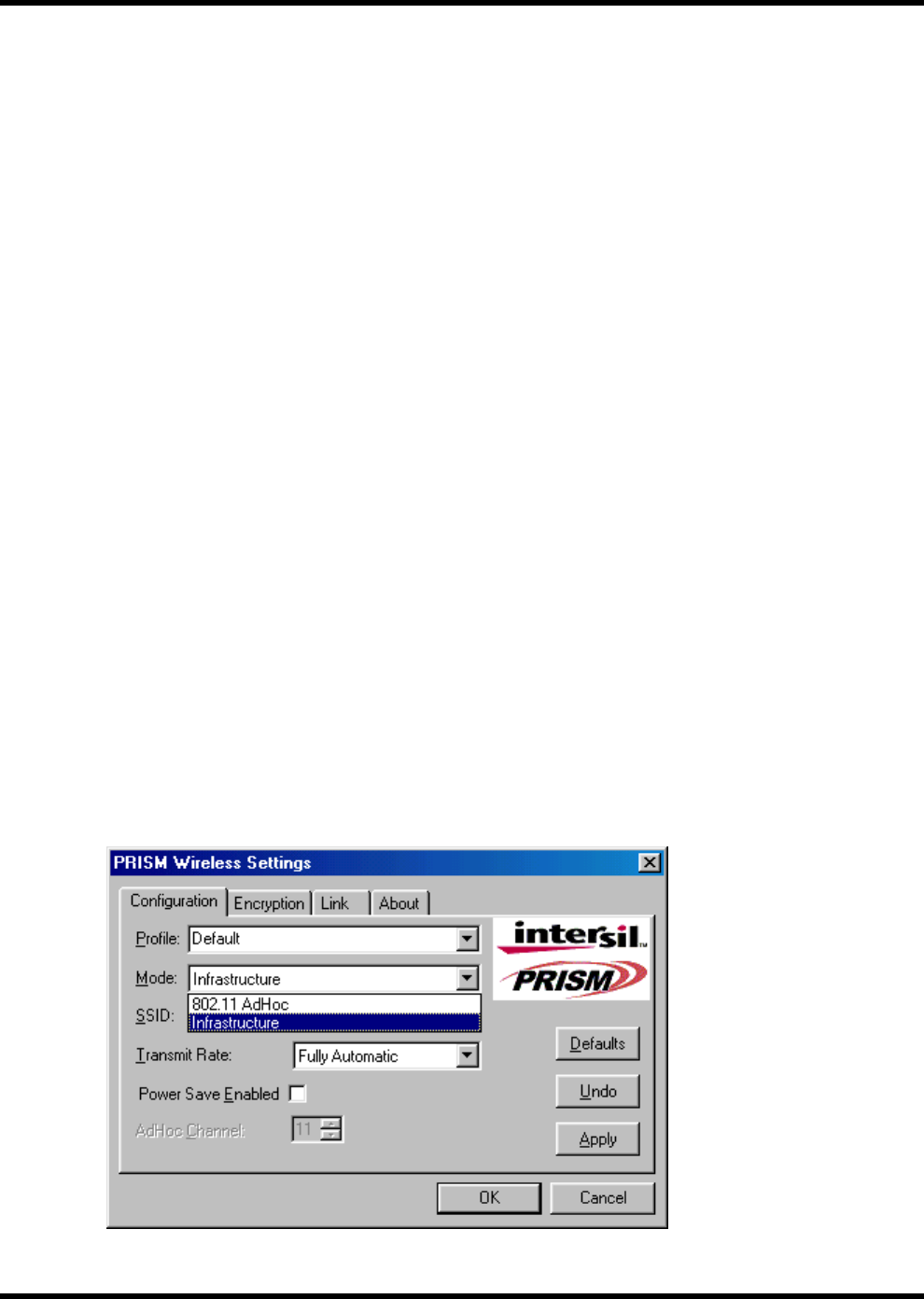

Configuration Tab
Select the Configuration Tab to access the Configuration menu, as shown below. You can make
changes to any of the fields shown below, without the need to restart your computer.
Profile
A profile is a named set of operating parameters for your Laputa PCI WLAN adapter. The Profile field
lets you set values for all parameters by selecting a previously defined profile. Click the down arrow at
the right of the Profile field to display the available profiles for your Laputa PCI WLAN adapter.
Mode
The Laputa PCI WLAN adapter can operate in one of two modes, which are specified in the Mode field
of the Configuration menu. Clicking the down arrow at the right of the Mode field displays the available
modes.
802.11b Ad Hoc - This is the 802.11b peer-to-peer mode of operation. In “Ad Hoc” mode, only
one wireless “cell” is supported for each different SSID. All communication is done from client
to client without the use of an Access Point. “802.11b Ad Hoc” networking uses the same SSID
for the wireless adapters in establishing the network connection. When “Ad Hoc” mode is
selected, the utility will provide a selection for setting the channel.
Infrastructure - This mode of operation requires the presence of an 802.11b Access Point. All
communication is done through the Access Point, which relays packets to other wireless clients
as well as to nodes on a wired Ethernet network.
TwinMOS Laputa PCI
TwinMOS Page 22
SSID
The SSID is the Service Set IDentifier used by Access Points and stations to identify a wireless LAN.
The SSID is essentially a name that identifies your wireless network. All Access Points and all devices
attempting to connect to a specific Wireless network must use the same SSID.
Transmit Rate
The Transmit Rate field specifies the rate at which the radio in your Laputa PCI WLAN adapter
transmits and receives data. You can set this to the following fixed rates: 1 Mbps; 2Mbps; 5.5 Mbps or
11 Mbps.
Power Save Mode
Power Saving mode allows your computer to use reduced power during idle time by going into “sleep”
mode, saving energy costs.
Ad Hoc Channel
When communicating in AdHoc or Pseudo AdHoc mode, you must specify a channel on which
communications will take place. This field is grayed in infrastructure mode because the Access Point
automatically selects the channel.

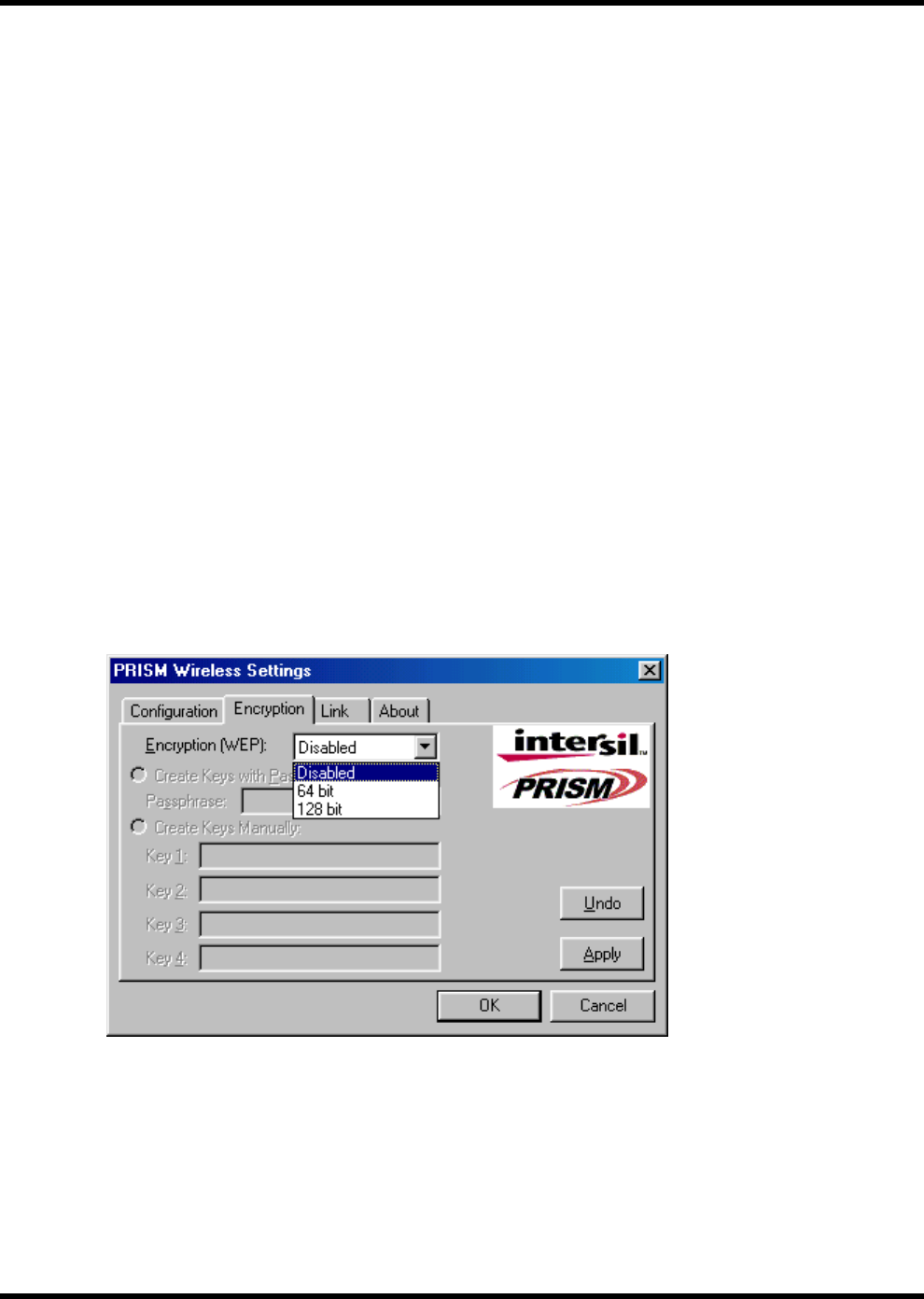

Encryption Tab
The Encryption menu lets you enable encryption and set the encryption keys. To see the available
encryption methods, click the down arrow at the right of the Encryption (WEP) field.
There are two encryption methods available. The IEEE 802.11 specification defines Wired Equivalent
Privacy (WEP) using a 64-bit key. This capability was extended by the industry to allow a 128-bit key.
TwinMOS Laputa PCI
TwinMOS Page 23
Disabling Encryption
To disable encryption, click the down arrow at the right of the Encryption field, select Disabled, and
click the Apply button.
Disabling Encryption
To enable encryption, click the down arrow at the right of the Encryption field, select either 64 bit or 128
bit, and click the Apply button. After enabling an encryption method, you must then specify encryption
keys, as described in the following sections.
If you specify an encryption method, you will only be able to communicate with Access Points and
stations that use the same encryption method and keys.
Creating Encryption Keys Using a Passphrase
To create encryption keys using a passphrase, click the radio button next to Create Key with Passphrase
and type a character string in the Passphrase field. As you type, the Configuration Utility uses an
algorithm to generate four keys used for encryption.
When you finish typing your character string and click the Apply button, the Configuration Utility uses
asterisks to mask both your passphrase and the keys it generates.
Using a passphrase to generate the four keys makes it easy to set the same keys for all members of your
wireless LAN. Please make a record of your passphrase, so that you do not forget it. If you do forget
your passphrase, then disable encryption and create new passphrases.
Creating Encryption Keys Manually
If you wish, you can create encryption keys manually by selecting the Encryption tab. Click on the
button next to Manual Entry.
When you click this button, the cursor appears in the field for Key 1. For 64-bit encryption, you must
type exactly 10 hexadecimal digits in each of the four key fields; for 128-bit encryption, you must type
exactly 26 hexadecimal digits. You then click the Apply button to create your encryption keys. After you
click the Apply button, the Configuration Utility uses asterisks to mask your keys. Remember to make a
note of your hexadecimal string for each key. If you do forget your digits for a key, disable encryption
and create a new key.
TwinMOS Laputa PCI
TwinMOS Page 24

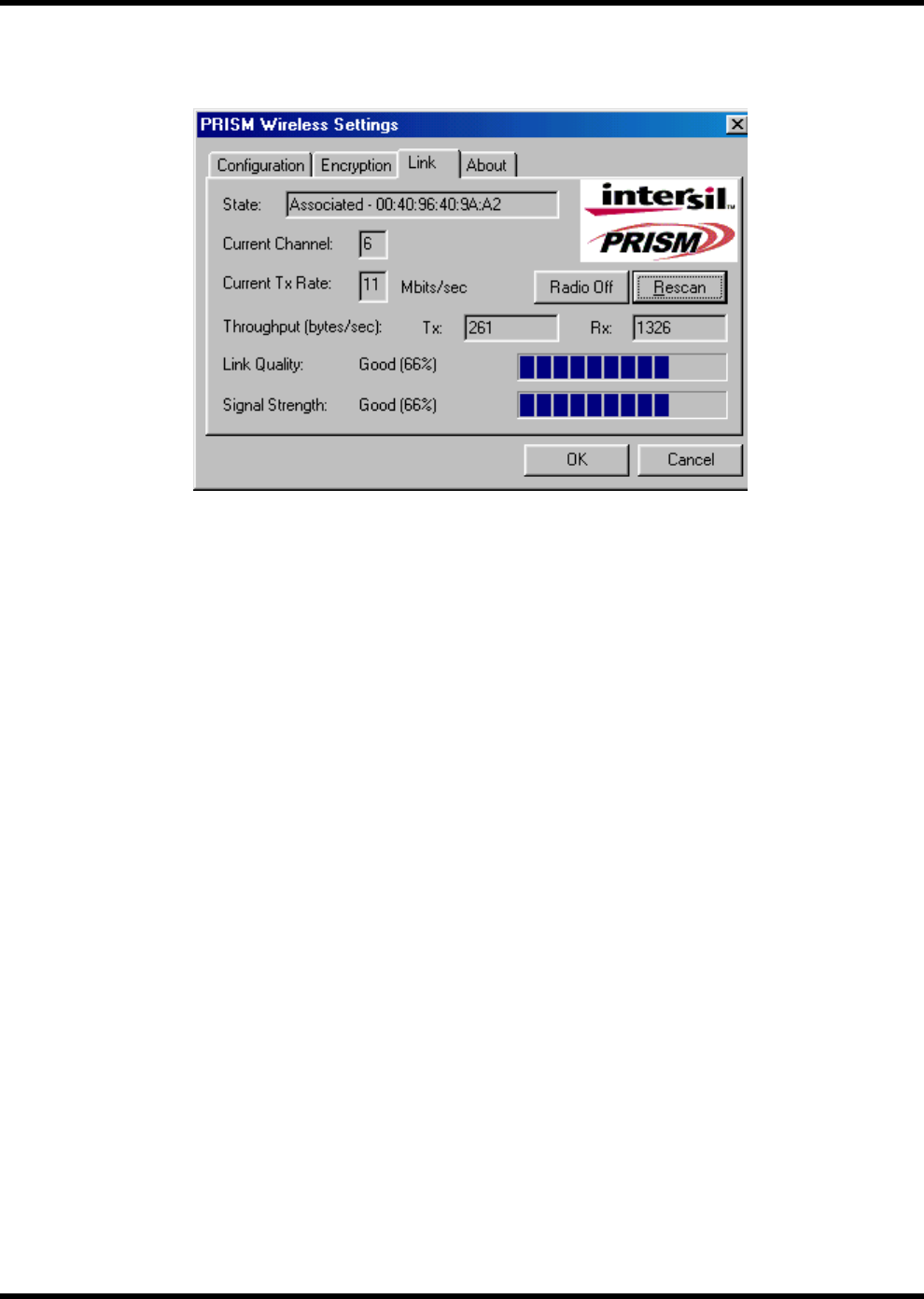

Link Tab
The Link Info Tab displays the current state of your wireless adapter.
The fields in this menu provide the following information:
State
Shows the association state of your computer with the wireless LAN. When operating in Infrastructure
mode, this field shows the MAC address of the Access Point with which you are communicating. When
operating in AdHoc mode, this field shows the virtual MAC address used by computers participating in
the AdHoc network. In both cases, the MAC address will be shown in hex format (BSSID.) If the word
scanning appears in this field, it indicates that networking has not been achieved. The adapter is
searching for an available Access Point, within range. (Note: If there is a problem with the driver
installation, this field will display an error message.)
Current Channel
Shows the channel on which the connection is made. In Infrastructure mode, this number changes as the
radio scans the available channels.
Current TX Rate
Shows the highest transmit rate of the current association.
Throughput
Shows the short term transmit and receive throughput in bytes/second, and is continuously updated.
Link Quality
Is based on the quality of the received signal of the Access Point beacon.
Signal Strength
Is active only when in Infrastructure Mode. The graph displays normalized signal strength averaged over
all frames that over 100 bytes long that are received by the Access Point.
About Tab
TwinMOS Laputa PCI
TwinMOS Page 25

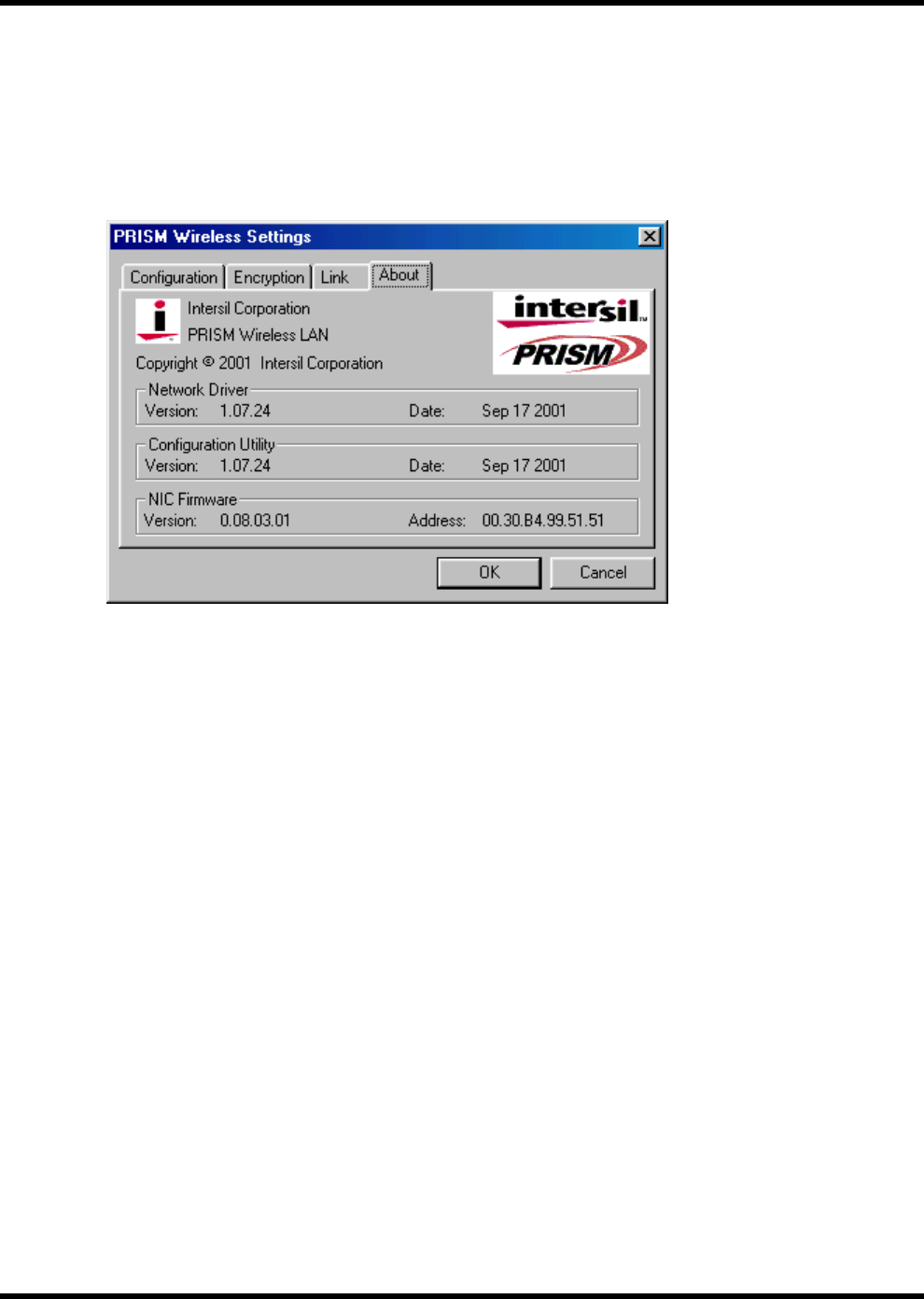

The About menu provides information on the version of the Network Driver, the Configuration Utility,
and the firmware in the PRISM WLAN Interface card. In addition, this menu also provides the MAC
address of the PRISM card, as shown in the following illustration.
TwinMOS Laputa PCI
TwinMOS Page 26
TROUBLESHOOTING
If you encounter some problems while installing the Laputa PCI WLAN adapter or you want to confirm
whether your adapter is installed properly or not, we have listed the procedure for checking the various
components after you have installed the adapter. In first part of Troubleshooting, we have suggested the
users to check the various properties of the card to check the proper installation. In second section, we
have listed the various problems that you may encounter during the installation and have also listed the
possible solution. Check the first part to guess the probable reason of unsuccessful installation.
Please check the followings if you encounter some problem while installing the Laputa PCI or yours
Laputa PCI are non-functional.
In Windows 98:
To check that the Laputa PCI is installed properly, please do the following:
Go to START>RUN>SETTINGS>CONTROL PANEL>NETWORK. Choose the Configuration Tab. If
you find the Wireless LAN Card, it means the card is installed properly. If you see the Yellow
Question-mark (?), the resources are conflicting. If your resources are conflicting, please check the
following.
a. Check that you have installed the Laputa PCI into the PCI port and check that you have installed
the proper driver.
b. Check to see if your computer has a free IRQ. If not, make an IRQ free by assigning the same IRQ
to some devices, for example COM 1,COM 2 can be assigned the same IRQ values.
In Windows 2000:
To check that the Laputa PCI is installed properly, please do the following:
1. Check the Windows 2000 Diagnostics. See if there is any conflict in the Resource allocation or the
I/O Address, IRQ allocations. If you find that the IRQ or I/O Addresses are already assigned to some
other devices, you must change that value.
2. Go to the Control Panel. Double click on the Network Adapter, you will see Laputa PCI Wireless
Adapter. Double clicking on that will show you the status of the Laputa PCI network adapter. If there
are no error signs, the adapter has been installed properly.
In Windows XP:
To check that the Laputa PCI is installed properly, please do the following:
1. Go to START>CONTROL PANEL. Double-click on Network Connections. Right-click on LAN.
Click Properties.
2. The Laputa PCI network adapter will appear, indicating proper installation.
TwinMOS Laputa PCI
TwinMOS Page 27
TECHNICAL SPECIFICATIONS
Physical Specification
Dimensions 59.75 x 50.95 x 4.7 mm (wxhxt)
Weight 13 g
Cable Length Option
Host Interface PCI Type IIIA
Temperature & Humidity
Operation 0℃ to 55℃ maximum humidity 95%
Transit -20℃ to 65℃ humidity 15% to 95%
Storage -20℃ to 65℃ humidity 10% to 95%
Power Characteristics
Operating Voltage 3.3V±5%
Current Consumption Nominal 240mA , Max. 300mA
Networking Characteristics
Compatibility IEEE 802.11 Standard for WLAN (DSSS)
Wi-Fi certified by the WECA
Host OS Windows 98/98SE/ME/2000/XP
Media Access Protocol CSMA/CA with ACK
Network Protocol TCP/IP, IPX, NetBEUI
RF Characteristics
Frequency Range 2.400-2.4835 GHz, Direct Sequence Spread Spectrum (DSSS)
Operating Channels
1-11 United States (FCC)
1-11 Canada (DOC)
1-14 Japan (MKK)
1-13 Europe (Except Spain and France) (ETSI)
Modulation Technique
11 Mbps: CCK
5.5 Mbps: CCK
2 Mbps: DQPSK
1 Mbps: DBPSK
Spreading 11-chip Barker Sequence
Transmit Power 14 dBm @ Nominal Temp Range
Receive Sensitivity Nominal Temp Range: 11 Mbps 10-5 BER @ -85 dBm, minimum
Encryption 64-bit WEP, 128-bit WEP
Antenna Build-in inside host
Operating Range Open Space: 100 ~ 300m; Indoor: 30m ~ 100m
The transmission speed varies in the surrounding environment.
EMC Certification FCC part 15B, 15C; R&TTE; TELEC/JATE
TwinMOS Laputa PCI
TwinMOS Page 28
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received,
including interference that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with
FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
This card cannot be used in laptop computers or other portable
configurations and is authorized only for use in devices where the
antenna may be installed such that 20 cm may be maintained
between the antenna and users.
