Introduction — Getting Started

Getting Started

Congratulations on your purchase of a notebook computer! Your new notebook features the most

innovative advances in portable computing technology. It combines state-of-the-art ergonomics with

sophisticated architecture to provide you with a personal computer that is compact, powerful, and

easy to use. Designed for a wide range of general, business, and personal productivity applications,

the notebook is an ideal choice for use in the office, at home, and on the road.

For maximum expandability without compromising portability, the notebook accommodates a number

of modules, including a combo DVD+CD-RW drive, one PCMCIA card and three USB devices. The

high capacity hard disk drive provides you with plenty of storage space for multimedia files and

applications.

The notebook features an 85/87-key keyboard and a touch pad with scroll buttons. The high-

resolution 12.1-inch LCD panel provides clear and crisp viewing.

This Manual contains all the information you need to set up and use your new notebook. It describes

all the features of the notebook in an easy-to-read yet thorough manner.

Inventory

This computer system is designed for years of productive and pleasurable computing. Use this

section to keep details of your purchase. This information will be required should you need to make

repairs to your notebook during the warranty period. Update this section when you add new options.

DATE OF PURCHASE:

PLACE OF PURCHASE:

DEALER'S ADDRESS:

TELEPHONE:

E-MAIL ADDRESS/WWW:

CONTACT PERSON:

MODEL NUMBER:

SERIAL NUMBER:

Introduction — Safety and Maintenance

The serial number is located on the label (with a bar code) on the bottom side of the computer and

begins with “SY”.

Safety and Maintenance

You can use your computer under a wide range of environmental conditions. However, to ensure

long use and continued high performance, consider the following factors when setting up your

computer:

• Follow all warnings and instructions noted in this documentation and in the Windows Help

program.

• The first time you use your computer, we recommend that you carefully read the Making

Connections section of this manual and initialize the battery to ensure optimum battery

performance.

• Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do

not use aerosols, solvents, or strong detergents.

• Do not use the computer near open water or other liquids. Never spill liquid onto the computer.

• Do not place the computer in an unstable location where it might slip or be knocked over.

Serious damage could result from a fall.

• Slots and openings in the system cabinet are for ventilation purposes. Do not block or cover

these openings or the system could overheat. Do not use or store the computer near a source

of heat or dust.

• On the base or rear panel of this notebook, there is a label with information on the power

requirements of this system. These requirements must be followed. If you are unsure of your

local power supply, consult your dealer or local Power Company.

• Do not step on or place anything on the power cord.

• If you use the computer with an extension cord, ensure that the total ampere ratings of all the

devices sharing the extension do not exceed the rating of the extension cord or the rating of

the wall outlet.

• Never push foreign objects into the computer through any of the slots or openings. Dangerous

voltages are present, which could cause electric shock or fire, or damage sensitive

components.

Introduction — Checklists

• For best results, use a power strip with a built-in surge protector. Do not use inferior extension

cords as this may result in damage to your computer.

• Set the computer on a flat, stable surface. To prevent damage to the computer’s hard disk drive,

avoid using the computer where it will be exposed to strong vibration.

Checklists

After opening the package, carefully inspect the contents. If any of the items is missing or appear

damaged, contact your dealer. The shipping carton should contain the following:

STANDARD

• A notebook computer

• An internal battery

• A combo DVD+CD-RW drive

• An AC adapter with power cord

• Recovery Media

• Operating System Guide

OPTIONS

The following items are optional accessories that are available for purchase separately. Visit

www.averatec.com for additional information.

• 256 MB or 512 MB Memory Module

• USB FDD Drive

• Wireless LAN PC Card

• Auto Adapter

• Spare or Additional AC Adapter with Power Cord

• Spare or Additional Battery

Introduction — Features

Caution: When purchasing any of the accessories

listed above, purchase only those accessories

that are approved for use with your computer.

The above accessories may be proprietary items.

Your system vendor can obtain these approved

accessories. If you use items that are not

approved for use with this computer, you may

cause your computer to malfunction, or to emit

or receive electro-magnetic radiation in excess

of local regulations. For non-proprietary

accessories such as PC cards or printers,

ensure that the accessory functions properly in

your computer before making the purchase. Your

system vendor may be able to recommend reliable

brands and models.

Features

High Capacity Hard Disk Drive

The computer has a high capacity hard disk drive, to store your favorite programs and large multimedia

files.

Built-in Modem/LAN Capability

A built-in 56k modem and 10/100 Mbps Ethernet port allows you to access the Internet or a local area

network (LAN).

Built-in Wireless LAN Capability (some models only)

A built-in wireless LAN allows you to access the Internet or a local area network (LAN) without wires.

Large LCD

Your computer has an easy-to-view XGA (1024x768 resolution) LCD panel.

Built-in Stereo Speakers and Microphone

The stereo speakers and internal microphone enable you to run a variety of multimedia applications.

Introduction — Where to Look For Information

Convenient Audio Control

The conveniently located audio control knob enable you to easily adjust the volume to the stereo

speakers.

Scrolling Button

Comfortably scroll through documents with the ergonomically designed scrolling button.

Where to Look For Information

About Your Computer

This User’s Manual describes the key elements of your computer. New users can find a simple step-by-

step orientation in the Quick Start section of this chapter.

Quick Start

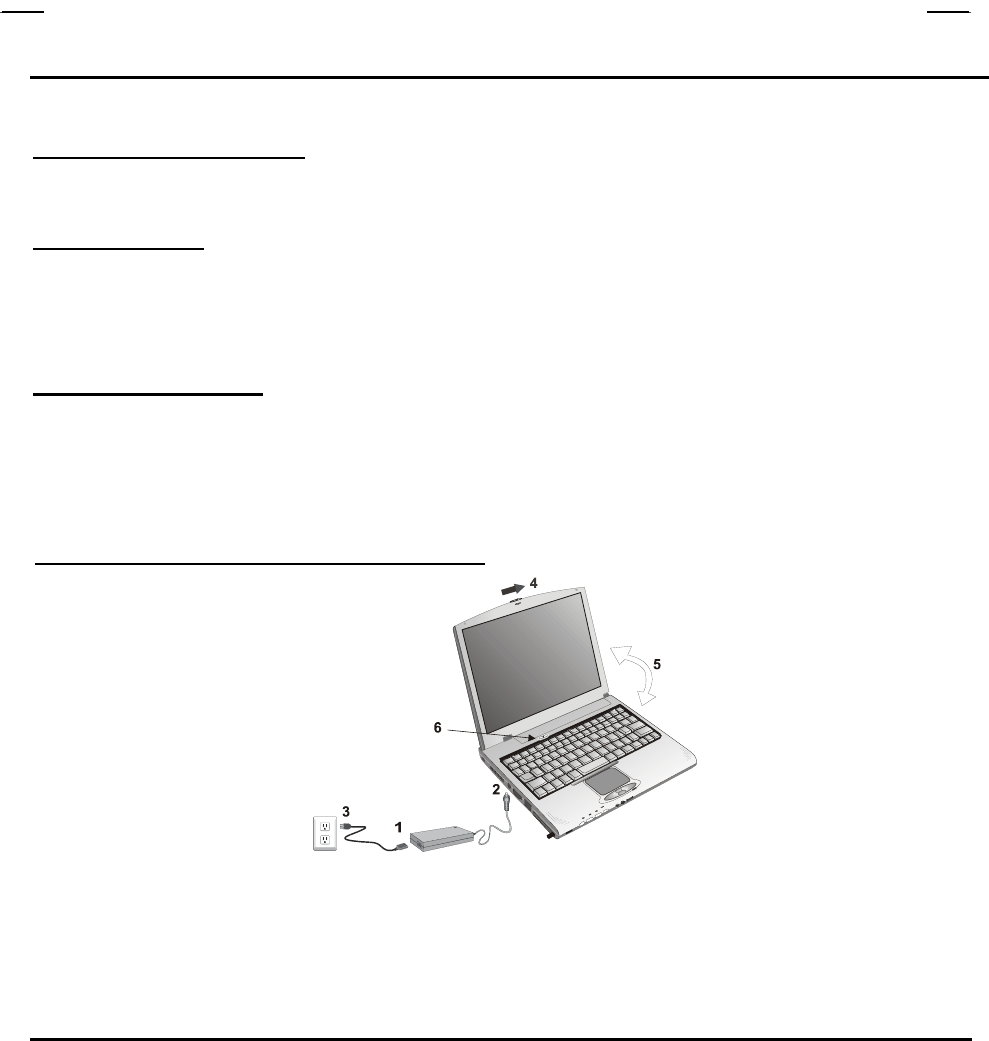

Turning on the Computer for the First Time

1. Connect the AC adapter

power cord to the AC

adapter.

2. Connect the AC adapter

to the DC power port on

the left side of your

computer.

3. Connect the AC adapter

power cord to an AC

outlet.

4. Slide the cover latch in

Introduction — Adjusting the Volume

the direction of the arrow

to open the LCD.

5. Open the LCD panel to

a comfortable viewing

angle.

6. Press the power button

to turn on the power.

Note: The battery is not fully charged.

Allow your battery to fully charge before

using it (i.e., before disconnecting AC

power). Calibrating the battery before use

is also highly recommended. Refer to

Chapter 4, Power Management, for further

information.

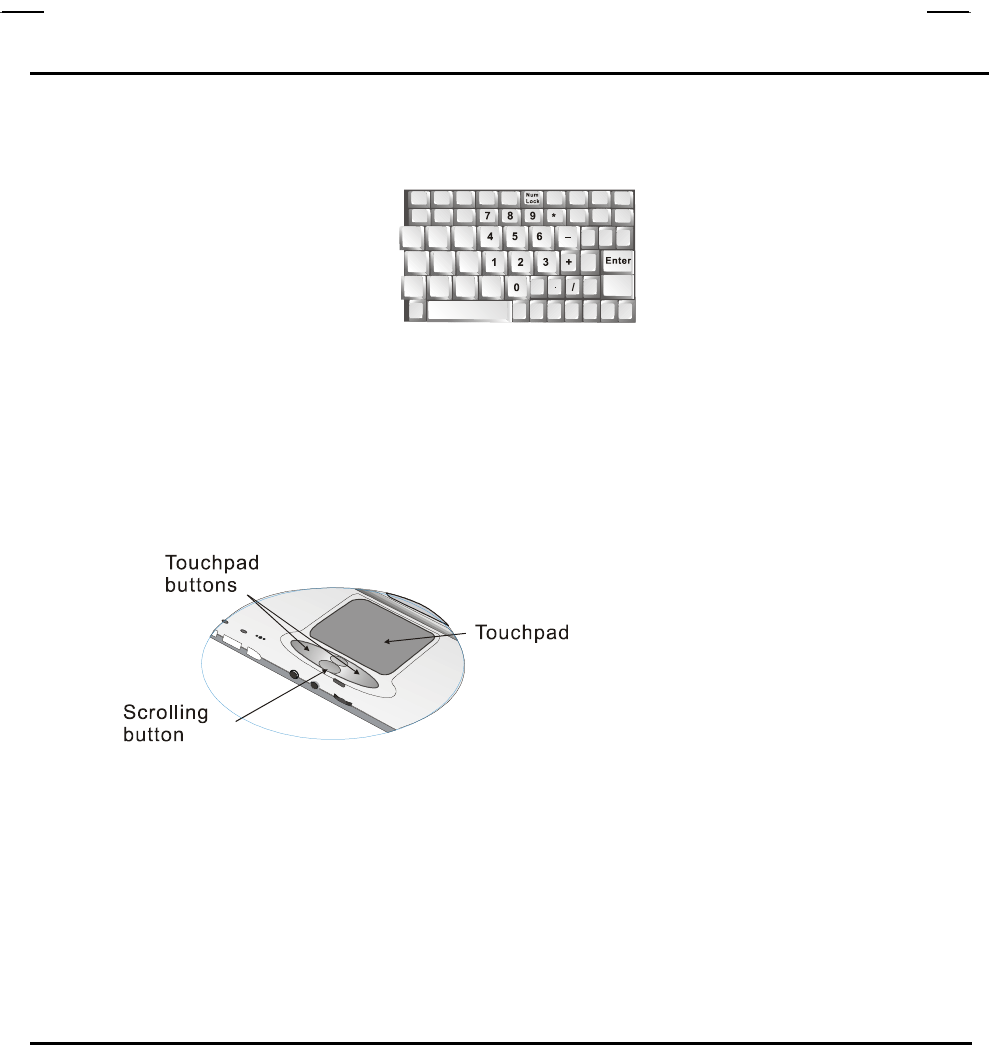

Use the touchpad to move the cursor on the screen. Move your finger across the pad to control the

cursor, and press the right and left buttons beneath with your thumb. These buttons have the same

functions as the right and left buttons of a standard mouse. You can also click or double-click by

tapping on the touchpad. The middle button can be used to scroll up and down in documents and

Web pages.

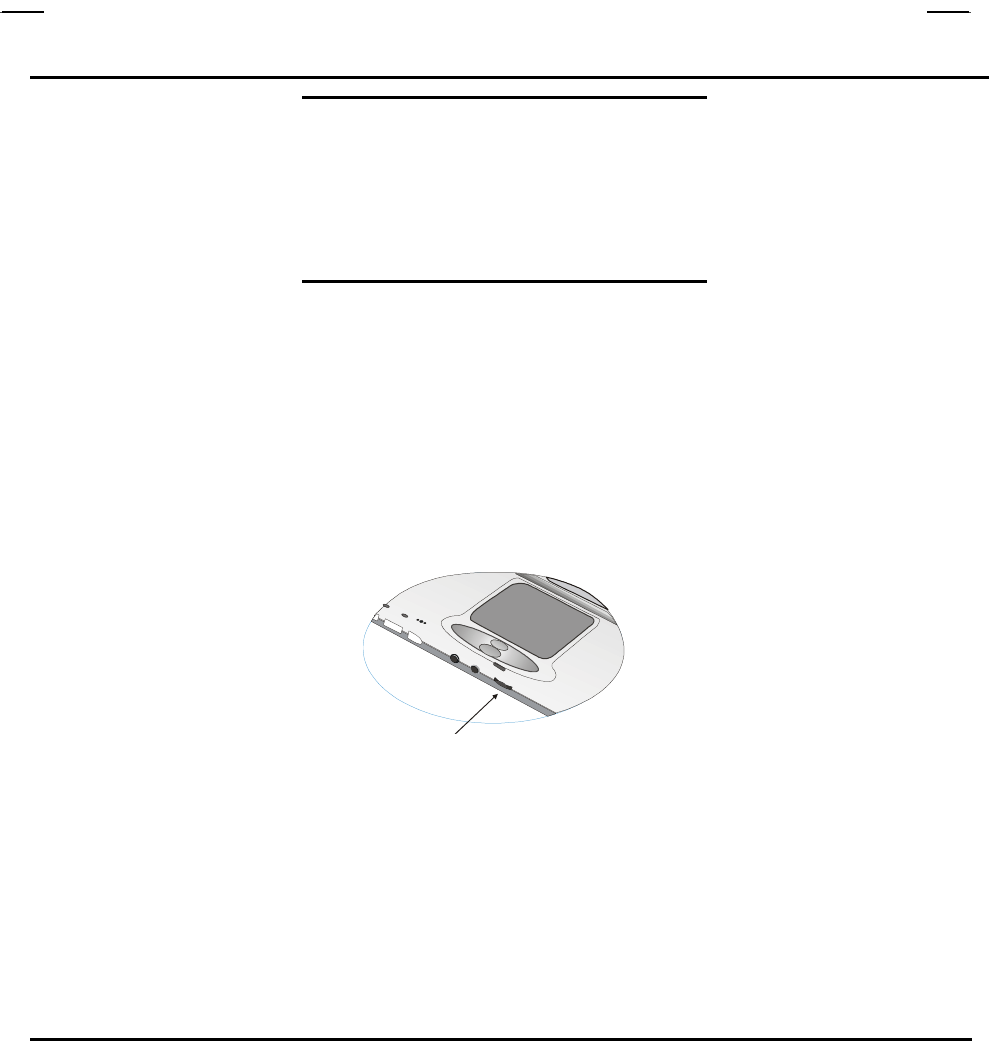

Adjusting the Volume

You can adjust the volume

with the volume control knob

located below the touchpad.

Volume control button

Introduction — Adjusting the Brightness

Alternatively, you can adjust

the volume with the Windows

volume control applet located

on the taskbar.

Adjusting the Brightness

Use the following hot key combinations to adjust the LCD panel brightness:

• Fn + F6 decreases the brightness

• Fn + F7 increases the brightness

Turning off Your Computer

Turning off the computer properly is important to maintaining your computer.

1. On the Start menu, click

Turn Off Computer.

2. Click Turn Off.

If you are going to be away from the computer for a short period, there are ways of conserving power

without shutting down the system. See Chapter 4, Power Saving Modes, for details or refer to your

Operating System’s Online Help.

Warning: Shutting off the computer improperly

may result in data loss.

Introduction — Tips for New Owners

Tips for New Owners

Take responsibility for backup

Back up files often. Users who need to manage large amounts of data may wish to use backup

devices such as a tape backup unit or a ZIP drive. If you use your notebook as a networked

workstation with system backup, talk to the system administrator about backup procedures for your

notebook.

Don't leave passwords anywhere on your notebook or carrying case

Be careful when placing your notebook on an airport security conveyor belt

In most airports, security conveyor belts are safe for computers. If you are not sure, ask the security

staff. You should keep a close eye on your computer. When you are in a hurry, make sure that you

walk away with the correct notebook computer!

Tape your business card to the notebook and accessories

In the workplace, notebooks and accessories may often look exactly alike, leading to equipment mix-

ups. Prevent such mix-ups by placing your name on your equipment.

Develop ergonomic work habits

The science of ergonomics studies the relationship between health and a suitable work environment.

For more information on ergonomics, contact your nearest computer bookstore, or local library. The

Internet also has information on this and other related subjects.

Introduction — Tips for New Owners

Never take the notebook anywhere without the carrying case

A broken screen or case can be costly to repair. Prevent accidents by carrying the computer in a

suitable carrying case.

Consider using a lock

For added security, consider purchasing a Kensington lock to put into the Kensington lock hole on

the left side of your computer (see Chapter 2, Left View). Use the Kensington lock to secure the

computer to a desk or table.

Note: Using a computer for extended periods of

time with a poor workstation setup and

incorrect work habits can cause health

problems.

Getting Started

Hardware and Software

This chapter introduces the different components and controls of your notebook computer, including the

hardware components, the software, and the audio and video systems.

Getting Started

Before you begin using your computer, read this chapter to familiarize yourself with the main components

installed in the system.

Slide the screen latch on the front edge of the cabinet towards the right to release the cover latch and

open up the computer.

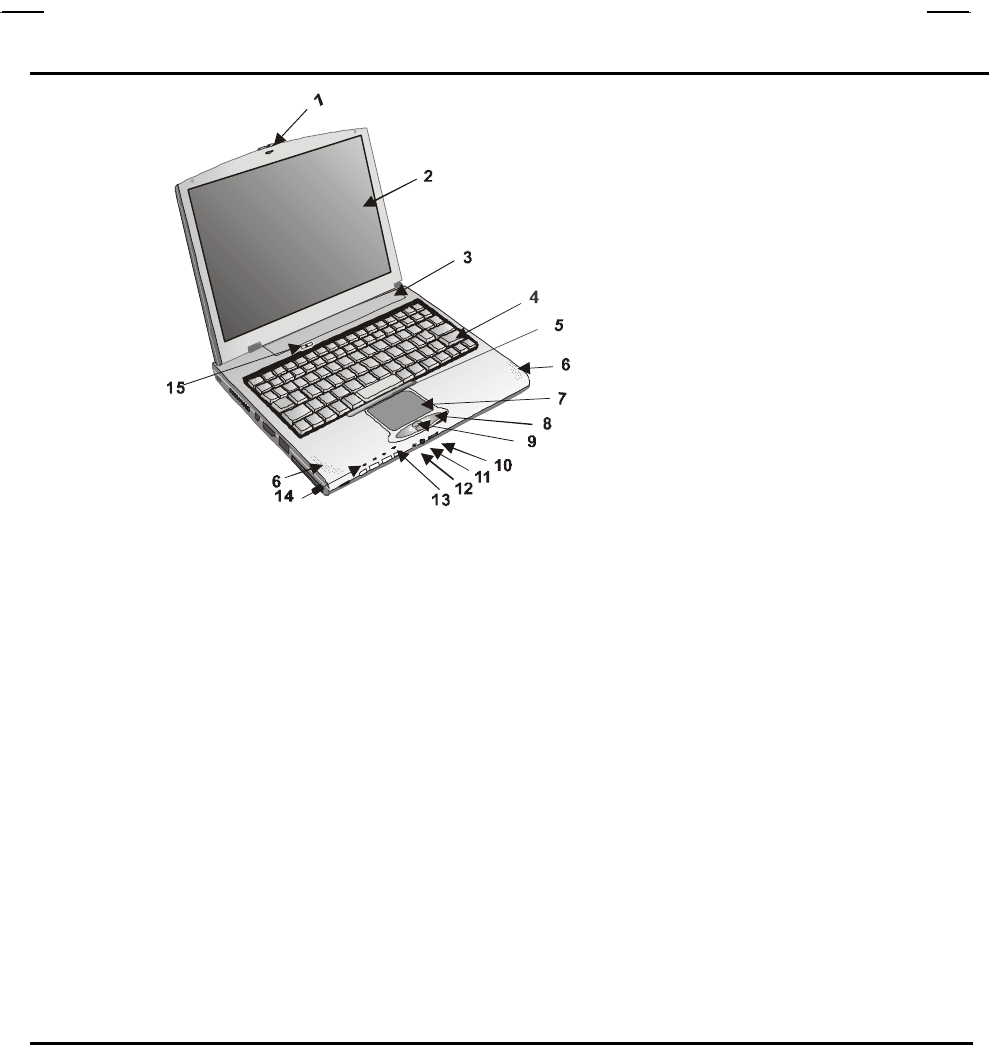

Front View

1. LCD release latch

2. LCD panel

3. Battery

4. Keyboard

5. Activity indicators

6. Speakers

7. Touchpad

8. Touchpad buttons

9. Scrolling button

10. Volume control knob

11. Microphone-in jack

12. Audio-out jack for external

speakers or headphones

13. Microphone

14. Power and wireless LAN

indicators

15. Power button

Getting Started

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as

indicated. Specification subject to change without notice.

Getting Started

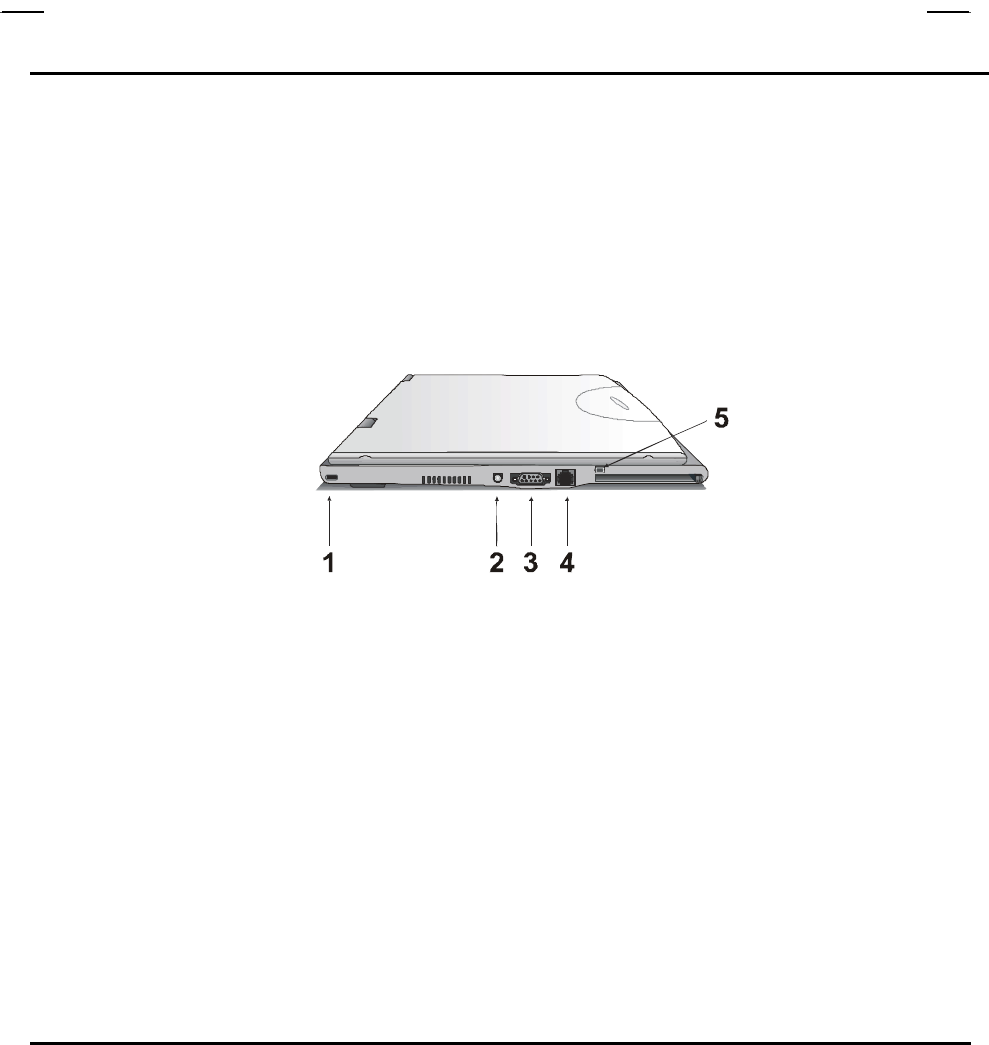

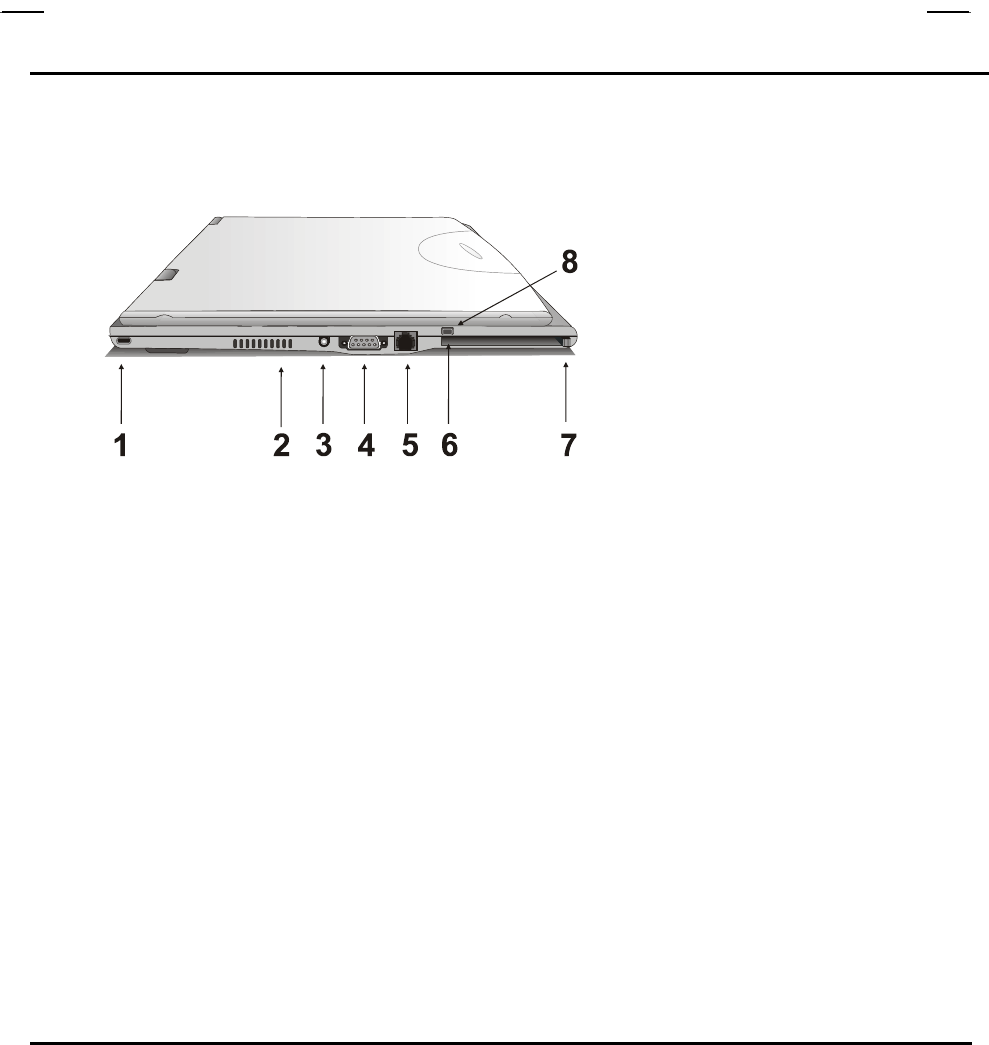

Left View

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as

indicated. Specification subject to change without notice.

1. Kensington lock hole

2. Ventilation slots

3. DC-adapter port

4. VGA port external video display

5. LAN RJ-45 jack

6. PCMCIA card slot

7. PCMCIA card eject button

8. Integrated Wireless LAN On/Off Switch (wireless LAN equipped models only)

Getting Started

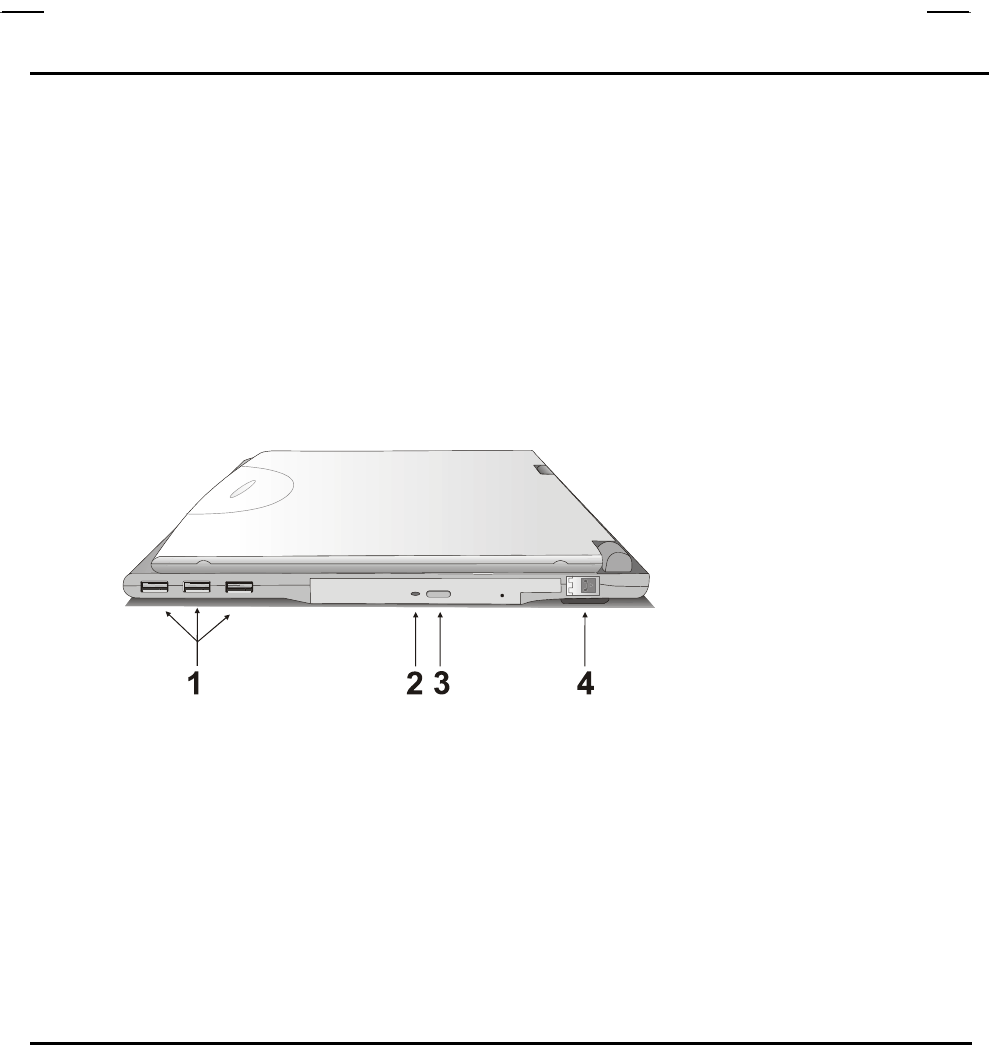

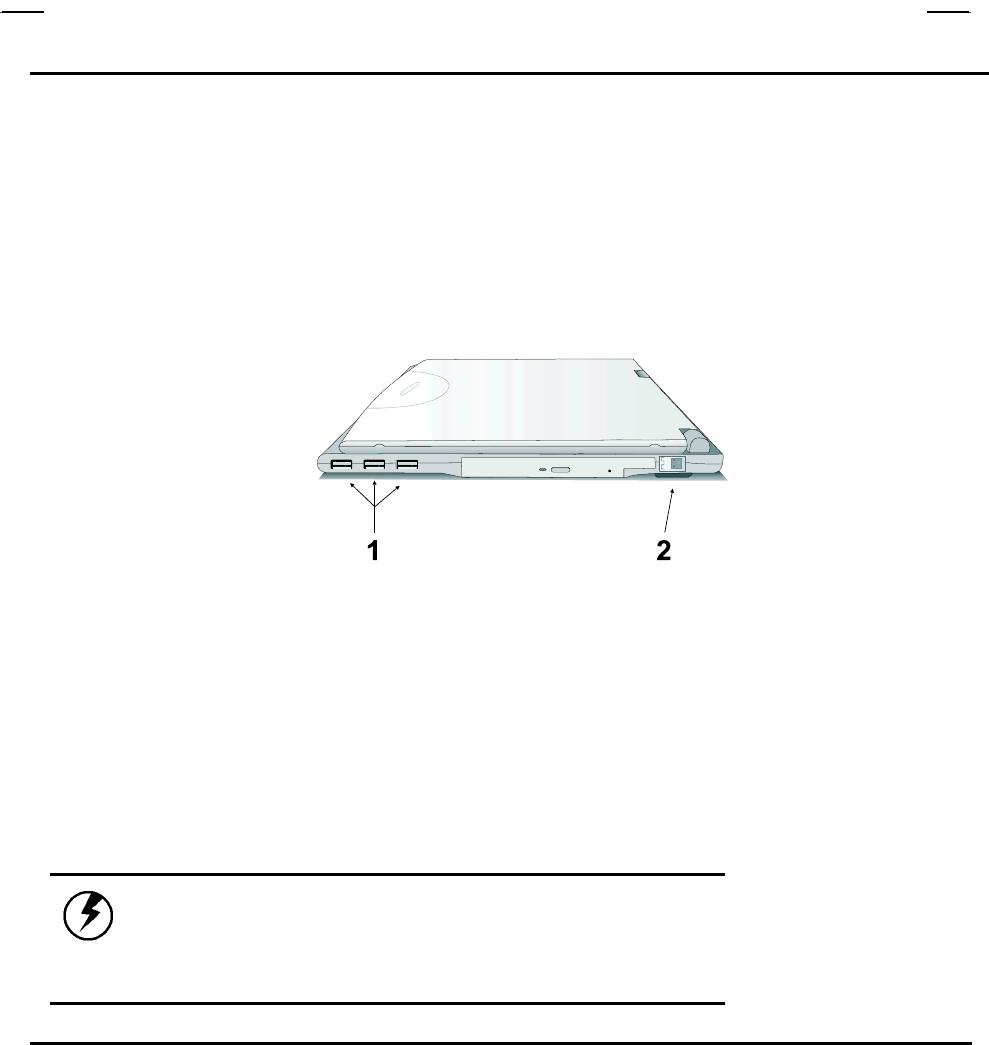

Right View

1. USB 2.0 ports

2. Combo DVD+CD-RW Drive

3. Combo DVD+CD-RW Drive Eject Button

4. Phone jack for internal modem

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as

indicated. Specification subject to change without notice.

Getting Started

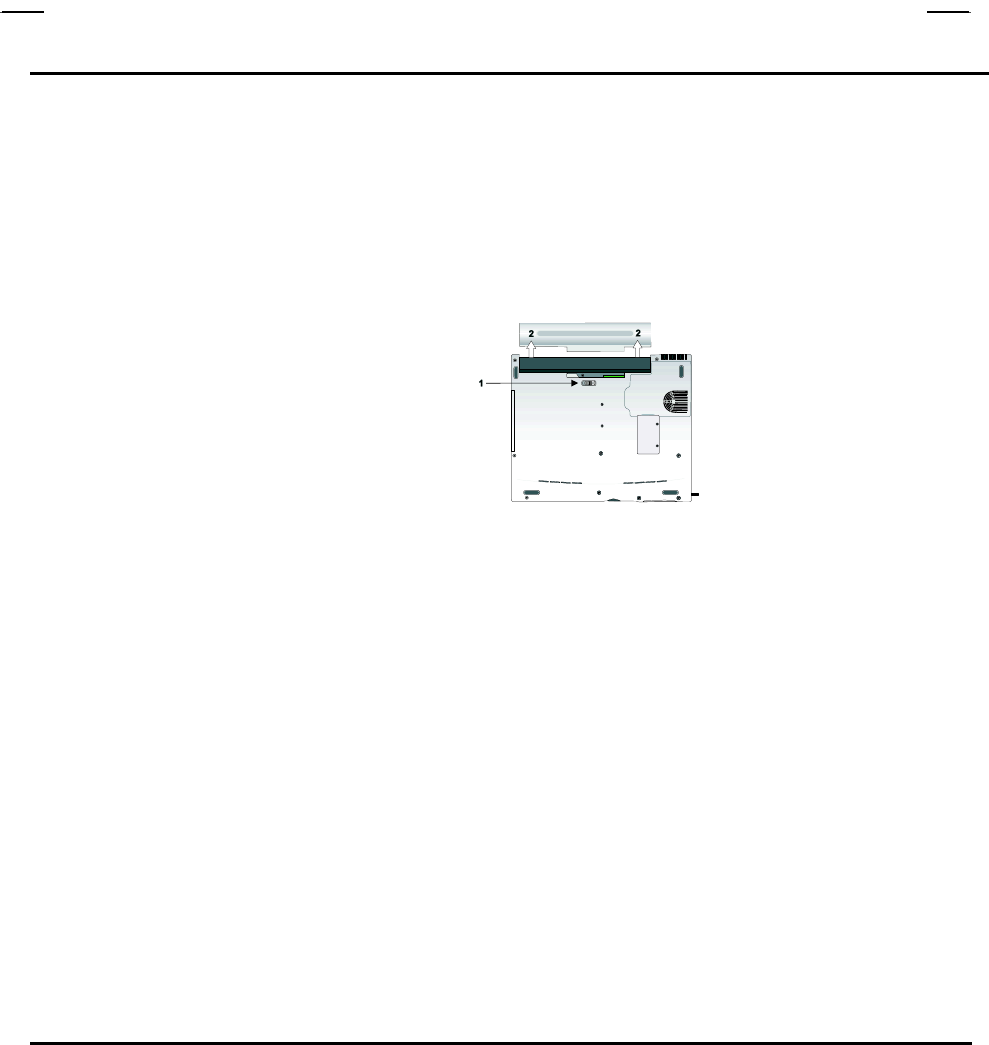

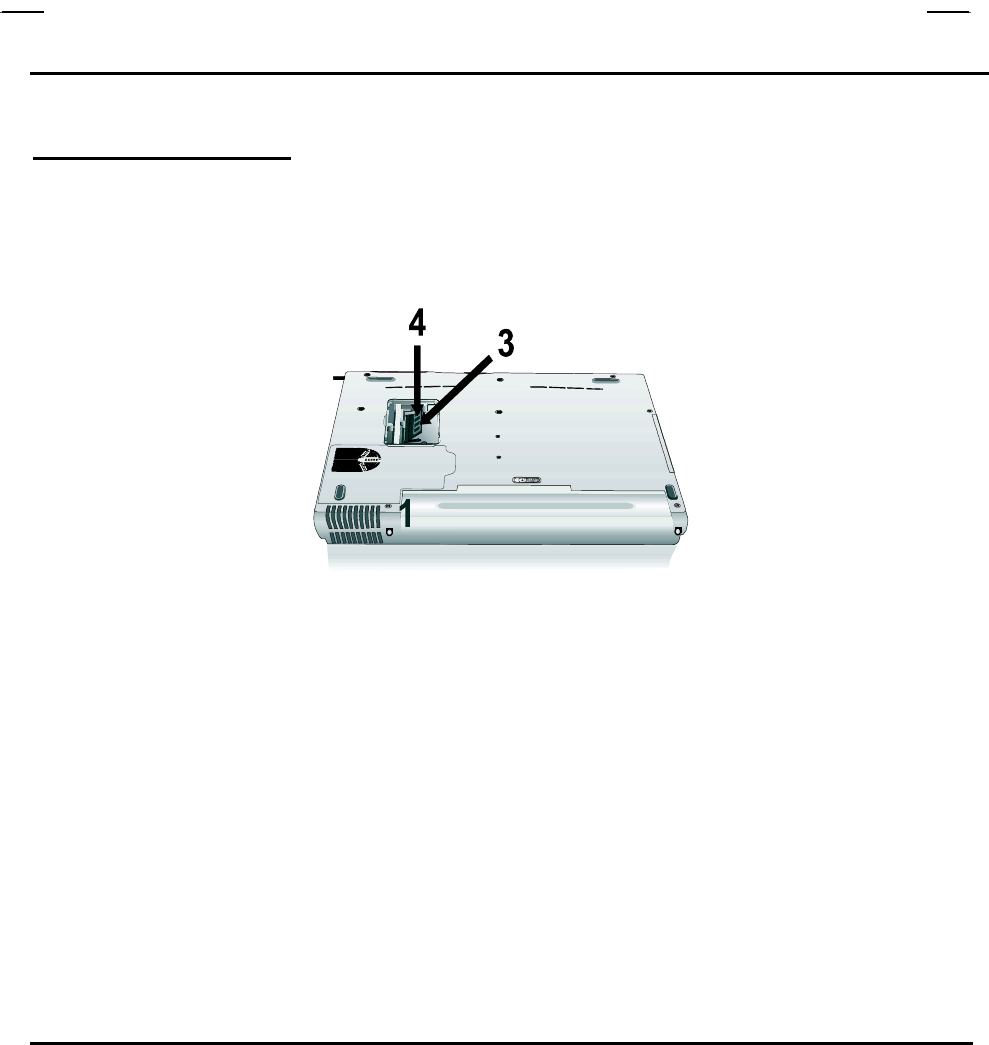

Bottom View

1. Ventilation slots

2. SO-DIMM RAM compartment

3. Battery release button

4. Battery

Getting Started

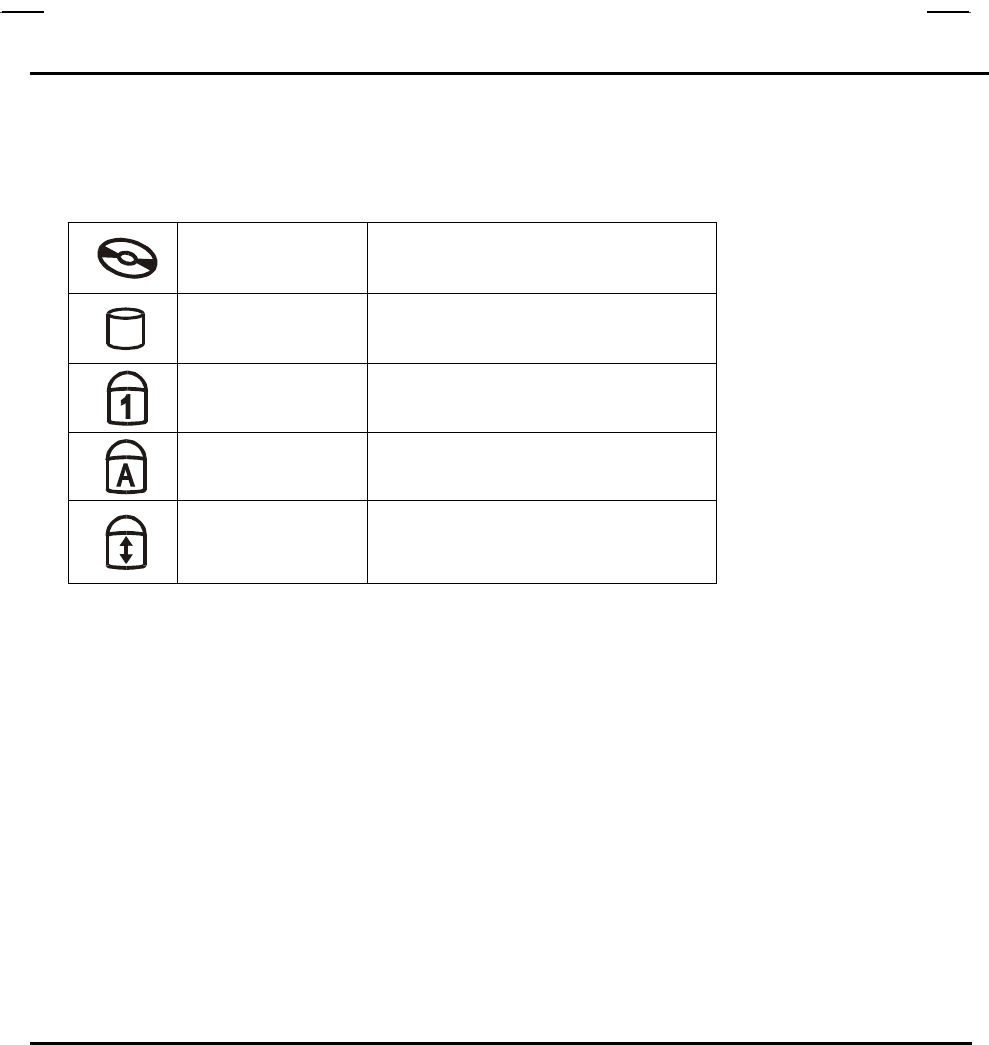

LED Status Indicators

The status indicators in the upper left corner of the keyboard light up when a particular function of the

computer is active. Each indicator is marked with a symbol.

CD ROM Drive

The computer is reading information

from the CD-ROM, CD-RW or the

DVD ROM drive.

HDD The computer is reading from, or

writing to the built-in hard disk.

Number-Lock The keyboard is in Num-Lock mode.

Caps-Lock The keyboard is in Caps-Lock mode.

Scroll-Lock The keyboard is in Scroll-Lock mode.

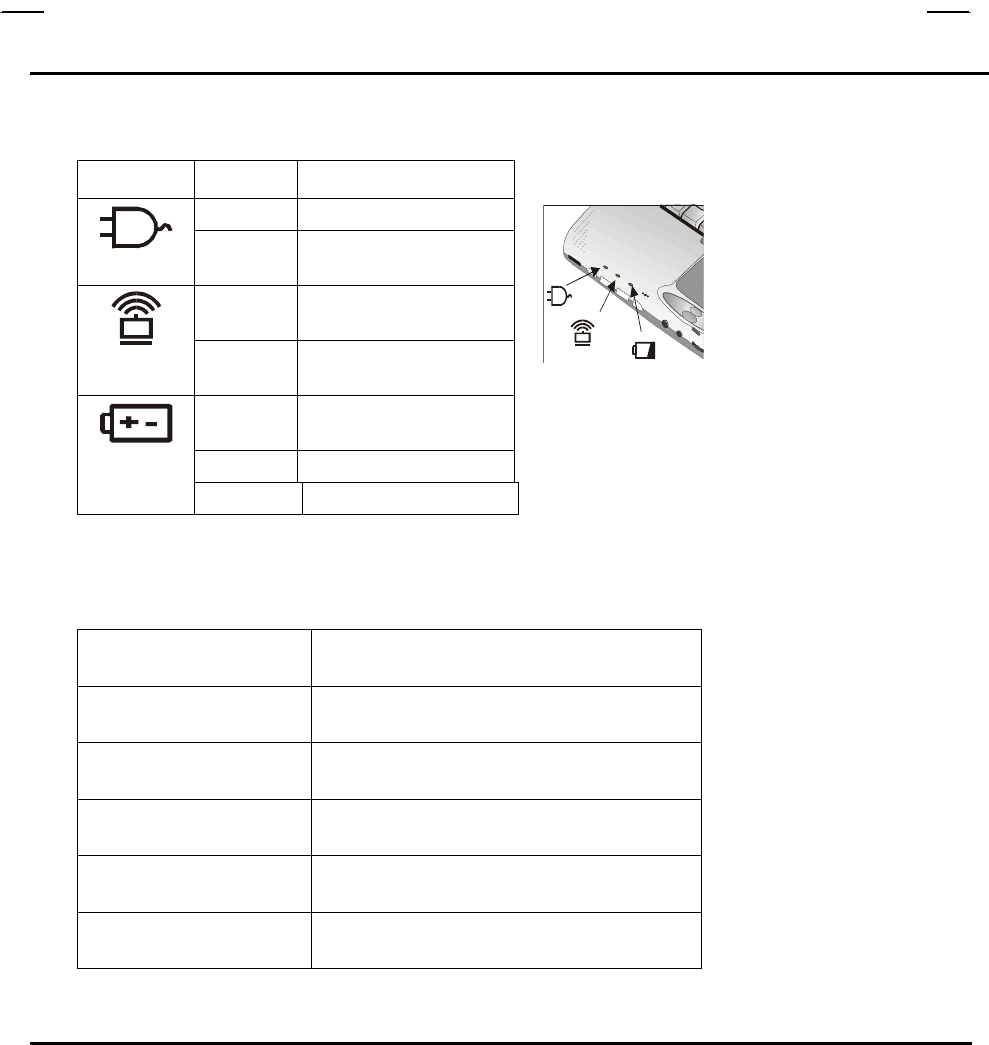

Power Indicators

The power indicators show which power source the system is using. They also show battery status and

low battery power alerts. The power indicators remain active and viewable even when the LCD panel is

closed.

Getting Started

Icon Light Description

Green Power is ON

Flashing

Green

Standby mode

Green Wireless LAN

Enabled (by switch)

No Light Wireless LAN

Disabled (by switch)

Flashing

Green

Battery Charging

Green Battery Full

Red Battery Error

Function Keys

Hold the Fn key while pressing the numbered function key.

Function key Description

Fn + F3 Toggles display on/off

Fn + F4 Suspend to RAM/HDD

Fn + F5 Toggles between LCD/CRT displays

Fn + F6 Decreases LCD brightness

Fn + F7 Increases LCD brightness

Getting Started

Numeric Keypad

The embedded numeric keypad

consists of ten keys that make

number intensive input more

convenient. Press <NumLock> to

enable or disable the numeric

keypad.

Touchpad

The touchpad is a pressure sensitive pointing device that provides all the features of a two-button mouse.

Its primary function is to move the cursor around the screen.

The instructions listed below describe how to use the touchpad.

1. First, place your fingers on the keyboard in the normal typing position. The touchpad is easily

accessible by moving either your left or right thumb off the space bar and on to the touchpad.

2. Gently move your thumb across the pressure-sensitive touchpad in the direction you want the

cursor to move. The pad detects the change in pressure and moves the cursor in the corresponding

direction.

3. The touchpad offers another method of making selections in a software program. It is called

double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor

has been moved to the object you want to select, lightly double-tap the pressure sensitive

Getting Started

touchpad. This double-tapping on the touchpad will select the desired item and prompt the

software to perform the related operation.

4. The buttons located directly below the touchpad are the same in function as those on a two-

buttoned mouse. Clicking these buttons makes selections, drags objects, or performs a variety of

other functions depending on the software. To select an object, first move the pointer over the

object you want to select, and then press the left button one time. The functions of these buttons

are software specific.

5. Double-clicking is a common technique for selecting objects or launching programs from icons.

Once you have moved the pointer over the object you wish to select, rapidly press the left

button two times. This action is commonly referred to as “double-clicking” an object.

Dragging

There are two ways to drag:

• Move the pointer to the desired location then press down the left button. While still holding

down the left button, move the pointer to the desired location. Release the button.

• Move the pointer to the desired location. Tap the touchpad twice quickly as if you were double-

clicking, however do not remove your finger after the second tap. Move the cursor to the

desired location. Lift your finger to finish dragging.

Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow

you to change the orientation of the touchpad from right-handed to left-handed, and fine tune the pointer

movement and timing of clicks.

Touchpad Precautions

The Touchpad is a pressure-sensitive device. If not properly cared for, it can be easily damaged. Please

take note of the following precautions.

• Make sure the touchpad does not come into contact with dirt, liquids or grease.

• Do not touch the touchpad if your fingers are dirty.

• Do not rest heavy objects on the touchpad or the touchpad buttons.

Scrolling Buttons

If you are scrolling through a document, you may find that using the scrolling button is more restful to your

hand than holding down a mouse button. The scrolling button is located between the touchpad buttons.

Push the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll

down in a document or Web page.

Getting Started

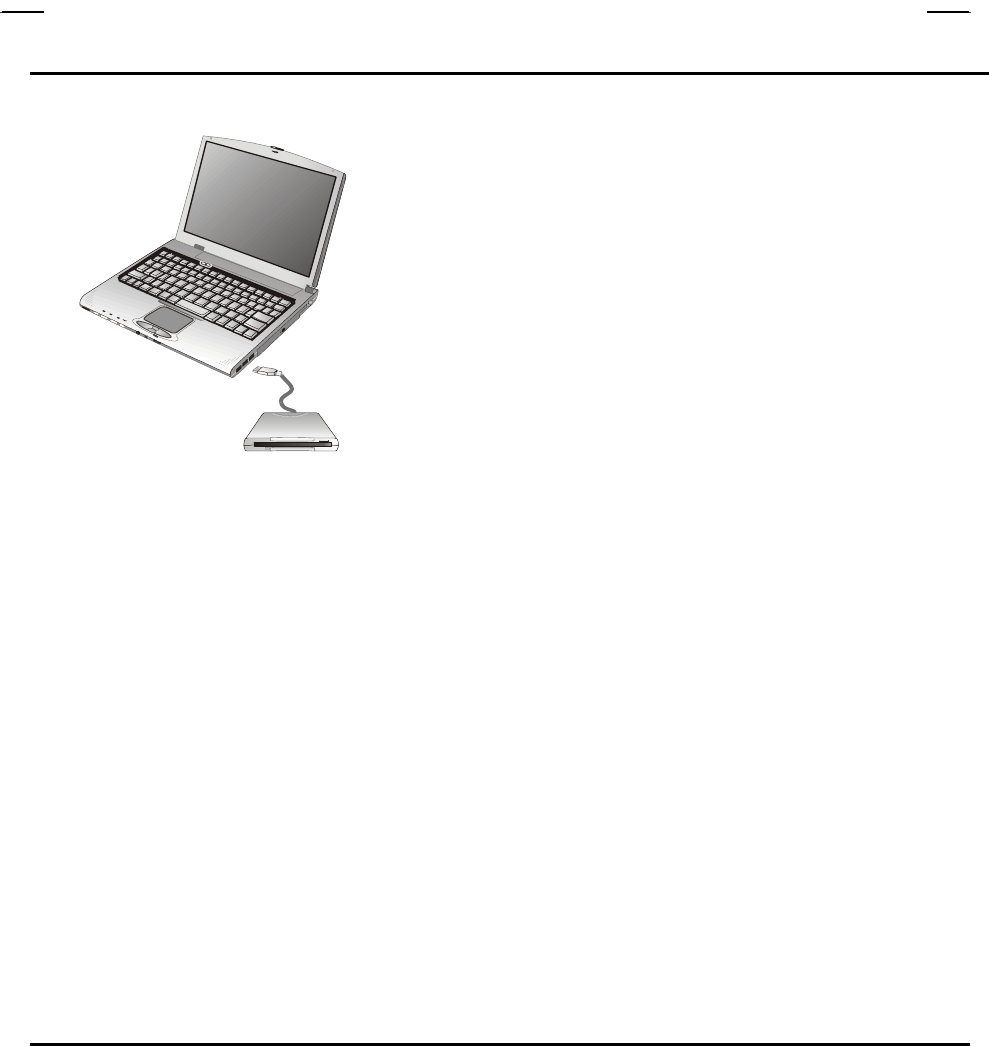

Connecting a USB Floppy Drive (not included)

Disk Drives

Your computer comes with several components for reading and writing (recording) information.

Hard Disk Drive

The hard disk provides high-capacity storage and fast access. Windows and most programs are stored

here. Your notebook identifies the hard disk drive as drive C.

The DVD+CD-RW Drive

Your computer comes with a pre-installed DVD+CD-RW drive. This drive can read CDs (data and audio),

read DVDs (data, video and audio) and write to CD-R and CD-RW media.

Getting Started

Inserting a CD/DVD

1. Press the button on the front of

the drive to open the disk tray

and pull the tray open.

2. Place the disk on the tray, label

side up.

3. Place the disk on the central

spindle and press gently until the

disk clicks into place.

4. Slide back the tray until it clicks

shut.

Removing a Disk

1. Make sure the computer is not

accessing the DVD+CD-RW

drive.

2. Press the eject button and pull

the tray all the way out.

3. Pick up the CD/DVD by the

edges and remove the

DVD+CD-RW from the tray.

Push the tray into the computer

until it closes fully.

Warning: When the computer is reading from the

DVD+CD-RW, the indicator light for the CD-ROM will

flash on. Do not attempt to remove a disk while

this light is active.

Precautions for Handling CD-ROM Discs

Keep these precautions in mind when handling CD-ROM discs.

• Always hold the disc by the edges; avoid touching the surface of the disc.

• Use a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the center outward.

• Do not write on the surface of the disc.

• Extremes in temperature may damage discs. Store discs in a cool dry place.

Getting Started

• Do not use benzene, thinners, or cleaners with detergent. Only use CD-ROM cleaning kits.

• Do not bend or drop the discs.

• Do not place objects on top of discs.

Warning: Do not insert any

foreign objects into the

disc tray. Do not force

the tray to open or close

manually. When not in use,

keep the tray closed to

prevent dust or dirt from

entering the drive unit.

If you experience

difficulty when removing a

CD disc, stretch a paper

clip (or use a pin or a

thin metal rod) and insert

it into the emergency

eject hole located on the

front panel:

The CD disk tray should eject immediately. This

procedure can also be used to remove a CD from the

drive when the notebook is powered off.

Connecting the Printer

To connect a printer to your notebook via the USB port, use an optional USB to printer adapter cable.

Note: Before use, you may be required to install

the driver for the adapter cable.

Getting Started

The PC Card Slot

The PC card slot can be used as an interface between your computer and a variety of communications

devices, such as network adapters, SCSI adapters, fax/modems, or provide additional data storage

capacity. Your computer's PC card slot supports PCMCIA Type II and 32-bit CardBus cards.

Installing a Card

1. The top side of a PC card is

usually identified with a label.

Insert the card into the slot with

the label side up and the edge

with pinhole contacts going in

first.

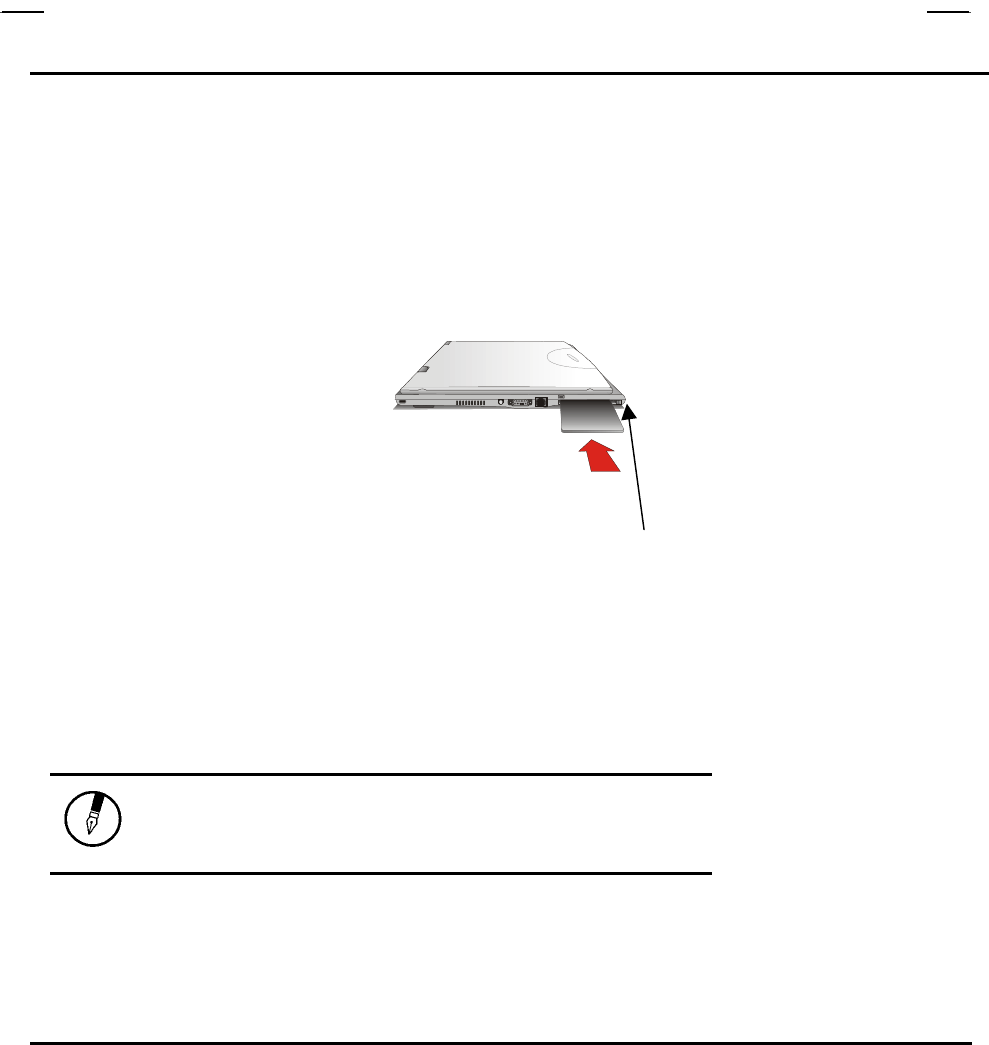

2. Insert the card into the slot. You

will feel some resistance as the

card slides into the back of the

slot.

3. PC cards require drivers, or a program that allows the operating

system to use a specific device. Many drivers are included with

Windows, but if not, you will be prompted to install the driver

included with your card.

4. The computer will beep twice to indicate successful installation. A

single beep means that there was a problem recognizing the card.

Slide the card

into the slot.

Push the button to

eject the card.

Push

eject

Note: Please read the instructions included with

individual PC cards. Some cards may be inserted

with power on, while others require that the

computer be turned off.

Removing a Card

1. If a card is in use, you must shut down the card before removing it. Or you can click the PCMCIA

icon on the right side of the taskbar, then click Stop.

2. Press the eject button on the card slot to release the button.

Getting Started

3. Press again to release the card.

Memory

Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more

smoothly with large files. Users who increase memory demands - by adding additional programs, for

example - may notice a slowdown in operating speed, and wish to increase memory. The notebook

includes a memory card slot for adding additional memory.

Note: Use only 1” 200-pin SO-DIMM (PC-2100).

Calculate memory size by adding the size of the memory module to the existing built-in memory. For

example: 256 MB (module) + 128 MB (built-in memory) = 384 MB Total

Replacing a Memory Card

Warning: Memory modules can be easily damaged by

static electricity. Leave the module inside its

static-proof bag until it is ready for installation.

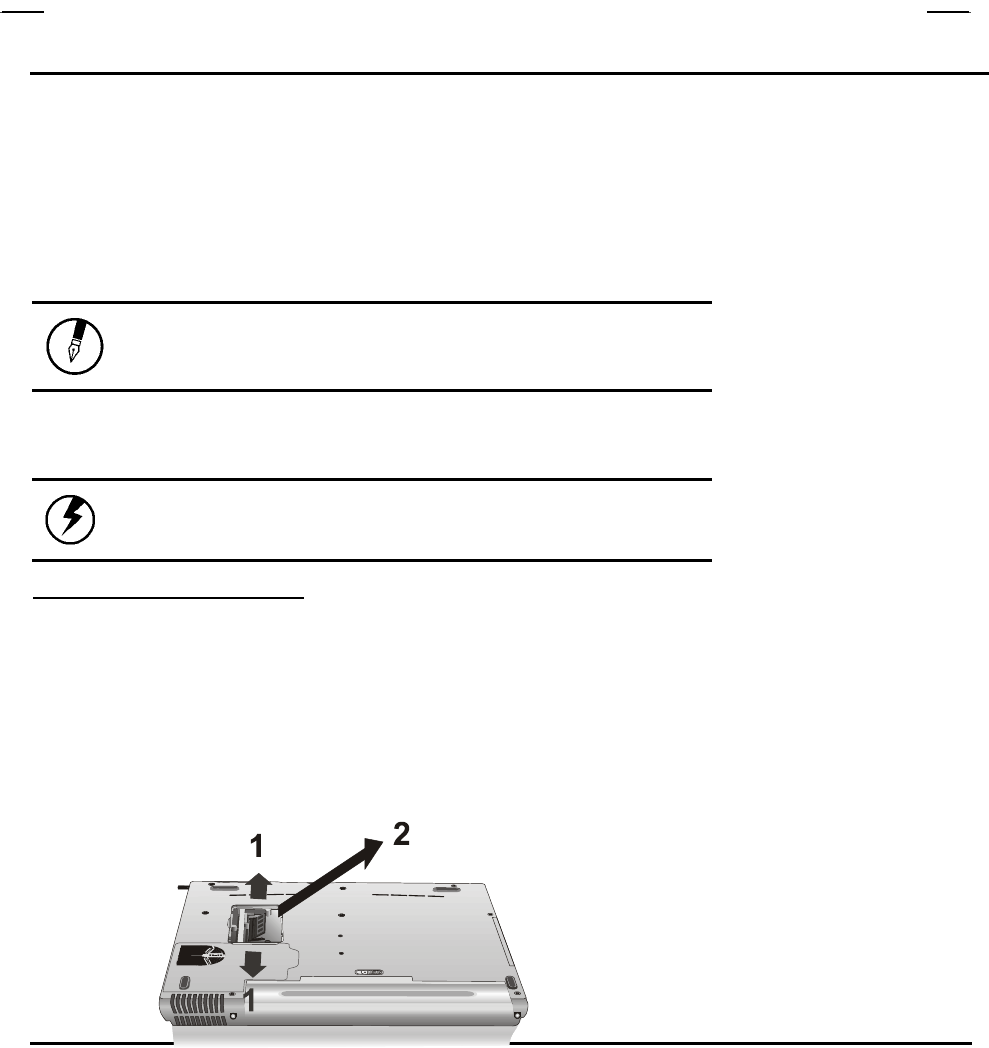

Removing a Memory Card

1. Turn off the computer and disconnect the AC adapter. Turn the computer upside down and lay

it on a flat surface.

2. Carefully remove the two RAM compartment cover screws and remove the RAM compartment

cover.

3. Gently pull tabbed latched in the direction of the arrows (1). The card will pop up slightly.

Getting Started

4. Pull upwards on the card and then slide the card out (2).

Inserting a Memory Card

1. Hold the memory card by its edges with the edge-connector side towards the slot.

2. Hold the card at a shallow angle (about 25 degrees) and insert the edge connector into the

connector slot (3). The “gold teeth” of the edge connector should no longer be visible when

the card is fully inserted.

3. Press the card downwards so that it is flat inside the compartment (4). You may hear an

audible click as the latches of the connector lock the card in place.

4. Replace the RAM compartment cover and secure it with the two screws.

Your notebook computer will automatically detect the change in RAM capacity when it restarts.

The Graphics System

Your computer has a high-performance graphics system, which can easily handle the demands of today's

multimedia computing.

Getting Started

Screen Controls

Brightness

Function keys can increase or decrease the brightness of the monitor.

• <Fn> + <F6> decreases the LCD panel brightness

• <Fn> + <F7> increases the LCD panel brightness

Resolution

1. Click My Computer/Control Panel/Display/Settings. Click the Settings tab. The dialog box

indicates the monitor resolution.

2. Use the slide bar to adjust the resolution. Normally, you should use the resolution the LCD or

monitor was designed for.

Note: Using a lower resolution than the screen was

designed for will reduce the area of the display.

Using the computer in DOS mode may produce the same

effect, because it uses a 640 by 480 resolution by

default. You can stretch these low resolution

displays to full screen size by selecting either the

Expanded Display or Display Expansion Mode features

in the BIOS utility. However, the stretching may

cause distortion, especially to fonts.

High Resolution with an external monitor

Higher resolution modes may be used, as long as the monitor supports them.

Connecting to an External Monitor

The notebook has a VGA monitor port to connect your computer to an external monitor.

Using the VGA monitor port

1. Locate the 15-pin VGA monitor port on the left side of your notebook and connect the video

signal cable from the external monitor (or the VGA adapter) to the monitor port.

2. Connect the power cable from the external monitor to a power outlet and turn on the monitor.

3. On your notebook, click the right touchpad button on the Windows desktop to open the desktop

menu. Click Properties to open the Display Properties window.

4. In the Display Properties window, click Advanced in the Settings tab. Click the Display Modes

tab.

Getting Started

5. Under Driver mode, you can select the appropriate options to change the display to an external

monitor.

6. Adjustments to screen resolution and color depth can also be made in this dialog box.

Note: Light or dark dots may appear on the LCD due to

technical limitations of LCD manufacturing. This will

not effect normal operation of the LCD.

Making Connections — Making Connections

Making Connections

Your computer is equipped with a full array of ports and connectors, including standard input/output

(I/O) ports for quickly and easily adding peripheral devices such as printers, keyboards, and mice.

Refer to documentation included with individual devices for details on connecting these devices to

your computer. Along with the standard ports found on most computers, your computer also includes

USB 2.0, modem and LAN ports, offering advanced communications technology.

Left Side Connectors

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate

as indicated. Specification subject to change without notice.

1. Kensington Lock

Your computer includes a Kensington lock hole to be used with a standard Kensington lock. You can

connect the notebook to a large object with the Kensington lock to prevent theft of your notebook.

See the documentation that comes with your Kensington lock for more information.

2. DC-in Jack

Connect the DC power cable from the AC adapter to this jack.

3. VGA Out (External Video) Port

The 15-pin VGA port can be used to connect your computer to an external monitor. (See the

Graphics System in chapter 2 for more information).

Making Connections — Right Side Connectors

4. LAN RJ-45 Jack

With the built-in Ethernet LAN combo, you can make LAN connections without installing PC cards.

Connection speed is 10/100 Mbps. When using the LAN function, wrap your LAN cable around the

EMI ferrite suppression box to inhibit electromagnetic interference.

5. Wireless LAN On/Off Switch (only on wireless LAN equipped models)

This switch allows you to quickly enable or disable the integrated wireless LAN.

Right Side Connectors

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate

as indicated. Specification subject to change without advance notice.

1. USB (Universal Serial Bus) 2.0 Ports

The Universal Serial Bus (USB) is the latest standard for attaching monitors, input devices,

scanners, and other devices to a PC. USB devices can be chained together on a single cable. This

port supports 1.0, 1.1 and 2.0 devices.

2. Fax/modem RJ-11 Jack

The fax/modem can transmit data using the 56 Kbps V.90 protocol, and send and receive faxes at

14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed

for this system. In this case, you may use a PCMCIA modem.

Warning: Plug your modem into an analog telephone

jack only. Most homes use analog lines. Do

not use digital lines, such as the PBX and

ISDN systems found in many offices. Digital

lines may damage your modem.

Making Connections — Front Side Connectors

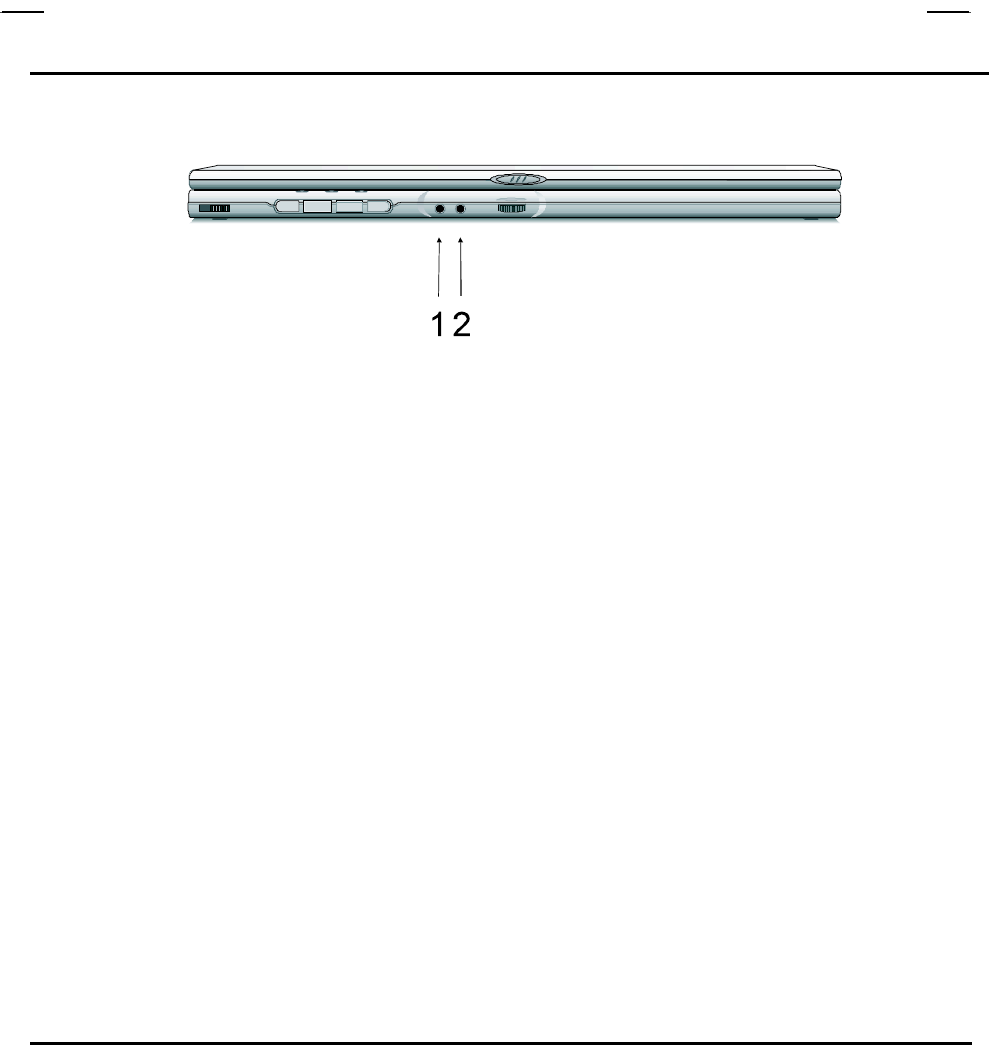

Front Side Connectors

* Figure of notebook above may not be representative of actual product. However, location of devices and ports is accurate as

indicated. Specification subject to change without notice.

1. Audio-out Jack

Connect a stereo headset or external speakers to this jack to listen to multimedia.

2. Microphone-in Jack

Connect a microphone this jack to record audio.

Power Management — Power Management

Power Management

Battery Calibration

The first time you use a battery, you should calibrate it. The calibration process empties and charges

the battery one time. This allows the Windows battery gauge to accurately monitor battery status. To

calibrate a battery, follow these steps:

1. Plug in the AC adapter.

2. Restart the computer and when the startup screen appears, press Del key to enter the BIOS

Setup Utility.

3. In the BIOS Setup Utility, select Power Management Setup , choose Battery Auto Calibration,

then press <Fn + PgDn>.

Please make sure that AC adapter & Battery are present?

Would you to do battery auto-learning?

Yes.

No. (System Reboot)

4. Press <Y> at the above Battery Auto Calibration dialog to begin the battery calibration. Please

press [Space Bar] to select option, and [Enter] to continue.

Battery Calibration will take from 8 to 10 hours, depending on how much power the battery may

already contain.

Note: For optimum performance, we recommend

calibrating the battery again every three months.

Each time you charge and discharge a battery, it

loses a tiny part of its storage capacity, so that,

over time, it will store less than its potential

charge. Similarly, if you do not use the battery

for a few days, it will slowly self-discharge, and

when it is recharged, it will hold less than 100%

of the potential charge.

Power Management — Power Management

Monitoring Battery Power

There are two ways to

monitor how much power

the battery has left.

1. Click

start/Settings/Control

Panel/Power Options;

then click Power

Meter.

2. Moving the cursor to

the battery icon on the

taskbar is the simplest

way to check on

battery power status.

If you do not see the battery icon, enable it in Start/Settings/Control

Panel/Power Options. Choose the Advanced tab and click “Always

show icon on the taskbar.”

Low Battery Alarms

How your computer responds to a low battery condition is set under Start/Settings/Control

Panel/Power Options/Alarms.

Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical

Battery Alarm. Use the slidebar to set the power level at which the alarms are activated. Click on the

Alarm Action button to choose whether the alarm sounds, displays a message, or both.

Warning: When battery power is low, the battery

indicator will flash red, and the alarm will beep or

display a warning on your screen. Take immediate

action, such as saving files or connecting to the AC

adapter, or data may be lost.

When the computer alerts you that the battery is low, immediately do one of the following:

Power Management — Power Saving Modes

• Connect the AC power adapter

• Save your work, and suspend to disk <Fn> + <F4>

• Save your work, then select Shut Down from the Start menu

• Turn off or suspend the computer and replace the discharged battery with a charged battery

(See Changing the Battery below).

Do not restart the computer until you have connected to an AC adapter, or replaced the discharged

battery with a charged battery.

Battery Charging

When you use the AC adapter to connect your Notebook to a power outlet, the internal battery will

automatically begin to recharge. While the battery is charging, the Battery Charge icon on the

Indicator panel will be active. When the battery is fully charged, the Battery Charge icon will turn off.

If your computer is turned off, a fully discharged battery will take about 3 hours to recharge. If your

computer is turned on and is not in suspend mode, it twill take about 4 hours to recharge the battery.

Refer to the following table:

Charging Discharging

System On 4 hours 3.5 hours

System Off

(suspend to RAM)

3 hours —

Note: A fully charged Li-Ion battery can run the

Notebook for up to 3.5 hours.

Power Saving Modes

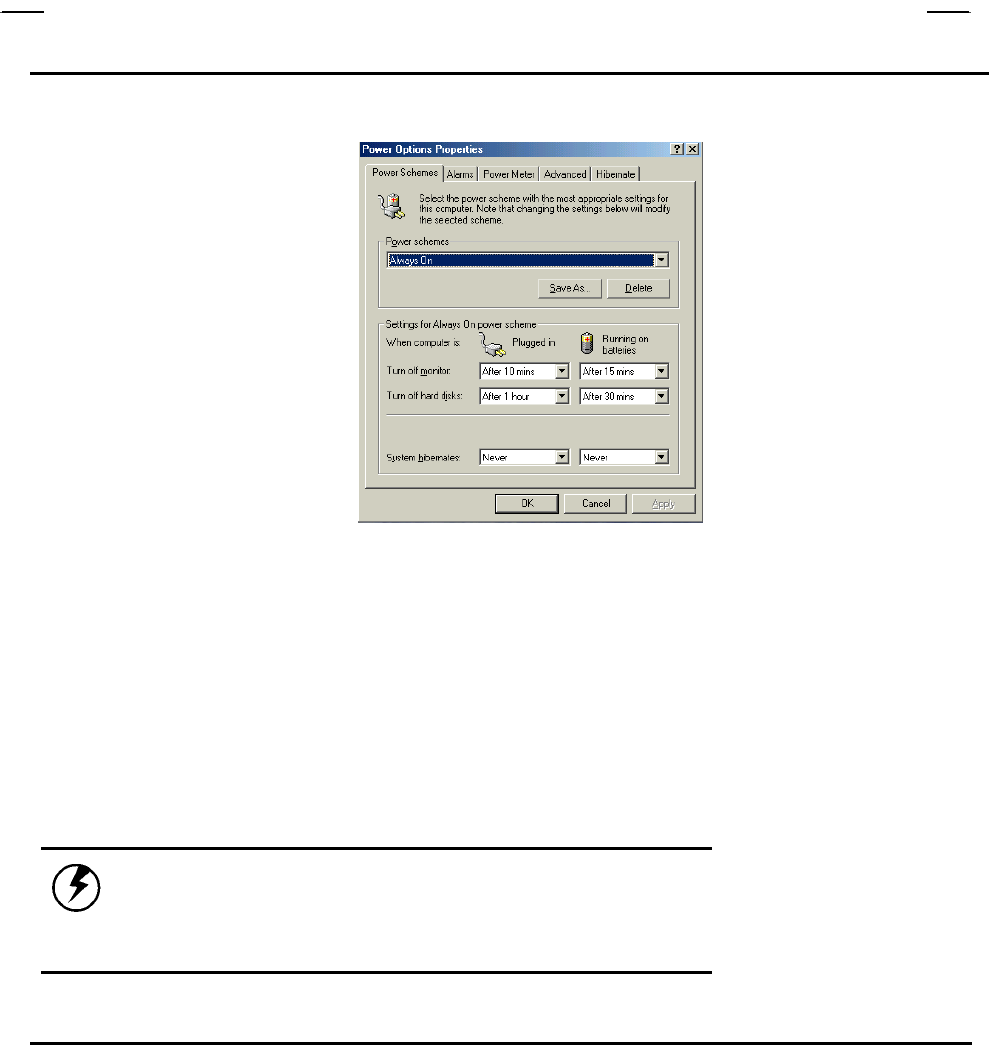

Adjust the default power management settings in the Power Options/ Advanced dialog box in the

Control panel. The Power Options Properties dialog box allows you to set different actions to take

when the computer is left idle for a certain amount of time.

Power Management — Power Saving Modes

Suspend Mode

There are several possible settings for suspend mode, which can be selected in the Power

Management dialog box: You may have the notebook standby, hibernate, or you can power off the

computer altogether.

Standby All devices are powered up and in suspend mode

except for the CPU clock.

Hibernate Suspend to Disk is similar to turning off the computer,

except that the current state of the computer is copied

to the hard disk as a special file. When the computer

returns from suspend mode, the desktop appears

with the same files and programs open as when the

computer was suspended. Suspend to Disk is very

useful when you don't want to take the time to shut

down all open programs one by one to shut off the

computer, only to have to open the same programs

and files the next time you use the computer. This

mode is also called hibernation mode.

Suspend-to-disk Partition/Suspend-to-disk File

In order to Suspend to Disk, you must have a special

suspend-to-disk partition/file on your hard disk drive.

This partition is pre-installed on your computer. The

pre-installed partition is large enough to store all

system memory.

Power Off System is shutdown.

Initiating Suspend Mode

There are four ways to initiate suspend mode. The settings can be adjusted in the Power

Management dialog box:

• The computer will automatically enter suspend mode when not used for a set period of time.

• Selecting the Stand by button in the Shut Down Windows dialog box.

• Closing the screen cover (assuming no external monitor has been connected).

• Pressing the power button (if enabled in power settings).

Power Management — Power Saving Tips

• Pressing the suspend function key <Fn> + <F4>.

Using the BIOS Utility for Power Management

With Windows running in ACPI mode, power can be controlled through the Power Management

dialog box only. With operating systems that use ACPI power management, BIOS power settings

have no effect.

Power Button Settings

The function of the power button can be set to Shutdown or Standby in the Power Management

Properties dialog box in the Windows Control Panel. However, holding the power button down for

more than four seconds will force a power off while operating under any situation, resulting in the

loss of any unsaved information.

Power Saving Tips

• Avoid operating the fax/modem, or audio and video applications when using battery power.

Operating a fax modem, video, or audio equipment increases the computer's power

requirements.

• Decreasing monitor brightness can also save power. Decrease brightness by pushing <Fn> +

<F6>. Increase it by pushing <Fn> + <F7>.

Power Management — When to Replace the Battery

When to Replace the Battery

Over time, the battery's capacity gradually decreases. We recommend that you replace your battery

when you notice that it begins to store significantly less charge.

Changing the Battery

Change the main battery pack as

follows:

1. Turn off the computer.

2. Close the screen cover and turn the

computer over.

3. Slide the side battery latch (1) away

from the battery. Continue to hold it

until the battery is removed.

4. Push in the latch on the battery (2)

while lifting the battery out of the

compartment. Remove the battery.

5. Make sure the replacement battery

is properly orientated. Slide back the

side battery latch (1) then insert the

battery into the battery compartment.

Check that the latch locks back into

position.

Heat Considerations

The computer's processor has been specially designed to consume little power, and generates very

little heat. However, working in a hot environment, or working for long periods may raise the

temperature. Your computer takes the following steps to lower temperature:

1. The cooling fan will automatically turn on. You may feel air coming from a vent at the left side

when this happens.

2. If the temperature continues to rise, processor activity will be reduced. You may notice a slight

loss of performance when this happens.

Using the BIOS Setup Utility —BIOS Setup Menu

Using the BIOS Setup Utility

Your notebook has a BIOS setup utility which allows you to configure important system settings,

including settings for various optional functions of the computer. This chapter explains how to use

the BIOS setup utility.

BIOS Setup Menu

The BIOS setup Utility allows you to configure your computer’s basic settings. When you turn your

computer on, the system reads this information to initialize the hardware so that it can operate

correctly. Use the BIOS setup utility to change your computer’s start-up configuration. For example,

you can change the security and power management routines of your system.

Starting the BIOS Setup Utility

You can only enter the BIOS setup utility as the computer is booting, that is between the time you

turn on the computer and before the Windows interface appears. If your computer is already on,

shut down your computer completely (power off) and restart it and then press the Del key to enter

the setup utility.

Using the BIOS Setup Utility —Navigating and Entering Information in BIOS

Navigating and Entering Information in BIOS

Use the following keys to move between fields and to enter information:

Key Function

Del Press Del to start the BIOS utility after

turning on the computer.

ESC

Press Esc to exit any section. If you wish to

exit the BIOS utility

without

saving changes,

go to the main menu, then press Esc.

Up, down keys (ÇÈ)

Push the up and down arrow keys to move

among selections, then press Enter to make

a selection.

PgUp or PgDn

Use the PgUp, PgDn keys to modify a field.

Use PgUp to increase a value, such as a date

or number, and PgDn to decrease it. For

other types of choices, such as “enabled,” or

“disabled,” use either key to move between

choices.

Enter Press enter to make a selection

F2 or F3 Pressing either key changes the color of the

graphic display.

F10 Press F10 to save changes, then exit.

Using the BIOS Setup Utility —The Main Menu

The Main Menu

The Setup Utility menu bar has nine main screens: Standard CMOS Setup, Advanced CMOS

Setup, Power Management Setup, Auto-Detect Hard Disks, Change User Password,

Change Supervisor Password, Auto Configuration with Optimal Settings. Save

Settings and Exit, and Exit Without Saving are used to exit the Setup Utility.

AMIBIOS HIFLEX SETUP UTILITY

Standard CMOS Setup

Advanced CMOS Setup

Power Management Setup

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Auto Configuration with Optimal Settings

Save Settings and Exit

Exit Without Saving

Standard CMOS setup for changing time, date, hard disk

type, etc.

ESC:Exit ↑ ↓:Sel F2/F3:Color F10:Save & Exit

Figure 6-1

Using the BIOS Setup Utility —Standard CMOS Setup

Standard CMOS Setup

The Standard CMOS Setup page of the Setup Utility has a list of fields that describe the basic

configuration of your computer. CMOS is simply a type of random access memory, or RAM, used to

store the basic configuration of the computer.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy): Sun Jan 12,2003 Base Memory: 640 KB

Time (hh/mm/ss) : 16:55:24 Extd Memory: 223 MB

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

Pri Master: Auto On

Sec Master: Auto On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC:Exit ↑ ↓:Sel

Day: 01 – 31 PgUp/PgDn:Modify

Year: 1980 – 2099 F1:Help F2/F3:Color

Figure 6-2

Using the BIOS Setup Utility —Standard Feature Description

Standard Feature Description

Field Setting Function

System Time

& Date

Use these fields to set the time and date. The time is displayed

in 24-hour format. The date can be set from January 1, 1980

to December 31, 2099. The values set in these two fields take

effect immediately.

Type Shows type of system installed, including the following options:

(Pri. Master) Auto, CD-Rom /DVD, No Installed, User;

(Sec. Master) Auto, CD-Rom /DVD, Not Installed, User.

Auto

CD-ROM/DVD

Not Installed

Pri. Master

User

The Default setting is Auto. Auto lets the

system automatically read setup

information from the device. When set to

Auto, the BIOS will automatically detect

hard disk capacity.

Auto

CD-ROM/DVD

Not Installed

Sec. Master

User

The Default setting is Auto. Auto lets the

system automatically read setup

information from the device.

Size Hard disk capacity.

Cylinders Displays the number of cylinders on the hard disk drive.

Heads Displays the number of heads per cylinder on the hard

disk drive.

LBA Mode Only some hard disk drives support Logical Block

Addressing. Default depends on the Hard Disk Drive

type.

Blk Mode Only some hard drives support block (multi-sector)

transfer of data

PIO Mode The default value Auto lets the system automatically

Using the BIOS Setup Utility —Advanced CMOS Setup

read setup information it needs for setup from hard disk

drive. Five explicit values, 0 to 4, are also possible.

Field Setting Function

32Bit Mode Only some hard disk controllers support 32 bit data

transfer

Base

Memory;

Extended

Memory

These two items are detected automatically at start-up

time and cannot be changed

Advanced CMOS Setup

AMIBIOS SETUP – ADVANCED CMOS SETUP

1st Boot Device CD-ROM

2nd Boot Device USB FDD

3rd Boot Device IDE-0

S.M.A.R.T. for Hard Disks Enabled

BootUp Num-Lock Off

Display Expansion Support Enabled

Password Check Setup

Share Memory Size 32 MB

Available Options:

ESC:Exit ↑ ↓:Sel

PgUp/PgDn:Modify

F1:Help F2/F3:Color

Figure 6-3

Using the BIOS Setup Utility —Advanced CMOS Setup

Field Setting Function

CD-ROM

USB FDD

IDE-0

1st Boot Device

2nd Boot Device

3rd Boot Device

1st Boot Device default is CD-ROM.

2nd Boot Device default is USB FDD.

3rd Boot Device default is IDE-0.

Disabled S.M.A.R.T. for Hard

Disks Enabled

Only S.M.A.R.T. Hard Disks are

supported. The default is Enabled.

Off Bootup Num-Lock

Use this field to initially disable the

NumLock feature of the internal

keyboard when the notebook starts.

The default is Off.

Disabled

Display Expansion

Support

Enabled

If you are using DOS or a 640 x 480

resolution to run windows, the display

will not fill the entire screen. Enable

this mode to expand the display to the

entire screen. The default is Enabled.

Setup The default value is Setup, which

specifies that a password is only

required to enter the setup utility.

Password Check

Always If Always is selected, the password is

required when the system is booted up

or resuming from a suspend-to-disk.

Share Memory Size 8MB This field displays the amount of

Using the BIOS Setup Utility —

16MB

32MB

Power Management

This section of the BIOS manages` power settings in operating systems other than Windows 98 or above,

or operating systems using ACPI power management. In Windows XP, power management is controlled

through the Power Management window in My Computer, and BIOS power management settings have

NO effect. In other operating systems that use ACPI power management, BIOS settings likewise have no

effect.

AMIBIOS SETUP – POWER MANAGEMENT SETUP

Cover Close Panel Off

Auto DIM Enabled

Battery Auto Calibration Disabled

FAN Auto Learning Disabled

Available Options:

ESC:Exit ↑

↓:Sel

PgUp/PgDn:Modify

F1:Help F2/F3:Color

Figure 6-4

Using the BIOS Setup Utility —

Field Setting Function

Panel off The LCD will turn off when the cover is

closed.

Cover Close

Suspend The LCD will turn off and the computer

will enter suspend mode when the cover

is closed.

Enabled When AC adapter is not in use, the

monitor is run in power-saving mode.

Auto DIM

Disabled The monitor does not go into power-

saving mode.

Disabled Battery calibration is disabled. Battery Auto

Calibration Enabled Battery calibration is enabled. Battery

calibration will optimize the battery

performance.

Disabled FAN learning is disabled. FAN Auto

Learning Enabled FAN learning is enabled. FAN learning

will optimize the fan speed.

Auto-Detect Hard Disk

When Auto-Detect Hard Disk is selected, the BIOS will automatically detect Pri. Master and Sec.

Master settings.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy): Sun Jan 12,2003 Base Memory: 640 KB

Time (hh/mm/ss) : 16:55:24 Extd Memory: 223 MB

Using the BIOS Setup Utility —

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode

Pri Master:User 12073Mb 23392 16 0 63 On On 4 On

Sec Master: CDROM 4 On

Boot Sector Virus Protection Disabled

Month: Jan – Dec ESC:Exit ↑ ↓:Sel

Day: 01 – 31 PgUp/PgDn:Modify

Year: 1980 – 2099 F1:Help F2/F3:Color

Figure 6-5

Change User Password

With a User password, you can enter the Setup Utility and change or remove the User password, but

you cannot enter the Setup Utility and change or remove the Supervisor password, nor enable

diskette access if it has been disabled.

Change Supervisor Password

A supervisor password must be set before a lower-level user password can be set. After selecting

Change Supervisor Password, press Enter. You will be prompted for the new password, and then

again to verify it. Type in 6 or fewer keystrokes. If you make an error, press Esc to start over.

Enter new supervisor password:

Using the BIOS Setup Utility —Auto Configuration with Optimal Settings

Auto Configuration with Optimal Settings

The Auto Configuration pages reset the computer to default values. The Auto Detect Hard Disks

likewise helps users to configure their systems quickly. When you see the following prompt, choose

Y to reset the computer to default values.

Load high performance settings (y/n)? N

Exiting and Saving

Save Settings

and Exit

Select this option to save changes to the field

values, and restart the computer using the new

values. (Pressing F10 from any of the menu

screens also allows you to save settings and exit.)

Exit Without

Saving

Select this option to discard any changes you have

made to the field values, and restart the computer

using the old values.

Appendix A — Frequently Asked Questions

Frequently Asked Questions

Q: My screen seems to time out too quickly. I have to constantly hit a key or move the mouse

in order to bring it back. How can I adjust the screen time-out?

A: This is part of Windows Power Management. Access Power Management by clicking on

Start/Settings/Control Panel/Power Management. Adjust the display time-out by selecting a time

next to the Turn off monitor option. You may also select different time-out values for adapter and

battery power states.

Q: What kind of external microphone can I use with my notebook computer?

A: You will need to use a self-amplifying microphone.

Q: There is feedback noise coming from my speakers. What can I do?

A: Double click on the Speaker icon on the task bar. Then, under Microphone Balance, check the

Mute box.

Q: Because of a software problem, I was unable to shut down power normally. I pressed the

power button to force a power off, but it didn't work. How can I force a power off?

A: Make sure you press the power button for at least 5 seconds. Normally, this will force a power off.

If this does not work, you can shut down the computer by inserting a needle into the reset button

pinhole. (The reset button is located on the computer bottom side.)

Q: Why can’t I charge the battery of my portable computer after it was out of use for some

time?

A: After portable computers have not been used for a long time (more than one month), the batteries

will go into the low voltage protection mode due to data back-ups and natural electrical discharge.

At that point, restoring normal voltage will require slow charging over a period of several hours.

Calibration can be performed after the battery has returned to a normal condition.

Q: My computer alerts “CMOS Battery Low”, what can I do?

A: If you keep your computer in no power situation (unplug the computer from the power outlet and

remove battery at the same) over 45 days, your data in CMOS will be lost.

Appendix A — Frequently Asked Questions

Please reconfigure your CMOS by following steps:

1. Press <DEL> to enter the BIOS setup utility.

2. Select “Auto Configuration with Optimal Settings”. When you see the following prompt,

choose <Y> and then press <Enter>.

Load high performance settings (y/n)? Y

3. Select “Save Settings and Exit”. When you see the following prompt, choose <Y> and

then press <Enter> to restart your computer.

Save current settings and exit (y/n)? Y

Appendix B — Statements

Statements

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and the receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cable must be employed with this equipment to

insure compliance with the pertinent RF emission limits governing this device. Changes or

modifications not expressly approved by the system's manufacturer could void the user's authority to

operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

• This device may not cause harmful interference

• This device must accept any interference received, including interference that may cause

undesired operation.

Shielded interconnect cables and shielded AC power cable must be employed with this equipment to

insure compliance with the pertinent RF emission limits governing this device. Changes or

modifications not expressly approved by the system's manufacturer could void the user's authority to

operate the equipment.

FCC RF Radiation Exposure Statement: ( Wireless LAN )

1.This Transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.

2. In order to maintain compliance with the FCC RF exposure guidelines, this equipment shouldbe

installed and operated with minimum distance 20cm between the radiator and your body. Use

only with supplied antenna . Unauhorized antenna, modification, or attachments could damage

the transmitter and may violate FCC regulations.

Appendix B — Statements

About The Modem

This equipment complies with Part 68 of FCC rules. On the bottom of this equipment is a label that

contains, among other information, the FCC registration number and ringer equivalence number

(REN) for this equipment. If requested, this information must be provided to the telephone company.

The modem jack of this equipment complies with Sub-part F of Part 68 of FCC rules.

The REN is used to determine the quantity of devices that may be connected to the telephone line.

Excessive RENs on the telephone line may result in the devices not ringing in response to an

incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be

certain of the number of devices that may be connected to the line, as determined by the total RENs

contact the telephone company to determine the maximum REN for the calling areas.

If the terminal equipment causes harm to the telephone network, the telephone company will notify

you in advance that temporary discontinuance of service may be required. However, if advance

notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you

will be advised of your right to file a compliant with the FCC if you believe it necessary.

The telephone company may mark changes in its facilities, equipment, operations, or procedures

that could affect the operation of the equipment. If this happens, the telephone company will provide

advance notice in order for you to make the necessary modifications in order to maintain

uninterrupted service.

If trouble is experienced with this equipment, please contact the manufacturer for repair and (or)

warranty information. If the trouble is causing harm to the telephone network, the telephone company

may request you remove the equipment from the network until the problem is resolved.

The equipment cannot be used on public coin service provided by the telephone company.

Connection to Party Line Service is subject to state tariffs. (Contact the state public utility

commission, public service commission or corporation commission for information.)

The Telephone Consumer Protection Act of 1991 marks it unlawful for any person to use a computer

or other electronic device, including fax machines, to send any message unless such message

clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification of the business or other entity, or other

individual sending the message and the telephone number of the sending machine or such business,

other entity, or individual. (The telephone number provided may not be a 900 number or any other

number for which charges exceed local or long-distance transmission charges.) To program this

information, refer to the manual of the communication software.

Appendix B — Statements

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low

Voltage Directive (73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

 EN 55022 ( CISPR 22 ) Radio Frequency Interference

 EN 55024 ( EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-

8,EN61000-4-11, EN61000-3-2, EN61000-3-3 ) Generic Immunity Standard

 EN 60950 ( IEC950 ) Product Safety

UL CAUTION

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to

reduce the risk of fire, electric shock and injury to persons, including the following:

Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a

remote risk of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire.

They may explode. Check with local codes for possible special disposal instructions.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing

Equipment Regulations.

About the Modem

The Industry Canada label identifies certified equipment. This certification means that the equipment

meets certain telecommunications network protective, operational and safety requirements. The

department does not guarantee the equipment will operate to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the

facilities of the local telecommunications company.

Appendix B — Statements

The equipment must also be installed using an acceptable method of connection. In some cases, the

company's inside writing associated with a single line individual service may be extended by means

of a certified connector assembly (telephone extension cord). The customer should be aware that

compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility

designated by the supplier. Any repairs or alterations made by the user to this equipment, or

equipment malfunctions, may give the telecommunications company cause to request the user to

disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power

utility, telephone lines and internal metallic water pipe system, if present, are connected together.

This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections

themselves, but should contact the appropriate electric

inspection authority, or electrician, as appropriate.

"The Load Number (LN) assigned to each terminal device denotes the percentage of the total load to

be connected to a telephone loop which is used by the device. To prevent overloading, the

termination on a loop may consist of any combination of devise subject only to the requirement that

the total of the Load Numbers of all the devices does not exceed 100."

Battery Disposal

THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE BATTERY. IT MUST BE DISPOSED OF

PROPERLY. CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND DISPOSAL

PLANS IN YOUR AREA.

CAUTION FOR ADAPTER

THIS NOTEBOOK COMPUTER IS FOR USE WITH MODEL NO. PA-0060A-002

BATTERY CAUTION

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF

USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

CLASS 1 LASER PRODUCT

LASERSCHUTZKLASSE 1 PRODUKT TO EN60825

CAUTION: THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS

CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS

MODEL PROPERLY, READ THE INSTRUCTION MANUAL

Appendix B — Statements

CAREFULLY AND KEEP THIS MANUAL FOR FUTURE

REFERENCE. IN CASE OF ANY TROUBLE WITH THIS MODEL,

PLEASE CONTACT YOUR NEAREST "AUTHORIZED SERVICE

STATION.” TO PREVENT DIRECT EXPOSURE TO THE LASER

BEAM, DO NOT TRY TO OPEN THIS ENCLOSURE.

Twinhead R15GN NOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE User Manual 3150 Series

Twinhead International Corporation NOTEBOOK WITH 2.4GHz WIRELESS LAN MODULE 3150 Series

Users manual

Navigation menu

Namespaces

Views

Navigation
