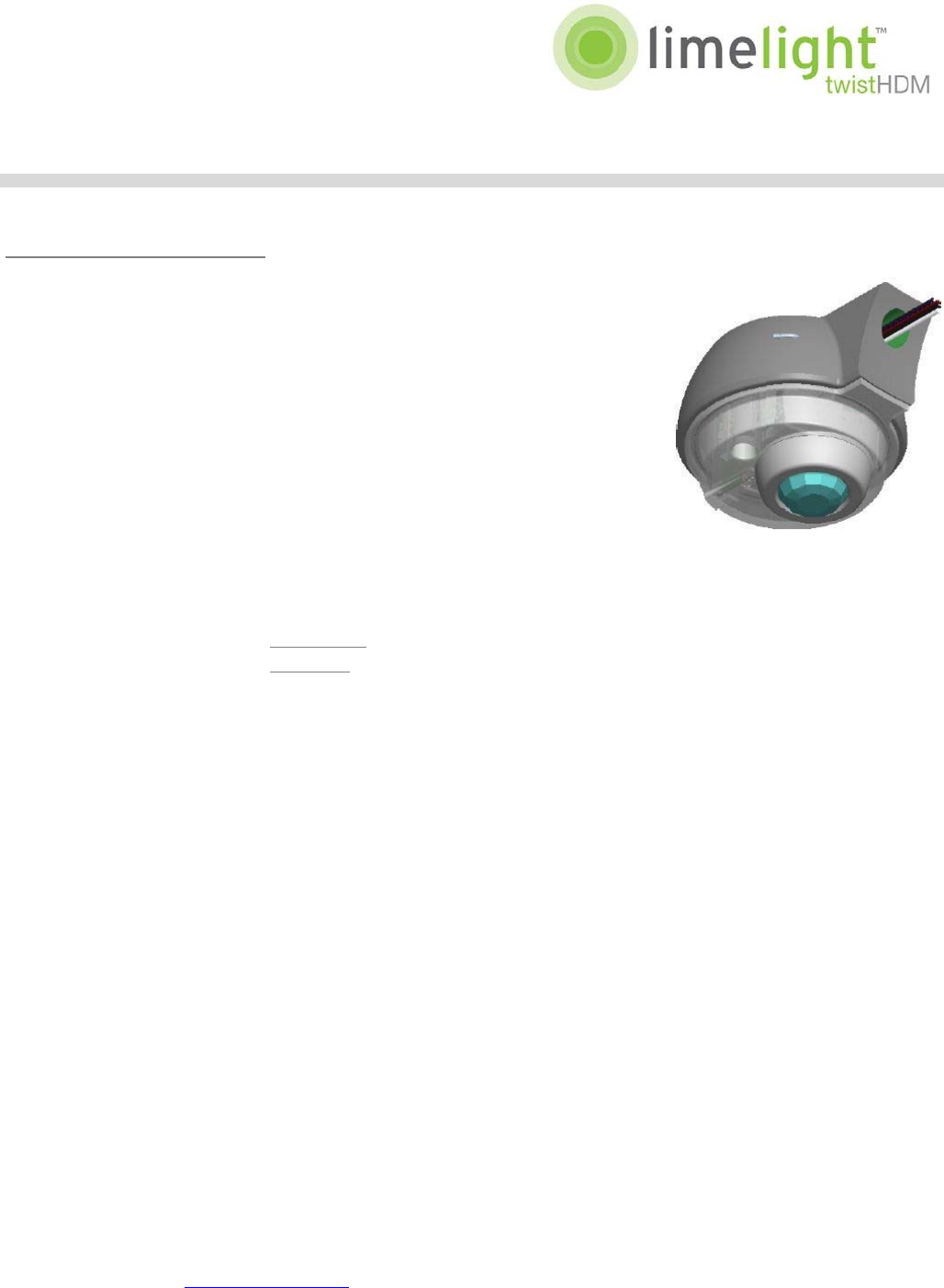

LIMELIGHTRSMINTERFACEASSEMBLY
Specification Sheet:
Part Number: TT10176-02
Power Requirements: 102-318 VAC RMS, 50/60 Hz
3 Watts max
(no load draw)
Operating Temperature: -30C to +70C
Ratings: UL244A
IP65
FCC15.247
ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).Operationissubjecttothe
followingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptany
interference,includinginterferencethatmaycauseundesiredoperationofthedevice.
Housing: Dimensions: 285.75 x 97.4(mm)
Materials: Housing – Aluminum
Dome – Polycarbonate – clear
Housing O-Ring – edpm ethylene polypropylene
Circuit Card Assembly:
o Operating voltage 102-318 VAC RMS
o Mains Voltage Measurement with 2.5% accuracy typical
o Mains Current Measurement with 5% accuracy typical
o Switched AC Ouput
o Relay load 120VAC 3A / 277VAC 1.5A
o Switch on AC zero-crossing
o UL Class 2 internal Power Supply
o 24vdc (tbdma) output w/ fault detection
o 24vdc input sense
o SPI and RS232 bidirectional serial interface capability
o 0-10vdc Analog output (5ma)
o 0-10vdc Analog input sensing
o Integrated Radio transceiver
o Multi-channel RF Zigbee Transceiver with integrated antenna
o FCC Approved Title 47 Part 15 Subpart B and Subpart C. section 15.247 for Digital
Transmission Systems Operating within the band 2400-2483.5Mhz
o RF transmissions security: 128 AES plus application layer
Occupancy Sensor: Wattstopper FS-305
o FS-L2W lens configuraiton
o 24vdc power from Control Board
o Operating Temperature -40C to +55C
TwistHDMClientServices:support@twisthdm.com977.355.8953 NOV2011

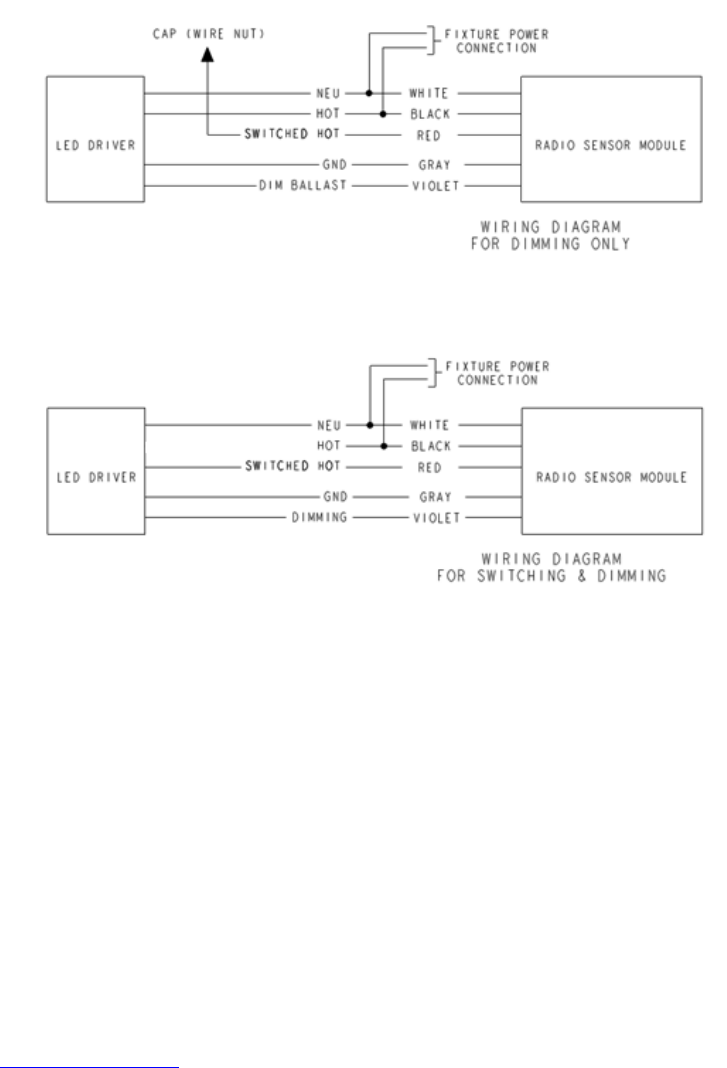

External Connections:
18AWG 7x26 Stranded UL1015
o BLK – AC HOT
o WHT – AC NEUTRAL
o RED – SWITCHED AC HOT OUTPUT
22AWG 7x30 Stranded UL11028
o VIOLET – DIMMING DRIVER POSITIVE (0-10VDC)
o GRAY – DIMMING DRIVER GROUND
