• W A R N I N G •

This manual contains information on limitations regarding

product use and function and information on the limitations as to

liability of the manufacturer.

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in contact

with system users, it is your responsibility to bring each item in this warn-

ing to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possible.

There are circumstances, however, involving fire, burglary, or other

types of emergencies where it may not provide protection. Any alarm

system of any type may be compromised deliberately or may fail to

operate as expected for a variety of reasons. Some but not all of these

reasons may be:

■■

■ Inadequate Installation

A security system must be installed properly in order to provide ad-

equate protection. Every installation should be evaluated by a security

professional to ensure that all access points and areas are covered.

Locks and latches on windows and doors must be secure and operate

as intended. Windows, doors, walls, ceilings and other building mate-

rials must be of sufficient strength and construction to provide the

level of protection expected. A reevaluation must be done during and

after any construction activity. An evaluation by the fire and/or police

department is highly recommended if this service is available.

■■

■ Criminal Knowledge

This system contains security features which were known to be effec-

tive at the time of manufacture. It is possible for persons with criminal

intent to develop techniques which reduce the effectiveness of these

features. It is important that a security system be reviewed periodically

to ensure that its features remain effective and that it be updated or

replaced if it is found that it does not provide the protection expected.

■■

■ Access by Intruders

Intruders may enter through an unprotected access point, circumvent

a sensing device, evade detection by moving through an area of insuf-

ficient coverage, disconnect a warning device, or interfere with or

prevent the proper operation of the system.

■■

■ Power Failure

Control units, intrusion detectors, smoke detectors and many other

security devices require an adequate power supply for proper opera-

tion. If a device operates from batteries, it is possible for the batteries

to fail. Even if the batteries have not failed, they must be charged, in

good condition and installed correctly. If a device operates only by AC

power, any interruption, however brief, will render that device inop-

erative while it does not have power. Power interruptions of any length

are often accompanied by voltage fluctuations which may damage

electronic equipment such as a security system. After a power inter-

ruption has occurred, immediately conduct a complete system test to

ensure that the system operates as intended.

■■

■ Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide sev-

eral years of battery life under normal conditions. The expected bat-

tery life is a function of the device environment, usage and type. Am-

bient conditions such as high humidity, high or low temperatures, or

large temperature fluctuations may reduce the expected battery life.

While each transmitting device has a low battery monitor which iden-

tifies when the batteries need to be replaced, this monitor may fail to

operate as expected. Regular testing and maintenance will keep the

system in good operating condition.

■■

■ Compromise of Radio Frequency

(Wireless) Devices

Signals may not reach the receiver under all circumstances which could

include metal objects placed on or near the radio path or deliberate jam-

ming or other inadvertent radio signal interference.

■■

■ System Users

A user may not be able to operate a panic or emergency switch possi-

bly due to permanent or temporary physical disability, inability to reach

the device in time, or unfamiliarity with the correct operation. It is

important that all system users be trained in the correct operation of

the alarm system and that they know how to respond when the system

indicates an alarm.

■■

■ Smoke Detectors

Smoke detectors that are a part of this system may not properly alert

occupants of a fire for a number of reasons, some of which follow. The

smoke detectors may have been improperly installed or positioned.

Smoke may not be able to reach the smoke detectors, such as when the

fire is in a chimney, walls or roofs, or on the other side of closed doors.

Smoke detectors may not detect smoke from fires on another level

of the residence or building.

Every fire is different in the amount of smoke produced and the

rate of burning. Smoke detectors cannot sense all types of fires

equally well. Smoke detectors may not provide timely warning

of fires caused by carelessness or safety hazards such as smoking

in bed, violent explosions, escaping gas, improper storage of flam-

mable materials, overloaded electrical circuits, children playing

with matches or arson.

Even if the smoke detector operates as intended, there may be cir-

cumstances when there is insufficient warning to allow all occu-

pants to escape in time to avoid injury or death.

■■

■ Motion Detectors

Motion detectors can only detect motion within the designated ar-

eas as shown in their respective installation instructions. They can-

not discriminate between intruders and intended occupants. Mo-

tion detectors do not provide volumetric area protection. They have

multiple beams of detection and motion can only be detected in

unobstructed areas covered by these beams. They cannot detect

motion which occurs behind walls, ceilings, floor, closed doors,

glass partitions, glass doors or windows. Any type of tampering

whether intentional or unintentional such as masking, painting, or

spraying of any material on the lenses, mirrors, windows or any

other part of the detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in

temperature. However their effectiveness can be reduced when the

ambient temperature rises near or above body temperature or if

there are intentional or unintentional sources of heat in or near the

detection area. Some of these heat sources could be heaters, radia-

tors, stoves, barbeques, fireplaces, sunlight, steam vents, lighting

and so on.

■■

■ Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not

warn people or waken someone sleeping if there is an interven-

ing wall or door. If warning devices are located on a different

level of the residence or premise, then it is less likely that the

occupants will be alerted or awakened. Audible warning devices

may be interfered with by other noise sources such as stereos,

radios, televisions, air conditioners or other appliances, or pass-

ing traffic. Audible warning devices, however loud, may not be

heard by a hearing-impaired person.

■■

■ Telephone Lines

If telephone lines are used to transmit alarms, they may be out of

service or busy for certain periods of time. Also an intruder may cut

the telephone line or defeat its operation by more sophisticated means

which may be difficult to detect.

■■

■ Insufficient Time

There may be circumstances when the system will operate as in-

tended, yet the occupants will not be protected from the emer-

gency due to their inability to respond to the warnings in a timely

manner. If the system is monitored, the response may not occur in

time to protect the occupants or their belongings.

■■

■ Component Failure

Although every effort has been made to make this system as reli-

able as possible, the system may fail to function as intended due

to the failure of a component.

■■

■ Inadequate Testing

Most problems that would prevent an alarm system from operating

as intended can be found by regular testing and maintenance. The

complete system should be tested weekly and immediately after a

break-in, an attempted break-in, a fire, a storm, an earthquake, an

accident, or any kind of construction activity inside or outside the

premises. The testing should include all sensing devices, keypads,

consoles, alarm indicating devices and any other operational de-

vices that are part of the system.

■■

■ Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute

for property or life insurance. An alarm system also is not a sub-

stitute for property owners, renters, or other occupants to act pru-

dently to prevent or minimize the harmful effects of an emer-

gency situation.

Introduction 1

1.1 How to use this Manual ........................................................................1

1.2 Specifications and Features .................................................................1

1.3 Compatible Wireless Devices...............................................................2

1.4 Batteries ................................................................................................2

PC5132 Set up & Wiring 3

2.1 Unpack the PC5132 .............................................................................3

2.2 Choose a Mounting Location for the PC5132 ......................................3

2.3 Antennas ...............................................................................................3

2.4 Connect the PC5132 Receiver .............................................................3

Enrolling Wireless Devices 4

3.1 A Note about Electronic Serial Numbers.............................................. 4

3.2 Enrolling Wireless Devices ...................................................................4

3.3 Enroll & Program Wireless Keys (WLS9X9-433) ...................................4

3.4 Identified Wireless Keys .......................................................................6

Other Programming 7

4.1 Program Zones and Partitions ..............................................................7

4.2 Enable PC5132 Supervision .................................................................7

4.3 Enable Supervision of Wireless Zones .................................................8

4.4 Jamming Signal Detection....................................................................8

4.5 PC5132 Software Default ......................................................................9

4.6 Deleting Wireless Devices ..................................................................10

Testing & Mounting 11

5.1 Test the Reception of Wireless Devices .............................................11

5.2 Mount the PC5132 and Wireless Devices ..........................................13

Additional Notes 14

6.1 Trouble Conditions ..............................................................................14

6.2 Jamming Signal Detection..................................................................14

6.3 Wireless Zone Low Battery Transmission ...........................................14

Troubleshooting 16

Programming Worksheets 17

Guidelines for Locating Smoke Detectors 22

Index 23

Table of Contents

C O N T E N T S

Thank you for purchasing the PC5132 Wireless Receiver. This product

is the result of several years of development and will allow you to connect

up to 32 wireless detection devices to the PC580, PC1555, and the Power series

control panels.

The PC5132 uses 433 MHz. It provides several advantages:

• supervisory transmissions are sent every 64 minutes

• programmable supervisory window can be as long as 24 hours

• diversity antenna arrangement for better RF reception

In addition, the PC5132 features:

•6 digit serial numbers for all wireless devices: These new serial numbers

include hexadecimal digits.

Please read Section 3.1 “A note on Electronic

Serial Numbers (ESN)” for more information on enrolling 6-digit devices.

We are confident you will find the PC5132 Wireless Receiver a unique and useful

control panel enhancement.

This manual describes how to install, program and maintain the PC5132.

Before you install the PC5132 module, you should complete the following steps

in your system installation:

1. Plan the installation and wiring of the security system (see your system

Installation Manual

2. Install the control panel, and install and enroll at least one keypad to use

for programming.

3. Install and enroll any hardwired zone expander modules (PC5108) you

plan to use.

NOTE: PC5108 zone expander modules occupy zones in 2 groups of 4 (e.g.,

zones 9-12 and zones 13-16). None of the zones assigned to a PC5108 module

can be used for wireless devices.

Program the PC5132 from a system keypad or using downloading software on

a remote computer (e.g. DLS-3). Read your system

Installation Manual

for more

information.

1.1 How to use this Manual

Read this manual before you begin installing the PC5132. To install and set up the

PC5132 and wireless devices, follow these steps. Refer to the sections listed below.

1. Temporarily mount and wire the PC5132 module (see

Section 2

2. Enroll and program wireless devices (see

Section 3

3. Complete zone and other programming on the system (see

Section 4

4. Test the placement of all the wireless devices

(see Section 5).

5. Permanently mount the PC5132 receiver and wireless devices

(see Section 5).

For additional information on trouble conditions, RF jamming signal detection

and battery replacement, see

Section 6.

For help with troubleshooting, see

Section 7.

1.2 Specifications and Features

• Current Draw: 80 mA

• Frequency: 433 MHz

• Zones - receiver can receive signals from up to 32 wireless zones and 16

wireless keys

• Antenna - diversity design for enhanced performance

• Supervisory - programmable supervisory window, 4 to 24 hours, in 15

minute increments

• Location

- can be wired up to 750 ft. / 230 m from the main panel with 22 gauge wire

- connects to Keybus

- for longer wire runs, thicker gauge wire must be used.

• Compatibility: The PC5132 v4.0 can be connected to the following panels:

PC501X, PC1555, PC580

S E C T I O N 1

Introduction

1.3 Compatible Wireless Devices

Please refer to the Instruction sheets of the following devices for more information.

The PC5132 v4.0 can receive signals from the following devices:

• WLS904-433 Motion Detector • WLS912-433 Glass Break Detector*

• WLS906-433 Smoke Detector • WLS914-433 Pet-Immune PIR*

• WLS925L-433 Transmitter • WLS909-433 Wireless Key

*When available

1.4 Batteries

The wireless devices, with the exception of the WLS925L transmitter and the

WLS909 wireless key, are designed to use only Energizer Alkaline batteries (by

Eveready).

NOTE: Do not use other brands of batteries. Using any other brand may affect

system operation.

I N T R O D U C T I O N

S E C T I O N 2

This section describes how to set up and wire the PC5132 module.

2.1 Unpack the PC5132

Check that the following parts are in your PC5132 package:

• PC5132 PCB • Diversity antennae

• PC5132 plastic cabinet • Hardware for mounting the cabinet

2.2 Choose a Mounting Location for the PC5132

NOTE: Mount the PC5132 receiver and wireless devices after you have done

placement tests with the wireless devices (see sections 5.1 and 5.2).

Find a place that is:

• Dry

• Central to the proposed placement of all wireless devices

• As high as possible

• Far from sources of interference, including: electrical noise (computers,

televisions and electric motors in appliances and heating and air

conditioning units); large metal objects like heating ducts and plumbing

which may shield the antenna.

Make sure that electrical wires will not run over the antenna(s) of the module

when it is mounted.

When mounting the PC5132 in a basement, place the module as high and as

close to the underside of the first floor as possible. The range of the module will

be reduced if the unit is mounted below ground level.

2.3 Installing the Antennas

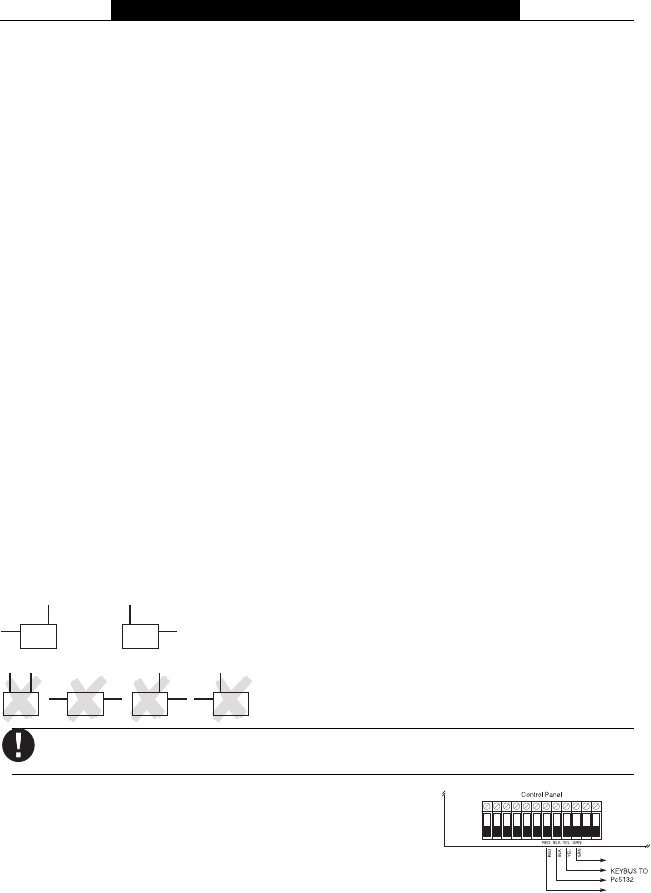

The two antennas must be screwed into the terminals marked ANT1 and ANT2, not

GND1 and GND2. Also they must be installed as indicated in the following two diagrams:

Do not install the antennas as indicated in the following diagrams:

If the antennas are installed incorrectly the PC5132-433 may not

reliably receive signals from the transmitters.

2.4 Connect the PC5132 Receiver

CAUTION: Remove all power from the system while

connecting modules to the Keybus.

Connect the PC5132 to the four-wire Keybus of the

control panel according to the following diagram.

After you have completed the wiring, reconnect the power to the security system.

Now that you have wired the PC5132, you should enroll and program the

wireless devices. See section 3 for instructions.

PC5132 Set up & Wiring

This section describes how to enroll wireless devices (WLS904-433, WLS906-

433 and WLS925-433), and wireless keys (WLS909-433). For more information

on these devices, read the instruction sheet included with each device.

3.1 A Note about Electronic Serial Numbers

An electronic serial number (ESN) is printed on the back of each wireless device.

ESNs are used to enroll the wireless devices with the PC5132 receiver.

In order to reduce the occurrence of wireless devices with the same serial

number, 6-digit serial numbers are now printed on the back of each wireless

device. The 6-digit serial numbers include hexadecimal digits. For instructions

on programming hexadecimal numbers, see your system Installation Manual,

section 4: How to Program.

NOTE: 6-digit serial numbers are only supported on the following control panels:

PC501X, PC1555 and PC580 v2.0 and higher.

The WLS904-433, WLS906-433 and WLS925-433 devices have both a 5-digit

and a 6-digit serial number printed on them. When connecting the PC5132 to a

PC5010 v1.x panel, enter 5-digit serial numbers only. When connecting the

PC5132 to a PC5015 v2.x and higher, PC5010, PC1555, or PC580 panel enter

the 6-digit serial number.

3.2 Enrolling Wireless Devices (WLS904-433, WLS906-433,

WLS925-433)

1. At a system keypad, enter [✱][8][Installer’s code] to go to the installer’s

programming section.

2. Enter programming section [804].

3. Enter the 2-digit number corresponding to the zone the device is to

occupy ([01] to [32]).

NOTE: Hardwired and wireless devices cannot be assigned to the same zone.

PC5108 zone expander modules occupy zones in 2 groups of 4 (e.g. zones 9-

12 and zones 13-16). None of the zones assigned to a PC5108 module may be

used for wireless devices. For more information on zone assignment, consult

your system Installation Manual.

4. Enter the device’s ESN. Follow the instructions in section 3.1 above.

5. Record the serial number and the assigned zone number in the

programming worksheets in the back of this manual.

6. Continue with steps 3 - 5 until you have enrolled all wireless devices.

7. To exit press [#]. The device is now enrolled on the system.

NOTE: The devices will not work properly until you complete zone and partition

programming (see section 4).

S E C T I O N 3

Enrolling Wireless Devices

3.3 Enroll & Program Wireless Keys (WLS909-433)

For wireless keys to work on the system, you need to enroll them and then program

the function buttons. Wireless keys are not assigned to zones and require no zone

programming. You can enroll up to 16 wireless keys on the system.

Enroll Wireless keys

1. At a system keypad, enter [✱][8][Installer’s code] to go to the Installer’s

Programming section.

2. Enter programming section [804].

3. Enter a 2-digit number [41]-[56] to assign the wireless key a slot. These

numbers correspond to wireless key numbers 01-16.

4. Enter the key’s ESN. The entry

must

be six digits. If an older key with a

5-digit ESN is being enrolled, add the digit [0] to the beginning of the

ESN. (E.g. ESN=61234, enter 061234)

5. The key is now enrolled on the system. Record the serial number and

the assigned slot number in the programming worksheets in the back of

this manual.

6. Repeat steps 3 - 5 until all wireless keys have been enrolled.

7. (PC501(PC501

(PC501(PC501

(PC501XX

X only) only)

only) only)

only) By default, all wireless keys are assigned to Partition 1.

To assign keys to Partition 2, enable the appropriate options in

programming sections [91] and [92].

NOTE: A wireless key can only be assigned to one partition.

8. To exit press [#].

Program the WLS909-433 Function Buttons

WLS909-433 wireless keys have four programmable function buttons. You must

program a set of four functions for the buttons before any keys will work. After

the functions are programmed, when you press and hold one of the four buttons

for two seconds, the system will execute the programmed function.

For systems not using partitions: program the function buttons in section

[59]. All wireless keys will have the same four functions.

For systems using 2 partitions (PC501X only): all wireless keys assigned to

Partition 1 will have the four functions programmed in section [59]. All wireless

keys assigned to Partition 2 will have the four functions programmed in section

[60]. For example, if function button 1 in Section [59] is programmed for Stay

arming, then pressing the first button on wireless keys assigned to Partition 1 will

Stay arm Partition 1.

NOTE: Wireless keys will not work when the partition they are assigned to is

being accessed for zone bypassing or programming.

1. At a system keypad, enter [✱][8][Installer’s code].

2. Enter programming section [804].

3. Enter programming section [59] for keys assigned to partition 1, or [60]

for keys assigned to partition 2.

4. For each of the 4 function buttons, enter the 2-digit number of the

function you want to select. See the programming worksheets in the back

of this manual for a list of function key options.

W I R E L E S S D E V I C E S

5. Record your programming choices in the worksheets in the back of the

manual.

6. To exit press [#].

3.4 Identified Wireless Keys

Reporting by the system of openings/closings by individual wireless keys and

command output [✱][7] activation by wireless key buttons may be supported on

certain control panels. To do this, the system will reserve access codes 17 – 32

for wireless keys 01-16 respectively. You must program one access code for

each wireless key (using [✱][5] access code programming) for this feature to

work correctly.

NOTE: Program these access codes on the system

after

you have connected

the PC5132 to the Keybus (see section 2.4).

Refer to your system Installation Manual for information on access code

programming.

Opening/Closing By Wireless Key Reporting

NOTE: The Identified Wireless Key Closing option is only available with the PC501X,

PC1555, PC580 v2.0 and higher by turning section [015] option 4 off.

To enable the reporting of openings and closings

by identified wireless keys:

• Make sure the control panel is v2.0 or higher

• Program a valid access code for each key

• Program a closing and opening reporting code for each key’s access code

• Turn off the Quick Arm option in section [015] option [4] of the control

panel programming

To ensure that an

unidentified wireless key

cannot disarm the system, turn off

section [017], option [1] (in the control panel programming). This option is

available in control panels with software version 2.1 or higher.

Command Output Activation

NOTE: The Identified Wireless Key Command Output Activation feature is only

available with the PC501X, PC1555 and PC580 v2.0 and higher.

To enable command output activation by wireless keys, ensure that:

• The control panel is v2.0 or higher

• Program a valid access code for each key

• Enable the PGM output attribute Requires Access Code for each PGM

output programmed as [✱][7][1-4] in sections [141] to [154].

Now that you have enrolled all the wireless devices, you will need to program

the system to work properly with the devices. See section 4 for more information.

W I R E L E S S D E V I C E S

4.1 Program Zones and Partitions

Now that you have enrolled the wireless devices, you should complete all zone

programming on the system. Although the exact programming required varies

depending on which control panel the PC5132 is connected to, you should

check that the following programming areas are completed correctly for each

wireless zone:

• Enable zones and/or assign zones to one or more partitions (programming

sections [201]-[209]).

• Program the definition for each zone (programming sections [001]-[004]).

• Enable the wireless zone attribute for each wireless zone (PC580, PC1555,

PC501X v2.0 and up only) (sections [101]-[132]).

See your system Installation Manual, for more information on each of the above

programming sections.

4.2 Enable PC5132 Supervision

The control panel will supervise the PC5132 receiver via the Keybus after at

least one device has been enrolled on the module (see section 3.2 “Enrolling

Wireless Devices”).

To activate module supervision, after you enroll the first device(s):

1. Exit and then re-enter installer’s programming

2. Enter programming section [902]. Wait approximately 1 minute.

3. To exit press [#].

The system will generate a General System Supervisory trouble if the module is

removed from the Keybus. If you need to remove the PC5132 module from an

existing system, you will have to disable supervision of the PC5132.

NOTE: Deleting all devices from the PC5132 or defaulting the PC5132 will

cause a PC5132 supervisory fault

To disable PC5132 supervision:

1. Disconnect the PC5132 from the Keybus

2. Enter [✱][8][Installer Code]

3. Enter [902]. The control panel will clear all supervision and re-scan the system

for connected modules. The scan will take approximately one minute.

4. To exit press [#].

To review which modules the control panel is currently supervising:

1. Enter [✱][8][Installer’s Code]

2. Enter [903] to display all modules. On LED keypads, light [17] will

indicate that the PC5132 is present on the system. On LCD keypads,

scroll until the module name appears on the display.

3. To exit press [#].

S E C T I O N 4

Other Programming

If the PC5132 module does not show on the keypad, one of the following

conditions may be present:

• the module is not connected properly to the Keybus

• there is a problem with the Keybus wiring run

• the module does not have enough power

• no devices have been enrolled on the PC5132

4.3 Enable Supervision of Wireless Zones

NOTE: (for PC5010 v1.x control panels only) In order for wireless zones to be

supervised, you must enable Double End of Line (DEOL) supervision in the

PC5010 control panel. For more information, refer to your Installation Manual.

NOTE: (PC501X, PC1555, PC580 v2.0 and higher only) For wireless supervi-

sion to work, you must enable the wireless zone attribute on all wireless zones

(sections [101] to [132], option [8] ON).

Wireless Supervisory Window

Each wireless zone (WLS906-433,WLS904-433 or WLS925-433) will send a

supervisory signal every 64 minutes. If the receiver does not receive a signal

within the time programmed for the Wireless Supervisory Window, it will

generate a supervisory fault.

To program the wireless supervisory window:

1. Enter [✱][8][Installer Code] to enter Installer Programming.

2. Enter [804] to enter the PC5132 Module Programming.

3. Enter section [81].

4. Enter the time period for the supervisory window. The window is

programmed in 15 minute increments. The default programming is 96

(x15minutes), which is equal to 24 hours. Valid entries are (08) - (96),

equal to 4 - 24 hours.

5. To exit press [#].

Disable/Enable Zone Supervision

All wireless zones have supervision enabled by default. To disable supervision

for any zone, enter the following at any system keypad:

1. Enter [✱][8][Installer Code] to enter Installer Programming.

2. Enter [804] to enter the PC5132 Module Programming.

3. Enter sections [82], [83], [84] and [85]. Enable or disable supervision for

each wireless zone by turning each relevant option on or off.

4. To exit press [#].

O T H E R P R O G R A M M I N G

4.4 RF Jam Detect Zone

For RF jamming detection to work, you must select an unused zone to be used

as the RF Jam Detect zone. When the receiver detects an attempt to jam the RF

signal, the RF Jam Detect zone will be violated and the system will generate a

tamper signal. When the jamming signal is gone, the RF Jam Detect zone closes

and the system sends a tamper restore signal.

To enable RF jamming detection:

1. Enter [✱][8] [Installer’s Code].

2. Enter programming section [804].

3. Select an unused zone to be the RF Jam Detect zone. Enter the 2-digit

number ([01] to [32]) of the RF Jam Detect zone on the keypad, then

program the serial number as [200000].

3. Enter section [93]. Enter the 2-digit number of the RF Jam Detect zone

([01] to [32]) in the programming section.

4. Disable supervision for the RF Jam detect zone by turning the relevant option

off in section [82], [83], [84] or [85]. (See section 4.3 for more information.)

5. RF jamming detection is now enabled. To exit Installer programming,

press [#].

4.5 PC5132 Software Default

Returning the PC5132 programming to factory default settings is a quick way to

remove all the enrolled devices from the system and reset all the programming

in section [804].

NOTE: Performing this procedure will not change any programming sections

except [804]. Resetting the control panel to factory default settings will

not

re-

turn the PC5132 module to factory default settings.

To restore the PC5132 programming to the factory default settings:

1. Enter [✱][8] [Installer’s Code].

2. Enter programming section [996].

3. Enter the Installer’s Code, followed by [996] again. The software for the

PC5132 will be restored to its factory default settings.

4. To continue programming the unit, exit installer’s programming by

pressing [#] and then re-enter installer’s programming by entering [✱][8]

[Installer’s Code].

For instructions on restoring the default programming of the control panel or any

other connected module, see your system

Installation Manual.

O T H E R P R O G R A M M I N G

4.6 Deleting Wireless Devices

To remove a wireless device from the system, follow the guideline for enrolling

a wireless device (see section 3.2). Program the ESN as [000000]. The wireless

device for the zone will be removed.

NOTE: You may need to remove power from the panel in order to clear troubles

caused by deleted zones.

Now that you have completed all PC5132 related programming, you can test

and mount the receiver and devices. See section 5 for more information.

5.1 Test the Reception of Wireless Devices

It is very important to test the proposed placement of each wireless device before

it is mounted. Following these steps will test the signal strength between the

PC5132 and the wireless devices.

You can test all of the devices together (global placement testing) or test each

device individually. To test all the devices together, see ‘Testing All Wireless

Devices Together’ below. To test wireless devices individually, see ‘Testing

Individual Devices’.

NOTE: After you have enrolled the wireless devices, you must exit and then re-enter

Installer’s Programming at least once before you can perform a placement test.

Testing All Wireless Devices Together:

1. Temporarily put the WLS904-433, WLS906-433 and WLS925-433 devices

in the places you want to mount them.

2. At a system keypad, enter [✱][8][Installer Code].

3. Enable the Global Module Placement test by entering section [804]. Then

enter sub-section [90] and turn on option [8].

4. Press [#] twice.

5. Enter programming section [904], then enter [01].

6. Activate one of the devices being tested until a result is displayed on the

keypad or sounded by the keypad or bell:

WLS904-433:

To perform a Placement Test on the WLS904-433,

remove the detector from the back plate and then replace it. Once the

detector is replaced on the back plate the LED on the detector will flash

rapidly 5 times to indicate that it has sent a transmission. The panel will

show and/or sound the result of the placement test on the keypad. To

perform a 2nd and 3rd test, repeat this procedure.

Carefully replace theCarefully replace the

Carefully replace the

backplate onto the detector, ensuring that “TOP” is facing upward,backplate onto the detector, ensuring that “TOP” is facing upward,

backplate onto the detector, ensuring that “TOP” is facing upward,

or you may damage the tamper switch.or you may damage the tamper switch.

or you may damage the tamper switch.

NOTE: When you remove the detector from the backplate (tamper the unit),

the detector will also be put into “Detector Walk Test” mode. While in Walk Test

mode the detector will activate the LED when motion is detected. The detector

will also send a signal to the receiver 5 seconds after motion is detected,

indicated by 5 rapid flashes by the LED. The LED will only work in this fashion

for 10 motion detections after a tamper/restore. Note that the panel will ignore

these transmission signals with respect to a placement test. The only way in

which the panel will acknowledge a placement test is if the backplate has,

each time, been removed and restored.

WLS906-433:Remove the detector from its backplate, wait 5 seconds

and re-attach it, or hold a magnet near the raised line on the outer rim,

then remove it.

WLS907-433/WLS925-433: Open the contact by moving the magnet

away from the unit. The keypad will show/sound the test result. After the

first test result has been generated (about 10 seconds) close the contact

to generate another test result. If the unit is attached to a door or a

window, open and close the door or window to activate the device.

S E C T I O N 5

Testing & Mounting

T E S T I N G & M O U N T I N G

WLS909-433: Press any function key at several different locations.

Read the test results at the keypad:

Result LED Keypad LCD Keypad Buzzer/Bell

Good Light 1 On Steady “Good” 1 Beep/Squawk

Bad Light 3 On Steady “Bad” 3 Beeps/Squawks

Activate the device until you get 3 ‘good’ results in a row.

You may mount the WLS devices where results were good.

Devices indicating a bad result must be moved to another location. You

may only have to move the device a few inches to correct a bad result.

NOTE: Do not mount any device where a “bad” test result was indicated.

7. Go to the next device to be tested and activate it until the test result is

displayed/sounded.

NOTE: Wait until the placement test of one device is shown/sounded before

beginning to test the next device.

Continue to test the devices until both the PC5132 and the devices are in

good locations. If several wireless devices produce ‘bad’ test results, you may

need to move the PC5132 to a better location. (See section 2.2 for tips on

finding a location for the PC5132.)

8. To exit the placement test and return to installer programming, press [#] twice.

Testing Individual WLS904-433, WLS906-433, WLS907-433 and

WLS925-433 Devices:

1. Temporarily place the WLS904-433, WLS906-433 or WLS925-433 where

you want to mount it.

2. At a system keypad, enter [✱][8][Installer Code].

3. Enter programming section [904].

4 Enter the 2-digit zone number for the device to be tested.

5. Activate the device being tested until a result is displayed on the keypad

or sounded by the keypad or bell. (Same as step 5 in the Global

Placement Test section, previous page.)

6. To test another device, press [#] once, then repeat steps 4 - 5. Continue

to test the devices until both the PC5132 and the devices are in good

locations.

If several wireless devices produce ‘bad’ test results, you may need to

move the PC5132 to a better location. (See section 2.2 for tips on finding

a location for the PC5132.)

7. To exit the placement test and installer programming, press [#] twice.

Testing Individual Wireless Keys:

You cannot use the individual device test described above to test WLS909-433

wireless keys. To ensure that the PC5132 receiver is receiving transmissions

from these devices, use the function keys on the WLS909-433 at several

different points in the installation.

5.2 Mount the PC5132 and Wireless Devices

When you have tested reception of the PC5132 with all the wireless devices (see

section 5.1) and you have a good mounting location, mount the PC5132:

1. Pull the Keybus wires through the hole at the bottom of the cabinet.

2. Mount the cabinet securely to the wall.

Mount the Devices

If you have conducted the placement test described in section 5.1 and got 3

‘good’ results in a row for each device, you can mount the wireless devices. See

the

Installation Sheet

for each device for mounting instructions.

Now that your PC5132 and wireless devices are mounted and working properly,

read section 6 for information on potential wireless trouble conditions, RF

jamming signals, and battery replacement.

T E S T I N G & M O U N T I N G

S E C T I O N 6

Additional Notes

6.1 Trouble Conditions

The control panel always watches for possible trouble conditions. If a trouble

condition occurs, the keypad “Trouble” light will turn on and the keypad will

beep. Press [✱][2] to display the trouble conditions.

The following trouble conditions apply to the PC5132 and/or any enrolled devices.

General System Tamper - This trouble is generated when the PC5132 plastic

cover is removed.

General System Supervisory - This trouble will be generated if the panel loses

communication with any module connected to the Keybus. The event buffer will

log a detailed description of the event.

Device Low Battery - This trouble is generated when a wireless device exhibits a

low battery condition. Press [7] one, two, or three times to view which devices

are experiencing battery failure. An LED keypad will indicate battery failure

using zone lights 1 to 8.

Zone Tamper - This trouble is generated when an enrolled wireless device is

removed from its mounting location.

Zone Fault - Each wireless zone will send a supervisory signal every 64 minutes.

If the receiver does not receive a signal within the time programmed for the

Wireless Supervisory Window, it will generate a zone fault.

Tamper Switches

There is one tamper switch on the PC5132 board. Removing the plastic cover

will cause a general system tamper.

6.2 Jamming Signal Detection

The PC5132 receiver detects jamming signals that can prevent the receiver from

properly receiving transmissions from enrolled devices. See section 4.4 “Jamming

Signal Detection” for information on jamming signal detection programming.

6.3 Wireless Zone Low Battery Transmission

Within any transmission, the device will indicate the status of the battery. If a

battery is low, the system will indicate a Device Low Battery trouble.

The system will delay reporting the event to the central station for the number

of days programmed for Zone Low Battery Transmission Delay in section

[370]. This will prevent unnecessary reporting of the event if the user has been

instructed on how to replace batteries.

A D D I T I O N A L N O T E S

Replacing Batteries in Wireless Devices

1. Remove the cover of the device from its back plate. This creates a

tamper condition on the zone.

2. Refer to the battery installation instructions on the installation sheet of

each component. Be sure to note the proper orientation of the batteries

as you install them.

3. When the fresh batteries are in place, re-attach the cover to the back

plate. The tamper is restored and the zone sends a battery trouble

restoral signal to the PC5132. The battery trouble is now clear and the

device should function normally.

NOTE: When batteries in one device need to be replaced, the batteries in all

devices may need to be replaced at the same time.

S E C T I O N 7

Troubleshooting

1. When I enter the 2-digit zone number when adding a wireless

device, the keypad gives me a long beep.

You cannot enter ESNs unless a PC5132 wireless receiver is connected to the

Keybus. See section 2 for instructions on setting up and wiring the PC5132

module.

2. I have entered the ESN for the device but when I violate the

device, the zone does not show open on the keypad.

Check the following:

• Ensure the ESN has been entered correctly

• Ensure that the zone is enabled for the partition (if partition programming

is used).

• Ensure that the wireless zone is not assigned to a zone used by PC5108

modules, an on-board zone, or a keypad zone.

• Ensure that the zone is programmed for something other than “Null

Operation”, and that the wireless zone attribute is turned on.

3. When I try a module placement test I get no result or ‘bad’

results.

Check the following (see sections 5.1 and 5.2 for more information on testing

devices):

• Verify that you are testing the correct zone.

• Verify that the correct ESN was entered when the device was enrolled.

• Verify that the device is in range of the PC5132. Try testing the device in

the same room as the receiver.

• Confirm that the PC5132 is properly connected to the Keybus (see section

2 for PC5132 set up and wiring instructions).

• Check that you are testing the zone correctly (see sections 5.1 and 5.2 for

testing instructions).

• Check that the batteries are working and installed correctly.

• Look for large metal objects that may be preventing the signal from

reaching the PC5132.

The device must be located where consistent ‘good’ results are obtained. If

several devices show ‘bad’ results, move the receiver. See section 2.2 for tips

on choosing a mounting location for the PC5132.

4. The LED on the motion detector does not turn on when I walk in

front of the unit.

The LED is for walk test purposes only. See your

WLS904-433 Instruction Sheet

for walk test instructions.

[804] 5132--433 Wireless Expansion Programming

• 6-digit entry is required. See Section 3.1 “A note on Electronic Serial

Numbers” for details on programming 6-digit serial numbers.

Zone Serial Numbers

Default = 000000

[01] Zone 1 l

_____l

_____l_____l

_____l

[02] Zone 2 l

_____l

_____l_____l

_____l

[03] Zone 3 l

_____l

_____l_____l

_____l

[04] Zone 4 l

_____l

_____l_____l

_____l

[05] Zone 5 l

_____l

_____l_____l

_____l

[06] Zone 6 l

_____l

_____l_____l

_____l

[07] Zone 7 l

_____l

_____l_____l

_____l

[08] Zone 8 l

_____l

_____l_____l

_____l

[09] Zone 9 l

_____l

_____l_____l

_____l

[10] Zone 10 l

_____l

_____l_____l

_____l

[11] Zone 11 l

_____l

_____l_____l

_____l

[12] Zone 12 l

_____l

_____l_____l

_____l

[13] Zone 13 l

_____l

_____l_____l

_____l

[14] Zone 14 l

_____l

_____l_____l

_____l

[15] Zone 15 l

_____l

_____l_____l

_____l

[16] Zone 16 l

_____l

_____l_____l

_____l

[17] Zone 17 l

_____l_____l

_____l

[18] Zone 18 l

_____l_____l

_____l

[19] Zone 19 l

_____l_____l

_____l

[20] Zone 20 l

_____l_____l

_____l

[21] Zone 21 l

_____l_____l

_____l

[22] Zone 22 l

_____l_____l

_____l

[23] Zone 23 l

_____l_____l

_____l

[24] Zone 24 l

_____l_____l

_____l

[25] Zone 25 l

_____l_____l

_____l

[26] Zone 26 l

_____l_____l

_____l

[27] Zone 27 l

_____l_____l

_____l

[28] Zone 28 l

_____l_____l

_____l

[29] Zone 29 l

_____l_____l

_____l

[30] Zone 30 l

_____l_____l

_____l

[31] Zone 31 l

_____l_____l

_____l

[32] Zone 32 l

_____l_____l

_____l

Programming Worksheets

S E C T I O N 8

Wireless Key Serial Numbers

Default = 000000

[41] Key 01 l_____l_____l_____l_____l_____l_____l

[42] Key 02 l_____l_____l_____l_____l_____l_____l

[43] Key 03 l_____l_____l_____l_____l_____l_____l

[44] Key 04 l_____l_____l_____l_____l_____l_____l

[45] Key 05 l_____l_____l_____l_____l_____l_____l

[46] Key 05 l_____l_____l_____l_____l_____l_____l

[47] Key 07 l_____l_____l_____l_____l_____l_____l

[48] Key 08 l_____l_____l_____l_____l_____l_____l

P R O G R A M M I N G W O R K S H E E T S

[49] Key 09 l_____l_____l_____l_____l_____l_____l

[50] Key 10 l_____l_____l_____l_____l_____l_____l

[51] Key 11 l_____l_____l_____l_____l_____l_____l

[52] Key 12 l_____l_____l_____l_____l_____l_____l

[53] Key 13 l_____l_____l_____l_____l_____l_____l

[54] Key 14 l_____l_____l_____l_____l_____l_____l

[55] Key 15 l_____l_____l_____l_____l_____l_____l

[56] Key 16 l_____l_____l_____l_____l_____l_____l

Wireless Key Function Key Options

Entry Key Description Entry Key Description

00 Null Key 16 [✱][0] Quick Exit

01-02

For Future Use

17 [✱][1] Reactivate Stay/Aways

03 Stay Arm 18

For Future Use

04 Away Arm 19 [✱][7][3] Command Output #3

05 [✱][9] No-Entry Arm 20 For Future Use

06 [✱][4] Chime ON/OFF 21 [✱][7][4] Command Output #4

07 [✱][6][——][4] System Test 22-26

For Future Use

08-12

For Future Use

2727 Disarm (OFF)

13 [✱][7][1] Command Output #1 2828 Fire Alarm

14 [✱][7][2] Command Output #2 /

Sensor Reset

2929 Auxiliary Alarm

For Future Use

30 Panic Alarm

P R O G R A M M I N G W O R K S H E E T S

Partition 1 Wireless Key Options

Default = 00

[59] Function Key 1 l

____l

____lFunction Key 3 l

____l____l

Function Key 2 l

____l

____lFunction Key 4 l

____l____l

Partition 2 Wireless Key Options

[60] Function Key 1 l

____l

____lFunction Key 3 l

____l____l

Function Key 2 l

____l

____lFunction Key 4 l

____l____l

Supervision

[81] Wireless Supervisory Window Default = 96

____l

____lThe window is programmed in 15 minute increments. The

default programming is 96 (x 15minutes), which is equal to 24

hours. Valid entries are (04) - (96), equal to 2 - 24 hours.

[82] Zone Device Supervision Options (1-8)

Default = ON Option ON Option OFF

________lOption 1 Zone 01 Supervision enabled Disabled

________lOption 2 Zone 02 Supervision enabled Disabled

________lOption 3 Zone 03 Supervision enabled Disabled

________lOption 4 Zone 04 Supervision enabled Disabled

________lOption 5 Zone 05 Supervision enabled Disabled

________lOption 6 Zone 06 Supervision enabled Disabled

________lOption 7 Zone 07 Supervision enabled Disabled

________lOption 8 Zone 08 Supervision enabled Disabled

[83] Zone Device Supervision Options (9-16)

Default = ON Option ON Option OFF

________lOption 1 Zone 09 Supervision enabled Disabled

________lOption 2 Zone 10 Supervision enabled Disabled

________lOption 3 Zone 11 Supervision enabled Disabled

________lOption 4 Zone 12 Supervision enabled Disabled

________lOption 5 Zone 13 Supervision enabled Disabled

________lOption 6 Zone 14 Supervision enabled Disabled

________lOption 7 Zone 15 Supervision enabled Disabled

________lOption 8 Zone 16 Supervision enabled Disabled

P R O G R A M M I N G W O R K S H E E T S

[84] Zone Device Supervision Options (17-24)

Default = ON Option ON Option OFF

________lOption 1 Zone 17 Supervision enabled Disabled

________lOption 2 Zone 18 Supervision enabled Disabled

________lOption 3 Zone 19 Supervision enabled Disabled

________lOption 4 Zone 20 Supervision enabled Disabled

________lOption 5 Zone 21 Supervision enabled Disabled

________lOption 6 Zone 22 Supervision enabled Disabled

________lOption 7 Zone 23 Supervision enabled Disabled

________lOption 8 Zone 24 Supervision enabled Disabled

[85] Zone Device Supervision Options (25-32)

Default = ON Option ON Option OFF

________lOption 1 Zone 25 Supervision enabled Disabled

________lOption 2 Zone 26 Supervision enabled Disabled

________lOption 3 Zone 27 Supervision enabled Disabled

________lOption 4 Zone 28 Supervision enabled Disabled

________lOption 5 Zone 29 Supervision enabled Disabled

________lOption 6 Zone 30 Supervision enabled Disabled

________lOption 7 Zone 31 Supervision enabled Disabled

________lOption 8 Zone 32 Supervision enabled Disabled

[90] Other Options

Default = OFF Option ON Option OFF

________lOptions 1-5 For future use

________lOption 6 Sensitive RF Normal RF

jamming detection jamming detection

________lOption 7 RF Jam Detect Disabled RF Jam Detect Enabled

________lOption 8 Global Placement Test Individual Placement Test

[91] Wireless Keys (1-8) Partition Assignments

Default = OFF Option ON Option OFF

________lOption 1 Wireless Key 01 on partition 2 On partition 1

________lOption 2 Wireless Key 02 on partition 2 On partition 1

________lOption 3 Wireless Key 03 on partition 2 On partition 1

P R O G R A M M I N G W O R K S H E E T S

________lOption 4 Wireless Key 04 on partition 2 On partition 1

________lOption 5 Wireless Key 05 on partition 2 On partition 1

________lOption 6 Wireless Key 06 on partition 2 On partition 1

________lOption 7 Wireless Key 07 on partition 2 On partition 1

________lOption 8 Wireless Key 08 on partition 2 On partition 1

[92] Wireless Keys (9-16) Partition Assignments

Default = OFF Option ON Option OFF

________lOption 1 Wireless Key 09 on partition 2 On partition 1

________lOption 2 Wireless Key 10 on partition 2 On partition 1

________lOption 3 Wireless Key 11 on partition 2 On partition 1

________lOption 4 Wireless Key 12 on partition 2 On partition 1

________lOption 5 Wireless Key 13 on partition 2 On partition 1

________lOption 6 Wireless Key 14 on partition 2 On partition 1

________lOption 7 Wireless Key 15 on partition 2 On partition 1

________lOption 8 Wireless Key 16 on partition 2 On partition 1

RF Jamming Detection

[93] RF Jam Detect Zone

Default = 00

____l

____lSelect an unused zone that will be violated when a jamming

signal is detected. (Valid entries = 01 - 32, 00 = RF Jam detect

disabled.)

P R O G R A M M I N G W O R K S H E E

A P P E N D I X A

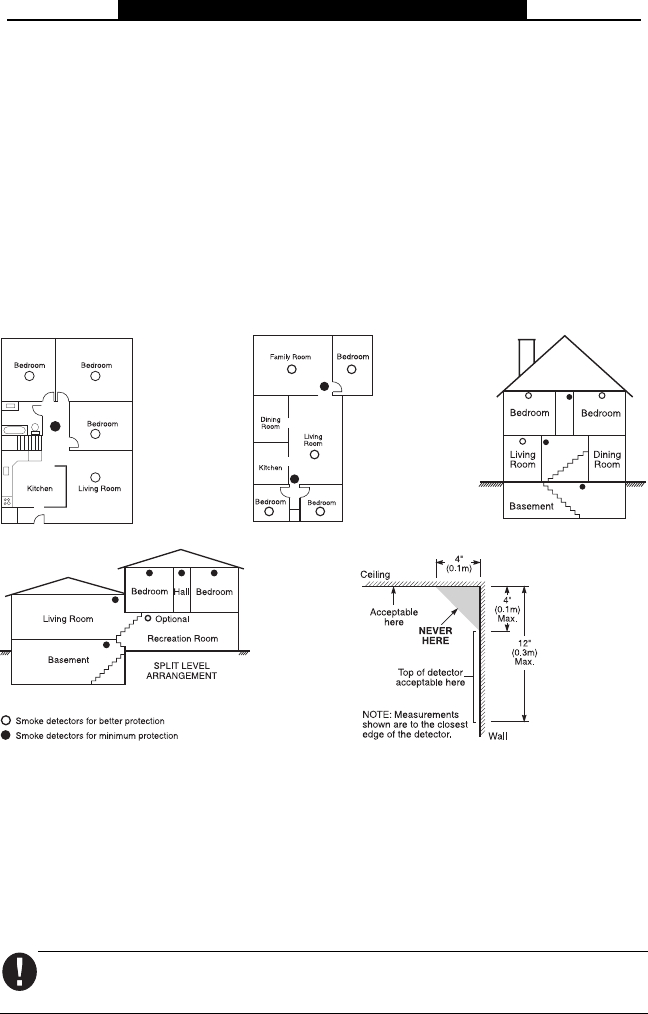

Guidelines for Locating Smoke Detectors

Experience has shown that all hostile fires in family living units generate smoke to a greater or lesser

extent. Experiments using typical fires in family living units indicate that detectable quantities of smoke

precede detectable levels of heat in most cases. In existing homes, NFPA Standard 72 requires that a

smoke detector be installed outside each sleeping area and on each additional story of the family unit.

On smooth ceilings, detectors may be spaced 9.1m (30 feet) apart as a guide. Other spacing may be

required depending on ceiling height, air movement, the presence of joists, uninsulated ceilings, etc.

Consult National Fire Alarm Code NFPA 72, CAN/ULS-S553-M86 or other appropriate national standards

for installation recommendations.

Do not locate smoke detectors at the top of peaked or gabled ceilings; the dead air space in these

locations may prevent the unit from detecting smoke.

Avoid areas with turbulent air flow, such as near doors, fans or windows. Rapid air movement around the

detector may prevent smoke from entering the unit.

Do not locate detectors in areas of high humidity.

Do not locate detectors in areas where the temperature rises above 38oC (100oF) or falls below 5oC (41oF).

Smoke detectors should always be installed in accordance with NFPA 72, the National Fire Alarm Code.

Smoke detectors should always be located in accordance with:

• Paragraph 2-2.1.1.1 of NFPA 72:

“Smoke detectors shall be installed outside of each separate

sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family

living unit, including basements and excluding crawl spaces and unfinished attics. In new

construction, a smoke detector also shall be installed in each sleeping room.”

• Paragraph 2-2.1.1.2 of NFPA 72:

“Split level arrangement. Smoke detectors are required where

shown. Smoke detectors are optional where a door is not provided between living room and

recreation room.”

The Smoke Detector is designed to use Eveready Energizer E91 Alkaline Batteries.

Do not use other brands of batteries with the Smoke Detector. Using brands other

than the Eveready Energizer will void UL approval, and may affect the system’s operation.

S E C T I O N 9

Index

add

device 4

wireless key 5, 11

antenna 3

batteries

replacing 13

buttons

programming 5

connect

Keybus 3

receiver 3

default

module 9

panel 9

delete device 9

devices 2

adding 4

removing 9

distance from control

panel 1

electronic serial

number 4

enroll

device 4

PC5132 7

wireless key 4

ESN 4

factory default 9

frequency 1

function keys 5

global placement

test 10

individual placement

test 11

interference 3

jamming signal

detection 8, 12

Keybus 3

location

choosing 3

low battery

devices 12

mount

devices 11

PC5132 11

number

electronic, serial 4

partition program-

ming 7

wireless keys 5

placement

PC5132 3

test 10

power 3

problems 12

removing

device 9

module 7

RF jamming 9

serial number 4

slot number

wireless key 5

supervision

DEOL 8

device 8

disable 7

module 7

window 8

testing

door/window

contact 10

global 10

individual 11

motion detector 10,

PC5132 10

placement 10

trouble 12

troubleshooting 17

wireless key

access codes 6

activating outputs 6

arming/disarming 6

enrolling 4

identifying 6

programming 4

zone

adding 4

attribute 7

numbers 4

programming 7

wireless 7

I N D E X

LIMITED WARRANTY

Digital Security Controls Ltd. warrants the original pur-

chaser that for a period of twelve months from the date

of purchase, the product shall be free of defects in ma-

terials and workmanship under normal use. During the

warranty period, Digital Security Controls Ltd. shall, at

its option, repair or replace any defective product upon

return of the product to its factory, at no charge for labour

and materials. Any replacement and/or repaired parts

are warranted for the remainder of the original warranty

or ninety (90) days, whichever is longer. The original

owner must promptly notify Digital Security Controls

Ltd. in writing that there is defect in material or work-

manship, such written notice to be received in all events

prior to expiration of the warranty period.

International Warranty

The warranty for international customers is the same as

for any customer within Canada and the United States,

with the exception that Digital Security Controls Ltd.

shall not be responsible for any customs fees, taxes, or

VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the

item(s) in question to the point of purchase. All autho-

rized distributors and dealers have a warranty program.

Anyone returning goods to Digital Security Controls Ltd.

must first obtain an authorization number. Digital Secu-

rity Controls Ltd. will not accept any shipment whatso-

ever for which prior authorization has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and work-

manship relating to normal use. It does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind,

earthquake or lightning;

• damage due to causes beyond the control of Digital

Security Controls Ltd. such as excessive voltage, me-

chanical shock or water damage;

• damage caused by unauthorized attachment, alter-

ations, modifications or foreign objects;

• damage caused by peripherals (unless such peripher-

als were supplied by Digital Security Controls Ltd.);

• defects caused by failure to provide a suitable instal-

lation environment for the products;

• damage caused by use of the products for purposes

other than those for which it was designed;

• damage from improper maintenance;

• damage arising out of any other abuse, mishandling

or improper application of the products.

Digital Security Controls Ltd.’s liability for failure to

repair the product under this warranty after a reason-

able number of attempts will be limited to a replace-

ment of the product, as the exclusive remedy for

breach of warranty. Under no circumstances shall

Digital Security Controls Ltd. be liable for any spe-

cial, incidental, or consequential damages based

upon breach of warranty, breach of contract, negli-

gence, strict liability, or any other legal theory. Such

damages include, but are not limited to, loss of prof-

its, loss of the product or any associated equipment,

cost of capital, cost of substitute or replacement

equipment, facilities or services, down time,

purchaser’s time, the claims of third parties, includ-

ing customers, and injury to property.

Disclaimer of Warranties

This warranty contains the entire warranty and

shall be in lieu of any and all other warranties,

whether expressed or implied (including all implied

warranties of merchantability or fitness for a par-

ticular purpose) And of all other obligations or li-

abilities on the part of Digital Security Controls

Ltd. Digital Security Controls Ltd. neither assumes

nor authorizes any other person purporting to act

on its behalf to modify or to change this warranty,

nor to assume for it any other warranty or liabil-

ity concerning this product.

This disclaimer of warranties and limited war-

ranty are governed by the laws of the province of

Ontario, Canada.

WARNING: Digital Security Controls Ltd. recom-

mends that the entire system be completely tested

on a regular basis. However, despite frequent test-

ing, and due to, but not limited to, criminal tam-

pering or electrical disruption, it is possible for

this product to fail to perform as expected.

Out of Warranty Repairs

Digital Security Controls Ltd. will at its option re-

pair or replace out-of-warranty products which are

returned to its factory according to the following con-

ditions. Anyone returning goods to Digital Security

Controls Ltd. must first obtain an authorization num-

ber. Digital Security Controls Ltd. will not accept

any shipment whatsoever for which prior authoriza-

tion has not been obtained.

Products which Digital Security Controls Ltd. deter-

mines to be repairable will be repaired and returned.

A set fee which Digital Security Controls Ltd. has

predetermined and which may be revised from time

to time, will be charged for each unit repaired.

Products which Digital Security Controls Ltd. deter-

mines not to be repairable will be replaced by the

nearest equivalent product available at that time. The

current market price of the replacement product will

be charged for each replacement unit.

N O T E S

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to

use this equipment.

This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the

manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with

the limits for Class B device in accordance with the specifications in Subpart “B” of Part 15 of FCC Rules, which are designed to

provide reasonable protection against such interference in any residential installation. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause interference to television or radio reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Re-orient the receiving antenna

•Relocate the alarm control with respect to the receiver

•Move the alarm control away from the receiver

•Connect the alarm control into a different outlet so that alarm control and receiver are on different circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may

find the following booklet prepared by the FCC helpful: “How to Identify and Resolve Radio/Television Interference Problems”. This

booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock # 004-000-00345-4.

This Class B digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences de règlement sur le matériel brouilleur du Canada.

AVIS: L’étiquette de l’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est conforme à

certaines normes de protection, d’exploitation et de sécurité des

réseaux de télécommunications. Industrie Canada n’assure toutefois

pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est

permis de le raccorder aux installations de l’entreprise locale de

télécommunication. Le matériel doit également être installé en suivant

une méthode acceptée de raccordement. L’abonné ne doit pas oublier

qu’il est possible que la conformité aux conditions énoncées ci-dessus

n’empêchent pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être effectuées par un

centre d’entretien canadien autorisé désigné par le fournisseur. La

compagnie de télécommunications peut demander à l’utilisateur de

débrancher un appareil à la suite de réparations ou de modifications

effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils

de mise à la terre de la source d’énergie électrique, les lignes

téléphoniques et les canalisations d’eau métalliques, s’il y en a, sont

raccordés ensemble. Cette précaution est particulièrement importante

dans les régions rurales.

AVERTISSEMENT: L’utilisateur ne doit pas tenter de faire ces

raccordements lui-même; il doit avoir recours à un service d’inspection

des installations électriques, ou à un électricien, selon le cas.

L’indice de charge (IC) assigné a chaque dispositif terminal indique,

pour éviter toute surcharge, le pourcentage de la charge totale qui

peut être raccordée à un circuit téléphonique bouclé utilisé par ce

dispositif. La terminaison du circuit bouclé peut être constituée de

n’importe quelle combinaison de dispositifs, pourvu que la somme des

indices de charge de l’ensemble des dispositifs ne dépasse pas 100.

L’Indice de charge de ce produit est 2.

NOTICE: The Industry Canada label identifies certified equipment.

This certification means that the equipment meets certain telecom-

munications network protective, operational and safety require-

ments. Industry Canada does not guarantee the equipment will

operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is

permissible to be connected to the facilities of the local telecommu-

nications company. The equipment must also be installed using an

acceptable method of connection. The customer should be aware

that compliance with the above conditions may not prevent degra-

dation of service in some situations.

Repairs to certified equipment should be made by an authorized

Canadian maintenance facility designated by the supplier. Any

repairs or alterations made by the user to this equipment, or

equipment malfunctions, may give the telecommunications com-

pany cause to request the user to disconnect the equipment.

User should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines and internal

metallic water pipe system, if present, are connected together. This

precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections

themselves, but should contact the appropriate electric inspection

authority, or electrician, as appropriate.

The Load Number (LN) assigned to each terminal device denotes

the percentage of the total load to be connected to a telephone loop

which is used by the device, to prevent overloading. The termination

on a loop may consist of any combination of devices subject only to

the requirement that the total of the Load Numbers of all the devices

does not exceed 100.

The Load Number of this unit is 2.

Toronto, Canada

1-800-387-3630 • www.dscgrp.com

Printed in Canada 29005043 R001

Tyco Safety Canada 01NB5132 PC5132A-433 & P5132A-433 Receiver User Manual pc5132 433 v3 12 in im eng 29004754 r001

Digital Security Controls Ltd. PC5132A-433 & P5132A-433 Receiver pc5132 433 v3 12 in im eng 29004754 r001

Installation manual

Navigation menu

Namespaces

Views

Navigation
