Users Manual

Section 1: Introduction

This manual describes how to install, program and maintain the RF5108-433.

Before you install the RF5108-433 module, you should have completed the following steps

in your system installation:

1. Plan the installation and wiring of the security system (see your system

Installation

Manual

)

2. Install the control panel, and install and enroll at least one keypad to use for

programming.

3. Install and enroll any hardwired zone expander modules (PC5108) you plan to use.

NOTE: PC5108 zone expander modules occupy zones in 2 groups of 4 (e.g. zones 9-12 and

zones 13-16). None of the zones assigned to a PC5108 module may be used for wireless

devices.

Program the RF5108-433 from a system keypad or using downloading software on a remote

computer (e.g., DLS 2002). Read your system

Installation Manual

for more information.

1.1 How to use this Manual

Read this manual before you begin installing the RF5108-433. To install and set up the

RF5108-433 and wireless devices, follow these steps. Refer to the sections listed below.

1. Temporarily mount and wire the RF5108-433 module (see

Section 2

)

2. Enroll and program wireless devices (see

Section 3

)

3. Complete zone and other programming on the system (see

Section 4

)

4. Test the placement of all the wireless devices

(see Section 5)

5. Permanently mount the RF5108-433 receiver and wireless devices

(see Section 5)

For additional information on trouble conditions, RF jamming signal detection and battery

replacement, see

Section 6.

For help with troubleshooting, see

Section 7.

RF5108-433 v1.0 Installation Manual

WARNING: This manual contains information on limitations regarding

product use and function and information on the limitations as to liability of

the manufacturer.

Thank you for purchasing the RF5108-433 Wireless Receiver. This product

is the result of several years of development and will allow you to connect

up to 8 wireless detection devices to the PC580, PC585, PC1555, PC1565, and the Power

Series control panels.

The RF5108-433 operates at 433 MHz. It provides several advantages:

• supervisory transmissions are sent every 64 minutes at fixed time intervals for NA

version, 12 minutes for the EU version.

• programmable supervisory window can be as long as 24 hours

• diversity antenna arrangement for better RF reception

• 2 PGM Outputs

In addition, the RF5108-433 features:

•6 digit serial numbers for all wireless devices: These new serial numbers include

hexadecimal digits.

Please read Section 3.1 “A note on Electronic Serial Numbers (ESN)”

for more information on enrolling 6-digit devices.

We are confident you will find the RF5108-433 Wireless Receiver a unique and useful

control panel enhancement.

1.2 Specifications and Features

• Current Draw: 40mA

• Frequency: 433 MHz

• Zones - receiver can receive signals from up to 8 wireless zones and 8 wireless keys

• Internal antenna

• PGM Outputs: 2 Open-collector PGM outputs

• Supervisory - programmable supervisory window, 4 - 24 hours, in 15 minute increments

• Location

- can be wired up to 750 ft. / 230 m from the main panel with 22 gauge wire; the wiring

used in this circuit connection must be insulated with PVC, TFE, PTFE, FEP, Neoprene

or Polymide

- connects to Keybus

- for longer wire runs, thicker gauge wire must be used.

• Compatibility: The RF5108-433 v1.x can be connected to the following panels:

PC5020,

PC501X, PC1555, PC1565, PC580, PC585

1.3 Compatible Wireless Devices

Please refer to the Instruction sheets of the following devices for more information.

The RF5108-433 v1.0 can receive signals from the following devices:

• WLS904L-433 Motion Detector • WLS912L-433 Glass Break Detector

• WLS904PL-433 Pet Immune PIR • WLS914 Pet Immune PIR

• WLS906-433 Smoke Detector • WLS918-433 Panic Pendant

• WLS907-433 Universal Transmitter • WLS919-433 Wireless Key

• WLS907T-433 Low Temperature Sensor • WLS925L-433 Mini Door/Window Contact

• WLS909-433 Wireless Key

1.4 DLS Compatibility

The RF5108-433 can support up to 8 wireless devices that can be assigned to any of zones 1

to 32 or RF Jam Zone. If the DLS user enters valid serial numbers for more than 8 wireless devices

and the wireless device serial numbers are downloaded, the RF5108-433 will accept the serial

numbers of the first 8 wireless devices (in order, starting with the lowest zone number).

1.5 Batteries

The wireless devices are designed to use only specific brands and types of batteries.

Please see the appropriate instruction sheet for detailed information on the battery brands

and types.

NOTE: Do not use brands of batteries other than those specified. Using any other brand

may affect system operation.

Section 2: RF5108-433 Set up & Wiring

This section describes how to set up and wire the RF5108-433 module.

2.1 Unpack the RF5108-433

Check that the following parts are in your RF5108-433 package:

• 1 WLS919-433 wireless key

• RF5108-433 in cabinet

• Hardware for mounting the cabinet

• LED indicator plate

I N T R O D U C T I O N

2.2 Choose a Mounting Location for the RF5108-433

NOTE: Mount the RF5108-433 receiver and wireless devices after you have done place-

ment tests with the wireless devices (see sections 5.1 and 5.2).

Find a place that is:

• Dry

• Central to the proposed placement of all wireless devices

• As high as possible

• Far from sources of interference, including: electrical noise such as computers, televisions

and electric motors in appliances and heating and air conditioning units; large metal

objects like heating ducts and plumbing which may shield the antenna.

Ensure the electrical wires will not run over the antenna(s) of the module when it is mounted.

NOTE: When mounting the RF5108-433 in a basement, place the module as high and as

close to the underside of the first floor as possible. The range of the module will be re-

duced if the unit is mounted below ground level.

2.3 Antennas

The antennas have been installed at the factory.

CAUTION!: Do not attempt to touch or adjust the antennas.

2.4 PC5320 Compatibility

The PC5320 module can be used to add multiple wireless receivers to an installation to

increase the coverage area. The PC5320 can be used to connect up to four wireless

receivers of the same type:

• up to four RF5108-433 receivers or

• up to four RF5501-433 receivers or

• up to four PC5132-433 receivers

Please refer to the PC5320 Installation Instructions for more information.

NOTE: If the PC5320 module is used, the RF5108-433 PGM outputs can only be pro-

grammed as RF5108 PGM Pulse or RF5108 PGM Toggle (Options 15 or 16).

2.5 Connect the RF5108-433 Receiver

CAUTION: Remove all power from the system while connecting modules to

the Keybus.

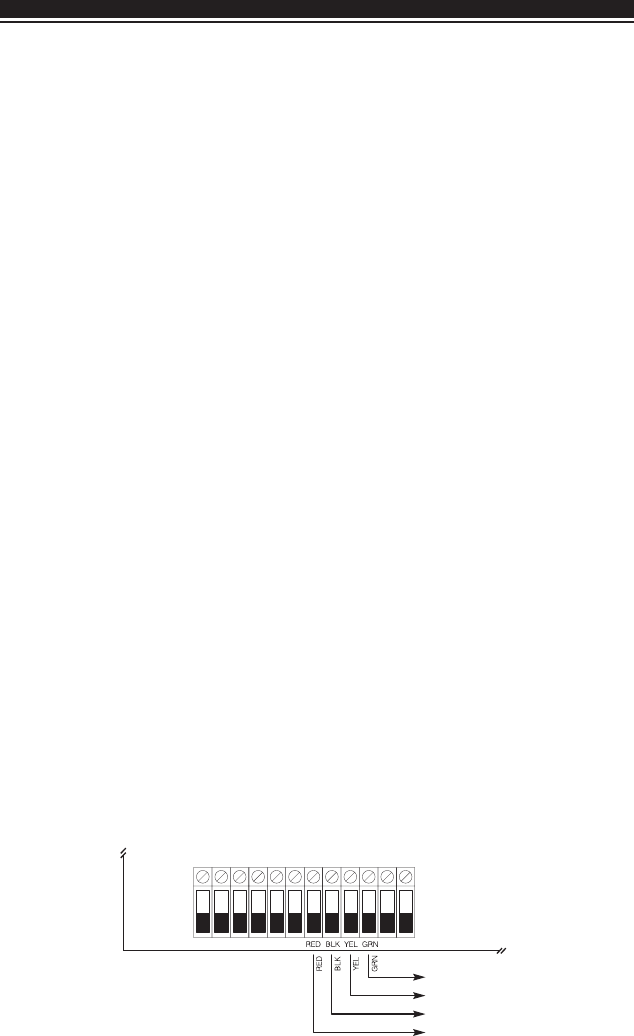

Connect the RF5108-433 to the 4-wire Keybus of the control panel according to the

following diagram.

Control Panel

KEYBUS

TO RF5108

S E T U P & W I R I N G

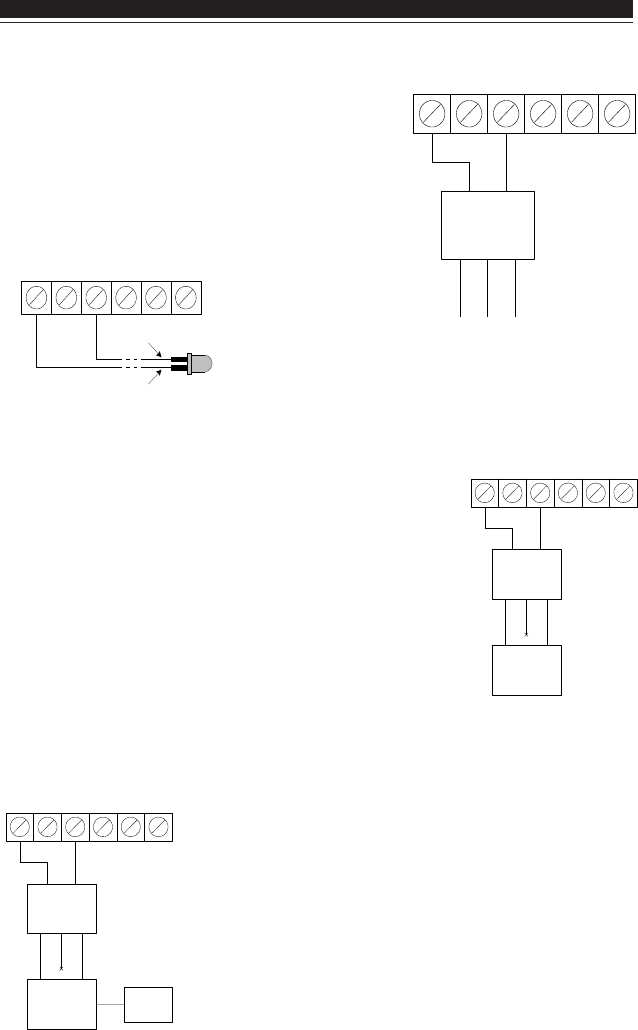

2.6 RF5108-433 Programmable Outputs - PGM1 and PGM2

Each PGM output is an open collector switch to ground.

That is, when the PGM output is activated the terminal

will switch to ground. PGM1 and PGM2 are able to sink

up to 300mA of current. If more than 300mA of current

is required a relay must be used. Refer to diagram

shown at right.

2.7 Connecting LED to the RF5108-433

The LED can be used

to indicate whether the

system is armed or dis-

armed. If the output is

programmed as an armed status output, the red LED will

turn on when the system is armed and will turn off when

the system is disarmed.

2.8 Connecting a Garage Door to the RF5108-433

Connect an output of the RF5108-433 across the wall-mounted

push button or directly at the motor of the garage door opener

(please consult the garage door opener instructions for proper

connections). Set up the system and wireless key so that it is

programmed to pulse an output for a short duration (5 seconds)

so that every time the programmed key is pressed the garage

door is opened or closed. The system can also be set up so that

an output on the RF5108-433 will follow a main panel output that

is programmed as a command output and is set up on the

wireless key as such. Doing this will also activate an output on

the RF5108-433 for 5 seconds (please refer to the control panel

manual for a listing of available output types and their func-

tions). PGM 1 and/or PGM 2 on the RF5108-433 can be set up

to open a garage door (refer to Section 3.5).

2.9 Connecting an X-10 Powerflash Module to the RF5108-433

When connecting an X-10 Powerflash module to the RF5108-

433, different lights within or outside the home can be control-

led, such as table lamps, or porch and driveway lights that

illuminate the entry / exit paths. This can be done by setting up

the system and wireless key in one of several ways:

• The wireless key can toggle an output ON/OFF, triggering the

X-10 Powerflash module, providing direct control of lighting.

• The wireless key can turn on an output for a programmable

amount of time (5 seconds to 99 minutes and 99 seconds),

turning on lights for the amount of time the homeowner requires.

PGM1 GRNYELBLKREDPGM2

DSC

RM-1C

RED

BLK

WHT (COM)

YEL (NC)

GRN (NO)

PGM1 GRNYELBLKREDPGM2

RED

BLACK

PGM1 GRNYELBLKREDPGM2

DSC

RM-1C

RED

BLK

WHT (COM)

YEL (NC)

GRN (NO)

Garage door

pushbutton

or motor

PGM1 GRNYELBLKREDPGM2

DSC

RM-1C

RED

BLK

WHT (COM)

YEL (NC)

GRN (NO)

X-10

Powerflash

Module

Lamp

Module

• The RF5108 output can be programmed to follow a main panel output which can turn on

lights when the panel is armed and turn them off when disarmed, turn on lights when an

alarm occurs and turn them off when disarmed, etc. Please refer to the control panel

Installation Manual for a listing of available output types and their function. PGM 1 and/

or PGM 2 on the RF5108-433 can be set up for this operation (see Section 3.5).

After you have completed the wiring, reconnect the power to the security system.

Now that you have wired the RF5108-433, you should enroll and program the wireless

devices. See section 3 for instructions.

Section 3: Enrolling Wireless Devices

This section describes how to enroll wireless devices and wireless keys. For more

information on these devices, read the instruction sheet included with each device.

3.1 A Note about Electronic Serial Numbers

An electronic serial number (ESN) is printed on the back of each wireless device. ESNs are

used to enroll the wireless devices with the RF5108-433 receiver.

In order to reduce the occurrence of wireless devices with the same serial number, 6-digit

serial numbers are now printed on the back of each wireless device. The 6-digit serial

numbers include hexadecimal digits. For instructions on programming hexadecimal

numbers, see your system

Installation Manual

, section 4: ‘How to Program’.

NOTE: 6-digit serial numbers are only supported on the following control panels: PC5020,

PC501X, PC1555, PC1565 and PC580, PC585 v2.0 and higher.

The WLS904L/904PL-433, WLS906-433, WLS907T-433, WLS912L-433, WLS914-433,

WLS918-43 and WLS925L-433 devices have both a 5-digit and a 6-digit serial number

printed on them. When connecting the RF5108-433 to a PC5010 v1.x panel, enter 5-digit

serial numbers only. When connecting the RF5108-433 to a PC5015 v2.x and higher,

PC5020, PC5010, PC1555/1565, or PC580/585 panel enter the 6-digit serial number.

3.2 Enrolling Wireless Devices

1. At a system keypad, enter [✱][8][Installer’s code] to go to the Installer Programming

section.

2. Enter programming section [804].

3. Enter the 2-digit number corresponding to the zone the device is to occupy ([01] to [32]).

NOTE: Hardwired and wireless devices cannot be assigned to the same zone. PC5108

zone expander modules occupy zones in 2 groups of 4 (e.g. zones 9-12 and zones 13-16).

None of the zones assigned to a PC5108 module may be used for wireless devices. For

more information on zone assignment, consult your system Installation Manual.

4. Enter the device’s ESN. Follow the instructions in section 3.1 above.

5. Record the serial number and the assigned zone number in the programming

worksheets in the back of this manual.

6. Repeat steps 3 - 5 until you have enrolled up to 8 wireless devices.

NOTE: The RF5108-433 supports programming of 8 wireless devices that can be assigned

to any of zones 1 to 32 or RF Jam Zone. Once 8 wireless devices have been programmed

the RF5108-433 will not allow further programming. An error tone will be heard at the

keypad if further programming is attempted

7. To exit press [#]. The device is now enrolled on the system.

NOTE: The devices will not work properly until you complete zone and partition program-

ming (see section 4).

S E T U P & W I R I N G

3.3 Enroll & Program Wireless Keys

For wireless keys to work on the system, you need to enroll them and then program the

function buttons. Wireless keys are not assigned to zones and require no zone program-

ming. You can enroll up to 8 wireless keys on the system.

Enroll Wireless keys

1. At a system keypad, enter [✱][8][Installer’s code] to go to the Installer

Programming section.

2. Enter programming section [804].

3. Enter a 2-digit number [41]-[48] to assign the wireless key a slot. These numbers

correspond to wireless key numbers 01-08.

4. Enter the key’s ESN. The entry

must

be 6 digits. If an older key with a 5-digit ESN

is being enrolled, add the digit [0] to the beginning of the ESN. (E.g., if

ESN=61234, enter 061234)

5. The key is now enrolled on the system. Record the serial number and the assigned

slot number in the programming worksheets in the back of this manual.

6. Repeat steps 3 - 5 until all wireless keys have been enrolled.

7. ((

((

(PC5020/PC5020/

PC5020/PC5020/

PC5020/PC501PC501

PC501PC501

PC501XX

X only) only)

only) only)

only) By default, all wireless keys are assigned to Partition 1.

To assign keys to Partitions 2 to 8, program the appropriate partition number in

section [69].

NOTE: A wireless key can only be assigned to one partition.

8. To exit press [#].

Program the Wireless Key Function Buttons

WLS909-433/WLS919-433 wireless keys have four programmable function buttons. By

default, all wireless key function buttons are set for 03, 04, 27, 30 (Stay Arm, Away Arm,

Disarm, Panic Alarm). The functions can be reprogrammed if desired. After the functions

are programmed, when you press and hold one of the buttons for two seconds, the system

will execute the programmed function.

For systems not using partitions: program the function buttons in section [61]. All

wireless keys will have the same four functions.

For systems using more than one partition (PC5020/PC501X only): All wireless keys

assigned to Partition 1 will have the four functions programmed in section [61]. Likewise, all

wireless keys assigned to Partition 2 will have the 4 functions programmed in section [62], and

all wireless keys assigned to Partition 8 will have the 4 functions programmed in section [68].

For example, if function button 1 in Section [61] is programmed for Stay arming, then pressing

the first button on wireless keys assigned to Partition 1 will Stay arm Partition 1.

NOTE: Wireless keys will not work when the partition they are assigned to is being accessed

for zone bypassing or programming.

1. At a system keypad, enter [✱][8][Installer’s code].

2. Enter programming section [804].

3. Enter programming section [61] to [68] for keys assigned to Partitions 1 to 8.

4. For each of the 4 function buttons, enter the 2-digit number of the function you

want to select. See the programming worksheets in the back of this manual for a

list of function key options.

5. Record your programming choices in the worksheets in the back of the manual.

6. To exit press [#].

W I R E L E S S D E V I C E S

3.4 Identified Wireless Keys

Reporting by the system of openings/closings by individual wireless keys and command

output [✱][7] activation by wireless key buttons may be supported on certain control panels.

To do this, the system will reserve access codes 17-24 for wireless keys 01-08 respectively.

You must program one access code for each wireless key (using [✱][5] access code

programming) for this feature to work correctly.

NOTE: Program these access codes on the system

after

you have connected the RF5108-

433 to the Keybus (see section 2.4).

Refer to your system

Installation Manual

for information on access code programming.

Opening/Closing By Wireless Key Reporting

NOTE: The Identified Wireless Key Closing option is only available with the PC5020,

PC501X, PC1555, PC1565, PC580, PC585 v2.0 and higher by turning section [015]

option 4 off.

To enable the reporting of openings and closings

by identified wireless keys:

• Make sure the control panel is v2.0 or higher

• Program a valid access code for each key

• Program a closing and opening reporting code for each key’s access code

• Turn off the Quick Arm option in section [015] option [4] of the control panel programming

To ensure that an

unidentified wireless key

cannot disarm the system, turn off section [017],

option [1] (in the control panel programming). This option is available in control panels with

software version 2.1 or higher.

Command Output Activation

NOTE: The Identified Wireless Key Command Output Activation feature is only available

with the PC5020, PC501X, PC1555, PC1565, PC580, PC585 v2.0 and higher.

To enable command output activation by wireless keys, ensure that:

• The control panel is v2.0 or higher

• Program a valid access code for each key

• Enable the PGM output attribute Requires Access Code for each PGM output

programmed as [✱][7][1-4] in sections [141] to [154].

3.5 RF5108-433 PGM Outputs

The RF5108-433 has two on-board open collector PGM outputs. Each of these can be

individually programmed to:

1. Follow main panel PGM outputs 1 to 14.

NOTE: Please refer to your System Installation Manual for available PGM outputs.

NOTE: If the RF5108-433 is connected to the PC580/PC585/PC1555/PC1565/P-48/P-6B

(all versions), PC5010 v1.x, P832 v1.x or the WSS5010 1.0, 2.1, the RF5108-433 PGM

outputs cannot be programmed to follow main panel PGM outputs 1 or 2.

2. Activate for a programmable amount of time when a signal is received from a

wireless key programmed with output option 31 or 32 (RF5108-433 PGM pulse) and

the PGM output programming section [70] or [71] is programmed with option 15

(RF5108-433 PGM pulse). The amount of time that the PGM outputs can be

programmed to remain on is programmed in sections [72] and [73]. The default

activation time is 5 seconds.

3. Toggle state when a signal is received from a wireless key programmed with option

31 or 32 and the PGM output programming section [70] or [71] is programmed

with option 16 (RF5108-433 PGM toggle).

W I R E L E S S D E V I C E S

3.6 Deleting Wireless Devices

To remove a wireless device from the system, follow the guideline for adding a wireless

device. Program the ESN as [000000]. The wireless device for the zone will be removed.

Now that you have enrolled all the wireless devices, you will need to program the system

to work properly with the devices. See section 4 for more information.

Section 4: Other Programming

4.1 Program Zones and Partitions

Now that you have enrolled the wireless devices, you should complete all zone program-

ming on the system. Although the exact programming required varies depending on which

control panel the RF5108-433 is connected to, you should check that the following

programming areas are completed correctly for each wireless zone:

• Enable zones and/or assign zones to one or more partitions (programming sections

[201]-[209], [201]-[265] for PC5020).

• Program the definition for each zone (programming sections [001]-[004]).

NOTE: WLS906 wireless smoke detectors must be assigned to zones defined as Delay

24-hr fire (wireless) [87] or Standard 24-hr fire (wireless) [88] for proper supervision.

• Enable the wireless zone attribute for each wireless zone (PC580, PC585, PC1555,

PC1565, PC5020, PC501X v2.0 and higher only) (sections [101]-[132]).

See your system

Installation Manual

, for more information on each of the above program-

ming sections.

4.2 Enable RF5108-433 Supervision

The control panel will supervise the RF5108-433 receiver via the Keybus after at least one

device has been enrolled on the module (see section 3.2 “Enrolling Wireless Devices”). The

RF5108-433 is supervised as a PC5132.

To activate module supervision, after you enroll the first device(s):

1. Exit and then re-enter Installer Programming.

2. Enter programming section [902]. Wait approximately 1 minute.

3. To exit press [#].

The system will generate a General System Supervisory trouble if the module is removed

from the Keybus. If you need to remove the RF5108-433 module from an existing system,

you will have to disable supervision of the RF5108-433.

NOTE: Deleting all devices from the RF5108-433 or defaulting the RF5108-433 will cause

a PC5132 supervisory fault

To disable RF5108-433 supervision:

1. Disconnect the RF5108-433 from the Keybus

2. Enter [✱][8][Installer’s Code]

3. Enter [902]. The control panel will clear all supervision and re-scan the system for

connected modules. The scan will take approximately one minute.

4. To exit press [#].

W I R E L E S S D E V I C E S

To review which modules the control panel is currently supervising:

1. Enter [✱][8][Installer’s Code]

2. Enter [903] to display all modules. On LED keypads, light [17] will indicate that the

RF5108-433 is present on the system. On LCD keypads, scroll until the module

name ‘PC5132’ appears on the display.

3. To exit press [#].

If the RF5108-433 module does not show on the keypad, one of the following conditions

may be present:

• the module is not connected properly to the Keybus

• there is a problem with the Keybus wiring run

• the module does not have enough power

• no devices have been enrolled on the RF5108-433

4.3 Enable Supervision of Wireless Zones

NOTE: (for PC5010 v1.x control panels only) For UL Listed installation, Double EOL

resistors must be enabled in the PC5010 for the wireless zones to be supervised. If nor-

mally Closed or Single EOL resistors are selected the PC5010 will not be able to supervise

the wireless devices. If a wireless device stops sending a supervisory signal (the unit stops

functioning) the panel will not indicate a supervisory trouble condition unless Double EOL

resistors are used. In addition, all hardwire zones must be wired for Double EOL resistors.

For more information, refer to your PC5010 v1.x Installation Manual.

NOTE: (PC5010 v2.0 and higher, PC5015 v2.2 and higher, PC5020, PC5008, PC1555,

PC1565, PC580, PC585 only): For wireless supervision to work, you must enable the

wireless zone attribute on all wireless zones (sections [101] to [132], option [8] ON).

Wireless Supervisory Window

Each wireless zone will send a supervisory signal at a fixed time interval (64 minutes for

NA, 12 minutes for EU). If the receiver does not receive a signal within the time

programmed for the Wireless Supervisory Window, it will generate a supervisory fault.

To program the wireless supervisory window:

1. Enter [✱][8][Installer’s Code] to enter Installer Programming.

2. Enter [804] to enter the RF5108-433 Module Programming.

3. Enter section [81].

4. Enter the time period for the supervisory window. The window is programmed in 15

minute increments.

• The default programming for NA is 96 (x15 minutes), which is equal to 24 hours.

Valid entries for NA are (16) - (96), equal to 4 - 24 hours.

• The default programming for EU is 10 (x15 minutes), which is equal to 2.5 hours. Valid

Entries for EU are (08) - (96), equal to 2 - 24 hours.

5. To exit press [#].

Disable/Enable Zone Supervision

All wireless zones have supervision enabled by default. To disable supervision for any

zone, enter the following at any system keypad:

1. Enter [✱][8][Installer’s Code] to enter Installer Programming.

2. Enter [804] to enter the RF5108-433 Module Programming.

3. Enter section [82]-[85]. Enable or disable supervision for each wireless zone by

turning each relevant option on or off.

4. To exit press [#].

NOTE: The RF Jam Detect zone must have the supervision option disabled.

O T H E R P R O G R A M M I N G

4.4 Jamming Signal Detection

The RF5108-433 receiver detects jamming signals that can prevent the receiver from

properly receiving transmissions from enrolled devices. When jamming signals are

detected, the panel can report a jamming trouble condition in one of two ways. By default,

the panel will report an RF Jam Trouble (General System Tamper on the PC5010).

To turn OFF jamming signal detection indicates Trouble:To turn OFF jamming signal detection indicates Trouble:

To turn OFF jamming signal detection indicates Trouble:

1. Enter [✱][8][Installer Code] to enter Installer Programming.

2. Enter [804] to enter the RF5108-433 Module Programming.

Turn ON

section [90], option [7].

4. To exit press [#].

The RF5108-433 can also be programmed to indicate the jamming trouble condition with

the RF Jam Zone. For RF Jam Zone to work, you must select an unused zone to be used

as the RF Jam Detect zone. When the receiver detects an attempt to jam the RF signal, the

RF Jam Detect zone will be violated and the system will generate a tamper signal. When

the jamming signal is gone, the RF Jam Detect zone closes and the system sends a tamper

restore signal.

To enable RF jamming detection:To enable RF jamming detection:

To enable RF jamming detection:

1. Enter [*][8] [Installer's Code].

2. Enter programming section [804].

3. Enter section [93]. Enter the 2-digit number of the RF Jam Detect zone ([01] to [32])

in the programming section.

NOTE: The RF5108-433 counts the RF jam zone as one of the 8 supported zones. If

section [93] is programmed, only 7 wireless devices may be programmed. If 8 wireless

devices are already programmed, section [93] will not be accessible.

4. Disable supervision for the RF Jam detect zone by turning the relevant option off in

section [82]-[85] (see section 4.3 for more information).

5. RF jamming detection is now enabled. To exit Installer programming, press [#].

NOTE: A jamming condition will be indicated as RF Jam Zone if section [93] is programmed,

regardless of the RF Jam indicates Trouble option (section [90], option [7]).

4.5 RF5108-433 Software Default

Returning the RF5108-433 programming to factory default settings is a quick way to remove all

the enrolled devices from the system and reset all the programming in section [804].

NOTE: Performing this procedure will not change any programming sections except [804].

Resetting the control panel to factory default settings will

not

return the RF5108-433 mod-

ule to factory default settings.

To restore the RF5108-433 programming to the factory default settings perform the following:

1. Enter [✱][8] [Installer’s Code].

2. Enter programming section [996].

3. Enter the Installer’s Code, followed by [996] again. The software for the RF5108-

433 will be restored to its factory default settings.

For instructions on restoring the default programming of the control panel or any other

connected module, see your system

Installation Manual

4.6 Deleting Wireless Devices

To remove a wireless device from the system, follow the guideline for enrolling a wireless

device (see section 3.2). Program the ESN as [000000]. The wireless device for the zone

will be removed.

O T H E R P R O G R A M M I N G

Now that you have completed all RF5108-433 related programming, you can test and

install the receiver and devices. See section 5 for more information.

Section 5: Testing & Mounting

5.1 Test the Reception of Wireless Devices

It is very important to test the proposed placement of each wireless device before it is mounted.

Following these steps will test the signal strength between the RF5108-433 and the wireless

devices.

You can test all of the devices together (global placement testing) or test each device

individually. To test all the devices together, see

Testing All Wireless Devices Together

. To test

wireless devices individually, see

Testing Individual Devices

Testing All Wireless Devices Together:

1. Temporarily put the wireless devices in the places you want to mount them.

2. At a system keypad, enter [✱][8][Installer’s Code].

3. Enable the Global Module Placement test by entering section [804]. Then enter

sub-section [90] and turn on option [8].

4. Press [#] twice.

5. Enter programming section [904], then enter [01].

6. Activate one of the devices being tested until a result is displayed on the keypad

or sounded by the keypad or bell:

WLS904-433/WLS904PL-433/WLS914-433:

To perform a Placement Test on one of

these devices, remove the detector from the backplate and then replace it. Once the

detector is replaced on the backplate the LED on the detector will flash rapidly 5 times

to indicate that it has sent a transmission. The panel will show and/or sound the result

of the placement test on the keypad. To perform a 2nd and 3rd test, repeat this

procedure.

Carefully replace the backplate onto the detector, ensuring Carefully replace the backplate onto the detector, ensuring

Carefully replace the backplate onto the detector, ensuring that “TOP”that “TOP”

that “TOP”that “TOP”

that “TOP”

is facing upward, or you may damage the tamper switch.is facing upward, or you may damage the tamper switch.

is facing upward, or you may damage the tamper switch.

NOTE: When you remove the detector from the backplate (tamper the unit), the detector

will also be put into “Detector Walk Test” mode. While in Walk Test Mode the detector will

activate the LED when motion is detected. The detector will also send a signal to the

receiver 5 seconds after motion is detected, indicated by 5 rapid flashes by the LED. The

LED will only work in this fashion for 10 motion detections after a tamper/restore. Note,

that the panel will ignore these transmission signals with respect to a placement test. The

only way in which the panel will acknowledge a placement test, is if the backplate has,

each time, been removed and restored.

WLS906-433: Remove the detector from its backplate, wait 5 seconds and reattach it, or

hold a magnet near the raised line on the outer rim, then remove it.

WLS907-433/WLS925L-433: Open the contact by moving the magnet away from

the unit. The keypad will show/sound the test result. After the first test result has

been generated (about 10 seconds) close the contact to generate another test

result. If the unit is attached to a door or a window, open and close the door or

window to activate the device.

WLS909-433/WLS919-433: Press any function key at several different locations.

WLS912L-433:

Press and hold the test mode tab for 5 seconds. Release the test

mode tab.

O T H E R P R O G R A M M I N G

Read the test results at the keypad.

Result LED Keypad LCD Keypad Buzzer/Bell

Good Light 1 On Steady “Good” 1 Beep/Squawk

Bad Light 3 On Steady “Bad” 3 Beeps/Squawks

Activate the device until you get 3 good results in a row. You may mount the WLS devices

where results were good. Devices indicating a bad result must be moved to another

location. You may only have to move the device a few inches to correct a bad result.

NOTE: Do not mount any device where a “bad” test result was indicated.

7. Go to the next device to be tested and activate it until the test result is displayed/

sounded.

NOTE: Wait until the placement test of one device is shown/sounded before beginning to

test the next device.

Continue to test the devices until both the RF5108-433 and the devices are in good

locations. If several wireless devices produce BAD test results, you may need to move the

RF5108-433 to a better location (see section 2.2 for more information).

8. To exit the placement test and return to installer programming, press [#] twice.

Testing Individual Wireless Devices:

1. Temporarily place the wireless device in the place you want to mount it.

2. At a system keypad, enter [✱][8][Installer’s Code].

3. Enable Individual Module Placement test by entering section [804]. Then enter sub-

section [90] and turn off option [8].

4. Press [#] twice.

Testing Individual Wireless Keys:

You cannot use the individual device test described above to test WLS909-433/WLS919-

433 wireless keys. To ensure that the RF5108-433 receiver is receiving transmissions from

the devices, use the function keys on the Wireless Keys at several different points in the

installation. If the wireless key does operate from all intended points of operation, you will

need to move the RF5108-433 receiver. Moving the RF5108-433 higher will usually

improve the reception. If you move the RF5108-433, you will need to repeat the tests

described in Section 5.1 on all the wireless devices.

5.2 Mount the RF5108-433 and Wireless Devices

When you have tested reception of the RF5108-433 with all the wireless devices (see

section 5.1) and you have a good mounting location, mount the RF5108-433:

1. Pull the Keybus wires through the hole at the bottom of the cabinet.

2. Mount the cabinet securely to the wall.

Mount the Devices

If you have conducted the placement test described in section 5.1 and got three “Good”

results in a row for each device, you can mount the wireless devices. See the

Installation

Sheet

for each device for mounting instructions.

Now that your RF5108-433 and wireless devices are mounted and working properly, read

section 6 for information on potential wireless trouble conditions, RF jamming signals, and

battery replacement.

T E S T I N G & M O U N T I N G

Section 6: Additional Notes

6.1 Trouble Conditions

The control panel always watches for possible trouble conditions. If a trouble condition

occurs, the keypad “Trouble” light will turn on and the keypad will beep. Press [✱][2] to

display the trouble conditions.

The following trouble conditions apply to the RF5108-433 and/or any enrolled devices.

General System Tamper - This trouble is generated when the RF5108-433 plastic cover

is removed and/or if there is a jamming condition present.

General System Supervisory - This trouble will be indicated if the panel loses

communication with any module connected to the Keybus. The event buffer will log a

detailed description of the event.

Device Low Battery - This trouble is generated when a wireless device exhibits a low

battery condition. Press [7] one, two, or three times to view which devices are

experiencing battery failure. An LED keypad will indicate battery failure using zone lights

1 to 8.

Zone Tamper - This trouble is generated when an enrolled wireless device is removed

from its mounting location.

Zone Fault - Each wireless zone will send a supervisory signal at a fixed time interval (64

minutes for NA, 12 minutes for EU). If the receiver does not receive a signal within the time

programmed for the Wireless Supervisory Window, it will generate a zone fault.

Tamper Switches

There are 2 tamper switches on the RF5108-433 NA board. Removing the plastic cover

and/or the RF5108-433NA from its mounting location causes a general system tamper.

6.2 Jamming Signal Detection

The RF5108-433 receiver detects jamming signals that can prevent the receiver from

properly receiving transmissions from enrolled devices. See section 4.4 “Jamming Signal

Detection” for information on jamming signal detection programming.

6.3 Wireless Zone Low Battery Transmission

Within any transmission, the device will indicate the status of the battery. If a battery is low,

the system will indicate a Device Low Battery trouble.

The system will delay reporting the event to the central station for the number of days

programmed for Zone Low Battery Transmission Delay in section [370]. This will

prevent unnecessary reporting of the event if the user has been instructed on how to

replace batteries.

Replacing Batteries in Wireless Devices

1. Remove the cover of the device from its back plate. This creates a tamper

condition on the zone.

2. Refer to the battery installation instructions on the

Installation Sheet

of each component.

Be sure to note the proper orientation of the batteries as you install them.

3. When the fresh batteries are in place, re-attach the cover to the back plate. The

tamper is restored and the zone sends a battery trouble restoral signal to the

RF5108-433. The battery trouble is now clear and the device should function

normally.

NOTE: When batteries in one device need to be replaced, the batteries in all devices may

need to be replaced at the same time.

T E S T I N G & M O U N T I N G

Section 7: Troubleshooting

1. When I enter the 2-digit zone number when adding a wireless device, the

keypad gives me a long beep.

You cannot enter ESNs unless a RF5108-433 wireless receiver is connected to the

Keybus. See section 2 for instructions on setting up and wiring the RF5108-433 module.

2. I have entered the ESN for the device but when I violate the device, the

zone does not show open on the keypad.

Check the following:

• Ensure the ESN has been entered correctly

• Ensure that the zone is enabled for the partition (if partition programming is used).

• Ensure that the wireless zone is not assigned to a zone used by PC5108 modules, an

on-board zone, or a keypad zone.

• Ensure that the zone is programmed for something other than “Null Operation”, and that

the wireless zone attribute is turned on.

3. When I try a module placement test I get no result or “Bad” results.

Check the following (see sections 5.1 and 5.2 for more information on testing devices):

• Verify that you are testing the correct zone

• Verify that the correct ESN was entered when the device was enrolled

• Verify that the device is in range of the RF5108-433. Try testing the device in the same

room as the receiver.

• Confirm that the RF5108-433 is properly connected to the Keybus (see section 2 for

RF5108-433 set up and wiring instructions).

• Check that you are testing the zone correctly (see sections 5.1 and 5.2 for testing

instructions)

• Check that the batteries are working and installed correctly.

• Look for large metal objects that may be preventing the signal from reaching the

RF5108-433.

The device must be located where consistent “Good” results are obtained. If several

devices show “Bad” results, move the receiver. See section 2.2 for tips on choosing a

mounting location for the RF5108-433.

4. The LED on the motion detector does not turn on when I walk in front of

the unit.

The LED is for walk test purposes only. See your WLS904-433/WLS904P-433

Instruction

Sheet

for walk test instructions.

ADDITIONAL NOTES

[804] RF5108-433 Wireless Expansion Programming

• 6-digit entry is required. See Section 3.1 “A note on Electronic Serial Numbers” for

details on programming 6-digit serial numbers.

Zone Serial Numbers

Default = 000000

[01] Zone 1 l

_____l

_____l_____l

_____l

[02] Zone 2 l

_____l

_____l_____l

_____l

[03] Zone 3 l

_____l

_____l_____l

_____l

[04] Zone 4 l

_____l

_____l_____l

_____l

[05] Zone 5 l

_____l

_____l_____l

_____l

[06] Zone 6 l

_____l

_____l_____l

_____l

[07] Zone 7 l

_____l

_____l_____l

_____l

[08] Zone 8 l

_____l

_____l_____l

_____l

[09] Zone 9 l

_____l

_____l_____l

_____l

[10] Zone 10 l

_____l

_____l_____l

_____l

[11] Zone 11 l

_____l

_____l_____l

_____l

[12] Zone 12 l

_____l

_____l_____l

_____l

[13] Zone 13 l

_____l

_____l_____l

_____l

[14] Zone 14 l

_____l

_____l_____l

_____l

[15] Zone 15 l

_____l

_____l_____l

_____l

[16] Zone 16 l

_____l

_____l_____l

_____l

Section 8: Programming Worksheets

Wireless Key Serial Numbers

Default = 000000

[41] Key 01 l_____l_____l_____l_____l_____l_____l

[42] Key 02 l_____l_____l_____l_____l_____l_____l

[43] Key 03 l_____l_____l_____l_____l_____l_____l

[44] Key 04 l_____l_____l_____l_____l_____l_____l

[45] Key 05 l_____l_____l_____l_____l_____l_____l

[46] Key 05 l_____l_____l_____l_____l_____l_____l

[47] Key 07 l_____l_____l_____l_____l_____l_____l

[48] Key 08 l_____l_____l_____l_____l_____l_____l

[17] Zone 17 l

_____l

_____l_____l_____l

_____l

[18] Zone 18 l

_____l

_____l_____l_____l

_____l

[19] Zone 19 l

_____l

_____l_____l_____l

_____l

[20] Zone 20 l

_____l

_____l_____l_____l

_____l

[21] Zone 21 l

_____l

_____l_____l_____l

_____l

[22] Zone 22 l

_____l

_____l_____l_____l

_____l

[23] Zone 23 l

_____l

_____l_____l_____l

_____l

[24] Zone 24 l

_____l

_____l_____l_____l

_____l

[25] Zone 25 l

_____l

_____l_____l_____l

_____l

[26] Zone 26 l

_____l

_____l_____l_____l

_____l

[27] Zone 27 l

_____l

_____l_____l_____l

_____l

[28] Zone 28 l

_____l

_____l_____l_____l

_____l

[29] Zone 29 l

_____l

_____l_____l_____l

_____l

[30] Zone 30 l

_____l

_____l_____l_____l

_____l

[31] Zone 31 l

_____l

_____l_____l_____l

_____l

[32] Zone 32 l

_____l

_____l_____l_____l

_____l

P R O G R A M M I N G W O R K S H E E T S

Wireless Key Function Key Options

yrtnEyrtnE yrtnE yrtnEyrtnEnoitpircseDyeKnoitpircseDyeK noitpircseDyeK noitpircseDyeKnoitpircseDyeKyrtnEyrtnE yrtnE yrtnEyrtnEnoitpircseDyeKnoitpircseDyeK noitpircseDyeK noitpircseDyeKnoitpircseDyeK

0000000000yeKlluN 7171717171[✱syawA/yatSetavitcaeR]1[]

20-1020-10 20-10 20-1020-10

esUerutuFroF

8181818181

esUerutuFroF

3030303030mrAyatS 9191919191[✱3#tuptuOdnammoC]3[]7[]

4040404040mrAyawA 0202020202esUerutuFroF

5050505050[✱mrAyrtnE-oN]9[] 1212121212[✱4#tuptuOdnammoC]4[]7[]

6060606060[✱FFO/NOemihC]4[] 62-2262-22 62-22 62-2262-22

esUerutuFroF

7070707070[✱tseTmetsyS]4[][]6[]7272727272)FFO(mrasiD

21-8021-80 21-80 21-8021-80

esUerutuFroF

8282828282mralAeriF

3131313131[✱1#tuptuOdnammoC]1[]7[]9292929292mralAyrailixuA

4141414141[✱/2#tuptuOdnammoC]2[]7[]

teseRrosneS

0303030303mralAcinaP

5151515151*mrAthgiN 13131313131MGP8015FR

6161616161[✱tixEkciuQ]0[] 23232323232MGP8015FR

*Please refer to your System Installation Manual for feature availability.

Partition 1 Wireless Key Options

[61] Function Key 1 03 l____l____lFunction Key 3 27 l

____l
