Getting Started
Minimum System Requirements
n PC running Windows 98/ME/ 2000/XP
n At least 400 MHz processor, MAC OS X 10.2.6 or the later versions
n At least 128 MB RAM
n At least 50MB free disk space on your hard drive
Unpacking and Checking the Contents
Packing content
n BUB-211 Class Bluetooth v2.0 EDR USB Adapter
n Quick Guide
n CD (with software, driver, utility and user guide)

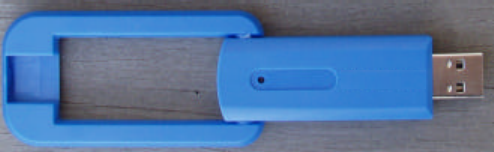

Identifying Components
BUB-211
Software Installation
1. Turn on your PC
2. Please insert the Utility CD into CD-ROM drive, and then follow the instruction below to
install Bluetooth software.
Note: DO NOT plug the USB Adapter into the USB port before software installation
3. Follow the directions on your screen to install Adapter driver.
2. Please Click “Install”.
3. Please Click “Next”.
4. Please choose “I accept the terms in the
license agreement” and then click “Next”.
5. Please Click “Install”.
6. Please Choose “I accept” and then click
“OK”
7. Installation will ask you plug Bluetooth
Device into USB port, please plug BUB-211
into USB port then click “OK”.
8. Please Click “Finish” to complete the
installation wizard.
Toshiba Bluetooth Utility Contents
Bluetooth Functions
Toshiba Bluetooth stack supports the following Bluetooth functions (profiles)
Term Definition
DUN
Dial-Up Networking
Enables you to establish a dial-up BluetoothTM wireless technology connection to
the Internet or other networks with a wireless modem station, mobile telephone, or
similar device.
FAX
FAX
Enables you to establish a BluetoothTM wireless technology connection with a
wireless modem station, mobile telephone, or similar device to send or receive a
fax.
LAP
LAN Access Profile
Enables you to establish a BluetoothTM wireless technology connection with a LAN
access point to access the services of a LAN using PPP.
SPP
Serial Port Profile
Enables communication with a device through a virtual serial port configured for a
BluetoothTM wireless technology connection. This can be used for printers and
printer adapters with PDAs, using a different method from HCRP or ActiveSync.
HID Human Interface Device Profile
Allows connections to wireless mice, keyboards and other input devices.
HCRP
Hardcopy Cable Replacement Profile
Enables printing with a printer driver.
FTP
File Transfer Profile
Enables you to browse folders on a wireless device and transfer files to and from
the local device.
OPP Object Push Profile
Allows business card data to be exchanged with a wireless device.
A2DP
Advanced Audio Distribution Profile
Allows audio data to be exchanged between wireless headsets and other audio
devices, as well as allowing high-quality music playback.
AVRCP
Audio/Video Remote Control Profile
A/V remote control functions such as play and stop. The BluetoothTM Utility supports
remote control operation.
GAVDP
Generic Audio/Video Distribution Profile
Basic profile used to support A2DP, AVRCP and other protocols.
HSP
Head Set Profile
Profile used for headsets.
Allows you to connect to a PC and communicate as well as connect to a mobile
telephone.
PAN
Personal Area Networking Profile
Supports IP base network. Allows connection to an ad-hoc or wired network via an
access point.
BIP
Basic Imaging Profile
Allows image files to be sent and received after having been converted to a size
suitable for the destination. In addition to being able to transfer image files, the
BluetoothTM Utility allows camera shutters to be operated by remote control, as well
as other offering other functionalities.
Bluetooth Utility Contents

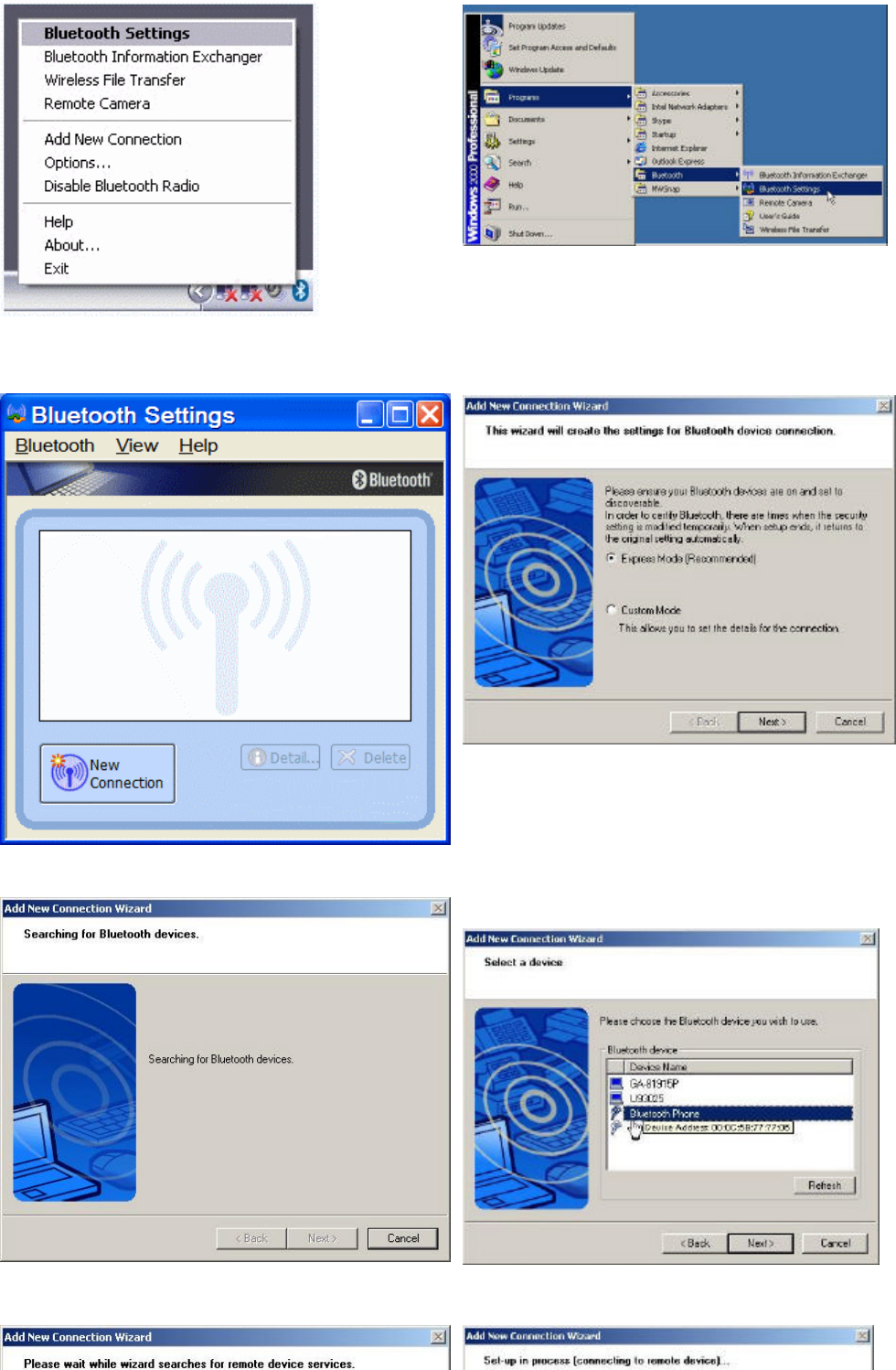

Bluetooth Settings
technology icon in the task tray, and select
[Bluetooth Settings] from the menu that
appears.
Programs]?[Bluetooth]?[Bluetooth
Settings].
2. Please Click “New Connection” to add new
Bluetooth device.
3. Please choose “Express Mode”
4. Searching for Bluetooth devices
5. Select the device name from [Device List]
and click on the [Next] button.
6. Please Click “Next” 7. Searching remote devices
Bluetooth Information Exchanger
This program enables you to easily transfer files and images to or exchange business card
data with a wireless device by selecting the icon of the counterpart device, or using the
right-click menu in Explorer. The wireless devices to which you are connecting must also
support the same service functions (FTP, OPP and BIP).
Remote Camera
Once you connect to a BluetoothTM wireless technology-compatible digital camera, you will be
able to operate it from the PC side and send captured images to the PC.
Wireless File Transfer
You can send a file wirelessly to another device by right-clicking on the intended file and
using the "Sending to Bluetooth Device" menu that appears.

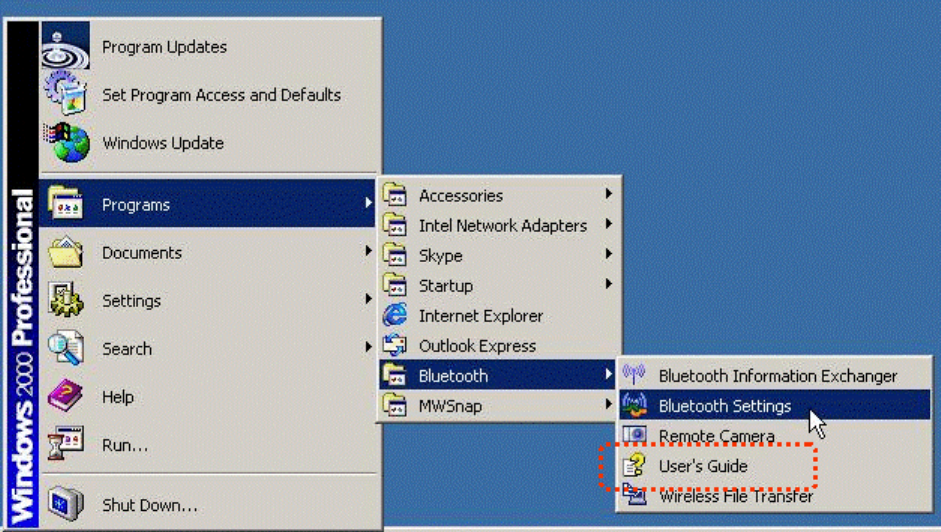

On-line User Guide
When you have troubles in using Toshiba Bluetooth stack, please get on-line help by click
Bluetooth->User’s Guide
Appendix
Troubleshooting
Problem: Clicking on the [New Connection] button brings up the message "Unable to prepare
Bluetooth."
Solution: The wireless communication switch is turned off. Please switch it on.
Problem: Remote device(s) cannot be detected
Solution: The other device(s) may have been set to Non-discoverable mode. Please check
the mode settings on the device.
Problem: Services on a remote device are undiscoverable
Solution: The other device may be using a profile that is not supported by the BluetoothTM
Utility
Please check the profile being used on the other device.
The following profiles are compatible with [Bluetooth Settings].
DUN, FAX, LAP, SPP, HID, HCRP, FTP, OPP, HSP, PAN and BIP
Devices running profiles other than those above will not be able to be registered with
[Bluetooth Settings]
