U-MEDIA Communications, Inc. Bidirectional Remote Control
User Manual

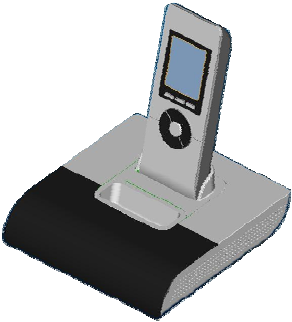

SA-1000 (ACR+HRC)
Docking Base with Radio Remote Controller
for
iPod
User Guide

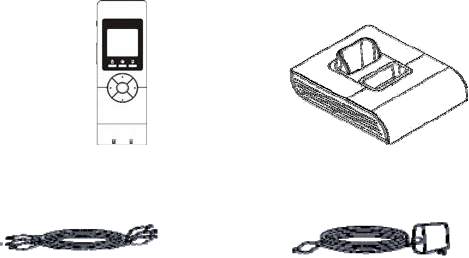

Packing Contents
1: Remote Contorl (HRC-100)
2: BaseStation (ACR-100)
3: AV Cable
4: Power Adapter
5. Battery 6: Universal inserts
Compatible iPod Model No.:
- iPod with video (30GB, 60GB, 80GB)
- iPod nano (1GB, 2GB, 4GB, 8GB)
- iPod with color display (20GB, 30GB, U2, 40GB, 60GB)
- iPod (20GB, U2, 40GB)
- iPod mini (4GB, 6GB)
Remote Controller (HRC-100)
11
10
9
8
7 6
5
4
3
2
1
1: Power On / Off, Mute ACR, Let ACR go
to standby mode
2: Volume Up / Down
3: Page up
4: Main Menu
5: Page Down
6: Previous Track, Rewind
7: Next Track, Fast-forward
8: Up
9: Down
10: Play / Pause / OK
11: Charging Pad
Note: When you first use Remote Controller, please full charge it.

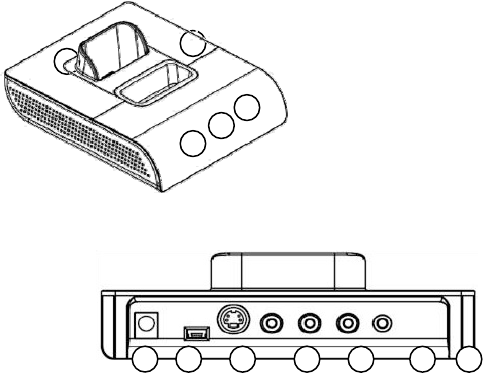

BaseStation (ACR-100)
1: HRC Docking: Charge Remote
Control
2: iPod Docking: Charge and sync
iPod
3: iPod LED
4: Power LED
5: RC LED
1: Power port 4: RCA Video out
2: miniUSB port 5/6: RCA Audio out
3: S-Video 7 Earphone Jack
1 2
45
3
76 5
432 1
Setting up SA-1000
1. Attach the included AC Adapter to Power port, and plug the other end
into a wall outlet. When Power is on, ACR’s Power LED will be turned
on.
2. Slip your iPod onto ACR’s dock connector. SA-1000 includes three
universal dock inserts, designed for iPod mini, 4thG iPod and iPod
photo. All new iPods come with a universal dock insert in their
packaging. When iPod is connected, ACR’s iPod LED will be turned
on.
3. Turn HRC Power on, ACR’s RC LED will be turned on; if not, go to
SettingÆ Pair Device to start pairing. When Pairing done, ACR’s RC
LED will be turned on.
Playing Music
1. If your Speaker supports RCA, attach the yellow, and red RCA
connectors to the appropriate ports on your Stereo. Attach the other
end of the cable to ACR RCA A/V Out port.
2. Using the navigation buttons on the HRC, you can browse through
your menus and playlists.
3. During playback, use the Central button to Play / Pause, use Right /
Left button for Next / Previous Track
4. HRC allows you to browse for another track or playlist while a track is
playing by pressing Menu button. Press the Menu button at the Main
Menu screen to return to the Now Playing screen.
Connecting to TV
1. If you are connecting SA-1000 to TV, attach the yellow, red, and white
RCA connectors on the included cable to the appropriate ports on
your TV/Stereo. Attach the other end of the cable to ACR RCA A/V
Out port.
Note: if your TV supports S-Video, you may use a standard S-Video
cable to connect
Synchronize with iTune
1. Attach USB cable (miniUSB to USB) to PC / MAC, you can
synchronize iPod with iTunes running on PC / MAC
2. When synchronization complete, please remove USB cable.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter.
For product available in the USA/Canada market, only channel 1~252 can be
operated. Selection of other channels is not possible.
