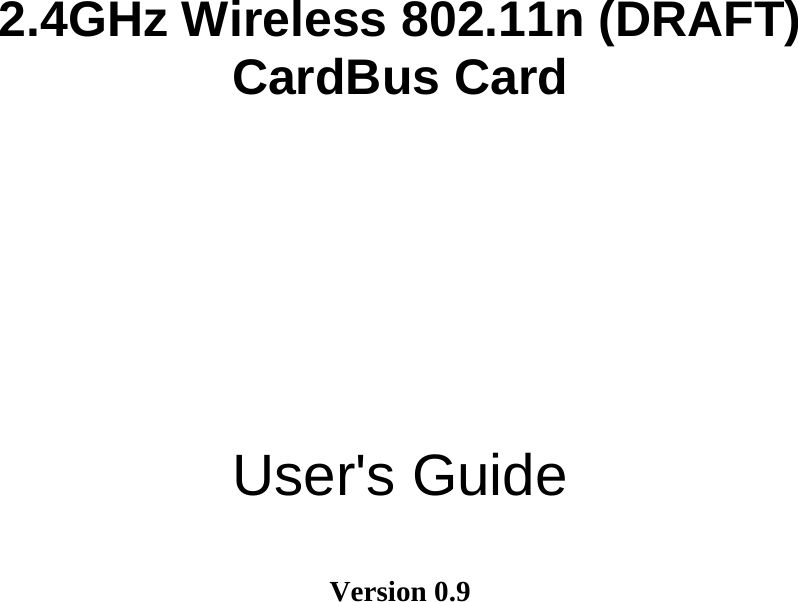

2.4GHz Wireless 802.11n (DRAFT) CardBus Card User's Guide Version 0.9

2Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Copyright 2006 Version 1.0 (June, 2006) Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark recognition All product names used in this manual are the properties of their respective owners and are acknowledged.

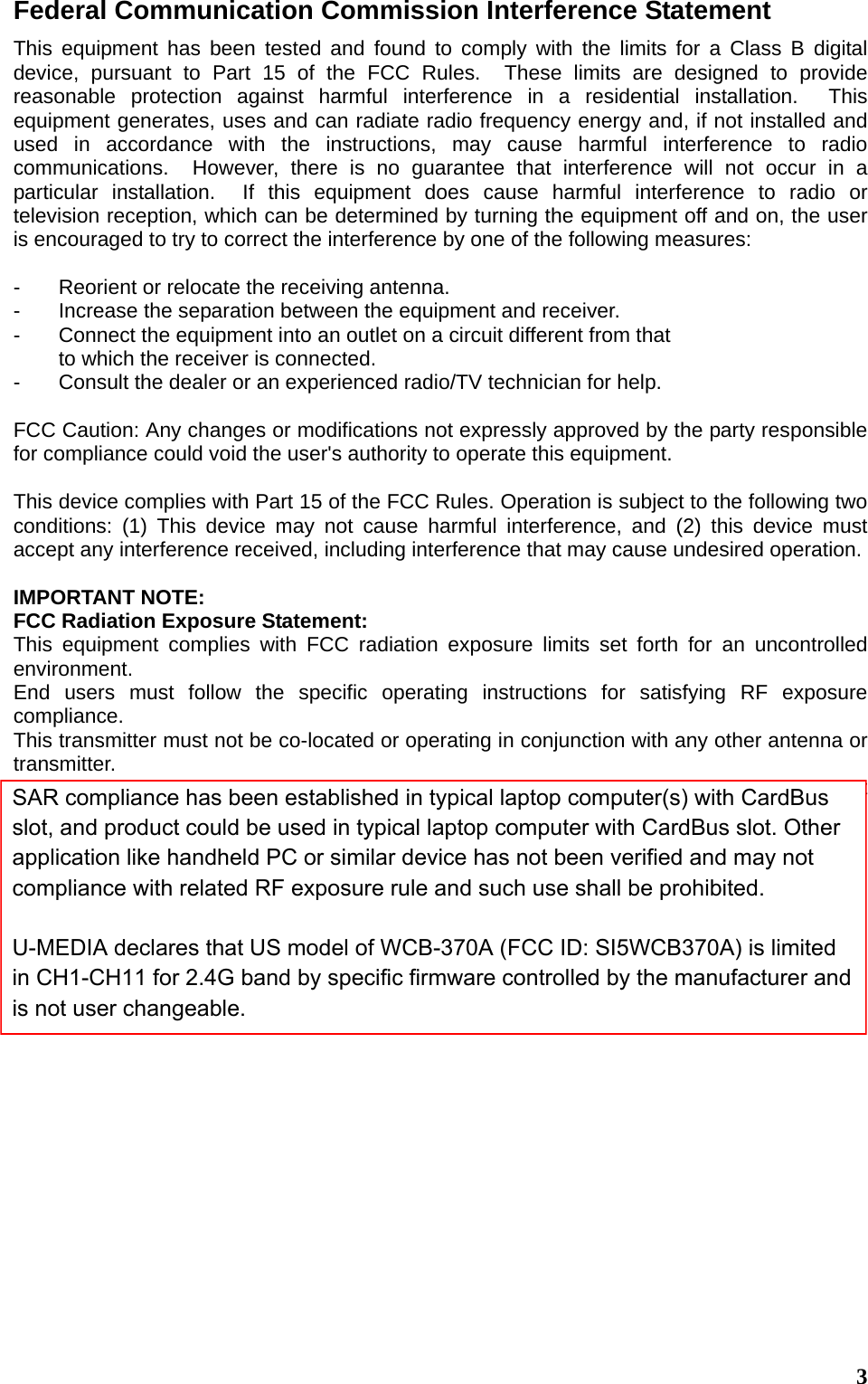

3Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration. U-MEDIA declares that WCB-370A ( FCC ID: SI5WCB370A ) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product could be used in typical laptop computer with CardBus slot. Other application like handheld PC or similar device has not been verified and may not compliance with related RF exposure rule and such use shall be prohibited. U-MEDIA declares that US model of WCB-370A (FCC ID: SI5WCB370A) is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user changeable.

4CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.

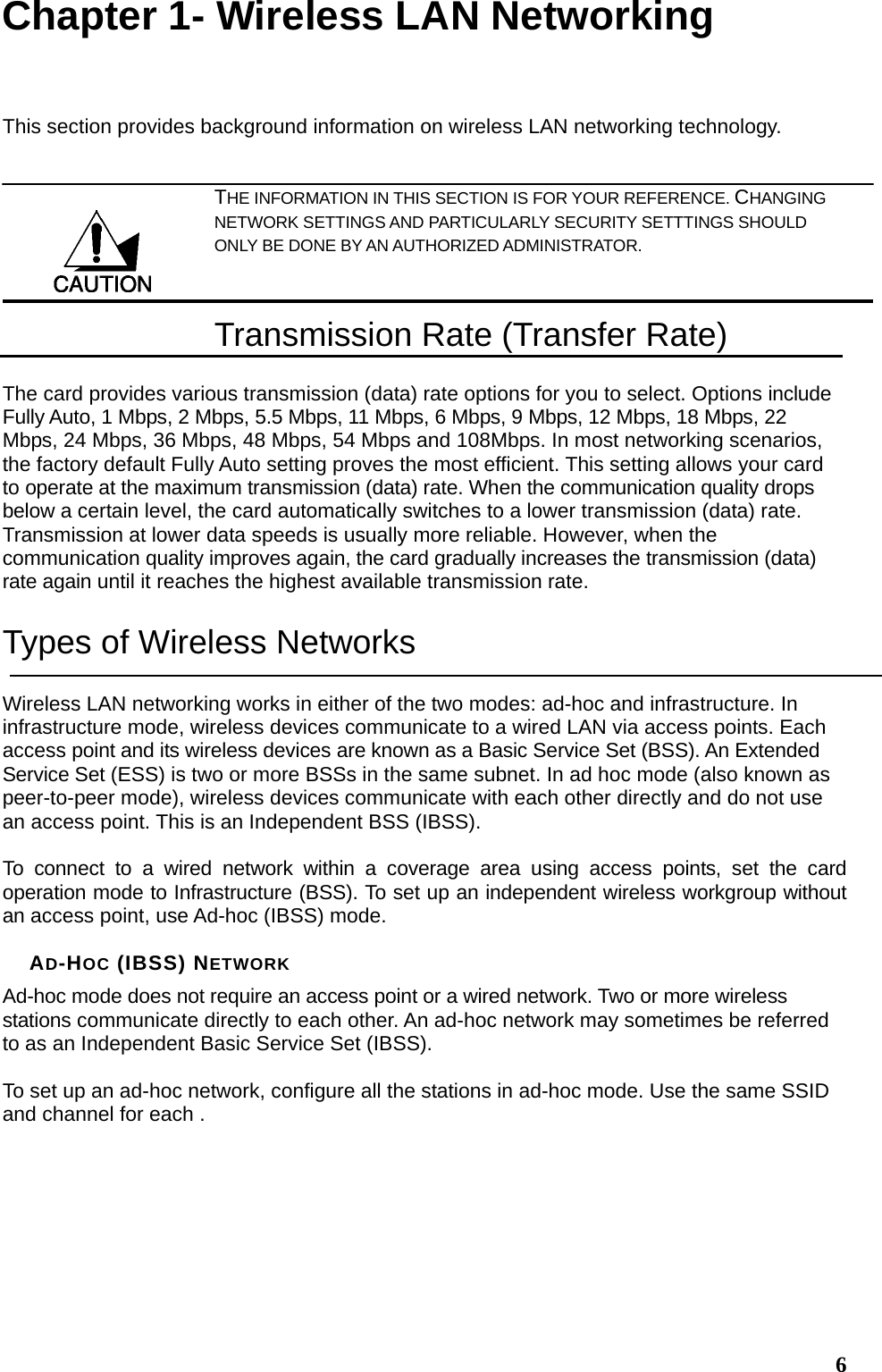

6Chapter 1- Wireless LAN Networking This section provides background information on wireless LAN networking technology. THE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The card provides various transmission (data) rate options for you to select. Options include Fully Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps, 6 Mbps, 9 Mbps, 12 Mbps, 18 Mbps, 22 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps and 108Mbps. In most networking scenarios, the factory default Fully Auto setting proves the most efficient. This setting allows your card to operate at the maximum transmission (data) rate. When the communication quality drops below a certain level, the card automatically switches to a lower transmission (data) rate. Transmission at lower data speeds is usually more reliable. However, when the communication quality improves again, the card gradually increases the transmission (data) rate again until it reaches the highest available transmission rate. Types of Wireless Networks Wireless LAN networking works in either of the two modes: ad-hoc and infrastructure. In infrastructure mode, wireless devices communicate to a wired LAN via access points. Each access point and its wireless devices are known as a Basic Service Set (BSS). An Extended Service Set (ESS) is two or more BSSs in the same subnet. In ad hoc mode (also known as peer-to-peer mode), wireless devices communicate with each other directly and do not use an access point. This is an Independent BSS (IBSS). To connect to a wired network within a coverage area using access points, set the card operation mode to Infrastructure (BSS). To set up an independent wireless workgroup without an access point, use Ad-hoc (IBSS) mode. AD-HOC (IBSS) NETWORK Ad-hoc mode does not require an access point or a wired network. Two or more wireless stations communicate directly to each other. An ad-hoc network may sometimes be referred to as an Independent Basic Service Set (IBSS). To set up an ad-hoc network, configure all the stations in ad-hoc mode. Use the same SSID and channel for each .

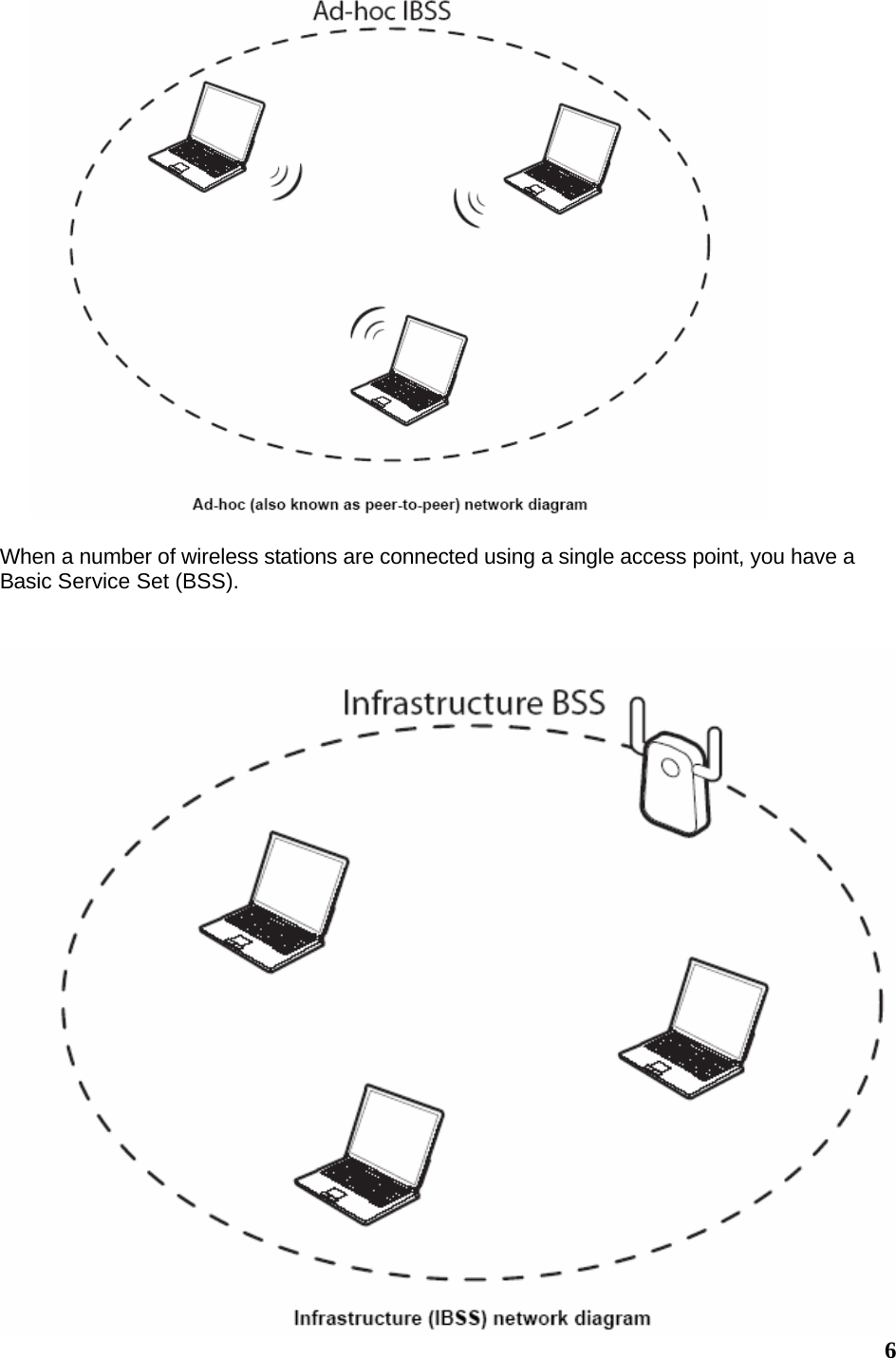

When a number of wireless stations are connected using a single access point, you have a Basic Service Set (BSS). 6

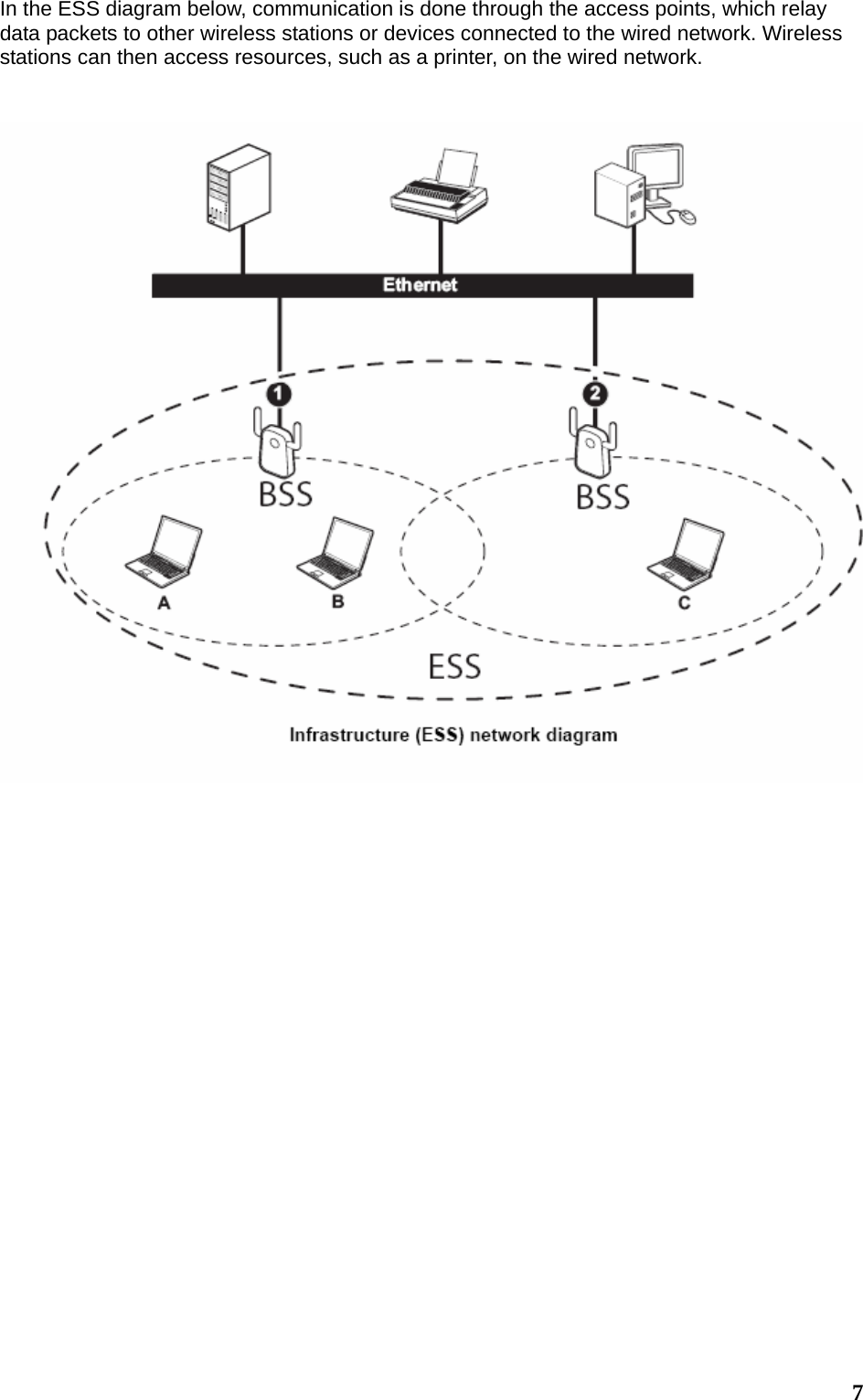

7 In the ESS diagram below, communication is done through the access points, which relay data packets to other wireless stations or devices connected to the wired network. Wireless stations can then access resources, such as a printer, on the wired network.

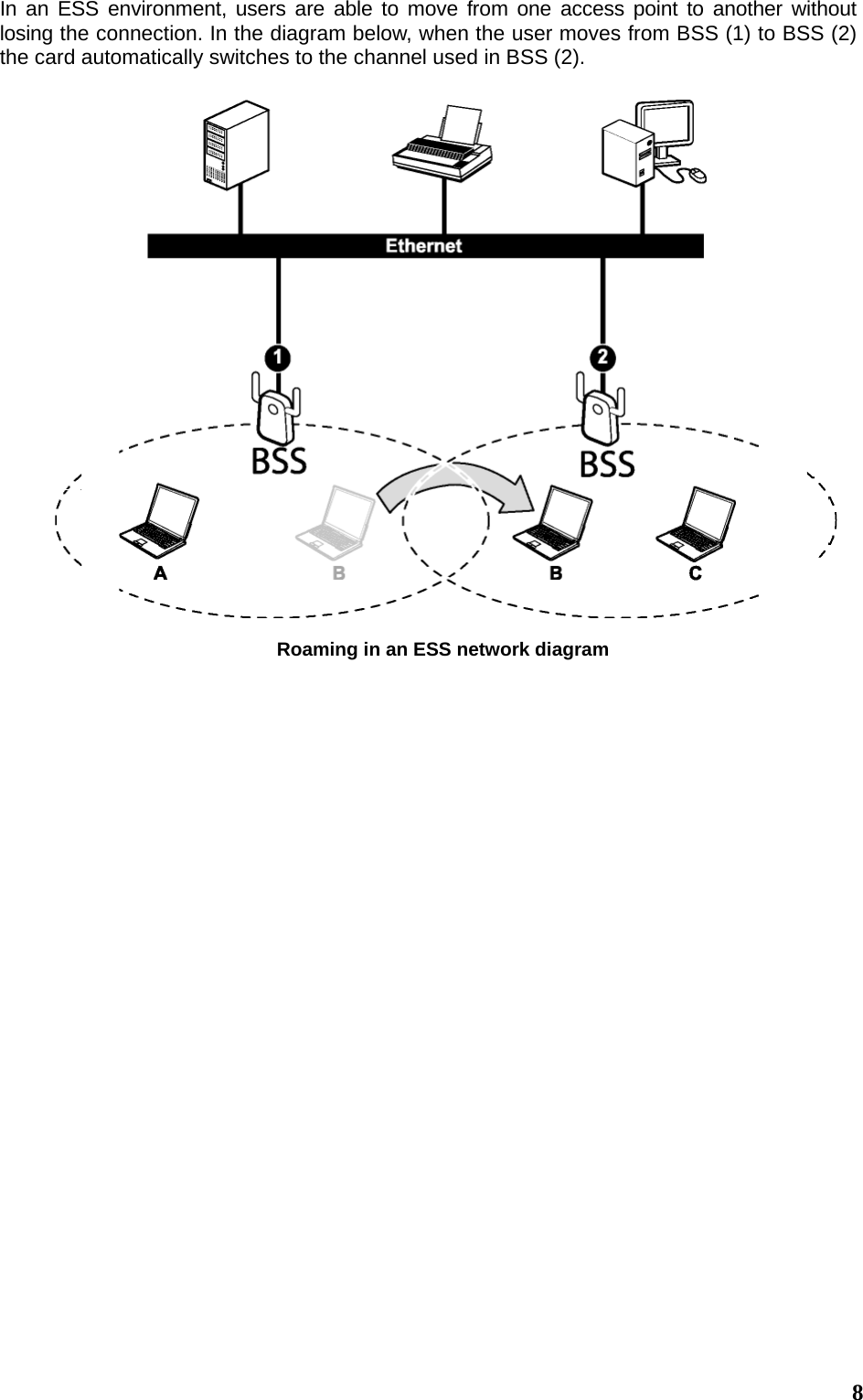

8 In an ESS environment, users are able to move from one access point to another without losing the connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the card automatically switches to the channel used in BSS (2). Roaming in an ESS network diagram

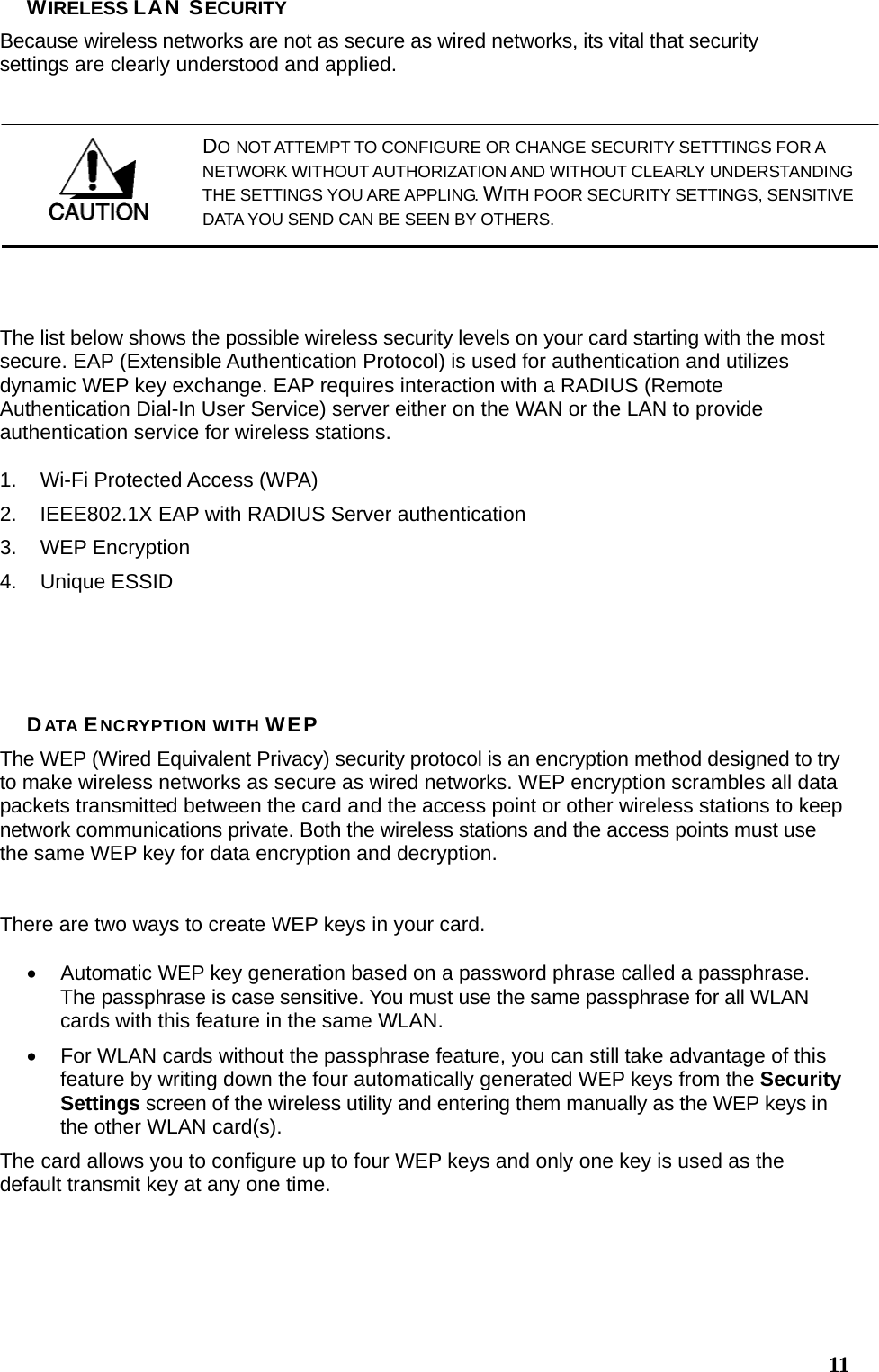

11WIRELESS LAN SECURITY Because wireless networks are not as secure as wired networks, its vital that security settings are clearly understood and applied. The list below shows the possible wireless security levels on your card starting with the most secure. EAP (Extensible Authentication Protocol) is used for authentication and utilizes dynamic WEP key exchange. EAP requires interaction with a RADIUS (Remote Authentication Dial-In User Service) server either on the WAN or the LAN to provide authentication service for wireless stations. 1. Wi-Fi Protected Access (WPA) 2. IEEE802.1X EAP with RADIUS Server authentication 3. WEP Encryption 4. Unique ESSID DATA ENCRYPTION WITH WEP The WEP (Wired Equivalent Privacy) security protocol is an encryption method designed to try to make wireless networks as secure as wired networks. WEP encryption scrambles all data packets transmitted between the card and the access point or other wireless stations to keep network communications private. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption. There are two ways to create WEP keys in your card. • Automatic WEP key generation based on a password phrase called a passphrase. The passphrase is case sensitive. You must use the same passphrase for all WLAN cards with this feature in the same WLAN. • For WLAN cards without the passphrase feature, you can still take advantage of this feature by writing down the four automatically generated WEP keys from the Security Settings screen of the wireless utility and entering them manually as the WEP keys in the other WLAN card(s). The card allows you to configure up to four WEP keys and only one key is used as the default transmit key at any one time. DO NOT ATTEMPT TO CONFIGURE OR CHANGE SECURITY SETTTINGS FOR A NETWORK WITHOUT AUTHORIZATION AND WITHOUT CLEARLY UNDERSTANDING THE SETTINGS YOU ARE APPLING. WITH POOR SECURITY SETTINGS, SENSITIVE DATA YOU SEND CAN BE SEEN BY OTHERS.

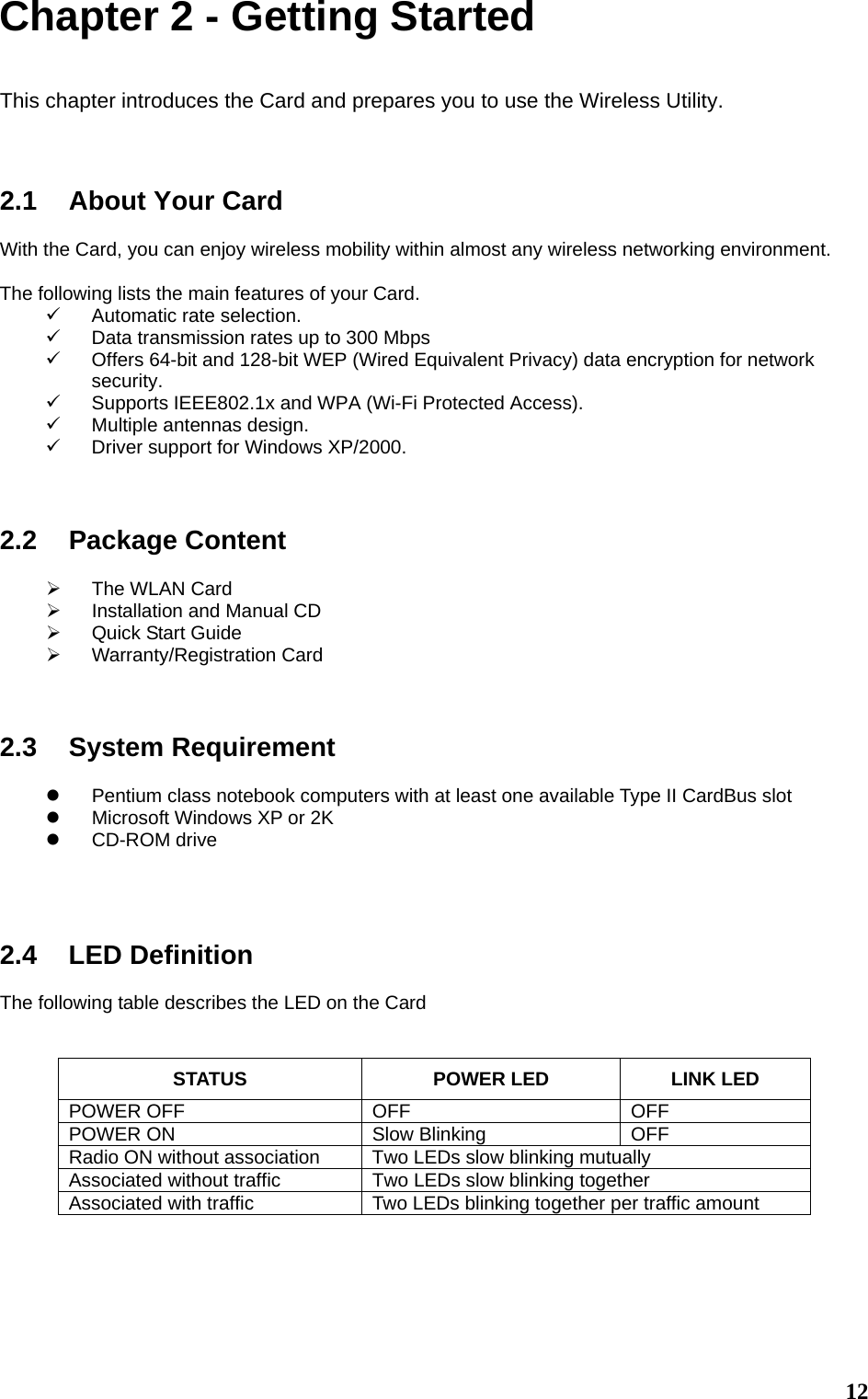

12Chapter 2 - Getting Started This chapter introduces the Card and prepares you to use the Wireless Utility. 2.1 About Your Card With the Card, you can enjoy wireless mobility within almost any wireless networking environment. The following lists the main features of your Card. 9 Automatic rate selection. 9 Data transmission rates up to 300 Mbps 9 Offers 64-bit and 128-bit WEP (Wired Equivalent Privacy) data encryption for network security. 9 Supports IEEE802.1x and WPA (Wi-Fi Protected Access). 9 Multiple antennas design. 9 Driver support for Windows XP/2000. 2.2 Package Content ¾ The WLAN Card ¾ Installation and Manual CD ¾ Quick Start Guide ¾ Warranty/Registration Card 2.3 System Requirement z Pentium class notebook computers with at least one available Type II CardBus slot z Microsoft Windows XP or 2K z CD-ROM drive 2.4 LED Definition The following table describes the LED on the Card STATUS POWER LED LINK LED POWER OFF OFF OFF POWER ON Slow Blinking OFF Radio ON without association Two LEDs slow blinking mutually Associated without traffic Two LEDs slow blinking together Associated with traffic Two LEDs blinking together per traffic amount

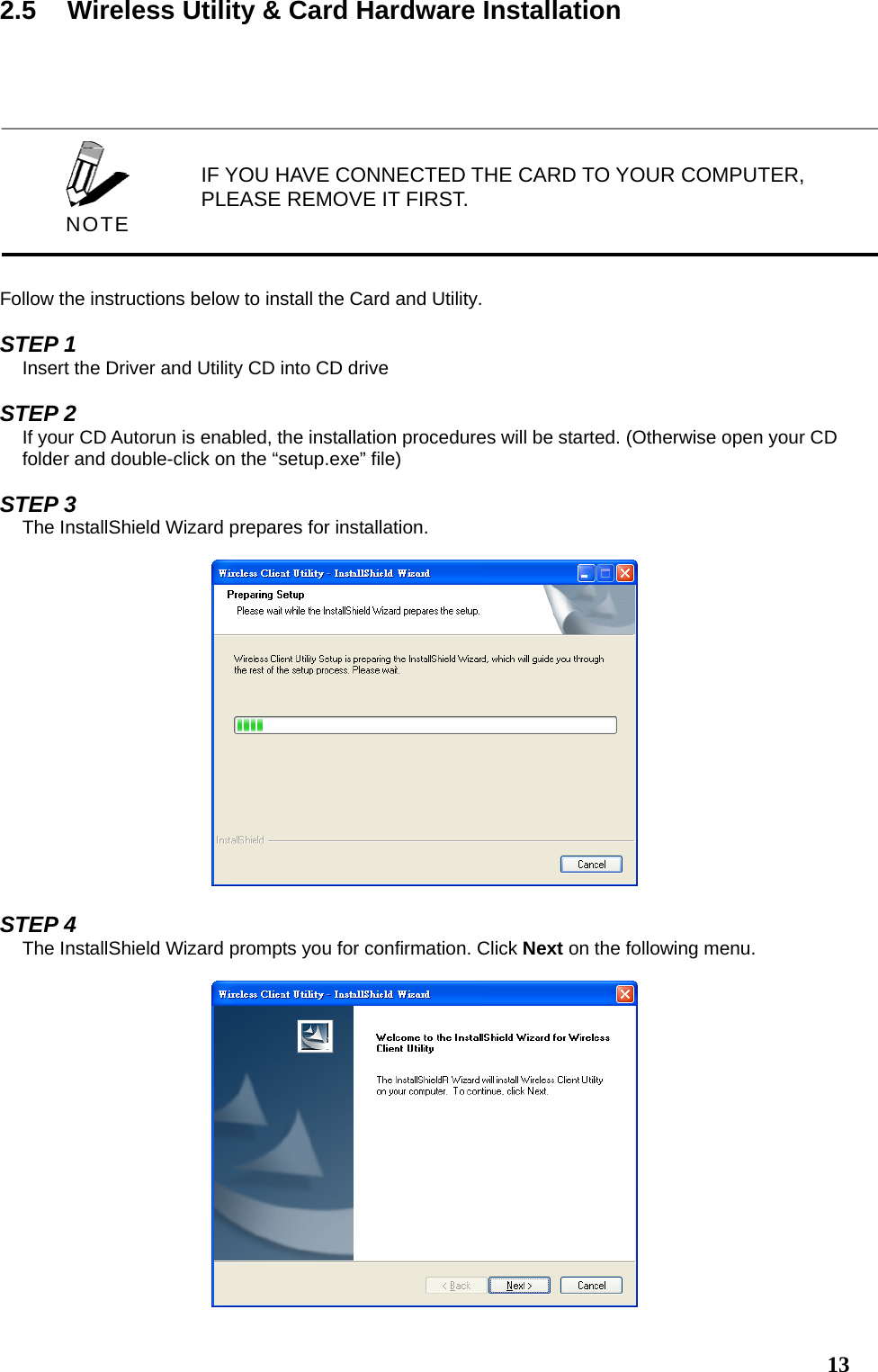

132.5 Wireless Utility & Card Hardware Installation Follow the instructions below to install the Card and Utility. STEP 1 Insert the Driver and Utility CD into CD drive STEP 2 If your CD Autorun is enabled, the installation procedures will be started. (Otherwise open your CD folder and double-click on the “setup.exe” file) STEP 3 The InstallShield Wizard prepares for installation. STEP 4 The InstallShield Wizard prompts you for confirmation. Click Next on the following menu. IF YOU HAVE CONNECTED THE CARD TO YOUR COMPUTER, PLEASE REMOVE IT FIRST. NOTE

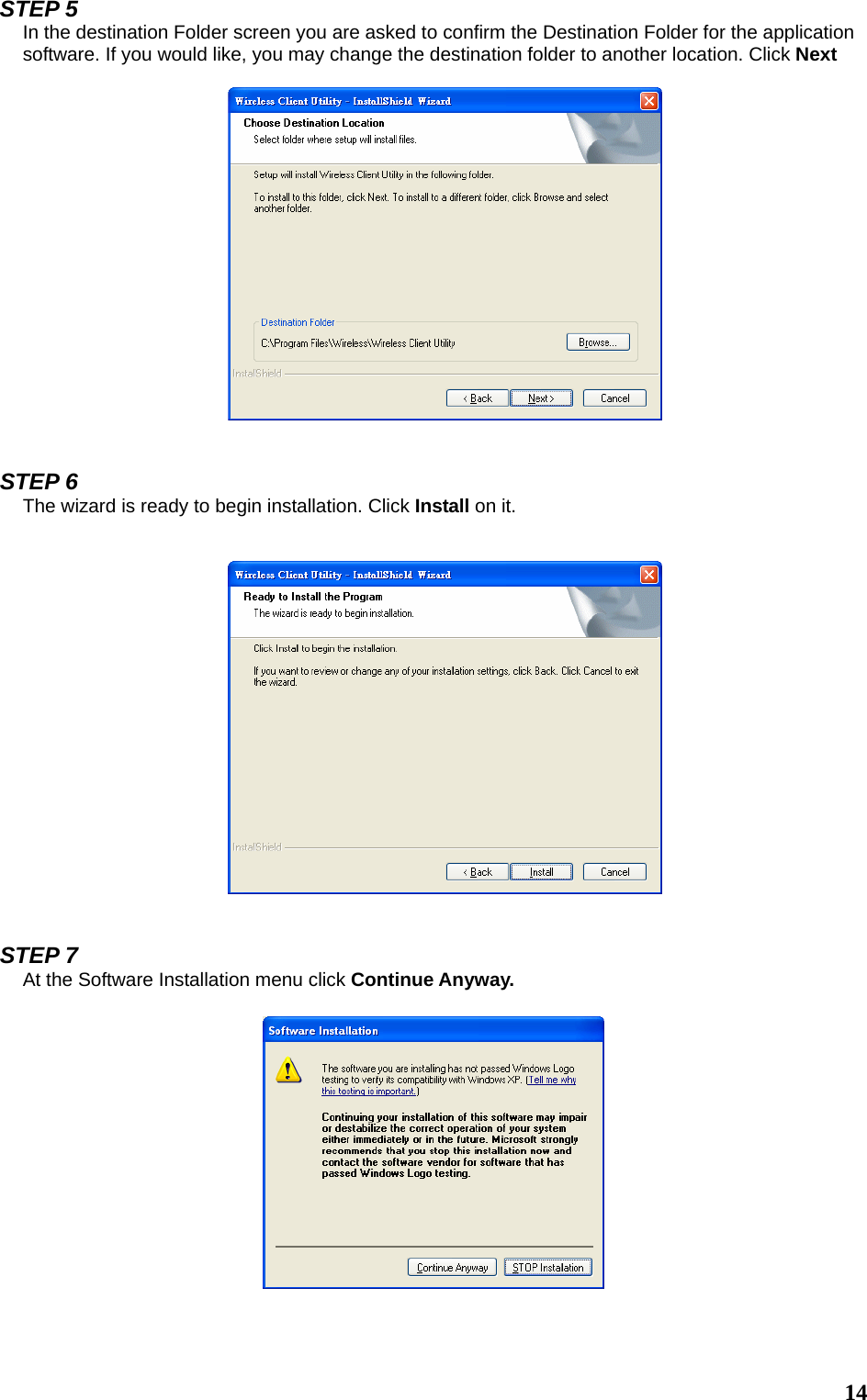

14STEP 5 In the destination Folder screen you are asked to confirm the Destination Folder for the application software. If you would like, you may change the destination folder to another location. Click Next STEP 6 The wizard is ready to begin installation. Click Install on it. STEP 7 At the Software Installation menu click Continue Anyway.

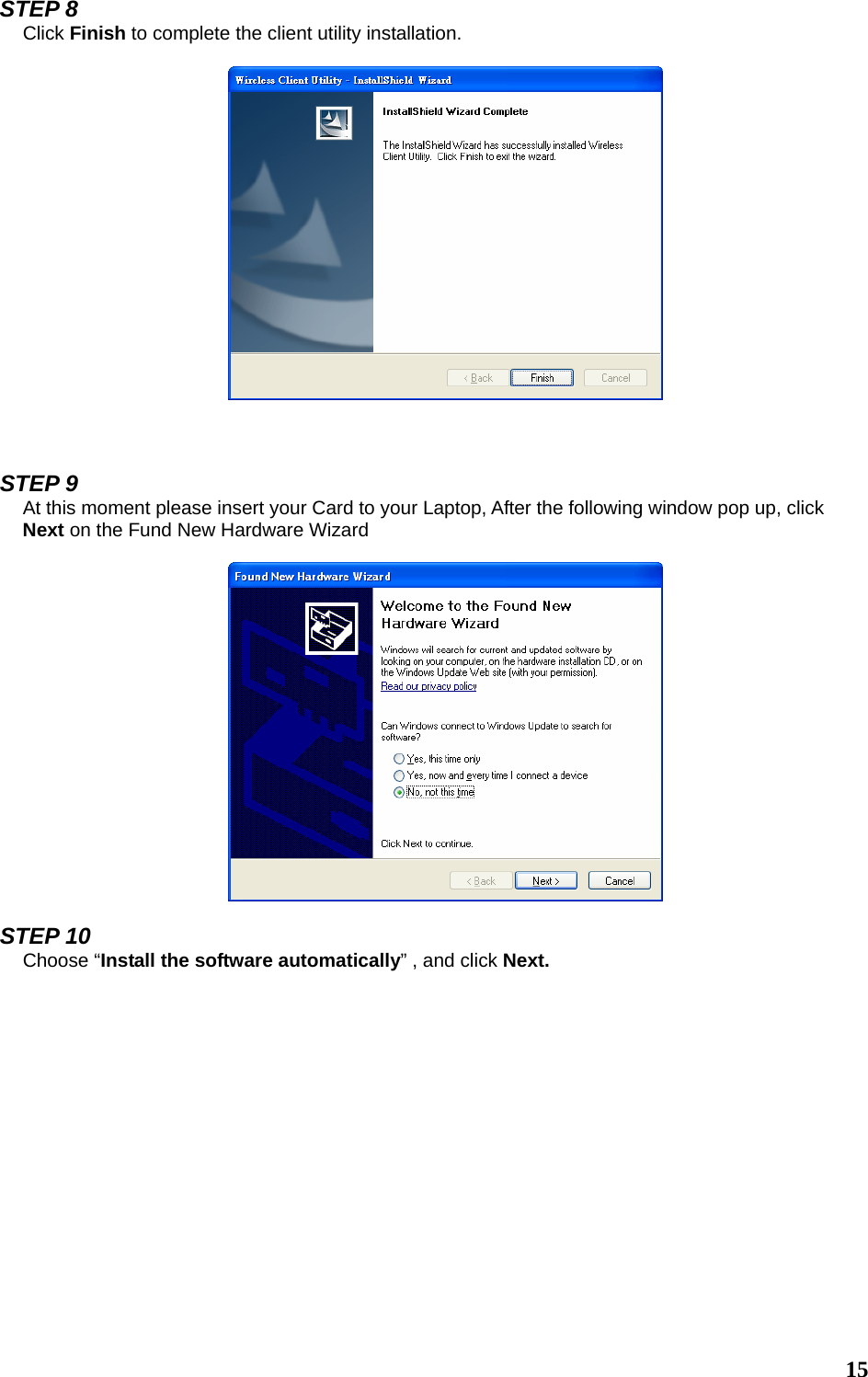

15 STEP 8 Click Finish to complete the client utility installation. STEP 9 At this moment please insert your Card to your Laptop, After the following window pop up, click Next on the Fund New Hardware Wizard STEP 10 Choose “Install the software automatically” , and click Next.

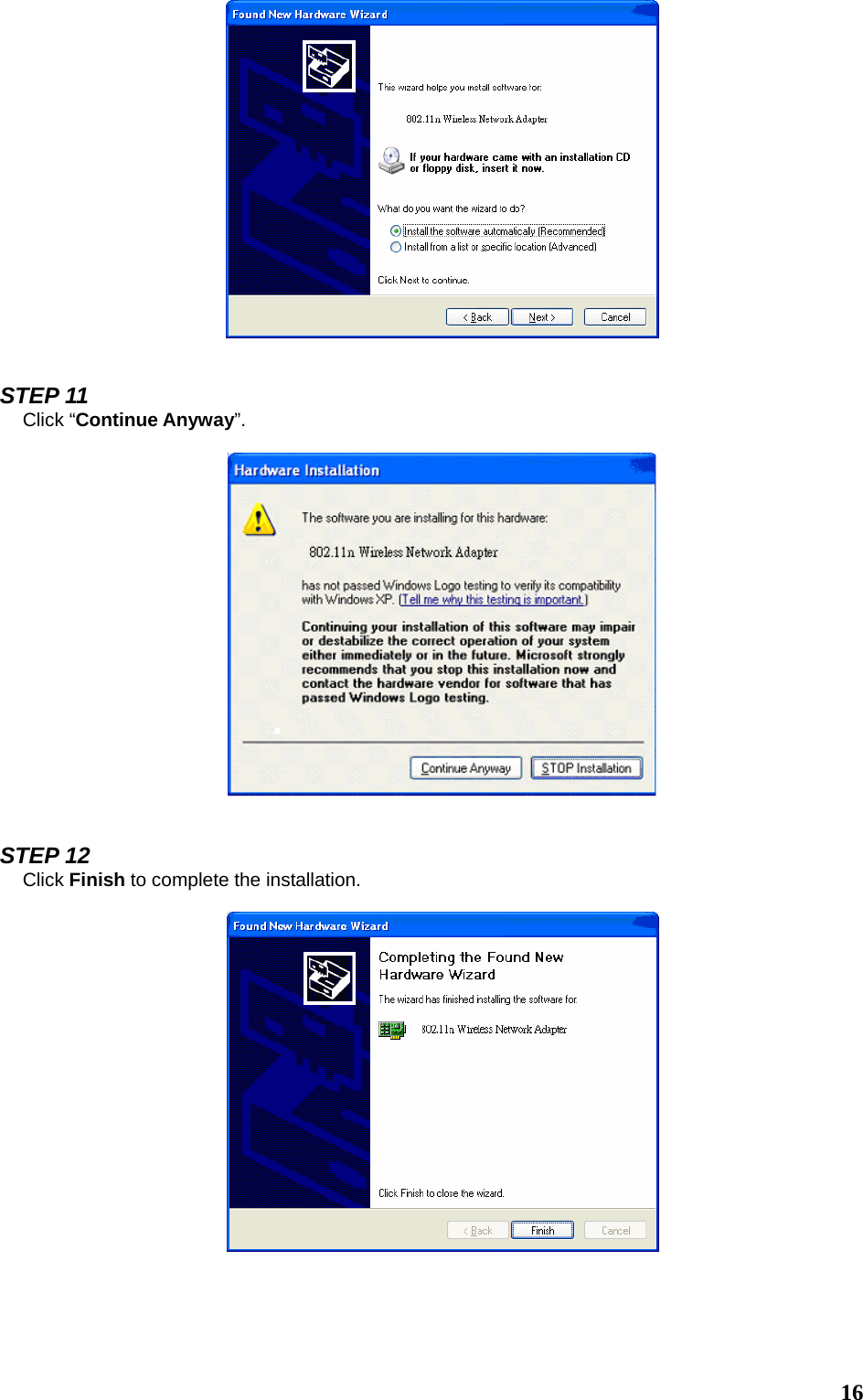

16 STEP 11 Click “Continue Anyway”. STEP 12 Click Finish to complete the installation.

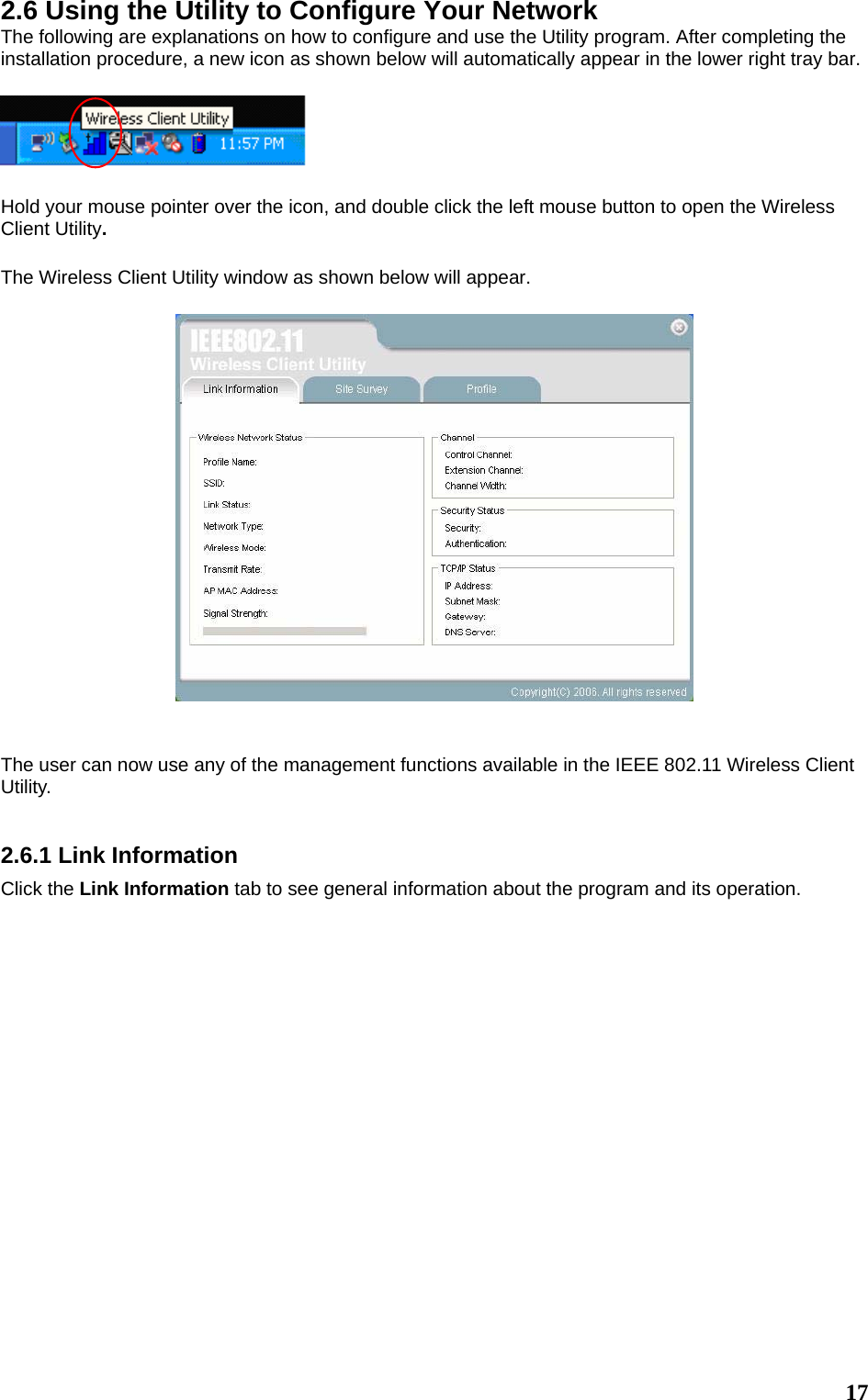

172.6 Using the Utility to Configure Your Network The following are explanations on how to configure and use the Utility program. After completing the installation procedure, a new icon as shown below will automatically appear in the lower right tray bar. Hold your mouse pointer over the icon, and double click the left mouse button to open the Wireless Client Utility. The Wireless Client Utility window as shown below will appear. The user can now use any of the management functions available in the IEEE 802.11 Wireless Client Utility. 2.6.1 Link Information Click the Link Information tab to see general information about the program and its operation.

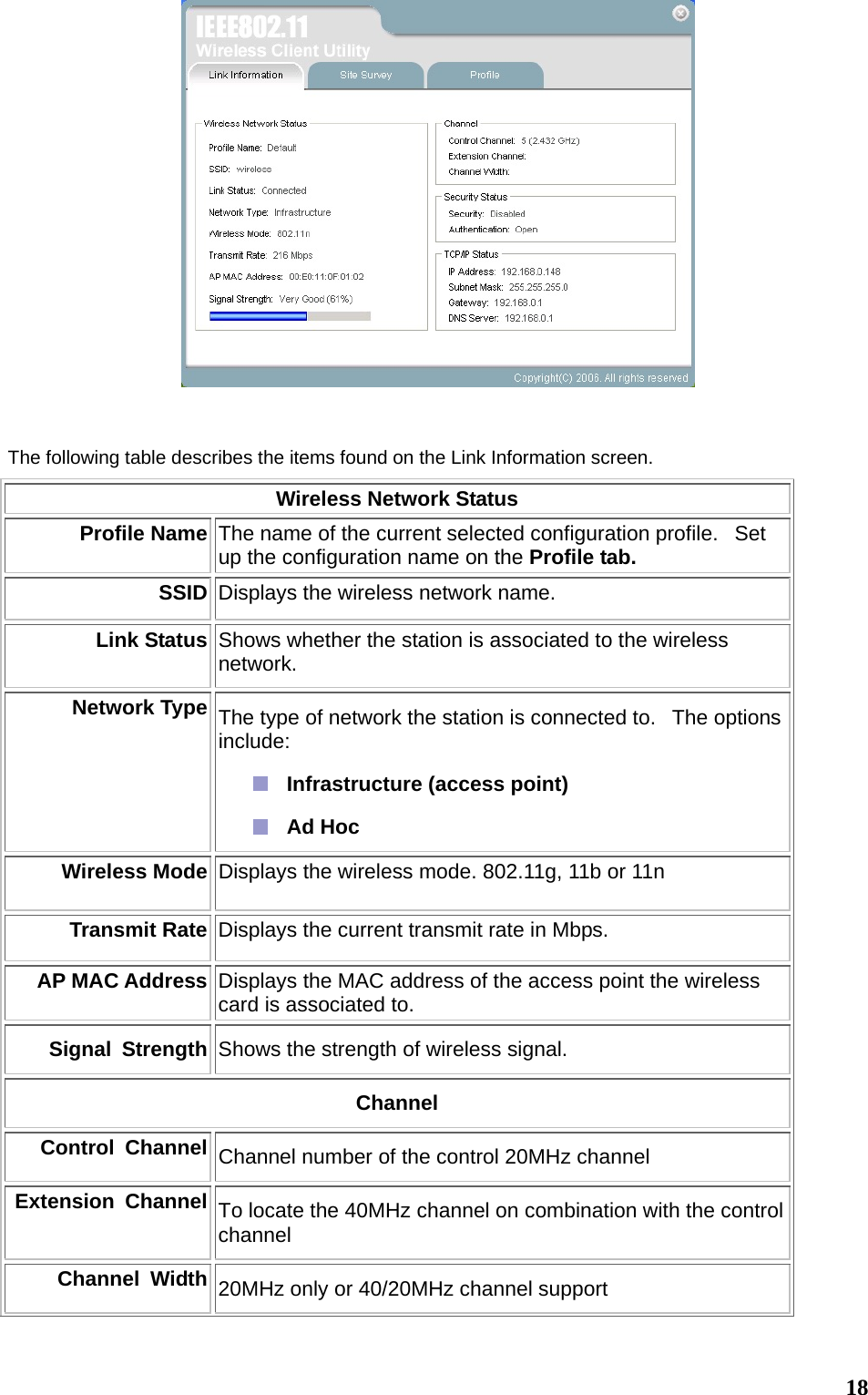

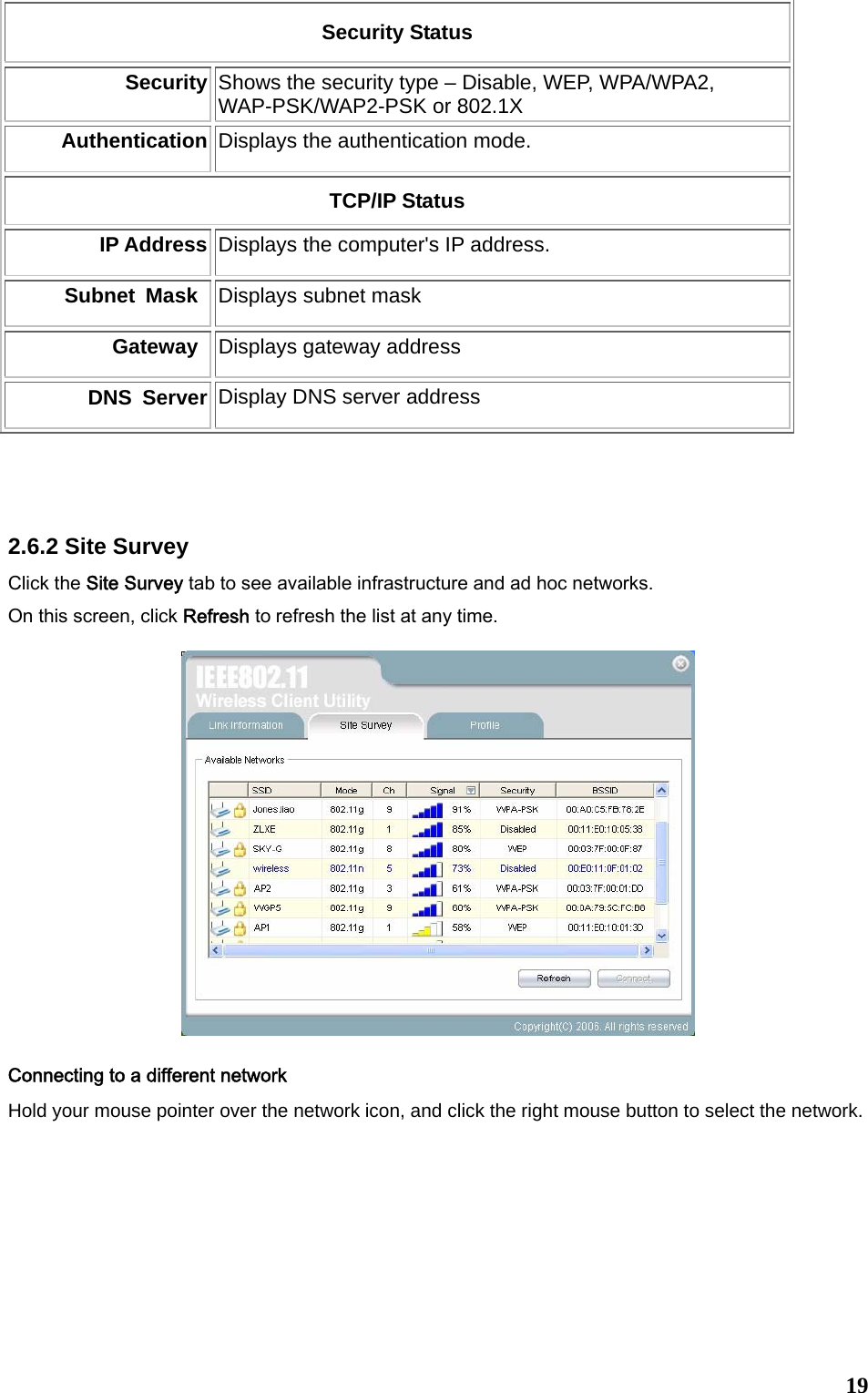

19Security Status Security Shows the security type – Disable, WEP, WPA/WPA2, WAP-PSK/WAP2-PSK or 802.1X Authentication Displays the authentication mode. TCP/IP Status IP Address Displays the computer's IP address. Subnet Mask Displays subnet mask Gateway Displays gateway address DNS Server Display DNS server address 2.6.2 Site Survey Click the Site Survey tab to see available infrastructure and ad hoc networks. On this screen, click Refresh to refresh the list at any time. Connecting to a different network Hold your mouse pointer over the network icon, and click the right mouse button to select the network.

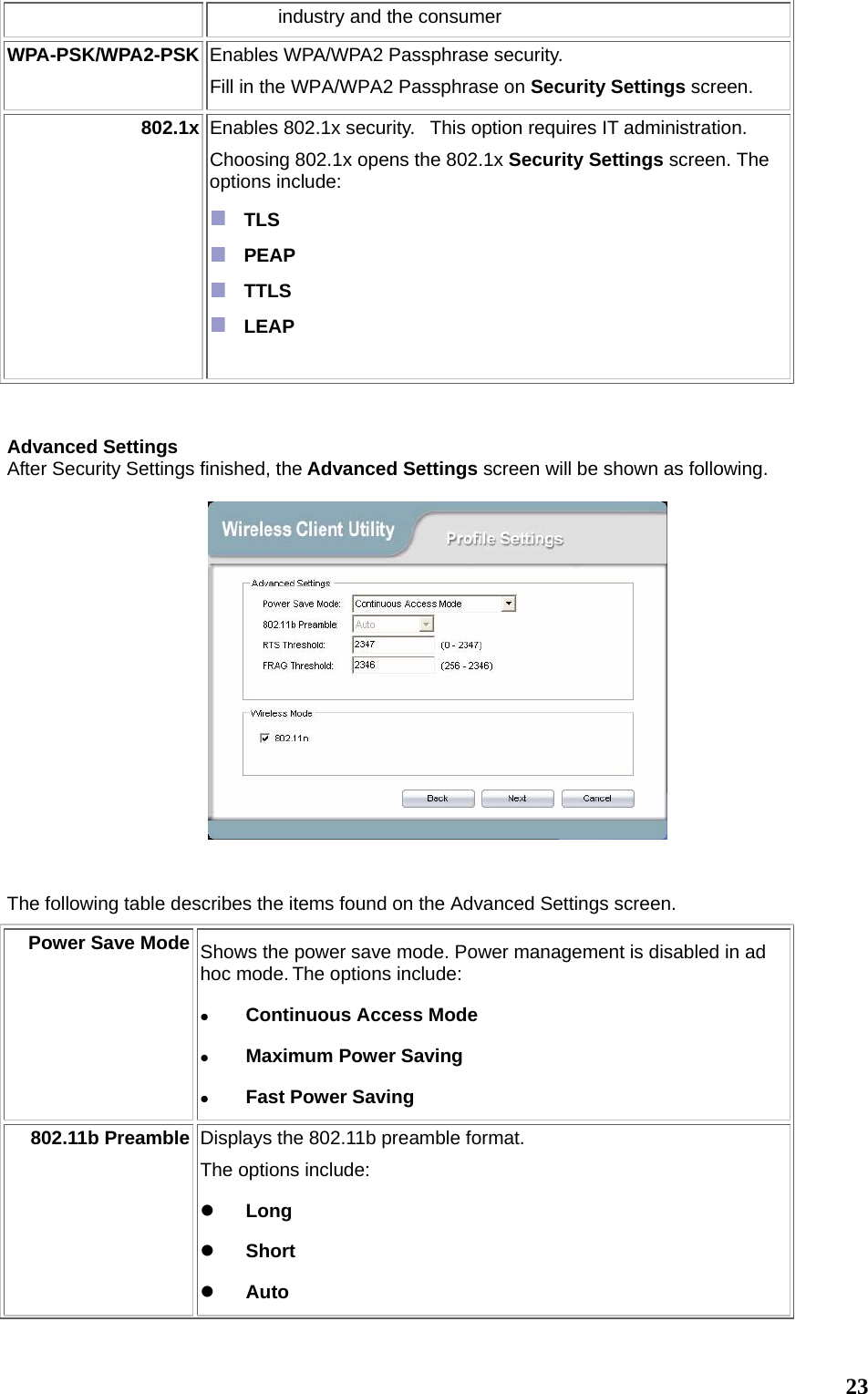

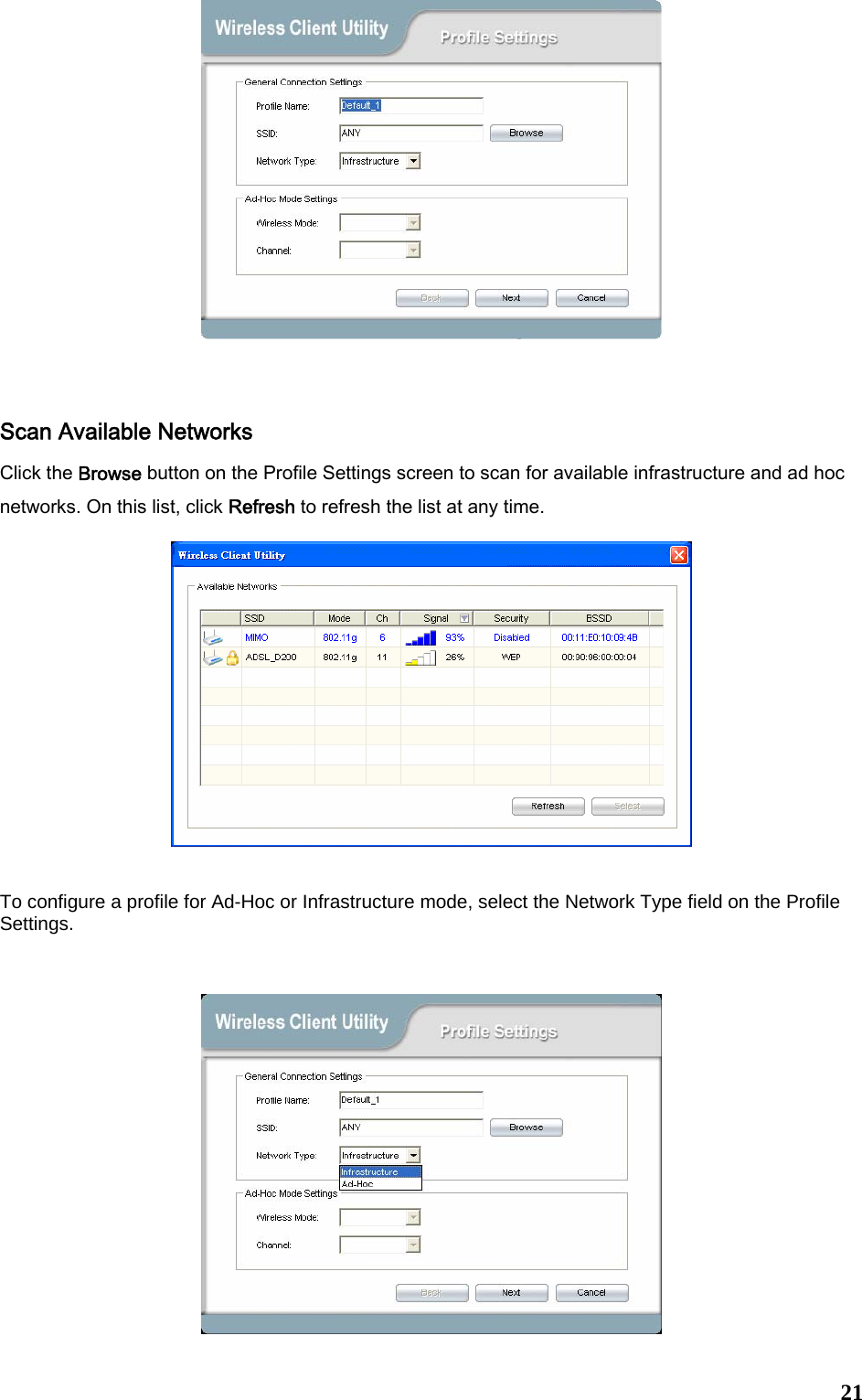

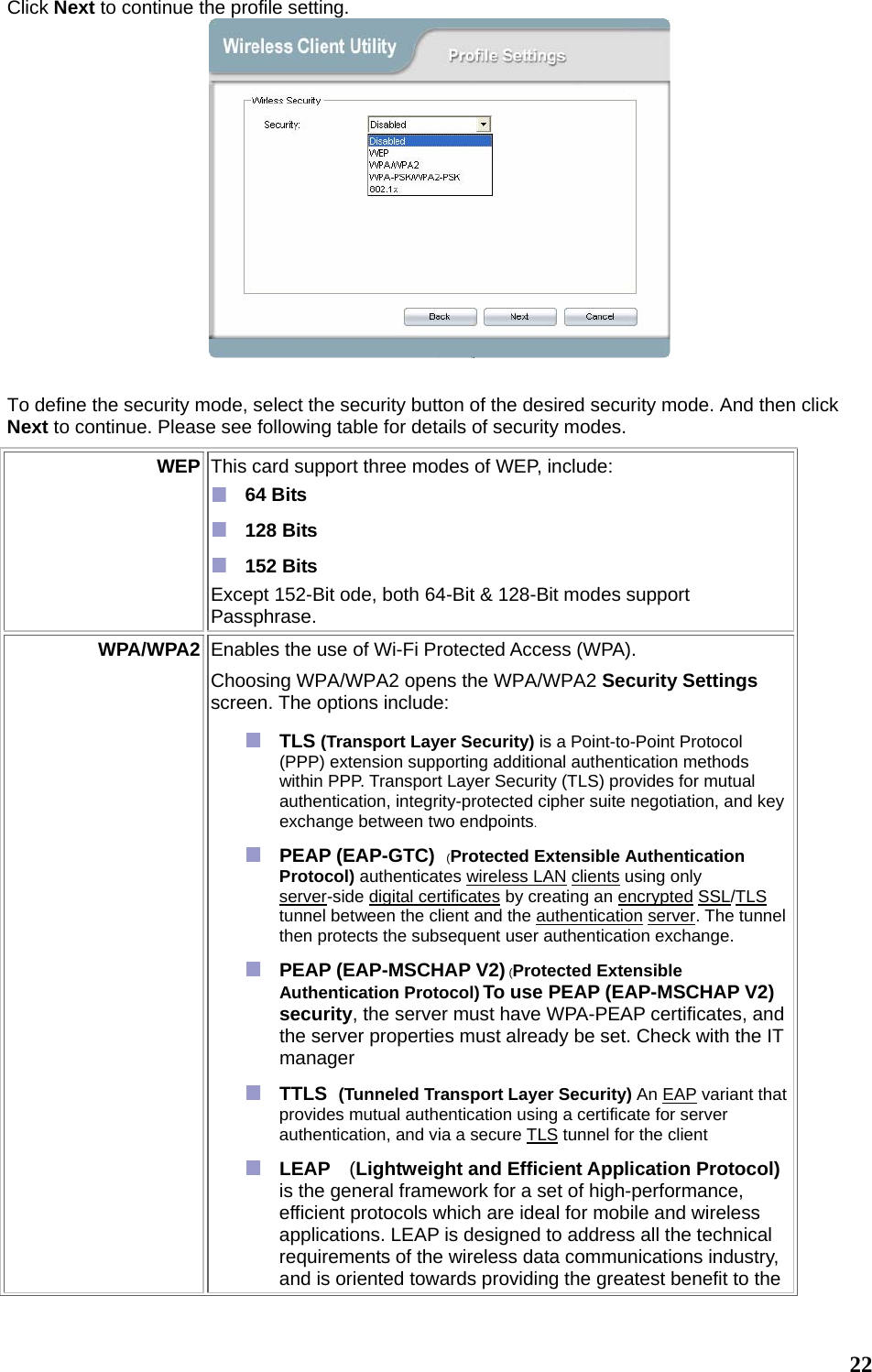

23industry and the consumer WPA-PSK/WPA2-PSK Enables WPA/WPA2 Passphrase security. Fill in the WPA/WPA2 Passphrase on Security Settings screen. 802.1x Enables 802.1x security. This option requires IT administration. Choosing 802.1x opens the 802.1x Security Settings screen. The options include: TLS PEAP TTLS LEAP Advanced Settings After Security Settings finished, the Advanced Settings screen will be shown as following. The following table describes the items found on the Advanced Settings screen. Power Save Mode Shows the power save mode. Power management is disabled in ad hoc mode. The options include: z Continuous Access Mode z Maximum Power Saving z Fast Power Saving 802.11b Preamble Displays the 802.11b preamble format. The options include: z Long z Short z Auto

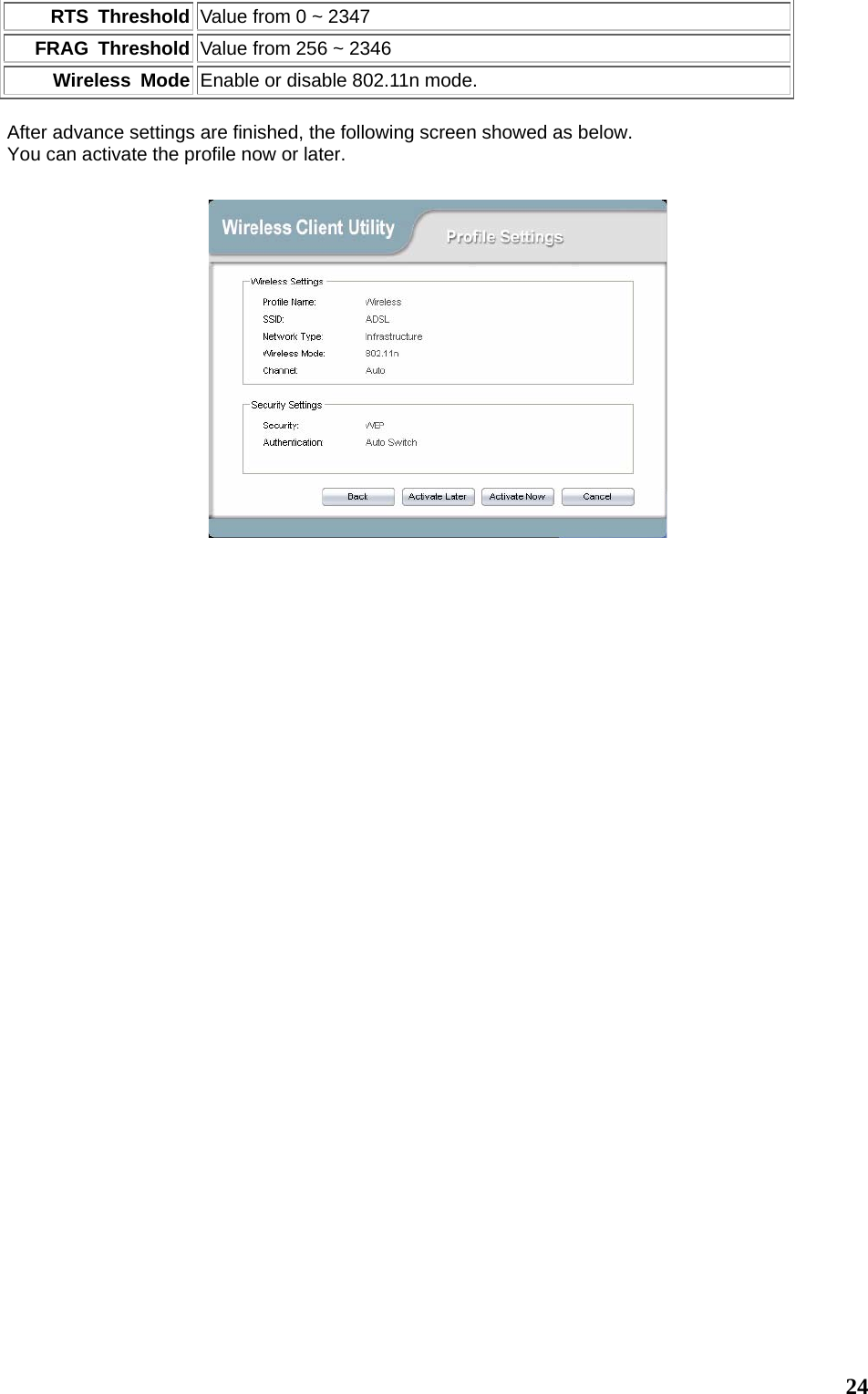

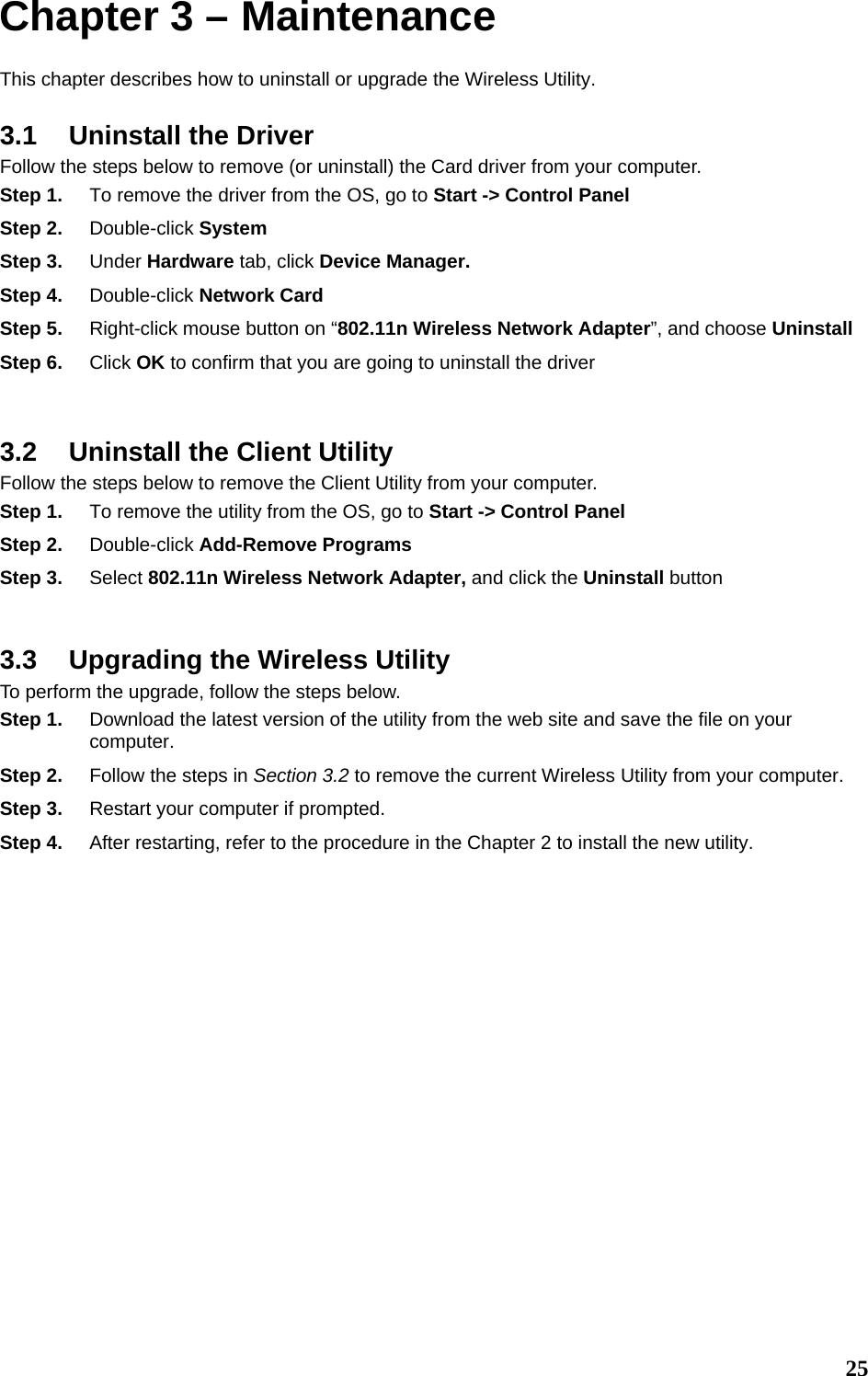

25Chapter 3 – Maintenance This chapter describes how to uninstall or upgrade the Wireless Utility. 3.1 Uninstall the Driver Follow the steps below to remove (or uninstall) the Card driver from your computer. Step 1. To remove the driver from the OS, go to Start -> Control Panel Step 2. Double-click System Step 3. Under Hardware tab, click Device Manager. Step 4. Double-click Network Card Step 5. Right-click mouse button on “802.11n Wireless Network Adapter”, and choose Uninstall Step 6. Click OK to confirm that you are going to uninstall the driver 3.2 Uninstall the Client Utility Follow the steps below to remove the Client Utility from your computer. Step 1. To remove the utility from the OS, go to Start -> Control Panel Step 2. Double-click Add-Remove Programs Step 3. Select 802.11n Wireless Network Adapter, and click the Uninstall button 3.3 Upgrading the Wireless Utility To perform the upgrade, follow the steps below. Step 1. Download the latest version of the utility from the web site and save the file on your computer. Step 2. Follow the steps in Section 3.2 to remove the current Wireless Utility from your computer. Step 3. Restart your computer if prompted. Step 4. After restarting, refer to the procedure in the Chapter 2 to install the new utility.

26Glossary For unfamiliar terms used below, look for entries elsewhere in the glossary. AD-HOC (IBSS) Ad-hoc mode does not require an AP or a wired network. A network that transmits wireless from computer to computer without the use of a base station (access point). Two or more wireless stations communicate directly to each other. An ad-hoc network may sometimes be referred to as an Independent Basic Service Set (IBSS). CHANNEL A radio frequency used by a wireless device is called a channel. EAP AUTHENTICATION EAP (Extensible Authentication Protocol) is an authentication protocol that runs on top of the IEEE802.1X transport mechanism in order to support multiple types of user authentication. By using EAP to interact with an EAP-compatible RADIUS server, an access point helps a wireless station and a RADIUS server perform authentication. ENCRYPTION The reversible transformation of data from the original to a difficult-to-interpret format. Encryption is a mechanism for protecting confidentiality, integrity, and authenticity of data. It uses an encryption algorithm and one or more encryption keys. FRAGMENTATION THRESHOLD This is the maximum data fragment size that can be sent before the packet is fragmented into smaller packets. IEEE 802.1X The IEEE 802.1X standard outlines enhanced security methods for both the authentication of wireless stations and encryption key management. Authentication can be done using an external RADIUS server. INFRASTRUCTURE (BSS) When a number of wireless stations are connected using a single AP, you have a Basic Service Set (BSS).

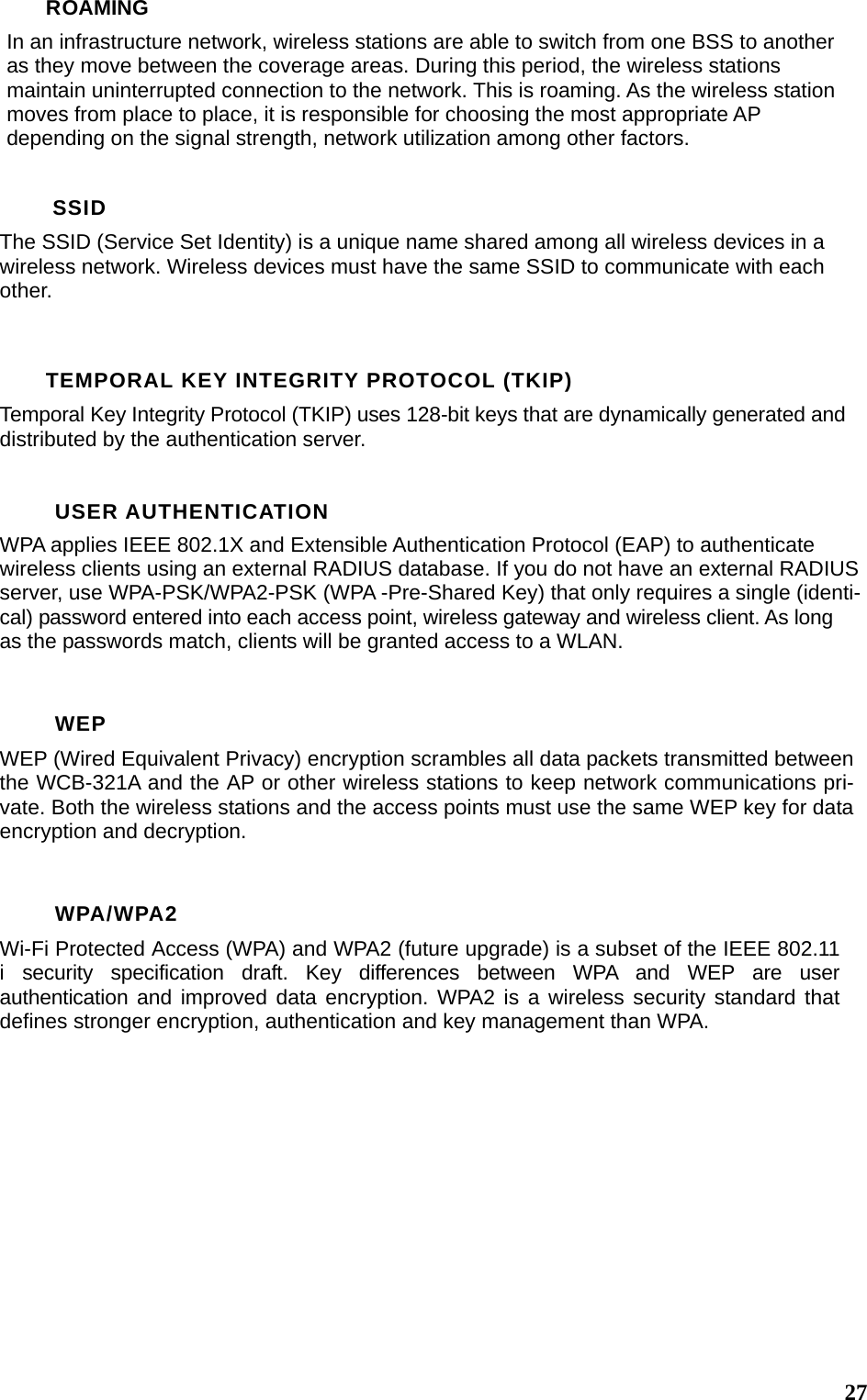

27ROAMING In an infrastructure network, wireless stations are able to switch from one BSS to another as they move between the coverage areas. During this period, the wireless stations maintain uninterrupted connection to the network. This is roaming. As the wireless station moves from place to place, it is responsible for choosing the most appropriate AP depending on the signal strength, network utilization among other factors. SSID The SSID (Service Set Identity) is a unique name shared among all wireless devices in a wireless network. Wireless devices must have the same SSID to communicate with each other. TEMPORAL KEY INTEGRITY PROTOCOL (TKIP) Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically generated and distributed by the authentication server. USER AUTHENTICATION WPA applies IEEE 802.1X and Extensible Authentication Protocol (EAP) to authenticate wireless clients using an external RADIUS database. If you do not have an external RADIUS server, use WPA-PSK/WPA2-PSK (WPA -Pre-Shared Key) that only requires a single (identi-cal) password entered into each access point, wireless gateway and wireless client. As long as the passwords match, clients will be granted access to a WLAN. WEP WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted between the WCB-321A and the AP or other wireless stations to keep network communications pri-vate. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption. WPA/WPA2 Wi-Fi Protected Access (WPA) and WPA2 (future upgrade) is a subset of the IEEE 802.11 i security specification draft. Key differences between WPA and WEP are user authentication and improved data encryption. WPA2 is a wireless security standard that defines stronger encryption, authentication and key management than WPA.
