Users Manual

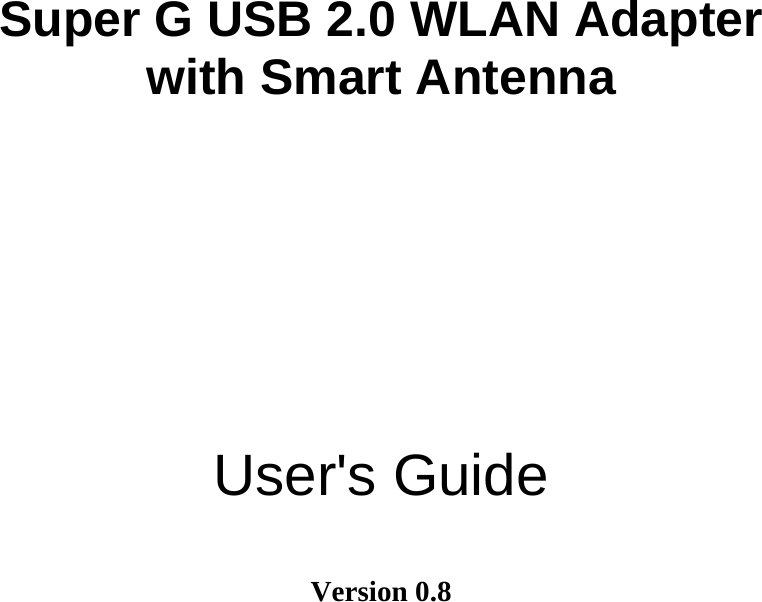

Super G USB 2.0 WLAN Adapter with Smart Antenna User's Guide Version 0.8

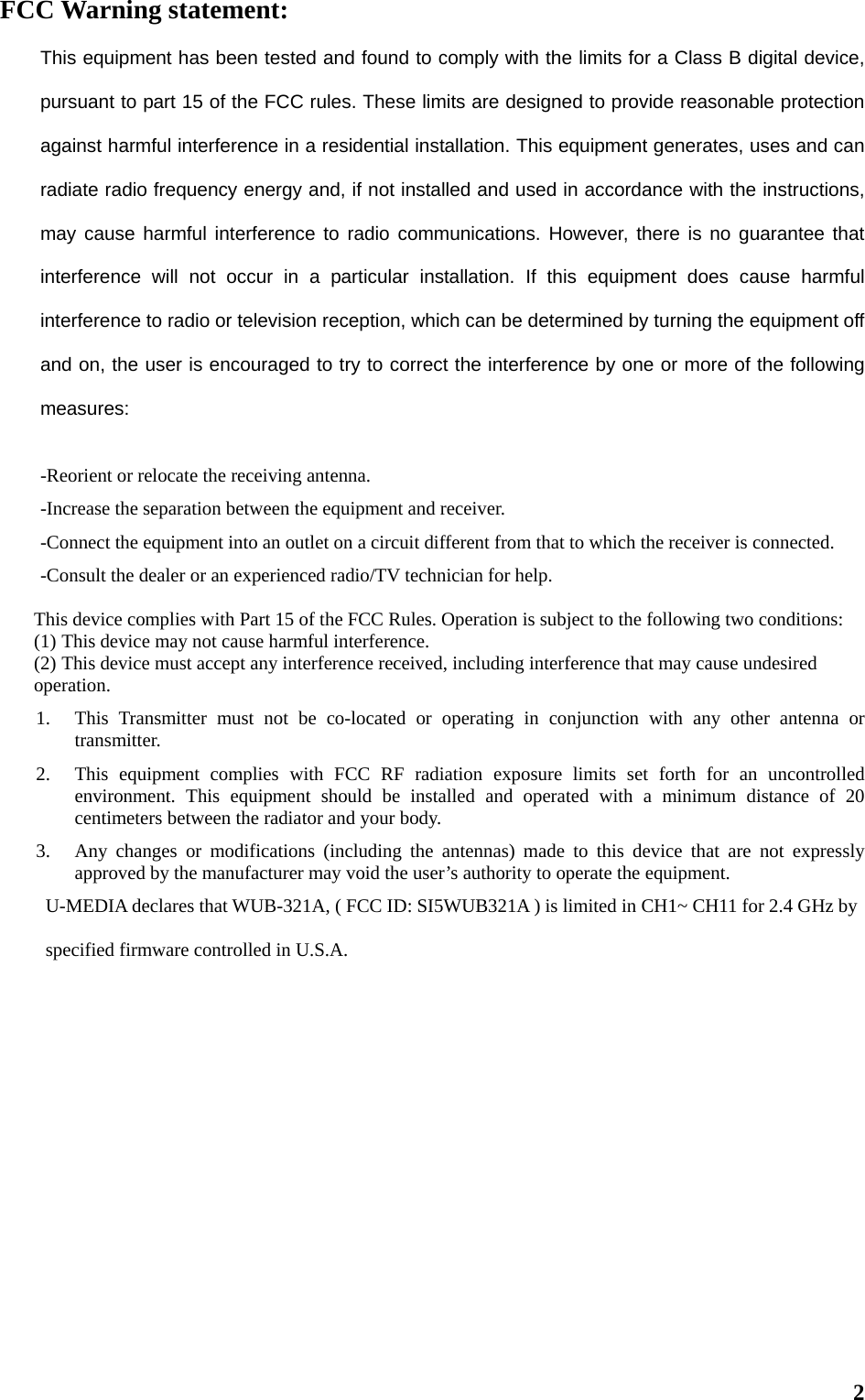

2FCC Warning statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. U-MEDIA declares that WUB-321A, ( FCC ID: SI5WUB321A ) is limited in CH1~ CH11 for 2.4 GHz by specified firmware controlled in U.S.A.

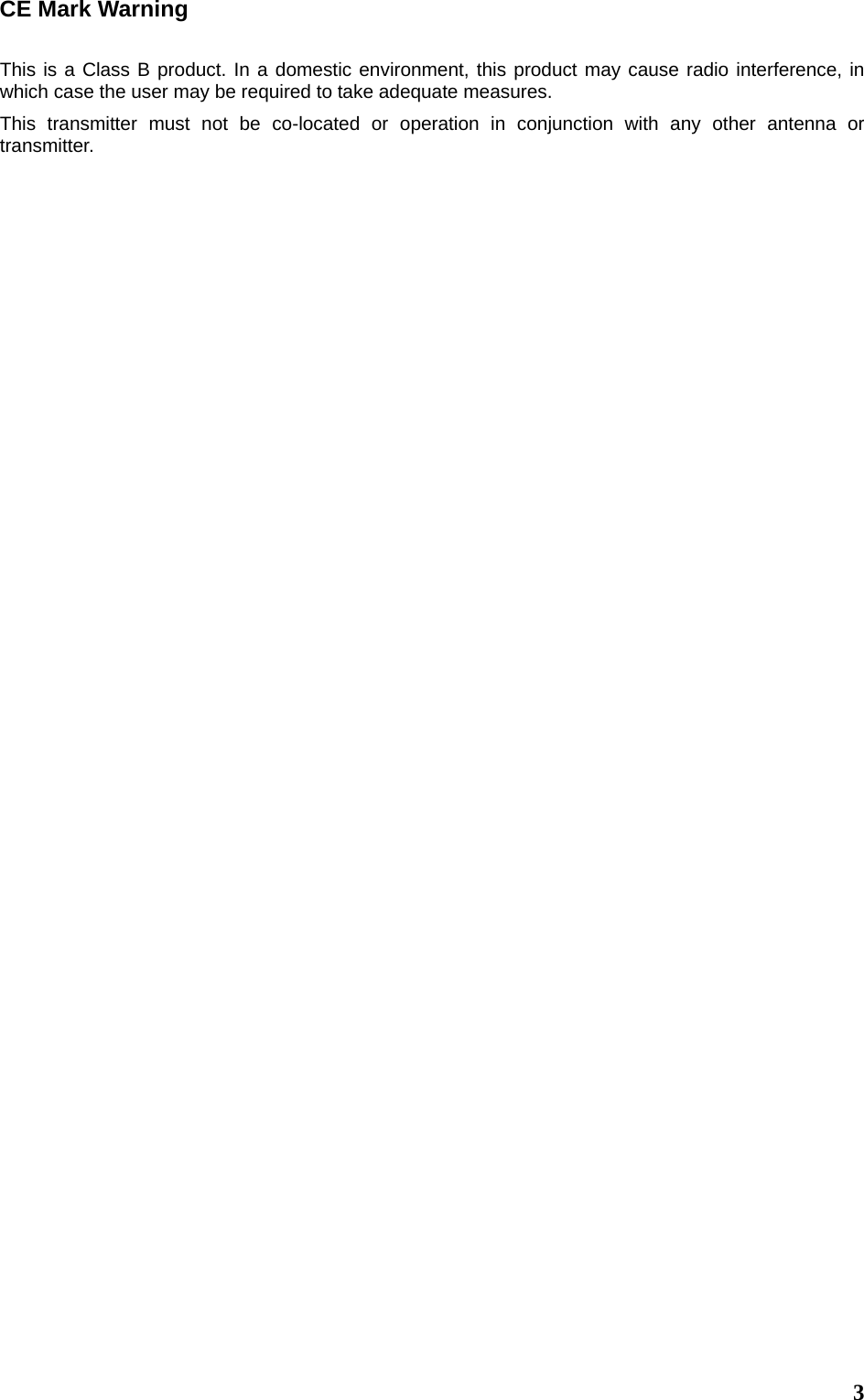

3CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter.

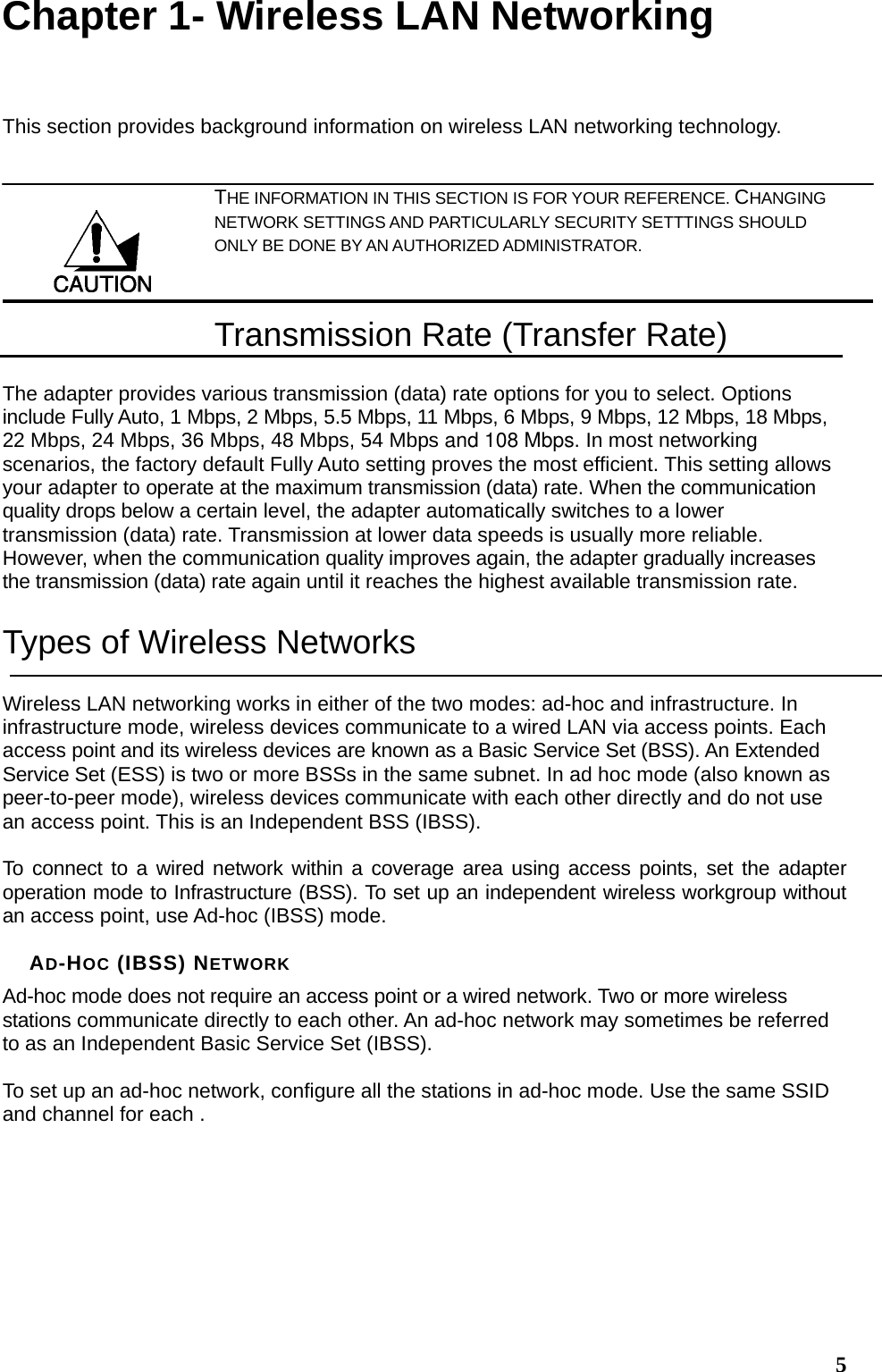

5Chapter 1- Wireless LAN Networking This section provides background information on wireless LAN networking technology. THE INFORMATION IN THIS SECTION IS FOR YOUR REFERENCE. CHANGING NETWORK SETTINGS AND PARTICULARLY SECURITY SETTTINGS SHOULD ONLY BE DONE BY AN AUTHORIZED ADMINISTRATOR. Transmission Rate (Transfer Rate) The adapter provides various transmission (data) rate options for you to select. Options include Fully Auto, 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps, 6 Mbps, 9 Mbps, 12 Mbps, 18 Mbps, 22 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps and 108 Mbps. In most networking scenarios, the factory default Fully Auto setting proves the most efficient. This setting allows your adapter to operate at the maximum transmission (data) rate. When the communication quality drops below a certain level, the adapter automatically switches to a lower transmission (data) rate. Transmission at lower data speeds is usually more reliable. However, when the communication quality improves again, the adapter gradually increases the transmission (data) rate again until it reaches the highest available transmission rate. Types of Wireless Networks Wireless LAN networking works in either of the two modes: ad-hoc and infrastructure. In infrastructure mode, wireless devices communicate to a wired LAN via access points. Each access point and its wireless devices are known as a Basic Service Set (BSS). An Extended Service Set (ESS) is two or more BSSs in the same subnet. In ad hoc mode (also known as peer-to-peer mode), wireless devices communicate with each other directly and do not use an access point. This is an Independent BSS (IBSS). To connect to a wired network within a coverage area using access points, set the adapter operation mode to Infrastructure (BSS). To set up an independent wireless workgroup without an access point, use Ad-hoc (IBSS) mode. AD-HOC (IBSS) NETWORK Ad-hoc mode does not require an access point or a wired network. Two or more wireless stations communicate directly to each other. An ad-hoc network may sometimes be referred to as an Independent Basic Service Set (IBSS). To set up an ad-hoc network, configure all the stations in ad-hoc mode. Use the same SSID and channel for each .

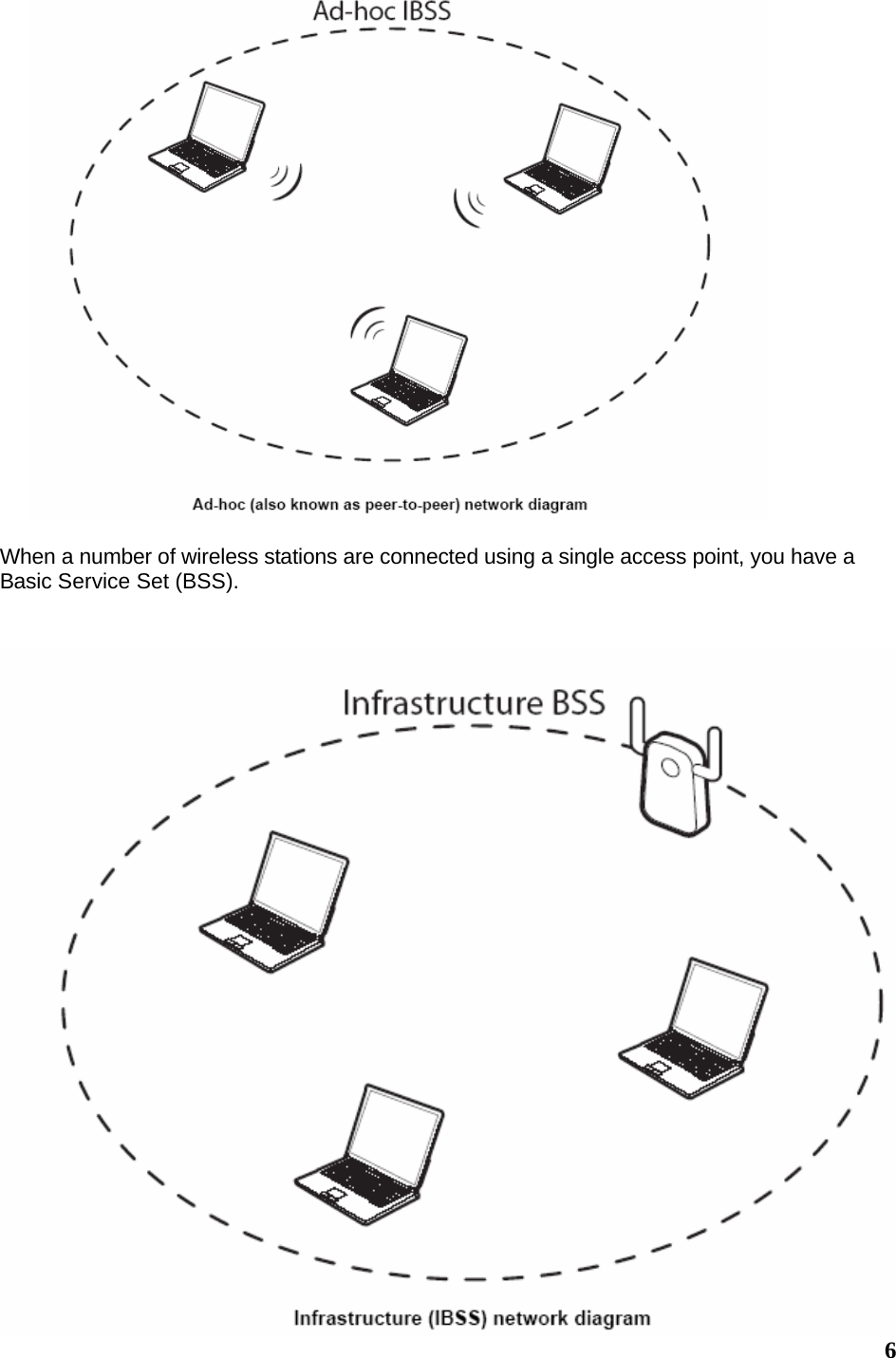

When a number of wireless stations are connected using a single access point, you have a Basic Service Set (BSS). 6

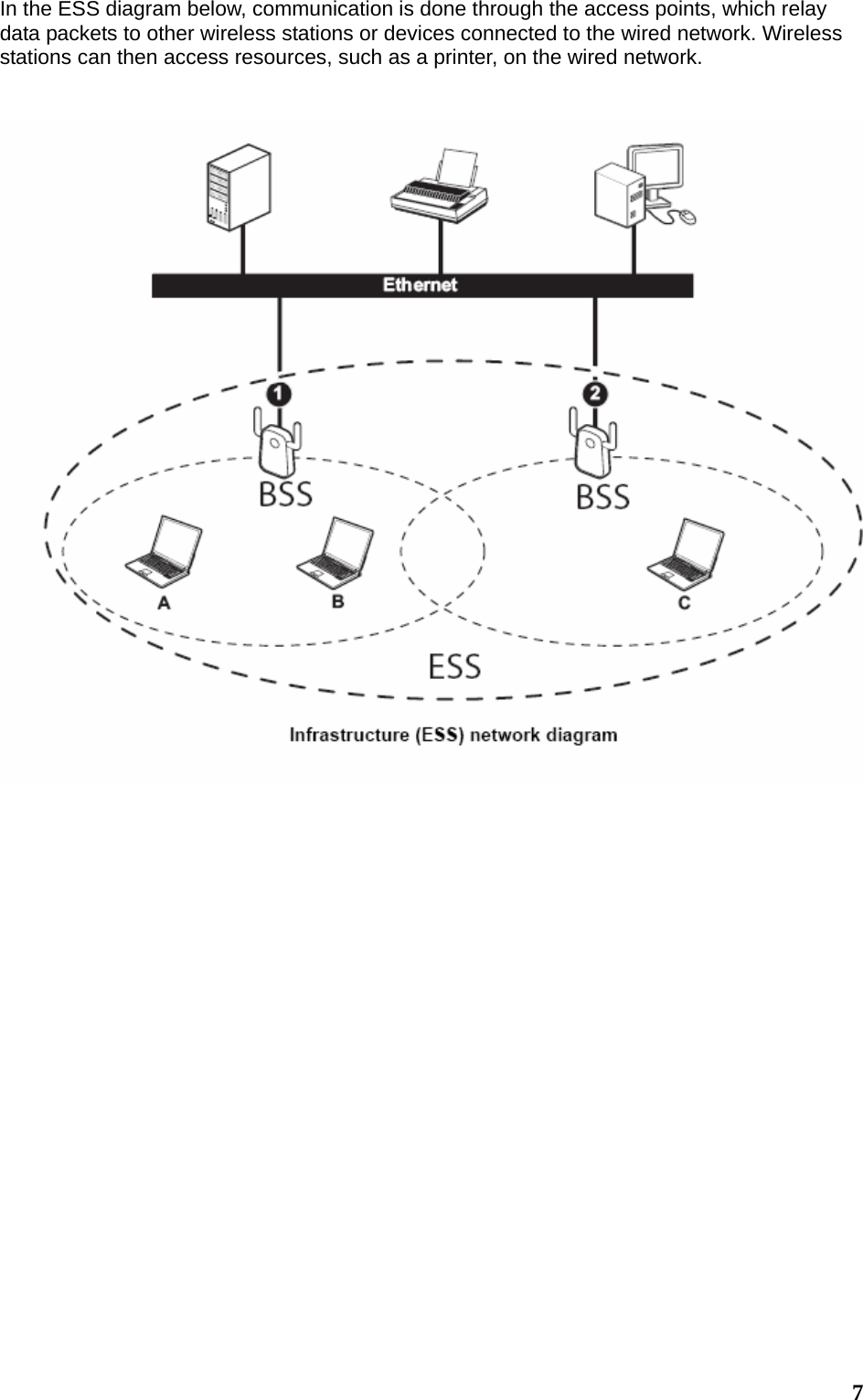

7 In the ESS diagram below, communication is done through the access points, which relay data packets to other wireless stations or devices connected to the wired network. Wireless stations can then access resources, such as a printer, on the wired network.

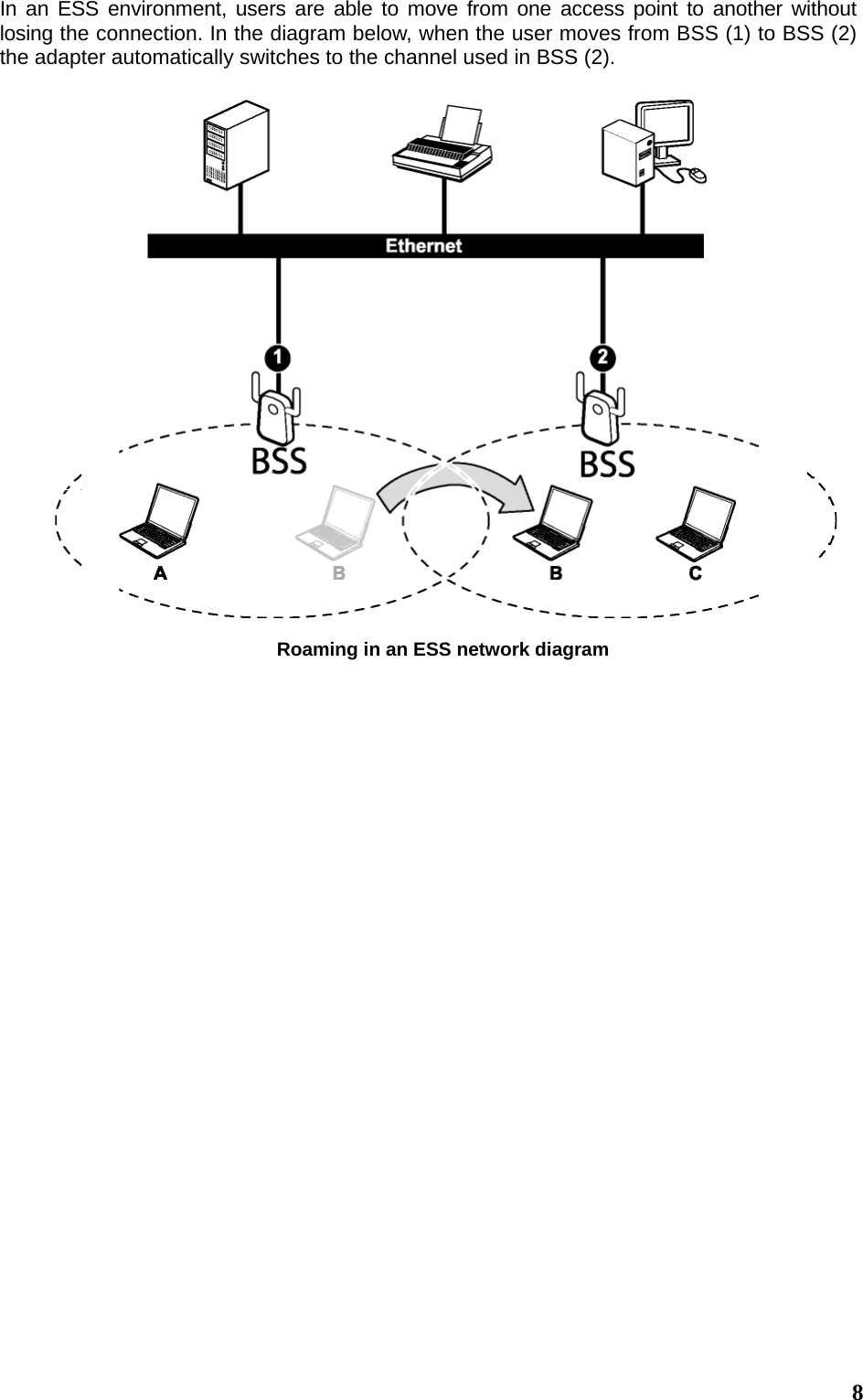

8 In an ESS environment, users are able to move from one access point to another without losing the connection. In the diagram below, when the user moves from BSS (1) to BSS (2) the adapter automatically switches to the channel used in BSS (2). Roaming in an ESS network diagram

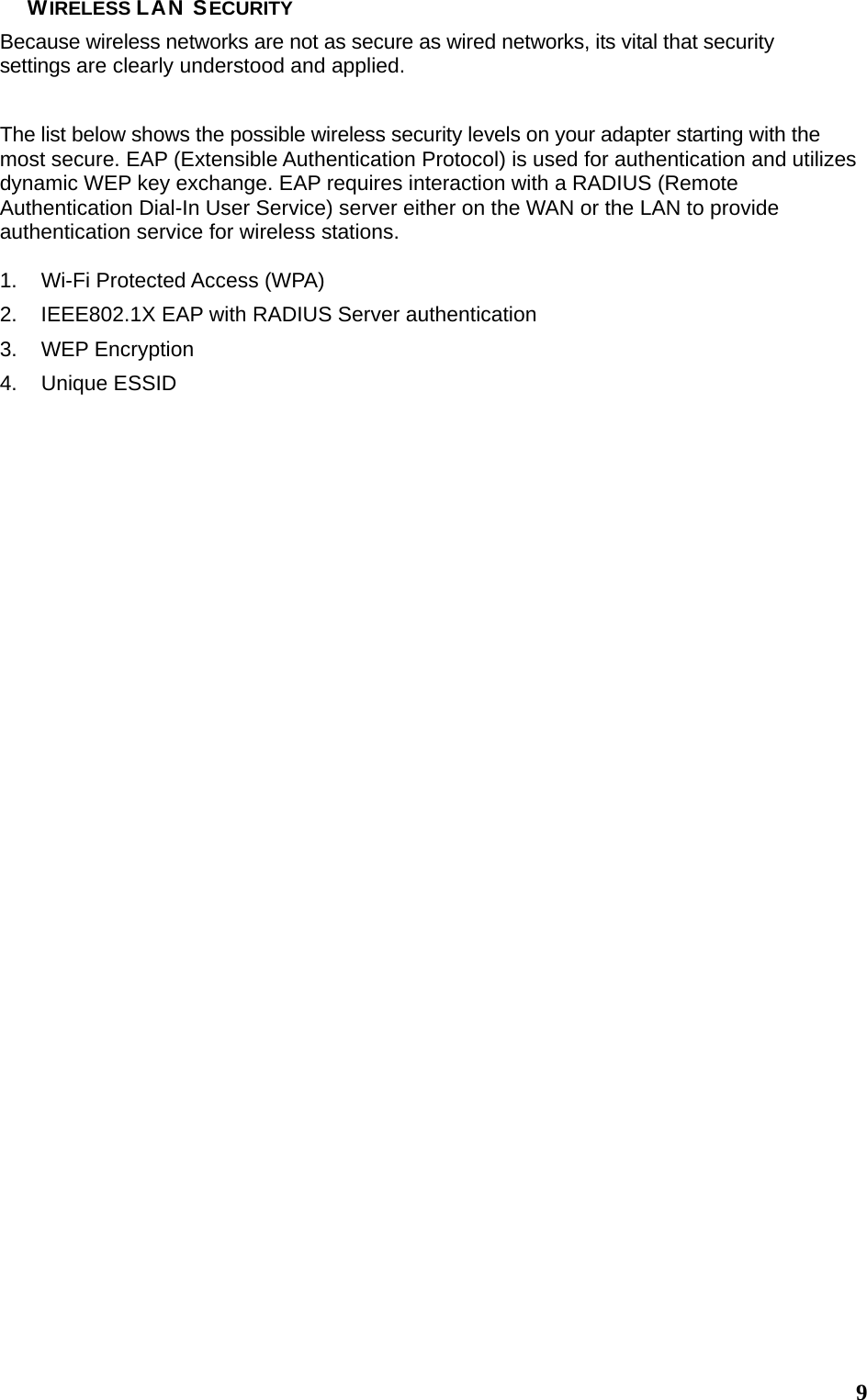

9WIRELESS LAN SECURITY Because wireless networks are not as secure as wired networks, its vital that security settings are clearly understood and applied. The list below shows the possible wireless security levels on your adapter starting with the most secure. EAP (Extensible Authentication Protocol) is used for authentication and utilizes dynamic WEP key exchange. EAP requires interaction with a RADIUS (Remote Authentication Dial-In User Service) server either on the WAN or the LAN to provide authentication service for wireless stations. 1. Wi-Fi Protected Access (WPA) 2. IEEE802.1X EAP with RADIUS Server authentication 3. WEP Encryption 4. Unique ESSID

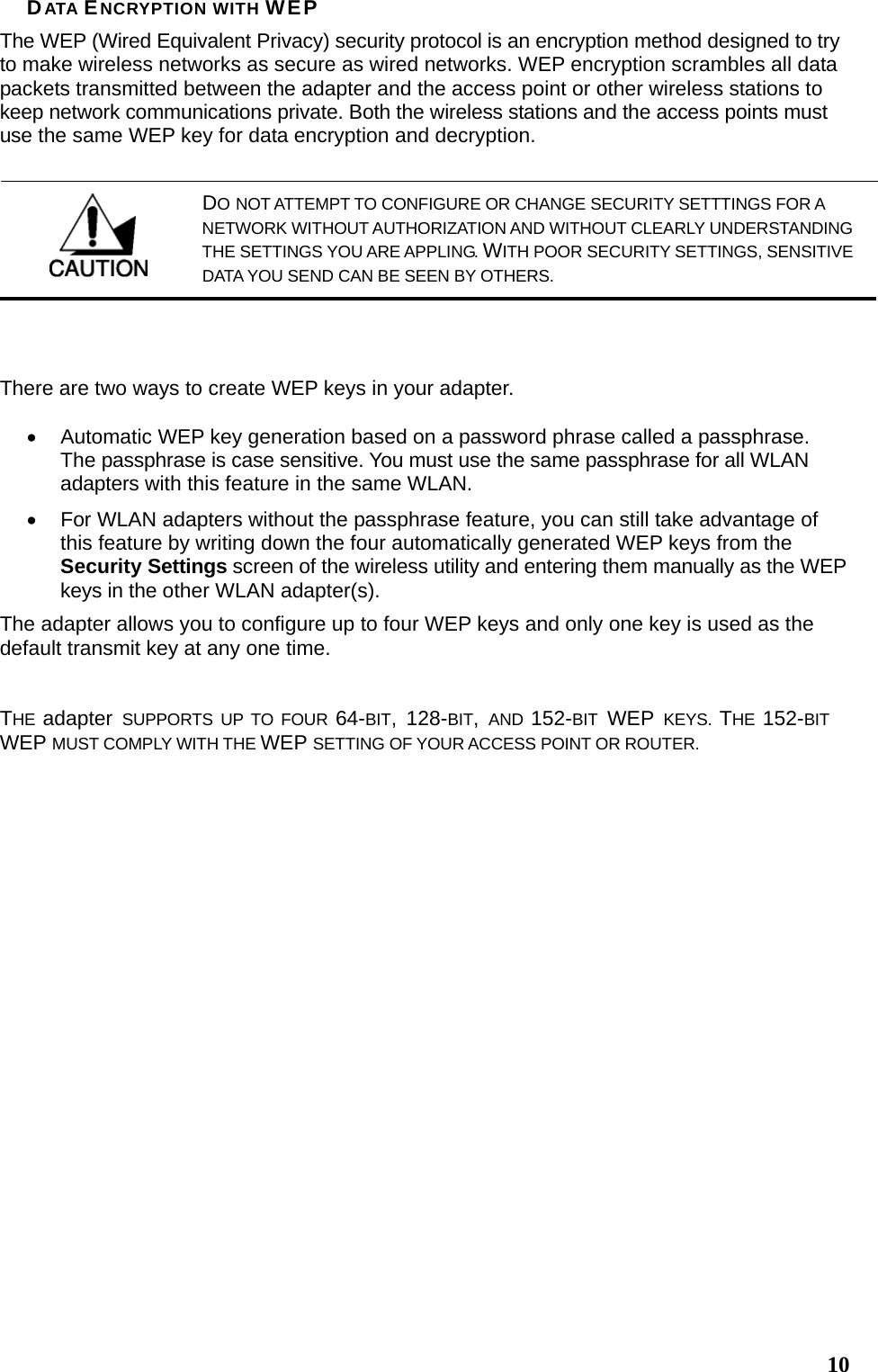

10DATA ENCRYPTION WITH WEP The WEP (Wired Equivalent Privacy) security protocol is an encryption method designed to try to make wireless networks as secure as wired networks. WEP encryption scrambles all data packets transmitted between the adapter and the access point or other wireless stations to keep network communications private. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption. There are two ways to create WEP keys in your adapter. • Automatic WEP key generation based on a password phrase called a passphrase. The passphrase is case sensitive. You must use the same passphrase for all WLAN adapters with this feature in the same WLAN. • For WLAN adapters without the passphrase feature, you can still take advantage of this feature by writing down the four automatically generated WEP keys from the Security Settings screen of the wireless utility and entering them manually as the WEP keys in the other WLAN adapter(s). The adapter allows you to configure up to four WEP keys and only one key is used as the default transmit key at any one time. THE adapter SUPPORTS UP TO FOUR 64-BIT, 128-BIT, AND 152-BIT WEP KEYS. THE 152-BIT WEP MUST COMPLY WITH THE WEP SETTING OF YOUR ACCESS POINT OR ROUTER. DO NOT ATTEMPT TO CONFIGURE OR CHANGE SECURITY SETTTINGS FOR A NETWORK WITHOUT AUTHORIZATION AND WITHOUT CLEARLY UNDERSTANDING THE SETTINGS YOU ARE APPLING. WITH POOR SECURITY SETTINGS, SENSITIVE DATA YOU SEND CAN BE SEEN BY OTHERS.

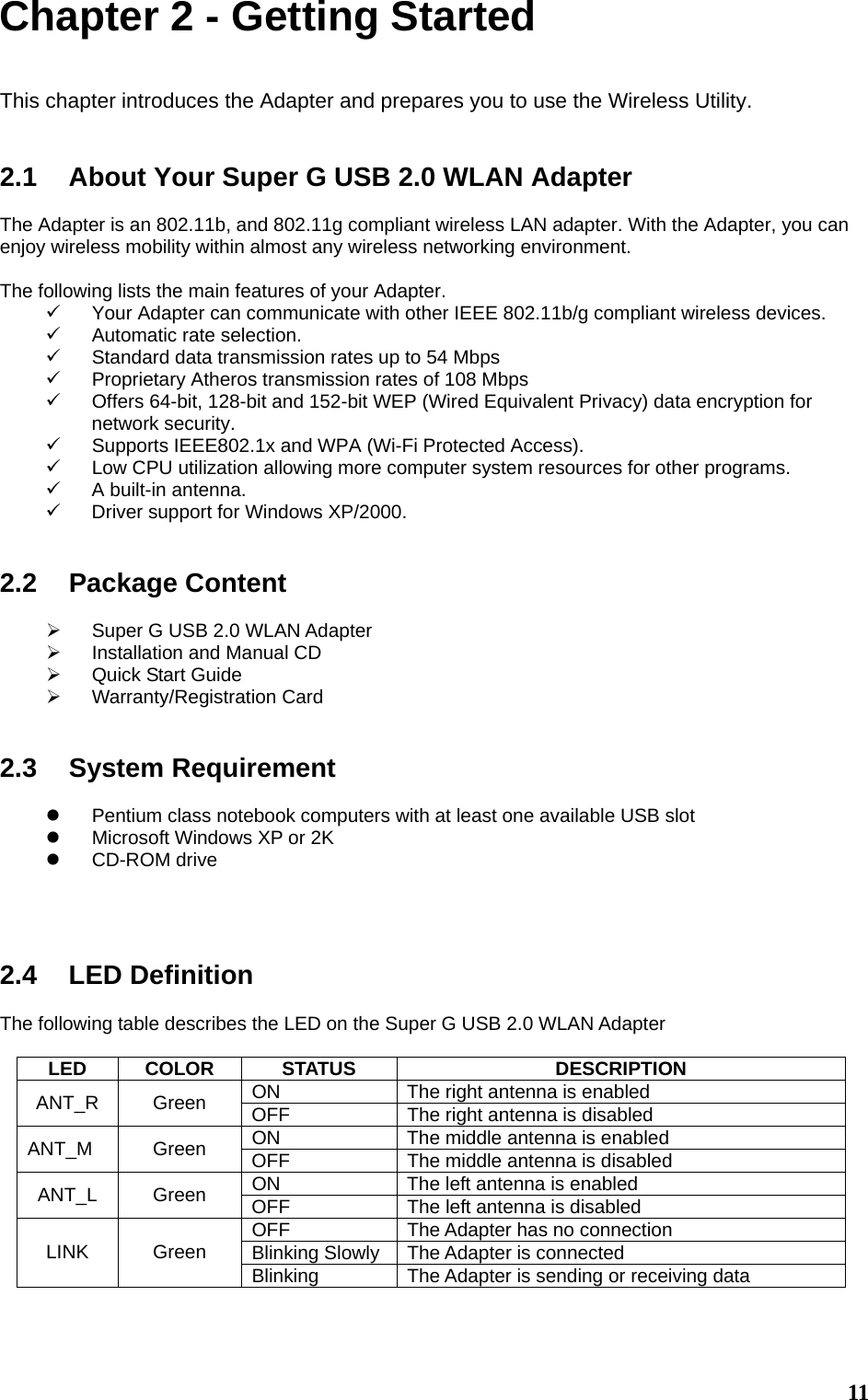

11Chapter 2 - Getting Started This chapter introduces the Adapter and prepares you to use the Wireless Utility. 2.1 About Your Super G USB 2.0 WLAN Adapter The Adapter is an 802.11b, and 802.11g compliant wireless LAN adapter. With the Adapter, you can enjoy wireless mobility within almost any wireless networking environment. The following lists the main features of your Adapter. 9 Your Adapter can communicate with other IEEE 802.11b/g compliant wireless devices. 9 Automatic rate selection. 9 Standard data transmission rates up to 54 Mbps 9 Proprietary Atheros transmission rates of 108 Mbps 9 Offers 64-bit, 128-bit and 152-bit WEP (Wired Equivalent Privacy) data encryption for network security. 9 Supports IEEE802.1x and WPA (Wi-Fi Protected Access). 9 Low CPU utilization allowing more computer system resources for other programs. 9 A built-in antenna. 9 Driver support for Windows XP/2000. 2.2 Package Content ¾ Super G USB 2.0 WLAN Adapter ¾ Installation and Manual CD ¾ Quick Start Guide ¾ Warranty/Registration Card 2.3 System Requirement z Pentium class notebook computers with at least one available USB slot z Microsoft Windows XP or 2K z CD-ROM drive 2.4 LED Definition The following table describes the LED on the Super G USB 2.0 WLAN Adapter LED COLOR STATUS DESCRIPTION ON The right antenna is enabled ANT_R Green OFF The right antenna is disabled ON The middle antenna is enabled ANT_M Green OFF The middle antenna is disabled ON The left antenna is enabled ANT_L Green OFF The left antenna is disabled OFF The Adapter has no connection Blinking Slowly The Adapter is connected LINK Green Blinking The Adapter is sending or receiving data

122.5 Wireless Utility & Adapter Hardware Installation NOTE: If you have connected the USB Adapter to your computer, please remove it first. Follow the instructions below to install the USB Adapter and Utility. STEP 1 Insert the Driver and Utility CD into CD drive STEP 2 If your CD Autorun is enabled, the installation procedures will be started. (Otherwise open your CD folder and double-click on the “setup.exe” file) STEP 3 The InstallShield Wizard prepares for installation. STEP 4 The InstallShield Wizard prompts you for confirmation. Click Next on the following menu. STEP 5 In the destination Folder screen you are asked to confirm the Destination Folder for the application software. If you would like, you may change the destination folder to another location. Click Next

13 STEP 6 The wizard is ready to begin installation. Click Install on it. STEP 7 At the Software Installation menu click Continue Anyway.

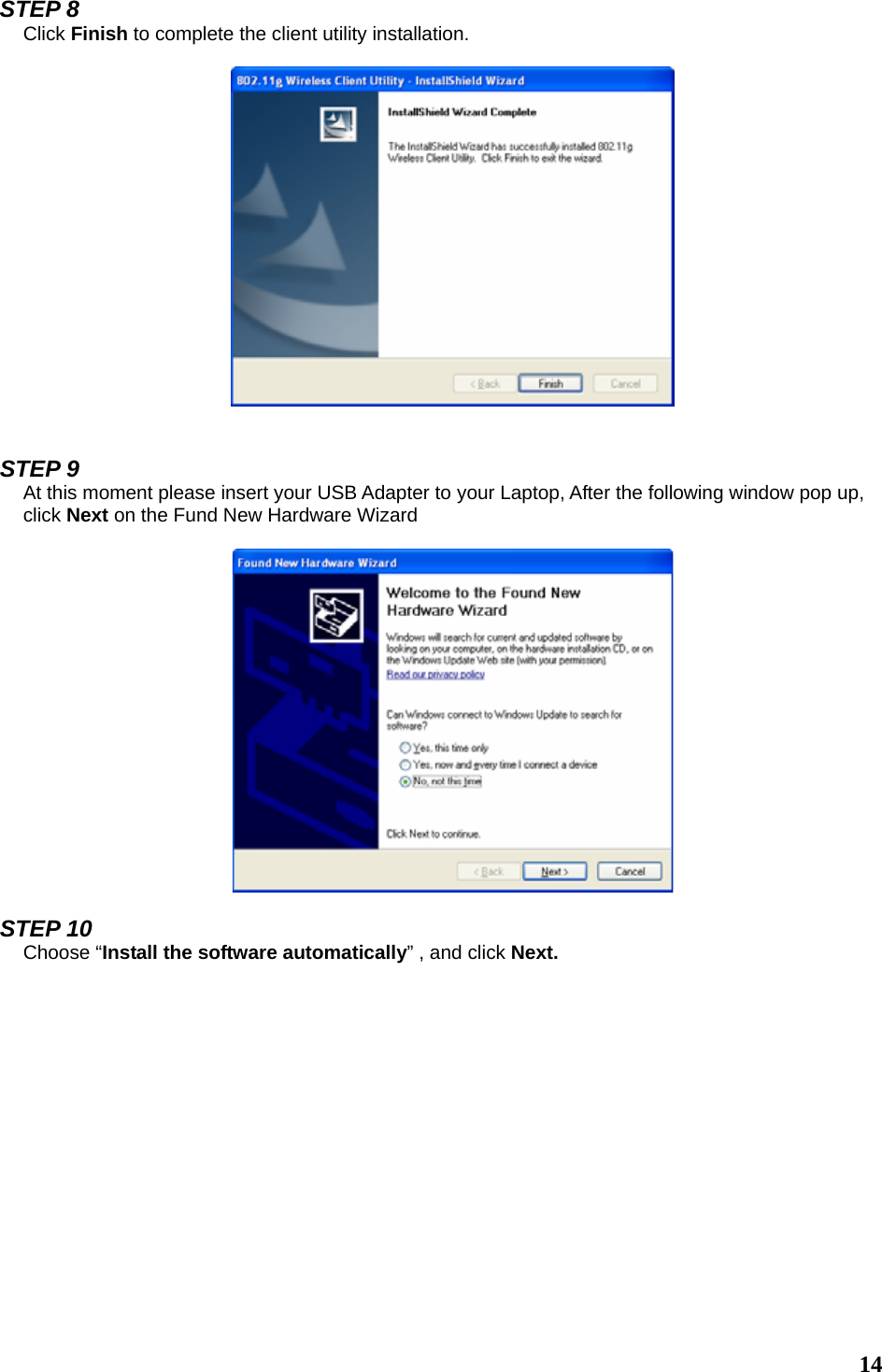

14 STEP 8 Click Finish to complete the client utility installation. STEP 9 At this moment please insert your USB Adapter to your Laptop, After the following window pop up, click Next on the Fund New Hardware Wizard STEP 10 Choose “Install the software automatically” , and click Next.

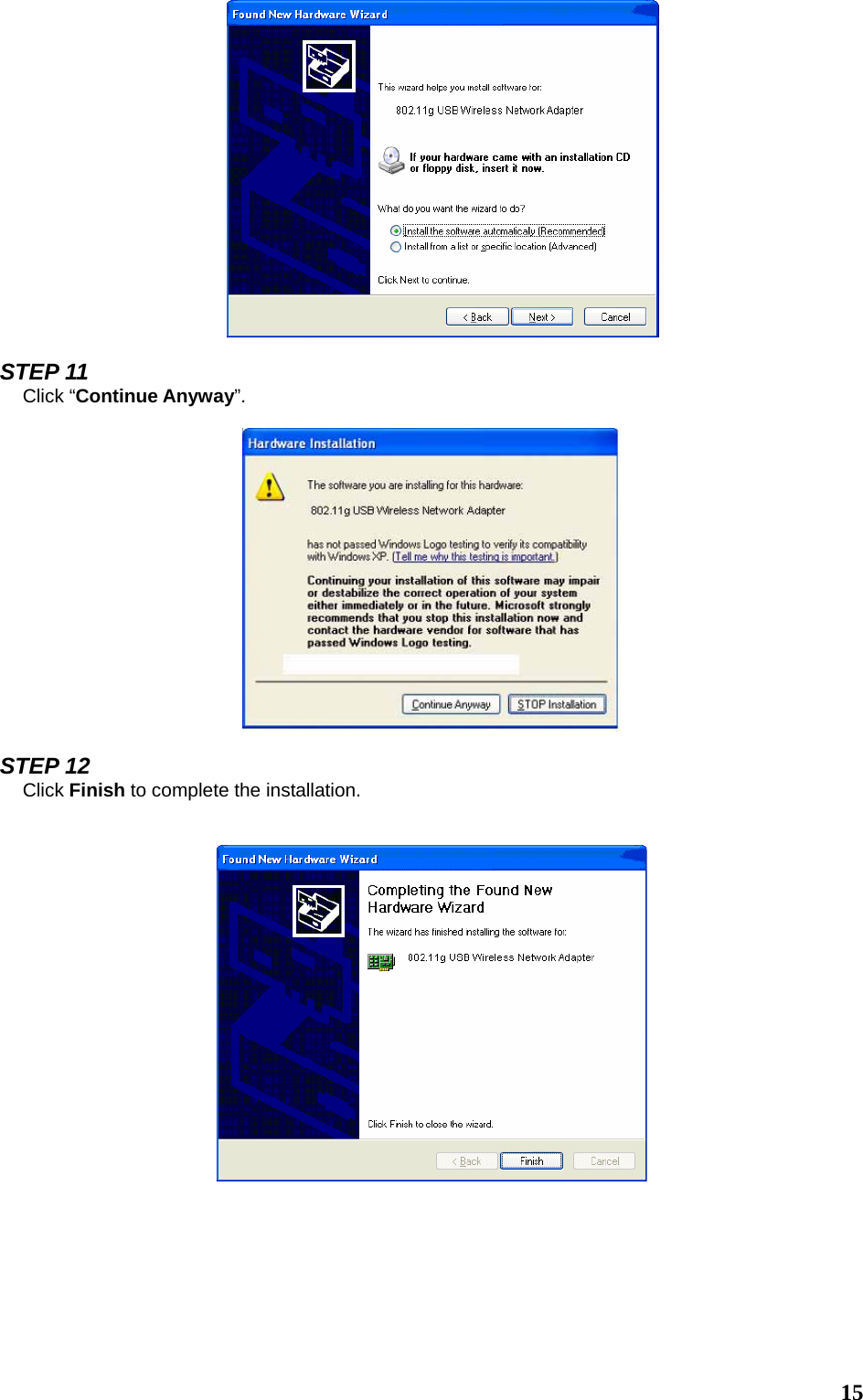

15 STEP 11 Click “Continue Anyway”. STEP 12 Click Finish to complete the installation.

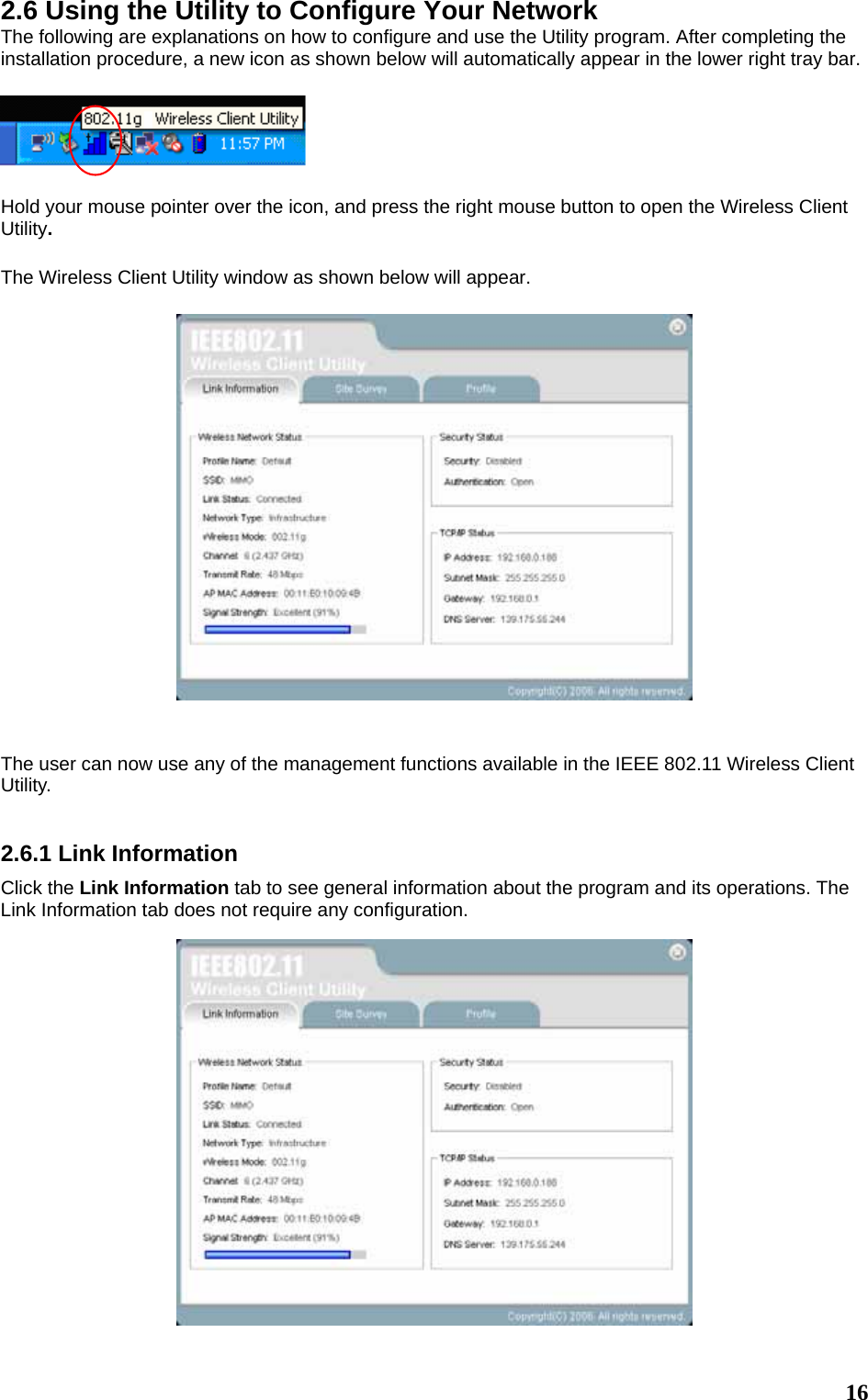

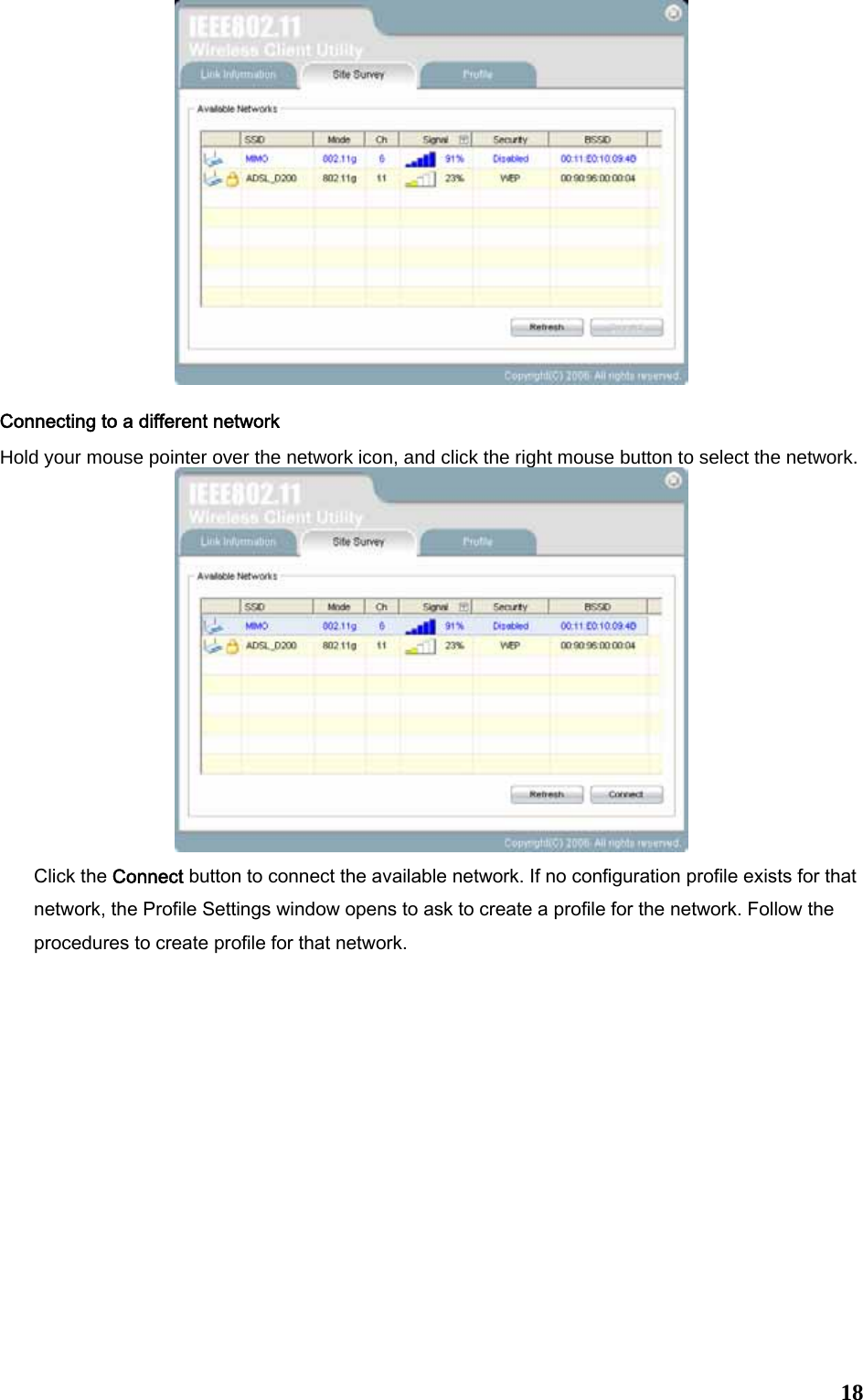

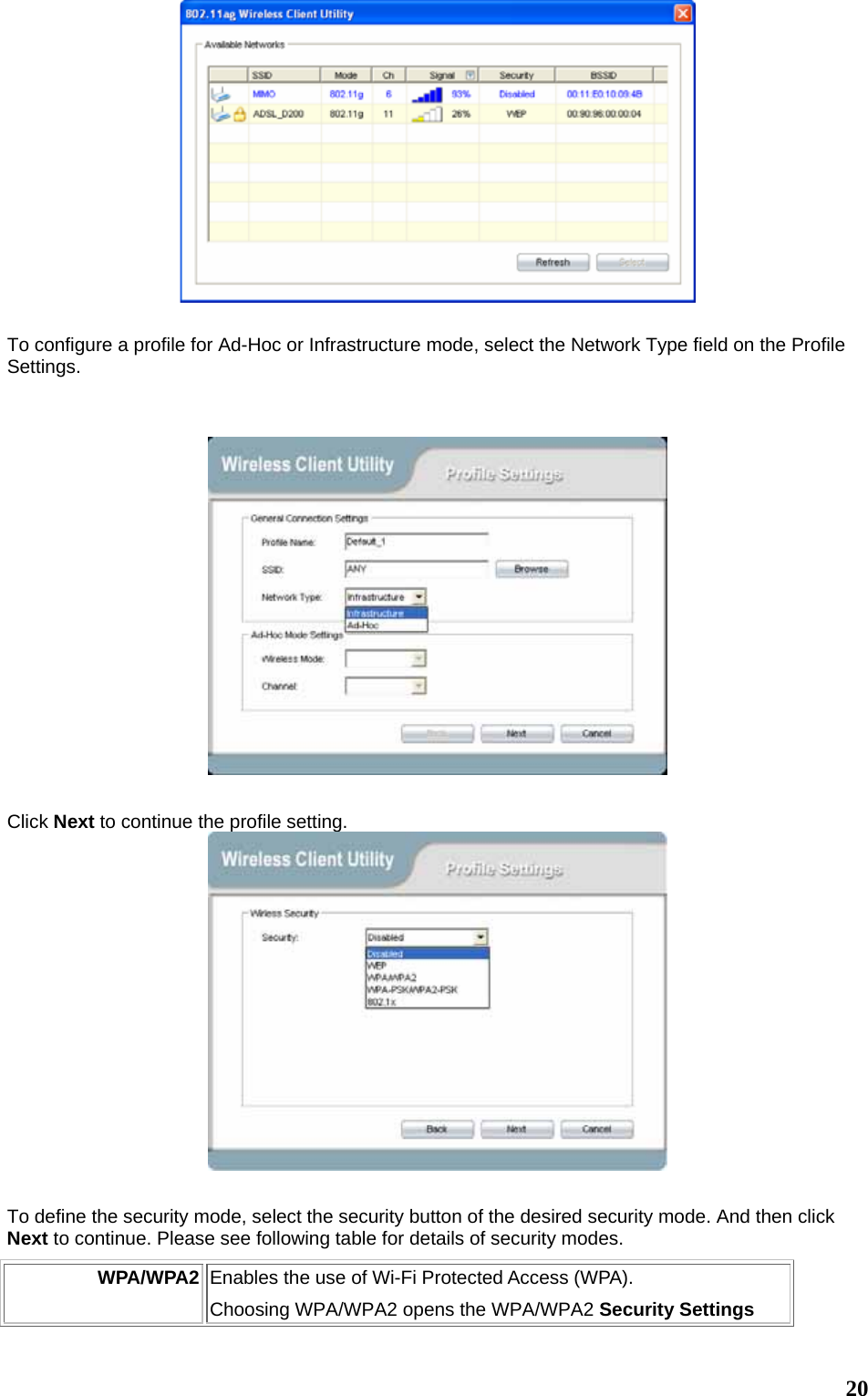

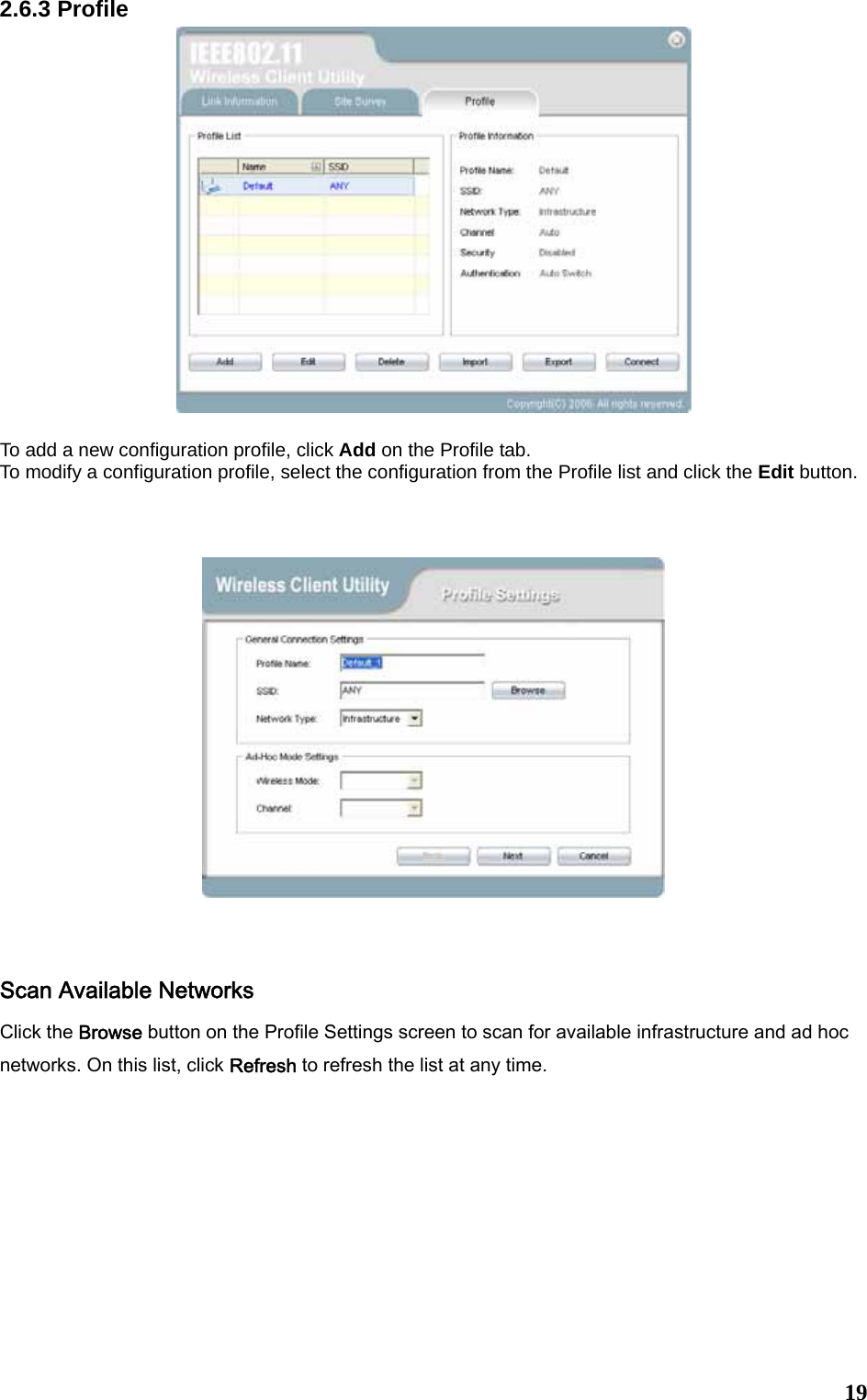

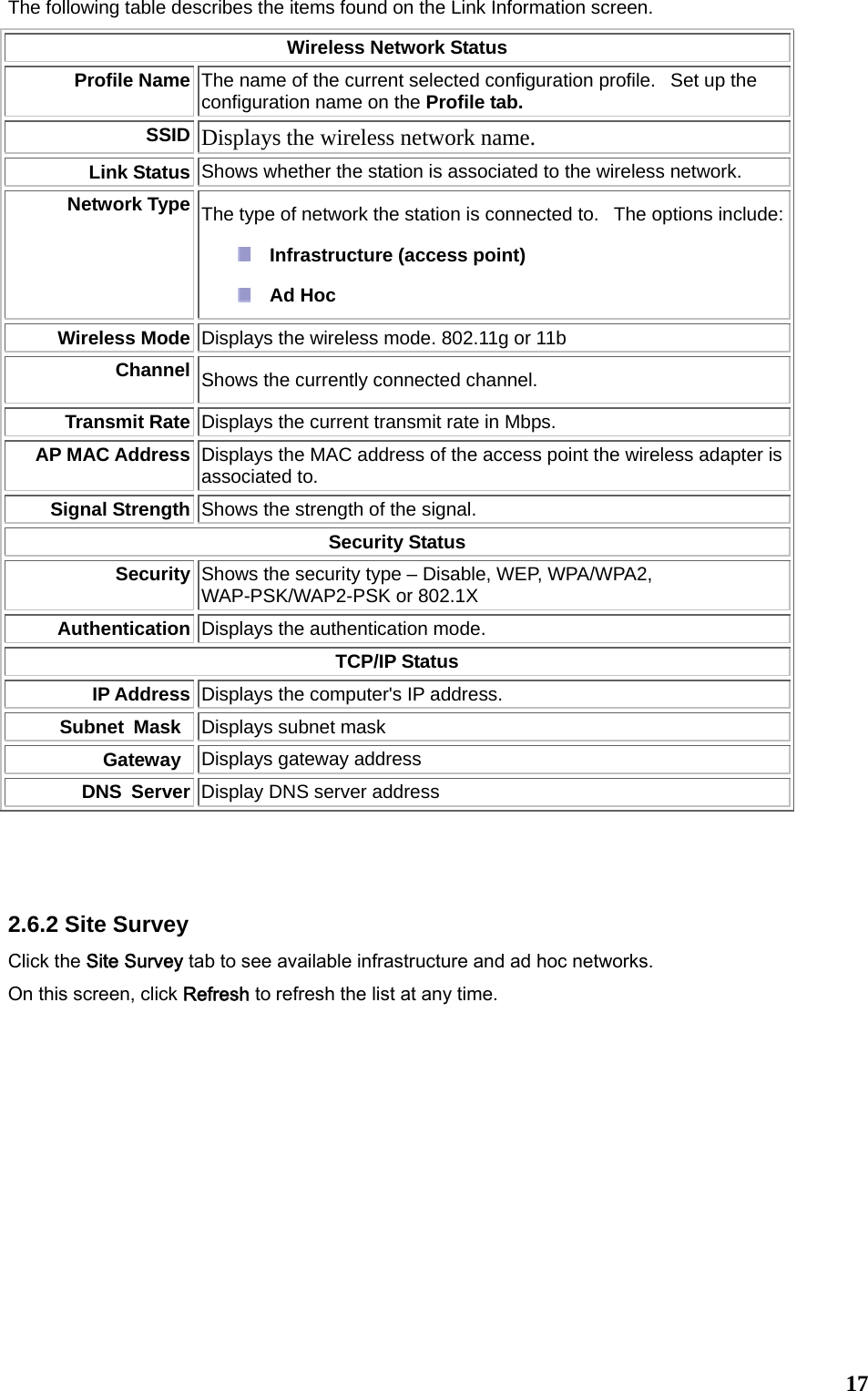

162.6 Using the Utility to Configure Your Network The following are explanations on how to configure and use the Utility program. After completing the installation procedure, a new icon as shown below will automatically appear in the lower right tray bar. Hold your mouse pointer over the icon, and press the right mouse button to open the Wireless Client Utility. The Wireless Client Utility window as shown below will appear. The user can now use any of the management functions available in the IEEE 802.11 Wireless Client Utility. 2.6.1 Link Information Click the Link Information tab to see general information about the program and its operations. The Link Information tab does not require any configuration.

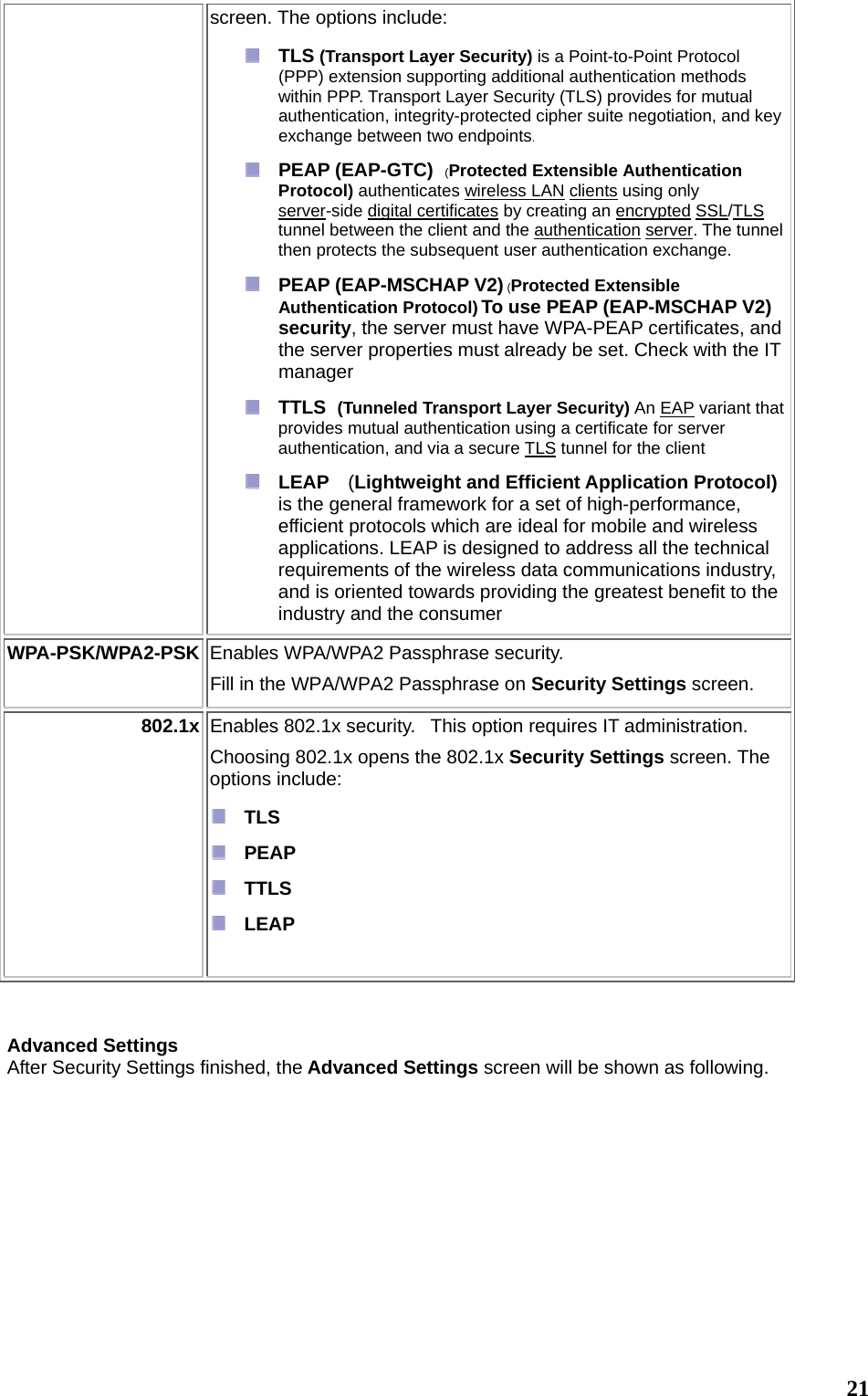

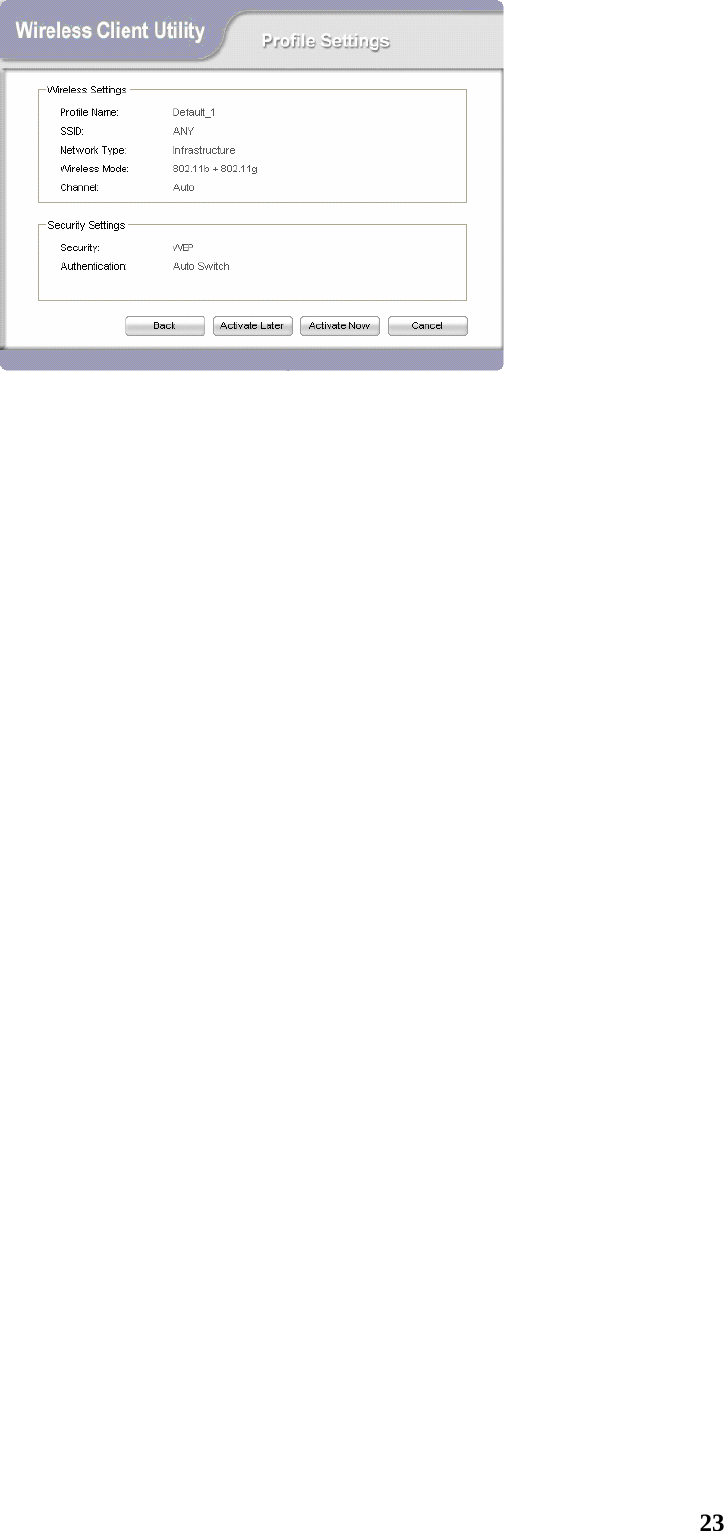

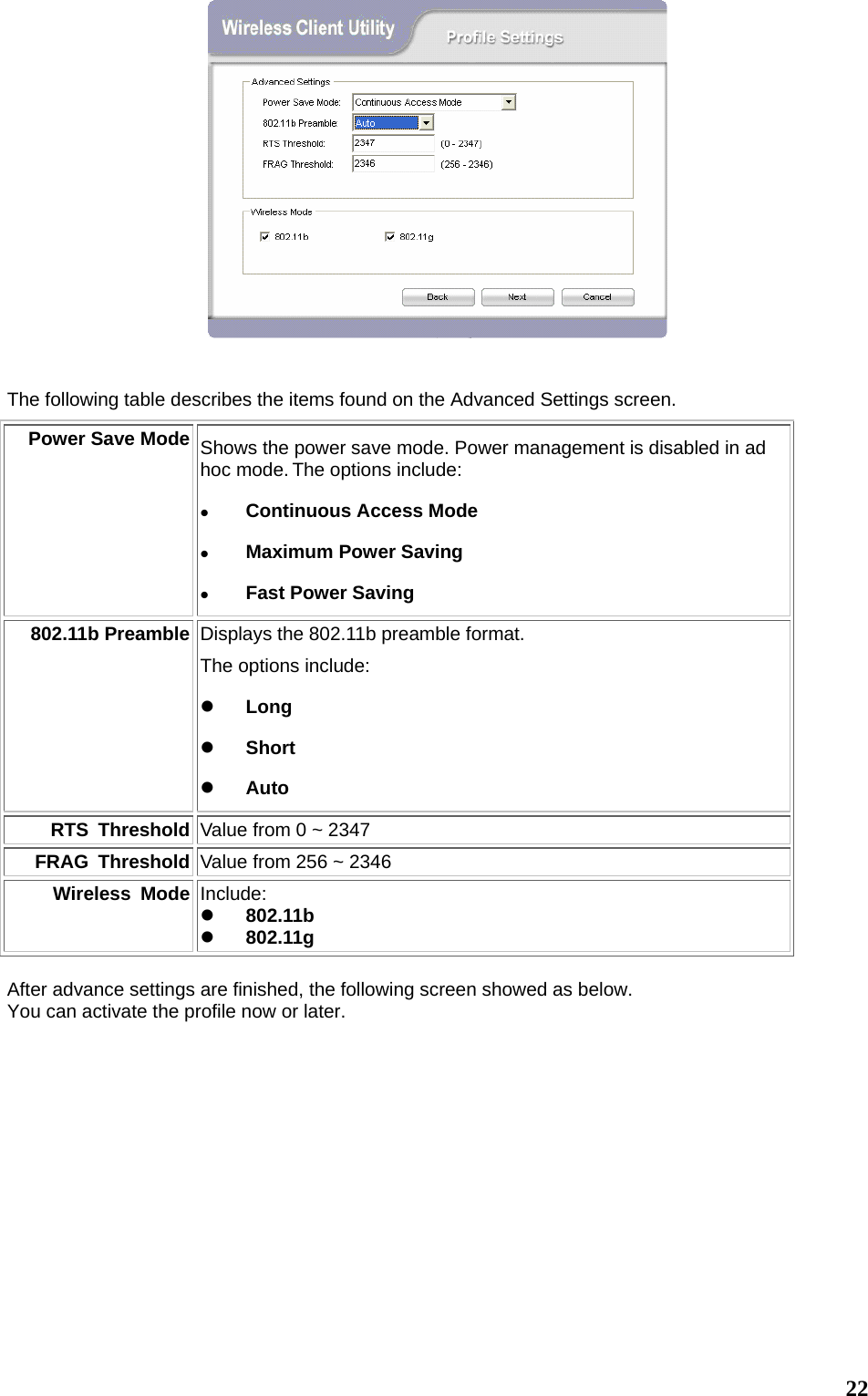

21screen. The options include: TLS (Transport Layer Security) is a Point-to-Point Protocol (PPP) extension supporting additional authentication methods within PPP. Transport Layer Security (TLS) provides for mutual authentication, integrity-protected cipher suite negotiation, and key exchange between two endpoints. PEAP (EAP-GTC) (Protected Extensible Authentication Protocol) authenticates wireless LAN clients using only server-side digital certificates by creating an encrypted SSL/TLS tunnel between the client and the authentication server. The tunnel then protects the subsequent user authentication exchange. PEAP (EAP-MSCHAP V2) (Protected Extensible Authentication Protocol) To use PEAP (EAP-MSCHAP V2) security, the server must have WPA-PEAP certificates, and the server properties must already be set. Check with the IT manager TTLS (Tunneled Transport Layer Security) An EAP variant that provides mutual authentication using a certificate for server authentication, and via a secure TLS tunnel for the client LEAP (Lightweight and Efficient Application Protocol) is the general framework for a set of high-performance, efficient protocols which are ideal for mobile and wireless applications. LEAP is designed to address all the technical requirements of the wireless data communications industry, and is oriented towards providing the greatest benefit to the industry and the consumer WPA-PSK/WPA2-PSK Enables WPA/WPA2 Passphrase security. Fill in the WPA/WPA2 Passphrase on Security Settings screen. 802.1x Enables 802.1x security. This option requires IT administration. Choosing 802.1x opens the 802.1x Security Settings screen. The options include: TLS PEAP TTLS LEAP Advanced Settings After Security Settings finished, the Advanced Settings screen will be shown as following.

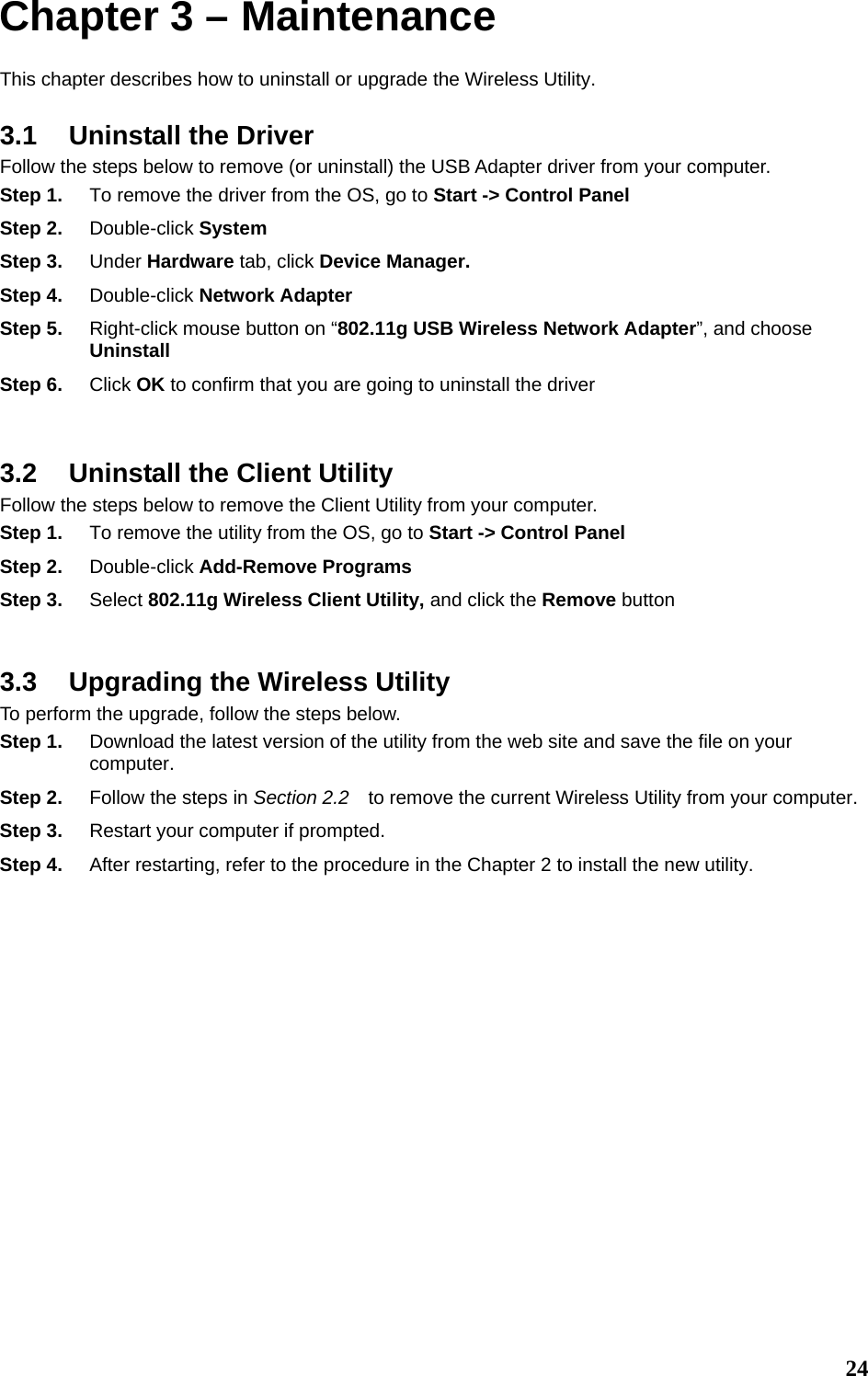

24Chapter 3 – Maintenance This chapter describes how to uninstall or upgrade the Wireless Utility. 3.1 Uninstall the Driver Follow the steps below to remove (or uninstall) the USB Adapter driver from your computer. Step 1. To remove the driver from the OS, go to Start -> Control Panel Step 2. Double-click System Step 3. Under Hardware tab, click Device Manager. Step 4. Double-click Network Adapter Step 5. Right-click mouse button on “802.11g USB Wireless Network Adapter”, and choose Uninstall Step 6. Click OK to confirm that you are going to uninstall the driver 3.2 Uninstall the Client Utility Follow the steps below to remove the Client Utility from your computer. Step 1. To remove the utility from the OS, go to Start -> Control Panel Step 2. Double-click Add-Remove Programs Step 3. Select 802.11g Wireless Client Utility, and click the Remove button 3.3 Upgrading the Wireless Utility To perform the upgrade, follow the steps below. Step 1. Download the latest version of the utility from the web site and save the file on your computer. Step 2. Follow the steps in Section 2.2 to remove the current Wireless Utility from your computer. Step 3. Restart your computer if prompted. Step 4. After restarting, refer to the procedure in the Chapter 2 to install the new utility.

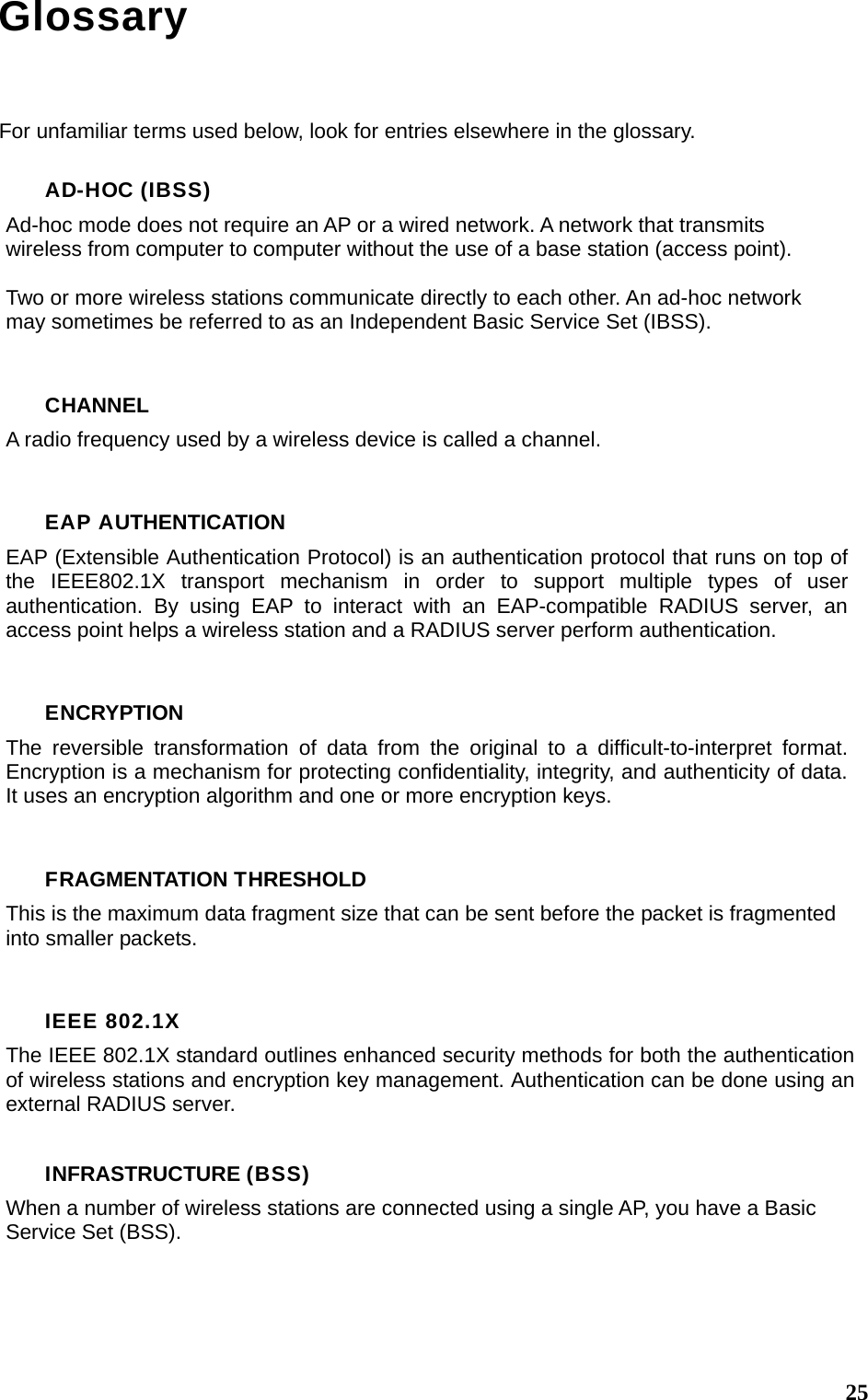

25Glossary For unfamiliar terms used below, look for entries elsewhere in the glossary. AD-HOC (IBSS) Ad-hoc mode does not require an AP or a wired network. A network that transmits wireless from computer to computer without the use of a base station (access point). Two or more wireless stations communicate directly to each other. An ad-hoc network may sometimes be referred to as an Independent Basic Service Set (IBSS). CHANNEL A radio frequency used by a wireless device is called a channel. EAP AUTHENTICATION EAP (Extensible Authentication Protocol) is an authentication protocol that runs on top of the IEEE802.1X transport mechanism in order to support multiple types of user authentication. By using EAP to interact with an EAP-compatible RADIUS server, an access point helps a wireless station and a RADIUS server perform authentication. ENCRYPTION The reversible transformation of data from the original to a difficult-to-interpret format. Encryption is a mechanism for protecting confidentiality, integrity, and authenticity of data. It uses an encryption algorithm and one or more encryption keys. FRAGMENTATION THRESHOLD This is the maximum data fragment size that can be sent before the packet is fragmented into smaller packets. IEEE 802.1X The IEEE 802.1X standard outlines enhanced security methods for both the authentication of wireless stations and encryption key management. Authentication can be done using an external RADIUS server. INFRASTRUCTURE (BSS) When a number of wireless stations are connected using a single AP, you have a Basic Service Set (BSS).

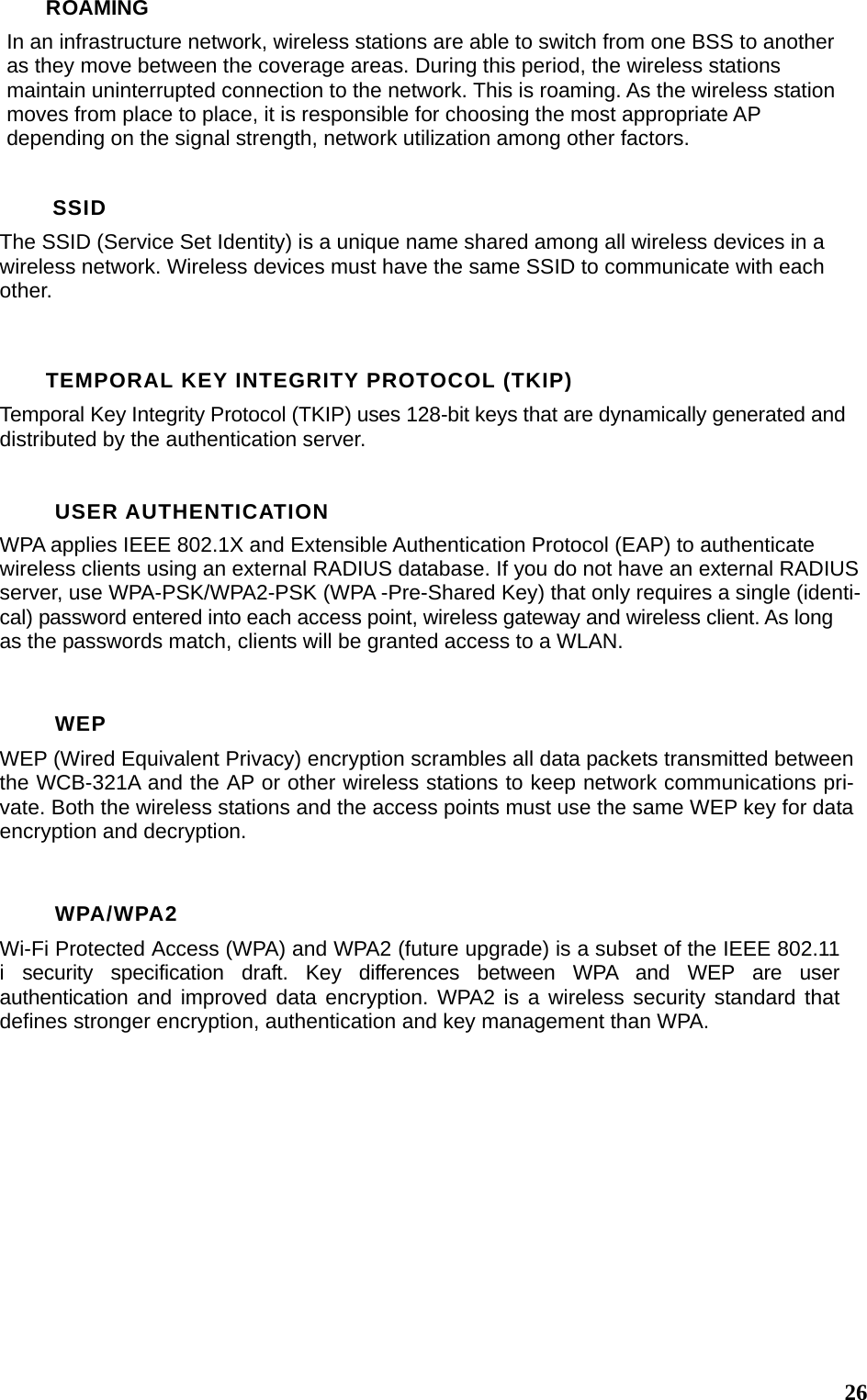

26ROAMING In an infrastructure network, wireless stations are able to switch from one BSS to another as they move between the coverage areas. During this period, the wireless stations maintain uninterrupted connection to the network. This is roaming. As the wireless station moves from place to place, it is responsible for choosing the most appropriate AP depending on the signal strength, network utilization among other factors. SSID The SSID (Service Set Identity) is a unique name shared among all wireless devices in a wireless network. Wireless devices must have the same SSID to communicate with each other. TEMPORAL KEY INTEGRITY PROTOCOL (TKIP) Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically generated and distributed by the authentication server. USER AUTHENTICATION WPA applies IEEE 802.1X and Extensible Authentication Protocol (EAP) to authenticate wireless clients using an external RADIUS database. If you do not have an external RADIUS server, use WPA-PSK/WPA2-PSK (WPA -Pre-Shared Key) that only requires a single (identi-cal) password entered into each access point, wireless gateway and wireless client. As long as the passwords match, clients will be granted access to a WLAN. WEP WEP (Wired Equivalent Privacy) encryption scrambles all data packets transmitted between the WCB-321A and the AP or other wireless stations to keep network communications pri-vate. Both the wireless stations and the access points must use the same WEP key for data encryption and decryption. WPA/WPA2 Wi-Fi Protected Access (WPA) and WPA2 (future upgrade) is a subset of the IEEE 802.11 i security specification draft. Key differences between WPA and WEP are user authentication and improved data encryption. WPA2 is a wireless security standard that defines stronger encryption, authentication and key management than WPA.
