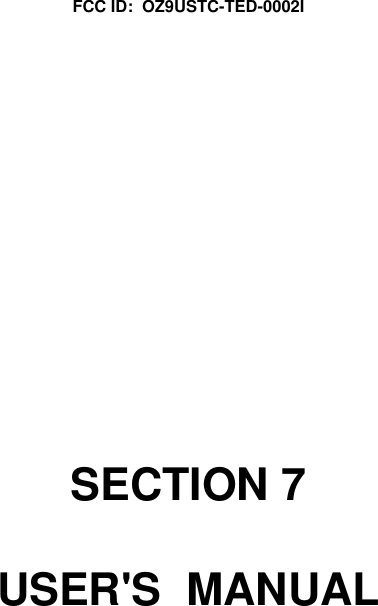

FCC ID: OZ9USTC-TED-0002ISECTION 7USER'S MANUAL
FCC ID: OZ9USTC-TED-0002IAxonn CorporationU.S. TelemetryTransmit Endpoint DeviceUsers ManualRF Transmitter Installation InstructionsThe USTC TED transmitter should only be installed by qualified service personnel.The transmitter detects status or other data signals from the external binary inputs and lowbattery and broadcasts that data to the system's CTS sites.MOUNTING LOCATIONThe USTC TED Transmitter is an RTU as defined by the FCC.INSTALLATION INSTRUCTIONS1. Supply the transmitter with DC power by inserting three 3-Volt batteries into the batteryholder inside the transmitter.2. The unit will come pre-programmed with Transmitter ID. There will be field programmingof the unit for other parameters.3. As the TED will be used to transmit utility-meter information to the CTS, the TED will belocated next to electric, water, or gas meters.4. When installing the TED you should avoid areas near screens, metal window frames,circuit breaker boxes, air conditioners and heaters if a suitable location for the unit may befound elsewhere. TESTING THE TRANSMITTERFollowing system installation, system testing is mandatory. This should be performed bylocating the TED in its final location and powering up the unit. On initial power-up, the TEDwill send out RF messages every 4 seconds or more depending on programming. This willestablish communications with the CTS receiver and the information collected will then beused to judge system performanceFCC NOTICEThe USTC TED transmitter generates and uses radio frequency energy. If not installed andused in accordance with the manufacturer's instructions, it may cause interference to radioand television reception. The transmitter has been tested and found to comply with thespecifications in Part 95 of the FCC Rules.If this equipment causes interference to radio or television reception - which can bedetermined by turning the equipment on and off - the installer is encouraged to correct theinterference by one or more of the following measures: 1) Reorient the antenna of theradio/television. 2) Connect the AC transformer to a different outlet so the TED andradio/television are on different branch circuits. 3) Relocate the TED with respect to theradio/television.

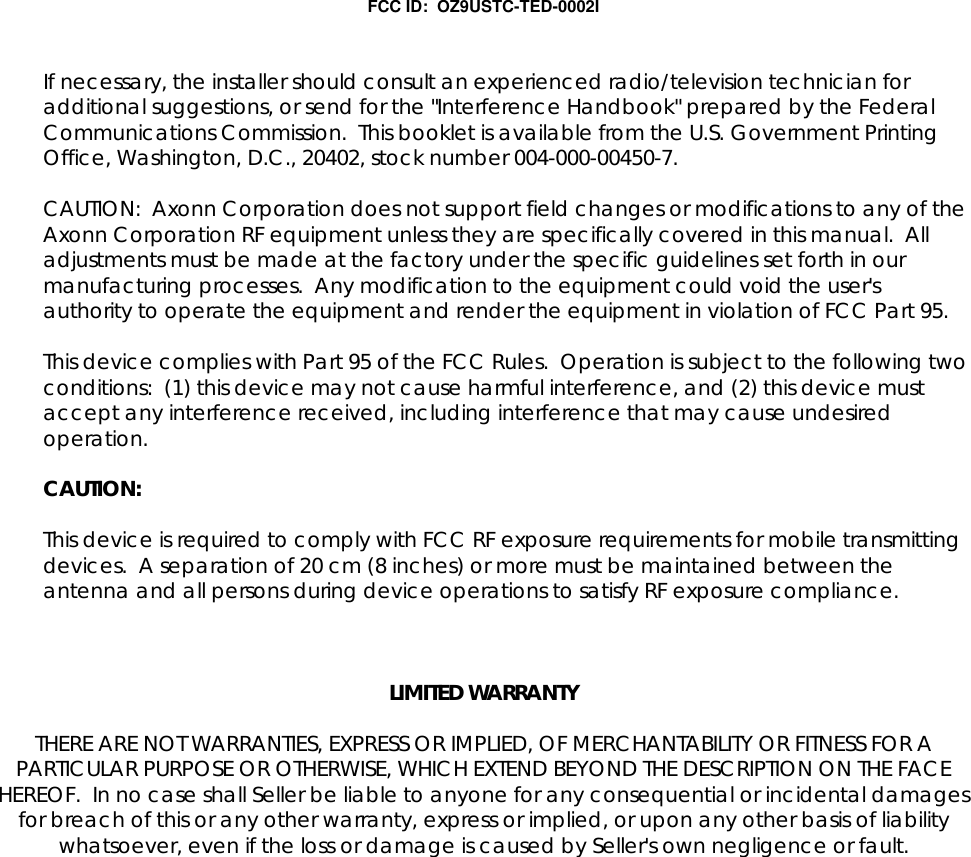

FCC ID: OZ9USTC-TED-0002IIf necessary, the installer should consult an experienced radio/television technician foradditional suggestions, or send for the "Interference Handbook" prepared by the FederalCommunications Commission. This booklet is available from the U.S. Government PrintingOffice, Washington, D.C., 20402, stock number 004-000-00450-7.CAUTION: Axonn Corporation does not support field changes or modifications to any of theAxonn Corporation RF equipment unless they are specifically covered in this manual. Alladjustments must be made at the factory under the specific guidelines set forth in ourmanufacturing processes. Any modification to the equipment could void the user'sauthority to operate the equipment and render the equipment in violation of FCC Part 95.This device complies with Part 95 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesiredoperation.CAUTION:This device is required to comply with FCC RF exposure requirements for mobile transmittingdevices. A separation of 20 cm (8 inches) or more must be maintained between theantenna and all persons during device operations to satisfy RF exposure compliance.LIMITED WARRANTYTHERE ARE NOT WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACEHEREOF. In no case shall Seller be liable to anyone for any consequential or incidental damagesfor breach of this or any other warranty, express or implied, or upon any other basis of liabilitywhatsoever, even if the loss or damage is caused by Seller's own negligence or fault.
