UBI TEK UBI001 CAR KIT-FM TRANSMITTER PORTION User Manual
UBI-TEK CO., LTD. CAR KIT-FM TRANSMITTER PORTION
UBI TEK >
USER MANUAL
1. Features of Product
1) The features of Bluetooth handsfree
2) The features of parking sensor
3) The features of parking camera
2. Product structure and parts’names
1) Upper side
2) Switches
3) Room mirror display (on LCD)
3. How to set the product
1) How to set U-788
2) How to set U-888
3) How to set U-988

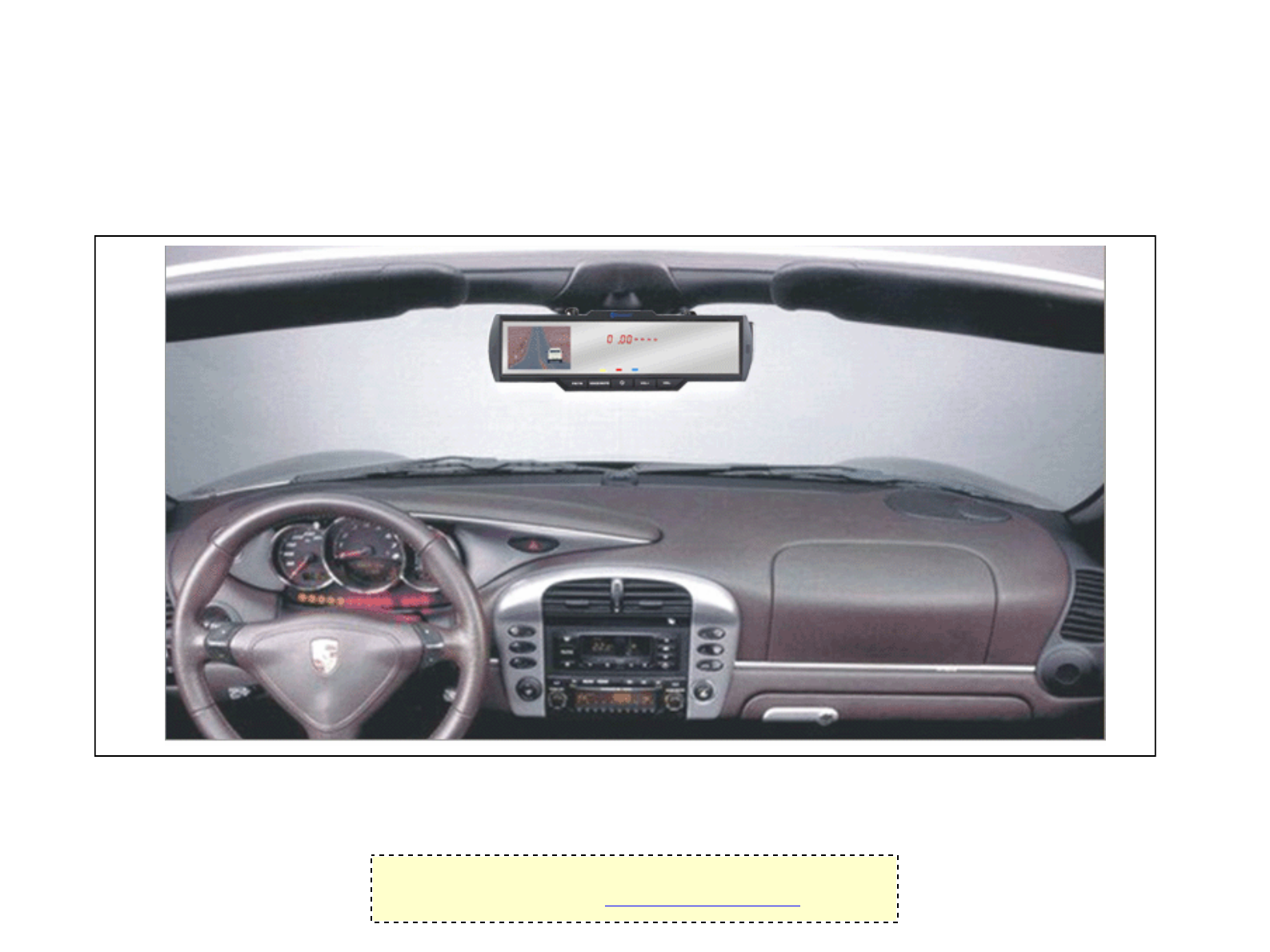

4) The picture after completed set
● After Set (Model : U-788/888)
4. How to connect bluetooth handsfree with cellular phone
5. How to answer with bluetooth handsfree in a vehicle
6. How to call with bluetooth handsfree in a vehicle
7. How to use a cellular phone while you are using room mirror handsfree
8. How to call using voice recognition
9. Stand by function while talking
10. How to connect with 3rd party while talking
11. How to connect with 3 people at the same time
12. How to select the precise frequency in case of using wireless earphone
13. Automatic connection with bluetooth handsfree
14. Manual connection with bluetooth handsfree
■ Contents
1
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
1. Features of Product
1). The features of Bluetooth Handsfree
(1) Various product line (U-688/U-788/U-888/U-988)
(2) Covering many types of communication system (GSM/CDMA/TDMA/WCDMA) and bluetooth
compatible
(3) U-988 camera lens are treated with chemically film special in order to protect refraction of light.
(4) LED radiation on the mirror is able to display 12 digit (telephone number & distance of
parking sensor) numbers.
(5) Large output speaker enables you to talk without any equipment in the vehicle and nobody would
recognize if you are talking without handling your cellular phone.
(6) Caller ID function
(7) Voice recognition calling function
(8) Current control system help to supply power safely
(9) Up grade are possible through USB connector.
(10) Multi-talking (3 people) is possible at the same time (phone with the multi-talking function)
(11) It does not need to be set again for connection because it will automatically connect upon initial
setting mode.
(12) It can stone up to 8 phone numbers.
(13) Including wireless earphone as standard accessory (Model : U-788/U-888/U-988)
(14) Pairing is simple and function is easy to use and understand.
(15) Luxury design
(16) Elegantly designed LED is easy to use and distinguish
(17) Reasonable price
(18) High technology product
(19) Easy to install in your vehicle
2
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
3). The features of parking camera
(1) with U-988 is you are guaranteed more safe and easy to park with parking camera (Parking
sensor is an option).
(2) Bar line shows the reverse direction on the display when you park in reverse.
(3) Parking camera will only operate when the gear is on reverse .
(4) The visual angle of parking camera is 135° and the visual distance is 5 meters.
2) The features of parking sensor
(1) 4 sensors on the back side bumper of the vehicle will show the distance from the obstacle
on the LCD display (Model : U-888 & U-988(option)). The distance shows 0.4m ~ 2.0m in
number and 4 steps of beep sound will be heard by the distance from obstacle.
(2) Distance number and LED will inform of the direction (right/left) from obstacle with bar line
(3) Parking sensor function starts as soon as shifted into reverse gear.
(4) Parking sensor function must be used with bluetooth room mirror.
3
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/

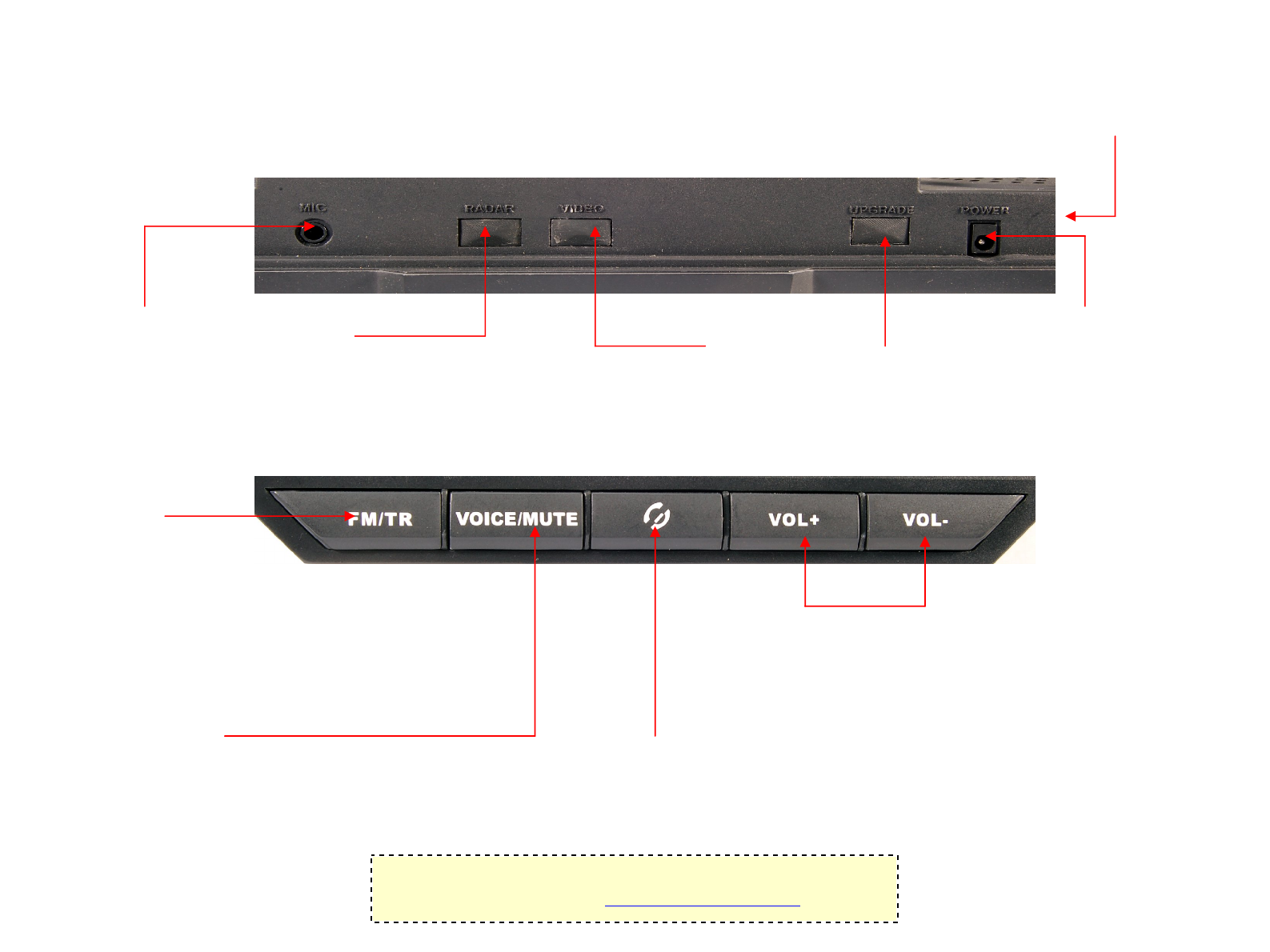

2. Product Structure and Parts’name
1. Mic Input Terminal
2. Parking Sensor Connector 3. Parking Camera Connector 4. Upgrade Connector
5. Power
6. Wireless earphone
7. FM / TR Button
1) FM : Frequency selection 3 frequencies
88.2MHz~88.6MHz
2) TR
② Cellular Phone → Handsfree
③ Handsfree → Cellular Phone
8. VOICE / MUTE
1) Voice Recognition
2) Secret Talk
9. 1) Send
2) Redial
3) Answer
10.VOL+ -
1) Speak Volume Up / Down
(Best Quality : Volume 10~12)
2) FM 8 Frequencies Up / Down
1) Upper Side
2) Switches
4
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
082319739836

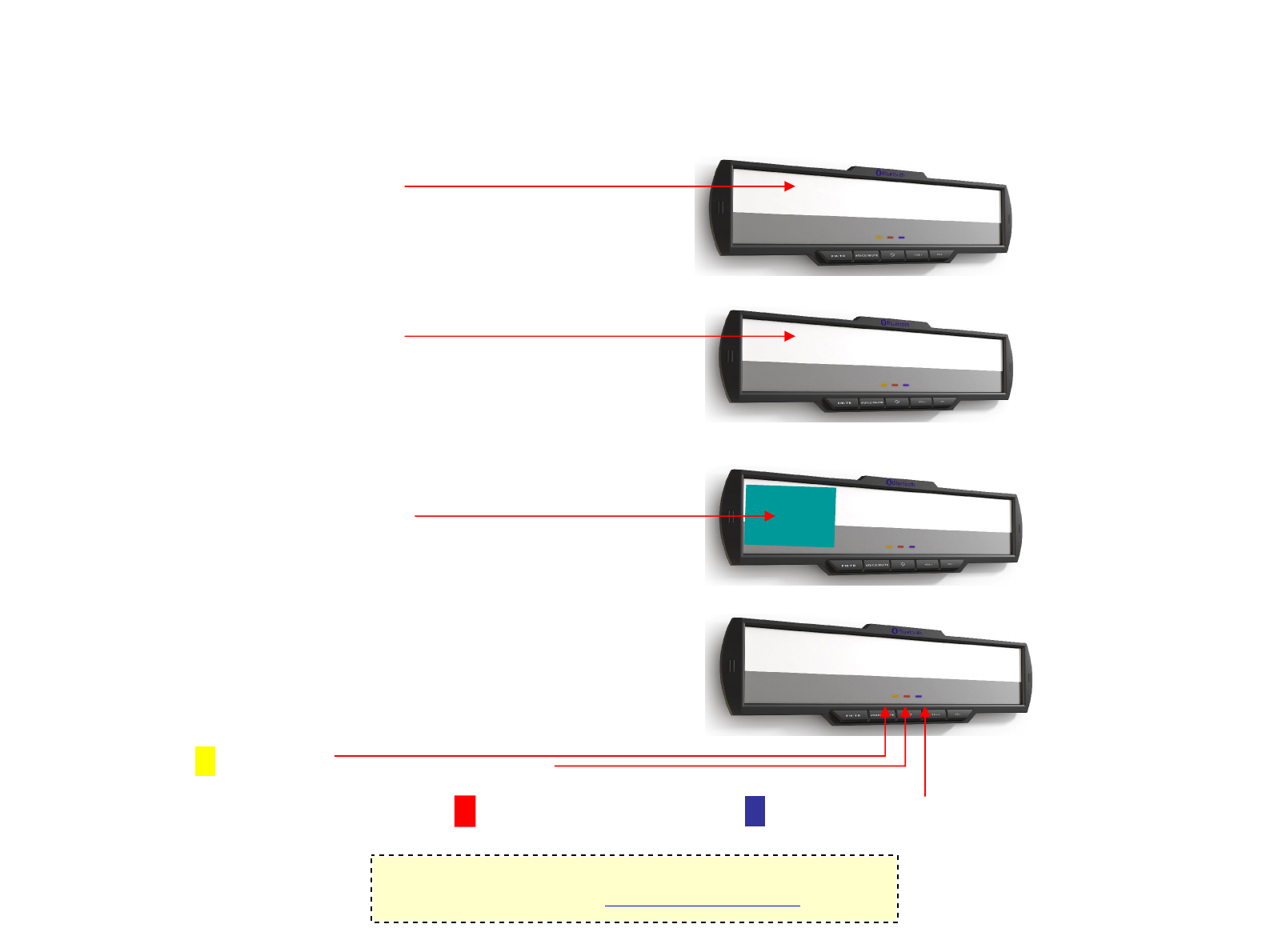

3) Parts’names of front side
● Caller ID function
-000-
● Distance indicator function
● Parking Camera Display
Blue LED
1) Lights on : Disconnect Bluetooth
2) Flickering 5 sec. interval : Connect Bluetooth
Red LED
1) Flickering : Calling
2) Lights on : whill Talking
Yellow LED
1) Quit Mike Sound
2) Voice Recognition
5
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/

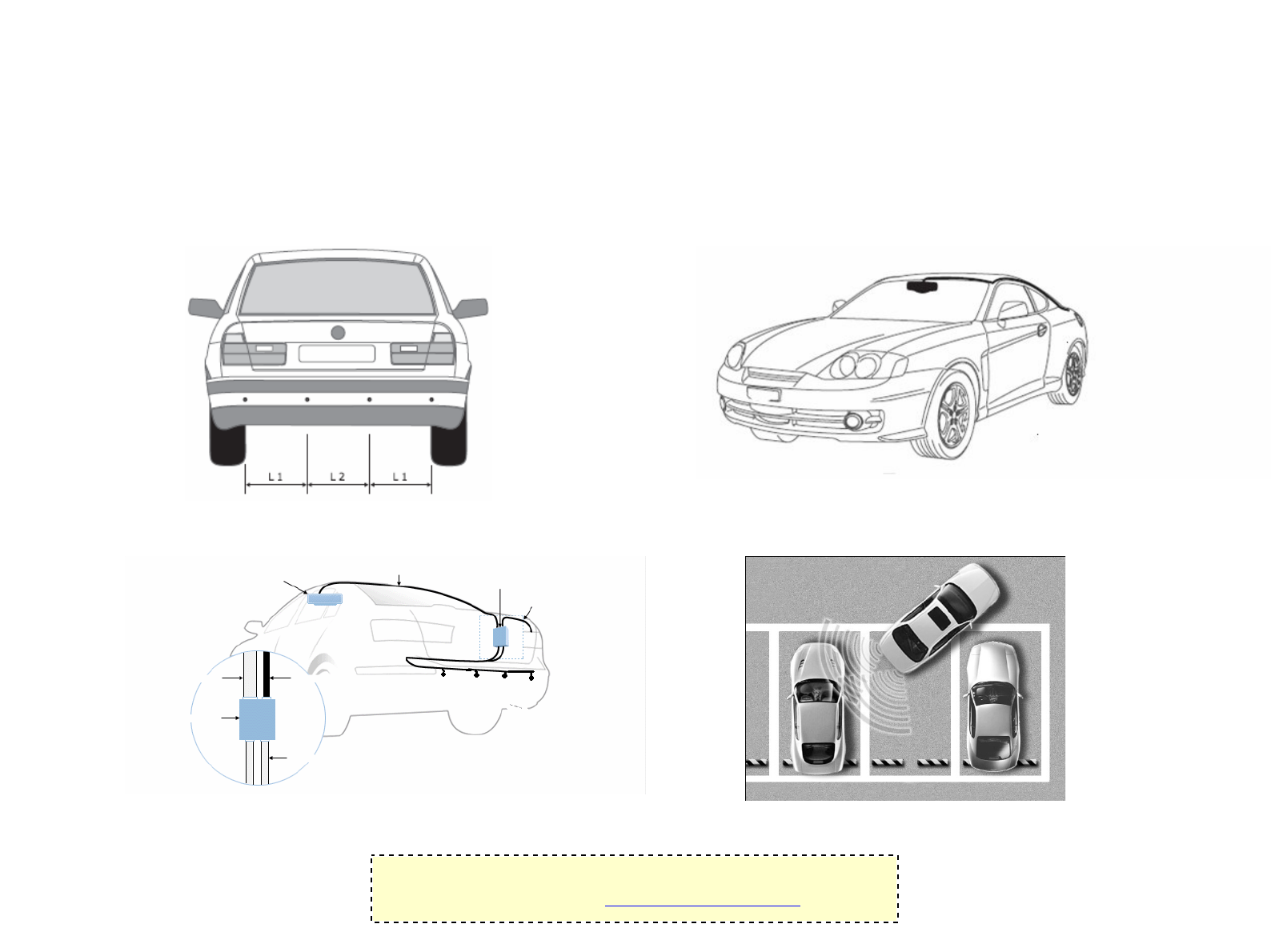

2) Model U-888
(1) Connect U-788 with parking sensor

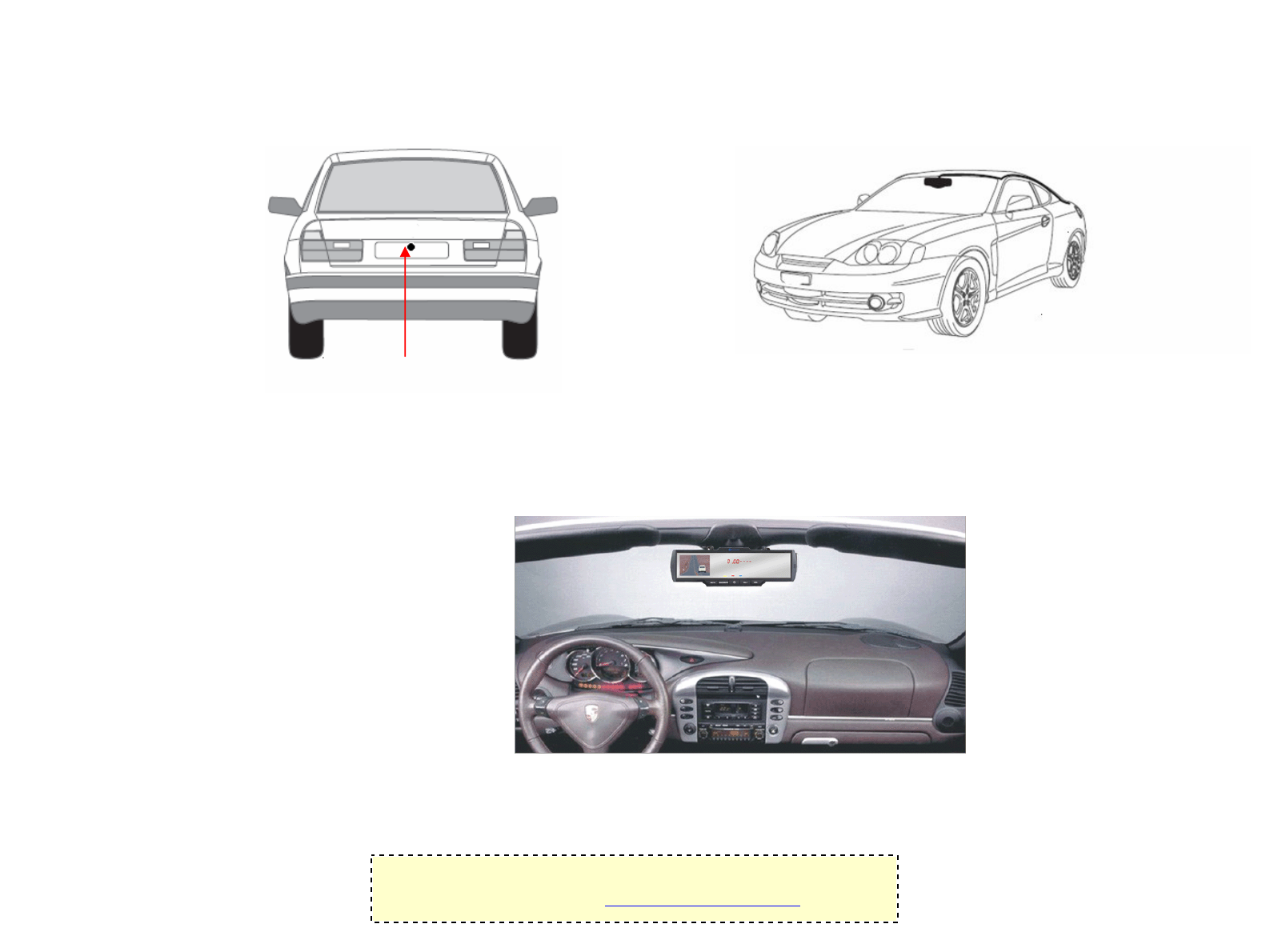

3) Model U-988
(1) Connect U-888 with parking camera

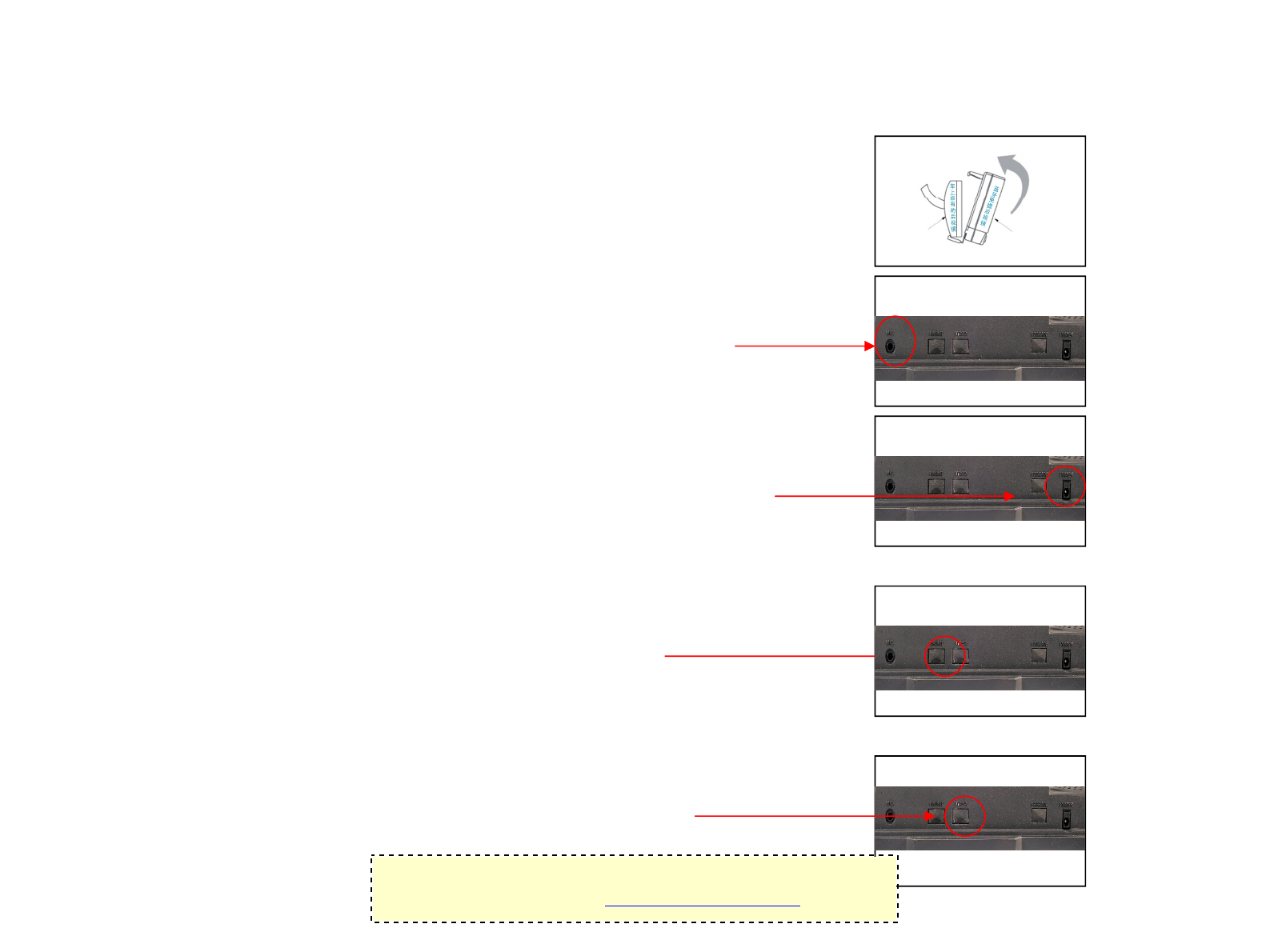

3. How to install bluetooth handsfree
1) Model U-788
(1) Using a pair of clips (Back side of UBI-788/888/988)
place on your existing Rearview Mirror.
(2) Clip the Microphone on driver’s sun visor or set it
in a suitable position near the driver’s head. For
high quality conversation, the best position of
microphone will be nearest to the driver’s face.
(3) Wireless earphone is rechargeable. use it after
fully charged.
(4) Connect the Power Adaptor Cable into cigar lighter
jack then the power will be on.
6
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/

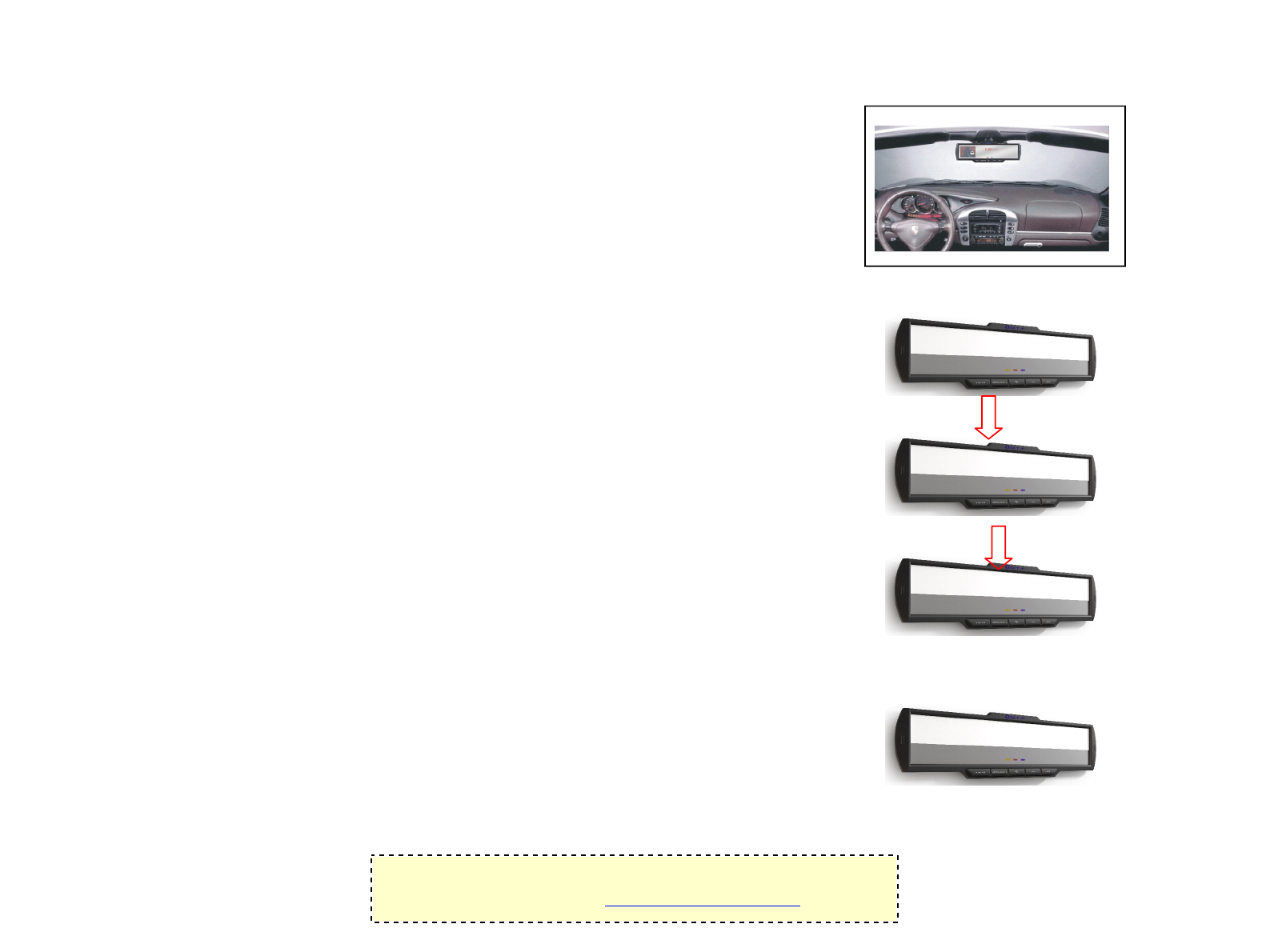

4. How to connect handsfree with cellular phone (Model : U-788)
1). Insert the Power adaptor jack.
Power Clip the Microphone on the driver’s sun visor or set it in a
suitable position near the driver’s head.
● Inside View
2). Displays mode when power is on
888888888
searching
power on
● Display order
88888888
→ Searching
→ Power on
(
3) Connection with cellular phone after installation and power on
(1) Searching bluetooth function on your cellular phone
● Searching bluetooth function → Connection to phones
→ Handsfree → Searching phone → Enter
→ Input secret number (8888) → Enter → Finish
※ Then you will hear beep sound and Power on sign will
disappear on the display.
(Completed)
10
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/

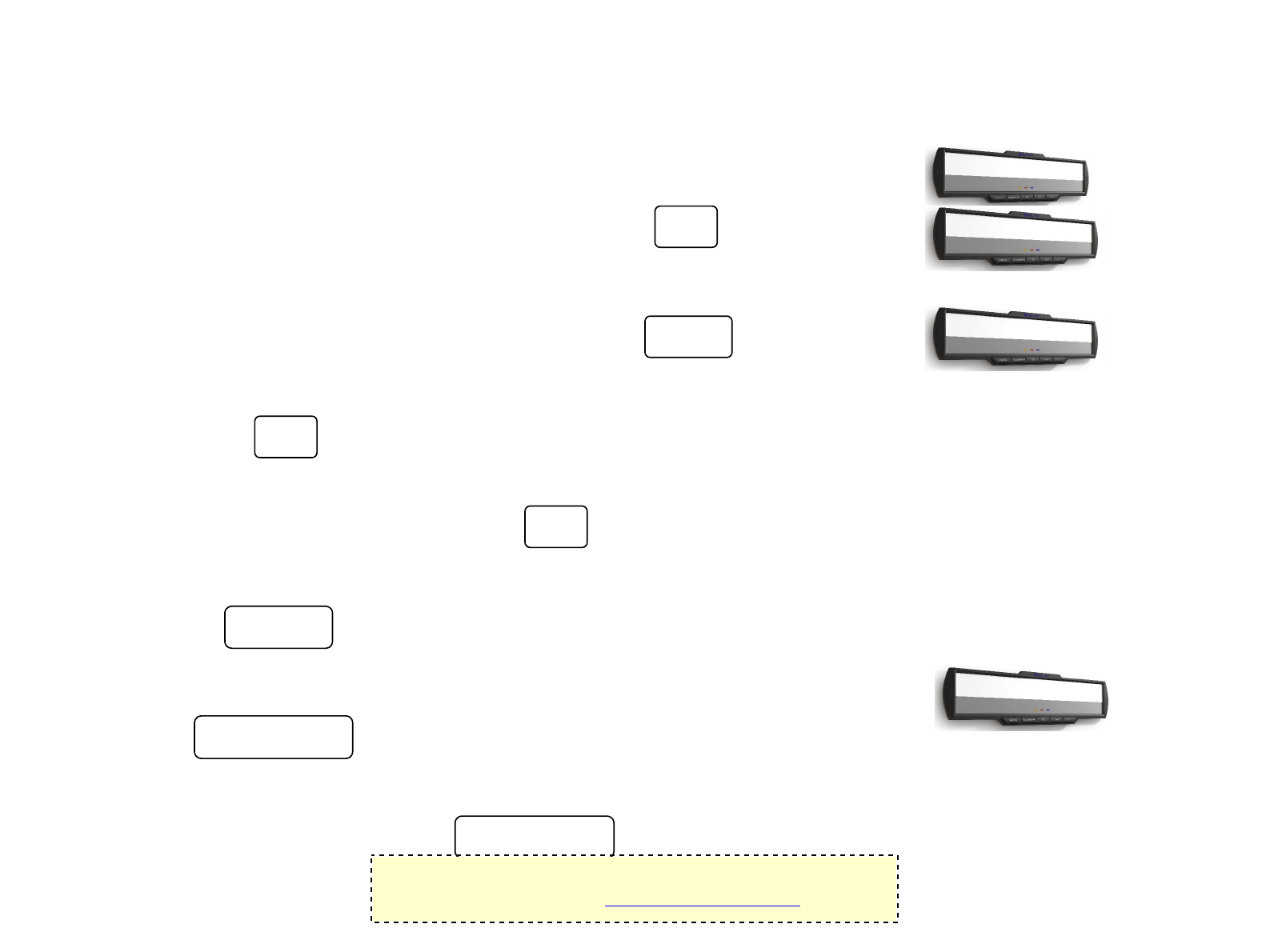

5. How to answer through handsfree
1) Answering
① Display shows calling phone number on the room mirror with red lamp on.
② When the calling number shows on display, press button then
blue LED will be on.
0082319739836
call
talk
④ For the best quality conversation, adjust Volume button.
(Recommended best Quality : Volume 10~12)
2) Do not want to answer
①call
Press button for 3 seconds long.
6. How to call room mirror handsfree
1) After storing the phone number, Press button on the handsfree.
7. How to transfer cellular phone calls to handsfree vice versa.
1) Press button on the handsfree.
FM/TR
(Phone → Handsfree)
8. How to call using Voice Recognition
Press button on handsfree.
VOICE/MUTE
voice
(Voice recognition function phone only)
VOL+ -
12
(Handsfree → Phone)
9. Stand by function
1) Talking with handsfree, press button then orange color LED
will be on and quit the mie function.
VOICE/MUTE
③ You can select to talk (Speaker Phone / Wireless Earphone)
call
11
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
10. Answering another call while you are talking
1) Press button on handsfree for 3 seconds.
call
11. Talking to 3rd party at the same time
VOICE/MUTE
1) Talking 3 people, you can change the person to press button for 3 seconds
long.
12. How to select correct frequency for wireless earphone
1) Power on (push the switch on the earphone)
2) 3 steps of frequency ranges on the handsfree(88.2MHz~88.6MHz).
3) Select the best frequency (noiseless frequency).
13. Automatic connection to handsfree
If the Bluetooth connection of last paired cellular phone is available, it will pair the cellular phone
automatically, then pair success. If the Bluetooth connection of last paired cellular phone is not
available, after a while , auto pairing fails.
14. Connceting bluetooth manually
If auto pairing has failed, press button. (Return to first step to connect bluetooth) Please make
bluetooth connection of your cellular phone useable according to your cellular phone manual.
call
12
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/

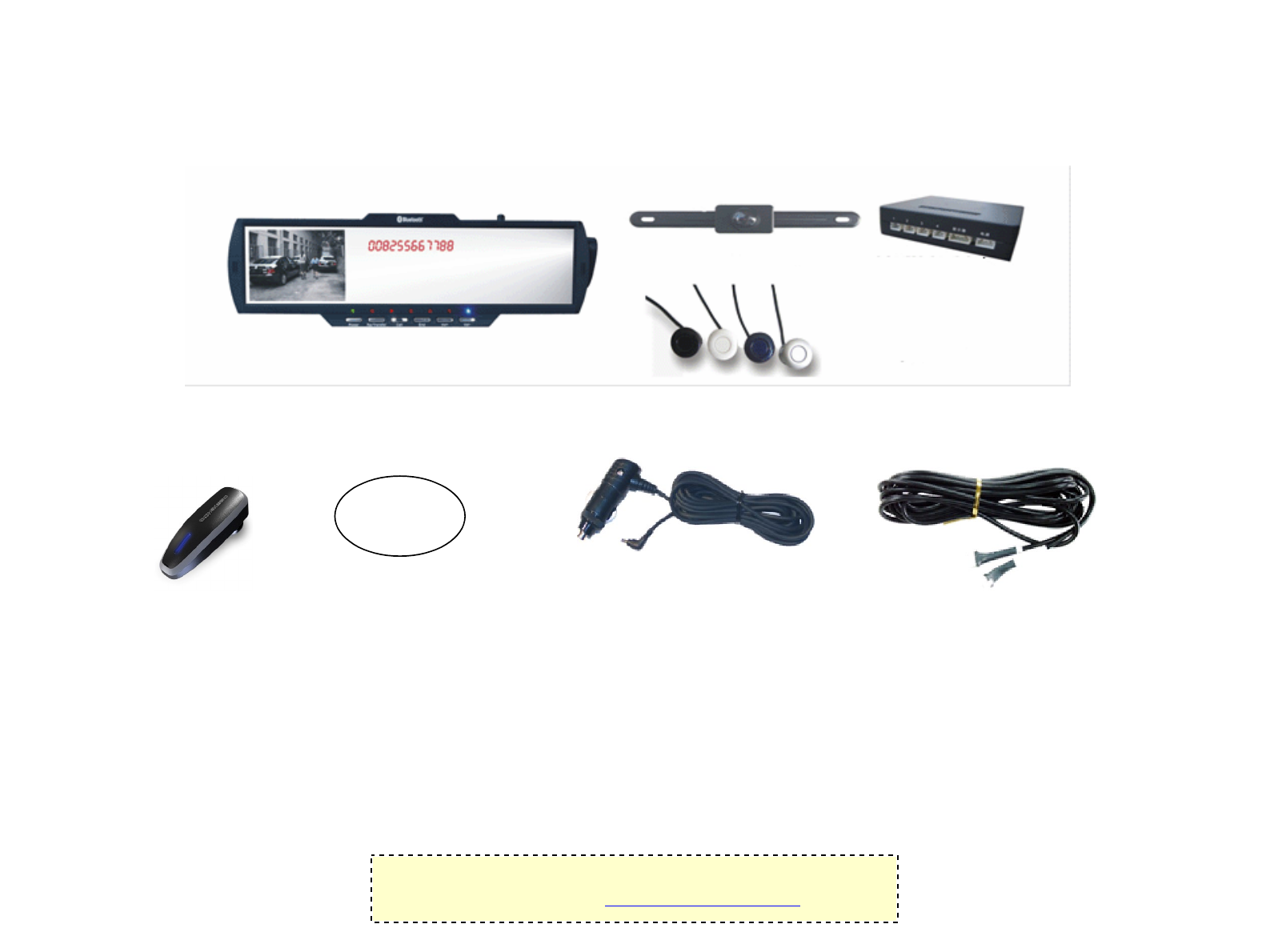

■ Component
123
57
1
1. Main Body (Room Mirror) 2. Parking Camera (U-988) 3. Control Box (U-888)
4. Parking Sensor (U-888) 5. Wireless Earphone (U-788/888/988)
6. Micro Phone 7. Power Cable 8. Connection Cable (U-888/988)
1
23
2
4
68
13
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
■ Specifications
2,400MHz~2,483.5MHz
Carrier Frequency
Up to 18dB
Noise Suppression
Up to 42dB
Echo Suppression
-30℃~+80℃Operating temperature range
2.0Bluetooth Version
Max. 2W Speaker
-48dBMicro Phone
250V/2AFuse
>100mANormal Current
8MbitBuilt in Flash memory
>500mAMax. Current
0~16VInput Power
SpecificationSubject
● Basic Specifications
14
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
-20℃~65℃Operating Temperature
3mSensor Cable Length
3mPower Cable Length
7mMain Cable Length
Ultrasonic Sensor 40KHzDetector
ABSMolding Material
12V~24V (DC Free voltage)Input Power
SpecificationSubject
72×50.5Viewing Area (mm)
50 / 50 / 15 / 35Viewing Angle (L/R/U/D)
300 cd/mLightness
30 mSBack light LED Respond Time
250:1Contrast
480×234Resolution (dots)
4:3Display Rate
3.5 InchCamera Diagonal
SpecificationSubject
● Parking Sensor Specifications
● Parking Camera Specifications
15
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
■Warranty
Warranty is provided by UBITEK if our Product ("Product") was purchased from an authorized
distributor or authorized reseller. Distributors may sell Products to resellers
who then sell Products to end users. The regular limited Warranty Period of one (1) and
half years from the date of original retail purchase.
Terms and conditions that are specifically excluded from this warranty program are:
1. Damage caused by accidents, misuse, negligence, improper vehicle operation.
2. Any modification or alteration to any standard specifications or equipment.
3. Any repairs made by an unauthorized dealer or service firm,
4. Use of non-UBI genuine parts for repairs or alteration to standard specifications.
5. Damage caused by failure to perform factory scheduled service maintenance.
6. Damage which occurs as a result of improper storage.
16
This page was created using PDF Printer trial software.
To purchase, go to http://pdfprinter.pdftools.de/
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
