UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-1

Chapter 4

Circuit Descriptions

4.1 (A2) Modulator Module

(1301929; Appendix B)

NOTE: Not used in a translator system.

4.1.1 Analog Modulator Board

(1301797; Appendix B)

The board takes the audio and video

inputs and produces a modulated visual

IF + aural IF output.

Main Audio and Aural IF portion of

the board

The analog modulator board takes each

of the three possible audio inputs and

provides a single audio output.

4.1.1.1 MONO, Balanced Audio Input

The first of the three possible baseband

inputs to the board is a 600-Ω, balanced-

audio input (0 to +10 dBm) that enters

through jack J41A, pins 10A (+), 12A

(GND), and 11A (-), and is buffered by

U11A and U11B. Diodes CR9, CR10,

CR12 and CR13 protect the input to U11A

and U11B if an excessive signal level is

present on the input. The outputs of

U11A and U1B are applied to differential

amplifier U11C. U11C eliminates any

common mode signals (hum) on its input

leads. A pre-emphasis of 75 ms is

provided by R97, C44, and R98 and can

be eliminated by removing jumper W6 on

J22. The signal is then applied to

amplifier U11D whose gain is controlled

by jumper W7 on J23. Jumper W7 on

jack J23 is positioned according to the

input level of the audio signal (0 or +10

dBm). If the input level is approximately

0 dBm, the mini-jumper should be in the

high gain position between pins 1 and 2

of jack J23. If the input level is

approximately +10 dBm, the mini-

jumper should be in low gain position

between pins 2 and 3 of jack J23. The

balanced audio is then connected to

buffer amplifier U12A whose input level is

determined by the setting of the MONO,

balanced audio gain pot R110, accessed

through the front panel. The output of the

amplifier stage is wired to the summing

point at U13C, pin 9.

4.1.1.2 STEREO, Composite Audio Input

The second possible audio input to the

board is the composite audio (stereo) input

that connects to the board at J41A Pin 14A

(+) and J41A Pin 13A (-).

NOTE: For the transmitter to operate using

the composite audio input the Jumper W1

on J4 must be between Pins 2 and 3, the

Jumper W2 on J6 must be between Pins 2

and 3 and the Jumper W4 on J5 must be

between Pins 1 and 2. These jumpers

connect the composite audio to the rest of

the board.

Jumper W14 on jack J26 provides a 75Ω-

input impedance when the jumper is

between pins 1 and 2 and a high

impedance when it is between pins 2 and

3. Diodes CR17, CR18, CR20 and CR21

protect the input stages of U14A and U14B

if an excessive signal level is applied to the

board. The outputs of U14A and U14B are

applied to differential amplifier U13A,

which eliminates common mode signals

(hum) on its input leads. The composite

input signal is then applied to amplifier

U13B; whose gain is controlled by the

STEREO, composite audio gain pot R132,

accessed through the front panel. The

composite audio signal is then connected

to the summing point at U13C, pin 9.

4.1.1.3 SAP/PRO, Subcarrier Audio Input

The third possible input to the board is the

SAP/PRO, SCA audio input at J41A pin

16A(+) and 17A(-). The SCA input has an

input matching impedance of 75Ω that can

be eliminated by removing jumper W15

from pins 1 and 2 of J28. The SCA input is

bandpass filtered by C73, C74, R145, C78,

C79, and R146 and is fed to buffer

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-2

amplifier U13D. The amplified signal is

then applied though the SAP/PRO, SCA

gain pot R150, accessed through the

front panel, to the summing point at pin

9 of U13C.

4.1.1.4 Audio Modulation of the

4.5 MHz VCO

The Mono balanced audio, or the Stereo

composite audio, or the SAP/PRO SCA

buffered audio signal, is fed to the

common junction of resistors R111,

R130, and R152 that connect to pin 9 of

amplifier U13C. The output audio signal

at pin 8 of U13C is typically .8 Vpk-pk at

a ±25-kHz deviation for Mono balanced

audio or .8 Vpk-pk at ±75-kHz deviation

for Stereo composite audio as measured

at Test Point TP1. This audio deviation

signal is applied to the circuits containing

the 4.5 MHz aural VCO U16. A sample of

the aural deviation level is amplified,

detected by U15A and U15B, and

connected to J41A pin 5A on the board.

This audio-deviation level is connected to

the front panel display on the

Control/Power Supply Assembly.

The audio from U13C is connected thru

C71, a frequency response adjustment,

to varactor diodes, CR24 to CR27, that

frequency modulates the audio signal

onto the generated 4.5-MHz signal by

U16. U16 is the 4.5-MHz VCO that

generates the 4.5-MHz continuous wave

(CW) signal. The output frequency of the

4.5 MHz signal is maintained and

controlled by the correction voltage

output of the U21 PLL integrated circuit

(IC), at “N”, that connects to the varactor

diodes. The audio-modulated, 4.5-MHz

signal is fed through the emitter follower

Q13 to the amplifiers U17A and U17B.

The amplified output of U17A is

connected to a 4.5-MHz filter and then to

U17B. The output of U17B is connected

to the 4.5-MHz output sample jack at J29

and through the Jumper W4 on J5 pins 1

& 2, “J”, to the I input of the mixer Z1.

4.1.1.5 Phase Lock Loop (PLL) Circuit

A sample of the signal from the 4.5-MHz

aural VCO at the output of Q13, “M”, is

applied to PLL IC U21 at pin 1 the Fin

connection. In U21, the signal is divided

down to 50 kHz and is compared to a 50-

kHz reference signal. The reference signal

is a divided-down sample of the 45.75-MHz

visual IF signal that is applied to the

oscillator-in connection at Pin 27 on the

PLL chip. These two 50-kHz signals are

compared in the IC and the fV, and fR is

applied to the differential amplifier U18A.

The output of U18A, “N”, is fed back

through CR28 and C85 to the 4.5-MHz VCO

IC U16; this sets up a PLL circuit. The

4.5-MHz VCO will maintain the extremely

accurate 4.5-MHz separation between the

visual and aural IF signals; any change in

frequency will be corrected by the AFC

error voltage.

PLL chip U21 also contains an internal lock

detector that indicates the status of the

PLL circuit. When U21 is in a "locked"

state, pin 28 is high. If the 4.5-MHz VCO

and the 45.75-MHz oscillator become

"unlocked," out of the capture range of the

PLL circuit, pin 28 of U21 will go to a logic

low and cause the LED DS5 to light red.

The Aural Unlock LED is viewed through

the front panel of the Assembly. An Aural

unlock, PLL Unlocked, output signal from

Q16 is also applied to jack J41B pin 1B.

Sync tip clamp and the visual and

aural modulator portions of the board

The sync tip clamp and modulator portion

of the board is made up of four circuits:

the main video circuit, the sync tip clamp

circuit, the visual modulator circuit and the

aural modulator circuit.

The clamp portion of the board maintains a

constant peak of sync level over varying

average picture levels (APL). The

modulator portion of the board contains

the circuitry that generates an amplitude-

modulated vestigial sideband visual IF

signal output that is made up of the

baseband video input signal (.5 to 1 Vpk-

pk) modulated onto a 45.75-MHz IF carrier

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-3

frequency. The visual IF signal and the

aural IF signal are then combined in the

diplexer circuit to produce the visual IF +

aural IF output, “G”, that is connected to

J41C pin 28C the Combined IF output of

the board.

4.1.1.6 Main Video Signal Path

(Part 1 of 2)

The baseband video input connects to the

board at J41A pins 19A (-), “W”, and 20A

(+), “V”. The +, “V” and -, “W”, video

inputs are fed to Diodes CR1 to CR4 that

form a voltage-limiter network in which,

if the input voltages exceed the supply

voltages for U2B, the diodes conduct,

preventing damage to U2B. CR1 and CR3

conduct if the input voltage exceeds the

negative supply and CR2 and CR4

conduct if the input voltage exceeds the

positive supply voltage. The baseband

video input connects to the non-inverting

and inverting inputs of U2B, a differential

amplifier that minimizes any common-

mode problems that may be present on

the incoming signal

The video output of U2B is connected

through the Video Gain pot R42,

accessed through the front panel, to the

amplifier U2A. The output of U2A

connects to the delay equalizer circuits

4.1.1.7 Delay Equalizer Circuits

The delay equalizer circuits provide a

delay to the video signal, correction to

the frequency response, and

amplification of the video signal.

The video output of U2A is wired to the

first of four delay-equalizing circuits that

shape the video signal to the FCC

specification for delay equalization or to

the shape needed for the system. The

board has been factory-adjusted to this

FCC specification and should not be

readjusted without the proper

equipment.

Resistors R53, R63, R61, and R58 adjust

the sharpness of the response curve

while inductors GD1, GD2, GD3, and GD4

adjust the position of the curve. The group

delayed video signal at the output of U3A

is split with a sample connected to J8 on

the board that can be used for testing

purposes of the Post Video Delay signal.

The other portion of the video signal

connects through the Jumper W5 on J9

pins 2 and 3. The video is slit with one

part connecting to a sync tip clamp circuit

and the other part to the main video

output path through R44. A sample of the

video at “P” connects to U32 and U33 that

provide a zero adjust and a 1 Volt output

level, which connects at “T” to J41A pin 3A.

This video level is wired to the

Control/Power Supply assembly.

4.1.1.8 Sync Tip Clamp Circuit

The automatic sync tip clamp circuit is

made up of U6A, Q8, U5C, and associated

components. The circuit begins with a

sample of the clamped video that buffered

by U3A, which is split off from the main

video path that connects to U6A. The level

at which the tip of sync is clamped, to

-1.04 VDC as set by the voltage-divider

network, R77, R78, R75, R76 and R80

connected to U6A. If the video level

changes, the sample applied to U6A

changes. The voltage from the clamp

circuit that is applied to the summing

circuit at the base of Q8 will change; this

will bring the sync tip level back to

-1.04 VDC. Q8 will be turned off and on

according to the peak of sync voltage level

that is applied to U6A. The capacitors C35

and C24, in the output circuit of Q8, will

charge or discharge to the new voltage

level. This will bias U5C more or less,

through the front panel MANUAL/AUTO

CLAMP switch, SW1, when it is in the Auto

Clamp-On position, between pins 2 and 3.

In AUTO CLAMP, U5C will increase or

decrease its output, as needed, to bring

the peak of sync back to the correct level.

The voltage level is applied through U5C to

U2A. In the Manual CLAMP position, SW1

in manual position, between pins 1 and 2,

the adjustable resistor R67 provides the

manual clamp bias adjustment for the

video that connects to U5C. This level is

set at the factory and is not adjustable by

the customer. In Manual clamp the peak

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-4

of sync auto clamp circuit will not

automatically be clamped to the pre set

level.

4.1.1.9 Main Video Signal Path

(Part 2 of 2)

A sample of the clamped video output

from the group delay circuitry at the

junction of R44, R62 and R300 is

connected to a white clipper circuit

consisting of Q1 and associated circuitry.

The base voltage of Q1 is set by the

voltage divider network consisting of R1,

R9 and R5. R5 is variable and sets the

level of the white clipper circuit to

prevent video transients from over

modulating the video carrier.

The clamped video output of amplifier

U3A is split with one part connected

through R35 to J8 that provides a sample

of the Post Video Delay Signal.

The other clamped video path from U3A

is through jumper W5 on J9 pins 2 & 3

through R44 to a sync-stretch circuit that

consists of Q3 and Q4. The sync-stretch

circuit contains R19, which adjusts the

Sync Stretch Magnitude (amount), R11,

which adjusts the Sync Stretch Cut-In

and R6, which adjusts the Sync Clipping

point. This sync-stretch adjustment

should not be used to correct for output

sync problems, but it can be used for

video input sync problems. The output of

the sync-stretch circuit is amplified by

U31A and connected, “K”, to pin 5, the I

input of Mixer Z2, the Visual IF Mixer.

4.1.1 10 45.75 MHz Oven Oscillator

Circuit

The oven oscillator portion of the board

generates the visual IF CW signal at

45.75 MHz for NTSC system "M" usage.

The +12 VDC needed to operate the

oven is applied through jack J30 pin 1 on

the crystal oven HR1. The oven is preset

to operate at 60° C. The oven encloses

the 45.75 MHz crystal Y1 and stabilizes

the crystal temperature. The crystal is

the principal device that determines the

operating frequency and is the most

sensitive in terms of temperature stability.

Crystal Y1 operates in an oscillator circuit

consisting of transistor Q24 and its

associated components. Feedback that is

provided by a voltage divider, consisting of

C173, L38 and R295, is fed to the base of

Q24 through C169. This circuitry operates

the crystal in a common-base amplifier

configuration using Q24. The operating

frequency of the oscillator is maintained by

a PLL circuit, which consists of ICs U20 and

U22 and associated components, whose

PLL output connects to R293 in the crystal

circuit.

The oscillator circuit around Q24 has a

regulated voltage, +6.8 VDC, which is

produced from the +12 VDC by a

combination of dropping resistor R261,

diodes CR37 and CR38 and Zener diode

VR2. The output of the oscillator at the

collector of Q24 is capacitively coupled

through C165 to the base of Q23. The

small value of C165, 15 pF, keeps the

oscillator from being loaded down by Q23.

Q23 is operated as a common-emitter

amplifier stage whose bias is provided

through R259 from the +12 VDC line. The

output of Q23, at its collector, is connected

to an emitter-follower transistor stage,

Q21. The output of Q21 at its emitter is

split. One path connects to the input of

the IC U20 in the PLL circuit. The other

path is through R270 to establish an

approximate 50-ohm source impedance

through C166 to the Pin 1 contact of the

relay K2. The 45.75 MHz connects through

the closed contacts 0of K2 to a splitter

network consisting of L31 and L32.

NOTE: The relay contacts for the internally

generated 45.75 MHz signal will be closed

unless an external IF signal, such as the IF

for offset and precise frequency 45.74 or

45.76 MHz, connects to the board. The

external IF CW Input connects at J41A pin

32A and is connected to J19 and through

the external cable assembly W10 back to

the board at J20. The external IF CW input

is split on the board. One branch connects

through C157 to a buffer amplifier Q20 to

the K2 relay at pin 14. The other path is

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-5

through C152 to the amplifier U23A. The

output of U23A is split with one part

connecting to Q26 that shuts down the

45.75 MHz oscillator. Another path

connects to Q25 the conducts and lights

the LED DS7, Alternate IF, viewed on the

front panel. The final path connects

through R268 to Q22 that is biased on

and energizes the relay, K2. The

external IF CW Input at contact 14 now

connects through the closed contact to

the splitter network consisting of L31 and

L32.

Either the internal or external CW IF from

the K2 relay is split with one path

through L31 to the amplifier U28 to the L

input of Z1 the Aural IF Mixer. The other

path is through L32 to the amplifier U29

to the L input of Z2 the Visual IF Mixer.

4.1.1.11 Visual Modulator Circuit

The video signal is heterodyned in mixer

Z2 with the visual IF CW signal (45.75

MHz). The visual IF CW signal from L32

of the splitter connects to U29, where it

is amplified and wired to pin 1, the L

input of mixer Z2. Adjustable capacitor

C168 and resistor R275 are set up to add

a small amount of incidental carrier

phase modulation (ICPM) correction to

the output of the mixer stage to

compensate for any non-linearities

generated by the mixer.

The modulated 45.75-MHz RF output of

mixer Z2, at pin 4 the R output, is

amplified by U30 and is fed to J17

through W8, the external cable

assembly, “WB”, to J13 on the board.

J17 is the visual IF loop-through output

jack that is normally jumpered to J13 on

the board. The modulated visual IF

through J13 connects to J41C pin 17C

the Visual IF Output of the board.

4.1.1.12 Aural Modulator Circuit

The 4.5 MHz aural modulated signal is

heterodyned in mixer Z1 with the 45.75

MHz IF CW signal. The mixer Z1

heterodynes the aural-modulated, 4.5-

MHz signal with the 45.75-MHz CW signal

to produce the modulated 41.25-MHz aural

IF signal. The audio modulated 4.5 MHz

from 4.5 MHz VCO IC U16 connects, “J”, to

the I input at pin 5 of Z1. The visual IF CW

signal from L31 of the splitter connects to

U28, where it is amplified and wired to pin

1, the L input of mixer Z1. The R output of

the mixer at pin 4 is fed to a bandpass

filter, consisting of L18-L21, L25-L28 and

C136, C137 and C142-144, that is tuned to

pass only the modulated 41.25-MHz aural

IF signal. The filtered 41.25 MHz is fed to

the amplifier U27. The amplified 41.25-

MHz signal is connected by a coaxial cable,

W9, from J21, “WC”, to J18 on the board.

The modulated 41.25-MHz aural IF signal

from J18 is connected to J41C pin 6C the

Aural IF Output of the board.

4.1.1.13 Combining the 45.75 MHz Visual

IF and 41.25 MHz Aural IF Signals

The Visual IF connects back to the board at

J41C pin 3C, through a Visual IF jumper

cable connected to the rear chassis of the

exciter/driver. IF processing equipment

can be connected in place of the jumper if

needed. The visual IF is connected to J12,

through jumper W7, “WA”, to J14. The

visual IF is amplified by U24 and filtered by

FL1 with T1 and T2 providing isolation.

The filtered IF is amplified by U25 and

adjusted in level by R214 before it is

connected to a summing circuit at the

common connection of L16 and L17.

The Aural IF connects back to the board at

J41C pin 23C, through an Aural IF jumper

cable connected to the rear chassis of the

exciter/driver. IF processing equipment

can be connected in place of the jumper if

needed. The aural IF, “F”, is connected

through C132, R234, R235 and adjusted in

level by R243 before it is connected to a

summing circuit at the common connection

of L17 and L16.

The Aural IF and Visual IF signals are

combined through L16 and L17. The

frequency response of the combined 41.25

MHz + 45.75 MHz signal is set by R238

and R239 and associated components. The

corrected combined IF signal is amplified

by U25 and connected to a splitter

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-6

matching network consisting of T3 and

T4. One part of signal connects to J10,

the 41.25 MHz + 45.75 MHz sample

output jack, located on the front panel.

The other part, “G”, connects to J41C pin

28C the Combined IF Output of the

board.

4.1.1.14 Voltage Requirements

The ±12 VDC needed for the operation of

the board enters through jack J41A pins

25A (+12 VDC) and 26A (-12 VDC). The

+12 VDC is filtered by L6, L7, and C27

before it is connected to the rest of the

board. The +12 VDC also connects to U7,

a 5-volt regulator IC, that provides +5

VDC to the rest of the board.

The -12 VDC is filtered by L5, C16, and

C17 before it is connected to the rest of

the board.

4.2 (A3) IF Processor Module

Assembly (1301938; Appendix B)

The IF from the 8 VSB modulator enters

the module and the signal is pre-

corrected as needed for amplitude

linearity correction, Incidental Carrier

Phase Modulation (ICPM) correction and

frequency response correction.

The Module contains the following board.

4.2.1 IF Processor Board (1301977;

Appendix B)

The automatic level control (ALC) portion

of the board provides the ALC and

amplitude linearity correction of the IF

signal. The ALC adjusts the level of the IF

signal that controls the output power of

the transmitter.

The IF from the 8 VSB modulator enters

the board at J1B pin 32B. If the

(optional) receiver tray is present, the IF

input (-6 dBm) from the 8 VSB

modulator tray connects to the

modulated IF input jack J1C Pin 21C. The

modulated IF input connects to relay K3

and the receiver IF input connects to

relay K4. The two relays are controlled by

the Modulator Select command that is

connected to J1C Pin 14C on the board.

Modulator select enable/disable jumper

W11 on J29 controls whether the

Modulator Select command at J1C Pin 14C

controls the operation of the relays. With

jumper W11 on J29 between pins 1 and 2,

the Modulator Select command at J1C Pin

14C controls the operation of the relays;

with jumper W11 on J29, pins 2 and 3, the

modulator is selected all of the time.

4.2.1.1 Modulator Selected

With the modulator selected, J1C-14C low,

this shuts off Q12 and causes Pin 8 on the

relays to go high that causes relays K3 and

K4 to de-energize. When K4 is de-

energized, it connects the receiver IF input

at J1C-21C, if present, to a 50Ω load.

When K3 is de-energized, it connects the

modulator IF input at J1B-32B to the rest

of the board; Modulator Enable LED DS5

will be illuminated.

4.2.1.2 External Modulated IF Selected

With the External Modulated IF selected,

J1C-14C high, this turns on Q12 and

makes pin 8 on the relays low that causes

the relays K3 and K4 to energized. When

K4 is energized, it connects the receiver IF

input at J at J1C-21C, if present, to the

rest of the board. When K3 is energized, it

connects to the modulator IF input at J1B-

32B to a 50Ω load. The Modulator Enable

LED DS5 will not be illuminated.

4.2.1.3 Main IF Signal Path (Part 1 of 3)

The selected IF input (-6 dBm average)

signal is split, with one half of the signal

entering a bandpass filter that consists of

L3, L4, C4, L5, and L6. This bandpass filter

can be tuned with C4 and is substantially

broader than the IF signal bandwidth. It is

used to slightly steer the frequency

response of the IF to make up for any

small discrepancies in the frequency

response in the stages that precede this

point. The filter also serves the additional

function of rejecting unwanted frequencies

that may occur if the tray cover is off and

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-7

the tray is in a high RF environment. (If

this is the case, the transmitter will have

to be serviced with the tray cover off in

spite of the presence of other RF signals).

The filtered IF signal is fed through a pi-

type matching pad consisting of R2, R3,

and R4 to the pin-diode attenuator circuit

consisting of CR1, CR2, and CR3.

4.2.1.4 Input Level Detector Circuit

The other part of the split IF input is

connected through L2 and C44 to U7. U7

is an IC amplifier that is the input to the

input level detector circuit. The amplified

IF is fed to T4, which is a step-up

transformer that feeds diode detector

CR14. The positive-going detected signal

is then low-pass filtered by C49, L18, and

C50. This allows only the positive digital

peaks to be applied through emitter

follower Q1. The signal is then connected

to detector CR15 to produce a peak

digital voltage that is applied to op-amp

U9A. There is a test point at TP3 that

provides a voltage-reference check of the

input level. The detector serves the dual

function of providing a reference that

determines the input IF signal level to

the board and also serves as an input

threshold detector.

The input threshold detector prevents the

automatic level control from reducing the

attenuation of the pin-diode attenuator to

minimum, the maximum signal output, if

the IF input to the board is removed. The

ALC, input loss cutback, and the

threshold detector circuits will only

operate when jumper W2 on jack J5 is in

the Enabled position, between pins 2 and

3. Without the threshold detector, and

with the pin-diode attenuator at

minimum, the signal will overdrive the

stages following this board when the

input is restored.

As part of the threshold detector

operation, the minimum IF input level at

TP3 is fed through detector CR15 to op-

amp IC U9A, pin 2. The reference voltage

for the op-amp is determined by the

voltage divider that consists of R50 and

R51, off the +12 VDC line. When the

detected input signal level at U9A, pin 2,

falls below this reference threshold,

approximately 10 dB below the normal

input level, the output of U9A at pin 1 goes

high, toward the +12 VDC rail. This high is

connected to the base of Q2 that is forward

biased and creates a current path. This

path runs from the -12 VDC line and

through red LED DS1, the input level fault

indicator, which lights, resistor R54, and

transistor Q2 to +12 VDC. The high from

U9A also connects through diode CR16 and

R52, to U24D pin 12, whose output at pin

14 goes high. The high connects through

the front panel accessible ALC Gain pot

R284 and the full power set pot R252 to

U24C Pin 9. This high causes U24C pin 8

to go low. A power raise/lower input from

the Control/Monitoring Module connects to

J42C pin 24C and is wired to Q14. This

input will increase or decrease the value of

the low applied to U24B and therefore

increase or decrease the power output of

the transmitter.

The low connects to U24B pin 5 whose

output goes low. The low is wired to U24A

pin2 whose output goes high. The high is

applied to U10A, pin 2, whose output goes

low. The low connects through the switch

SW1, if it is in the auto gain position, to

the pin-diode attenuator circuit, CR1, CR2

& CR3. The low reverse biases them and

cuts back the IF level, therefore the output

level, to 0. When the input signal level

increases above the threshold level, the

output power will increase, as the input

level increases, until normal output power

is reached.

The digital input level at TP3 is also fed to

a pulse detector circuit, consisting of IC

U8, CR17, Q3, and associated components,

and then to a comparator circuit made up

of U9C and U9D. The reference voltage for

the comparators is determined by a

voltage divider consisting of R243, R65,

R66, and R130, off the -12 VDC line. When

the input signal level to the detector at TP3

falls below this reference threshold, which

acts as a loss-of-digital peak detector

circuit, the output of U9C and U9D goes

towards the -12 VDC rail and is split, with

one part biasing on transistor Q5. A current

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-8

path is then established from the +12

VDC line through Q5, the resistors R69

and R137, and the red LED DS3, input

loss indicator, which is illuminated. When

Q5 is on, it applies a high to the gate of

Q6. This causes it to conduct and apply a

modulation loss pull-down output to

J42C, pin 7C, which is applied to the

front panel display on the

Control/Monitor module.

The other low output of U9C and U9D is

connected through CR18, CR19 & CR20

to jack J5. Jumper W2 on J5, in the

Cutback Enable position, which is

between pins 2 and 3, connects the low

to the base of Q4 that is now forward-

biased. NOTE: If jumper W2 is in the

Disable position, between pins 1 and 2,

the auto cutback will not operate. With

Q4 biased on, a negative level

determined by the setting of cutback

level pot R71 is applied to U24D, pin 12.

The level is set at the factory to cut back

the output to approximately 25%. The

output of U24D at pin 14 goes low and is

applied through the power adjust pot to

U24C, pin 9, whose output goes low.

The low connects to U24B, pin 5, whose

output goes low. The low then connects

to U24A, pin 2, whose output goes high.

The high is applied to U10A, pin 2, whose

output goes low. The low connects

through the switch SW1, if it is in the

auto gain position, to the to the pin-diode

attenuator circuit, CR1, CR2 & CR3. The

low reverse biases them and cuts back

the level of the output to approximately

25%.

4.2.1.5 Pin-Diode Attenuator Circuit

The input IF signal is fed to a pin-diode

attenuator circuit that consists of CR1,

CR2 & CR3. Each of the pin diodes

contains a wide intrinsic region; this

makes the diodes function as voltage-

variable resistors at this intermediate

frequency. The value of the resistance is

controlled by the DC bias supplied to the

diode. The pin diodes are configured in a

pi-type attenuator configuration where

CR1 is the first shunt element, CR3 is the

series element, and CR2 is the second

shunt element. The control voltage, which

can be measured at TP1, originates either

from the ALC circuit when the switch SW1

is in the ALC Auto position, between pins 2

and 3, or from pot R87 when SW1 is in the

Manual Gain position, between pins 1 and

In the pin diode attenuator circuit,

changing the amount of current through

the diodes by forward biasing them

changes the IF output level of the board.

There are two extremes of attenuation

ranges for the pin-diode attenuators. In

the minimum attenuation case, the

voltage, measured at TP1, approaches the

+12 VDC line. There is a current path

created through R6, through series diode

CR3, and finally through R9 to ground. This

path forward biases CR3 and causes it to

act as a relatively low-value resistor. In

addition, the larger current flow increases

the voltage drop across R9 that tends to

turn off diodes CR1 and CR2 and causes

them to act as high-value resistors. In this

case, the shunt elements act as a high

resistance and the series element acts as a

low resistance to represent the minimum

loss condition of the attenuator (maximum

signal output). The other extreme case

occurs as the voltage at TP1 is reduced and

goes towards ground or even slightly

negative. This tends to turn off (reverse

bias) diode CR3, the series element,

causing it to act as a high-value resistor.

An existing fixed current path from the

+12 VDC line, and through R5, CR1, CR2,

and R9, biases series element CR3 off and

shunt elements, diodes CR1 and CR2, on,

causing them to act as relatively low-value

resistors. This represents the maximum

attenuation case of the pin attenuator

(minimum signal output). By controlling

the value of the voltage applied to the pin

diodes, the IF signal level is maintained at

the set level.

4.2.1.6 Main IF Signal Path (Part 2 of 3)

When the IF signal passes out of the pin-

diode attenuator through C11, it is applied

to modular amplifier U1. This device

contains the biasing and impedance-

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-9

matching circuits that makes it operate

as a wide-band IF amplifier. The output

of U1 connects to J40 that is jumpered to

J41. The J40 jack is available, as a

sample of the pre-correction IF for

troubleshooting purposes and system

setup. The IF signal is connector to a

splitter Z1 that has an in phase output

and a 90° Quadrature output, which are

then connected to the linearity corrector

portion of the board.

4.2.1.7 Amplitude and Phase

Pre-Correction Circuits

The linearity corrector circuits use three

stages of correction, two adjust for any

amplitude non-linearities and one for

phase non-linearities of the output signal.

Two of the stages are in the in phase

amplitude pre-correction path and one

stage is in the quadrature phase pre-

correction path. Each stage has a

variable threshold control adjustment,

R211 and R216, in the in phase path,

and R231, in the quadrature path, that

determines the point at which the gain is

changed for that stage.

Two reference voltages are needed for

the operation of the corrector circuits.

The Zener diode VR3, through R261,

provides the +6.8 VDC reference. The

VREF is produced using the path through

R265 and the diodes CR30 and CR31.

They provide a .9 VDC reference, which

temperature compensates for the two

diodes in each corrector stage.

The first corrector stage in the in phase

path operates as follows. The in phase IF

signal is applied to transformer T6, which

doubles the voltage swing by means of a

1:4 impedance transformation. Resistors

R222 and R225 form an L-pad that

lowers the level of the signal. The input

signal level when it reaches a certain

level causes the diodes CR24 and CR25

to turn on, generating current flow that

puts them in parallel with the L-pad.

When the diodes are put in parallel with

the resistors, the attenuation through the

L-pad is lowered, causing signal stretch.

The signal is next applied to amplifier U17

to compensate for the loss through the

L-pad. The breakpoint, or cut-in point, for

the first corrector is set by controlling

where CR24 and CR25 turn on. This is

accomplished by adjusting the threshold

cut-in resistor R211. R211 forms a

voltage-divider network from +6.8 VDC to

ground. The voltage at the wiper arm of

R211 is buffered by the unity-gain

amplifier U16B. This reference voltage is

then applied to R215, R216, and C134

through L44 to the CR24 diode. C134

keeps the reference from sagging during

the vertical interval. The .9 VDC reference

voltage is applied to the unity-gain

amplifier U16D. The reference voltage is

then connected to diode CR25 through

choke L45. The two chokes L44 and L45

form a high impedance for RF that serves

to isolate the op-amp ICs from the IF.

After the signal is amplified by U17, it is

applied to the second corrector stage in the

in phase path through T7. These two

correctors and the third corrector stage in

the quadrature path operate in the same

fashion as the first. All three corrector

stages are independent and do not interact

with each other.

The correctors can be disabled by moving

jumper W12 on J30 to the Disable position,

between pins 1 and 2, this moves all of the

breakpoints past the greatest peaks of

digital so that they will have no affect.

The pre-distorted IF signal in the in phase

path, connects to an op amp U18 whose

output level is controlled by R238. R238

provides a means of balancing the level of

the amplitude pre-distorted IF signal that

then connects to the combiner Z2.

The pre-distorted IF signal in the

quadrature path connects to op amp U20

and then step up transformer T9, next op

amp U21 and step up transformer T10 and

finally op amp U22 whose output level is

controlled by R258. R258 provides a

means of balancing the level of the Phase

pre-distorted IF signal that then connects

to the combiner Z2.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-10

The amplitude and phase pre-distorted IF

signals are combined by Z2 and

connected to J37 that is jumpered to J36

on the board. J37 can be used for

testing or monitoring purposes of the IF

signal after amplitude and phase pre-

distortion. The pre-distorted IF signal

connects through a resistor buffer

network that prevents loading of the

combiner before it is wired to the

frequency response circuitry.

4.2.1.8 Main IF Signal Path (Part 3 of 3)

The IF signal, at the input to the

frequency-response corrector circuit, is

split using L24, L25 and R89. One path

is through L24, which is the main IF path

through the board. The main IF is fed

through a resistor network that controls

the level of the IF by adjusting the

resistance of R99, the output level

adjust. The IF signal is then applied to a

three-stage, frequency-response

corrector circuit that is adjusted as

needed.

The frequency-response corrector circuit

operates as follows. Variable resistors

R103, R106 and R274 are used to adjust

the depth and gain of the notches and

variable caps C71, C72 and C171 are

used to adjust the frequency position of

the notches. These are adjusted as

needed to compensate for frequency

response problems.

The frequency-response corrected IF is

connected to J38 that is jumpered to J39

on the board. J38 can be used for

testing or monitoring purposes of the IF

signal after frequency response pre-

correction.

The IF is next amplified by U13 and U14.

After amplification, the IF is split with one

path connected to J42C pin 1C the IF

output to the LO/Upconverter Module.

The other path is fed through a divider

network to J35 a SMA IF Sample Jack,

located on the front panel, which

provides a sample of the corrected IF for

test purposes.

4.2.1.9 ALC Circuit

The other path of the corrected IF signal at

the input to the frequency response

corrector circuit is used in the ALC circuit.

The IF flows through L25, of the L24 L25

splitter, and connects to the op-amp U12.

The IF signal is applied through a resistor

divider network to transformer T5. T5

doubles the voltage swing by means of a

1:4 impedance transformation before it is

connected to the ALC detector circuit,

consisting of C70, CR23 and R91. The

detected ALC level output is amplified by

U10B and wired to U10A, pin 2, where it is

summed with the power control setting,

which is the output power setting that is

maintained by the ALC. The output of

U10A connects through SW1, if it is in the

auto gain position, to the pin-diode

attenuator circuit, CR1, CR2 & CR3. The

high forward biases them more or less,

that increases or decreases the IF level,

therefore the output level, opposite the

input level. When the input signal level

increases, the forward bias on the pin

attenuator decreases, therefore the output

power will decrease, which keeps the

output power the same as set by the

customer.

An external power raise/lower switch can

be used by connecting it to TB30, at TB30-

8 power raise and TB30-9 power lower, on

the rear of the exciter/amplifier chassis.

The ALC voltage is set for .8 VDC at TP4

with a 0-dBm output at J42C pin 1C of the

module. A sample of the ALC at J42C pin

11C, is wired to the Control

Monitoring/Power Supply module where it

is used on the front panel display and in

the AGC circuits.

The ALC voltage, and the DC level

corresponding to the IF level after signal

correction, are fed to U10A, pin 2, whose

output at pin 1 connects to the ALC pin-

diode attenuator circuit. If there is a loss of

gain somewhere in an IF circuit, the output

power of the transmitter will drop. The ALC

circuit senses this drop at U10A and

automatically decreases the loss through

the pin-diode attenuator circuit therefore

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-11

increasing its gain maintaining the same

output power level.

The ALC action starts with the ALC

detector level monitored at TP4. The

detector output at TP4 is nominally +.8

VDC and is applied through resistor R77

to a summing point at op-amp U10A, pin

2. The current available from the ALC

detector is offset, or complemented, by

current taken away from the summing

junction. In normal operation, U10A, pin

2, is at 0 VDC when the loop is satisfied.

If the recovered or peak-detected IF

signal level at IF input to this board

should drop, which normally means that

the output power will decrease, the null

condition would no longer occur at U10A,

pin 2. When the level drops, the output

of U10A, pin 1, will go more positive. If

SW1 is in the Automatic position, it will

cause the ALC pin-diode attenuators CR1,

CR2, and CR3 to have less attenuation

and increase the IF level; this will

compensate for the decrease in the level.

If the ALC cannot increase the input level

enough to satisfy the ALC loop, due to

there not being enough range, an ALC

fault will occur. The fault is generated

because U10D, pin 12, increases above

the trip point set by R84 and R83 until it

conducts. This makes U10D, pin 14, high

and causes the red ALC Fault LED DS2 to

light.

4.2.1.10 Fault Command

The board also has circuitry for an

external mute fault input at J42 pin 10C.

This is a Mute command that protects the

circuits of high-gain output amplifier

devices against VSWR faults. This action

needs to occur faster than just pulling

the ALC reference down. Two different

mechanisms are employed: one is a very

fast-acting circuit to increase the

attenuation of the pin-diode attenuator,

CR1, CR2, and CR3, and the second is

the reference voltage being pulled away

from the ALC amplifier device. An

external Mute is a pull-down applied to

J42 pin 10C, which completes a current

path from the +12 VDC line through R78

and R139, the LED DS4 (Mute indicator),

and the LED section of opto-isolator U11.

These actions turn on the transistor section

of U11 that applies -12 VDC through CR21

to U10A pin 3, and pulls down the

reference voltage. This is a fairly slow

action controlled by the low-pass filter

function of R81 and C61. When the

transistor section of U11 is on, -12 VDC is

also connected through CR22 directly to

the pin-diode attenuator circuit. This

establishes a very fast muting action, by

reverse biasing CR3. This action occurs in

the event of an external VSWR fault.

4.2.1.11 ±12 VDC Needed to Operate the

Board

The ±12 VDC connects to the board at

J42C. The +12 VDC connects to J42C pin

16C and is filtered by L30, L41, and C80

before it is applied to the rest of the board.

The -12 VDC connects to J42C pin 18C and

is filtered by L31 and C81 before it is

applied to the rest of the board.

The +12 VDC also connects through R261

to the zener diode VR3 that connects to

ground, which generates the +6.8 VDC

output to the rest of the board.

The +12 VDC also connects through R265

to the diodes CR30 and CR31 provide a .9

VDC reference output voltage VREF that

temperature compensates for the two

diodes in each corrector stage.

4.3 (A5) LO/Upconverter Module

(1301930; Appendix B)

This module contains the LO/Upconverter

board, the UHF Generator Board, LED

Display Board and channel filters. This

module takes an external IF and converts

it to the final RF output frequency using

an internally generated local oscillator.

The local oscillator consists of a VCXO that

is phase locked to an external 10 MHz

reference. The 10 MHz reference and the

VCO are both divided down to 5 kHz and

compared by the phase lock loop circuit.

Any error from this comparison is

generated in the form of an error current

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-12

that is converted to a bias voltage that

connects to the VCO. This voltage

adjusts the output frequency of the VCO

until it is on the desired frequency.

The Phase lock loop is programmed by

loading in data generated by the control

module. This data sets the dividers so

that the 10MHz and the VCXO frequency

are divided to 5kHz. These divide

numbers are loaded into U6 using the

clock, data and LE lines. This data is

sent whenever the module is first

plugged into the backplane board or

when power is applied to the

transmitter. This is necessary because

the divide numbers are lost when power

is removed from the module.

There is an alarm generated if the phase

locked loop is unlocked. This alarm is

displayed locally and is also sent to the

control module in the transmitter to be

displayed as a fault. The bias voltage to

the VCO is also available to be

monitored at TP1 and also can be

viewed on the front panel display of the

Transmitter. Typical values for this

voltage are 0.1 to 0.5V. The 10 MHz

reference is normally an external

reference. There is also a high stability

internal reference option that is

available if there is a desire to operate

the transmitter without an external

reference. Jumper W1 determines

whether an external or internal high

stability reference is to be used.

The IF signal is applied at a level of

–15 dBm average and is converted to

the final RF channel frequency. The RF

signal is applied to a filter that selects

the right conversion product. Next, the

signal is amplified to -7 dBm by A3 and

exits the front of the module at J2.

There are also a front panel samples of

the RF output at J3 and the LO at J1.

The RF sample level is approximately -

20 dB below the RF output. The LO

sample level is -7 dBm.

4.3.1 (A4) UHF Generator Board

(1585-1265; Appendix B)

The UHF generator board is mounted in the

UHF Generator Enclosure for EMI and RFI

protection. The board contains a VCXO

circuit and additional circuitry to multiply

the VCXO frequency by eight.

The VCXO circuit uses the crystal Y1,

mounted in a crystal oven for stability, to

produce an output of ≈ 67 MHz to 132 MHz,

depending on the desired channel

frequency. Course adjustment to the

frequency of the crystal is made by C11,

while fine adjustments are accomplished by

the AFC voltage at J2 from (A1) the

LO/Upconverter board (1302132). The

VCXO output level is adjusted by C6, L2, L4

and C18. The output is split and provides

an input to the x8 multiplier circuitry as

well as a VHF Output sample at J1.

The x8 circuitry consists of three identical

x2 broadband frequency doublers. The

input signal at the fundamental frequency

is fed through a 6-dB pad consisting of

R21, R24, and R25 through C29 to

amplifier U3. The output of the amplifier

stage is directed through a bandpass filter

consisting of L8 and C32, which is tuned to

the fundamental frequency (67 MHz to 132

MHz). The voltage measured at TP1 is

typically +.6 VDC. The first doubler stage

consists of Z1 with bandpass filter L9 and

C34 tuned to the second harmonic (134

MHz to 264 MHz). The harmonic is

amplified by U4 and again bandpass filtered

at the second harmonic by C38 and L11

(134 MHz to 264 MHz). The voltage

measured at TP2 is typically +1.2 VDC. The

next doubler stage consists of Z2 with

bandpass filter C40 and L12 tuned to the

fourth harmonic of the fundamental

frequency (268 MHz to 528 MHz). The

fourth harmonic is then amplified by U5

and fed through another bandpass filter

tuned to the fourth harmonic consisting of

L14 and C44 (268 MHz to 528 MHz). The

voltage measured at TP3 is typically +2.0

VDC. The final doubler stage consists of Z3

with bandpass filter C46 and L15 tuned to

the eighth harmonic of the fundamental

frequency (536 MHz to 1056 MHz). The

signal is amplified by U6 and U7 to a typical

value of from +2 to +4 VDC as measured

at TP4. The amplified eighth harmonic is

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-13

then fed to the SMA RF output jack of the

board at J3. Typical output level of the

signal is +16 dBm nominal. This output

connects through A5 a channel filter to

the LO/Upconverter Board.

The DC voltages needed to operate the

UHF generator board are supplied by the

LO/Upconverter Board. The +12 VDC for

the board enters through jack J4-3 and is

filtered by L22 and C54-C58 before being

distributed to the circuits on the board.

The +9 VDC for the board enters through

jack J4-1 and is distributed to the rest of

the board.

4.3.2 (A2 and A5) UHF Filters

(1007-1101; Appendix B)

Both UHF filters are tunable two-section

cavity filters that are typically tuned for

a bandwidth of 6 MHz and have a loss of

-1 dB through the filter.

4.3.3 (A1) LO/Upconverter Board

(1302132; Appendix B)

The upconverter portion of the board

The LO/Upconverter board provides

upconversion processing by mixing the IF

and LO signals in mixer Z1 to produce

the desired RF frequency output. The RF

output is connected through J4 to A5, an

external channel filter, and applied back

to the board at J6. The RF is amplified

and connected to the RF output jack of

the board at J43-25B.

The IF signal (-6 dBm average) enters

the board at J43-2B and is applied

through a matching pad and filter circuit

to the mixer. The pad consists of R6, R2

and R7, which presents a relatively good

source impedance. The IF is then

connected through a voltage divider

network consisting of R3, R4, R8 and

R14. R14 is variable and adjusted to set

the 0 dBm IF input level to the mixer.

The IF in next filtered by L3, C84 and

C83 and connected to pin 5, the I input

of the mixer Z1.

The local oscillator signal (+13 dBm) from

UHF Generator Board, through (A5) a UHF

channel filter, connects to the board at jack

J1, an SMA connector. THE LO is

connected directly to pin 1, the L input of

the mixer Z1.

The frequency of the LO is the sum of the

IF frequency above the required digital

carrier. For instance, in system M, for

digital applications, the LO is the center

frequency of the digital channel added to

the 44-MHz IF frequency. By picking the

local oscillator to be 44 MHz above the

digital carrier, a conversion in frequency

occurs by selecting the difference product.

The difference product, the local oscillator

minus the IF, will be at the desired digital

carrier frequency output. There will also be

other signals present at the RF output

connector J3 at a lower level. These are

the sum conversion product: the LO and

the IF frequencies. Usually, the output

product that is selected by the tuning of

the external filter is the difference product:

the LO minus the 44-MHz IF.

If a bad reactive load is connected to the

mixer, the LO signal that is fed through it

can be increased because the mixer no

longer serves as a double-balanced mixer.

The mixer has the inherent property of

suppressing signals that may leak from one

input port to any of the other ports. This

property is enhanced by having inputs and

outputs of the mixer at 50Ω impedance.

The RF output of the mixer connects

through a pad made up of R12, R15, and

R17 before it is wired to the amplifier U2.

The RF signal is amplified by U2, a modular

amplifier, and includes within it biasing and

impedance matching networks that makes

U2 act as a wideband-RF amplifier device.

This amplifier, in a 50Ω system, has

approximately 12 dB of gain. U2 is

powered from the +12 VDC line through RF

decoupling components R24, C14, and L4.

Inductor L4 is a broadband-RF choke and is

resonance free through the UHF band. The

amplified RF connects through a pad to the

SMA RF output jack J4 and is cabled to

(A2) an external channel filter. The

reactive channel filter that is externally

connected to J4 of the board does not

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-14

appear as a good 50-Ω load at all

frequencies. The pad, in the output line

of the board, consisting of R20, R18, and

R21 buffers the bad effects of the

reactive filter load and makes it appear

as a 50Ω impedance.

The RF input signal from the external

filter re-enters the board at J6 (-11 to -

17 dBm) and is capacitively coupled to

the pin-diode attenuator circuit consisting

of CR2, CR3, and CR4. The pin-diode

attenuator acts as a voltage-variable

attenuator in which each pin diode

functions as a voltage-variable resistor

that is controlled by the DC bias

connected to the diodes. The pin diodes,

because of a large, intrinsic region,

cannot rectify signals at this RF

frequency; therefore, they only act as a

linear voltage-variable resistor. These

diodes are part of the AGC for the

transmitter.

The automatic gain control (AGC)

portion of the board

The automatic gain control (AGC)

provides automatic gain control for the

power amplifier module(s).

The AGC circuitry attempts to maintain

the ratio between an input reference

proportional to the input power and the

output power of either the

exciter/amplifier PA output, AGC #1,

Inner Loop, or the output of external

power amplifiers, AGC #2, Outer Loop,

farther downstream. NOTE: The AGC

#2 Outer Loop is not used in 5W-50W

digital transmitters.

An ALC reference input is applied to the

board at J43-16A, amplified by U10A,

and sent to the front panel board

through J5-7 where it is connected to a

AGC Manual Gain pot, accessed through

the front panel. A switch AUTO/MAN

AGC is also located on the front panel.

When switched in MAN the MAN GAIN

Pot adjusts the output power level. The

Gain Control voltage is reapplied to the

board at J5-6. The gain control voltage

is summed to the added together inner

and outer loop AGC reference voltage at

U10D.

The AGC output reference from the

exciter/amplifier PA module, AGC #1

INNER LOOP, is applied at J43-14C and

from the external PA module, AGC #2

OUTER LOOP, is applied at J43-15C.

The larger voltage of either the inner or

the outer loop is used to control the AGC

loop. Since the outer loop is not used in

this system, the inner loop controls the

AGC. R82 is adjusted so that the inner

loop voltage at TP7 is larger than the

voltage at TP4 by approximately .1 VDC.

This ensures that the output of the

exciter/amplifier is the reference used for

AGC. In systems that use the outer loop,

that level is adjusted to .1 VDC above the

inner loops reference. This ensures that

the output of the system is the reference

used for AGC. If that reference drops to

the point where it is smaller than the

inner loop reference, the system switches

over to using the inner loop reference.

The AGC reference that is being used is

buffered by U10C and connected to U10D.

U10D generates an output voltage that is

used to bias the pin attenuators, CR2, CR3

and CR4, which sets the gain of the

exciter/amplifier.

This Auto AGC circuit can be disabled by

the AGC Auto/Man switch, located on the

front panel, which switches the pin-

attenuator bias to a variable voltage that

is set by the Manual Gain Adjust.

The level-controlled RF signal, from the

pin-diode attenuator circuit, is amplified by

the wideband-hybrid amplifier IC U13 that

is configured in the same way as U2. The

RF signal is converted by T1 to a balanced,

dual feed output that is applied to the

push-pull Class A amplifier IC U1.

Capacitors C2 and C5 provide DC blocking

for the input signal to the IC. The RF

outputs of the IC are applied through C3

and C4, which provide DC blocking for the

output signals. The RF signals connect to

combiner T2 that combines the RF back to

a single-RF output at a 50Ω impedance.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-15

The RF then enters a coupler stage,

which provides a sample of the RF at J7

(–20dB), the front panel RF sample jack.

The main path through coupler is to J43

pin 25B, the Upconverter RF output jack

of the module (+0 to +10 dBm).

The PLL and 10-MHz Reference section

of the Board

The PLL and 10-MHz reference portion of

the board utilizes either an external 10

MHz reference or an internally generated

10 MHz as the reference for the PLL

circuit that generates the AFC voltage,

which controls the frequency of the VCXO

on the UHF Generator Board.

The (PLL) phase lock loop circuit,

provides the automatic frequency control

(AFC) voltage, that connects to the

VCXO, located on the UHF generator

board, and maintains the accurate output

frequency of the VCXO. The AFC is

generated by comparing a sample of the

10-MHz reference to a sample of the

VCXO frequency. The PLL uses an

external 10-MHz signal as the reference,

unless it is missing, then an internally

generated 10-MHz signal is used. The

two 10-MHz reference signals are

connected to the K1 relay and the

selected reference connects to the

comparator synthesizer IC U9. The

switching between the two references is

accomplished by the K1 relay. When the

relay is de-energized, it applies the

external 10-MHz reference to U9. The

relay will remain de-energized as long as

an externally generated 10-MHz

reference signal is present and the

Jumper W3 on J10 is placed in the

external position, between Pins 1 & 2.

An alternate 10 MHz reference can be

connected to J11 on the board. The

jumper W3 on J10 must then be moved

to pins 2 & 3, internal, to connect the

alternate 10 MHz to K1. The alternate 10

MHz will then act in the circuit like the

external 10 MHz.

If the external 10-MHz reference is lost,

the relay will energized and the internally

generated 10-MHz reference is then

applied through the K1 relay pin 14 to pin

1 to the IC U9.

With the relay de-energized, the externally

generated 10-MHz from jack J43 pin 22B

connects through the normally closed

contacts of the relay from pin 1 to pin 7 to

the IC U9.

External 10-MHz Reference Present

Circuitry

The external 10-MHz reference signal

enters the board at J43 pin 22B and is

isolated by L8 and connected to the

External/Internal Jack J10. W3 on J10 is a

manual jumper that must be connected

between pins 1 & 2, External, for the

external 10 MHz to connect to the rest of

the circuit. The external 10 MHz is filtered

by C44, R55, L9 and C46 before it split

with one path connected to the K1 relay at

pin 1 of the normally closed contacts. The

other path takes the 10 MHz and rectifies it

by CR5 and filters it before it is connected

to U7A pin 2. If the sample level of the

external 10 MHz is above the reference set

by R46 and R48, which is connected to pin

3 of U7A, the output of U7A stays low. The

low connects to the gates of Q3, Q5 and

Q6, which are biased off and cause their

drains to go high. The high from the drain

of Q6 is wired to J43, pin 14A, for

connection to a remote external 10-MHz

present indicator. The high from the drain

of Q5 connects to the yellow LED DS2,

internal reference indictor, which will not

light. This indicates that an external 10-

MHz reference is present. The low from

U7A also connects to the gate of Q3,

biasing it off and causing its drain to go

high. This high de-energizes the K1 relay

and applies the external 10-MHz reference

signal to pin 6 on U9 for use as the

reference in the PLL circuits.

Internal 10-MHz Reference Circuitry

The internally generated 10-MHz reference

signal connects from U6, the 10-MHz

oscillator IC, to pin 14, the Normally Open

contacts of relay K1.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-16

With no external 10-MHz reference input,

the level connected to U7A Pin 2 will be

low. This will be less than the reference

set by R46 and R48, which is connected

to pin 3 of U7A, that causes the output of

U7A to go high. The high connects to the

gates of Q3, Q5 and Q6, which are biased

on and causes their drains to go low. The

low from the drain of Q6 is wired to J43,

pin 14A, for connection to a remote

external 10-MHz present indicator. The

low from the drain of Q5 connects to the

yellow LED DS2, internal reference

indictor, which will light. This indicates

that an external 10-MHz reference is not

present and that the internal 10-MHz is

being used as the reference. The high

from U7A also connects to the gate of

Q3, biasing it on and causing its drain to

go low. This low energizes the K1 relay

and applies the internal 10-MHz

reference signal through K1 pin 14 to pin

7 to pin 6 on U9 for use as the reference

in the PLL circuits.

Selected 10-MHz Reference Samples

A sample of the selected 10-MHz is split

off the main path through L13 and R95

using L14 and C74 and C73. The sample

path connects to another splitter circuit

consisting of L2, R94, L11, C71 and C70.

One output of the splitter connects to J43

pin 28B that is used by the external

digital modulator tray. The other output

of the splitter connects to J43 pin 31B

that is used by the external analog

modulator tray.

Comparator Phase Lock Loop Circuit

The selected 10-MHz reference connects

to pin 6, Oscillator In, of the IC U9. The

LO generated by the VCXO located on the

UHF Generator Board connects to J1 on

the LO/Upconverter Board. A sample of

the LO is divided off the main line by

R105, R106 and R107. The LO sample

connects to pin 4, F In, of U9.

The U9 IC takes the 10 MHz reference

and divides it down to 5 kHz. It also

takes the LO sample input and divides it

down to 50 kHz. The two 5 kHz divided

down signals are compared inside of U9

and any differences are connected to U9

pin 16. The output of U9 at pin 16 are 5

kHz pulses whose pulse width varies as any

differences between the 10-MHz and VCXO

frequencies are detected. These pulses are

changed to a DC voltage level by the

capacitor-resistor filter network, C32, C36,

C42, C38 and R49. The AFC voltage is

then connected to the + input of U4B that

amplifies it and connects it to jack J9. W2

on J9 must be in the operate position,

between pins 1 and 2, for the PLL circuit to

operate. With jumper W2 between pins 2

and 3 on J6, set up, the AFC bias is set by

R43. NOTE: With the VCXO, located on

the UHF Generator Board, set on

frequency, the voltage as measured at TP2

should be –2 VDC.

The AFC output of J9 is split with one path

connected to J43 pin 13A. The other path

is amplified by U7B and connected to J12,

VCXO AFC Output, on the board that

connects to the VCXO on the UHF

generator board. The PLL circuit, when

locked, will maintain the very accurate

VCXO output frequency because any

change in frequency will be corrected by

the AFC error voltage.

Lock Detector Circuit

IC chip U9 contains an internal lock

detector that indicates the status of the

PLL circuit. When U9 is in a locked state,

pin 12 goes high; the high is applied to Q1,

which is biased off. With Q1 off, pin 3 goes

low and is connected to DS1, the Red

Unlock LED, which does not lit. Q1 pin 3

low also connects to Q2 that is biased off.

The drain of Q2, a high, is wired to J43 pin

15A, the PLL Lock Indicator output of the

board.

If the 5-kHz from the 10-MHz reference

and the 5-kHz from the VCXO become

unlocked, out of the capture range of the

PLL, pin 12 of U9 goes to a logic low that

connects to the base of Q1. This biases On

Q1 causing pin 3 to go high. The high

connects to DS1, the red Unlock LED,

which lights, and to Q2, which is biased on.

When Q2 is biased on, it connects a low to

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-17

jack J43 pin 15A, the PLL Lock Indicator

output of the board.

Voltage Requirements

The board is powered by ±12 VDC that is

produced by an external power supply.

+12 VDC enters the board through J43

pins 18A, B & C, and is filtered and

isolated by L5, L6 and the shunt

capacitor C24. The +12 VDC is then

applied to the rest of the board and to

J14 pin 3 for use by the UHF Generator

Board.

One connection of the +12 VDC is to IC

U12. U12 and associated circuitry

produce a +9 VDC that connects to J14

pin 1 for use by the UHF Generator

Board.

Another connection of the +12 VDC is to

a +5 VDC regulator. The +12 VDC

connects to diodes CR6 and CR7 that

along with the pi type filter consisting of

C56, L10, C54 and C55 removes any

noise from the +12 VDC before it

connects to the +5 VDC regulator IC U8.

The output of the IC U8, +5 VDC,

connects to the rest of the board.

The -12 VDC enters the board through

J43 pins 19A, B & C and is filtered and

isolated by L7 and the shunt capacitor

C28. The -12 VDC is then applied to the

rest of the board and to J14 pin 5 for use

by the UHF Generator Board.

4.4 (A4) Control Monitoring/Power

Supply Module (110 VAC, 1301936 OR

220 VAC, 1303229;Appendix B)

The Control Monitoring/Power Supply

Module Assembly contains (A1) a Power

Protection Board (1302837), (A2) a 600

Watt Switching Power Supply, (A3) a

Control Board (1302021), (A4) a Switch

Board (1527-1406) and (A5) a LCD

Display.

AC Input to Pioneer Exciter/Amplifier

Chassis Assembly

The AC input to the Pioneer

Exciter/Amplifier Chassis Assembly is

connected from J1, part of a fused entry

module, located on the rear of the chassis

assembly to J50 on the Control

Monitoring/Power Supply Module. There

are two possible modules that can be part

of your system, 1301936 for 110 VAC or

1303229 for 220 VAC operation. J50-10 is

line #1 input, J50-8 is earth ground and

J50-9 is line #2 input. The input AC

connects to J1 on the Power Protection

Board where it is fuse protected and

connected back to J50, at J50-11 AC Line

#1 and J50-12 AC Line #2, for distribution

to the cooling Fan.

4.4.1 (A1) Power Protection Board

(1302837; Appendix B)

The input AC connects through J1 to two

10 Amp AC fuses F1 and F2. The AC line

#1 input connects from J1-1 to the F1

fuse. The AC line #1 input after the F1

fuse is split with one line connected back

to Jack J1 Pin 4, which becomes the AC

Line #1 to the Fan. The other line of the

split connects to J4. The AC line #2 input

connects from J1-3 to the F2 fuse. The

AC line #2 input after the F2 fuse is split

with one line connected back to Jack J1 at

Pin 5, which becomes the AC Line #2 to

the Fan. The other line of the split

connects to J2. J1-2 is the earth ground

input for the AC and connects to J3.

Three 150-VAC, for 115 VAC input, or

three 275-VAC, for 230 VAC input, MOVs

are connected to the input AC for

protection. One connects from each AC

line to ground and one connects across the

two lines. VR1 connects from J4 to J2, VR2

connects from J4 to J3 and VR3 connects

from J2 to J3.

+12 VDC Circuits

+12 VDC from the Switching Power

Supply Assembly connects to J6 on the

board. The +12 VDC is divided into four

separate circuits each with a 3 amp self

resetting fuse, PS3, PS4, PS5 and PS6.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-18

The polyswitch resettable fuses may

open on a current as low as 2.43 Amps

at 50˚C, 3 Amps at 25˚C or 3.3 Amps at

0˚C. They definitely will open when the

current is 4.86 Amps at 50˚C, 6 Amps

at 25˚C or 6.6 Amps at 0˚C.

PS3 protects the +12 VDC 2 Amp

circuits for the System Controller, the

Amplifier Controller and the Spare Slot

through J62 pins 7, 8, 9 and 10. If this

circuit is operational, the Green LED

DS3, mounted on the board, will be lit.

PS4 protects the +12 VDC 2 Amp

circuits for the Modulator and the IF

Processor through J62 pins 13, 14, 15

and 16. If this circuit is operational, the

Green LED DS4, mounted on the board,

will be lit

PS5 protects the +12 VDC 2 Amp

circuits for the Upconverter through J62

pins 17, 18, 19 and 20. If this circuit is

operational, the Green LED DS5,

mounted on the board, will be lit

PS6 protects the +12 VDC 2 Amp

circuits for the Remote through J63 pins

17, 18, 19 and 20. If this circuit is

operational, the Green LED DS6,

mounted on the board, will be lit

-12 VDC Circuits

-12 VDC from the Switching Power

Supply Assembly connects to J5 on the

board. The -12 VDC is divided into two

separate circuits each with a 3 amp self

resetting fuse, PS1 and PS2.

PS1 protects the -12 VDC 2 Amp circuits

for the System through J63 pins 1, 2, 3

and 4. If this circuit is operational, the

Green LED DS1, mounted on the board,

will be lit

PS2 protects the -12 VDC 2 Amp circuits

for the Remote through J62 pins 1, 2, 3

and 4. If this circuit is operational, the

Green LED DS2, mounted on the board,

will be lit

The connections from J62 and J63 of the

Power Protection Board are wired to J62

and J63 on the Control Board.

4.4.2 (A3) Control Board (1302021;

Appendix B)

In this transmitter, control monitoring

functions and front panel operator

interfaces are found on the Control Board.

Front panel operator interfaces are

brought to the control board using a 26

position conductor ribbon cable that plugs

into J60. The control board controls and

monitors the Power Supply and Power

Amplifier module through a 16 position

connector J61 and two 20 position

connectors J62 & J63.

Schematic Page 1

U1 is an 8 bit RISC microcontroller that is

in circuit programmed or programmed

using the serial programming port J4 on

the board. When the microcontroller, U1,

is held in reset, low on pin 20, by either

the programming port or the external

watchdog IC (U2), a FET Q1 inverts the

reset signal to a high that connects to the

control lines of U5, an analog switch. The

closed contacts of U5 connects the serial

programming lines from J4 to U1. LED

DS10 will be lit when programming port J4

is used.

U2 is a watchdog IC used to hold the

microcontroller in reset, if the supply

voltage is less the 4.21 VDC; (1.25 VDC <

Pin 4 (IN) < Pin 2 (Vcc). The watchdog

momentarily resets the microcontroller, if

Pin 6 (ST) is not clocked every second. A

manual reset switch S1 is provided but

should not be needed.

Diodes DS1 through DS8 are used for

display of auto test results. A test board

is used to execute self test routines.

When the test board is installed,

Auto_Test_1 is held low and Auto_Test_2

is allowed to float at 5 VDC. This is the

signal to start the auto test routines.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-19

U3 and U4 are used to selectively enable

various input and output ICs found on

pages 2 & 3 of the schematic.

U1 has two serial ports available. In this

application, one port is used to

communicate with transmitter system

components where U1 is the master of a

RS-485 serial bus. The other serial port

is used to provide serial data I/O where

U1 is not the master of the data port. A

dual RS-232 port driver IC and a RS-485

Port driver is also in the second serial

data I/O system. The serial ports are

wired such that serial data input can

come through one of the three serial

port channels. Data output is sent out

through each of the three serial port

channels.

Switch SW1, transmitter operation

select, is used to select either

transmitter operation or exciter/driver

operation. When the contacts of SW1

are closed, transmitter operation is

selected and the power monitoring lines

of the transmitter’s power amplifier are

routed to the system power monitoring

lines.

Schematic Page 2

U9 is a non-inverting transceiver IC that

provides 2 way asynchronous

communication between data busses. .

The IC is used as an input buffer to

allow the microcontroller to monitor

various digital input values.

Digital output latch circuits are used to

control system devices. Remote output

circuits are implemented using open

drain FETs, Q13, Q14, Q16, and Q17,

with greater than 60 Volt drain to source

voltage ratings.

Remote digital inputs are diode

protected, using CR6, CR7, CR8 and CR9

with a 1 kΩ pull-up resistor, to +5 VDC.

If the remote input voltage is greater

than about 2 Volts or floating, the FET is

turned on and a logic low is applied to

the digital input buffer, U9. If the

remote input voltage is less than the

turn on threshold of the FET (about 2

VDC), a logic high is applied to the digital

input buffer, U9.

Four of the circuits on page two of the

schematic, which include Q2, Q9, Q19 and

Q21, are auxiliary I/O connections wired

for future use. They are wired similar to

the remote digital inputs but include a

FET, Q5, Q12, Q20 and Q22, for digital

output operations. To operate these

signals as inputs, the associated output

FET must be turned off. The FETs are

controlled by U10 and U12, analog input

multiplexer ICs.

Schematic Page 3

U13, U14, U15, U16, U17 and U18 are 3

state non-inverting transceiver ICs that

provide 2 way asynchronous

communication between data busses. The

ICs are used as input buffers to allow the

microcontroller to monitor various digital

input values. The digital inputs to the ICs

utilize a 10 kΩ pull-up resistor. The buffer

IC, U18, used for data transfer to the

display is wired for read and write control.

Schematic Page 4

U19 and U20 are digitally controlled

analog switches that provide samples back

to the microprocessor. Each analog input

is expected to be between 0 and 5 VDC.

If a signal exceeds 5.1 VDC, a 5.1 Volt

zener diode clamps the signals voltage, to

prevent damage to the IC. Most signals

are calibrated at their source, however

two dual serial potentiometers ICs are

used to calibrate four signals, System

Visual/Average Power, System Aural

Power, System Reflected Power and the

Spare AIN 1. For these four circuits, the

input value is divided in half before it is

applied to an op-amp. The serial

potentiometer is used to adjust the output

signal level to between 80 and 120% of

the input signal level. Serial data, serial

clock and serial pot enables are supplied

by the microprocessor to the dual serial

potentiometer ICs. J62 and J63 are two

20 position connectors that provide the

+12 VDC and –12 VDC power through the

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-20

Power Protection Board. The ±12 VDC

generated by the switching power

supply connects to J62 and J63 after

being fuse protected on the Power

Protection Board.

Schematic Page 5

There are three dual element,

red/green, common cathode LED

indicators mounted on the front panel of

the sled assembly; DC OK, Operate and

Fault.

There are three, the fourth is a spare,

identical circuits that drive the front

panel mounted LED indicators. The

levels on the 1, 2, 3 and 4 LED Control

Lines, for both the red and green LEDs,

are generated by the IC U11 as

controlled by the DATABUS from the

microprocessor U1.

Each LED controller circuit consists of an

N-Channel MOSFET w/internal diode that

controls the base of an N-P-N transistor

in an emitter follower configuration. The

emitter of the transistor connects the

LED.

With the LED control line LOW, the

MOSFET is Off, which causes the base of

the transistor to increase towards +12

VDC, forward biasing the transistor.

With the transistor forward biased,

current will flow from ground through

the LED, the transistor and the current

limiting resistors in the collector to the

+12 VDC source. The effected LED will

light.

With the LED control line HIGH, the

MOSFET is On, which causes the base of

the transistor go toward ground

potential, reverse biasing the transistor.

With the transistor reverse biased, no

current through the transistor and LED,

therefore the effected LED will not light.

A third color, amber, can also be

generated by having both transistors

conducting, both control lines LOW. The

amber color is produced because the

current applied to the green element is

slightly greater than the red element.

This occurs because the current limiting

resistors have a smaller ohm value in the

green circuit.

There are four voltage regulators, three

for +5 VDC and one for +7 VDC, which

are used to power the Control Board. +12

VDC is applied to U25 the +7 VDC

regulator that produces the +7V, which is

applied to the LEDs mounted on the

board. The +7V is also connected to the

input of U26 a precision +5.0 Volt

regulator. The +5.0Vdc regulator output

is used to power the analog circuits and as

the microcontroller analog reference

voltage. Another two +5 Volt regulator

circuits U27, +5V, and U8, +5 Vserial, are

used for most other board circuits.

4.4.3 (A4) Switch Board (1527-1406;

Appendix B)

The switch board provides five front-panel

momentary contact switches for user

control and interface with the front-panel

LCD menu selections. The switches, SW1

to SW5, complete the circuit through

connector J1 to connector J2 that

connects to J1 on (A5) the 20 Character

by 4 line LCD Display. J1 on the switch

board is also cabled to the Control Board.

When a switch is closed, it connects a

logic low to the control board that supplies

the information from the selected source

to the display. By pushing the button

again, a different source is selected. This

occurs for each push button. Refer to

Chapter 3 Section 3.5.4, for more

information on the Display Menu Screens.

4.4.4 (A2) Switching Power Supply

Assembly

The power supply module contains a

switching power supply, an eight position

terminal block for distributing the DC

voltages, a three position terminal block

to which the AC Input connects, Jacks J1,

V1 and V2. Jack J1 connects to the

Control Board and supplies DC OK, at J1-4

& 3, and AC OK, at J1-2 & 1, status to the

control board. A Power Supply enable

connects from the control board to the

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-21

power supply at V1-6 & 7. The power

supply is configured for three output

voltages +12V, -12V, at the 8 position

terminal block, and a main output power

of +32 VDC at J50 pin A (+) and J50 pin

B (Rtn). The power supply is power

factor corrected to .98 for optimum

efficiency and decrease in energy

consumption. For safety purposes all

outputs are over voltage and over

current protected. This supply accepts

input voltages from 85 to 264 volts AC,

but the power entry module, for the

exciter/amplifier chassis, must be

switched to the proper input voltage

setting, for the transmitter to operate.

4.5 (A4) Power Amplifier Module

Assembly (1301923; Appendix B)

NOTE: Used in 10W-100W Transmitters.

The Power Amplifier Module Assembly

contains (A1) a 1 Watt UHF Amplifier

Module Assembly (1302891), (A2) a 40

Watt UHF Module Assembly (1206693),

(A3) UHF RF Module Pallet Assembly

(1300116), (A4) a Coupler Board

Assembly (11301949), (A5) an Amplifier

Control Board (1301962) and (A6) a

Temperature Sensor IC.

The RF from the Upconverter Module

Assembly connects from the Upconverter

RF Output BNC Jack J23, through a cable,

to the PA RF Input BNC Jack J24, located

on the rear of the exciter/amplifier chassis

assembly.

4.5.1 (A1) 1-Watt UHF Module

Assembly (1302891; Appendix B)

The 1-watt UHF module assembly

provides radio frequency interference

(RFI) and electromagnetic interference

(EMI) protection, as well as the heatsink,

for the 1-watt UHF amplifier board

(1302762) that is mounted inside the

assembly. The assembly has

approximately 17 dB of gain.

The RF input to the assembly connects to

SMA Jack J3. The amplified RF output of

the assembly is at the SMA Jack J4.

Typically, with an input signal of +4 dBm

at J1 of the assembly, an output of

+21 dBm can be expected at J2.

The +12-VDC bias voltage connects

through J5, a RF-bypassed, feed-through

capacitor, to the amplifier board. The

-12-VDC bias voltage connects through J6,

a RF-bypassed, feed-through capacitor, to

the amplifier board. E1 on the assembly

connects to Chassis ground.

4.5.2 (A1-A1) 1-Watt UHF Amplifier

Board (1302761; Appendix B)

The 1-watt UHF amplifier board is mounted

in the 1-watt UHF amplifier assembly

(1302891) and provides approximately

+17 dB of gain.

The UHF signal enters the board at J3, a

SMA connector, and is applied to U3 an IC

hybrid coupler assembly that splits the

input signal into two equal parts. The two

amplifier paths are identical using Q4 and

Q5, 1-Watt HFETs as the amplifier devices.

Each HFET has approximately 14 dB of

gain.

The drain voltage needed to operate each

HFET is obtained from the +12 VDC line

that connects to the board at J5 and is

regulated down to +8.25 volts by U4. The

gate negative bias voltage is obtained from

the -12 VDC line that connects to the

board at J6.

The amplified outputs of the HFETs are

applied to U2 an IC hybrid coupler

assembly that combines the amplified

signals into a single output that connects

to J4 of the board.

4.5.3 (A4-A1) 40 Watt UHF Amplifier

Assembly (1206693; Appendix B)

The output of the UHF filter is connected to

the input J1 of (A2) the 40 Watt UHF

amplifier assembly (Figure 4-1). The

assembly is made up of a (51-5378-308-

00) module, which operates class AB and is

a highly linear broadband amplifier for the

frequency range of 470 to 860 MHz. It can

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-22

deliver an output power of 40 watts

(CW) with approximately 14 dB of gain.

The amplification circuit consists of

LDMOS transistors V804 and V805

connected in parallel and operating in

class AB. The paralleling network is

achieved with the aid of 3 dB couplers

Z802 and Z803. A further 3 dB coupler

Z801, in conjunction with capacitors

C800 and C819, serves as a phase

shifter. Phase alignment (for the

complete amplifier), as well as quiescent

current settings are achieved by means

of potentiometers R807 and R808. The

settings are factory implemented and

should not be altered.

PIN diodes V810 & V811 form a variable-

damping circuit that is used to adjust the

amplification of the 40-watt module. The

adjustment is performed with the Gain

potentiometer R838. A readjustment of

the amplification may be required, after

repair work, to ensure that the PAs in

multiple PA transmitters deliver the same

output power

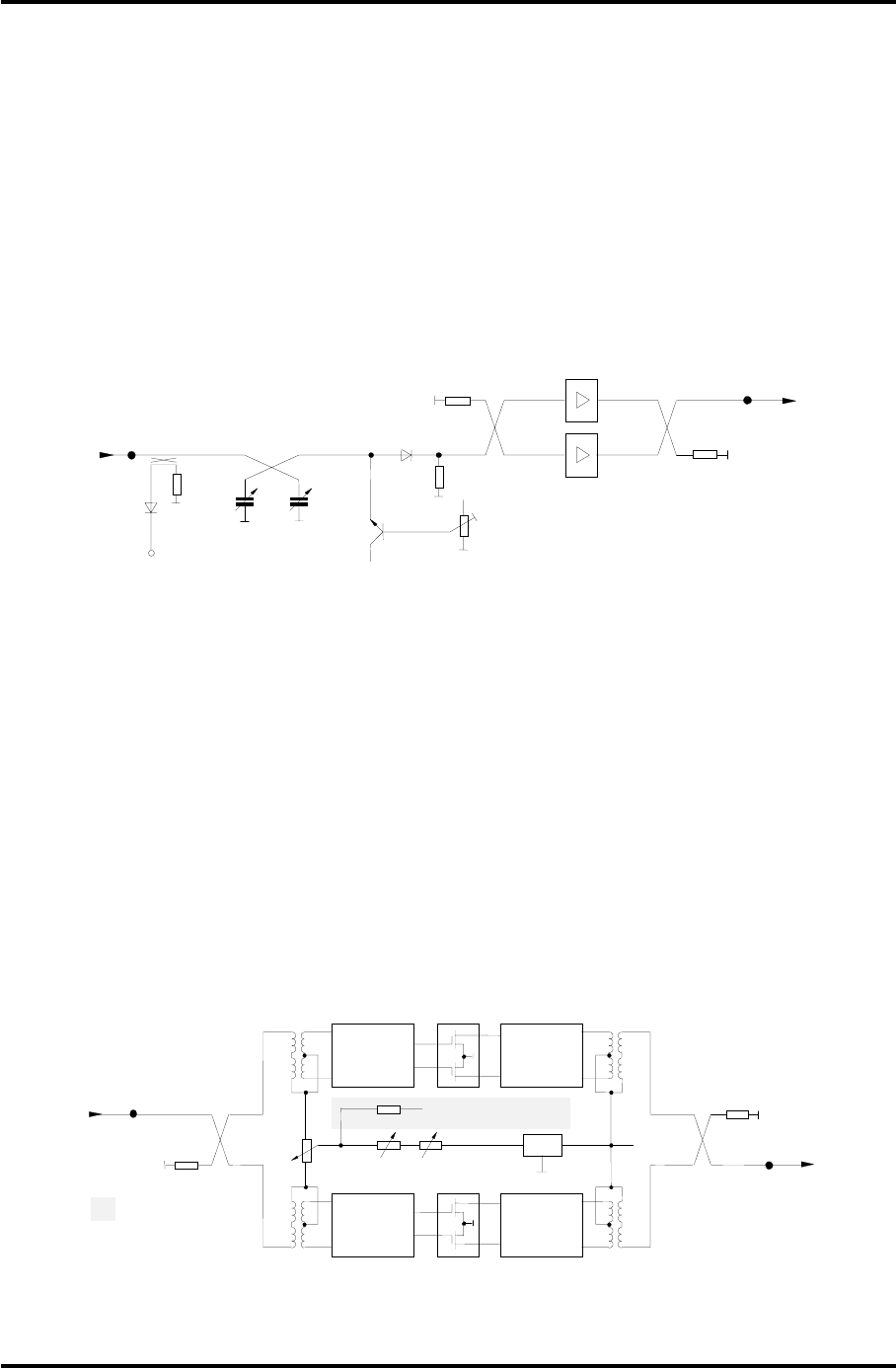

V 805

V 804

3 dB Coupler

Z 801

Output

Input

R 814

R 802, ..4, ..5

C 800 C 819

Detector

Output

X 801

+32V

R 838

V 810

V 811

V 812

3 dB Coupler

Z 802

3 dB Coupler

Z 803

Figure 4-1: 40 Watt UHF Amplifier Module

4.5.4 (A3) UHF Module Assembly, RF

Module Pallet, Philips (1300116;

Appendix B)

The UHF Module Assembly, 250-watt

module (Figure 4-2) is a broadband

amplifier for the frequency range 470 to

860 MHz. The amplifier is capable of

delivering an output power of 70 Wrms.

The amplification is approximately 13

dB.

The amplification circuit consists of the

parallel connected push-pull amplifier

blocks V1 and V2 operating in class AB. In

order to match the transistor impedance

to the characteristic impedance of the

input and output sides, matching networks

are placed ahead and behind the amplifier

blocks. Transformers Z3 to Z6 serve to

balance the input and output signals. The

paralleling circuit is achieved with the aid

of 3-dB couplers Z1 and Z2.

The working point setting is factory

implemented by means of potentiometers

R9, R11, and R12 and should not be

altered.

V 1

3 dB Coupler

Z 2

Output

Input

3 dB Coupler

Z 1

R 2

R 1

Matching

Network

Matching

Network

V 2

Matching

Network

Matching

Network

Z 3 Z 5

Z 4 Z 6

+Uop

N 1

R 11 R 12

R 9

R 10

Dynamic

Figure 4-2. UHF Amplifier Module, 250 Watts

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-23

4.5.5 (A4) Coupler Board Assembly

(1301949; Appendix B)

The UHF coupler board assembly

provides a forward and reflected power

samples of the output to (A5) the

amplifier control board where it connects

to the input of the overdrive-protection

circuit.

The RF input to the UHF coupler

assembly, from the 250 Watt UHF

amplifier module, connects to SMA jack

J1. The RF is connected by a stripline

track to the SMA type connector RF

Output jack J2. A hybrid-coupler circuit

picks off a power sample that is

connected to SMA type connector jack J3

as the forward power sample. Another

power sample is taken from the coupler

circuit that is connected to SMA type

connector jack J6 as the reflected power

sample. Two 50Ω terminations, used as

dissipation loads, connect to the reject

and reflected ports, J5 and J4, of the

coupler.

4.5.6 (A5) Amplifier Control Board

(1301962; Appendix B)

The amplifier control board provides LED

fault and enable indications on the front

panel of the module and also performs

the following functions: overdrive

cutback, when the drive level reaches the

amount needed to attain 110% output

power; and overtemperature, VSWR, and

overdrive faults. The board also provides

connections to the LCD Display for

monitoring the % Reflected Power, %

Output Power, and the power supply

voltage.

Page 1

U4, located upper center of page, is an in

circuit microcontroller. The controller is

operated at the frequency of 3.6864 MHz

using crystal Y1. Programming of this

device is performed through the serial

programming port J2. U4 selects the

desired analog channel of U1 through the

settings of PA0-PA3. The outputs of Port

A must be set and not changed during an

analog input read of channels PA5-PA7.

PA4 of U4 is a processor operating LED

that monitors the +/-12 VDC. PA5 is used

to monitor the +12VDC supply to the

board. PA6 is the selected channel of

analog switch U1. PA7 is connected to a

via, V10, for future access.

U6 is a serial to RS-485 driver IC. U7 is a

watchdog IC used to hold the

microprocessor in reset, if the supply

voltage is less than 4.21 VDC. U7

momentarily resets the microcontroller if

Pin 6 (!ST) is not clocked every second. A

manual reset switch is provided but should

not be needed.

Upper left corner U3 is used to determine

where the amplifier control board is

located. The eight inputs come from the

main amp connector and are used to set

the SCADA address of the controller. Pull-

up resistors set a default condition of logic

high.

U5 below U3 is used for getting digital

input information of the board. Page two

has several monitoring circuits that provide

information on the amplifier’s status. Many

of these circuits automatically shut down

the amplifier if a specific fault occurs.

U8 below U5 is used to control four board

mounted status LEDs. A FET is turned On

to shunt current away from the LED to turn

it Off. U9 below U8 is used to enable

different features within the software.

Actual use is to be determined.

Page 2

In the lower right corner are voltage

regulator circuits. U22 should allow for

0.14 amps of power using its 92 C/W

rating if Ta = 60°C max and Tj = 125°C

max 0.26 amps can be obtained from U22

if the mounting pad is 0.5 square inches.

The controller will not need this much

current.

U23 and U24 are low drop out +5 VDC,

voltage regulators with a tolerance greater

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-24

than or equal to 1%. 100mA of current

is available from each device but again

the controller will not need this much

current.

In the upper left section are circuits with

U12 and U13. U12 is used to generate a

regulated voltage that is about 5 volts

less than the +32 VDC supply,

approximately +26.25 VDC. When the

+32 VDC supply is enabled, the circuitry

around U13B is used to provide gate

voltage to Q10 that is 5 volts greater

than the source pin of this FET. The gate

of Q10 can be turned Off by any one of a

few different circuits.

U10A is used to turn Off the gate of Q10

in the event of high current in amplifier

#1. At 0.886 VDC the current to

amplifier #1 should be greater than 5

Amps. U11B is used to turn off the Q10

FET, if high current is detected in

amplifier #2. U11A is used to turn off

the Q10 FET, if high current is detected

in amplifier #3. With 2.257 VDC at Pin 5

of U11B or Pin 3 of U11A, the voltage

output of current sense amplifier U17 or

U18 at high current shut down should be

greater than 15 Amps.

U14B is used to turn Off the gate of Q10

in the event of high power supply

voltage, approximately +35.4 VDC.

U14A is used to keep the FET disabled in

the event of low power supply voltage,

approximately +25.4 VDC.

Current monitoring sections of the board.

The ICs U16, U17 and U18 along with

associated components set up the

current monitoring sections of the board.

R67, R68 and R69 are 0.01Ω/5W 1%

through hole resistor is used for

monitoring the current through several

sections of the amplifier. The voltage

developed across these resistors are

amplified for current monitoring by U16,

U17 or U18. The LT1787HVCS8 precision

high side current sense IC amplifier

accepts a maximum voltage of 60 VDC.

The 43.2 kΩ resistor from pin 5 to

ground sets the gain of the amplifier to

about 17.28. This value is not set with

much accuracy since the manufacturer

internally matches the resistors of this part

but their actual resistance value is not

closely defined. A trimming resistor is

suggested to give a temperature stability

of –200 ppm/C, but instead the

microcontroller will determine the exact

gain of the circuit and use a correction

factor for measurements. Circuit loading

components are located in the lower

portion of each current monitoring circuit.

These components allow for short duration

high current loading of the supply. By

measuring the current through the sense

resistor with and without the additional

four 30.1 Ω 1% resistors. For very short

duration pulses, a 1206 resistor can handle

up to 60 watts. The processor requires

226 uSec per conversion. A supply voltage

of +32 VDC will pass 1.06 amps + 1%

through the load resistors.

A6 is a temperature sensor thermistor

that is used to monitor the temperature of

the module's heat sink. It connects to J6

pins 1 & 2 on the board wand is wired to

the comparator IC U10B. If the

temperature increases above 75°C the

output will go Low that is used as a

temperature fault output, which generates

a Fault alert at U15A and disables

Amplifier #1.

Aural, Visual/Average and Reflected power

detector sections of the board.

Page 3

A Forward Power Sample enters the board

at SMA Jack J3 and is split. One part

connects to J4 on the board that is cabled

to J1, the SMA Forward Power Sample

Jack, located on the front panel of the

assembly. The other part of the split

forward power sample is detected by CR17

and the DC level amplified by U25A. The

output of U25A at pin 1 is split with one

part connected to the Aural Power sample,

which is not used in this digital transmitter.

The other split output connects to U265A

that is part of the Forward Average Power

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-25

circuit. The detected level is connected

to L4 that is part of an intercarrier notch

filter circuit that is tuned to eliminate the

4.5 MHz aural intercarrier, if present.

The Average power sample is amplified

by U26D and connected through the

average calibration pot R166 to U26C.

The output of U26C is connected to the

comparator IC U26B that has Aural Null

and Offset Null, if present in the system,

connected to the other input. The output

Average Forward power level connects to

J9 pin 2 of the board.

A Reflected Power Sample enters the

board at SMA Jack J5 and is detected by

CR20 and the DC level amplified by

U28B. The output of U28B at pin 7 is

connected through the reflected

calibration pot R163 to U28C. The

output is split with one part connected to

J9 pin 5, the Reflected Power Output

level of the board. The other part of the

split from U28C connects to the

comparator IC U28D that has a reference

level connected to the other input. If the

reflected level increases above the

reference level a low output is produced

and connected to the Reflected Power

Shutdown circuit at CR28. The low shuts

off Q14 causing pin 3 to go high that is

connected to the inverter U15C. The

output of U15C goes low producing a

Reflected Power Fault that is connected

to an output of the board, the Fault Alert

circuit and also shuts down Amplifier #1.

Gain of the power measurements is

completed through software. Only the

Aural Null and Offset Null need to be

done through front panel pots.

This completes the description of the

Power Amplifier Module Assembly that is

used with 10W to 100 W transmitters.

4.5.7 (A9) Bandpass and (A10) Trap

Filter

The RF Output of the Tray is connected

to (A9) the Bandpass Filter and then to

(A10) the UHF Trap Filter Assembly.

Both filters are tuned to provide high out

of band rejection of unwanted products.

The filtered RF Output at the “N” connector

jack (J2) of the Trap Filter is cabled to the

Antenna for your System.

4.6 (A4) Driver Amplifier Module

Assembly (1302846; Appendix B)

NOTE: Used with high power transmitters

with external PA assemblies.

The Power Amplifier Module Assembly

contains (A1) a 1 Watt UHF Amplifier

Module Assembly (1302891), (A2) a 40

Watt UHF Module Assembly (1206693),

(A4) a Coupler Board Assembly

(11301949), (A5) an Amplifier Control

Board (1301962) and (A6) a Temperature

Sensor IC.

The RF from the Upconverter Module

Assembly connects from the Upconverter RF

Output BNC Jack J23, through a cable, to

the PA RF Input BNC Jack J24, located on

the rear of the exciter/amplifier chassis

assembly.

4.6.1 (A1) 1-Watt UHF Module

Assembly (1302891; Appendix B)

The 1-watt UHF module assembly provides

radio frequency interference (RFI) and

electromagnetic interference (EMI)

protection, as well as the heatsink, for the

1-watt UHF amplifier board (1302762) that

is mounted inside the assembly. The

assembly has approximately 17 dB of gain.

The RF input to the assembly connects to

SMA Jack J3. The amplified RF output of

the assembly is at the SMA Jack J4.

Typically, with an input signal of +4 dBm

at J1 of the assembly, an output of

+21 dBm can be expected at J2.

The +12-VDC bias voltage connects

through J5, a RF-bypassed, feed-through

capacitor, to the amplifier board. The

-12-VDC bias voltage connects through J6,

a RF-bypassed, feed-through capacitor, to

the amplifier board. E1 on the assembly

connects to Chassis ground.

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-26

4.6.2 (A1-A1) 1-Watt UHF Amplifier

Board (1302761; Appendix B)

The 1-watt UHF amplifier board is

mounted in the 1-watt UHF amplifier

assembly (1302891) and provides

approximately +17 dB of gain.

The UHF signal enters the board at J3, a

SMA connector, and is applied to U3 an

IC hybrid coupler assembly that splits the

input signal into two equal parts. The

two amplifier paths are identical using Q4

and Q5, 1-Watt HFETs as the amplifier

devices. Each HFET has approximately

14 dB of gain.

The drain voltage needed to operate each

HFET is obtained from the +12 VDC line

that connects to the board at J5 and is

regulated down to +8.25 volts by U4.

The gate negative bias voltage is

obtained from the -12 VDC line that

connects to the board at J6.

The amplified outputs of the HFETs are

applied to U2 an IC hybrid coupler

assembly that combines the amplified

signals into a single output that connects

to J4 of the board.

4.6.3 (A4-A1) 40 Watt UHF Amplifier

Assembly (1206693; Appendix B)

The output of the UHF filter is connected

to the input J1 of (A2) the 40 Watt UHF

amplifier assembly (Figure 4-1). The

assembly is made up of a (51-5378-308-

00) module, which operates class AB and is

a highly linear broadband amplifier for the

frequency range of 470 to 860 MHz. It can

deliver an output power of 40 watts (CW)

with approximately 14 dB of gain. It is

set as needed to provide the drive level to

the external PA Assemblies.

The amplification circuit consists of

LDMOS transistors V804 and V805

connected in parallel and operating in

class AB. The paralleling network is

achieved with the aid of 3 dB couplers

Z802 and Z803. A further 3 dB coupler

Z801, in conjunction with capacitors C800

and C819, serves as a phase shifter.

Phase alignment (for the complete

amplifier), as well as quiescent current

settings are achieved by means of

potentiometers R807 and R808. The

settings are factory implemented and

should not be altered.

PIN diodes V810 & V811 form a variable-

damping circuit that is used to adjust the

amplification of the 40-watt module. The

adjustment is performed with the Gain

potentiometer R838. A readjustment of

the amplification may be required, after

repair work, to ensure that the PAs in

multiple PA transmitters deliver the same

output power.

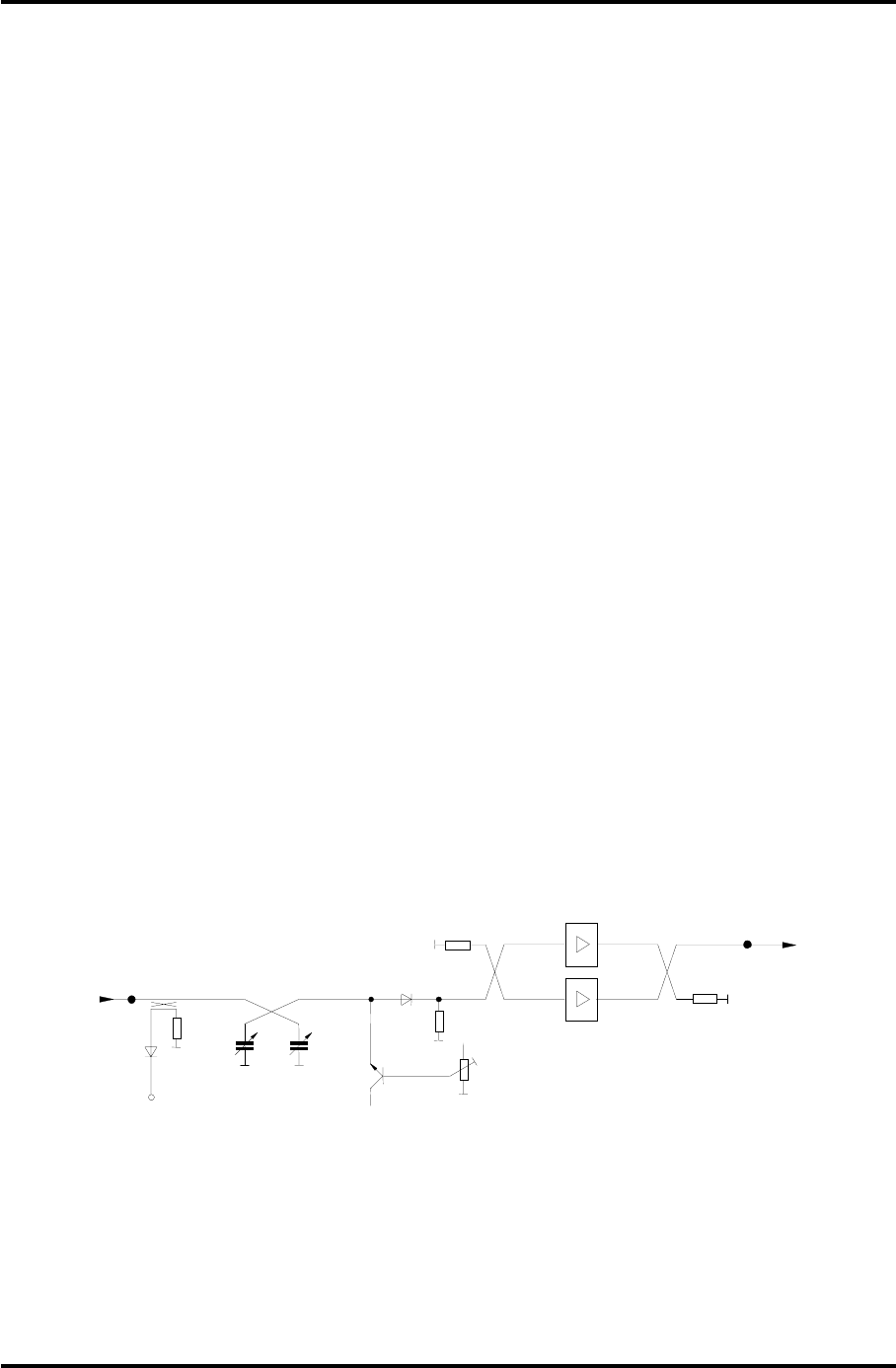

V 805

V 804

3 dB Coupler

Z 801

Output

Input

R 814

R 802, ..4, ..5

C 800 C 819

Detector

Output

X 801

+32V

R 838

V 810

V 811

V 812

3 dB Coupler

Z 802

3 dB Coupler

Z 803

Figure 4-3: 40 Watt UHF Amplifier Module

4.6.4 (A4) Coupler Board Assembly

(1301949; Appendix B)

The UHF coupler board assembly provides

a forward and reflected power samples of

the output to (A5) the amplifier control

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-27

board where it connects to the input of

the overdrive-protection circuit.

The RF input to the UHF coupler

assembly, from the 40 Watt UHF

amplifier module, connects to SMA jack

J1. The RF is connected by a stripline

track to the SMA type connector RF

Output jack J2. A hybrid-coupler circuit

picks off a power sample that is

connected to SMA type connector jack J3

as the forward power sample. Another

power sample is taken from the coupler

circuit that is connected to SMA type

connector jack J6 as the reflected power

sample. Two 50Ω terminations, used as

dissipation loads, connect to the reject

and reflected ports, J5 and J4, of the

coupler.

4.6.5 (A5) Amplifier Control Board

(1301962; Appendix B)

The amplifier control board provides LED

fault and enable indications on the front

panel of the module and also performs

the following functions: overdrive

cutback, when the drive level reaches the

amount needed to attain 110% output

power; and overtemperature, VSWR, and

overdrive faults. The board also provides

connections to the LCD Display for

monitoring the % Reflected Power, %

Output Power, and the power supply

voltage.

Page 1

U4, located upper center of page, is an in

circuit microcontroller. The controller is

operated at the frequency of 3.6864 MHz

using crystal Y1. Programming of this

device is performed through the serial

programming port J2. U4 selects the

desired analog channel of U1 through the

settings of PA0-PA3. The outputs of Port

A must be set and not changed during an

analog input read of channels PA5-PA7.

PA4 of U4 is a processor operating LED

that monitors the +/-12 VDC. PA5 is

used to monitor the +12VDC supply to

the board. PA6 is the selected channel of

analog switch U1. PA7 is connected to a

via, V10, for future access.

U6 is a serial to RS-485 driver IC. U7 is a

watchdog IC used to hold the

microprocessor in reset, if the supply

voltage is less than 4.21 VDC. U7

momentarily resets the microcontroller if

Pin 6 (!ST) is not clocked every second. A

manual reset switch is provided but should

not be needed.

Upper left corner U3 is used to determine

where the amplifier control board is

located. The eight inputs come from the

main amp connector and are used to set

the SCADA address of the controller. Pull-

up resistors set a default condition of logic

high.

U5 below U3 is used for getting digital

input information of the board. Page two

has several monitoring circuits that provide

information on the amplifier’s status. Many

of these circuits automatically shut down

the amplifier if a specific fault occurs.

U8 below U5 is used to control four board

mounted status LEDs. A FET is turned On

to shunt current away from the LED to turn

it Off. U9 below U8 is used to enable

different features within the software.

Actual use is to be determined.

Page 2

In the lower right corner are voltage

regulator circuits. U22 should allow for

0.14 amps of power using its 92 C/W

rating if Ta = 60°C max and Tj = 125°C

max 0.26 amps can be obtained from U22

if the mounting pad is 0.5 square inches.

The controller will not need this much

current.

U23 and U24 are low drop out +5 VDC,

voltage regulators with a tolerance greater

than or equal to 1%. 100mA of current is

available from each device but again the

controller will not need this much current.

In the upper left section are circuits with

U12 and U13. U12 is used to generate a

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-28

regulated voltage that is about 5 volts

less than the +32 VDC supply,

approximately +26.25 VDC. When the

+32 VDC supply is enabled, the circuitry

around U13B is used to provide gate

voltage to Q10 that is 5 volts greater

than the source pin of this FET. The gate

of Q10 can be turned Off by any one of a

few different circuits.

U10A is used to turn Off the gate of Q10

in the event of high current in amplifier

#1. At 0.886 VDC the current to

amplifier #1 should be greater than 5

Amps. U11B is used to turn off the Q10

FET, if high current is detected in

amplifier #2. U11A is used to turn off

the Q10 FET, if high current is detected

in amplifier #3. With 2.257 VDC at Pin 5

of U11B or Pin 3 of U11A, the voltage

output of current sense amplifier U17 or

U18 at high current shut down should be

greater than 15 Amps.

U14B is used to turn Off the gate of Q10

in the event of high power supply

voltage, approximately +35.4 VDC.

U14A is used to keep the FET disabled in

the event of low power supply voltage,

approximately +25.4 VDC.

Current monitoring sections of the board.

The ICs U16, U17 and U18 along with

associated components set up the

current monitoring sections of the board.

R67, R68 and R69 are 0.01Ω/5W 1%

through hole resistor is used for

monitoring the current through several

sections of the amplifier. The voltage

developed across these resistors are

amplified for current monitoring by U16,

U17 or U18. The LT1787HVCS8 precision

high side current sense IC amplifier

accepts a maximum voltage of 60 VDC.

The 43.2 kΩ resistor from pin 5 to

ground sets the gain of the amplifier to

about 17.28. This value is not set with

much accuracy since the manufacturer

internally matches the resistors of this

part but their actual resistance value is

not closely defined. A trimming resistor

is suggested to give a temperature

stability of –200 ppm/C, but instead the

microcontroller will determine the exact

gain of the circuit and use a correction

factor for measurements. Circuit loading

components are located in the lower

portion of each current monitoring circuit.

These components allow for short duration

high current loading of the supply. By

measuring the current through the sense

resistor with and without the additional

four 30.1 Ω 1% resistors. For very short

duration pulses, a 1206 resistor can handle

up to 60 watts. The processor requires

226 uSec per conversion. A supply voltage

of +32 VDC will pass 1.06 amps + 1%

through the load resistors.

A6 is a temperature sensor thermistor

that is used to monitor the temperature of

the module's heat sink. It connects to J6

pins 1 & 2 on the board wand is wired to

the comparator IC U10B. If the

temperature increases above 75°C the

output will go Low that is used as a

temperature fault output, which generates

a Fault alert at U15A and disables

Amplifier #1.

Aural, Visual/Average and Reflected power

detector sections of the board.

Page 3

A Forward Power Sample enters the board

at SMA Jack J3 and is split. One part

connects to J4 on the board that is cabled

to J1, the SMA Forward Power Sample

Jack, located on the front panel of the

assembly. The other part of the split

forward power sample is detected by CR17

and the DC level amplified by U25A. The

output of U25A at pin 1 is split with one

part connected to the Aural Power sample,

which is not used in this digital transmitter.

The other split output connects to U265A

that is part of the Forward Average Power

circuit. The detected level is connected to

L4 that is part of an intercarrier notch filter

circuit that is tuned to eliminate the 4.5

MHz aural intercarrier, if present. The

Average power sample is amplified by

U26D and connected through the average

calibration pot R166 to U26C. The output

UHF Analog Driver/Transmitter Chapter 4, Circuit Descriptions

LX Series, Rev. 0 4-29

of U26C is connected to the comparator

IC U26B that has Aural Null and Offset

Null, if present in the system, connected

to the other input. The output Average

Forward power level connects to J9 pin 2

of the board.

A Reflected Power Sample enters the

board at SMA Jack J5 and is detected by

CR20 and the DC level amplified by

U28B. The output of U28B at pin 7 is

connected through the reflected

calibration pot R163 to U28C. The

output is split with one part connected to

J9 pin 5, the Reflected Power Output

level of the board. The other part of the

split from U28C connects to the

comparator IC U28D that has a reference

level connected to the other input. If the

reflected level increases above the

reference level a low output is produced

and connected to the Reflected Power

Shutdown circuit at CR28. The low shuts

off Q14 causing pin 3 to go high that is

connected to the inverter U15C. The

output of U15C goes low producing a

Reflected Power Fault that is connected to

an output of the board, the Fault Alert

circuit and also shuts down Amplifier #1.

Gain of the power measurements is

completed through software. Only the

Aural Null and Offset Null need to be done

through front panel pots.

This completes the description of the

Driver Amplifier Module Assembly, which is

used in high power transmitters with

external PA assemblies.

The output of the driver amplifier module

assembly connects to the output of the

Exciter/Amplifier chassis assembly at the

“N” type connector Jack J25. The RF

output at J25 connects to J200 the RF

input to the external Power Amplifier

Assembly.

This also completes the description for the

entire Exciter/Amplifier chassis assembly.

UBS Axcera LU100AT 100-Watt UHF Transmitter User Manual 377407

UBS-Axcera 100-Watt UHF Transmitter 377407

Contents

Chapter 4

Navigation menu

Namespaces

Views

Navigation
