UNION COMMUNITY VS-R20DSC THE PRODUCT IS FINGERPRINT TERMINAL USING RF CARD User Manual VS R20D by Raina 06 02 2013
UNION COMMUNITY THE PRODUCT IS FINGERPRINT TERMINAL USING RF CARD VS R20D by Raina 06 02 2013
USERS MANUAL
Copyright 2000 By Union Community Co., LTD.
VS-R20D(SC & RF). User Guide
Version Eng-1.00
Smart-i 사용자 가이드 2
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
<Revison History>
Version Date Description Firmware Version
1.00 2012-08-
22 Initial Release 10.51.00-
000.00
< Glossary >
z Authentication Method
- RF (Card) Authentication
Smart-i 사용자 가이드 3
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Table of Contents
<Revison History> ..................................................................................... 2
<Glossary> ........................................ 오류! 책갈피가 정의되어 있지 않습니다.
1. Before use ..................................... 오류! 책갈피가 정의되어 있지 않습니다.
1.1 Safety Precautions ................... 오류! 책갈피가 정의되어 있지 않습니다.
1.2. Terminal Descrpiton ........................................................................ 5
1.3. LED signal during operation………………………………………………………………
오류! 책갈피가 정의되어 있지 않습니다.
1.4. Buzzer sound during opertaion .......................................................... 6
2. Introduction .................................... 오류! 책갈피가 정의되어 있지 않습니다.
2.1. Features .................................. 오류! 책갈피가 정의되어 있지 않습니다.
2.2. Configuration ............................ 오류! 책갈피가 정의되어 있지 않습니다.
2.3. Specifications ........................... 오류! 책갈피가 정의되어 있지 않습니다.
3. How to use a terminal .......................................................................... 10
3.1. Authentication ............................................................................... 10
3.2.1. Card authentication ................................................................ 10
3.2. Dip switch setting .......................................................................... 10
Smart-i 사용자 가이드 4
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1. Before use

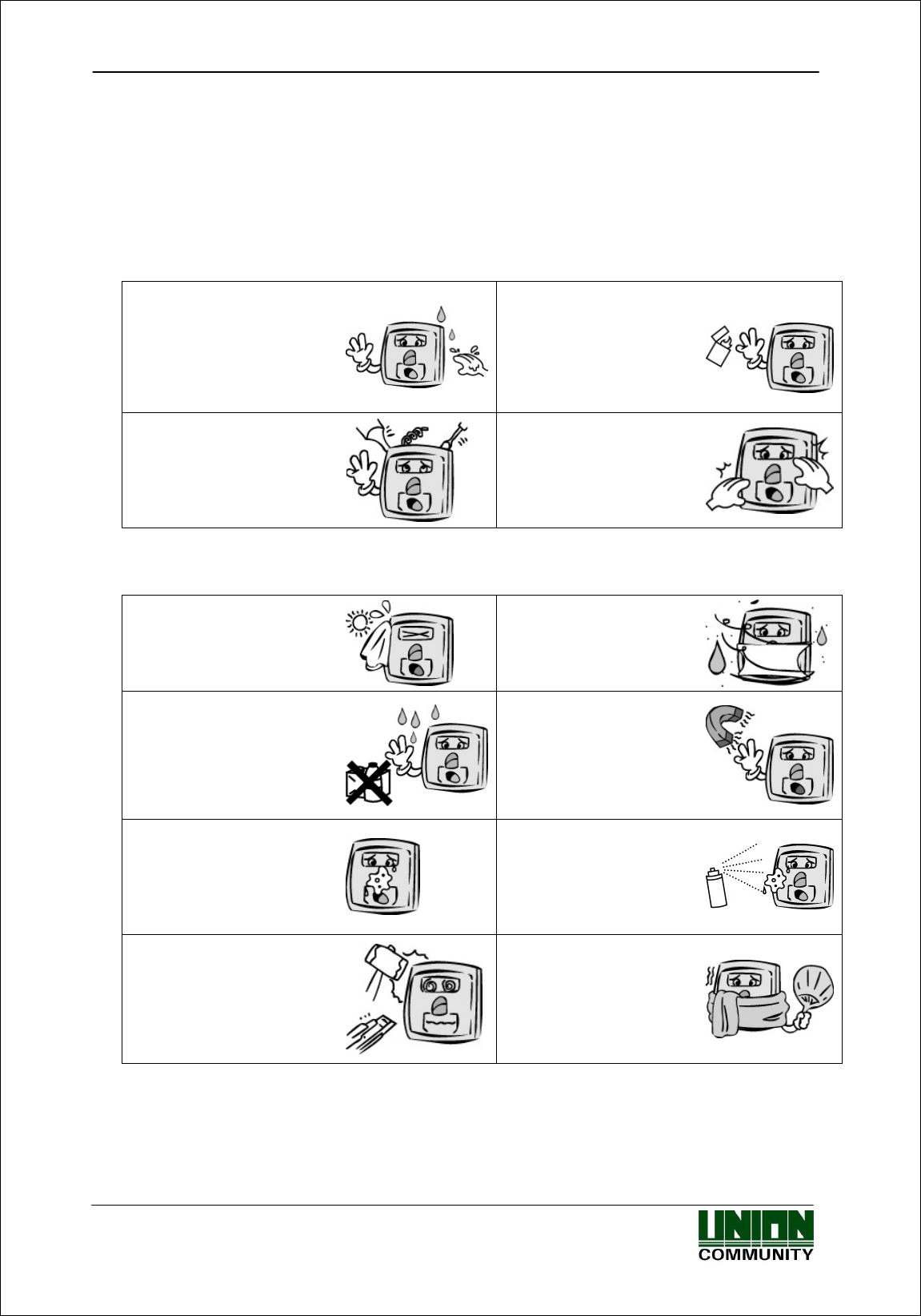

1.1. Safety precautions
z Warning
Handling with wet hands or
allowing liquid to flow into it
is not advised.
-> It may cause an electric
shock or damage
Do not place a fire source
near the unit.
-> It may cause a fire.
Do not disassemble, repair,
or modify the unit.
-> It may cause an electric
shock, fire or damage.
Keep out of reach of
children.
Î It may cause an
accident or damage.
- If the above warnings are ignored, it may result in death or serious injury.
z Cautions
Keep away from direct
sunlight
Î It may cause
deformation or color
change.
Avoid high humidity or
dust
->The unit may
be damaged.
Avoid using water,
benzene, thinner, or alcohol
for cleaning
-> It may cause an electric
shock or fire.
Do not place a magnet
close to the unit.
-> The unit may break
down or malfunction.
Keep the fingerprint area
clean.
Î It cannot read
fingerprints correctly.
Avoid using insecticides
or flammable sprays near
the unit.
Î It may result in
deformation or color
change.
Avoid impacts or using
sharp objects on the unit.
Î The unit may be
damaged and broken.
Avoid severe temperature
changes
Î The unit may be
broken.
-- If the above cautions are ignored, it may result in property loss or human injury.
※ Under no circumstances will Union Community be responsible for accidents or damages caused by
inappropriate use of the product caused by not referring to the user manual.
Smart-i 사용자 가이드 5
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

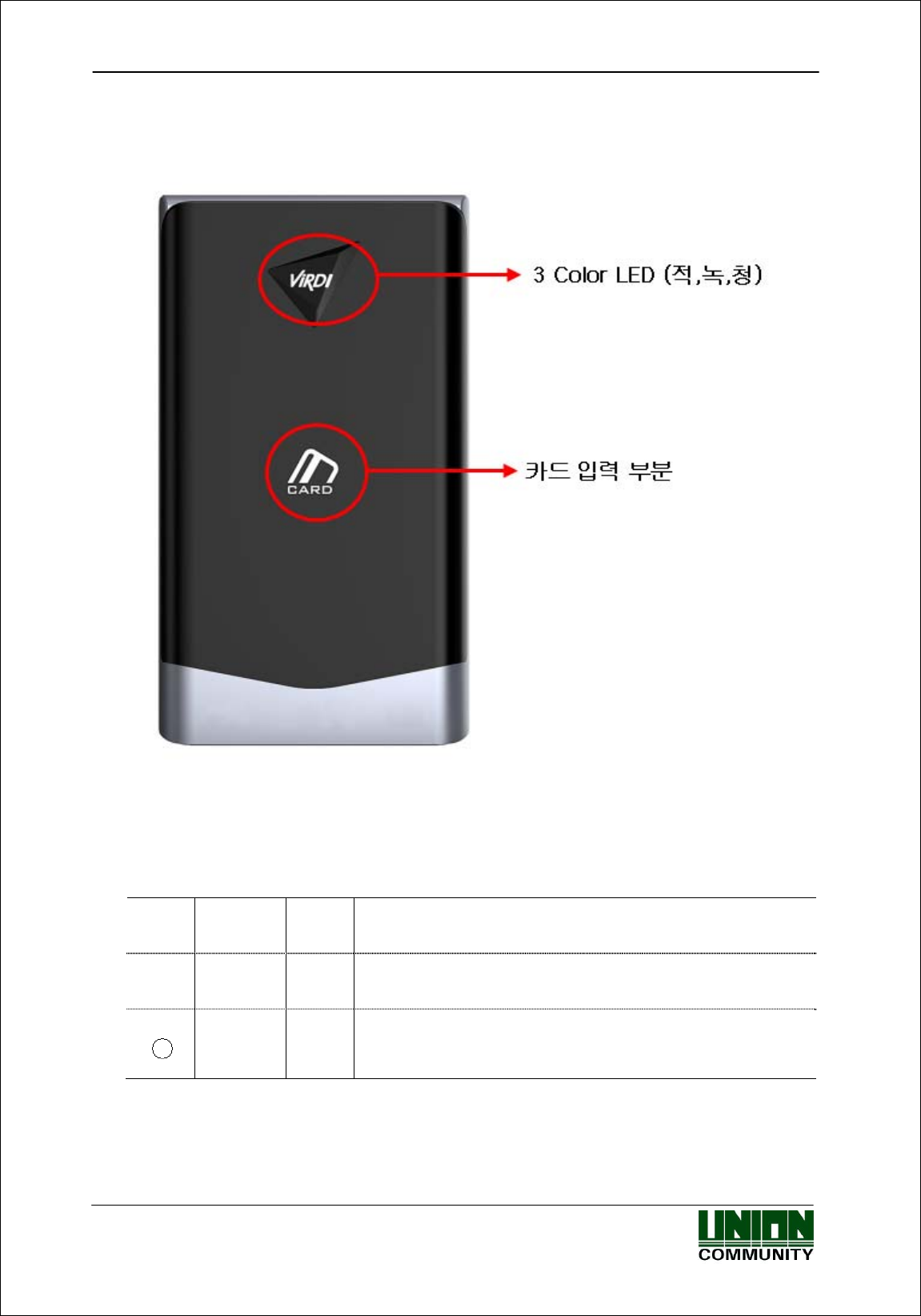

1.2. Terminal Description
1.3. LED Signal during operation
● Abnorm
al Red ON: When authentication is failed
● Success Green ON: When authentication is successful
State White
Flickering: Waiting for a card to input
ON: If is set as “LED is always ON” in terminal
settings
Smart-i 사용자 가이드 6
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1.4. Buzzer sound during operation
“ppig”
Pressing a key
or a reading a
card
When a button is pressed or a card is being read
When fingerprint input is completed, allowing the user to
remove his fingerprint
“ppibig” Failed Authentication failed or wrong user input
“ppiiiick” Successful Authentication successful or settings for the current user
are completed.
Smart-i 사용자 가이드 7
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2. Introduction
2.1. Feataures
z Quick and convenient authentication function
- Simple and quick authentication with only using a card
z Card authentication method provided
- 125khz card and 13.56Mhz card supported per product
z IP65 Outdoor Rating – Die Cast Casing : The terminal can be installed outdoor.
z Understated Design
- Simple and understated design with minimum interface reflected without LCD
- Pursuit of convenience and luxury from simplicity
z Convenient Auto Sensing function
- Simple authentication process without any key input; simple fingerprint touching is
sufficient.
z Various and flexible access management provided
- Perfect control function provided by giving the right of access per user group
Smart-i 사용자 가이드 8
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

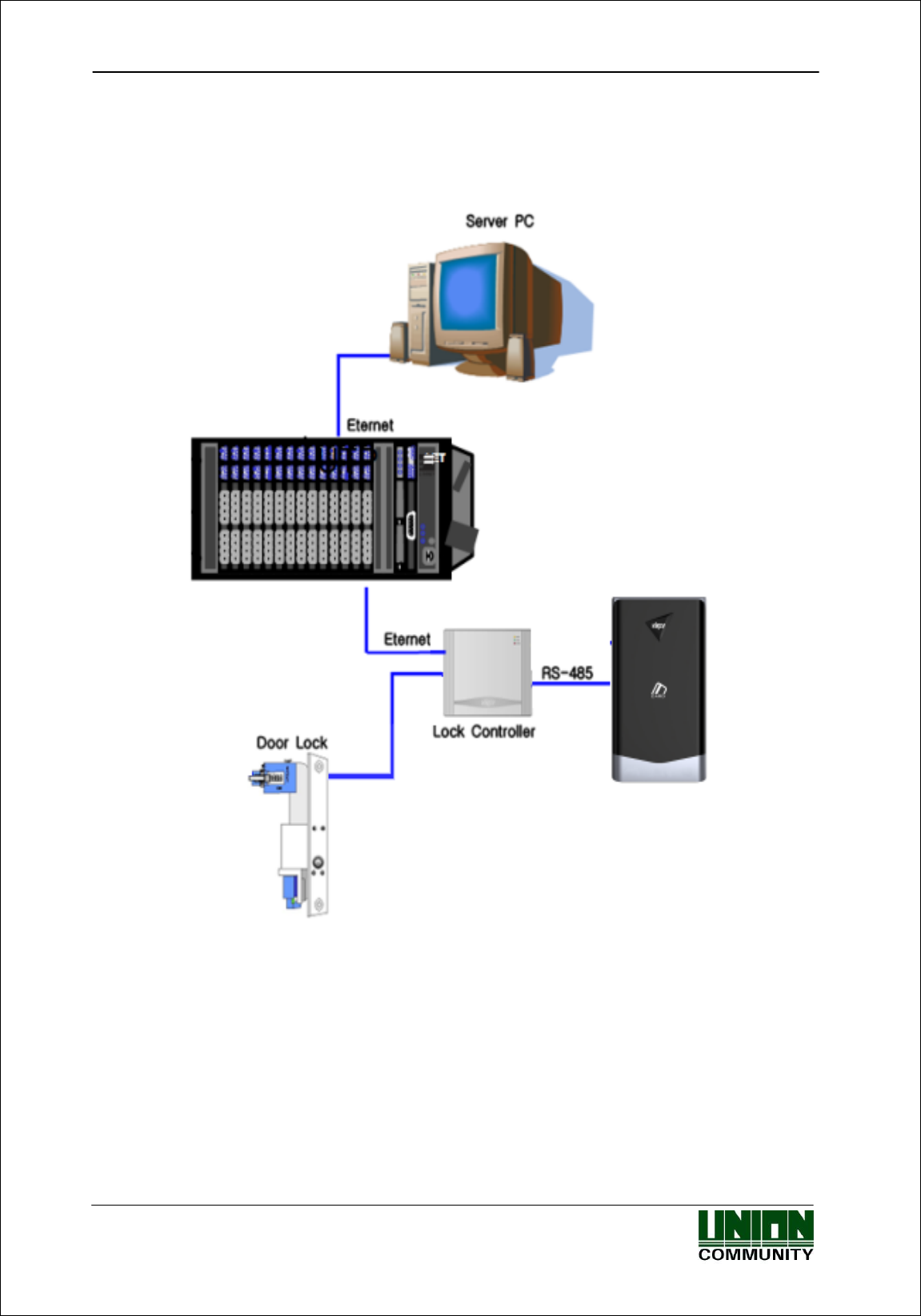

2.2. Configuration
Smart-i 사용자 가이드 9
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2.3. Specifications
Item Spec Description
CPU 32bit RISC 72MHz ST Micro
LED 3 LED (Red, White, Blue),
Flash Internal 256k Byte Nor Flash
Buzzer Sound Possible to control volume
Card Module
125KHz RF
13.56MHz Smart (1 Sam Card Socket Support)
125KHz HID Card
Authentication
Method Card
I/O
4 Dip Switch
(485 ID Setting : 3pole, Changing 485<->Wiegand
In/Out
Lock Control
- If POE is supported, separate lock Controller is
used
- If POE is supported, EM, Strike, Motor Lock are
possible
to use
RS-485 1 Port Interworking with 485
Controller
Wiegand-Out 1 Port Display Wiegand signal
output or success/fail
RS-232 3 Port
Debug
Power 12 VDC
Smart-i 사용자 가이드 10
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3. How to use a terminal
3.1. Authentication
3.2.1. . Card Authentication
- Swipe a card on the card input area.

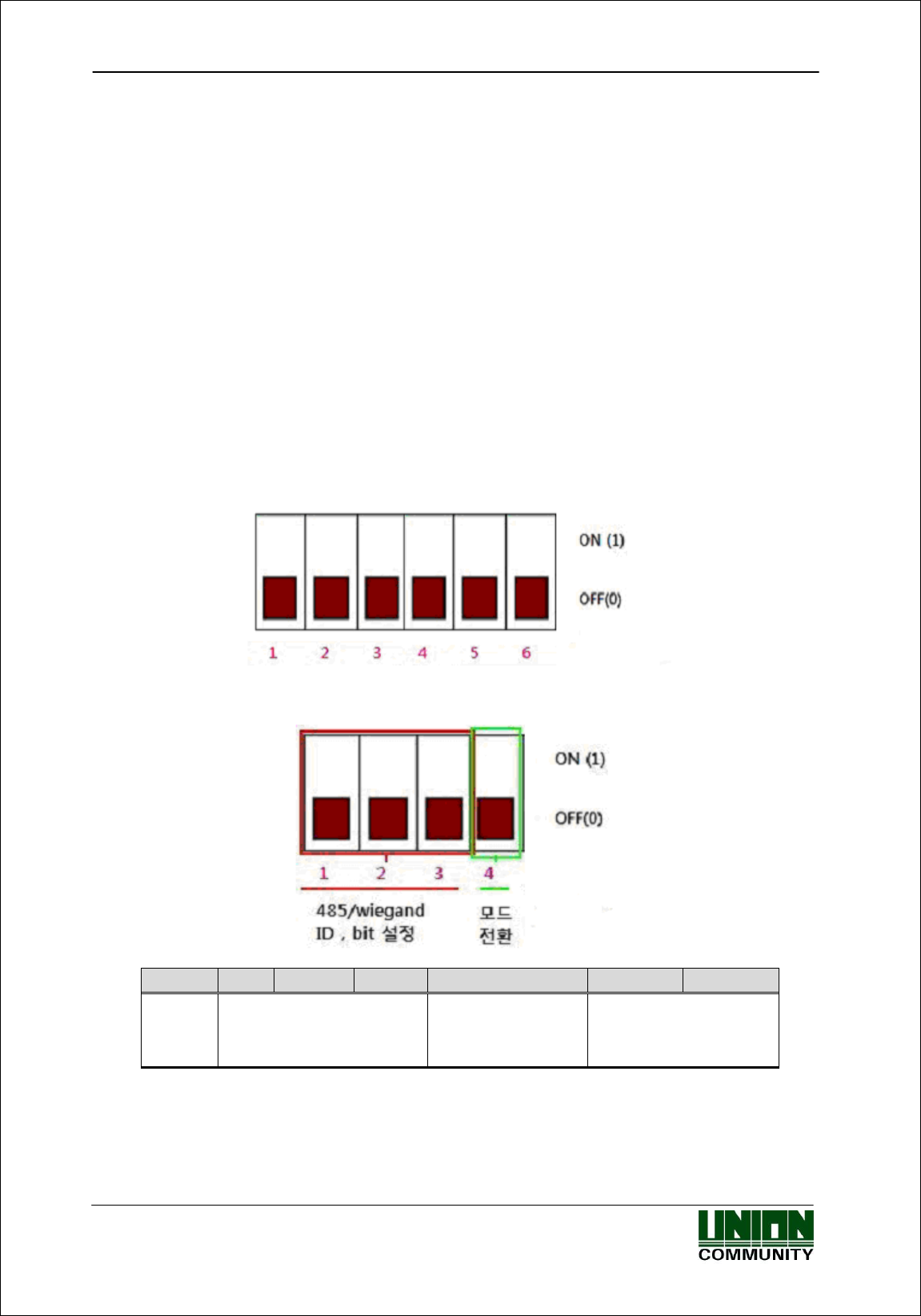

3.2. Dip Switch Setting
- It has 4 switches, and they are divided in 485 ID Setting (3pole) and changing 485 <->
Wiegand (1pole)
↓
1 2 3 4 5 6
Functio
n
485 ID Setting
and
Wiegand bit Setting
485 <-> Wiegand
changing Not using
Smart-i 사용자 가이드 11
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
- 485 ID Setting (No.1,2 and 3 Switch)
1 2 3 ID Value
Function
0 0 0 0
0 0 1 1
0 1 0 2
0 1 1 3
1 0 0 4
1 0 1 5
1 1 0 6
1 1 1 7
- Wiegand Setting (No.1,2 and 3 Switch)
1 2 3 Bits
Function
0 0 0 26bit
1 1 1 34bit
- Changing 485 <-> Wiegand (No.4 Switch)
4 Mode
Function
1 Wiegand
0 RS485
Smart-i 사용자 가이드 12
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

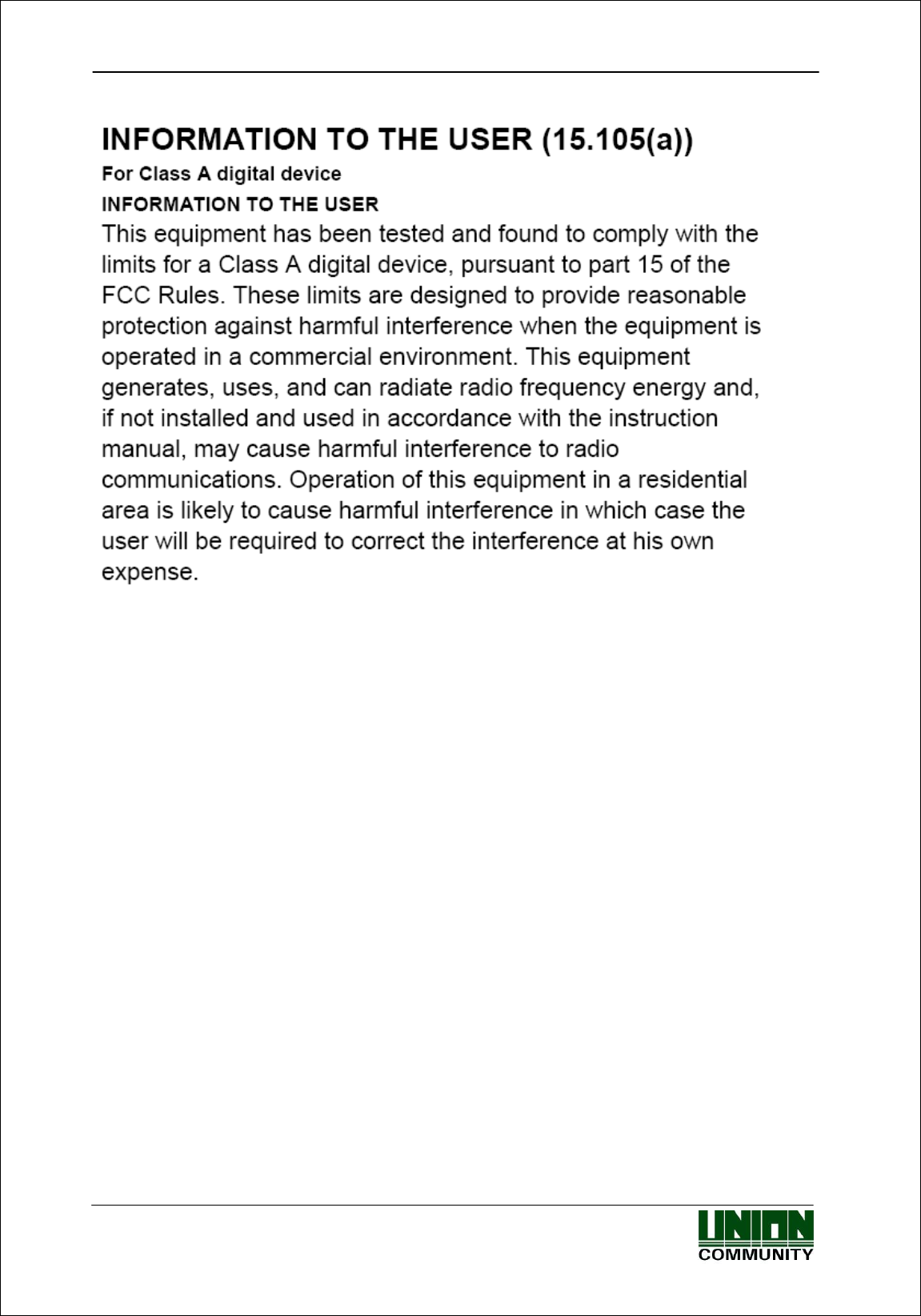

* NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
