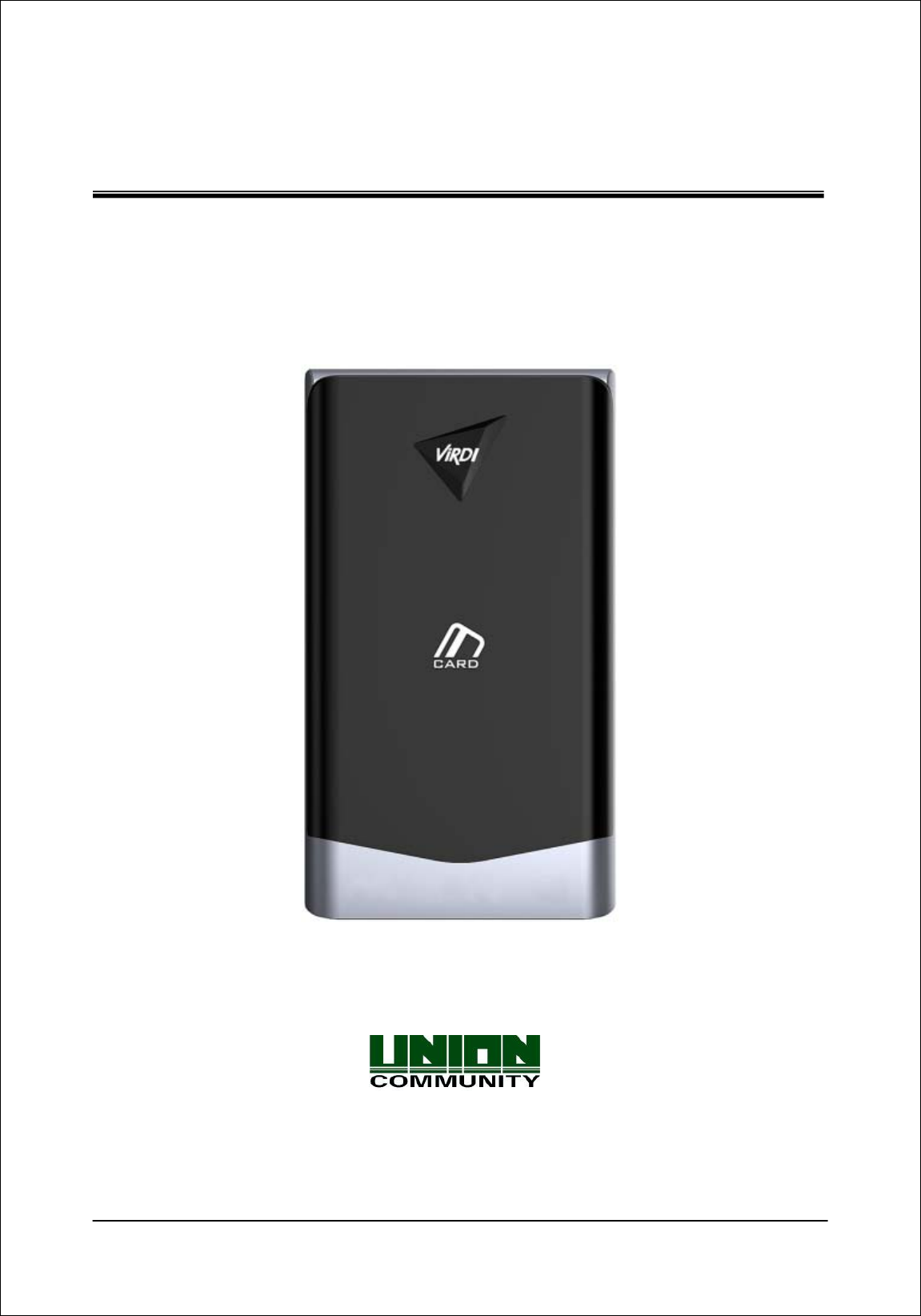

UNION COMMUNITY VS-R20RF THE PRODUCT IS GENERAL PURPOSE CARD READER USING RFID User Manual VS R20 User Guide
UNION COMMUNITY THE PRODUCT IS GENERAL PURPOSE CARD READER USING RFID VS R20 User Guide
USERS MANUAL
Copyright 2000 By Union Community Co., LTD.
VS-R20(SC & RF). User Guide
Version Eng-1.00
Smart-i 사용자 가이드 2
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
<Revison History>
Version Date Description Firmware Version
1.00 2012-08-
22 Initial Release 10.51.00-
000.00
< Glossary >
z Admin, Administrator
- As a user who can enter into the terminal menu mode, he/she can
register/modify/delete terminal users and change the operating environment by
changing settings.
- If there is no administrator for a terminal, anyone can change the settings, so it
is recommended to register at least one administrator.
- Caution is required with registration and operation because an administrator has
the right to change critical environmental settings of the fingerprint recognition
unit.
z Authentication Method
- RF (Card) Authentication
z Function Keys
- [F1], [F2], [F3], [F4] are the function keys, and they are used to enter
menu or to change modes.
Smart-i 사용자 가이드 3
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Table of Contents
<Revison History> ..................................................................................... 2
<Glossary> ........................................ 오류! 책갈피가 정의되어 있지 않습니다.
1. Before use ........................................................................................... 4
1.1. Safety Precautions ..................... 오류! 책갈피가 정의되어 있지 않습니다.
1.2. Terminal Description ......................................................................... 5
1.3. LED Signal during operation ................................................................ 5
1.4. Necessary Keys during operation ......................................................... 6
1.5. Voice Information during operation ....................................................... 6
1.6. Buzzer Sound during operation ............................................................ 6
2. Introduction .......................................................................................... 7
2.1. Features ........................................................................................ 7
2.2. Configuration .................................................................................. 8
2.3. Specifications ................................................................................. 9
3. Environment Settings ....................... 오류! 책갈피가 정의되어 있지 않습니다.
3.1. Check items before setting the environment오류! 책갈피가 정의되어 있지 않
습니다.
3.1.1. Enterning menu ..................................................................... 10
3.2. Menu Configuration ........................................................................ 10
4. How to use the terminal ....................................................................... 10
4.1. Change authentication mode ............................................................. 10
4.2. Authentication ............................................................................... 11
4.2.1. Card authentication ................................................................ 11
4.3. Control Dip Switch ......................................................................... 11
Smart-i 사용자 가이드 4
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1. Before use

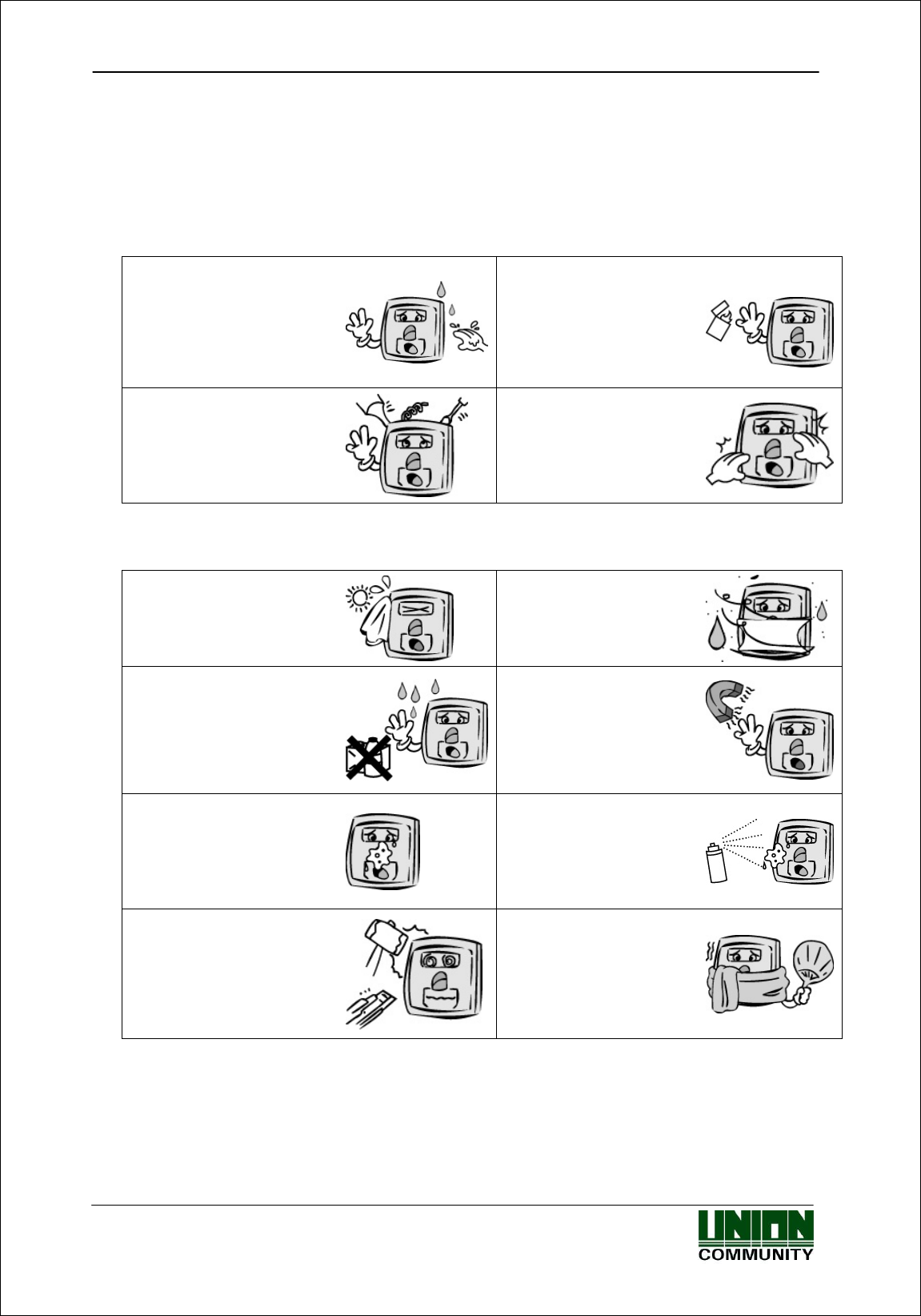

1.1. Safety precautions
z Warning
Handling with wet hands or
allowing liquid to flow into it
is not advised.
-> It may cause an electric
shock or damage
Do not place a fire source
near the unit.
-> It may cause a fire.
Do not disassemble, repair,
or modify the unit.
-> It may cause an electric
shock, fire or damage.
Keep out of reach of
children.
-> It may cause an
accident or damage.
- If the above warnings are ignored, it may result in death or serious injury.
z Cautions
Keep away from direct
sunlight
Î It may cause
deformation or color
change.
Avoid high humidity or
dust
->The unit may
be damaged.
Avoid using water,
benzene, thinner, or alcohol
for cleaning
-> It may cause an electric
shock or fire.
Do not place a magnet
close to the unit.
-> The unit may break
down or malfunction.
Keep the fingerprint area
clean.
Î It cannot read
fingerprints correctly.
Avoid using insecticides
or flammable sprays near
the unit.
Î It may result in
deformation or color
change.
Avoid impacts or using
sharp objects on the unit.
Î The unit may be
damaged and broken.
Avoid severe temperature
changes
Î The unit may be
broken.
-- If the above cautions are ignored, it may result in property loss or human injury.
※ Under no circumstances will Union Community be responsible for accidents or damages caused by
inappropriate use of the product caused by not referring to the user manual.
Smart-i 사용자 가이드 5
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

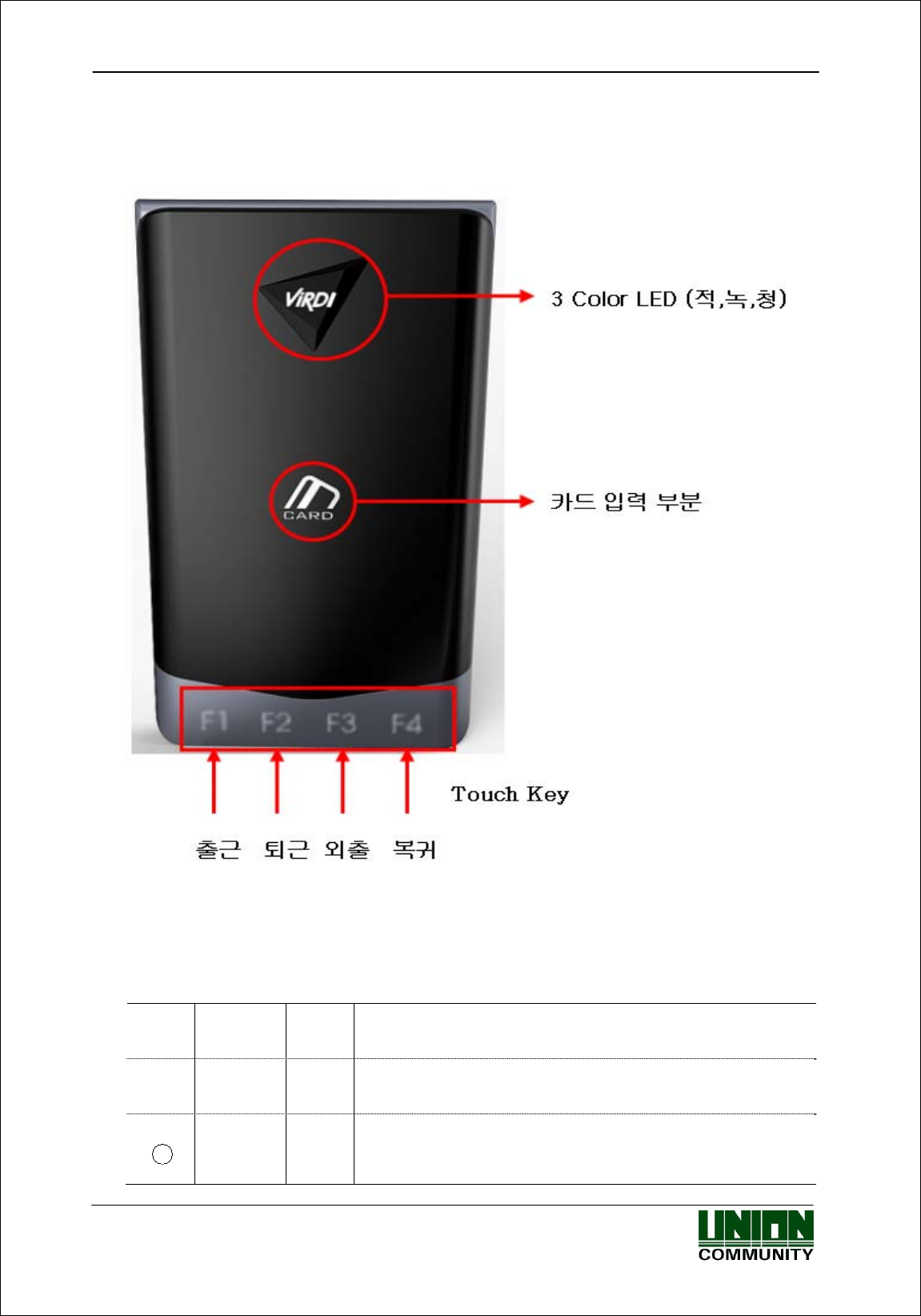

1.2. Terminal Description
1.3. LED Signal during operation
● Abnorm
al Red ON: When authentication is failed
● Success Green ON: When authentication is successful
State White
Flickering: Waiting for a card to input
ON: If is set as “LED is always ON” in terminal
settings
Smart-i 사용자 가이드 6
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1.4. Necessary Keys during operation
[F1]~[F4] - They are used to change authentication mode
[Hold F4
down]
- Hold [F4] key down longer than 4 seconds
- It is used to enter menu
1.5. Voice information during operation
Action Voice information
Authentication is successful You are authorized.
Authentication is failed Please try again
1.6. Buzzer sound during operation
“ppig”
Pressing a key
or a reading a
card
When a button is pressed or a card is being read
When fingerprint input is completed, allowing the user to
remove his fingerprint
“ppibig” Failed Authentication failed or wrong user input
“ppiiiick” Successful Authentication successful or settings for the current user
are completed.
Smart-i 사용자 가이드 7
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2. Introduction
2.1. Features
z Quick and convenient authentication function
- Simple and quick authentication with only using a card
z Card authentication method provided
- 125khz card and 13.56Mhz card supported per product
z IP65 Outdoor Rating – Die Cast Casing : The terminal can be installed outdoor.
z Understated Design
- Simple and understated design with minimum interface reflected without LCD
- Pursuit of convenience and luxury from simplicity
z Convenient Auto Sensing function
- Simple authentication process without any key input; simple fingerprint touching is
sufficient.
z Various and flexible access management provided
- Perfect control function provided by giving the right of access per user group
Smart-i 사용자 가이드 8
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

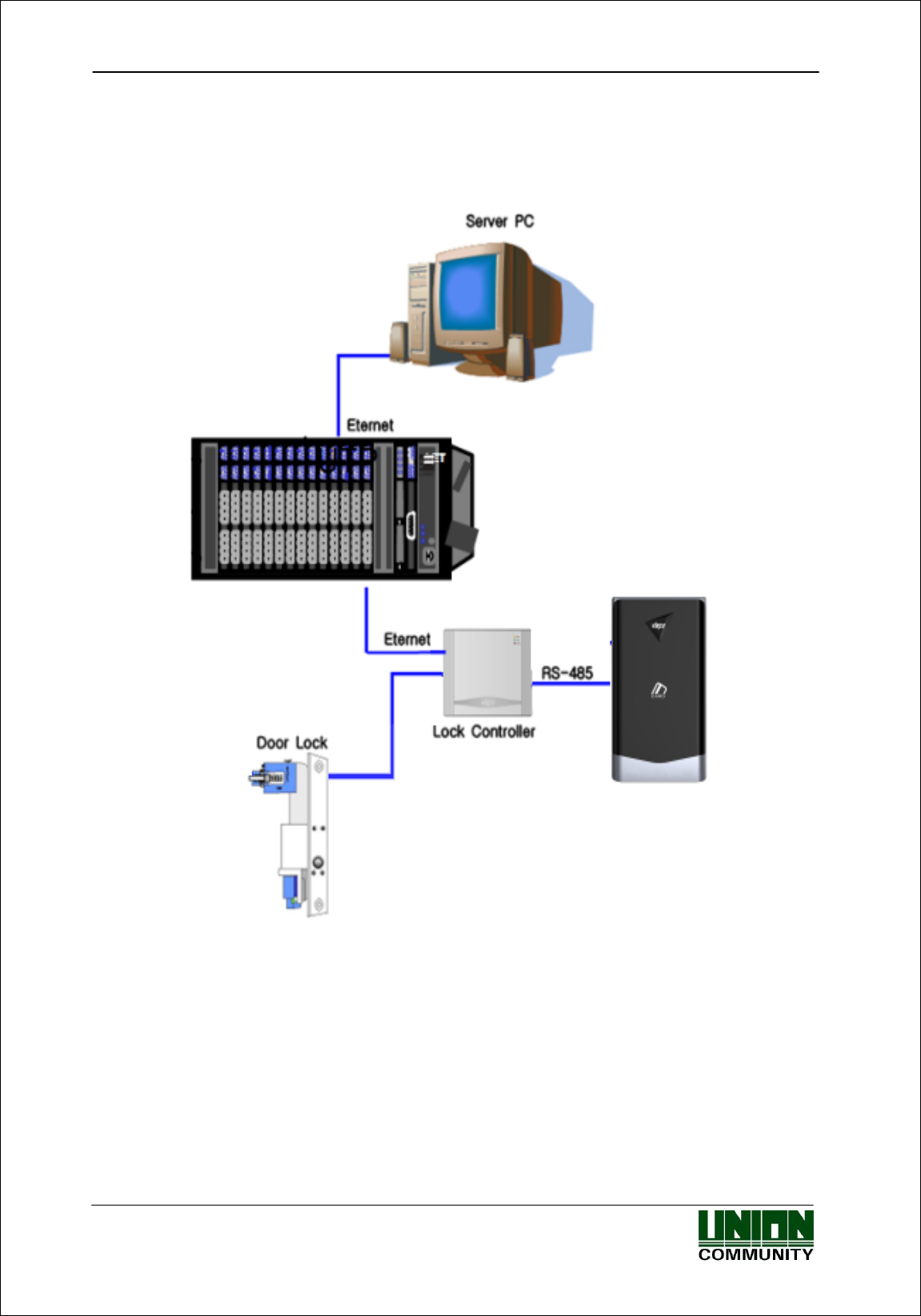

2.2. Configuration
Smart-i 사용자 가이드 9
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2.3. Specifications
Item Spec Description
CPU 32bit RISC 72MHz ST Micro
Pin Pad 4key F1~F4
LED 3 LED (Red, White, Blue), 4 LED (key_Led)
Flash Internal 256k Byte , External 8Mbyte Nor Flash
Number of enrolled
users
10,000 users
50,000 Log
Voice Message
Various languages supported (Possible to download
from PC)
Possible to control volume
Buzzer Sound Possible to control volume
Card Module
125KHz RF
13.56MHz Smart (1 Sam Card Socket Support)
125KHz HID Card
Authentication
Method Card
RTC Internal RTC Support
I/O
6 Dip Switch
(485 ID Setting : 3pole, 485<->Wiegand In/Out
change 1pole
BLC015/BLC020/CP040 Select 2pole)
Lock Control
- If POE is supported, separate lock Controller is
used
- If POE is supported, EM, Strike, Motor Lock are
possible
to use
RS-485 1 Port Interworking with 485
Controller
Wiegand-In 1 Port
Interworking with
Wiegand-Type card
reader
Wiegand-Out 1 Port Display Wiegand signal
output or success/fail
RS-232 3 Port Debug
Power 12 VDC
Smart-i 사용자 가이드 10
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3. Environment settings
3.1.Check items before setting the environment
3.1.1. Entering menu
▶ [Hold F4 down] Æ (Red & Green LED On) Menu Mode
If you hold [F4] key down longer than 4 seconds, you can enter menu mode.
When you enter menu mode, red and green LED on a terminal are on to classify
menu mode.
To change from menu mode to waiting authentication mode, press [F4] button, or
do not press any button longer than 10 sec so that it will automatically to change
to waiting authentication mode.
3.2. Menu Configuration
- [Fn~ long] means hold each function key down longer than 4 sec.
Menu Mode
[F4~ long]
Enroll a user
(Card)
[F1~ long]
Æ Flickering white LED for 5 sec Æ Swipe a card
(Buzzing sound + blue LED light on)
Enrolling a card is completed
(Buzzing sound + red LED light on)
Enrolling a card is failed
Delete a user
(Card)
[F3~ long]
Æ Flickering the white LED for 5 sec Æ Swipe a card
(Buzzer + blue LED light on)
Enrolling a card is completed.
(Buzzer + red LED light on)
Enrolling a card is failed.
4. How to use a terminal
4.1. Change to authentication mode
Start a shift [F1], End a shift [F2], Start a break [F3], or Return from a break [F4]
is pressed to change to correct authentication mode.
Smart-i 사용자 가이드 11
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
4.2. Authentication
4.2.1. Card Authentication
Swipe a card on the card input area.

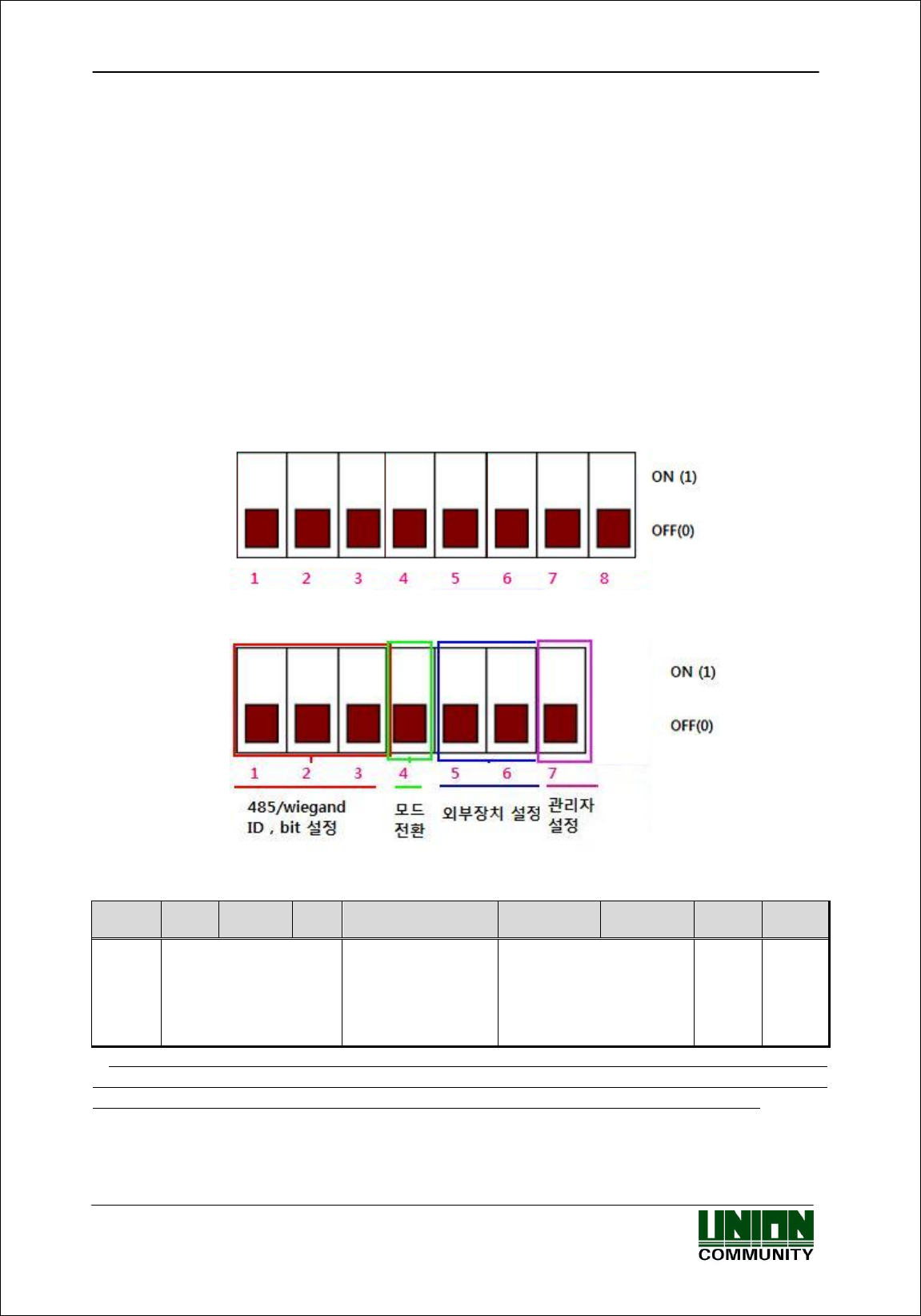

4.3. Control Dip Switch
It has 6 switches, and they are divided in 485 ID Setting (3pole), changing 485 <->
Wiegand (1pole), and selecting BLC015/BLC020/CP040(2pole)
↓
1 2 3 4 5 6 7 8
Functio
n 485 ID Setting 485 <-> Wiegand BLC015/BLC020/CP04
0 Admin Not
using
※ VS-R20 enables to change to Wiegand In mode or to Wiegand Out mode with using SW52.
(Each only supports Mode 1) Please check switch pins when using. When using Wiegand, check
GND pin and DATA1, DATA0 pin (DATA1-DATA1 Connected, DATA0-DATA0 Connected)
Smart-i 사용자 가이드 12
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
- 485 ID Setting (No.1,2 and 3 Switch)
1 2 3 ID Value
Function
0 0 0 0
0 0 1 1
0 1 0 2
0 1 1 3
1 0 0 4
1 0 1 5
1 1 0 6
1 1 1 7
- Wiegand Setting (No.1,2 and 3 Switch)
1 2 3 Bits
Function
0 0 0 26bit
1 1 1 34bit
- Changing
485 <-> Wiegand (No. 4 Switch)
4 Mode
Function
1 Weigand
0 RS485
- Changing BLC015/BLC020/CP040 (No. 5 and 6 Switch)
5 6 Equipment to
use
Function
0 0 BLC015
0 1 BLC020
1 0 CP040
1 1 Not using
- Changing admin (NO.7 Switch)
8 Function
Function
1 Use admin
0 Not using admin
Smart-i 사용자 가이드 13
㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

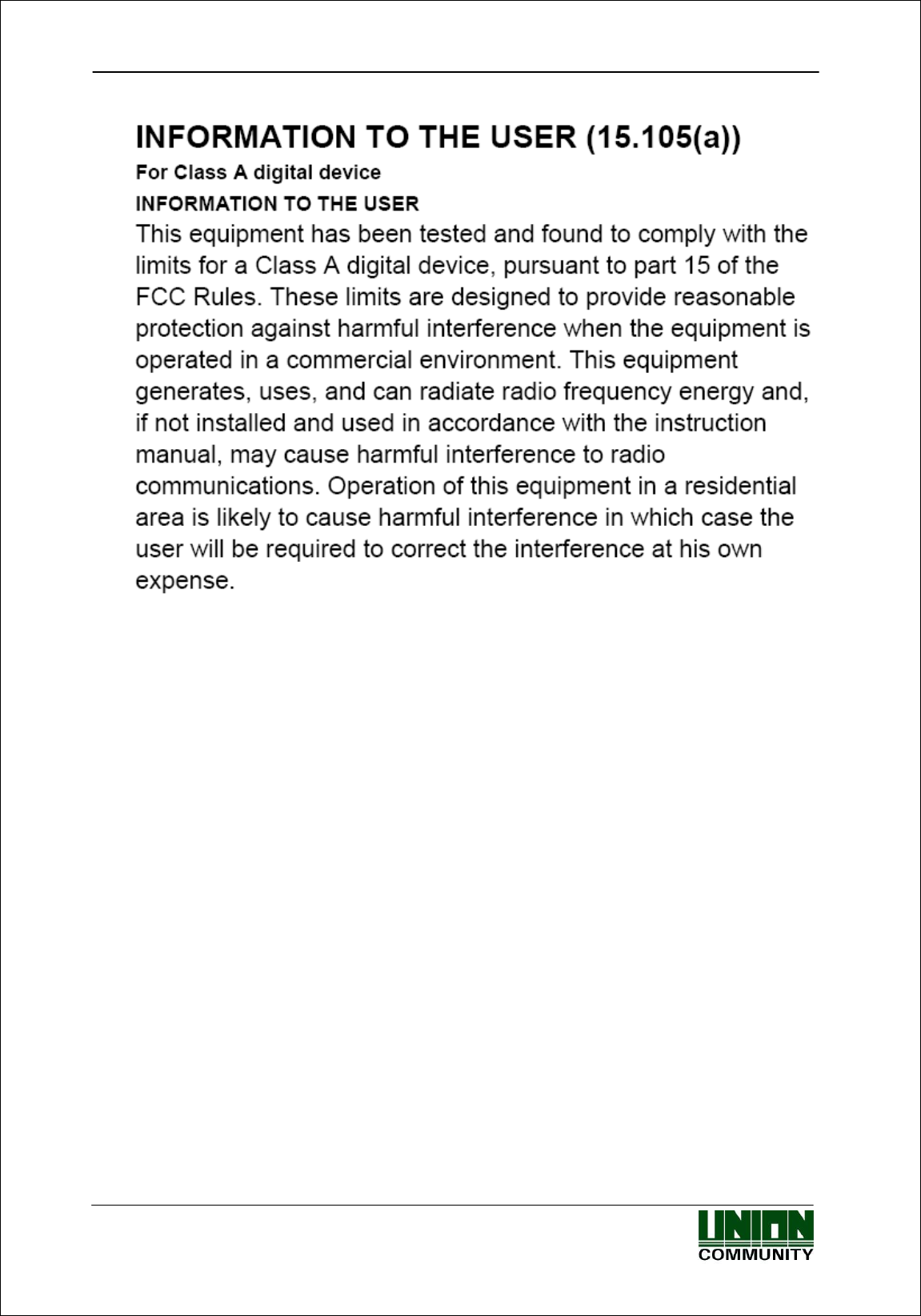

* NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
