UPRIGHT Technologies UR01 Bluetooth Wearable Device User Manual
UpRight Technologies LTD Bluetooth Wearable Device
Contents
- 1. Users Manual
- 2. User Manual
User Manual
1
TABLE OF CONTENTS

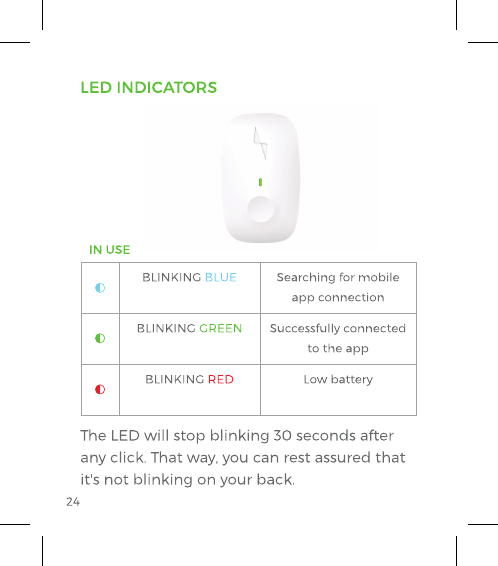

IN USE
BLINKING BLUE Searching for mobile
app connection
BLINKING GREEN Successfully connected
to the app
BLINKING RED Low battery

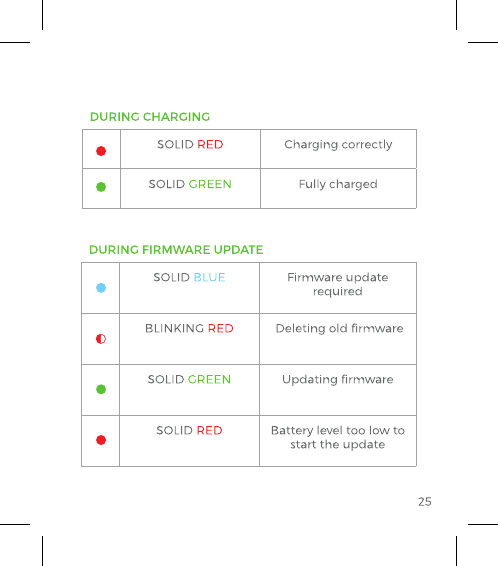

DURING CHARGING
SOLID RED Charging correctly
SOLID GREEN Fully charged
DURING FIRMWARE UPDATE
SOLID BLUE Firmware update
required
BLINKING RED Deleting old firmware
SOLID GREEN Updating firmware
SOLID RED Battery level too low to
start the update

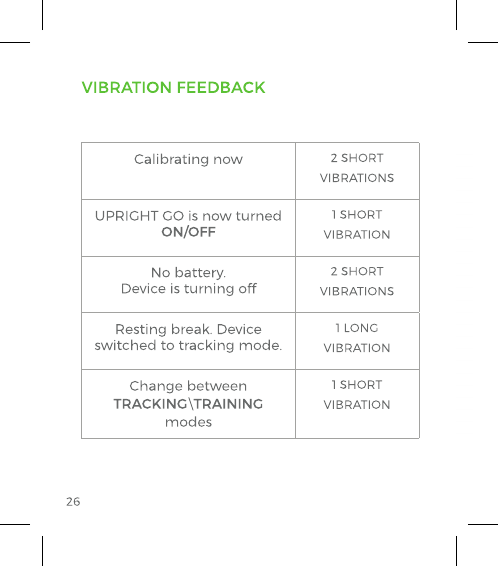

Calibrating now 2 SHORT
VIBRATIONS
UPRIGHT GO is now turned
ON/OFF
1 SHORT
VIBRATION
No battery.
Device is turning off
2 SHORT
VIBRATIONS

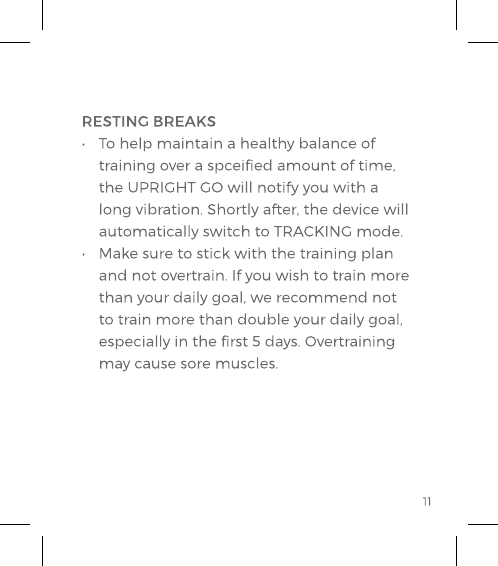

Resting break. Device
switched to tracking mode.
1 LONG
VIBRATION
Change between
TRACKING\TRAINING
modes
1 SHORT
VIBRATION

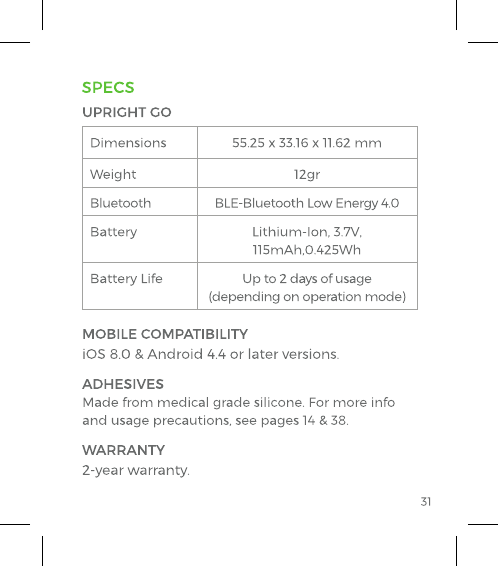

Dimensions 55.25 x 33.16 x 11.62 mm
Weight 12gr
Bluetooth BLE-Bluetooth Low Energy 4.0
Battery Lithium-Ion, 3.7V,
115mAh,0.425Wh
Battery Life Up to 2 days of usage
(depending on operation mode)
