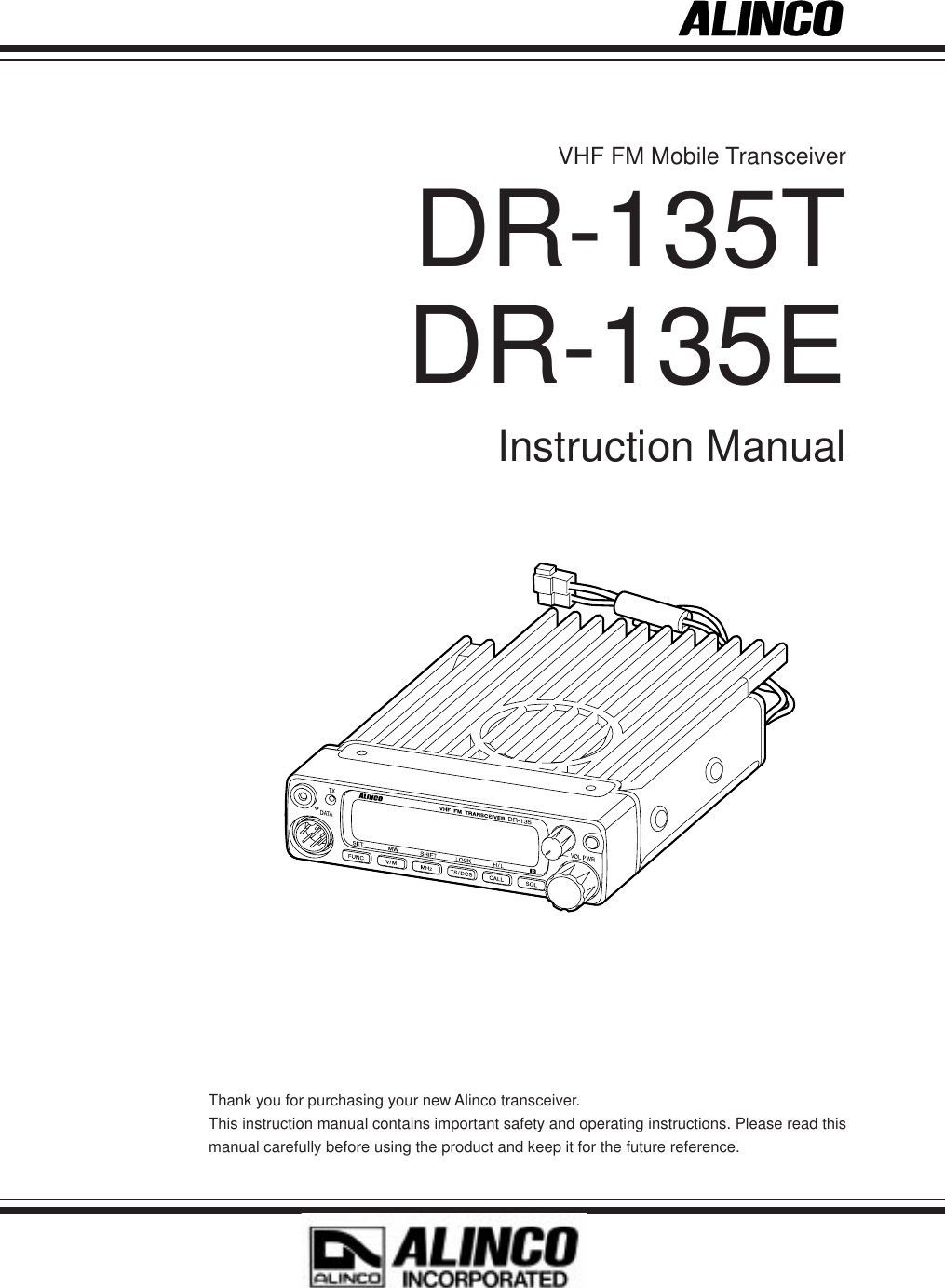

VHF FM Mobile TransceiverDR-135TDR-135EInstruction ManualThank you for purchasing your new Alinco transceiver.This instruction manual contains important safety and operating instructions. Please read thismanual carefully before using the product and keep it for the future reference.

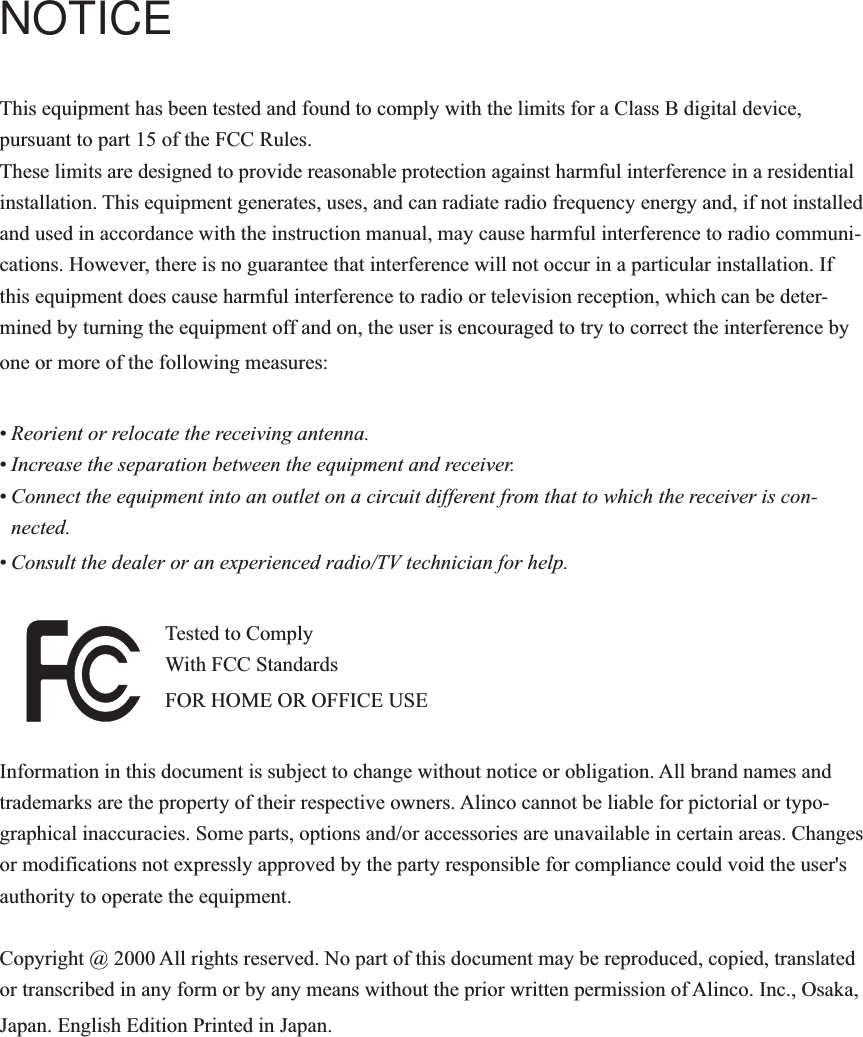

NOTICEThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instruction manual, may cause harmful interference to radio communi-cations. However, there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception, which can be deter-mined by turning the equipment off and on, the user is encouraged to try to correct the interference byone or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.Tested to ComplyWith FCC StandardsFOR HOME OR OFFICE USEInformation in this document is subject to change without notice or obligation. All brand names andtrademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typo-graphical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changesor modifications not expressly approved by the party responsible for compliance could void the user'sauthority to operate the equipment.Copyright @ 2000 All rights reserved. No part of this document may be reproduced, copied, translatedor transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka,Japan. English Edition Printed in Japan.

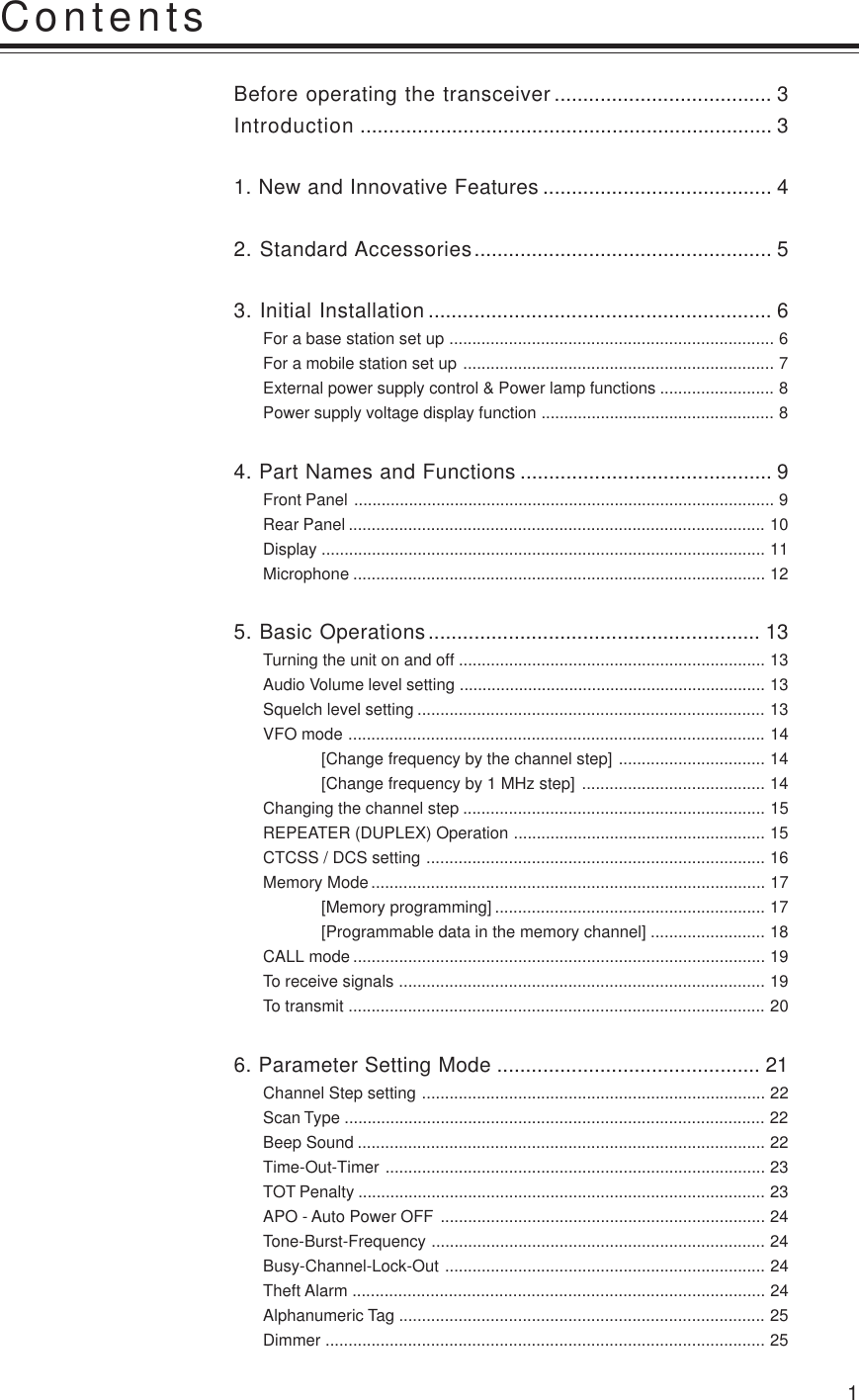

1ContentsBefore operating the transceiver...................................... 3Introduction ........................................................................ 31. New and Innovative Features ........................................ 42. Standard Accessories.................................................... 53. Initial Installation ............................................................ 6For a base station set up ....................................................................... 6For a mobile station set up .................................................................... 7External power supply control & Power lamp functions ......................... 8Power supply voltage display function ................................................... 84. Part Names and Functions ............................................ 9Front Panel ............................................................................................ 9Rear Panel ........................................................................................... 10Display ................................................................................................. 11Microphone .......................................................................................... 125. Basic Operations.......................................................... 13Turning the unit on and off ................................................................... 13Audio Volume level setting ................................................................... 13Squelch level setting ............................................................................ 13VFO mode ........................................................................................... 14[Change frequency by the channel step] ................................ 14[Change frequency by 1 MHz step] ........................................ 14Changing the channel step .................................................................. 15REPEATER (DUPLEX) Operation ....................................................... 15CTCSS / DCS setting .......................................................................... 16Memory Mode...................................................................................... 17[Memory programming] ........................................................... 17[Programmable data in the memory channel] ......................... 18CALL mode .......................................................................................... 19To receive signals ................................................................................ 19To transmit ........................................................................................... 206. Parameter Setting Mode .............................................. 21Channel Step setting ........................................................................... 22Scan Type ............................................................................................ 22Beep Sound ......................................................................................... 22Time-Out-Timer ................................................................................... 23TOT Penalty ......................................................................................... 23APO - Auto Power OFF ....................................................................... 24Tone-Burst-Frequency ......................................................................... 24Busy-Channel-Lock-Out ...................................................................... 24Theft Alarm .......................................................................................... 24Alphanumeric Tag ................................................................................ 25Dimmer ................................................................................................ 25
2Contents7. Advanced Operations .................................................. 26SCANNING FUNCTION ...................................................................... 26[VFO Scan] ............................................................................. 26[Memory scan] ........................................................................ 26• Program scan ....................................................................... 27• Tone Scan ............................................................................. 27• DCS scan ............................................................................. 28KEY-LOCK FUNCTION ....................................................................... 28TONE BURST ...................................................................................... 28AUTO-DIALER ..................................................................................... 29THEFT ALARM .................................................................................... 30CABLE CLONE ................................................................................... 328. PACKET OPERATION ................................................... 33[To operate packet using EJ-41U] ........................................... 33[To operate packet using an external TNC]............................. 35[To operate APRS®] ................................................................ 36[SET UP] ................................................................................. 37[APRS Operation] ................................................................... 379. Maintenance / Reference ............................................. 38Reset ................................................................................................... 38Trouble Shooting .................................................................................. 3910. Optional accessories ................................................. 4011. Specifications ............................................................. 41Appendix........................................................................... 42TNC Commands List ........................................................................... 42

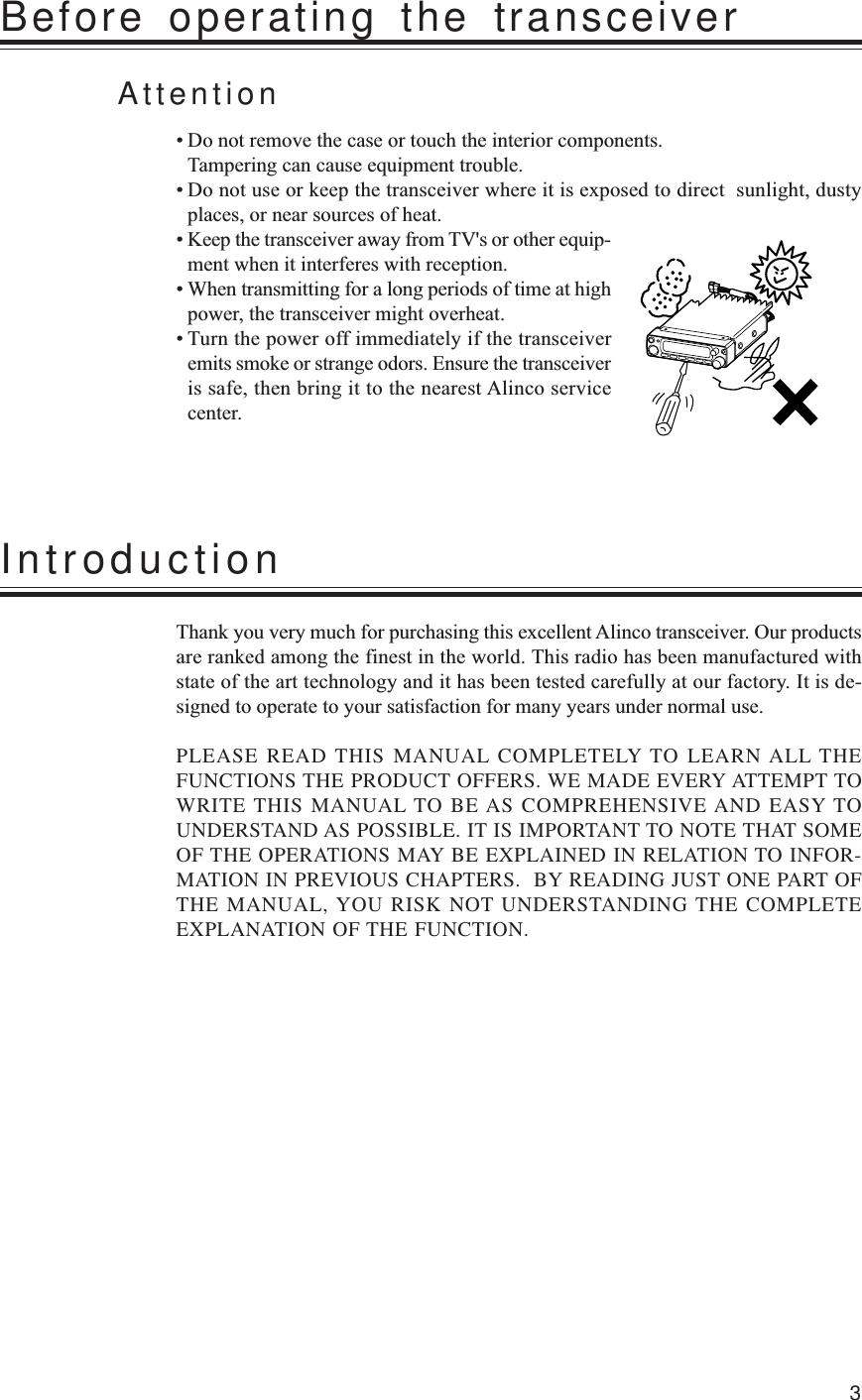

3Before operating the transceiverAttention• Do not remove the case or touch the interior components.Tampering can cause equipment trouble.• Do not use or keep the transceiver where it is exposed to direct sunlight, dustyplaces, or near sources of heat.• Keep the transceiver away from TV's or other equip-ment when it interferes with reception.• When transmitting for a long periods of time at highpower, the transceiver might overheat.• Turn the power off immediately if the transceiveremits smoke or strange odors. Ensure the transceiveris safe, then bring it to the nearest Alinco servicecenter.IntroductionThank you very much for purchasing this excellent Alinco transceiver. Our productsare ranked among the finest in the world. This radio has been manufactured withstate of the art technology and it has been tested carefully at our factory. It is de-signed to operate to your satisfaction for many years under normal use.PLEASE READ THIS MANUAL COMPLETELY TO LEARN ALL THEFUNCTIONS THE PRODUCT OFFERS. WE MADE EVERY ATTEMPT TOWRITE THIS MANUAL TO BE AS COMPREHENSIVE AND EASY TOUNDERSTAND AS POSSIBLE. IT IS IMPORTANT TO NOTE THAT SOMEOF THE OPERATIONS MAY BE EXPLAINED IN RELATION TO INFOR-MATION IN PREVIOUS CHAPTERS. BY READING JUST ONE PART OFTHE MANUAL, YOU RISK NOT UNDERSTANDING THE COMPLETEEXPLANATION OF THE FUNCTION.
41. New and Innovative FeaturesYour new radio features some of the most advanced functions and reliable engineeringavailable anywhere. The ALINCO design philosophy is focused on developing innova-tive usable features, including the following:• Three different styles of display are available on a large LCD panel including fre-quency, channel number or 7 digit alphanumeric label. The dimmer (bright/dim) makesit easier to read the display at night.• Simple, clean layout of keys and knobs ensure convenient operation.• High-quality materials are used throughout the product and a huge heat sink around thechassis ensures stable and durable operation.• Conventional or narrow FM mode can be selected.• AM Air-band reception capability (DR-135T only).• 100 fully programmable memory channels with alphanumeric memory channel labels.• A DATA port is located on the front panel for easy access to external accessory connec-tions. A DSUB9 port is available on the rear to connect a PC for 1200/9600bps packetoperation.• CTCSS, DCS and 4 different Tone-Bursts are standard for selective calling and re-peater access worldwide.• The Theft Alarm feature gives an extra measure of security for mobile installation.• The transceiver has a cable clone capability.• The optional EJ-41U board is available for data communications such as APRS™ orpacket, without an external TNC.

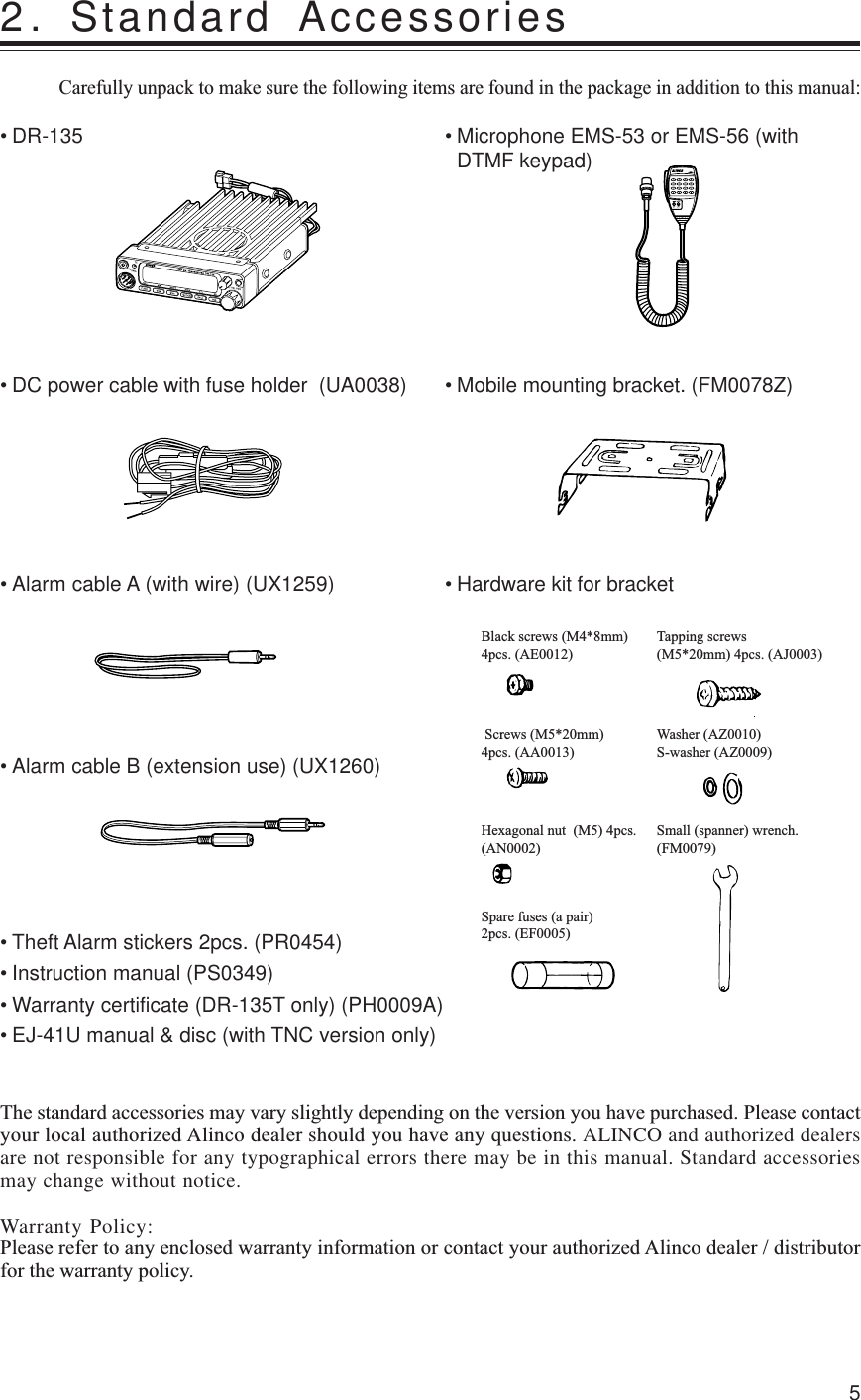

52. Standard AccessoriesCarefully unpack to make sure the following items are found in the package in addition to this manual:• DR-135• Mobile mounting bracket. (FM0078Z)• DC power cable with fuse holder (UA0038)• Alarm cable A (with wire) (UX1259)•Alarm cable B (extension use) (UX1260)• Theft Alarm stickers 2pcs. (PR0454)• Instruction manual (PS0349)• Warranty certificate (DR-135T only) (PH0009A)• EJ-41U manual & disc (with TNC version only)• Hardware kit for bracket• Microphone EMS-53 or EMS-56 (withDTMF keypad)Tapping screws(M5*20mm) 4pcs. (AJ0003)Black screws (M4*8mm)4pcs. (AE0012) Screws (M5*20mm)4pcs. (AA0013)Hexagonal nut (M5) 4pcs.(AN0002)Small (spanner) wrench.(FM0079)Washer (AZ0010) S-washer (AZ0009)Spare fuses (a pair)2pcs. (EF0005)The standard accessories may vary slightly depending on the version you have purchased. Please contactyour local authorized Alinco dealer should you have any questions. ALINCO and authorized dealersare not responsible for any typographical errors there may be in this manual. Standard accessoriesmay change without notice.Warranty Policy:Please refer to any enclosed warranty information or contact your authorized Alinco dealer / distributorfor the warranty policy.

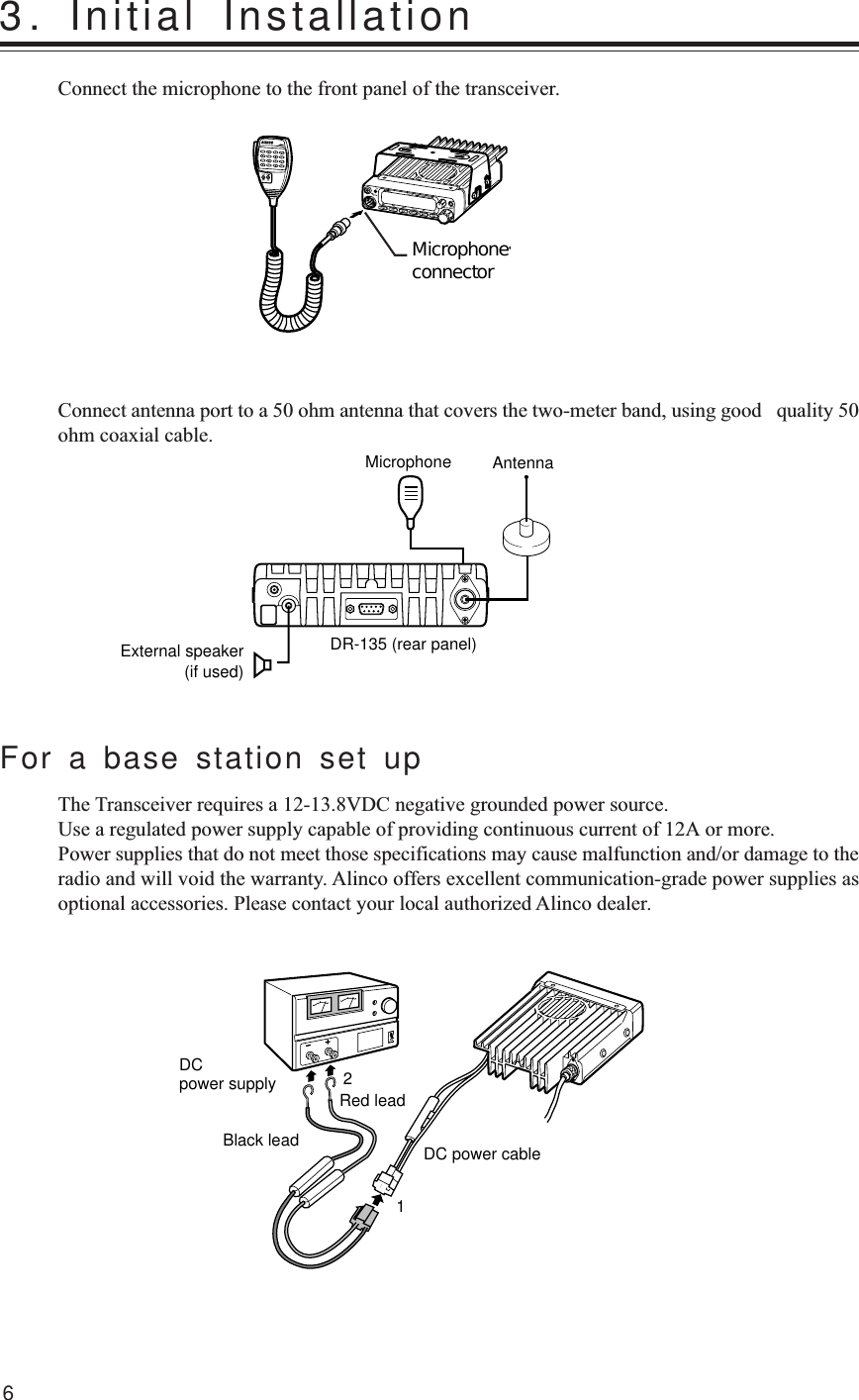

63. Initial InstallationConnect the microphone to the front panel of the transceiver.Connect antenna port to a 50 ohm antenna that covers the two-meter band, using good quality 50ohm coaxial cable.MicrophoneconnectorAntennaExternal speaker(if used)MicrophoneDR-135 (rear panel)For a base station set upThe Transceiver requires a 12-13.8VDC negative grounded power source.Use a regulated power supply capable of providing continuous current of 12A or more.Power supplies that do not meet those specifications may cause malfunction and/or damage to theradio and will void the warranty. Alinco offers excellent communication-grade power supplies asoptional accessories. Please contact your local authorized Alinco dealer.DCpower supplyDC power cableBlack leadRed lead12

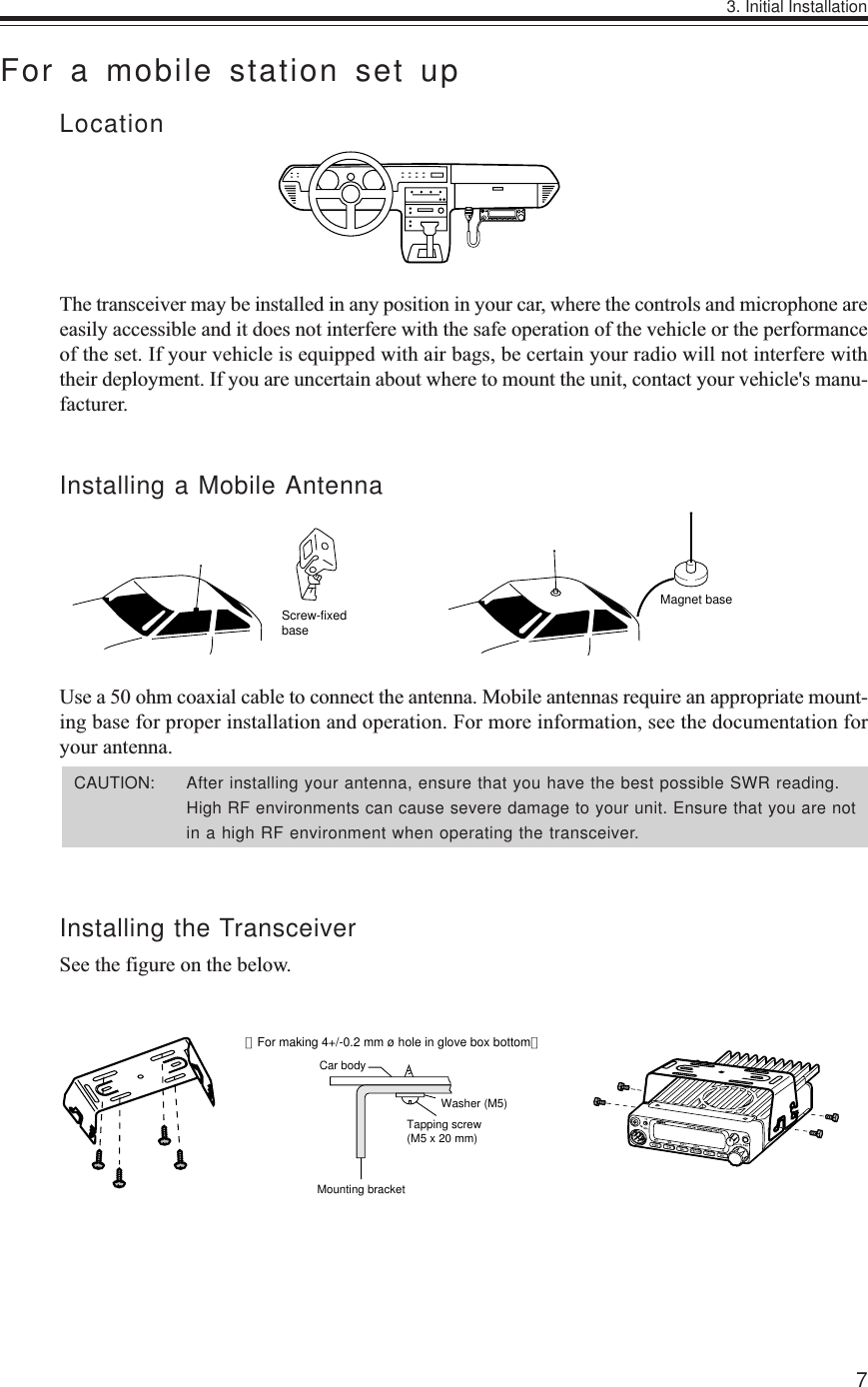

73. Initial InstallationFor a mobile station set upLocationThe transceiver may be installed in any position in your car, where the controls and microphone areeasily accessible and it does not interfere with the safe operation of the vehicle or the performanceof the set. If your vehicle is equipped with air bags, be certain your radio will not interfere withtheir deployment. If you are uncertain about where to mount the unit, contact your vehicle's manu-facturer.Installing a Mobile AntennaUse a 50 ohm coaxial cable to connect the antenna. Mobile antennas require an appropriate mount-ing base for proper installation and operation. For more information, see the documentation foryour antenna.Installing the TransceiverSee the figure on the below.Screw-fixedbaseMagnet baseCar bodyWasher (M5)Tapping screw (M5 x 20 mm)Mounting bracket＜For making 4+/-0.2 mm ø hole in glove box bottom＞CAUTION: After installing your antenna, ensure that you have the best possible SWR reading.High RF environments can cause severe damage to your unit. Ensure that you are notin a high RF environment when operating the transceiver.

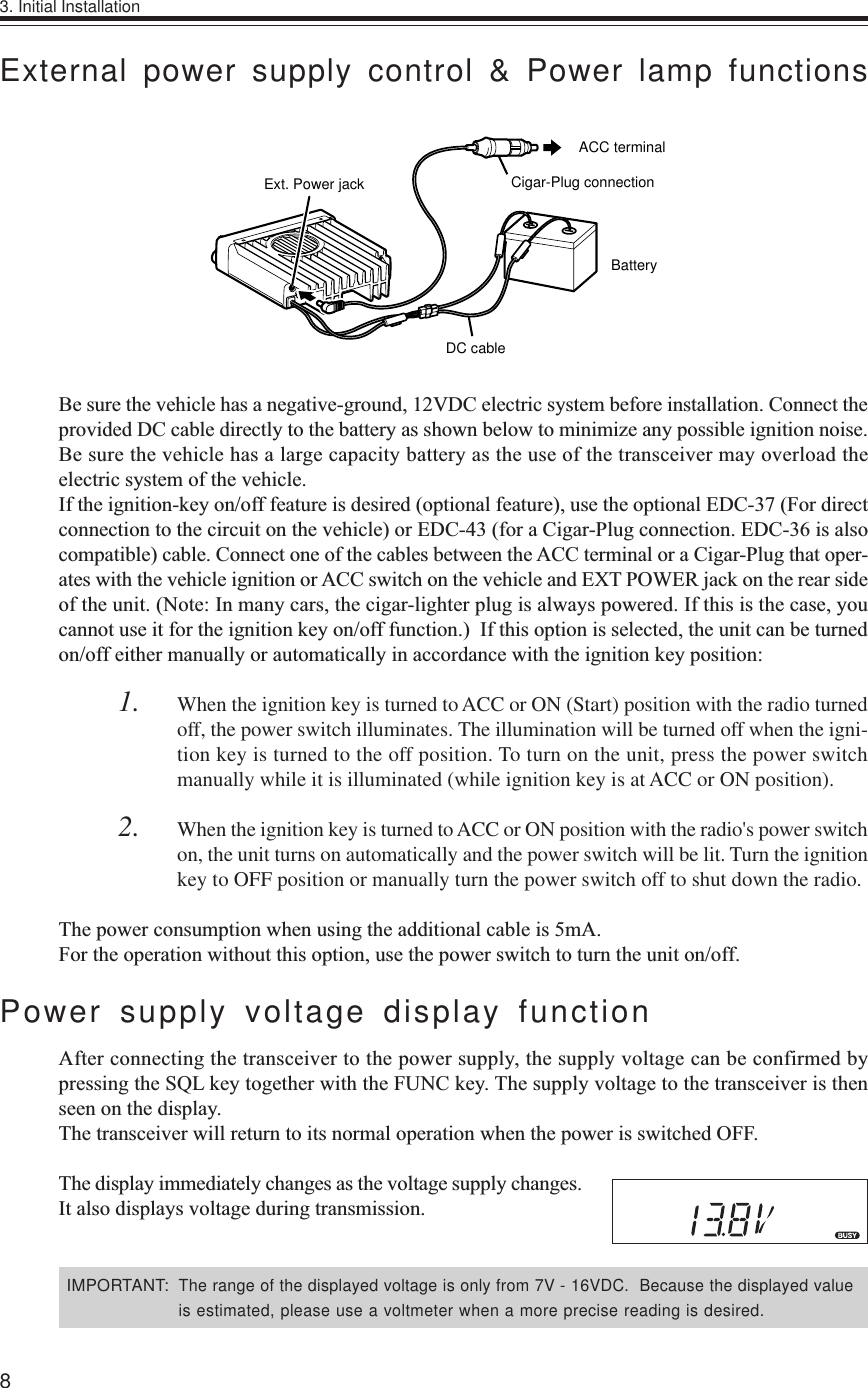

83. Initial InstallationExternal power supply control & Power lamp functionsBe sure the vehicle has a negative-ground, 12VDC electric system before installation. Connect theprovided DC cable directly to the battery as shown below to minimize any possible ignition noise.Be sure the vehicle has a large capacity battery as the use of the transceiver may overload theelectric system of the vehicle.If the ignition-key on/off feature is desired (optional feature), use the optional EDC-37 (For directconnection to the circuit on the vehicle) or EDC-43 (for a Cigar-Plug connection. EDC-36 is alsocompatible) cable. Connect one of the cables between the ACC terminal or a Cigar-Plug that oper-ates with the vehicle ignition or ACC switch on the vehicle and EXT POWER jack on the rear sideof the unit. (Note: In many cars, the cigar-lighter plug is always powered. If this is the case, youcannot use it for the ignition key on/off function.) If this option is selected, the unit can be turnedon/off either manually or automatically in accordance with the ignition key position:1. When the ignition key is turned to ACC or ON (Start) position with the radio turnedoff, the power switch illuminates. The illumination will be turned off when the igni-tion key is turned to the off position. To turn on the unit, press the power switchmanually while it is illuminated (while ignition key is at ACC or ON position).2. When the ignition key is turned to ACC or ON position with the radio's power switchon, the unit turns on automatically and the power switch will be lit. Turn the ignitionkey to OFF position or manually turn the power switch off to shut down the radio.The power consumption when using the additional cable is 5mA.For the operation without this option, use the power switch to turn the unit on/off.Power supply voltage display functionAfter connecting the transceiver to the power supply, the supply voltage can be confirmed bypressing the SQL key together with the FUNC key. The supply voltage to the transceiver is thenseen on the display.The transceiver will return to its normal operation when the power is switched OFF.The display immediately changes as the voltage supply changes.It also displays voltage during transmission.IMPORTANT:The range of the displayed voltage is only from 7V - 16VDC. Because the displayed valueis estimated, please use a voltmeter when a more precise reading is desired.DC cableBatteryCigar-Plug connectionACC terminalExt. Power jack

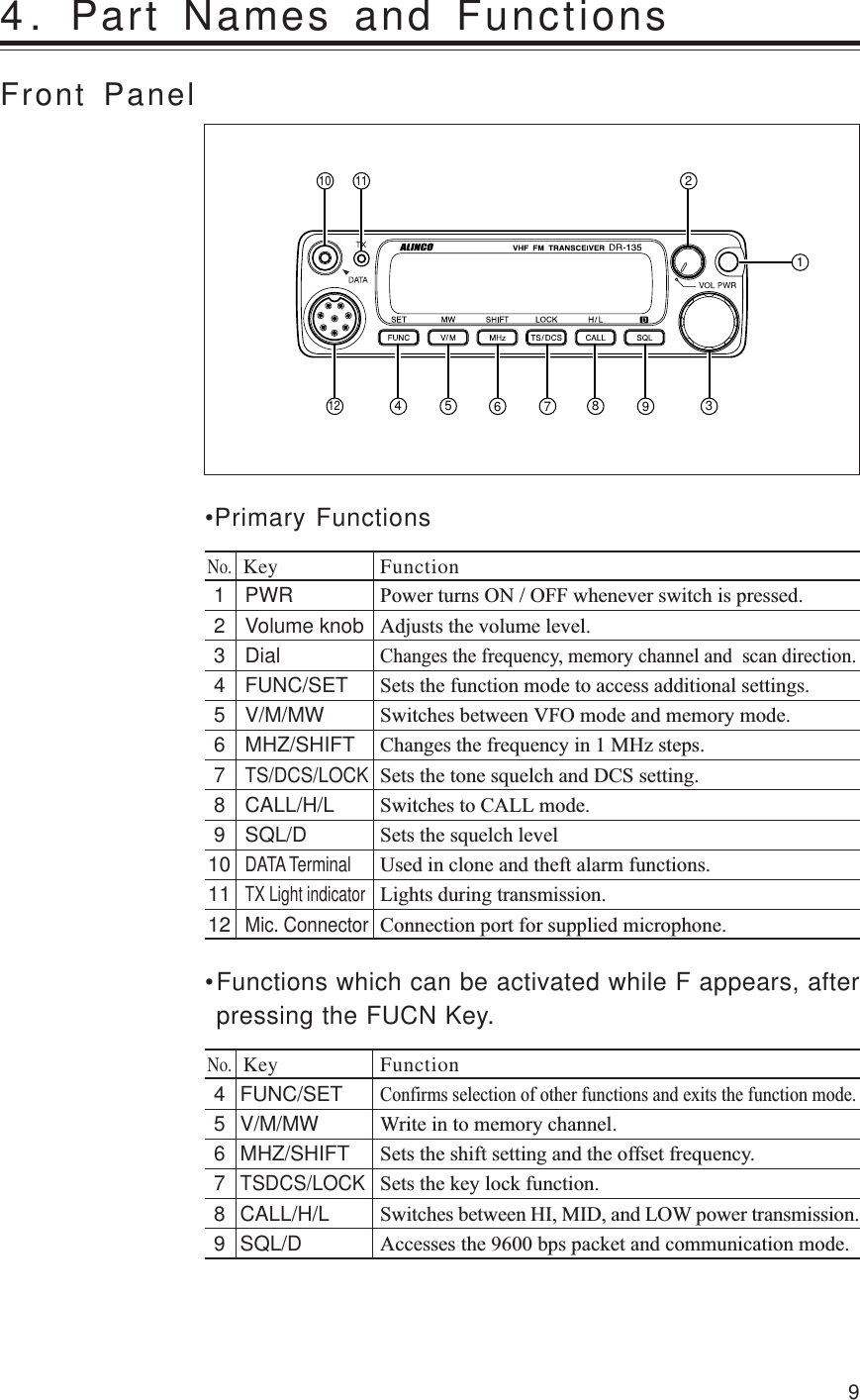

94. Part Names and FunctionsFront Panel10124 5 678931121•Primary FunctionsNo.Key Function1PWR Power turns ON / OFF whenever switch is pressed.2 Volume knob Adjusts the volume level.3 DialChanges the frequency, memory channel and scan direction.4 FUNC/SET Sets the function mode to access additional settings.5 V/M/MW Switches between VFO mode and memory mode.6 MHZ/SHIFT Changes the frequency in 1 MHz steps.7TS/DCS/LOCKSets the tone squelch and DCS setting.8 CALL/H/L Switches to CALL mode.9 SQL/D Sets the squelch level10DATA TerminalUsed in clone and theft alarm functions.11TX Light indicatorLights during transmission.12Mic. ConnectorConnection port for supplied microphone.•Functions which can be activated while F appears, afterpressing the FUCN Key.No.Key Function4 FUNC/SETConfirms selection of other functions and exits the function mode.5 V/M/MW Write in to memory channel.6 MHZ/SHIFT Sets the shift setting and the offset frequency.7TSDCS/LOCKSets the key lock function.8 CALL/H/L Switches between HI, MID, and LOW power transmission.9 SQL/D Accesses the 9600 bps packet and communication mode.

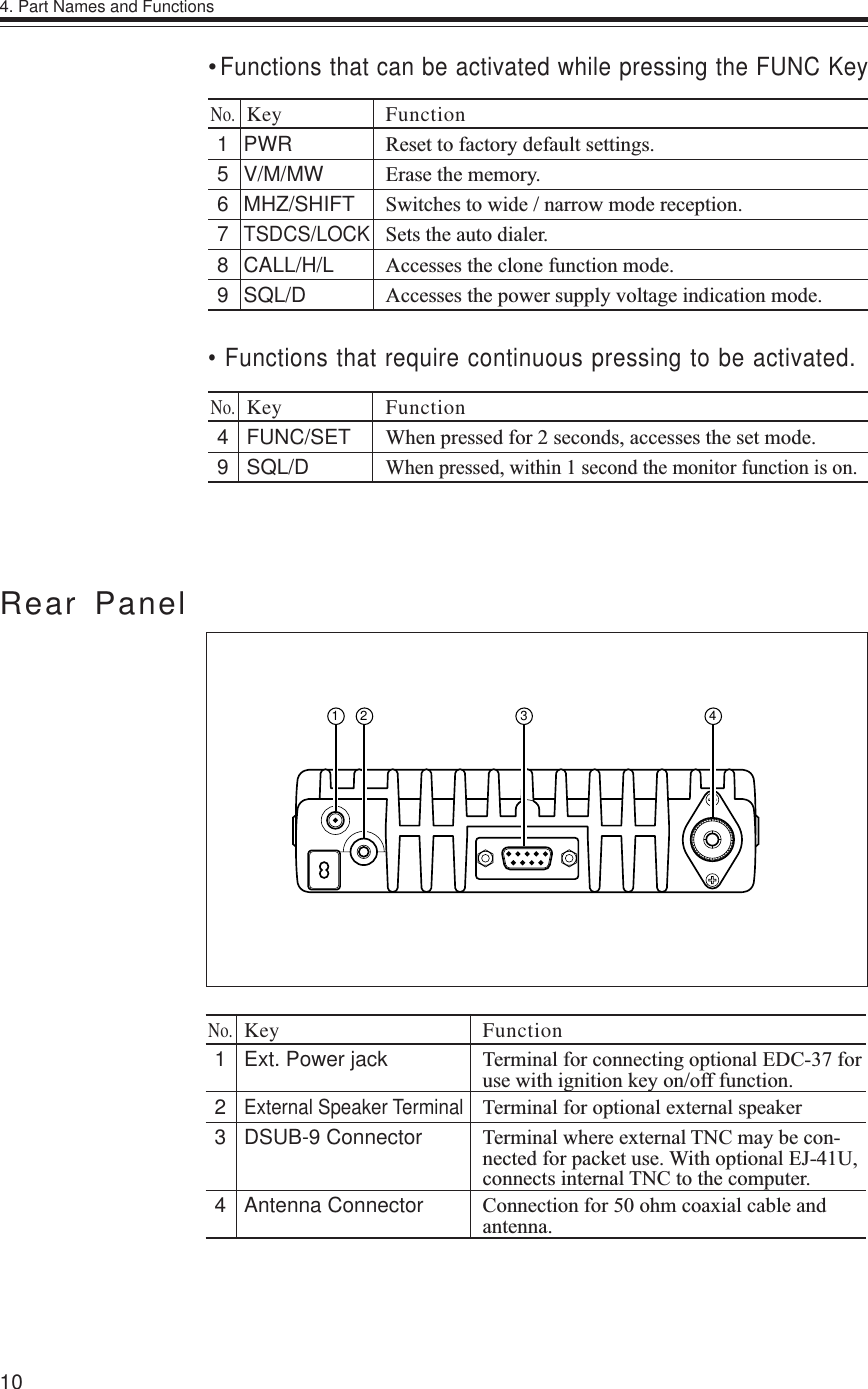

104. Part Names and FunctionsRear Panel321 4No.Key Function1 Ext. Power jack Terminal for connecting optional EDC-37 foruse with ignition key on/off function.2External Speaker TerminalTerminal for optional external speaker3 DSUB-9 Connector Terminal where external TNC may be con-nected for packet use. With optional EJ-41U,connects internal TNC to the computer.4 Antenna Connector Connection for 50 ohm coaxial cable andantenna.•Functions that can be activated while pressing the FUNC KeyNo.Key Function1PWR Reset to factory default settings.5 V/M/MW Erase the memory.6 MHZ/SHIFT Switches to wide / narrow mode reception.7TSDCS/LOCKSets the auto dialer.8 CALL/H/L Accesses the clone function mode.9 SQL/D Accesses the power supply voltage indication mode.• Functions that require continuous pressing to be activated.No.Key Function4 FUNC/SET When pressed for 2 seconds, accesses the set mode.9 SQL/DWhen pressed, within 1 second the monitor function is on.

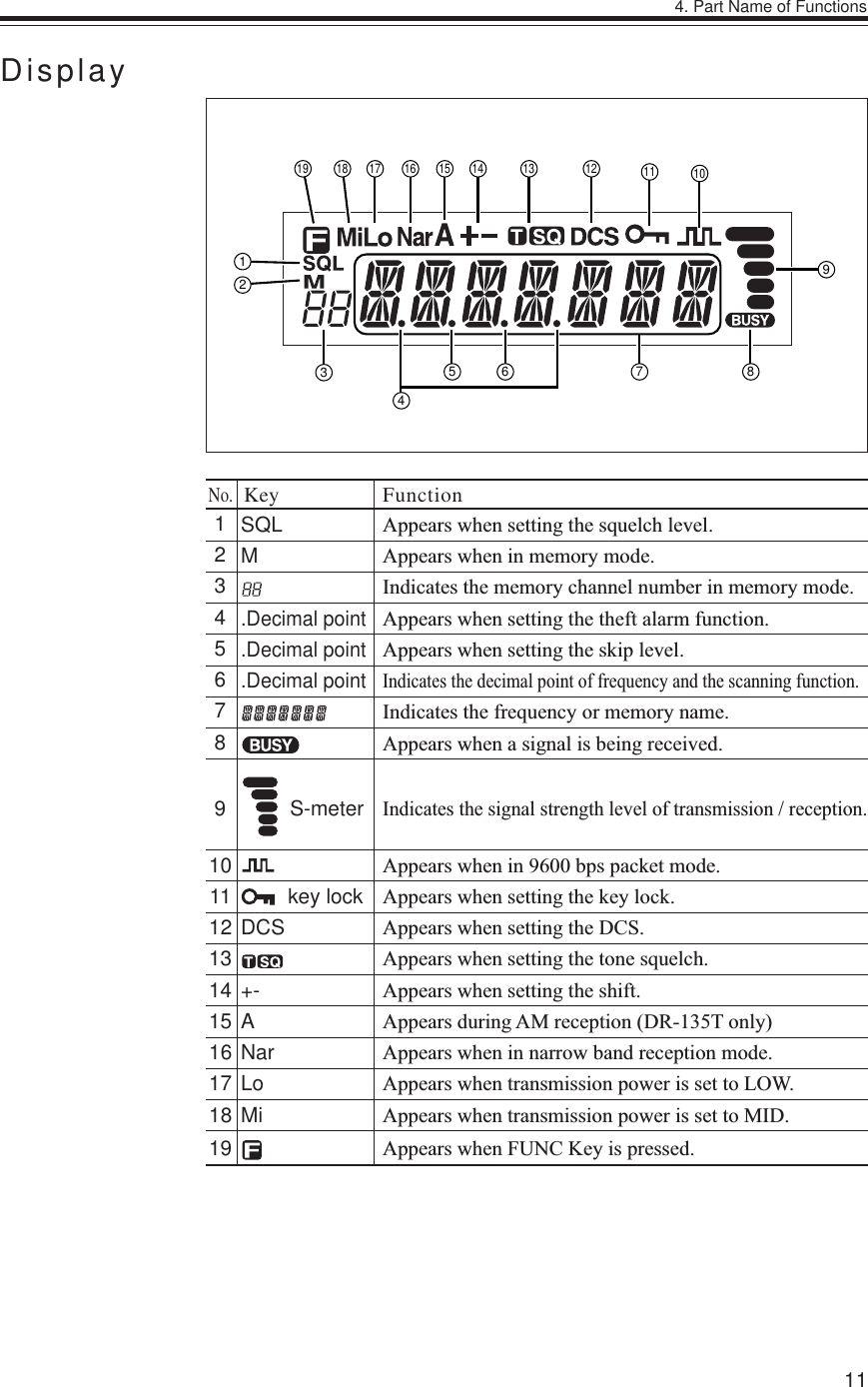

114. Part Name of FunctionsDisplay101112131416 151718198391245 6 7No.Key Function1SQL Appears when setting the squelch level.2MAppears when in memory mode.3Indicates the memory channel number in memory mode.4.Decimal pointAppears when setting the theft alarm function.5.Decimal pointAppears when setting the skip level.6.Decimal pointIndicates the decimal point of frequency and the scanning function.7Indicates the frequency or memory name.8Appears when a signal is being received.9 S-meterIndicates the signal strength level of transmission / reception.10 Appears when in 9600 bps packet mode.11 key lock Appears when setting the key lock.12 DCS Appears when setting the DCS.13 Appears when setting the tone squelch.14 +- Appears when setting the shift.15 A Appears during AM reception (DR-135T only)16 Nar Appears when in narrow band reception mode.17 Lo Appears when transmission power is set to LOW.18 Mi Appears when transmission power is set to MID.19 Appears when FUNC Key is pressed.
124. Part Names and FunctionsMicrophoneMic. Connector Diagram (While looking in the front view of the con-nector)17263458PTTMIC MIC GNDNCDC 5VDOWNGNDUP321654721376DR-135T DR-135ENo.Key Function1UPIncrease the frequency, memory channel number, or setting value.2 DOWNDecrease the frequency, memory channel number, or setting value.3 PTT Press the PTT(Push-To-Talk)key to transmit.4 DTMF DTMF tone keys5DTMF ON/OFFSwitches DTMF mic key illumination ON/OFF6 Lock Switch Locks out the UP and DOWN keys.7MIC Speak here during transmission.

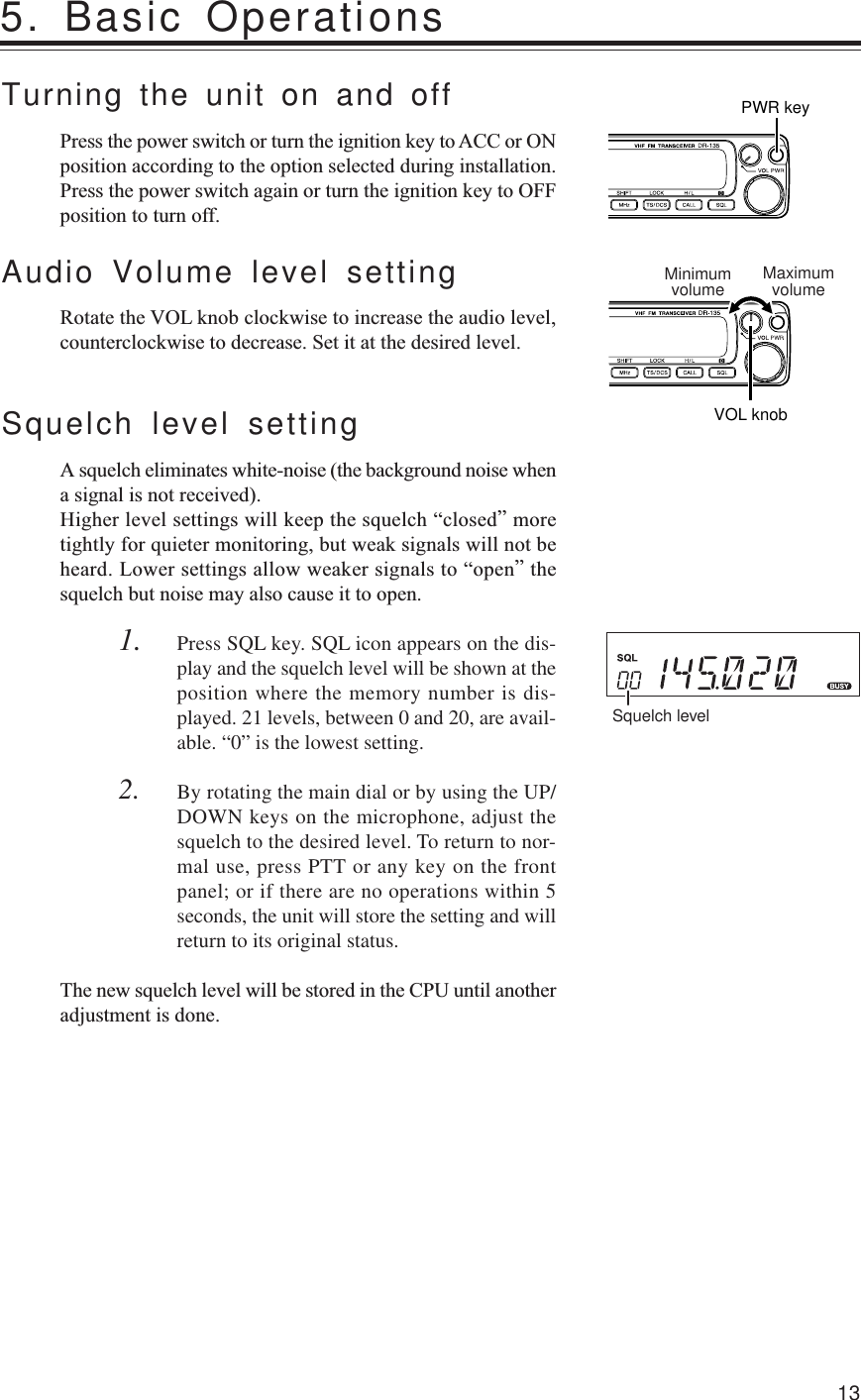

135. Basic OperationsTurning the unit on and offPress the power switch or turn the ignition key to ACC or ONposition according to the option selected during installation.Press the power switch again or turn the ignition key to OFFposition to turn off.Audio Volume level settingRotate the VOL knob clockwise to increase the audio level,counterclockwise to decrease. Set it at the desired level.Squelch level settingA squelch eliminates white-noise (the background noise whena signal is not received).Higher level settings will keep the squelch “closed” moretightly for quieter monitoring, but weak signals will not beheard. Lower settings allow weaker signals to “open” thesquelch but noise may also cause it to open.1. Press SQL key. SQL icon appears on the dis-play and the squelch level will be shown at theposition where the memory number is dis-played. 21 levels, between 0 and 20, are avail-able. “0” is the lowest setting.2. By rotating the main dial or by using the UP/DOWN keys on the microphone, adjust thesquelch to the desired level. To return to nor-mal use, press PTT or any key on the frontpanel; or if there are no operations within 5seconds, the unit will store the setting and willreturn to its original status.The new squelch level will be stored in the CPU until anotheradjustment is done.Squelch levelPWR keyVOL knobMinimumvolume Maximumvolume

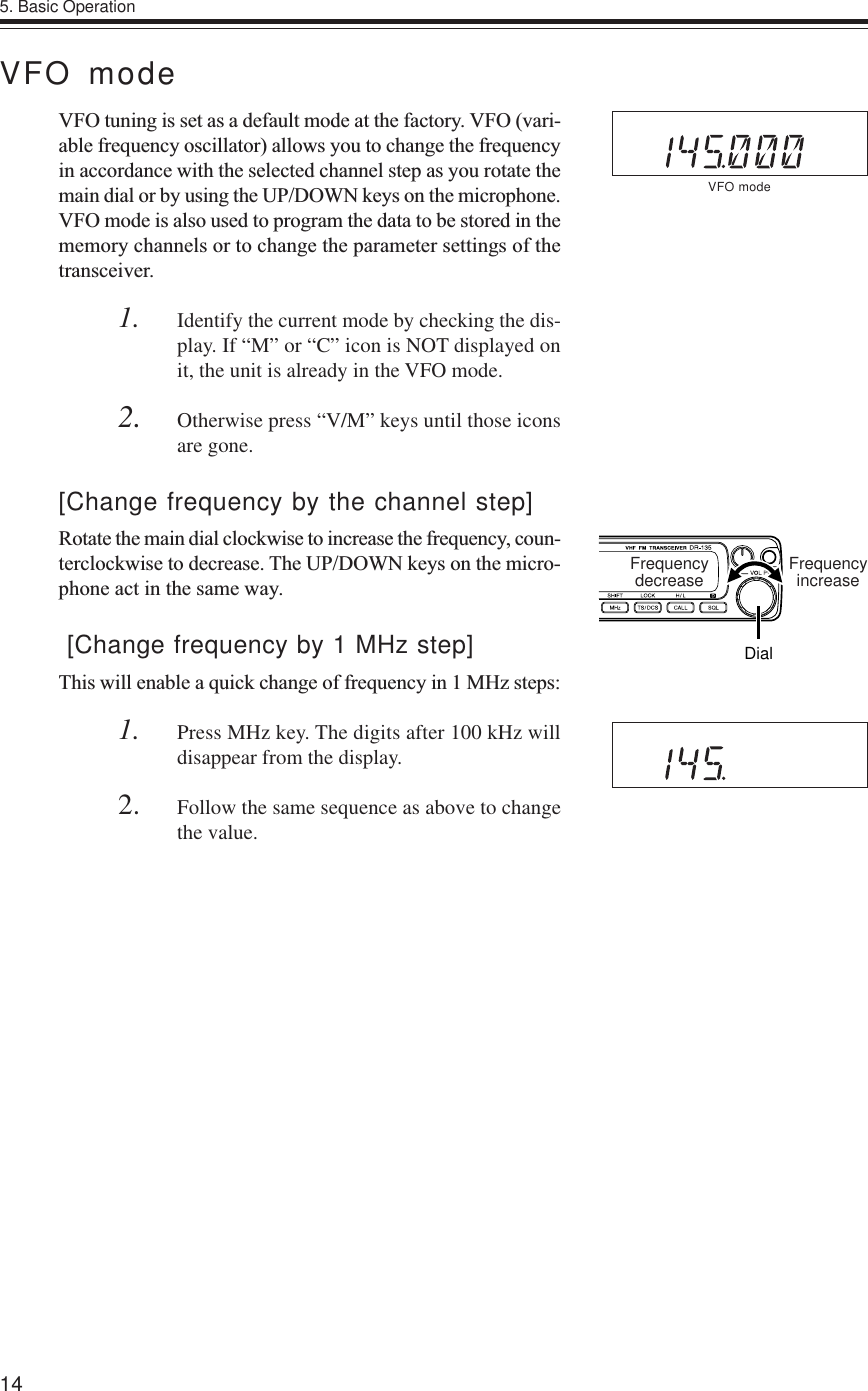

145. Basic OperationVFO modeVFO tuning is set as a default mode at the factory. VFO (vari-able frequency oscillator) allows you to change the frequencyin accordance with the selected channel step as you rotate themain dial or by using the UP/DOWN keys on the microphone.VFO mode is also used to program the data to be stored in thememory channels or to change the parameter settings of thetransceiver.1. Identify the current mode by checking the dis-play. If “M” or “C” icon is NOT displayed onit, the unit is already in the VFO mode.2. Otherwise press “V/M” keys until those iconsare gone.[Change frequency by the channel step]Rotate the main dial clockwise to increase the frequency, coun-terclockwise to decrease. The UP/DOWN keys on the micro-phone act in the same way. [Change frequency by 1 MHz step]This will enable a quick change of frequency in 1 MHz steps:1. Press MHz key. The digits after 100 kHz willdisappear from the display.2. Follow the same sequence as above to changethe value.VFO modeDialFrequencydecrease Frequencyincrease
155. Basic OperationREPEATER (DUPLEX) OperationShift Direction and Offset frequency settingConventional repeaters are operated in the DUPLEX mode.It receives an incoming signal (UP-LINK) on one frequencyand re-transmits on another (DOWN-LINK). The differencebetween these two frequencies is called the offset frequency.If the UP-LINK frequency is higher than the DOWN-LINKfrequency, the direction is positive, and if it is lower, the shiftdirection is negative. The offset is variable between 0 to 99.995MHz on this unit.Press the F key. While the F icon stays on the display, pressMHz key. The display shows the current status of shift direc-tion and offset frequency. The default value is 0.60 MHz (600kHz) in the negative direction. Press MHz key until the de-sired offset direction is set. If SIMPLEX mode (without chang-ing transmit and receive frequency) is desired, select the po-sition where both - and + icons disappeared.−0.600 ＋0.600Shift releaseat-600 kH0zChanging the channel step1. Be sure the unit is in VFO mode. Refer to page21 to enter into the SET mode.2. Select the channel step parameter setting usingthe tuning knob. The current channel step willbe displayed as below.3. Press PTT or any one of the keys except SQLon the front panel to enter the desired step intothe transceiver’s memory. The display will thenreturn to the original status.Please note that settings below 10 kHz may be automaticallycorrected according to the selected step.Display for channel stepSTP-5（5 kHz）STP-50（50 kHz）STP-30（30 kHz）STP-25（25 kHz）STP-20（20 kHz）STP-83（8.33 kHz）STP-10（10 kHz）STP-125（12.5 kHz）STP-15（15 kHz）1. Rotate the dial or use UP/DOWN keys on the microphone to change the shift fre-quency.It changes in accordance with the channel step setting.2. In this mode, if the F key is pressed again, the offset frequency can be changed in 1MHz steps for faster setting.3. Press PTT or any key except F or MHz on the front panel to return to the originalstatus.

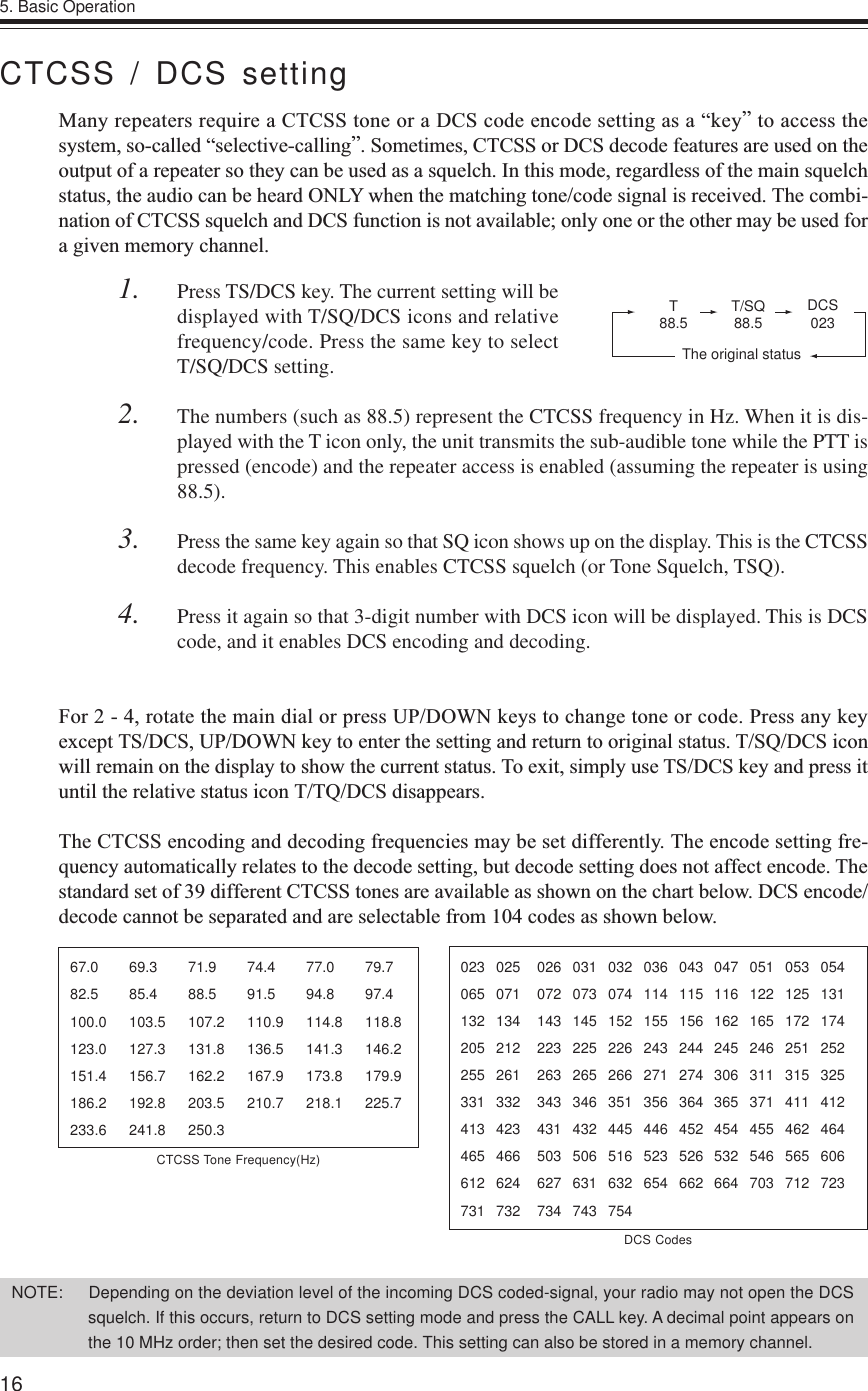

165. Basic OperationCTCSS / DCS settingMany repeaters require a CTCSS tone or a DCS code encode setting as a “key” to access thesystem, so-called “selective-calling”. Sometimes, CTCSS or DCS decode features are used on theoutput of a repeater so they can be used as a squelch. In this mode, regardless of the main squelchstatus, the audio can be heard ONLY when the matching tone/code signal is received. The combi-nation of CTCSS squelch and DCS function is not available; only one or the other may be used fora given memory channel.1. Press TS/DCS key. The current setting will bedisplayed with T/SQ/DCS icons and relativefrequency/code. Press the same key to selectT/SQ/DCS setting.2. The numbers (such as 88.5) represent the CTCSS frequency in Hz. When it is dis-played with the T icon only, the unit transmits the sub-audible tone while the PTT ispressed (encode) and the repeater access is enabled (assuming the repeater is using88.5).3. Press the same key again so that SQ icon shows up on the display. This is the CTCSSdecode frequency. This enables CTCSS squelch (or Tone Squelch, TSQ).4. Press it again so that 3-digit number with DCS icon will be displayed. This is DCScode, and it enables DCS encoding and decoding.T88.5 T/SQ88.5DCS023The original statusFor 2 - 4, rotate the main dial or press UP/DOWN keys to change tone or code. Press any keyexcept TS/DCS, UP/DOWN key to enter the setting and return to original status. T/SQ/DCS iconwill remain on the display to show the current status. To exit, simply use TS/DCS key and press ituntil the relative status icon T/TQ/DCS disappears.The CTCSS encoding and decoding frequencies may be set differently. The encode setting fre-quency automatically relates to the decode setting, but decode setting does not affect encode. Thestandard set of 39 different CTCSS tones are available as shown on the chart below. DCS encode/decode cannot be separated and are selectable from 104 codes as shown below.NOTE: Depending on the deviation level of the incoming DCS coded-signal, your radio may not open the DCSsquelch. If this occurs, return to DCS setting mode and press the CALL key. A decimal point appears onthe 10 MHz order; then set the desired code. This setting can also be stored in a memory channel.023 025 026 031 032 036 043 047 051 053 054065 071 072 073 074 114 115 116 122 125 131132 134 143 145 152 155 156 162 165 172 174205 212 223 225 226 243 244 245 246 251 252255 261 263 265 266 271 274 306 311 315 325331 332 343 346 351 356 364 365 371 411 412413 423 431 432 445 446 452 454 455 462 464465 466 503 506 516 523 526 532 546 565 606612 624 627 631 632 654 662 664 703 712 723731 732 734 743 754DCS Codes67.0 69.3 71.9 74.4 77.0 79.782.5 85.4 88.5 91.5 94.8 97.4100.0 103.5 107.2 110.9 114.8 118.8123.0 127.3 131.8 136.5 141.3 146.2151.4 156.7 162.2 167.9 173.8 179.9186.2 192.8 203.5 210.7 218.1 225.7233.6 241.8 250.3CTCSS Tone Frequency(Hz)

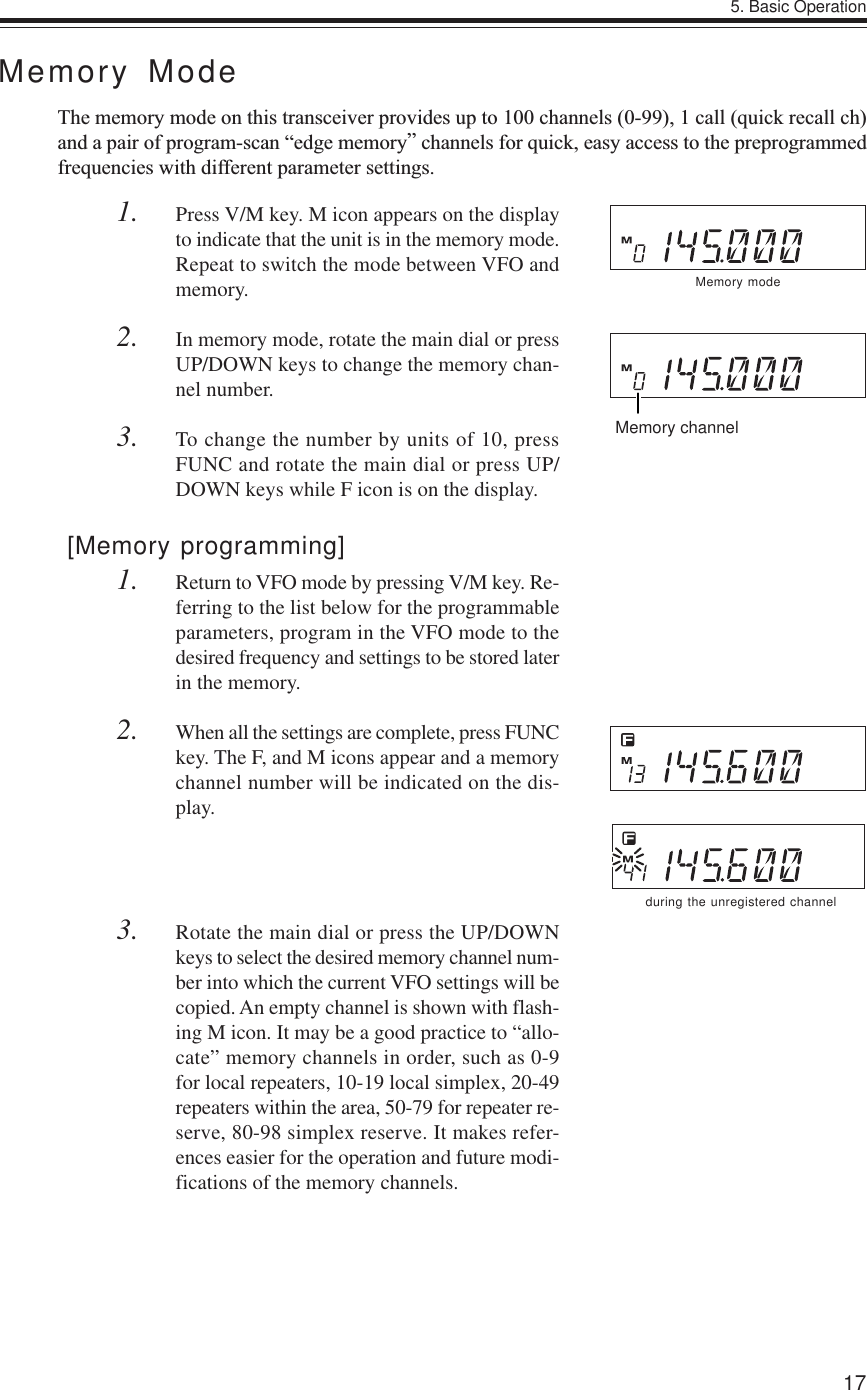

175. Basic OperationMemory ModeThe memory mode on this transceiver provides up to 100 channels (0-99), 1 call (quick recall ch)and a pair of program-scan “edge memory” channels for quick, easy access to the preprogrammedfrequencies with different parameter settings.Memory modeMemory channelduring the unregistered channel1. Press V/M key. M icon appears on the displayto indicate that the unit is in the memory mode.Repeat to switch the mode between VFO andmemory.2. In memory mode, rotate the main dial or pressUP/DOWN keys to change the memory chan-nel number.3. To change the number by units of 10, pressFUNC and rotate the main dial or press UP/DOWN keys while F icon is on the display. [Memory programming]1. Return to VFO mode by pressing V/M key. Re-ferring to the list below for the programmableparameters, program in the VFO mode to thedesired frequency and settings to be stored laterin the memory.2. When all the settings are complete, press FUNCkey. The F, and M icons appear and a memorychannel number will be indicated on the dis-play.3. Rotate the main dial or press the UP/DOWNkeys to select the desired memory channel num-ber into which the current VFO settings will becopied. An empty channel is shown with flash-ing M icon. It may be a good practice to “allo-cate” memory channels in order, such as 0-9for local repeaters, 10-19 local simplex, 20-49repeaters within the area, 50-79 for repeater re-serve, 80-98 simplex reserve. It makes refer-ences easier for the operation and future modi-fications of the memory channels.

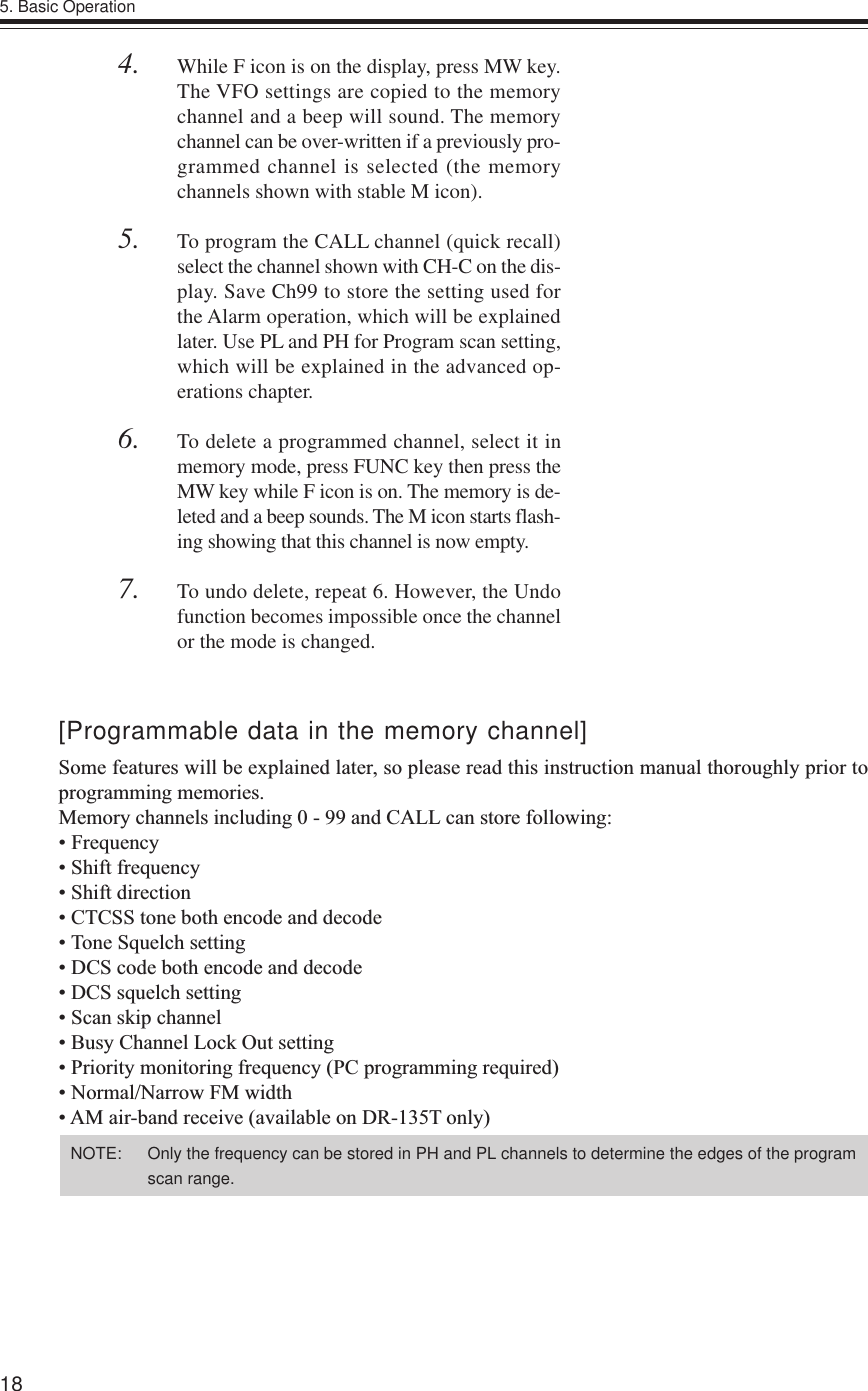

185. Basic Operation[Programmable data in the memory channel]Some features will be explained later, so please read this instruction manual thoroughly prior toprogramming memories.Memory channels including 0 - 99 and CALL can store following:• Frequency• Shift frequency• Shift direction• CTCSS tone both encode and decode• Tone Squelch setting• DCS code both encode and decode• DCS squelch setting• Scan skip channel• Busy Channel Lock Out setting• Priority monitoring frequency (PC programming required)• Normal/Narrow FM width• AM air-band receive (available on DR-135T only)NOTE: Only the frequency can be stored in PH and PL channels to determine the edges of the programscan range.4. While F icon is on the display, press MW key.The VFO settings are copied to the memorychannel and a beep will sound. The memorychannel can be over-written if a previously pro-grammed channel is selected (the memorychannels shown with stable M icon).5. To program the CALL channel (quick recall)select the channel shown with CH-C on the dis-play. Save Ch99 to store the setting used forthe Alarm operation, which will be explainedlater. Use PL and PH for Program scan setting,which will be explained in the advanced op-erations chapter.6. To delete a programmed channel, select it inmemory mode, press FUNC key then press theMW key while F icon is on. The memory is de-leted and a beep sounds. The M icon starts flash-ing showing that this channel is now empty.7. To undo delete, repeat 6. However, the Undofunction becomes impossible once the channelor the mode is changed.

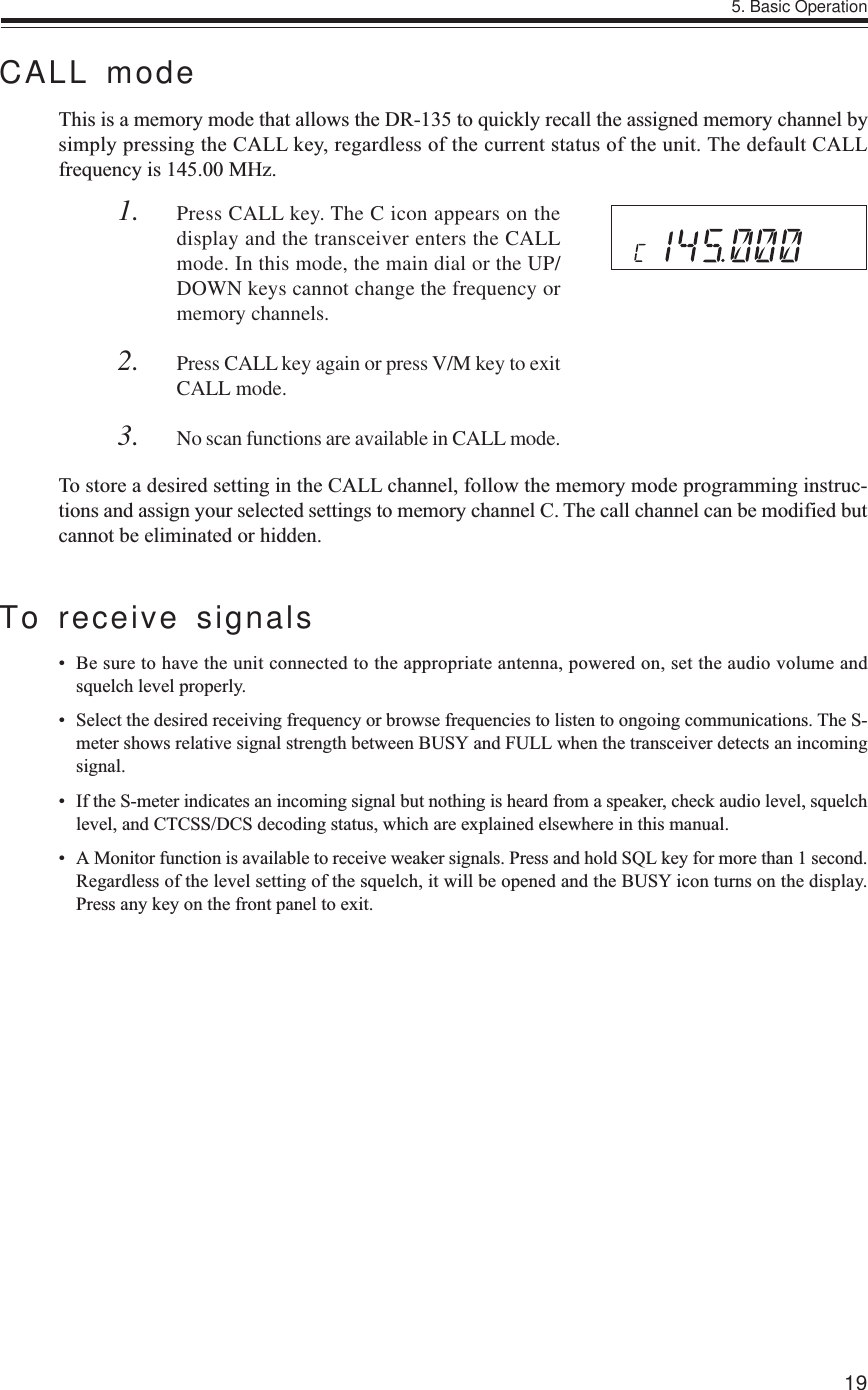

195. Basic OperationCALL modeThis is a memory mode that allows the DR-135 to quickly recall the assigned memory channel bysimply pressing the CALL key, regardless of the current status of the unit. The default CALLfrequency is 145.00 MHz.1. Press CALL key. The C icon appears on thedisplay and the transceiver enters the CALLmode. In this mode, the main dial or the UP/DOWN keys cannot change the frequency ormemory channels.2. Press CALL key again or press V/M key to exitCALL mode.3. No scan functions are available in CALL mode.To store a desired setting in the CALL channel, follow the memory mode programming instruc-tions and assign your selected settings to memory channel C. The call channel can be modified butcannot be eliminated or hidden.To receive signals• Be sure to have the unit connected to the appropriate antenna, powered on, set the audio volume andsquelch level properly.• Select the desired receiving frequency or browse frequencies to listen to ongoing communications. The S-meter shows relative signal strength between BUSY and FULL when the transceiver detects an incomingsignal.• If the S-meter indicates an incoming signal but nothing is heard from a speaker, check audio level, squelchlevel, and CTCSS/DCS decoding status, which are explained elsewhere in this manual.• A Monitor function is available to receive weaker signals. Press and hold SQL key for more than 1 second.Regardless of the level setting of the squelch, it will be opened and the BUSY icon turns on the display.Press any key on the front panel to exit.

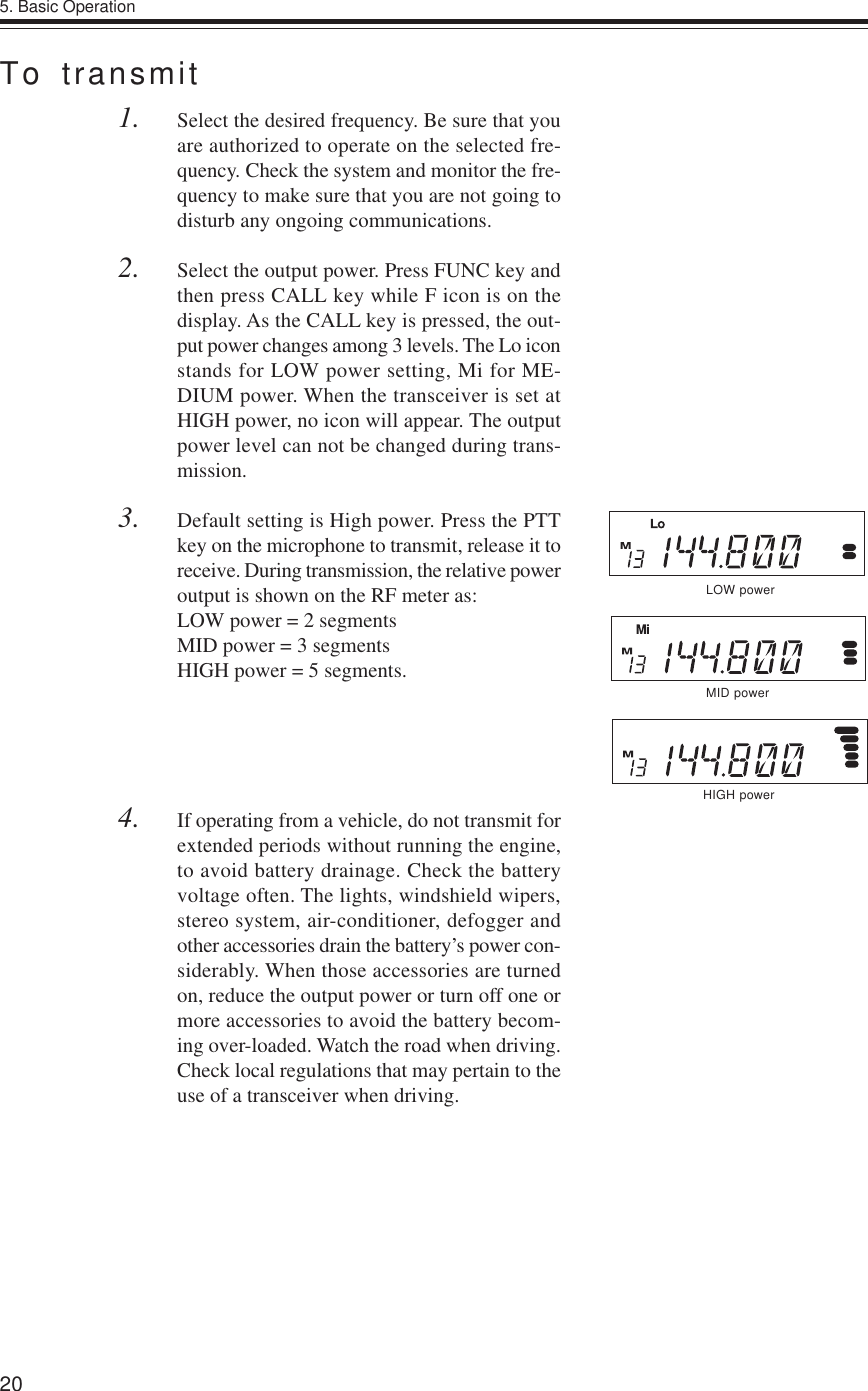

205. Basic OperationTo transmit1. Select the desired frequency. Be sure that youare authorized to operate on the selected fre-quency. Check the system and monitor the fre-quency to make sure that you are not going todisturb any ongoing communications.2. Select the output power. Press FUNC key andthen press CALL key while F icon is on thedisplay. As the CALL key is pressed, the out-put power changes among 3 levels. The Lo iconstands for LOW power setting, Mi for ME-DIUM power. When the transceiver is set atHIGH power, no icon will appear. The outputpower level can not be changed during trans-mission.3. Default setting is High power. Press the PTTkey on the microphone to transmit, release it toreceive. During transmission, the relative poweroutput is shown on the RF meter as:LOW power = 2 segmentsMID power = 3 segmentsHIGH power = 5 segments.4. If operating from a vehicle, do not transmit forextended periods without running the engine,to avoid battery drainage. Check the batteryvoltage often. The lights, windshield wipers,stereo system, air-conditioner, defogger andother accessories drain the battery’s power con-siderably. When those accessories are turnedon, reduce the output power or turn off one ormore accessories to avoid the battery becom-ing over-loaded. Watch the road when driving.Check local regulations that may pertain to theuse of a transceiver when driving.LOW powerMID powerHIGH power

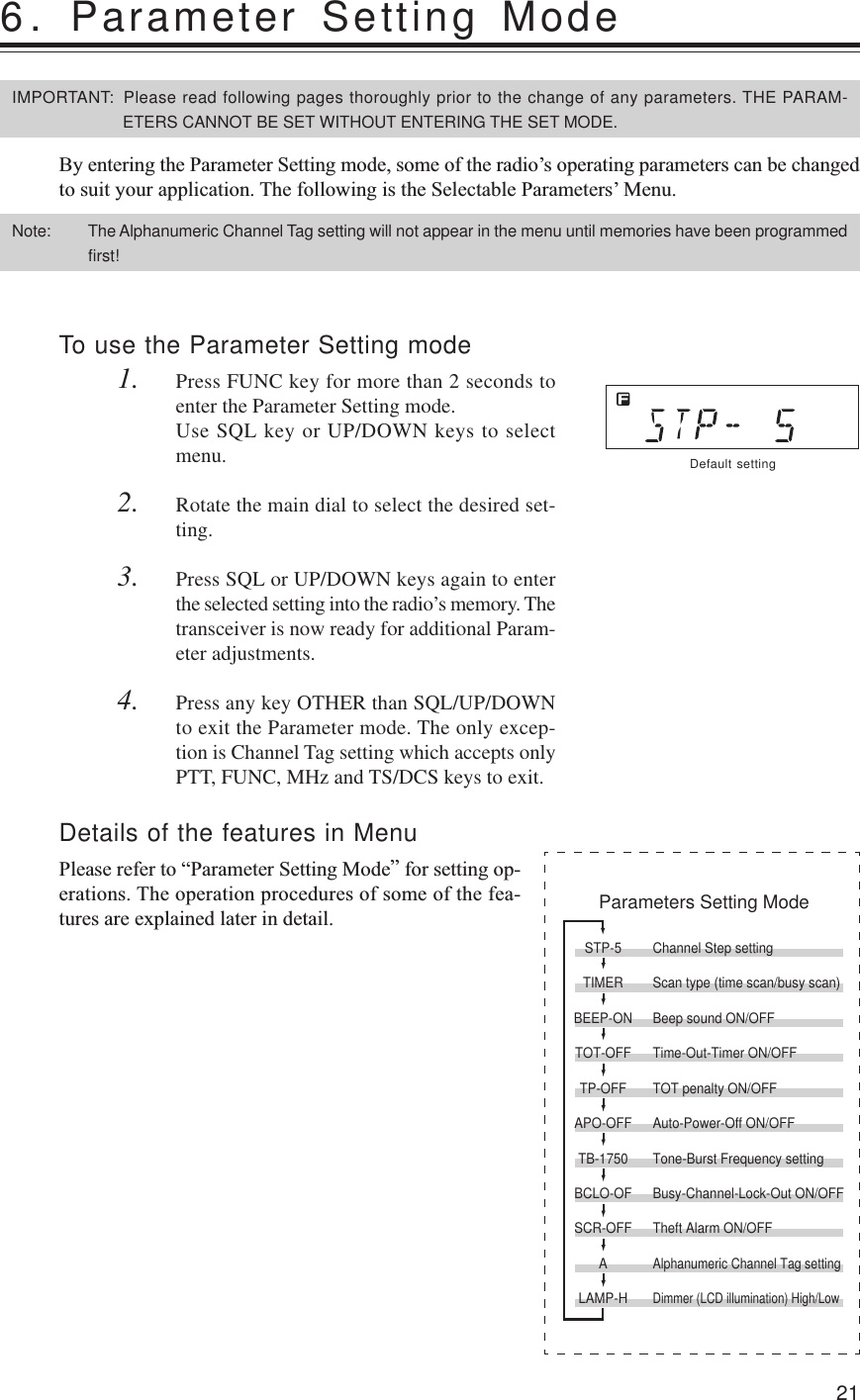

216. Parameter Setting ModeBy entering the Parameter Setting mode, some of the radio’s operating parameters can be changedto suit your application. The following is the Selectable Parameters’ Menu.IMPORTANT: Please read following pages thoroughly prior to the change of any parameters. THE PARAM-ETERS CANNOT BE SET WITHOUT ENTERING THE SET MODE.Note: The Alphanumeric Channel Tag setting will not appear in the menu until memories have been programmedfirst!Default settingTo use the Parameter Setting mode1. Press FUNC key for more than 2 seconds toenter the Parameter Setting mode.Use SQL key or UP/DOWN keys to selectmenu.2. Rotate the main dial to select the desired set-ting.3. Press SQL or UP/DOWN keys again to enterthe selected setting into the radio’s memory. Thetransceiver is now ready for additional Param-eter adjustments.4. Press any key OTHER than SQL/UP/DOWNto exit the Parameter mode. The only excep-tion is Channel Tag setting which accepts onlyPTT, FUNC, MHz and TS/DCS keys to exit.Details of the features in MenuPlease refer to “Parameter Setting Mode” for setting op-erations. The operation procedures of some of the fea-tures are explained later in detail.STP-5 Channel Step settingTIMER Scan type (time scan/busy scan)BEEP-ON Beep sound ON/OFFTOT-OFF Time-Out-Timer ON/OFFTP-OFF TOT penalty ON/OFFAPO-OFF Auto-Power-Off ON/OFFTB-1750 Tone-Burst Frequency settingBCLO-OF Busy-Channel-Lock-Out ON/OFFSCR-OFF Theft Alarm ON/OFF AAlphanumeric Channel Tag settingLAMP-HDimmer (LCD illumination) High/LowParameters Setting Mode

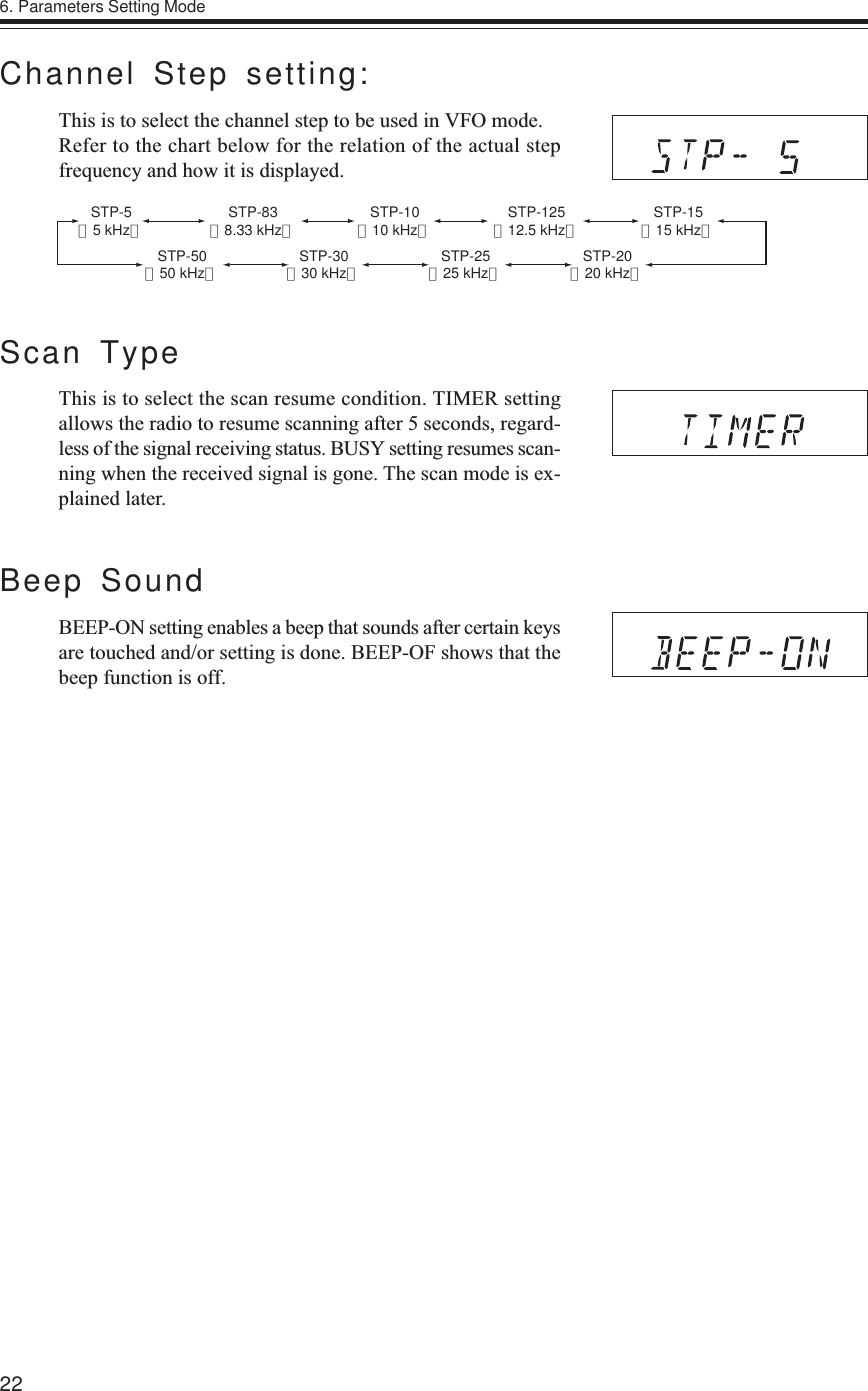

226. Parameters Setting ModeChannel Step setting:This is to select the channel step to be used in VFO mode.Refer to the chart below for the relation of the actual stepfrequency and how it is displayed.Scan TypeThis is to select the scan resume condition. TIMER settingallows the radio to resume scanning after 5 seconds, regard-less of the signal receiving status. BUSY setting resumes scan-ning when the received signal is gone. The scan mode is ex-plained later.Beep SoundBEEP-ON setting enables a beep that sounds after certain keysare touched and/or setting is done. BEEP-OF shows that thebeep function is off.STP-5（5 kHz）STP-50（50 kHz）STP-30（30 kHz）STP-25（25 kHz）STP-20（20 kHz）STP-83（8.33 kHz）STP-10（10 kHz）STP-125（12.5 kHz）STP-15（15 kHz）
236. Parameters Setting ModeTOT PenaltyWhen the transmission is shut down in the TOT mode, this function prohibits another transmissionfor a selected time period.1. During the TOT penalty period, the beep soundswhen the PTT is pressed but the radio does nottransmit.2. If the PTT is continuously pressed over bothTOT and the TOT penalty period, this functionwill be automatically cancelled.3. Default setting is TP-OFF. Rotate the main dialto select the penalty time, up to 15 seconds.during the setting time of 5 secondsTime-Out-TimerTOT feature is popular in repeater systems. It prohibits the users from transmitting on the repeaterafter a certain period of time has elapsed. By setting this function and activating it according to therepeaters’ requirement, the radio alerts the user by a beep 5 seconds prior to time-out. When thetime is expired, transmitting stops and the transceiver automatically returns to receiving mode.This avoids the repeater going into its TOT mode. Until the PTT is released once and pressedagain, the DR-135 will not transmit.1. In this Menu the default display shows TOT-OFF.2. Rotate the main dial to select time-out time.The display should change as shown below. Thenumber followed by TOT is the time-out timein seconds.3. It is selectable up to 450 seconds (7.5 minutes).during the setting time of 60 seconds

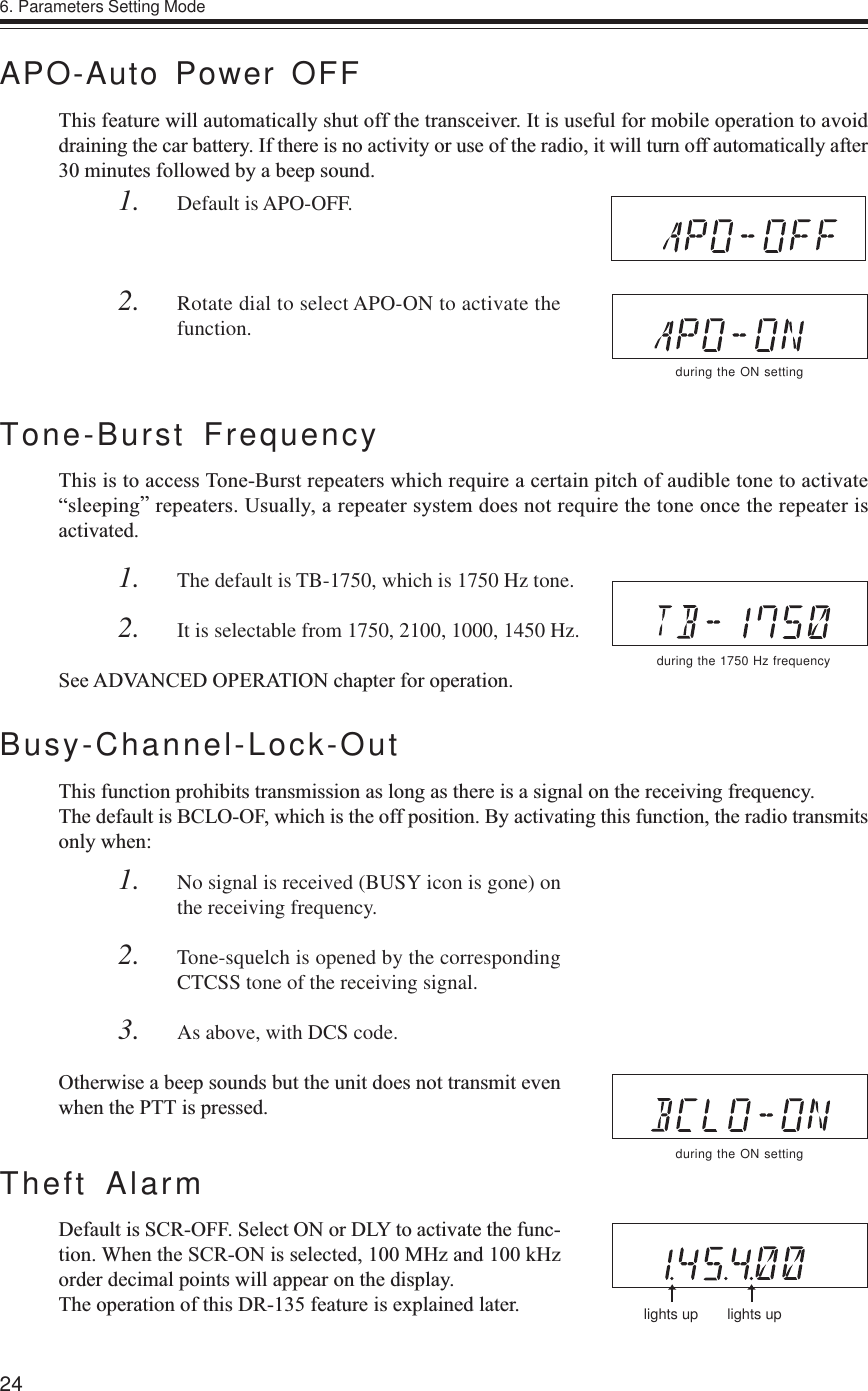

246. Parameters Setting ModeBusy-Channel-Lock-OutThis function prohibits transmission as long as there is a signal on the receiving frequency.The default is BCLO-OF, which is the off position. By activating this function, the radio transmitsonly when:1. No signal is received (BUSY icon is gone) onthe receiving frequency.2. Tone-squelch is opened by the correspondingCTCSS tone of the receiving signal.3. As above, with DCS code.Otherwise a beep sounds but the unit does not transmit evenwhen the PTT is pressed.Theft AlarmDefault is SCR-OFF. Select ON or DLY to activate the func-tion. When the SCR-ON is selected, 100 MHz and 100 kHzorder decimal points will appear on the display.The operation of this DR-135 feature is explained later.during the ON settinglights up lights upAPO-Auto Power OFFThis feature will automatically shut off the transceiver. It is useful for mobile operation to avoiddraining the car battery. If there is no activity or use of the radio, it will turn off automatically after30 minutes followed by a beep sound.1. Default is APO-OFF.2. Rotate dial to select APO-ON to activate thefunction.during the ON settingTone-Burst FrequencyThis is to access Tone-Burst repeaters which require a certain pitch of audible tone to activate“sleeping” repeaters. Usually, a repeater system does not require the tone once the repeater isactivated.1. The default is TB-1750, which is 1750 Hz tone.2. It is selectable from 1750, 2100, 1000, 1450 Hz.See ADVANCED OPERATION chapter for operation. during the 1750 Hz frequency
256. Parameters Setting ModeAlphanumeric TagThe memory channels stored in the memory-mode can be displayed with an alphanumeric taginstead of default frequency display. Program the memory channel first.There are 67 characters available including A-Z, 0-9.1. Enter to the set mode while the unit is inmemory mode.2. Select alphanumeric tag setting by rotating themain dial or UP/DOWN keys. The displayshows [A ] flashing.3. Rotate the main dial to select a character. PressV/M key. The character stops flashing and isentered.4. The same flashing character appears next to it,ready for the next character to be entered. Re-peat the same sequence up to seven characters.5. To delete all characters during programmingpress [CALL] key.6. To exit after setting is done, press one of thefollowing keys: PTT, FUNC, TS, DCS.After programming, the alphanumeric tag will be displayed on the designated channels, instead ofthe frequency, when in memory mode. The memory channel number and other status icons willalso be displayed. If you wish to see the programmed frequency, press FUNC and it will be dis-played for 5 seconds. To return to the alphanumeric display, wait 5 seconds or press any key.Pressing any key followed by FUNC returns to normal operation, regardless of the display status.DimmerThe display illumination can be dimmed.1. [LAMP-H] is displayed as default.2. Rotate the dial to choose the brighter (H) ordarker (L) position.IMPORTANT: This function cannot be enabled without programming the memories.

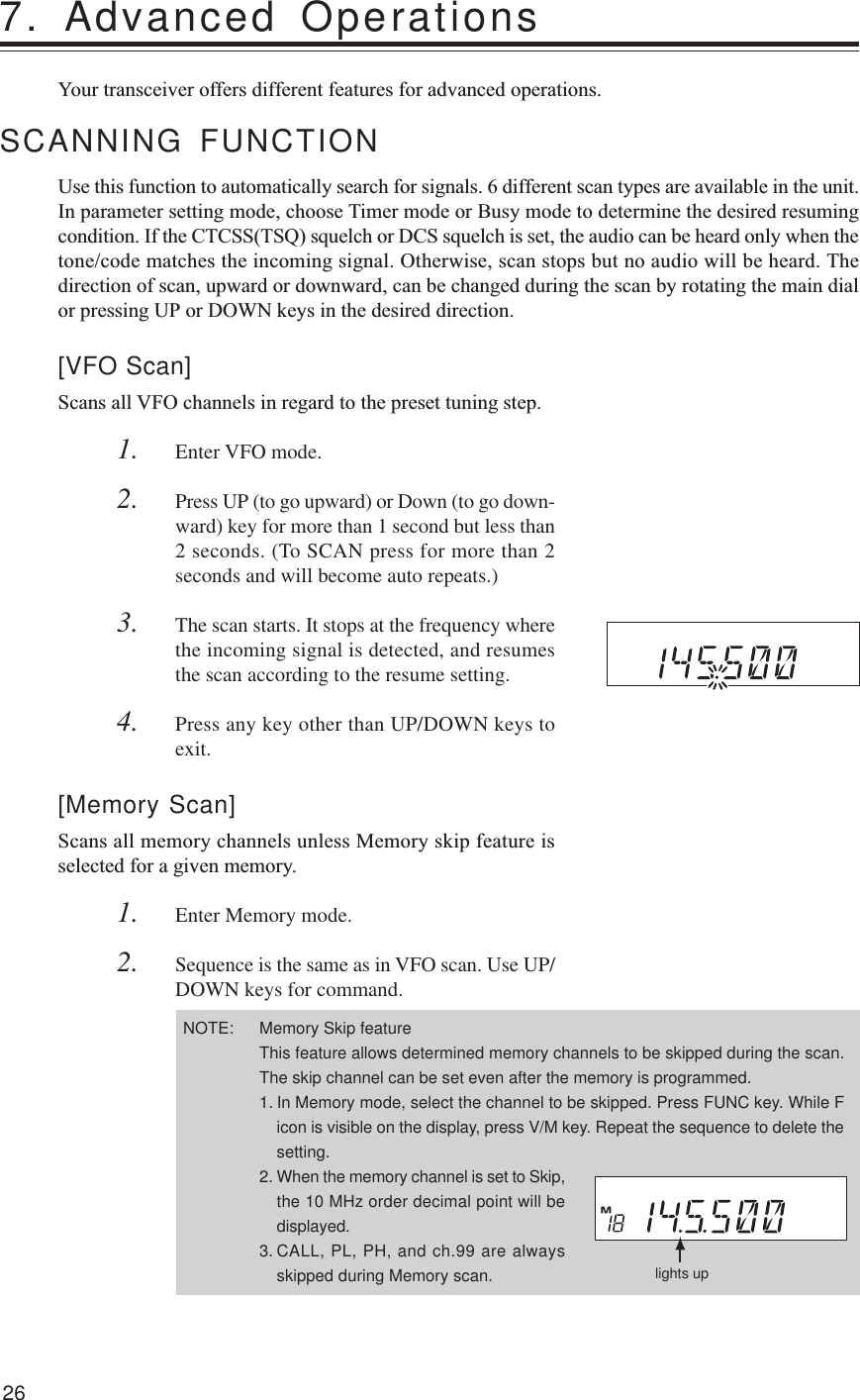

267. Advanced OperationsYour transceiver offers different features for advanced operations.SCANNING FUNCTIONUse this function to automatically search for signals. 6 different scan types are available in the unit.In parameter setting mode, choose Timer mode or Busy mode to determine the desired resumingcondition. If the CTCSS(TSQ) squelch or DCS squelch is set, the audio can be heard only when thetone/code matches the incoming signal. Otherwise, scan stops but no audio will be heard. Thedirection of scan, upward or downward, can be changed during the scan by rotating the main dialor pressing UP or DOWN keys in the desired direction.[VFO Scan]Scans all VFO channels in regard to the preset tuning step.1. Enter VFO mode.2. Press UP (to go upward) or Down (to go down-ward) key for more than 1 second but less than2 seconds. (To SCAN press for more than 2seconds and will become auto repeats.)3. The scan starts. It stops at the frequency wherethe incoming signal is detected, and resumesthe scan according to the resume setting.4. Press any key other than UP/DOWN keys toexit.[Memory Scan]Scans all memory channels unless Memory skip feature isselected for a given memory.1. Enter Memory mode.2. Sequence is the same as in VFO scan. Use UP/DOWN keys for command.NOTE: Memory Skip featureThis feature allows determined memory channels to be skipped during the scan.The skip channel can be set even after the memory is programmed.1. In Memory mode, select the channel to be skipped. Press FUNC key. While Ficon is visible on the display, press V/M key. Repeat the sequence to delete thesetting.2. When the memory channel is set to Skip,the 10 MHz order decimal point will bedisplayed.3. CALL, PL, PH, and ch.99 are alwaysskipped during Memory scan.lights up

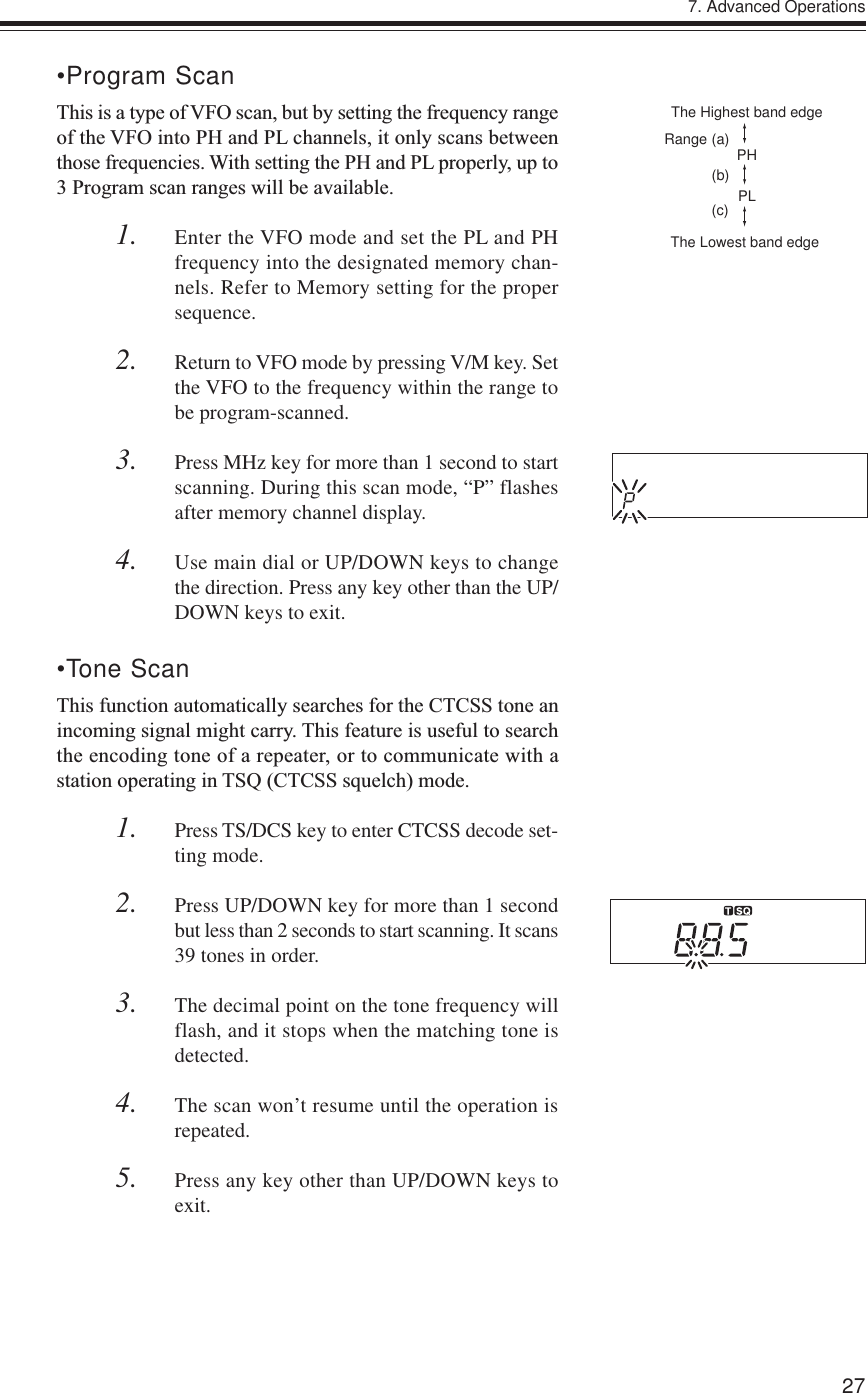

277. Advanced Operations•Program ScanThis is a type of VFO scan, but by setting the frequency rangeof the VFO into PH and PL channels, it only scans betweenthose frequencies. With setting the PH and PL properly, up to3 Program scan ranges will be available.1. Enter the VFO mode and set the PL and PHfrequency into the designated memory chan-nels. Refer to Memory setting for the propersequence.2. Return to VFO mode by pressing V/M key. Setthe VFO to the frequency within the range tobe program-scanned.3. Press MHz key for more than 1 second to startscanning. During this scan mode, “P” flashesafter memory channel display.4. Use main dial or UP/DOWN keys to changethe direction. Press any key other than the UP/DOWN keys to exit.•Tone ScanThis function automatically searches for the CTCSS tone anincoming signal might carry. This feature is useful to searchthe encoding tone of a repeater, or to communicate with astation operating in TSQ (CTCSS squelch) mode.1. Press TS/DCS key to enter CTCSS decode set-ting mode.2. Press UP/DOWN key for more than 1 secondbut less than 2 seconds to start scanning. It scans39 tones in order.3. The decimal point on the tone frequency willflash, and it stops when the matching tone isdetected.4. The scan won’t resume until the operation isrepeated.5. Press any key other than UP/DOWN keys toexit.The Highest band edgeThe Lowest band edge PHPLRange (a)(b)(c)

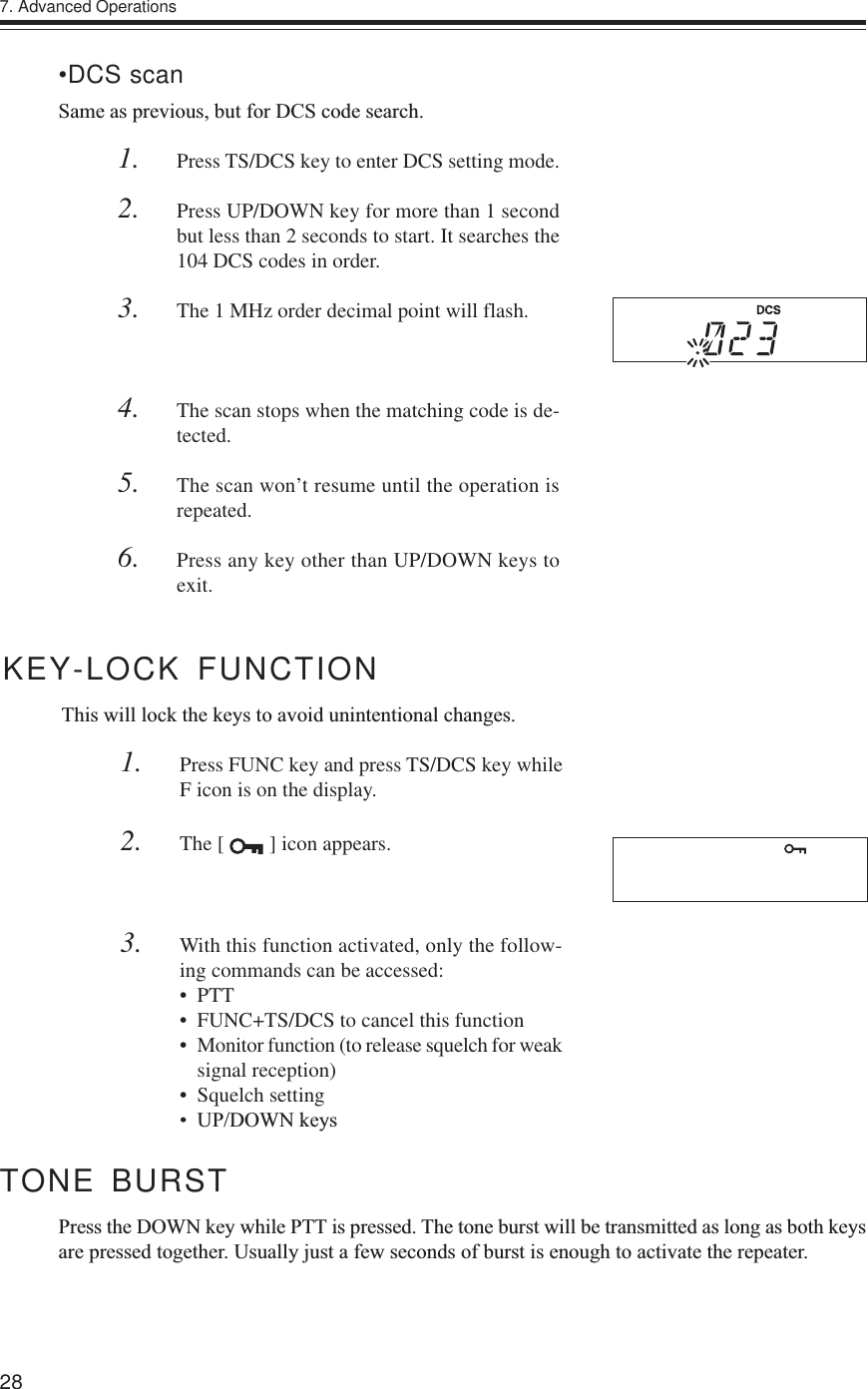

287. Advanced Operations•DCS scanSame as previous, but for DCS code search.1. Press TS/DCS key to enter DCS setting mode.2. Press UP/DOWN key for more than 1 secondbut less than 2 seconds to start. It searches the104 DCS codes in order.3. The 1 MHz order decimal point will flash.4. The scan stops when the matching code is de-tected.5. The scan won’t resume until the operation isrepeated.6. Press any key other than UP/DOWN keys toexit.KEY-LOCK FUNCTIONThis will lock the keys to avoid unintentional changes.1. Press FUNC key and press TS/DCS key whileF icon is on the display.2. The [ ] icon appears.3. With this function activated, only the follow-ing commands can be accessed:• PTT• FUNC+TS/DCS to cancel this function• Monitor function (to release squelch for weaksignal reception)• Squelch setting• UP/DOWN keysTONE BURSTPress the DOWN key while PTT is pressed. The tone burst will be transmitted as long as both keysare pressed together. Usually just a few seconds of burst is enough to activate the repeater.

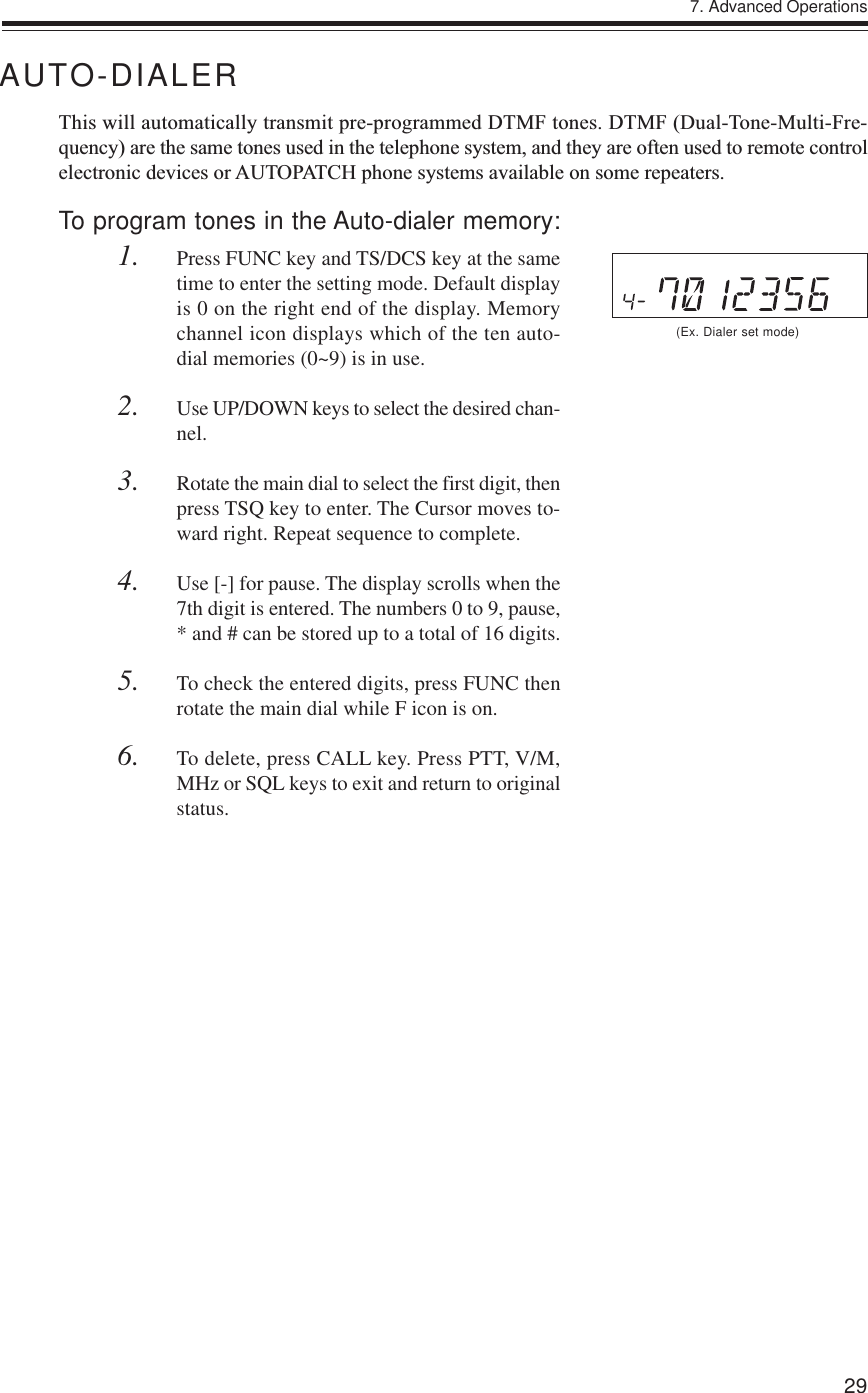

297. Advanced OperationsAUTO-DIALERThis will automatically transmit pre-programmed DTMF tones. DTMF (Dual-Tone-Multi-Fre-quency) are the same tones used in the telephone system, and they are often used to remote controlelectronic devices or AUTOPATCH phone systems available on some repeaters.To program tones in the Auto-dialer memory:1. Press FUNC key and TS/DCS key at the sametime to enter the setting mode. Default displayis 0 on the right end of the display. Memorychannel icon displays which of the ten auto-dial memories (0~9) is in use.2. Use UP/DOWN keys to select the desired chan-nel.3. Rotate the main dial to select the first digit, thenpress TSQ key to enter. The Cursor moves to-ward right. Repeat sequence to complete.4. Use [-] for pause. The display scrolls when the7th digit is entered. The numbers 0 to 9, pause,* and # can be stored up to a total of 16 digits.5. To check the entered digits, press FUNC thenrotate the main dial while F icon is on.6. To delete, press CALL key. Press PTT, V/M,MHz or SQL keys to exit and return to originalstatus.(Ex. Dialer set mode)
307. Advanced OperationsTHEFT ALARMThis alert uses a beep sound when the unit is about to be removed in an improper manner. Thisfunction is useful when the unit is installed in a vehicle.[Operation 1]Setting: Connect the DC cable direct to the battery.1. Connect the provided alarm cable to the DATA jack on the front panel as shown.Secure the other end of the cable to an object that stays fixed in the vehicle.2. Enter the Parameter Setting mode by pressing FUNC key for more than 2 seconds.Use SQL or UP/DOWN keys to select menu and rotate the dial to set SCR-ON.Press any key other than SQL/UP/DOWN key to enter the setting and exit.3. Turn off the unit with main power switch. The TX LED will be lit.To turn off the alarm function, turn on the unit, enter the Parameter setting mode again, and selectSCR-OF. When alarm is activated, the decimal points on 100 MHz and 10 kHz order will flash ondisplay.Handle of the car etc.Alarm cable ADC power cableAlarm cable BDR-135BatteryNOTE: 1. The alarm functions only when the unit is turned off.2. When the alarm is activated (SCR-ON or DLY), the Ignition key function does not work.Function:1. When the alarm cable is removed from the DATA jack or cut without proper se-quence, the alarm sounds for 10 minutes. During the alarm, the unit goes to receiveon memory channel 99, according to its pre-programmed setting (TSQ/DCS accepted).2. When a signal is received on ch.99 the alarm stops.3. Turning on the unit with SQL key pressed also cancels the alarm.4. Turn the unit off again with the alarm cable connected properly. It returns to thealarm mode.
317. Advanced Operations[Operation 2]Choose this operation when a delay period is desired.1. Enter the Parameter setting mode as described previously and select SCR-DLY.Follow the previous instruction to set.2. Turn off the unit. Display will disappear but the LCD illumination stays on. After 20seconds TX LED lights up, illumination dims, and alarm functions. The system won’twork during the 20 second “DELAY” period.3. The alarm sounds under the same condition as described previously. There is a 20second delay until the alarm sounds. During the 20 second period, only the displayillumination is lit. Turn ON the unit during “DELAY” period to cancel the alarmfunction.Please set the parameter at SCR-OF during normal operation.NOTE: The alarm feature on DR-135TA version functions in a slightly different manner.1. When the alarm starts, the unit alternates between transmit and receive onch.99 every 5 seconds for 1 minute, then sounds the audio alarm only for 10minutes.2. Setting and operation of the function are the same as other versions.This feature allows you to monitor and to control the alarm from a remote place byusing ch.99 on memory mode.

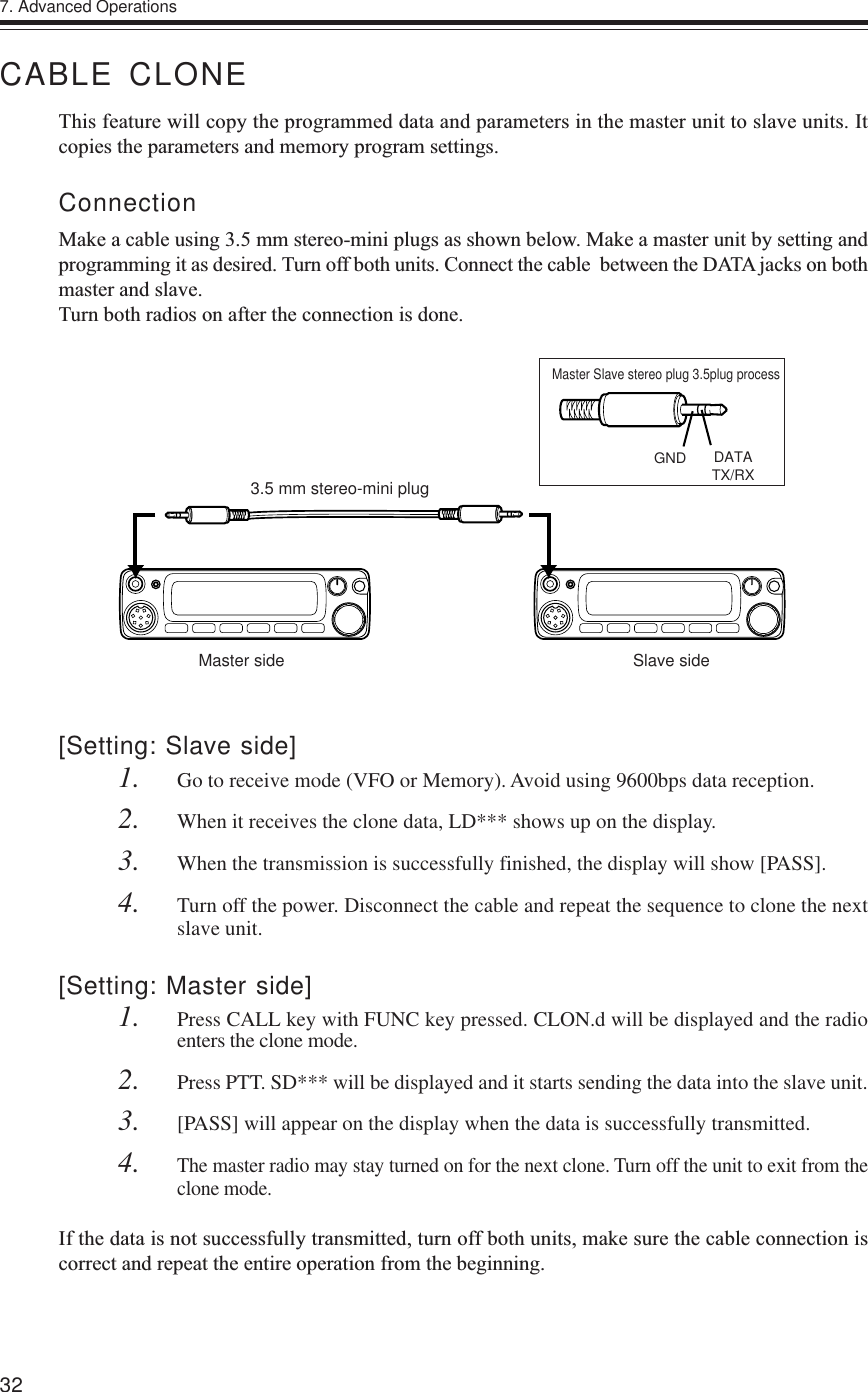

327. Advanced OperationsCABLE CLONEThis feature will copy the programmed data and parameters in the master unit to slave units. Itcopies the parameters and memory program settings.ConnectionMake a cable using 3.5 mm stereo-mini plugs as shown below. Make a master unit by setting andprogramming it as desired. Turn off both units. Connect the cable between the DATA jacks on bothmaster and slave.Turn both radios on after the connection is done.[Setting: Slave side]1. Go to receive mode (VFO or Memory). Avoid using 9600bps data reception.2. When it receives the clone data, LD*** shows up on the display.3. When the transmission is successfully finished, the display will show [PASS].4. Turn off the power. Disconnect the cable and repeat the sequence to clone the nextslave unit.[Setting: Master side]1. Press CALL key with FUNC key pressed. CLON.d will be displayed and the radioenters the clone mode.2. Press PTT. SD*** will be displayed and it starts sending the data into the slave unit.3. [PASS] will appear on the display when the data is successfully transmitted.4.The master radio may stay turned on for the next clone. Turn off the unit to exit from theclone mode.If the data is not successfully transmitted, turn off both units, make sure the cable connection iscorrect and repeat the entire operation from the beginning.3.5 mm stereo-mini plugMaster side Slave sideMaster Slave stereo plug 3.5plug processGND DATATX/RX
338. PACKET OPERATIONPacket mode is high-speed data communication using a personal computer. The use of a Digitalrepeater network (Digi-peaters), including satellites, offers communications with distant stations.In order to operate in the packet mode, it is essential that the station is equipped with a personalcomputer with appropriate packet software, 9 pin RS-232C cable, optional EJ-41U TNC unit orexternal TNC (terminal node controller). For the operation of EJ-41U unit or external TNC, pleaserefer to its respective instruction manual.[To operate packet using EJ-41U]Configure the radio to a known packet operation frequency.Install the EJ-41U unit in the unit following the instructions below. Use an RS-232C cable andconnect it to the DSUB-9 connector on the back of transceiver and the PC.RS-232CPersonal computer1. Remove the cover. Locate W1 cable on the back of DSUB-9 connector in the unit.Disconnect it and re-connect it to CN1 on the EJ-41U unit.Note: The DR-135TP is already set for the EJ-41U.W1VCO caseCN107DSUB-9Bottom sideDATATX2. Locate W2 cable on the EJ-41U. Connect it to CN107 on the DR-135 circuit board.

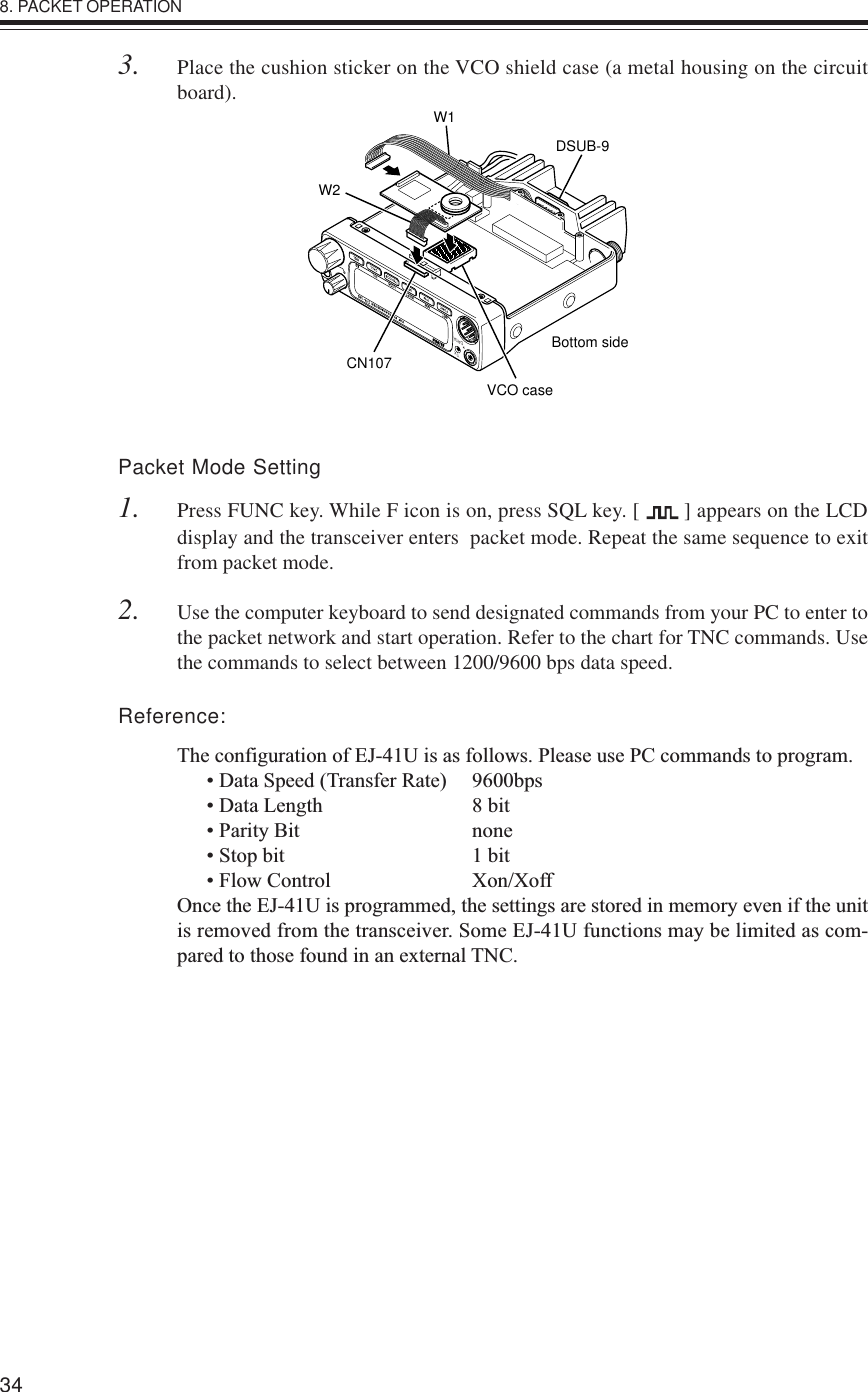

348. PACKET OPERATIONPacket Mode Setting1. Press FUNC key. While F icon is on, press SQL key. [ ] appears on the LCDdisplay and the transceiver enters packet mode. Repeat the same sequence to exitfrom packet mode.2. Use the computer keyboard to send designated commands from your PC to enter tothe packet network and start operation. Refer to the chart for TNC commands. Usethe commands to select between 1200/9600 bps data speed.Reference:The configuration of EJ-41U is as follows. Please use PC commands to program.• Data Speed (Transfer Rate) 9600bps• Data Length 8 bit• Parity Bit none• Stop bit 1 bit• Flow Control Xon/XoffOnce the EJ-41U is programmed, the settings are stored in memory even if the unitis removed from the transceiver. Some EJ-41U functions may be limited as com-pared to those found in an external TNC.W2VCO caseCN107DSUB-9Bottom sideW1DATATX3. Place the cushion sticker on the VCO shield case (a metal housing on the circuitboard).

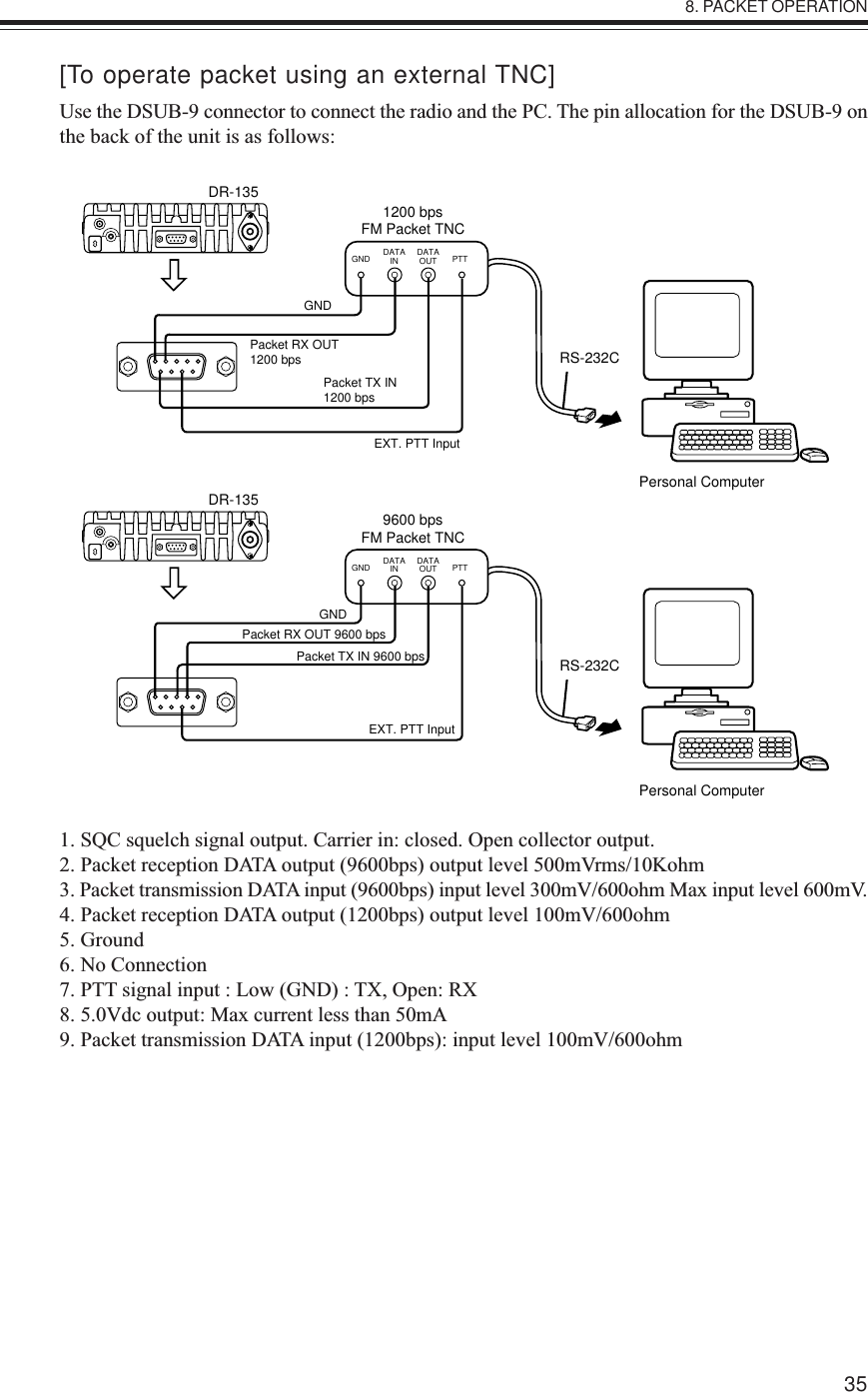

358. PACKET OPERATIONRS-232C1200 bpsFM Packet TNCGNDGNDEXT. PTT InputEXT. PTT InputPacket RX OUT1200 bpsPacket TX IN1200 bpsDATAIN DATAOUT PTTPersonal ComputerDR-135RS-232C9600 bpsFM Packet TNCGNDGNDPacket RX OUT 9600 bpsPacket TX IN 9600 bpsDATAIN DATAOUT PTTPersonal ComputerDR-135[To operate packet using an external TNC]Use the DSUB-9 connector to connect the radio and the PC. The pin allocation for the DSUB-9 onthe back of the unit is as follows:1. SQC squelch signal output. Carrier in: closed. Open collector output.2. Packet reception DATA output (9600bps) output level 500mVrms/10Kohm3. Packet transmission DATA input (9600bps) input level 300mV/600ohm Max input level 600mV.4. Packet reception DATA output (1200bps) output level 100mV/600ohm5. Ground6. No Connection7. PTT signal input : Low (GND) : TX, Open: RX8. 5.0Vdc output: Max current less than 50mA9. Packet transmission DATA input (1200bps): input level 100mV/600ohm

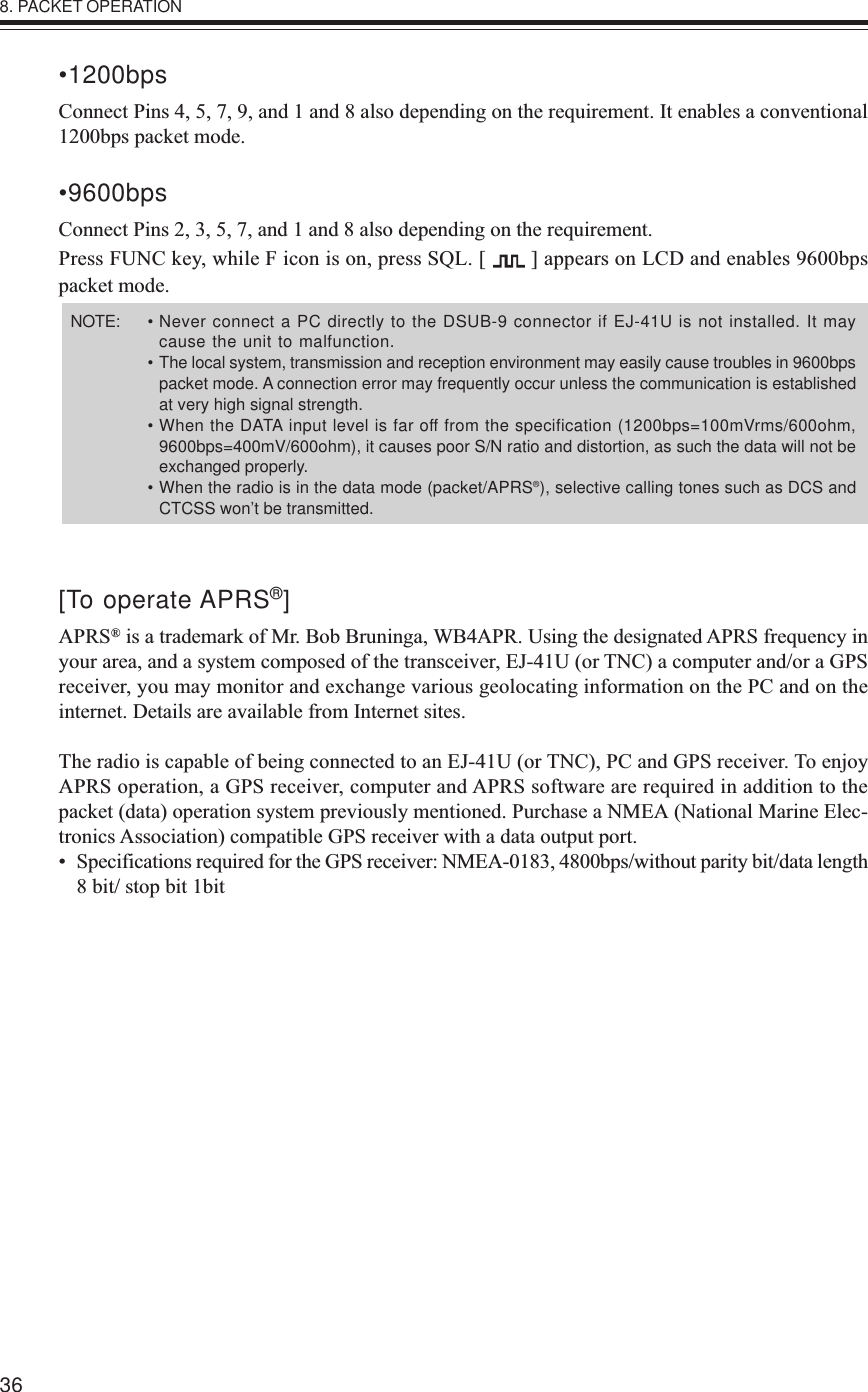

368. PACKET OPERATIONNOTE: • Never connect a PC directly to the DSUB-9 connector if EJ-41U is not installed. It maycause the unit to malfunction.• The local system, transmission and reception environment may easily cause troubles in 9600bpspacket mode. A connection error may frequently occur unless the communication is establishedat very high signal strength.• When the DATA input level is far off from the specification (1200bps=100mVrms/600ohm,9600bps=400mV/600ohm), it causes poor S/N ratio and distortion, as such the data will not beexchanged properly.• When the radio is in the data mode (packet/APRS®), selective calling tones such as DCS andCTCSS won’t be transmitted.[To operate APRS®]APRS® is a trademark of Mr. Bob Bruninga, WB4APR. Using the designated APRS frequency inyour area, and a system composed of the transceiver, EJ-41U (or TNC) a computer and/or a GPSreceiver, you may monitor and exchange various geolocating information on the PC and on theinternet. Details are available from Internet sites.The radio is capable of being connected to an EJ-41U (or TNC), PC and GPS receiver. To enjoyAPRS operation, a GPS receiver, computer and APRS software are required in addition to thepacket (data) operation system previously mentioned. Purchase a NMEA (National Marine Elec-tronics Association) compatible GPS receiver with a data output port.• Specifications required for the GPS receiver: NMEA-0183, 4800bps/without parity bit/data length8 bit/ stop bit 1bit•1200bpsConnect Pins 4, 5, 7, 9, and 1 and 8 also depending on the requirement. It enables a conventional1200bps packet mode.•9600bpsConnect Pins 2, 3, 5, 7, and 1 and 8 also depending on the requirement.Press FUNC key, while F icon is on, press SQL. [ ] appears on LCD and enables 9600bpspacket mode.
378. PACKET OPERATION[APRS Operation]Boot up the PC and open the APRS software. Tune to the APRS system frequency.Press FUNC key and while F icon is on press SQL key to enter to the data (APRS) mode. Repeatthe same sequence to exit. [ ] appears on the LCD display when the unit is in data (APRS) modeThe PC monitor will display the initial menu of TNC when it enters to APRS mode.•Set the packet speed in command mode (cmd:). I.e.cmd:HB 1200 and 9600• Register your call sign cmd:MY xxxxxx• Set the speed on GPS port cmd:GB4800• Set the automatic transmission time separation cmd:LOC E 3• Set the monitoring header option OFF cmd:LTMH OFF• The transceiver will start transmitting automatically when data is received from the GPS re-ceiver. Refer to the command chart and EJ41U instruction manual for more details.Note: Set the transceiver and GPS receiver as far away from each other as possible to minimize pos-sible interference.[SET UP]Please refer to the previous chapter for the set up and installation of the EJ-41U unit, TNC and PC.See below for the connection of a GPS receiver. It requires 3.5mm stereo plug to connect to theDATA Terminal on the radio's front panel. See the chart for plug connections. Program the EJ-41Uby using commands from the PC in the same way as in the packet mode.The PC can be removed from the transceiver once EJ-41U is configured. EJ41U will hold thesettings in memory. Repeat configuration only when it is necessary.DSUB-9 cableGPS receiverPersonal ComputerDATA INterminalGND（GPS receiver）3.5 mm3-conductor plug RXD (To TXD of GPS receiver)TXD (To RXD of GPS receiver)
389. Maintenance / ReferenceResetResetting the transceiver returns all programmed contents to their factory default setting.If any problems persist, resetting may overcome them and return the transceiver to normal opera-tion.Reset ProcedureWhile holding the FUNC key down, turn the power on.All segments of the LCD will be displayed, then default set-tings are displayed.Factory Default SettingsNote: Take special care when resetting because all settings are initialized.DR-135T DR-135EVFO frequency 145.00 MHz 145.00 MHzCALL frequency 145.00 MHz 145.00 MHzMemory channel 0-99--Offset direction - -Offset frequency 600 kHz 600 kHzChannel step 5 kHz 12.5 kHzTone setting - -Tone frequency 88.5 Hz 88.5 HzDCS setting - -DCS code 023 023Output power HI HIKeylock setting OFF OFFTOT OFF OFFAPO OFF OFFSquelch level 0 0All LCD segments
399. Maintenance / ReferenceTrouble ShootingPlease check the list below before concluding that the transceiver is faulty.If a problem persists, reset the transceiver. This can sometimes correct erroneous operation.          
• EMS-56 DTMF microphone (standard on T version) • EMS-53 Microphone(no keypad: standard on E version)•EJ-41U TNC unit• EDC-43 Cigar-plug cable(as above: for Cigar-plug connection)• EDC-36 Cigar-plug cable with filter(as above: for Cigar-plug connection. Recom-mended in case other Alinco handheld transceiv-ers may be used in the vehicle, as this cable canalso power the handheld units. See its manual forcompatibility)• EDC-37 DC cable(for ignition key ON/OFF system: for direct con-nection to ACC terminal circuit)10. Optional accessories40

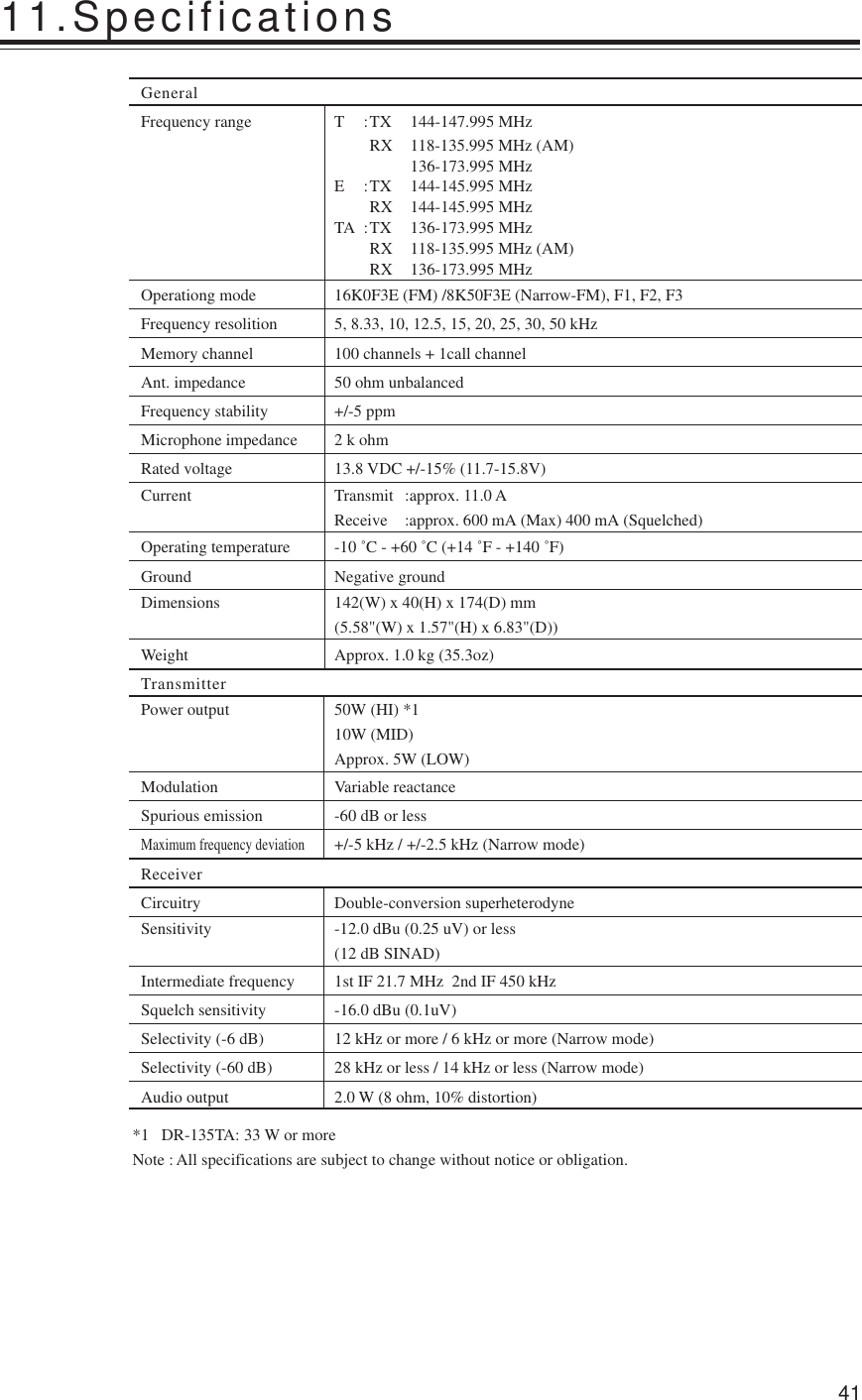

4111.Specifications*1 DR-135TA: 33 W or moreNote : All specifications are subject to change without notice or obligation.GeneralFrequency range T :TX 144-147.995 MHzRX 118-135.995 MHz (AM)136-173.995 MHzE :TX 144-145.995 MHzRX 144-145.995 MHzTA :TX 136-173.995 MHzRX 118-135.995 MHz (AM)RX 136-173.995 MHzOperationg mode 16K0F3E (FM) /8K50F3E (Narrow-FM), F1, F2, F3Frequency resolition 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 kHzMemory channel 100 channels + 1call channelAnt. impedance 50 ohm unbalancedFrequency stability +/-5 ppmMicrophone impedance 2 k ohmRated voltage 13.8 VDC +/-15% (11.7-15.8V)Current Transmit :approx. 11.0 AReceive :approx. 600 mA (Max) 400 mA (Squelched)Operating temperature -10 ˚C - +60 ˚C (+14 ˚F - +140 ˚F)Ground Negative groundDimensions 142(W) x 40(H) x 174(D) mm(5.58"(W) x 1.57"(H) x 6.83"(D))Weight Approx. 1.0 kg (35.3oz)TransmitterPower output 50W (HI) *110W (MID)Approx. 5W (LOW)Modulation Variable reactanceSpurious emission -60 dB or lessMaximum frequency deviation+/-5 kHz / +/-2.5 kHz (Narrow mode)ReceiverCircuitry Double-conversion superheterodyneSensitivity -12.0 dBu (0.25 uV) or less(12 dB SINAD)Intermediate frequency 1st IF 21.7 MHz 2nd IF 450 kHzSquelch sensitivity -16.0 dBu (0.1uV)Selectivity (-6 dB) 12 kHz or more / 6 kHz or more (Narrow mode)Selectivity (-60 dB) 28 kHz or less / 14 kHz or less (Narrow mode)Audio output 2.0 W (8 ohm, 10% distortion)

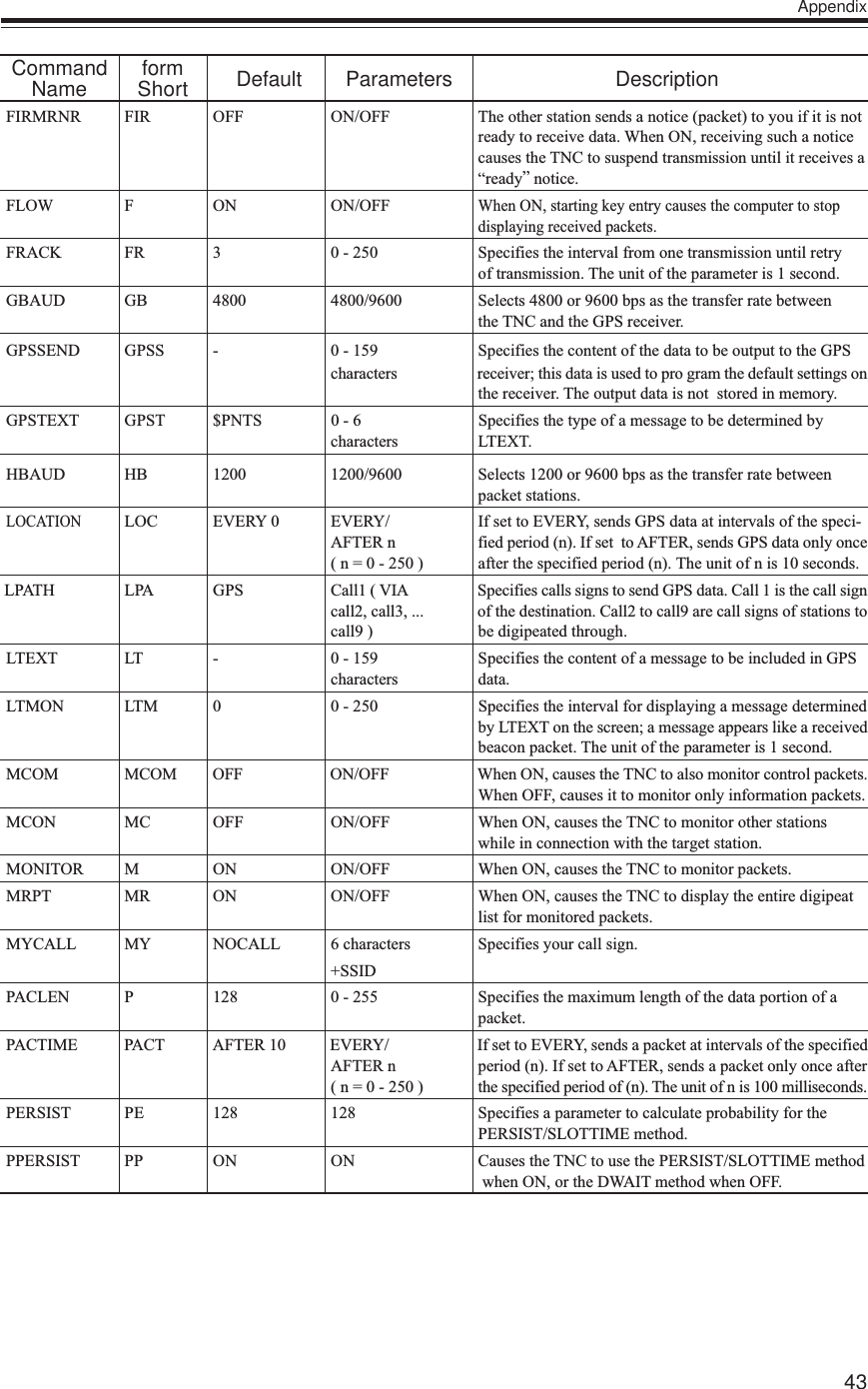

42AppendixTNC Commands ListThe commands supported by the built-in TNC are list below. You must enter a space between acommand name (or short-form) and a parameter, or between two parameters; ex.AU OFF.Command form Default Parameters DescriptionName ShortAUTOLF AU ON ON/OFF When ON, sends a line feed (LF) to the PC after eachcarriage return (CR).BEACON B EVERY 0 EVERY/ If set to EVERY, sends a beacon packet at intervals of theAFTER n specified period (n). If set to AFTER, sends a beacon packet( n=0 - 250 ) only once after the specified period (n). The unit of n is 10seconds.BTEXT BT - 0 - 159 Specifies the content of the data portion of a beaconcharacters packet.CALIBRAT CAL - - Sends a space/mark square wave (50/50 ratio). EnterQ to exit Calibrate mode and restore the Command mode.CHCAK CH 30 0 - 250 Specifies the interval from signal drop-out until executionof disconnection. The unit of the parameter is 10 seconds.CONNECT C - Call1 (VIA Sends a connect request. Call 1 is the call sign of the stationcall1, call3, to be connected to. Calls 2 to call 9 are call signs of stations....call9) to be digipeated through.CONVERSECONV - - Causes the TNC to enter Converse mode. Press [Ctrl]+[C]or K to restore the Command mode.CPACTIME CP OFF ON/OFF When ON and in Converse mode, sends a packet at inter-vals of the period determine by PACTIMECR CR ON ON/OFF When ON, appends a carriage return (CR) to all packets tobe sent.DISCONNE D - - Sends a disconnect request.DISPLAY DISP - -Causes the TNC to display the current status of all the com-mands. You can also specify a class identifier A, C, H, I, L,M, or T to display the status of only the desired commandclass. Enter a space between the command name and a classidentifier; ex. DISPLAY H.A (ASYNC): RS-232C port parameters.C (CHAR) : Special TNC characters.H (HEALTH): Counter parameters.I (ID): ID parameters.L (LINK): TNC-to -TNC link status.M (MONITOR): Monitor parameters.T (TIMING): Timing parameters.DWAIT DW 30 30 Specifies the interval from no carrier detection until execu-tion of transmission. The unit of the parameter is 10 milli-seconds.ECHO E ON ON/OFF When ON, causes the TNC to echo received characters tothe computer.
43AppendixCommand form Default Parameters DescriptionName ShortFIRMRNR FIR OFF ON/OFF The other station sends a notice (packet) to you if it is notready to receive data. When ON, receiving such a noticecauses the TNC to suspend transmission until it receives a“ready” notice.FLOW F ON ON/OFFWhen ON, starting key entry causes the computer to stopdisplaying received packets.FRACK FR 3 0 - 250 Specifies the interval from one transmission until retryof transmission. The unit of the parameter is 1 second.GBAUD GB 4800 4800/9600 Selects 4800 or 9600 bps as the transfer rate betweenthe TNC and the GPS receiver.GPSSEND GPSS - 0 - 159 Specifies the content of the data to be output to the GPScharacters receiver; this data is used to pro gram the default settings onthe receiver. The output data is not stored in memory.GPSTEXT GPST $PNTS 0 - 6 Specifies the type of a message to be determined bycharacters LTEXT.HBAUD HB 1200 1200/9600 Selects 1200 or 9600 bps as the transfer rate betweenpacket stations.LOCATIONLOC EVERY 0 EVERY/ If set to EVERY, sends GPS data at intervals of the speci-AFTER n fied period (n). If set to AFTER, sends GPS data only once( n = 0 - 250 ) after the specified period (n). The unit of n is 10 seconds. LPATH LPA GPS Call1 ( VIA Specifies calls signs to send GPS data. Call 1 is the call signcall2, call3, ... of the destination. Call2 to call9 are call signs of stations tocall9 ) be digipeated through.LTEXT LT - 0 - 159 Specifies the content of a message to be included in GPScharacters data.LTMON LTM 0 0 - 250 Specifies the interval for displaying a message determinedby LTEXT on the screen; a message appears like a receivedbeacon packet. The unit of the parameter is 1 second.MCOM MCOM OFF ON/OFF When ON, causes the TNC to also monitor control packets.When OFF, causes it to monitor only information packets.MCON MC OFF ON/OFF When ON, causes the TNC to monitor other stationswhile in connection with the target station.MONITOR M ON ON/OFF When ON, causes the TNC to monitor packets.MRPT MR ON ON/OFF When ON, causes the TNC to display the entire digipeatlist for monitored packets.MYCALL MY NOCALL 6 characters Specifies your call sign.+SSIDPACLEN P 128 0 - 255 Specifies the maximum length of the data portion of apacket.PACTIME PACT AFTER 10 EVERY/ If set to EVERY, sends a packet at intervals of the specifiedAFTER n period (n). If set to AFTER, sends a packet only once after( n = 0 - 250 ) the specified period of (n). The unit of n is 100 milliseconds.PERSIST PE 128 128 Specifies a parameter to calculate probability for thePERSIST/SLOTTIME method.PPERSIST PP ON ON Causes the TNC to use the PERSIST/SLOTTIME method when ON, or the DWAIT method when OFF.

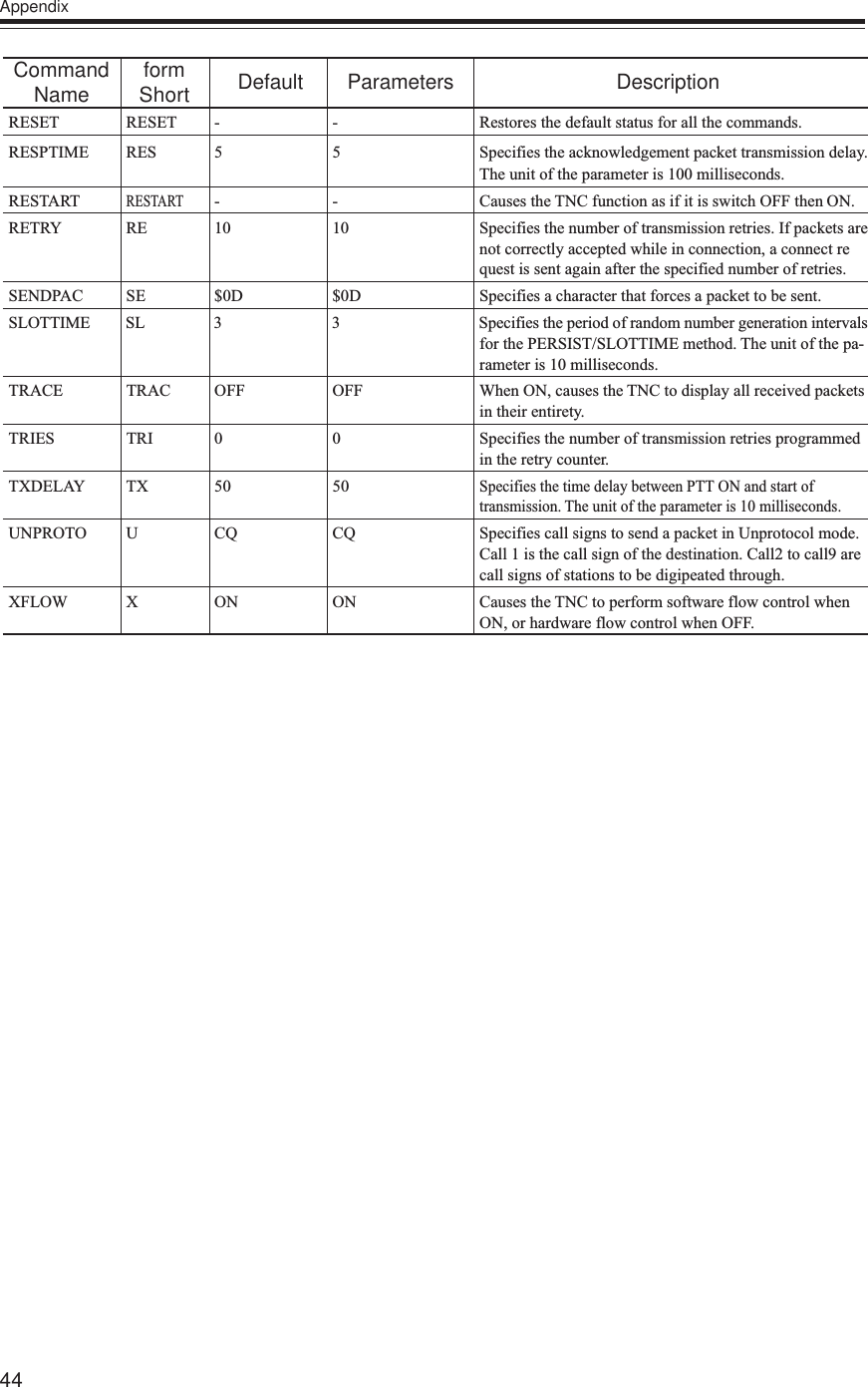

44Command form Default Parameters DescriptionName ShortRESET RESET - - Restores the default status for all the commands.RESPTIME RES 5 5 Specifies the acknowledgement packet transmission delay.The unit of the parameter is 100 milliseconds.RESTARTRESTART- - Causes the TNC function as if it is switch OFF then ON.RETRY RE 10 10 Specifies the number of transmission retries. If packets arenot correctly accepted while in connection, a connect request is sent again after the specified number of retries.SENDPAC SE $0D $0D Specifies a character that forces a packet to be sent.SLOTTIME SL 3 3 Specifies the period of random number generation intervalsfor the PERSIST/SLOTTIME method. The unit of the pa-rameter is 10 milliseconds.TRACE TRAC OFF OFF When ON, causes the TNC to display all received packetsin their entirety.TRIES TRI 0 0 Specifies the number of transmission retries programmedin the retry counter.TXDELAY TX 50 50Specifies the time delay between PTT ON and start oftransmission. The unit of the parameter is 10 milliseconds.UNPROTO U CQ CQ Specifies call signs to send a packet in Unprotocol mode.Call 1 is the call sign of the destination. Call2 to call9 arecall signs of stations to be digipeated through.XFLOW X ON ON Causes the TNC to perform software flow control whenON, or hardware flow control when OFF.Appendix

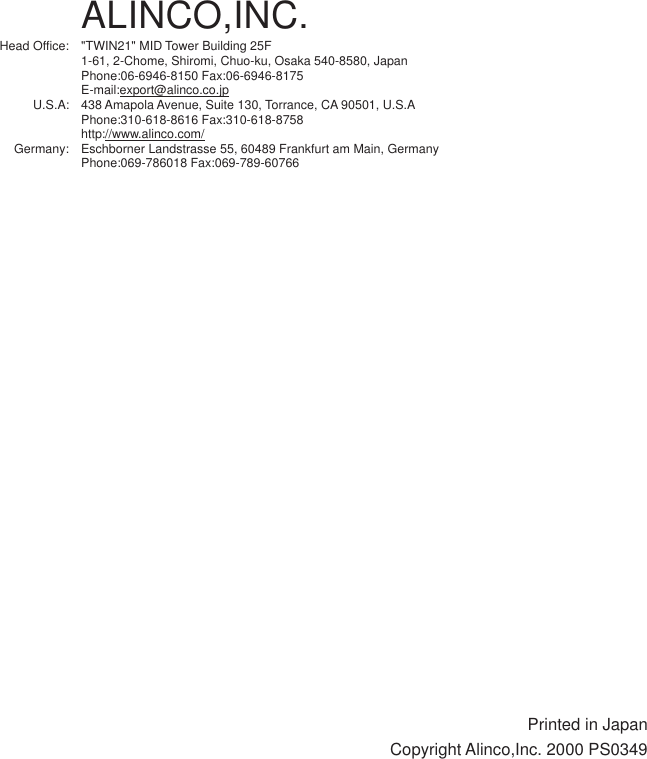

Printed in JapanCopyright Alinco,Inc. 2000 PS0349ALINCO,INC.Head Office: "TWIN21" MID Tower Building 25F1-61, 2-Chome, Shiromi, Chuo-ku, Osaka 540-8580, JapanPhone:06-6946-8150 Fax:06-6946-8175E-mail:export@alinco.co.jpU.S.A: 438 Amapola Avenue, Suite 130, Torrance, CA 90501, U.S.APhone:310-618-8616 Fax:310-618-8758http://www.alinco.com/Germany: Eschborner Landstrasse 55, 60489 Frankfurt am Main, GermanyPhone:069-786018 Fax:069-789-60766
