UTC Fire and Security Americas 962-BT AVO-BT User Manual AdvisorOne Bluetooth Module Installation Sheet

UTC Fire & Security Americas Corporation, Inc. AVO-BT AdvisorOne Bluetooth Module Installation Sheet

User Manual

P/N 466-4407 • REV C 23APR15 1 / 4
AdvisorOne Bluetooth® Installation Sheet
EN
CNF
ES
PR

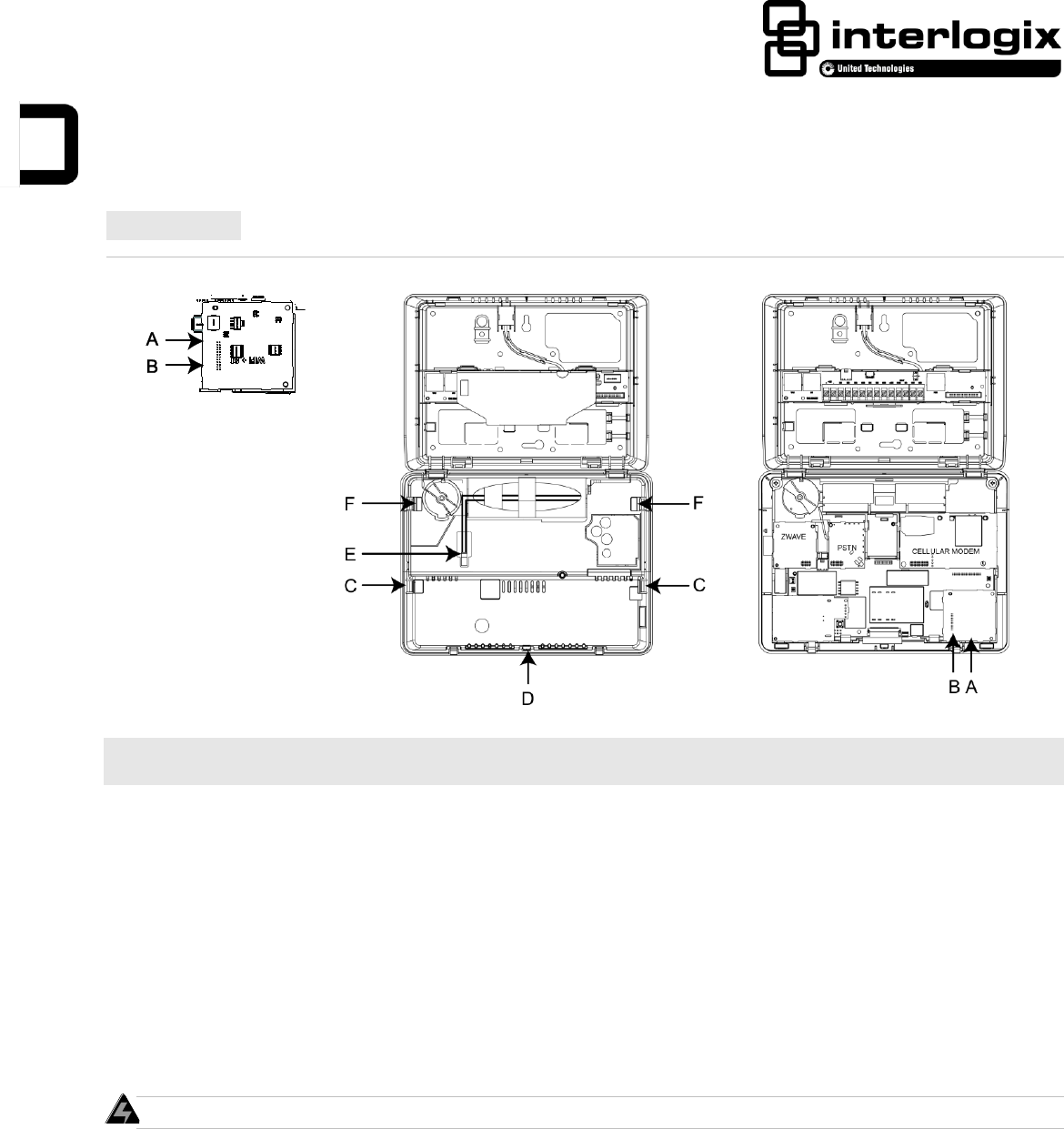

1. Bluetooth Module
2. AdvisorOne Panel (With Covers Installed)
3. AdvisorOne Panel (With Covers Removed)
English: Installation Sheet
Description
The Advisor™One self-contained lifestyle management and security system detects situations and provides control and information
to home and small business owners (P/N AVO-1037).
This document provides instructions on installing and programming the AdvisorOne Bluetooth module (P/N AVO-BT) for use with
the AdvisorOne panel.
The AdvisorOne Bluetooth module extends the capability of interfacing with the AdvisorOne system to support mobile device
access and control.
Preparation and Installation
Preparing to Install the Bluetooth Module
WARNING: Use caution when installing or removing the power supply to an outlet with a metal cover.
1. Depending on the situation, it may be necessary to contact the central monitoring station before starting the installation.
2. If a power supply is present, remove the screw from the securement tab and unplug the power supply.
3. Remove the screw securing the panel chassis. Open the panel by pressing down on the tabs and carefully swing the panel
chassis open.
2 / 4 AdvisorOne Bluetooth Module Installation Sheet
CAUTION: Use static electricity precautions when handling electronic components.
4. Disconnect the battery from the battery connector (E in Figure 2) by pressing down on the wire end of the battery clip.
5. Remove the Communication Modules Cover by pulling outward on the tabs (F in Figure 2) and then lifting upward when tabs
release.
6. To access the location of the Bluetooth module, remove the System Electronics Cover (this is the cover with a printed wiring
diagram) by pulling outward on the tabs (C in Figure 2), then disengaging the latch (D in Figure 2) with a small screwdriver and
lifting the cover upward when the latch releases.
Installing the Bluetooth Module
1. Install the Bluetooth module (A in Figures 1 and 3) into the Bluetooth module location (with the bar code label side up).
Carefully align the header of the module (B in Figures 1 and 3) with the pins on the main circuit board. Press into place.
Note: The Bluetooth module must be installed on the main board in the Bluetooth module location (A in Figure 3); it cannot be
installed in any other module location. DO NOT force the module into place.
2. Reinstall the System Electronics Cover, making sure the tabs (C in Figure 2) and the latch (D in Figure 2) are engaged.
3 Reinstall the Communication Modules Cover by pressing the cover down until the tabs (F in Figure 2) snap into place.
Note: All three internal covers must be secured for proper operation.
4. Supply power to the panel as noted in Table 2.
Table 2: Powering the Panel
Installation
Action
Note
US
Plug the power supply into the outlet and secure with the supplied screw.
Canada
Plug the power supply into the outlet.
Do not use the securement tab and screw.
All Other Installations
Follow regional requirements.
Note: Connect the battery within 15 seconds of providing AC power to reduce the potential for a low battery indication.
5. Connect the battery to the battery connector on the panel (E in Figure 2). Note: The cable connector locks into place.
6 Close the panel, making sure all tabs are engaged. Replace the screw securing the panel chassis.
7. If the central monitoring station was notified, inform them this operation is complete.
Module Configuration and Programming
Module Configuration Bluetooth Capability
No module configuration is required (i.e. no visibility timeout, pairing options etc.).
Programming
The Bluetooth capability of the module can be programmed to support key fob-like capability on a mobile device (Smartphone).
Note: The AdvisorSync Mobile software must be loaded onto the mobile device. For more information regarding loading
AdvisorSync Mobile, refer to the AdvisorSync Mobile Remote Installation Sheet (P/N 466-4424).
For more information on how to program the Bluetooth capability to work with AdvisorSync for Mobile Devices, refer to the
AdvisorOne Panel Install & Programming Manual (P/N 466-4405).
AdvisorOne Bluetooth Module Installation Sheet 3 / 4
Troubleshooting
If The Module Doesn’t Configure or Appear Operational
Verify the module is installed in the panel correctly, in the proper location and that the pins on the circuit board are aligned
properly with the header on the main circuit board.
If these steps fail, try replacing the module devices or contact Interlogix Technical Support.
If range is limited, try replacing with a mobile device with longer range Bluetooth capability. Contact Interlogix Technical
Support.
If The Module Appears Operational, but Devices Connected To It Are Not
The programming for the device (ie., SmartPhone or tablet etc.) is most likely incomplete or failed or had an issue. Repeat the
device learn in process again. If failure continues, contact Interlogix technical Support.
Specifications
Module Compatibility
AdvisorOne Panel
BlueTooth Device
Compatibility
Bluetooth-certified devices
Storage temperature
-29 to 140ºF (-34 to 60ºC)
Operating temperature
32 to 120ºF (0 to 49ºC)
Maximum humidity
85% relative humidity, noncondensing
Operating frequencies
Bluetooth: 2.4 GHz
Output Power
Typical WLAN Transmit Power:
-
Bluetooth Version/Class
Bluetooth v4.0 BLE Class 1.5
Bandwidth / Range
Bluetooth range: 50 ft typical
Regulatory Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by UTC Fire and Security Americas Corporation, Inc. could void the user’s
authority to operate the equipment.
In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that
a minimum separation distance of 20 cm is maintained from the general population.
FCC: B4Z-962-BT
IC: 1175C-962DBT
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
4 / 4 AdvisorOne Bluetooth Module Installation Sheet
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference,and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux
conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y
compris celles pouvant causer un mauvais fonctionnement de l'appareil.
Manufacturer Information
UTC Fire & Security Americas Corporation, Inc.
1275 Red Fox Road, Arden Hills, MN
55112-6943, USA
Contact Information
For general information, see www.interlogix.com. For customer/technical support, see www.interlogix.com/customer-support or call
+1 855 286 8889.
© 2015 United Technologies Corporation. Interlogix is part of UTC Building and Industrial Systems, a unit of United Technologies
Corporation. All rights reserved. The Bluetooth trademark is the property of its respective owner.
Limitation of Liability
To the maximum extent permitted by applicable law, in no event will Interlogix be liable for any lost profits or business opportunities,
loss of use, business interruption, loss of data, or any other indirect, special, incidental, or consequential damages under any theory
of liability, whether based in contract, tort, negligence, product liability, or otherwise. Because some jurisdictions do not allow the
exclusion or limitation of liability for consequential or incidental damages the preceding limitation may not apply to you. In any event
the total liability of Interlogix shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum
extent permitted by applicable law, regardless of whether Interlogix has been advised of the possibility of such damages and
regardless of whether any remedy fails of its essential purpose.
Installation in accordance with this manual, applicable codes, and the instructions of the authority having jurisdiction is mandatory.
While every precaution has been taken during the preparation of this manual to ensure the accuracy of its contents, Interlogix
assumes no responsibility for errors or omissions.
