UTC Fire & Security Americas Corporation Wireless Smoke Detector
User Manual
All Rights Reserved. 1 P/N 3102233 – Rev. A – Oct 16, 2014
562NSTT-OEM-ATT01
Smoke Alarm with Heat Detection Sensor
Product Introduction
This wireless photoelectric smoke alarm and heat detector (product)
continually monitors operational status and provides a visual trouble
condition if it drifts out of the sensitivity range or fail internal diagnostics.
This product meets National Fire Protection Association (NFPA) 72 field
sensitivity testing requirements without the need for external meters.
The alarm sensitivity level can be determined at the product. Another
feature is built-in drift compensation that allows the product to adjust
sensitivity automatically as it becomes dirty over time. The drift
compensation feature dramatically increases the time between
cleanings, and reduces the chance of a nuisance alarm. Additional
diagnostic information is activated by applying a magnet near the
detector’s integral reed switch. This initiates a self-diagnostic routine
and provides visual indication of sensitivity level, or if service is
required. The product is powered by long-life 3V Lithium batteries
providing power to both the sensor and wireless transmitter.
This wireless product works in conjunction with your wireless Control
Panel, providing a local indication.
About This Guide
This User Guide describes how to install, operate, and maintain this
product. The User Guide is organized as you are intended to use this
product, following the step-by-step instructions.
Keep this document in a handy location and refer to it when you have
questions about this product and its functions and features. Reading
this guide is the only way to learn how to use your product wisely and
to know how to react in the event of an alarm.
1. General Information
Congratulations on purchasing your Smoke Alarm with Heat Detection.
The product is designed to be used with a Control Panel as part of the
Fire and Life Safety signaling device. This product has an optical sensor
capable of detecting smoke particles in the event of fire. It also contains
an integrated heat sensor that is triggered if a room experiences a
sharp rise in temperature in the event of fire.

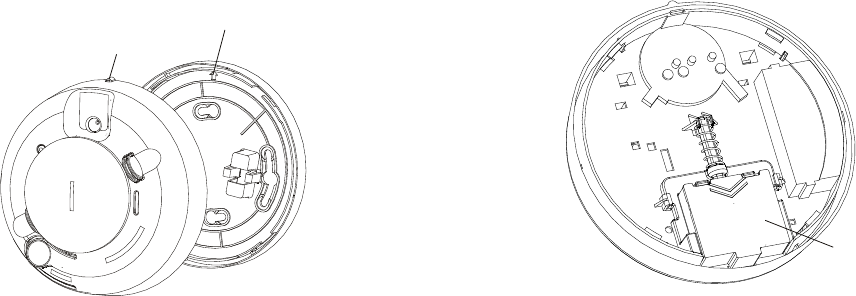

Parts List
One Smoke Alarm
Two CR123A lithium batteries
Mounting Plate
Mounting Screws and Anchors
User Guide
NFPA Guidelines
NFPA 72, 17.5.3.1 Total (Complete) Coverage
Where required, total coverage shall include all rooms, halls, storage
areas, basements, attics, lofts, spaces above suspended ceilings, and
other subdivisions and accessible spaces, as well as the inside of all
closets, elevator shafts, enclosed stairways, dumbwaiter shafts, and
chutes.
NFPA 72, 17.5.3.2 Partial or Selective Coverage
Where codes, standards, laws, or authorities having jurisdiction require
the protection of selected areas only, the specified areas shall be
protected in accordance with this Code.
NFPA 72, 17.5.3.3 Non-required Coverage
Where installed, detection that is not required by an applicable law,
code, or standard, whether total (complete), partial, or selective
coverage, shall meet all of the requirements of this Code, with the
exception of the prescriptive spacing criteria of Chapter 17.
NFPA 72, 17.6 Heat-Sensing Fire Alarms
Heat-sensing fire alarms shall be installed in all areas where required
by the NFPA codes and standards or by the authority having
jurisdiction.
NFPA 72, 29.5.1.1 Required Detection for Single- and Multiple-
Station Smoke Alarms
Approved, single-station smoke alarms shall be installed as follows:
(1) In all sleeping rooms (applies to several occupancies
including: one- and two-family dwellings; lodging or rooming
houses; hotels, motels, and dormitories; apartment buildings;
residential board and care facilities; and day-care homes)
and guest rooms (applies in the context of hotel and
dormitory occupancies)
(2) Outside of each separate dwelling unit (applies to one- and
two-family dwellings and dwelling units of apartment
buildings, including condominiums) sleeping area, within 21 ft
(6.4 m) of any door to a sleeping room, with the distance
measured along a path of travel
(3) On every level of a dwelling unit, including basements
(4) On every level of a residential board and care occupancy
(small facility), including basements and excluding crawl
spaces and unfinished attics
(5) In the living area(s) of a guest suite (an accommodation with
two or more contiguous rooms comprising a compartment,
with or without doors between such rooms, that provides
living, sleeping, sanitary, and storage facilities)
(6) In the living area(s) (any normally occupiable space in a
residential occupancy, other than sleeping rooms or rooms
that are intended for combination sleeping/living, bathrooms,
toilet compartments, kitchens, closets, halls, storage or utility
spaces, and similar areas) of a residential board and care
occupancy (small facility)
2. Mounting Guideline
This product is a member of a reliable, high-quality product family
using the latest technology available. Review the information in this
section to ensure you get the most out of the product. The information
in this User Guide is in accordance with NFPA 72.
Pre-installation Considerations
Install the smoke alarm in accordance with NFPA Standard 72,
Chapters 17 and 29. Depending on the application, you may need to
reference other chapters of NFPA 72 or NFPA 101.
Choosing an Installation Location
When choosing an installation location, consider:
o Use of structure and type of construction
o Contents you want to protect and their burning characteristics
o Human occupancy
o Total area to be monitored
o Ceiling height and surface condition
o Air movement and vent locations
o Obstructions
o Deflections
All Rights Reserved. 2 P/N 3102233 – Rev. A – Oct 16, 2014
After considering these factors, choose a location:
o Where the temperature and humidity are within the product
temperature range.
o Away from ventilation sources that can prevent smoke from
reaching the smoke alarm.
o ‘Smoke alarms and smoke detectors shall not be installed
within a 36 in. (910 mm) horizontal path from a door to a
bathroom containing a shower or tub unless listed for
installation in close proximity to such locations.’
The product shall be located on the ceiling or, if on a sidewall, between
the ceiling and 12 in. (300 mm) down from the ceiling to the top of the
detector.
In rooms with sloped, or peaked ceilings, place smoke alarms 3 feet
(910 mm) down or away from the highest point of the ceiling.
If mounting to suspended ceiling tile, secure the tile with the
appropriate fastener to prevent tile removal.
Smoke Alarms are not to be used with alarm guards unless the
combination has been evaluated and found suitable for that purpose.
Note: A smoke alarm does not provide warnings for fires resulting from
explosions, smoking in bed, or other furniture; ignition of flammable
liquids, vapors, and gasses; and children playing with matches or
lighters.
Locations to Avoid
o Areas where normal ambient temperature exceeds products
operating temperature range.
o Dirty, dusty, insect infested areas.
o In or near areas with combustion particles (kitchens, garages,
furnaces, hot-water heaters, gas space heaters).
o On the ceiling in rooms next to kitchens, where there is no
transom between the kitchen and such rooms.
o Damp or humid areas, or near bathrooms with showers.
o Near fresh-air inlets or returns or very drafty areas.
o Near heating/air conditioning vents, fans, and fresh air intakes,
which can drive smoke away from the smoke alarm.
o In dead-air spaces at the top of peaked ceilings or in corners
where walls and ceiling meet. Dead air can prevent smoke
from reaching a smoke alarm/alarm.
o Within 10 feet (3 m) of fluorescent light fixtures.
o Not suitable for outdoor use.
WARNING! LIMITATIONS OF SMOKE ALARMS
Wireless smoke alarms are very reliable, but may not work under all
conditions. No fire alarm provides total protection of life or property.
Smoke Alarms require a source of power to work.
This smoke alarm will not operate and the alarm will not sound if
batteries are dead or not installed properly.
Smoke Alarms may not be heard. A sound sleeper or someone who
has taken drugs or alcohol may not awaken if the alarm is installed
outside a bedroom. Closed or partially closed doors and distance can
block sound. This alarm is not designed for the hearing impaired.
Smoke Alarms may not always activate and provide warning early
enough. Smoke alarms only activate when enough smoke reaches the
alarm. If a fire starts in a chimney, wall, roof, on the other side of closed
doors, or on a different level of the property, enough smoke may not
reach the alarm for it to alarm.
Smoke Alarms are a significant help in reducing loss, injury and even
death. However, no matter how good a detection device is, nothing
works perfectly under every circumstance and we must warn you that
you cannot expect a smoke alarm to ensure that you will never suffer
any damage or injury.
Current studies have shown smoke alarms may not awaken all
sleeping individuals. It is the responsibility of individuals in the
household that are capable of assisting others to provide assistance to
those who may not be awakened by the alarm sound, or to those who
may be incapable of safely evacuating the area unassisted.
WARNING The product should be installed in a location that
must maintain a minimum distance of 7.87 inches (20 cm) between the
product and a person.
3. Mounting the Sensor
Note: Add the product to the Control Panel before physically mounting
the smoke alarm in the desired location.
A. Disconnect alarm-notification appliances, service-release devices,
and extinguishing systems. Test communications between the
control panel and smoke alarm before permanently mounting the
smoke alarm as follows:
− Hold the smoke alarm where you plan to install it.
− Press the smoke alarm test button for 8-to-10 seconds. The
smoke alarm sends a signal to the control panel.
− At the control panel, verify the signal was received and RF
signal strength is adequate. If no signal is received or the RF
signal is low, relocate the smoke alarm and retest.

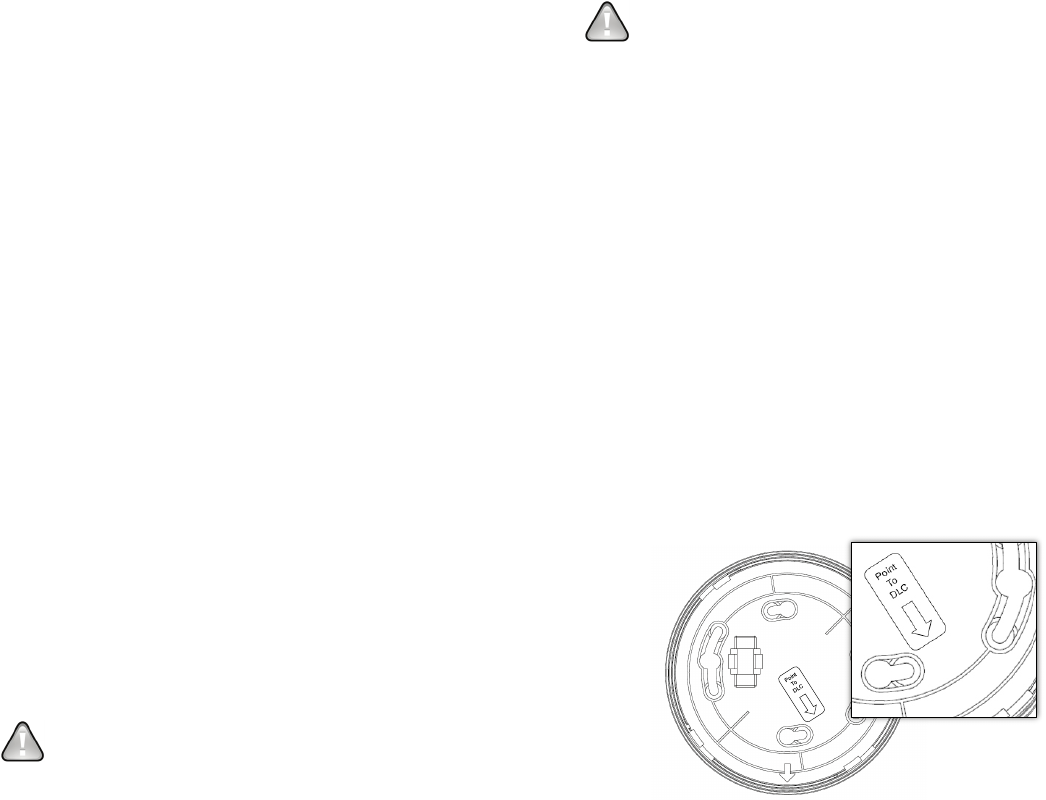

B. Using two supplied screws and anchors, mount the base with this
arrow pointing towards the wireless Control Panel.
C. Attach the smoke alarm to the mounting base as follows:
− Line up the raised alignment tab on the lip of the smoke
alarm with the arrow on the mounting base.
− Insert the smoke alarm into the base and turn clockwise
about 15 degrees until it snaps into place.
Note: The product cannot be attached to the mounting base if no
batteries are installed.
All Rights Reserved. 3 P/N 3102233 – Rev. A – Oct 16, 2014
D. Test communications between the control panel and smoke alarm
again:
− Press the Test button on the alarm for 8-to-10 seconds. The
smoke alarm sends a signal to the control panel.
− Verify that the signal at the control panel was received as
Acceptable, Good or Best level. See Section 6 for further
details.
E. Test the smoke alarm, see Section 7.
F. The control panel alarm and all auxiliary functions should be
verified for a complete test of the system.
4. Basic Operations
This product is equipped with an intuitive normal mode operation.
Normal Mode Operation
o In normal operation, the Status LED flashes once every 8
seconds.
o In alarm mode, the Status LED is ON – Red Color.
o In trouble or maintenance mode, the Status LED is OFF.
o In battery replacement mode, the product turns OFF the Status
LED and chirps every 45 seconds until the batteries are
replaced.
Note: The modes can be viewed from the Control Panel.
Silence the Alarm
Press the Test/Silence button to silence the sounder during an alarm.
After a few minutes, the sounder and alarm resume if smoke is still
present.
5. Installing / Replacing Battery
This product comes with two batteries preinstalled. When you need to
replace the battery, use the following procedure.
A. Slide the battery compartment cover away from the smoke alarm
to unsnap it and lift it off.
B. Observing proper polarity, insert two 3V lithium batteries into the
smoke alarm battery compartment and replace the battery
compartment cover.
C. Remove the red plastic dust cover from the smoke alarm. The
smoke alarm ships with a dust cover for protection on construction
sites with dusty environments.
Using a different battery can affect the detector operation detrimentally.
Constant exposures to high or low humidity may reduce battery life.
Replacing Batteries
Use only 3V lithium batteries, as listed on the battery compartment
cover.
A. Remove the smoke alarm from the mounting base (see “Mounting
Base Instructions” on page 2).
B. Slide the battery compartment cover away from the smoke alarm
to unsnap it and lift it off (see the figure on page 3).
C. Remove and dispose of the batteries appropriately.
D. Observe correct polarity and insert two new 3V lithium batteries
into the battery compartment and replace the cover.
Note: Use only new batteries when replacing old batteries. Do not
replace with batteries that were used previously.
E. Reattach the smoke alarm to the mounting base and test the
system.
6. Adding to the Control Panel
Each product is programmed with a unique ID when manufactured.
The unique ID is enrolled into the control panel at the time of
installation, allowing the detector to communicate with that specific
control panel.
A. Set the Digital Life system in Discovery mode using the Digital Life
installation tools.
B. Press and hold the smoke alarm learn button for 2 seconds.
o The learn LED will slowly blink while the device is being
discovered by the system. This process may take as long
as 60 seconds.
o If the device is successfully discovered, the learn LED will
turn solid for 15 seconds.
o If the device is not discovered, the learn LED will blink fast
for 15 seconds.
C. If desired, edit the sensor’s name and/or location in the Digital Life
system.
D. If the DLC has a signal strength of Low or Weak for this device,
then install a repeater.
7. Testing the Product
This product may be tested during install or at anytime. It is
recommended the product be tested in place annually.
Alignment
arrow
Alignment
tab
Battery
compartment
All Rights Reserved. 4 P/N 3102233 – Rev. A – Oct 16, 2014
A. Use
Smoke! in a can
®, a canned aerosol simulated smoke, and
follow the directions on the can.
B. Hold a smoldering punk or cotton wick close to the unit and gently
direct the smoke into the smoke entry openings for 20 seconds or
until an alarm is indicated.
The LED should stay on, the sounder should emit a temporal 3 pattern,
and an alarm should be indicated at the control panel. Be sure to
extinguish the smoke source after testing!
Running the RF Communication Test
This section provides general guidelines for testing the product with the
control panel. For complete testing details, refer to the specific control
panel documentation.
o Be sure the product is normal operation.
o Using the Digital Life Direct (DLD) web tool, select the smoke
alarm.
o In the signal strength selection, click the enable button.
o The signal strength test will run for 60 seconds.
o Once the test has completed, the ping results will show the
signal strength of all links (DLC to smoke, DLC to repeater,
repeater to smoke).
o If the DLC has a signal strength of Low or Weak for this device,
then install a repeater.
8. Maintenance
This product is designed for a long service life far beyond 10-years.
Even though the control panel indicates when to service this product,
several annual and random/as required checks are recommended.
Annual - Smoke Alarm Test
Random - Visual check for LED flashing every 8 seconds
- Sensitivity Test
- Wireless Signal Strength
The control panel indications are Trouble, Clean Me, and Low Battery.
Trouble - the product has an internal fault, which requires
technical service.
Clean Me - the product sensitivity is out of range and requires
chamber cleaning. This may occur due to dust build up
or bug intrusion.
Low Battery - batteries are low and must be replaced to maintain
proper operation.
Smoke Alarm Test
Test the smoke alarm in place annually using Smoke! in a can® and
follow the directions on the can.
Sensitivity Test
This product is equipped with an internal diagnostic checking function.
The diagnostic indication uses flashing LED counts to provide an overall
product operational status. After the LED flashes, if the sensitivity is
within limits and all other tests pass, the unit goes into alarm mode
and resets after 7 seconds. If the sensitivity is not within limits, or an
unserviceable hardware fault has been detected, the LED is OFF until
the product is serviced. To place the product in diagnostic mode:
A. Press the Test button on the smoke alarm for 4 seconds.
When the test starts, the smoke alarm LED flashes 1 to 9
times.
B. Count the LED flashes and see the table below to determine
the status of the smoke alarm sensitivity and any action to
take.
Flashes
Meaning
Steps to Take
1 Unserviceable
hardware fault
Reset smoke alarm and rerun the
sensitivity test. If error persists, replace
smoke alarm.
2 – 3 Smoke alarm is
becoming
insensitive
Clean smoke alarm, reset it, and rerun
the sensitivity test. If error persists,
replace smoke alarm.
4 – 7 Smoke alarm is
within normal
sensitivity range.
None
8 - 9 Smoke alarm is
becoming too
sensitive.
Verify smoke chamber is snapped
down securely. Clean smoke alarm
and replace the smoke chamber.
Trouble
Refer to Section 9 for troubleshooting guidance.
Clean Me
Clean the smoke alarm cover with a dry or damp (water) cloth as
needed to keep it free from dust and dirt. When necessary, use the
following procedure to clean the interior of the smoke alarm and
replace the smoke chamber.
A. Notify the Central Monitoring Station that the smoke alarm is
being tested. Be sure the system is in Test mode with the
Central Monitoring Station.
B. Remove the smoke alarm from its mounting base.
C. Remove batteries.

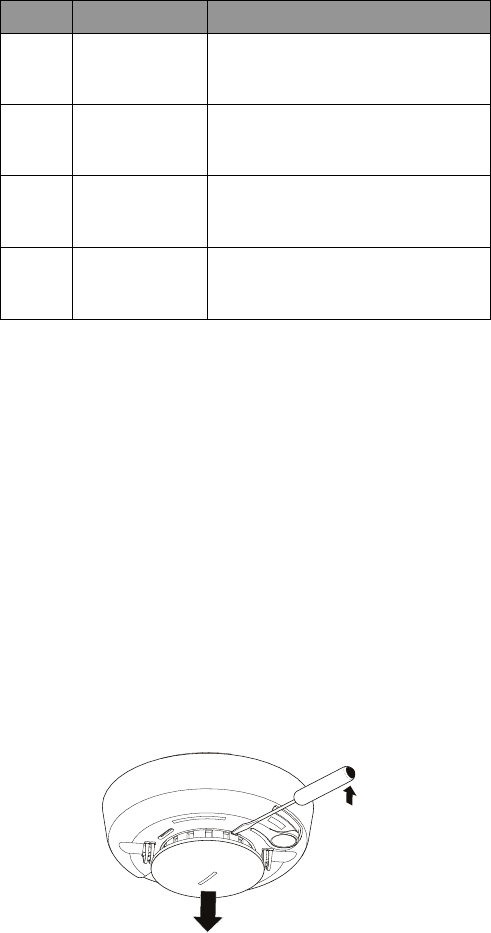

D. Slide a flat-blade screwdriver in the alarm cap slot. Gently push
the handle down to pry the cap up and off.

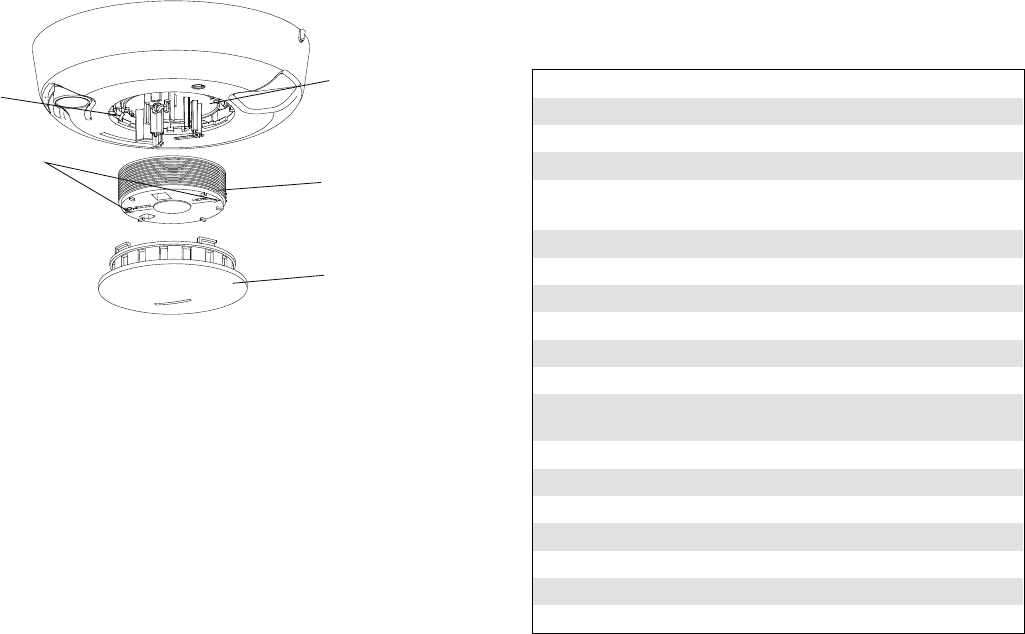

E. Squeeze the smoke chamber where indicated by the alignment
arrows and pull it up and away from the smoke alarm and
discard. See the following figure.
All Rights Reserved. 5 P/N 3102233 – Rev. A – Oct 16, 2014
F. Blow out or use a soft-bristled brush to remove dust and dirt
from the smoke chamber base.
G. Line up the new smoke chamber with the optical base by
aligning the arrows on the smoke chamber to the latches on the
optical base and snap down into place.
H. Replace the alarm cap by lining up the cap with the smoke
alarm. Then insert the cap into the smoke alarm and turn
clockwise approximately 15 degrees. The cap snaps firmly into
place when secure.
I. Insert the batteries into the smoke alarm using the proper
polarity, and replace the battery compartment cover.
J. Reattach the smoke alarm to its mounting base (see “Mounting
the Sensor”).
K. Test the smoke alarm sensitivity and contact the Central
Monitoring Station to place the system back online (remove from
Test mode).
L. Verify all auxiliary functions for a complete test of the system.
Low Battery
Replace the batteries per Section 5 - Installing / Replacing Battery.
9. Troubleshooting
Detector does not power up properly or reports low battery
Be sure the battery is fully seated within the battery compartment and
the polarity is correct.
Check the battery voltage (3.0 VDC nominal).
Control Panel does not respond
Use a wireless RF Sniffer to confirm that the product is sending
messages for activation.
Be sure the detector is enrolled into the control panel properly.
Be sure you are using a compatible control panel.
Tamper condition does not restore
Be sure the product is installed properly onto the mounting plate and
the mounting plate has a magnet.
Be sure there are no trouble indications at the detector.
Be sure you are using a compatible control panel.
If a tamper alarm occurs
Be sure you are using a compatible control panel.
Be sure the control panel is in sensor test mode during sensor testing.
Alarm/open condition does not restore
Be sure the smoke or heat has cleared at the product.
Be sure you are using a compatible control panel.
10. Specifications
Compatible panels DLC-100
RF Wireless Frequency 915 MHz (NA)
RF Distance – LOS See Section 6.
Power Two CR123 batteries
Battery type 3.0 VDC lithium
Panasonic® CR123A, Duracell DL123A
Standby Current
35 µA (typically)
Battery life 5 years (typically)
Sensor Photoelectric
Sensitivity 2.2% +/- 1.3% / ft.
Drift Compensation Adj. 0.5% / ft. max.
Heat Detection - Fixed 135°F ± 5°F (57.2°C ± 2.8°C)
Heat Rate-of-Rise
15°F/min>105°F (8.3°C/min>
40.6°C)
Audible alarm 85 dBA @ 10’ (3M) temporal 3
Low Battery Beep 1 every 45 seconds.
Weight w/batteries 0.20 lbs / 0.09 kg
Dimensions 5.6" x 2.4" (14.2cm x 6.1cm)
Storage temperature -4 to 140°F (-20 to 60°C)
Operating environment 32 to 100°F (0 to 38°C)
Relative Humidity 0 to 95% non-condensing
11. Regulatory Information – pending agency approvals.
Manufacturer: Edwards, A Division of Walter Kidde Portable Equipment,
Inc. (Edwards)
RoHs Directive
2011/65/EC RoHS Compliant. Hereby, Edwards declares that this
product does not contain lead, mercury, cadmium, hexavalent
chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl
ethers (PBDE) in more than the percentage specified by EU directive
2011/65/EC, except exemptions stated in EU directive 2011/65/EC
annex.
Agency Rating
ANSI/UL 268, CSFM
FCC Compliance
FCC ID: QPY-SA915FFH
IC: 8303B-SA915FFH
The device complies with part 15 of the FCC Rules as well as Industry
Canada Rules and Regulations license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Conformité Réglementaire
Ce dispositif est conforme à la réglementation de la IC et (Partie 15) de
la FCC. Son fonctionnement est soumis à deux conditions : (1) ce
dispositif ne doit pas causer d’interférences nuisibles, et (2) ce dispositif
doit accepter toute interférence reçue, y compris les interférences
pouvant entraîner des conditions de fonctionnement indésirables.
Optical
base
Smoke
chamber
Detector
cap
Smoke
chamber
latch
Alignment
arrows
All Rights Reserved. 6 P/N 3102233 – Rev. A – Oct 16, 2014
WARNING Changes to Section 11 – Regulatory Information is
strictly prohibited. Any changes or modification made to the product
without the permission of the manufacturer could void the user’s
authority to use this product.
12. Product Information
Fire Prevention and Escape
The purpose of an early warning smoke alarm is to detect the presence
of fire in its early stages and sound an alarm giving the occupant(s)
time to exit the premises safely.
Avoid Fire Hazards
No detection device can protect life in all situations. Therefore,
safeguards should be taken to avoid potentially dangerous situations
as
follows:
o Do not smoke in bed.
o Do not leave children home alone.
o Never clean with flammable liquids such as gasoline.
o Properly store materials. Use general good housekeeping
techniques to keep your home neat and tidy. A cluttered
basement, attic, or other storage area is an open invitation to
fire.
o Use combustible materials and electrical appliances carefully
and only for their intended uses. Do not overload electrical
outlets
o Do not store explosive and/or fast burning materials in your
home.
o Even after proper precautions have been taken, fires can start.
Be prepared.
In Case of Fire
In the event of a fire:
o Leave immediately. Don’t stop to pack or search for valuables.
o In heavy smoke, hold your breath and stay low, crawl if
necessary. The clearest air is usually near the floor.
o If you have to go through a closed door, carefully feel the door
and door knob to see if undue heat is present. If they seem
cool, brace your foot against the bottom of the door with your
hip against the door and one hand against the top edge. Open
it slightly. If a rush of hot air is felt, slam the door quickly and
latch it. Unvented fire tends to build up considerable pressure.
Be sure all members of the household realize and understand
this danger.
o Use your neighbor’s phone or a street fire alarm box to call the
fire department. The job of extinguishing the fire should be left
to trained professionals.
Be Prepared
Practice the following steps to prepare you and your family in the event
of a fire:
o Perform fire drills regularly. Use them to assure recognition of
an alarm signal.
o Draw a floor plan and show two exits from each room. It is
important that children be instructed carefully, because they
tend to hide in times of crisis.
o Establish one meeting place outside the home. Insist that
everyone meet there during an alarm. This will eliminate the
possibility of someone re-entering the house for a missing
member who is actually safe.
o If you have children, elderly or anyone requiring additional
assistance residing in your household, use window decals to
help emergency personnel identify the sleeping quarters of
these individuals.
WARNING Smoke Alarms CANNOT provide warnings for fires
resulting from explosions, smoking in bed or other furniture, ignition of
flammable liquids, vapors and gases, or children playing with matches
or lighters.
Limited Warranty
AT&T Digital Life Complete Protection - AT&T Digital Life Complete
Protection protects the Digital Life Equipment (“Equipment”) that you
bought from AT&T.
Complete Protection Period - Complete Protection begins on the date
Your Digital Life Equipment is installed and continues for as long as you
have the monthly service and are in good standing.
What Is Covered - AT&T will repair or replace Equipment that fails to
operate as a result of defects in workmanship and/or materials
including electrical failure caused by a direct result of a power surge.
The Equipment must be purchased from AT&T or from an AT&T
authorized location. Equipment means the Digital Life equipment you
purchased from AT&T that connects and is made a part of the AT&T
Digital Life system. Equipment will be replaced with those of like kind
and quality, and may be new or remanufactured. In most instances,
AT&T, who will pay shipping costs, will require you to return your
defective Equipment. Complete Protection does not change your
original equipment manufacturer’s warranty which remains in effect.
For all product returns, including warranty repair/replacements, non-
warranty repairs, advance replacements and credit returns call AT&T at
1-855-288-2727.
Return units to: AT&T
13500 Independence Pkwy.
Fort Worth, TX. 76117
This product is manufactured by Edwards, A Division of Walter Kidde
Portable Equipment, Inc., 8985 Town Center Parkway, Bradenton FL
34202.
A note should be included advising the nature of the malfunction. Care
must be exercised in the proper packing of alarms returned under this
warranty as AT&T will not be responsible for warranty repairs to
equipment damaged because of improper packing.
No agent, employee or representative of the Manufacturer nor any
other person is authorized to modify this warranty in any respect.
Repair or replacement as stated above is the exclusive remedy of the
purchase hereunder. This warranty gives you specific legal rights and
you also have other rights which vary from state to state.
End of document
