UTC Fire and Security 4003 User Manual EX6453A5
UTC Fire & Security B.V. EX6453A5
Users Manual
Intertek Testing Services
FCC ID: A794003 EXHIBIT 5 1
EXHIBIT 5
User Manual
Sentrol Incorporated
FCC Part 15 Application
For
Certification
(Low Power Transmitter)
Three Button Wireless Key Fob Transmitters
Models: 4003
FCC ID: A794003
Intertek Testing Services
FCC ID: A794003 EXHIBIT 5 2
User Manual
Attached is a preliminary copy of the Instruction Manual. The following
information will be included in the next revision of the manual:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by Sentrol, Inc. could void the user's
authority to operate the equipment.
This manual will be provided to the end-user with each unit sold/leased in the United States.
GENERAL INFORMATION
The Sentrol Model 4003 Three Button Wireless Key Fob
Transmitter is designed to be used with Sentrol’s 4000
Wireless System having a receiver with Revision J or later
software. It is designed as a portable, unsupervised
transmitter. It is intended to function in applications where
the user will be within the Installer Verified operating range
of the overall system.
The 4003 Key Fob Transmitter uses an encrypted “anti-
cloning” code. This “anti-cloning” code will prevent a person
from remotely capturing transmissions and then later using
them to control or tamper with the system.
The Model 4003 is programmed into an RF Gateway
Receiver as an RF User Device, not as an RF Point.
Therefore, it does not take up a zone on the panel. This
device acts like a user passcode from a keypad. Thus, it
can be restricted like other user passcodes with an “Author-
ity Level” and “Areas of Operation” as described in the
Control Programming Instructions.
Wireless
sentrol
Model 4003-Three Button
Wireless Key Fob Transmitter
The 4003 Key Fob Transmitter has three buttons labeled
“A”, “C” and “OFF”. The “OFF” button always performs the
disarm function. The “A” and “C” buttons can be pro-
grammed to function as Arming, Panic, Aux/Medical and
other ancillary functions. This programming is done by
selecting a “Key Function Option” for the device when
programming it into an RF Gateway Receiver.
INSTALLATION
Read this section completely before installing!
These instructions will provide information on installation
requirements and will address some installation situations
to be avoided for best performance.
Battery Installation
The Model 4003 is provided with a 3-volt CR2032 Lithium
battery. To install the battery, remove the battery door on
the back of the unit by rotating the door counter-clockwise.
Place the battery into the unit with the (+) positive marking
of the battery facing up in the battery compartment.
Replace the battery door and rotate clock-wise to close and
secure the battery.
With the battery installed, press the “OFF” button two
times with a pause between each button press. The LED
above the button should blink with each press. The 4003
Key Fob Transmitter is now ready to be programmed into
the system.
ITEMS YOU WILL NEED
•Series 4000 Receiver with software code Revision J or
later.
•Control Panel Programming Instructions.

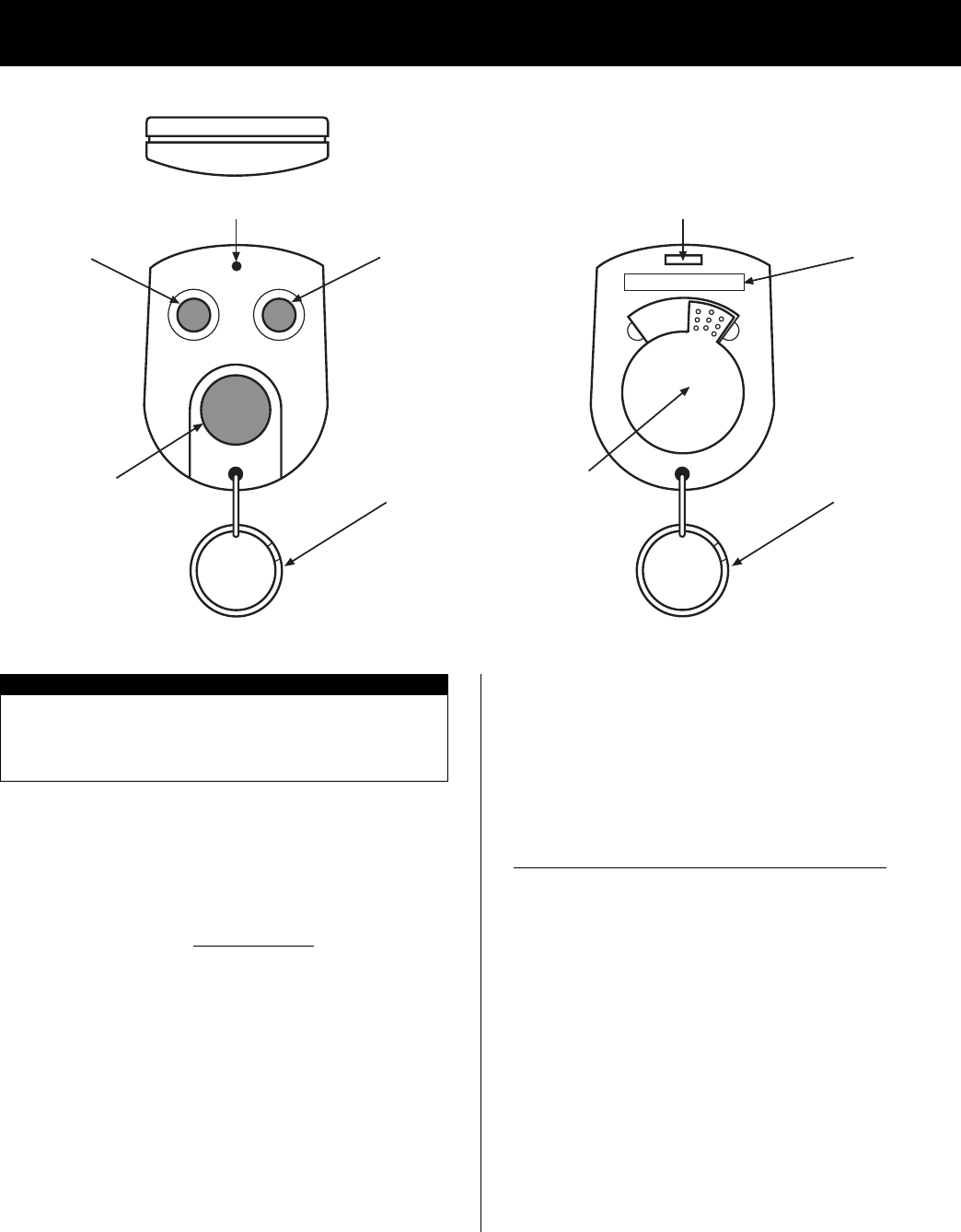

Sentrol Model 4003
“C” Button
LED
“OFF” Button
“A” Button
AC
OFF
Key Loop
Battery
Compartment
Door
ID Address Label
6-123456-dddd-r
Latch Tab Slot
Key Loop
PROGRAMMING
The 4003 Key Fob Transmitter is pre-programmed with a
6-digit ID Address. This ID Address is located on the back
label and on a label on the box (example of code label
5 123456 dddd r). This 6-digit ID Address (underlined) will
be needed to program this device into the RF Gateway
Receiver and into the Control.
To program the 4003 Key Fob Transmitter into an RF
Gateway Receiver, select a “Device Number” on the RF
Gateway and program in a keypad number, a “Key Function
Option Number” from the “A” and “C” Keys column in the
table located in the Control’s Programming Instructions, and
the device’s 6-digit ID Address. To program into the Control,
use the last four digits of the ID Address as a user
passcode.
You will need to consult the Programming Instructions of
the Control for specific instructions on programming.
TESTING
Since the 4003 Key Fob Transmitter is a portable device,
there may be “blind” or “non operational” locations found
during your tests. Normally these can be overcome if the
Model 4003 is moved a short distance up, down, left or
right. It should not matter how the device is held in your
hand. It is an omni-directional RF transmitter and should
therefore transmit equally in all directions. This testing
should be performed for all keys from multiple locations to
ensure proper operation and that Control response exists.
For example, if the 4003 Key Fob Transmitter is to be used
as an arming/disarming device from bedside, it should be
tested from that location. If it is to be used from the car to
perform arming/disarming (open/close garage door), then it
should be tested from within the car in the driveway and
garage. If it is to be used with the PANIC function while the
user is in the basement, garden or garage, then it should be
tested for operation from those areas.
Once testing is complete, clearly identify to the user any
range or transmission limits found during testing. Review
with the user the functions of the various keys.
Instruct the user that when the LED does not blink when a
button is pressed, it is an indication that the device has a
Low Battery and should be replaced as soon as practical.
A Low Battery message will also be displayed at the Control
keypad until the battery is replaced.
Show the user the ID Address label on the back of the unit.
Explain that this ID Address label contains their user
passcode (last four digits of ID Address) which they can
also use manually, if needed, at the keypad. For this
reason, they may want to remove the ID Address label and
store it in a secure location.
SPECIFICATIONS
Case Dimensions: 1.622 in W x 2.165 in H x 0.56 in D.
Environmental: Water Entry Resistant.
Operating Temperature: +32OF to 122OF (0OC to +50OC).
Battery Type: Duracell CR2032 3V Lithium or equivalent.
Battery Life: 5,000 transmissions or one year.
Low Battery Indications: reported to Control and identified
by user. Red LED on the Model 4003 does not blink when
button pressed.
Color: Grey.
Transmitter Frequency: 418MHZ, Crystal Controlled
Phase Locked Loop.
Free Air Range: 200 feet unobstructed.
Indoor Range: 80 feet typical.
Transmitter ID: pre-programmed, approximately one
million distinct codes.
Modulation Type: FM, FSK.
Message Format: encrypted FSK to prevent cloning.
Message Types: distinct message assigned to each of the
three buttons based on selection of options.
FCC COMPLIANCE (USA): This device complies with Part
15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interfer-
ence received including interference that may cause
undesired operation.
FCC ID: A794003
INDUSTRY CANADA COMPLIANCE (Canada): This Class
B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
1030488B
SENTROL
PO Box 2904, 1510 Tate Blvd. SE
Hickory, NC 28603
Tel.: 503.692.4052 Fax: 503.691.7566
U.S. & Canada: 800.547.2556
Technical Service: 800.800.2027
FaxBack: 800.483.2495
SENTROL CONTROLS GROUP Sentrol reserves the right
to change specifications
without notice.
©1999 Sentrol
