UTC Fire and Security 4010 User Manual EX6455A5
UTC Fire & Security B.V. EX6455A5
User Manual
![](/img.php?id=36663&img=bg1.png)
Intertek Testing Services
FCC ID: A794010 EXHIBIT 5 1
EXHIBIT 5
User Manual
Sentrol Incorporated
FCC Part 15 Application
For
Certification
(Low Power Transmitter)
Single and Dual Button Pendant Transmitter
Model: 4010 and 4011
FCC ID: A794010
![](/img.php?id=36663&img=bg2.png)
Intertek Testing Services
FCC ID: A794010 EXHIBIT 5 2
User Manual
Attached is a preliminary copy of the Instruction Manual. The following
information will be included in the next revision of the manual:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by Sentrol, Inc. could void the user's
authority to operate the equipment.
This manual will be provided to the end-user with each unit sold/leased in the United States.
![](/img.php?id=36663&img=bg3.png)
GENERAL INFORMATION
The Sentrol Model 4010 Single Button Pendant Transmitter
is to be used with Sentrol’s 4000 Wireless System having a
receiver with Revision J or later software. It is designed as
a portable, unsupervised transmitter. It is intended to
function in applications where the user will be within the
Installer Verified operating range of the overall system.
The 4010 is provided with a replaceable 3-volt CR2032
Lithium battery, a necklace and an optional belt clip. The
Model 4010 Pendant Transmitter contains one button that
must be pressed and held for a minimum of 1.5 seconds to
activate.
Once the transmitter is activated, it will transmit twice (2
sets of 8 Alarm messages). The red LED will blink once as
the first transmission occurs and then ten seconds later as
the second transmission occurs.
Depending upon the “ ‘C’ Key Function Options” selected
during the programming of the compatible Controls and RF
Gateway Receiver, the 4010 Pendant Transmitter can
Wireless
sentrol
Model 4010-Single
Button Pendant Transmitter
activate a Panic/Holdup alarm, or perform similar emer-
gency signaling functions by utilizing the “Access” output.
The Model 4010 is a single address device and is pro-
grammed as a USER and not as a POINT (zone). There-
fore, you do not lose one or more points (zones) when
using the Model 4010 with your system. You can also
restrict the “Authority Level” and “Operation Area” of this
USER code, which is described in the Control’s Program-
ming Instructions.
INSTALLATION
Read this section completely before installing!
These instructions will provide information on installation
requirements and will address some installation situations
to be avoided for best performance.
Battery Installation
To install the battery provided, remove the battery door on
the back of the unit by rotating the door counter-clockwise.
Place the battery into the unit with the (+) positive marking
of the battery facing up in the Battery Compartment.
Replace the Battery Door and rotate clock-wise to close
and secure the battery.
With the battery installed, press and hold the button for two
seconds. The LED above the button should blink once and
then again in approximately ten seconds. The 4010 Pendant
Transmitter is now ready to be programmed into the system.
ITEMS YOU WILL NEED
•Series 4000 Receiver with software code Revision J or
later.
•Control Panel Programming Instructions.

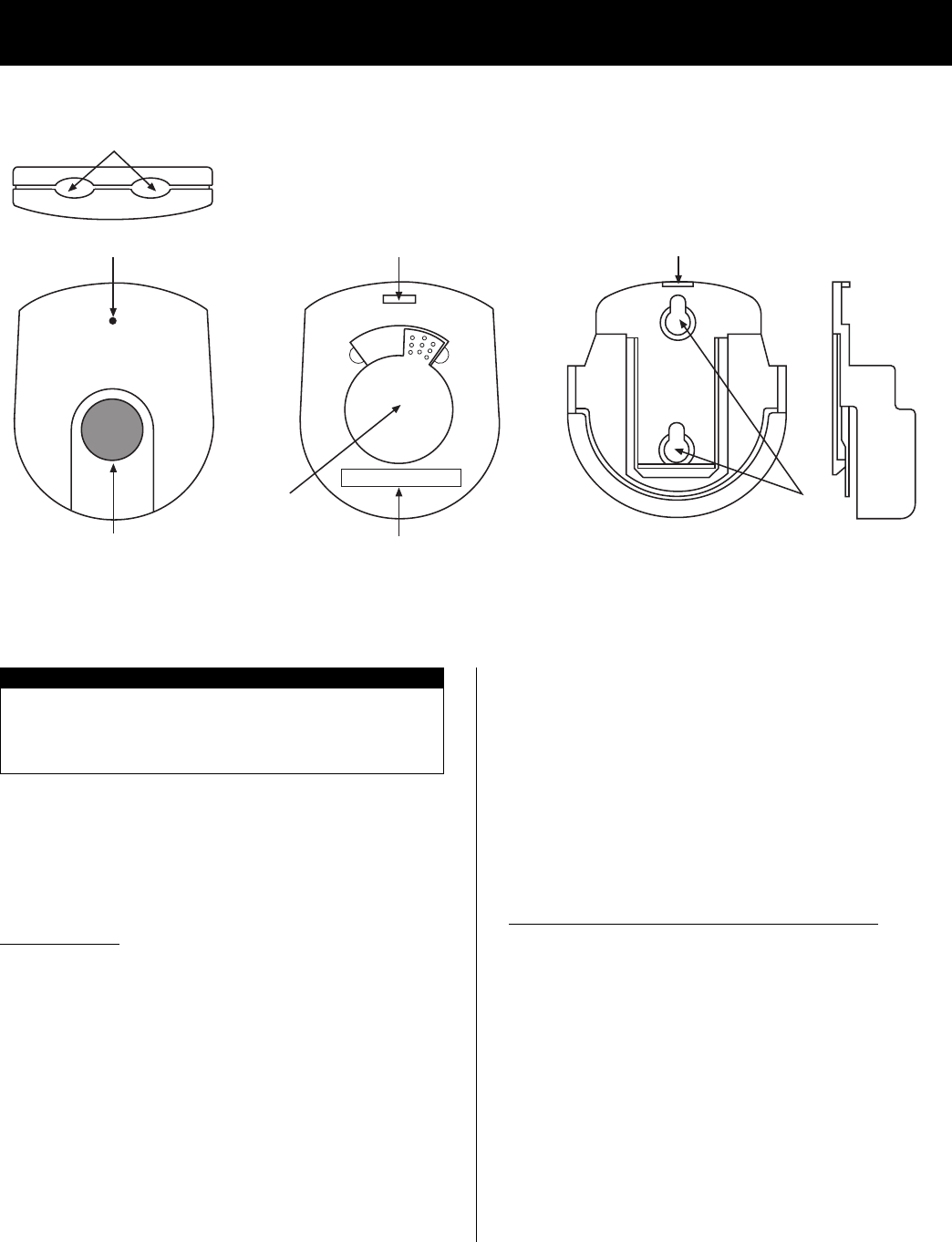

Sentrol Model 4010 Belt Clip
LED Latch Tab Slot
Necklace
Mounting
Holes
Battery
Compartment
Door
ID Address Label
Single Button
6-123456-dddd-r
Release Tab
Mounting
Holes
![](/img.php?id=36663&img=bg4.png)

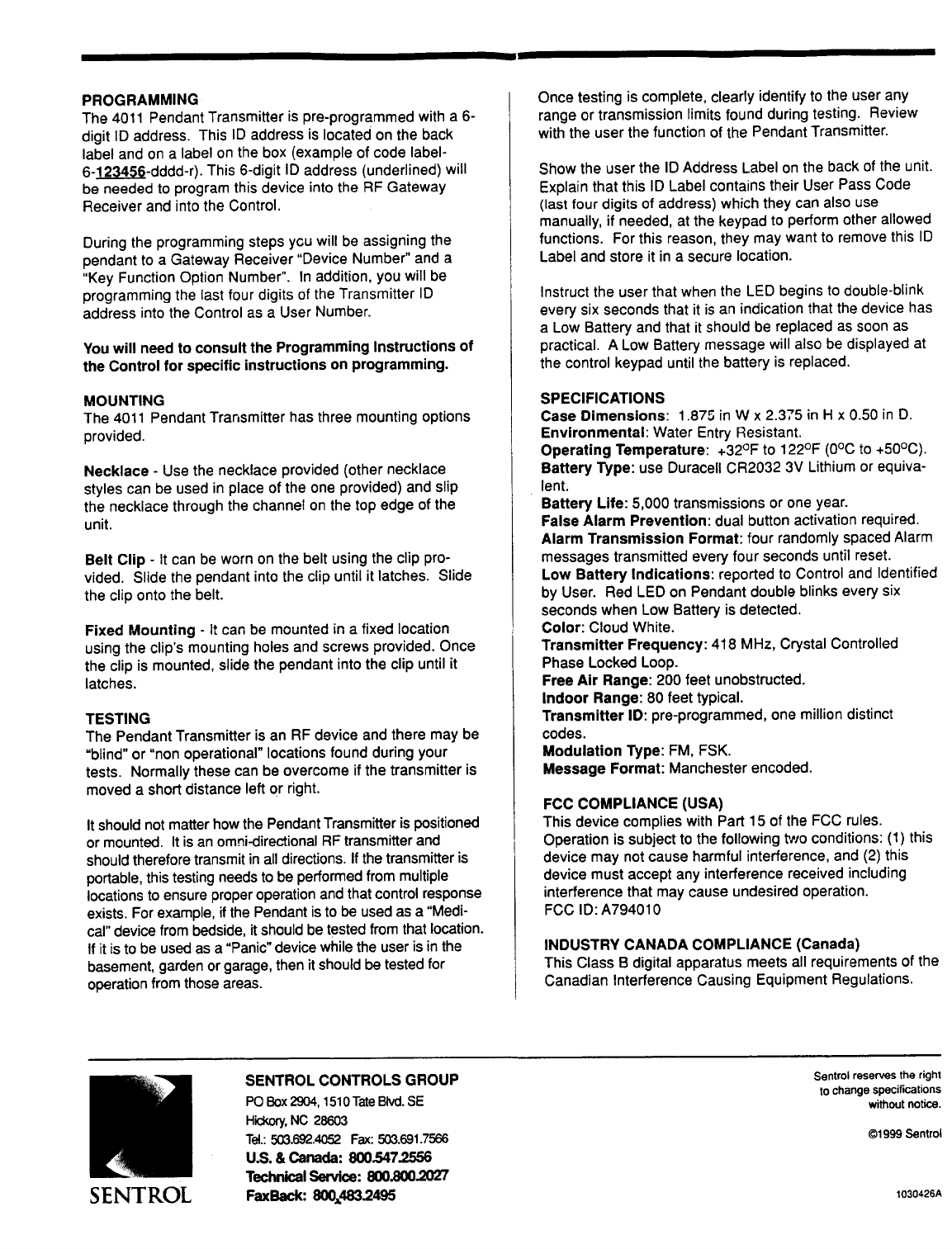

PROGRAMMING
The 4010 Pendant Transmitter is pre-programmed with a 6-
digit ID address. This ID address is located on the back
label and on a label on the box (example of code label-
6-123456-dddd-r). This 6-digit ID address (underlined) will
be needed to program this device into the RF Gateway
Receiver and into the Control.
During the programming steps, you will be assigning the
pendant to a Gateway Receiver “Device Number” and a
“Key Function Option Number” from the “C” Key column in
the table located in the Control’s Programming Instructions.
In addition, you will be programming the last four digits of
the Transmitter ID address as a USER code into the
Control.
You will need to consult the Programming Instructions of
the Control for specific instructions on programming.
MOUNTING
The 4010 Pendant Transmitter has three mounting options
provided.
Necklace - Use the necklace provided (other necklace styles
can be used in place of the one provided) and slip the
necklace through the channel on the top edge of the unit.
Belt Clip - It can be worn on the belt using the clip provided.
Slide the pendant into the clip until it latches. Slide the clip
onto the belt.
Fixed Mounting - It can mounted in a fixed location using
the clip’s mounting holes and screws provided. Once the
clip is mounted, slide the pendant into the clip until it
latches.
TESTING
The Pendant Transmitter is an RF device and there may be
“blind” or “non operational” locations found during your
tests. Normally these can be overcome if the transmitter is
moved a short distance left or right.
It should not matter how the Pendant Transmitter is
positioned or mounted. It is an omni-directional RF
transmitter and should therefore transmit in all directions.
If the transmitter is portable, this testing needs to be
performed from multiple locations to ensure proper
operation and that control response exists. For example,
if the Pendant is to be used as a “Panic” device from
bedside, it should be tested from that location. If it is to
be used as a “Panic” device while the user is in the
basement, garden or garage, then it should be tested for
operation from those areas.
Once testing is complete, clearly identify to the users any
range or transmission limits found during testing. Review
with the User the function of the Pendant Transmitter.
Show the user the ID Address Label on the back of the unit.
Explain that this ID Label is also a User Pass Code (last
four digits of address) which they can also use manually, if
needed, at the keypad to perform other allowed functions.
For this reason they may want to remove this ID Label and
store in a secure location.
Instruct the user that when the LED begins to double blink
every six seconds that it is an indication that the device has
a Low Battery and that it should be replaced as soon as
practical. A Low Battery message will also be displayed at
the control keypad until the battery is replaced.
SPECIFICATIONS
Case Dimensions: 1.875 in W x 2.375 in H x .50 in D.
Environmental: Water Entry Resistant.
Operating Temperature: +32OF to 122OF (0OC to +50OC).
Battery Type: use Duracell CR2032 3V Lithium or equivalent.
Battery Life: 5,000 transmissions or one year.
False Alarm Prevention: approximately two seconds
“Press and Hold” of button required.
Alarm Transmission Format: 2 sets of 8 randomly spaced
Alarm messages separated by a ten second interval. Red
LED blinks once for each set.
Low Battery Indications: reported to Control and identified
by User. Red LED on Pendant double blinks every six
seconds when Low Battery detected.
Color: Cloud White.
Transmitter Frequency: 418 MHz, Crystal Controlled
Phase Locked Loop.
Free Air Range: 200 feet unobstructed.
Indoor Range: 80 feet typical.
Transmitter ID: pre-programmed, one million distinct
codes.
Modulation Type: FM, FSK.
Message Format: Manchester encoded.
FCC COMPLIANCE (USA)
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received including
interference that may cause undesired operation.
FCC ID: A794010
INDUSTRY CANADA COMPLIANCE (Canada)
This Class B digital apparatus meets all requirements of the
Canadian Interference Causing Equipment Regulations.
1030425B
SENTROL
PO Box 2904, 1510 Tate Blvd. SE
Hickory, NC 28603
Tel.: 503.692.4052 Fax: 503.691.7566
U.S. & Canada: 800.547.2556
Technical Service: 800.800.2027
FaxBack: 800.483.2495
SENTROL CONTROLS GROUP Sentrol reserves the right
to change specifications
without notice.
©1999 Sentrol
