UTStarcom Korea Technologies F1000 802.11b WiFi Phone User Manual
UTStarcom Korea Technologies Ltd. 802.11b WiFi Phone Users Manual
Users Manual Revised
i
_______________________________________
Copyright Statement: “© 2004 UTStarcom, Inc. All rights reserved. No
part of this publication may be reproduced in any form or by any means
without the prior written permission of UTStarcom, Inc.”
Warranty Language: “The contents of this manual, whether in whole or in
part, do not constitute any express or implied warranty with respect to any
products of UTStarcom, Inc., or its affiliates.”
Doc. Code: 8810020200.050104
Table of Contents
SAFETY PRECAUTIONS.................................................... 1
FCC RF EXPOSURE COMPLIANCE .......................................................1
HANDLING THE PHONE, BATTERY AND CHARGER .................................. 2
HANDLING THE PHONE ........................................................................3
HANDLING THE BATTERY ......................................................................5
HANDLING THE CHARGER .................................................................... 6
1. GETTING STARTED ....................................................... 7
1.1 PACKAGE CONTENTS.....................................................................7
1.2 PHONE SPECIFICATIONS ................................................................8
1.3 HANDSET DESCRIPTION .................................................................9
1.4 DISPLAY INDICATORS ................................................................... 11
1.5 CHARGE THE BATTERY ................................................................12
1.6 REPLACE THE BATTERY ...............................................................13
1.7 CONVENTIONS USED IN THIS MANUAL ..........................................15
1.8 ACCESS MENU/LIST OPTIONS ......................................................16
2. BASIC OPERATIONS ................................................... 17
2.1 SWITCH THE PHONE ON/OFF .......................................................17
2.2 MAKE A CALL...............................................................................17
2.3 USE SPEED DIAL .........................................................................17
2.4 ANSWER A CALL ..........................................................................18
2.5 REJECT A CALL............................................................................18
2.6 IN CALL OPERATIONS...................................................................19
2.6.1 Hold a Call .....................................................................................19
2.6.2 Call Waiting....................................................................................19
2.6.3 Make a New Call............................................................................20
2.6.4 Conference Call.............................................................................20
2.6.5 Transfer a Call ...............................................................................21
2.6.6 Mute the Microphone Volume ........................................................21
2.6.7 Access the Phonebook ..................................................................22
2.6.8 Adjust the Earpiece Volume ...........................................................22
ii
iii
2.7 STORE A PHONE NUMBER ............................................................23
2.8 CALL LOG SHORTCUT ..................................................................23
2.9 CUSTOM FUNCTIONS SHORTCUT..................................................24
2.10 CURRENT PROFILE SHORTCUT...................................................24
2.11 VIBRATION SHORTCUT ...............................................................24
2.12 KEYPAD LOCK ...........................................................................25
3. PHONEBOOK (NAMES) ............................................... 26
3.1 SEARCH ......................................................................................26
3.1.1 Edit ................................................................................................27
3.1.2 Delete Entry...................................................................................27
3.2 ADD ENTRY .................................................................................27
3.3 DELETE ENTRY............................................................................29
3.3.1 One by One ...................................................................................29
3.3.2 All...................................................................................................29
3.4 GROUP INFO ...............................................................................29
3.4.1 Ring Tone.......................................................................................30
3.4.2 Browse...........................................................................................30
3.5 SPEED DIAL ................................................................................30
3.6 MEMORY..................................................................................... 31
4. MENU ............................................................................ 32
4.1 CALL LOG ...................................................................................32
4.1.1 Missed Log ....................................................................................32
4.1.2 Received Log.................................................................................34
4.1.3 Dialed log.......................................................................................35
4.1.4 Delete Log .....................................................................................36
4.1.5 Duration .........................................................................................37
4.2 PROFILES....................................................................................38
4.2.1 Standard ........................................................................................38
4.2.2 Meeting..........................................................................................40
4.2.3 Outdoor..........................................................................................40
4.2.4 User Define....................................................................................40
4.3 SETTINGS ...................................................................................41
4.3.1 Scheme .........................................................................................41
4.3.2 Date/Time ......................................................................................42
4.3.3 Answer Mode .................................................................................43
4.3.4 Language.......................................................................................43
4.3.5 Display...........................................................................................44
4.3.6 Set Security ...................................................................................46
4.3.7 Input Method..................................................................................48
4.4 TOOLS ........................................................................................49
4.4.1 Calculator ......................................................................................49
4.4.2 Calendar ........................................................................................50
4.4.3 Alarm .............................................................................................50
4.4.4 Time Zone......................................................................................51
4.5 WIFI-SETTINGS ...........................................................................52
4.5.1 Network Parameter........................................................................52
4.5.2 Signal Protocol...............................................................................54
4.5.3 WiFi Config ....................................................................................57
4.5.4 Net Search.....................................................................................58
4.5.5 Vendor Information.........................................................................59
4.5.6 PC Config ......................................................................................59
4.6 NETWORK SERVICE .....................................................................60
4.6.1 Call Waiting....................................................................................60
4.6.2 Call Transfer ..................................................................................60
4.6.3 Registration Interval Time ..............................................................61
4.6.4 Caller-ID Block...............................................................................61
4.6.5 Repeat Dial on Busy ......................................................................61
4.6.6 TFTP Update .................................................................................61
4.6.7 Reject Anonymous Incoming Call ..................................................62
4.6.8 Personal Info..................................................................................62
5. INPUT METHOD............................................................ 63
5.1 SWITCH INPUT METHOD...............................................................63
5.2 PINYIN AND SIM STROKE .............................................................63
5.3 ENGLISH .....................................................................................63
5.4 LETTER .......................................................................................65
5.5 DIGIT ..........................................................................................66
6. TROUBLESHOOTING................................................... 67
iv
Safety Precautions
SAFETY PRECAUTIONS
FCC RF Exposure Compliance
This PCS phone has been tested and complies with the Federal
Communications Commission (FCC) RF exposure limits for the General
Population/Uncontrolled exposure environment. In addition, it complies
with the following Standards and Guidelines:
z FCC 96-326, Guidelines for Evaluating the Environmental Effects of
Radio-Frequency Radiation
z FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields
z ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency Electromagnetic
Fields, 3 kHz to 300 GHz
z ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields - RF
and Microwave
~ Note: For body-worn operation, this phone has been tested and
meets FCC RF exposure guidelines when used with an accessory
that contains no metal and when the back of the phone faces your
body
~ Use of other accessories may not ensure compliance with FCC RF
exposure guidelines
~ The antenna used for this transmitter must not be co-located or
must not operate in conjunction with any other antenna
1
Safety Precautions
Handling the Phone, Battery and Charger
DANGER
Only use the battery and charger specified for the
phone. Failure to do so can result in damage to the
phone, electric shock or fire
CAUTION
Do not store or operate the phone or charger in hot,
damp, or dusty areas, which can damage electrical and
mechanical components. Avoid prolonged exposure to
temperatures below 5°C or in excess of 35°C
DANGER
Do not drop, shake or throw the phone or charger.
Rough handling can damage internal circuit boards and
the battery pack
Do not use the phone in the vicinity of volatile gases.
Leave the area before using the phone. Failure to leave
the area can result in the risk of fire or an explosion
Do not disassemble or modify the phone, charger, or
battery. Incorrect modifications, reassembly, or
tampering may result in malfunction or personal injury
2
Safety Precautions
Handling the Phone
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
z This device may not cause harmful interference
z This device must accept any interference received, including
interference that may cause undesired operation
DANGER
This phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This phone
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this phone does cause harmful interference to radio or
television reception, which can be determined by
turning the phone off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the phone and
receiver
- Connect the phone into an outlet on a circuit different
from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV
technician for help
Observe local regulations for specialized areas
(hospital, aircraft, etc) when using the phone
3
Safety Precautions
Do not use the phone while operating a vehicle
CAUTION
Changes or modifications not expressly approved by
UTStarcom, Inc. could void the user’s authority to
operate the phone
Keep all storage media (magnetic cards, floppy disks,
credit cards, etc.) away from the phone. Close
encounters or contact can erase or damage the storage
media
Keep all sharp metal objects (pins, nails, hairpins etc.)
away from the phone handset. The handset earpiece
contains a strong magnet that can attract and hold
metal objects. Remove any objects from the handset
earpiece before using, to avoid personal injury
In case of emergency, key in the emergency number
(911 for example in US), then press the Talk key and let
the operator know your specific location. Don’t hang up
until you are told to do so
4
Safety Precautions
Handling the Battery
DANGER
Do not dispose of the battery pack in a fire. It may
explode. Check with local waste management codes for
disposal instructions
Do not force the battery pack into the phone. Improper
installation can cause malfunctions or damage the
battery pack. This may result in fire or personal injury
Use caution in handling batteries in order not to short
the battery on conductive materials such as rings,
bracelets, and keys. The battery and/or conductor may
overheat and cause burns
If the battery becomes too hot while recharging, it
should be removed immediately from the charger
When clothes or skin are exposed to battery leakage,
rinse with clean water at once to prevent skin irritation
Do not use a cracked, leaking or odor-emitting battery
pack near an open flame or high temperatures
CAUTION
If a fully discharged battery is stored for a long period of
time, it may not be possible to recharge the battery
Observe local waste management codes for proper
battery disposal instructions
5
Safety Precautions
Handling the Charger
DANGER
Only use a power source that provides the appropriate
voltage (AC100~240 V) for the charger. An unsuitable
power source can result in damage to the charger,
electric shock or fire
Do not use the charger if the power supply cord or plug
is damaged or frayed (exposed or broken wires, etc).
This can result in the risk of fire or electric shock
Do not short circuit the charger connector jack. This may
result in fire or electric shock
Immediately unplug the charger from the wall outlet in
the event that liquid is spilled into the unit to prevent fire
or electric shock
CAUTION
Always unplug the charger from the wall outlet before
cleaning to avoid the risk of electric shock
Do not place heavy objects on the cord to avoid damage
Always grip the power plug when removing the charger
from the wall outlet. Do not pull on the power supply
cord to avoid damage and the risk of electric shock
6
Getting Started
1. GETTING STARTED
1.1 Package Contents
Please check the package contents by comparing them with the following
list. If you find anything missing or if the documentation set is incomplete,
contact your local phone dealer immediately
z Model F1000 (with one battery)
z Charger (one)
z User manual (one)
z Instructions for post-sale support
z Certificate of quality
7
Getting Started
1.2 Phone Specifications
Dimensions About 107.8 x 44 x 23.5 (L×W×H) mm
Weight Approximately 100g
Battery DC 3.6V 1500mAh Li-ion battery
Charger
Input: 100~240V AC, 50~60Hz
Output: 5.2V DC, 600mA
Charger Weight Approximately 80g
Charging Time 3~4 hours
Standby Time 50~100 hours
Talking Time Approximately 5 hours
z Standby time refers to the state in which the phone is on continuously
without being used for calls, or moved to different service areas
z The standby time depends on the network conditions, phone usage
and surrounding area. The phone consumes more battery power
under the following conditions:
- In areas with weak signals, with high or low temperatures, or when
used outside the service coverage area
- When the phone frequently searches for network signal due to
location changes
- When you talk on the phone for long periods of time
- The Alarm, Backlight or Vibration function is active
- Ring or earpiece volume is set to maximum
8
Getting Started
1.3 Handset Description
1. Fixed antenna
2. Earpiece
3. LCD Screen
4. Navigation Key:
This key is used to scroll up and down through menu lists
5. Left Soft Key:
This key is used to perform the function indicated on the screen above
it
9
Getting Started
6. Talk Key:
This key is used to make or receive a call. It can also be used to
access outgoing call logs in standby mode
7. ~ Number Keypad:
These keys are used to enter numbers and characters
8. * Key/Switch Key:
This key is used to key in “*” or change the text input method
9. Charging Socket
10. Earphone Socket
11. Right Soft Key:
This key is used to perform the function indicated on the screen above
it
12. Power Key:
This key is used to switch the phone on and off, to end a call, or to
return to standby mode
13. # Key/Lock Key:
This key is used to key in “#” or pause symbol “P” (by pressing and
holding the key), or to lock the keypad
14. Microphone
15. Battery Cover Release Button
16. Battery Cover
~ Note: This is only a brief introduction to the keypad functions.
Please refer to the contents of this user manual for detailed
descriptions and operations
10
Getting Started
1.4 Display Indicators
1 2 3 4 5 6 7
8
9
1. Shows the current signal strength. The higher the bar, the stronger
the signal
Strong Weak
2. Indicates a new voice mail has been received
3. Indicates the keypad is locked
4. Means the Ring Mode is set to Mute; if the Ring Mode is set to
Ringing, will be displayed
5. Means the Ring Mode is set to Vibration
If you press and hold the vibration shortcut key in standby
mode, will be displayed (see “Vibration Shortcut”)
6. Indicates the Alarm function is active
7. Indicates the battery charge level. The higher the bar, the greater
the battery power
High Low
11
Getting Started
8. Content Display Area: Shows phone numbers, characters, etc.
9. Soft key function display area: Shows the functions of the left soft key
and the right soft key

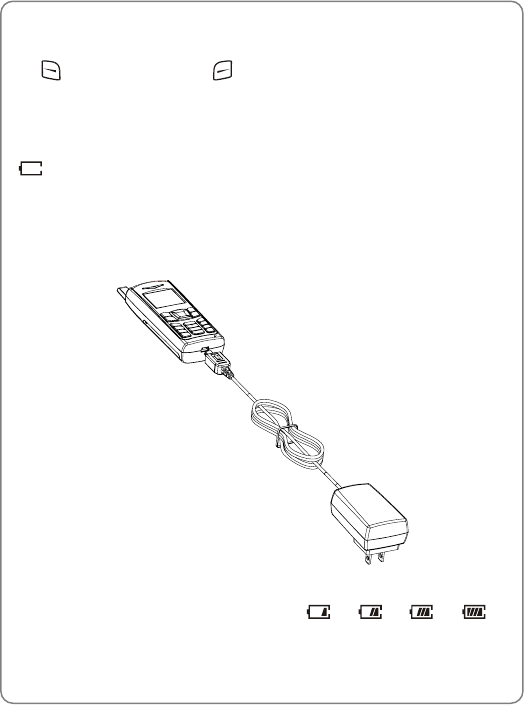

1.5 Charge the Battery
When the battery power is low and needs recharging, the battery indicator
will flash continuously, and the phone will sound a low battery alarm
(if the alert tone is set to ON), reminding you that the battery is running
low and the phone will be switched off automatically. To charge the battery,
follow the steps below:
1. Connect the charger to an AC wall outlet (100~240V)
2. Connect the lead from the charger to the charging socket of the phone.
The battery indicator bar starts to scroll ( Æ Æ Æ ). If
the phone is off, the text “Charging…” is also displayed on the LCD
screen
12
Getting Started
3. When the battery indicator bar stops scrolling, charging is complete.
The text “Fully Charged!” is also displayed on the LCD screen, if the
phone is off
z The phone takes about 3~4 hours to charge and the exact time may
vary depending on the circumstances
z With your phone turned off, charge your new battery for 4 hours before
its first use
z When the battery is being charged, it is normal that your charger and
phone become warm to the touch
z If the phone is turned on while charging, you can still make and
receive calls as usual, but this will consume battery power, thus
extending the charging time
1.6 Replace the Battery
Since battery power is easily consumed, if you find the battery power
diminishes quickly after full charging, please replace your battery. After
replacing the battery, you will need to reset the date and time
1. In standby mode, switch the phone off by pressing and holding .
(Otherwise, some user settings will be lost.)

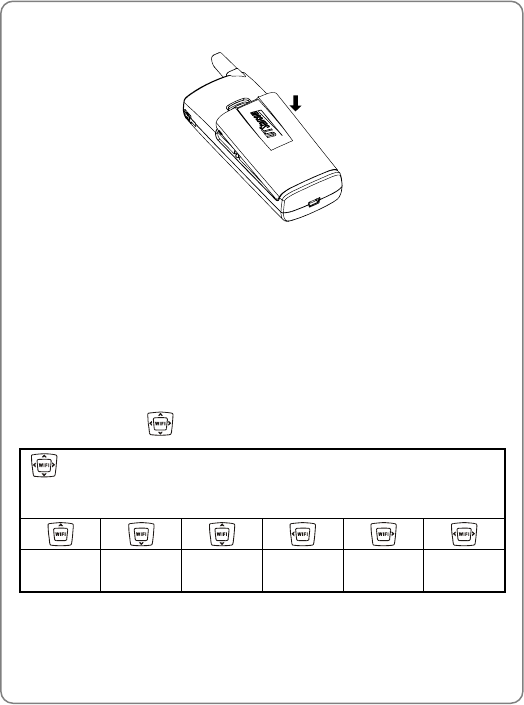

2. Remove the battery cover
With the back of the phone facing you, press the battery cover release
button and lift the cover off in the direction of the arrow
13
Getting Started
3. Remove the old battery
Disconnect the cord by firmly gripping the connector (not the battery
connection wire) and pulling gently as illustrated
Red
Yellow
Black
4. Install the new battery
Connect the cord of the new battery by firmly inserting the connector
into its place. Do not reverse the connector
Red
Yellow
Black
14
Getting Started
5. Replace the battery cover until it clicks into place
1.7 Conventions Used in this Manual
z In this manual, “press the key” means to release the key after you
press it; “press and hold the key” means to press the key for over 2
seconds before releasing it
z The text displayed on the screen is indicated in bold in this manual, for
example Menu
z Navigation key operations follow:
Press the “Up”, “Down”, “Left”, and “Right” directions on the
Navigation key to execute operations such as browsing, selecting,
adjusting and setup; key directions are as follows:
Up Down
Up or
Down Left Right
Left or
Right
15
Getting Started
1.8 Access Menu/List Options
A variety of options are available for the menus and lists, such as: Menu
and Names
For example, to access ÆSettingsÆAnswer Mode, follow the
steps below:
1. In standby mode, press the left soft key (Menu)
2. Press to reach Settings, and then press the left soft key (OK)
3. Press to highlight Answer Mode, and then press the left soft key
(OK)
~ Note: To return to the previous menu level, press the right soft key
(Exit). To return to standby mode without changing the menu
settings, press .
If you stop operating the phone for two minutes, the phone will
return to standby mode without changing the menu settings
16
Basic Operations
2. BASIC OPERATIONS
2.1 Switch the Phone On/Off
Press and hold the power key . The phone will display the
power-on/off animation
If the PowerOn Code function is active, after switching on the phone,
enter the security code (with each input displayed as *) and press the left
soft key (Ok). If correct, the power-on animation will be displayed;
otherwise Code Error will be displayed
2.2 Make a Call
1. Key in the phone number
Press to move the cursor. Press the right soft key (Clear) to
delete the character or digit to the left of the cursor. To delete all the
numbers or characters, press and hold the right soft key (Clear)
2. Press to call the number. “Connecting..” will be displayed
To cancel the call attempt, press the right soft key (Cancel). A
time display of 00:00:00 will appear
3. When the call is connected, the call timer is displayed
4. To end the call, press the right soft key (Hangup) or the key
2.3 Use Speed Dial
If you have assigned a phone number to one of the speed dial keys
~ , you can quickly call that phone number:
17
Basic Operations
1. In standby mode, press and hold the corresponding speed dial key to
automatically display the phone number
2. Press to call the number
2.4 Answer a Call
z If the Answer Mode is set to Talk Key, press the left soft key
(Answer) or the key to answer an incoming call
z If the Answer Mode is set to Any Key, press any key to answer an
incoming call except the right soft key , the key or the
key
z When there is an incoming call, you may press to stop the
vibration or ring alert without picking up the call
z To end an ongoing call, press the right soft key (Hangup) or the
key
2.5 Reject a Call
z When there is an incoming call, press the right soft key (Hangup)
or the key to reject the call
z If you press the right soft key (Hangup) to reject an incoming call,
the call duration 00:00:00 will be displayed
z When there are missed calls (excluding rejected calls), the number of
missed calls will be displayed, for example Missed Log 3. In this case,
press the left soft key (View) to enter the missed call log (Missed
Log)
18
Basic Operations
2.6 In Call Operations
While on a call, you can perform the following operations:
2.6.1 Hold a Call
You can place an ongoing call temporarily on hold
During a call, press the left soft key (Option), and then press the left
soft key (Ok) to select Hold. “Holding…” will be displayed
z To take the call off hold, press the left soft key (Option), and then
press the left soft key (Ok) to select Unhold
z To end the held call, press the right soft key (Hangup) or the
key
2.6.2 Call Waiting
If the Call Waiting function is activated, when another call comes in during
a call, the earpiece will sound a waiting tone
z To reject the incoming third party call and continue the current call,
press the right soft key (Hangup)
z To hold the current call and answer the incoming third party call, press
the left soft key (Answer)
After answering the third party call, you can perform the following
operations:
z Press the left soft key (Option). Press to highlight Swap
and press the left soft key (Ok) to switch between the current call
and the held call
z Press the left soft key (Option). Press to highlight End Held
Call and press the left soft key (Ok) to end the held call
19
Basic Operations
z Press the right soft key (Hangup) to end the current call. Then,
you can press the left soft key (Option) and select Unhold to take
the held call off hold
z Press the key to end both calls
2.6.3 Make a New Call
While on a call, if you need to connect to a third party, press the left soft
key (Option). Press to highlight New Call and press the left soft
key (Ok). Key in the third party’s phone number, and then press the
left soft key (Ok) or the key. When the connection succeeds, you
can start the call with the third party. The original call will be placed on
hold
The following operations are available:
z Press the left soft key (Option). Press to highlight Swap
and press the left soft key (Ok) to switch between the current call
and the held call
z Press the left soft key (Option). Press to highlight End Held
Call and press the left soft key (Ok) to end the held call
z Press the right soft key (Hangup) to end the current call. Then,
you can press the left soft key (Option) and select Unhold to take
the held call off hold
z Press the key to end both calls
2.6.4 Conference Call
After making a new call with the original call on hold (see “Make a New
Call”), you can make a conference call with both parties. Press the left soft
key (Option). Press to highlight Conference and press the left
20
Basic Operations
soft key (Ok) to initiate the conference call
z During the conference call, press the left soft key (Option). Press
to highlight Drop and press the left soft key (Ok). Press
to highlight the desired party, and press the left soft key (Ok) to
end the call with the selected party
z During the conference call, pressing the right soft key (Hangup)
or the key will end both calls
2.6.5 Transfer a Call
If the Call Transfer function is activated, you can transfer an ongoing
received call to another phone number:
After answering a call, press the left soft key (Option). Press to
highlight Call Transfer and press the left soft key (Ok). Key in the
transfer number and press the left soft key (Ok)
z The call will be directly transferred to the dialed phone number after
the connection succeeds
2.6.6 Mute the Microphone Volume
During a call, press the left soft key (Option). Press to highlight
Mute and press the left soft key (Ok). The microphone volume will be
set to mute
z To resume the volume, press the left soft key (Option). Press
to highlight Unmute and press the left soft key (Ok)
21
Basic Operations
2.6.7 Access the Phonebook
While on a call, press to access the phonebook entry list
z When you press to access the phonebook, the last phonebook
entry will be highlighted; when you press to access the
phonebook, the first entry will be highlighted
z After entering the phonebook, press to scroll through the entries.
Press the left soft key (Details) to check the details (name, phone
number and group) for the highlighted entry
z In the phonebook entry list, Press ~ to enter the first
letter(s)/digit(s) of the desired entry (name). All names starting with
these letter(s)/digit(s) will be displayed (see “Search” under the
Phonebook menu for details)
~ Note: If there are no entries in the phonebook, when you press ,
the error tone will sound
2.6.8 Adjust the Earpiece Volume
1. During a call, press to access the earpiece volume adjustment
screen
2. There are six volume levels. Press to increase or to
decrease the volume
If the volume is at the highest level, the volume level will not change
when is pressed; if the volume is at the lowest level, the volume
level will not change when is pressed
22
Basic Operations
3. After completing the volume selection, press the right soft key
(Exit) or wait for two seconds to return to the call timer mode. The
phone will save the adjusted volume level
2.7 Store a Phone Number
In standby mode, new entries can be added to the phonebook
1. Enter the desired phone number and press the left soft key (Save)
2. Enter the name according to the prompts and press the left soft key
(Ok)
3. Press to highlight the desired group for this phone number and
press the left soft key (Ok) to complete the operation
~ Note: The phone number and name of the newly added record
cannot be identical to those of an existing record. Otherwise, the
text Exists will be displayed after you enter the name and press the
left soft key (Ok)
2.8 Call Log Shortcut
In standby mode, you can quickly view the call logs: outgoing call log
(Dialed Log), received call log (Received Log) and missed call log (Missed
Log)
z Press to display the latest outgoing call. Press to scroll
through other outgoing call records
z Press to display the latest received call. Press to scroll
through other received call records
z Press to display the latest missed call. Press to scroll
through other missed call records
23
Basic Operations
After the intended record is displayed, you can press to call the
number
To perform other operations with the record, press the left soft key
(Option). (See “Call Log” for details)
2.9 Custom Functions Shortcut
1. In standby mode, press to access the custom functions menu
2. Press to highlight the desired option: WiFi (1), Network (2),
Scheme (3), Calculator (4), Calendar (5) or Voice Mail (6), and then
press the left soft key (Ok) to access the option
You can also access an option by pressing its corresponding number
key
2.10 Current Profile Shortcut
In standby mode, press to access the menu of the current profile.
Press to highlight the desired option, and then press the left soft key
(Ok) to access the option.
For details of profile setup, see “Profiles”
2.11 Vibration Shortcut
In standby mode, press and hold to set the ring mode for incoming
calls and alarms to vibration, and set the keypad tone and alert tone to
“OFF”. will be displayed.
z Press and hold again to resume ring mode, keypad tone and
alert tone in the current profile
z For detailed operations, see “Ring Mode”
24
Basic Operations
2.12 Keypad Lock
The keypad lock prevents the keys from being accidentally pressed,
resulting in unintentional operations
z In standby mode, press and hold to lock the keypad. The
indicator will be displayed
z To unlock the keypad, press and hold again in standby mode
z When the keypad is locked, you can answer a call as usual. During the
call, you can operate the phone normally. However, the keypad will
automatically lock when the call ends, or if the call is rejected
z When the keypad is locked, even if the Backlight is not set to OFF, the
LCD screen and keypad will not light when keys are pressed
25
Phonebook (Names)
3. PHONEBOOK (NAMES)
You can store frequently used phone numbers and names in the phone
memory (phonebook). The phonebook can store up to 200 entries. Each
entry may contain a name, phone number and group information
You can enter the phonebook in either of the following ways:
z In standby mode, press the right soft key (Names)
z In standby mode, press the left soft key (Menu), press to
scroll to Phonebook and press the left soft key (Ok)
From the phonebook menu, you can select from the following options:
3.1 Search
ÆSearch
After you access this option, the phonebook entry list will be displayed.
Key in the first letter(s) or digit(s) of the name you are searching for. All
names starting with these letter(s)/digit(s) will be displayed, including
Chinese names starting with corresponding PinYin letters
Enter letters or digits as follows:
1. Press ~ to enter the corresponding letter or digit labeled
on the respective key. For keys ~ , press the
corresponding key repeatedly until the intended letter/digit appears.
For example: if you press repeatedly, the following letters and
digit appear in turn:
a→b→c→2
26
Phonebook (Names)
2. The letter/digit just entered will be underlined. After you have entered
the intended letter/digit, press the appropriate number key to input the
next letter/digit. If the next letter/digit and current letter/digit share the
same key, wait for one second to input the letter/digit again
To delete the last entered letter/digit, press the right soft key
(Clear); to delete all letters/digits, press and hold the right soft key
(Clear)
z When a matched name is highlighted, you can press to call the
corresponding phone number
z When an entry (name) is highlighted, press the left soft key
(Details) to see the detailed information: name, phone number and
group category. Press to browse through the text
When the entry details are displayed, you can press to call the
phone number
When the entry details are displayed, you can press the left soft key
(Option) to select from the following options:
3.1.1 Edit
Change names, numbers and group categories by following the screen
prompts
3.1.2 Delete Entry
After this option is selected, “Delete?” will be displayed. Press the left soft
key (Ok) to confirm the deletion
3.2 Add Entry
ÆAdd Entry
Select this option to add new entries into the phonebook
27
Phonebook (Names)
1. Key in the name, and press the left soft key (Ok)
You can enter a maximum of 20 English letters or 10 Chinese
characters (see “Input Method”)
2. Enter the phone number (24 digits maximum), and press the left soft
key (Ok)
The phone number cannot be left blank; otherwise Number Error will
be displayed
3. Press to highlight the desired group category: Family, Friend,
Colleague, Classmate, VIP, Partner, Others or Blacklist. Press the
left soft key (Ok) to complete the operation
z If the name is not filled in, the phone will use the first 12 digits from the
phone number as the name
z The phone number and name of the newly added record cannot be
identical to those of an existing record. Otherwise, the text Exists will
be displayed after you enter the phone number and press the left soft
key (Ok)
z The phone will automatically reject any incoming caller whose number
is on the Blacklist. No response will be displayed. (Caller ID service
needs to be activated)
z No more entries can be added if the phonebook memory is full. When
Add Entry is selected, the phone will remind you that the phonebook
memory is full
z In standby mode, you can add a new entry by entering the phone
number and pressing the left soft key (Save). Then, enter the
name and press the left soft key (Ok); press to highlight the
desired group category and press the left soft key (Ok) to
complete the operation
28
Phonebook (Names)
3.3 Delete Entry
ÆDelete Entry
You can select from the following options to delete entries one by one or
all at once
3.3.1 One by One
ÆDelete EntryÆOne by one
When you access this option, the phonebook entry list will be displayed.
Enter the first letter(s)/digit(s) of the intended entry (name). Press to
highlight the entry, and then press the left soft key (Delete). When
“Delete?” is displayed, press the left soft key (Ok) to confirm the
deletion
3.3.2 All
ÆDelete EntryÆAll
When you access this option, the prompt Enter Code will be displayed.
Enter the security code, and press the left soft key (Ok). If the code is
correct, all phonebook entries will be deleted; otherwise Code Error will
be displayed
3.4 Group Info
ÆGroup Info
After accessing this option, press to highlight the desired group
category: Family, Friend, Colleague, Classmate, VIP, Partner, Others
or Blacklist, and press the left soft key (Ok). Then, you can select
from the following options:
29
Phonebook (Names)
3.4.1 Ring Tone
Select this option to specify a ring tone for the particular group category
Press to highlight and sample the ring tone options. Then press the
left soft key (Ok) to complete your selection
~ Note: The Blacklist only has a Browse function because the
phone will automatically reject any call from this group. Thus, it is
not necessary to set a ring tone for the Blacklist group
3.4.2 Browse
When you access this option, the list of entries in the selected group
category will be displayed
Enter the first letter(s)/digit(s) of the desired entry (name). Press to
highlight the entry, and press the left soft key (Details) to view the
details for the entry. Press the left soft key (Option), and select Edit
or Delete Entry to edit or delete this entry
3.5 Speed Dial
ÆSpeed Dial
Select this option to assign a phone number in the phonebook to one of
the speed dial ke ys ~ for greater convenience when dialing
(see “Use Speed Dial”)
After you access this option, the setting status for key #1 ( ) will be
displayed. Press to browse through the speed dial key settings
z If no phone number is assigned to the key, Unset will be displayed.
Press the left soft key (Set); the phonebook entry list will be
displayed (if there are no entries in the phonebook, No Record will be
displayed). Enter the first letter(s)/digit(s) of the desired entry (name).
30
Phonebook (Names)
Press to highlight the entry, and press the left soft key (Ok)
to assign the number to the key
z If a phone number has been assigned to the key, the corresponding
name will be displayed. To change or cancel the setting for this key,
press the left soft key (Option), and then select Edit or Cancel
~ Note: If the record for a speed dial key is modified in the phonebook,
it will automatically be updated for the speed dial key function
~ If the record for a speed dial key is deleted from the phonebook, it
will also be cancelled for the speed dial key function
3.6 Memory
ÆMemory
Select this option to view the number of records in each group category,
totally stored records (Used) and available records (Unused)
31
Menu
4. MENU
In standby mode, press the left soft key (Menu) to access the menu.
Press to reach the desired submenu, and press the left soft key
(Ok) to access the submenu
4.1 Call Log
ÆCall Log
Your phone records missed, received and dialed calls as well as their call
durations
In standby mode, you can press , or to quickly access
Missed Log, Received Log or Dialed Log (see “Call Log Shortcut”)
4.1.1 Missed Log
ÆCall LogÆMissed Log
This option enables you to view the last 20 missed calls
After you access this option, the phone will display the information of the
most recent missed call Missed 1: the caller’s phone number or name (if
the number is stored in the phonebook). Press to view other missed
calls
~ Note: This function only works in networks that support the Caller
ID service; otherwise No Caller ID will be displayed in the missed
log. If the caller’s phone is set to block the caller’s number, No
Caller ID will also be displayed
When viewing a log, you can dial the caller’s phone number by pressing
.
When a call log is displayed, press the left soft key (Option). The
32
Menu
following options will be available:
4.1.1.1 Edit
After you access this option, the caller’s phone number will be displayed.
You can edit the phone number, and then save or dial the edited number:
Save Number
After editing the number, press the left soft key (Save). Key in the
name and press the left soft key (Ok). Press to highlight the
desired group category, and then press the left soft key (Ok) to
complete the operation
Dial Number
After editing the number, press to call the displayed number
~ Note: If No Caller ID is shown in the log, when you select Edit,
Number Error will be displayed
When you are saving the number, the phone number and name
cannot be identical to those of an existing phone book entry.
Otherwise, the text Exists will be displayed after you enter the
name and press the left soft key (Ok)
4.1.1.2 Time
Select this option to view the time the call came in
4.1.1.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key (Ok) to complete the deletion
33
Menu
4.1.2 Received Log
ÆCall LogÆReceived Log
This option enables you to view the last 20 received calls
After you access this option, the phone will display the information of the
most recently received call Received 1: the caller’s phone number or
name (if the number is stored in the phonebook). Press to view other
received calls
~ Note: This function only works in networks that support Caller ID
service; otherwise No Caller ID will be displayed in the received log.
If the caller’s phone is set to block the caller’s number, No Caller ID
will also be displayed
When viewing a log, you can dial the caller’s phone number by pressing
.
When a call log is displayed, press the left soft key (Option). The
following options will be available:
4.1.2.1 Edit
After you access this option, the caller’s phone number will be displayed.
You can edit the phone number, and then save or dial the edited number.
See “Edit” under the Missed Log option for details
4.1.2.2 Time
Select this option to view the time the call came in
4.1.2.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key (Ok) to complete the deletion
34
Menu
4.1.2.4 Duration
Select this option to view the duration of the received call.
4.1.3 Dialed log
ÆCall LogÆDialed Log
This option enables you to view the last 20 dialed calls
After you access this option, the phone will display the information of the
most recent outgoing call Dialed 1: the dialed phone number or name (if
the number is stored in the phonebook). Press to view other
outgoing calls
~ Note: If you dial a number that has been recorded in the Dialed Log,
the phone will update the log after the call ends
When viewing a log, you can call the dialed phone number by pressing
.
When a call log is displayed, press the left soft key (Option). The
following options will be available:
4.1.3.1 Edit
After you access this option, the dialed phone number will be displayed.
You can edit the phone number, and then save or dial the edited number:
Save Number
After editing the number, press the left soft key (Save). Key in the
name and press the left soft key (Ok). Press to highlight the
desired group category, and then press the left soft key (Ok) to
complete the operation.
35
Menu
~ Note: The phone number and name cannot be identical to those of
an existing phone book entry. Otherwise, the text Exists will be
displayed after you enter the name and press the left soft key
(Ok).
Dial Number
After editing the number, press to call the displayed number
4.1.3.2 Time
Select this option to view the time the call was dialed
4.1.3.3 Delete
When you access this option, “Delete?” will be displayed. Press the left
soft key (Ok) to complete the deletion
4.1.3.4 Duration
Select this option to view the duration of the dialed call
4.1.4 Delete Log
ÆCall LogÆDelete Log
This option enables you to delete all missed calls, received calls, dialed
calls, or to delete all
z If you select Missed Log, Received Log or Dialed Log, the text
“Delete?” will be displayed. Press the left soft key (Ok) to
complete the deletion
z If Delete All is selected, follow the prompts to enter the security code
and press the left soft key (Ok) to delete all the call logs. If the
security code is incorrect, Code Error will be displayed
36
Menu
4.1.5 Duration
ÆCall LogÆDuration
This option enables you to view the approximate duration of received calls,
dialed calls, or the duration of all calls
After accessing this option, press to view the duration of received
calls (Received), dialed calls (Dialed), as well as the duration of all calls
(Total Time). The time will be displayed in “h:mm:ss” format
To clear the timer, press the left soft key (Reset). The text “Reset?”
will be displayed. Press the left soft key (Ok) to complete the
operation
37
Menu
4.2 Profiles
ÆProfiles
This submenu enables you to customize the phone alert settings to suit a
variety of environments
When you access this submenu, the profile list will be displayed; the
current profile will be highlighted. You can customize each profile, and
activate the one that suits your environment. The phone will utilize all the
current profile’s settings
Standard is the factory-preset profile
4.2.1 Standard
ÆProfilesÆStandard
4.2.1.1 Enable
ÆProfilesÆStandardÆEnable
Select this option to activate the selected profile
4.2.1.2 Set
ÆProfilesÆStandardÆSet
This option enables you to change the selected profile’s settings
When you press to browse though the options, the setting of the
highlighted option will be displayed in the adjacent bubble. Press the left
soft key (Ok) to access the highlighted option
Ring Volume
Select this option to adjust the ring volume level for incoming calls and the
alarm clock
38
Menu
There are two volume levels: High and Low. Press to reach the
desired volume level, and press the left soft key (Ok) to complete the
operation
Ring Mode
This function enables you to define how the phone will notify you of
incoming calls
The available options include: Ringing, Vibration and Mute. Press
to reach the desired ring mode, and press the left soft key (Ok) to
complete the operation
Ring Tone
This option enables you to select a special ring tone for incoming calls
Press to scroll through the ring tones and listen to a sample of each.
After highlighting the desired ring tone, press the left soft key (Ok) to
complete the operation
Alarm Tone
This option enables you to select an alarm tone for the alarm clock
Press to scroll through the alarm tones and listen to a sample of
each. After highlighting the desired alarm tone, press the left soft key
(Ok) to complete the operation
Keypad Tone
If this function is activated, when you press any key, the phone will sound
a tone. When an operation on the phone is completed or fails, the
respective success/failure tone will sound
Select ON or OFF to activate or deactivate this function
39
Menu
Alert Tone
If this function is activated, a warning tone will sound when the battery
power is low
Select ON or OFF to activate or deactivate this function
4.2.2 Meeting
ÆProfilesÆMeeting
This profile is suitable for meeting environments. You can preset this
option to meet your needs by following the same steps specified in
“Standard”
4.2.3 Outdoor
ÆProfilesÆOutdoor
This profile is suitable for outdoor environments. You can preset this
option to meet your needs by following the same steps specified in
“Standard”
4.2.4 User Define
ÆProfilesÆUser Define
This profile can be tailored for other environments. You can preset this
option to meet your needs by following the same steps specified in
“Standard”
40
Menu
4.3 Settings
ÆSettings
From this submenu, you can perform various phone settings
4.3.1 Scheme
ÆSettingsÆScheme
When this option is highlighted, the current setting will be displayed in the
adjacent bubble. After accessing this option, you can select from the
following options:
4.3.1.1 Static Picture
The standby display will become static after you set this option
After this option is selected, its current setting will be highlighted. To
customize a text and display it in standby mode, select User-defined; to
select and display a picture in standby mode, select from the options
Photograph1~Photograph24
z If User-defined is selected, enter up to 6 Chinese characters or 12
English letters (see “Input Method”), and then press the left soft key
(Ok) to complete the operation
z If one of the options Photograph1~Photograph24 is selected, the
corresponding picture will be displayed. You can press to browse
through other pictures. When the desired picture is displayed, press
the left soft key (Ok) to complete the operation
4.3.1.2 Every Hour
The standby display will change every hour in a 24-hour cycle after you
set this option. When this option is accessed, these options will be
available:
41
Menu
Default
The standby display will change every hour in the default picture
sequence after you select this option
User Edit
This option enables you to specify the picture or text for each hour
(Picture1~Picture24)
Select from the options Picture1~Picture24, and then edit text or select a
picture by following the same operations specified in “Static Picture”.
Default pictures will remain for unedited options
Change Preview
Select this option to preview the current setting for Every Hour. You can
press the left soft key (Replay) to re-preview the pictures or text
4.3.1.3 Every 3 Hours
The standby display will change every three hours in a 24-hour cycle after
you set this option. Follow the same operations specified in “Every Hour”
4.3.1.4 Every Day
The standby display will change every day in a 7-day cycle after you set
this option. Follow the same operations specified in “Every Hour”
4.3.2 Date/Time
ÆSettingsÆDate/Time
This option enables you to set the phone’s date and time. When you
highlight this option, the current date and time will be displayed in the
adjacent bubble
42
Menu
After accessing the option, enter a date from 2004-01-01 to 2019-12-31,
and then enter the time in 24-hour format. Press the left soft key (Ok)
to complete the operation
z When you key in the date or time, you can press to move the
cursor and modify the number
4.3.3 Answer Mode
ÆSettingsÆAnswer Mode
This option enables you to select how to answer an incoming call
When you highlight this option, its current setting will be displayed in the
adjacent bubble
After you access this option, the following will be available:
4.3.3.1 Any Key
Press any key to answer an incoming call except the right soft key ,
the key and the key
4.3.3.2 Talk Key
Press the left soft key (Answer) or the key to answer an
incoming call
4.3.4 Language
ÆSettingsÆLanguage
This option enables you to select the language of the phone’s text display
When you highlight this option, the current language setting will be
displayed in the adjacent bubble
You can select 简体中文 (Simplified Chinese) or English
43
Menu
4.3.5 Display
ÆSettingsÆDisplay
You may set the display for the LCD screen as follows:
4.3.5.1 Backlight
ÆSettingsÆDisplayÆBacklight
When you highlight this option, the current setting will be displayed in the
adjacent bubble
If the Backlight is not set to OFF, the LCD screen and keypad will light
when you press keys or the phone receives a call
The following options are available:
OFF
Select this option to deactivate the backlight
Battery Saving
In this mode, the backlight will last for 5 seconds after the last keystroke
Normal
In this mode, the backlight will last for 15 seconds after the last keystroke
4.3.5.2 Contrast
ÆSettingsÆDisplayÆContrast
This option enables you to specify the contrast level for the LCD screen.
When you highlight this option, the current setting will be displayed in the
adjacent bubble
There are six contrast levels. Press to increase or to decrease
the contrast. The screen display will reflect the contrast setting. After
44
Menu
reaching the desired contrast level, press the left soft key (Ok) to
complete the operation
4.3.5.3 Screen Saver
ÆSettingsÆDisplayÆScreen Saver
When you highlight this option, the current setting will be displayed in the
adjacent bubble
If the Screen Saver is not set to Off, the clock screen saver will be
displayed after the phone has been in standby mode for one minute. The
screen saver will disappear when you press keys
The following options are available:
Digital Mode
In this mode, the screen saver will display a digital clock
Analog Mode
In this mode, the screen saver will display an analog clock
Off
Select this option to deactivate the Screen Saver function
4.3.5.4 On/Off Animation
ÆSettingsÆDisplayÆOn/Off Animation
This option enables you to select the power-on/off animation. When this
option is highlighted, its current setting will be displayed in the adjacent
bubble
Select one of the options Animation 1 ~ Animation 4; the corresponding
animation will be displayed. Press the left soft key (Ok) to complete
the operation
45
Menu
4.3.6 Set Security
ÆSettingsÆSet Security
This option enables you to set the security level to protect your phone
After accessing this option, you will be prompted to enter the security
code. Key in the security code and press the left soft key (Ok). If
correct, the following options will be available (otherwise Code Error will
be displayed)
4.3.6.1 PowerOn Code
If this function is active, the security code will need to be entered each
time you switch on the phone. When this option is highlighted, its current
setting will be displayed in the adjacent bubble
After accessing this option, select ON or OFF to activate or deactivate
4.3.6.2 Change Code
Select this option to change the security code. Observe the following
steps:
1. When New Code is displayed, enter a new security code (0~6 digits
long, using numbers 0~9), and then press the left soft key (Ok).
Confirm Code will be displayed
2. Enter the new security code again and press the left soft key (Ok)
to complete the operation
z The security code is “888888” by default
z If the new security code entered in step 2 is different from that entered
in step 1, when you press the left soft key (Ok), Not Matched will
be displayed
z To avoid any inconvenience, please remember the new security code
46
Menu
4.3.6.3 Reset All
Select this option to restore your phone’s default settings
When you access this option, “Reset All?” will be displayed. Press the
left soft key (Ok) to complete the operation
This operation will not delete the phonebook entries or call logs. It cannot
change the phone’s date and time either
Phone Default Settings
Functions Default Settings
Profiles Standard
Earpiece Volume 3
Call Log (Duration) 0:00:00
Speed Dial Setting No
Phonebook Group (Ring Tone) Ring 5
Security Code 888888
PowerOn Code OFF
Scheme Static Picture
Scheme (Static Picture) Photograph1
Scheme (User-defined) (Blank)
Answer Mode Talk Key
Language English
Backlight Battery Saving
Contrast 3
Screen Saver Digital Mode
On/Off Animation Animation 3
Input Method (PinYin, Sim Stroke) OFF (Deactivated)
Input Method (English, Letter) ON (Activated)
47
Menu
Functions Default Settings
Alarm (On/Off) OFF
Alarm (Set Time) 08:00
Alarm (Snooze) OFF
Current Time Zone New York
Profiles Default Settings
Profile
Options Standard Meeting Outdoor User
Define
Ring Volume High Low High High
Ring Mode Ringing Vibration Ringing Ringing
Ring Tone Ring 6 Ring 6 Ring 6 Ring 6
Alarm Tone Ring 3 Ring 3 Ring 3 Ring 3
Keypad Tone OFF OFF OFF OFF
Alert Tone ON OFF ON ON
4.3.7 Input Method
ÆSettingsÆInput Method
In addition to digit input method, the phone supports four kinds of input
methods including PinYin, Sim Stroke, English and Letter. You can
choose to activate or deactivate these four methods. Consequently, on
the character input interface (such as inputting phonebook entry names),
you can switch between the activated input methods and digit input
method
After you access this option, press to highlight the intended input
method option. The current setting will be displayed in the adjacent
bubble. Press the left soft key (Ok) to access this input method option,
and then select ON or OFF to activate or deactivate
48
Menu
4.4 Tools
ÆTools
From this submenu, you can use the Calculator, view the Calendar, set
the Alarm or change the current Time Zone
4.4.1 Calculator
ÆToolsÆCalculator
This function enables you to add, subtract, multiply and divide
1. The screen will initially display the number “0”. Enter the first number to
be calculated
- To enter a minus sign, press (only the first number can be
made negative); to enter a decimal point, press
2. Press , , or to enter the plus, minus, multiplication or
division signs respectively
3. Enter the second number
- To enter “0”, press and ; “0.0” will be displayed
4. Press to display the calculation result
- To conduct further calculations from this result, repeat steps 2~4
5. When starting a new calculation, if the result from the last calculation is
not “0”, press the right soft key (Clear) to initialize
z To delete the character you just entered, press the right soft key
(Clear); to erase all entered characters, press and hold the right soft
key (Clear)
z A maximum of 9 digits (including minus sign and decimal point) can be
entered at one time
49
Menu
z If the formula violates mathematical principles (for example, 5/0),
Error will be displayed
z If the absolute value of the calculation result exceeds 999,999,999,
Overflow will be displayed
4.4.2 Calendar
ÆToolsÆCalendar
This function enables you to view the calendar from January 1, 2000 to
December 31, 2049
After accessing this option, you can press to highlight the desired
date
4.4.3 Alarm
ÆToolsÆAlarm
This function enables you to set the alarm for a specified time. Once
activated, the alarm indicator will be displayed
z When the preset alarm time expires, the phone will sound the alarm;
an alarm icon and the current time will be displayed. The alarm will
sound for 30 seconds unless dismissed
z To dismiss the alarm and return to standby mode, press any key
z If the alarm time expires during a call, the alarm will not sound
When you highlight one of the following options, its current setting will be
displayed in the adjacent bubble. You can set the alarm function by
observing the following operations:
4.4.3.1 On/Off
ÆToolsÆAlarmÆOn/Off
After accessing this option, select ON or OFF to activate or deactivate the
alarm function
50
Menu
4.4.3.2 Set Time
ÆToolsÆAlarmÆSet Time
Select this option to set the alarm time. Enter the time in 24-hour format,
and then press the left soft key (Ok) to complete the operation
z When you key in the time, you can press to move the cursor and
modify the number
z The cursor will advance if the number entered is valid; otherwise, the
phone will sound an error tone (if the Keypad Tone is set to ON)
4.4.3.3 Snooze
ÆToolsÆAlarmÆSnooze
If this function is activated, the alarm will repeat 3 times at 5-minute
intervals after the original alarm time expires
You can select ON or OFF to activate or deactivate this function
4.4.4 Time Zone
ÆToolsÆTime Zone
This function enables you to change the current time zone
After you access this option, some cities (time zones) and their time
differences will be displayed; the current time zone will be highlighted
Press to highlight the desired time zone, and then press the left soft
key (Ok) to set it as the current time zone. The phone’s time will
change accordingly
51
Menu
4.5 WiFi-Settings
ÆWiFi-Settings
From this submenu, you can perform the following WiFi settings
~ Note: After completing WiFi settings, switch off the phone and then
switch it on, in order that the changed WiFi settings can take effect
4.5.1 Network Parameter
ÆWiFi-SettingsÆNetwork Parameter
This option enables you to set network parameters:
4.5.1.1 DHCP
ÆWiFi-SettingsÆNetwork ParameterÆDHCP
When you highlight this option, the current setting will be displayed in the
adjacent bubble
After accessing this option, select Disable or Enable to disable or enable
DHCP
4.5.1.2 IP
ÆWiFi-SettingsÆNetwork ParameterÆIP
This option enables you to perform IP settings
When you highlight one of the following options, its current setting will be
displayed in the adjacent bubble
~ Note: Only when DHCP is disabled, can the IP option be available.
Otherwise, when you select this option, Please disable DHCP will
be displayed
52
Menu
IP Address
Select this option to set the phone’s IP address
After accessing this option, key in the IP address, and press the left soft
key (Ok) to complete the operation
Subnet Mask
Select this option to set the subnet mask
After accessing this option, key in the subnet mask, and press the left soft
key (Ok) to complete the operation
Gateway IP Address
Select this option to set the gateway IP address
After accessing this option, key in the gateway IP address, and press the
left soft key (Ok) to complete the operation
4.5.1.3 DNS
ÆWiFi-SettingsÆNetwork ParameterÆDNS
This option enables you to perform DNS settings. When you highlight one
of the following options, its current setting will be displayed in the adjacent
bubble
DNS Server IP Address
Select this option to set the IP address of the local DNS server
After accessing this option, key in the IP address, and press the left soft
key (Ok) to complete the operation
53
Menu
Priority
Select this option to set the priority
You can select DHCP First or Local First
4.5.1.4 Network Information
ÆWiFi-SettingsÆNetwork ParameterÆNetwork Information
Select this option to view the network information
4.5.2 Signal Protocol
ÆWiFi-SettingsÆSignal Protocol
From this option, you can set signal protocols:
4.5.2.1 SIP
ÆWiFi-SettingsÆSignal ProtocolÆSIP
This option enables you to set the SIP protocol. The following options are
available
When you highlight one of these options, its current setting will be
displayed in the adjacent bubble
SIP Proxy Mode
Select this option to set the SIP proxy mode
After accessing this option, you can select DNS or IP
54
Menu
SIP Proxy Domain Name
Select this option to set the SIP proxy domain name
After accessing this option, enter the domain name, and press the left soft
key (Ok) to complete the operation
SIP Proxy IP Address
Select this option to set the SIP proxy IP address
After accessing this option, key in the IP address, and press the left soft
key (Ok) to complete the operation
SIP Proxy Port
Select this option to set the SIP proxy port
After accessing this option, key in the port number, and press the left soft
key (Ok) to complete the operation
z The default SIP proxy port is “5061”
SIP User Name
Select this option to set the SIP user name
After accessing this option, enter the user name (1~32 alphanumeric
characters), and press the left soft key (Ok) to complete the operation
SIP Password
Select this option to set the SIP password
After accessing this option, enter the password (0~32 alphanumeric
characters), and press the left soft key (Ok) to complete the operation
55
Menu
4.5.2.2 RTP
ÆWiFi-SettingsÆSignal ProtocolÆRTP
Select this option to set the RTP protocol
After you access this option, the RTP Port option will be displayed. Its
current setting will be displayed in the adjacent bubble
RTP Port
This option enables you to set the RTP port
After accessing this option, key in the RTP port number (10000~20000),
and press the left soft key (Ok) to complete the operation
z The port number should range from 10000 to 20000; otherwise Illegal
Input will be displayed
4.5.2.3 Voice Mail
ÆWiFi-SettingsÆSignal ProtocolÆVoice Mail
This option enables you to perform voice mail settings
After you access this option, the Voice Mail Access Number option will
be displayed. Its current setting will be displayed in the adjacent bubble
Voice Mail Access Number
Select this option to set the voice mail access number
After accessing this option, key in the access number, and press the left
soft key (Ok) to complete the operation
z The default voice mail access number is “*123”
56
Menu
4.5.3 WiFi Config
ÆWiFi-SettingsÆWiFi Config
From this option, you can perform WiFi configuration. After you access
this option, the SSID & WEP KEY option will be displayed
4.5.3.1 SSID & WEP KEY
ÆWiFi-SettingsÆWiFi ConfigÆSSID & WEP KEY
This option enables you to set SSIDs and WEP keys. When you highlight
one of the following options, its current setting will be displayed in the
adjacent bubble
Any
Select this option to enable the Any setting: the SSID is broadcast and the
WEP key is null
SET1 ~ SET4
Select from SET1 ~ SET4 to configure a set of SSID and WEP key and
activate the configuration
z To edit the SSID, select SSID. Enter the SSID (32 alphanumeric
characters maximum), and press the left soft key (Ok) to complete the
operation
- The SSID cannot be left blank; otherwise Illegal Input will be
displayed
z To edit the WEP key, select WEP KEY
- Select Null to set the WEP key to null
- If 64Bit is selected, you can select Edit or Activate to edit or
activate the 64Bit WEP key. While editing the WEP key, ensure that
the WEP key consists of five ASCII characters or ten hexadecimal
characters
57
Menu
- If 128Bit is selected, you can select Edit or Activate to edit or
activate the 128Bit WEP key. While editing the WEP key, ensure
that the WEP key consists of 13 ASCII characters or 26
hexadecimal characters
z To activate the setting of the SSID and WEP key, select Activate
~ Note: The corresponding AP (Access Point) need to select WEP
Key 1 as the default transmit key. Enter WEP Key 1 at the phone
~ The WEP key setting may be different due to AP settings
For a Linksys AP, a passphase is used to generate four WEP keys
and WEP Key 1 need to be selected. At the phone, you should enter
WEP Key 1
If an AP supports only a fixed hexadecimal WEP key, you should
enter the same WEP key to the phone
If an AP supports both ASCII and hexadecimal WEP keys, you can
enter either the ACSII WEP key or the hexadecimal WEP key to the
phone
4.5.4 Net Search
ÆWiFi-SettingsÆNet Search
This option enables you to search available networks (10 maximum) for
the phone. After selecting this option, the phone will start to search for
networks. The available SSID list will be displayed
Press to highlight the desired SSID, and press the left soft key
(Ok) to display the detailed information. To save the SSID, press the left
soft key (Save). Press to highlight the desired SET (SET1~4),
and press the left soft key (Ok). You can further edit the SSID, and then
press the left soft key (Ok) to complete the operation
z For setting the corresponding WEP key and activating the SET, see
“SSID & WEP KEY”
58
Menu
4.5.5 Vendor Information
ÆWiFi-SettingsÆVendor Information
Select this option to view the vendor information. Press to highlight
the desired option: Vendor Name, Enterprise Code, Model Name and
Version, and then press the left soft key (Ok) to view the
corresponding information
4.5.6 PC Config
ÆWiFi-SettingsÆPC Config
This option enables you to download WiFi setting parameters from a PC
to the phone via a serial cable
z When the operation is complete, restart the phone
59
Menu
4.6 Network Service
ÆNetwork Service
From this submenu, you can set the following network services:
4.6.1 Call Waiting
ÆNetwork ServiceÆCall Waiting
This option enables you to set the call waiting function
4.6.1.1 Per Call Basis
ÆNetwork ServiceÆCall WaitingÆPer Call Basis
Select Enable or Disable to activate or deactivate the per call basis call
waiting function
4.6.2 Call Transfer
ÆNetwork ServiceÆCall Transfer
If the call transfer function is active, you can transfer an ongoing received
call to another phone number. When this option is highlighted, the current
setting will be displayed in the adjacent bubble
After you access this option, the following will be available:
4.6.2.1 Disable
ÆNetwork ServiceÆCall TransferÆDisable
Select this option to deactivate the call transfer function
4.6.2.2 Blind
ÆNetwork ServiceÆCall TransferÆBlind
If this option is selected, you can directly transfer an ongoing received call
to another phone number after the connection succeeds
60
Menu
4.6.3 Registration Interval Time
ÆNetwork ServiceÆRegistration Interval Time
This opt
400 seconds),
ion enables you to set the registration interval time
After accessing this option, enter the interval time (0~86
and then press the left soft key (Ok) to complete the operation
4.6.4 Caller-ID Block
ÆNetwork ServiceÆCaller-ID Block
If this f our phone number will not
be dis
unction is active, when you dial a call, y
played on the called party’s phone
Select ON or OFF to activate or deactivate this function
4.6.5 Repeat Dial on Busy
ÆNetwork ServiceÆRepeat Dial on Busy
If this f lly redial the last busy
numb
unction is active, the phone will automatica
er that you tried to dial
Select ON or OFF to activate or deactivate this function
4.6.6 TFTP Update
ÆNetwork ServiceÆTFTP Update
This optio p te
a notice for the TFTP
n enables you to erform TFTP upda
After you select this option, the phone will display
update. Press to browse through the information. Press the left soft
key (Update) to initiate the TFTP update process
61
Menu
z After you press the left soft key (Update), “Connecting…” will be
displayed. You can press the right soft key (Shutdown) to stop
the update and switch the phone off
z When the connection succeeds, “Processing…” and “Please Wait”
will be displayed. All keystrokes are invalid in this state
z When the update is complete, restart the phone
~ Note: The phone will spend a long time completing the TFTP
update. Please do not unplug the battery
4.6.7 Reject Anonymous Incoming Call
ÆNetwork ServiceÆ Reject Anonymous Incoming Call
If this function is active, the phone will automatically reject anonymous
incoming calls
Select ON or OFF to activate or deactivate this function
4.6.8 Personal Info
ÆNetwork ServiceÆPersonal Info
Select this option to set a caller ID name for the phone. After accessing
this option, enter the caller ID name and press the left soft key (Ok) to
complete the operation
62
Input Method
5. INPUT METHOD
This phone supports five input methods, including PinYin, Sim Stroke,
English, Letter and Digit in order to provide easy input for letters and digits
in text editing mode

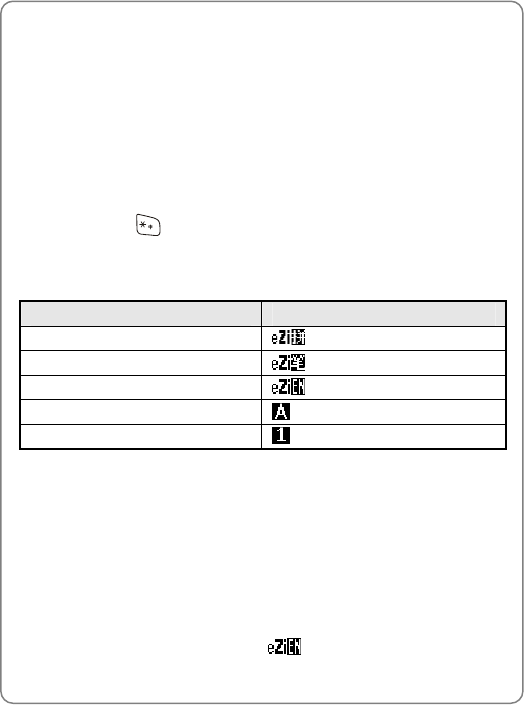

5.1 Switch Input Method
When you enter text-editing mode, the last active input method is
displayed. Press to switch between the activated input methods (see
“Input Method” under the Settings submenu for details) and digit input
method. The current input method indicator will be displayed at the lower
left side of the screen and include:
Input Method Indicator
PinYin
Sim Stroke
English
Letter
Digit
5.2 PinYin and Sim Stroke
These two input methods are only used for inputting Chinese characters
5.3 English
The phone supports intelligent English input and word association,
speeding up the input process
Switch the input method to English; will be displayed at the lower
left corner of the screen
63
Input Method
1. To enter letters, press ~ one time for the letters labeled
on the respective key; a word matching the input letters will be
displayed automatically
- When you enter the first letter of any English word, “*” will be
displayed (except and ). As you input letters, the phone
will automatically associate the matched English words
- If the letter input does not correspond with any English word in the
phone’s dictionary, this key press will have no response
- Press the right soft key (Clear) repeatedly to delete letters from
right to left
2. Select a word and change upper/lower case: If the word displayed is
not desired, press to scroll through other word alternatives. Press
to switch between upper and lower cases; press once to capitalize
the initial letter; press twice to capitalize all letters; press three times to
return letters to lower case
3. Enter the selected word: Press the left soft key (Ok) or to
confirm the selected word and to remove the underline; or press
to confirm the word and to add a space
- When no word is underlined, press to enter a space; press
to switch input methods; press to move the cursor; press
the right soft key (Clear) to delete the character to the left of the
cursor; press and hold the right soft key (Clear) to delete all
characters
4. Enter symbols: When no word is underlined, press to display the
symbol list. Press to highlight the intended symbol. Press the left
soft key to enter the selected symbol
64
Input Method

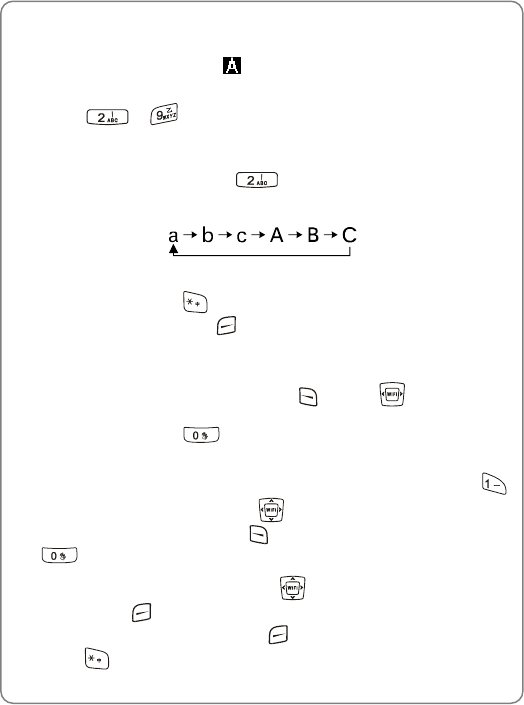

5.4 Letter
Switch to Letter input method; will be displayed at the lower left corner
of the screen
1. Press ~ to enter the corresponding letter labeled on the
respective key. To input a letter, press the corresponding key
repeatedly until the letter appears
For example: if you press repeatedly, the following letters
appear in turn:
- The letter just entered will be underlined. When the letter is
underlined, press to switch between upper and lower cases;
press the right soft key (Clear) to delete the letter
2. After you have entered the intended letter, press any other key on the
keypad to input the next letter. If the next letter and current letter share
the same key, press the left soft key (Ok) or to remove the
underline, and then enter the next letter; or simply wait for one second
to input again. Press to confirm the current letter input and enter
a space
3. Enter symbols and spaces: After the underline disappears, press
to display the symbol list. Press to highlight the intended symbol,
and then press the left soft key to enter the selected symbol. Press
to enter a space
4. When no letter is underlined, press to move the cursor; press the
right soft key (Clear) to delete the character to the left of the cursor;
press and hold the right soft key (Clear) to delete all characters;
press to switch input methods
65
Input Method
5.
Sw digi
5 Digit
itch to t input method; will be displayed in the lower left corner
rr
of the screen
To enter digits, press the co esponding number keys ~ .
Press to switch input methods
66
Troubleshooting
6. TROUBLESHOOTING
When using this phone, if you run into malfunctions, please refer to the
following troubleshooting techniques before requesting help:
Symptom Diagnosis Solution
Have you pressed and
held it for more than 2
seconds?
Press and hold
for more than 2
seconds
Is the battery connector
reversed?
Insert the connector
correctly
The phone
cannot be
switched on
Is the battery low? Charge the battery
Is the phone outside of service
area range? Is there sufficient
signal strength?
Move to an area
with stronger signal
Is the keypad locked? Unlock the keypad
Cannot
make calls
Is the phone number correct? Enter the correct
number to make the
call
Is the ring mode of the current
profile set to Vibration or
Mute?
Select different ring
mode or different
profile
No ring
Have you pressed and held
in standby mode,
displaying ?
In standby mode,
press and hold
again
Is there an obstacle nearby
that is preventing signals from
passing?
Move to another
area
Strong
interference
noise during
call; or call
interrupted Are you using the phone while
moving at high speed?
Slow down or stop
moving during call
67
Troubleshooting
Symptom Diagnosis Solution
Is the charger properly
connected to the phone?
Connect the charger
and phone correctly
The battery
cannot be
charged
(The battery
indicator
bar does
not scroll)
Is the charger connected to a
100~240V AC wall outlet?
Connect the charger
to a 100~240V AC
wall outlet correctly
If the malfunction symptoms are not listed in the above table, or the
corresponding solution is invalid, please contact your local service
provider
For Technical Support and Assistance please visit the website at:
http://www.utstar.com
68
