APPENDIX I: MANUAL

Please see the following pages.

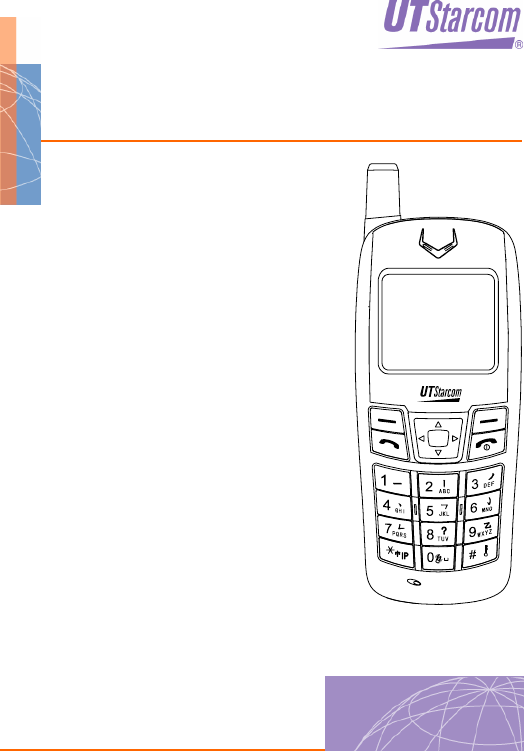

UT106

USER GUIDE

_______________________________________

Trademark Statement: “‘UTStarcom’, ‘iPAS’, and the UTStarcom logo are

trademarks of UTStarcom, Inc.”

part of this publication may be reproduced in any form or by any means

without the prior written permission of UTStarcom, Inc.”

Warranty Language: “The contents of this manual, whether in whole or in

part, do not constitute any express or implied warranty with respect to any

products of UTStarcom, Inc., or its subsidiaries.”

Table of Contents

SAFETY PRECAUTIONS.................................................... 1

1. GETTING STARTED ....................................................... 7

1.1 PACKAGE CONTENTS.....................................................................7

1.2 PHONE SPECIFICATIONS ................................................................8

1.3 HANDSET DESCRIPTION .................................................................9

1.4 ATTACH THE HAND STRAP............................................................ 11

1.5 DISPLAY INDICATORS ................................................................... 11

1.6 CHARGE THE BATTERY ................................................................12

1.7 REPLACE THE BATTERY ...............................................................14

1.8 CONVENTIONS IN THIS GUIDE ....................................................... 15

1.9 ACCESS MENU/LIST OPTIONS ......................................................16

2. BASIC OPERATIONS ................................................... 17

2.1 SWITCH THE PHONE ON/OFF .......................................................17

2.2 MAKE A CALL...............................................................................17

2.3 SPEED DIAL A PHONE NUMBER ....................................................17

2.4 MAKE AN IP CALL ........................................................................18

2.5 ANSWER A CALL ..........................................................................18

2.6 REJECT A CALL............................................................................19

2.7 HOLD A CALL ...............................................................................19

2.8 CALL WAITING .............................................................................19

2.9 THREE WAY CALLING................................................................... 20

2.10 ACCESS PHONEBOOK DURING A CALL ........................................21

2.11 ADJUST EARPIECE VOLUME DURING A CALL................................21

2.12 STORE A PHONE NUMBER ..........................................................22

2.13 CALL LOG SHORTCUT ................................................................22

2.14 CUSTOM FUNCTIONS SHORTCUT................................................23

2.15 CURRENT PROFILE SHORTCUT...................................................23

2.16 MEETING PROFILE SHORTCUT ...................................................23

2.17 KEYPAD LOCK ...........................................................................24

iii

3. PHONEBOOK (NAMES) ............................................... 25

3.1 SEARCH ......................................................................................25

3.1.1 Quick Search .................................................................................26

3.1.2 Edit ................................................................................................26

3.1.3 Delete Entry...................................................................................27

3.2 ADD ENTRY .................................................................................27

3.3 DELETE ENTRY............................................................................28

3.3.1 One by One ...................................................................................28

3.3.2 All...................................................................................................28

3.4 GROUP INFO ...............................................................................29

3.4.1 Browse...........................................................................................29

3.4.2 Ring Tone.......................................................................................29

3.5 SPEED DIAL ................................................................................29

3.6 MEMORY.....................................................................................30

4. MENU ............................................................................ 31

4.1 SMS........................................................................................... 31

4.1.1 Edit Message.................................................................................31

4.1.2 Inbox..............................................................................................32

4.1.3 Outbox...........................................................................................34

4.1.4 Draft...............................................................................................35

4.1.5 Clear..............................................................................................36

4.1.6 Memory..........................................................................................37

4.2 CALL LOG ...................................................................................38

4.2.1 Missed Log ....................................................................................38

4.2.2 Received Log.................................................................................39

4.2.3 Dialed log.......................................................................................40

4.2.4 Delete Log .....................................................................................42

4.2.5 Duration .........................................................................................42

4.3 PROFILES....................................................................................43

4.3.1 Standard ........................................................................................43

4.3.2 Meeting..........................................................................................46

4.3.3 Silent..............................................................................................46

4.3.4 Outdoor..........................................................................................46

4.3.5 User Define....................................................................................46

4.4 SETTINGS ...................................................................................47

4.4.1 Own Number..................................................................................47

4.4.2 Scheme .........................................................................................47

4.4.3 Date/Time ......................................................................................48

4.4.4 Alarm .............................................................................................49

4.4.5 Answer Mode .................................................................................51

4.4.6 Language.......................................................................................52

4.4.7 Display...........................................................................................52

4.4.8 IP Phone........................................................................................54

4.4.9 Set Security ...................................................................................55

4.4.10 Input Method................................................................................59

4.4.11 Call Forwarding............................................................................59

4.5 TOOLS ........................................................................................62

4.5.1 Calculator ......................................................................................62

4.5.2 Calendar ........................................................................................63

4.5.3 Memo.............................................................................................63

4.6 GAME .........................................................................................66

4.6.1 Black-white Chess .........................................................................66

4.6.2 Whammy .......................................................................................67

4.6.3 BJK................................................................................................68

5. DATA TRANSFER ......................................................... 70

6. INPUT METHOD............................................................ 71

6.1 SWITCH INPUT METHOD...............................................................71

6.2 PINYIN AND SIM STROKE .............................................................71

6.3 ENGLISH .....................................................................................71

6.4 LETTER .......................................................................................73

6.5 DIGIT ..........................................................................................74

6.6 INPUT METHODS IN SMS .............................................................74

7. TROUBLESHOOTING................................................... 75

Safety Precautions

SAFETY PRECAUTIONS

FCC RF Exposure Compliance

This PCS phone has been tested and complies with the Federal

Communications Commission (FCC) RF exposure limits for General

Population/Uncontrolled exposure environment. In addition, it complies

with the following Standards and Guidelines:

z FCC 96-326, Guidelines for Evaluating the Environmental Effects of

Radio-Frequency Radiation

z FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating

Compliance with FCC Guidelines for Human Exposure to Radio

Frequency Electromagnetic Fields

z ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with

Respect to Human Exposure to Radio Frequency Electromagnetic

Fields, 3 kHz to 300 GHz

z ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the

Measurement of Potentially Hazardous Electromagnetic Fields - RF

and Microwave

Safety Precautions

Handling the Phone, Battery and Charger

DANGER

Only use the battery and charger specified for the

phone. Failure to do so can result in damage to the

phone, electric shock or fire.

CAUTION

Do not store or operate the phone or charger in hot,

damp, or dusty areas, which can damage electrical and

mechanical components. Avoid prolonged exposure to

temperatures below 5°C or in excess of 35°C.

DANGER

Do not drop, shake or throw the phone or charger.

Rough handling can damage internal circuit boards and

the battery pack.

Do not use the phone in the vicinity of volatile gases.

Leave the area before using the phone. Failure to leave

the area can result in the risk of fire or an explosion.

Do not disassemble or modify the phone, charger, or

battery. Incorrect modifications, reassembly, or

tampering may result in malfunction or personal injury.

Safety Precautions

Handling the Phone

DANGER

Do not use the phone while operating a vehicle.

Observe local regulations for specialized areas

(hospital, aircraft, etc) when using the phone.

This phone has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This phone

generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If

this phone does cause harmful interference to radio or

television reception, which can be determined by

turning the phone off and on, the user is encouraged to

try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna

- Increase the separation between the phone and

receiver

- Connect the phone into an outlet on a circuit different

from that to which the receiver is connected

- Consult the dealer or an experienced radio/TV

technician for help

Safety Precautions

CAUTION

Changes or modifications not expressly approved by

UTStarcom, Inc. could void the user’s authority to

operate the phone.

Keep all storage media (magnetic cards, floppy disks,

credit cards, etc.) away from the phone. Close

encounters or contact can erase or damage the storage

media.

Keep all sharp metal objects (pins, nails, hairpins etc.)

away from the phone handset. The handset earpiece

contains a strong magnet that can attract and hold

metal objects. Remove any objects from the handset

earpiece before using, to avoid personal injury.

In case of emergency, key in the emergency number

(911 for example in US), then press the Talk key and let

the operator know your specific location. Don’t hang up

until you are told to do so.

Safety Precautions

Handling the Battery

DANGER

Do not dispose of the battery pack in a fire. It may

explode. Check with local waste management codes for

disposal instructions.

Do not force the battery pack into the phone. Improper

installation can cause malfunctions or damage the

battery pack. This may result in fire or personal injury.

Use caution in handling batteries in order not to short

the battery on conductive materials such as rings,

bracelets, and keys. The battery and/or conductor may

overheat and cause burns.

If the battery becomes too hot while recharging, it

should be removed immediately from the charger.

When clothes or skin are exposed to battery leakage,

rinse with clean water at once to prevent skin irritation.

Do not use a cracked, leaking or odor-emitting battery

pack near an open flame or high temperatures.

CAUTION

If a fully discharged battery is stored for a long period of

time, it may not be possible to recharge the battery.

Observe local waste management codes for proper

battery disposal instructions.

Safety Precautions

Handling the Charger

DANGER

Only use a power source that provides the appropriate

voltage (AC100~240 V) for the charger. An unsuitable

power source can result in damage to the charger,

electric shock or fire.

Do not use the charger if the power supply cord or plug

is damaged or frayed (exposed or broken wires, etc).

This can result in the risk of fire or electric shock.

Do not short circuit the charger connector jack. This may

result in fire or electric shock.

Immediately unplug the charger from the wall outlet in

the event that liquid is spilled into the unit to prevent fire

or electric shock.

CAUTION

Always unplug the charger from the wall outlet before

cleaning to avoid the risk of electric shock.

Do not place heavy objects on the cord to avoid

damage.

Always grip the power plug when removing the charger

from the wall outlet. Do not pull on the power supply

cord to avoid damage and the risk of electric shock.

Getting Started

1. GETTING STARTED

1.1 Package Contents

Please check the package contents by comparing them with the following

list. If you find anything missing or if the documentation set is incomplete,

contact your local phone dealer immediately

z Model UT106 (with one battery)

z Charger (one)

z Hand strap (one)

z User guide (one)

z Quick Start guide (one)

z Instructions for post-sale support

z Certificate of quality

Getting Started

1.2 Phone Specifications

Dimensions About 99.5×42×17.5 (L×W×H) mm

Weight Approximately 70g

Transmission Voltage Approximately 10mW

Battery DC 3.6V 550mAh Li-ion battery

Charger

Input: 100~240V AC, 50~60Hz

Output: 5.2V DC, 320mA

Charger Model S523205A

Charger Weight About 50g

Charging Time 2.5~3.5 hours

Standby Time 48~200 hours

z Standby time refers to the state in which the phone is on continuously

without being used for calls or moved to different service areas

z The standby time depends on the network conditions, phone usage

and surrounding area. The phone consumes more battery power

under the following conditions:

- In areas with weak signals, with high or low temperatures, or when

used outside the service coverage area

- When the phone frequently searches for network signal due to

location changes

- When you talk on the phone for long periods of time

- When features such as SMS and game are being used for long time

- The Alarm, Backlight or Vibration function is active

- Ring or earpiece volume is set to maximum

Getting Started

1.3 Handset Description

1. Fixed antenna

2. Earpiece

3. LCD Screen

4. Navigation Key:

This key is used to scroll up and down through menu lists

5. Left Soft Key:

This key is used to perform the function indicated on the screen above

Getting Started

6. Talk Key:

This key is used to make or receive a call. It can also be used to

access outgoing call logs in standby mode

7. ~ Number Keypad:

These keys are used to enter numbers and characters

8. IP Key/Switch Key:

This key is used to make IP calls or to change the text input method

9. Microphone

10. Right Soft Key:

This key is used to perform the function indicated on the screen above

11. Power Key:

This key is used to switch the phone on and off, to end a call, or to

return to standby mode

12. # Key/Lock Key:

This key is used to key in “#” or pause symbol “P” (by pressing and

holding the key), or to lock the keypad

13. Charging Socket/Data Socket

14. Slot for Hand Strap

15. Battery Cover

~ Note: This is only a brief introduction to the keypad functions.

Please refer to the contents of this user guide for detailed

descriptions and operations

Getting Started

1.4 Attach the Hand Strap

Fasten the hand strap as shown in the figures below:

1.5 Display Indicators

1. Shows the current signal strength. The higher the bar, the stronger

the signal

Strong Wea

2. Refers to the calling or connecting mode

Getting Started

3. Indicates the keypad is locked

4. Indicates a new short message has been received. It will flash

when the message box (Inbox) is full

5. Indicates the Toll Lock function is active

6. Means the Ring Mode is set to Vibrate, Vibrate And Ring or

Vibrate Then Ring

7. Means the Ring Mode is set to Mute or Vibrate

8. Indicates the Alarm function is active

9. Indicates the battery charge level:

- Fully charged

- Fair

- Low, not much power left

- Power exhausted

10. Content Display Area: Shows the phone numbers, short messages,

characters, etc.

1.6 Charge the Battery

When the battery power is low and needs recharging, the battery indicator

will flash continuously, and the phone will sound a low battery alarm

(if the ring mode is set to neither Vibrate nor Mute), reminding you that

the battery is running low and the phone will be switched off automatically.

To charge the battery, follow the steps below:

1. Connect the charger to an AC wall outlet (100~240V)

Getting Started

2. Connect the lead from the charger to the charging socket of the phone.

The battery indicator bar starts to scroll ( Æ Æ ). If the

phone is off, the text “Charging…” is also displayed on the LCD screen

3. When the battery indicator bar stops scrolling, charging is complete.

The text “Fully Charged!” is also displayed on the LCD screen, if the

phone is off

z The phone takes about 2.5~3.5 hours to charge and the exact time

may vary depending on the circumstances

z With your phone turned off, charge your new battery for 6~7 hours

before its first use

z When the battery is being charged, it is normal that your charger and

phone become warm to the touch

z If the phone is turned on while charging, you can still make and

receive calls as usual, but this will consume battery power, thus

extending the charging time

Getting Started

1.7 Replace the Battery

Since battery power is easily consumed, when you find the battery power

diminishes quickly after full charging, please replace your battery. After

replacing the battery, you will need to reset the date and time

1. In standby mode, switch the phone off by pressing and holding .

(Otherwise, some user settings will be lost.)

2. Remove the battery cover

With the back of the phone facing you, press the top of the battery

cover and slide the cover off in the direction of the arrow

3. Remove the old battery

Disconnect the cord by firmly gripping the connector (not the battery

connection wire) and pulling gently as illustrated

Black

Red

Yellow

Getting Started

4. Install the new battery

Connect the cord of the new battery by firmly inserting the connector

into its place. Do not reverse the connector

Black

Red

Yellow

5. Slide the battery cover until it clicks into place

1.8 Conventions in this Guide

z In this guide, “press the key” means to release the key after you press

it; “press and hold the key” means to press the key for over 2 seconds

before releasing it

z The text displayed on the screen is indicated in bold in this guide, for

example Menu

Getting Started

z Navigation key operations follow:

Press the “Up”, “Down”, “Left”, and “Right” directions on the

Navigation key to execute operations such as browsing, selecting,

adjusting and setup; key directions are as follows:

Up Down

Up or

Down Left Right

Left or

Right

1.9 Access Menu/List Options

A variety of options are available for the menus and lists, such as: Menu

and Names

For example, to access ÆSettingsÆAlarm, follow the steps

below:

1. In standby mode, press the left soft key (Menu)

2. Press to reach Settings, and then press the left soft key

(OK)

3. Press to highlight Alarm, and then press the left soft key

(OK)

~ Note: To return to the previous menu level, press the right soft key

(Exit). To return to standby mode without changing the menu

settings, press .

Basic Operations

2. BASIC OPERATIONS

2.1 Switch the Phone On/Off

Press and hold the power key . The phone will display the

power-on/off animation and sound the power-on/off melody (if the Keypad

Tone is set to ON)

If the PowerOn Code function is active, after switching on the phone,

enter the security code (displayed as *) and press the left soft key

(Ok). If correct, the power-on animation will be displayed; otherwise Code

Error will be displayed

2.2 Make a Call

1. Key in the phone number

Press to move the cursor. Press the right soft key (Clear) to

delete the character or digit to the left of the cursor. To delete all the

numbers or characters, press and hold the right soft key (Clear)

2. Press to call the number. “Connecting..” will be displayed

To cancel the call attempt, press the right soft key (Cancel). A

time display of 00:00:00 will appear

3. When the call is connected, the call timer is displayed

4. To end the call, press the right soft key (Hangup) or the key

2.3 Speed Dial a Phone Number

If you have assigned a phone number to one of the speed dial keys

~ , you can quickly call that phone number:

Basic Operations

1. In standby mode, press and hold the corresponding speed dial key to

automatically display the phone number

2. Press to call the number

If you have configured the IP Phone function, you can press and hold

to call the number in IP mode. See also “Make an IP Call”

2.4 Make an IP Call

This function requires network support. If the IP Phone function has been

correctly configured, you can call a phone number in IP mode by pressing

and holding , in either of the following ways:

z Enter the phone number; press and hold to call the number. IP

Call will be displayed

z Press and hold . After successfully connecting to the IP network,

begin to dial by following the network instructions

~ Note: When you are making an IP call, only the IP access number

and the text IP Call are displayed

~ Prior to using this function, the IP access number, account number

(accounts) and password must be correctly pre-configured (see “IP

Phone” for details). Otherwise, IP Not Set will be briefly displayed

after you press and hold .

2.5 Answer a Call

z If the Answer Mode is set to Talk Key, press the left soft key

(Answer) or the key to answer an incoming call

z If the Answer Mode is set to Any Key, press any key to answer an

incoming call except the right soft key , the key or the

key

Basic Operations

z When there is an incoming call, you may press and hold to stop

the vibration or ring alert without picking up the call

z To end an ongoing call, press the right soft key (Hangup) or the

key

2.6 Reject a Call

z When there is an incoming call, press the right soft key (Hangup)

or the key to reject the call

z If you press the right soft key (Hangup) to reject an incoming call,

the call duration 00:00:00 will be displayed

z When there are missed calls (excluding rejected calls), the number of

missed calls will be displayed, for example Missed Log 3. In this case,

press the left soft key (View) to enter the missed call log (Missed

Log)

2.7 Hold a Call

You can place an ongoing call temporarily on hold

1. During a call, press the left soft key (Hold). “Holding…” will be

displayed, and the other party will hear the on hold sound

2. To take the call off hold, press the left soft key (Talk)

2.8 Call Waiting

Call Waiting requires network support. The function may vary depending

on the network. Contact your local service provider for assistance

While you have a call in progress, if there is an incoming call from the third

party, the earpiece will sound a waiting tone. The following operations are

available:

z Press , and then press to reject the incoming third party call

Basic Operations

z Press , and then press to end the current call and answer

the incoming third party call

z Press , and then press to hold the current call and answer

the incoming third party call

~ Note: If the Unconditional call forwarding function or the call

forwarding on Busy function is active, the call waiting function will be

inactive

2.9 Three Way Calling

Three Way Calling requires network support. The function may vary

depending on the network. Contact your local service provider for

assistance

While on a call with user B, if you need to connect to user C, press to

put B on hold. After hearing the dial tone, key in user C’s number and

speak to C when connected. If you fail to connect to C, press to

continue the call with B

During the call with C, the following operations are available:

z Press , and then press to end the call with C and resume the

call with B

z Press , and then press to hold the call with C and resume

the call with B

z Press , and then press to initiate the Three Party Call

function

z Press , and then press to hold the call with B and resume

the call with C

Basic Operations

2.10 Access Phonebook During a Call

While on a call, press to access the phonebook entry list

z When you press to access the phonebook, the last phonebook

entry will be highlighted; when you press to access the

phonebook, the first entry will be highlighted

z After entering the phonebook, press to scroll through the entries.

Press the left soft key (Details) to check the details (name,

phone number and group) for the highlighted entry

z In the phonebook entry list, press keys ~ to select the first

letter of the entry you are seeking (pressing the key once corresponds

to the first letter on the key, pressing the key twice corresponds to the

second letter, and so on). All the English names sharing the same first

letter in the phonebook will be displayed

~ Note: If there are no entries in the phonebook, when you press ,

the error tone will sound

2.11 Adjust Earpiece Volume During a Call

1. During a call, press to access the earpiece volume adjusting

screen

2. There are six volume levels. Press to increase or to

decrease the volume

If the volume is at the highest level, the volume level will not change

when is pressed; if the volume is at the lowest level, the volume

level will not change when is pressed

3. After completing the volume selection, press the right soft key

(Exit) or wait for two seconds to return to the call timer mode. The

phone will save the adjusted volume level

Basic Operations

2.12 Store a Phone Number

In standby mode, new entries can be added to the phonebook

1. Enter the desired phone number and press the left soft key (Save)

2. Enter the name according to the prompts and press the left soft key

(Ok)

3. Press to highlight the desired group for this phone number and

press the left soft key (Ok) to complete the operation

~ Note: The phone number and name of the newly added record

cannot be identical to those of an existing record. Otherwise, the

text Exists will be displayed after you enter the name and press the

left soft key (Ok)

2.13 Call Log Shortcut

In standby mode, you can quickly view the call logs: outgoing call log

(Dialed Log), received call log (Received Log) and missed call log

(Missed Log)

z Press to display the latest outgoing call. Press to scroll

through other outgoing call records

z Press to display the latest received call. Press to scroll

through other received call records

z Press to display the latest missed call. Press to scroll

through other missed call records

After the intended record is displayed, you can press to call the

number. If the IP Phone function is pre-configured, you can press and

hold to call the number in IP mode

To perform other operations for the record, press the left soft key

(Option). (See “Call Log” for details)

Basic Operations

2.14 Custom Functions Shortcut

1. In standby mode, press to access the menu of custom functions

2. Press to highlight the desired option: Edit Message (1), Inbox (2),

Screen Saver (3), Scheme (4), Calculator (5) or Calendar (6), and

then press the left soft key (Ok) to access the option

You can also access an option by pressing its corresponding number

key

2.15 Current Profile Shortcut

In standby mode, press to access the menu of the current profile (if

the current profile is not Meeting or Silent). Press to highlight the

desired option, and then press the left soft key (Ok) to access the

option

z See “Profiles” for detailed operations

z If the profile is set to Meeting or Silent, when you press , Meeting

Mode Activated or Mute Mode Activated will be displayed

2.16 Meeting Profile Shortcut

In standby mode, press and hold to change the current profile to

Meeting

z Press and hold again to resume the previous profile

z If you have activated the Meeting profile from the Profiles submenu

(see “Profiles”), when you press and hold in standby mode, the

current profile will be changed to Standard

Basic Operations

2.17 Keypad Lock

The keypad lock prevents the keys from being accidentally pressed,

resulting in unintentional operations

z In standby mode, press and hold to lock the keypad. The

indicator will be displayed

z To unlock the keypad, press and hold again in standby mode

z When the keypad is locked, you can answer a call as usual. During the

call, you can operate the phone normally. However, the keypad will

automatically be locked when the call ends or if the call is rejected

z When the keypad is locked, even if the Backlight is not set to OFF, the

LCD screen and keypad will not light when keys are pressed

Phonebook (Names)

3. PHONEBOOK (NAMES)

You can store frequently used phone numbers and names in the memory

of the phone (phonebook). The phonebook can store up to 200 entries.

Each entry may contain name, phone number and group information

You can enter the phonebook in either of the following ways:

z In standby mode, press the right soft key (Names)

z In standby mode, press the left soft key (Menu), press to

scroll to Phonebook and press the left soft key (Ok)

From the phonebook menu, you can select from the following options:

3.1 Search

ÆSearch

After accessing this option, the prompt Name will be displayed. Key in the

name that you are searching for, or the first character(s) of the name, and

then press the left soft key (Ok). The phone will search through the

records in the phonebook, and highlight the matched name

z If no names match the entered characters, the entry nearest matching

the searched record will be highlighted; if no characters are entered,

the phone will highlight the first entry in the phonebook

z You can press to scroll through other names, or press the right

soft key (Exit) to return to standby mode

z If no records are stored in the phonebook, No Record will be

displayed, and an error tone will sound (if the Keypad Tone is set to

ON)

Phonebook (Names)

z If a matched name is highlighted, you can press to call the

corresponding phone number, or press and hold to call the

number in IP mode (if the IP Phone function is pre-configured)

3.1.1 Quick Search

You can press number keys ~ to quickly search English

names from the phonebook entry list. A quick search operates as follows:

z When the key is pressed once, the name that starts with the first letter

of that key will be displayed; when pressed twice, the name that starts

with the second letter of that key will be displayed. The third and/or

fourth letter may be similarly accessed

z When the key is pressed once, if no name corresponds to the first

letter of that key, the name that starts with the second letter of that key

will be displayed and so on

z Press keys ~ to display the corresponding records, and

press to browse. If you continue to press the key, the phone

keeps track of the number of times the key is pressed automatically,

and the name will be highlighted accordingly

When an entry (name) is highlighted, press the left soft key (Details)

to see the detailed information: name, phone number and group category.

You can press to browse through the text

~ Note: When the entry details are displayed, you can press to

call the phone number, or press and hold to call the number in

IP mode (if the IP Phone function is pre-configured)

When the entry details are displayed, you can press the left soft key

(Option) to select from the following options:

3.1.2 Edit

Change names, numbers and group categories by following the screen

Phonebook (Names)

prompts

3.1.3 Delete Entry

After this option is selected, “Delete?” will be displayed. Press the left soft

key (Yes) to confirm the deletion

3.2 Add Entry

ÆAdd Entry

Select this option to add new entries into the phonebook

1. Key in the name, and press the left soft key (Ok). You can input a

maximum of 12 English letters or 6 Chinese characters (see “Input

Method”)

2. Enter the phone number (24 digits maximum), and press the left soft

key (Ok)

The phone number cannot be left blank; otherwise Number Error will

be displayed

3. Press to highlight the desired group category: Family, Friend,

Colleague, Classmate, VIP, Partner, Others or Blacklist. Press the

left soft key (Ok) to complete the operation

z If the name is not filled in, the phone will use the first 12 digits from the

phone number as the name

z The phone number and name of the newly added record cannot be

identical to those of an existing record. Otherwise, the text Exists will

be displayed after you enter the name and press the left soft key

(Ok)

z The phone will automatically reject any incoming caller whose number

is on the Blacklist. No response will be displayed. (Caller ID service

needs to be activated)

Phonebook (Names)

z No more entries can be added if the phonebook memory is full. When

Add Entry is selected, the phone will remind you that the phonebook

memory is full

z In standby mode, you can add a new entry by entering the phone

number and pressing the left soft key (Save). Then, enter the

name and press the left soft key (Ok); press to highlight the

desired group category and press the left soft key (Ok) to

complete the operation

3.3 Delete Entry

ÆDelete Entry

You can select from the following options to delete entries one by one or

all at once

3.3.1 One by One

ÆDelete EntryÆOne by one

When you access this option, the phonebook entry list will be displayed

Press to highlight the entry to be deleted, and then press the left soft

key (Delete). When “Delete?” is displayed, press the left soft key

(Yes) to confirm the deletion

3.3.2 All

ÆDelete EntryÆAll

When you access this option, the prompt Enter Code will be displayed

Enter the security code, and press the left soft key (Ok). If the code

is correct, all the phonebook entries will be deleted; otherwise Code Error

will be displayed

Phonebook (Names)

3.4 Group Info

ÆGroup Info

After accessing this option, press to highlight the desired group

category: Family, Friend, Colleague, Classmate, VIP, Partner, Others

or Blacklist, and press the left soft key (Ok). Then, you can select

from the following options:

3.4.1 Browse

When you access this option, the list of entries in the selected group

category will be displayed

Press to highlight the desired entry, and press the left soft key

(Details) to view the details for the entry. Press the left soft key

(Option), and select Edit or Delete Entry to edit or delete this entry

3.4.2 Ring Tone

Select this option to specify a ring tone for the particular group category

Press to highlight and sample the ring tone options. Then press the

left soft key (Ok) to complete your selection

~ Note: The Blacklist only has a Browse function because the

phone will automatically reject any call from this group. Thus, it is

not necessary to set a ring tone for the Blacklist group

3.5 Speed Dial

ÆSpeed Dial

Select this option to assign a phone number in the phonebook to one of

the speed dial ke ys ~ for greater convenience when dialing

(see “Speed Dial a Phone Number”)

Phonebook (Names)

After you access this option, the setting status for key #1 ( ) will be

displayed. Press to browse through the speed dial key settings

z If no phone number is assigned to the key, Unset will be displayed.

Press the left soft key (Set); the phonebook entry list will be

displayed (if there are no entries in the phonebook, No Record will be

displayed). Press to highlight the desired entry (name), and

press the left soft key (Ok) to assign the number to the key

z If a phone number has been assigned to the key, the corresponding

name and group category will be displayed. To change or cancel the

setting for this key, press the left soft key (Option), and then

select Edit or Cancel

~ Note: If the record for a speed dial key is modified in the phonebook,

it will automatically be updated for the speed dial key function

~ If the record for a speed dial key is deleted from the phonebook, it

will also be cancelled for the speed dial key function

3.6 Memory

ÆMemory

Select this option to view the number of records in each group category,

totally stored records (Used) and available records (Unused)

4. MENU

In standby mode, press the left soft key (Menu) to access the menu.

Press to reach the desired submenu, and press the left soft key

(Ok) to access the submenu

4.1 SMS

ÆSMS

Select this submenu to read, edit, save and send short messages

The Short Message Service (SMS) requires network support. Please

consult your local service provider for assistance

4.1.1 Edit Message

ÆSMSÆEdit Message

After you access this option, the last edited message will be displayed.

You can modify that message or delete it by pressing and holding the right

soft key (Clear) and re-enter a new message (up to 58 Chinese

characters or 116 English letters). Next, press the left soft key

(Option), and select Send or Save

z The message cannot be empty; otherwise Empty will be displayed

when you press the left soft key (Option)

4.1.1.1 Send

After selecting this option, you can send the message in either of the

following ways:

z Key in the receiver’s phone number, and press the left soft key

(Send) or the key to send the message

z Press the left soft key (Search) to access the phonebook entry

list. Highlight the desired entry and press the left soft key (Ok),

the corresponding phone number will be displayed. Press the left soft

key (Send) or the key to send the message

4.1.1.2 Save

After you access this option, the message will be saved in Draft

z Draft can store a maximum of 10 messages. If it is full, when you

select Save to store a newly edited message, “Update?” will be

displayed. You can press the left soft key (Yes) to overwrite the

oldest message

4.1.2 Inbox

ÆSMSÆInbox

When a new message is received, the message tone will sound, and the

indicator will be displayed. After a new message is received, press the

left soft key (View) to access the Inbox message list

z The Inbox can store up to 100 messages. When the 100th message is

received, the indicator will flash. If the Inbox is full, when a new

message is received, the phone will replace the oldest message with

the newly received message. To avoid losing important messages in

the Inbox, periodically erase some existing messages

z When Inbox is highlighted, the number of unread messages will be

displayed in the right upper corner of the screen, e.g. New5. Press the

left soft key (Ok) to access the message list, which shows the

message senders’ phone numbers or names (if stored in the

phonebook). The icon in front of each message: indicates the

message has not yet been read; indicates the message has been

read

z If there are no messages in the Inbox, when you select Inbox, No

Record will be displayed

z Press to scroll to the intended message, and then press the left

soft key (Ok). Press to view the message contents and

details (the sender and received time). Press the left soft key

(Option) to select from the following options:

4.1.2.1 Reply

Select this option to reply to the message. The steps to reply to a

message are similar to those for Edit Message

The only difference is that, when you select Send, the sender’s phone

number will be displayed automatically. You can edit the phone number,

and press the left soft key (Send) or the key to send the reply

4.1.2.2 Forward

After accessing this option, you can edit and forward the message. The

steps to forward a message are the same to those for Edit Message

4.1.2.3 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.1.2.4 Call Back

Accessing this option will display the sender’s phone number. You can

edit the phone number and press the left soft key (Ok) or the

key to call the number

4.1.2.5 Extract Number

Select this option to extract numbers (5~24 digits each) from the message

contents, and to store the numbers to the phonebook

z If there are numbers with 5~24 digits in the message contents, when

you select this option, the numbers will be listed; otherwise Empty will

be displayed

z In the number list, press to highlight the number to be stored,

and press the left soft key (Save). Enter the name and press the

left soft key (Ok). The selected number will be displayed. Edit the

number and press the left soft key (Ok). Press to highlight

the desired group category and press the left soft key (Ok) to

complete the operation

4.1.2.6 Save Number

Select this option to edit the sender’s phone number and store it to the

phonebook

After accessing this option, follow the prompts to key in the name and

press the left soft key (Ok). The sender’s phone number will be

displayed. Edit the phone number and press the left soft key (Ok).

Press to highlight the desired group category and press the left soft

key (Ok) to complete the operation

z The phone number and name cannot be identical to those of an

existing phonebook entry. Otherwise, the text Exists will be displayed

after you enter the name and press the left soft key (Ok)

z If the phonebook memory is full, when you select Save Number, the

phone will remind you with a message

4.1.3 Outbox

ÆSMSÆOutbox

The last 100 messages you have sent are stored in the Outbox

When Outbox is selected, the sent message list will be displayed (if there

are no messages in the Outbox, No Record will be displayed). The list

shows the receivers’ phone numbers or names (if stored in the

phonebook). Messages are listed chronologically; the most recent

message sent is highlighted at the top of the list

Press to reach the desired message and press the left soft key

(Ok). Press to view the message contents and details (the receiver

and sending time). Press the left soft key (Option) to select from the

following options:

4.1.3.1 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.1.3.2 Forward

After accessing this option, you can edit and forward the message. The

steps to forward a message are the same as those for Edit Message

z After the message is forwarded, the contents and details of this sent

message will be updated

4.1.4 Draft

ÆSMSÆDraft

Up to 10 edited messages can be stored in Draft

When you access the Draft option, the draft message list will be displayed

(if there are no messages in Draft, No Record will be displayed). The

highlighted draft message will scroll to display the message contents.

Press to highlight the desired draft message and press the left soft

key (Ok) to read it

While reading the message, you can press the left soft key (Option)

and select from the following options:

4.1.4.1 Edit

Select this option to edit the draft message. See “Edit Message” for details

4.1.4.2 Send

Select this option to send the draft message. See “Send” under the Edit

Message option for details

z After the message has been sent, it will be deleted from Draft

4.1.4.3 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.1.5 Clear

ÆSMSÆClear

After accessing the Clear option, you can perform the following functions:

4.1.5.1 Clear Inbox

Select this option to delete all the messages in the Inbox. Key in the

security code and press the left soft key (Ok) to complete the

deletion. If the security code is incorrect, Code Error will be displayed

4.1.5.2 Clear Outbox

Select this option to delete all the messages in the Outbox. Key in the

security code and press the left soft key (Ok) to complete the

deletion. If the security code is incorrect, Code Error will be displayed

4.1.5.3 Clear Draft

Select this option to delete all the messages in Draft. Key in the security

code and press the left soft key (Ok) to complete the deletion. If the

security code is incorrect, Code Error will be displayed

4.1.5.4 Clear All

Select this option to delete all the messages in the Inbox, Outbox and

Draft. Key in the security code and press the left soft key (Ok) to

complete the deletion. If the security code is incorrect, Code Error will be

displayed

4.1.6 Memory

ÆSMSÆMemory

Select this option to view the Inbox/Outbox/Draft capacity, including the

number of stored messages

4.2 Call Log

ÆCall Log

Your phone records missed, received and dialed calls as well as their call

durations

In standby mode, you can press , or to quickly access

Missed Log, Received Log or Dialed Log (see “Call Log Shortcut”)

4.2.1 Missed Log

ÆCall LogÆMissed Log

This option enables you to view the last 20 missed calls

After you access this option, the phone will display the information of the

most recent missed call Missed 1: the caller’s phone number or name

and group category (if the number is stored in the phonebook). Press

to view other missed calls

~ Note: This function only works in networks that support Caller ID

service; otherwise No Caller ID will be displayed in the missed log.

If the caller’s phone is set to block the caller’s number, No Caller ID

will also be displayed

When viewing a log, you can dial the caller’s phone number by pressing

. If the IP Phone function is pre-configured, you can press and hold

to call the number in IP mode

When a call log is displayed, press the left soft key (Option). The

following options will be available:

4.2.1.1 Save

Select this option to edit the caller’s phone number and store it to the

phonebook

After you access this option, the caller’s phone number will be displayed.

Edit the number and press the left soft key (Ok). Key in the name

and press the left soft key (Ok). Press to highlight the desired

group category, and then press the left soft key (Ok) to complete the

operation

z If No Caller ID is shown in the log, when you select Save, Number

Error will be displayed

z The phone number and name cannot be identical to those of an

existing phonebook entry. Otherwise, the text Exists will be displayed

after you enter the name and press the left soft key (Ok)

4.2.1.2 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.2.1.3 Time

Select this option to view the time the call came in

4.2.1.4 Number

Select this option to view the caller’s phone number

4.2.2 Received Log

ÆCall LogÆReceived Log

This option enables you to view the last 20 received calls

After you access this option, the phone will display the information of the

most recent received call Received 1: the caller’s phone number or name

and group category (if the number is stored in the phonebook). Press

to view other received calls

~ Note: This function only works in networks that support Caller ID

service; otherwise No Caller ID will be displayed in the received log.

If the caller’s phone is set to block the caller’s number, No Caller ID

will also be displayed

When viewing a log, you can dial the caller’s phone number by pressing

. If the IP Phone function is pre-configured, you can press and hold

to call the number in IP mode

When a call log is displayed, press the left soft key (Option). The

following options will be available:

4.2.2.1 Save

Select this option to edit the caller’s phone number and store it to the

phonebook. See “Save” under the Missed Log option for details

4.2.2.2 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.2.2.3 Time

Select this option to view the time the call came in

4.2.2.4 Number

Select this option to view the caller’s phone number

4.2.2.5 Duration

Select this option to view the duration of the received call

4.2.3 Dialed log

ÆCall LogÆDialed Log

This option enables you to view the last 20 dialed calls

After you access this option, the phone will display the information of the

most recent outgoing call Dialed 1: the dialed phone number or name and

group category (if the number is stored in the phonebook). Press to

view other outgoing calls

~ Note: If you dial a number that has been recorded in the Dialed Log,

the phone will update the log after the call ends

When viewing a log, you can call the dialed phone number by pressing

. If the IP Phone function is pre-configured, you can press and hold

to call the number in IP mode

When a call log is displayed, press the left soft key (Option). The

following options will be available:

4.2.3.1 Save

Select this option to edit the dialed phone number and store it to the

phonebook

After you access this option, the dialed phone number will be displayed.

Edit the number and press the left soft key (Ok). Key in the name

and press the left soft key (Ok). Press to highlight the desired

group category, and then press the left soft key (Ok) to complete the

operation

z The phone number and name cannot be identical to those of an

existing phonebook entry. Otherwise, the text Exists will be displayed

after you enter the name and press the left soft key (Ok)

4.2.3.2 Delete

When you access this option, “Delete?” will be displayed. Press the left

soft key (Yes) to complete the deletion

4.2.3.3 Time

Select this option to view the time the call was dialed

4.2.3.4 Number

Select this option to view the dialed phone number

4.2.3.5 Duration

Select this option to view the duration of the dialed call

4.2.4 Delete Log

ÆCall LogÆDelete Log

This option enables you to delete all missed calls, received calls, dialed

calls, or to delete all

z If you select Missed Log, Received Log or Dialed Log, the text

“Delete?” will be displayed. Press the left soft key (Yes) to

complete the deletion

z If Delete All is selected, follow the prompts to enter the security code

and press the left soft key (Ok) to delete all the call logs. If the

security code is incorrect, Code Error will be displayed

4.2.5 Duration

ÆCall LogÆDuration

This option enables you to view the approximate duration of received calls,

dialed calls, or the duration of all calls

After accessing this option, you can press to view the duration of

received calls (Received), dialed calls (Dialed), as well as the duration of

all calls (Total Time). The time will be displayed in “h:mm:ss” format

To clear the timer, press the left soft key (Reset). The text “Reset?”

will be displayed. Press the left soft key (Yes) to complete the

operation

4.3 Profiles

ÆProfiles

This submenu enables you to customize the phone alert settings to suit a

variety of environments

When you access this submenu, the profile list will be displayed; the

current profile will be highlighted. You can activate a profile to suit your

environment. The phone will utilize all the current profile’s settings

Standard, Outdoor and User Define can be customized to meets your

needs. However, the settings for Meeting and Silent are unchangeable

Standard is the factory-preset profile

4.3.1 Standard

ÆProfilesÆStandard

4.3.1.1 Enable

ÆProfilesÆStandardÆEnable

Select this option to activate the selected profile

4.3.1.2 Set

ÆProfilesÆStandardÆSet

This option enables you to change the selected profile’s settings

When you press to browse though the options, the setting of the

highlighted option will be displayed in the adjacent bubble. Press the left

soft key (Ok) to access the highlighted option

Ring Volume

Select this option to adjust the ring volume level for incoming calls, new

messages, memo alert and the alarm clock

There are five volume levels. Press to increase or to decrease

the volume. As you scroll through the volume levels, a sample of each will

sound. After reaching the desired volume level, press the left soft key

(Ok) to complete the operation

Ring Mode

This function enables you to define how the phone will notify you of

incoming calls, new messages, memo alert and the alarm clock. The

available options include: Ringing, Vibrate, Vibrate And Ring, Vibrate

Then Ring and Mute

z If the Ring Mode is set to Vibrate Then Ring, when a new message is

received, the phone will vibrate for 5 seconds

z If the Ring Mode is set to Vibrate or Mute, the low battery alarm

function will be deactivated. Other options will activate the low battery

warning function

Ring Tone

This option enables you to select a special electronic ring tone or melody

for incoming calls. Press to scroll through the ring tones and listen to

a sample of each. After highlighting the desired ring tone, press the left

soft key (Ok) to complete the operation

Message Tone

Select this option to specify the incoming message alert tone. Press

to scroll through the message tones and listen to a sample of each. After

highlighting the desired message tone, press the left soft key (Ok) to

complete the operation

Memo Alert

Select this option to specify the memo alert tone. Press to scroll

through the memo alert tones and listen to a sample of each. After

highlighting the desired memo alert tone, press the left soft key (Ok)

to complete the operation

Alarm Tone

This option enables you to select an alarm tone for the alarm clock. Press

to scroll through the alarm tones and listen to a sample of each. After

highlighting the desired alarm tone, press the left soft key (Ok) to

complete the operation

Keypad Tone

If this function is activated, when you press any key, the phone will sound

a tone; when the phone is switched on/off, the power-on/off melody will

sound; when an operation on the phone is completed or fails, the

success/failure tone will sound

Select ON or OFF to activate or deactivate this function

Alert Tone

If this function is activated, a warning tone will sound when the phone is

outside of the service area range or a network handover occurs during a

call

Select ON or OFF to activate or deactivate this function

Whisper Mode

This function enables you to lower your speaking voice in an environment

unsuitable for normal conversation without reducing the quality of phone

call for the other party

Select ON or OFF to activate or deactivate this function

4.3.2 Meeting

ÆProfilesÆMeeting

This profile is suitable for meeting environments. Its settings cannot be

changed

After you highlight this option and press the left soft key (Enable),

this profile will be activated

4.3.3 Silent

ÆProfilesÆSilent

This profile is suitable for silent environments. Its settings cannot be

changed

After you highlight this option and press the left soft key (Enable),

this profile will be activated

4.3.4 Outdoor

ÆProfilesÆOutdoor

This profile is suitable for outdoor environments. You can preset this

option to meet your needs by following the same steps specified in

“Standard”

4.3.5 User Define

ÆProfilesÆUser Define

This profile can be tailored for other environments. You can preset this

option to meet your needs by following the same steps specified in

“Standard”

4.4 Settings

ÆSettings

From this submenu, you can perform various phone settings

4.4.1 Own Number

ÆSettingsÆOwn Number

Select this option to view the phone’s number

~ Note: The number displayed may be different from the actual phone

number, which is assigned locally

4.4.2 Scheme

ÆSettingsÆScheme

When this option is highlighted, the current setting will be displayed in the

adjacent bubble. After accessing this option, you can select from the

following options:

4.4.2.1 Static Picture

The standby display will become static after you set this option

After this option is selected, its current setting will be highlighted. To

customize a text and display it in standby mode, select User-defined; to

select and display a picture in standby mode, select from the options

Photograph1~Photograph24

z If User-defined is selected, enter up to 6 Chinese characters or 12

English letters (see “Input Method”), and then press the left soft key

(Ok) to complete the operation

z If one of the options Photograph1~Photograph24 is selected, the

corresponding picture will be displayed. You can press to browse

through other pictures. When the desired picture is displayed, press

the left soft key (Ok) to complete the operation

4.4.2.2 Every Hour

The standby display will change every hour in a 24-hour cycle after you

set this option. When this option is accessed, the options will be available:

Default

The standby display will change every hour in the default picture

sequence after you select this option

User Edit

This option enables you to specify the picture or text for each hour

(Picture1~Picture24)

Select from the options Picture1~Picture24, and then edit text or select a

picture by following the same operations specified in “Static Picture”.

Default pictures will remain for unedited options

Change Preview

Select this option to preview the current setting for Every Hour. You can

press the left soft key (Replay) to re-preview the pictures or text

4.4.2.3 Every 3 Hours

The standby display will change every three hours in a 24-hour cycle after

you set this option. Follow the same operations specified in “Every Hour”

4.4.2.4 Every Day

The standby display will change every day in a 7-day cycle after you set

this option. Follow the same operations specified in “Every Hour”

4.4.3 Date/Time

ÆSettingsÆDate/Time

This option enables you to set the phone’s date and time. When you

highlight this option, the current date and time will be displayed in the

adjacent bubble

After accessing the option, enter a date from 2000-01-01 to 2049-12-31,

and then enter the time in 24-hour format. Press the left soft key (Ok)

to complete the operation

z When you key in the date or time, you can press to move the

cursor and modify the number

z The cursor will advance if the number entered is valid; otherwise, the

phone will sound an error tone (if the Keypad Tone is set to ON)

4.4.4 Alarm

ÆSettingsÆAlarm

This function enables you to set the alarm for a specified time. Once

activated, the alarm indicator will be displayed

z When the preset alarm time expires, the phone will sound the alarm;

an alarm icon and the current time will be displayed. The alarm will

sound for 30 seconds unless you dismiss it

z To dismiss the alarm and return to standby mode, press any key

z If the alarm time expires during a call, the alarm will not sound

When you highlight one of the following options, its current setting will be

displayed in the adjacent bubble

You can set the alarm function by observing the following operations:

4.4.4.1 On/Off

ÆSettingsÆAlarmÆOn/Off

After accessing this option, select ON or OFF to activate or deactivate the

alarm function

4.4.4.2 Set Time

ÆSettingsÆAlarmÆSet Time

Select this option to set the alarm time. Enter the time in 24-hour format,

and then press the left soft key (Ok) to complete the operation

z When you key in the time, you can press to move the cursor and

modify the number

z The cursor will advance if the number entered is valid; otherwise, the

phone will sound an error tone (if the Keypad Tone is set to ON)

4.4.4.3 Repeat Type

ÆSettingsÆAlarmÆRepeat Type

This option enables you to set the alarm cycle period

Once

The alarm sounds only once. The setting will only be valid for 24 hours

after the alarm function has been activated and the alarm time has been

set

After the alarm stops, the alarm function will be deactivated; the

indicator will disappear

Everyday

The alarm sounds every day at the preset time

Mon. ~ Fri.

The alarm sounds at the preset time on weekdays

Mon. ~ Sat.

The alarm sounds at the preset time from Monday to Saturday

Every Sat.

The alarm sounds at the preset time every Saturday

Every Sun.

The alarm sounds at the preset time every Sunday

4.4.4.4 Snooze

ÆSettingsÆAlarmÆSnooze

If this function is activated, the alarm will repeat 3 times at 5-minute

intervals after the original alarm time expires

You can select ON or OFF to activate or deactivate this function

z When the snooze function is activated, if the 2nd or 3rd alarm happens

at the same time as the memo reminder time, the phone will not

display the memo animation, and the memo alert tone will not sound

4.4.5 Answer Mode

ÆSettingsÆAnswer Mode

This option enables you to select how to answer an incoming call. When

you highlight this option, its current setting will be displayed in the

adjacent bubble. After you access this option, the following will be

available:

4.4.5.1 Any Key

Press any key to answer an incoming call except the right soft key ,

the key and the key

4.4.5.2 Talk Key

Press the left soft key (Answer) or the key to answer an

incoming call

4.4.6 Language

ÆSettingsÆLanguage

This option enables you to select the language of the phone’s text display.

When you highlight this option, the current language setting will be

displayed in the adjacent bubble

You can select 简体中文 (Simplified Chinese) or English

4.4.7 Display

ÆSettingsÆDisplay

You may set the display for the LCD screen as follows:

4.4.7.1 Backlight

ÆSettingsÆDisplayÆBacklight

When you highlight this option, the current setting will be displayed in the

adjacent bubble

If the Backlight is not set to OFF, the LCD screen and keypad will light

when you press keys or the phone receives a call or message

The following options are available:

OFF

Select this option to deactivate the backlight

Battery Saving

In this mode, the backlight will last for 5 seconds after the last keystroke

Normal

In this mode, the backlight will last for 15 seconds after the last keystroke

4.4.7.2 Contrast

ÆSettingsÆDisplayÆContrast

This option enables you to specify the contrast level for the LCD screen.

When you highlight this option, the current setting will be displayed in the

adjacent bubble

There are six contrast levels. Press to increase or to decrease

the contrast. The screen display will reflect the contrast setting. After

reaching the desired contrast level, press the left soft key (Ok) to

complete the operation

4.4.7.3 Screen Saver

ÆSettingsÆDisplayÆScreen Saver

When you highlight this option, the current setting will be displayed in the

adjacent bubble

If the Screen Saver is not set to Off, the clock screen saver will be

displayed after the phone has been in standby mode for one minute. The

screen saver will disappear when you press keys

The following options are available:

Digital Mode

In this mode, the screen saver will display a digital clock

Analog Mode

In this mode, the screen saver will display an analog clock

Off

Select this option to deactivate the Screen Saver function

4.4.7.4 On/Off Animation

ÆSettingsÆDisplayÆOn/Off Animation

This option enables you to select the power-on/off animation. When this

option is highlighted, its current setting will be displayed in the adjacent

bubble

Select one of the options Animation 1 ~ Animation 4; the corresponding

animation will be displayed. Press the left soft key (Ok) to complete

the operation

4.4.8 IP Phone

ÆSettingsÆIP Phone

This option enables you to configure the IP Phone function. After you set

this function, you can make an IP call by pressing and holding (see

“Make an IP Call”). This function requires network support

After accessing this option, observe the following steps:

1. Enter the IP access number (Access No) and the language code, e.g.

“17908P1P”. Press the left soft key (Ok)

- According to different response time from the network server, you

can enter one or more pause symbols “P”s (each “P” means a

pause for approximate 1.5 seconds) by pressing and holding

to coincide with the server response time. A maximum of 14 digits

(including “P”s) can be entered

2. Enter the IP account number (Accounts), and then press the left soft

key (Ok)

- According to the network requirements, if a “#” is required for the

account number, you can simply press . You can also press

and hold to input the pause symbol “P”. A maximum of 24

digits (including “P”s and “#”s) can be entered

3. Enter the password (Password) and press the left soft key (Ok)

to complete the IP Phone setting

- Your input keystrokes will be encrypted and displayed with “*”. A

maximum of 10 digits (including “P”s, “#”s and “*”s) can be entered

~ Note: To cancel the IP Phone setting, follow the same steps. In

each step, press and hold the right soft key (Clear) to erase

the input digits, and then press the left soft key (Ok)

4.4.9 Set Security

ÆSettingsÆSet Security

This option enables you to set the security level to protect your phone

After accessing this option, you will be prompted to enter the security

code. Key in the security code and press the left soft key (Ok). If

correct, the following options will be available (otherwise Code Error will

be displayed)

4.4.9.1 Toll Lock

This function enables you to protect against someone using your phone to

make a long distance phone call without permission. When this option is

highlighted, its current setting will be displayed in the adjacent bubble

After accessing this option, select ON or OFF to activate or deactivate

z If this function is activated, the indicator will be displayed; when

you try to make a long distance call, Toll Call Locked will be

displayed

4.4.9.2 PowerOn Code

If this function is active, the security code will need to be entered each

time you switch on the phone. When this option is highlighted, its current

setting will be displayed in the adjacent bubble

After accessing this option, select ON or OFF to activate or deactivate

4.4.9.3 Change Code

Select this option to change the security code. Observe the following

steps:

1. When New Code is displayed, enter a new security code (0~6 digits

long, using numbers 0~9), and then press the left soft key (Ok).

Confirm Code will be displayed

2. Enter the new security code again and press the left soft key (Ok)

to complete the operation

z The security code is “888888” by default

z If the new security code entered in step 2 is different from that entered

in step 1, when you press the left soft key (Ok), Not Matched will

be displayed

z To avoid any inconvenience, please remember the new security code

4.4.9.4 Reset All

Select this option to restore your phone’s default settings

When you access this option, “Reset All?” will be displayed. Press the

left soft key (Yes) to complete the operation

This operation will not delete the phonebook entries, short message

records, or call logs. It cannot change the phone’s date and time either

Phone Default Settings

Functions Default Settings

Profiles Standard

Earpiece Volume 3

Call Log (Duration) 0:00:00

Speed Dial Setting No

Functions Default Settings

Phonebook Group (Ring Tone) Gather Happily

Security Code 888888

Toll Lock OFF

PowerOn Code OFF

Alarm (On/Off) OFF

Alarm (Set Time) 08:00

Alarm (Repeat Type) Once

Alarm (Snooze) OFF

Scheme Static Picture

Scheme (Static Picture) Photograph1

Scheme (User-defined) (Blank)

Scheme (Every Hour) Default

Scheme (Every 3 Hours) Default

Scheme (Every Day) Default

Answer Mode Talk Key

IP Phone Setting No

Backlight Battery Saving

Contrast 3

Screen Saver Analog Mode

On/Off Animation Animation 1

Input Method ON (All Activated)

Black-white Chess (Set Level) Easy

Black-white Chess (Set First) Player First

Black-white Chess (Set Chess Manual) Chess Manual 1

Functions Default Settings

Whammy (Set Speed) Slow

Whammy (Game Score) --

BJK (Game Score) --

Profiles Default Settings

Profile

Options

Standard Meeting Silent Outdoor User

Define

Ring

Volume 3 -- -- 3 3

Ring

Mode Ringing Vibrate Mute Vibrate

And Ring Ringing

Ring

Tone

Gather

Happily -- -- Gather

Happily

Gather

Happily

Message

Tone Ring 2 -- -- Ring 2 Ring 2

Memo

Alert

Espanol

Matador -- -- Espanol

Matador

Espanol

Matador

Alarm

Tone

William

Tell

Overture

-- --

William

Tell

Overture

William

Tell

Overture

Keypad

Tone ON OFF OFF ON ON

Alert

Tone ON OFF OFF ON ON

Whisper

Mode OFF ON OFF ON OFF

4.4.10 Input Method

ÆSettingsÆInput Method

In addition to digit input method, the phone supports four kinds of input

methods including PinYin, Sim Stroke, English and Letter. You can

choose to activate or deactivate these four methods. Consequently, on

the character input interface (such as writing messages and inputting

phonebook entry names), you can switch between the activated input

methods and digit input method

After you access this option, press to highlight the intended input

method option. The current setting will be displayed in the adjacent

bubble. Press the left soft key (Ok) to access this input method

option, and then select ON or OFF to activate or deactivate

4.4.11 Call Forwarding

ÆSettingsÆCall Forwarding

Through this option, you can set the phone to forward incoming calls to

the specified phone number

z This function requires network support

After accessing this option, the following will be available:

4.4.11.1 Unconditional

ÆSettingsÆCall ForwardingÆUnconditional

This function enables you to have all incoming calls forwarded to the

specified phone number. The service provider must preset the access

number to activate/deactivate this function

When you access this option, enter the forwarding number (15 digits

maximum) at the phone prompt, and press the left soft key (Ok). The

phone will automatically make calling connections with the network and

will display the outgoing number

When the connection is successful, the phone will prompt you to listen to

the voice instruction. Listen carefully to determine whether Unconditional

call forwarding has been successfully activated and follow the voice

prompts

z The forwarding number cannot be left blank; otherwise Number Error

will be displayed

z The outgoing number displayed during the calling connection is

comprised of the activating access number preset by the service

provider, the forwarding number and “#”. This outgoing call will not be

recorded in the Dialed Log

Cancel

After you select this option, the phone will initiate a call to the network and

display the outgoing number

When the connection is successful, the phone will prompt you to listen to

the voice instruction. Listen carefully to determine whether Unconditional

call forwarding has been successfully deactivated and follow the voice

prompts

z The outgoing number displayed during the calling connection is the

deactivating access number preset by the service provider. This

outgoing call will not be recorded in the Dialed Log

4.4.11.2 No answer

ÆSettingsÆCall ForwardingÆNo answer

If you activate this function, when there is an incoming call that remains

unanswered for a period of time, the call will be forwarded to the specified

phone number. See “Unconditional” for details

4.4.11.3 Busy

ÆSettingsÆCall ForwardingÆBusy

If you activate this function, when another call comes in during a call, the

incoming call will be forwarded to the specified phone number. See

“Unconditional” for details

4.4.11.4 Unreachable

ÆSettingsÆCall ForwardingÆUnreachable

If you activate this function, when the phone is switched off or outside of

the service area range, incoming calls will be forwarded to the specified

phone number. See “Unconditional” for details

4.5 Tools

ÆTools

From this submenu, you can use the Calculator, view the Calendar or set

memos

4.5.1 Calculator

ÆToolsÆCalculator

This function enables you to add, subtract, multiply and divide

1. The screen will initially display the number “0”. Enter the first number to

be calculated

- To enter a minus sign, press (only the first number can be

made negative); to enter a decimal point, press

2. Press , , or to enter the plus, minus, multiplication

or division signs respectively

3. Enter the second number

- To enter “0”, press and ; “0.0” will be displayed

4. Press to display the calculation result

- To conduct further calculations from this result, repeat steps 2~4

5. When starting a new calculation, if the result from the last calculation is

not “0”, press the right soft key (Clear) to initialize

z To delete the character you just entered, press the right soft key

(Clear); to erase all entered characters, press and hold the right soft

key (Clear)

z A maximum of 9 digits (including minus sign and decimal point) can be

entered at one time

z If the formula violates mathematical principles (for example, 5/0),

Error will be displayed

z If the absolute value of the calculation result exceeds 999,999,999,

Overflow will be displayed

4.5.2 Calendar

ÆToolsÆCalendar

This function enables you to view the calendar (solar or lunar) from

January 1, 2000 to December 31, 2049

You can select from the following options:

4.5.2.1 Browse Date

z When you access this option, the solar calendar will be displayed with

the current date highlighted

z Press to highlight the desired date. Press the left soft key

(Lunar) to view the lunar year, month and day for the highlighted date

z To return to the solar calendar display, press the right soft key

(Exit)

4.5.2.2 Select Date

When you access this option, you can enter a date, and then press the left

soft key (Lunar) to view the lunar year, month and day for the date

4.5.3 Memo

ÆToolsÆMemo

The phone can store up to 10 memos. In standby mode, if the memo

prompt time expires, the memo animation will be displayed; the memo

alert will sound (if the memo alert tone is activated). Press the left soft key

(View) to see the memo details; press the right soft key (Exit)

to return to standby mode

After you access this option, the following will be available:

4.5.3.1 Edit

Select this option to set a memo. Observe the following steps:

1. Enter the memo contents (up to 18 Chinese characters or 36 English

letters), and then press the left soft key (Ok). Prompt Time will be

displayed

- The memo content cannot be empty; otherwise Empty will be

displayed when you press the left soft key (Ok)

2. Enter a date from 2000-01-01 to 2049-12-31, and then enter the time in

24-hour format. Press the left soft key (Ok). “Set Notice Tone?”

will be displayed

- When you key in the date or time, you can press to move the

cursor and modify the number

- The cursor will advance if the number entered is valid; otherwise,

the phone will sound an error tone (if the Keypad Tone is set to ON)

3. To activate the memo alert tone, press the left soft key (Yes); to

deactivate the memo alert tone, press the right soft key (No)

z If the memo memory is full, when you select this option, Memory Full

will be displayed

4.5.3.2 View

This option enables you to view the memos for the current date (Today’s

Memo) or all memos (All Memos)

After you select Toda y’s Memo or All Memos, press to browse

through the memos

While reading a memo, you can press to scroll through the memo

contents. To modify or delete the memo, press the left soft key

(Option), and then select Modify or Delete

4.5.3.3 Delete

You can select from the following options to delete memos one by one or

all at once

One By One

After you access this function, the oldest memo will be displayed. Press

to display the intended memo, and then press the left soft key

(Delete). “Delete?” will be displayed; press the left soft key (Yes) to

complete the deletion

All

When you access this option, the prompt Enter Code will be displayed.

Enter the security code, and press the left soft key (Ok). If the code

is correct, all memos will be deleted; otherwise Code Error will be

displayed

4.6 Game

ÆGame

There are 3 games available: Black-white Chess, Whammy, and BJK

4.6.1 Black-white Chess

ÆGameÆBlack-white Chess

The object of the game is to capture the rival’s pieces by surrounding

them horizontally, vertically or diagonally. The player with the most pieces

at the end wins

To move upwards, downwards, leftwards or rightwards, press , ,

or ( , , or respectively). To move diagonally,

press , , or respectively. To place a piece, press the

left soft key or .

After you access this option, the following will be available:

4.6.1.1 Start Game

The piece with a dot in the middle is the latest piece placed by your rival

(phone)

z To quit the game, press the right soft key

4.6.1.2 Set Level

Select Easy or Difficult to set the play level of the game

4.6.1.3 Set First

Select Player First or Player Second to determine who goes first with

black pieces

4.6.1.4 Set Chess Manual

From Chess Manual 1 ~ Chess Manual 10, select one as the beginning

array

4.6.1.5 Game Rule

Select this option to view the rules of the game. Press to scroll

though the rules

4.6.2 Whammy

ÆGameÆWhammy

Press keys ~ to hit the rat in the corresponding position. The

game is limited to 1 minute. Every time a rat is hit, one point is won. If your

score breaks the record, it will be saved as the top score

After you access this option, the following will be available:

4.6.2.1 Start Game

After accessing this option, press the left soft key to start the game.

The number displayed next to “S:” is the current score; the number below

“T: ” is the remaining time (in seconds)

z While playing the game, you may press the left soft key to pause.

To continue the game, press the left soft key again

z To quit the game, press the right soft key

4.6.2.2 Set Speed

Select Slow, Medium or Fast for the game speed

4.6.2.3 Game Score

This option enables you to view the top scores based on the different

speeds. For a speed that has not been selected, “--" will be displayed

4.6.2.4 Game Rule

Select this option to view the rules of the game. Press to scroll

though the rules

4.6.3 BJK

Æ GameÆBJK

The player with cards valued closer to 21 wins. If your value exceeds 21,

you lose

After you access this option, the following will be available:

4.6.3.1 Start Game

From this option, you can select Restart or Continue

Restart

Select this option to start a new game

After accessing this option, press to move the cursor to the desired

chips, and press the left soft key to start the game. Press , ,

or to hit, stand, insure or double

z The number behind BANKER refers to the holding of the banker; the

number behind PLAYER refers to the holdings of the player; the

number in the lower right corner refers to the player’s bet. The value of

player’s current cards is displayed above the player’s bet

z To quit the game, press the right soft key when the phone

prompts you to chip in

Continue

If you exited the last game before it was over (i.e. each side’s holdings did

not equal 0), this option will be displayed. You can select this option to

continue an unfinished game

4.6.3.2 Game Score

This option enables you to view the records, including Last Score (your

holdings when you quit the game last time) and High Score (the largest

amount of holdings gained)

4.6.3.3 Game Rule

Select this option to view the rules of the game. Press to scroll

though the rules

Data Transfer

5. DATA TRANSFER

You can transfer data between the phone and a computer by connecting

the phone to the computer via the DC 100 data cable. You can either

upload phone book data from the phone to the computer and edit it, or

download phone book data from the computer to the phone

See DC 100 Data Cable User Guide for details

Input Method

6. INPUT METHOD

This phone supports five input methods, including PinYin, Sim Stroke,

English, Letter and Digit in order to provide easy input for letters and digits

in text editing mode. In addition, when editing short messages, you can

choose to input punctuations, Emojis, common phrases, symbols or

animations

6.1 Switch Input Method

When you enter text-editing mode, the last active input method is

displayed. Press to switch between the input methods (see “Input

Method” under the Settings submenu for details) and digit input method.

The current input method indicator will be displayed at the lower left side

of the screen and include:

Input Method Indicator

PinYin

Sim Stroke

English

Letter

Digit

6.2 PinYin and Sim Stroke

These two input methods are only used for inputting Chinese characters

6.3 English

The phone supports intelligent English input and word association,

speeding up the input process

Input Method

Switch the input method to English; will be displayed at the lower

left corner of the screen

1. To enter letters, press ~ one time for the letters labeled on

the respective key; a word matching the input letters will be displayed

automatically

- When you enter the first letter of any English word, “*” will be

displayed (except and ). As you input letters, the phone

will automatically associate the matched English words

- If the letter input does not correspond with any English word in the

phone’s dictionary, this key press will have no response

- Press the right soft key (Clear) repeatedly to delete letters

from right to left

2. Select a word and change upper/lower case: If the word displayed is

not desired, press to scroll through other word alternatives. Press

to switch between upper and lower cases; press once to capitalize

the initial letter; press twice to capitalize all letters; press three times to

return letters to lower case

3. Enter the selected word: Press the left soft key (Ok) or to

confirm the selected word and to remove the underline; or press

to confirm the word and to add a space

- When no word is underlined, press to enter a space; press

to switch input methods; press to move the cursor; press

the right soft key (Clear) to delete the character to the left of

the cursor; press and hold the right soft key (Clear) to delete

all characters

4. Enter symbols: When no word is underlined, press to display the

symbol list. Press to highlight the intended symbol. Press the left

soft key to enter the selected symbol

Input Method

6.4 Letter

Switch to Letter input method; will be displayed at the lower left corner

of the screen

1. Press ~ to enter the corresponding letter labeled on the

respective key. To input a letter, press the corresponding key

repeatedly until the letter appears

For example: if you press repeatedly, the following letters

appear in turn:

- The letter just entered will be underlined. When the letter is

underlined, press to switch between upper and lower cases;

press the right soft key (Clear) to delete the letter

2. After you have entered the intended letter, press any other key on the

keypad to input the next letter. If the next letter and current letter share

the same key, press the left soft key (Ok) or to remove the

underline, and then enter the next letter; or simply wait for one second

to input again. Press to confirm the current letter input and enter a

space

3. Enter symbols and spaces: After the underline disappears, press

to display the symbol list. Press to highlight the intended symbol,

and then press the left soft key to enter the selected symbol.

Press to enter a space

4. When no letter is underlined, press to move the cursor; press the

right soft key (Clear) to delete the character to the left of the

cursor; press and hold the right soft key (Clear) to delete all

characters; press to switch input methods

Input Method

6.5 Digit

Switch to digit input method; will be displayed in the lower left corner

of the screen

To enter digits, press the corresponding number keys ~ . Press

to switch input methods

6.6 Input Methods in SMS

In addition to the above input methods, when editing short messages, you

can choose to input punctuation marks, Emojis, common phrases,

symbols or animations

When editing a short message, press to display the following options:

Punctuation, Emoji, Common Phrases, Symbols and Animation

If Punctuation, Emoji, Symbols or Animation is selected, press to

highlight the intended punctuation, Emoji, symbol or animation, and then

press the left soft key (Ok) to input

If Common Phrases is selected, press to highlight the desired

phrase category and press the left soft key (Ok). Press to

highlight the intended phrase and press the left soft key (Ok) to input

z After input, the phone automatically returns to its previous input

method

z Only one animation can be inserted into a short message and it will be

displayed at the beginning of the message. You cannot delete an

animation by pressing the right soft key (Clear). To delete an

animation, access the Animation option and select no

Troubleshooting

7. TROUBLESHOOTING

When using this phone, if you run into malfunctions, please refer to the

following troubleshooting techniques before requesting help:

Symptom Diagnosis Solution

Have you pressed

and held it for more than

2 seconds?

Press and hold for

more than 2 seconds

Is the battery connector

reversed?

Insert the connector

correctly

The phone

cannot be

switched on

Is the battery low? Charge the battery

Is the phone outside of

service area range? Is

there sufficient signal

strength?

Move to an area with

stronger signal

Is the keypad locked? Unlock the keypad

Cannot

make calls

Is the phone number

correct?

Enter the correct number

to make the call

No ring Is the ring mode of the

current profile set to

Vibrate or Mute?

Select different ring mode

or different profile

Is there an obstacle

nearby that is preventing

signals from passing?

Move to another area

Strong

interference

noise during

call; or call

interrupted Are you using the phone

while moving at high

speed?

Slow down or stop moving

during call

Troubleshooting

Symptom Diagnosis Solution

Is the charger properly

connected to the

phone?

Connect the charger and

phone correctly

The battery

cannot be

charged

(The battery

indicator

bar does

not scroll)

Is the charger

connected to a

100~240V AC wall

outlet?

Connect the charger to a

100~240V AC wall outlet

correctly

If the malfunction symptoms are not listed in the above table, or the

corresponding solution is invalid, please contact your local UTStarcom

Customer Service Center.

For Technical Support and Assistance please visit the UTStarcom website

at:

http://www.utstar.com

Select “Support” and be directed to the Toll Free number of the

UTStarcom International Professional Service Regional Center that

serves your area.

Or you can call the UTStarcom North America Professional Service

organization at 1-(866) 663-3266.

China

Building 3,

Yile Industrial Park

No. 129, Wenyi Road,

Hangzhou 310012 PRC

+86-21-63910500

India

805 Signature Towers B,

South City I

Gurgaon,

Haryana 122001

+91-124-2805045

Japan

TT-2 Building 8th Floor,

3-8-1 Nihonbashi

Ningyo-cho, Chuo-ku, Tokyo,

Japan

+81-3-5643-8070

Europe

Campus Kronberg 7,

61476 Kronberg

Germany

+49-6173-946-3461

Latin America

2801 SW 149th Ave

Suite 100

Miramar, FL 33027, USA

954-447-3077

UTStarcom, Inc. USA

1275 Harbor Bay Parkway Alameda, CA 94502, USA

Tel. 510-864-8800 Fax. 510-864-8802

May not be reproduced without prior written permission.

UTStarcom Korea Technologies UT106 PCS Licensed Transmitter held to ear User Manual CERTIFICATE OF COMPLIANCE

UTStarcom Korea Technologies Ltd. PCS Licensed Transmitter held to ear CERTIFICATE OF COMPLIANCE

Manual revised

Navigation menu

Namespaces

Views

Navigation
